Kenwood Excelon KFC-X1730P Component Speakers – Toyota Camry

Kenwood KFC-X1730P Component Speakers Toyota Camry
Kenwood KFC-X1730P Component Speakers Toyota Camry

Kenwood Excelon KFC-X1730P Component Speakers

Toyota Camry Kenwood Excelon KFC-X1730P Component Speakers

To install Kenwood Excelon KFC-X1730P Component Speakers into your Toyota Camry, you will want to use tacotunes.com speaker adapters designed to work in your Camry. The Kenwood Excelon KFC-X1730P Component Speakers require a 5.1″ cutout diameter for the mid range speakers. The Kenwood Excelon KFC-X1730P Component Speakers tweeters will require a 1.77″ cutout diameter.

Click HERE to check out our audio products for your Toyota Camry


The Kenwood Excelon KFC-X1730P Component Speakers will fit you your Toyota Camry without any cutting, drilling or modifications to your Camry.

Summary:

Mid range Driver: 5.1″ cutout diameter

Tweeter: 1.77″ cutout diameter

Top Mount Depth: 2.3 ″

Kenwood KFC-X1730P Component Speakers Toyota Camry


The KFC-X1730P features a new advanced speaker cone material and design that delivers the richest high, mid and low frequencies with minimal distortion.
A new hybrid fiber diaphragm material that combines glass fiber and heat resistant Nomex material is utililzed for the speaker cone to provide a purer, cleaner sound across mid and low frequencies.
A silk dome tweeter delivers a smooth, wide range of high frequencies.
The KFC-X1730P also features a newly designed magnetic circuit that uses less steel, resulting in less distortion compared to a conventional circuit.
Additional Features:
4 Ohm Drive
330 Watts Max Power
3 Point Tweeter Attentuation
Zobel Network Circuit
Counter Drive Magnetic Circuit
Image Enhancer 4
Diamond Array Pattern Diaphragm Yes
Woofer
– Woofer Size 6-1/2 in (oversized 160mm)
– Woofer Diaphragm Carbon Glass Fiber Nomex Hybrid Cone
– Surround Rubber
– Basket Steel (Black)
– Magnet Ferrite
Mid-Range
– Mid-Range Size
– Mid-Range Diaphragm
Tweeter
– Tweeter Size 1 in (25mm)
– Tweeter Diaphragm Soft Dome
Super Tweeter
– Size
– Diaphragm
Dimensions (without grill)
– Width 6-1/4 in (158mm)
– Height 6-1/4 in (158mm)
– Depth 2-13/16 in (70.8mm)
– Mounting Depth 2-5/16 in (58mm)
Warranty 2-Year





Posted on

Rockford Fosgate Prime R165-S Component Speakers – Toyota Camry

Rockford Fosgate Prime R165-S Component Speakers Toyota Camry
Rockford Fosgate Prime R165-S Component Speakers Toyota Camry

Rockford Fosgate Prime R165-S Component Speakers

Toyota Camry Rockford Fosgate Prime R165-S Component Speakers

To install Rockford Fosgate Prime R165-S Component Speakers into your Toyota Camry, you will want to use tacotunes.com speaker adapters designed to work in your Camry. The Rockford Fosgate Prime R165-S Component Speakers require a 5.1″ cutout diameter for the mid range speakers. The Rockford Fosgate Prime R165-S Component Speakers tweeters will require a 1.83″ cutout diameter.

Click HERE to check out our audio products for your Toyota Camry



The Rockford Fosgate Prime R165-S Component Speakers will fit you your Toyota Camry without any cutting, drilling or modifications to your Camry.

Summary:

Mid range Driver: 5.1″ cutout diameter

Tweeter: 1.83″ cutout diameter

Top Mount Depth: 2.1 ″

Rockford Fosgate Prime R165-S Component Speaker Manual Toyota Camry


The P165-S is a 6.5″ 2-way component system with 1″ soft dome tweeters and is rated at 60 watts RMS. The system includes a pair of tweeters, two woofers with grilles, integrated crossovers, and mounting hardware.

  • FlexFit basket design
  • ICC (Integrated Concealed Crossover)
  • PEI dome tweeter
  • Recessed tweeter mount uses standard 1-3/4″ hole saw
  • Butyl rubber surround
  • Mineral-filled & polypropylene injection molded cone
  • 1 Year Standard Warranty
Configuration: Component System

Midrange Diameter (in): 6.5″

Midrange Depth (in): 1.93″ (49mm)

Tweeter Diameter (in): 1.0″ (25.4mm)

Tweeter Depth (in): 0.50″ (13mm)

Frequency Response: 60Hz – 22kHz

Nominal Impedance: 4-Ohm

Power Handling (RMS): 60 Watts RMS 120 Watts MAX

Crossover: Tweeter crossover built into midrange basket 12dB/octave

Sensitivity (dB @ 1 watt/1 meter): 87.2

Grilles Included: Yes

Mounting Hardware: Yes

Shipping Weight:





Posted on

2015 Toyota Camry stereo overview and complete audio upgrade speakers tweeters and subwoofer installation – Toyota Camry

2015 Toyota Camry stereo overview and complete audio upgrade speakers tweeters and subwoofer installation

These instructions will work on 2012 2013 2014 2015 2016 Toyota Camry’s with the base audio package. These instructions nor the products used in the installation process are designed to work with Toyota Camry’s equipped with Toyota’s OEM JBL upgraded audio system.

Toyota Camry Complete Audio Upgrade
Toyota Camry Complete Audio Upgrade

Click HERE to check out our audio products for your Toyota Camry



Below you will find detailed instructions on  how to install / upgrade your stock speakers & tweeters. We will take you through a complete audio upgrade of this 2015 Toyota Camry LE. WE will also be adding amplifiers to the stock head unit (stereo) using our Plug & Play amplifiers designed for your Toyota Camry.

Front Door Speaker Upgrade:

We installed Image Dynamics CTX65CS / ID65CS component speakers.

Dash Tweeter Upgrade

We installed the Image Dyanmics CTX65CS / ID65CS Tweeters in the dash location

Rear Speaker Upgrade:

We installed Image Dynamics 6×9 CTX69 Coaxial speakers

Subwoofer Upgrade:

Installed 2 10″ Image Dynamics ID10v4 Dual Voice Coil subwoofers in a ported down-fire subwoofer box.

Head Unit Power Upgrade:

We installed tacotunes.com plug and play 4 channel amplifier for the door / rear speakers AND 1 channel (mon0) subwoofer amplifier.

Stock Stereo System Overview:

This vehicle came equipped with six speakers and (two front door speakers, two rear door speakers & two in dash speakers / tweeters)

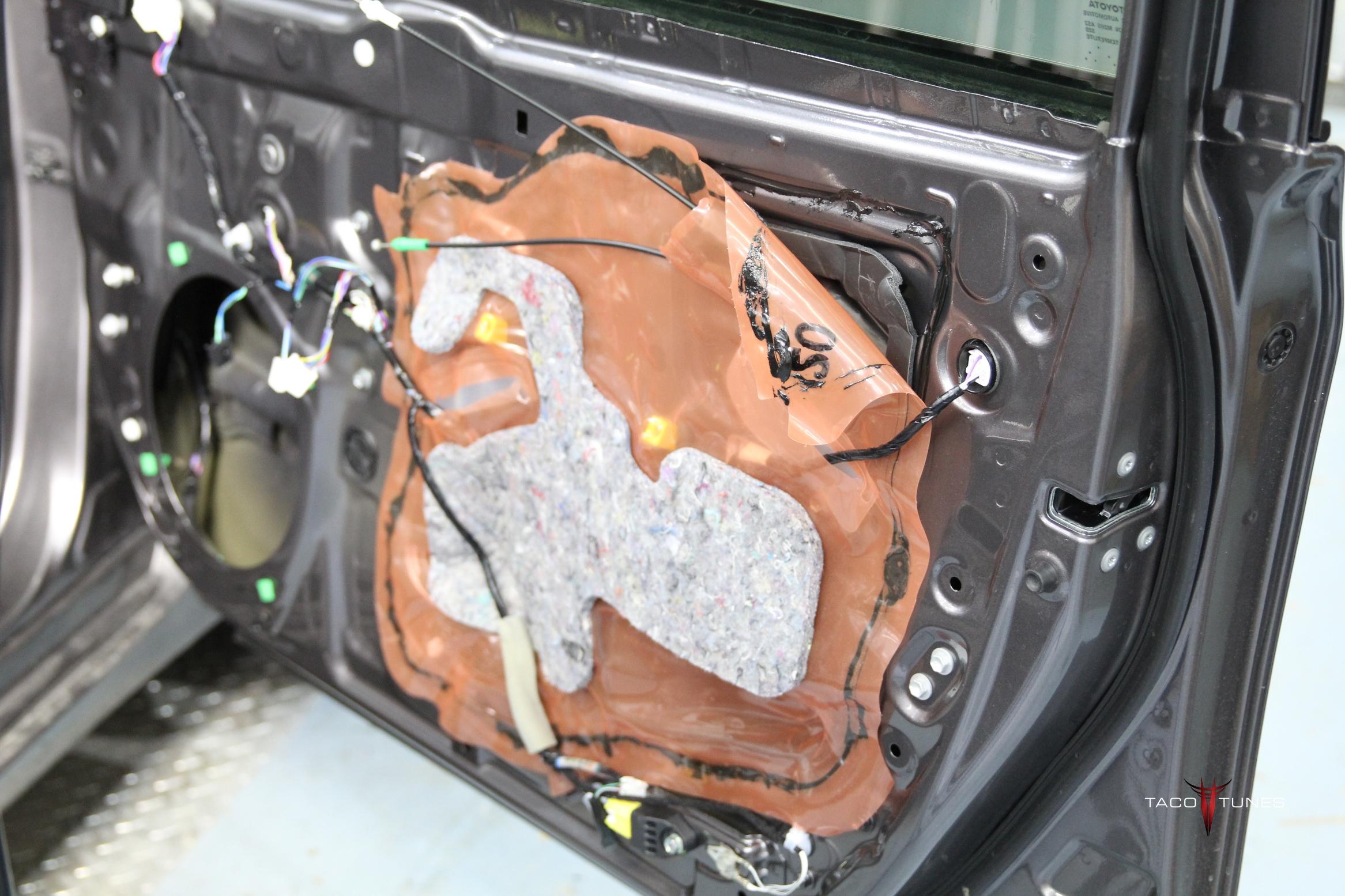

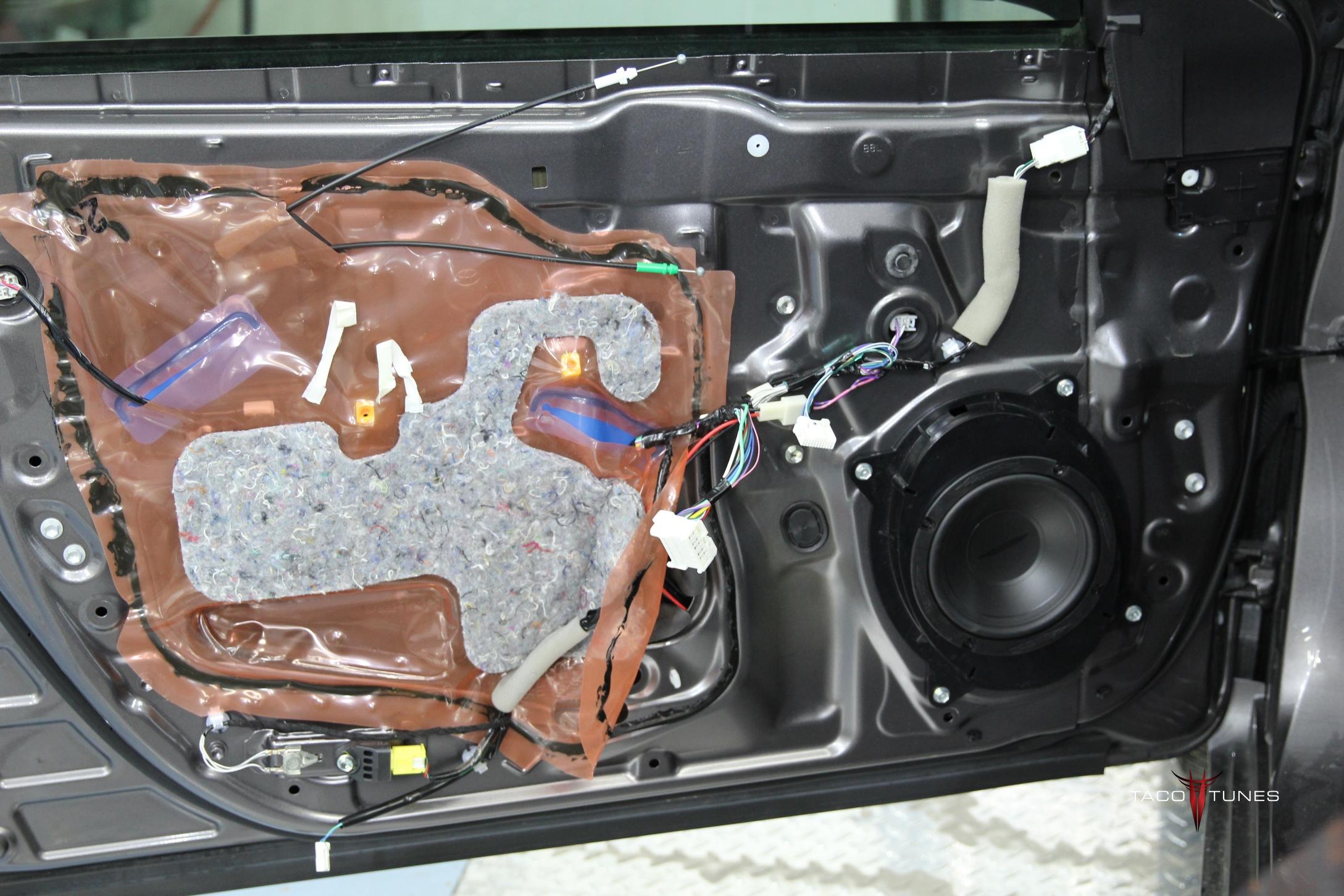

Stock OEM Front Door Speaker Picture:

Right / Left Front Stock Speakers:
Manufacturer: Toyota
Part Number: 86160-06390
Part: FRONT DR SPEAKER, RIGHT
Part Notes: W/O JBL AUDIO



Stock OEM Rear Tray Dash Speakers:

Manufacturer: Toyota
Part Number: 86160-06450
Part: PKG TRAY SPEAKER
Part Notes: W/O JBL AUDIO

Stock OEM Tweeter Picture:

Manufacturer: Toyota
Part Number: 86160-06380
Part: TWEETER
Part Notes: W/O JBL AUDIO

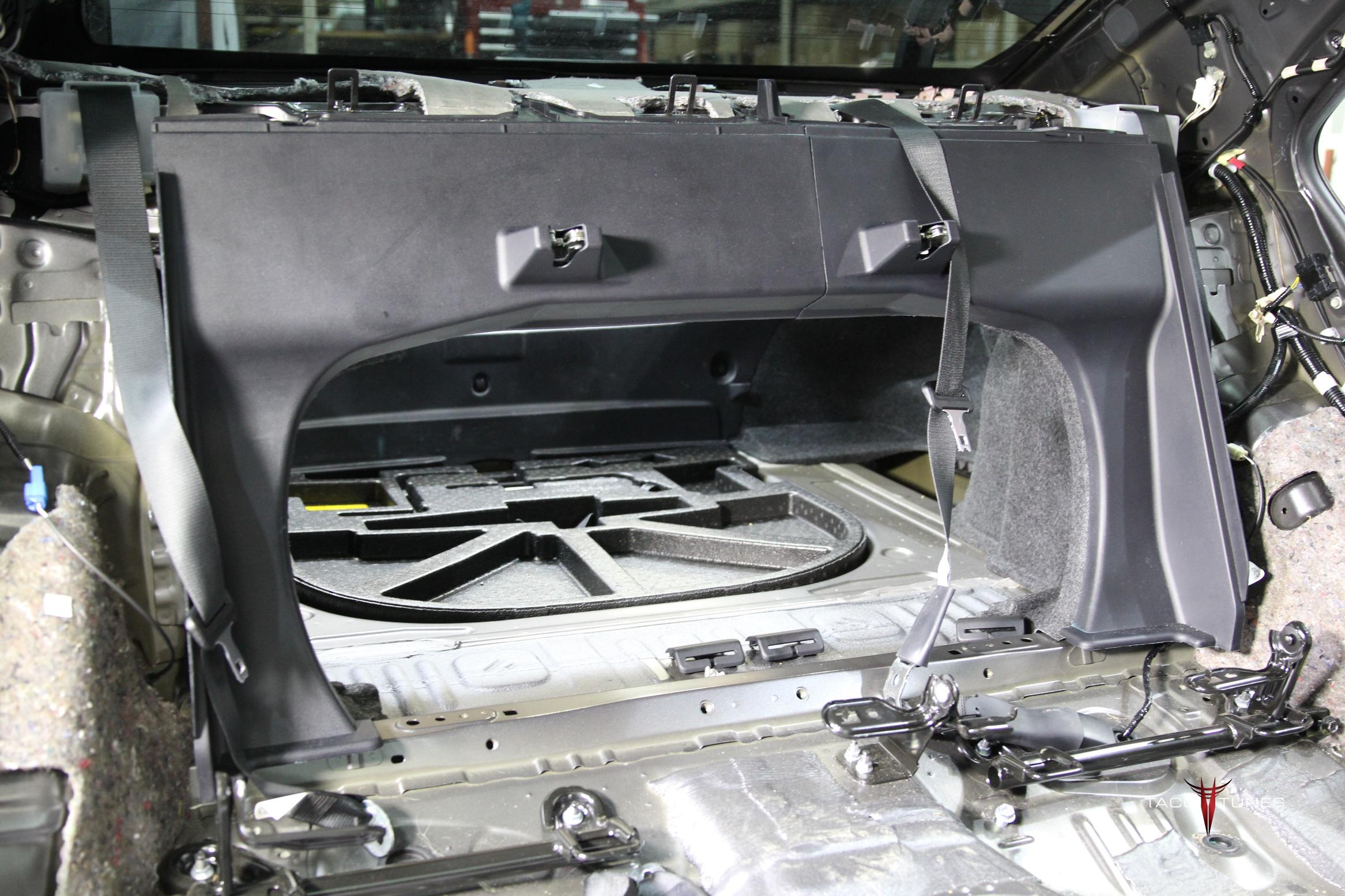

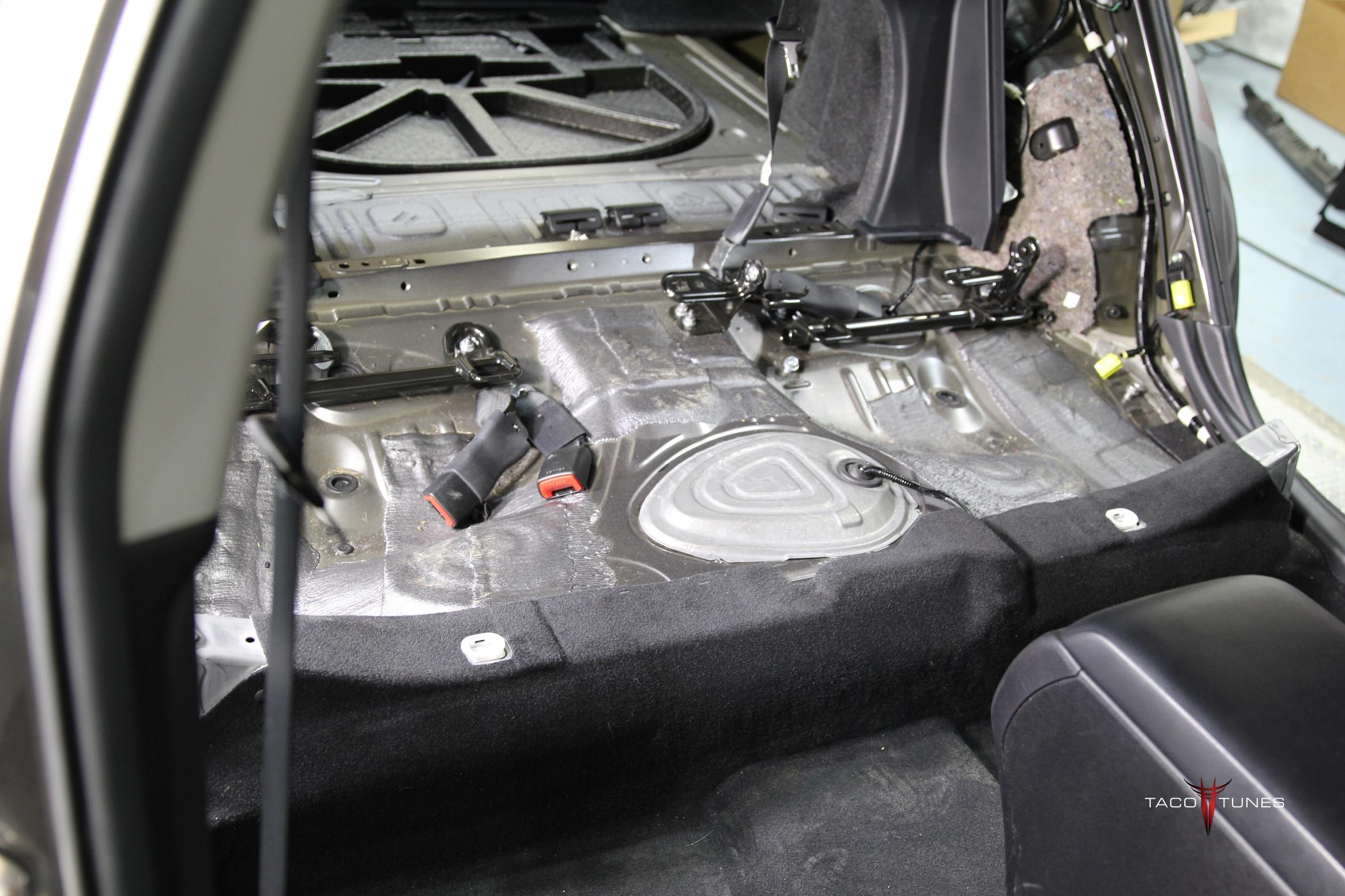

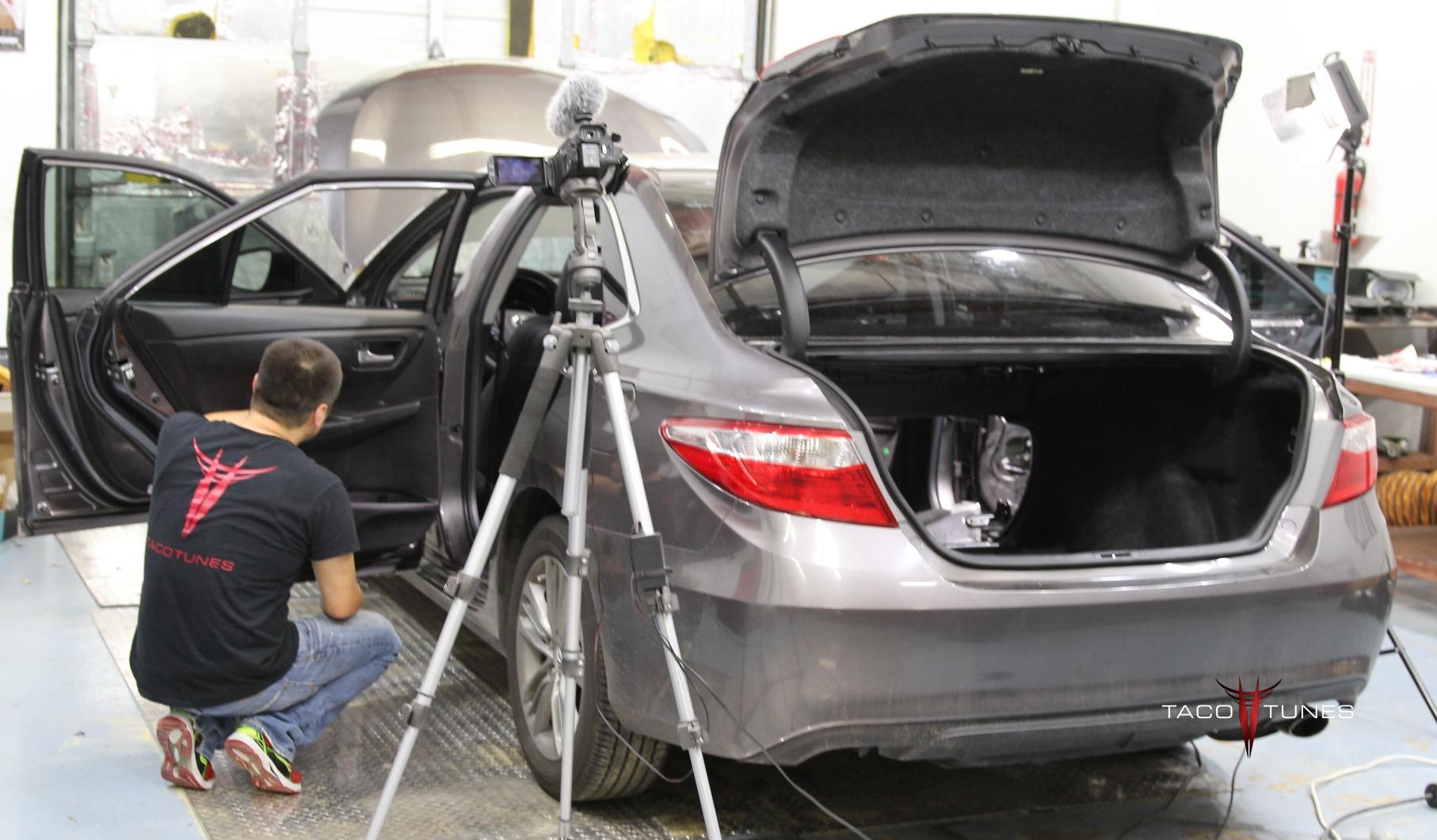

Some Installation Pictures:
