2018 Toyota Tundra CrewMax System 1B plug and play audio system upgrade

2018 Toyota Tundra CrewMax System 1B plug and play audio system upgrade

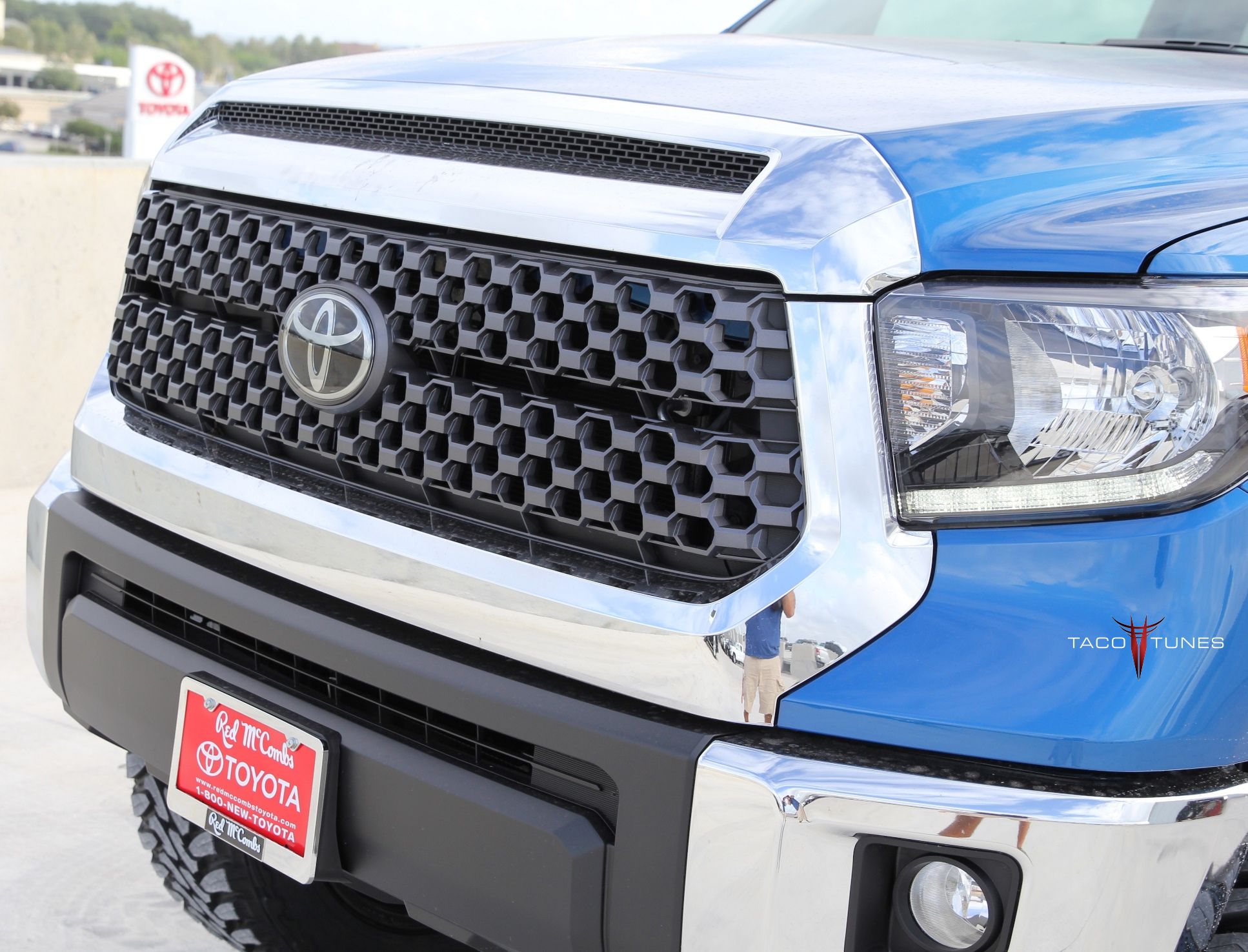

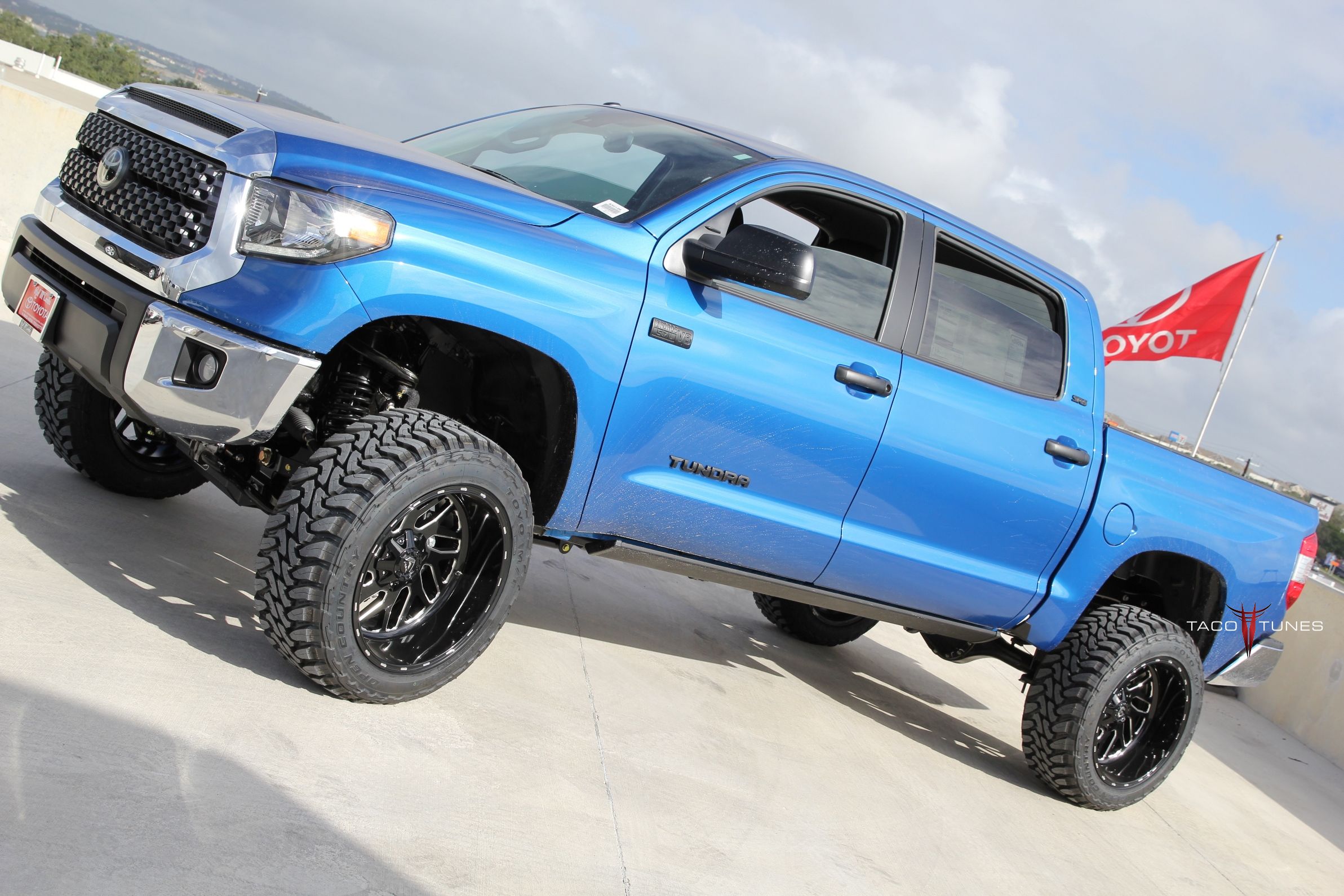

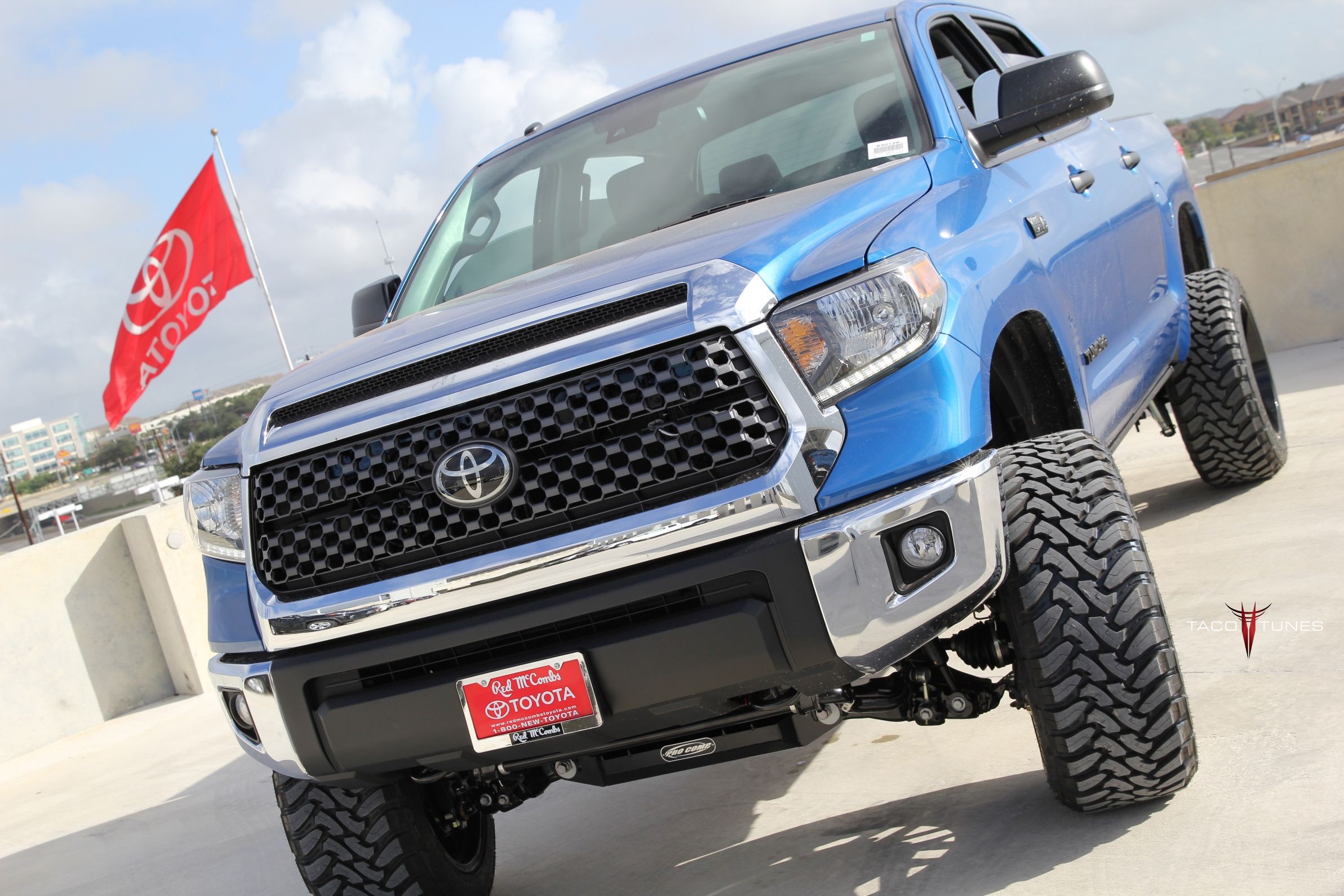

This is a brand new Toyota Tundra from a local Toyota dealership here in San Antonio

Installation Summary / History: Red McCombs is a local Toyota dealer here in San Antonio. We have installed our System 1B in many of their Toyota Tundras before they are listed for sale.  This truck is roughly ur 575th Toyota Tundra audio upgrade we have done here in San Antonio! We now have over 20,000 Tundra customers around the globe!

Our plug and play amps provide amazing clarity and tons of power.

Customer Name: Red McCombs Toyota

Toyota Year / Model: 2018 Toyota Tundra CM

Head Unit: NON JBL

Color: Calvary Blue

Installed by: tacotunes.com

System Installed: System 1B

System Install Completed: October 8, 2017



Below you will find a detailed listing of all the parts we used in the installation.

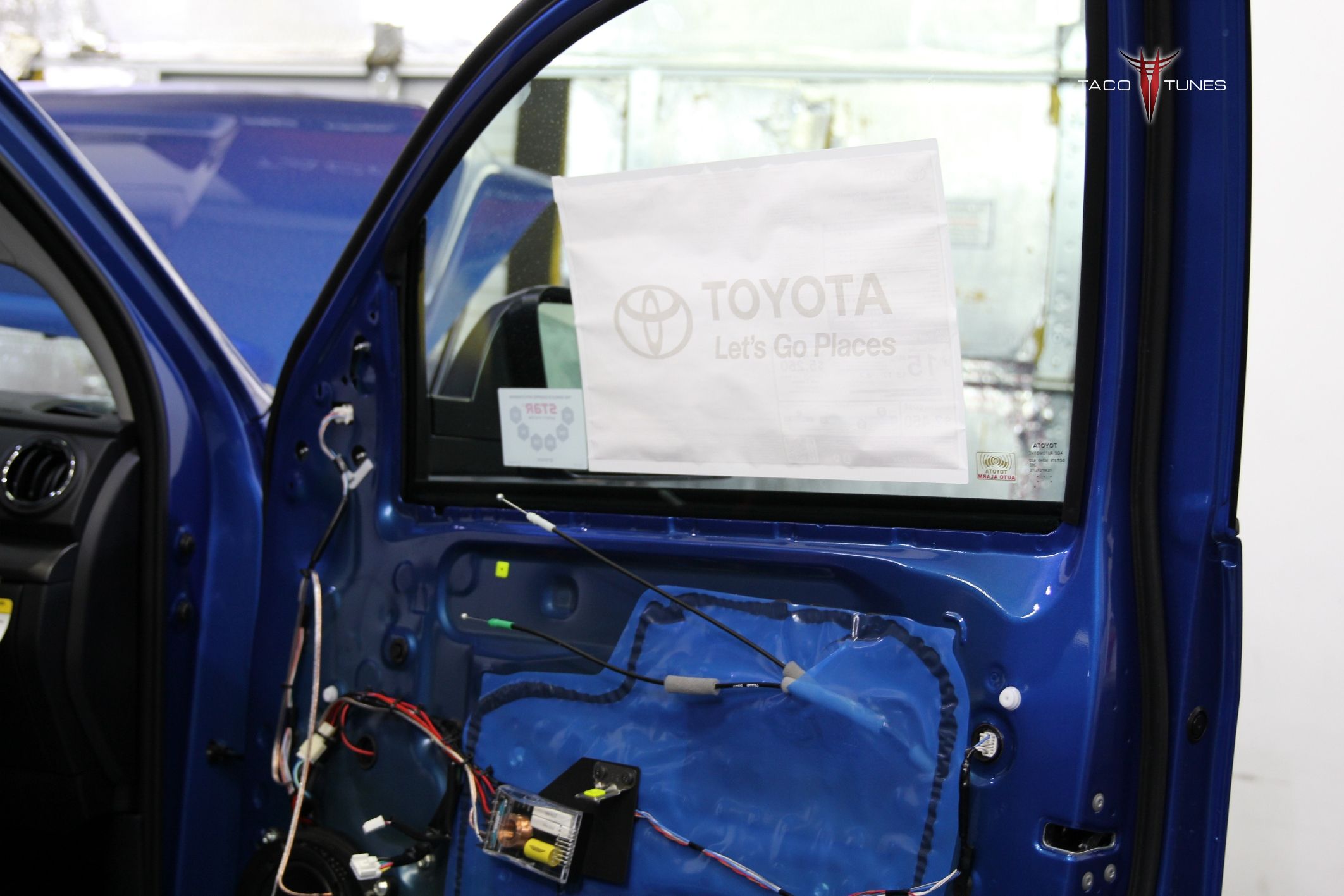

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Brian’s Tundra CrewMax

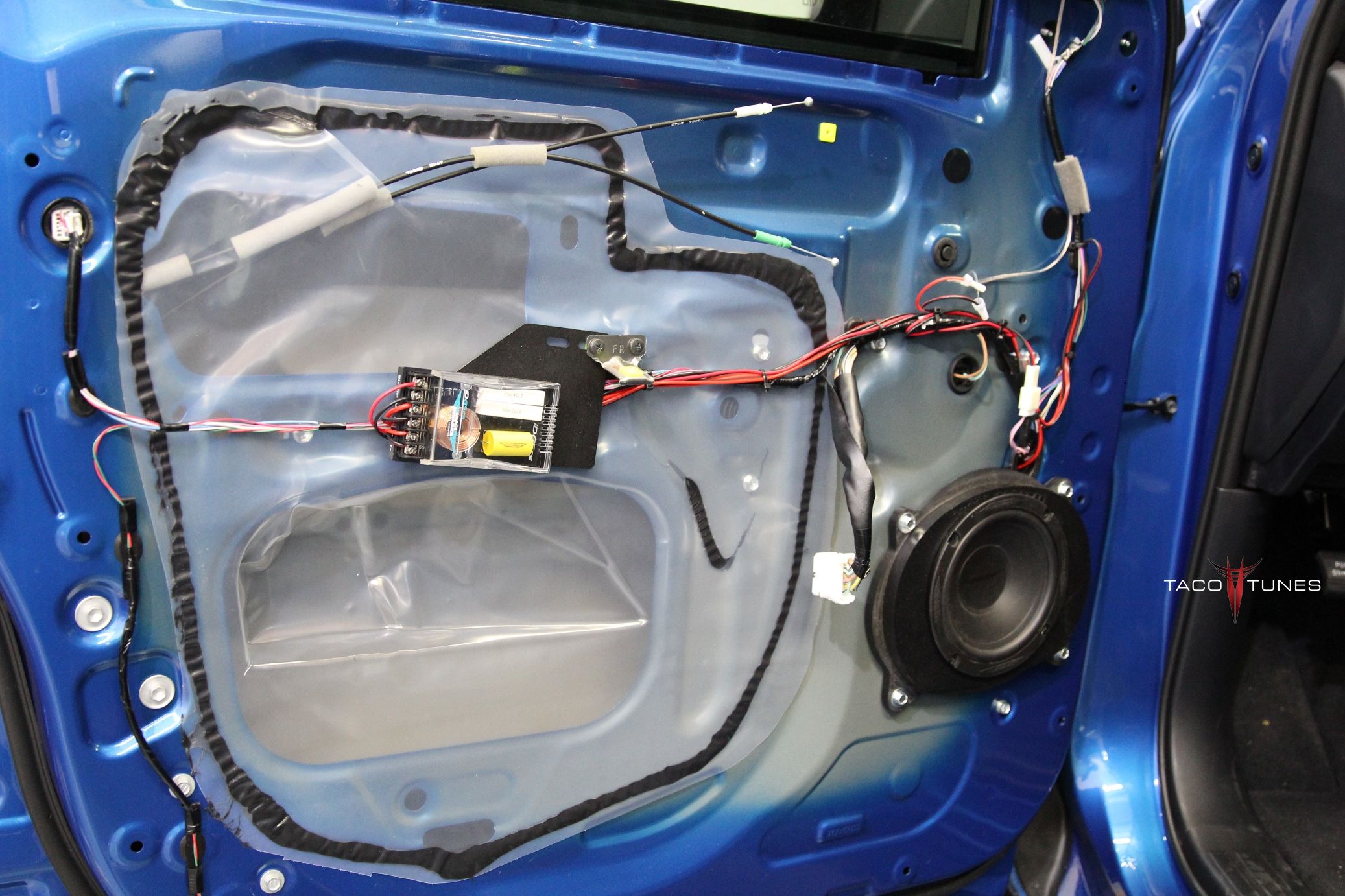

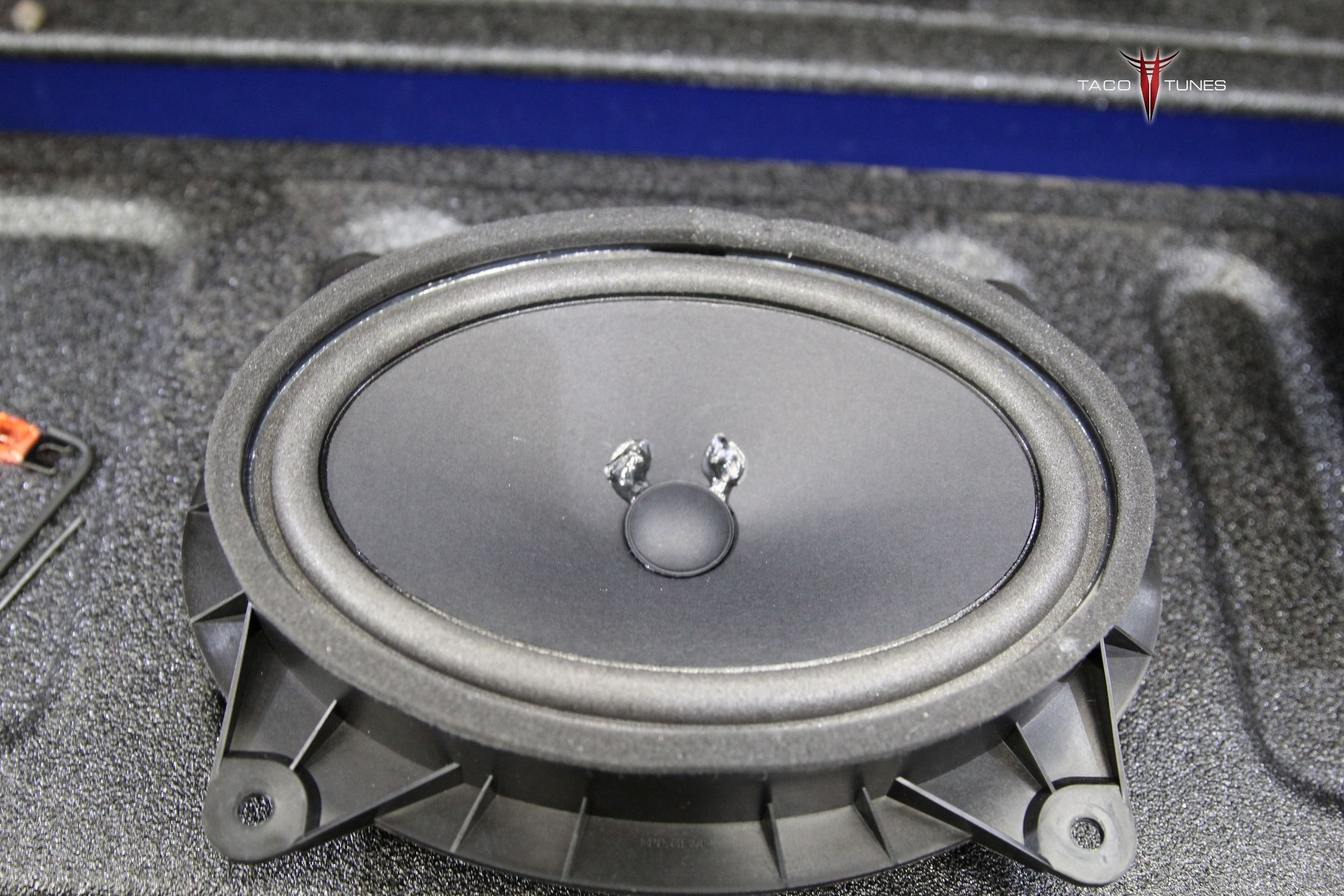

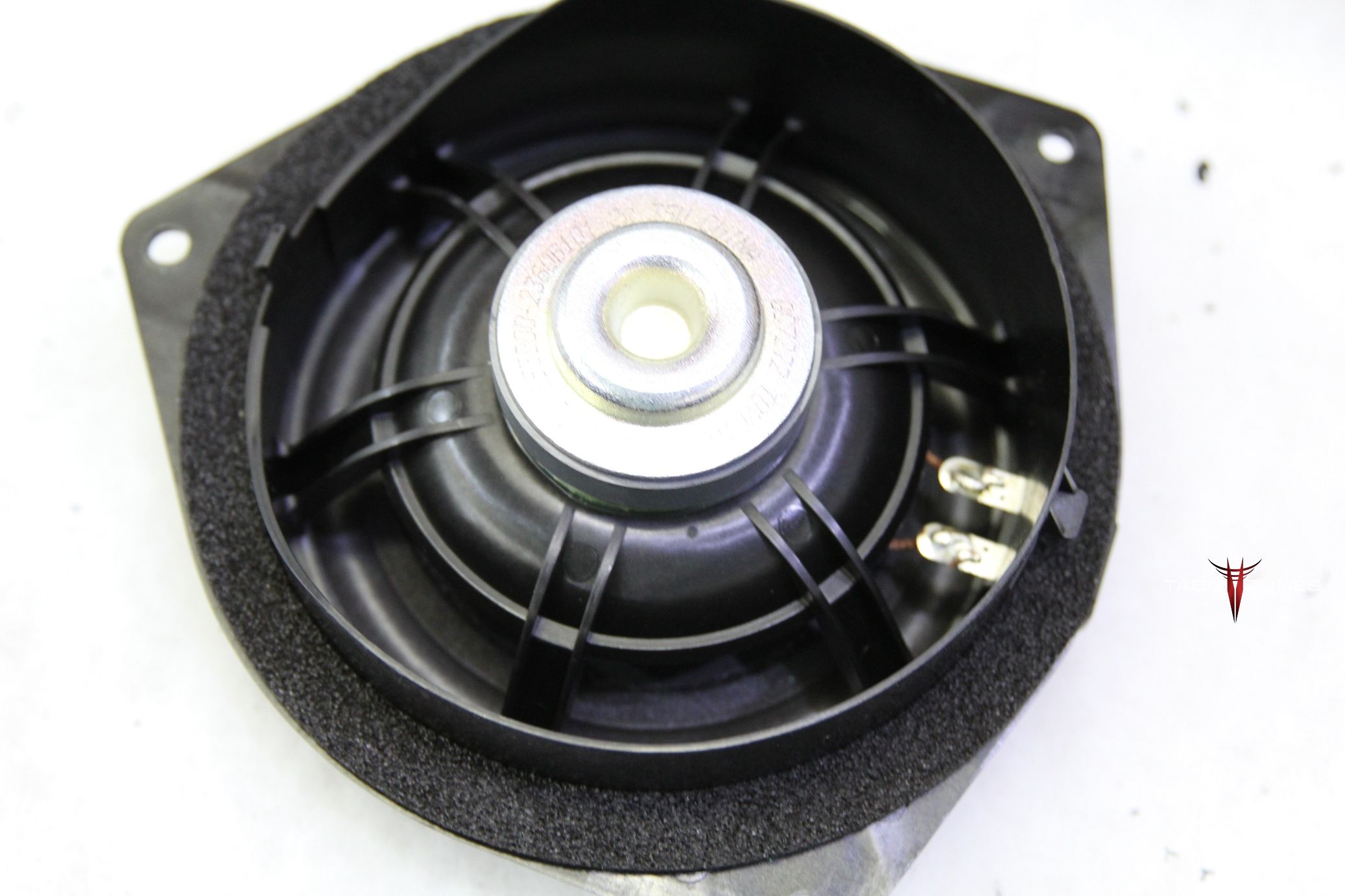

Front Door Component Speakers:

Image Dynamics CTX65CS/ID65CS

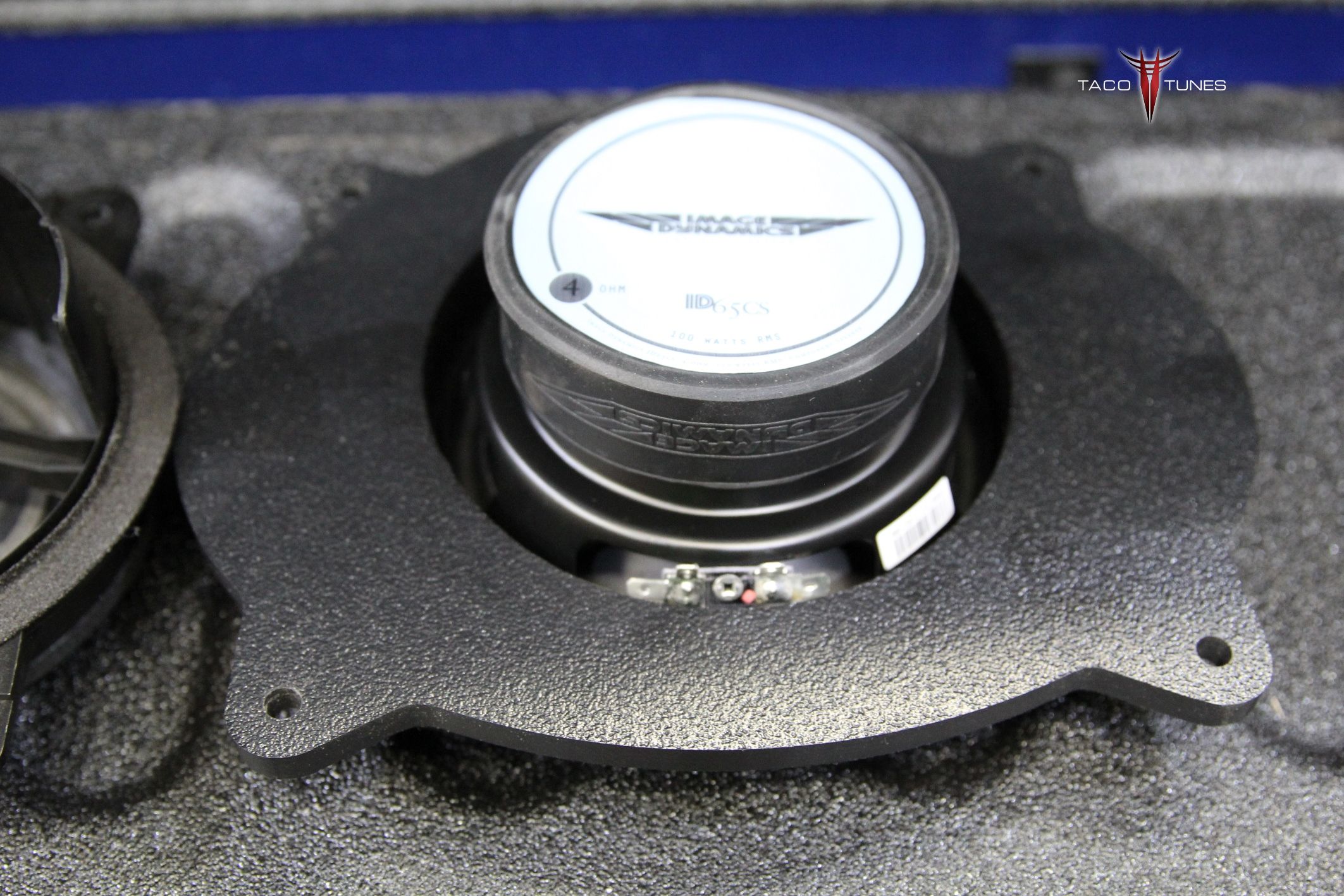

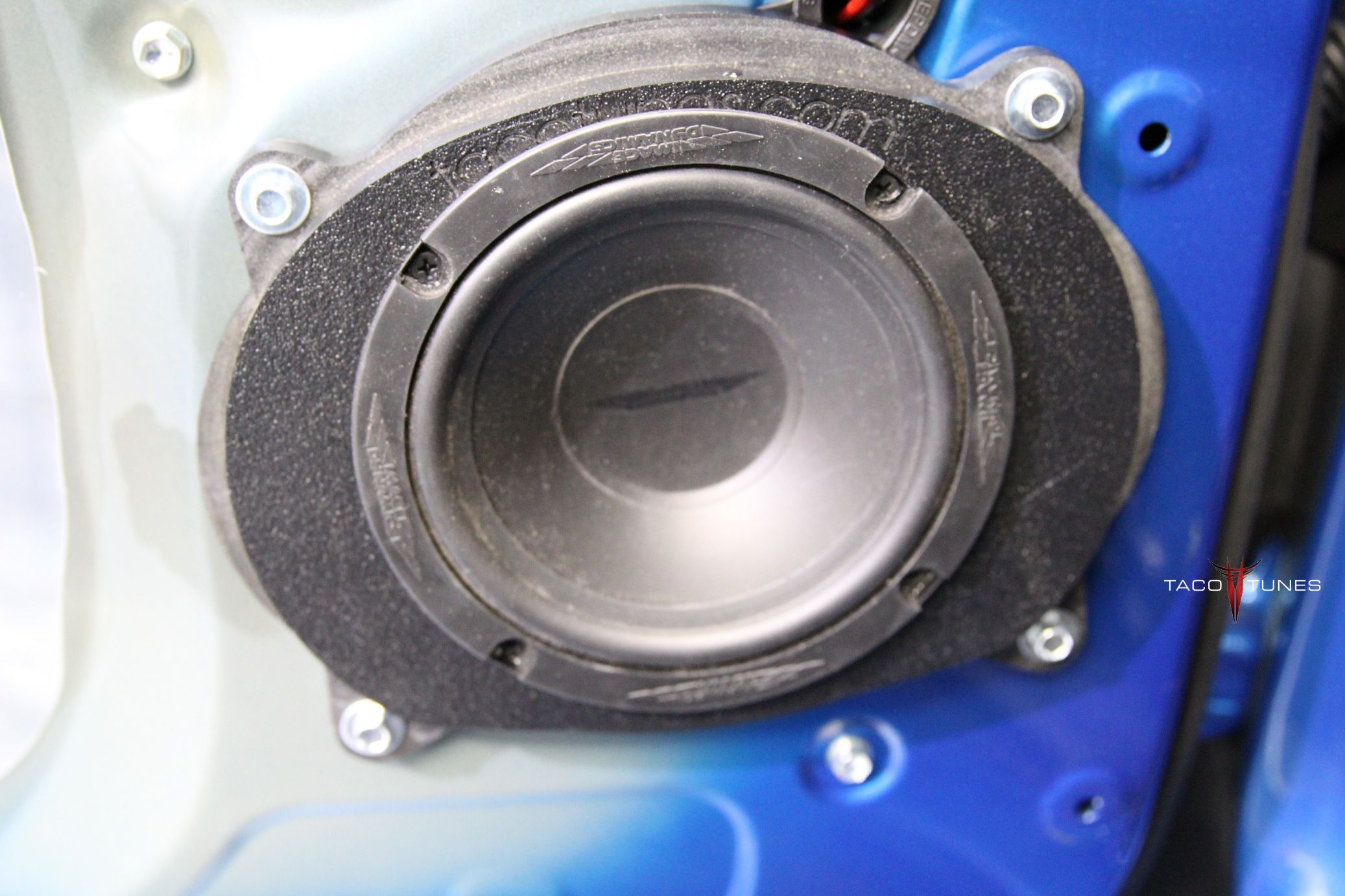

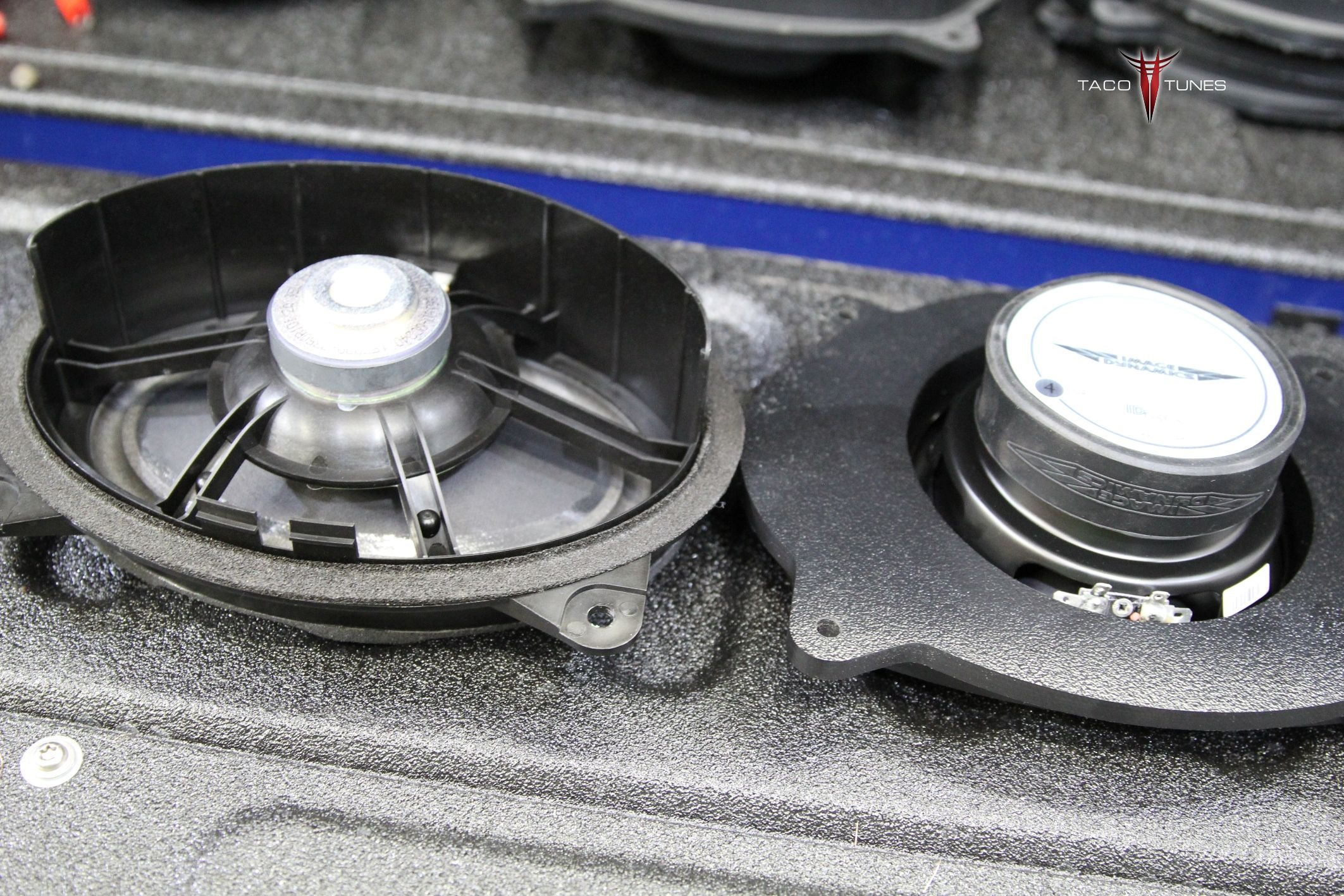

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTXCS Mid bass Drivers -100 Watts RMS

CTXCS Crossover

CTXCS Tweeter

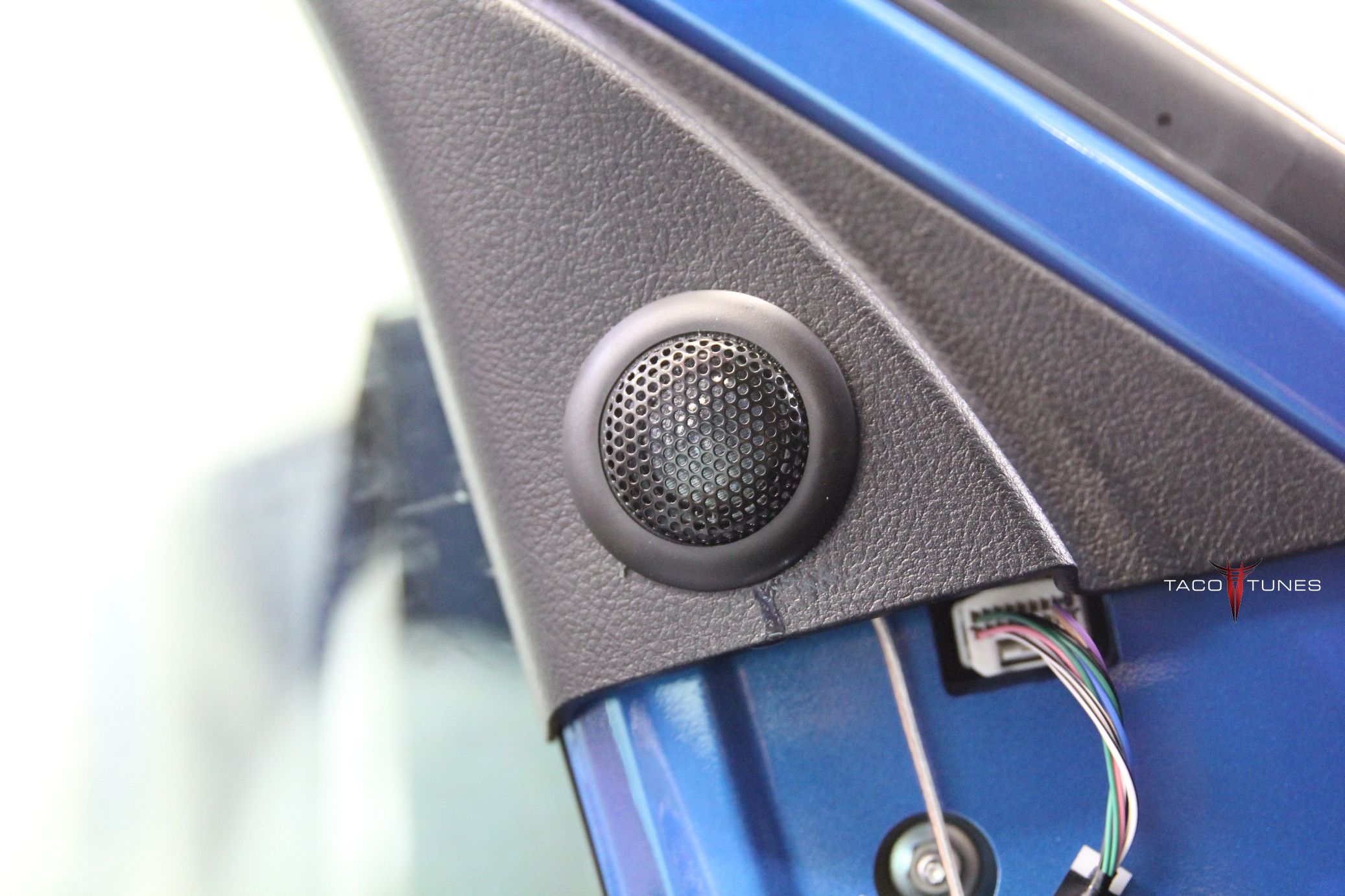

Use Stock Sail Panel for Tweeter mounts.

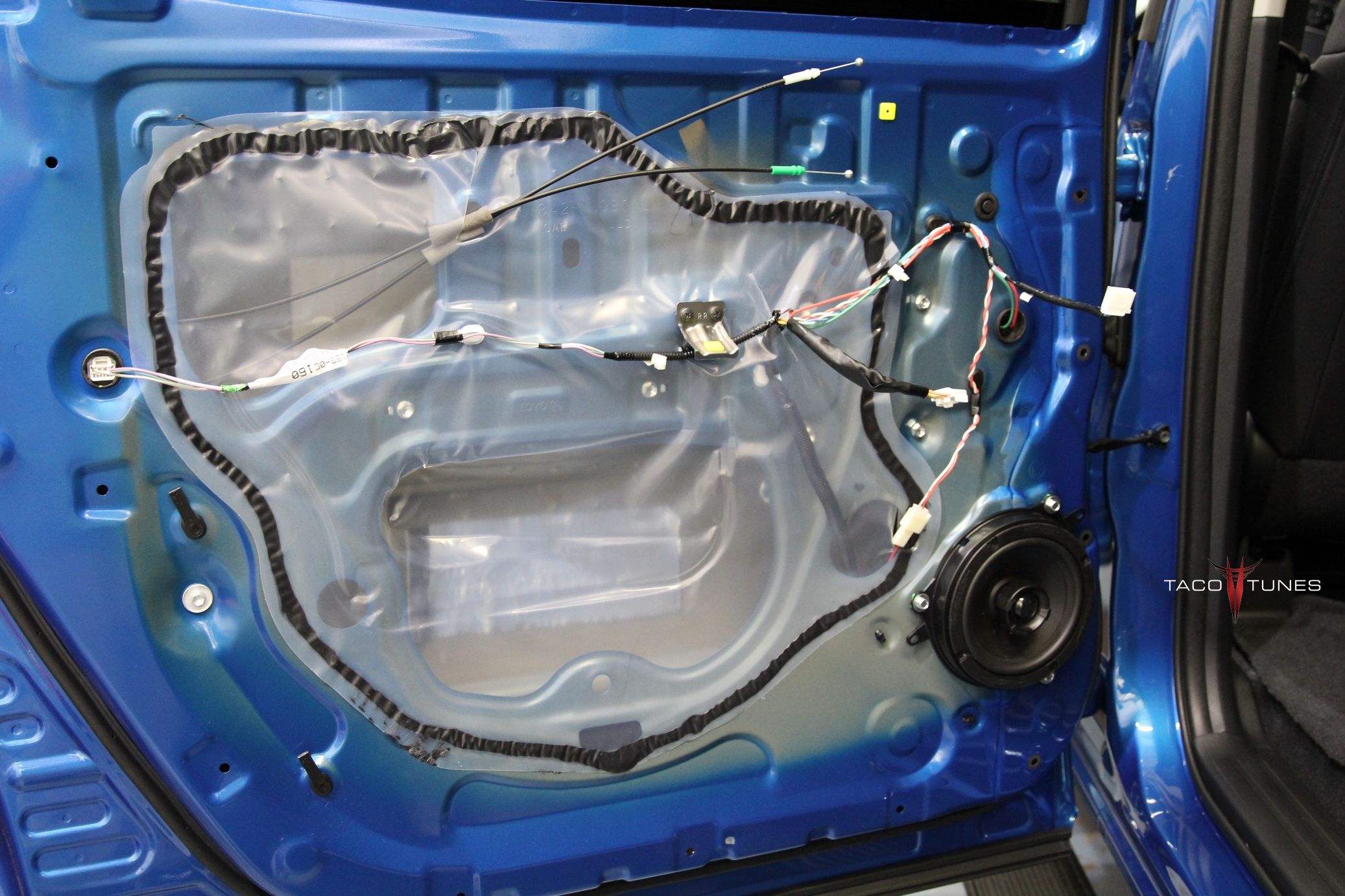

Rear Door Components:

Image Dynamics CTX65CS or ID65

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

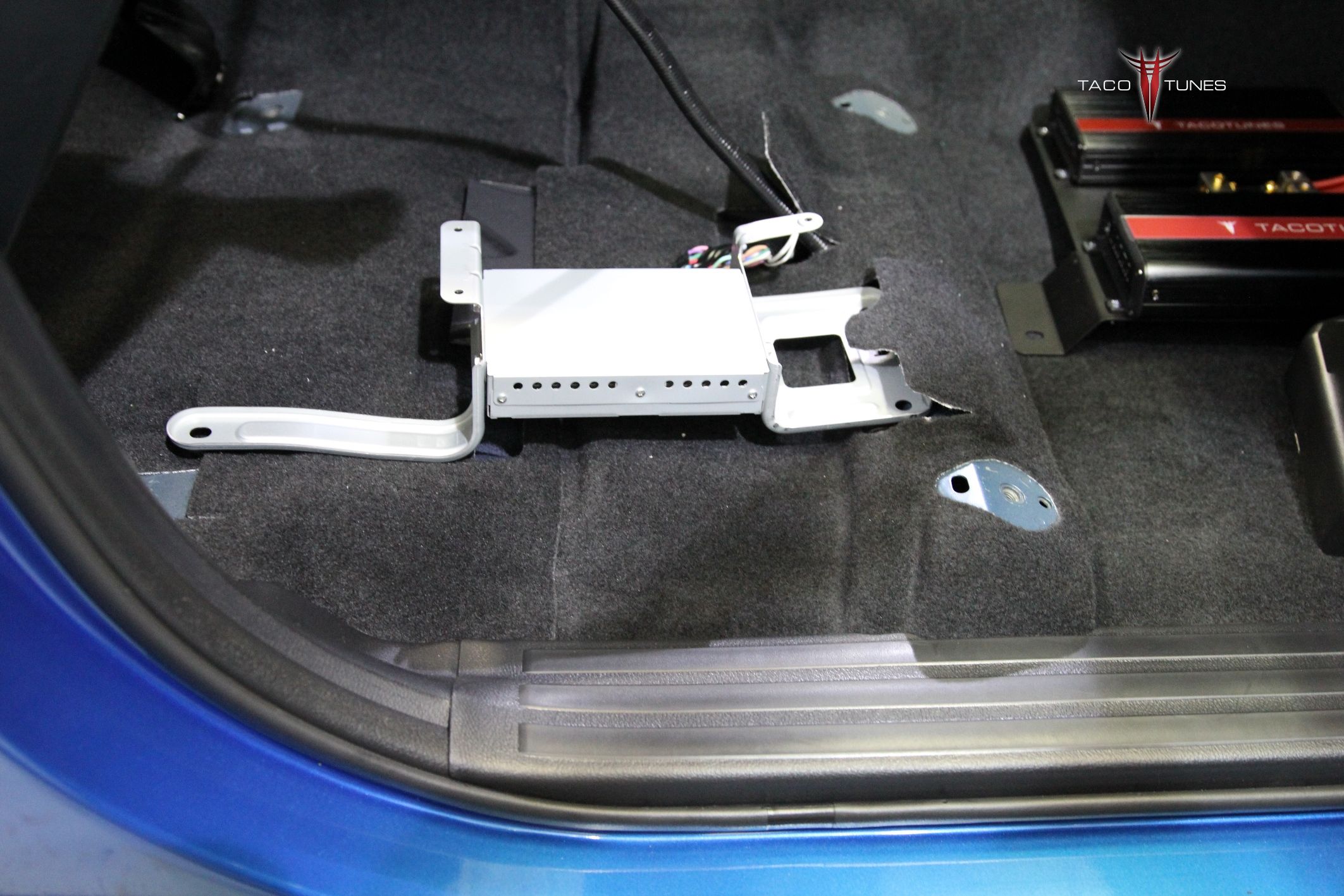

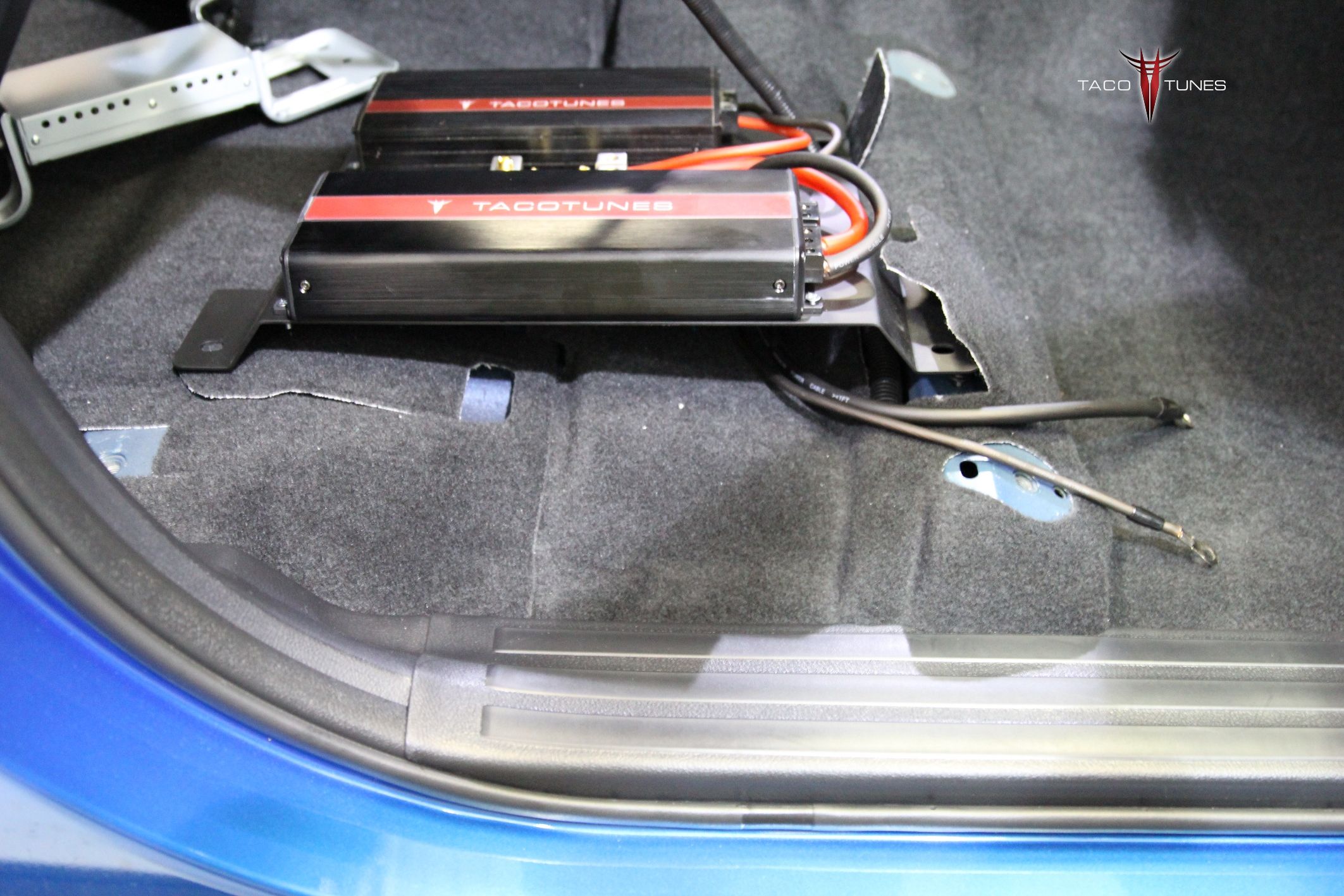

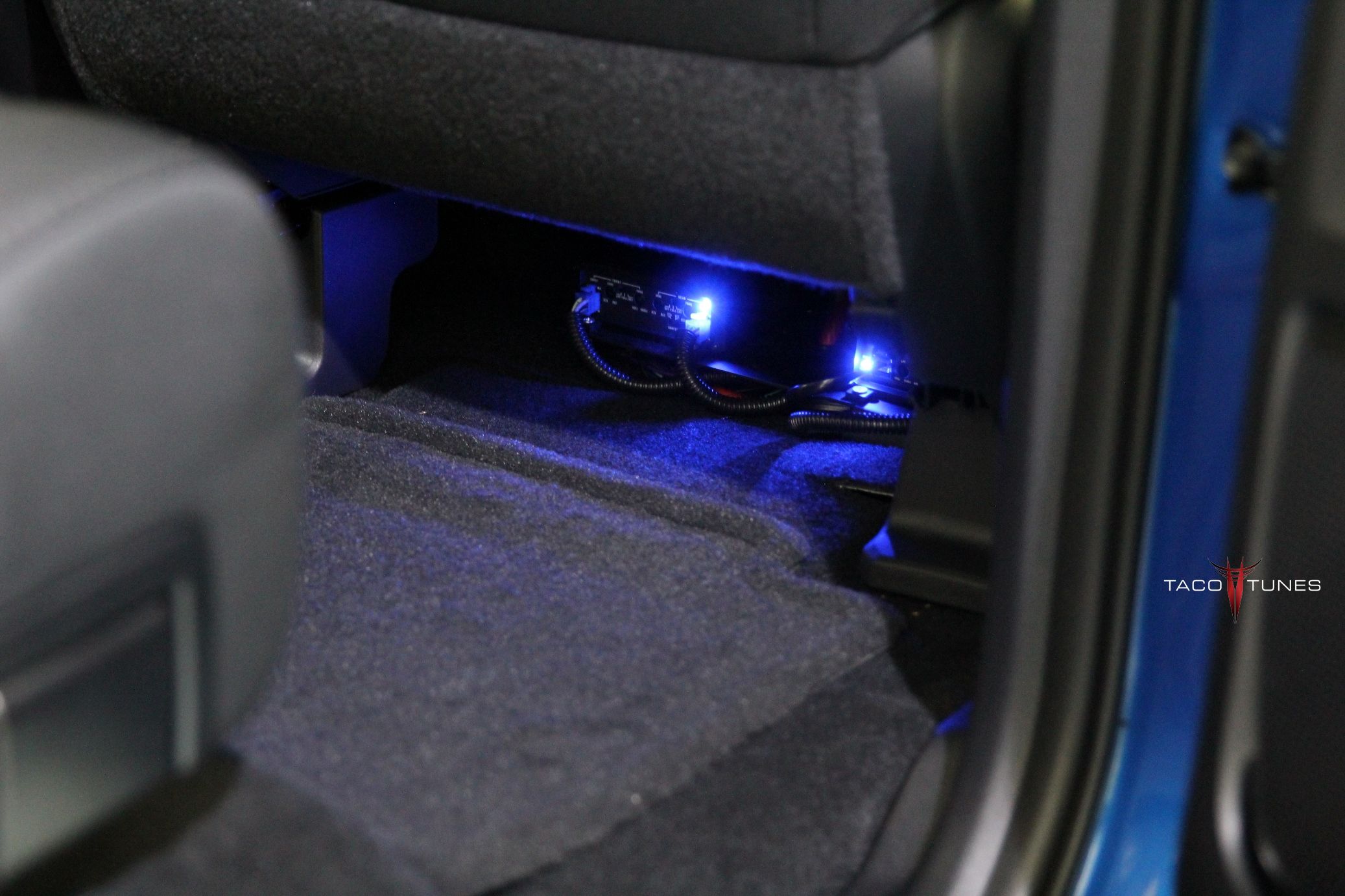

Amp:

tacotunes.com TXD3204v2 Four channel amplifier

tacotunes.com TXD10001 Mono subwoofer amplifier

100 watts x 4 to each speaker and 800 x 1 (subwoofers)

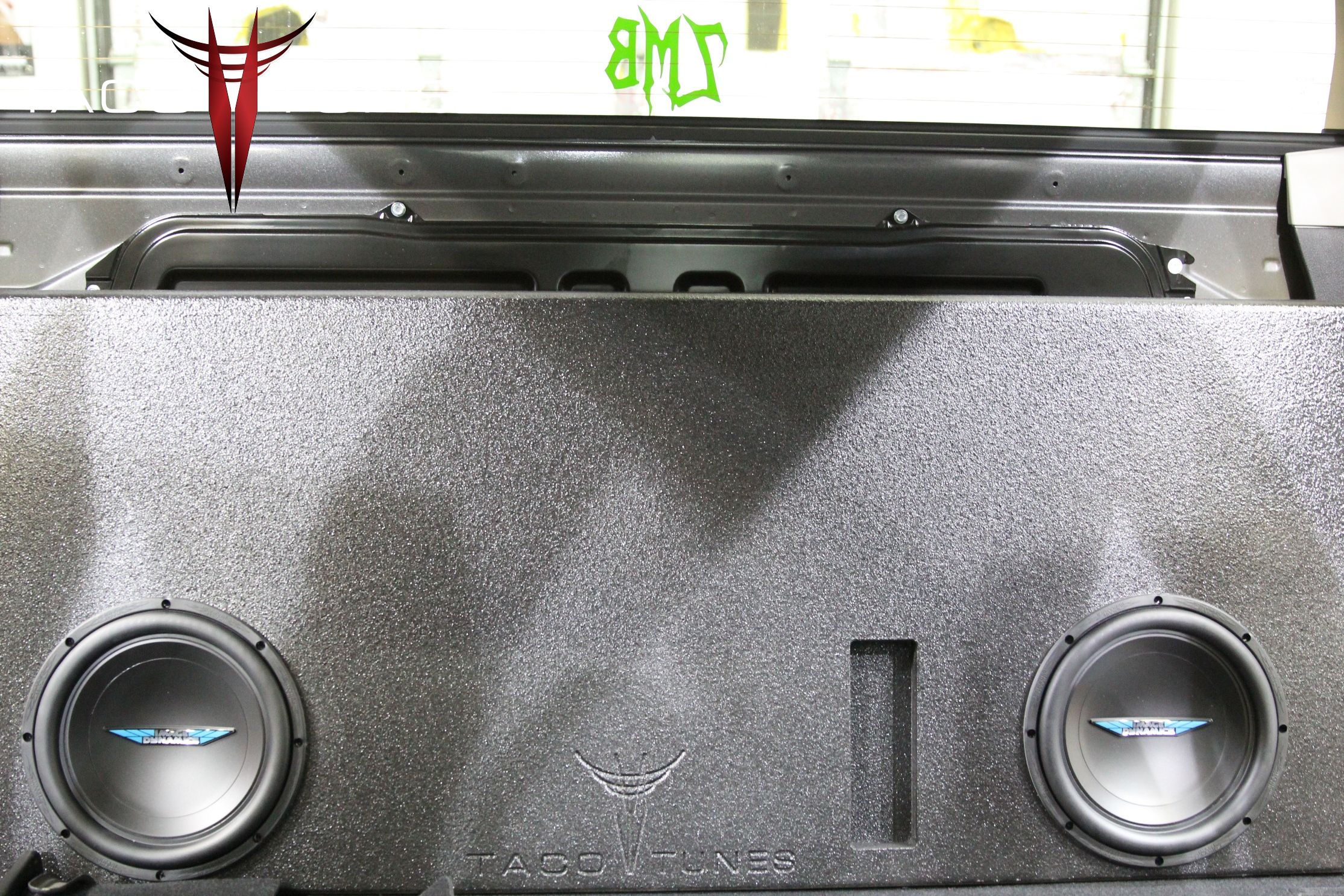

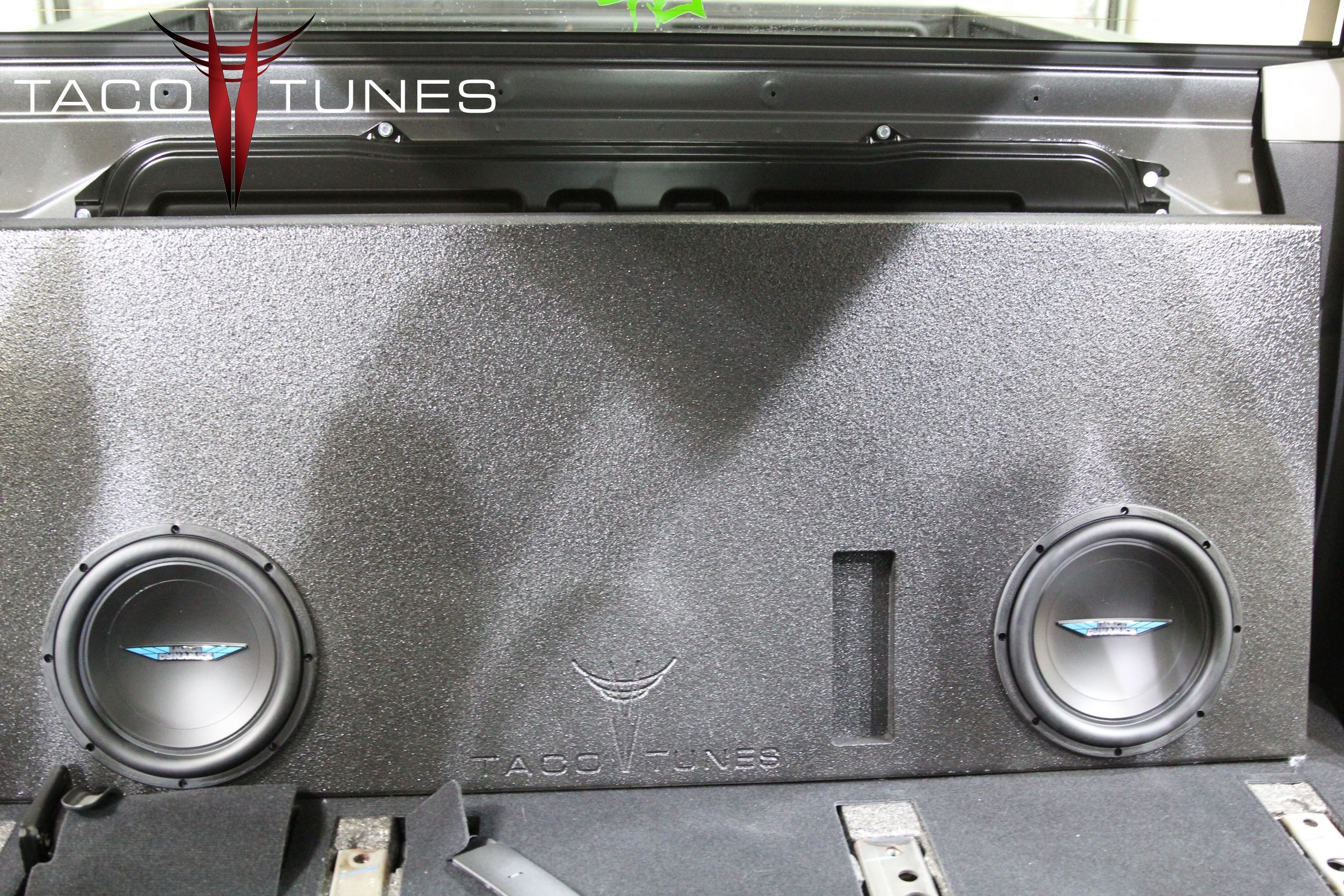

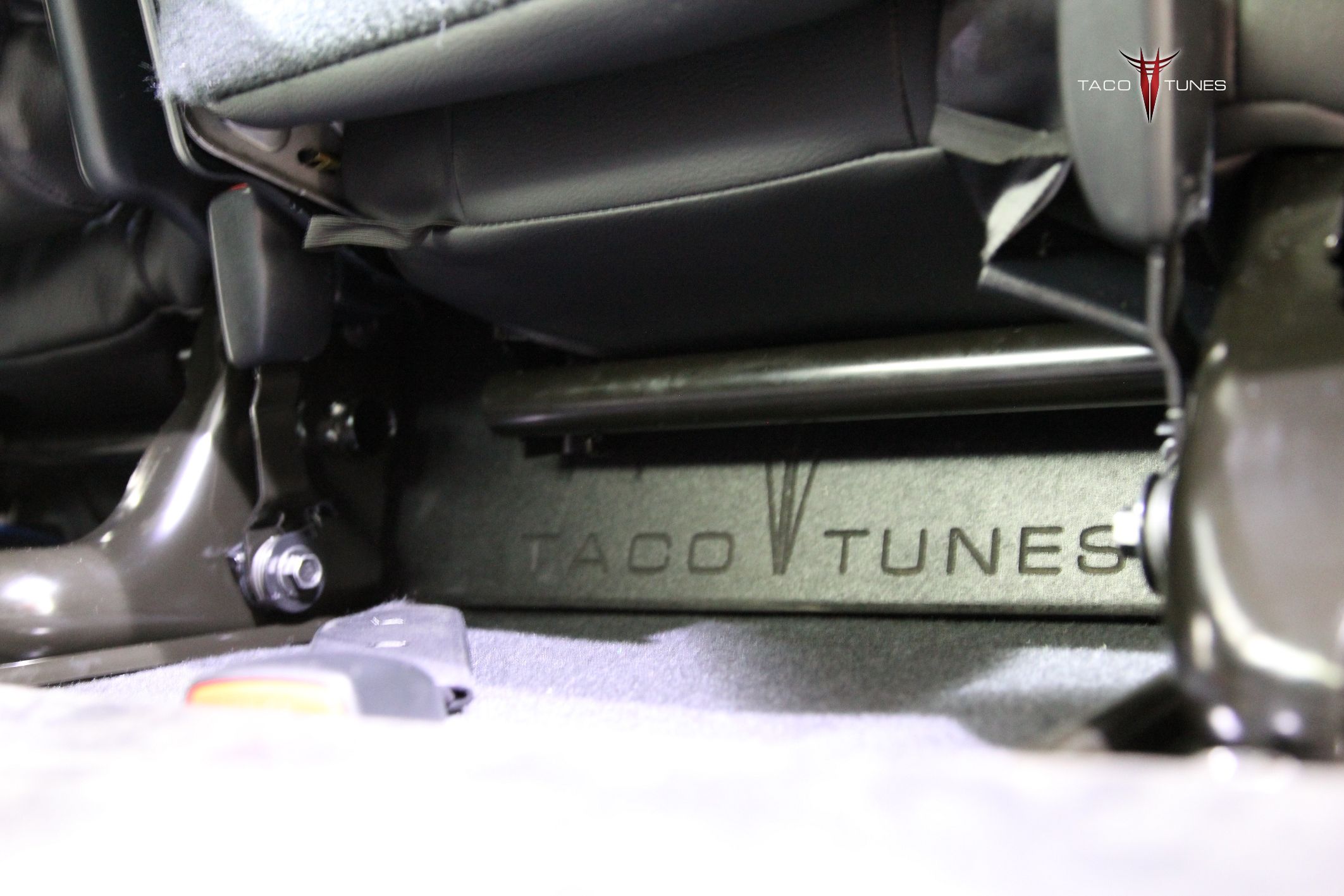

Subwoofer(s):

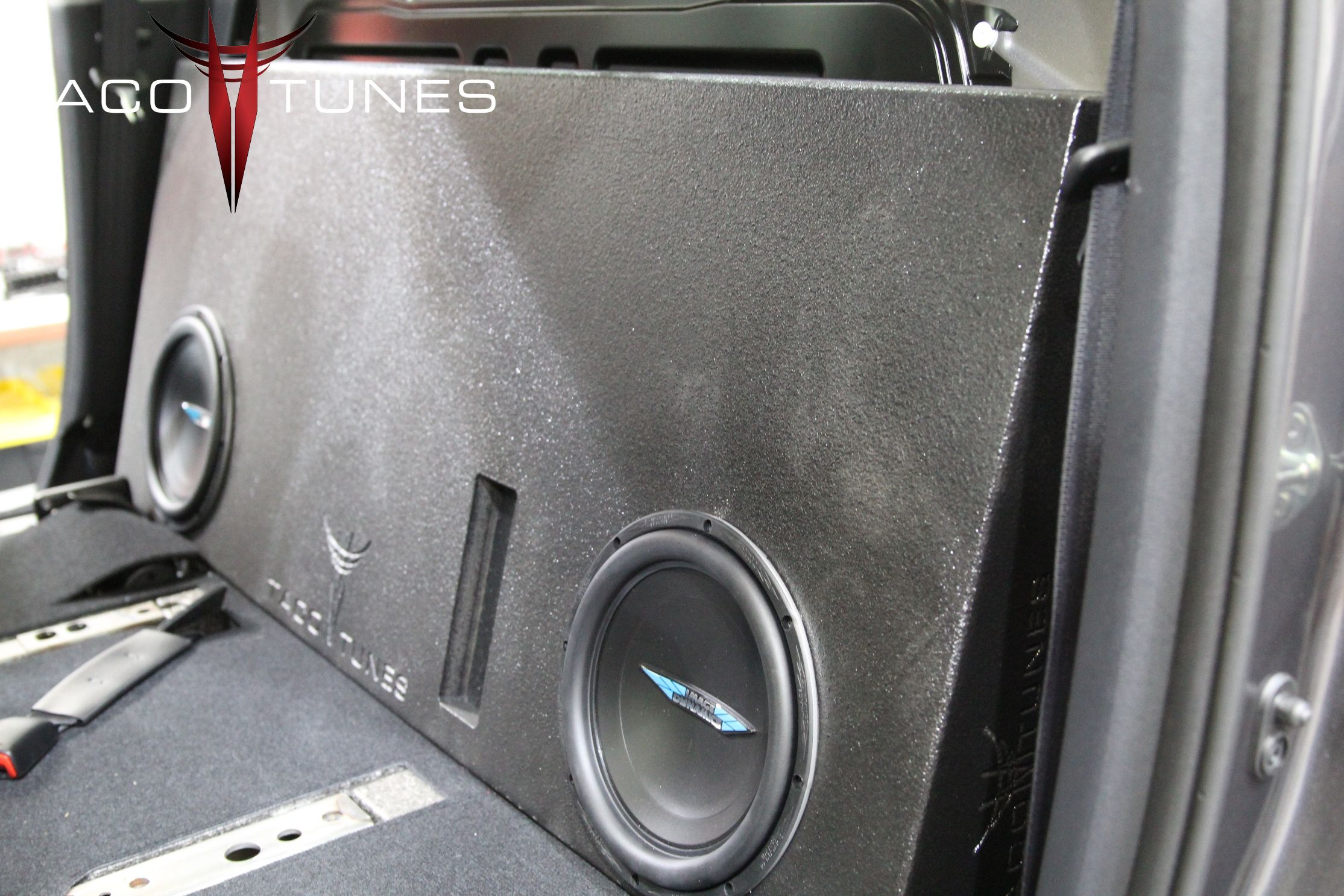

Subwoofer Box & Subwoofers

Tacotunes.com Dual 10″ subwoofers

Image Dynamics ID10V4 (full size) 10” subwoofer 400 watts RMS x 2  (800)
