Installation Summary / History:

Customer Name: Jason

Toyota Year / Model: 2016 Toyota Tundra CrewMax 4×4 TRD Pro Edition

Head Unit: NON JBL

Color: Super White

System Installed: 2014+ Toyota Tundra Image Dynamics Turnkey Packaged System 1

Installed by: tacotunes.com

Jason has had audio systems in most of his past vehicles. He has wife and two young kids. Wanted a really nice sound system without breaking the bank. He really wanted to go with our Image Dynamics SQ1 package, but he wanted to stick to his original budget. After he came to pick up his truck . . yea he was really happy!







Below you will find a detailed listing of all the parts we used in the installation.

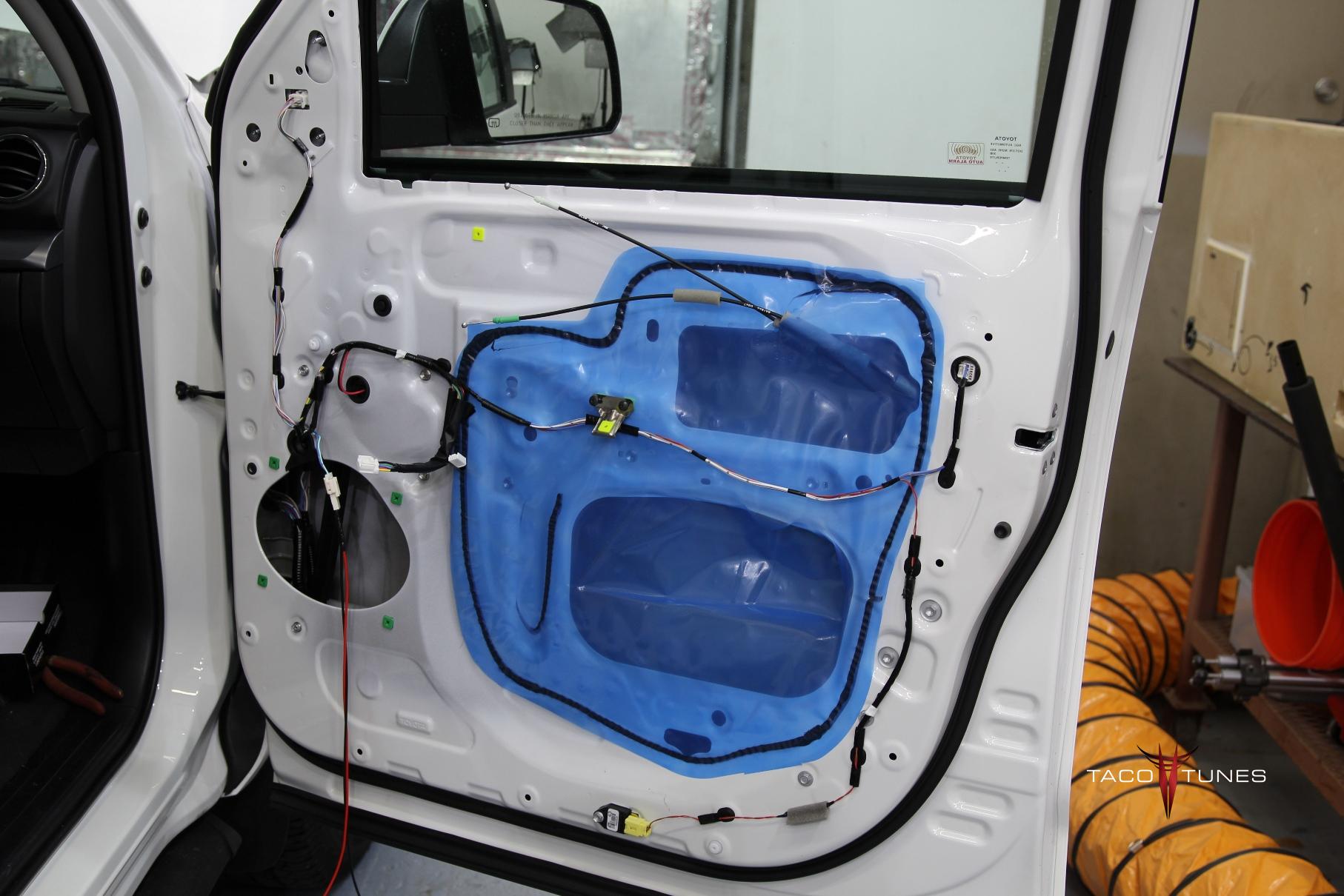

Typical Installation time is 1 day for a system installation. A seasoned installer can probably have it done in 4 hours. New installer, take your time and plan for 8 hours. If matting the truck add at least  1 hour per door and 1.5 hour for rear wall.

Below is a detailed listing of the audio products installed in Chris Tundra CrewMax

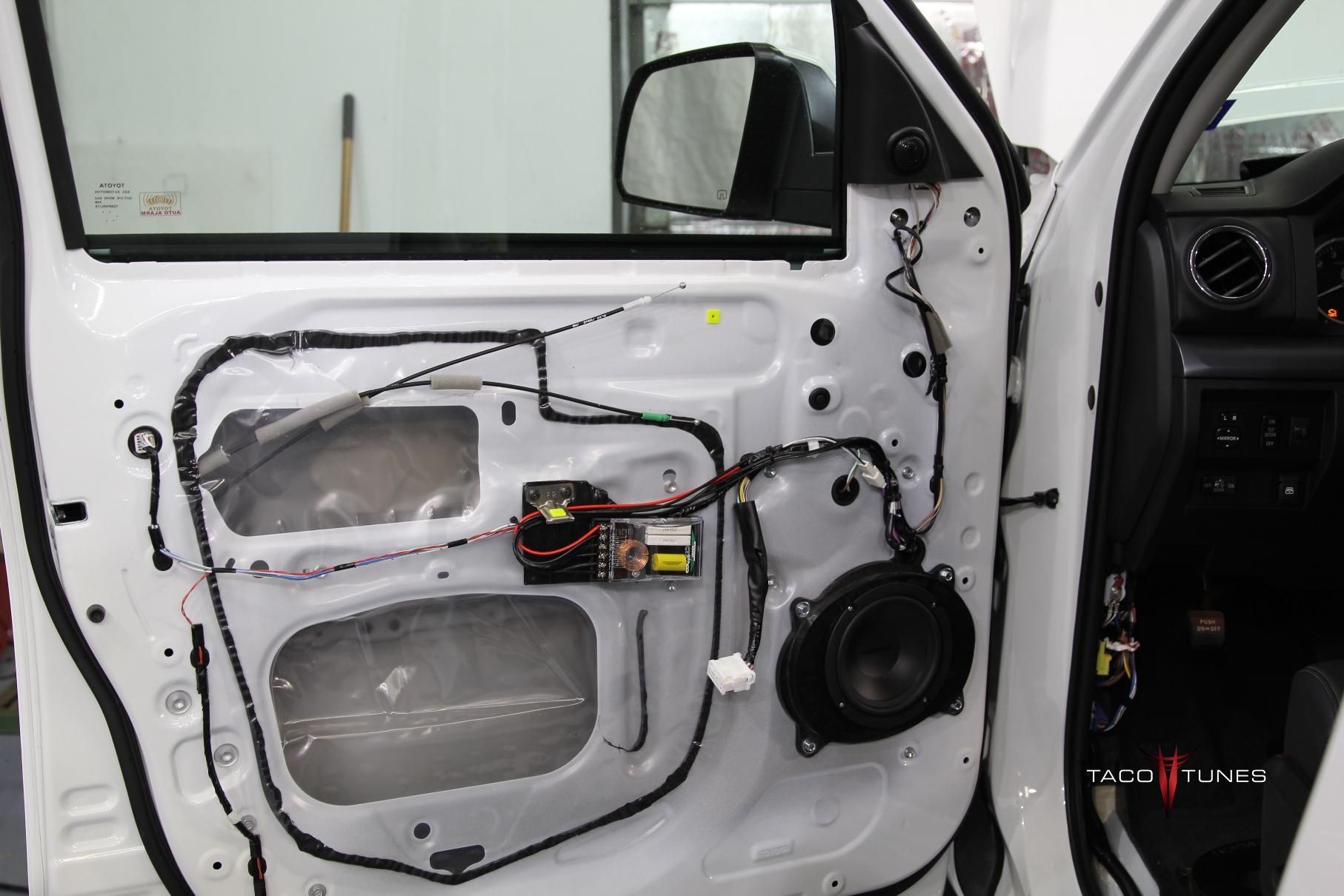

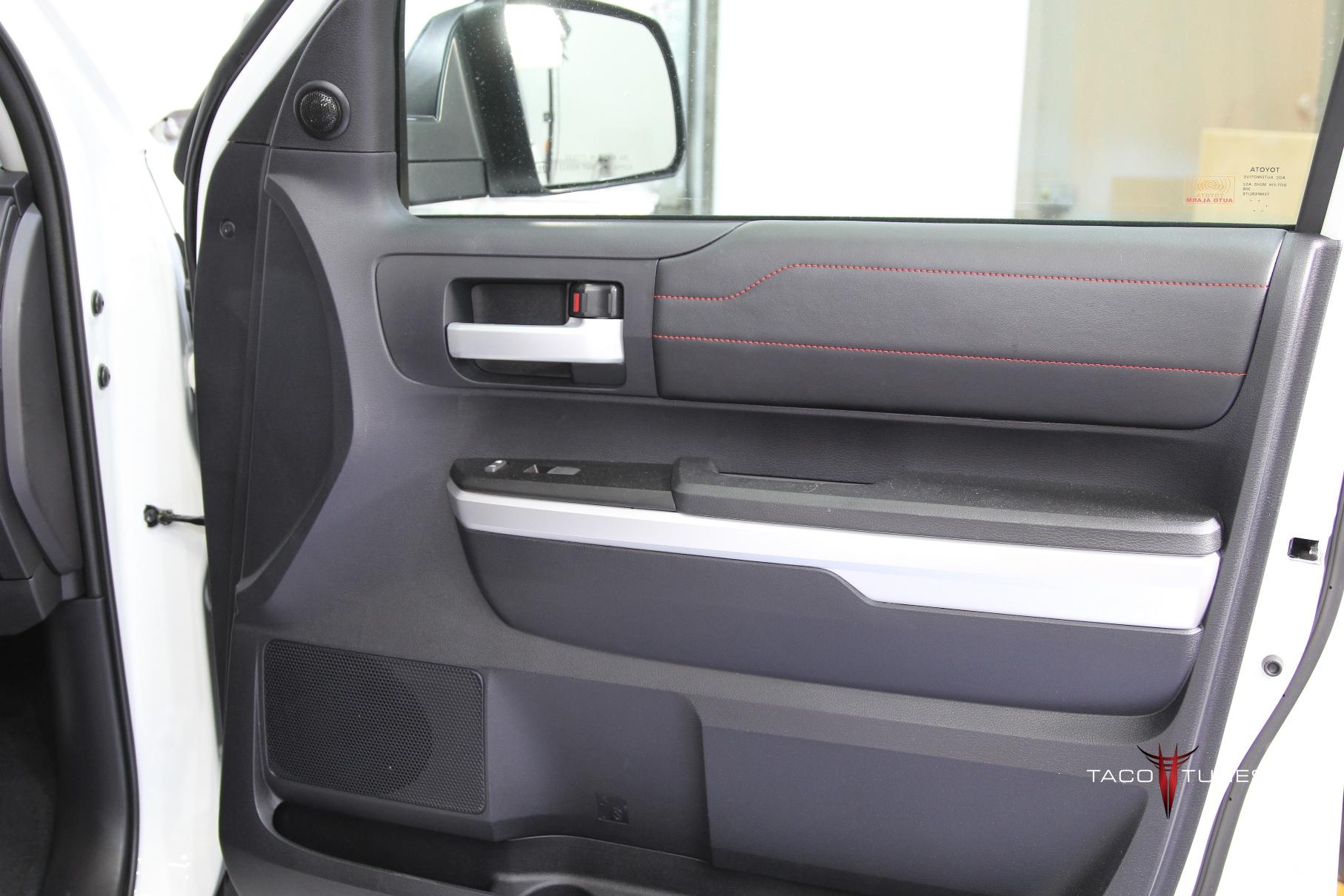

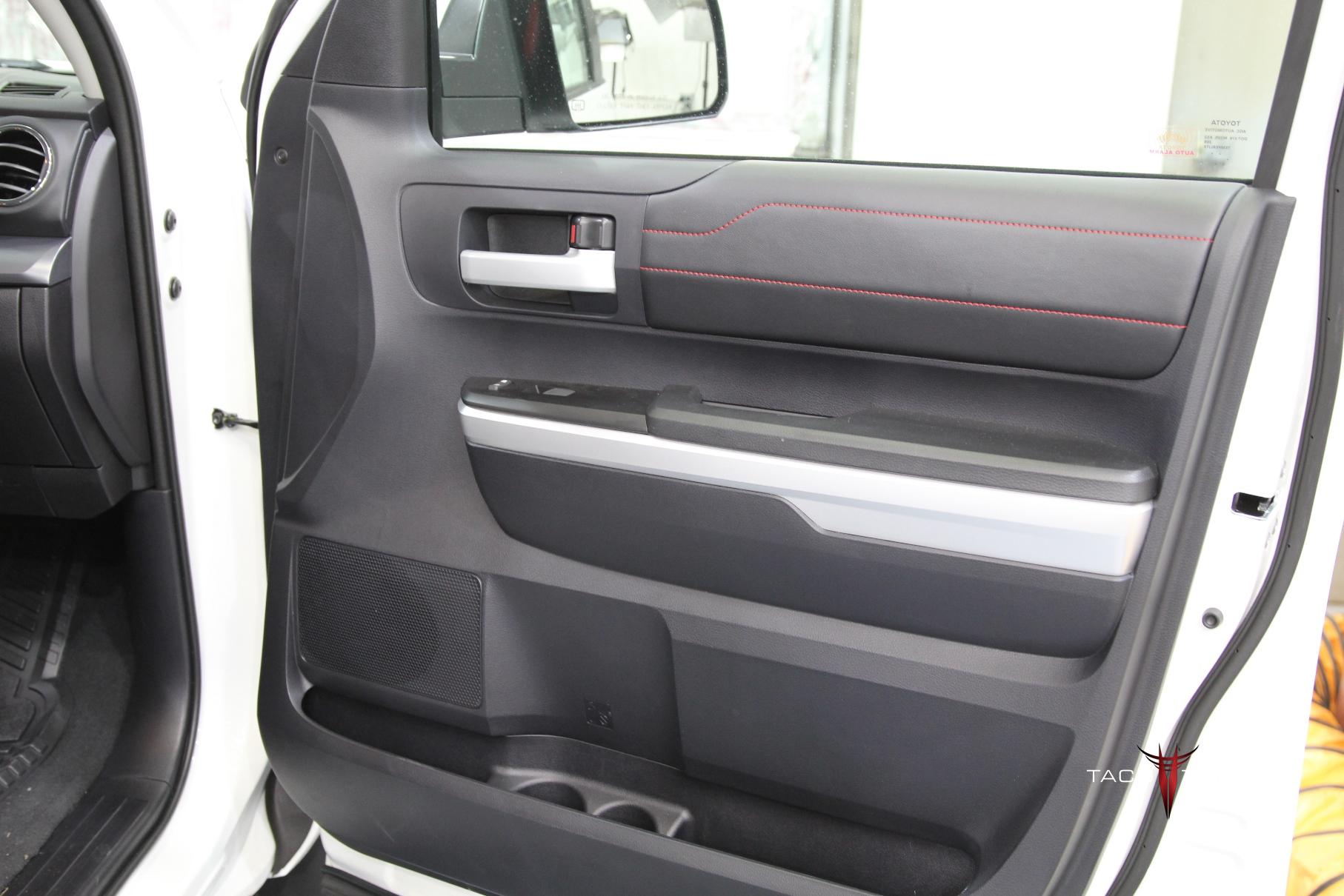

Front Door Component Speakers:

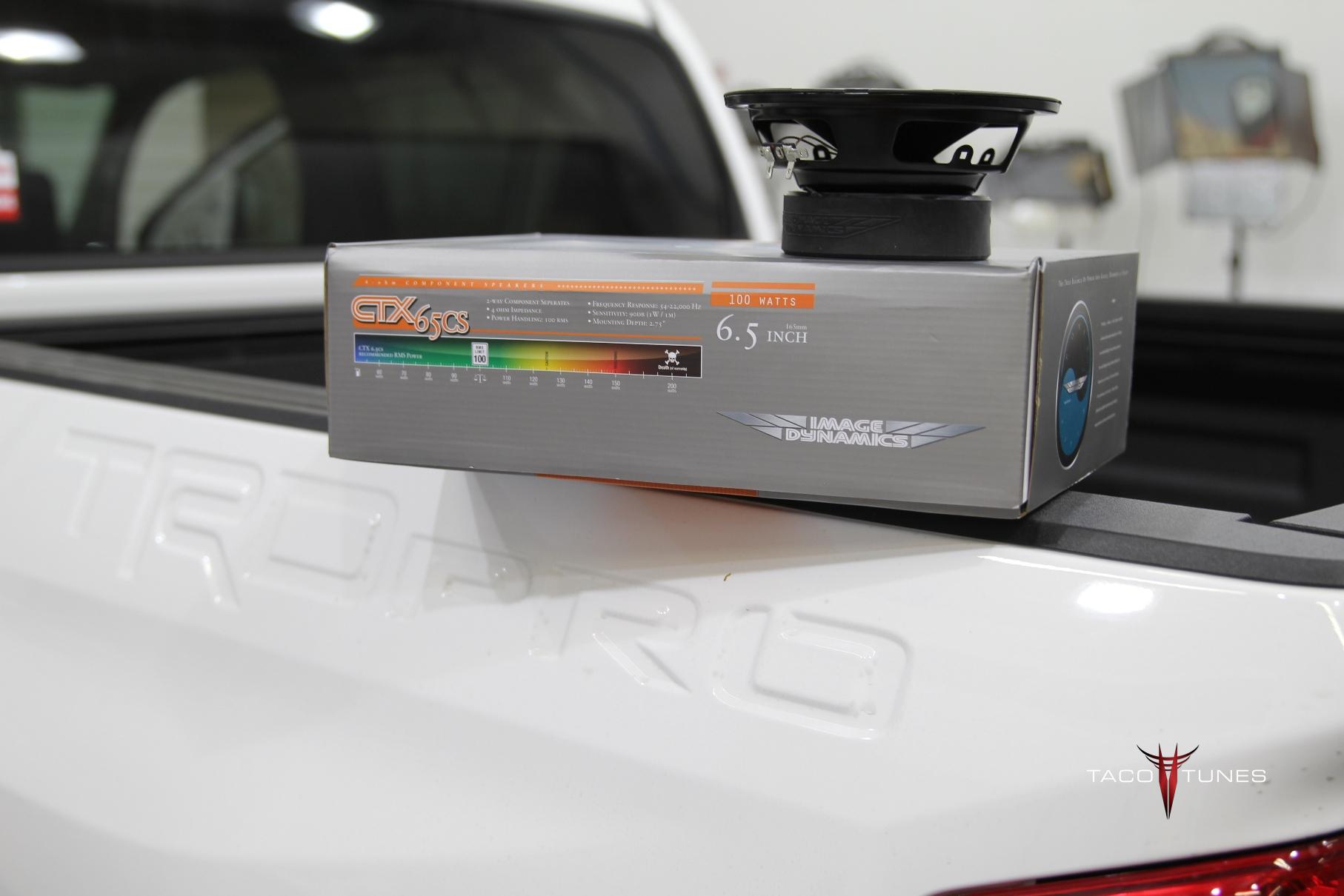

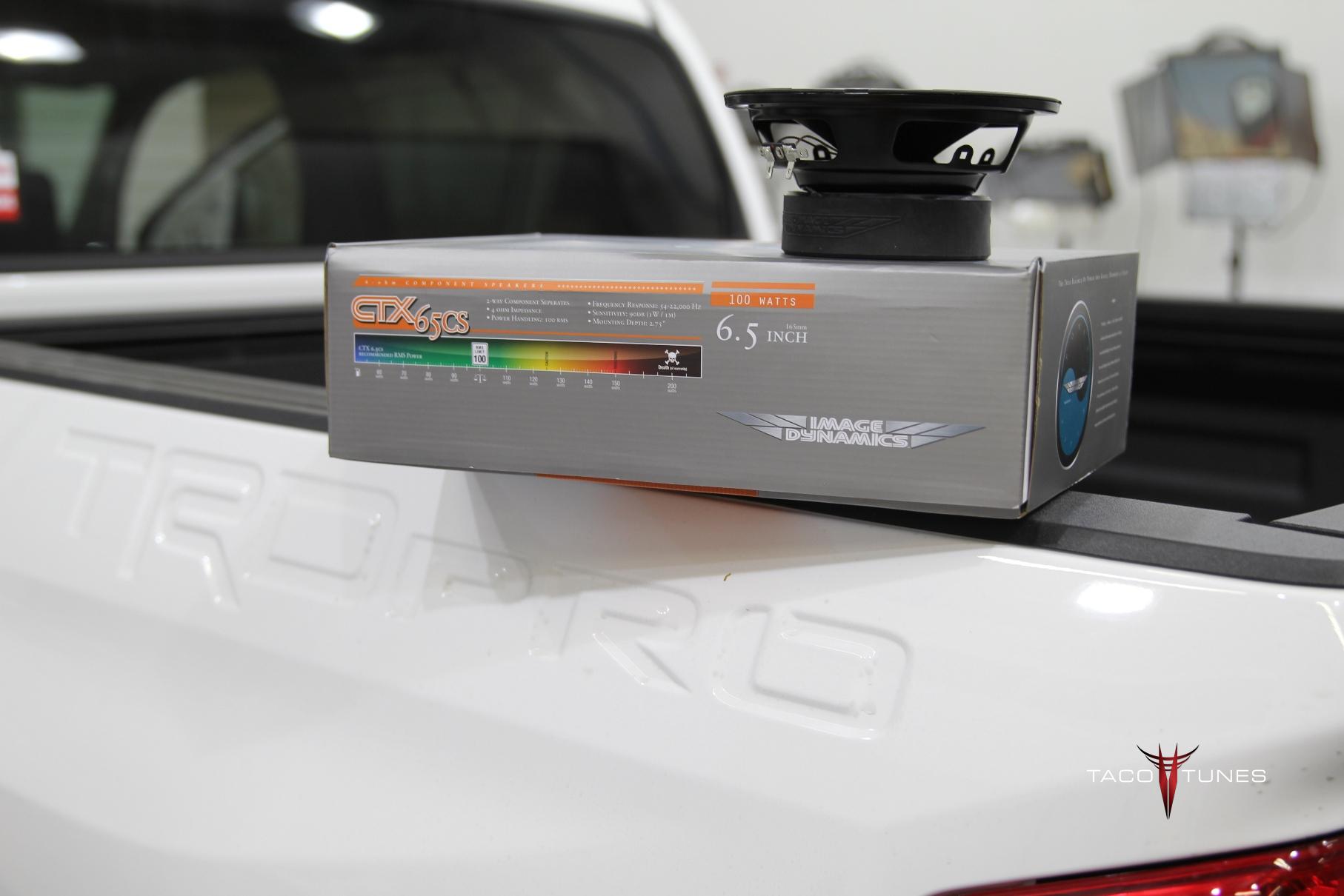

Image Dynamics CTX65CS

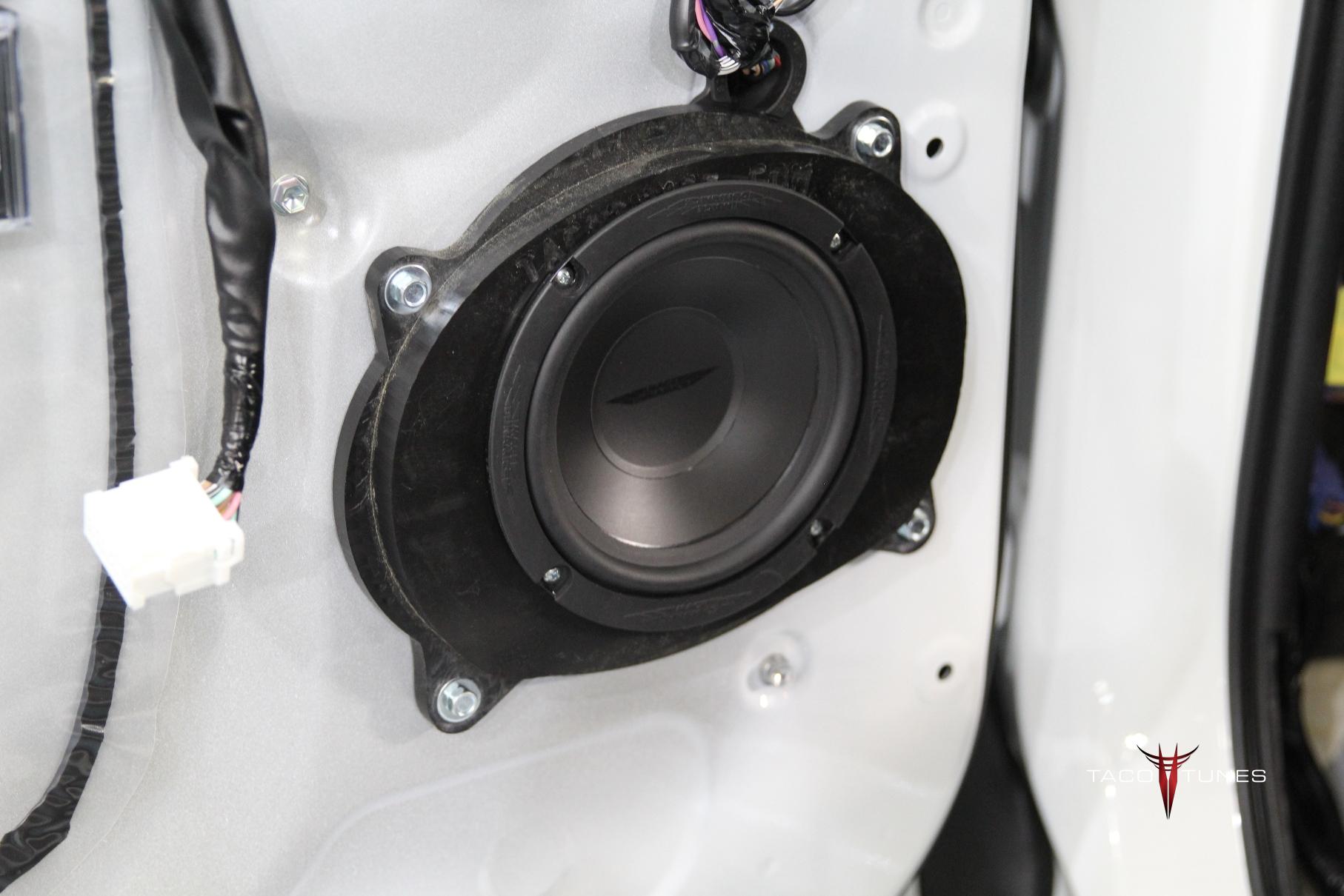

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CXS Mid bass Drivers -100 Watts RMS

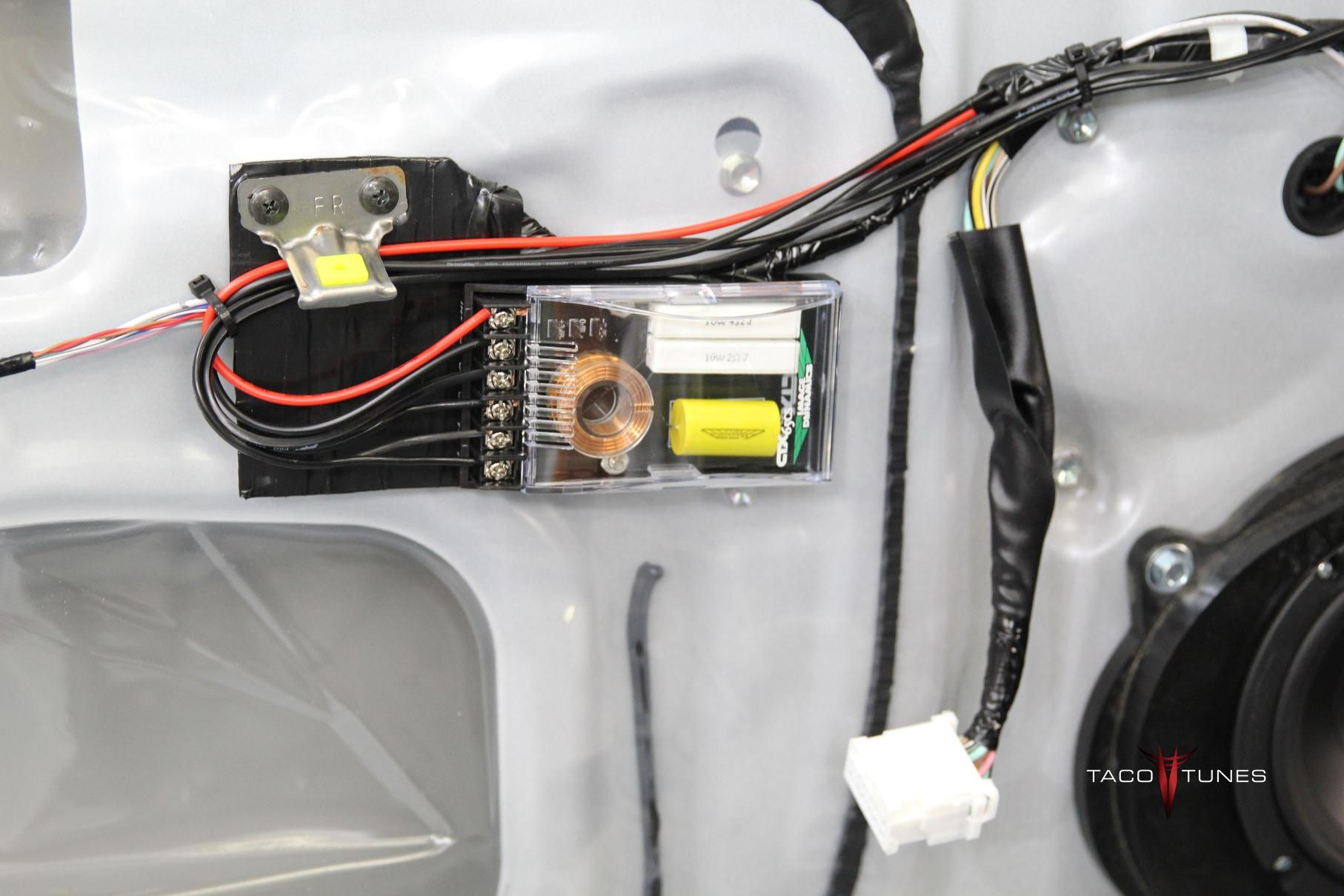

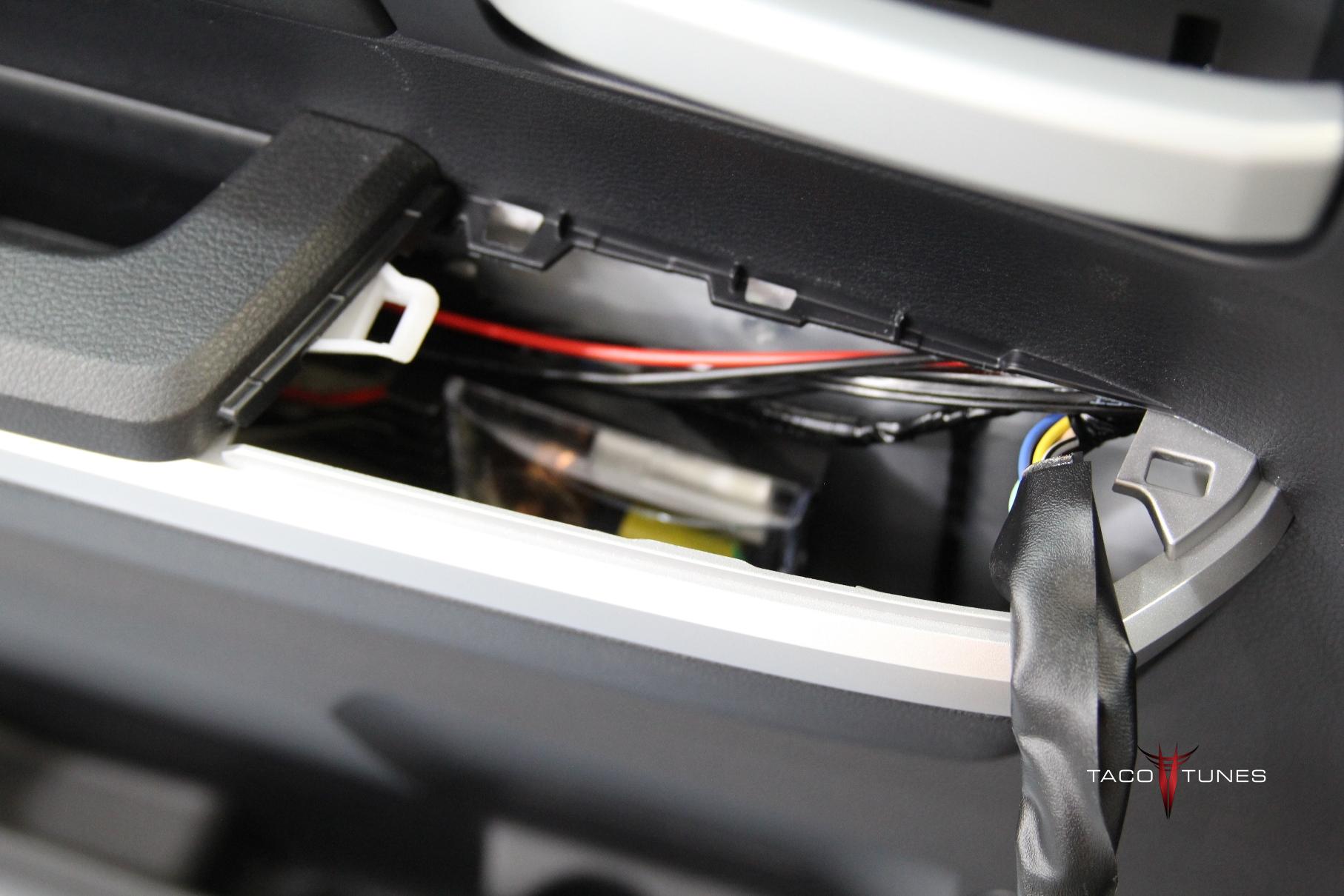

CTX65CS  Crossover

CTX65CS  Tweeters

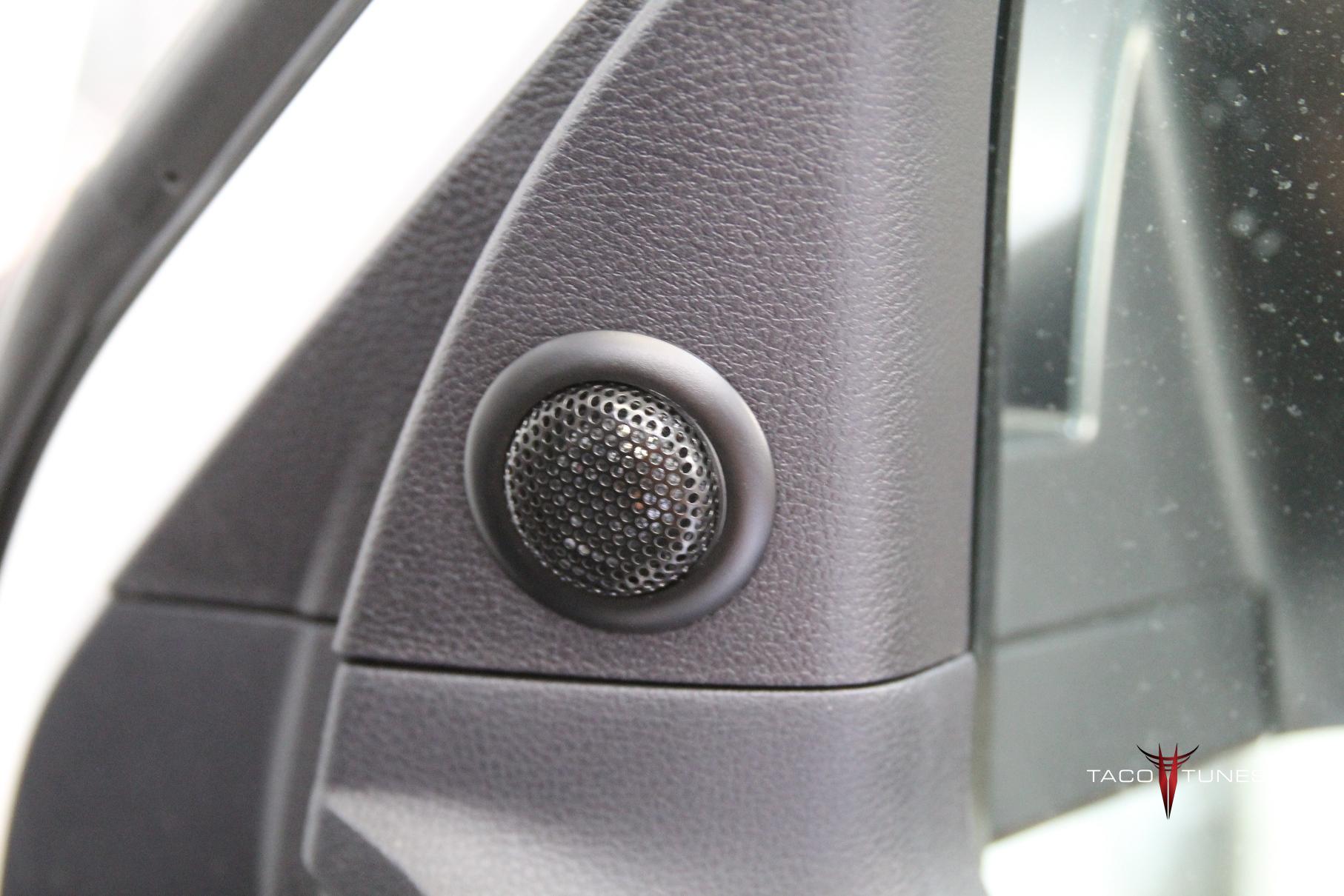

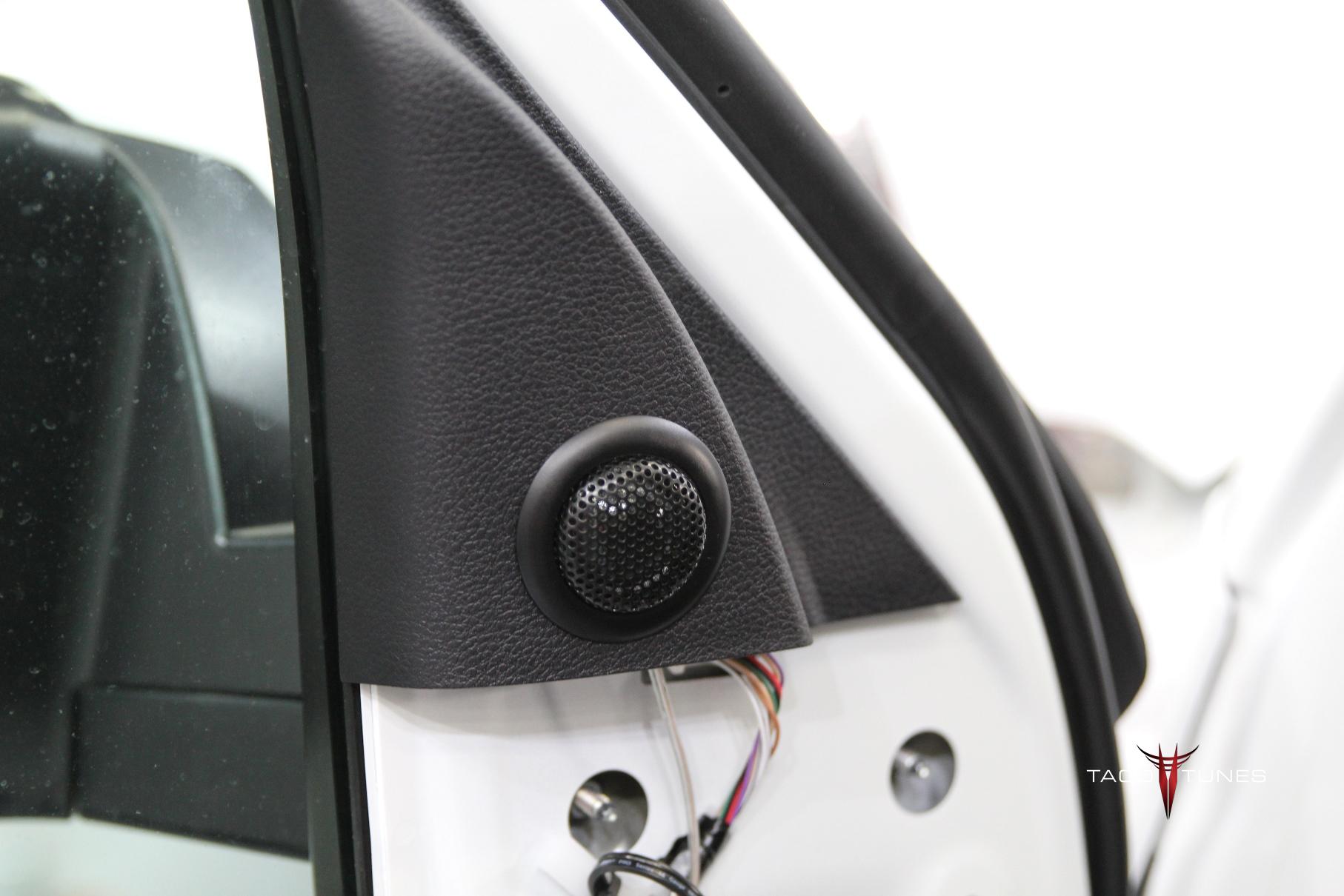

Use Stock Sail Panel for Tweeter mounts.

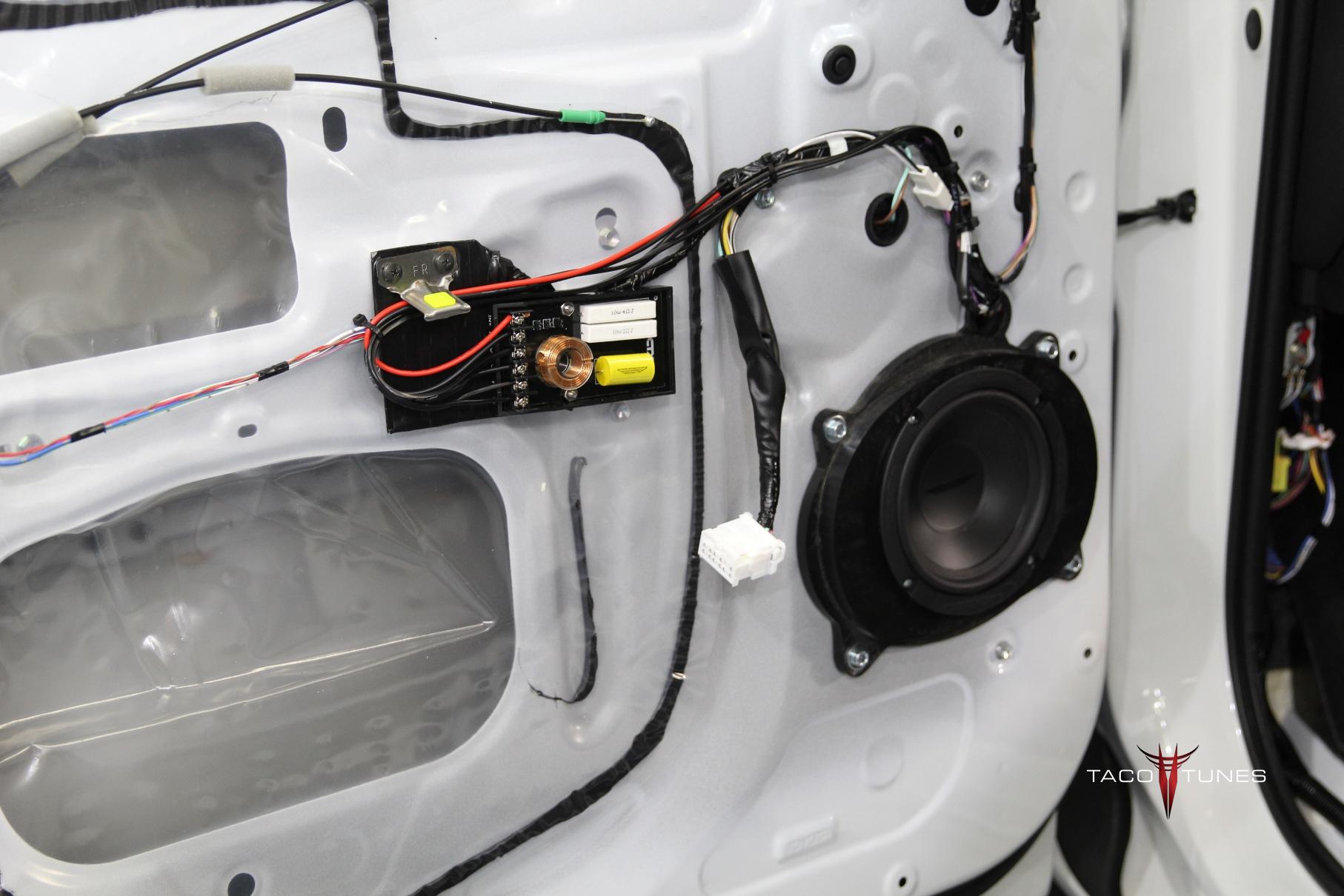

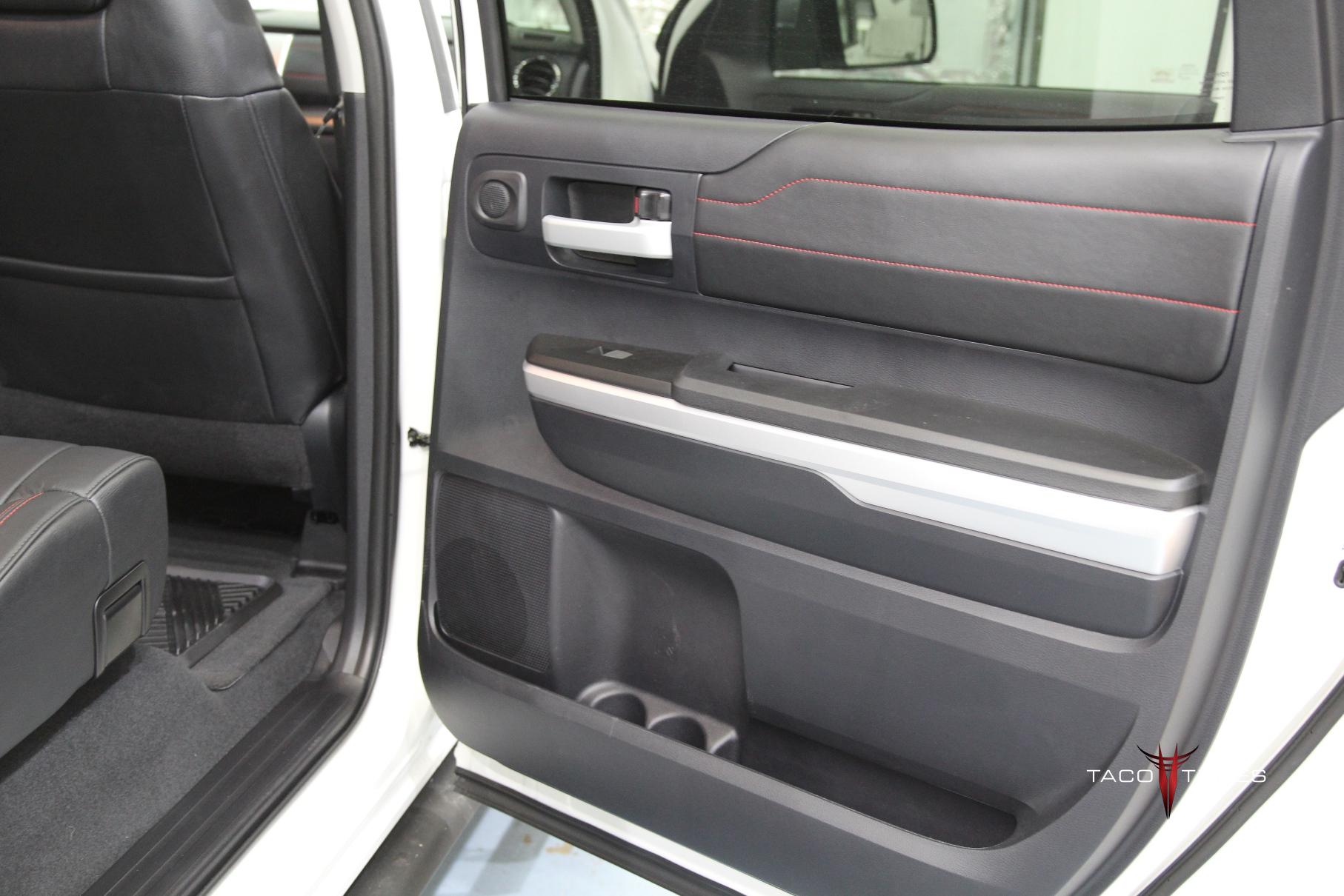

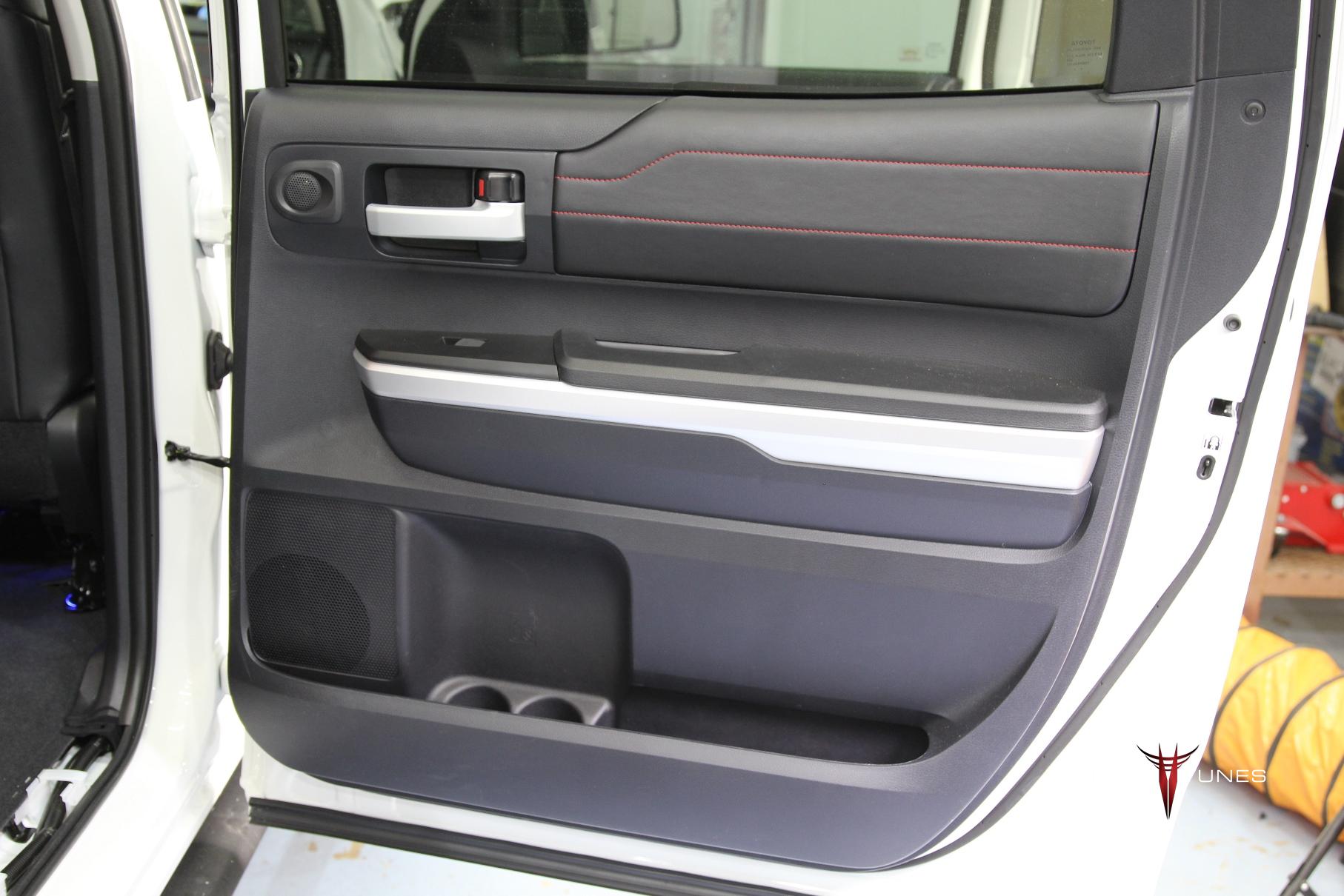

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

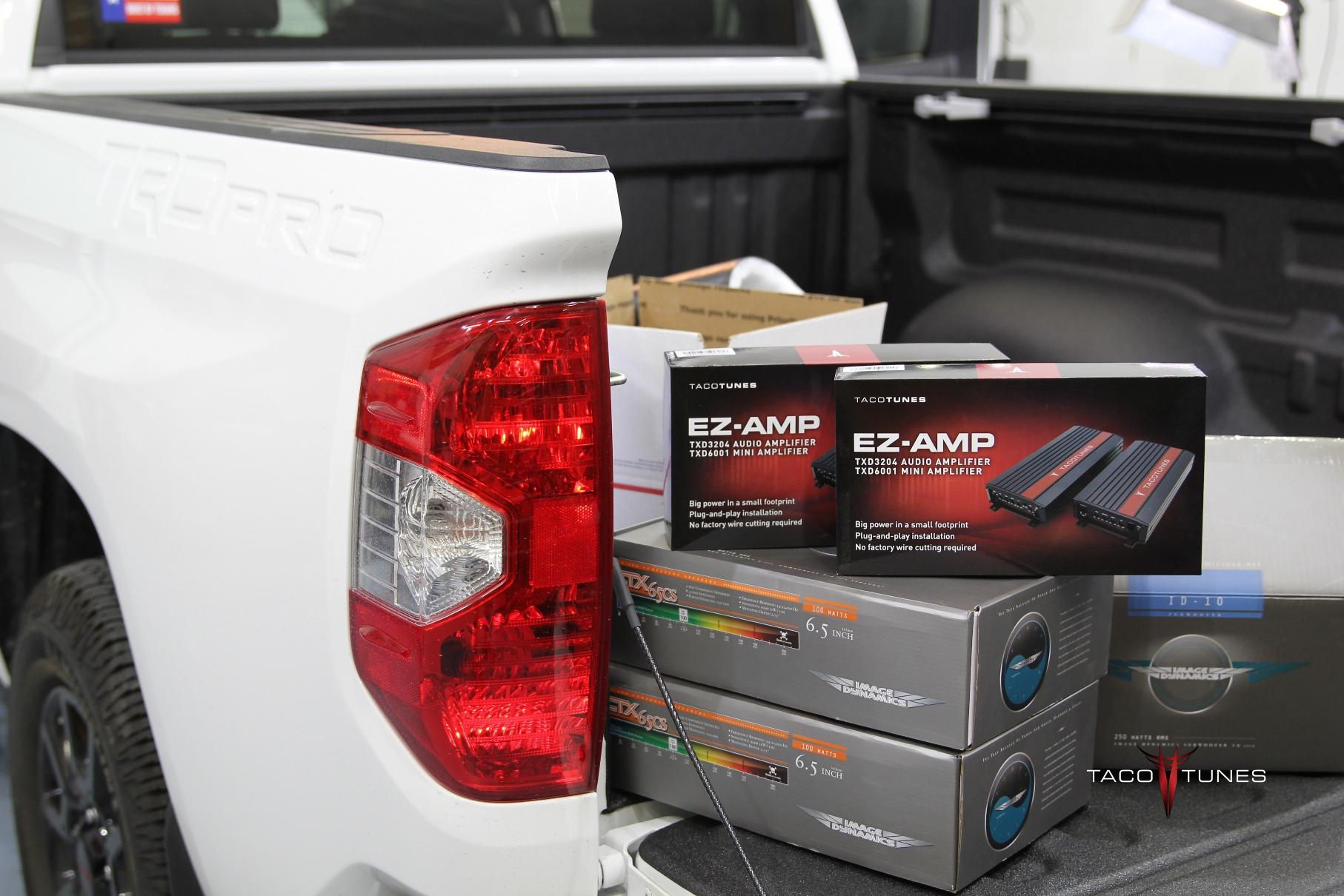

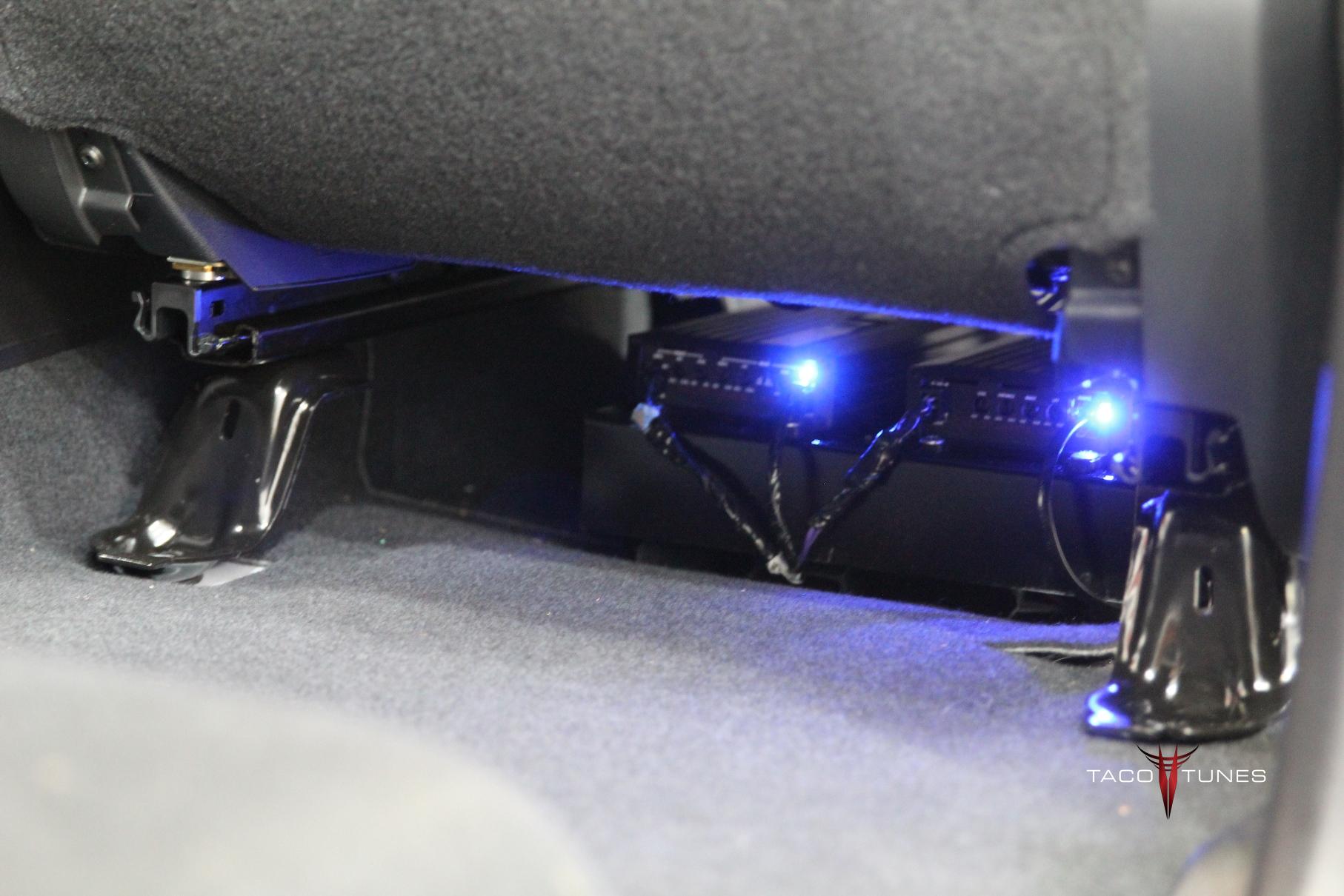

Amps:

1 – TXD6001 Tacotunes.com EZAMP – Mono Amp

1 – TXD3204 Tacotunes.com EZAMP 4 channel speaker amps.



Subwoofer(s):

Subwoofer Box & Subwoofers

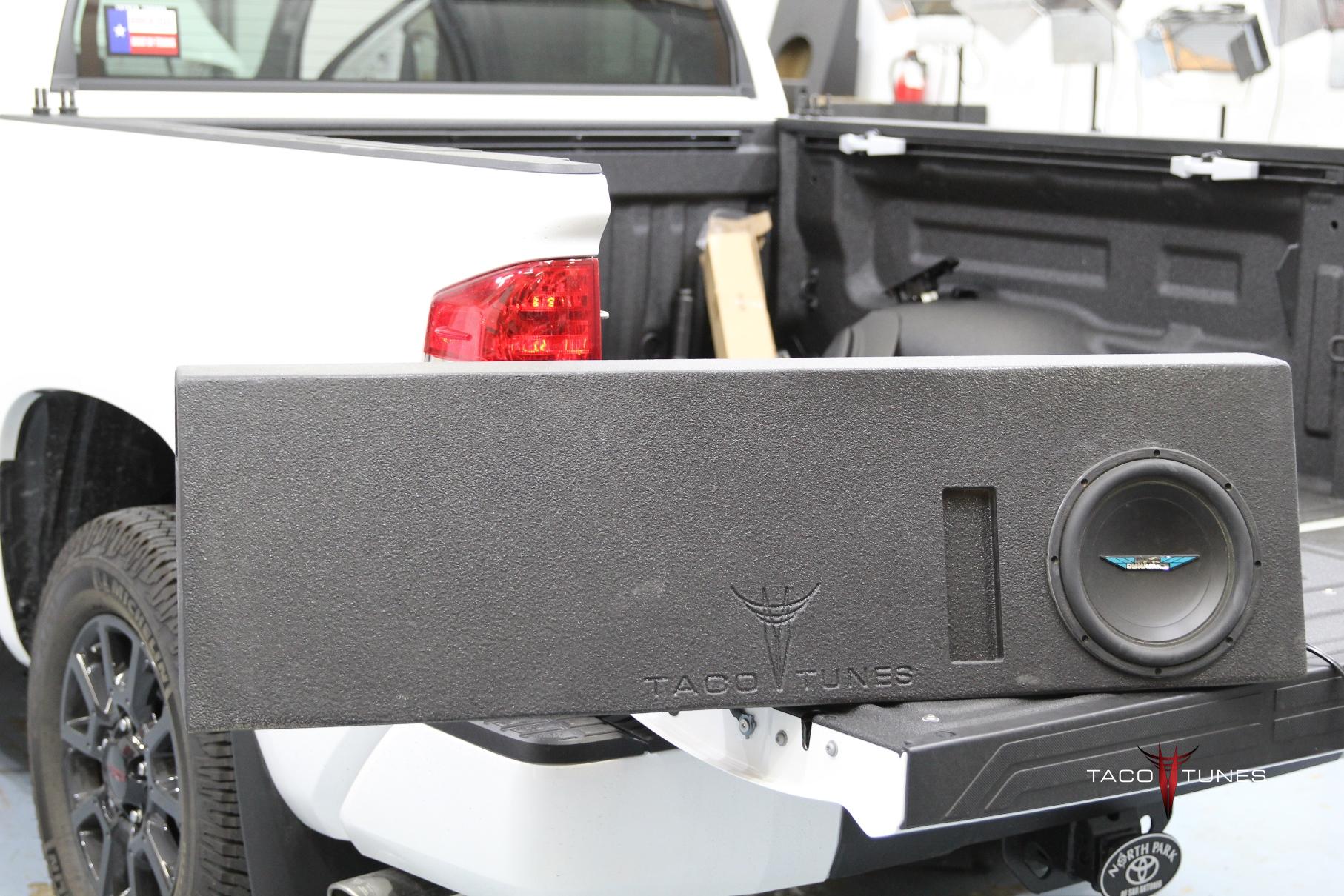

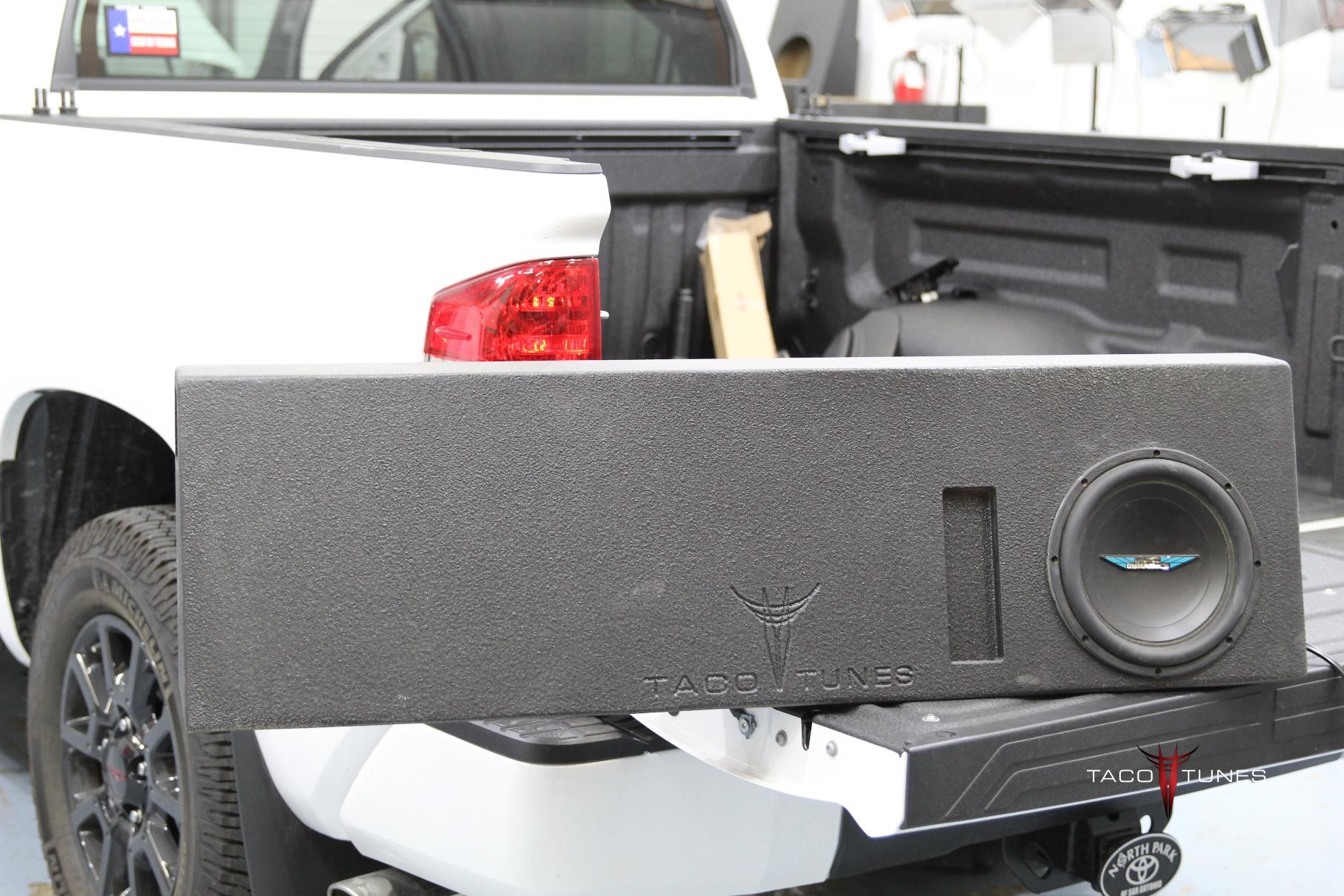

Tacotunes.com 10” ported subwoofer enclosure 1.2” cu feet

Image Dynamics ID10V4 (full size) 10” subwoofer 400 watts RMS

Tundra Install kit:

Stereo & Wiring Installation kit:

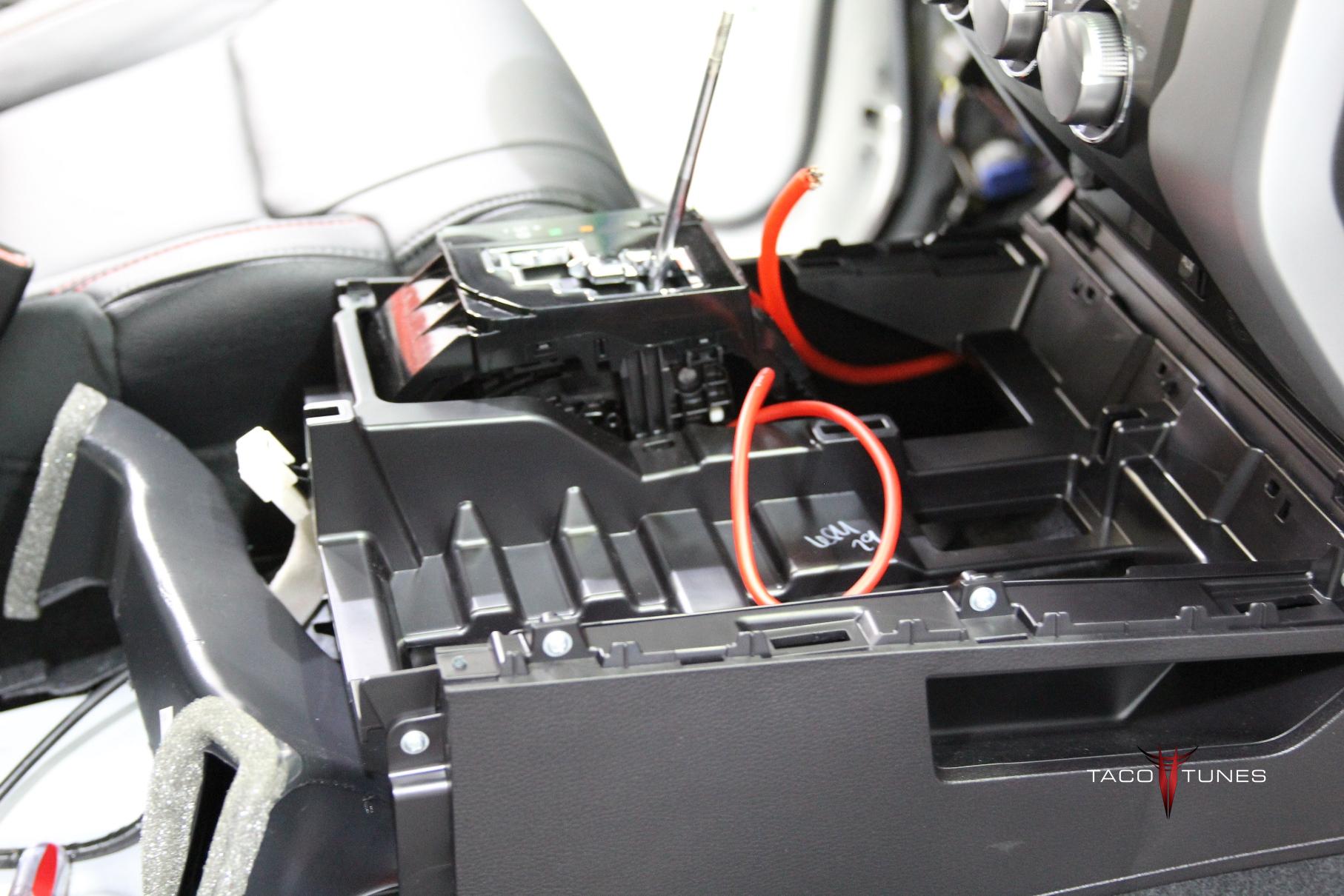

Positive:

3′ POWER CABLE 4GA – Ring Terminal Attached

10′ POWER CABLE 4GA

Negative:

4′ POWER CABLE 4GA – Ring Terminal Attached

Misc Items:

35′ Primary Blue Remote Turn on wire

6′ 3/4 Split Loom

T-Spec ANL Fuse Holder

T-Spec 80 Amp ANL Fuse

10 Crimp Caps

8 Speaker Terminals .25 (Door speakers)

4 Speaker Terminals .187 (tweeters)

4 Speaker Terminal .25 (subwoofer)

15 Small Zip Ties

15 Large Zip Ties

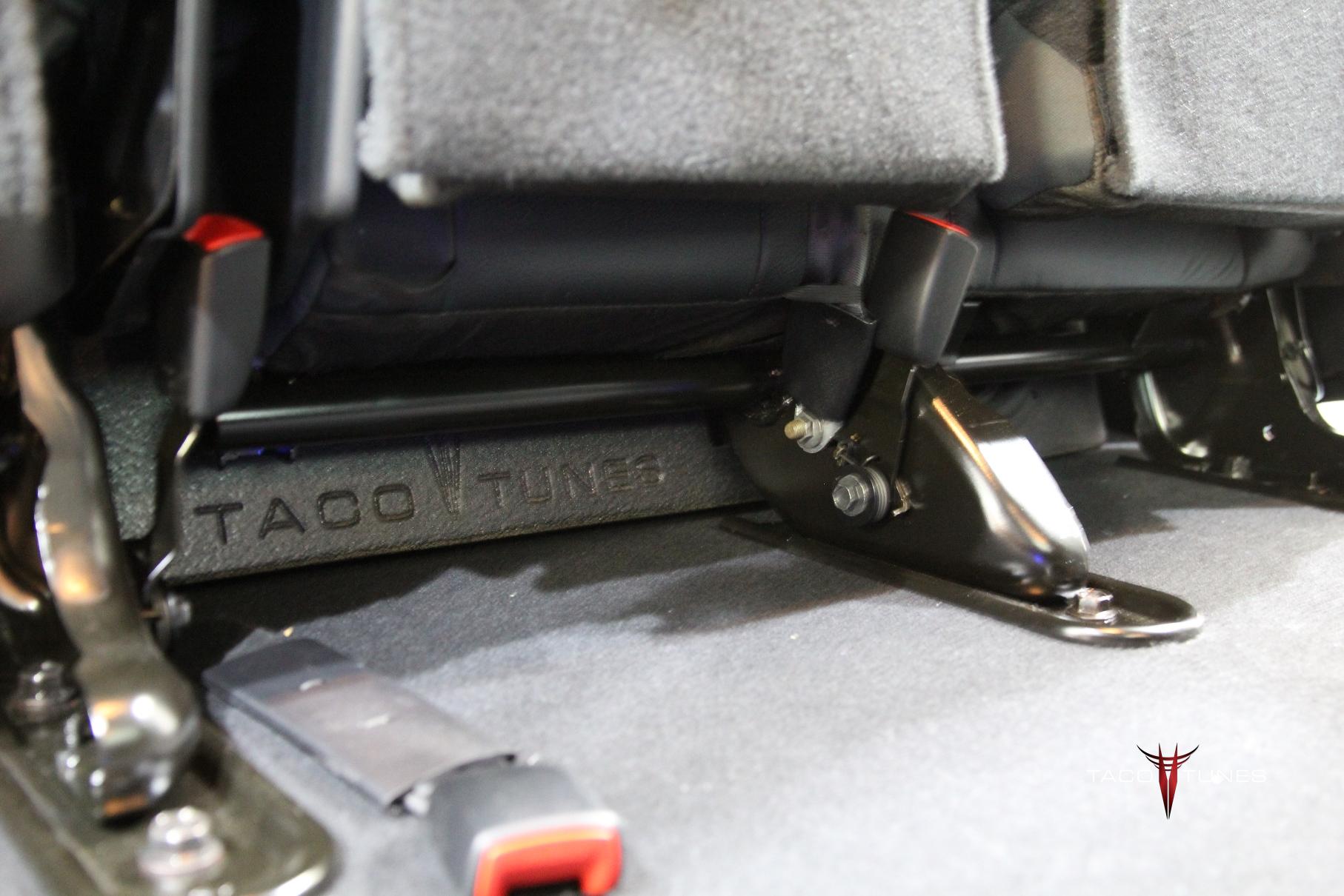

Under Seat – Plug and Play amp mount





Matting:

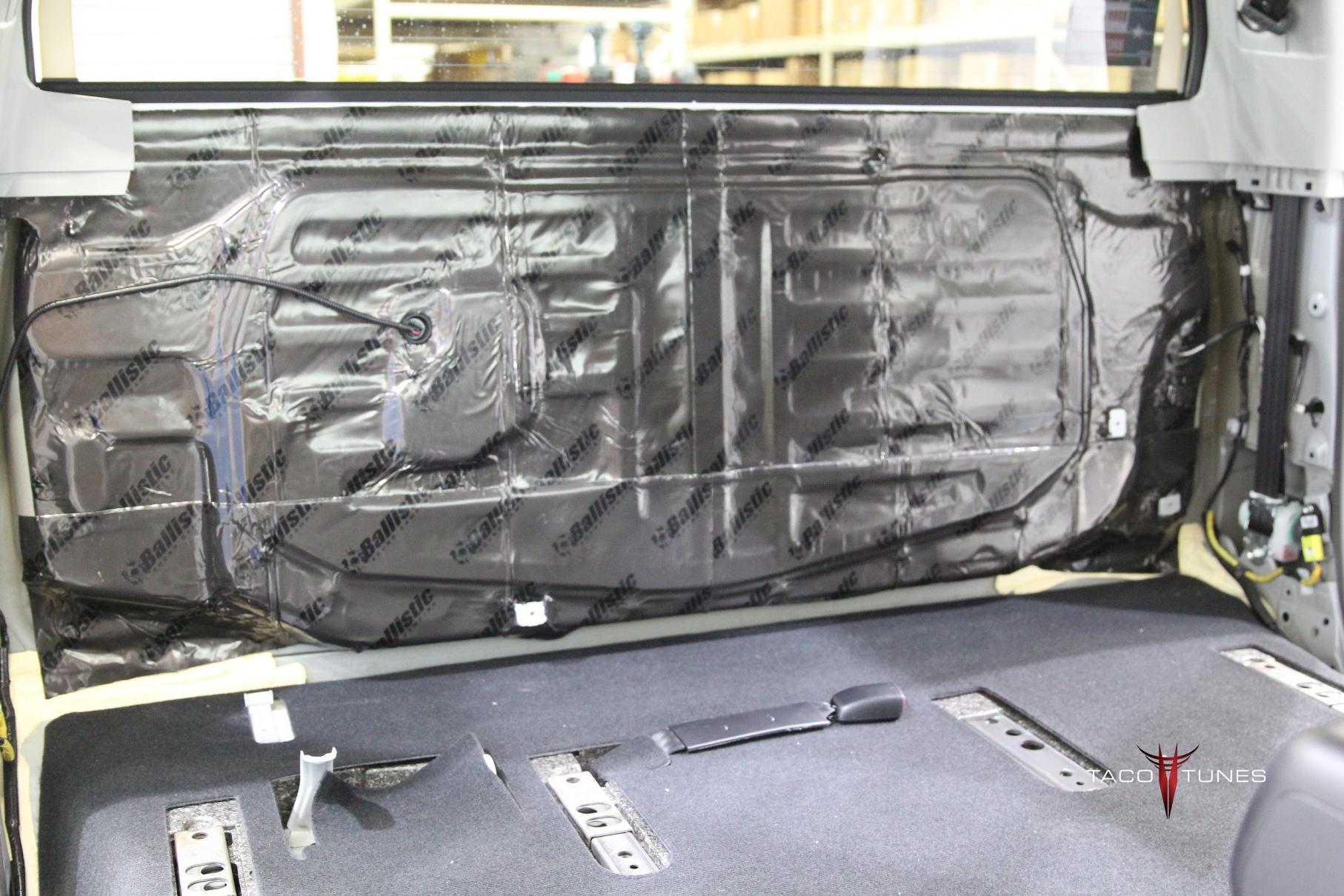

Matted rear wall.
