Red McCombs 2016 Toyota Tundra CrewMax Plug n Play Audio System Upgrade

Red McCombs Toyota Tundra CrewMax Plug n Play audio system upgrade

Red McCombs 2016 Toyota Tundra CrewMax Plug n Play Audio System Upgrade

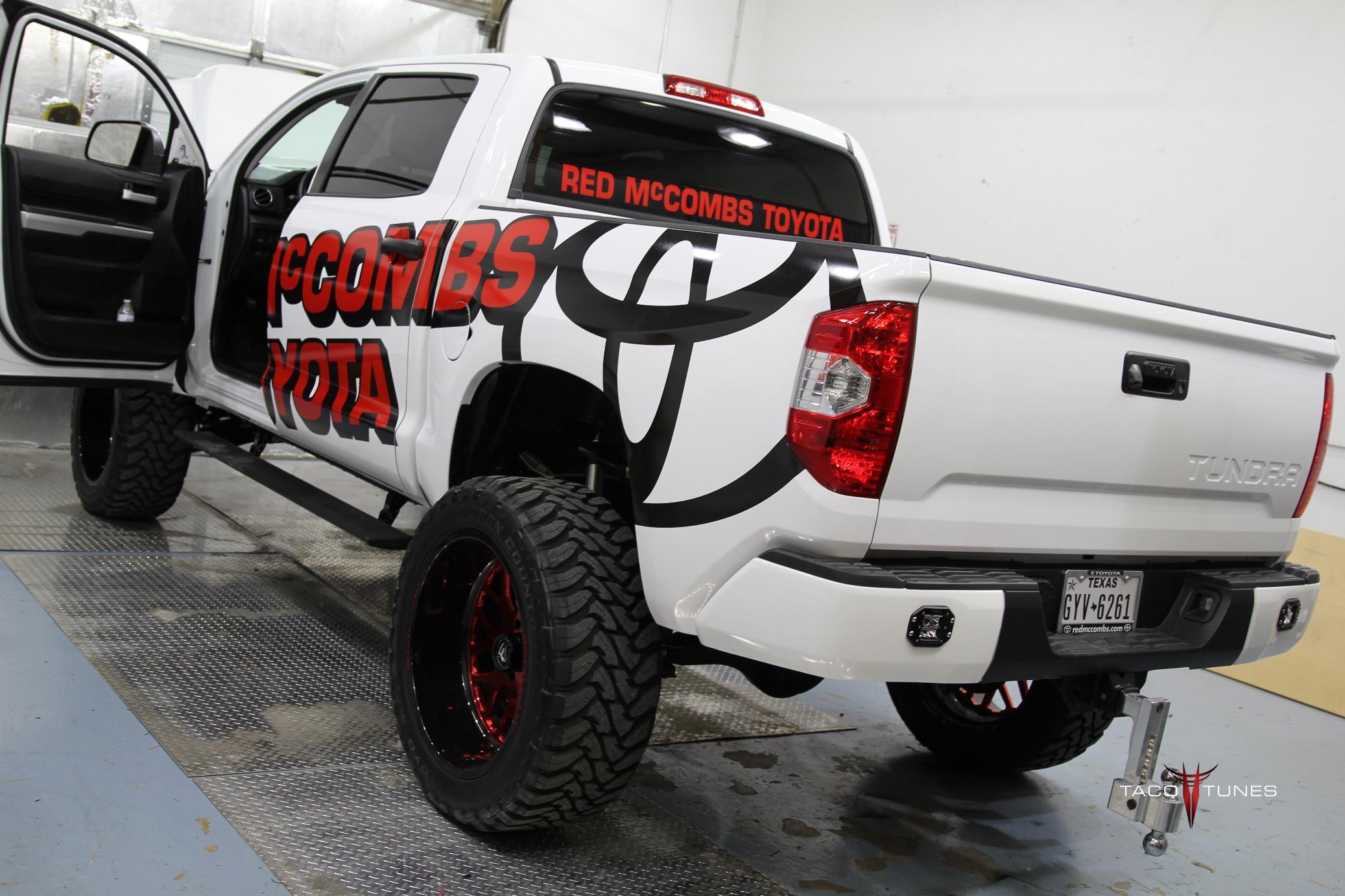

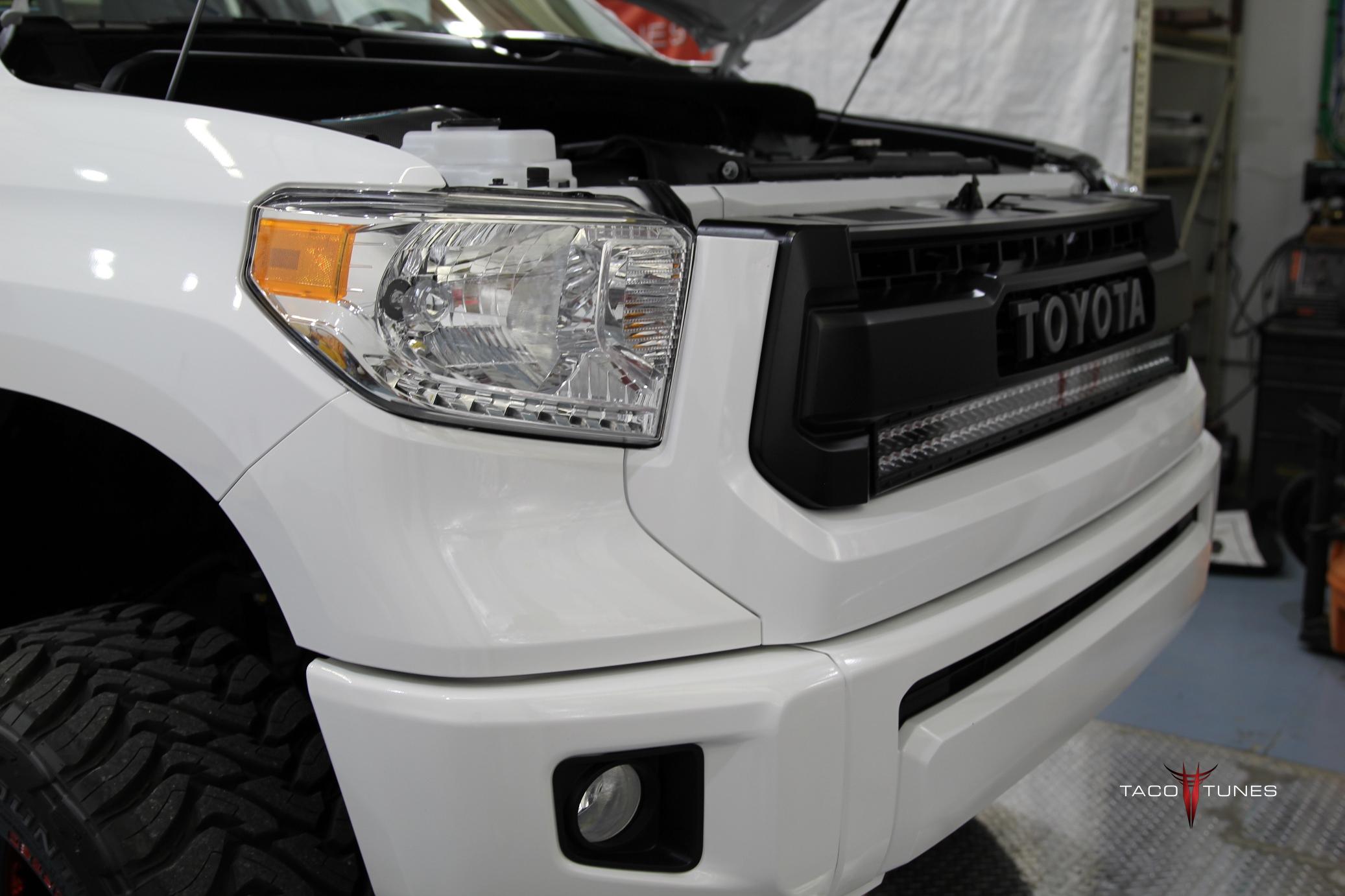

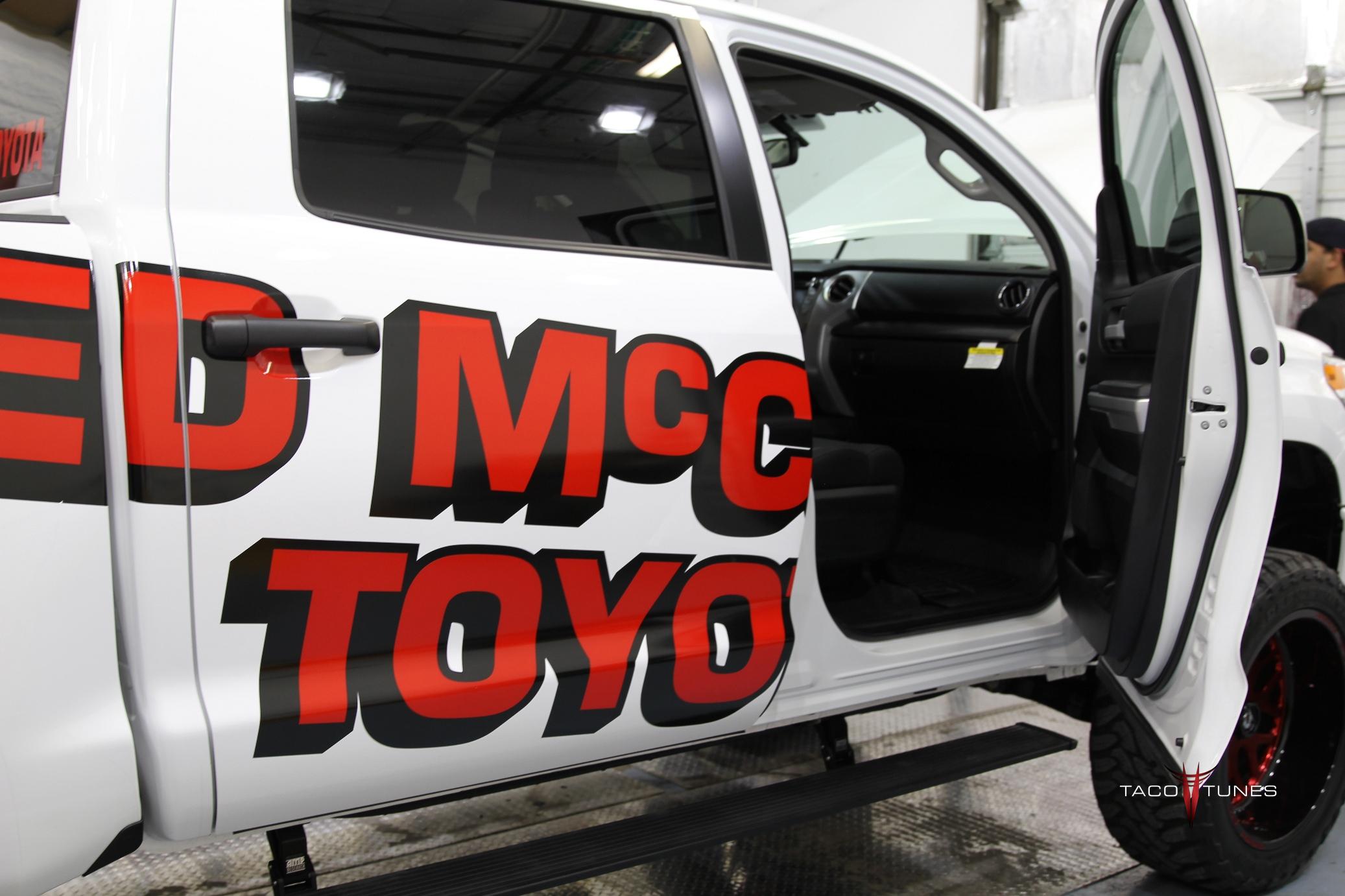

This is a brand new TRD from a local Toyota dealership here in San Antonio

Installation Summary / History:

Customer Name: Red McCombs Toyota

Toyota Year / Model: 2016 Toyota Tundra CrewMax

Head Unit: NON JBL

Color: White

Installed by: tacotunes.com

System Installed: Tundra System 1

This truck is heading back to the dealership to be used to demonstrate tacotunes.com products.

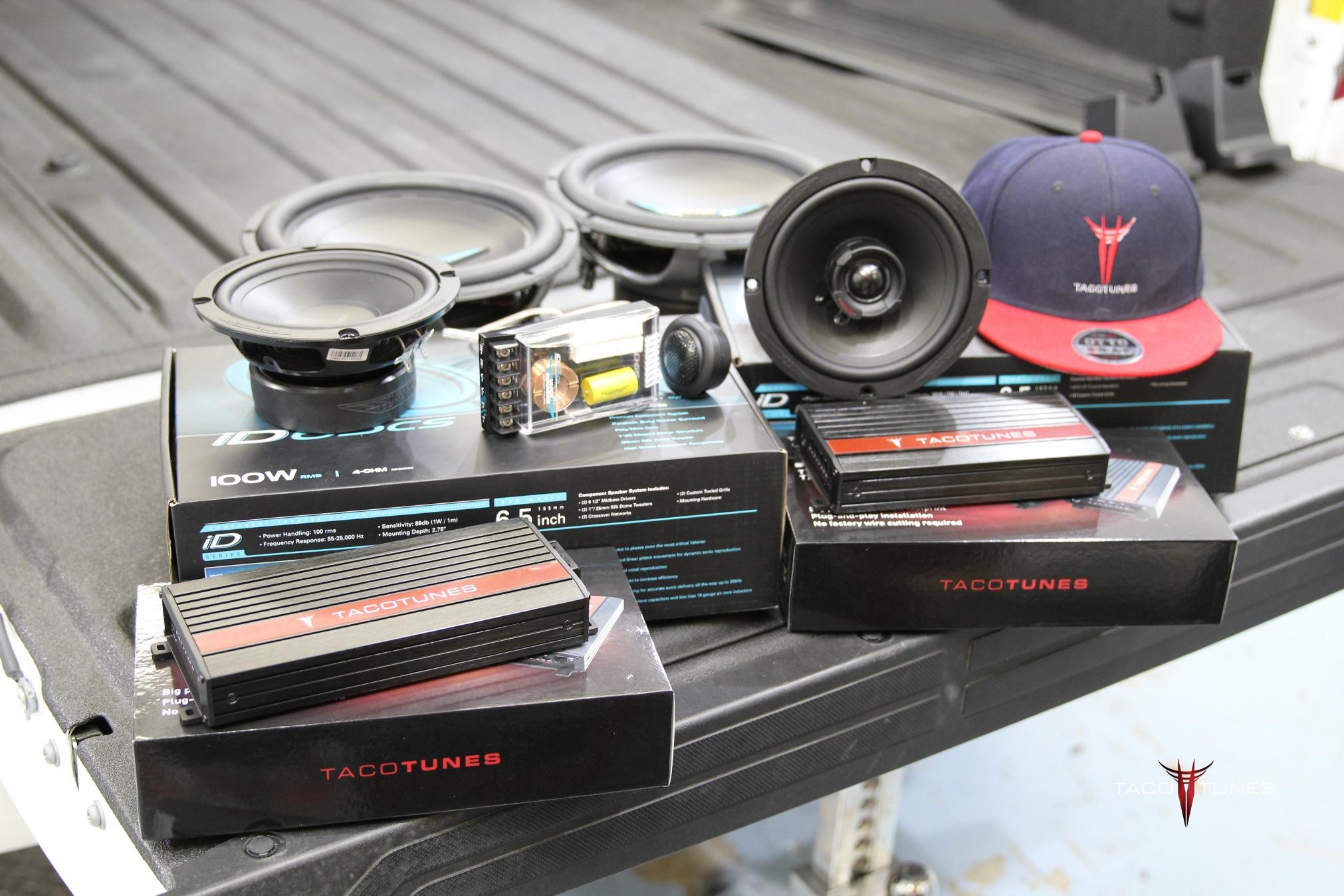

Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Chris Tundra CrewMax

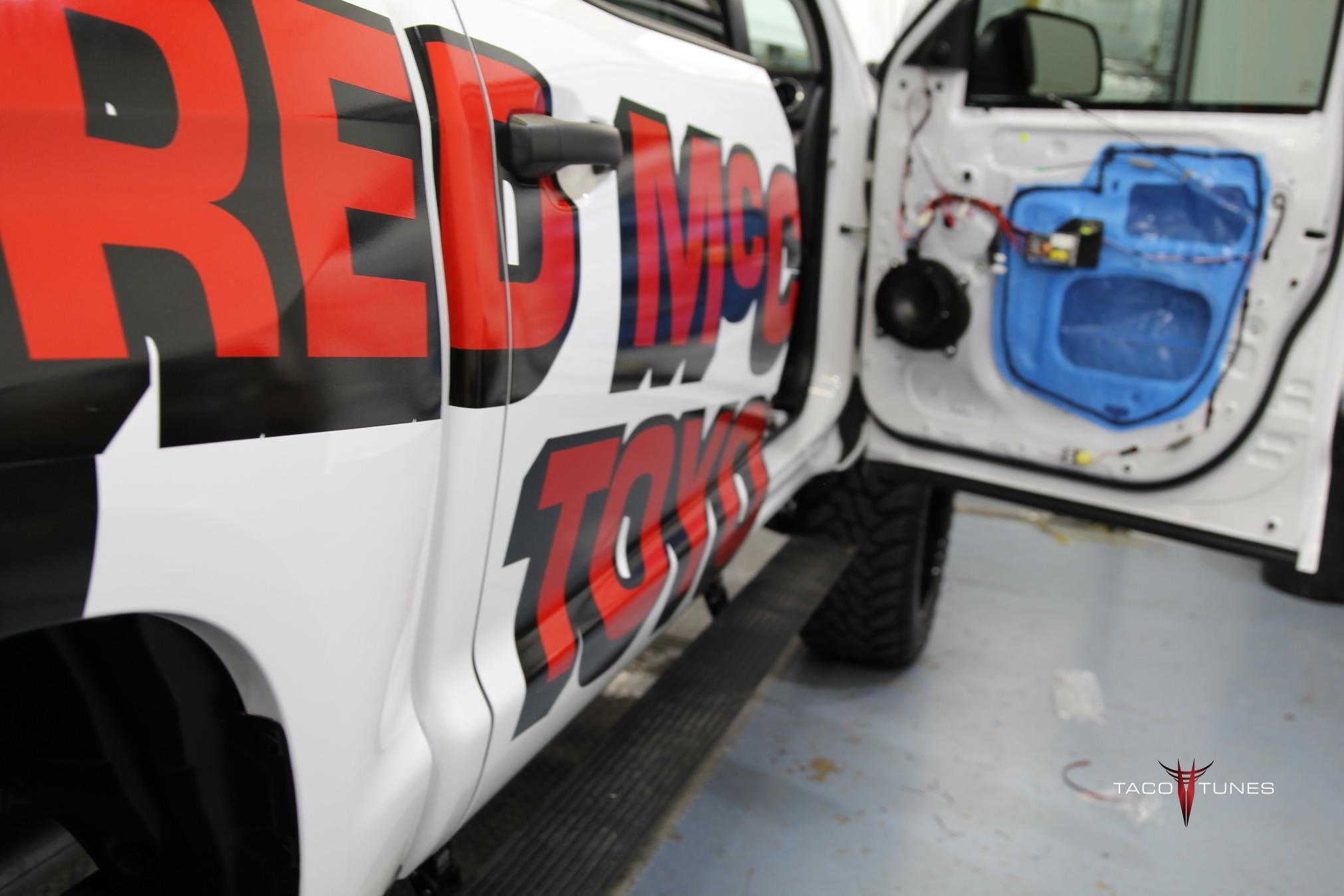

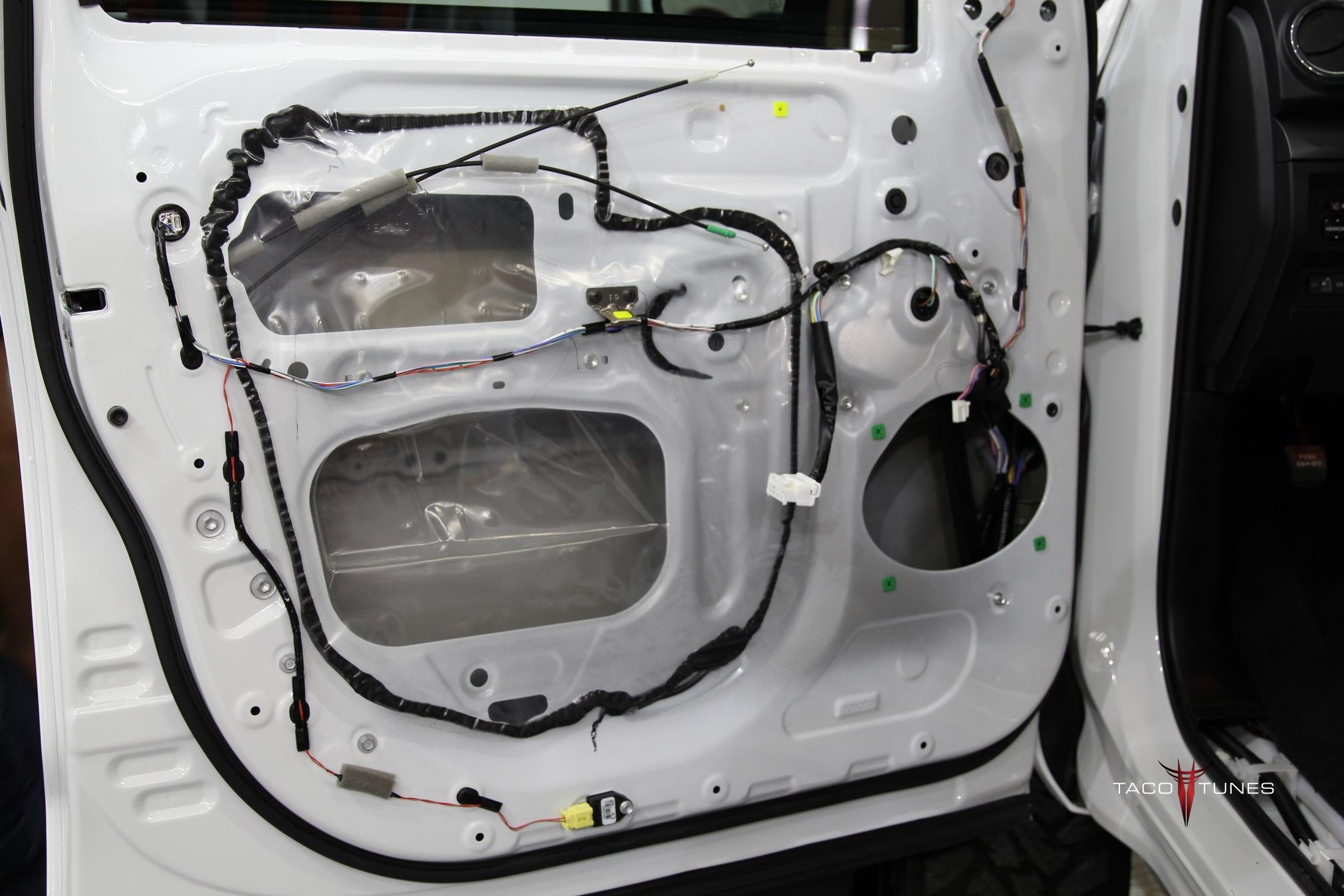

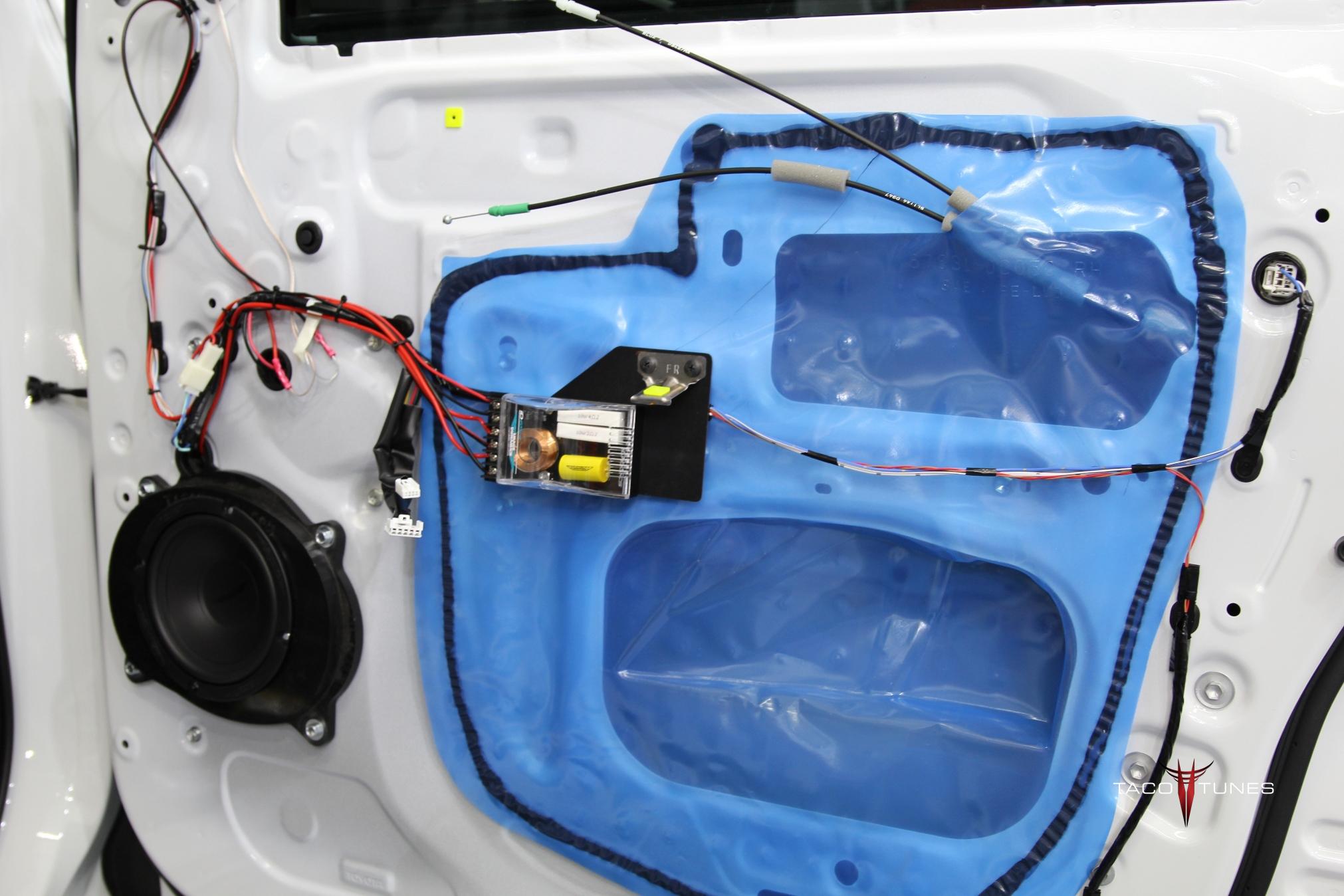

Front Door Component Speakers:

Image Dynamics CTX65CS/ID65CS

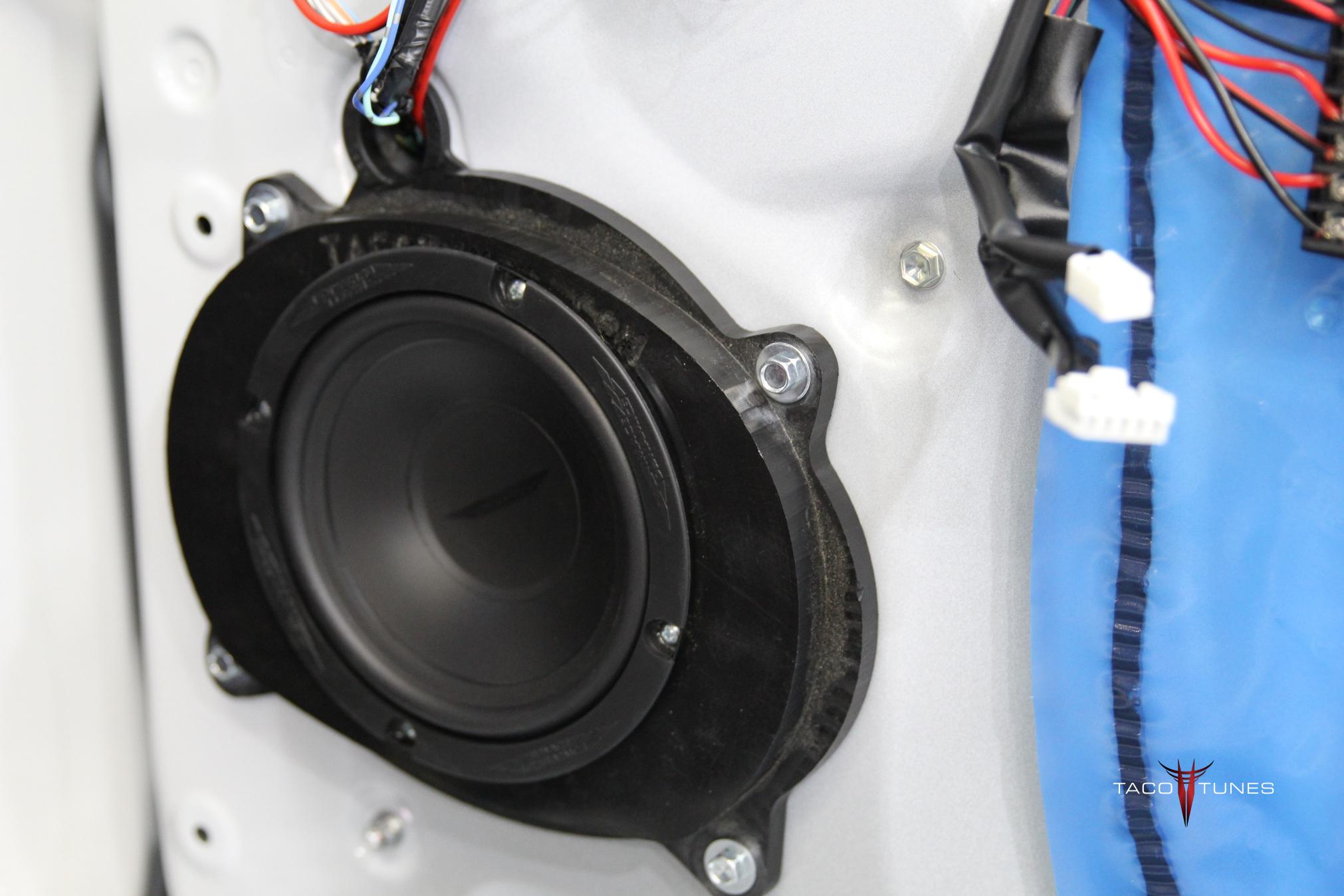

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTXCS Mid bass Drivers -100 Watts RMS

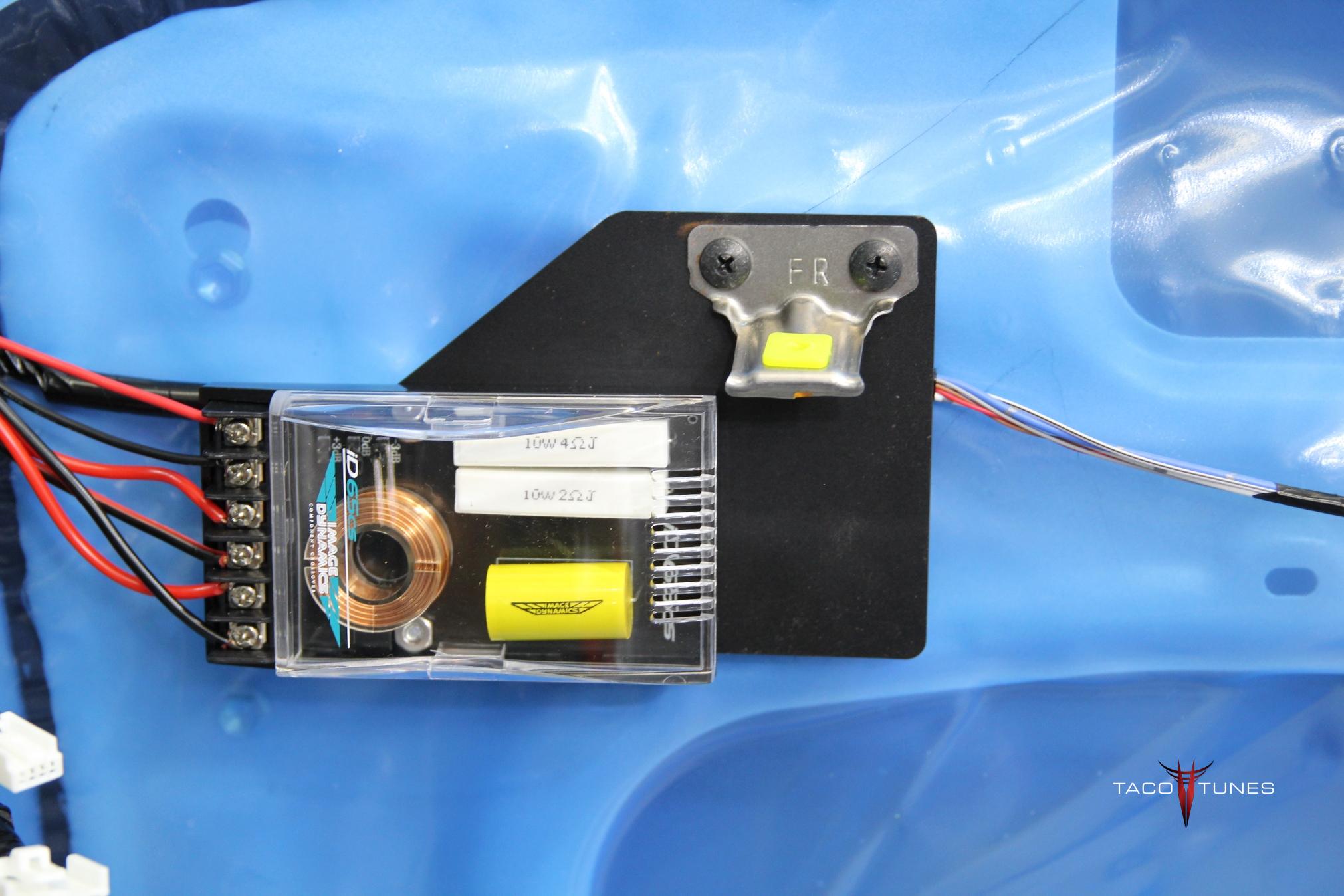

CTXCS Crossover

CTXCS Tweeter

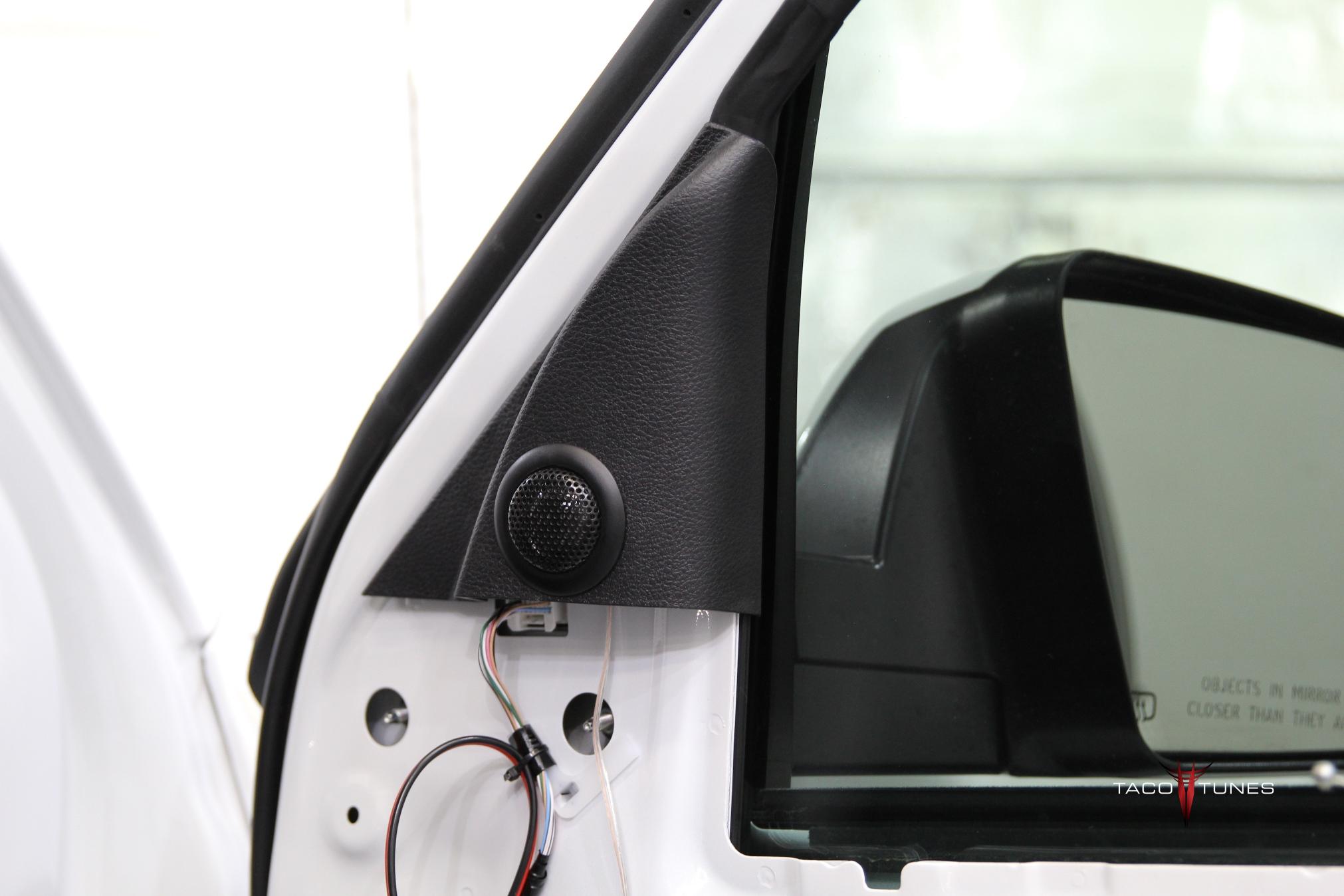

Use Stock Sail Panel for Tweeter mounts.

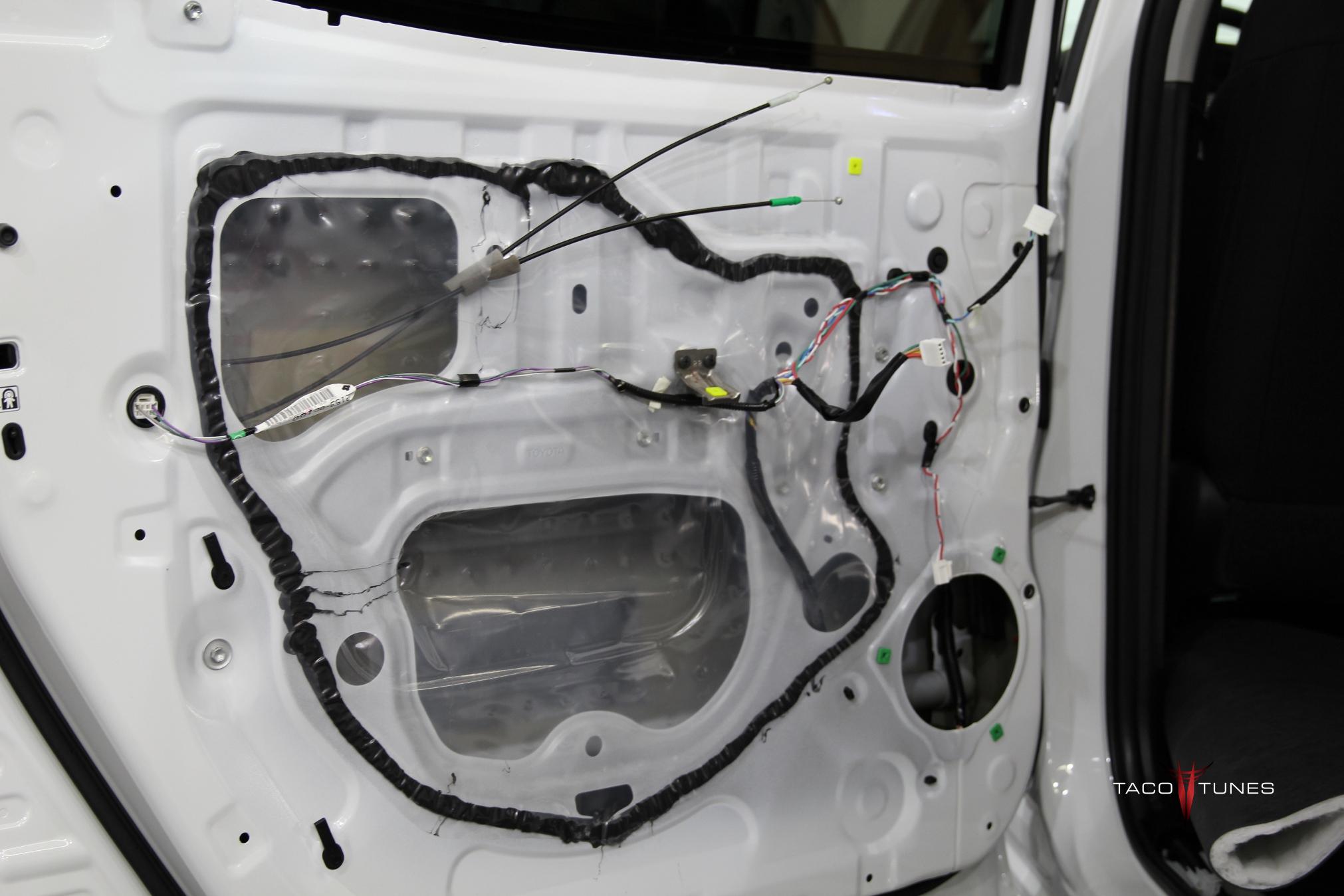

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

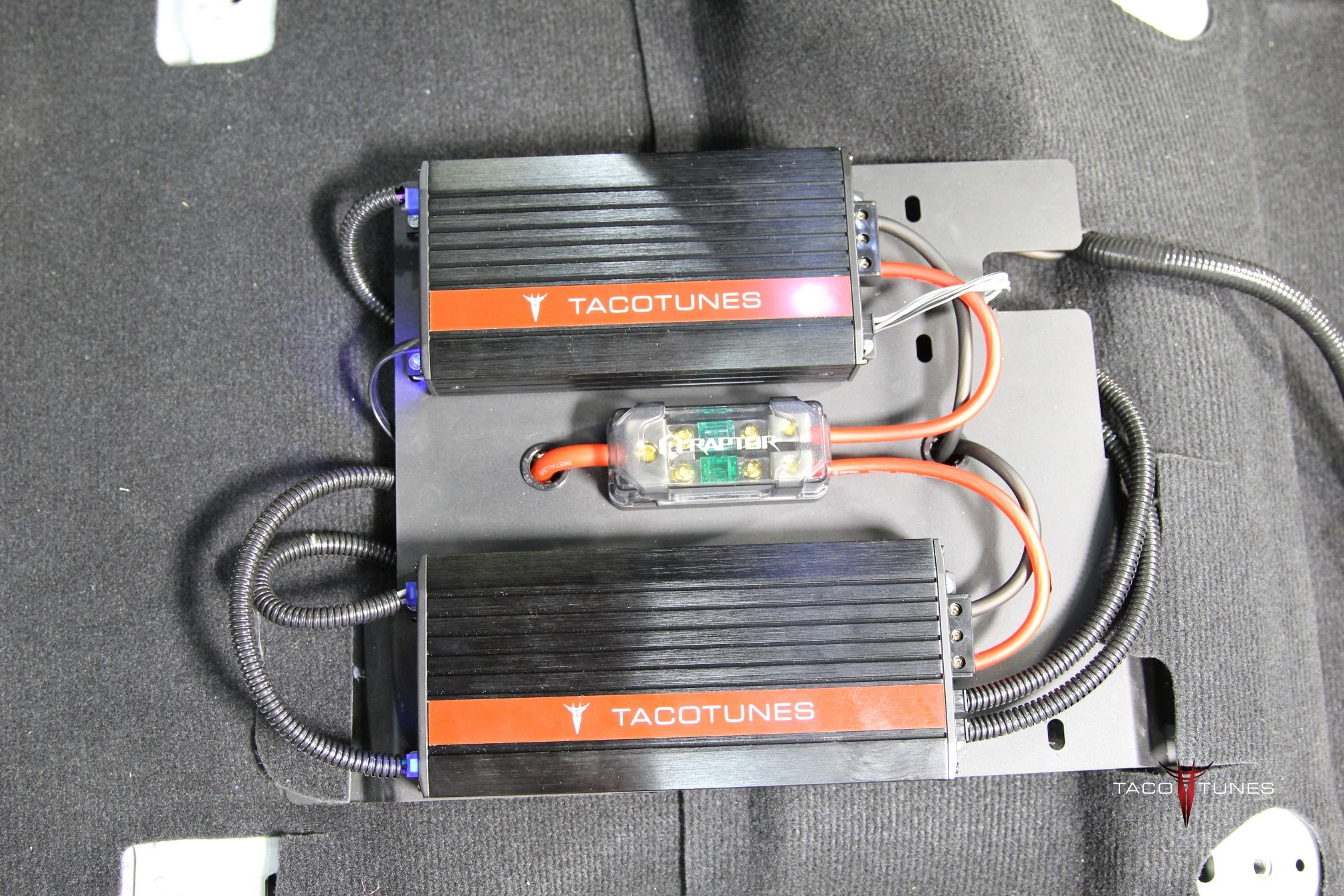

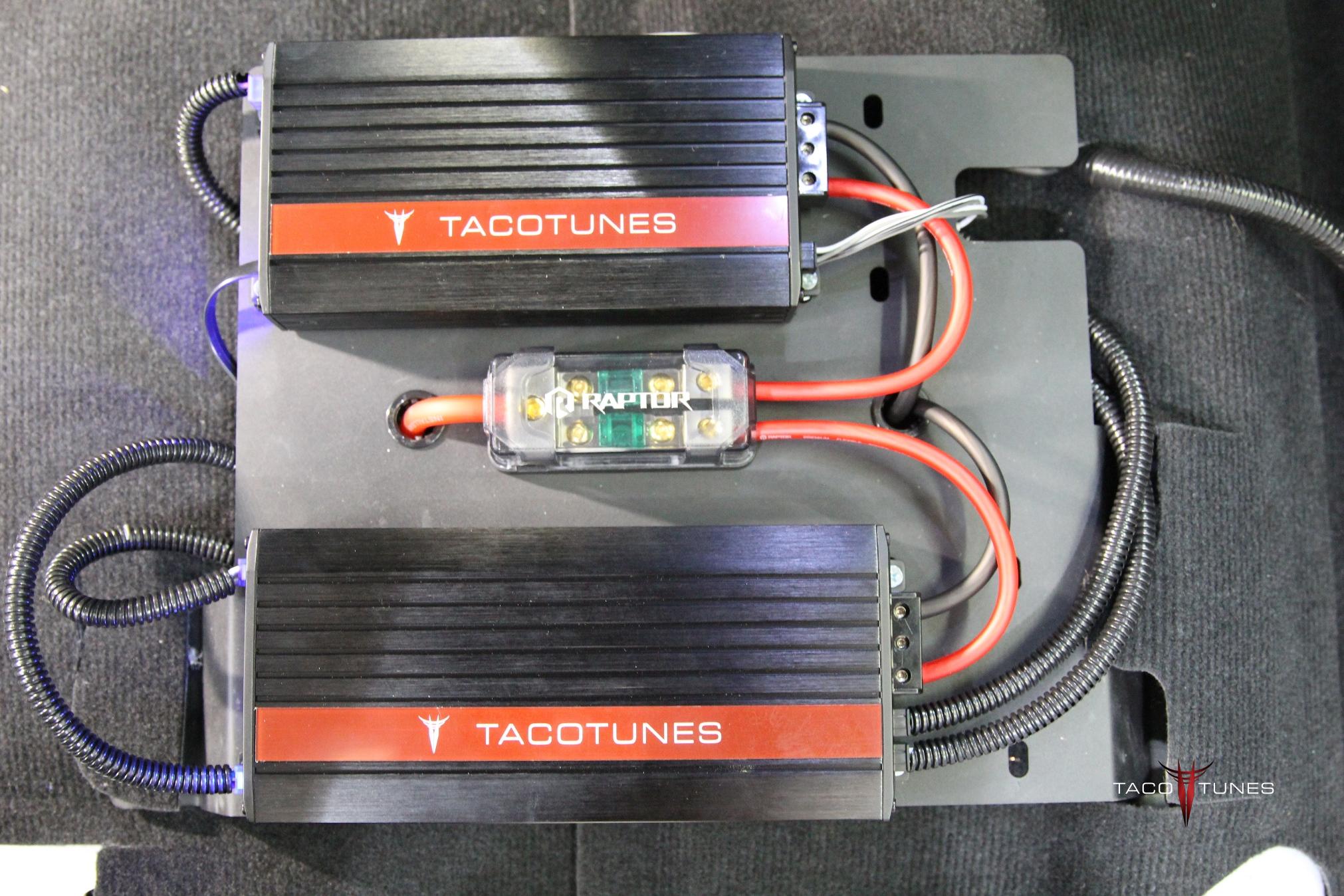

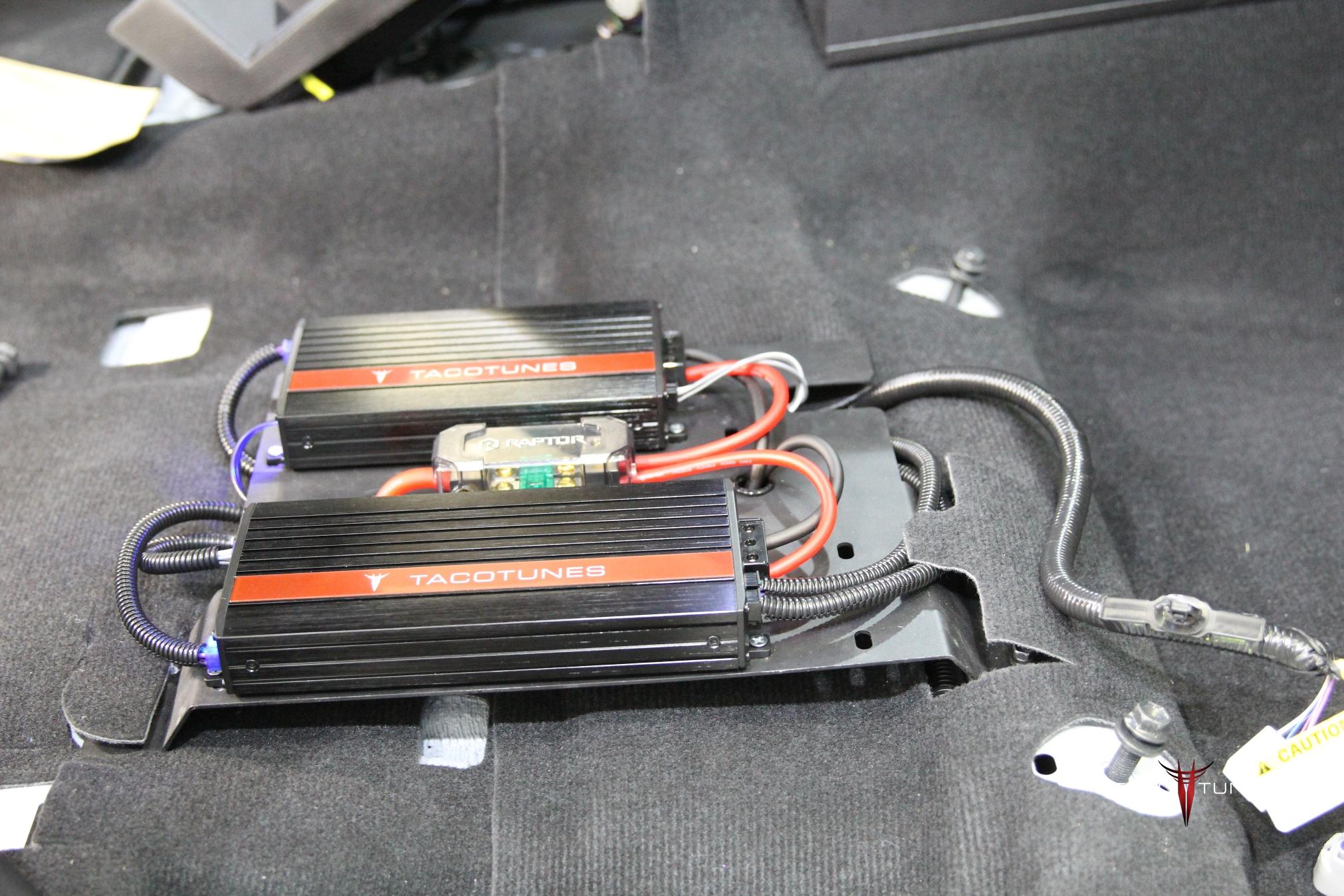

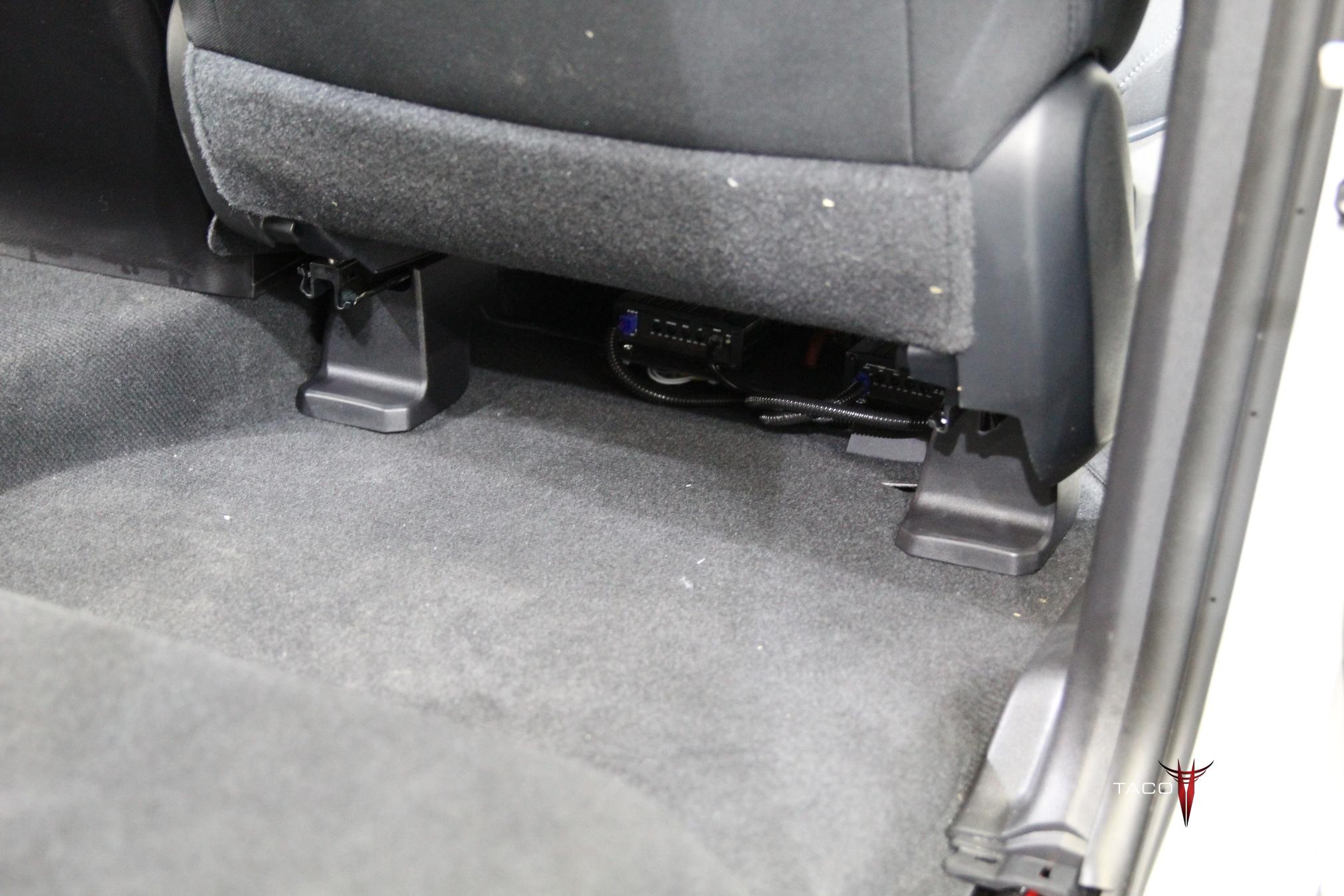

Amp:

tacotunes.com TXD3204 Four channel amplifier

tacotunes.com TXD6001 Mono subwoofer amplifier

70 watts x 4 to each speaker and 400 x 1 (subwoofer)

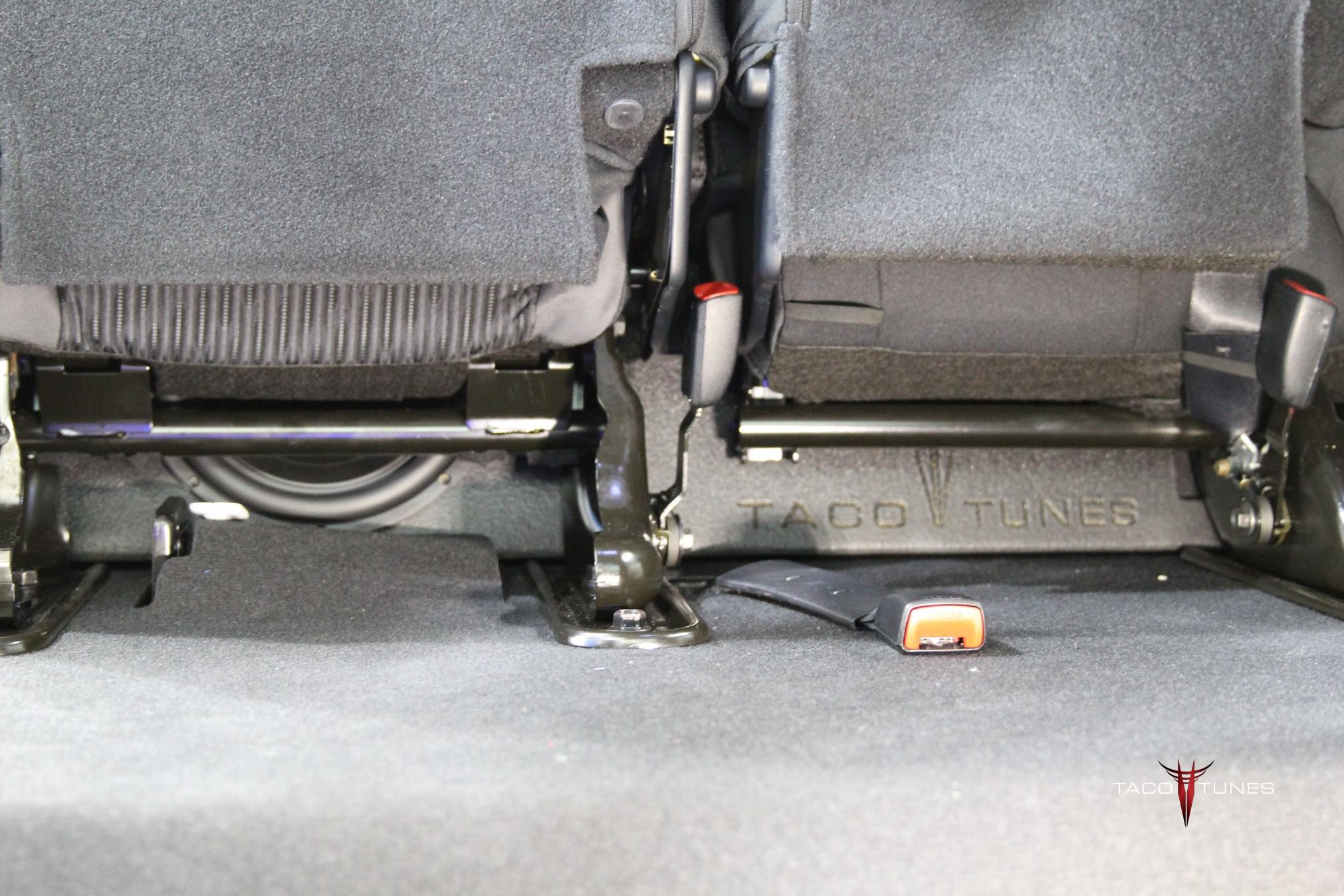

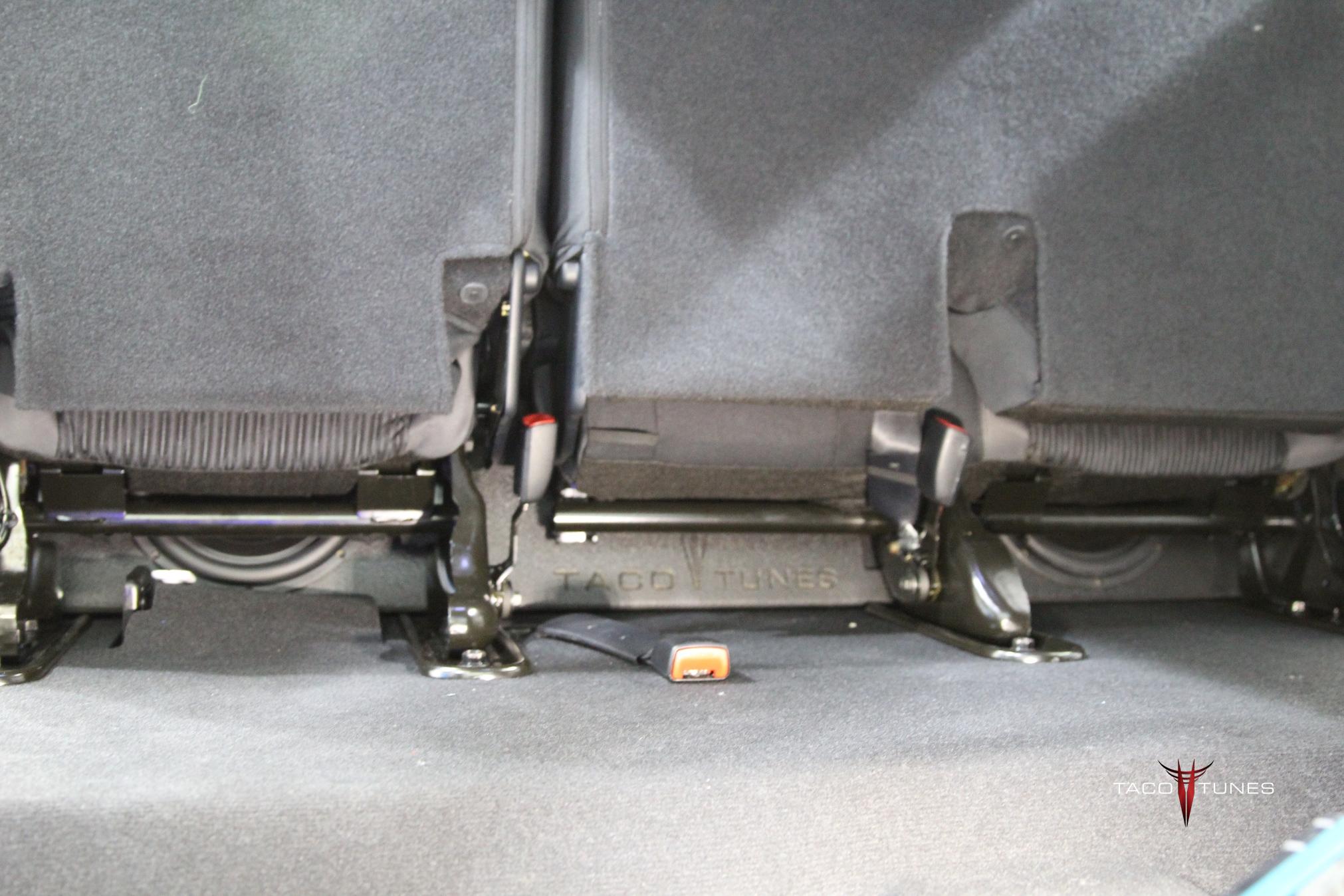

Subwoofer(s):

Subwoofer Box & Subwoofers

Tacotunes.com Dual 10″ subwoofers

Image Dynamics ID10V4 (full size) 10” subwoofer 400 watts RMS x 2

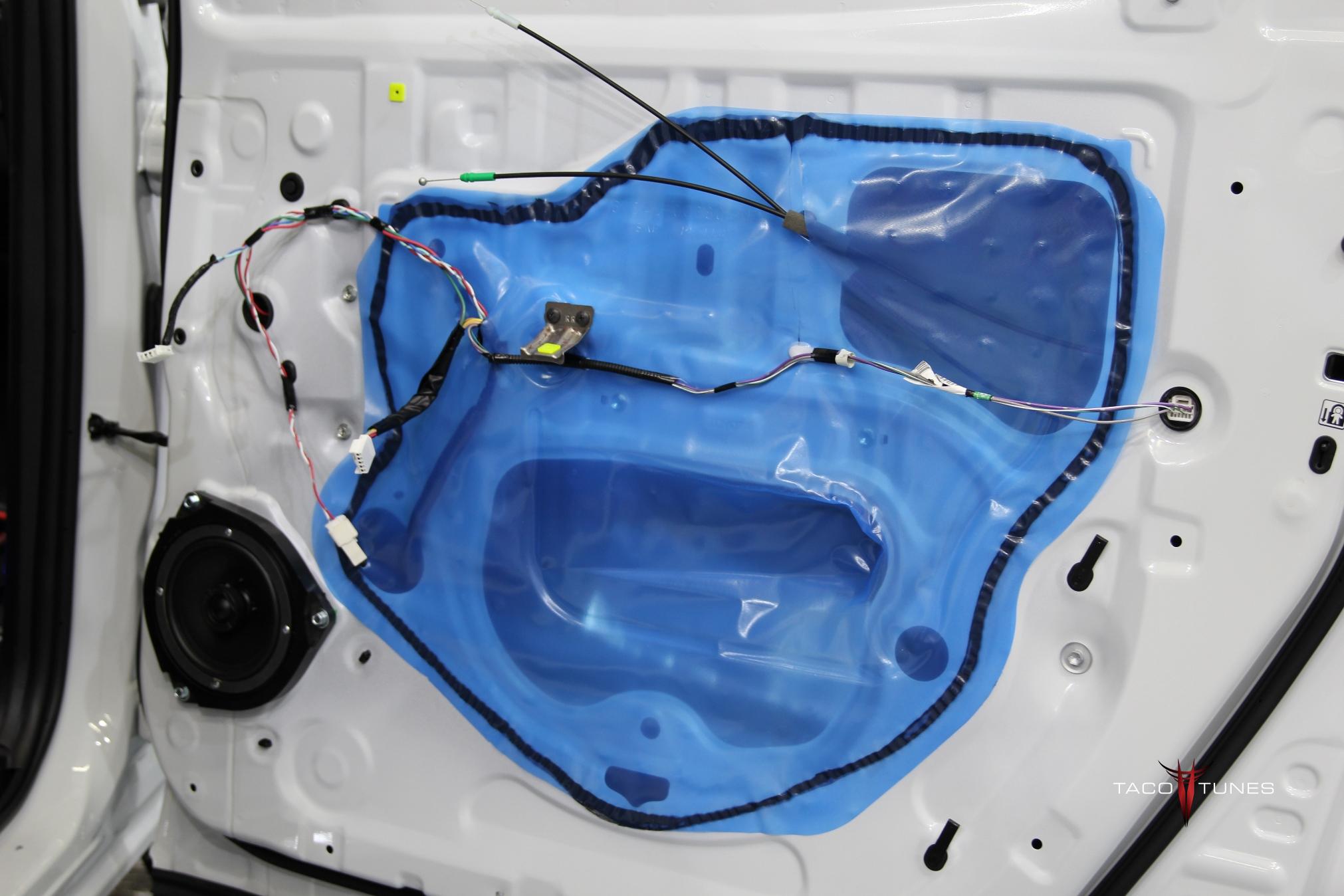

Matting:

Ballistic Matting rear wall only
