Posted on

Alpine SPS 610C Component 2 Way Speaker System – Toyota FJ Cruiser

Alpine SPS 610C Toyota FJ Cruiser
Alpine SPS 610C Toyota FJ Cruiser

Alpine SPS 610C Component 2 Way Speaker System

Alpine SPS 610C Component 2 Way Speaker System in Toyota FJ Cruiser

To install Alpine SPS 610C Component 2 Way Speaker System into your Toyota FJ Cruiser, you will want to use tacotunes.com speaker adapters designed to work in your FJ Cruiser. The Alpine SPS 610C Component 2 Way Speaker System require a 5.3” cutout diameter for the mid range speakers. The Alpine SPS 610C Component 2 Way Speaker System tweeters will require a 1.72″ cutout diameter.

Click HERE to check out our audio products for your Toyota FJ Cruiser

Mid range Driver: 5 1/4 – 5.3″ cutout diameter

Tweeter: 2.0″ cutout cutout diamter

Top Mount Depth: 2 1/4″



FEATURES
Tweeter

  • Tweeter Type: Bright, Crisp 1” Ring Tweeter with Resonance Absorber
  • Mounting Design: Shallow Mounting Design
  • Application Type / Design Detail: External / Swivel Tweeter Mounting Kit
  • Magnet Material: Ultra Low Distortion Magnet Design

Woofer

  • Dustcap Detail: Kevlar Reinforced, Phase Integrated Dustcap
  • Cone Material: Varnish Multi-Layer Cap & Cone
  • Motor Technology: Linear Drive Technology
  • Voice Coil Type: Large Square-Wire Short Voice Coil
  • Cooling: Optimized Air-Flow Design
  • Magnet: High Grade Strontium Magnet
  • Mounting: Shallow Mounting Design
  • Frame: Rigid Custom Cast Aluminum Frame
  • Mounting Adapters: Mounting Adapter Kit Included

Crossover Network

  • Grade: Professional Grade Network
  • Case Design: Sleek Crossover Case
  • Attenuation Control: 7-Level Tweeter Attenuation
  • Mounting: Shallow Mounting Design

Upgraded Design, Quality Sound Reproduction

Experience greater detail and impact of your music with the hybrid layered-pulp with mica coating woofer cone and new 1″ ring tweeter. A new external network design with seven-level tweeter adjustment allows for precise tuning, while the hidden screw terminal gives a sleek appearance. Adjust the tuning of your speakers using the crossovers to individually perform fine adjustments of the tweeter level. Ultimately, get far more detail and bright and crisp sound reproduction for a great sounding, loud system.

Easy Installation

Installation is made fast and easy with a shallower mounting depth, and basket design. A 6″x8″ mounting adapter plate is also included for fitment, so this solution is versatile to fit in many vehicles (Only Available on SPR-17S and SPR-13S). Choose from multiple models of both components and coaxials to fit the needs of your car.

Better Balance & Staging

The coaxial models feature a 1″ swivel ring tweeter to improve off-axis response in less than ideal installation locations. You can aim it by hand for best sound balance and staging, pointing at the optimum listening position.

Smooth High Frequency

Resonance Absorbers are used to ensure “focused” tonal playback, eliminating unwanted reverberating sound.

Accurate Tweeter Control

Ultra Low Distortion Magnet Design uses extra copper and large neodymium magnet is used to create accurate speaker control, ensuring low distortion and high tonal accuracy.

Fine-Tuned Multi-Layer Cone

New shape & cone materials are used in the Type-R series. The cone uses a combination of thick top-coated varnish, special fibers and glue, and rigorous pressure testing to ensure a lighter and strong material for smooth consistent performance.

Faithful to the Original Sound

The High-performance Linear Drive Motor structure has a large magnet that is almost as big as the voice coil diameter. Its dual radial magnet and twin gap combined with a square, edge-wound voice coil gives the diaphragm linear movement over a much greater range. This means the speaker is faithful to the input signal even during high excursion, for accurate musical reproduction and deep bass.

Superior Efficiency and Linearity

Alpine’s exclusive design allows wider music range playback, tonal and stable balance with greater excursion, and precise speaker movement for accurate music reproduction and deep bass.

Sound, High Power Handling

A large flat copper wounding on the woofer voice coil is used for high power handling and fluid movement during music playback. This contributes great sound and durable performance from the speaker.



Posted on

Alpine SPS 110TW Tweeters – Toyota FJ Cruiser

Alpine SPS 110TW Tweeters

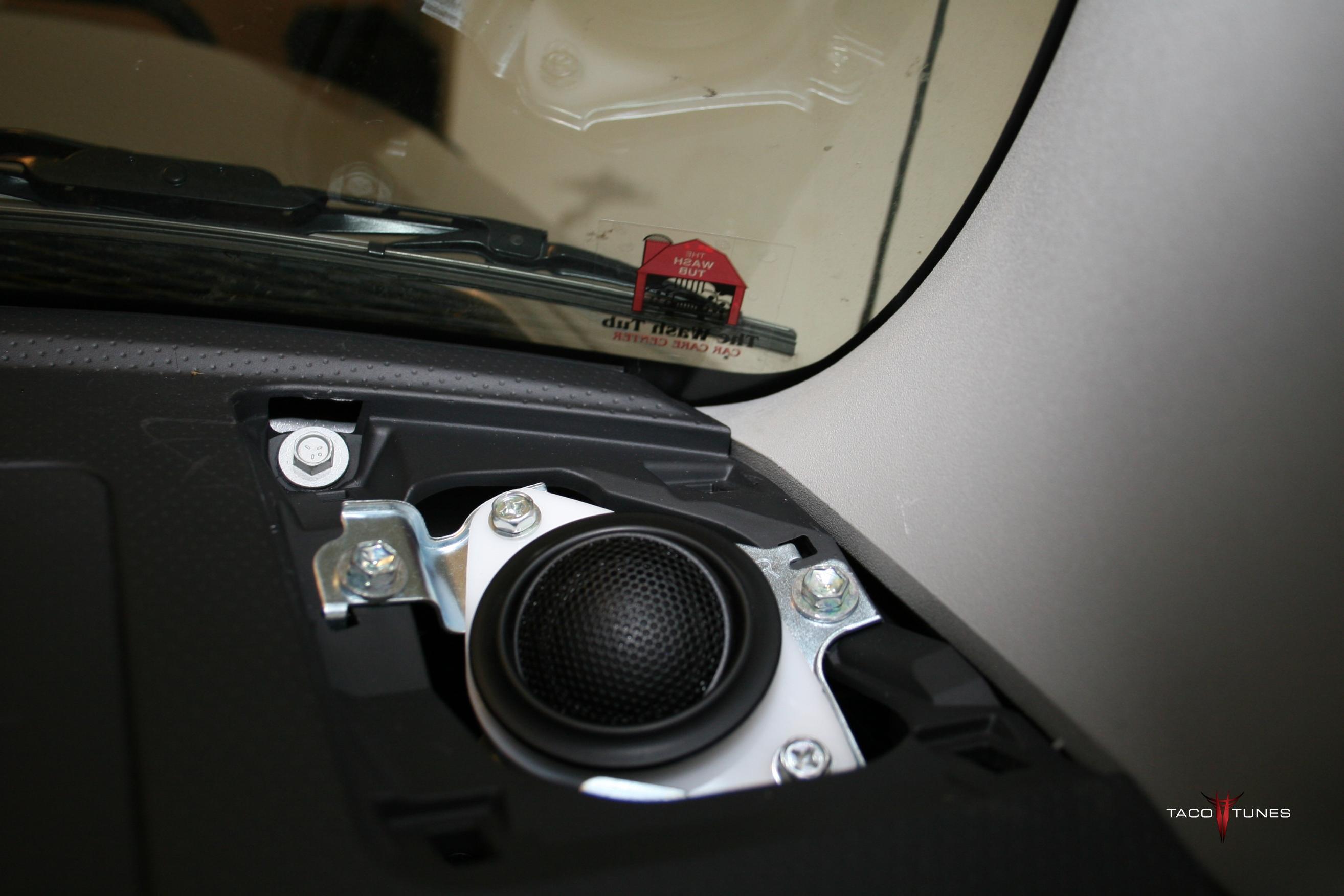

How to install Alpine SPS 110TW Tweeters in your Toyota FJ Cruiser

Below you will find instructions on how to install Alpine SPS 110TW Tweeters. Please be sure to watch our videos on how to install the tweeter mounts. When you order these from our site, you will want to specify a custom size cutout @ 2.07″ cutout



Click HERE to check out our audio products for your Toyota FJ Cruiser


Alpine SPS 110TW Tweeters Manual Toyota FJ Cruiser

alpine sps 110 tweeters toyota FJ Cruiser
alpine sps 110 tweeters toyota FJ Cruiser





  • 1″ silk dome tweeters
  • flush-, top-, and bottom-mount hardware included
  • external crossovers with 4-way level control
  • power handling: 5-150 watts RMS (450 watts peak power)
  • frequency response: 1,000-29,000 Hz
  • impedance: 4 ohms
  • sensitivity: 88 dB
  • flush-mount depth: 11/16″
  • warranty: 1 year

Alpine SPS 110TW Tweeters Toyota FJ Cruiser

The Look You Want

The Type-S Component tweeters include a removable logo, so you can go for a high-profile look or keep it stealth… your choice.

Easy to Install

Type-S Component tweeters come with a 15-degree swivel flush cup mount and and stealth OEM mount for easy integration into any car. Plus, at only ¾” deep (flush mount), they will fit virtually anywhere.

The Type-S component tweeter borrows some Type-R technology like a copper-clad aluminum voice coil, copper shorting cap, high-grade neodymium magnet, and aluminum bobbin. These features mean that the SPS-110TW deliver best-in-class power handling of 100 watts RMS and 300 watts peak, so turn up the volume!

High Power Handling for High Volume

The Type-S component tweeter borrows some Type R technology like a copper-clad aluminum voice coil, copper shorting cap, high-grade neodymium magnet, and aluminum bobbin. These features mean that the SPS-110TW deliver best-in-class power handling of 100 watts RMS and 300 watts peak, so turn up the volume!

In-Line Crossover Included

The small in-line crossover network provides a 12 dB/Octave slope and uses high-grade electrical components for clean sound. It’s small size also makes installation a snap.

Smooth Operator

The SPS’s 1” pure silk dome tweeter diaphragm is designed for wide frequency range and high efficiency, while never sounding harsh or shrill

Add great-sounding highs to any system… affordably.

The same great tweeter that is included with the Type-S Component speakers is now available as a separate component. Now you can add on an efficient, affordable tweeter to any OEM or aftermarket sound system with ease.

Add great-sounding highs to any system… affordably.

The same great tweeter that is included with the Type-S Component speakers is now available as a separate component. Now you can add on an efficient, affordable tweeter to any OEM or aftermarket sound system with ease.

Posted on

Alpine SPR 60C Component 2 Way Speaker System – Toyota FJ Cruiser

Alpine SPR-60C Toyota FJ Cruiser
Alpine SPR-60C Toyota FJ Cruiser

Alpine SPR 60C Component 2 Way Speaker System

Toyota FJ Cruiser Alpine SPR 60C Component 2 Way Speaker System

To install Alpine SPR 60C Component 2 Way Speaker System into your Toyota FJ Cruiser, you will want to use tacotunes.com speaker adapters designed to work in your FJ Cruiser. The Alpine SPR 60C Component 2 Way Speaker System require a 5.4” cutout diameter for the mid range speakers. The Alpine SPR 60C Component 2 Way Speaker System tweeters will require a 1.5″ cutout diameter.

Click HERE to check out our audio products for your Toyota FJ Cruiser

The Alpine SPR 60C Component 2 Way Speaker System will fit you your Toyota FJ Cruiser without any cutting, drilling or modifying your FJ Cruiser.

Summary:

Mid range Driver: 5.4″ cutout diameter

Tweeter: 2.0″ cutout diameter

Top Mount Depth: 2 3/8″

Alpine-SPR-60C-Component-Speakers Manual

[TACOFCS]








Overview

Specification

Features and Specification

SPECIFICATIONS

Power Handling

CEA-2031 Power Rating: 110 Watts

Power Handling Capacity (RMS): 110 Watts

Power Handling Capacity (Peak): 330 Watts

Dimensions

Tweeter Mounting Diameter (mm): 37.9mm

Tweeter Mounting Diameter (in): 1-1/2”

Tweeter Mounting Depth (mm): 19 mm

Tweeter Mounting Depth (in): 3/4”

Woofer Diameter (mm): 165mm

Woofer Diameter (in): 6-1/2”

Woofer Mounting Diameter (mm): 136mm

Woofer Mounting Diameter (in): 5-3/8”

Woofer Mounting Depth (mm): 59mm

Woofer Mounting Depth (in): 2-3/8”

Crossover Size (mm): 63mm x 32mm x 24mm

Crossover Size (in): 2-1/2” x 1-1/4” x 15/16”

General

Frequency Response: 65Hz – 29kHz

Impedence: 4 Ohms

Sensitivity: 88dB (1W/1m)

FEATURES

Tweeter

Tweeter Type: 1” (2.5cm) Ring Radiator Tweeter

Voice Coil Type: Large Aluminum Voice Coil/Copper Square Wire

Magnet Material: Neodymium Magnet

Swivel Application: Swivel Application

Application Type: Flush Mount, Surface Mount

Woofer

Cone Material: Hybrid Multi Layer Cone

Motor Technology: Linear Drive Technology

Surround: HAMR Surround

Voice Coil Type: Large Aluminum Voice Coil

Voice Coil Wire: Copper Square Wire

Magnet: Ultra High Density Neodymium Magnet

DX Ring: DX Ring

Wave Guide: Wave Guide

Mounting: Shallow Mounting Design

Mounting Adapters: Mounting Adapter Kit Included

Design: Bi-Amp Ready Design

Crossover Network

Design: In-line Network Design

Attenuation Control: 4 Step (0, -2, -4, -6 dB)

High Grade Network Components: High Grade Network Components

Others: Pure Copper Trace-Style Resistance Circuit Board

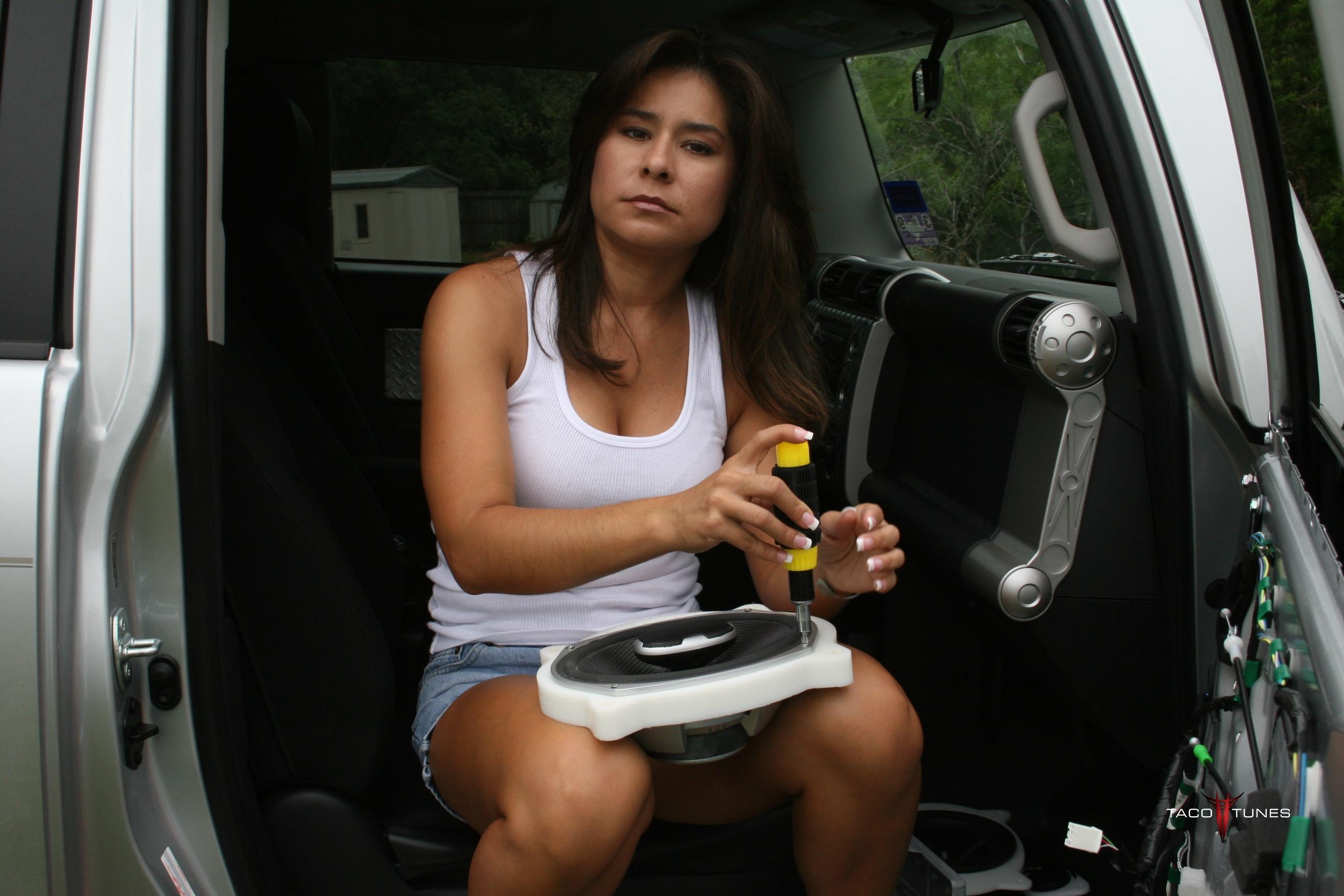

How to install speakers in your Toyota FJ Cruiser
How to install speakers in your Toyota FJ Cruiser
Posted on

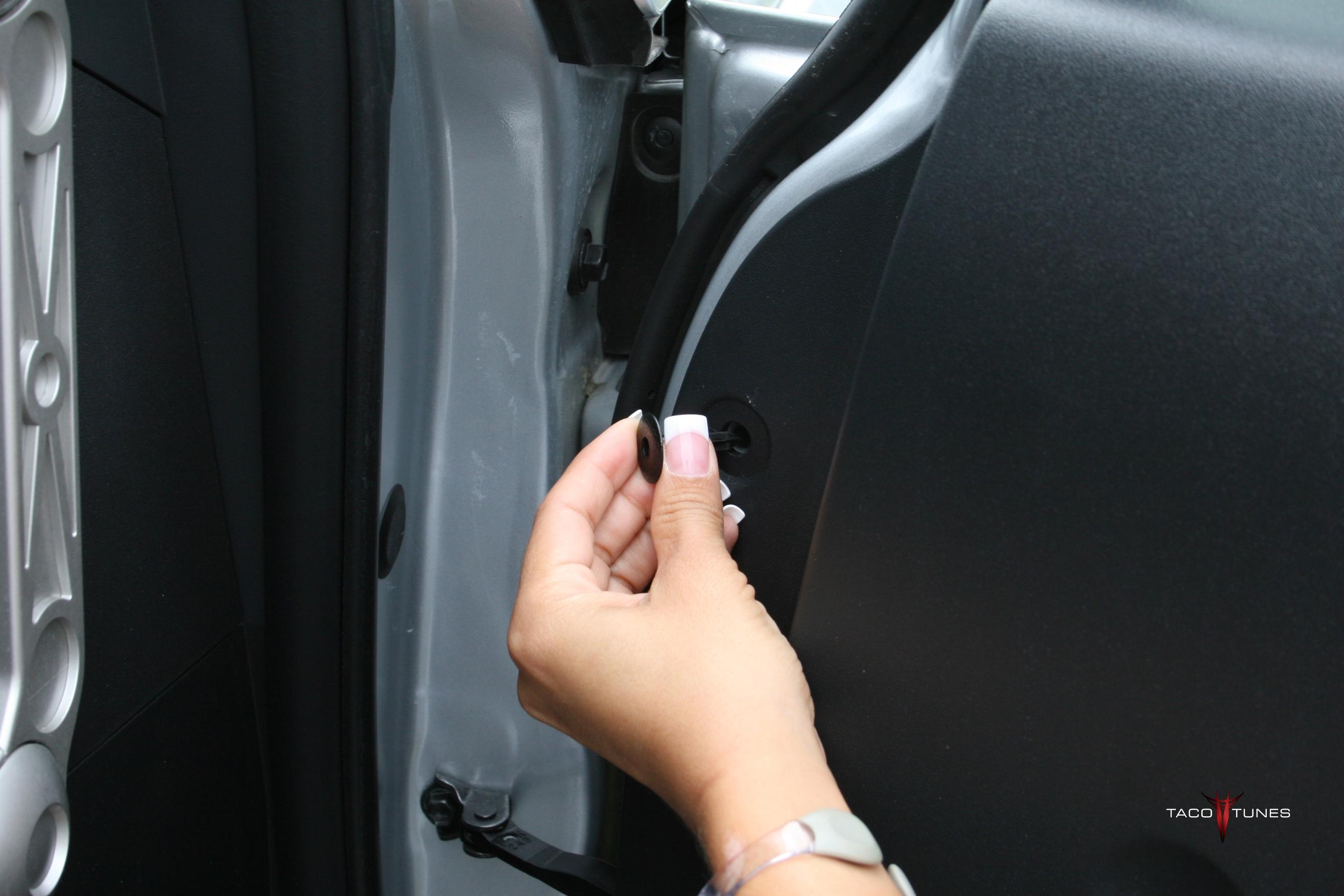

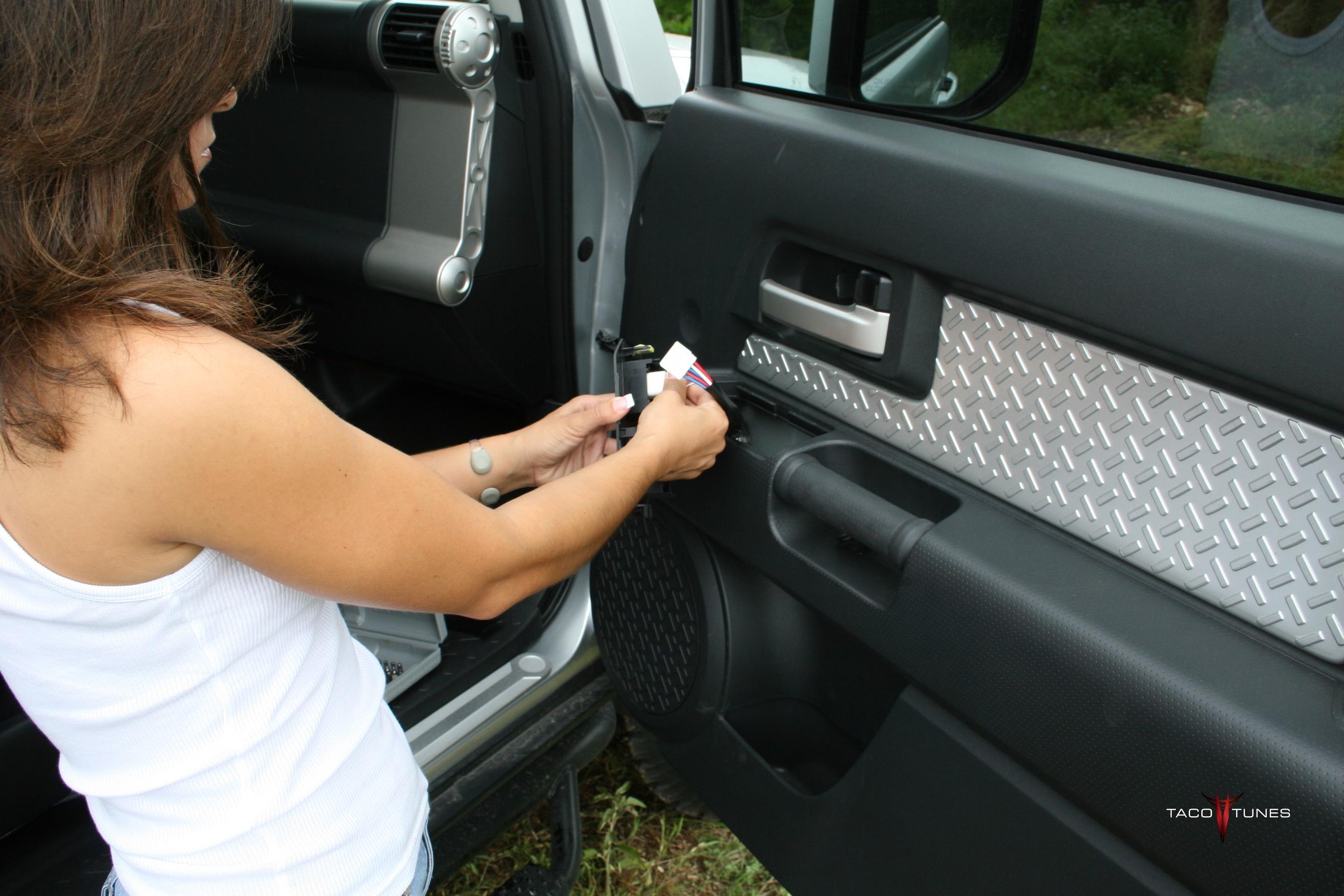

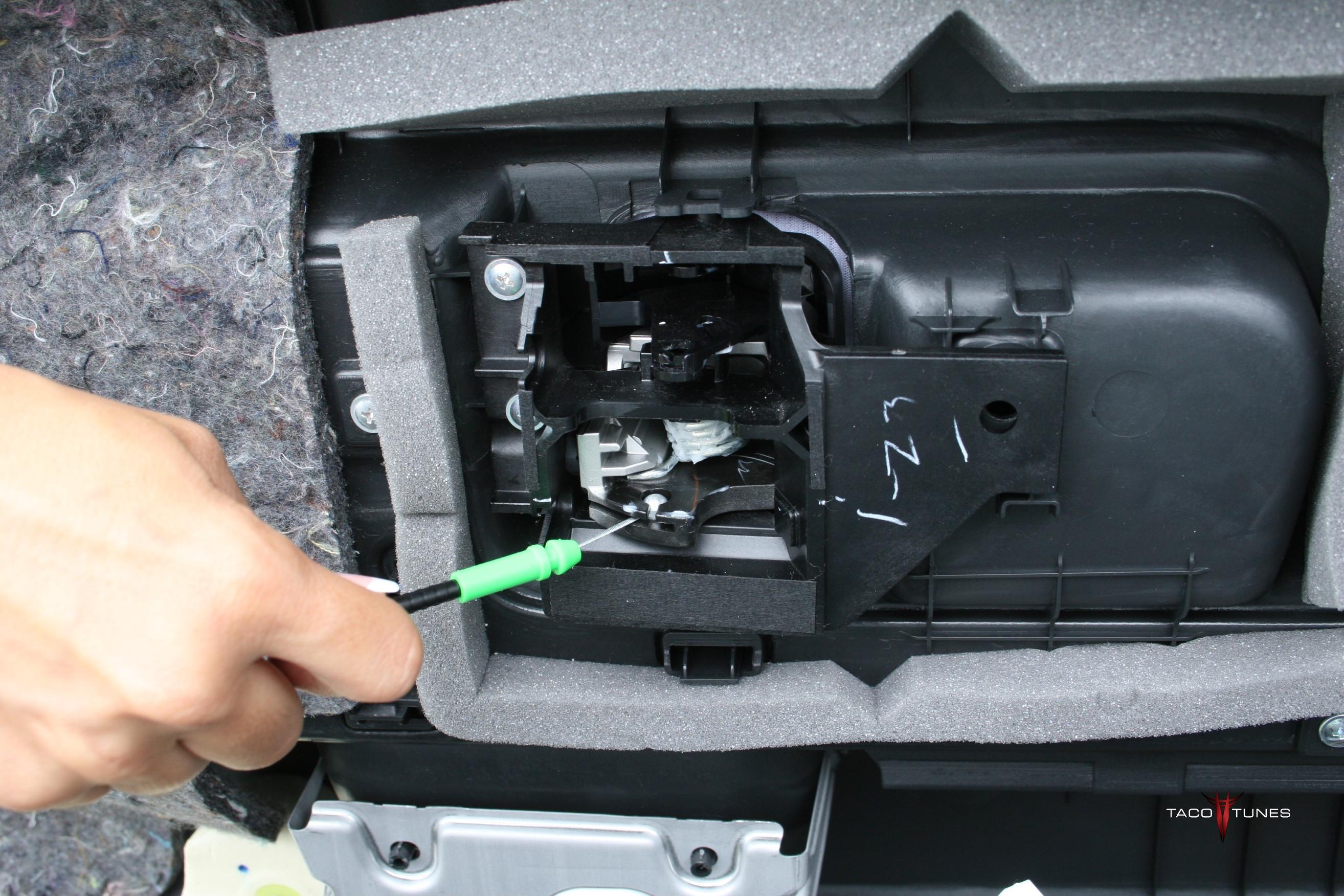

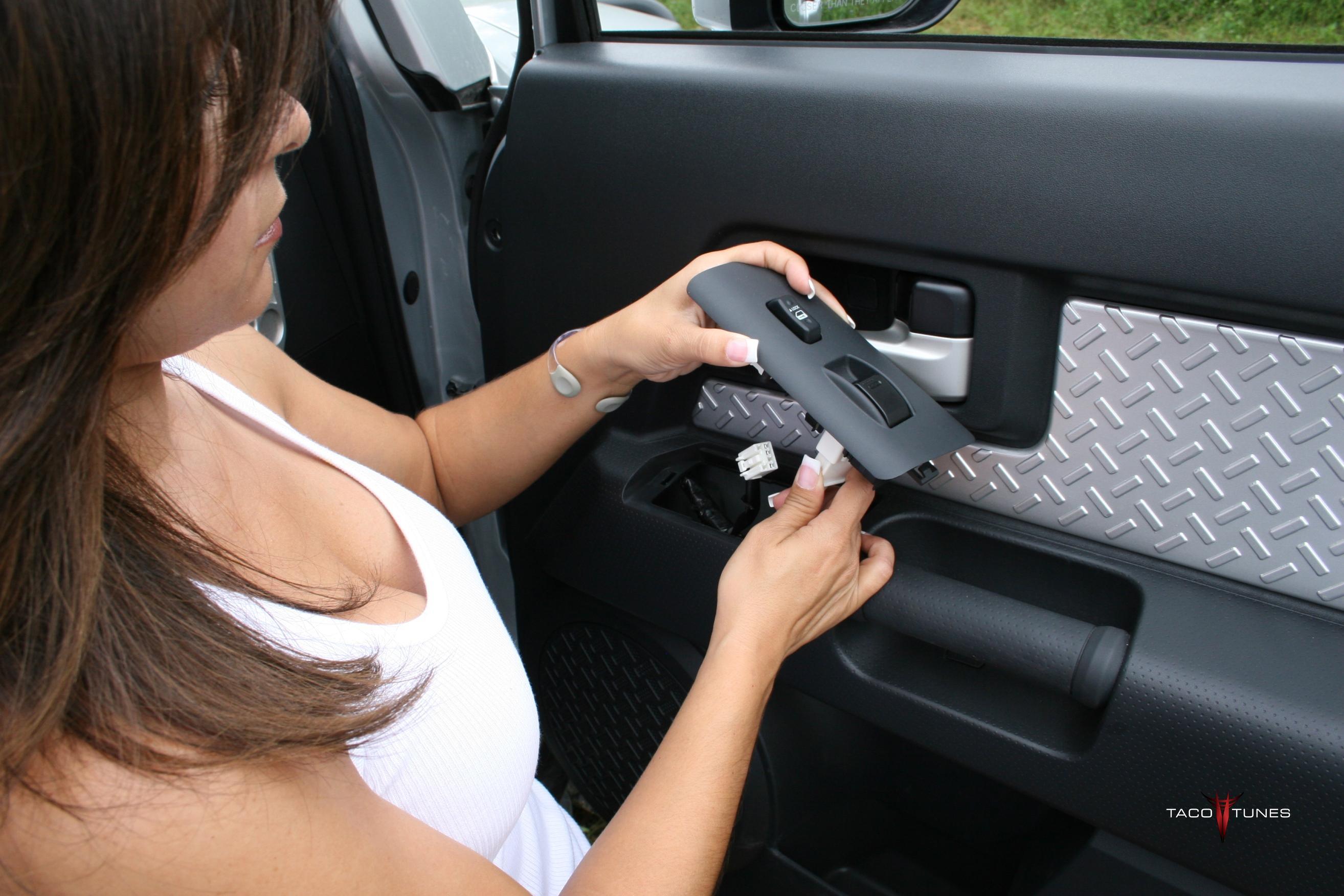

How to install speakers in FJ Cruiser and remove door panels

How to install speakers Toyota FJ Cruiser (2)

How to install speakers in FJ Cruiser and remove door panels

Below are pictures and instructions on how to install speakers into your FJ Cruiser.

Posted on

how to remove stock stereo and install new aftermarket head unit FJ Cruiser

How to remove stock stereo and install new aftermarket head unit

You want to install an Alpine, Clarion, JVC, Jensen, Kenwood, Pioneer, Sony, or other brand(s) . . .but you don’t want to lose the stock look of your truck?  We will show you how to remove stock stereo and install new aftermarket head unit.

Installation kit designed to integrate an aftermarket head unit / receiver into your Tacoma vehicle dash.

Want to keep your stock head unit? Want to add an amp(s) to your stock Stereo? Click here

Head units generally come in either single DIN (180 x 50 mm panel) or double DIN (180 x 100 mm panel) size. The depth is not standardized. The US standard for a DIN radio is 2″ x 7″ and the Double DIN sized radio is a 4″ x 7″. Your new head unit will say single or double DIN.





How to   install Ipod Zune MP3 in your Toyota Tacoma Double Cab [TacoYR1]

How to   install in dash receiver in your Toyota Tacoma Double Cab [TacoYR1]

How to   install radio in your Toyota Tacoma Double Cab [TacoYR1]

How to   install HD radio Sirius and XM in your Toyota Tacoma Double Cab [TacoYR1]

How to remove   the factory stereo in your Toyota Tacoma Double Cab [TacoYR1]

Dash removal   Toyota Tacoma Double Cab [TacoYR1]

Wiring new   stereo Toyota Tacoma Double Cab [TacoYR1]

Wire harness   adapter Toyota Tacoma Double Cab [TacoYR1]

Double Din   Single DIN Toyota Tacoma Double Cab [TacoYR1]
