Posted on

2022 Toyota Tundra Stereo System Upgrade Speakers Subwoofer Amplifiers

2022 Toyota Tundra Component Speakers Mid bass & tweeters with crossover network

Clifford drove up a few hours to have us install our System 1B into his 2022+ Toyota Tundra. Clifford is the first “private” 2022+ Tundra owner we have installed. We install many audio systems for Red McCombs Toyota here in San Antonio, plus a number of other dealers use our products as well . We install many audio systems in brand new Tundras before they hit the dealer lot.

2 – 2022 Toyota Tundra CrewMax – Lunar Rock Audio System Upgrades

2 – 2022 Toyota Tundra CrewMax – Lunar Rock Audio System Upgrades

Laser Cut Amp Rac & Tacotunes Amplifiers – bolts to stock mounting location. No drilling!
Dual 10″ Subwoofer Box – Ported
tacotunes.com TT65CS Component Speakers
tacotunes.com tt6CS Component Speakers

Tundra Direct Integration – no cutting or splicing your factory wires. Amps bolt to stock mounting location.
2022 Toyota Tundra Audio Upgrade & Wiring Diagram
How to connect amp to your stock stereo
How to install subwoofer 2022 Tundra.
Component Speakers – no cutting or splicing uses all factory wiring.
Tundra Ported Subwoofer Box
Alfred installing system 1B
2022 Toyota Tundra Audio System Installation
2022 Tundra Factory Tweeter Removed – Stock Tweeter Harness
2022 Tundra Factory Dash Speaker Tweeter
tacotunes.com dual 10″ Subwoofer Box
Tacotunes.com TT65CS Component Spekaers

Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however if we matt (sound deaden) the front, rear doors and the rear wall behind the subwoofer it adds a day. If we are matting the truck, we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 12 hours with the truck.

Below is a detailed listing of the audio products installed in Eddie’s Tundra CrewMax

2022 Tundra Factory Integration System:

3 Harness Plug and Play system – no cutting or splicing any of your wires in your new Tundra.

NTUNE6 – LOC / Audio leveler & Bass Enhancement module

Front Door Component Speakers:

Tacotunes.com TT65CS Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

TT65 Mid bass Drivers -100 Watts RMS

TT65 Crossover

TT65 Tweeter

Tacotunes.com Front Door Speaker Wire Harness Adapters

Tacotunes.com Dash Speaker Wire Harness Adapters

Tweeters Installed in dash location using tweeter adapters.

Rear Door Components:

Tacotunes.com TT65CS Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

TT65 Mid bass drivers Handles -100 watts RMS

TT65 Crossover

TT65 Tweeter

Tacotunes.com Tweeter Harness Adatpers

Tweeters will fit in stock door location

Amps:

tacotunes.com TXD3204v3 – 4 Channel Amp (100×4)

tacotunes.com TXD10001 – Subwoofer Amp

100 x 4 (Speakers)

800 x 1 (Subwoofer)

Subwoofer(s):

Subwoofer Box & Subwoofers

Tacotunes.com Dual 10” subwoofers

NOTE: Keep eye out for our under seat fiberglass subwoofer boxes! These are designed for serious bass lovers! Tons of air space and mounting depth!

Posted on

2018 Toyota Tundra CrewMax System 1B plug and play audio system upgrade

Toyota Tundra CrewMax 2018 Stereo System Upgrade

2018 Toyota Tundra CrewMax System 1B plug and play audio system upgrade

This is a brand new Toyota Tundra from a local Toyota dealership here in San Antonio

Installation Summary / History: Red McCombs is a local Toyota dealer here in San Antonio. We have installed our System 1B in many of their Toyota Tundras before they are listed for sale.  This truck is roughly ur 575th Toyota Tundra audio upgrade we have done here in San Antonio! We now have over 20,000 Tundra customers around the globe!

Our plug and play amps provide amazing clarity and tons of power.

Customer Name: Red McCombs Toyota

Toyota Year / Model: 2018 Toyota Tundra CM

Head Unit: NON JBL

Color: Calvary Blue

Installed by: tacotunes.com

System Installed: System 1B

System Install Completed: October 8, 2017



Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Brian’s Tundra CrewMax

Front Door Component Speakers:

Image Dynamics CTX65CS/ID65CS

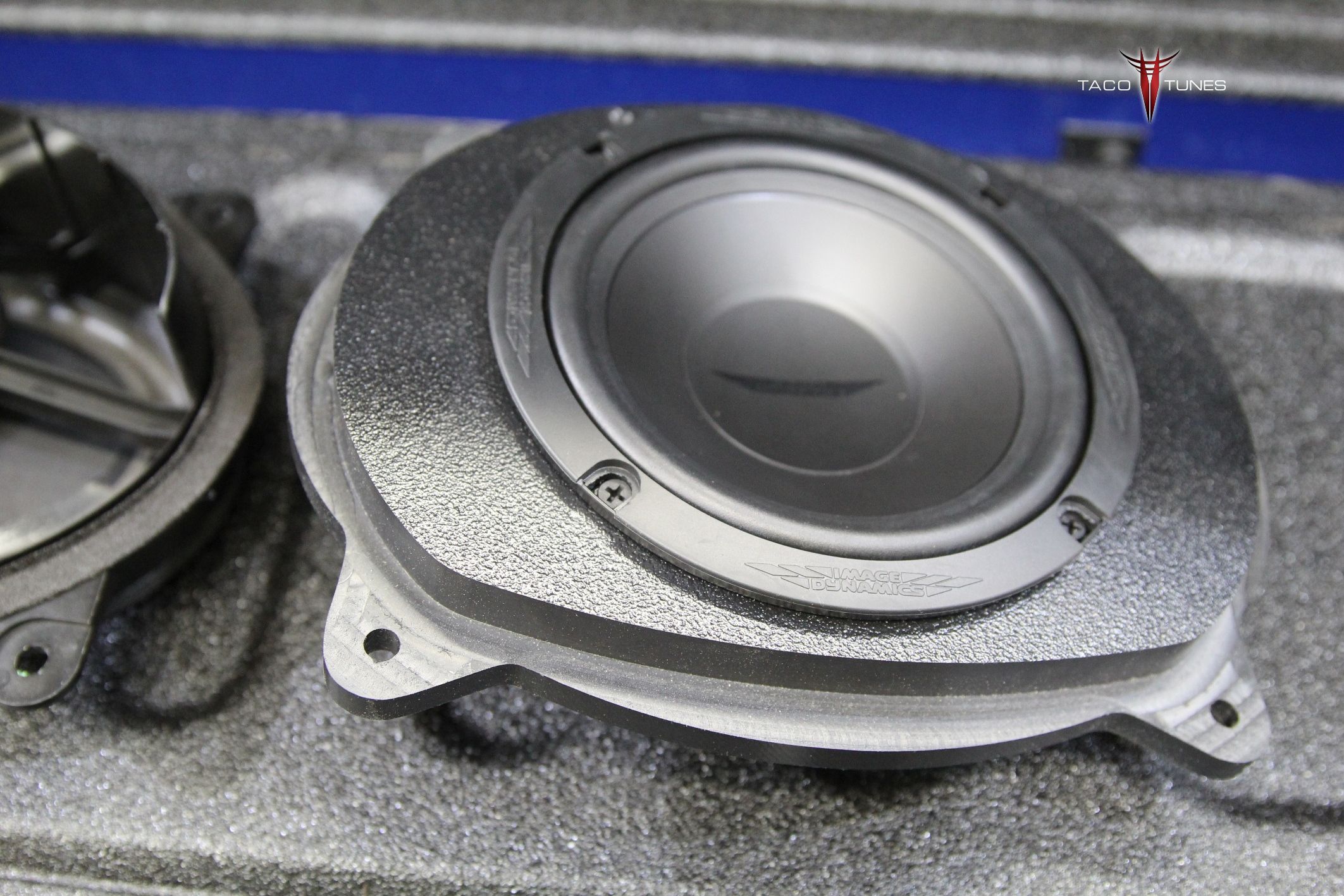

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTXCS Mid bass Drivers -100 Watts RMS

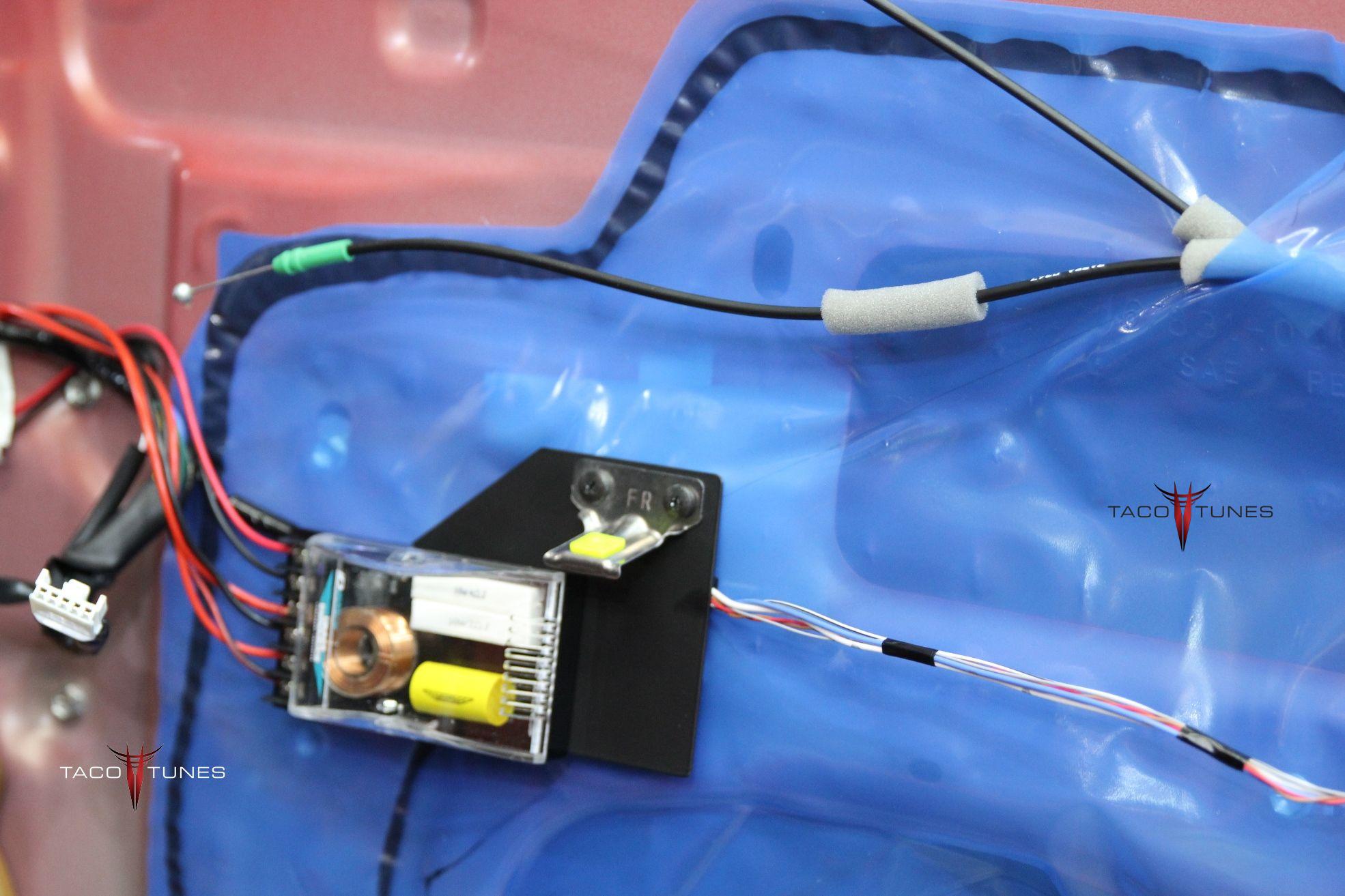

CTXCS Crossover

CTXCS Tweeter

Use Stock Sail Panel for Tweeter mounts.

Rear Door Components:

Image Dynamics CTX65CS or ID65

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

Amp:

tacotunes.com TXD3204v2 Four channel amplifier

tacotunes.com TXD10001 Mono subwoofer amplifier

100 watts x 4 to each speaker and 800 x 1 (subwoofers)

Subwoofer(s):

Subwoofer Box & Subwoofers

Tacotunes.com Dual 10″ subwoofers

Image Dynamics ID10V4 (full size) 10” subwoofer 400 watts RMS x 2  (800)



Posted on

Brian’s System 2016 Toyota Tundra CrewMax TRD Pro System 1B audio system upgrade

Toyota Tundra CrewMax TRD Pro Audio Upgrade

Brian’s System 2016 Toyota Tundra CrewMax TRD Pro System 1B audio system upgrade

This is a brand new Toyota Tundra from a local Toyota dealership here in San Antonio

Installation Summary / History: Brian is a local here in San Antonio. He recently hit the jackpot and scored a TRD Pro during his visit to San Marcos (just outside of San Antonio) Toyota dealer. He began researching stereo upgrades and came across our website as a referral form another customer. He opted for our System 1B and also wanted the front & rear doors matted.  Below are some progress pics of his installation.  As of May 4, 2017, we have installed over 500 2014+ Toyota Tundras here in our local San Antonio shop. We now have over 19,000 Tundra customers around the globe.

This is our 26th TRD Pro, these are RARE! We feel fortunate to have so many under our belt.

Our plug and play amps provide amazing clarity and tons of power.

Customer Name: Brian C.

Toyota Year / Model: 2016 Toyota Tundra CM

Head Unit: NON JBL

Color: Super White

Installed by: tacotunes.com

System Installed: System 1B

System Install Completed: May 4, 2017



Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Brian’s Tundra CrewMax

Front Door Component Speakers:

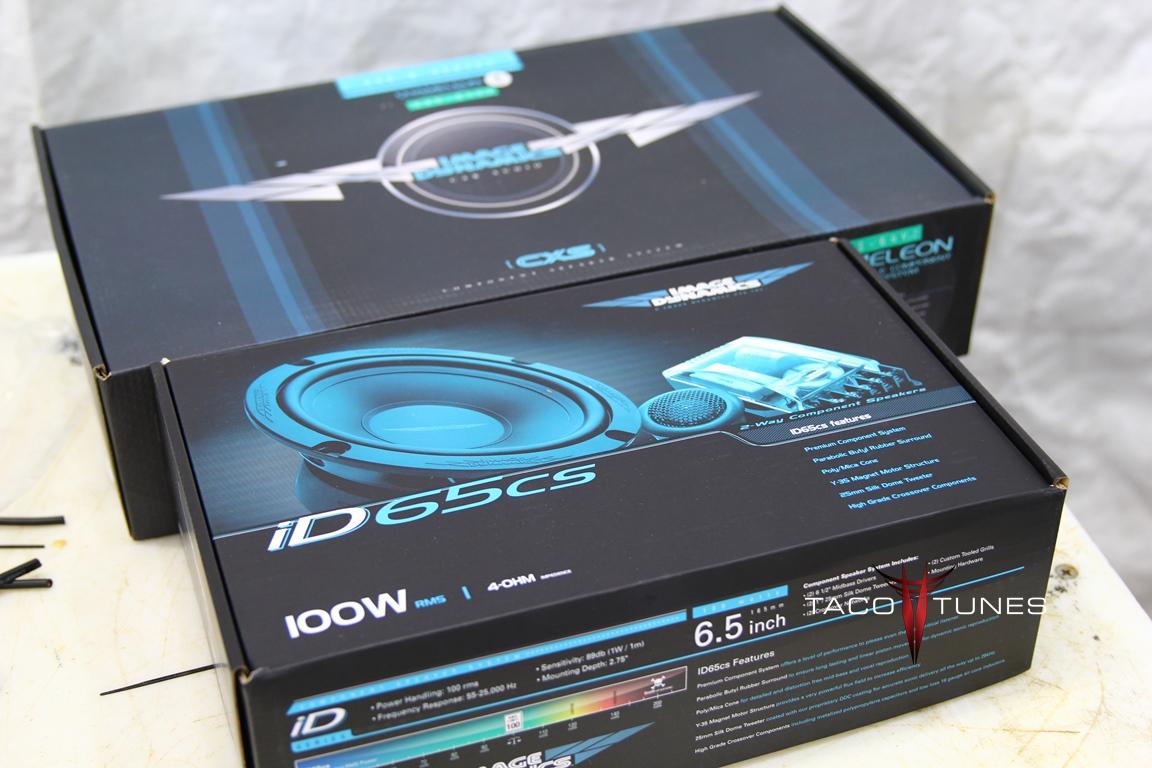

Image Dynamics CTX65CS/ID65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTXCS Mid bass Drivers -100 Watts RMS

CTXCS Crossover

CTXCS Tweeter

Use Stock Sail Panel for Tweeter mounts.

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

Amp:

tacotunes.com TXD3204 Four channel amplifier

tacotunes.com TXD10001 Mono subwoofer amplifier

70 watts x 4 to each speaker and 400 x 1 (subwoofer)

Subwoofer(s):

Subwoofer Box & Subwoofers

Tacotunes.com Dual 10″ subwoofers

Image Dynamics ID10V4 (full size) 10” subwoofer 400 watts RMS x 2

Matting:

Ballistic Matting four doors & rear wall

Posted on

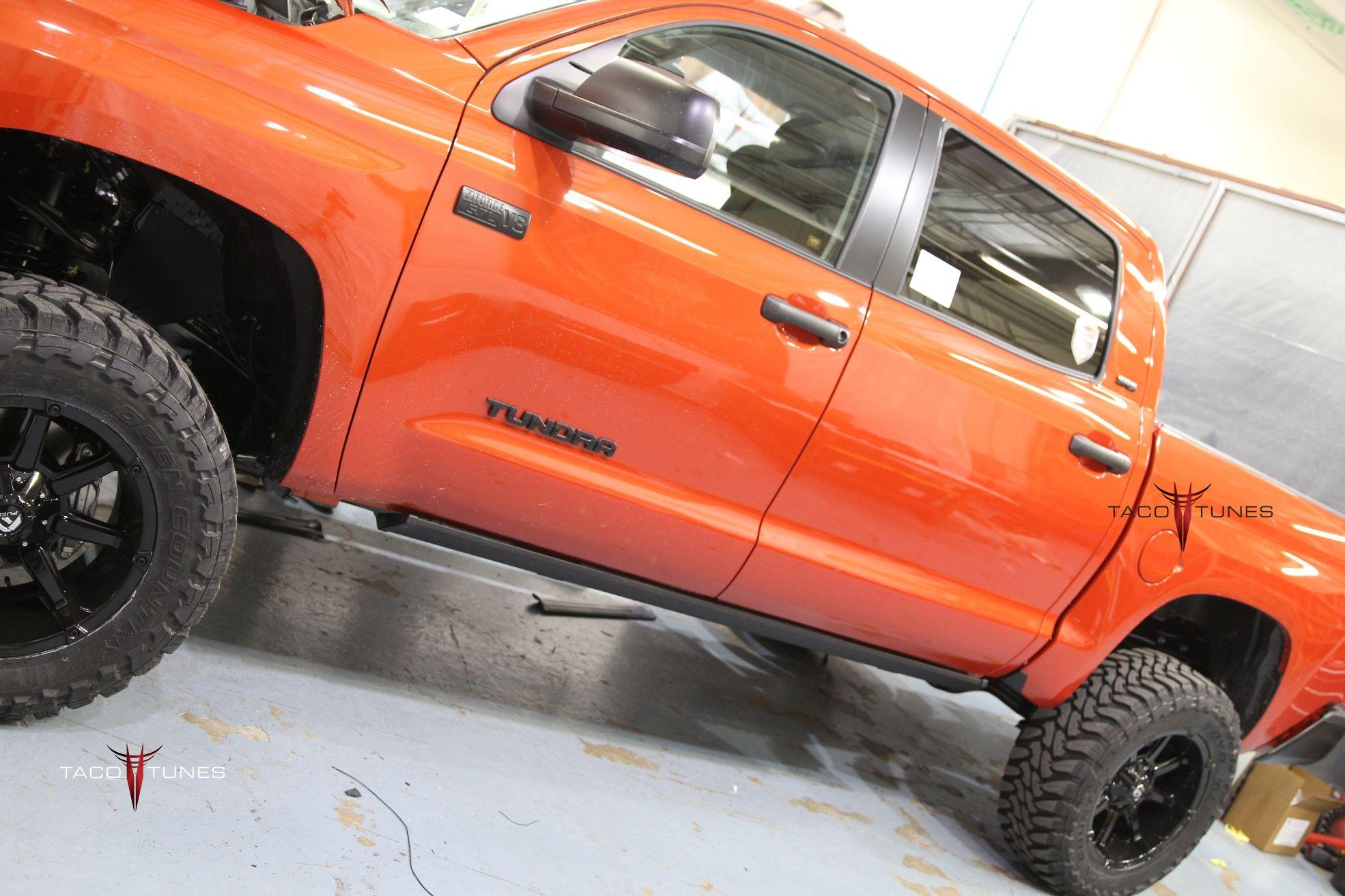

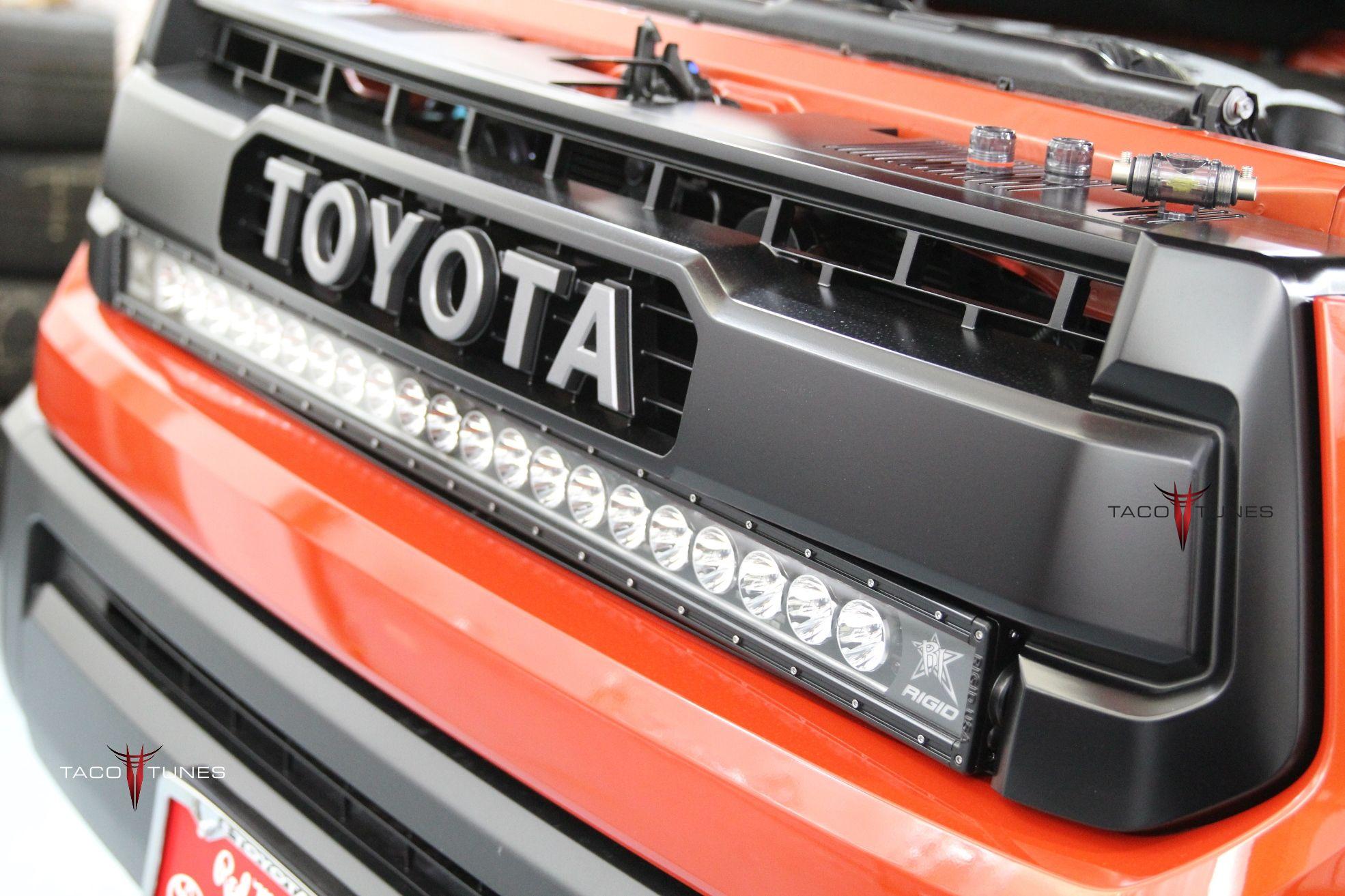

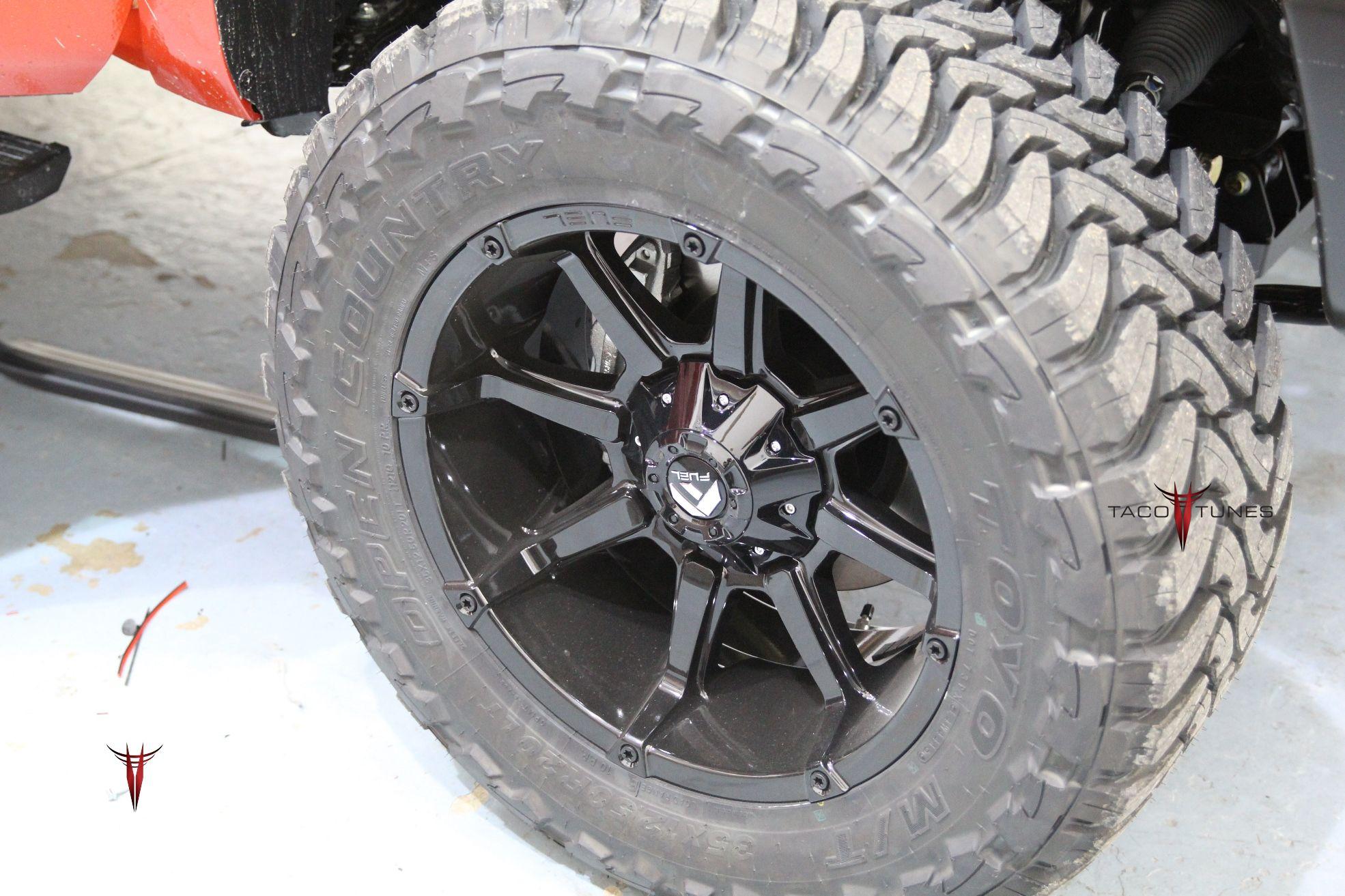

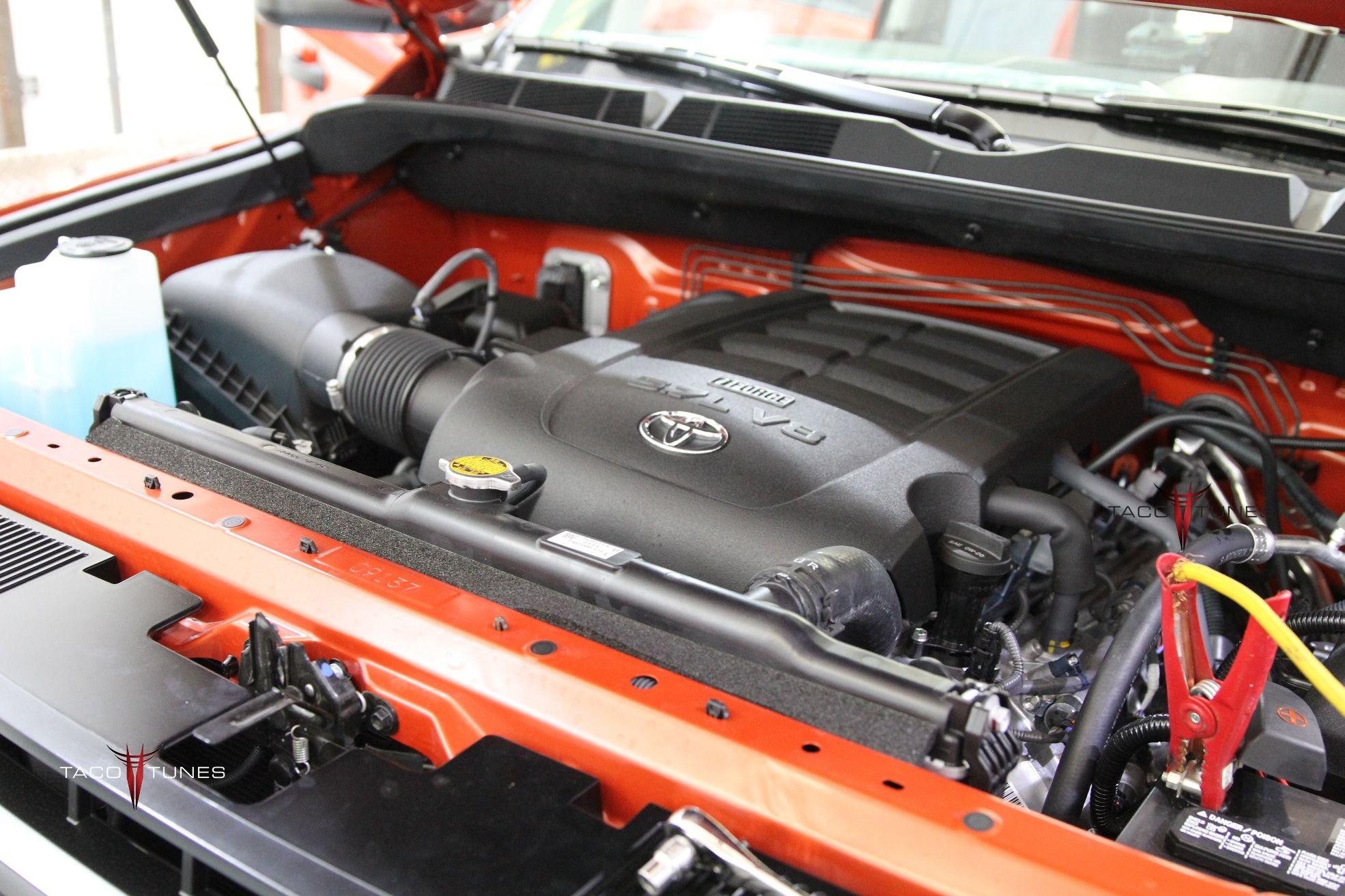

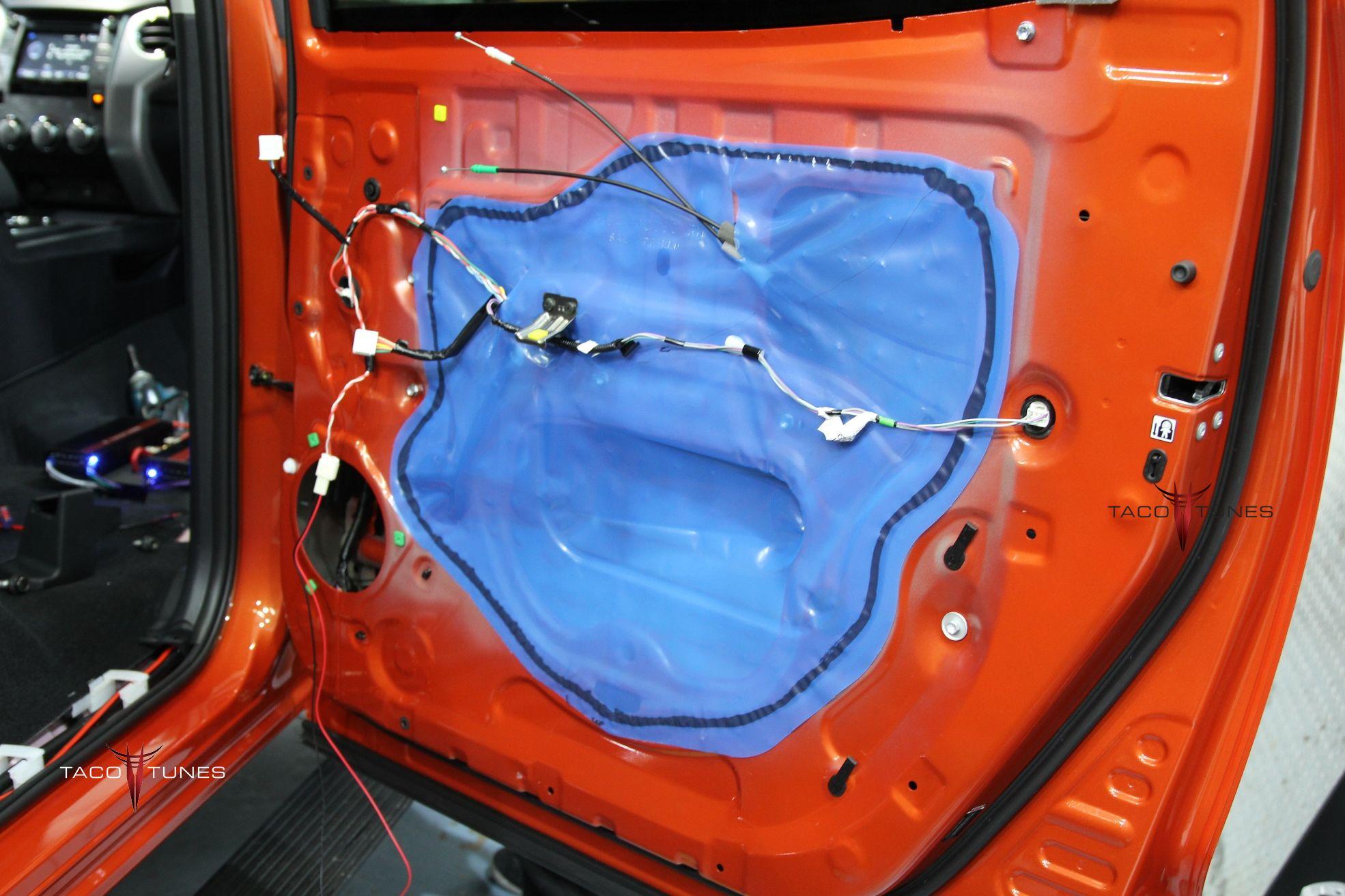

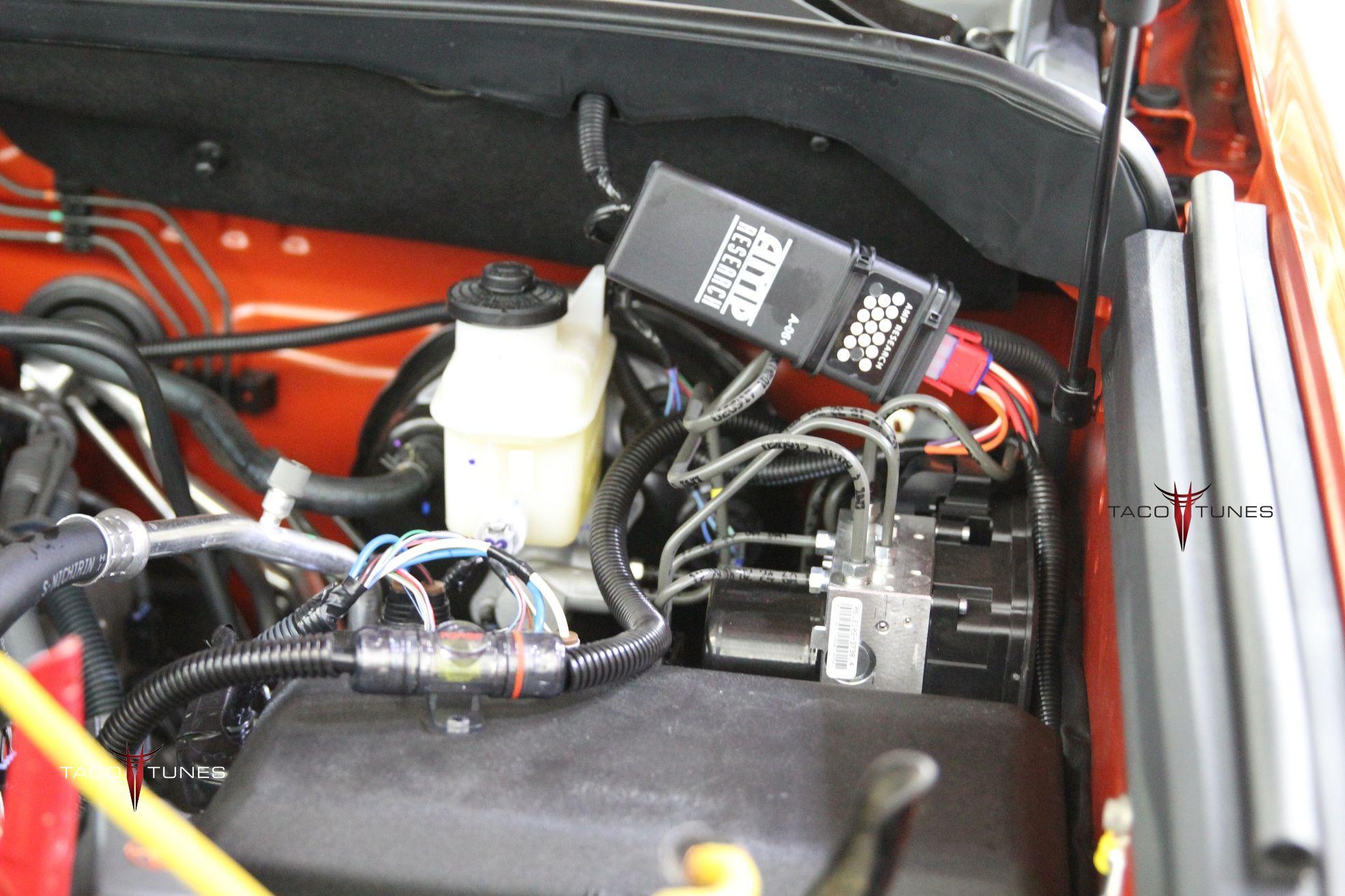

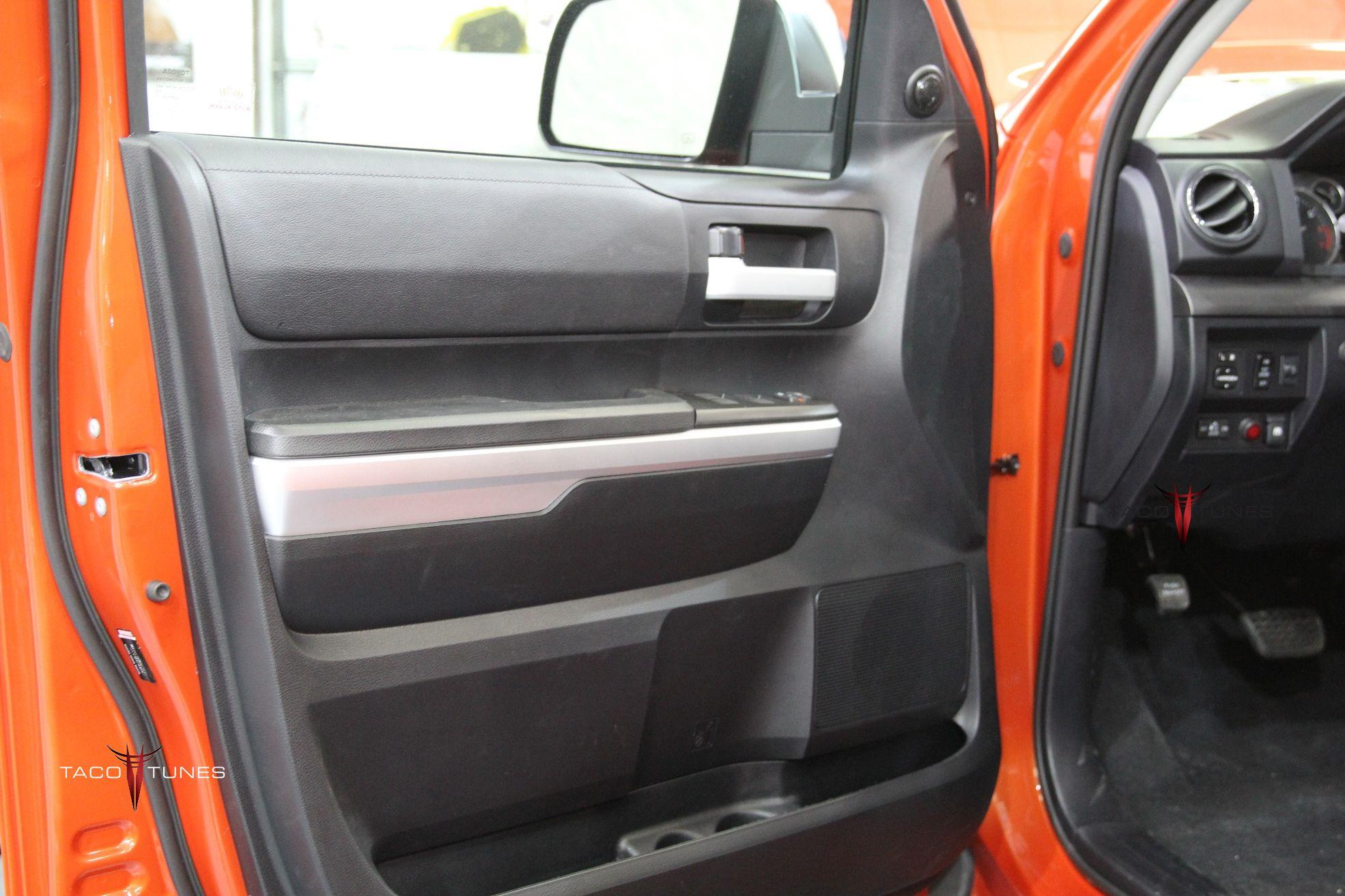

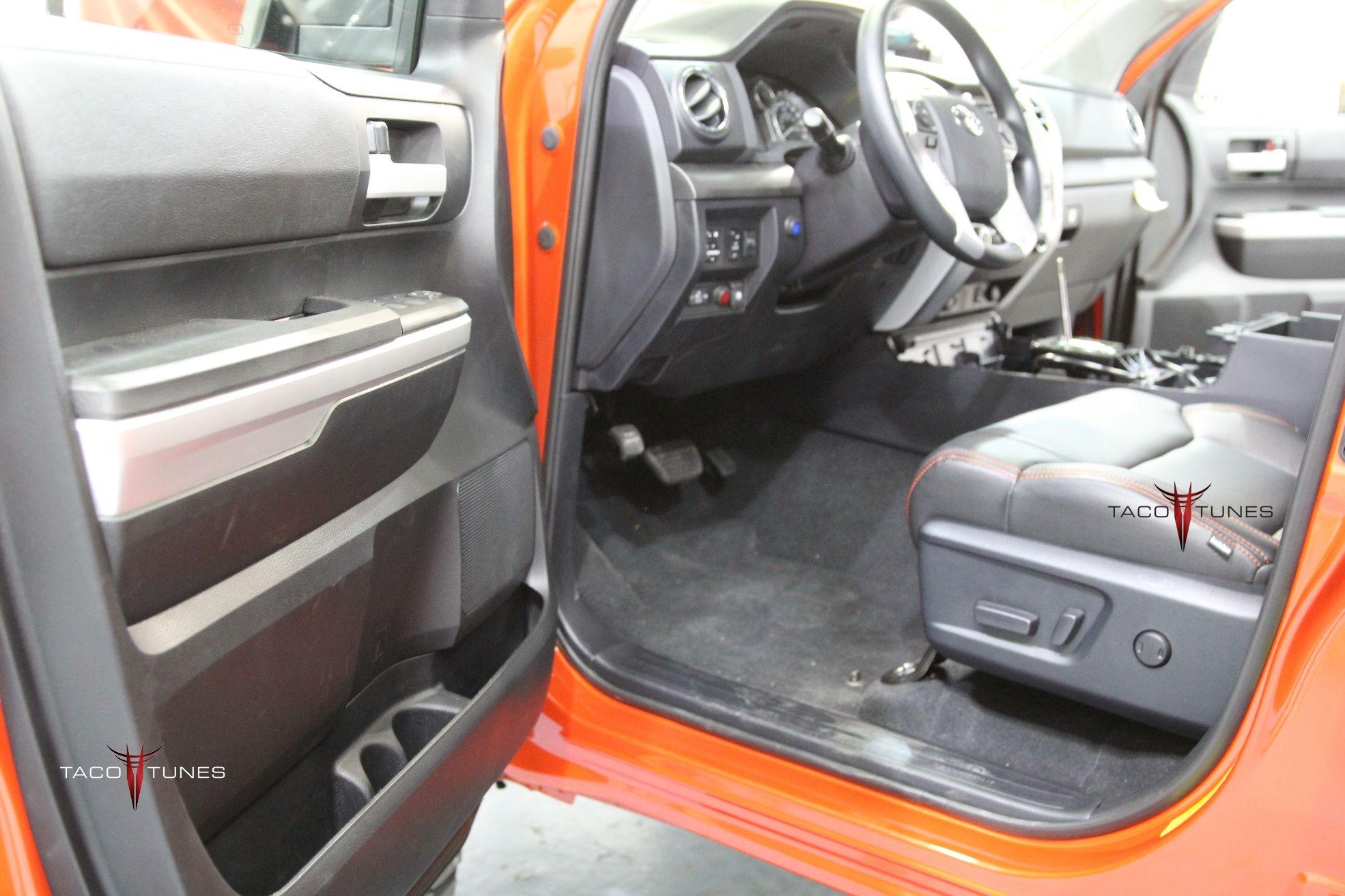

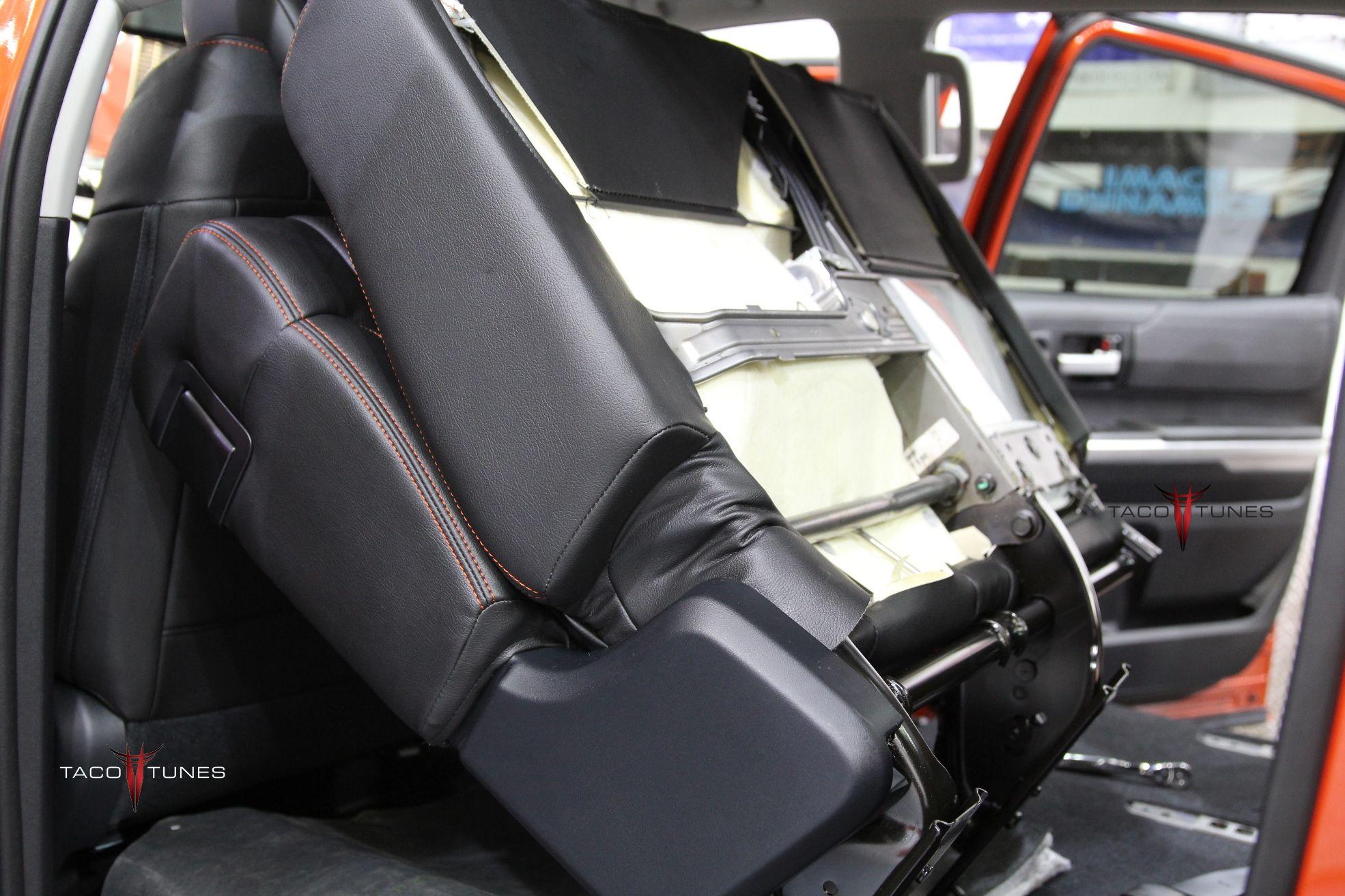

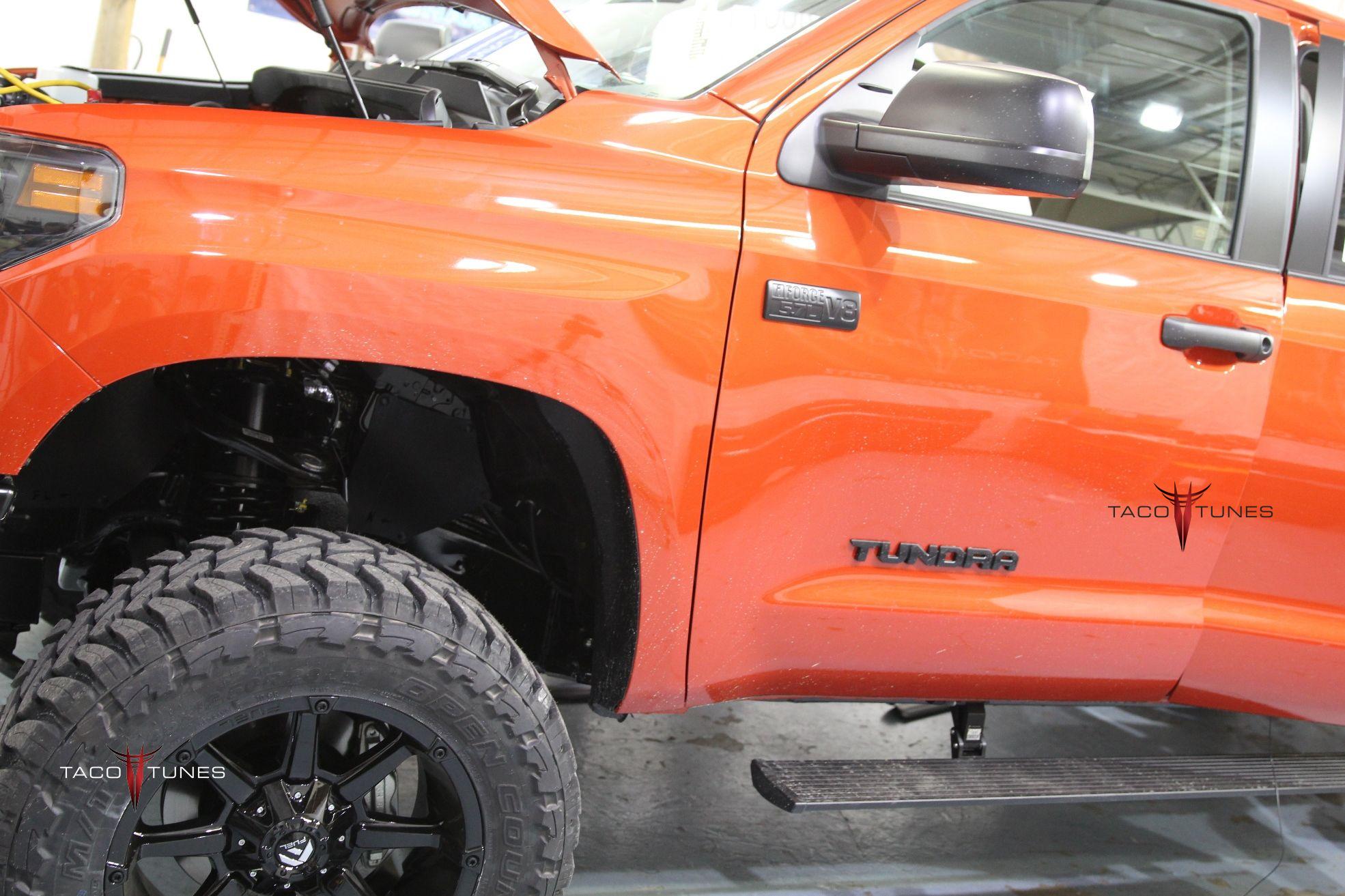

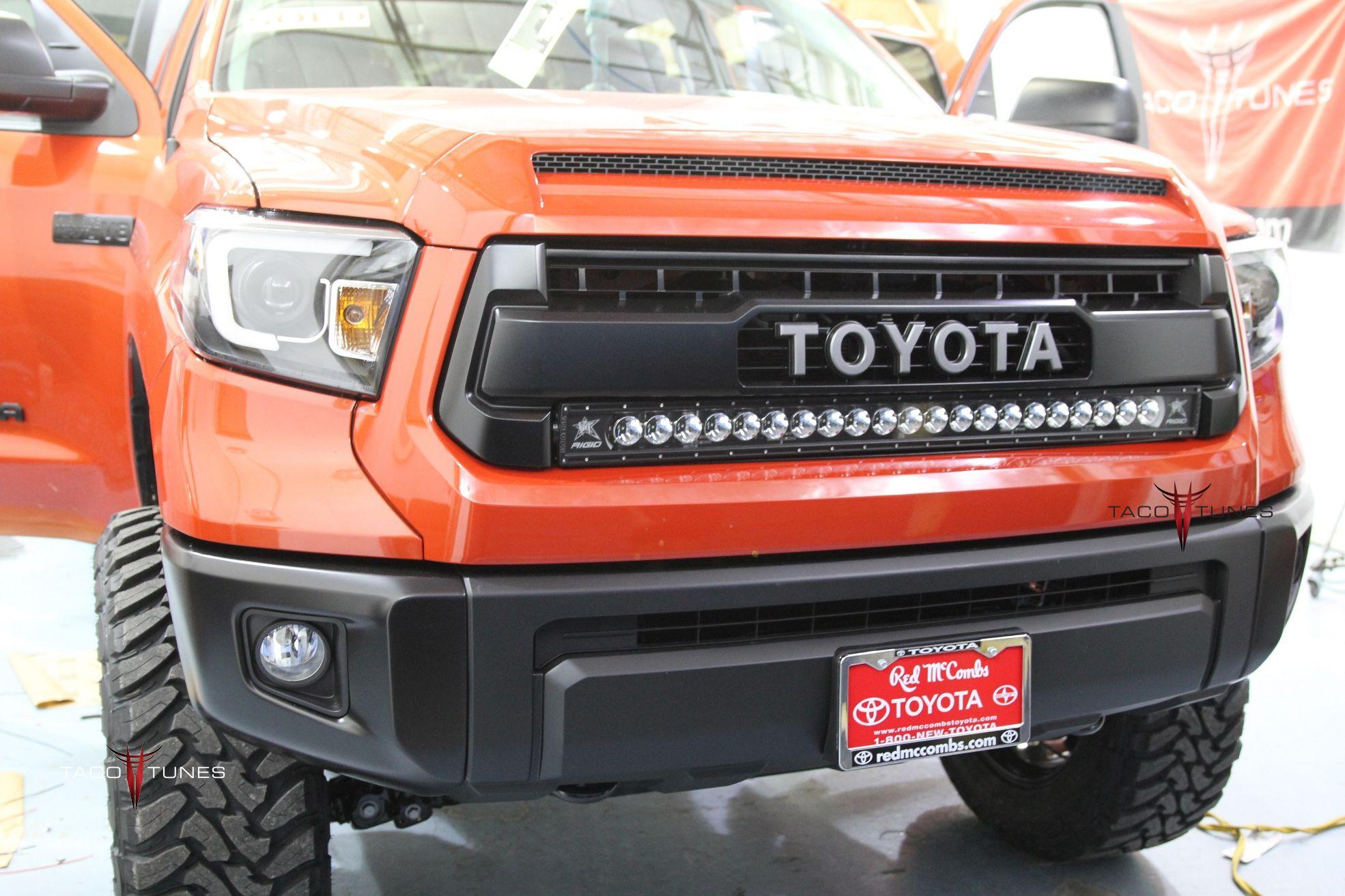

Red McCombs 2017 Toyota Tundra Inferno Orange CrewMax System 1B Plug and Play Audio System Upgrade

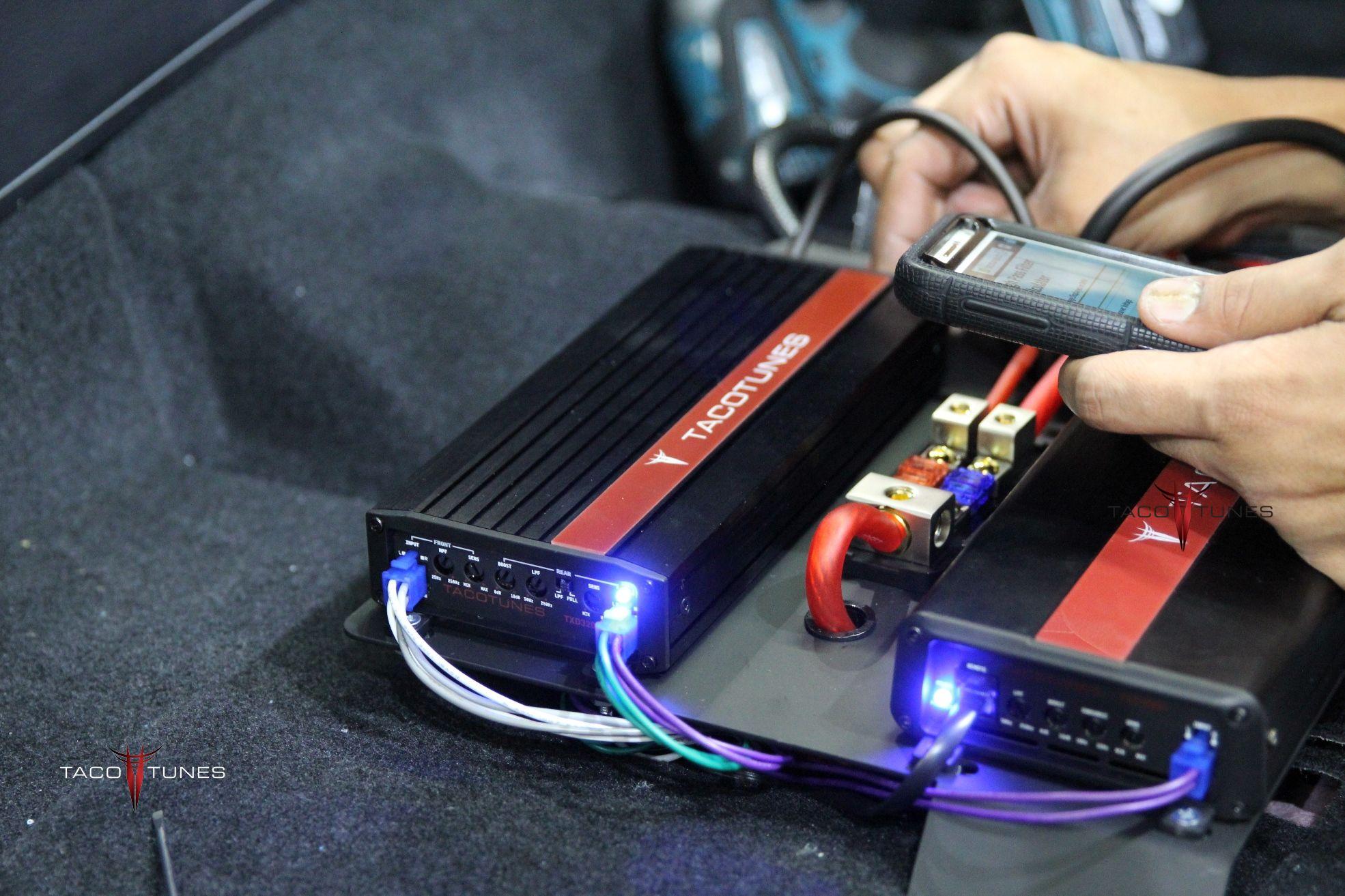

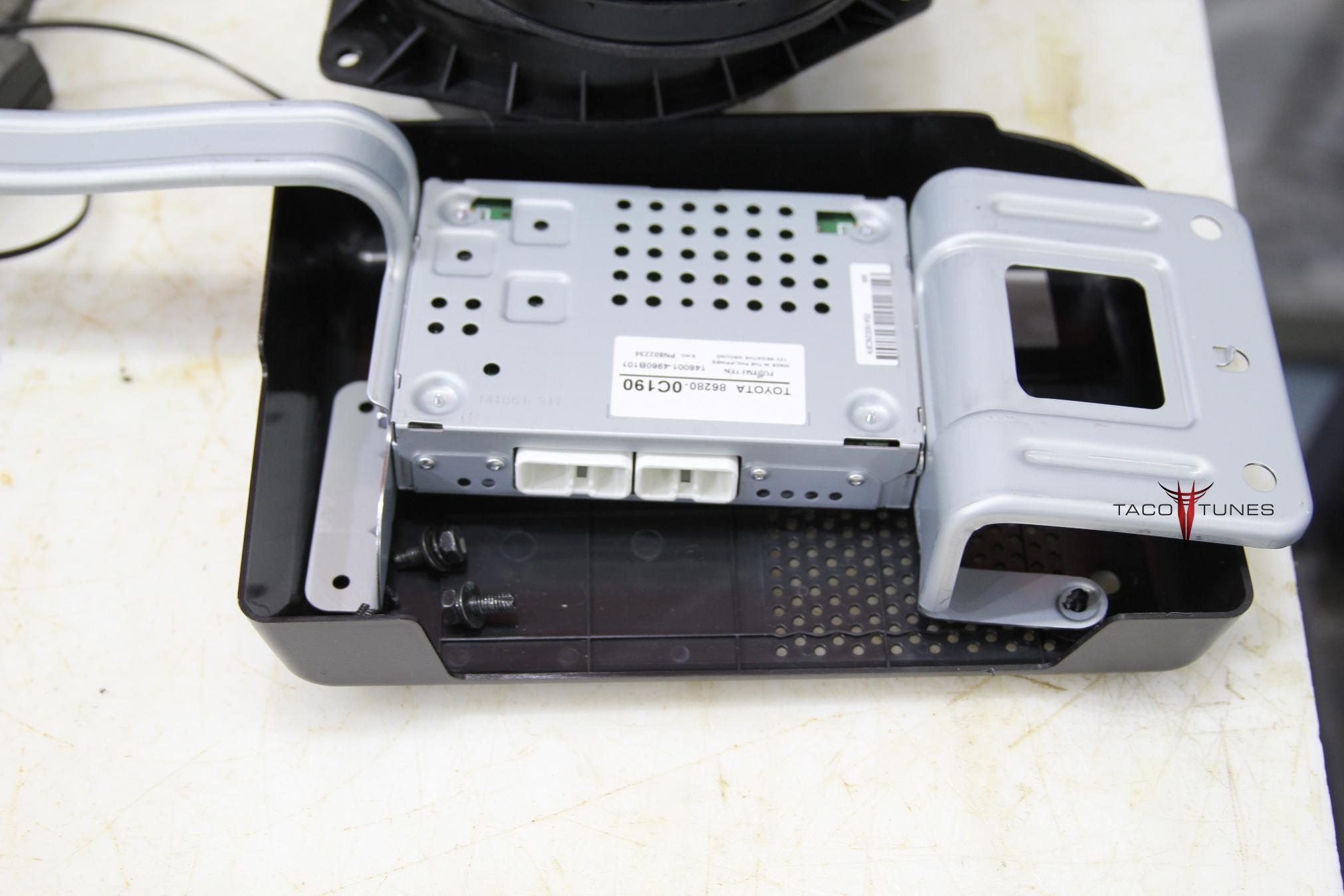

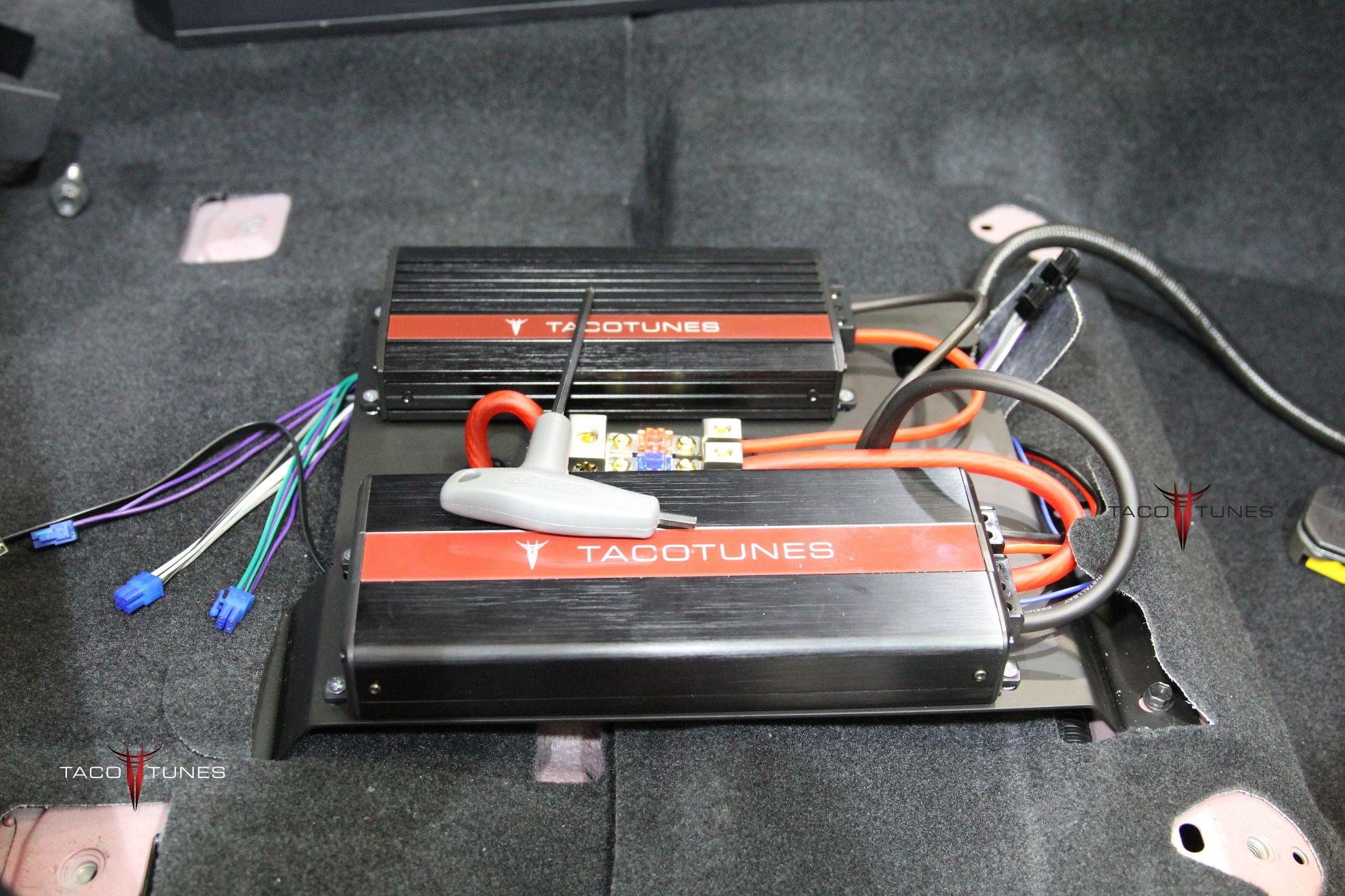

Toyota Tundra Stock Tacotunes Plug and Play Amplifiers.

Red McCombs 2017 Toyota Tundra CrewMax System 1B Plug and Play Audio System Upgrade

This is a brand new Toyota Tundra from a local Toyota dealership here in San Antonio

Installation Summary / History:

Customer Name: Red McCombs Toyota San Antonio TX

Toyota Year / Model: 2017 Toyota Tundra CrewMax

Head Unit: NON JBL

Color: Infero Orange

Installed by: tacotunes.com

System Installed: System 1B

This truck is heading back to the dealership to be used to demonstrate tacotunes.com products.



Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Chris Tundra CrewMax

Front Door Component Speakers:

Image Dynamics CTX65CS/ID65CS

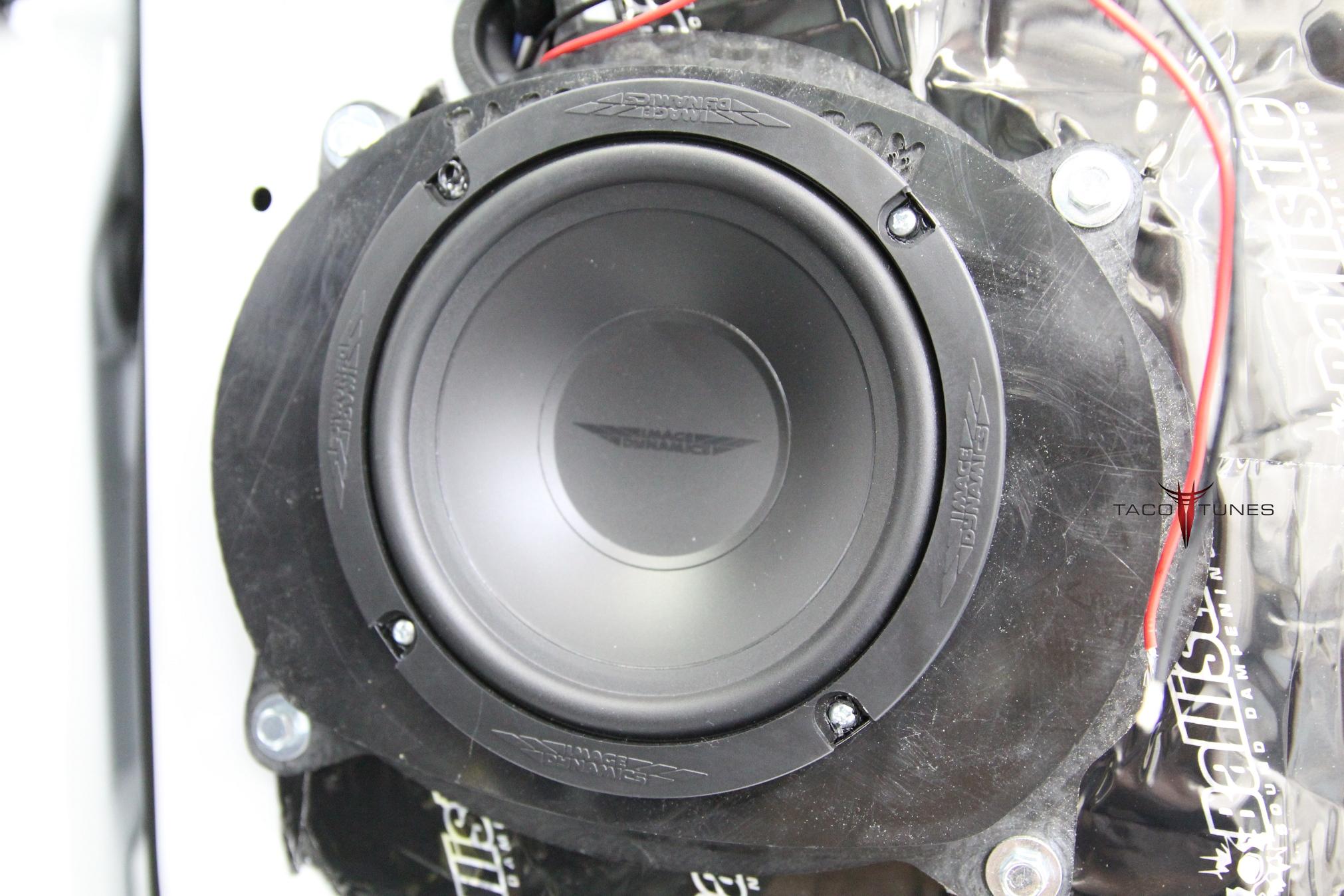

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTXCS Mid bass Drivers -100 Watts RMS

CTXCS Crossover

CTXCS Tweeter

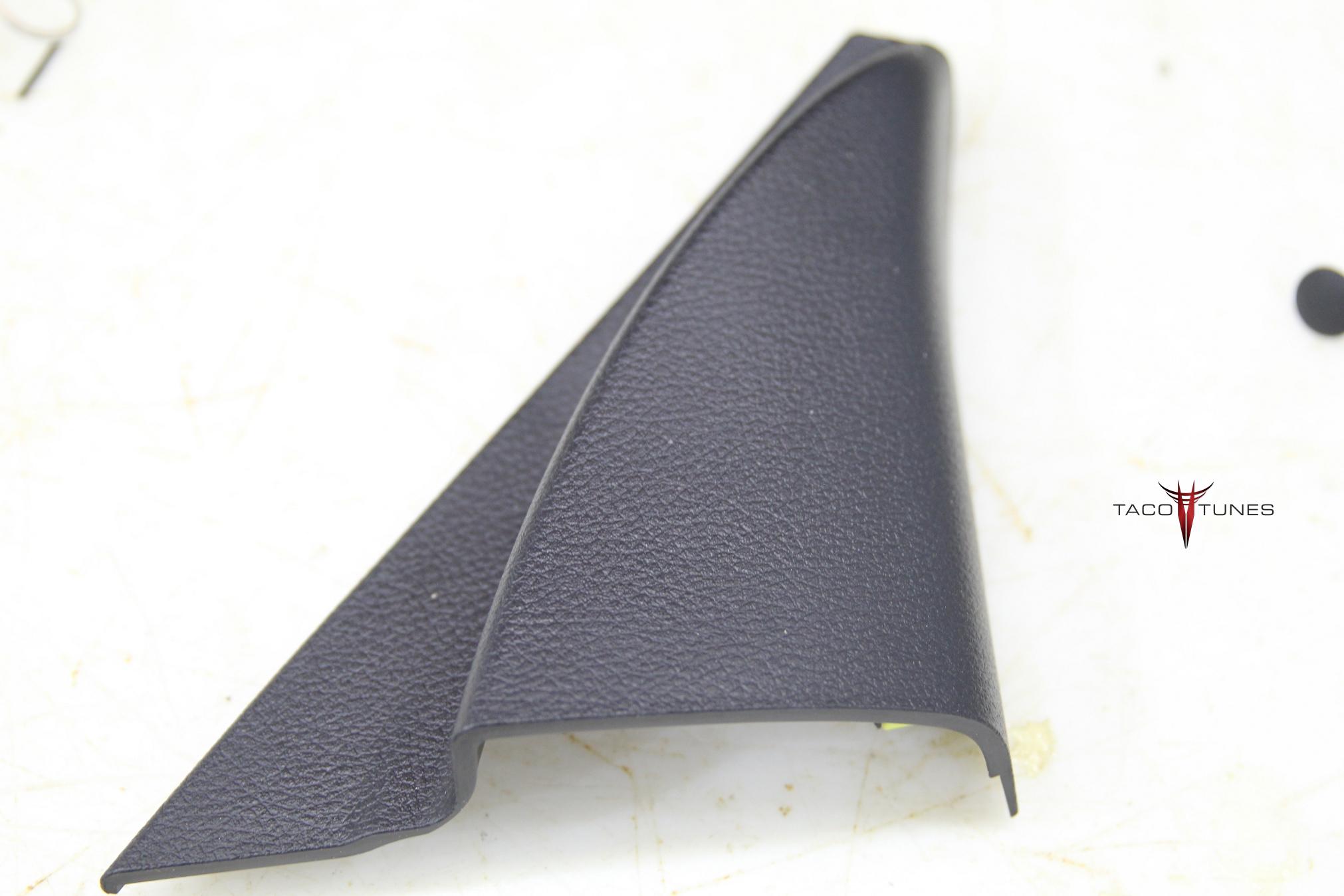

Use Stock Sail Panel for Tweeter mounts.

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

Amp:

tacotunes.com TXD3204 Four channel amplifier

tacotunes.com TXD10001 Mono subwoofer amplifier

70 watts x 4 to each speaker and 400 x 1 (subwoofer)

Subwoofer(s):

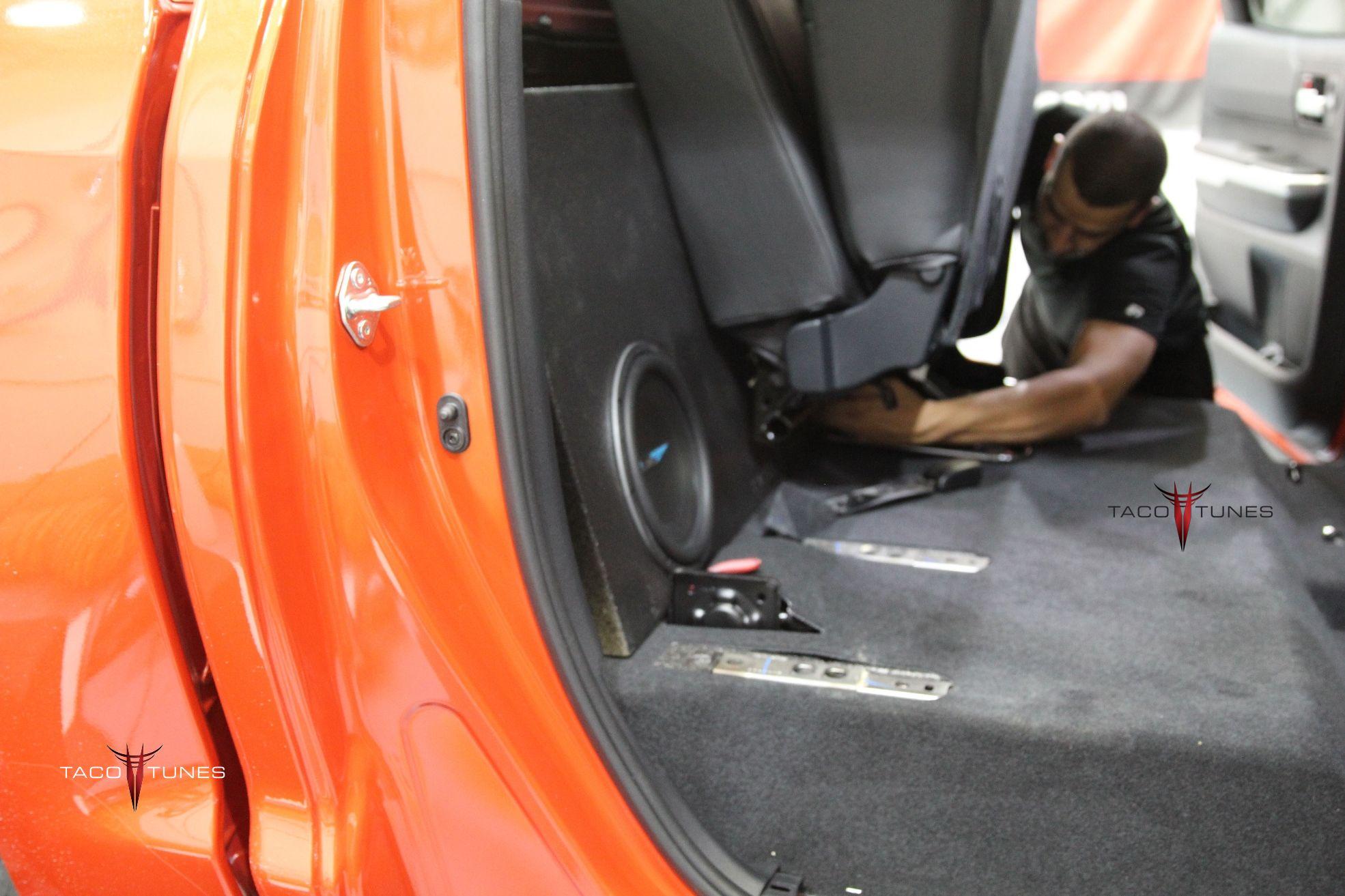

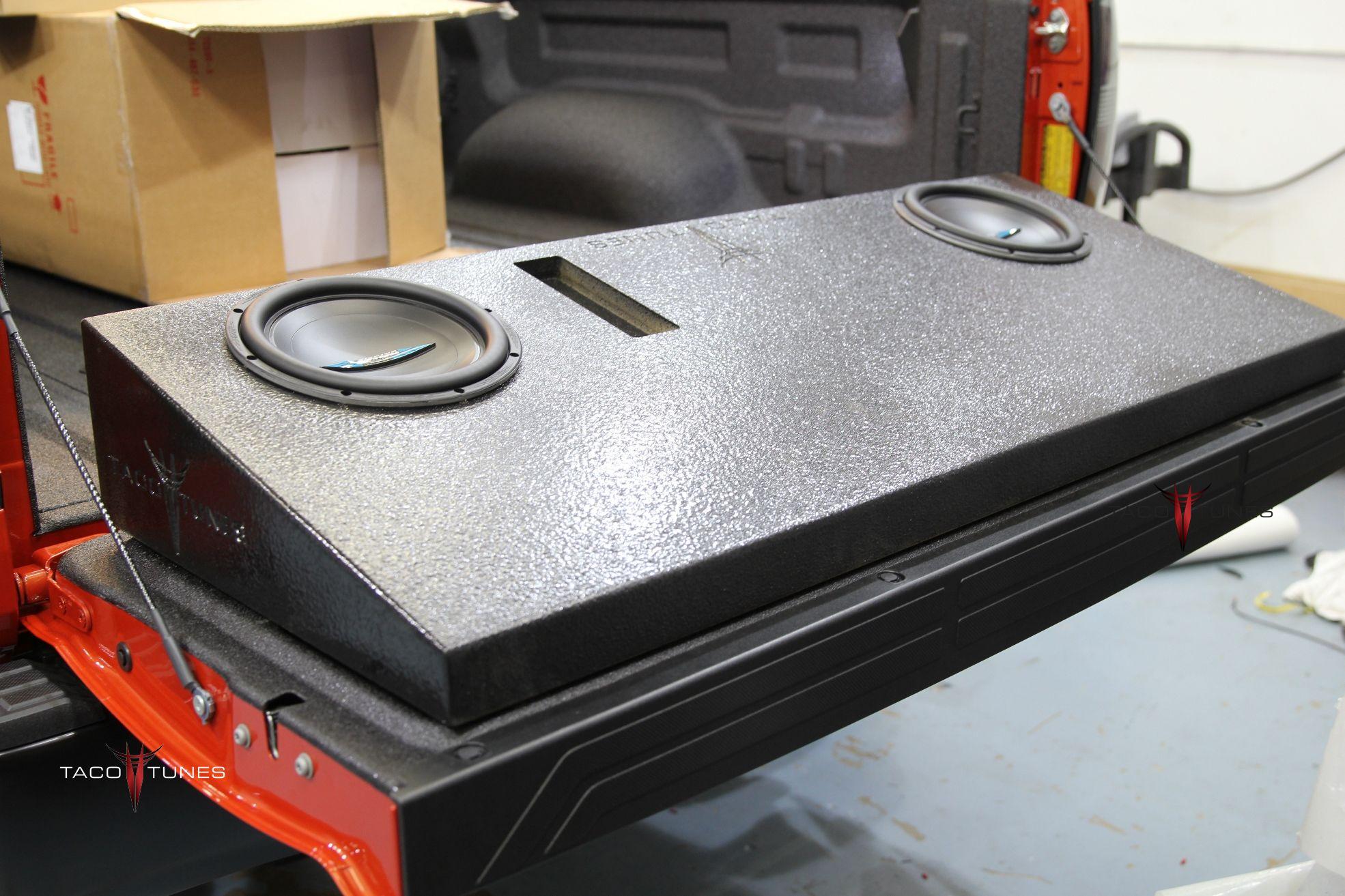

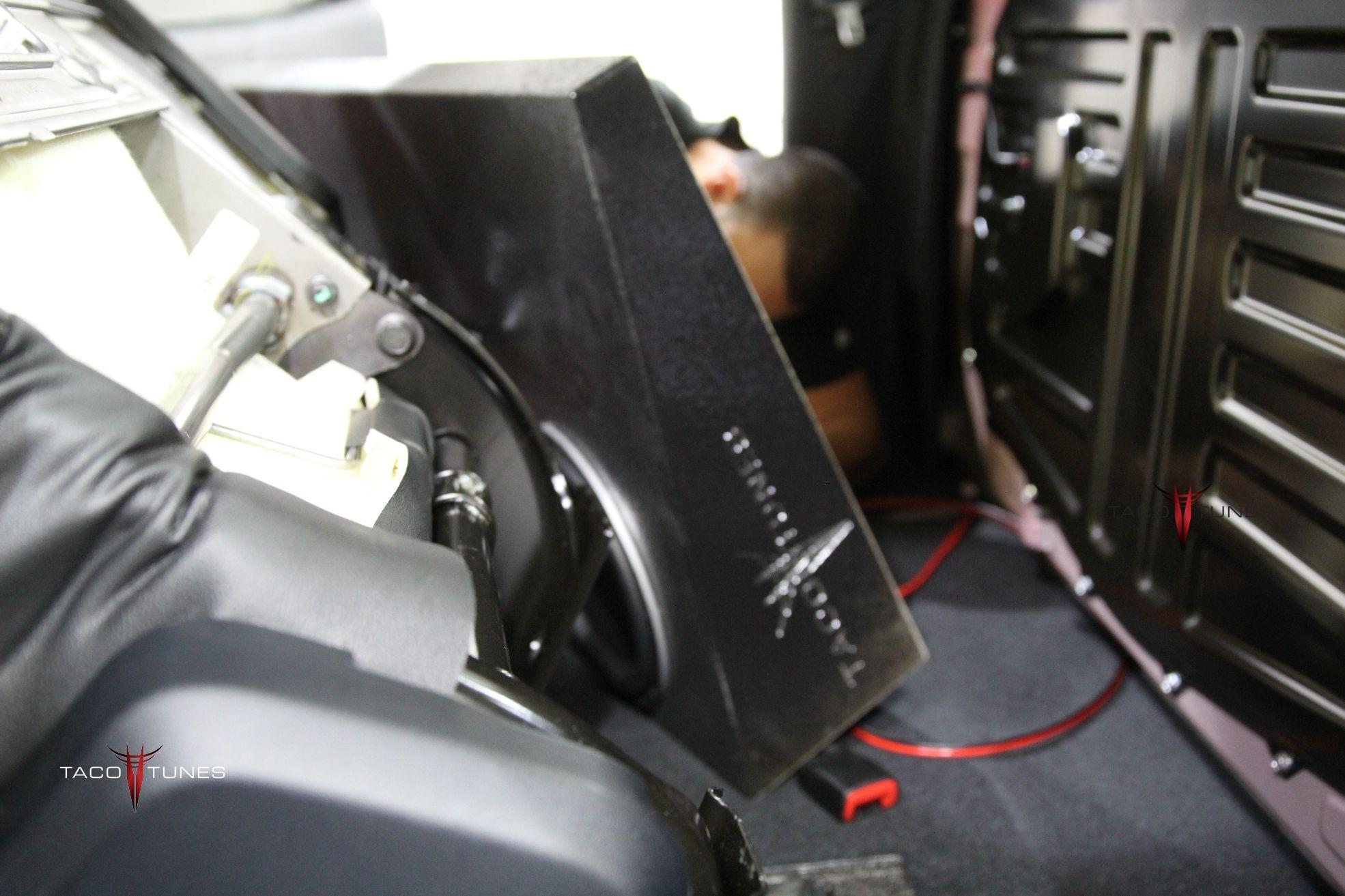

Subwoofer Box & Subwoofers

Tacotunes.com Dual 10″ subwoofers

Image Dynamics ID10V4 (full size) 10” subwoofer 400 watts RMS x 2

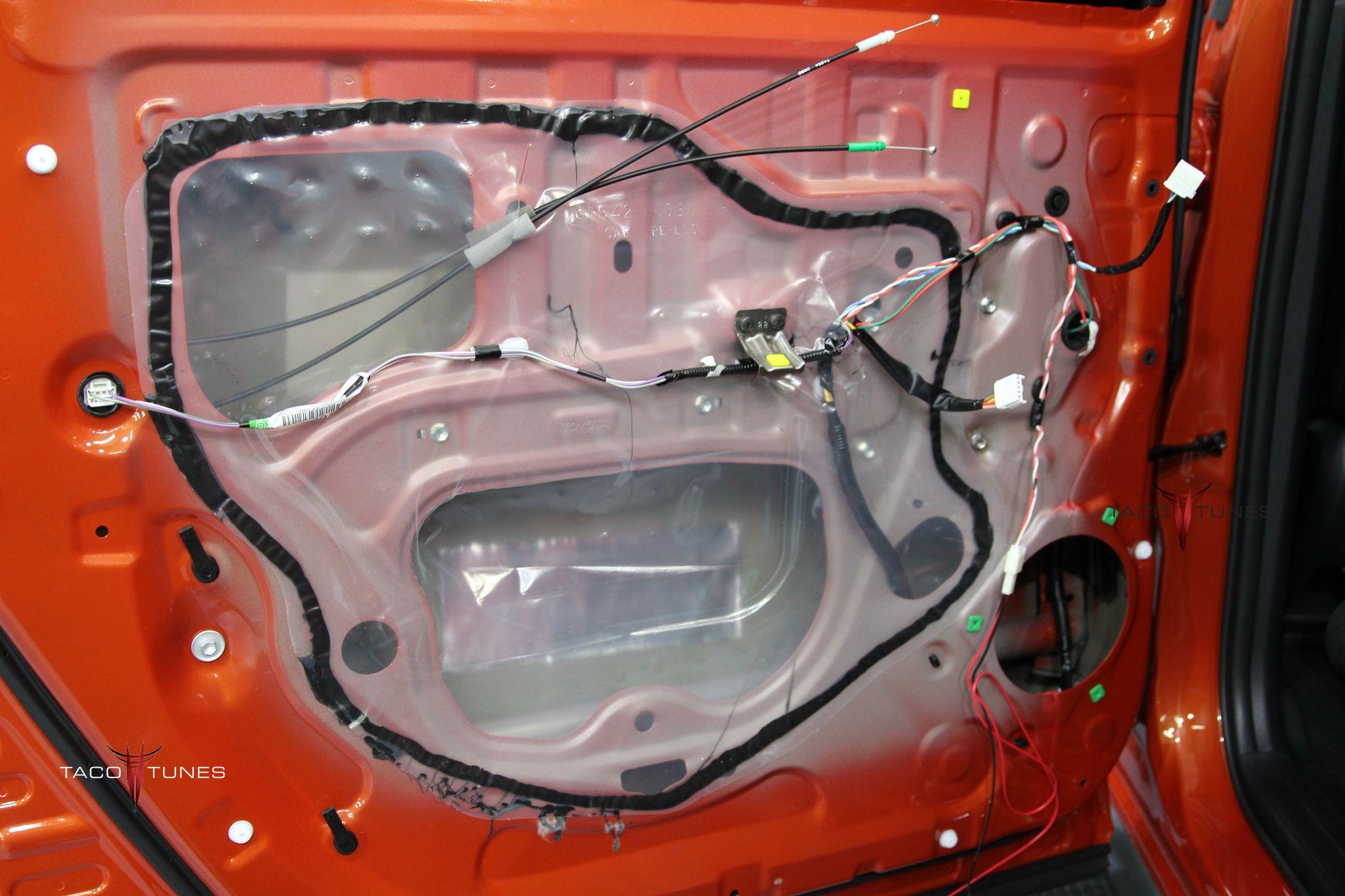

Matting:

Ballistic Matting rear wall only

Posted on

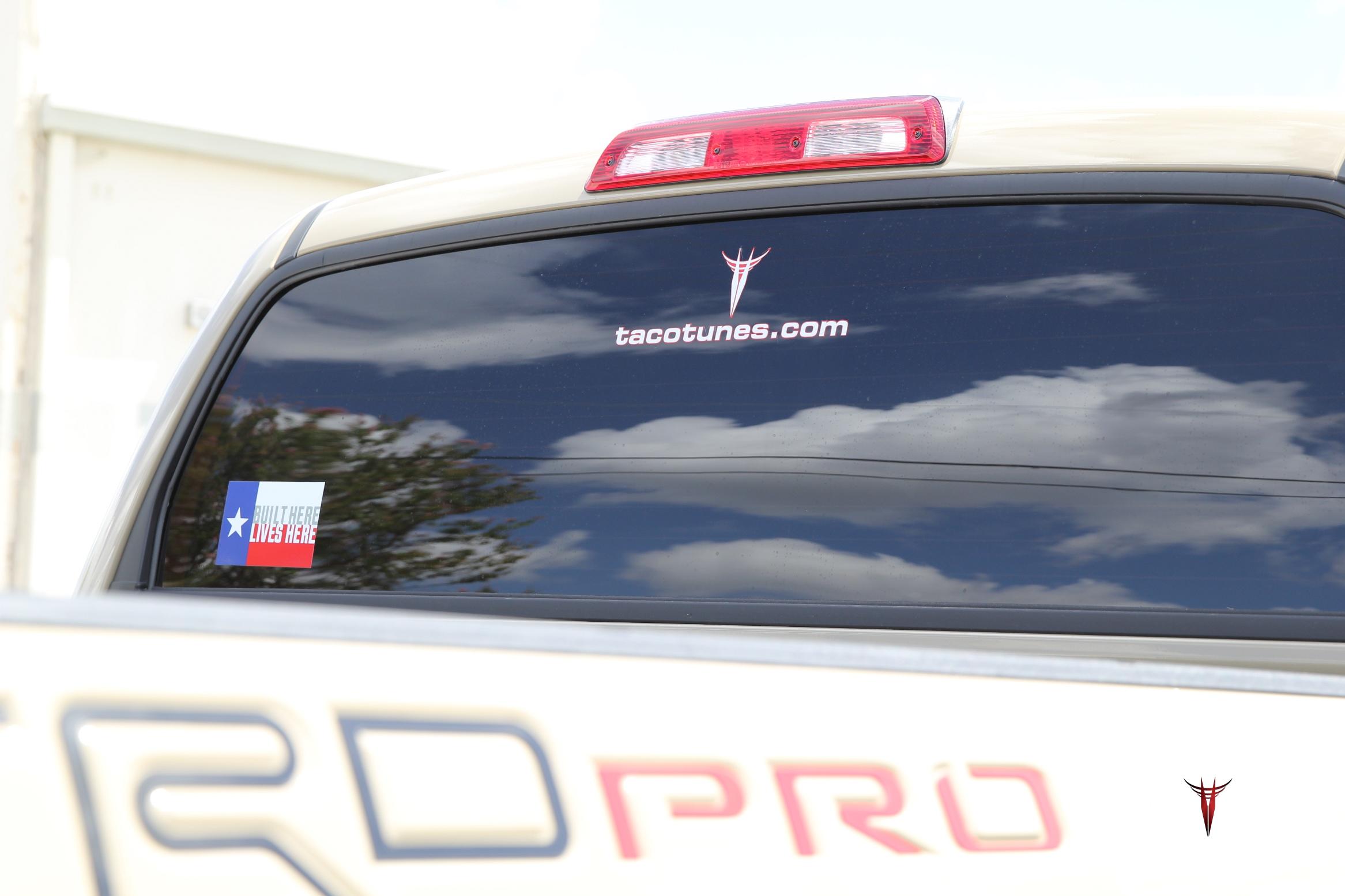

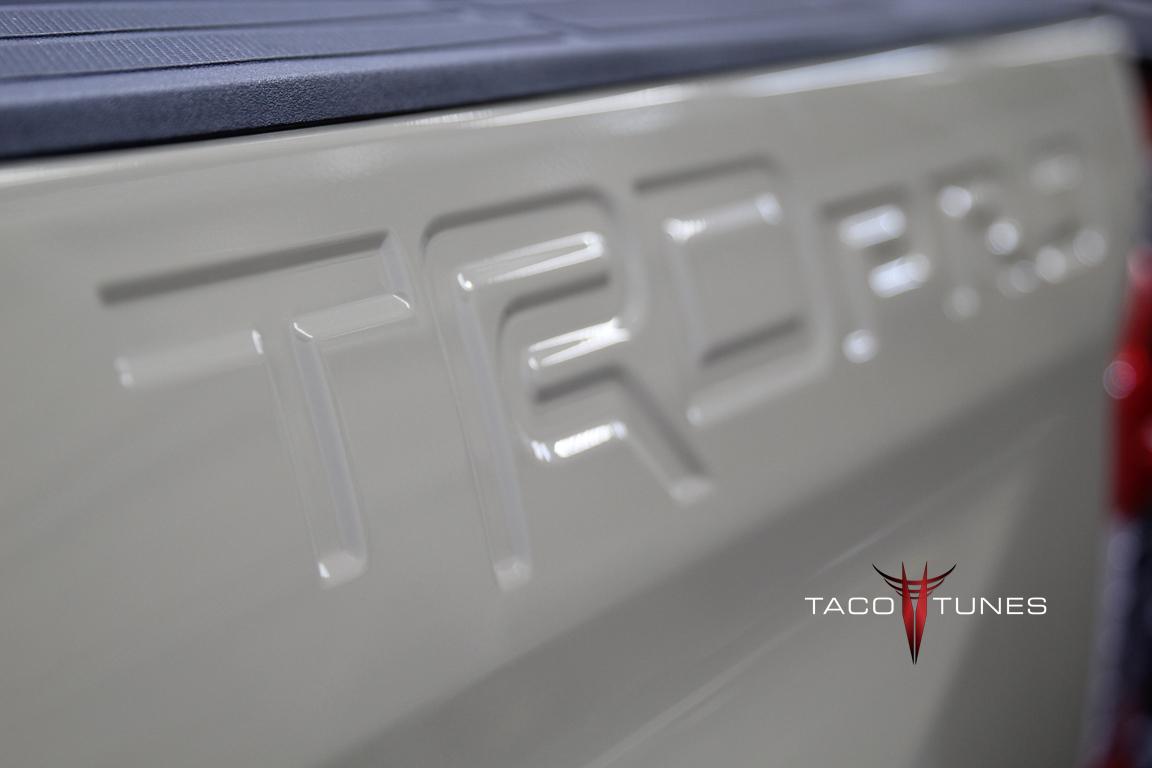

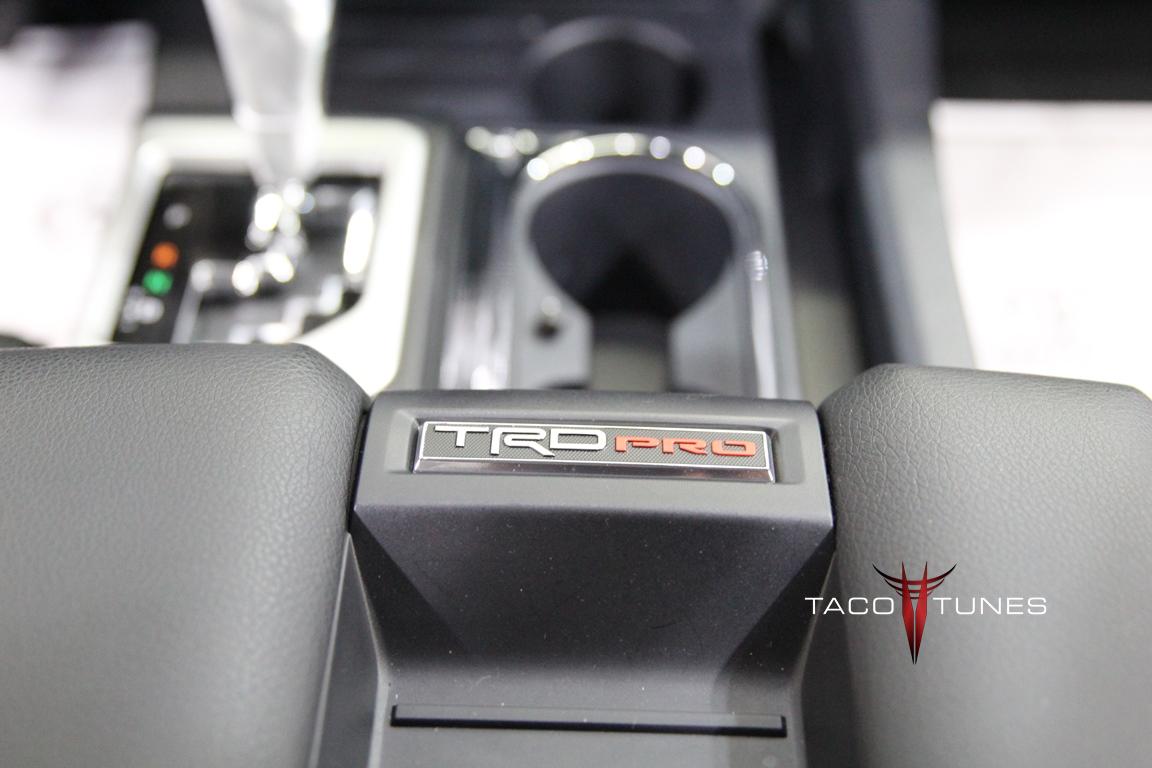

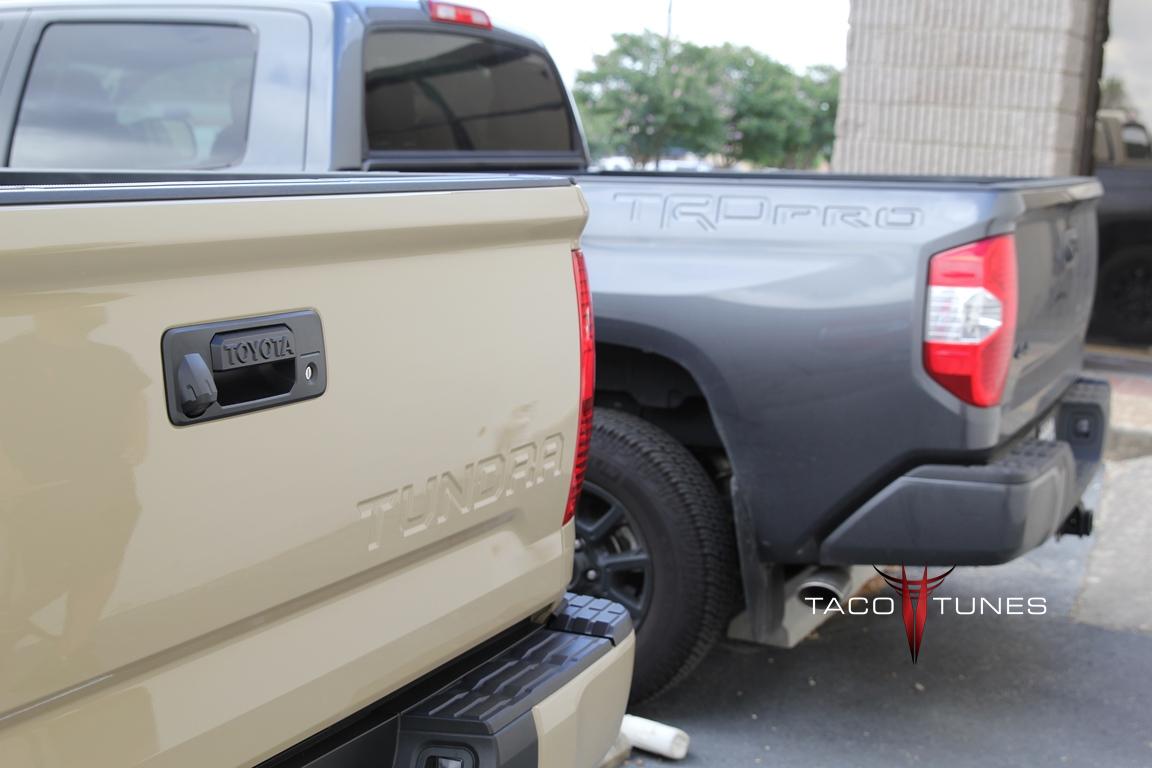

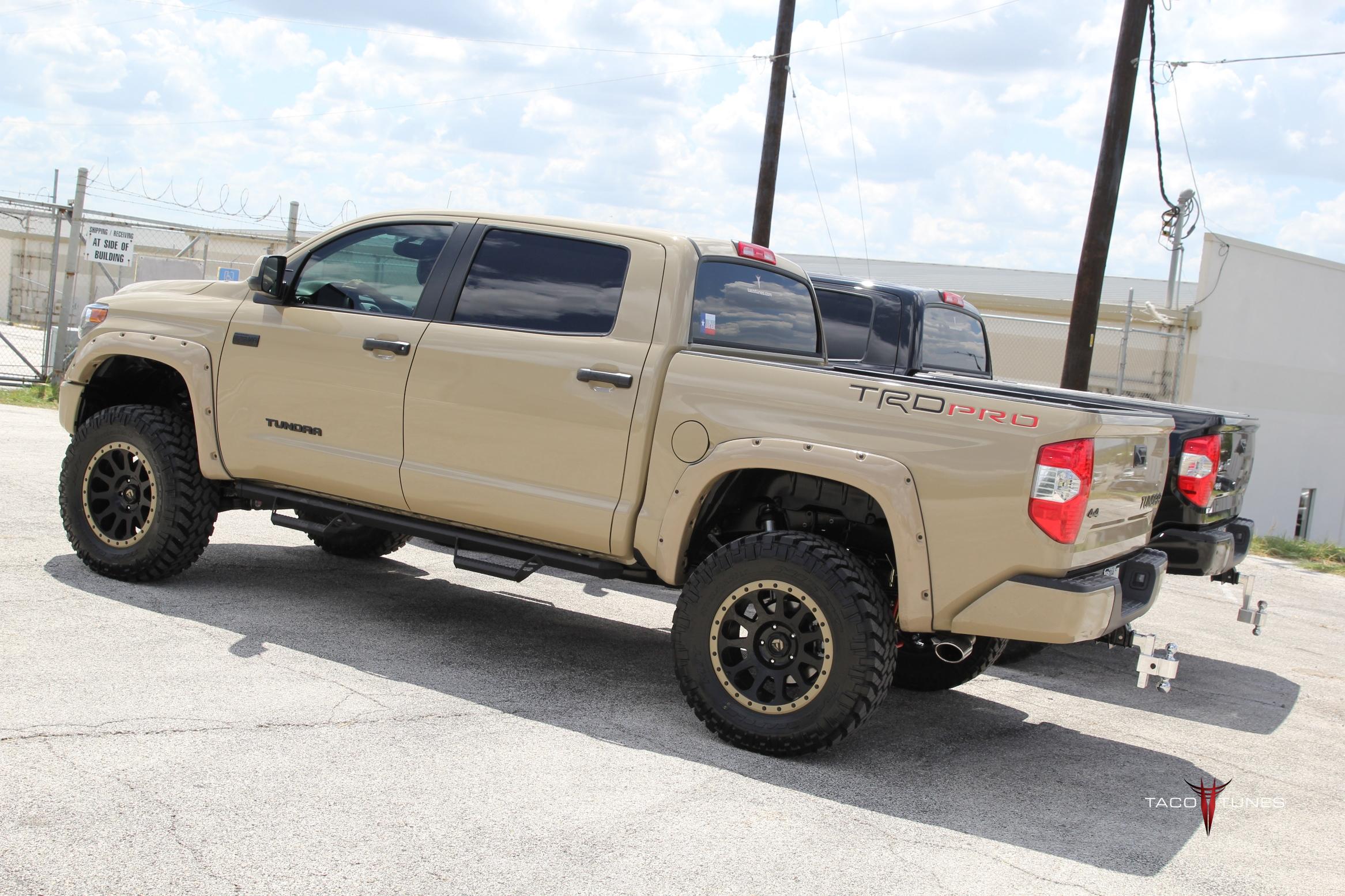

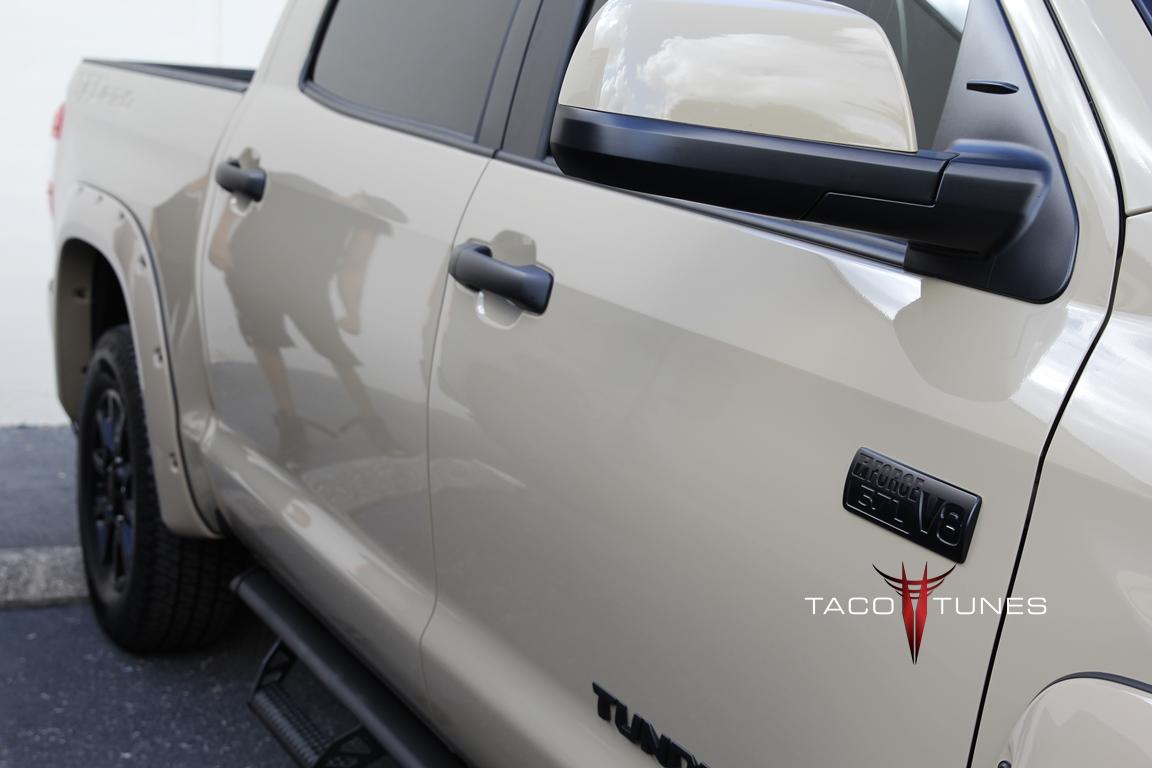

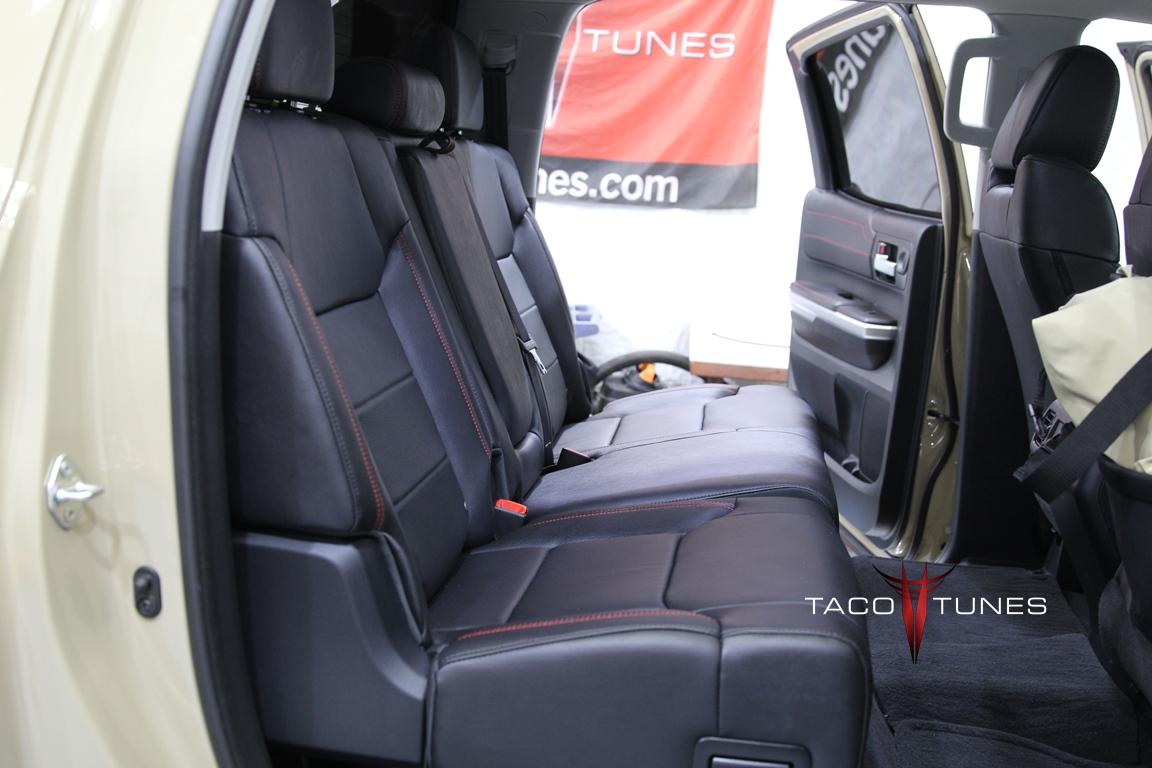

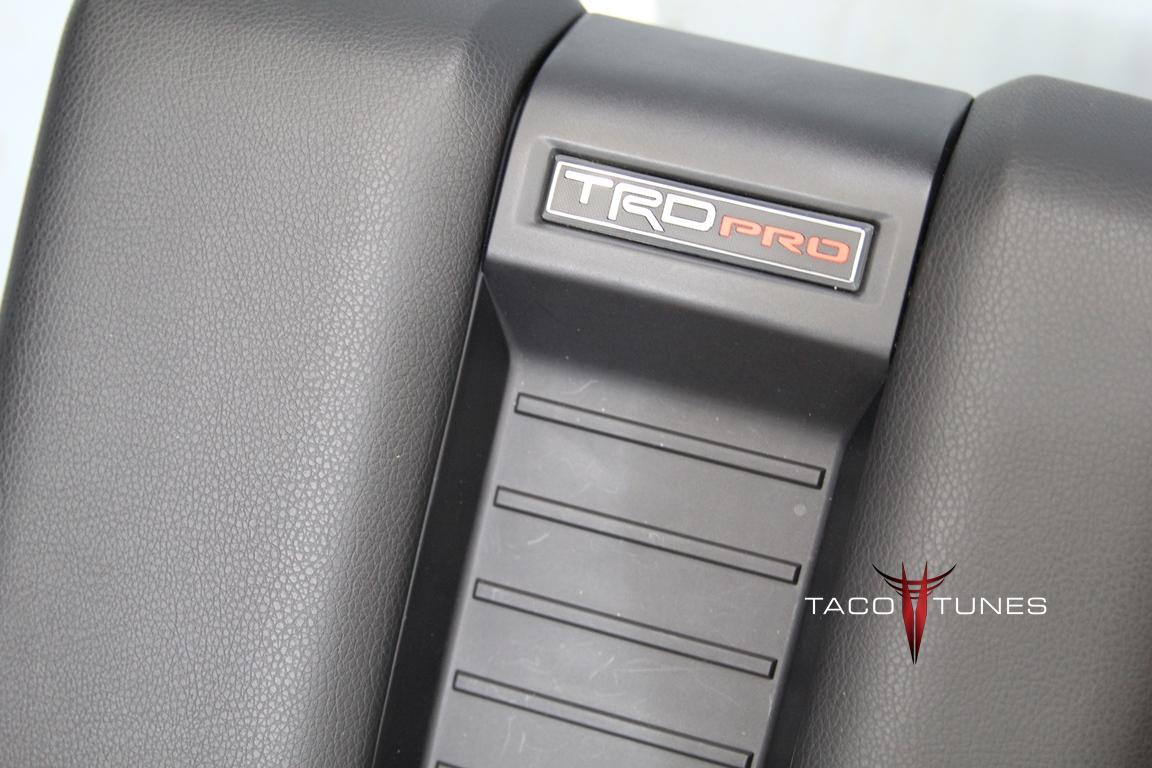

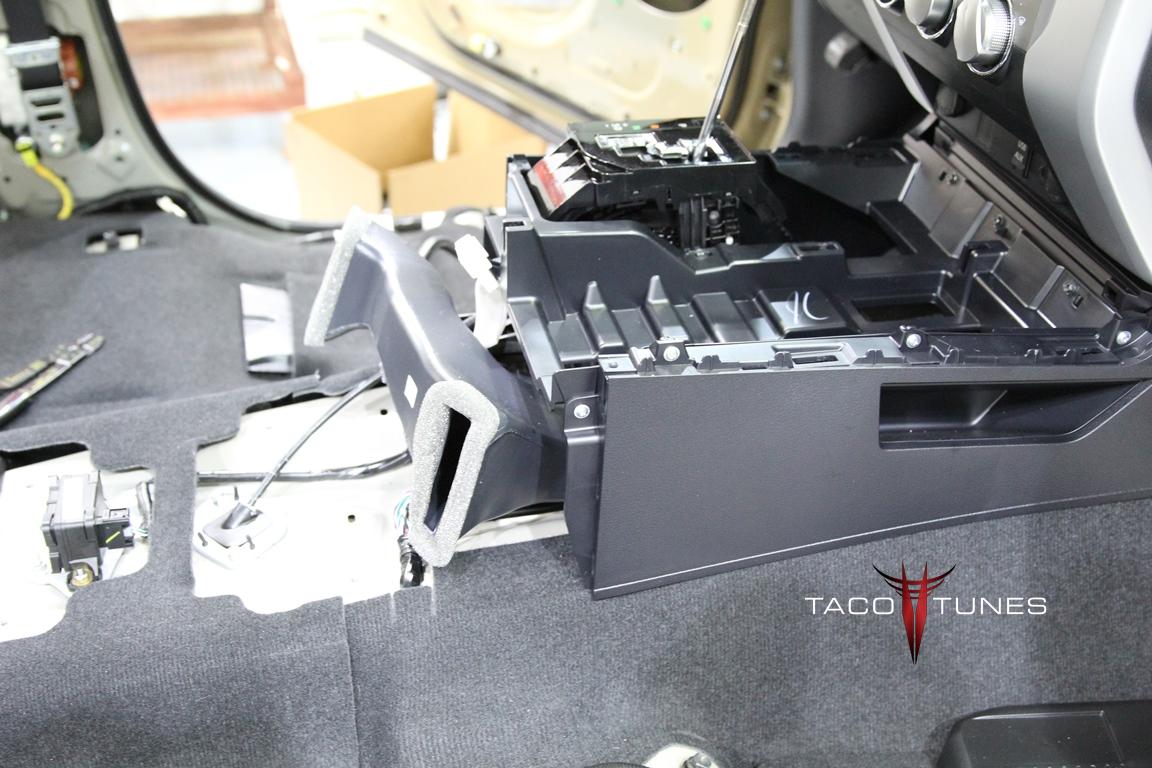

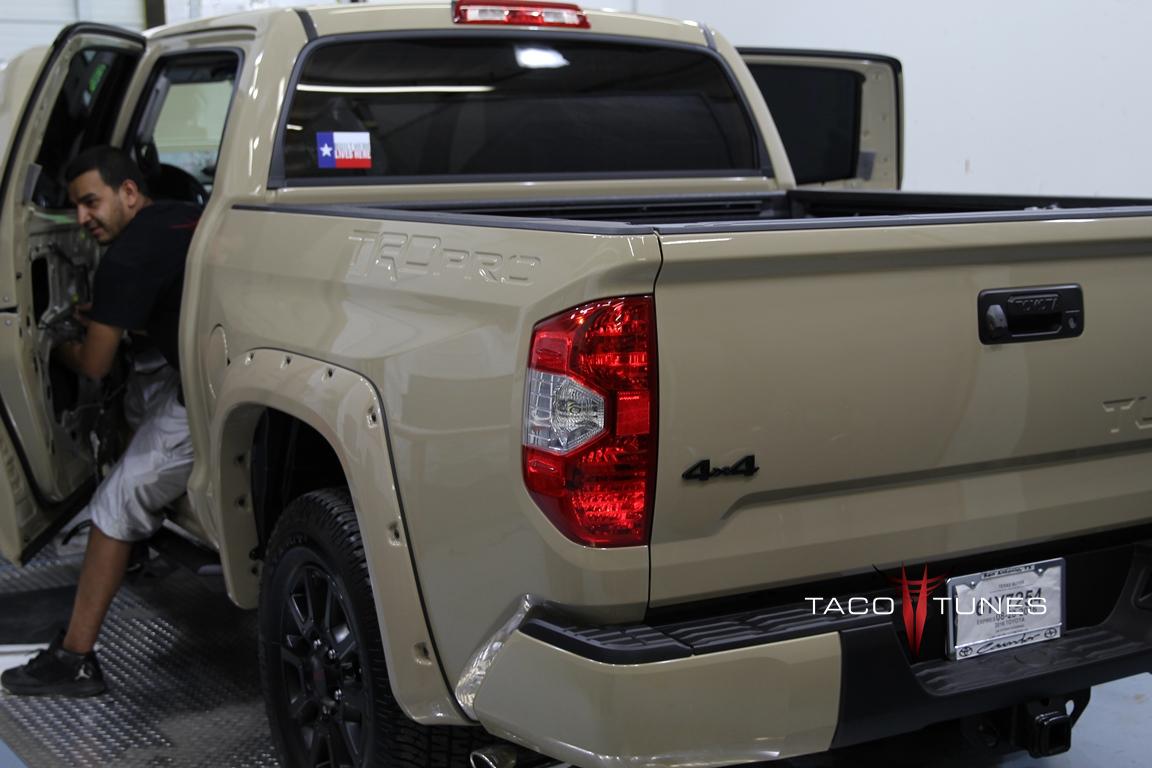

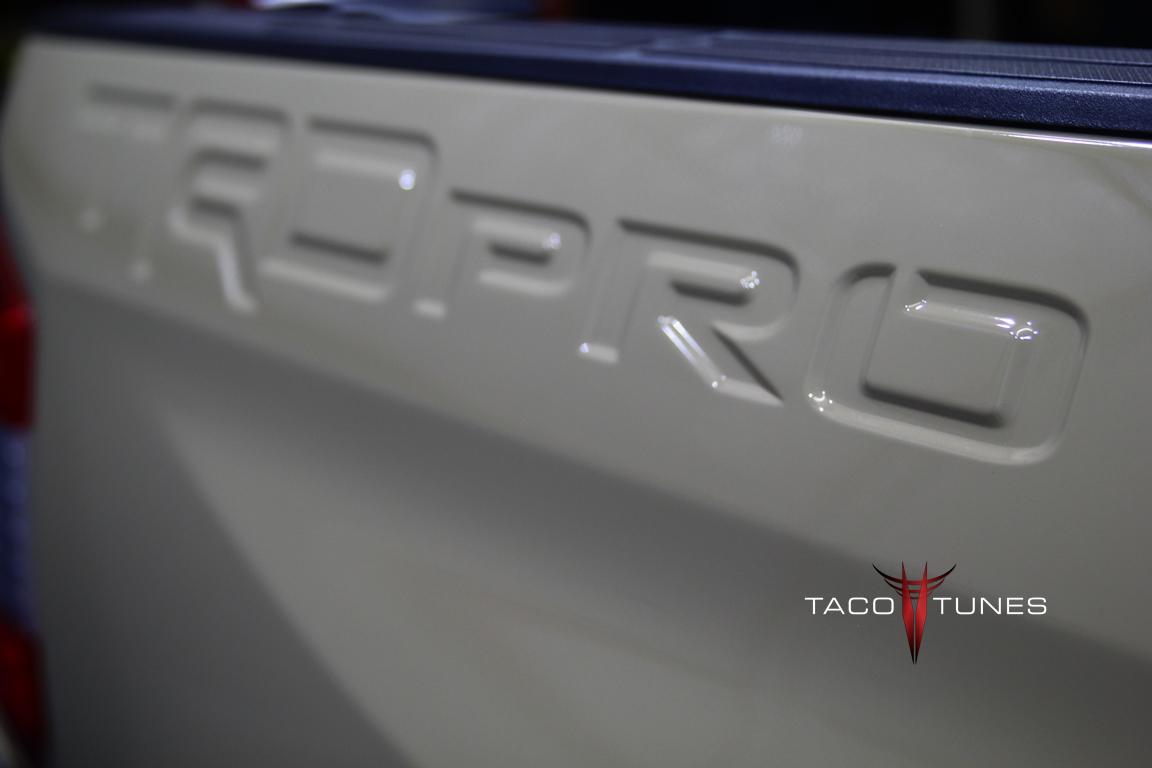

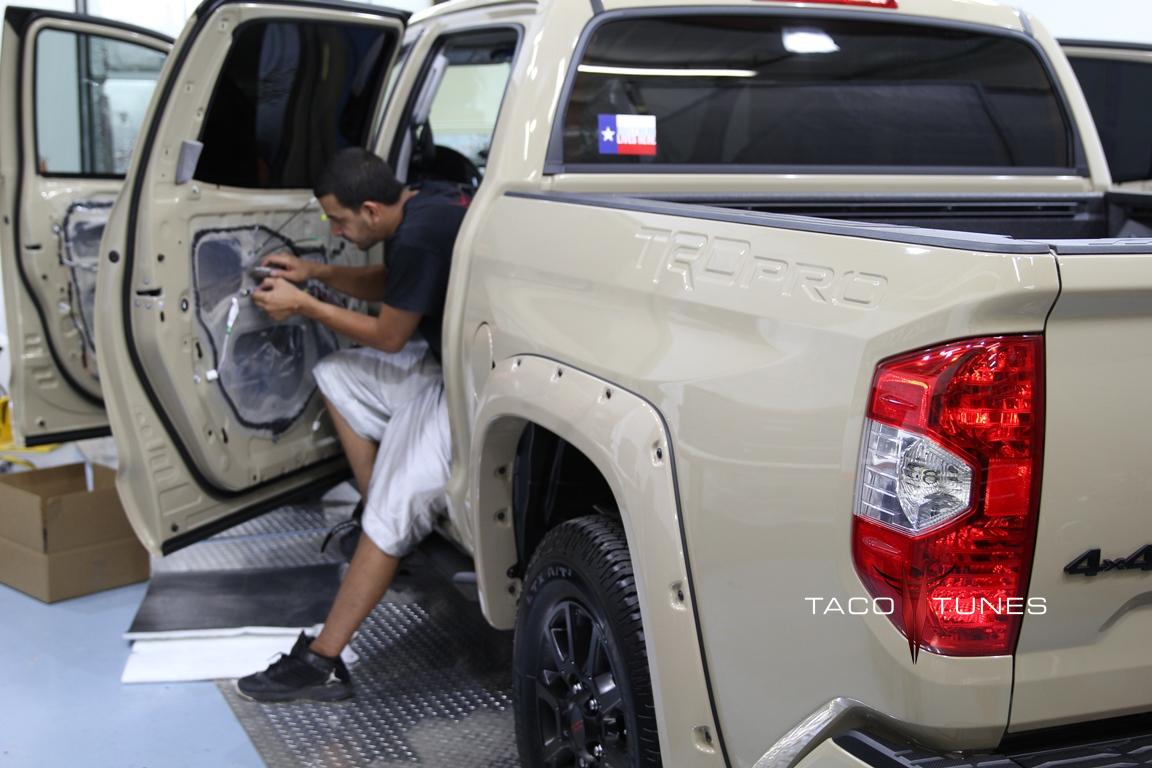

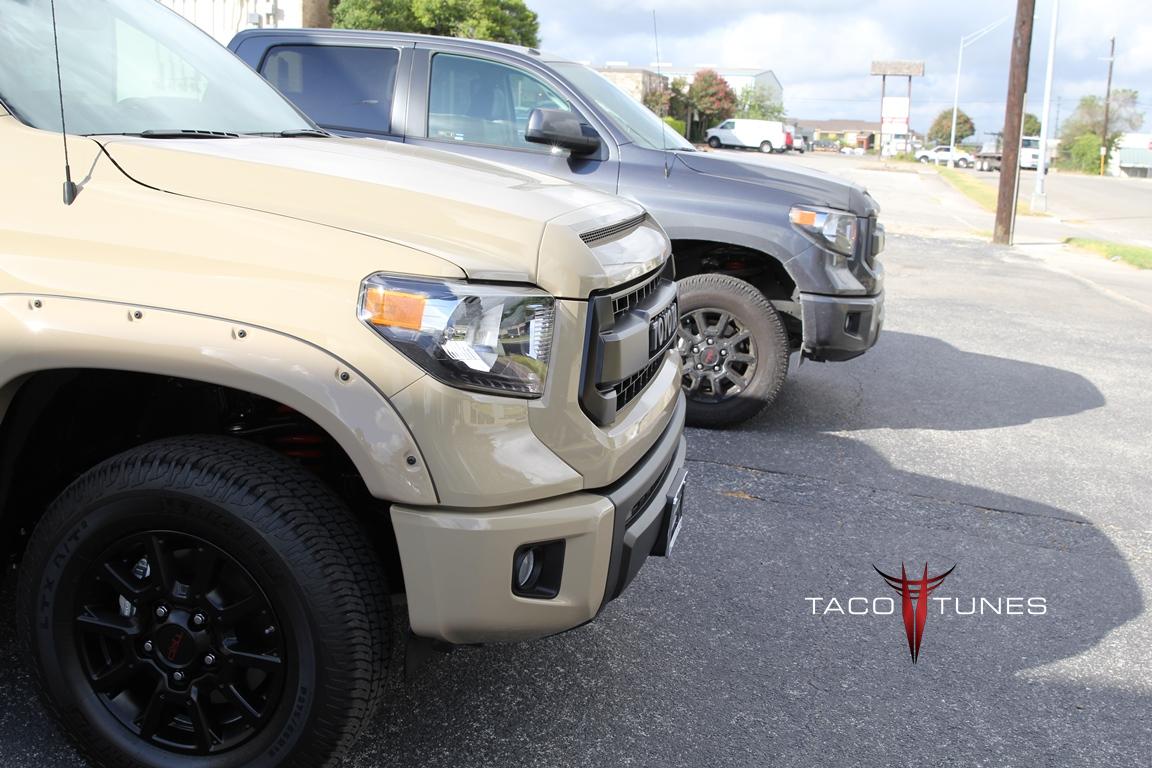

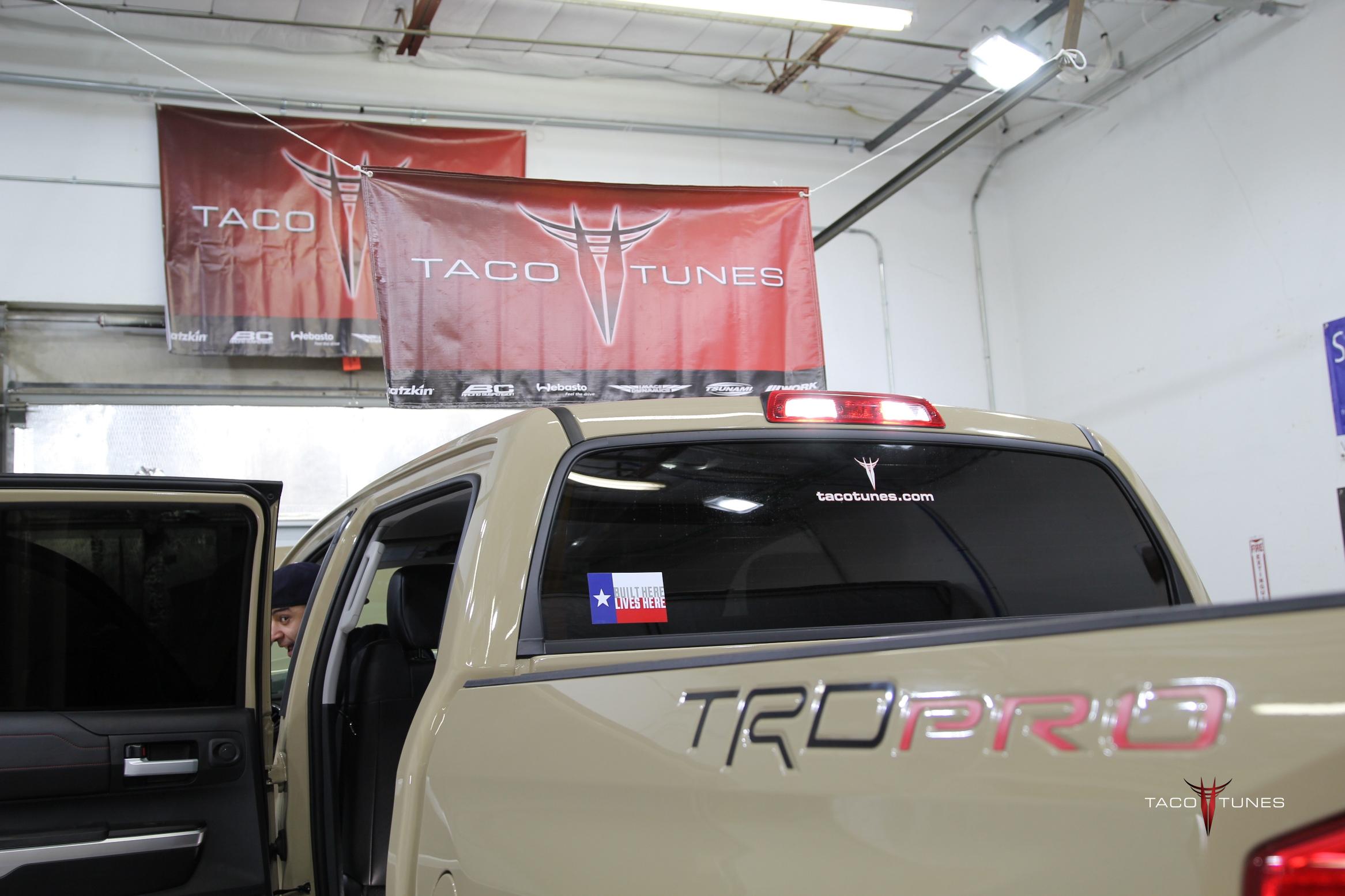

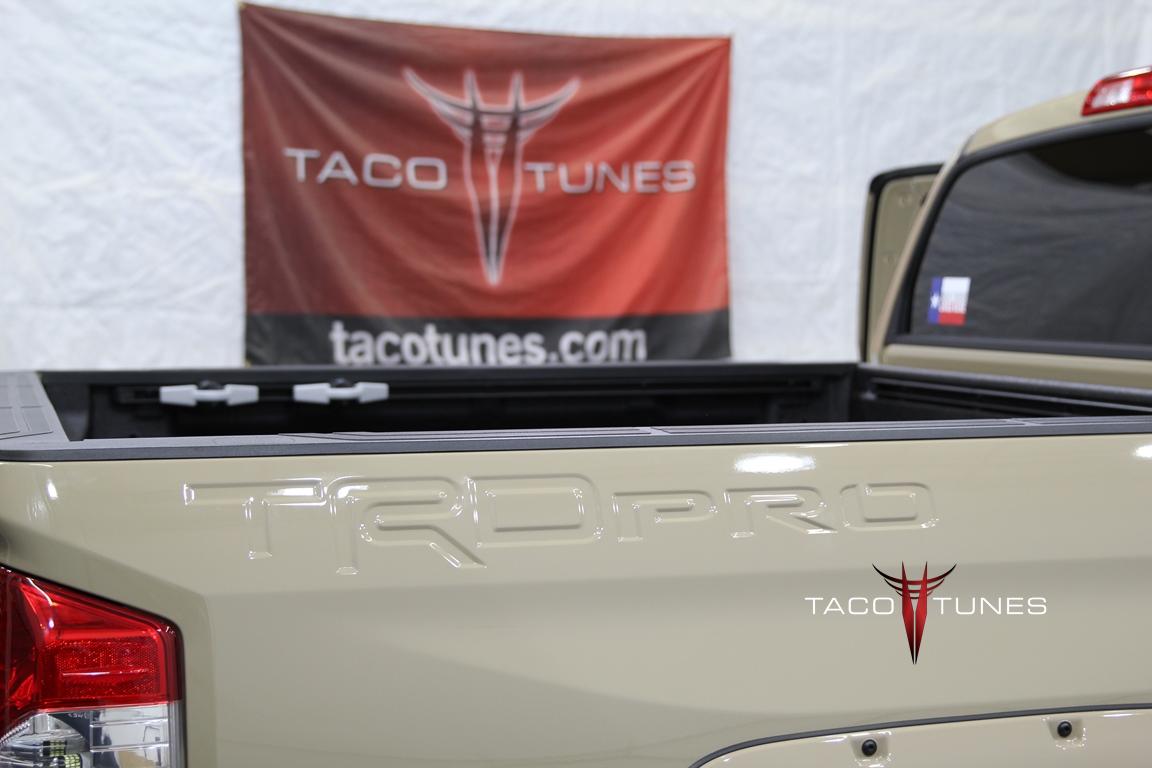

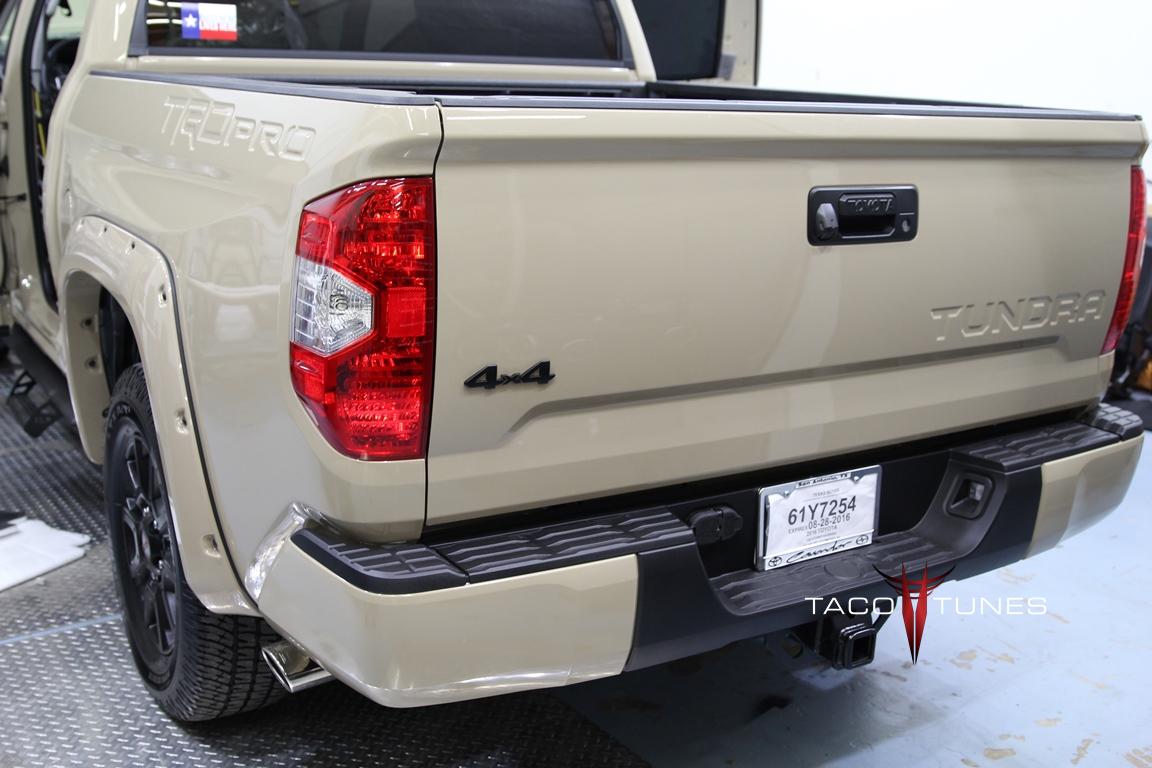

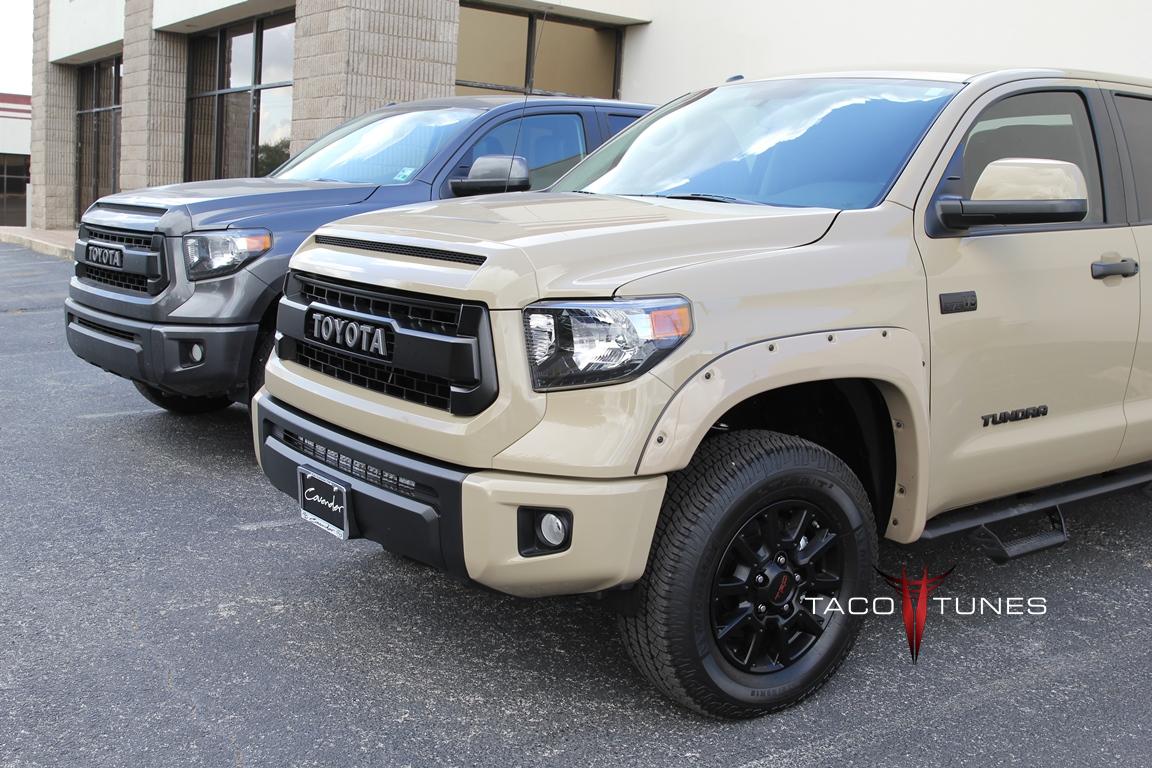

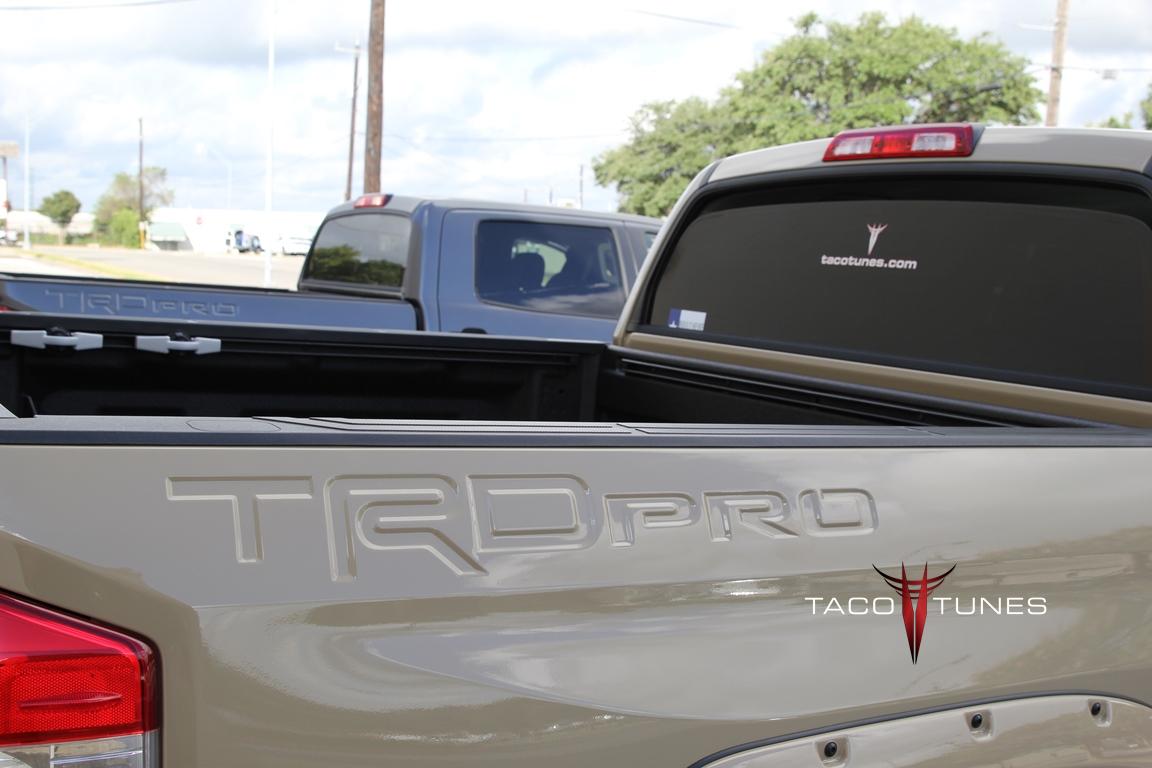

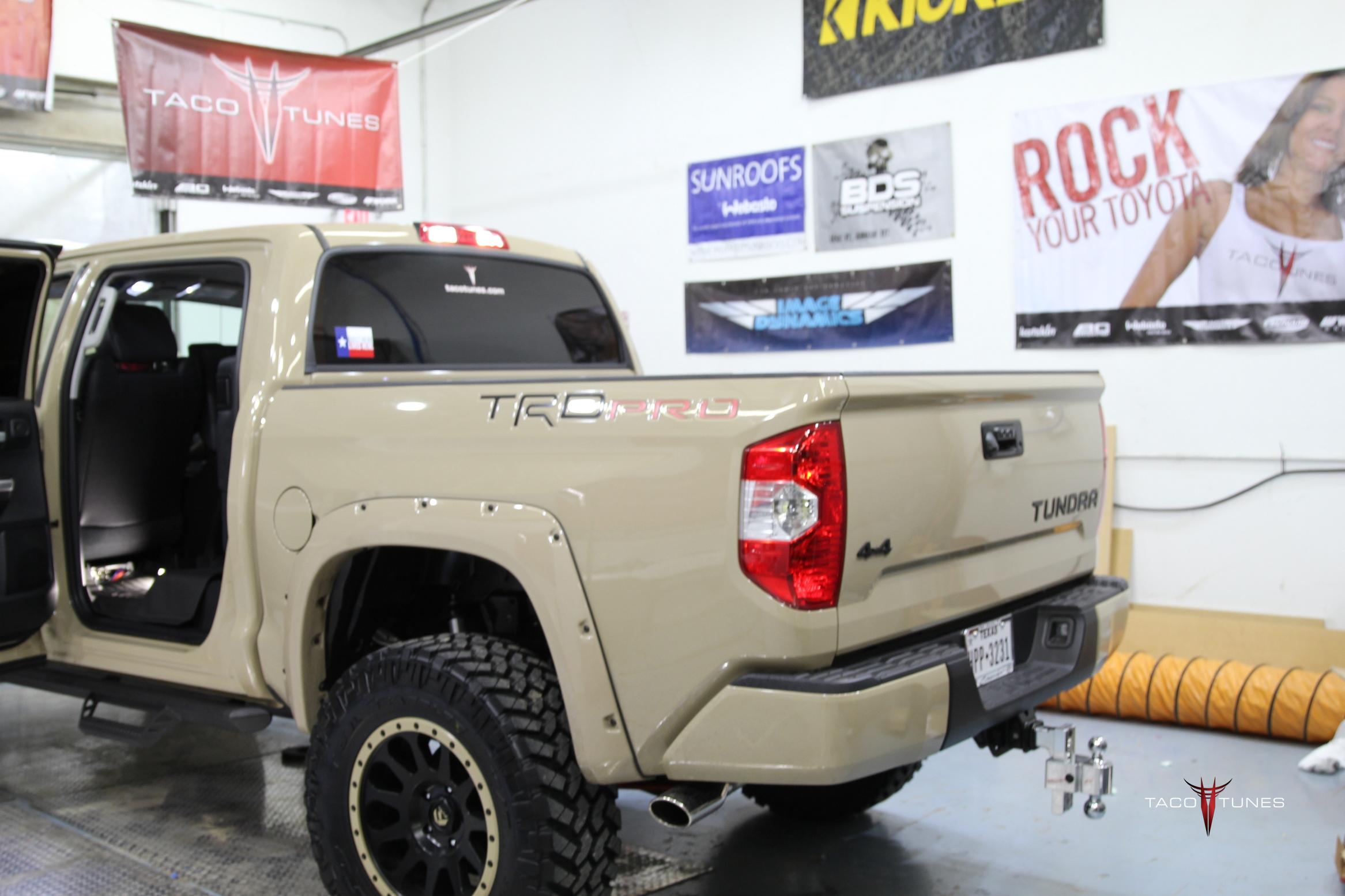

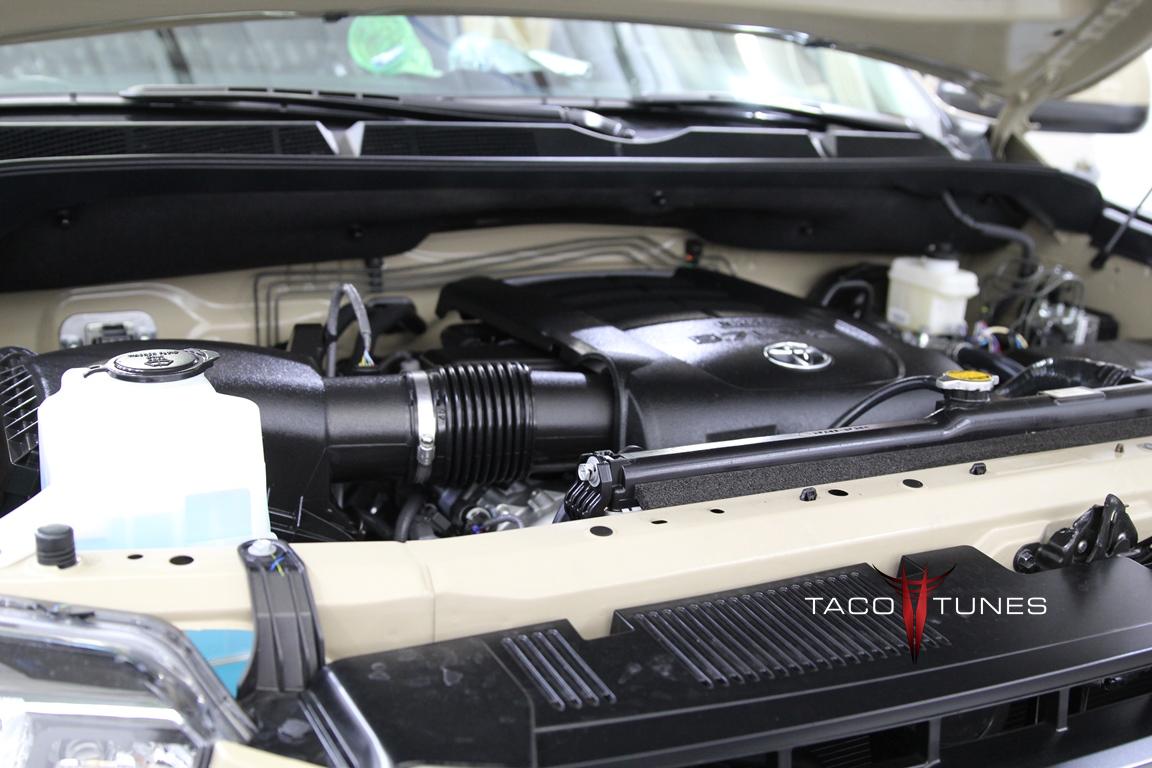

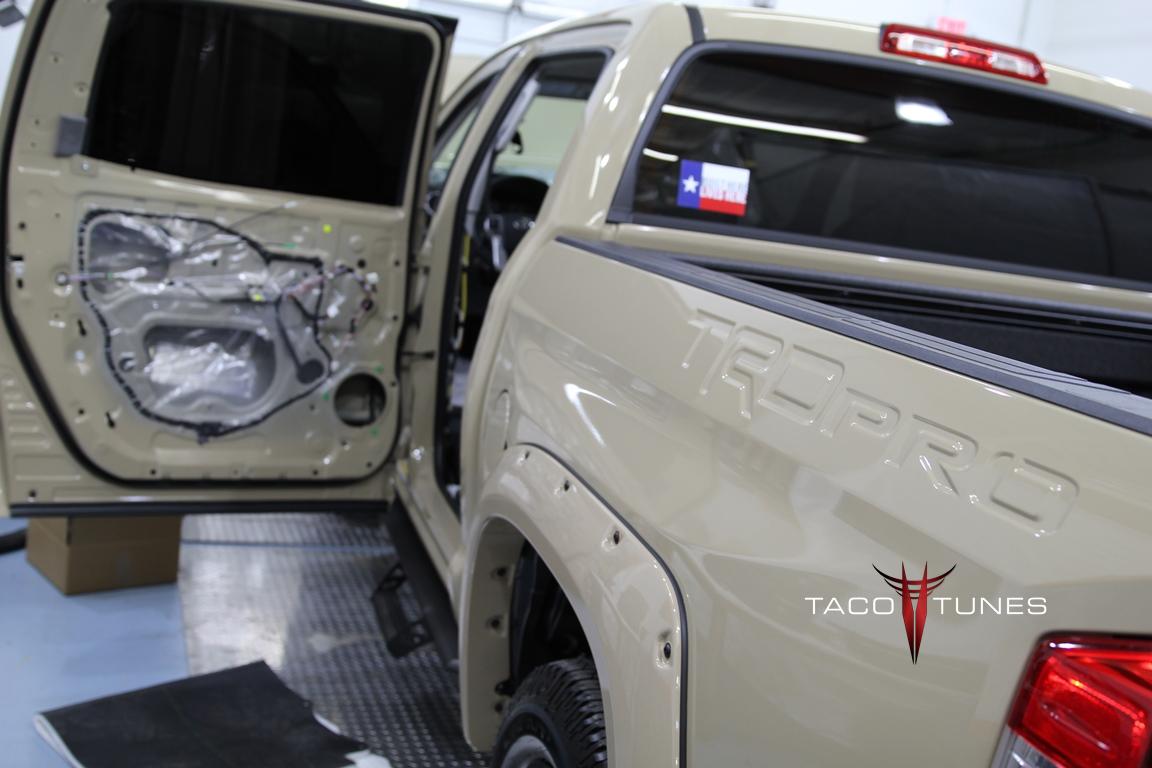

2016 Toyota Tundra CrewMax TRD Pro Complete Audio System Install

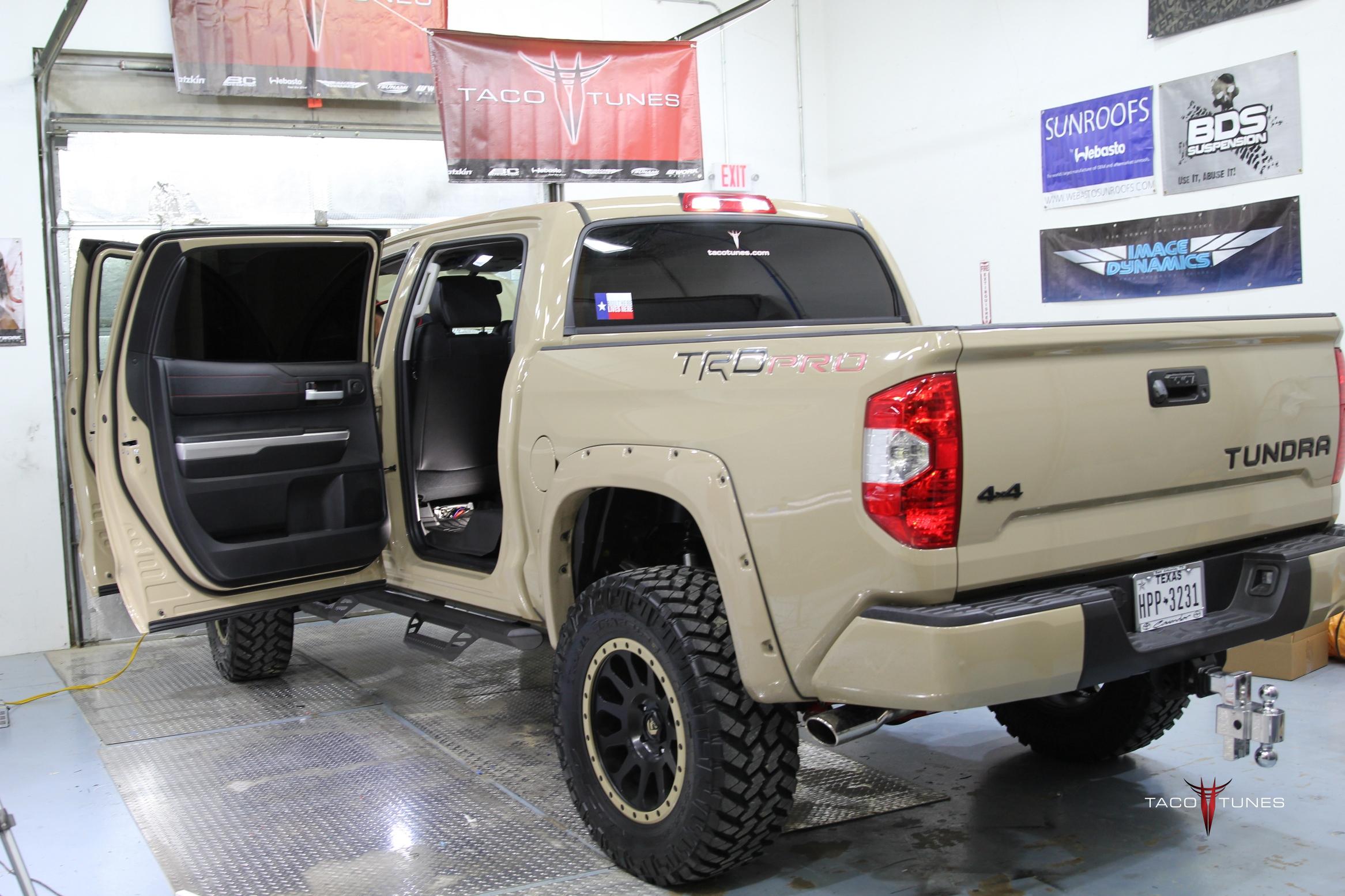

2016 Toyota Tundra Crewmax TRD Pro (1)

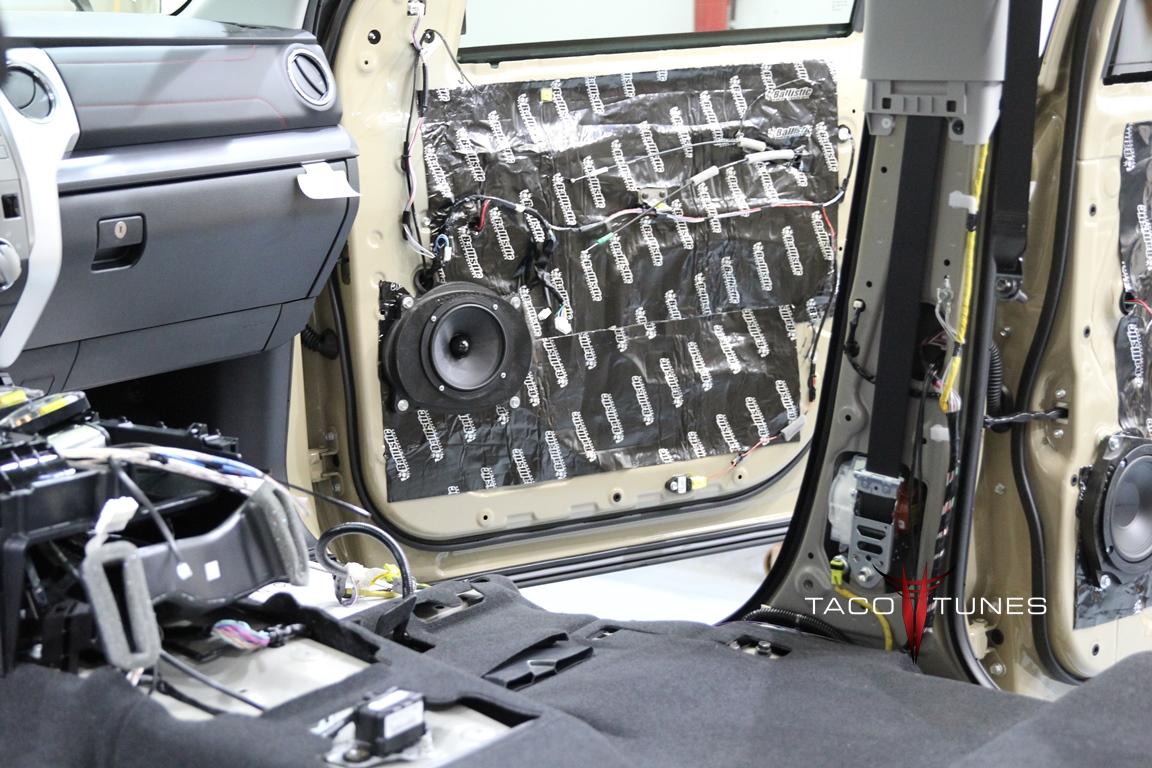

2016 Toyota Tundra CrewMax TRD Pro Complete Audio System Install

This is a brand new TRD from a local Toyota dealership here in San Antonio

Installation Summary / History:

Toyota Year / Model: 2016 Toyota Tundra CrewMax TRD Pro

Head Unit: NON JBL

Color: Sand

Installed by: tacotunes.com

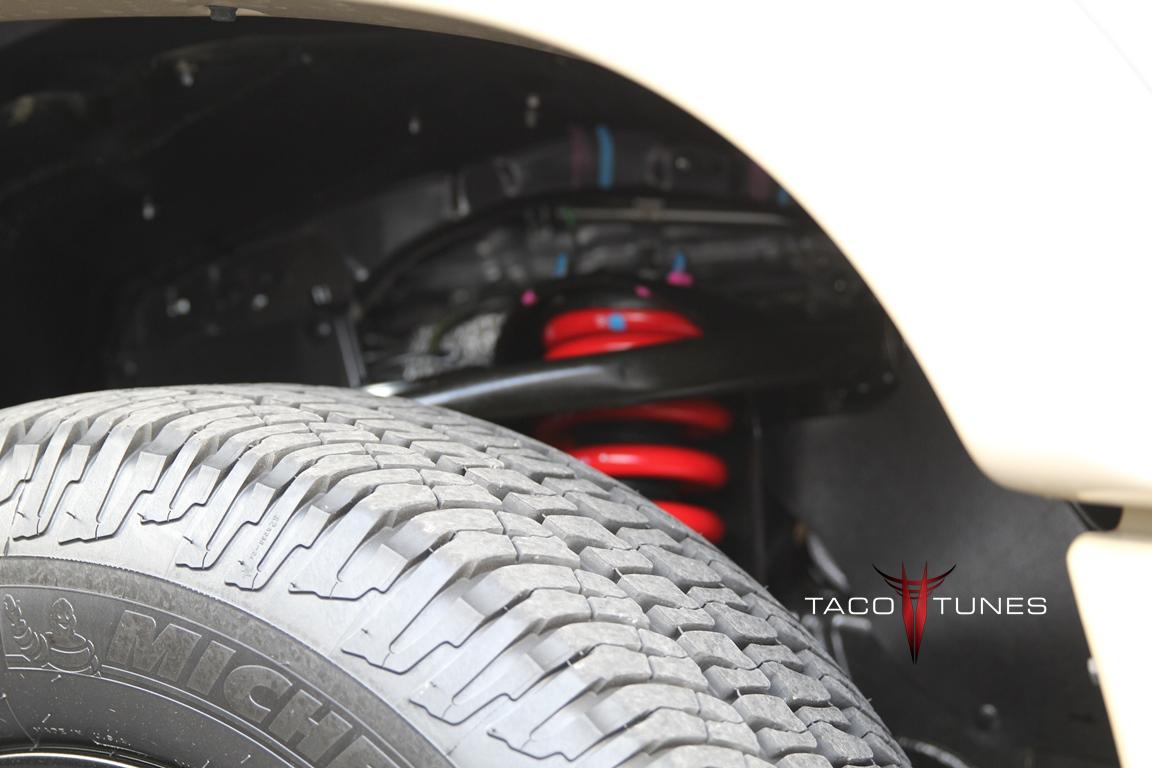

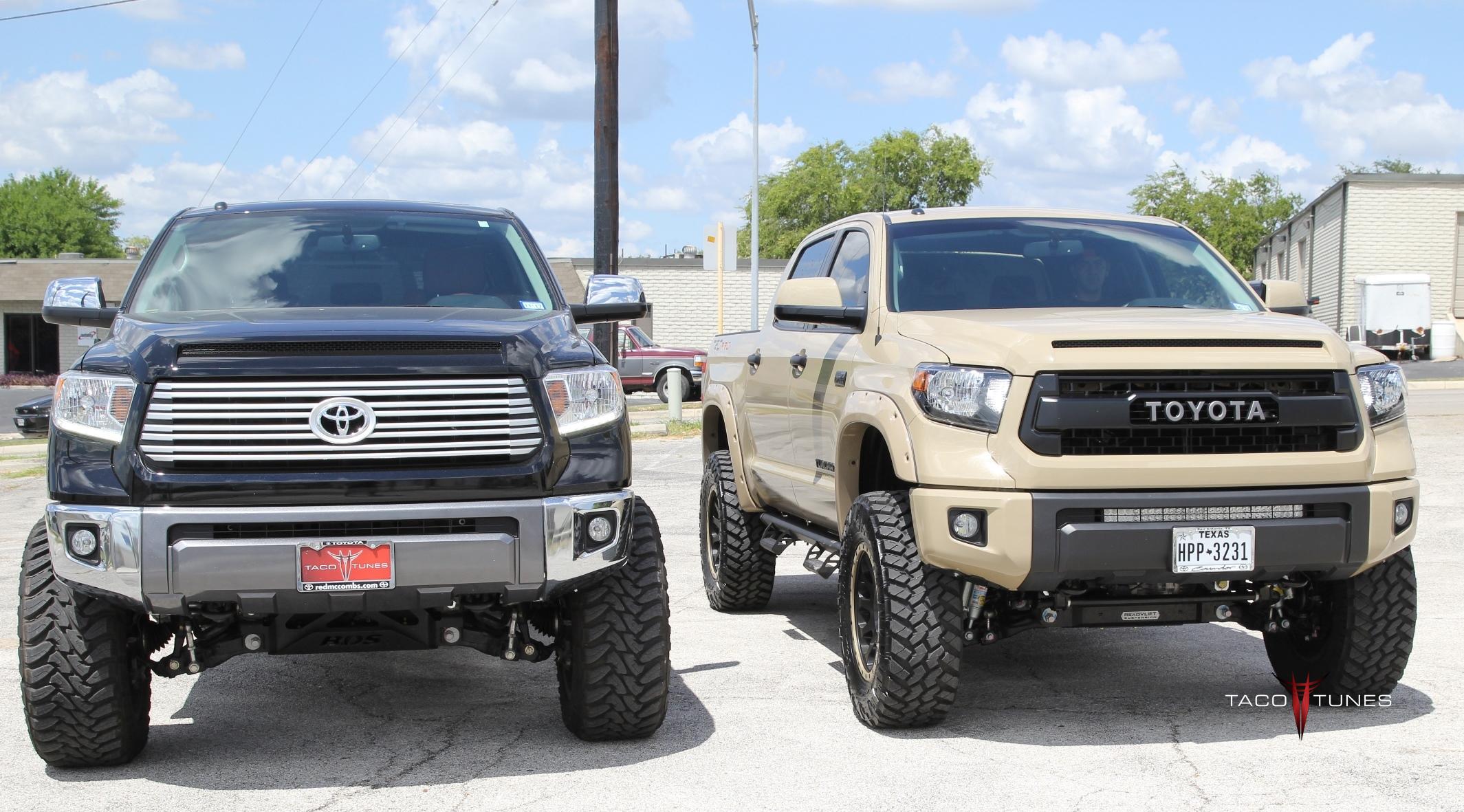

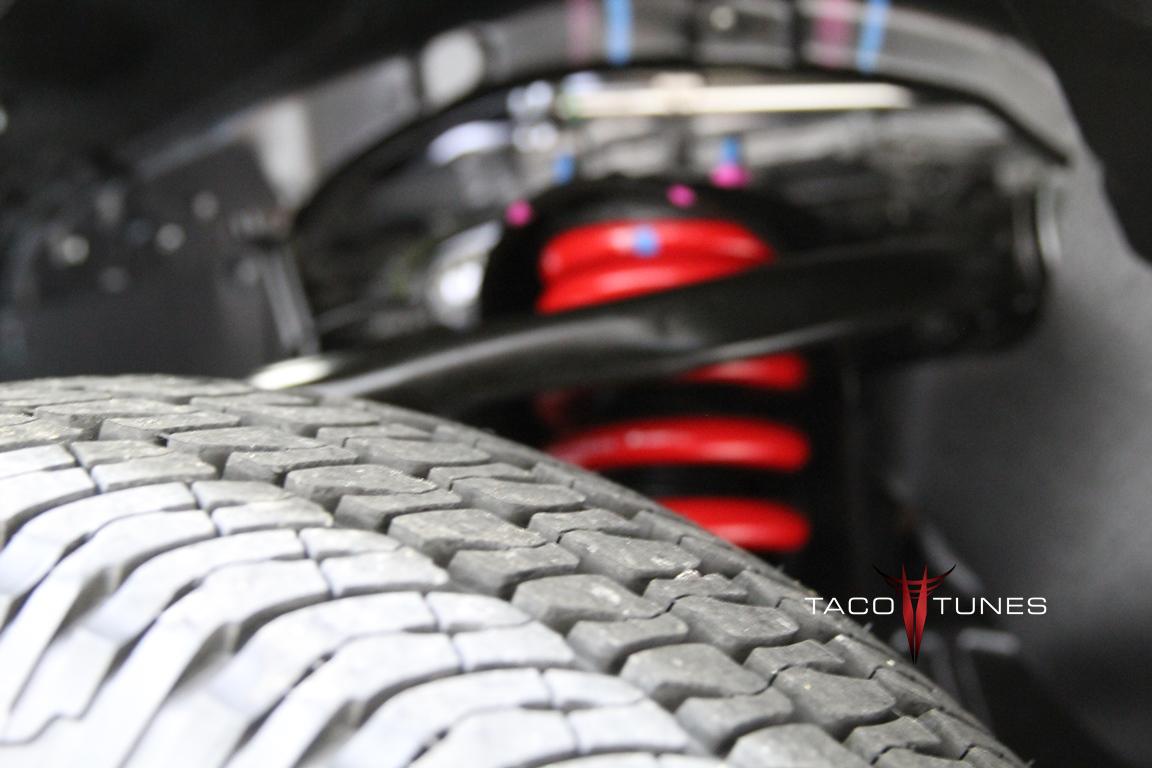

Lift: ReadyLift 6″

Wheels: Fuel Beadlock – (discontinued)

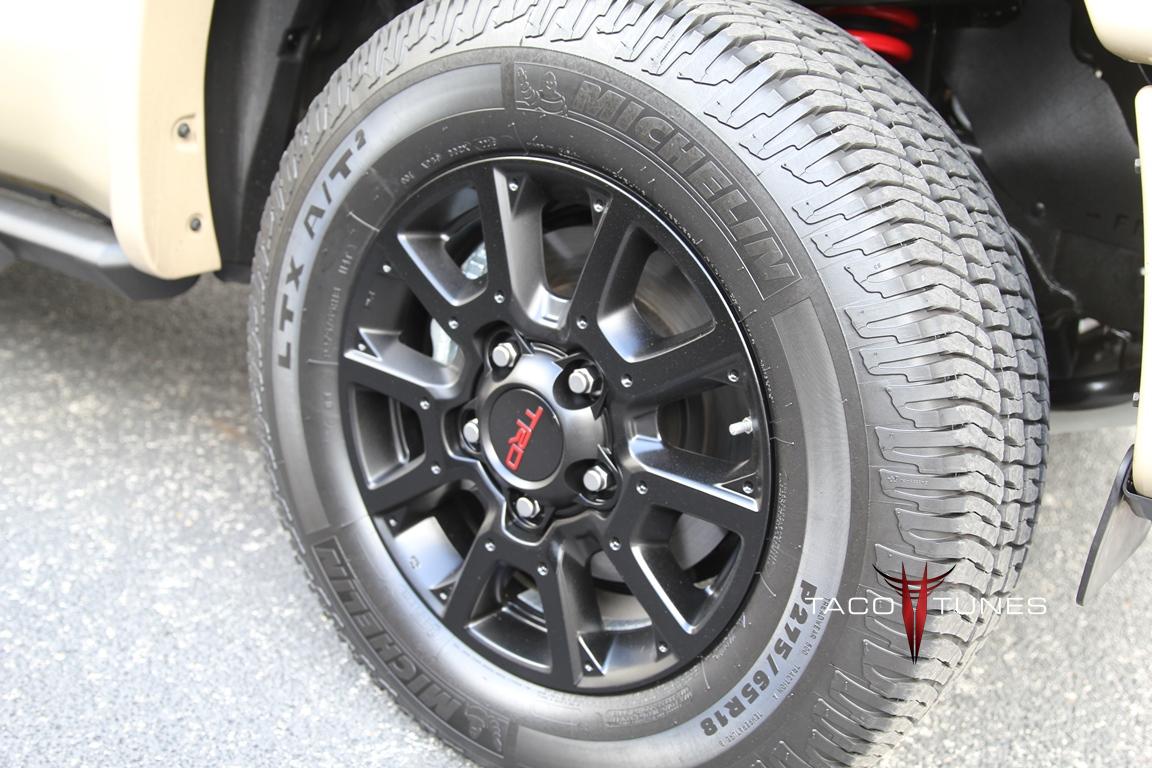

Tires: 37x 12.5×20 Nitto Trail Grappler

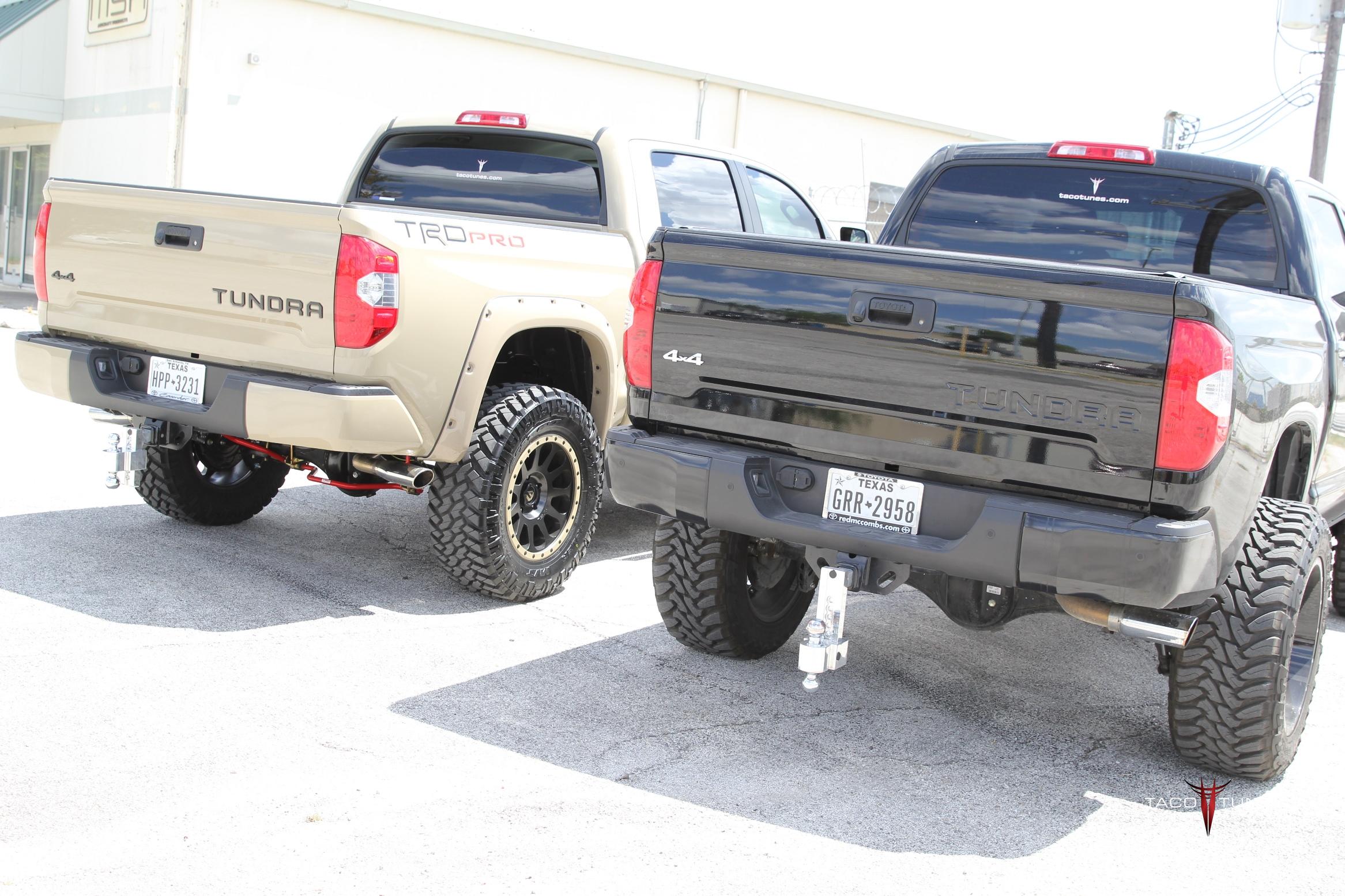

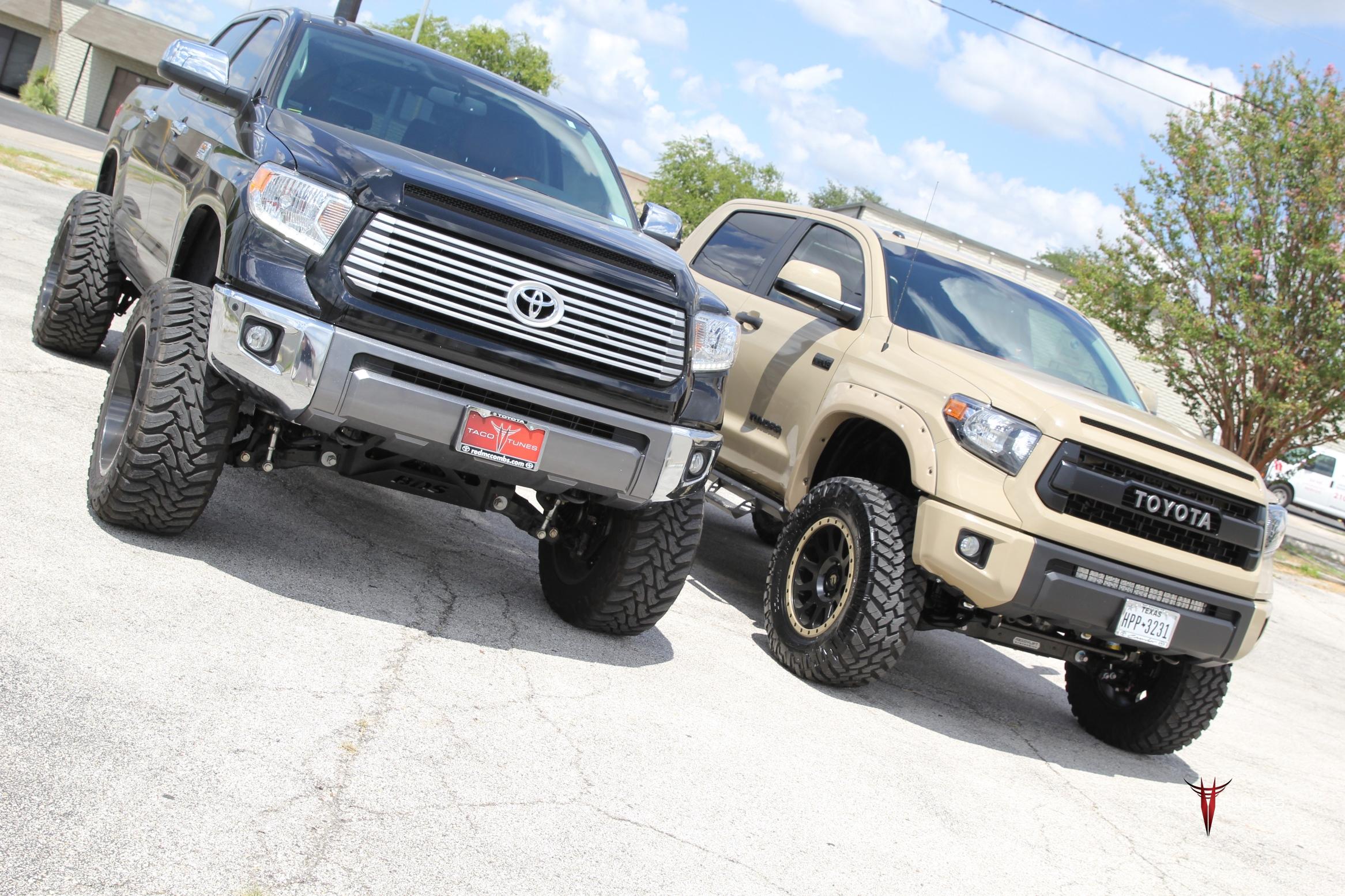

Most of the pictures are before the lift.



System Installed: tacotunes SQ1 packaged system











After the lift:





Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Chris Tundra CrewMax

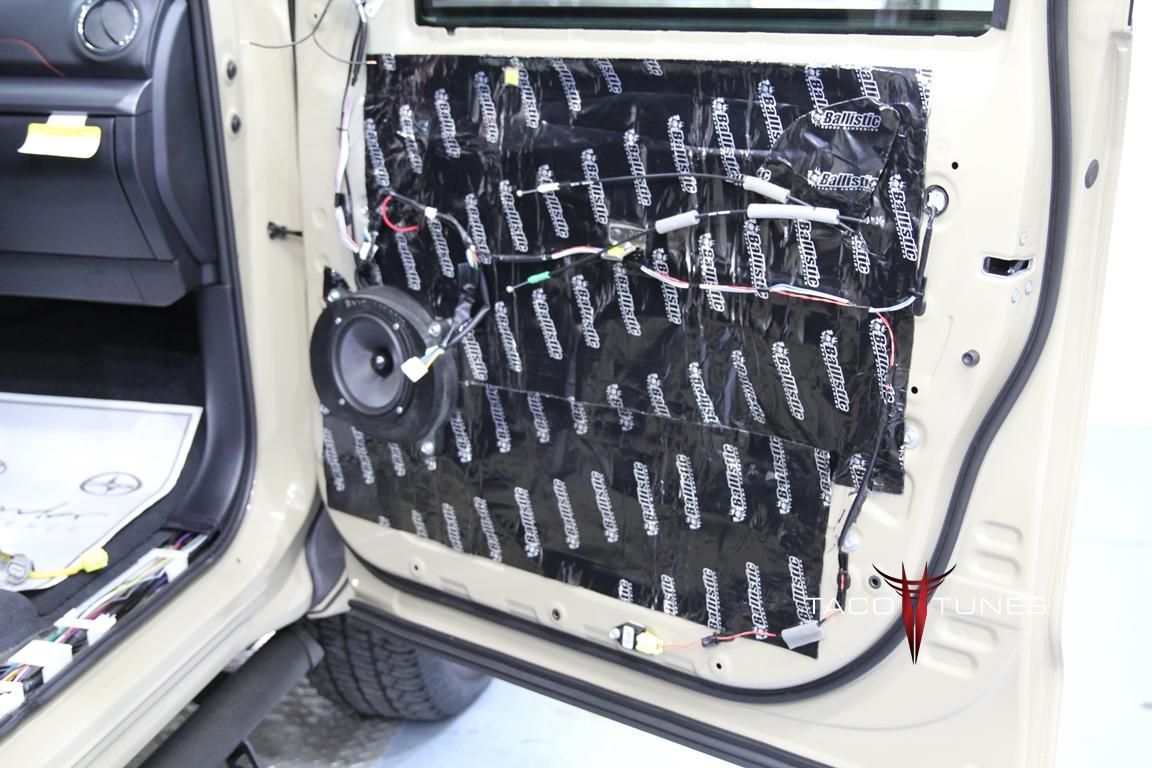

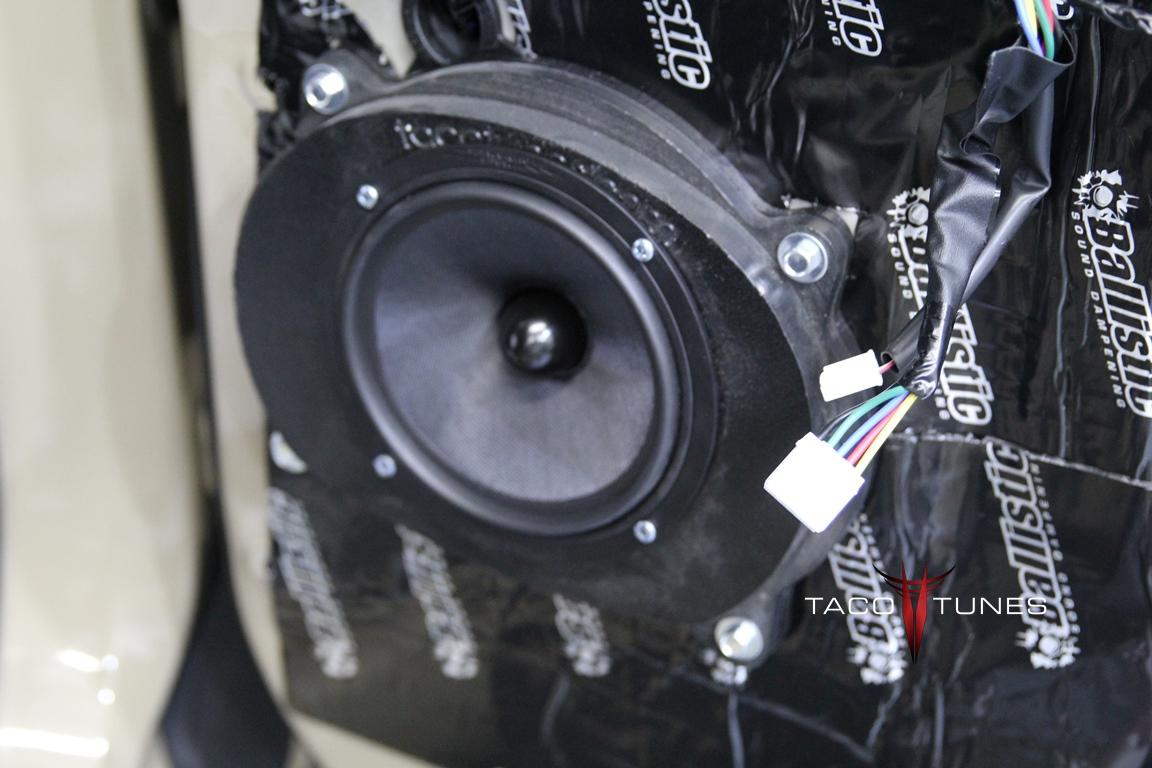

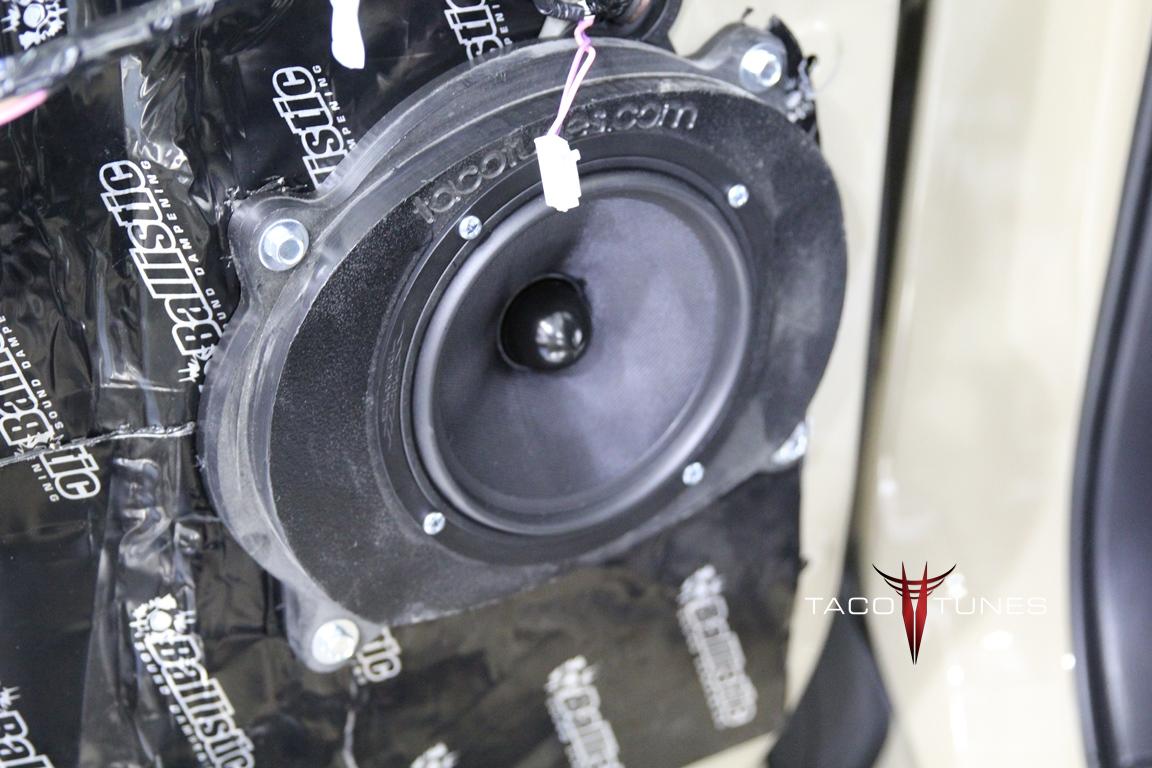

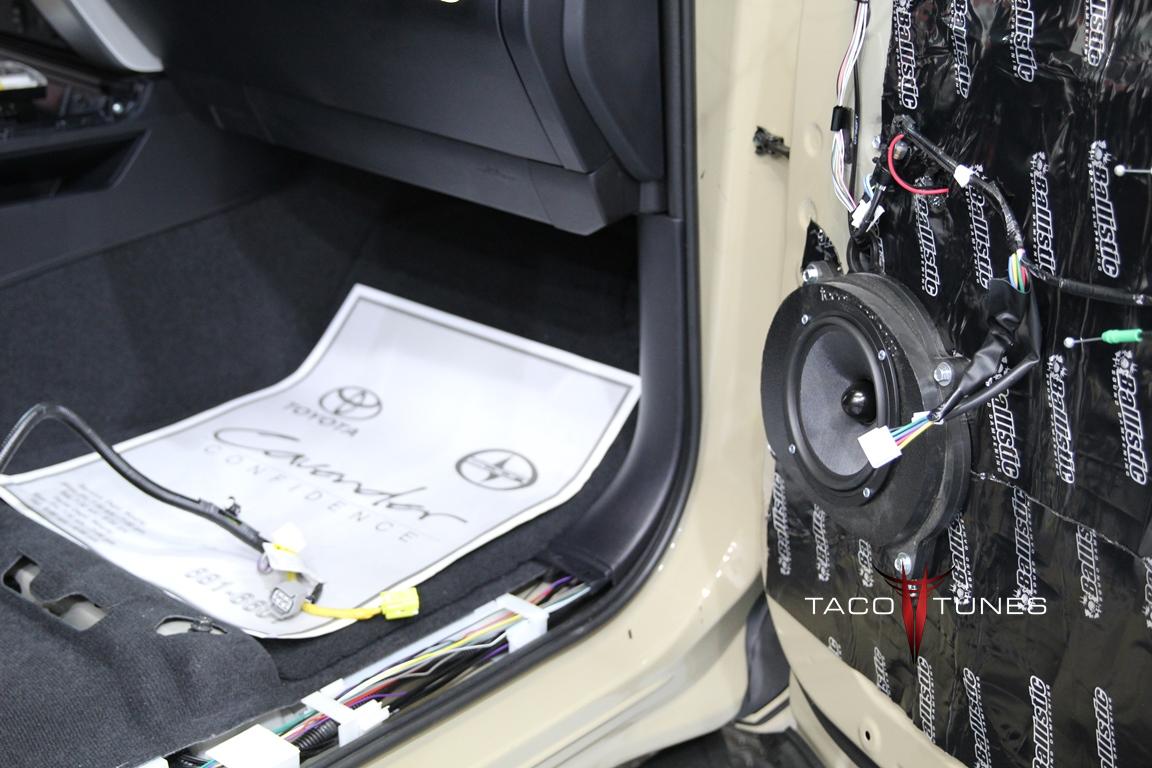

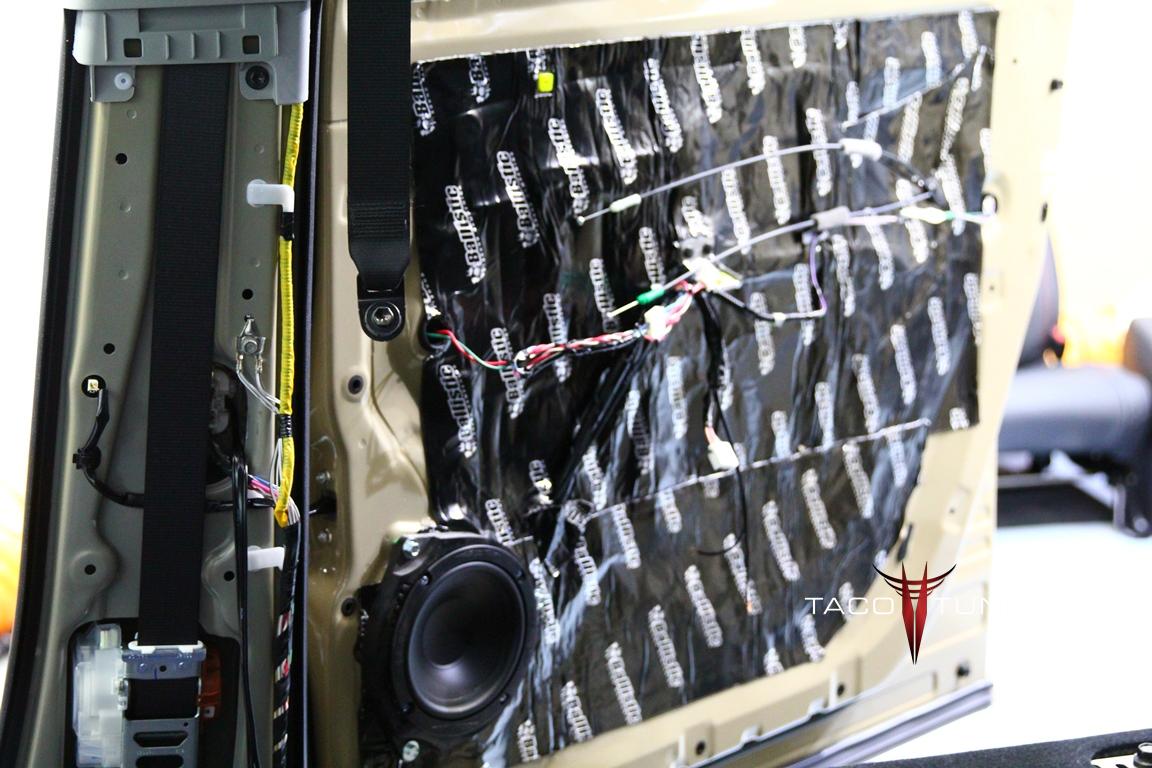

Front Door Component Speakers:

Image Dynamics CXS64

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CXS Mid bass Drivers -125 Watts RMS

CXS Crossover

CXS 28M Silk Dome Tweeter

NOTE: JBL equipped

Use Stock Sail Panel for Tweeter mounts.

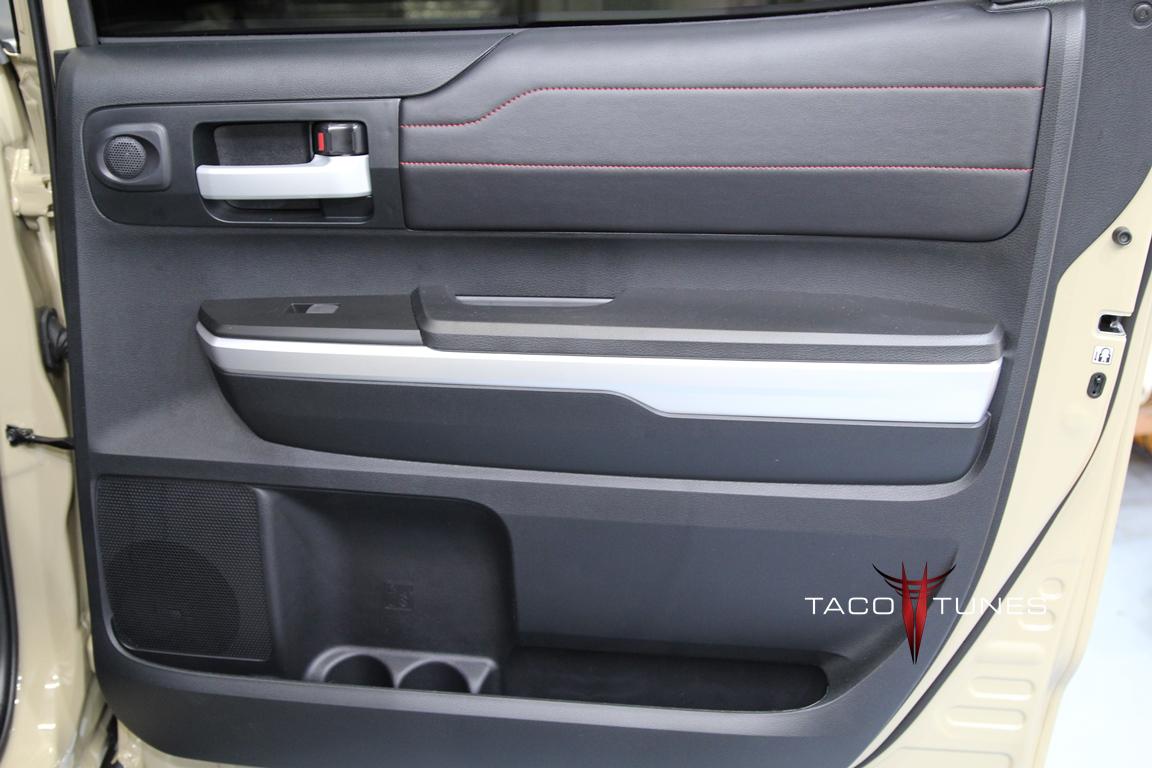

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

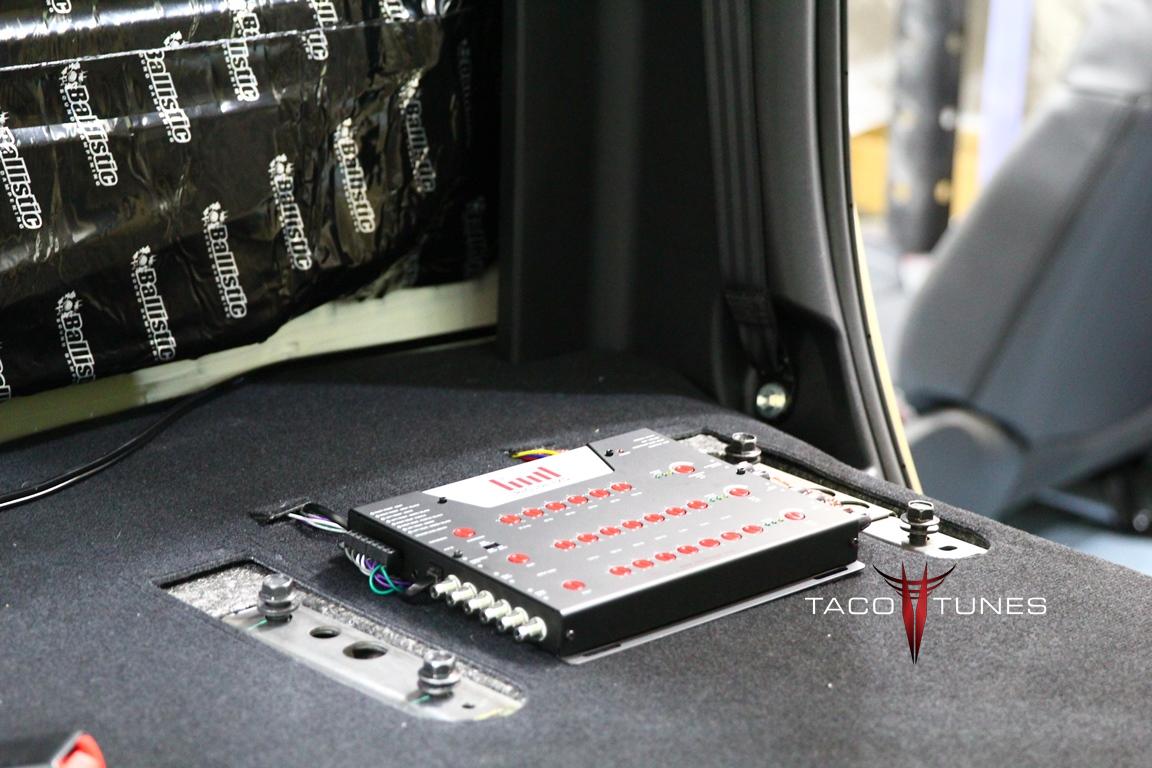

Sound Processor:

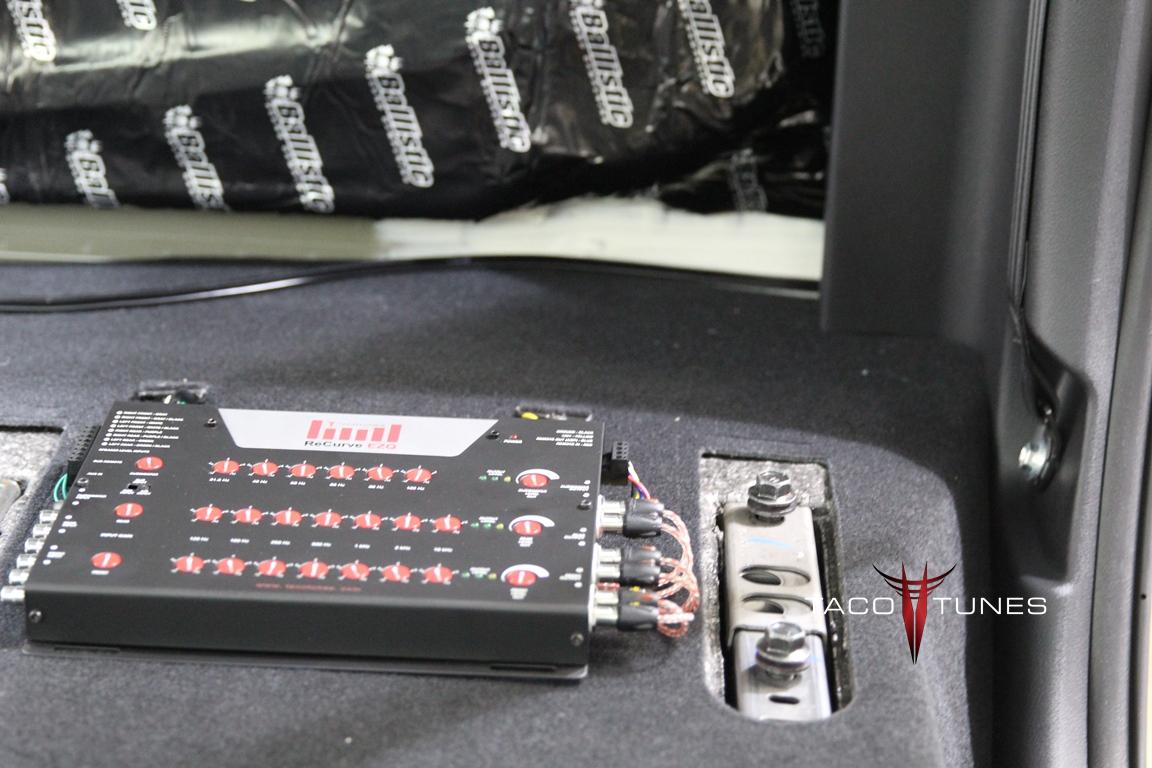

Tacotunes.com ReCurve EZQ

Tacotunes.com JBL Harness

Amp:

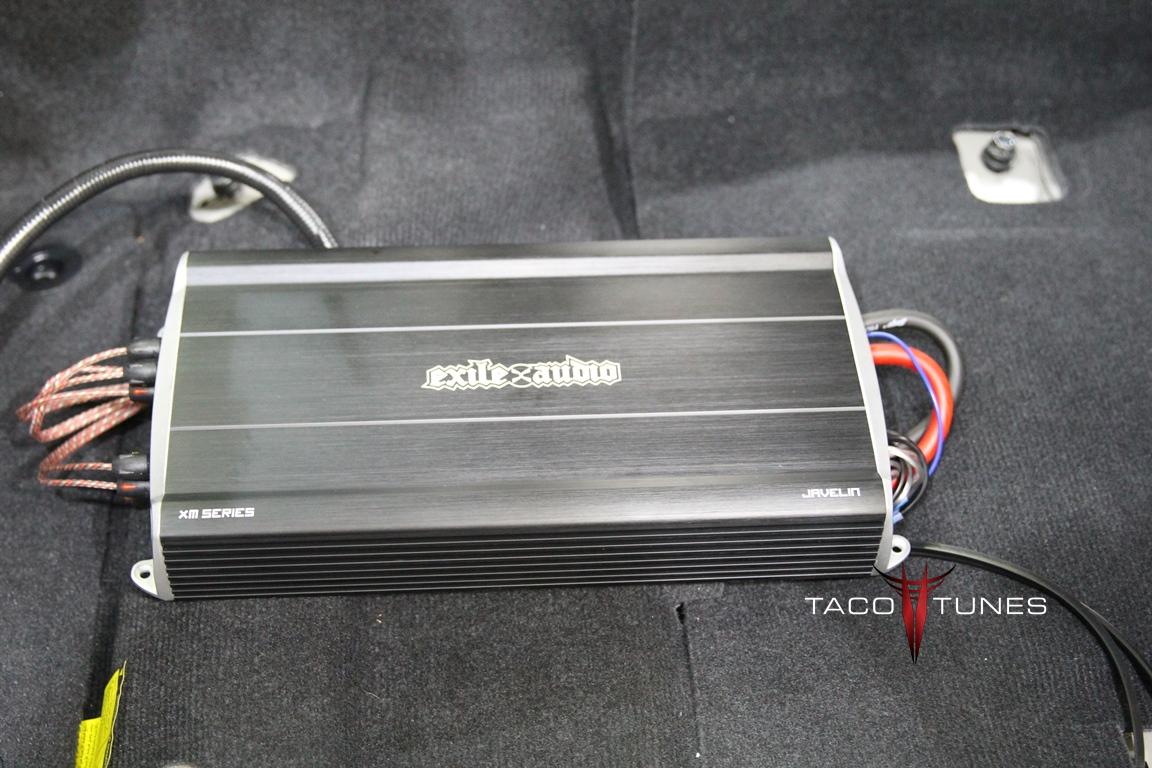

Exile Audio 5 channel amp

100 watts x 4 to each speaker and 800 x 1 (subwoofer)

Subwoofer(s):

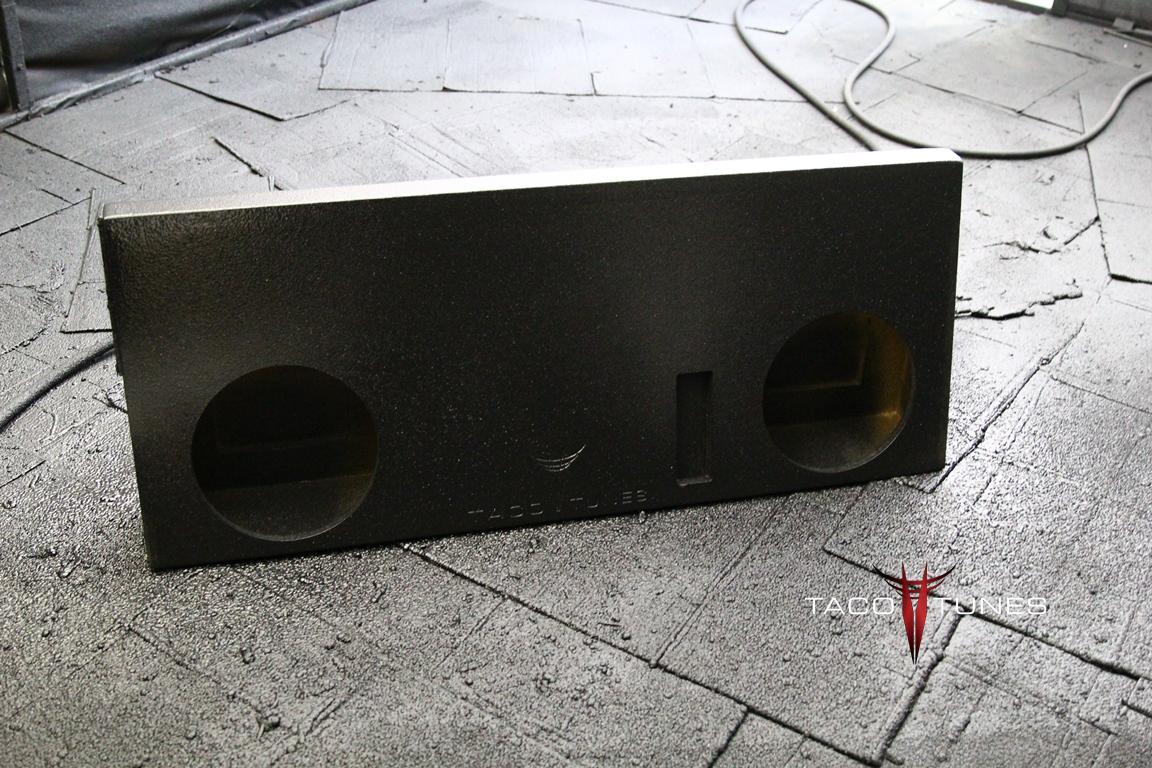

Subwoofer Box & Subwoofers

Tacotunes.com Dual 12″ subwoofers

Image Dynamics ID12V4 (full size) 10” subwoofer 400 watts RMS x 2

Tundra Install kit:

Stereo & Wiring Installation kit:

Stinger Power, Speaker and Signal Cables:

Positive:

Stinger 3′ POWER CABLE 4GA – Ring Terminal Attached

Stinger 13′ POWER CABLE 4GA

Negative:

Stinger 4′ POWER CABLE 4GA – Ring Terminal Attached

Color Coded Speaker Wire:

Stinger 50′ 16GA Black Speaker Wire (Driver Side Speakers)

Stinger 50′ 16GA Silver Speaker Wire (Passenger Side Speakers)

Stinger 25′ 18GA Black Speaker wire (Driver Side Tweeters)

Stinger 50′ 18GA Silver Speaker Wire (Passenger Side Tweeters)

Stinger 50’ 12Ga Black Subwoofer Wire

RCA Signal Cables:

1 Stinger RCA CABLE 12 Ft Twisted Pair – 6 Channel (Front / Rear / Sub)

Misc Items:

35′ Primary Blue Remote Turn on wire

6′ 3/4 Split Loom

T-Spec ANL Fuse Holder

T-Spec 100 Amp ANL Fuse

10 Crimp Caps

8 Speaker Terminals .25 (Door speakers)

4 Speaker Terminals .187 (tweeters)

4 Speaker Terminal .25 (subwoofer)

15 Small Zip Ties

15 Large Zip Ties

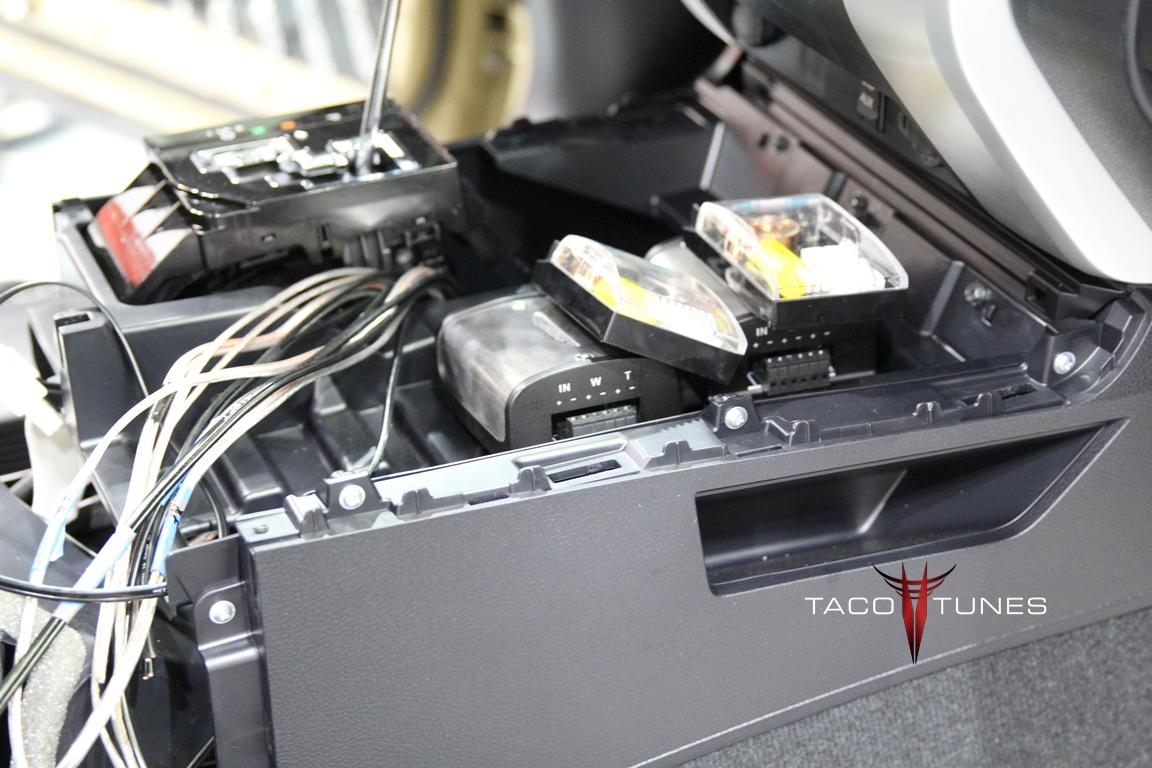

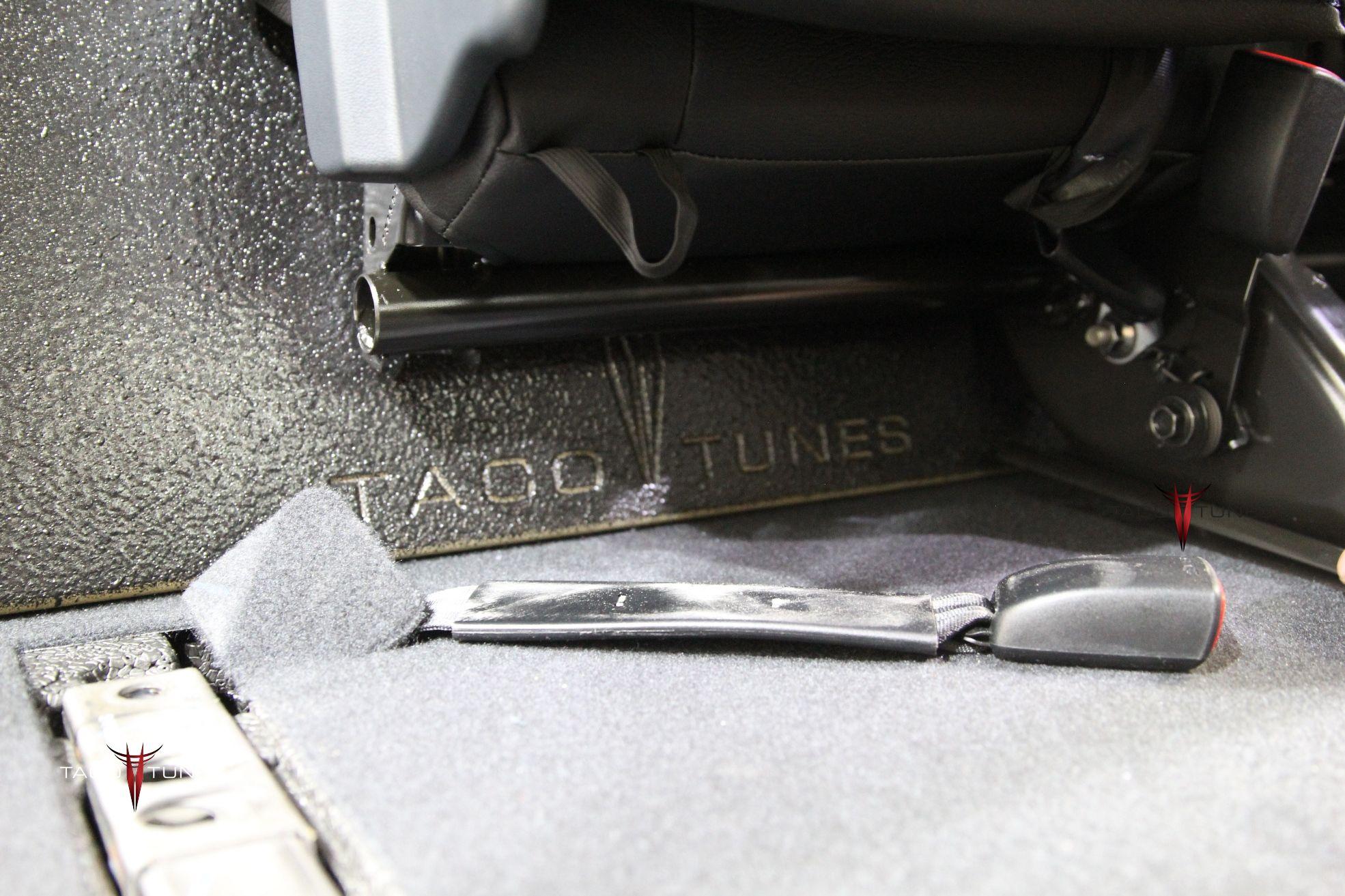

Under Seat – Amp Mounting Gear:

2 Nylons Spacers

2 Self Tapping Screws

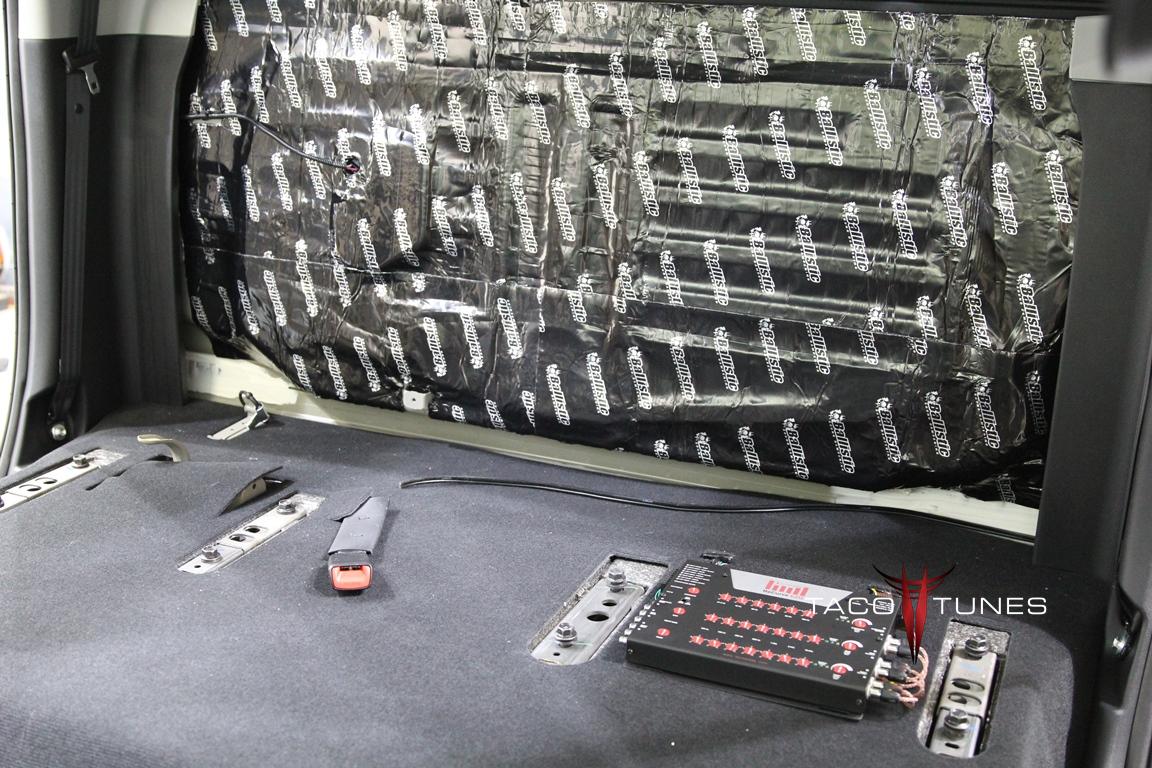

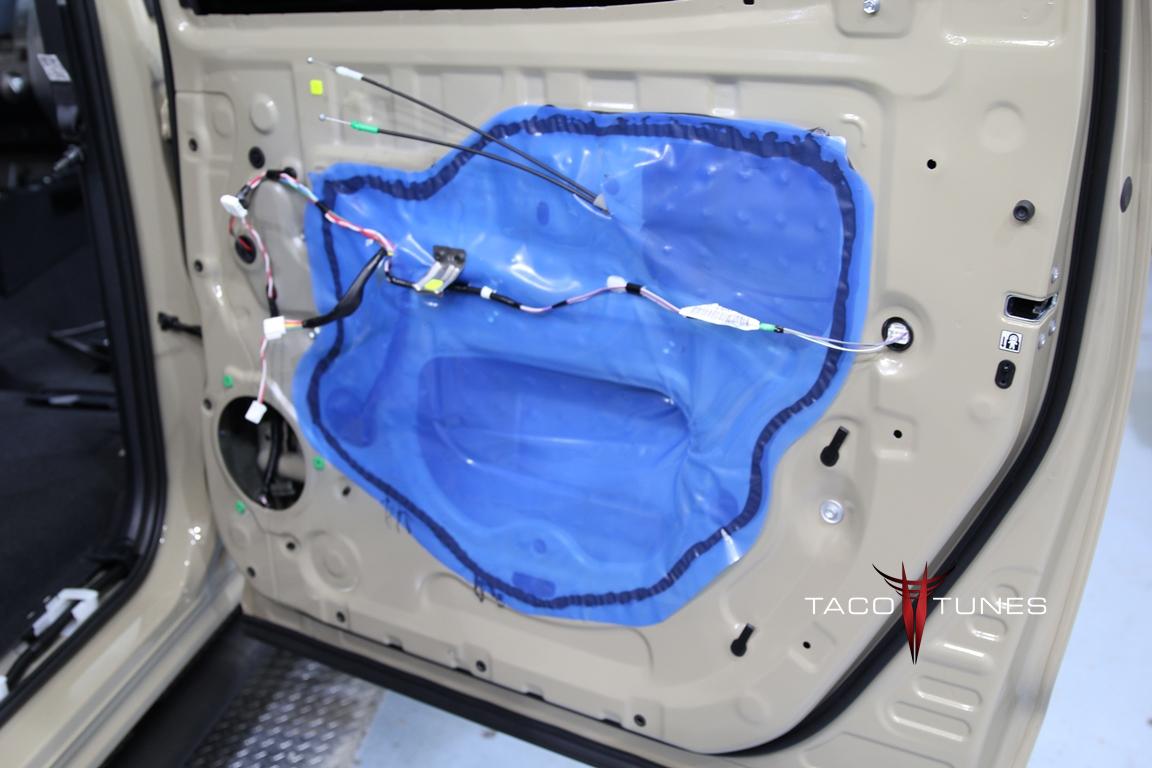

Matting:

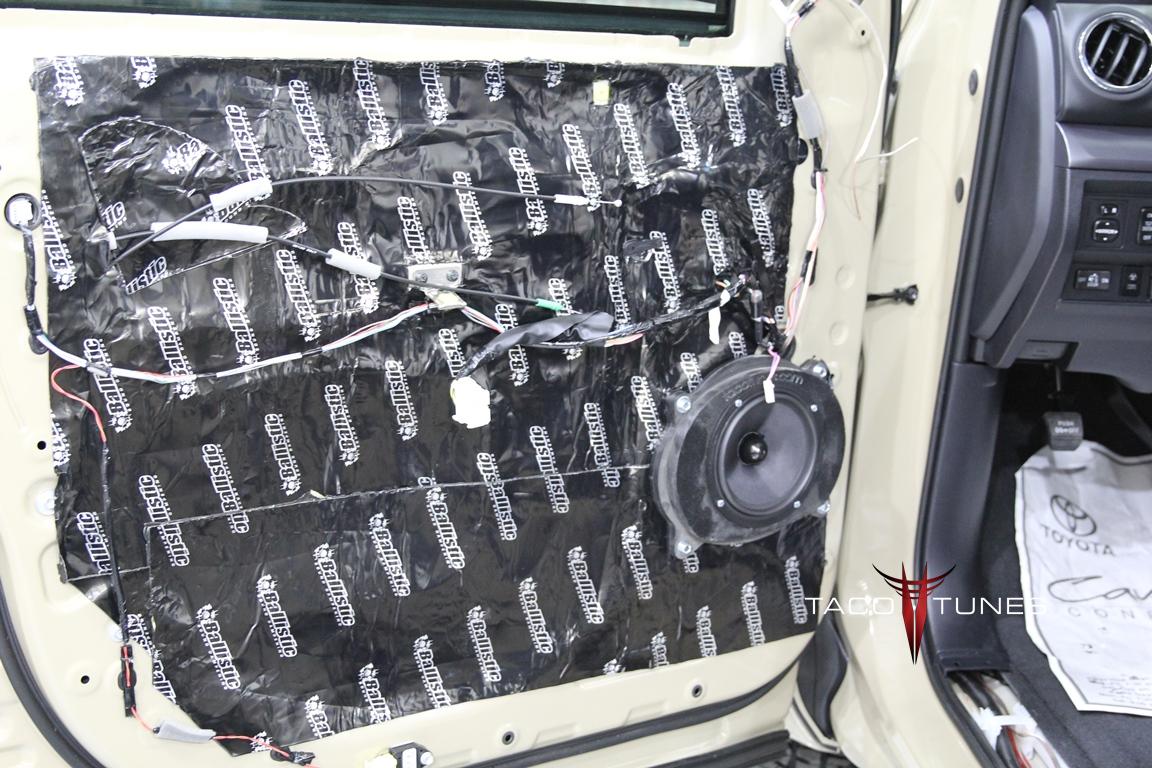

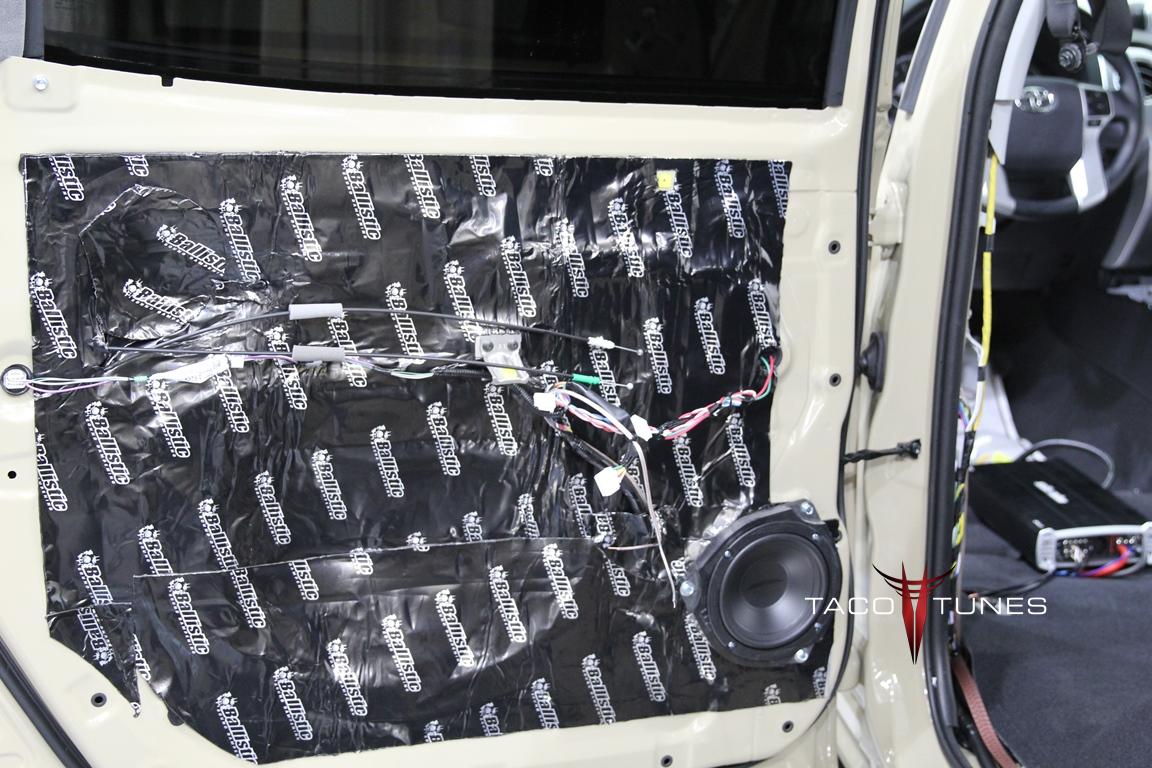

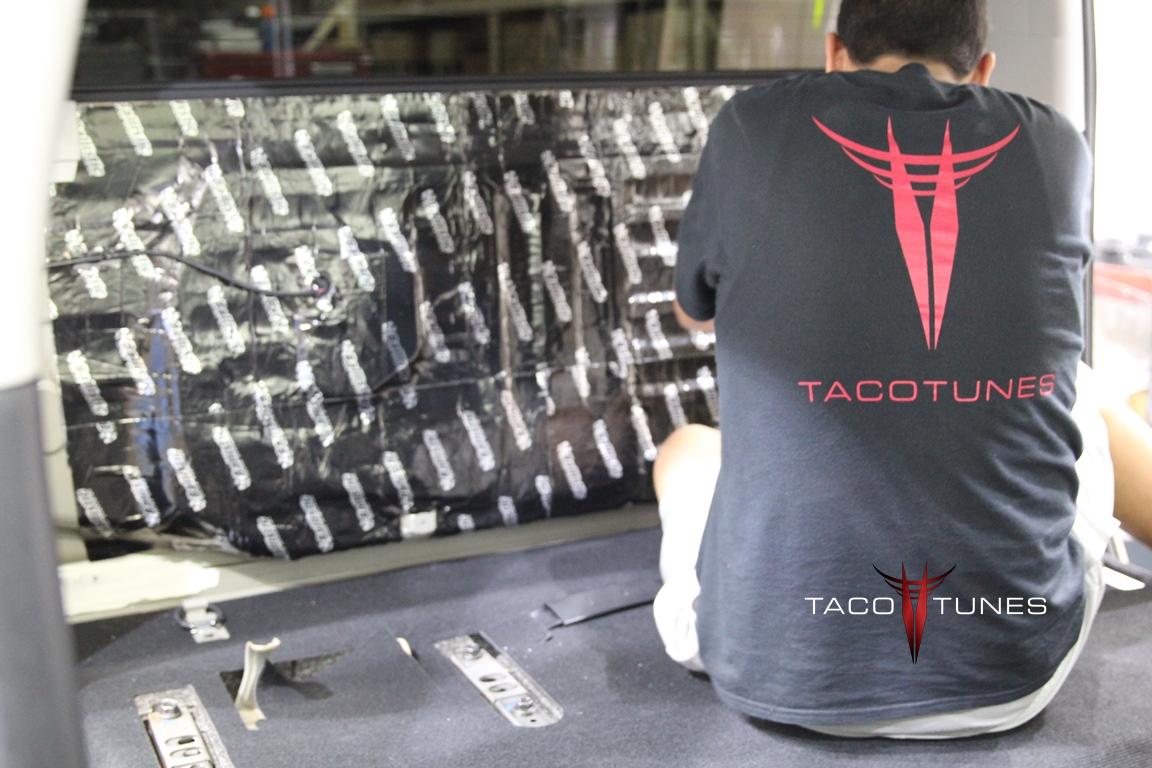

Ballistic Matting 4 x Doors & Rear Wall takes 9 sheets to complete Tundra – Standard bulk pack includes 9 sheets.







Posted on

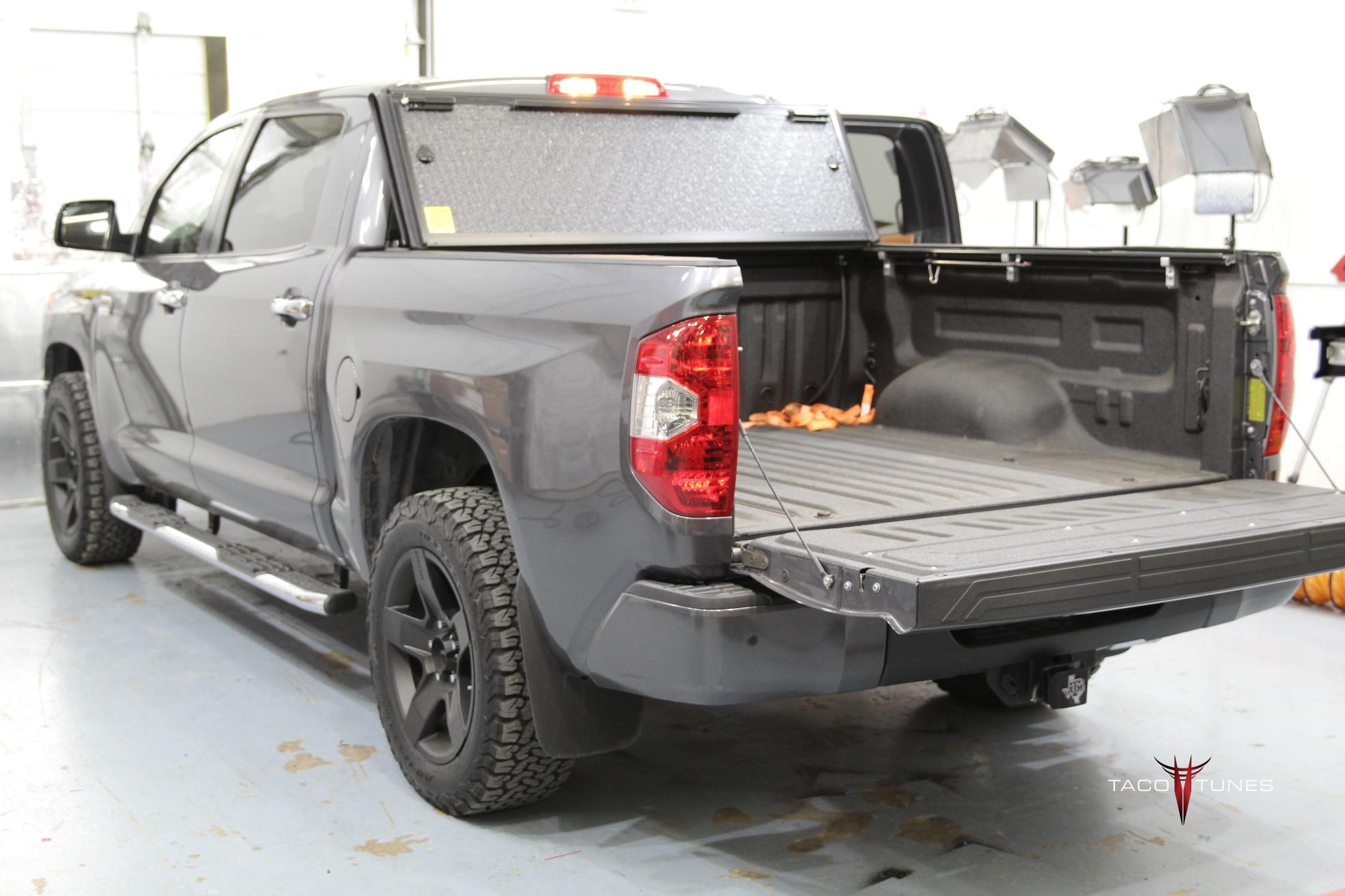

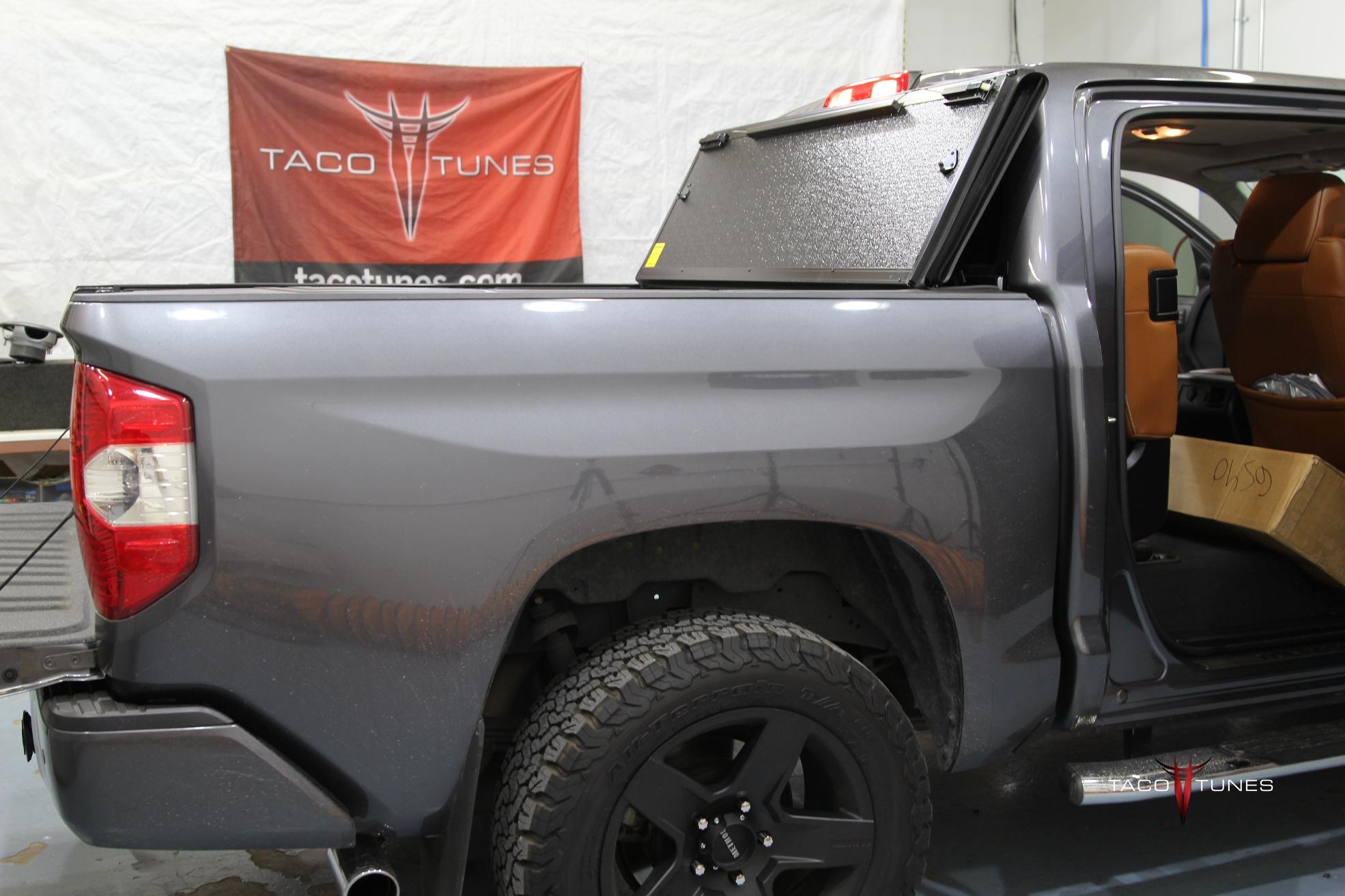

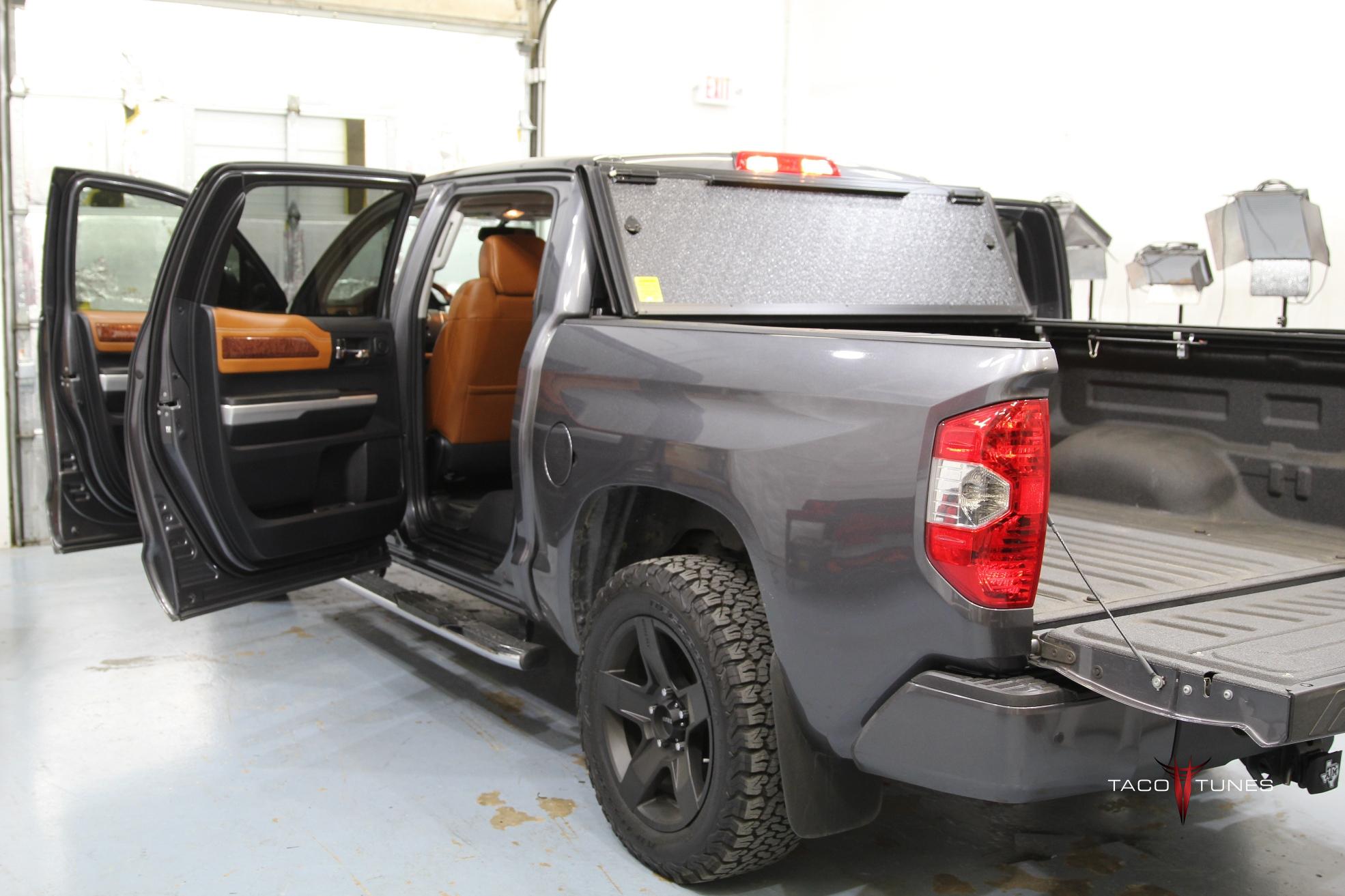

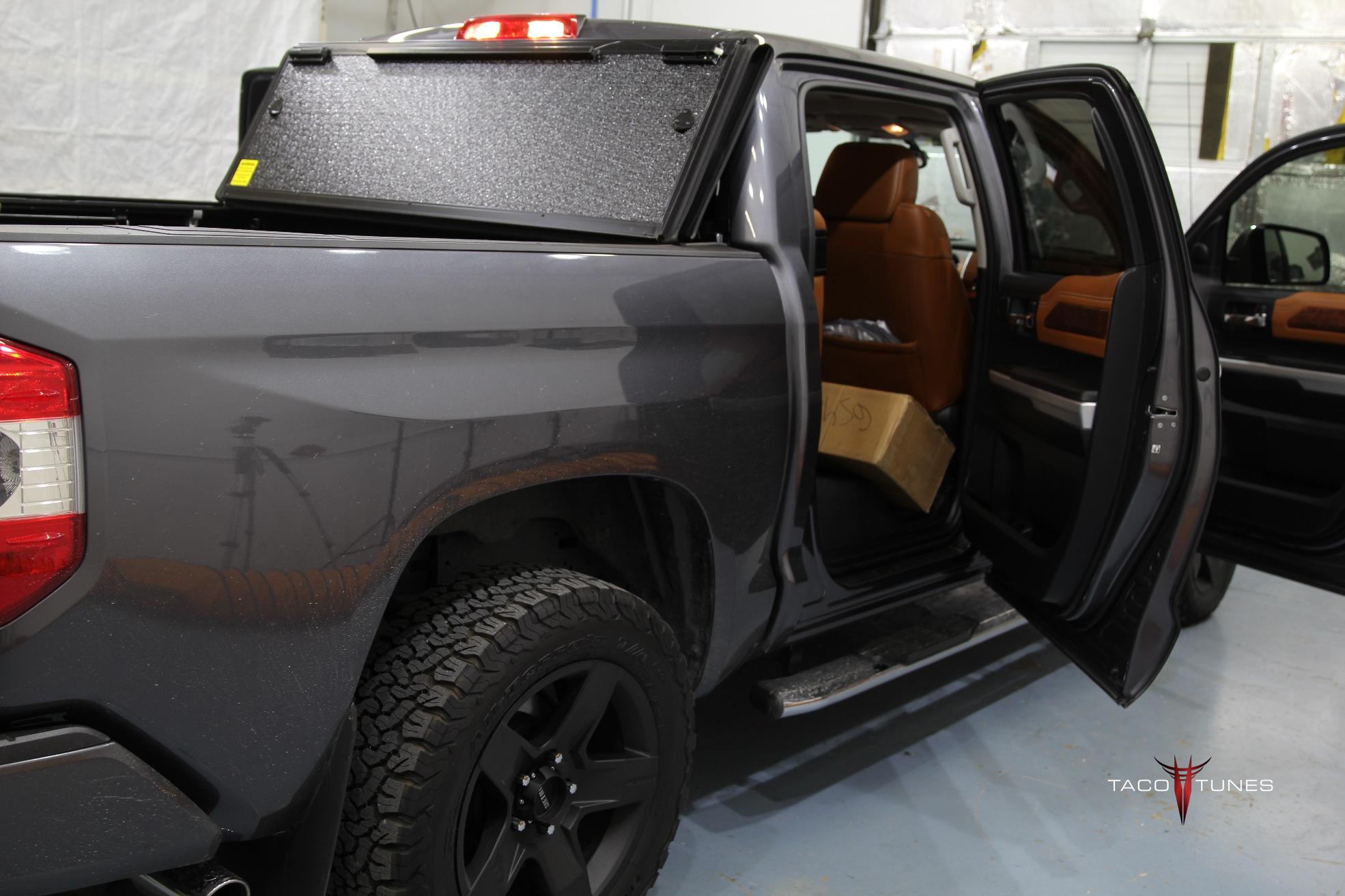

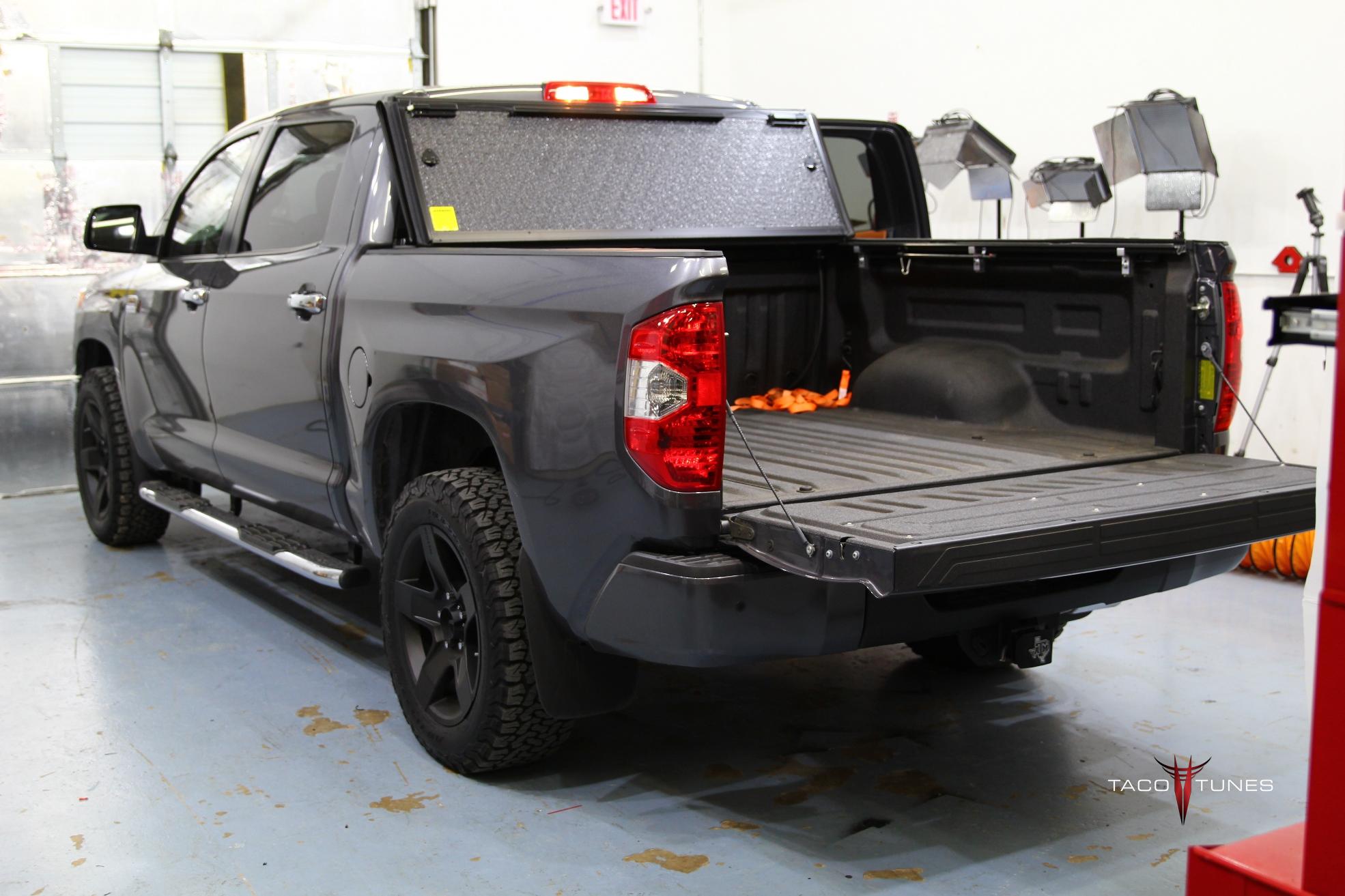

Tony B Toyota Tundra CrewMax 1794 Full Audio System self install

Toyota-Tundra-CrewMax-1794-Complete-Audio-System-1

Tony B Toyota Tundra CrewMax 1794 Full Audio System self install

Tony B’s Toyota Tundra CrewMax Platinum Stereo System Upgrade San Antonio TX

Installation Summary / History:

Customer Name: Tony B.

Toyota Year / Model: 2015 Toyota Tundra CrewMax 4×4 1794 Edition

Head Unit: JBL Equipped

Color: Sunset Bronze Mica

Installed by: Tony B.

Tony  has had audio systems in most of his vehicles. Fortunate for us, he is familiar and has owned Image Dynamics equipment in the past. After hearing a couple of options he decided to go with our Image Dynamics SQ1 package.









Front Door Component Speakers:

Image Dynamics CXS64

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CXS Mid bass Drivers -125 Watts RMS

CXS Crossover

CXS 28M Silk Dome Tweeter

NOTE: JBL Yes / No ?

Use Stock Sail Panel for Tweeter mounts.

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

Sound Processor:

Tacotunes.com ReCurve EZQ

Tacotunes.com JBL Harness

Amp:

Exile Audio 5 channel amp

100 watts x 4 to each speaker and 800 x 1 (subwoofer)

Subwoofer(s):

Subwoofer Box & Subwoofers

Tacotunes.com dual 10” subwoofer enclosure 2.0” cu feet

Image Dynamics ID10V4 (full size) 10” subwoofer 400 watts RMS x 2

Tundra Install kit:

Stereo & Wiring Installation kit:

Stinger Power, Speaker and Signal Cables:

Positive:

Stinger 3′ POWER CABLE 4GA – Ring Terminal Attached

Stinger 13′ POWER CABLE 4GA

Negative:

Stinger 4′ POWER CABLE 4GA – Ring Terminal Attached

Color Coded Speaker Wire:

Stinger 50′ 16GA Black Speaker Wire (Driver Side Speakers)

Stinger 50′ 16GA Silver Speaker Wire (Passenger Side Speakers)

Stinger 25′ 18GA Black Speaker wire (Driver Side Tweeters)

Stinger 50′ 18GA Silver Speaker Wire (Passenger Side Tweeters)

Stinger 50’ 12Ga Black Subwoofer Wire

RCA Signal Cables:

1 Stinger RCA CABLE 12 Ft Twisted Pair – 6 Channel (Front / Rear / Sub)

Misc Items:

35′ Primary Blue Remote Turn on wire

6′ 3/4 Split Loom

T-Spec ANL Fuse Holder

T-Spec 100 Amp ANL Fuse

10 Crimp Caps

8 Speaker Terminals .25 (Door speakers)

4 Speaker Terminals .187 (tweeters)

4 Speaker Terminal .25 (subwoofer)

15 Small Zip Ties

15 Large Zip Ties

Under Seat – Amp Mounting Gear:

4 Nylons Spacers

4 Mounting Bolts

4 Mounting washers

4 Sealing Caulk

Optional Items:

Matting:

Ballistic Matting 4 x Doors & Rear Wall takes 9 sheets to complete Tundra – Standard bulk pack includes 9 sheets.





Posted on

Gabriel’s Toyota Tundra CrewMax 1794 Edition Audio Installation San Antonio TX

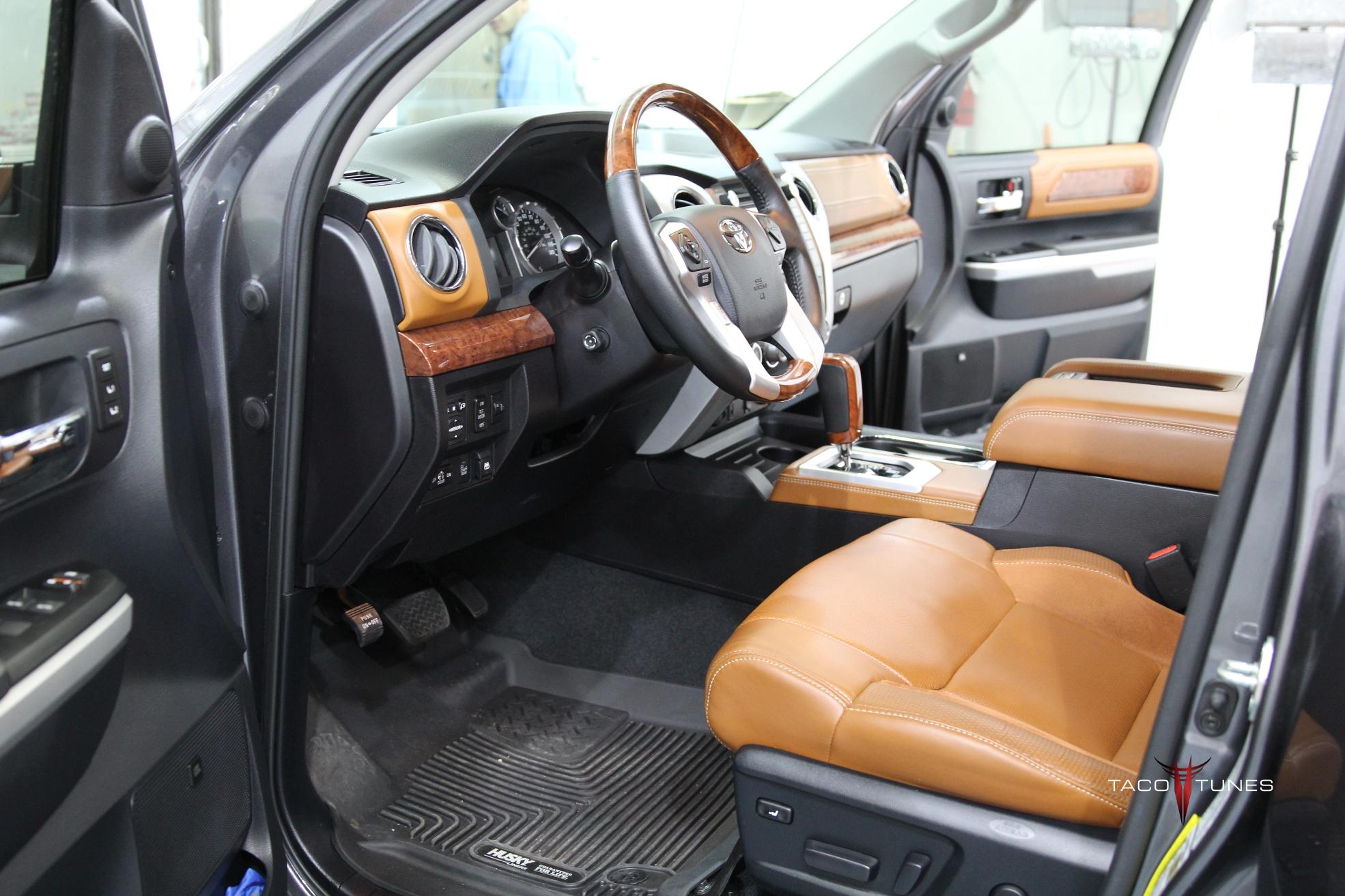

Tundra CrewMax 1794 Stereo Installer San Antonio TX

Gabriel’s  Toyota Tundra CrewMax 1794 Edition Audio Installation San Antonio TX

Installation Summary / History:

Customer Name: Gabriel:

Customer Location: Dallas TX

Toyota Year / Model: 2015 Toyota Tundra CrewMax 1794 Edition

Head Unit: NON JBL

Color: Gray

Installed by: tacotunes.com

Gabriel has had audio systems in most of his vehicles. After hearing a couple of options he decided to go with our Image Dynamics SQ1 package. He already had some JL Audio 10″ W0 subs. So we installed them in one of our subwoofer boxes.

Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Gabriels’ Tundra CrewMax

Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One audio installation and matting jobs are possible, but require at least 14 hours with the truck.



Specs on the audio installation:

The 5 channel amp is hidden under the driver seat. Sound Processor (ReCurve EZQ) is hidden under rear seat. The full size Image Dynamics 10” subwoofers fit behind the rear seats. The entire truck appears to be stock and makes the truck appear to e stock and less likely for break ins. Additionally, the gear is setup for Toyota’s so chances of theft are greatly reduced.

Front Door Component Speakers:

Image Dynamics CXS64

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CXS Mid bass Drivers -125 Watts RMS

CXS Crossover

CXS 28M Silk Dome Tweeter

NOTE: JBL Yes / No ?

Use Stock Sail Panel for Tweeter mounts.

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

Sound Processor:

Tacotunes.com ReCurve EZQ

Tacotunes.com JBL Harness

Amp:

Exile Audio 5 channel amp

100 watts x 4 to each speaker and 800 x 1 (subwoofer)

Subwoofer(s):

Subwoofer Box & Subwoofers

Tacotunes.com dual 10″ subwoofer box sealed

JL Audio W0 10″ subwoofers

Tundra Install kit:

Stereo & Wiring Installation kit:

Stinger Power, Speaker and Signal Cables:

Positive:

Stinger 3′ POWER CABLE 4GA – Ring Terminal Attached

Stinger 13′ POWER CABLE 4GA

Negative:

Stinger 4′ POWER CABLE 4GA – Ring Terminal Attached

Color Coded Speaker Wire:

Stinger 50′ 16GA Black Speaker Wire (Driver Side Speakers)

Stinger 50′ 16GA Silver Speaker Wire (Passenger Side Speakers)

Stinger 25′ 18GA Black Speaker wire (Driver Side Tweeters)

Stinger 50′ 18GA Silver Speaker Wire (Passenger Side Tweeters)

Stinger 50’ 12Ga Black Subwoofer Wire

RCA Signal Cables:

1 Stinger RCA CABLE 12 Ft Twisted Pair – 6 Channel (Front / Rear / Sub)

Misc Items:

35′ Primary Blue Remote Turn on wire

6′ 3/4 Split Loom

T-Spec ANL Fuse Holder

T-Spec 100 Amp ANL Fuse

10 Crimp Caps

8 Speaker Terminals .25 (Door speakers)

4 Speaker Terminals .187 (tweeters)

4 Speaker Terminal .25 (subwoofer)

15 Small Zip Ties

15 Large Zip Ties

Under Seat – Amp Mounting Gear:

4 Nylons Spacers

4 Mounting Bolts

4 Mounting washers

4 Sealing Caulk

Optional Items:



Matting:

Ballistic Matting 4 x Doors & Rear Wall takes 9 sheets to complete Tundra – Standard bulk pack includes 9 sheets.







Posted on

Toyota Tundra 1794 CrewMax 2016 Stereo Installers San Antonio TX

Toyota Tundra 1794 CrewMax 2016 Stereo Installers San Antonio TX

For the last 10 years we have specialized in Toyota audio upgrades.  Our primary customer base are Toyota owners. We have performed literately hundreds of Toyota Tundra and Tacoma installations. We also perform installations on most every other model Toyota manufacturers.  No one in San Antonio TX or pretty much the entire US has installed more audio systems into Toyota Tundras and Tacomas. We provide detailed installation videos and pictures. We also provide installation services. Some of our customers come from as far as New York to have us perform installations. We have had people come to San Antonio to vacation just so we could install an audio system for them 🙂

At the time of this post we have over 23,000 customers world wide and over 32,000 online orders fulfilled. ALL to Toyota owners. It only makes sense to bring your Toyota to the place that knows it best! Our installation prices and products are generally much less than comparable brick and mortar stores here in Texas. Our primary business is online. We do not rely on local install



In this 1794 Edition Toyota Tundra CrewMax we installed the following:



tacotunes.com ReCurve EZQ

tacotunes.com dual 10″ Subwoofer Box with Image Dynamics ID10V4

tacotunes.com heavy duty speakers adapters front & rear

Image Dynamics CXS64 Front Component Speakers & CTX65CS Rear Door Component Speakers

Ballastic matting – Front / Rear Doors and Rear Wall







Stereo & Wiring Installation kit:

Stinger Power, Speaker and Signal Cables:
Positive:
Stinger 3′ POWER CABLE 4GA – Ring Terminal Attached
Stinger 13′ POWER CABLE 4GA

Negative:
Stinger 4′ POWER CABLE 4GA – Ring Terminal Attached

Color Coded Speaker Wire:

Stinger 50′ 16GA Black Speaker Wire (Driver Side Speakers)
Stinger 50′ 16GA Silver Speaker Wire (Passenger Side Speakers)
Stinger 25′ 18GA Black Speaker wire (Driver Side Tweeters)
Stinger 25′ 18GA Silver Speaker Wire (Passenger Side Tweeters)
Stinger 25′ 12Ga Black Subwoofer Wire

NOTE: If you are installing tweeters in front & rear doors, you will need an additional 25 feet of tweeter wiring.

RCA Signal Cables:

1 RCA CABLE 12 Ft Twisted Pair – 6 Channel (Front / Rear / Sub)

Misc Items:
35′ Primary Blue Remote Turn on wire
6′ 3/4 Split Loom
T-Spec  ANL Fuse Holder
T-Spec 100 Amp ANL Fuse
10 Crimp Caps
8 Speaker Terminals .25 (Door speakers)
4 Speaker Terminals .187 (tweeters)
4 Speaker Terminal .25 (subwoofer)
15 Small Zip Ties
15 Large Zip Ties

Under Seat – Amp Mounting Gear:

4 Nylons Spacers
4 Mounting Bolts
4 Mounting washers
4 Sealing Caulk







Posted on

2010 Toyota Tundra Full Stereo System Installation San Antonio Texas

Joe Drozd having some fun

2010 Toyota Tundra Full Stereo System Installation San Antonio Texas

We had the pleasure of installing a system for a local wounded hero here in San Antonio TX. Joe Drozd is also the founder and president of a Texas Toyota Offroaders. Joe came to us after a car show where he saw a few of or demo rides. He said I have to have that!

Joe’s Testimonial.

We will break up Joe’s truck into two parts. The first will be installation pics of the stereo system. The second part will be pictures of his Mad Max Toyota Tundra.

Joe’s Stereo System:

Joe had a basic head unit and wanted to be able to watch DVDs so he upgraded his head unit to Kenwood DVD unit. We supplied all the parts and installed the system over a 2 day period.

Matting:

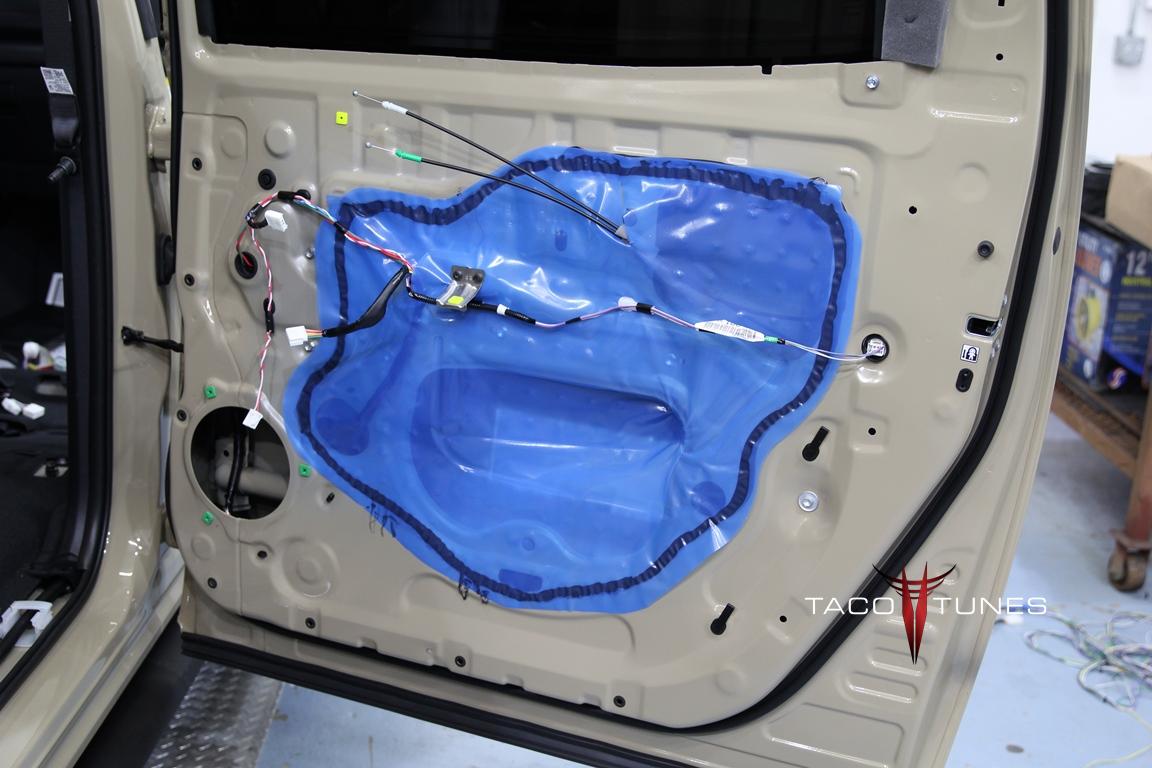

First we matted the truck with Ballistic matting. The doors and rear wall was matted to help reduce ambient noise and to eliminate rattles caused by the higher powered speakers and subwoofer. NOTE: Ballistic matting is now black.  We also did not take pictures of the matting we installed on doors. We included some examples from another Tundra.

Head Unit:

Kenwood DDX770

Dash Installation Kit

Steering Wheel Interface Kit

Amp:

Exile Javelin 5 Channel Amp 100 watts x 4 (speakers) 800 watts  x 1 (subwoofer) RMS

Speakers:

Front Doors: Image Dynamics CTX65CS – Compnent Speakers & tacotunes.com speaker adapters

Rear Doors: Image Dynamics CTX65 – Coxial Speakers @  tacotunes.com speaker adapters

Subwoofer: Image Dynamics IDQ12V4D4

Subwoofer Enclosure: tacotunes.com 12″ port tuned subwoofer enclosure











Posted on

2022+ Tundra System 1A Installation Guidelines

WE HIGHLY RECOMMEND REVIEW THE DOCUMENTS AND VIDEOS PROVIDED ON THIS PAGE PRIOR TO INSTALLING YOUR AUDIO SYSTEM.

ONE FULL WEEKEND/ TWO FULL DAYS IS ALSO HIGHLY RECOMMENDED FOR FIRST TIME INSTALLERS

Tacotunes.com Installation Instructions

JBL EQUIPPED HYBRID Tundra System 1A Parts Checklist

BASE AUDIO – HYBRID TUNDRA System 1A Parts Checklist





JBL EQUIPPED – NON-HYBRID Tundra System 1B Parts Checklist – COMING SOON

BASE AUDIO – NON-HYBRID Tundra System 1B Parts Checklist – COMING SOON







YouTube Videos:

– Speaker Assembly

 – Under Seat Amp Rack Assembly –  (use this video to determine which hardware to use in order to mount your amplifiers and connect wiring to distribution block on ANY tacotunes amplifier)

– SQUARE – Rear Wall Amp Rack Assembly – BASE AUDIO ONLY (use this video on how to mount ANY tacotunes 2022+ tundra REAR WALL amp rack to the rear wall of your 2022+ tundra. Wire Connections made in this video are for NON-JBL ONLY)

–  Rear wall Amp Rack AssemblyJBL AUDIO ONLY

– Subwoofer Enclosure Assembly

– UPDATED – Rear Door Crossover Mount Installation & Assembly



YouTube Videos:

– How to Remove front seat, door sill, and kick panel

– How to Remove Front Door Panels & Factory Front Door Speakers

– How to Remove Rear Door Panels

– How to remove Dash Speakers

BASE AUDIO ONLY:

– How to Remove Factory Stereo/ Head Unit

JBL EQUIPPED ONLY:

– How to remove Factory JBL Subwoofer

– How To remove A-Pillar Tweeter



YouTube Videos:

– How to assemble and install power fuse block holder

– How to Install Amplifier power Wire NON-HYBRID ONLY

Diagrams:

– Power Kit & Fuse Layout/ Install Locations



FRONT DOOR CROSSOVER CONNECTIONS ON JBL EQUIPPED TUNDRAS ARE DIFFERENT THAN BASE AUDIO TUNDRAS. JBL TUNDRA FRONT DOOR CROSSOVERS ARE INSTALLED ON THE AMP RACK AND MOUNTED ON THE REAR WALL

YouTube Videos:

– How to Install Front & Rear Speakers

– How to Remove Dash speakers and install new tweeters/dash speakers

– UPDATED Rear Door Crossover Mount Installation & Assembly

JBL AUDIO ONLY:

– How To remove A-Pillar and install new Tweeter



YouTube Videos:

– How to Remove Factory Stereo/ Head UnitBASE AUDIO ONLY

– How To Connect Plug & Play Wiring Behind Factory Head unit/ Stereo BASE AUDIO ONLY

– How to run plug & Play Wiring to rear wall from factory head unit BASE AUDIO W/ REAR WALL AMP RACK ONLY

– How to Connect NTune6, Amplifiers & Plug & Play Wiring – BASE AUDIO ONLY

– Ntune6 Connections BASE AUDIO ONLY

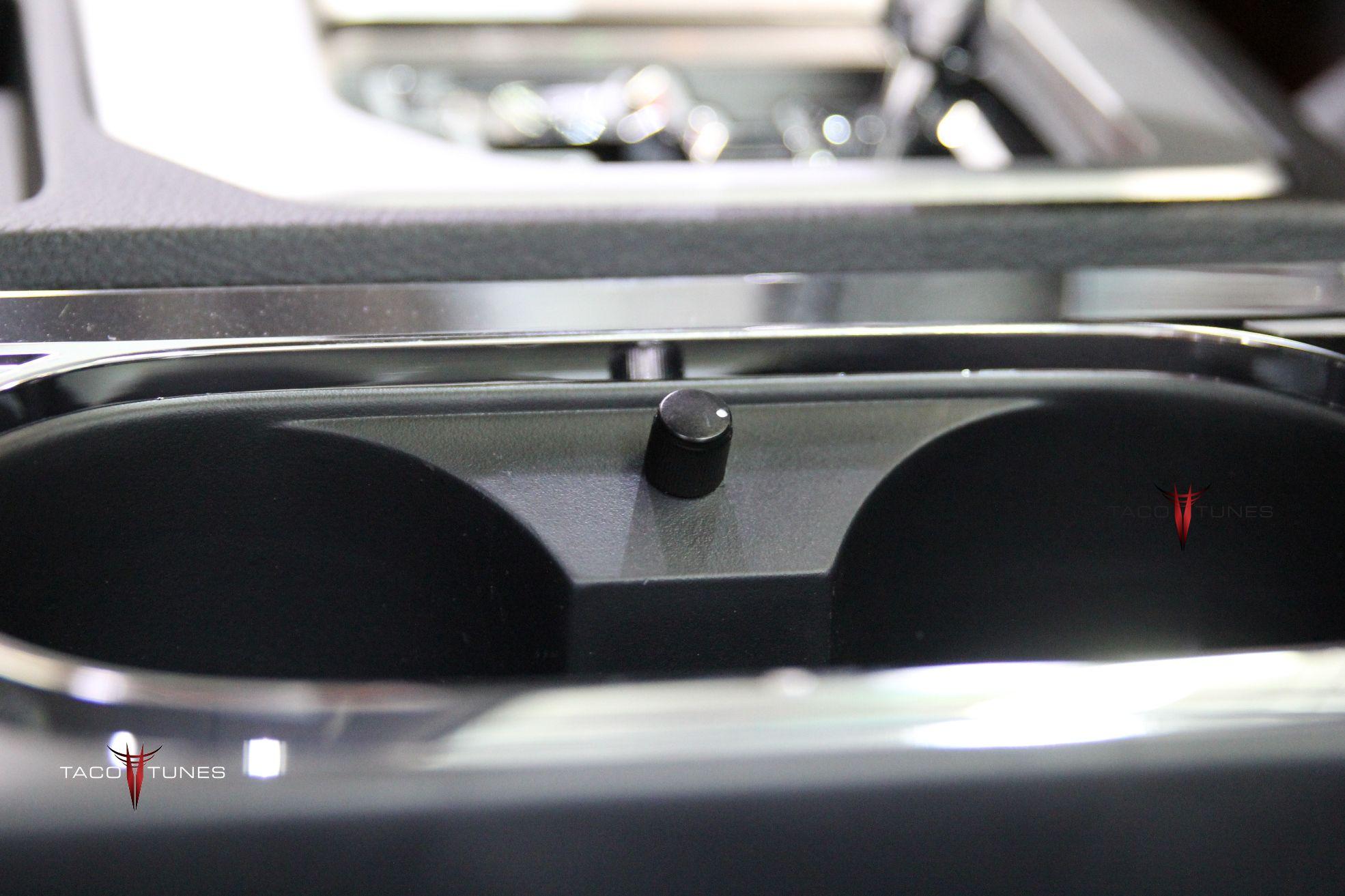

– Bass Knob Installation

Diagrams:

– NTUNE6 Mode Selection

– Base Audio Plug & Play Wiring Connections





YouTube Videos:

– How to Connect & Install Plug & Play Wiring – JBL AUDIO ONLY



Diagrams:

– JBL Audio Plug & Play Wiring Connections





YouTube Videos:

– How to install subwoofer box

YouTube Videos:

– How to remove rear seat & install seat spacer kit



YouTube Videos:

– How To tune Amplifiers



Amplifier Tuning Links:

Please Review the following diagram before you begin the tuning process

TXD1000.5 Tuning Diagram

Crossover Tuning Calculator

TXD Amplifier Tuning Test Tones

Do NOT stream the tuning test tones via website. Tacotunes test tones MUST be downloaded to accurately tune your amplifiers.

Posted on

2022+ Hybrid Tundra Enclosure Subwoofer Compatibility

The Tacotunes 2022+ Hybrid Subwoofer Enclosure is designed to accommodate a variety of subwoofer sizes.

To ensure compatibility with your preferred subwoofer, please review the following information. This will help you select the right subwoofer to maximize your sound system’s potential.

What is mounting depth?

Mounting depth is how “deep” a subwoofer magnet sits inside an enclosure.

This enclosure has a maximum mounting depth of 5 inches, accommodating most 8 and 10-inch full-size subwoofers, as well as many shallow-mount 12-inch subwoofers.

Due to the unique design of the rear wall in these trucks, space is limited. We’ve optimized our enclosure’s design to accommodate these constraints and provide our customers with as much air space, and mounting depth as possible.

Tacotunes 2022+ Hybrid Tundra enclosure offers a mounting depth of 5 inches. If your subwoofer’s magnet diameter exceeds 5.4 inches, compatibility is not guaranteed.

To maximize air space and mounting depth, we’ve meticulously designed this enclosure for precision fitment. This precision not only minimizes vibrations but also optimizes sound quality.

With fitment of this enclosure being so precise, subwoofer fitment must also have the same precise qualities.

In order protect your subwoofer(s) and prevent contact with the rear seats, we strongly recommend using speaker grills.

The customizable cutout diameter of this enclosure allows it to accommodate a wide range of 8, 10, and 12-inch subwoofers, with minimum and maximum cutouts of 7 inches and 11.2 inches, respectively. This flexibility ensures a personalized listening experience tailored to your specific preferences.

Due to the unique design of the 2022+ Hybrid Tundra’s rear wall, subwoofers with specific dimensions are compatible with this enclosure.

Tacotunes subwoofers, with a 5-inch mounting depth and specific angles meet these requirements. Subwoofers exceeding these measurements may not be compatible with the enclosure.

Our TT series subwoofers are a proven fit for your 2022+ Hybrid Tundra, rigorously tested to deliver top-notch sound quality.

If you’re unsure about the compatibility of your preferred subwoofer, consider exploring our complete subwoofer upgrade kits specifically designed for the 2022+ Hybrid Toyota Tundra.

2022+ Hybrid Tundra LOADED Dual 10” Subwoofer Enclosure

2022+ Hybrid Tundra LOADED Single 10” Subwoofer Enclosure

Posted on

2023 NON-JBL Toyota Tundra CrewMax Stereo System Upgrade Component Speakers & Subwoofers Amplifiers – Plug and Play

2022 tundra audio system installation

Huge thank you to Marco for allowing us to install a System 1B into his 2023 NON-JBL Toyota Tundra. Marco said the factory stereo system was just not cutting it! 🙂 He wanted to keep the stock head unit (radio/stereo) BUT wanted to upgrade his speakers and add subwoofer. He chose to go with our System 1B. Detailed listing below:

2023 Toyota Tundra Crewmax

2022 tundra audio system installation

Marco’s 2023 tundra audio system installation

2022-2030 toyota tundra audio system
2023 toyota tundra subwoofer installation
2023 tundra subwoofer upgrade
2023 tundra subwoofer upgrade
2023 tundra rear door speaker upgrade
2023 tundra rear door speaker upgrade
how to upgrade my speakers 2023 tundra
component speaker upgrade 2023 tundra
how to install speakers in 2024 tundra
Rear door speakers in 2023 tundra
tweeter harness for 2022 tundra
tweeter upgrade for 2023 tundra
2022 Tundra Factory Tweeter Removed – Stock Tweeter Harness
2022 Tundra Factory Dash Speaker Tweeter
2024 tundra how to install speakers
2024 tundra front door speaker upgrade
Tacotunes.com TT65CS Component Spekaers
sound proessor for 2023 tundra
sound processor for 2023 tundra
how to add an amplifier 2023 tundra
how to add an amplifier 2023 tundra
2022 Toyota Tundra Audio Upgrade & Wiring Diagram
How to connect amp to your stock stereo
How to install subwoofer 2022 Tundra.
Component Speakers – no cutting or splicing uses all factory wiring.

Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however if we matt (sound deaden) the front, rear doors and the rear wall behind the subwoofer it adds a day. If we are matting the truck, we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 12 hours with the truck.

Below is a detailed listing of the audio products installed in Eddie’s Tundra CrewMax

2022 Tundra Factory Integration System:

3 Harness Plug and Play system – no cutting or splicing any of your wires in your new Tundra.

NTUNE6 – LOC / Audio leveler & Bass Enhancement module

Front Door Component Speakers:

Tacotunes.com TT65CS Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

TT65 Mid bass Drivers -100 Watts RMS

TT65 Crossover

TT65 Tweeter

Tacotunes.com Front Door Speaker Wire Harness Adapters

Tacotunes.com Dash Speaker Wire Harness Adapters

Tweeters Installed in dash location using tweeter adapters.

Rear Door Components:

Tacotunes.com TT65CS Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

TT65 Mid bass drivers Handles -100 watts RMS

TT65 Crossover

TT65 Tweeter

Tacotunes.com Tweeter Harness Adatpers

Tweeters will fit in stock door location

Amps:

tacotunes.com TXD3204v3 – 4 Channel Amp (100×4)

tacotunes.com TXD10001 – Subwoofer Amp

100 x 4 (Speakers)

800 x 1 (Subwoofer)

Subwoofer(s):

Subwoofer Box & Subwoofers

Tacotunes.com Dual 10” subwoofers

NOTE: Keep eye out for our under seat fiberglass subwoofer boxes! These are designed for serious bass lovers! Tons of air space and mounting depth!

Posted on

Privacy Policy

Your privacy is important to Online Audio Solutions (OAS,LLC). We developed this Privacy Policy to provide you with information on how we process your personal data when you create an account, interact with our customer support specialists, make a purchase, visit our websites, or use our apps that include a link to this Privacy Policy.

“Personal data” is information relating to an identified or identifiable natural person. Additional information specific to your jurisdiction may be provided in a separate document. The legal grounds for processing personal data specified in this Privacy Policy are based on the EU General Data Protection Regulation (“GDPR”) and laws in other jurisdictions that have similar grounds. If you are a California resident, please see the section below, “Your Privacy Rights.”

Categories of Personal Data Processed by OAS, LLC

Personal data that is processed when you create an account:

When you create an account, we ask you to provide your email address, name, and password.

PURPOSES AND LEGAL GROUNDS:

(a) We process your email address and password because you use your email address and password to sign in to your account. The legal ground for processing your email address and password for this purpose is our legitimate interest in protecting the security of your account.

(b) We also process your email address for the purpose of sending you important information about your OAS, LLC products, services, apps, or account, such as important safety information or material changes to this Privacy Policy. The name you provide is associated with your account profile and is displayed when you submit comments or other material on our websites or apps or engage with other users. The legal ground for processing your email address and name for these purposes is our legitimate interest in providing you important safety or other information about our products, services, apps, or account or material changes to this Privacy Policy and in providing you an opportunity to engage with other users.

(d) We also process your email address to associate it with your account when you interact with our customer support representatives. The legal ground for this processing is our legitimate interest in providing quality customer support.

(e) We also process your email address to notify customers when they have violated our terms. The legal ground for this processing is our legitimate interest in ensuring a quality experience for all customers and ensuring adherence to our terms.

Personal data that is processed when you communicate with OAS, LLC:

When you interact with our representatives by email or telephone, online, or in person, we collect personal data, such as your name, mailing address, phone number, email address, and contact preferences, and information about the products you own, such as their serial numbers and dates of purchase, and subscriptions you’ve purchased. We also may create event logs that are useful in diagnosing product or app performance-related issues and capture information relating to the support or service issue. To improve customer service, subject to applicable laws, we may also record and review conversations with customer support representatives and analyze any feedback provided to us through voluntary customer surveys. With your consent, our customer support representatives may sign in to your account, if appropriate, to help troubleshoot and resolve your issue.

PURPOSES AND LEGAL GROUNDS:

We process this information to provide you with customer and product support, to monitor the quality and types of customer and product support we provide to our customers, to engage with our dealers and contractors, and to facilitate repairs, returns, or exchanges. The legal ground for processing this information for these purposes is our legitimate interest in providing quality product support. The legal ground for signing in to your account, if appropriate, to help troubleshoot and resolve your issue is your consent, which you may withdraw.

Personal data that is processed when you purchase a product, service, or subscription:

If you purchase a product or service on an OAS, LLC website or app or through customer support, then we will collect your name, address, email address, and telephone number and other information needed for billing in your jurisdiction. We do not view or store your payment card information, which is handled by third-party service providers.

PURPOSES AND LEGAL GROUNDS:

We collect your name, mailing address, and telephone number so we can process your order and fulfill your purchase. The legal ground for processing your name, mailing address, and telephone number for these purposes is performance of a contract. We also process your personal data as part of our fraud detection processes, which may include the use of personal data related to the purchase, delivery, or use of products, services, or subscriptions as needed to investigate requests or claims. The legal ground for processing your personal data for that purpose is our legitimate interest in protecting us and our customers from attempts to engage in fraudulent transactions.

Personal data that is processed to address fraud and abuse:

We take steps to detect and mitigate fraud and abuse on our services, websites, and apps. If we suspect a fraudulent request or claim has been made relating to your account or device, we may process data relating to the device(s) associated with your account, basic account information such as email address, name, phone number(s), and mailing address(es), or our communication history with you in order to adequately investigate the request or claim. We may process content that you have contributed to your account, such as photos, comments, and reviews, to enforce our terms of use and to identify and remove inappropriate, harmful, or abusive content.

PURPOSE AND LEGAL GROUND:

We perform these processing activities to protect the interests of OAS, LLC, its customers, and other stakeholders against fraud, breach of contract, and other harmful or unlawful actions. The legal ground for this processing is our legitimate interest in reducing fraud and abuse perpetuated through the use of, or in connection with, our products and services.

Categories of Recipients of Personal Data

SERVICE PROVIDERS:

We use cloud services from third parties such as to assist in sending emails. Those services track the activities associated with these emails, such as whether they were opened, whether links in the emails were clicked on, and whether purchases were made following clicks on those links. We use this data to analyze the level of engagement with our emails.  We also use Zendesk and Automattic and Office365 to facilitate communications with customers and dealers.

We use WooCommerce as our e-commerce platform. More information about WooCommerce can be found here. Depending on your region and product purchased, additional third-party payment processors or payment methods are available for you to select, .

We use third-party service providers to facilitate shipping purchased products to customers, such as ShippingEasy.

We engage the Google Reviews Platform for user-submitted product reviews.

We use third-party service providers to help us better understand the usage and performance of our products, services, websites, and apps. See the “Cookies and Similar Technologies” section for more information.

OTHER DISCLOSURES:

We may process and disclose personal data about you to others: (a) if we have your valid consent to do so; (b) to comply with legal and regulatory obligations, such as a valid subpoena, court or judicial order, other valid legal process, or record keeping to support applicable reporting and auditing requirements; (c) to investigate potential fraud and enforce any of our terms and conditions or policies; (d) as necessary to pursue available legal remedies or defend legal claims.

We may also transfer your personal data to an affiliate, a subsidiary, or a third party in the event of any reorganization, merger, sale, joint venture, assignment, transfer, or other disposition of all or any portion of our business, assets, or stock, including, without limitation, in connection with any bankruptcy or similar proceeding, provided that any such entity that we transfer personal data will not be permitted to process your personal data other than as described in this Privacy Policy without providing you notice and, if required by applicable laws, obtaining your consent.

SMS Terms & Conditions:

By opting into our SMS messaging service, you agree to the following terms regarding how we handle your data: Data Collection: We will collect your name, email address, mailing address, and mobile phone number when you sign up for SMS updates. The information will be collected via the website contact form, email or by placing an order on our website.
Data Usage: We use your data solely for sending updates, shipping information and replies to tech support.
Data Security: We protect your data with secure storage measures to prevent unauthorized access.
Data Retention: We retain your information as long as you are subscribed to our SMS service. You may request deletion at any time.
MESSAGE AND DATA RATES MAY APPLY: Your mobile carrier may charge fees for sending or receiving text messages, especially if you do not have an unlimited texting or data plan.
Messages are recurring, and message frequency varies.
Contact tacotunes.om at 210-472-0000 or ([email protected]) for HELP or to STOP and CANCEL receiving messages.

Opt-Out: You can opt out of the SMS list at any time by texting, emailing, or replying STOP and CANCEL ([email protected]  or 210-472-0000).

After unsubscribing, you will receive a final SMS to confirm you have unsubscribed, and we will remove your number from our list within 24 hours.

You can text HELP for additional assistance, and you will receive a text including our Phone number, email, and website. We are here to help you.
Non-Sharing Clause: We do not share your data with third parties for marketing purposes. tacotunes.com will not sell, rent, or share the collected mobile numbers.
All sharing mentioned in this policy excludes mobile opt-in and consent; opt-in information is never shared with anyone for any purpose.

Cookies and Similar Technologies

We use cookies and similar technologies to collect data from users about their usage of our products, services, websites, and apps.

Cookies are small files stored on your device when you visit a website. Cookies can perform a variety of functions, such as remembering your information so that you do not have to enter it again or supporting shopping cart functionality. Similar technologies, such as pixels, web beacons, or clear GIFs, may also be used. For simplicity, all of these technologies will be referred to as “cookies” in this policy. Cookies may either be placed by the website operator (first-party cookies) or placed by another party, such as a search engine, business partner, or advertising network (third-party cookies). Some cookies expire when you close your browser tab or window (session cookies), and others remain until they expire or are deleted (persistent cookies).

Information on the cookies that are used by us via the Shopify platform is available here.  If you want to learn more about cookies in general, you can visit informational websites, such as allaboutcookies.org or aboutcookies.org.

We use cookies for the following purposes:

  • Facilitating site functionality and giving you the best experience possible;
  • Identifying and fixing problems with the website;
  • Analyzing how you and other visitors navigate our websites and compiling aggregated statistics about site usage and response rates so that we can better understand our user base, allowing us to provide relevant content and functionality and improve users’ experiences;
  • Remembering your preferences;
  • Preventing and detecting fraudulent activity;
  • Securing the website and your data.

We collect information, directly or through third-party providers, through cookies, including:

  • Network or connection information, such as your IP address;
  • Device information, such as your browser type and version, language, time zone, operating system and version, or location; or
  • Usage information, such as time and date of your visit, products purchased, or page views or clicks.

 There are many ways for you to manage your cookie preferences. Please note that your cookie choices are device- and browser-specific, so you will need to perform these actions on each device and browser where you want the settings to apply. If you clear your cookies or use a different browser or device, you will need to set your preferences again.

ON OUR WEBSITE:

Where required by law, we provide the opportunity to manage your cookie preferences on our websites at any time by clicking “Cookie Preferences” in the bottom of the page. Our websites do not respond to “Do Not Track” signals.

THROUGH YOUR BROWSER:

Most browsers include settings that allow you to automatically accept or reject cookies or be asked each time whether you wish to accept or reject cookies. Please note that our website and services may not function properly if your browser blocks all cookies. The following links may help you get more information on how to manage your cookie settings for your preferred browser:

You can also visit the following sites to opt out of interest-based or behavioral advertising:

  • For users in the U.S., the Digital Advertising Alliance (DAA) provides an opt-out page and a mobile application called AppChoices. The Network Advertising Initiative (NAI) also provides an opt-out page.
Posted on

5.25-6.75 inch Toyota Speaker Installation Adapters (Pair Left / Right) Fits The Following Models (82-SM675-01):

2022+ Toyota Tundra Front Doors (Click Here for more information)

2023+ Toyota Sequoia Front Doors (Click Here for more information)

2024+ Toyota Tacoma Front Doors (Click Here for more information)

2025+ Toyota 4Runner (Click Here for more information)

2024+ Toyota Crown (Click Here for more information)

2024+ Toyota Landcruiser (Click Here for more information)

2024+ Lexus GX (Click Here for more information)

2018+ Toyota Camry (Click Here for more information)

Toyota Speaker Installation Adapter – works with 5.5″ 6.5″ & 7.75″ aftermarket speakers.

Be sure to check out our plug and play wiring installation adapters. No cutting or splicing your factory wring!

Posted on

Marcus’s 2016 Toyota Tundra CrewMax Base Audio

2016-toyota-tundra-audio-system

2016 Toyota Tundra CrewMax Base Audio System 1A Installation

Installation Summary / History:

Toyota Year / Model: 2016 Toyota Tundra CrewMax

Head Unit: JBL Equipped

Color: Black

Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Marcus’s Tundra CrewMax

TacoTunes TT65 Front Door Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

TT65cs Mid bass Drivers -100 Watts RMS

TT65cs Crossover Network

TT655cs Silk Dome Tweeter

NOTE: JBL equipped

TacoTunes TT65 Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

TT65cs Mid bass Drivers -100 Watts RMS

TT65cs Crossover Network

TT655cs Silk Dome Tweeter

Tweeters will fit in stock door location

TacoTunes TXD3204 – 4 channel amp

Tacotunes TXD1000.1 – Subwoofer Amp

100 watts x 4 to each speaker and 800 x 1 (subwoofer)

Subwoofer Box & Subwoofers

Tacotunes.com Dual 12″ subwoofers

TacoTunes TT12 -Dual 12″ subwoofers: subwoofer 400 watts RMS x 2

TacoTunes Plug & Play Integration Harness

2007-2021-Toyota-Tundra-JBL-plug-and-play-amp-replacement-harness-system
2007-2021-Toyota-Tundra-JBL-plug-and-play-amp-replacement-harness-system

TacoTunes 4G OFC Amplifier Power kit

Negative:

Posted on

How to add subwoofer(s) to your 2022+ Toyota Tundra Equipped with factory JBL Audio System

How to add subwoofer to JBL Equipped Toyota Tundra

Ready to add some bass to your 2022+ JBL Equipped Toyota Tundra? This guide will have your ride bumping like a pro in no time!

We offer two awesome options to choose from!

Budget Friendly Option:

This option is perfect for those who want to crank up the bass without breaking the bank. It’s fast, simple, and won’t mess with any of your factory wiring. Plus, it’s totally reversible, so you can go back to stock whenever you want. Think of it as a subwoofer starter kit for your truck!

This option leverages the signal after the factory JBL amplifier’s processing. Due to filtering, we extract the audio from a subwoofer channel and the front mid-bass channel. These combined signals are then fed into the Audio Control LC2i for basic channel summing.

Click here for installation instructions & diagrams:

Click here to see our Budget Friendly Options:

YES, you can use your own Amp & Subwoofer(s).

Click here for plug and play add a sub wire harnesses

This option includes the following products:

  • Single Or Dual 10” Subwoofers
  • Ported Subwoofer enclosure designed for your Tundra.
  • Plug & Play JBL Integration Harness – 30 PIN
  • Plug & Play JBL Integration Harness – 24 PIN
  • Audio Control LC2I
  • (1 Pair) RCA Cable – 12 Foot
  • This solution is offered in two options:

Complete Package: Includes all necessary components for installation, including subwoofer(s), amplifier, power kit, and installation hardware.

Wire Harness Kit: Allows you to integrate your own amplifier and subwoofer(s) with our Tundra specific wiring harness for a simplified installation.

This option utilizes the existing JBL amplifier’s processed signal for subwoofer integration. While cost-effective, it limits future audio system upgrades.

NOTE: The budget friendly option does not offer an upgrade path.

Premium Option:

This option is for the true sound enthusiasts. Not only will you get incredible bass, but you’ll also unlock the door to way better sound quality for all your speakers. Imagine crystal-clear highs, rich mid-tones, and enough bass to rattle your fillings (in a good way!). This option uses an integration module called an AVC-LAN interface (J.A.R.V.I.S.) to grab the audio signal before the JBL amp modifies the audio signal, giving you pure, unadulterated audio bliss.

Plus, it opens the door to upgrading all your speakers later on! Choose this option if you plan to upgrade your speakers!

Using the AVC-LAN (databus) interface not only provides pristine audio signal, there is no need for “old school” channel summing devices that TRY to repair the audio signal AFTER the JBL amplifier has modified the signal AND tries to remove the harmonic distortion introduced by the amplifier.

This option utilizes an AVC-LAN interface to access the audio signal before processing by the factory JBL amplifier. This delivers a flat, ultra clean un-modified audio signal similar to aftermarket head units, resulting in the highest audio fidelity. The interface provides RCA outputs for your amplifier and a remote turn-on signal.

Click here for installation instructions & diagrams:

Click here to see our Premium Package Options:

YES, you can use your own Amp & Subwoofer(s).

Click here for plug and play Wire Harnesses & AVCLAN (JARVIS) Interface:

This option offers a pristine audio signal path and the potential for future speaker upgrades. You can easily add our plug and play speaker harness making it easy to install new aftermarket speakers & 4/6 channel amplifier(s).  The RCA outputs and J.A.R.V.I.S are already providing the Front, Rear & Subwoofer output necessary to upgrade your audio system.

This setup allows seamless integration of speaker amplifiers or a DSP (Digital Signal Processor) for further audio customization (DSP optional/not required)

This option requires the following items:

  • Single Or Dual 10” Subwoofers
  • Ported Subwoofer enclosure designed for your Tundra.
  • J.A.R.V.I.S. JBL audio replacement / variable integration system.
  • Plug and Play JBL Integration harness 1 with integration leads.
  • Plug and Play JBL Integration harness 2
  • (3 Pair) – RCA cables 12 Foot
  • This solution is offered in two options:

Complete Package: Includes all necessary components for installation, including subwoofer(s), amplifier, power kit, and installation hardware.

Wire Harness Kit: Allows you to integrate your own amplifier and subwoofer(s) with our Tundra specific wiring harness for a simplified installation.

This option delivers the purest audio experience by accessing the signal before processing by the JBL amplifier, eliminating distortion (THD) and channel summing issues. This pristine signal, comparable to aftermarket head units, lays the foundation for exceptional sound quality.

Additionally, the included plug-and-play speaker harness and AVC-LAN interface with six pre-amp RCA outputs provide a seamless upgrade path for future integration of 4/6 channel amplifiers or a DSP (Digital Signal Processor) for further audio customization (DSP optional).

Posted on

2023 JBL Equipped Toyota Tundra CrewMax Stereo System Upgrade Component Speakers & Subwoofers Amplifiers – Plug and Play

2023 toyota tundra speaker upgrade

Huge thank you to Joseph for allowing us to install a System 1B into his 2023 JBL Equipped Toyota Tundra. Joseph said the stock stereo system was driving him nuts! 🙂 He wanted to keep the stock head unit (radio/stereo) BUT wanted to upgrade his speakers and add subwoofer. He choose to go with our System 1B. Detailed listing below:

2023 Toyota Tundra Crewmax 1794

Joseph’s 2023 Toyota Tundra – in for audio system upgrade.

Front Door Component Speakers
A-Pillar Tweeter Replacement with True Component Speaker Sets
3 upgraded 3.5" dash speakers
Three upgraded 3.5″ dash speakers
Tundra rear door crossover mount & mid bass driver
tacotunes true component speakers for your 2022+ Toyota Tundra
2023 jbl equipped tundra frontdoor speaker upgrade
2023 JBL equipped tundra front door speaker upgrade
New Tweeters installed on rear door panel.
tacotunes TXD10001 and TXD3204 Amps mounted to laser cut amp racks
2022 Toyota Tundra Dual Subwoofer box holds two 10 inch subwoofers.
2022+ Toyota Tundra Subwoofer Box Installation being installed.
2022 Toyota Tundra Rear Door Component Speakers passive crossover and crossover mount
2022 Toyota Tundra Amp Rack with front door crossovers mounted next to the amps
100& Plug & Play Factory integration unit hides under the factory JBL amp
100% Plug & Play Factory integration unit hides under the factory JBL amp
2023-TOYOTA-TUNDRA-JBL-SYSTEM-UPGRADE
2023 TOYOTA TUNDRA JBL SYSTEM UPGRADE
2023-TOYOTA-TUNDRA-JBL-SYSTEM-INSTALL
2023 TOYOTA TUNDRA JBL SYSTEM INSTALL
2022-Toyota-Tundra-Audio-Installation-wiring
2022-Toyota-Tundra-Audio-Installation-wiring
2022 Tundra Factory Tweeter Removed – Stock Tweeter Harness
2022 Tundra Factory Dash Speaker Tweeter
Tacotunes.com TT65CS Component Spekaers

Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however if we matt (sound deaden) the front, rear doors and the rear wall behind the subwoofer it adds a day. If we are matting the truck, we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 12 hours with the truck.

Below is a detailed listing of the audio products installed in Eddie’s Tundra CrewMax

2023 JBL Equipped Tundra Factory Integration System:

2 Harness Plug and Play system – no cutting or splicing any of your wires in your new Tundra.

J.A.R.V.I.S Factory integration unit

Dash Speakers:

Three upgraded 3.5″ dash speakers

Handle 25 Watts RMS

Tacotunes.com Dash Speaker Wire Harness Adapters

Front Door Component Speakers:

Tacotunes.com TT65CS Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

TT65 Mid bass Drivers -100 Watts RMS

TT65 Crossover

TT65 Tweeter

Tacotunes.com Front Door Speaker Wire Harness Adapters

TacoTunes.com Tweeters installed in factory A-Pillar locations

TacoTunes.com Clip in tweeter mounts

Tacotunes.com A-pillar tweeter harnesses

Rear Door Components:

Tacotunes.com TT65CS Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

TT65 Mid bass drivers Handles -100 watts RMS

TT65 Crossover

TT65 Tweeter

Tacotunes.com Tweeter Harness Adapters

TacoTunes.com Clip in tweeter mounts

Tweeters will fit in stock door location

Amps:

tacotunes.com TXD3204v3 – 4 Channel Amp (100×4)

tacotunes.com TXD10001 – Subwoofer Amp

100 x 4 (Speakers)

800 x 1 (Subwoofer)

Subwoofer(s):

Subwoofer Box & Subwoofers

Tacotunes.com Dual 10” subwoofers

NOTE: Keep eye out for our under-seat fiberglass subwoofer boxes! These are designed for serious bass lovers! Tons of air space and mounting depth!

Posted on

2023 JBL Equipped Toyota Tundra CrewMax Stereo System Upgrade Component Speakers & Subwoofers Amplifiers – Plug and Play

Huge thank you to Tim & Terri for allowing us to install a System 1B into their 2023 Toyota Tundra. They were NOT impressed with the factory JBL system in their 2023 Toyota tundra! Tim & Terri wanted to keep the stock head unit (radio/stereo) BUT wanted to upgrade the speakers and add subwoofer. So, They chose to go with our System 1B. Detailed listing below:

2023 Toyota Tundra CrewMax Limited

Tim’s 2023 JBL Equipped Toyota Tundra – in for audio system upgrade.

Big smiles after upgrading their audio system!
Front Door Component Speakers
A-pillar Tweeter Replacement with True Component Speaker Sets
2022+ tundra JBL dash speaker replacement
2022+ tundra JBL dash speaker replacement
Tundra rear door crossover mount, mid bass driver & tweeter
tacotunes true component speakers for your 2022+ Toyota Tundra
New Tweeters installed on door panel.
tacotunes TXD10001 and TXD3204 Amps mounted to laser cut amp rack
2022 Toyota Tundra Dual Subwoofer box holds 2 inch subwoofers.
2022+ Toyota Tundra Subwoofer Box Installation being installed.
2022 Toyota Tundra Rear Door Component Speakers passive crossover and crossover mount
2022 Toyota Tundra Laser Cut Amp Rack bolts directly to stock mounting location. Don’t let audio shops drill holes in your Tundra!
100% Plug & Play Factory integration unit hides under the factory JBL amp
How to install subwoofer 2022 Tundra.
2022 Tundra Factory Tweeter Removed – Stock Tweeter Harness
2022 Tundra Factory Dash Speaker Tweeter
Tacotunes.com TT65CS Component Spekaers

Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however if we matt (sound deaden) the front, rear doors and the rear wall behind the subwoofer it adds a day. If we are matting the truck, we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 12 hours with the truck.

Below is a detailed listing of the audio products installed in Eddie’s Tundra CrewMax

2023 JBL Equipped Tundra Factory Integration System:

2 Harness Plug and Play system – no cutting or splicing any of your wires in your new Tundra.

J.A.R.V.I.S Factory integration unit

Dash Speakers:

Three upgraded 3.5″ dash speakers

Handle 25 Watts RMS

Tacotunes.com Dash Speaker Wire Harness Adapters

Front Door Component Speakers:

Tacotunes.com TT65CS Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

TT65 Mid bass Drivers -100 Watts RMS

TT65 Crossover

TT65 Tweeter

Tacotunes.com Front Door Speaker Wire Harness Adapters

TacoTunes.com Tweeters installed in factory A-Pillar locations

TacoTunes.com Clip in tweeter mounts

Tacotunes.com A-pillar tweeter harnesses

Rear Door Components:

Tacotunes.com TT65CS Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

TT65 Mid bass drivers Handles -100 watts RMS

TT65 Crossover

TT65 Tweeter

Tacotunes.com Tweeter Harness Adapters

TacoTunes.com Clip in tweeter mounts

Tweeters will fit in stock door location

Amps:

tacotunes.com TXD3204v3 – 4 Channel Amp (100×4)

tacotunes.com TXD10001 – Subwoofer Amp

100 x 4 (Speakers)

800 x 1 (Subwoofer)

Subwoofer(s):

Subwoofer Box & Subwoofers

Tacotunes.com Dual 10” subwoofers

NOTE: Keep eye out for our under-seat fiberglass subwoofer boxes! These are designed for serious bass lovers! Tons of air space and mounting depth!

Posted on

How to Prevent Catalytic Converter Theft in your Toyota Tundra

Toyota Tundra Catalytic Converter Plate Security Anti-Theft

Catalytic converter theft is on the rise nationwide. Thieves steal these antipollution devices in a matter of seconds and then sell them scrap metal dealers for several hundred dollars. The converter on unleaded fuel vehicles is a stainless steel shell surrounds a ceramic honeycomb monolith. It is coated with the following metals: platinum, palladium, and rhodium.

These metals are VERY expensive.

How expensive are these metals?

How much Rhodium, Platinum & Palladium  is in my catalytic converter?

Although the quantities vary by model, on average, only one standard catalytic converter contains about 3-7 grams of platinum, 2-7 grams of palladium, 1-2 grams rhodium

Price of these materials on: 5/20/2022

Rhodium – $16,100.00 (per troy ounce) Highest on record: $17,500 (2/4/2022)

Platinum – $977 (per ounce)

Palladium – $2,049 (per ounce)

“Toyota parts department(s) have been quoting as long as 9 months for these backordered catalytic converters.”

Red Mac – Toyota Parts Dept
Toyota Tundra Catalytic Converters Stolen 100 feet from movie theater entrance.
Toyota Tundra Catalytic Converters Stolen less than 100 feet from Move Theater Entrance

The nations largest insurers; All State, USAA and  State Farm have handled three times as many catalytic converter theft claims in 2021 as it did in 2020 — and more than 10 times as many as in 2019.

A replacement set of stolen catalytic converters can cost as much as $3,800 for the often-targeted Toyota Tundra. However, the bigger issue is the short supply of replacement units. Toyota parts department(s) have been quoting as long as 9 months for these backordered catalytic convertors.

A few tips from mechanics and law enforcement agencies to avoid a wrenching experience and a costly repair are as follows:

1. Know if you’re a target for catalytic converter theft

Unfortunately the Catalytic Converter in the Toyota Tundra is very high target item.

2. Install an anti-theft device on your catalytic converter

Install theft deterrent plate, like this catalytic converter security plate that is designed to fit your 2007-2021 Toyota Tundra. The installation is quick and easy. Tacotunes.com also provide DIY videos to help you get the product install in your driveway.

CLICK IMAGE BELOW FOR 2007-2021 Toyota Tundra

Toyota Tundra Catalytic Converter Plate Security Anti-Theft
Toyota Tundra Catalytic Converter Plate Security Anti-Theft

CLICK IMAGE BELOW FOR 2022+ Toyota Tundra

2022+ Toyota Tundra Catalytic Converter Anti Theft Deterrent Cat Skid Plate Protection
2022+ Toyota Tundra Catalytic Converter Anti Theft Deterrent Cat Skid Plate Protection

3. Paint your catalytic converter

Local SA police investigator Scott A . . recommends using a high-temperature fluorescent orange paint, such as those sprayed on barbecue grills, on your catalytic converter and then inscribing your vehicle identification number in the painted surface. This makes it traceable, and in theory at least, a reputable scrap metal dealer might decline to buy it.

4. Park your Tundra in your garage if possible

Although thefts occur at grocery stores, malls, movie theaters  . . thieves still target Toyota Tundras at the owner’s homes. Consider adding motion sensor lights and cameras if you need to leave your Tundra in the driveway.

5. Check your car insurance

If you have full coverage insurance, plus collision and comprehensive policies that repair or replace your Tundra   . . . you’re covered, minus your deductible amount. If you have a loan on your Tundra typically full coverage is required. Keep in mind that, if you have a vehicle at high risk for a catalytic converter theft, you might consider lowering your deductible amount. Liability coverage only, DOES NOT cover theft.

Picture of stolen catalytic converters -Toyota Tundra

What to do if your catalytic converters are stolen:

If your Toyota Tundra’s exhaust is excessively LOUD when you start it, you will know that your catalytic converters were stolen. Here are a few steps that can get you going again:

First call the police and file a report. We also recommend taking photos of the damage.

Aftermarket catalytic converters are sometimes available and generally cost less, but make sure they’re allowed in your state. A muffler shop should know what’s legal in your state. In some cases, an aftermarket catalytic converter will be less desirable and prevent future thefts.

We recommend having your Toyota Tundra towed to the dealer or muffler shop.

Contact your insurance company and file a claim.

While your new catalytic converters are being installed, have them install your new tacotunes.com catalytic converter shield.

Don’t be the next victim! Get your security plate installed ASAP!

Toyota Tundra Stolen Catalytic Convertors
Toyota Tundra – Picture of stolen catalytic converters
Toyota Tundra – Picture of stolen catalytic converters
Toyota Tundra – Picture of stolen catalytic converters
Toyota Tundra – Picture of stolen catalytic converters

How to install Catalytic Converter Protection Shields in your Toyota Tundra
