2018+ Toyota Camry Add A Subwoofer Harness – PLUG n PLAY

SKU: C2-77-EZSH10-5 Category:


2018+ Toyota Camry Add A Subwoofer Harness – PLUG n PLAY

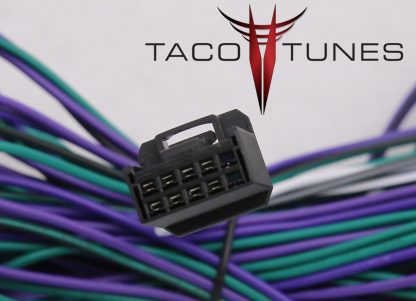

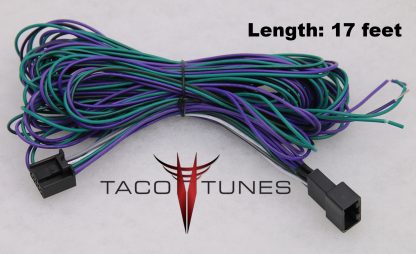

No more hunting for the right color worries. No more cutting and splicing your factory wires. This plug and play harness makes adding a subwoofer to your stock system fast and easy. No need to cut or splice your factor speaker wiring. Simply insert the plug behind the head unit (stereo) run the 17 foot leads to your amplifier or line out converter and you are ready to add some bass to your Toyota Camry.

The harness uses industry standard color codes:

Wire Color Wire Function
Yellow 12V Constant / Memory
Red Switch / Accessory
Black Ground
Blue Antenna Remote
Blue with White Stripe Amplifier Remote Turn-on
Orange with White Stripe Dash Light Dimmer/Illumination
Green Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White Left Front Speaker (+)
White with Black Stripe Left Front Speaker (-)
Purple Right Rear Speaker (+)
Purple with Black Stripe Right Rear Speaker (-)
Gray Right Front Speaker (+)
Gray with Black Stripe

Right Front Speaker (-)

Remote subwoofer amp turn on harness (optional):

Many amps do NOT support auto start, smart start etc. This harness  tells your amps when to turn on/off. The 17 foot blue wire will be connected to the “remote” connection on your aftermarket amplifier.

Be sure to check out our plug and play amps for your Toyota Camry. They quickly take your stock system from 18 watts to 100 watts RMS to each speaker. In addition, our subwoofer amplifier will power your subs between 600 & 1000 watts RMS.
