2007-2020 Tundra Double Cab System 1 “Starter” Audio System

$749.00

**FREE SHIPPING 48 STATES ONLY!
*** NO DISCOUNT CODES FOR THIS ITEM.

Description

System 1 Starter Audio System Designed for 2007-2020 Toyota Tundra Double Cab

Our entry level 1 “starter” audio system designed for your Toyota Tundra contains all components necessary for a successful installation. This setup will work with stock or aftermarket head units. This is for NON JBL equipped Tundras only. If you have JBL or interested in larger scale audio system, click here.

Many of our customers start with subwoofer and then upgrade their speakers later. This system includes a 5 channel amplifier that  will boost your stock speaker output AND add a full size 12″ subwoofer to your audio system . .  thus dramatically enhancing your stock stereo’s performance. In addition, the amp has plenty of power when you decide to upgrade your door speakers. We will show you how to tune your amplifier to match your speaker’s capabilities. Many of our customers build their audio as their budget allows.

2014+ Toyota Tundra’s Stock Audio system produce 18 watts to the front door speakers and 20 watts to the rear door speakers. Our 5 channel amp will allow you to boost them to 30 watts front and 25 watts rear.  Then down the road, when are ready you can easily add new speakers and turn the amp up to 75 watts to each speaker!

2007-2013 Tundra’s stock speakers are limited to around 15 watts.  WE highly suggest upgrading the speakers along with your new subwoofer.

The following components are included in this audio system upgrade:

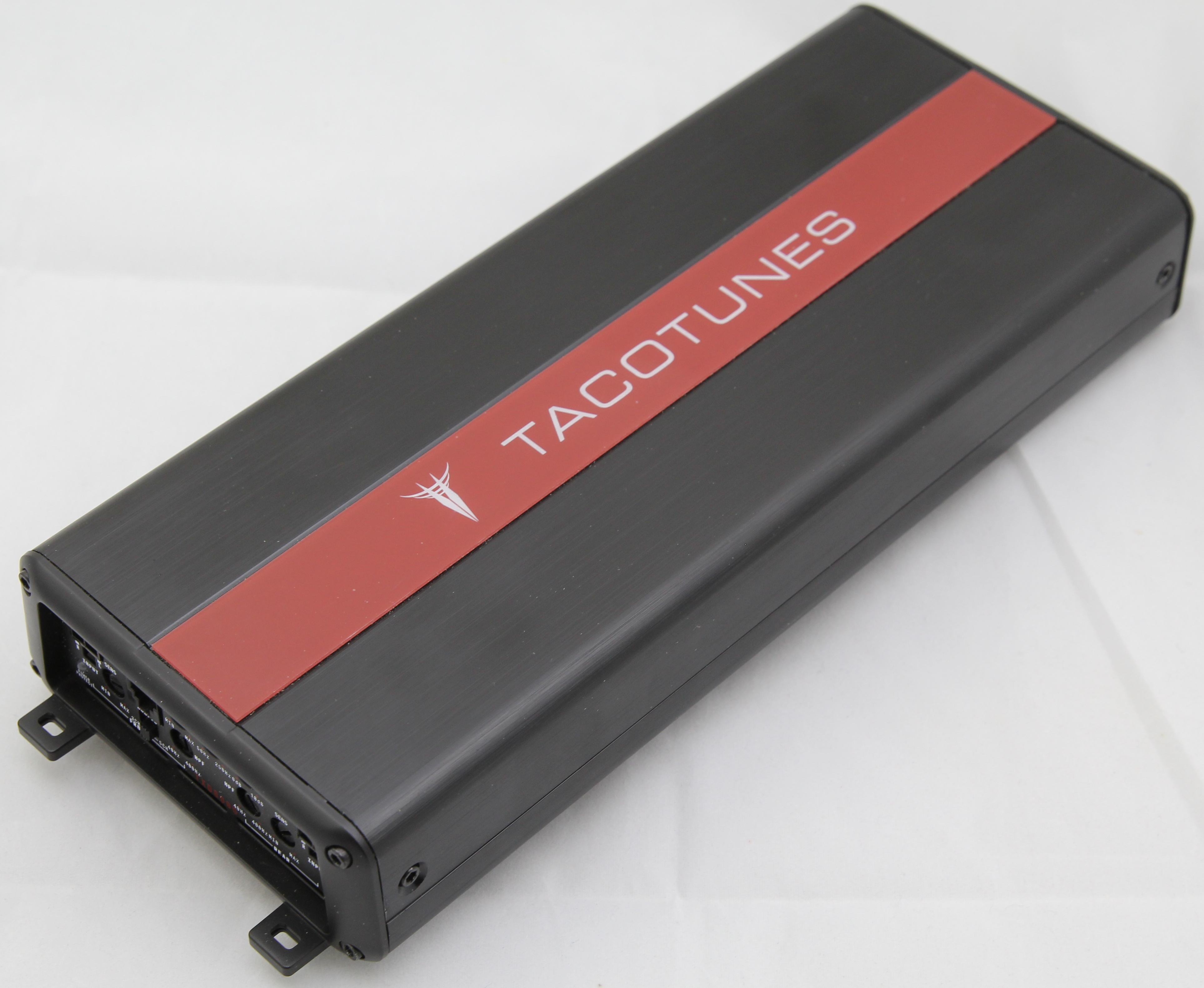

TXD8005 – 5 Channel Amplifier Install Kit (included in starter system)

TXD8005 / Install Kit Specs (more info)



Front & Rear Speaker Output

75 watts x 4 (Front/Rear Door Speakers) RMS (4 Ohm)

125 watts x 4 (Front / Rear Door Speakers) RMS (2 Ohm) NOT recommended without sound processor.

Subwoofer Output

350 watts x 1 Subwoofer Output (2 Ohm)

200 watts x 1 Subwoofer Output (4 Ohm)

This amp is NOT 1 Ohm stable. Please see our other amps for 1 ohm stable subwoofer amplifier.

The following items are included with the TXD800.5 Install Kit

1 – TXD800.5- Subwoofer Control Knob

1-  Direct Connect Tundra Plug N Play Integration System

NOTE: This setup is designed to work with your stock stereo. However, it will work with aftermarket head units as well.

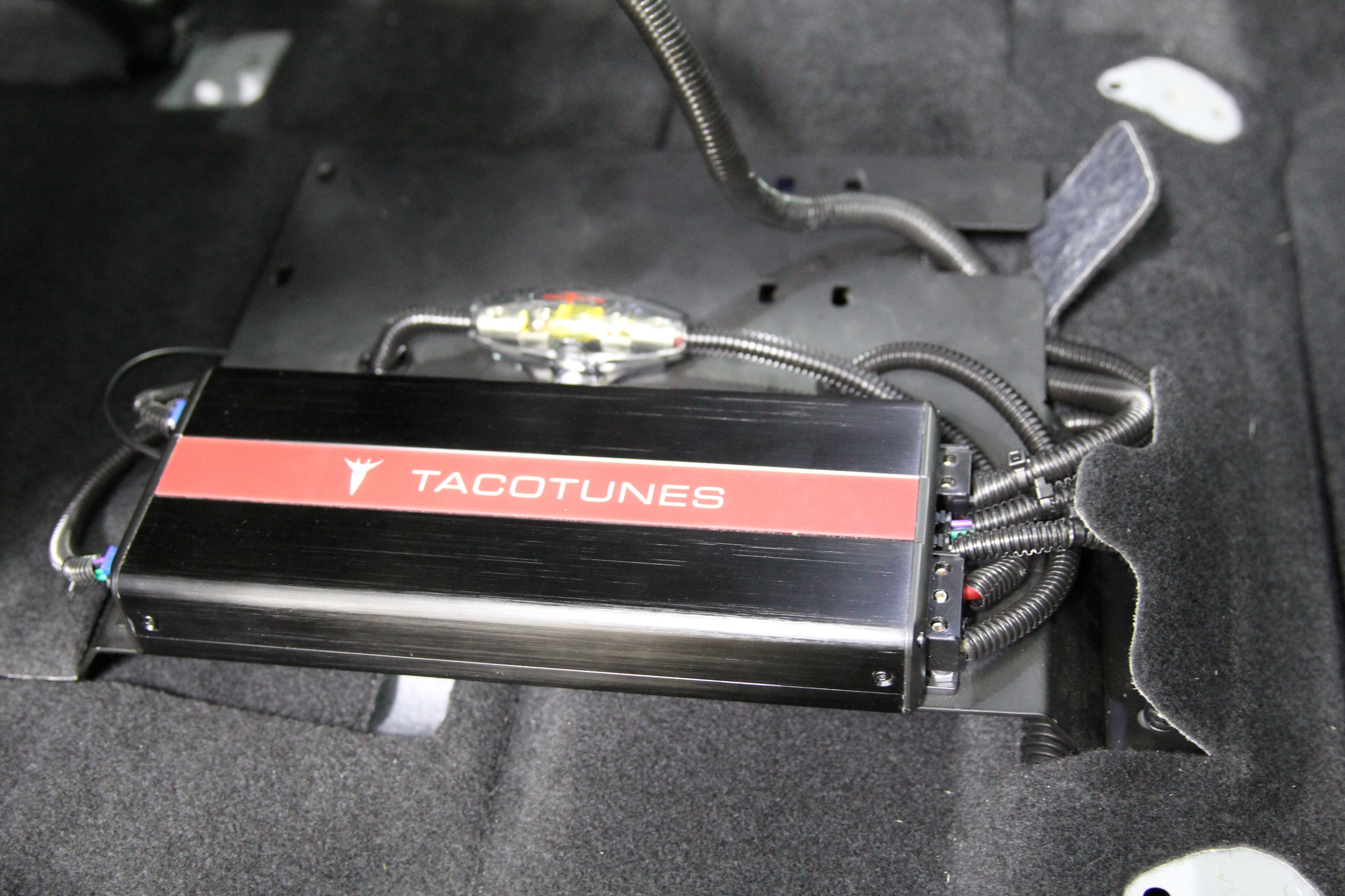

1 – TXD Tundra direct replacement amp rack – bolts directly to stock mounting location. No cutting or drilling.

Amp Power Installation Kit (included in starter system)

TXDAMPKIT-02
TXDAMPKIT-02

TXDAMPKIT-02 Amp Power Install Kit



1 – 13’ 8GA Red OFC Power Cable (Amp Connection)

1 – 2.5’ 8GA Red OFC Power Cable w/ ring terminal (Battery Connection)

1 – 10” 8GA Red OFC Power Cable (fuse holder to amp)

1 – 2’ Black OFC Power Cable with ring terminal (Amp to Ground)

2 – MANL Fuse Holders (battery & amp)

1 – 80 AMP MANL Fuse (battery fuse holder)

1 – 60 AMP MANL Fuse (amp fuse holder)

20 – Cable Ties

Tundra DC 10″ Ported Subwoofer Enclosure & Subwoofer (included in starter system)

Tundra 12 inch Subwoofer Specs (more info)



1 – tacotunes.com ported subwoofer enclosure

1 – Image Dynamics ID10D4 dual voice coil 10″ subwoofer (2 Ohms presented to amp for max power)

1 – Terminal Cup & Internal Wiring

1 – 20 foot 12G subwoofer wire


NOTE: Color & Finish may vary on the subwoofer box.

Front Door Speakers: (optional)

Speakers (more info)



2 -Image Dynamics ID65CS 6.75″  Component Speakers, Tweeters & Crossovers

2 – Front Door Speaker Mounts

2 – Crossover Mounting Adapters & mounting screws (2)

2 – tacotunes Sail Panels pre-sized for your new tweeters.

2 – 36″ Wire Harness Adapters (connects to stock wiring)

2 – 36″ 16G speaker wire – Red / Black (mid range)

2 – 36″ 18G tweeter wire – Red / Black (tweeter)

Rated at 100 watts (RMS)

NOTE: These are tacotunes.com branded speakers.

Rear Door Speakers: (optional)

Speakers (more info)

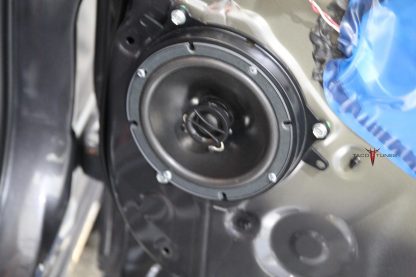

Component Speakers or Coaxial. 2014+ Tundras are equipped with rear door factory tweeters. 2007-2013 NON JBL equipped Tundras do not have rear door tweeters.

2 – Image Dynamics ID65 6.75″ Coaxial Speakers (2007-2013)

2 – Rear Door Speaker Mounts

2 – Crossover Mounting Adapters & mounting screws (2)

2 – 36″ Wire Harness Adapters (connects to stock wiring)

2 – 36″ 16G speaker wire – Red / Black (mid range)

2 – 36″ 18G tweeter wire – Red / Black (tweeter)

Rated at 100 watts (RMS)

NOTE: IN STOCK READY TO SHIP NOW!

This is for NON JBL equipped Tundras only. If you have JBL or interested in larger scale audio system, click here.

Tundra Install Gallery - Click for pics!
2018 TRD Sport 4x4
2018 Cement Custom Build
Jason's TRD Pro
2018 Tundra SR5
2018 TRD Sport 4x4
Juan's Tundra
Mike's Tundy
2018 Toyota Tundra TRD Sport 4x4 Audio System Upgrade
previous arrow
next arrow
previous arrownext arrow
Slider

CLICK HERE INSTALLATION INSTRUCTIONS:

Additional information

Weight 95 lbs
Dimensions 51 × 24 × 20 in
