Description

System 1B Complete Audio System Designed for 2007-2021 Toyota Tundra Crewmax

The System 1B is our most popular and bestselling audio system designed for your Toyota Tundra. It contains all components necessary for a successful installation. This setup will work with stock or aftermarket head units.

This system can be setup to work with JBL equipped Tundras. If your Tundra has an aftermarket head unit or is equipped with the JBL system, please contact us for details before you order this system.

The following components are included in this audio system upgrade:

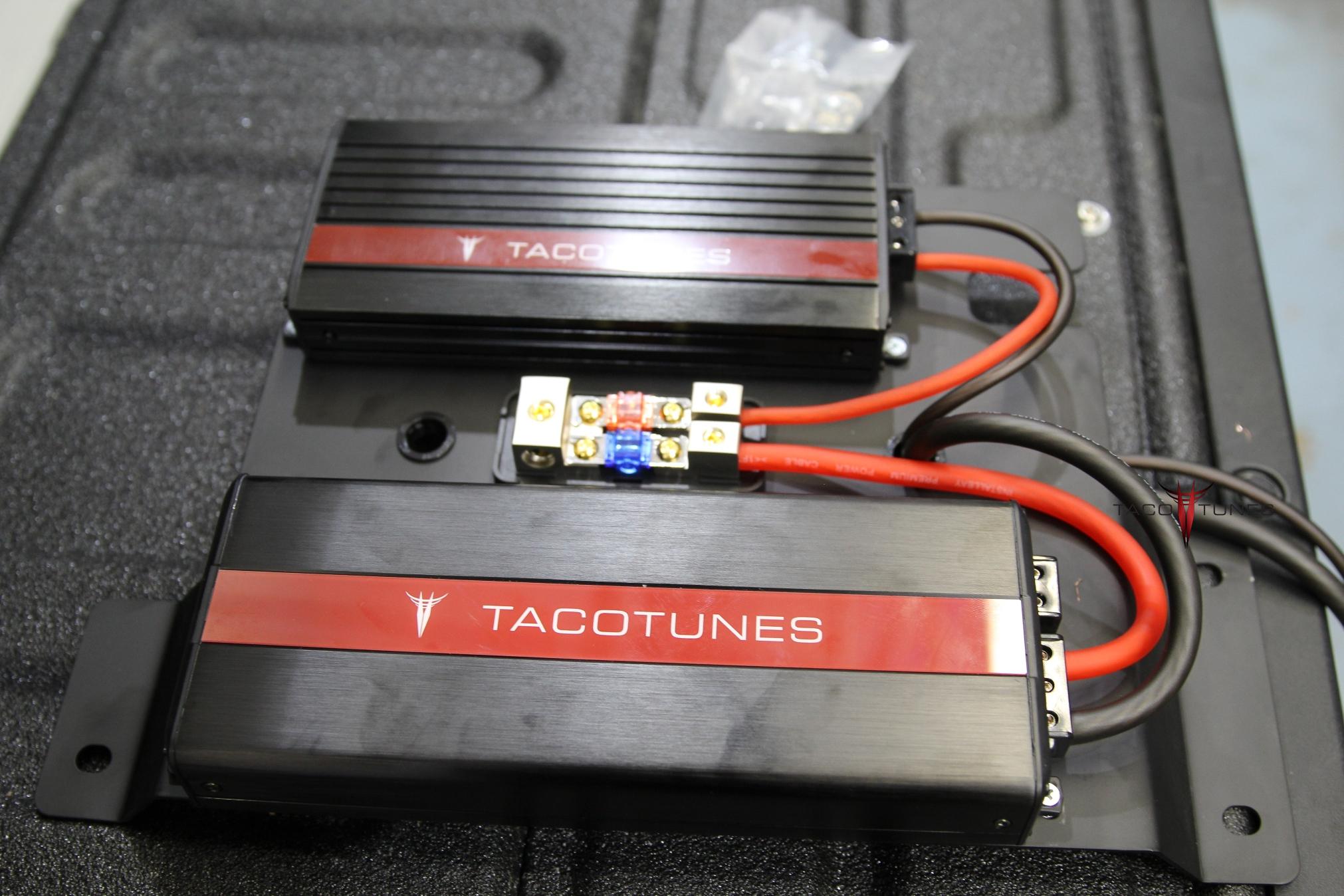

System 1B Amplifier Bundle / Install Kit (Includes Tundra Direct Connect System):

Front & Rear Speaker Output – TXD3204v3
100 watts x 4 (Front/Rear Door Speakers) RMS (4 Ohm)
150 watts x 4 (Front / Rear Door Speakers) RMS (2 Ohm) NOT recommended without sound processor.
Subwoofer Output –TXD1000.1
1000 x 1 (subwoofer(s)) RMS (1 Ohm)

The following items are also included:

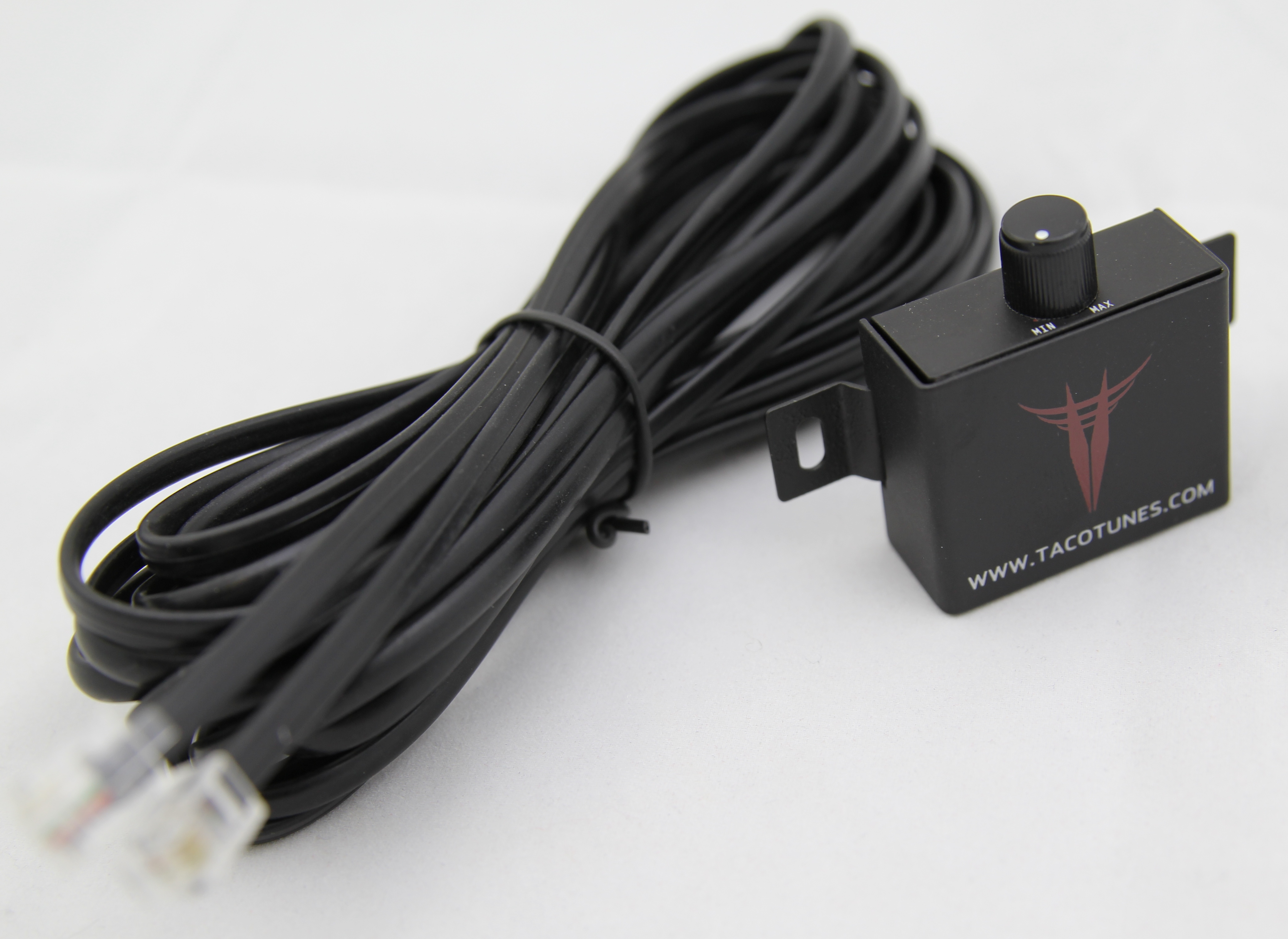

1 – TXD10001- Subwoofer Control Knob
1-  Direct Connect Tundra Plug N Play Integration System
NOTE: This setup is designed to work with your stock stereo. However, it will work with aftermarket head units as well.

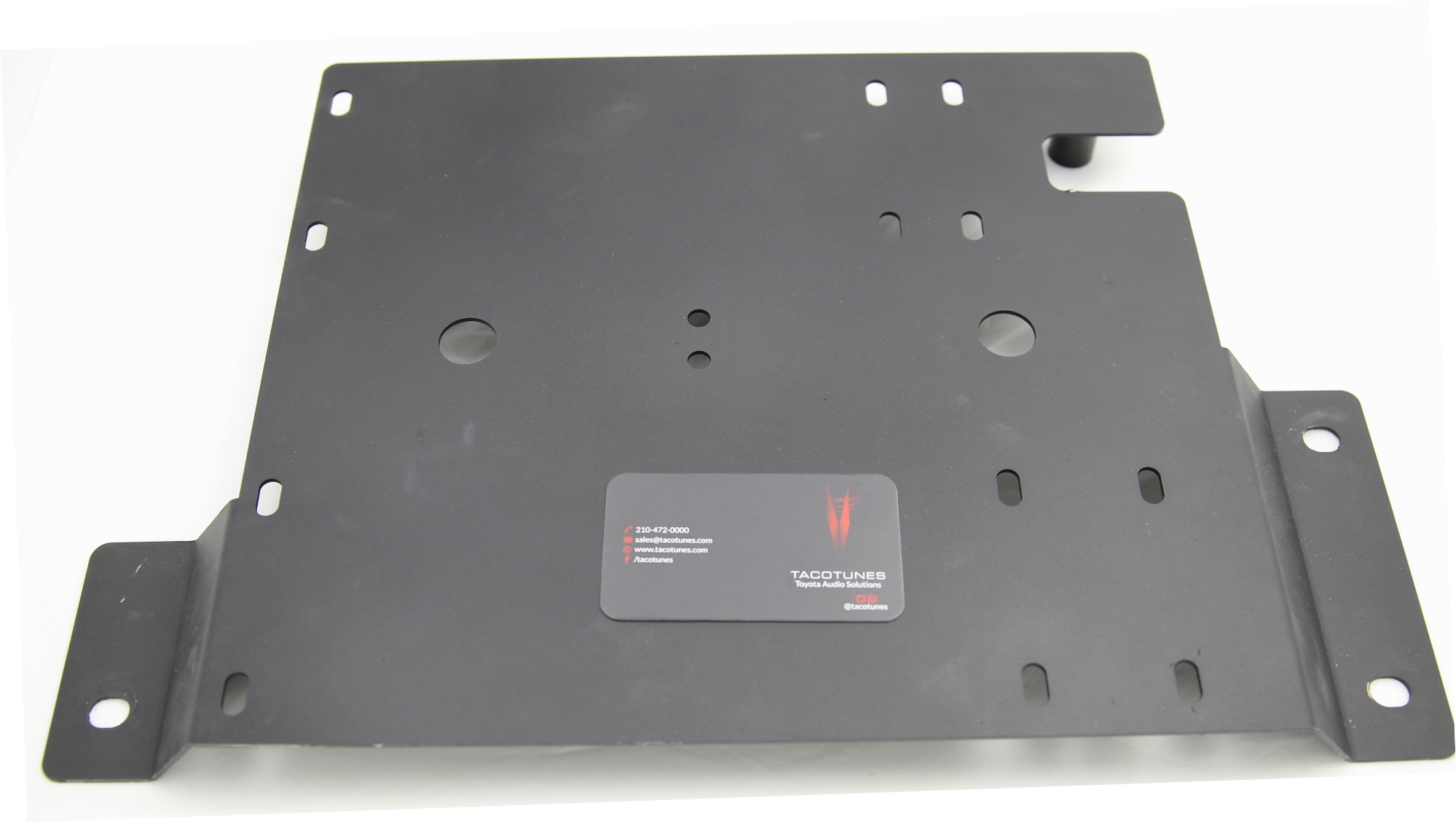

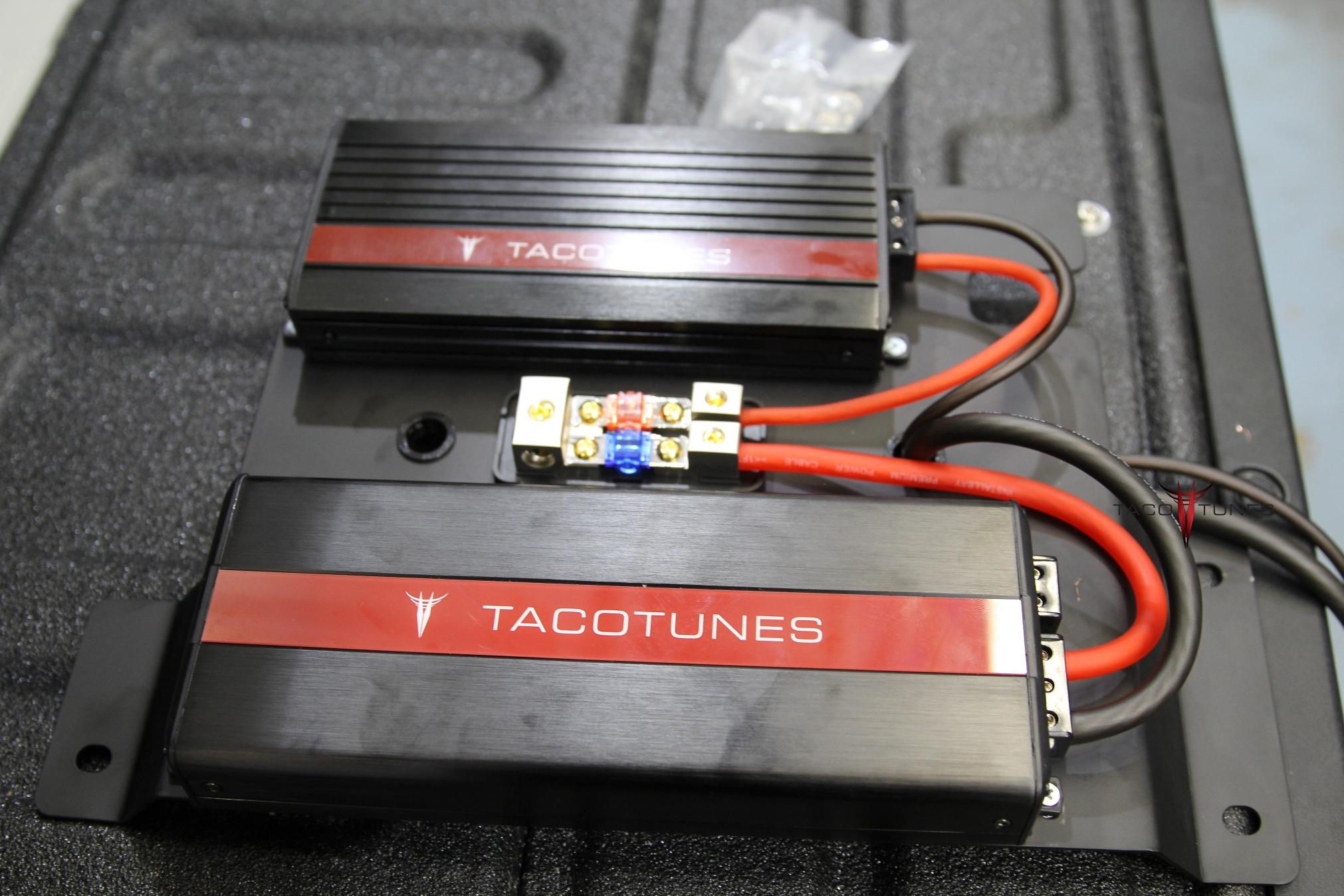

1 – TXD Tundra direct replacement amp rack – bolts directly to stock mounting location. No cutting or drilling.

TXD Oxygen Free Copper Dual Amp Install Kit:

1 – tacotunes.com MANL Fuse Holder
1 – tacotunes.com 4 gauge to 8 gauge distribution block
1 – 2.5′ 4 gauge tacotunes.com OFC – battery connection with terminal ring attached (red)
1 – 13′  4 gauge tacotunes.com OFC – amplifier power wire (red)
2 – 10″ 8 gauge tacotunes.com OFC – amp power wire (red)
2 – 24″ 8 gauge tacotunes.com OFC – amplifier ground wire with ring terminals attached (black)
1 – 100 AMP (BLUE) MANL Fuse (battery)
1 – 60 AMP (YELLOW) MANL Fuse (TXD10001 Amp)
1 – 40 AMP (ORANGE) MANL Fuse (TXD6001 Amp)
1 – 30 AMP (RED) MANL Fuse (TXD3204v2 Amp)
1 – 10MM grounding bolt
1 – 5/16″ self tapping grounding bolt
20 – cable ties
1 – 6′ 3/8″ split loom
1 – 3′ 1/4″ split loom
2 – #8 x 5/8 Black Screw
20 Small Zip Ties

Front Door Speakers:

2 -Image Dynamics ID65CS 6.75″  Component Speakers, Tweeters & Crossovers
2 – Front Door Speaker Mounts
2 – Crossover Mounting Adapters & mounting screws (2)
2 – tacotunes Sail Panels pre-sized for your new tweeters.

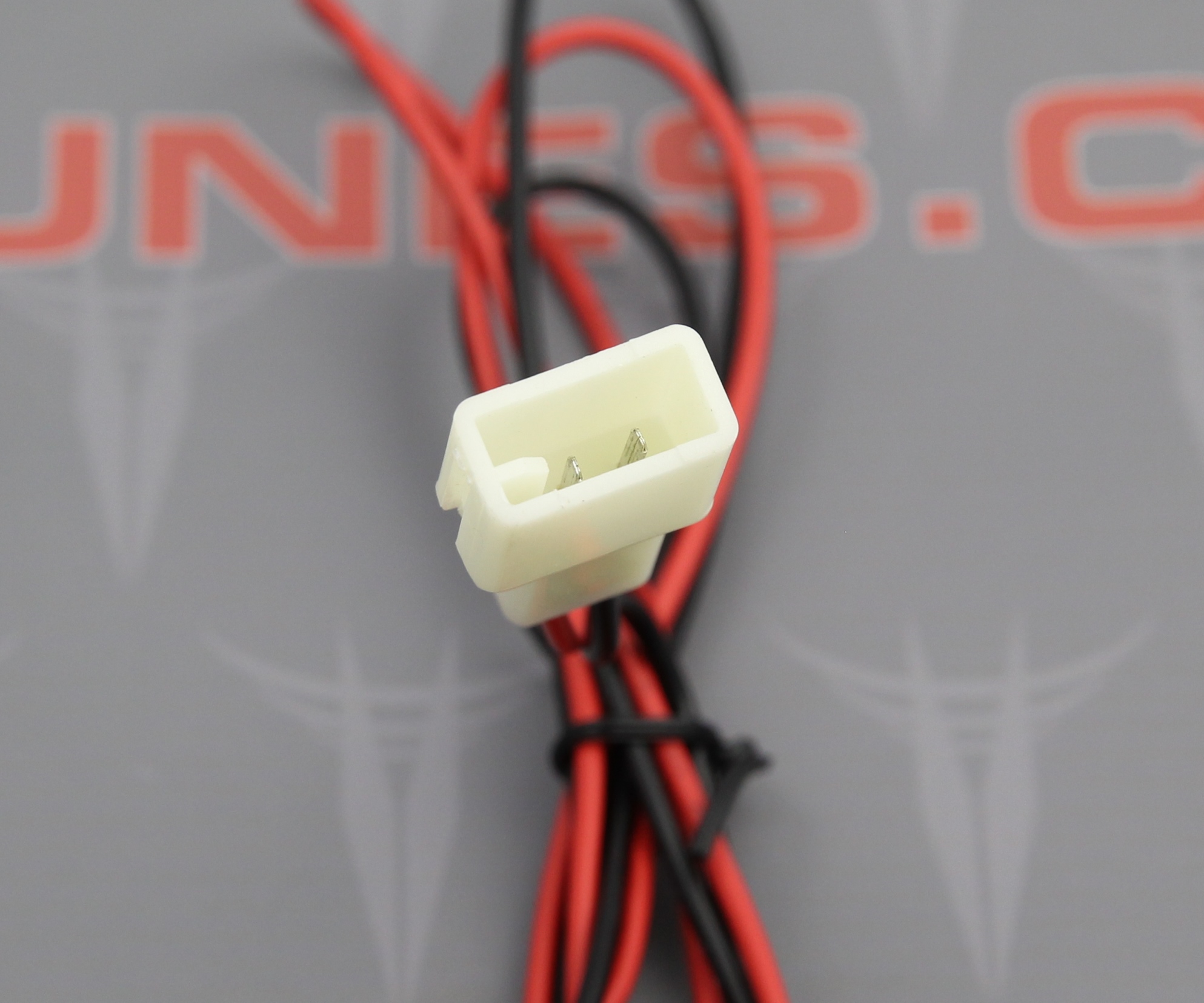

2 – 36″ Wire Harness Adapters (connects to stock wiring)
2 – 36″ 16G speaker wire – Red / Black (mid range)
2 – 36″ 18G tweeter wire – Red / Black (tweeter)
Rated at 100 watts (RMS)
NOTE: These are tacotunes.com branded speakers.

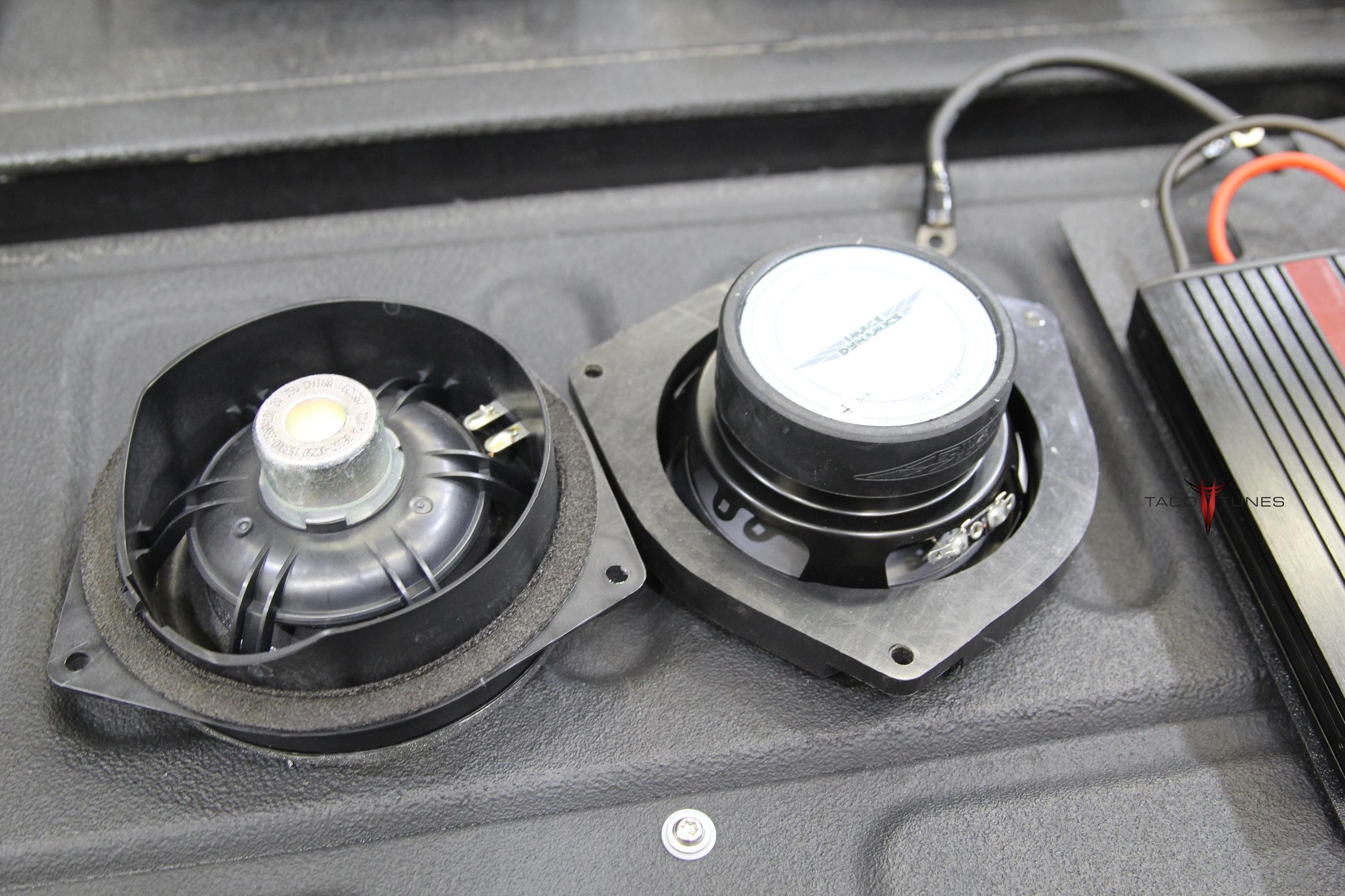

Rear Door Speakers:

Choose from Component Speakers or Coaxial. 2014+ Tundras are equipped with rear door factory tweeters. 2007-2013 NON JBL equipped Tundras do not have rear door tweeters.
2 – Image Dynamics ID65CS 6.75″ Component Speakers, Tweeters & Crossovers
or
2 – Image Dynamics ID65 6.75″ Coaxial Speakers
2 – Rear Door Speaker Mounts
2 – Crossover Mounting Adapters & mounting screws (2)
2 – 36″ Wire Harness Adapters (connects to stock wiring)
2 – 36″ 16G speaker wire – Red / Black (mid range)
2 – 36″ 18G tweeter wire – Red / Black (tweeter)
Rated at 100 watts (RMS)

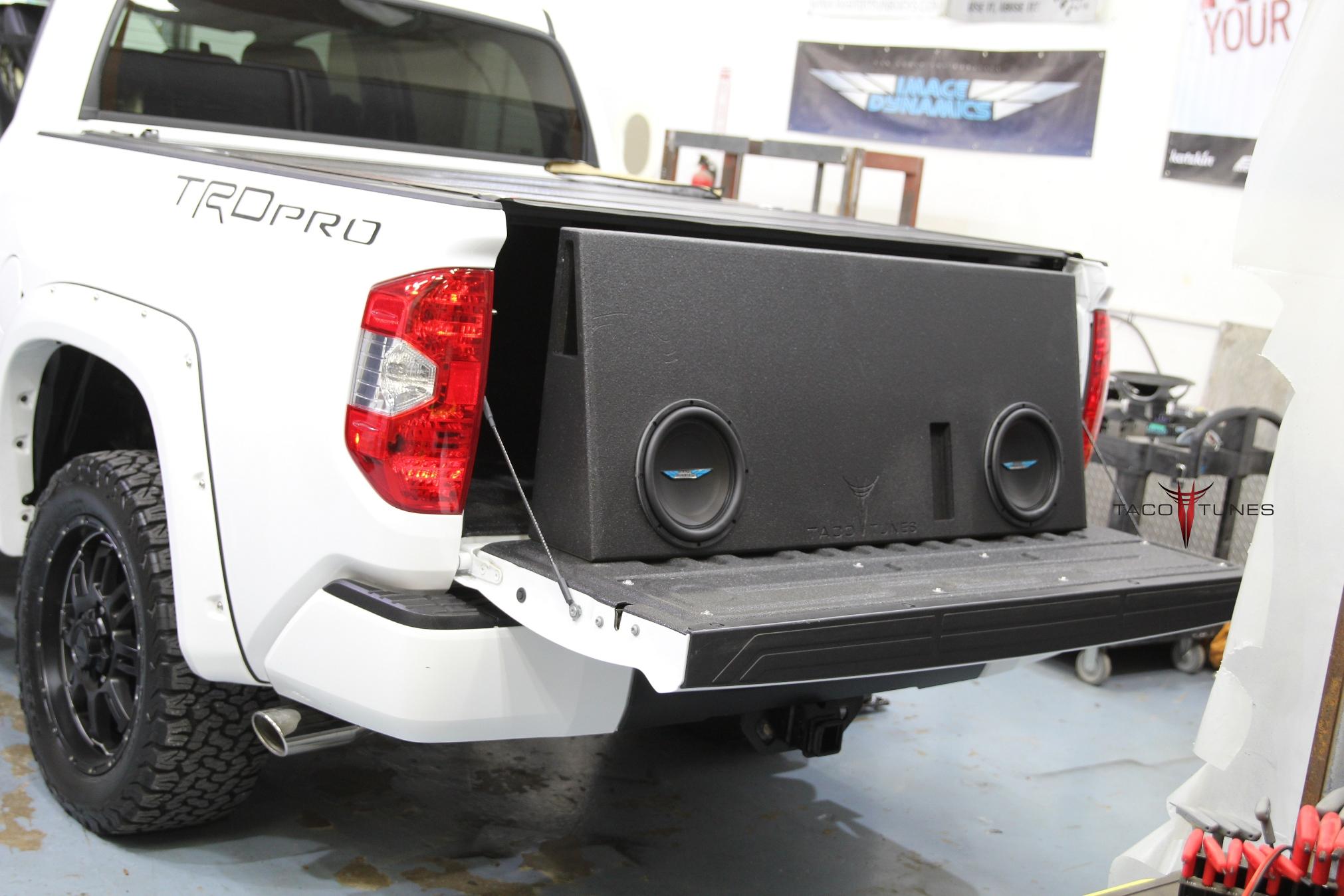

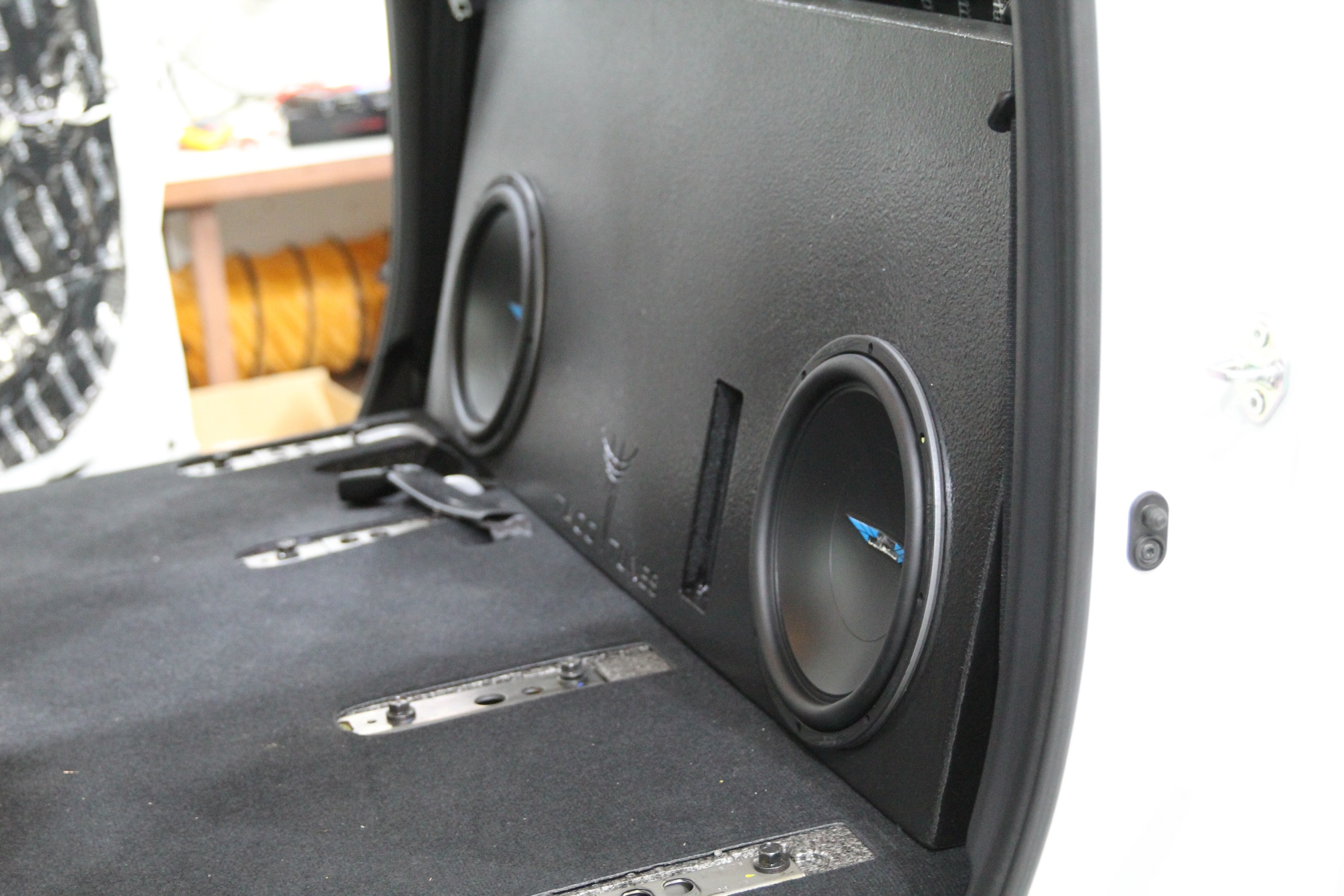

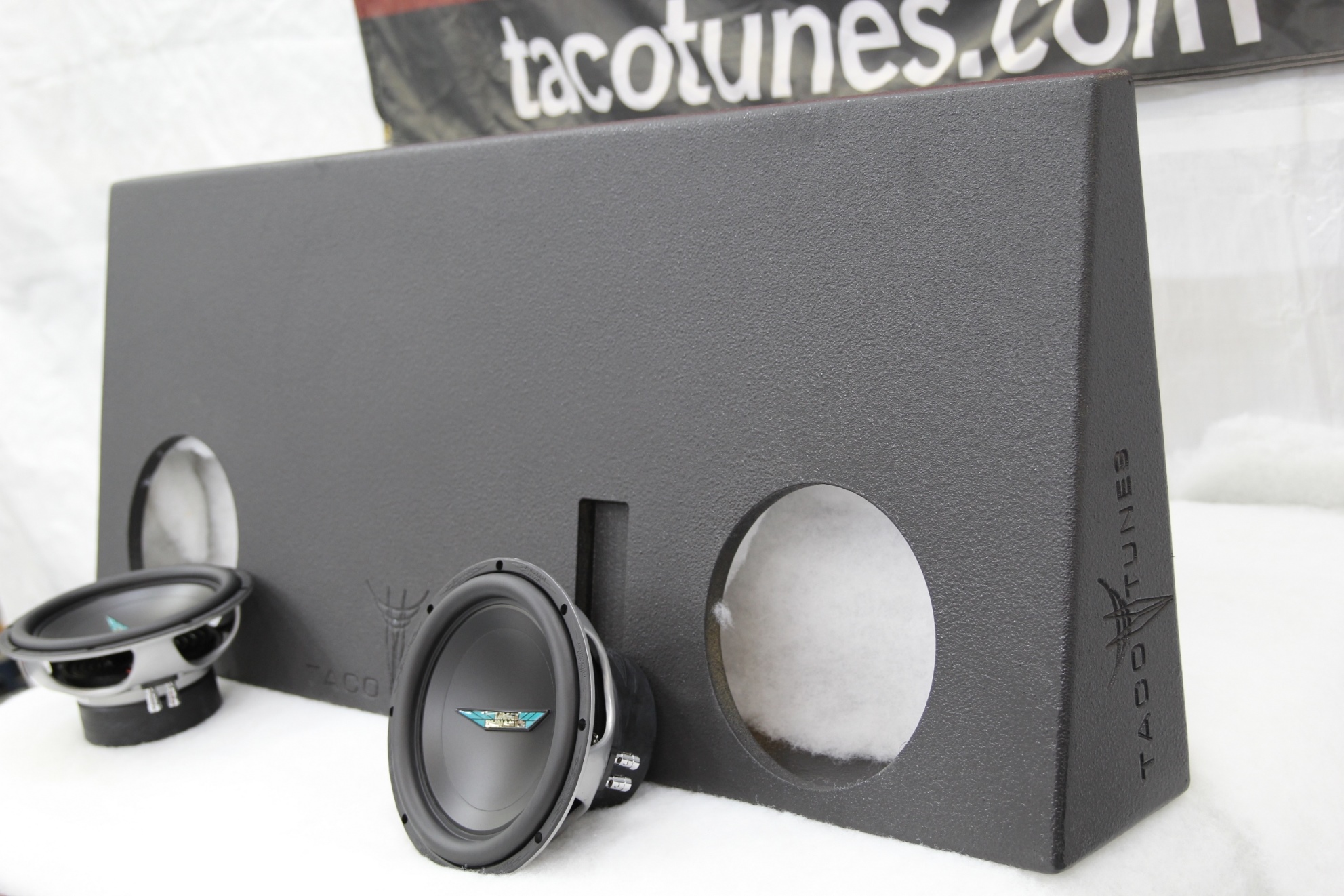

Dual 10″ Subwoofer Enclosure with dual 10″ Subwoofers

The following is included in this bundle set:

1 – tacotunes.com Dual 10″ or 12″ Full size subwoofer box
2 – Image Dynamics ID10V4 4 Ohm 10″ Subwoofers to match the output on TXD10001 EzAmp
1 – terminal cup
1 – subwoofer wiring kit

NOTE: 2007-2013 Tundra owners will need modify their truck in order for this box to fit. If you do not want to make any modifications, you can select from dual 10″ sealed subwoofer box or a single 12″ ported subwoofer box.



CLICK HERE INSTALLATION INSTRUCTIONS:
