JG’s Toyota Tundra CrewMax Platinum Edition Complete Audio Upgrade San Antonio TX

Toyota-Tundra-CrewMax-Platinum-Complete-Audio-System-Installation-San-Antonio-TX-1

JG’s Toyota Tundra CrewMax Platinum Edition Complete Audio Upgrade San Antonio TX

JG’s Toyota Tundra CrewMax Platinum Edition Complete Audio Upgrade San Antonio TX

Installation Summary / History:

Customer Name: JG

Toyota Year / Model: 2016 Toyota Tundra CrewMax 4×4 Platinum Edition

Head Unit: JBL Equipped

Color: Sunset Attitude Black

Installed by: tacotunes.com

System Installed: tacotunes SQ1 packaged system

JG has had audio systems in most of his vehicles. As you can see by the smile on his face, he was very happy with the results.



Below you will find a detailed listing of all the parts we used in the installation.

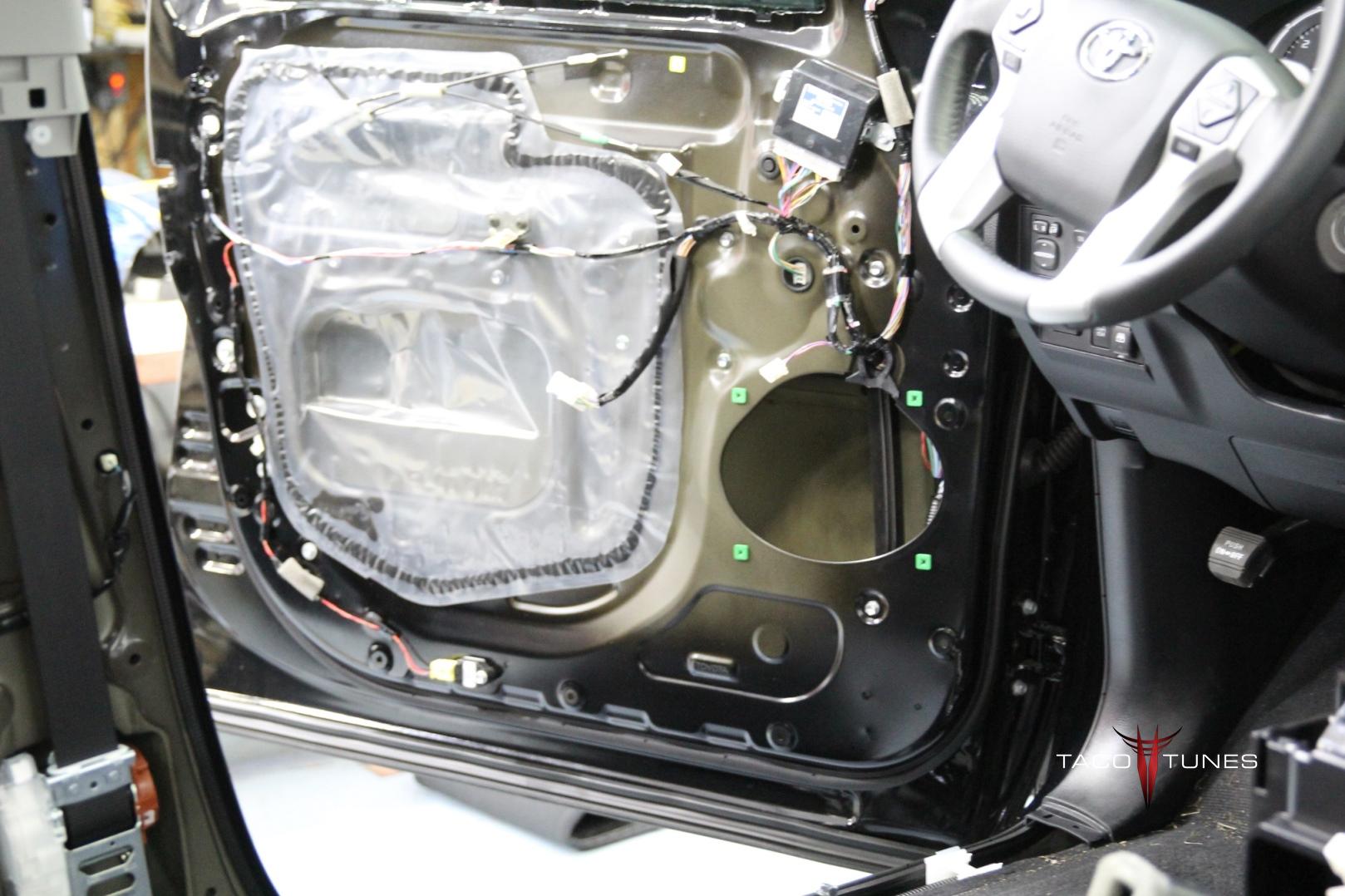

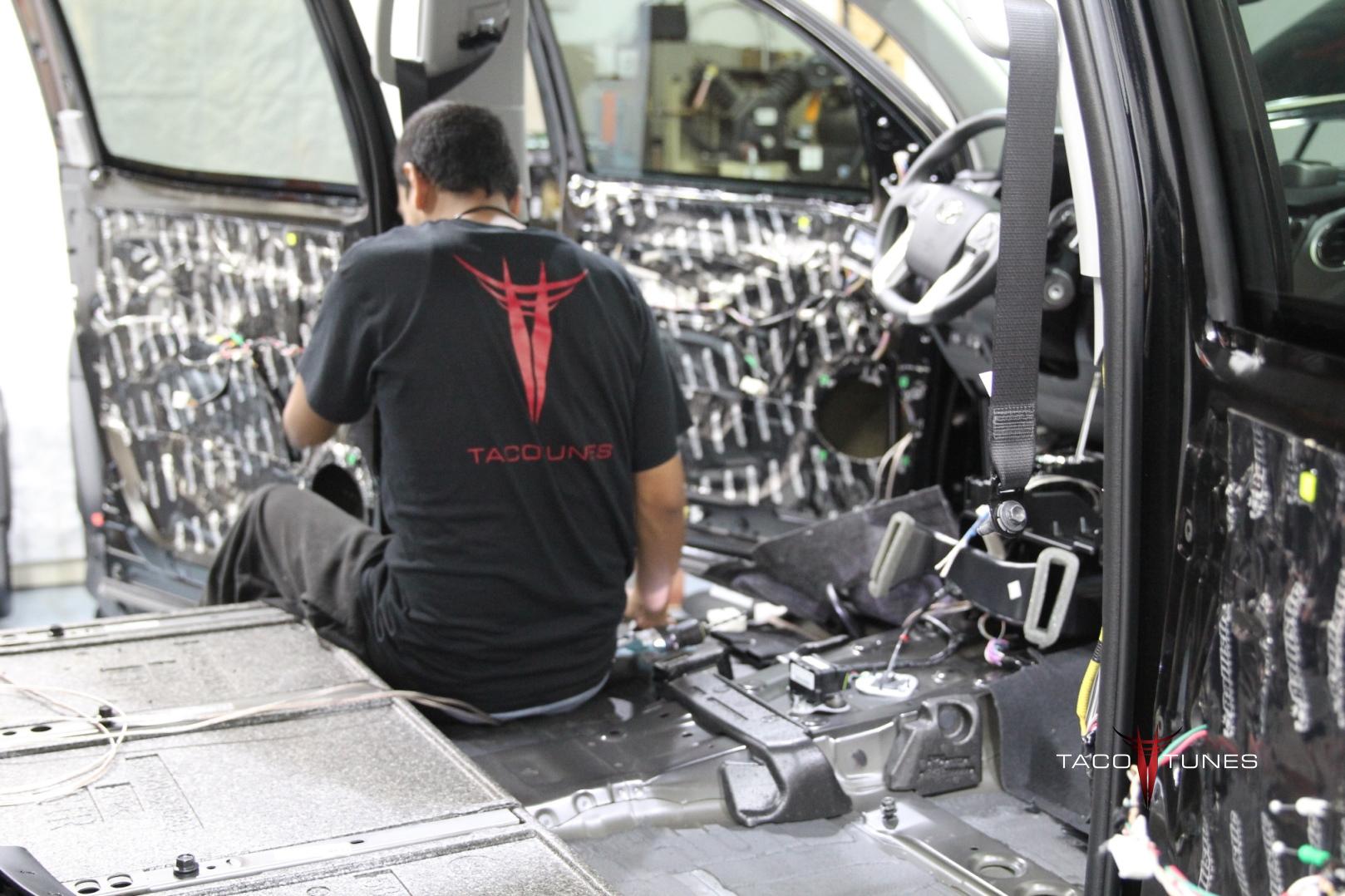

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Chris Tundra CrewMax

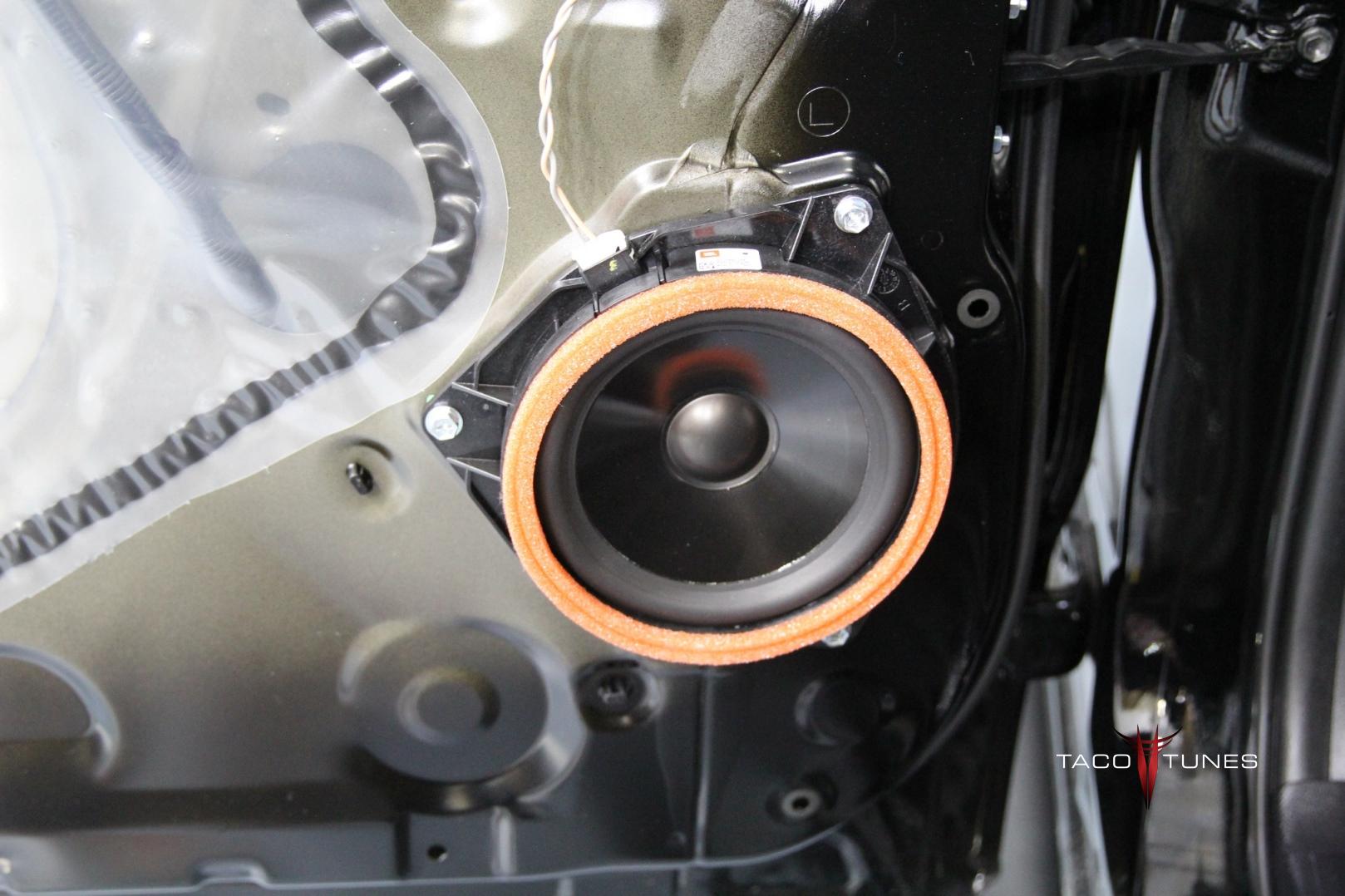

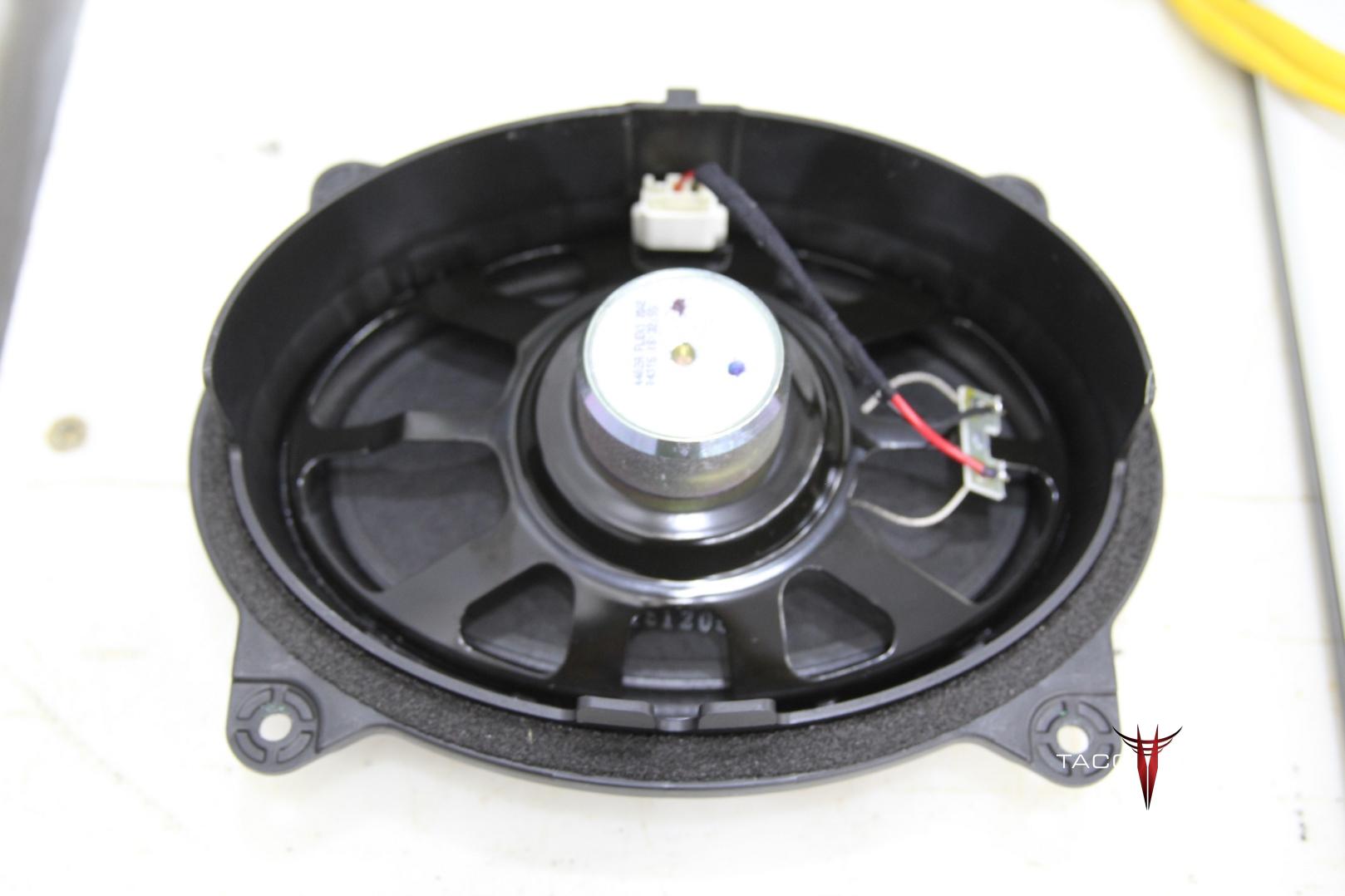

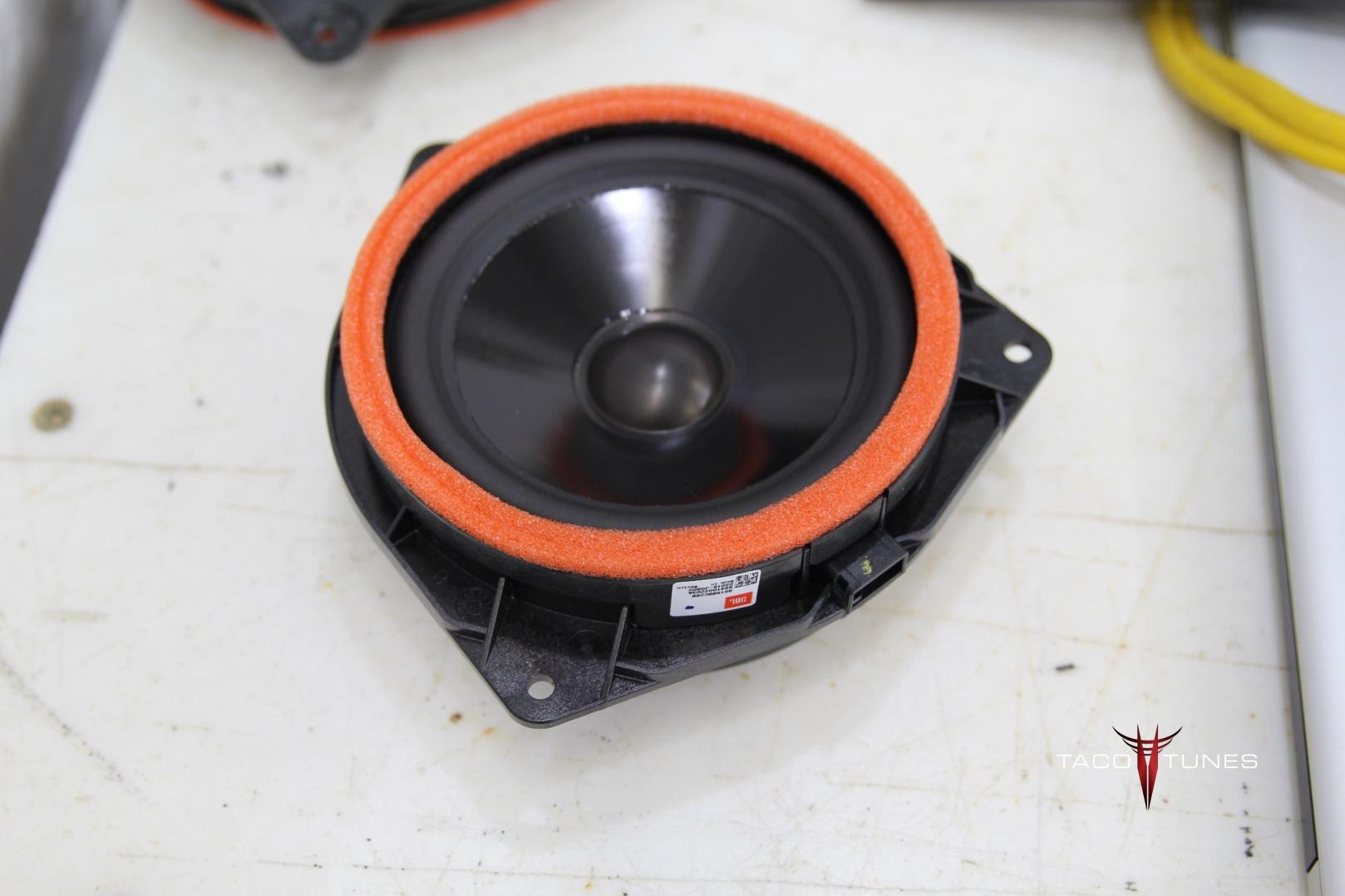

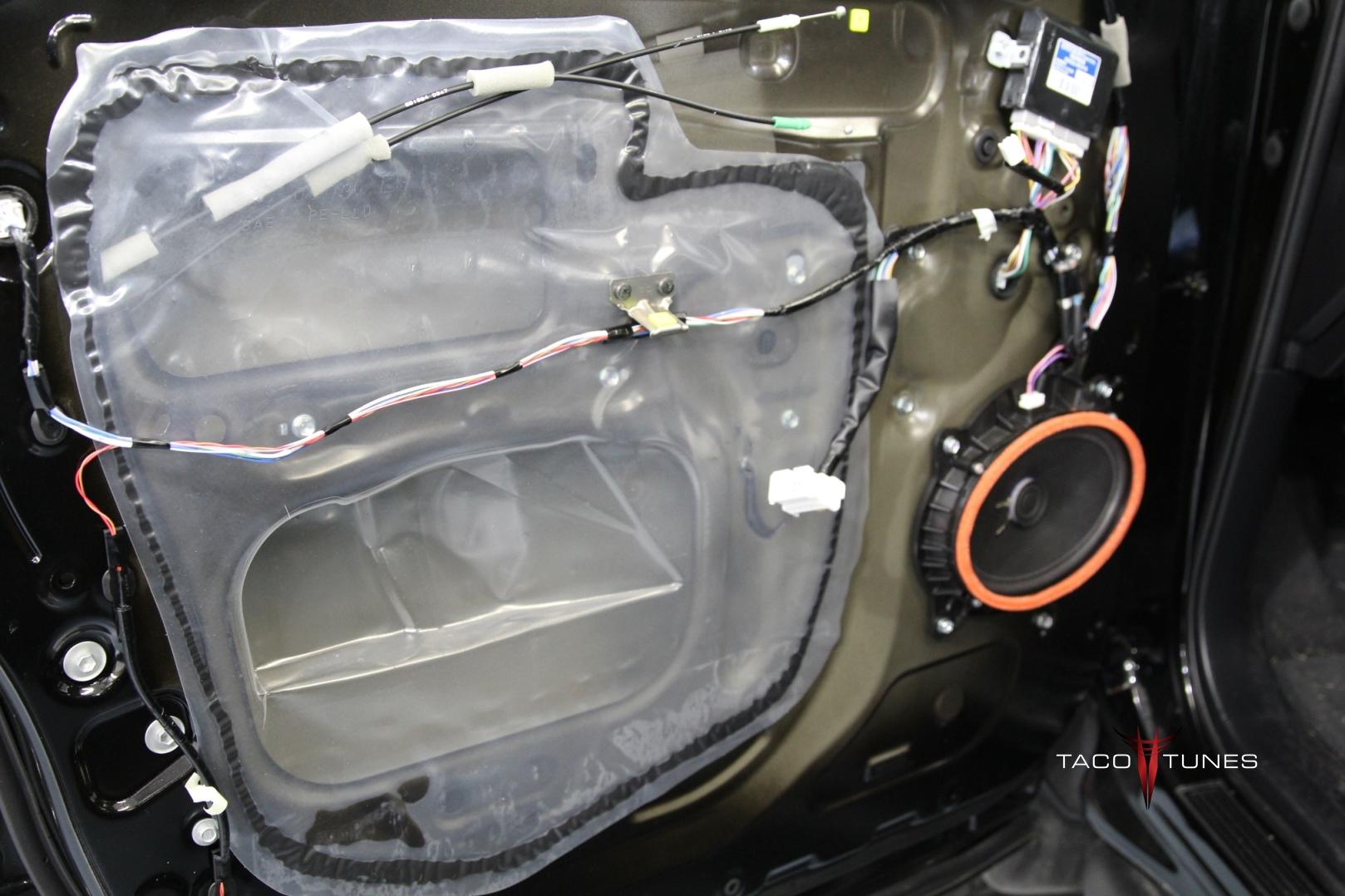

Front Door Component Speakers:

Image Dynamics CXS64

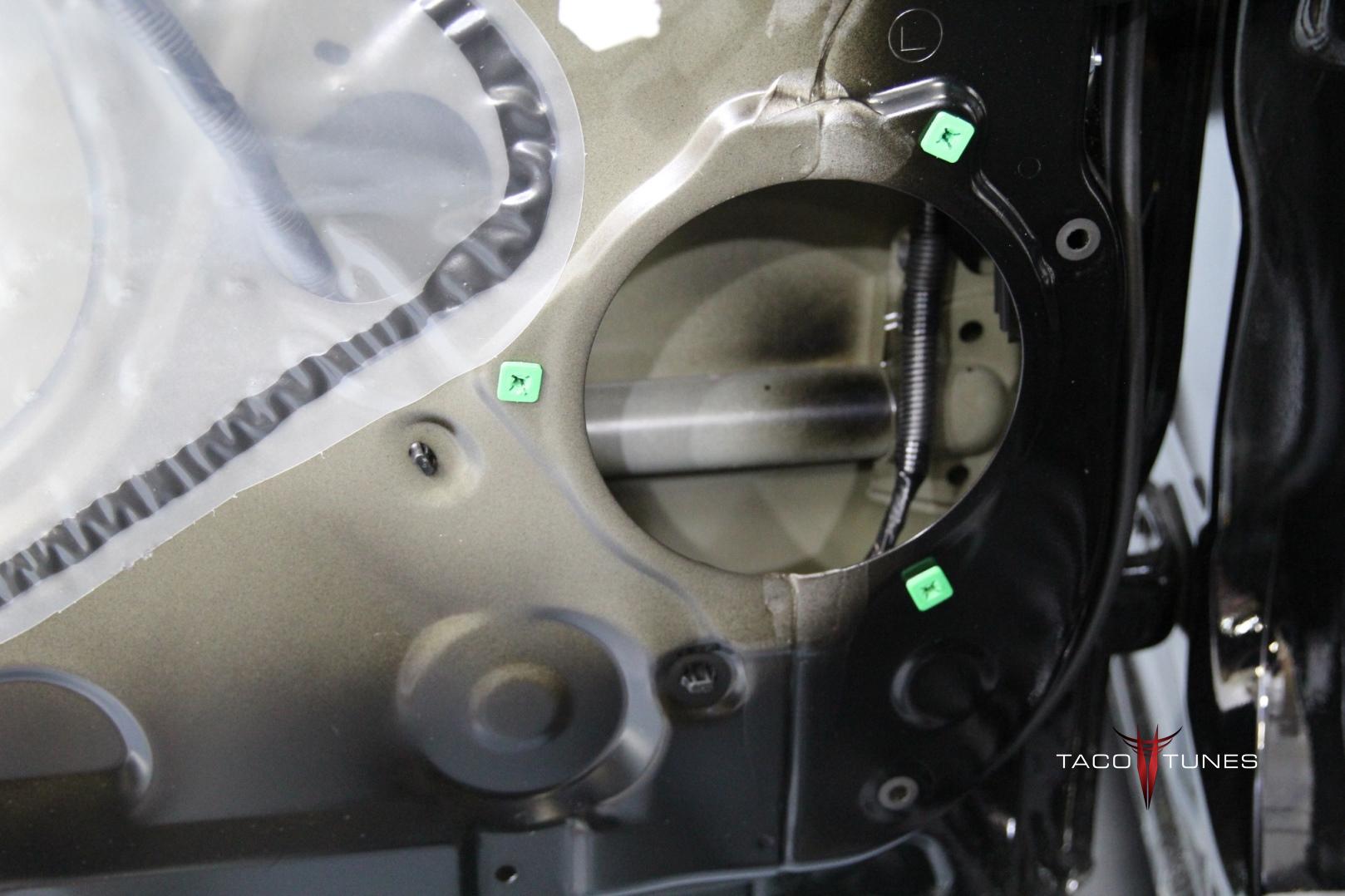

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CXS Mid bass Drivers -125 Watts RMS

CXS Crossover

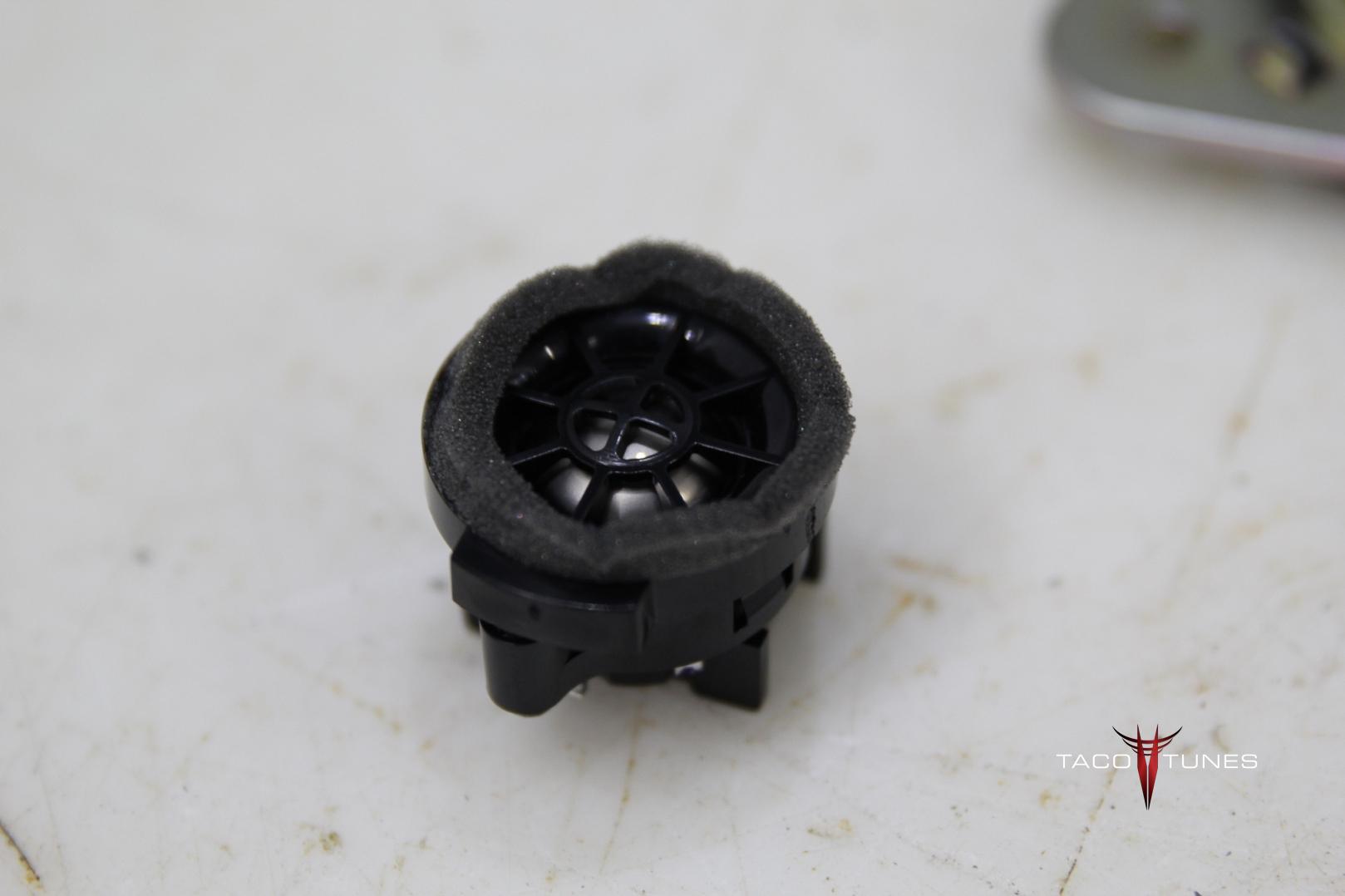

CXS 28M Silk Dome Tweeter

NOTE: JBL equipped

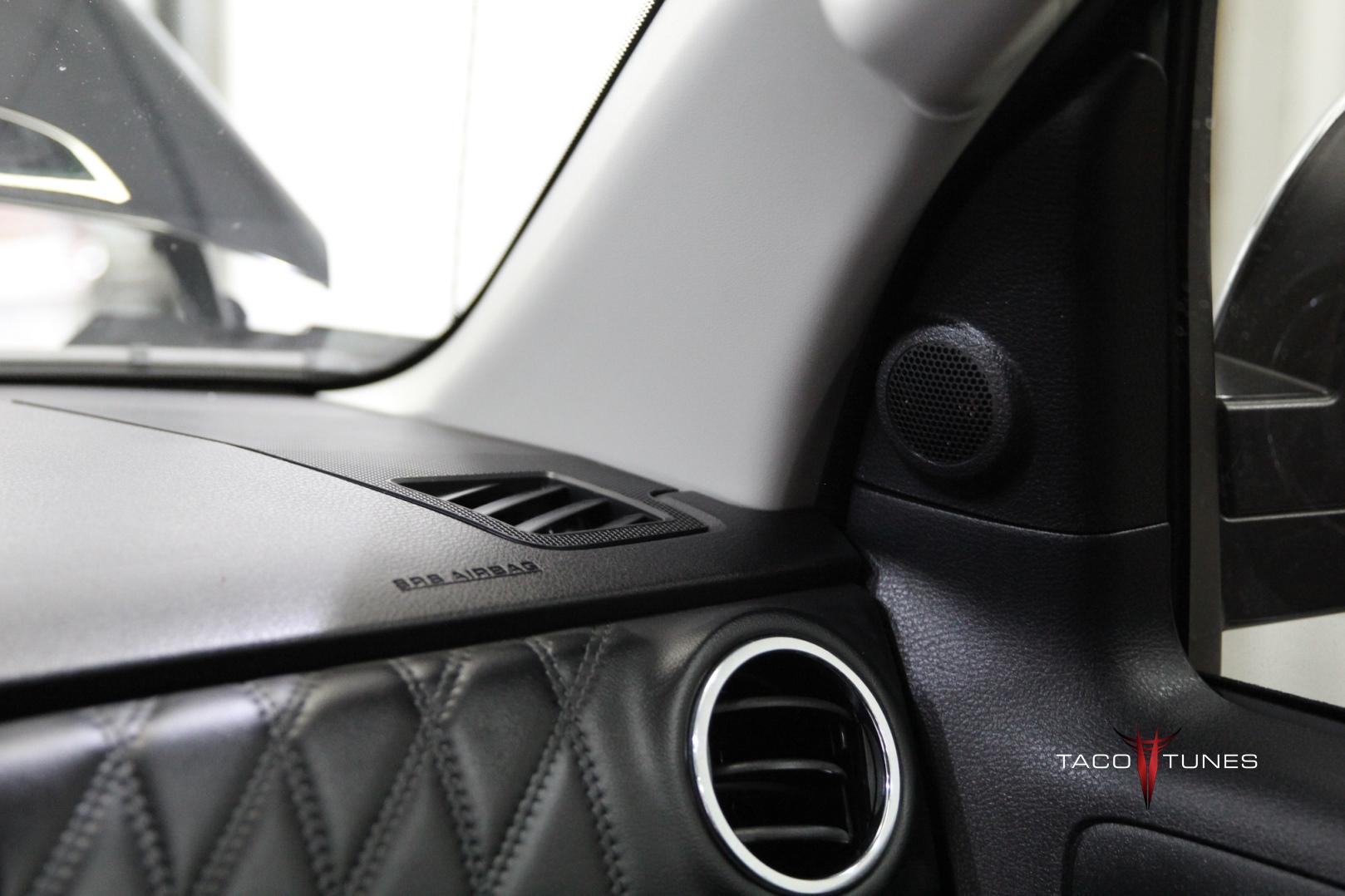

Use Stock Sail Panel for Tweeter mounts.

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

Sound Processor:

Tacotunes.com ReCurve EZQ

Tacotunes.com JBL Harness

Amp:

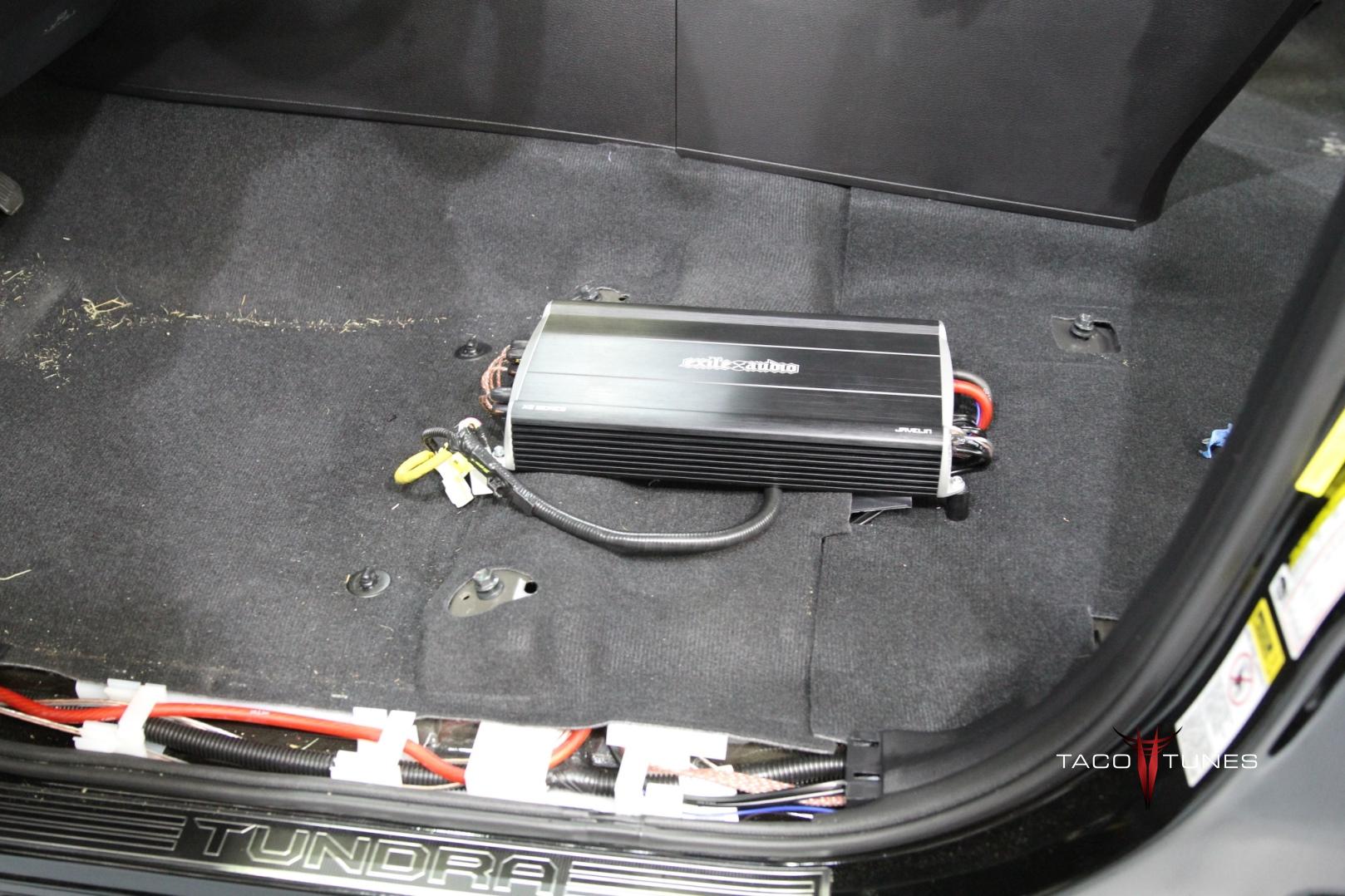

Exile Audio 5 channel amp

100 watts x 4 to each speaker and 800 x 1 (subwoofer)

Subwoofer(s):

Subwoofer Box & Subwoofers

Tacotunes.com dual 10” subwoofer enclosure 2.0” cu feet

Image Dynamics ID10V4 (full size) 10” subwoofer 400 watts RMS x 2

Tundra Install kit:

Stereo & Wiring Installation kit:

Stinger Power, Speaker and Signal Cables:

Positive:

Stinger 3′ POWER CABLE 4GA – Ring Terminal Attached

Stinger 13′ POWER CABLE 4GA

Negative:

Stinger 4′ POWER CABLE 4GA – Ring Terminal Attached

Color Coded Speaker Wire:

Stinger 50′ 16GA Black Speaker Wire (Driver Side Speakers)

Stinger 50′ 16GA Silver Speaker Wire (Passenger Side Speakers)

Stinger 25′ 18GA Black Speaker wire (Driver Side Tweeters)

Stinger 50′ 18GA Silver Speaker Wire (Passenger Side Tweeters)

Stinger 50’ 12Ga Black Subwoofer Wire

RCA Signal Cables:

1 Stinger RCA CABLE 12 Ft Twisted Pair – 6 Channel (Front / Rear / Sub)

Misc Items:

35′ Primary Blue Remote Turn on wire

6′ 3/4 Split Loom

T-Spec ANL Fuse Holder

T-Spec 100 Amp ANL Fuse

10 Crimp Caps

8 Speaker Terminals .25 (Door speakers)

4 Speaker Terminals .187 (tweeters)

4 Speaker Terminal .25 (subwoofer)

15 Small Zip Ties

15 Large Zip Ties

Under Seat – Amp Mounting Gear:

2 Nylons Spacers

2 Self Tapping Screws

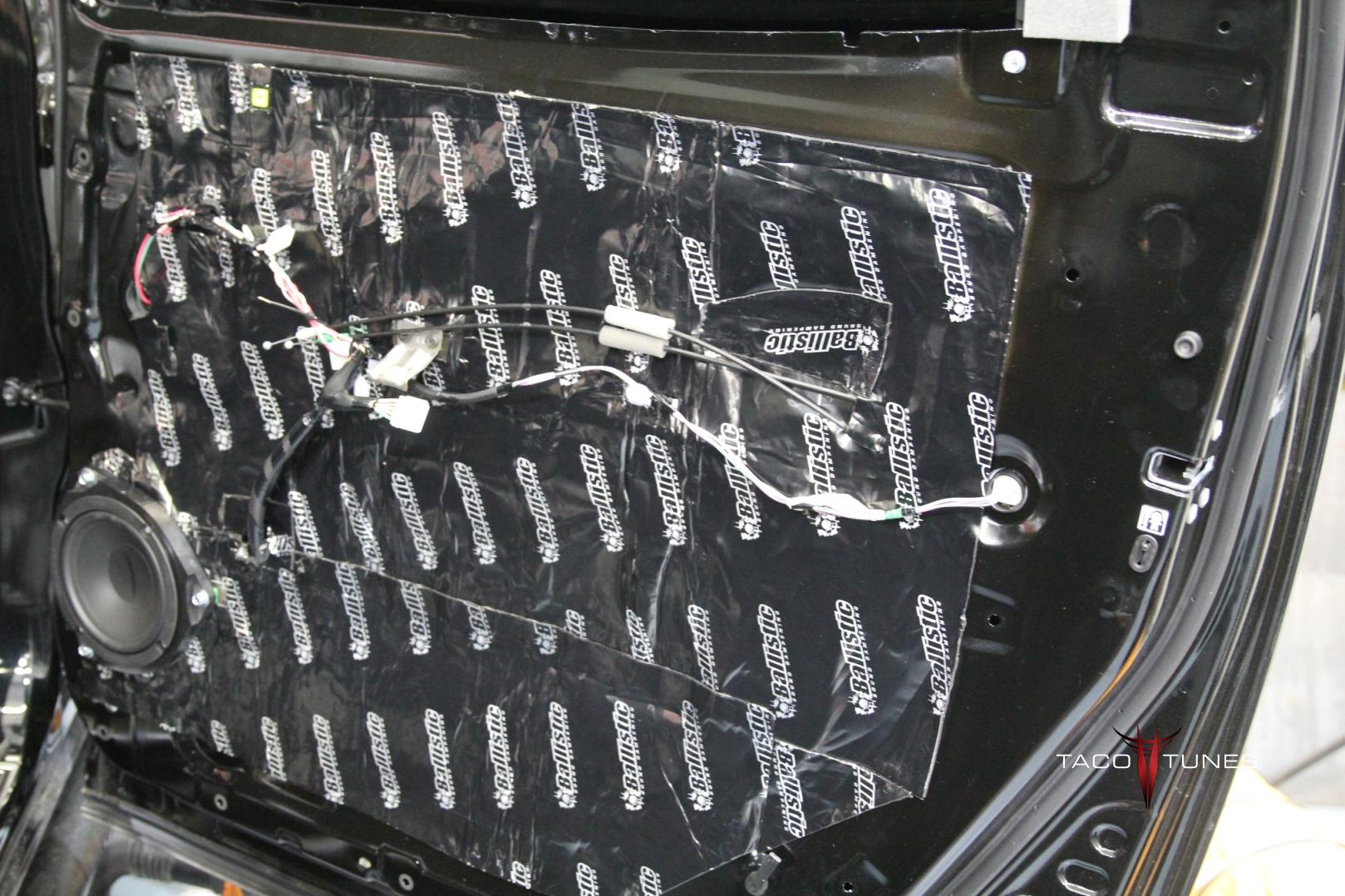

Matting:

Ballistic Matting 4 x Doors & Rear Wall takes 9 sheets to complete Tundra – Standard bulk pack includes 9 sheets.
