Tony B Toyota Tundra CrewMax 1794 Full Audio System self install

Toyota-Tundra-CrewMax-1794-Complete-Audio-System-1

Tony B Toyota Tundra CrewMax 1794 Full Audio System self install

Tony B’s Toyota Tundra CrewMax Platinum Stereo System Upgrade San Antonio TX

Installation Summary / History:

Customer Name: Tony B.

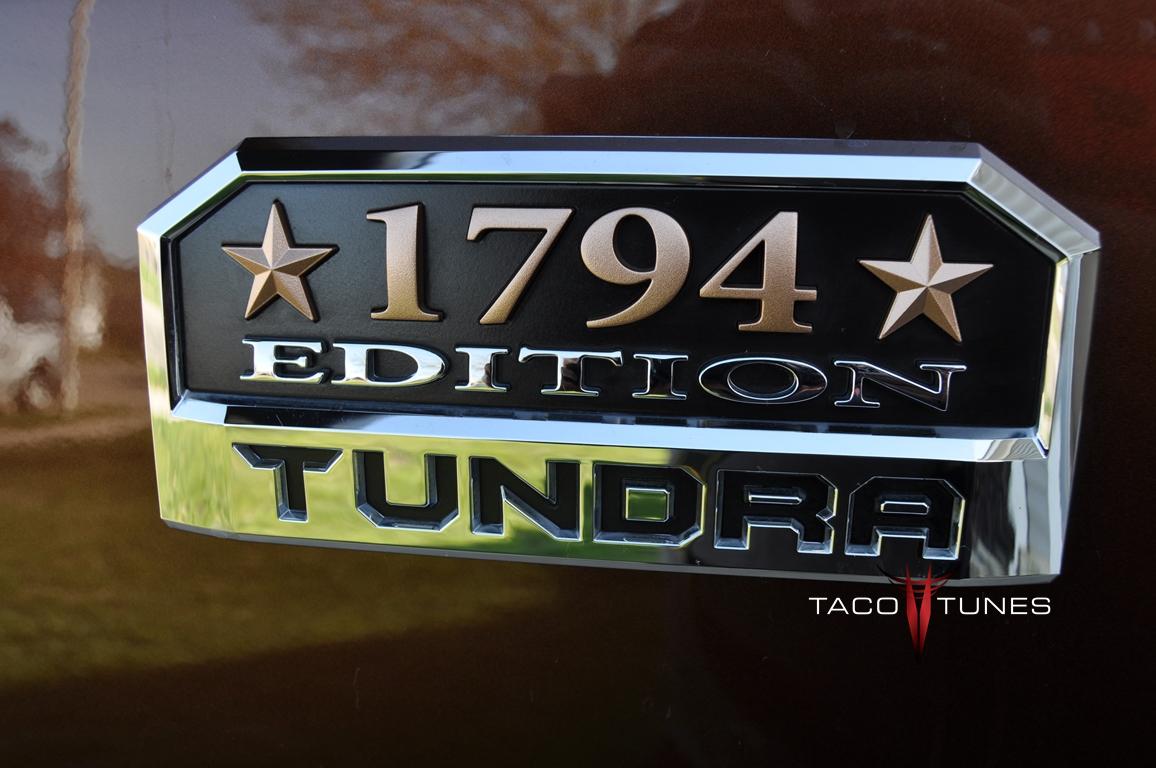

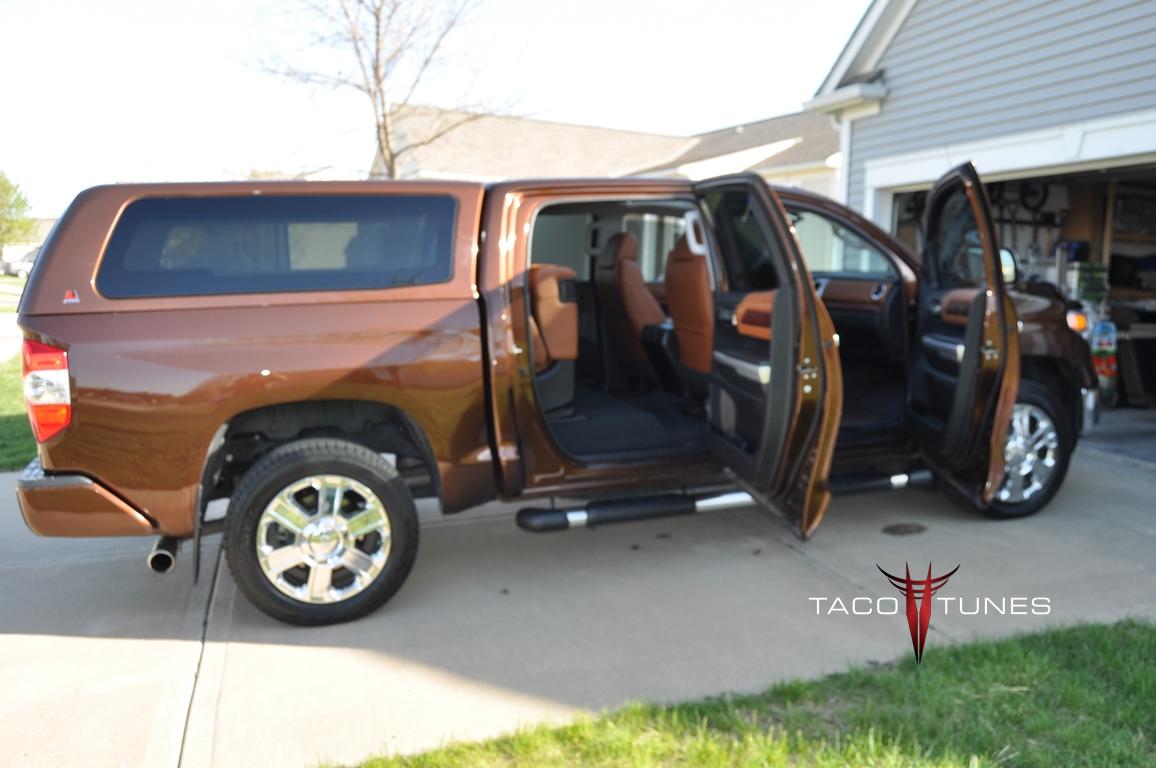

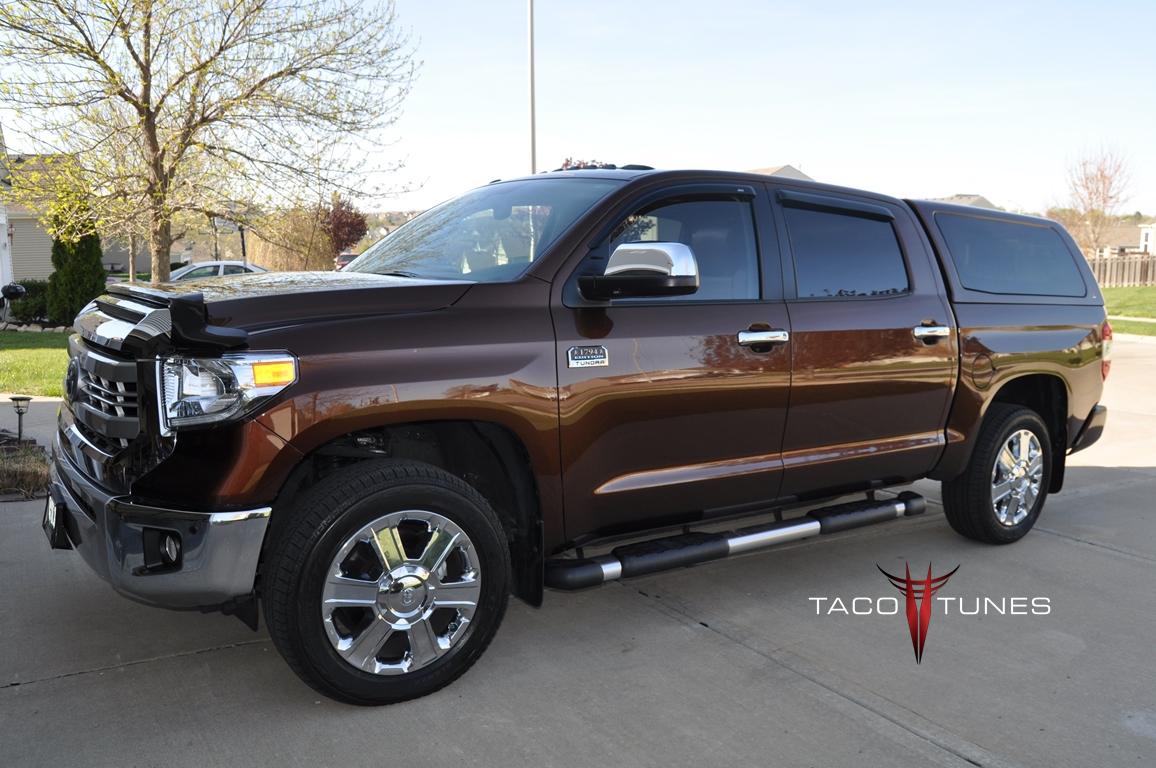

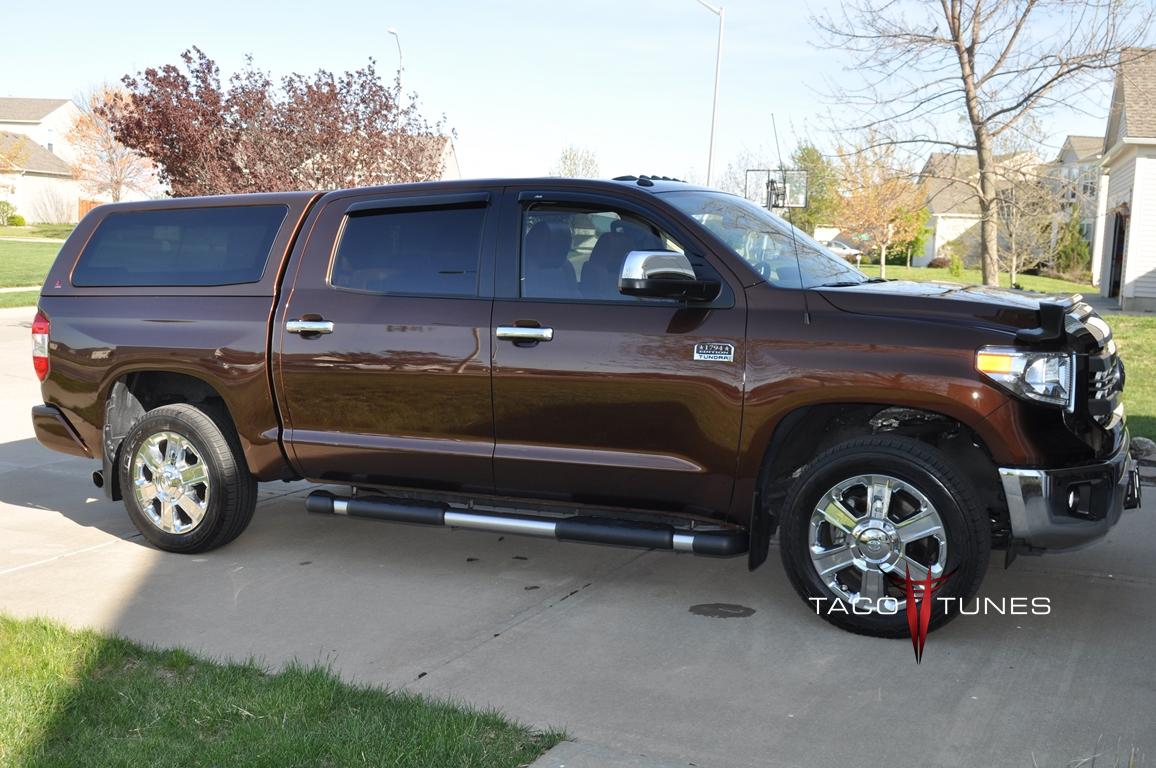

Toyota Year / Model: 2015 Toyota Tundra CrewMax 4×4 1794 Edition

Head Unit: JBL Equipped

Color: Sunset Bronze Mica

Installed by: Tony B.

Tony  has had audio systems in most of his vehicles. Fortunate for us, he is familiar and has owned Image Dynamics equipment in the past. After hearing a couple of options he decided to go with our Image Dynamics SQ1 package.

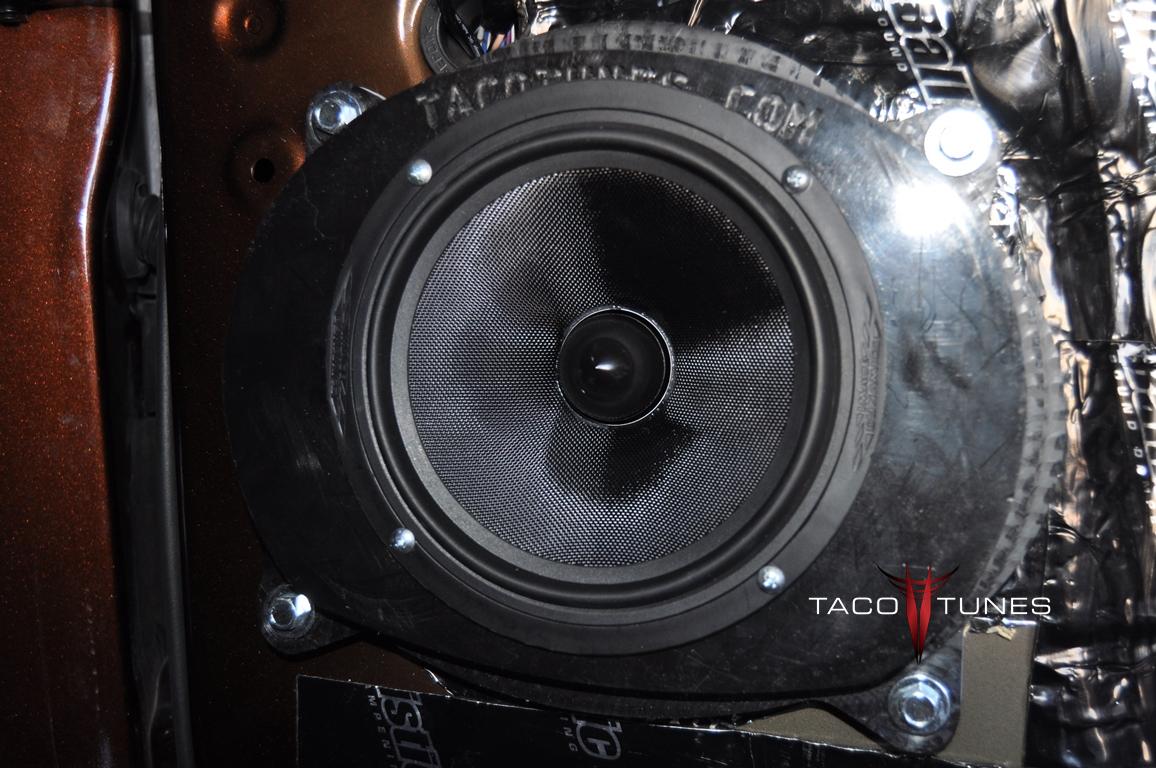

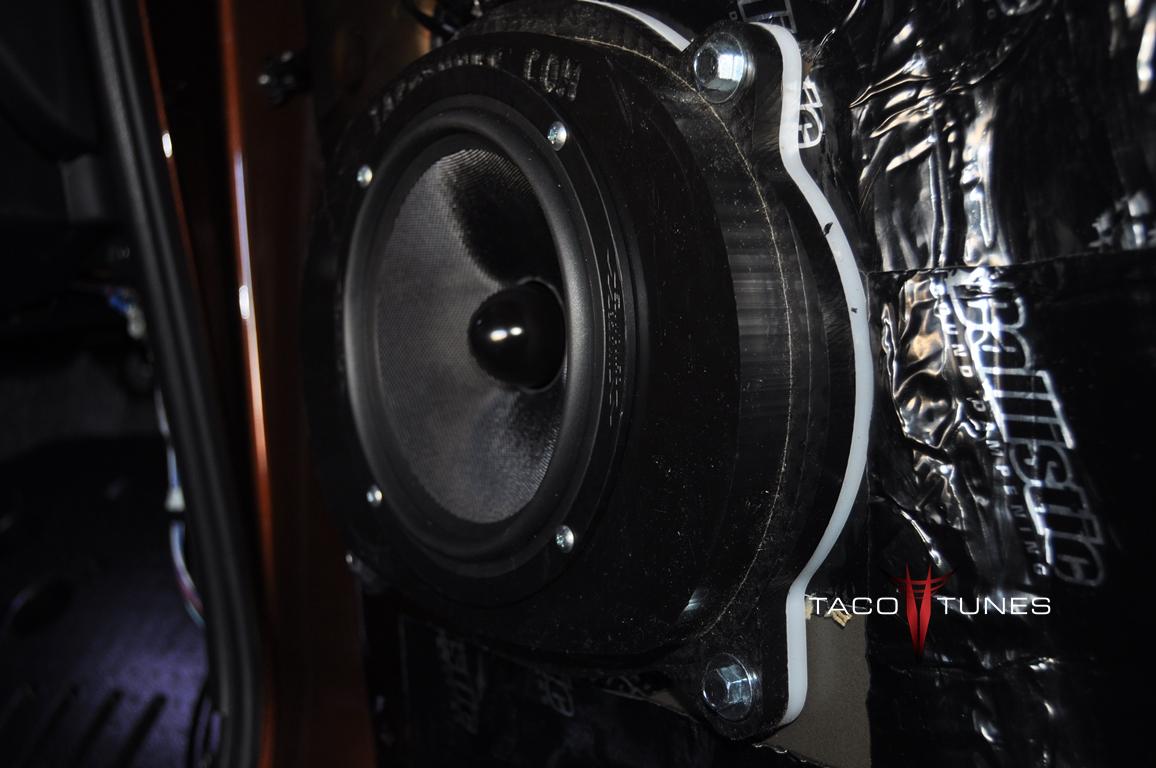

Front Door Component Speakers:

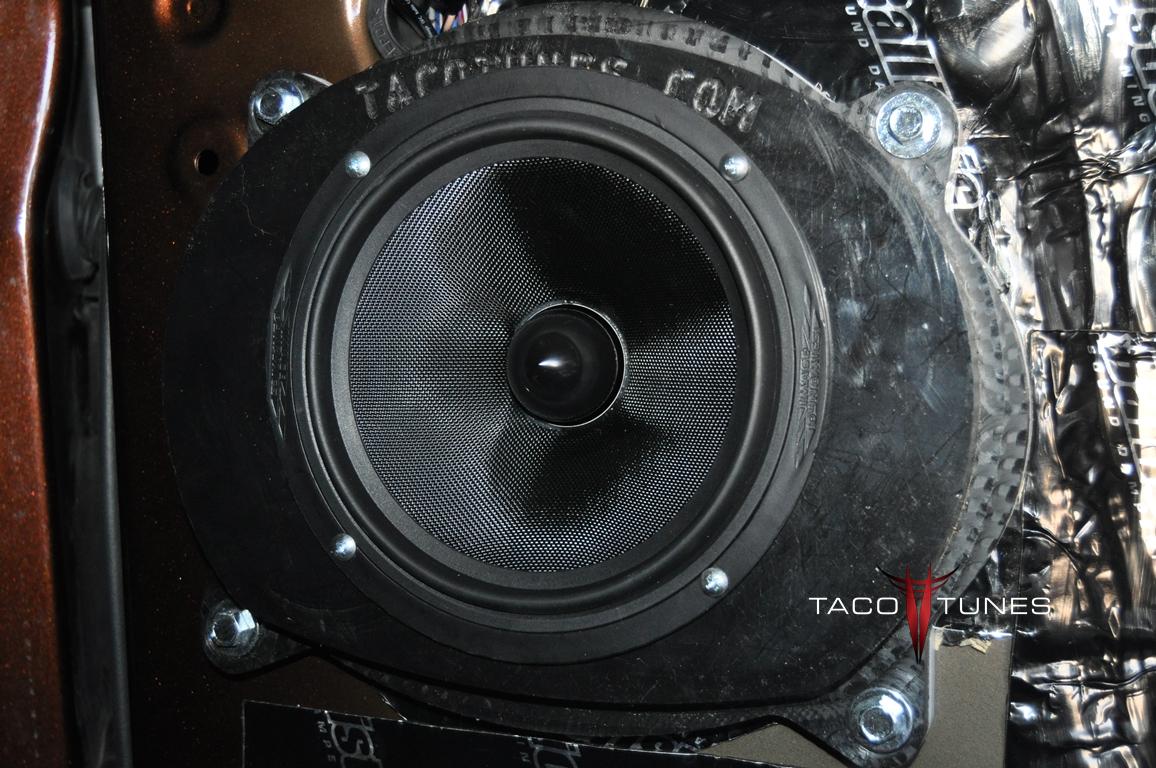

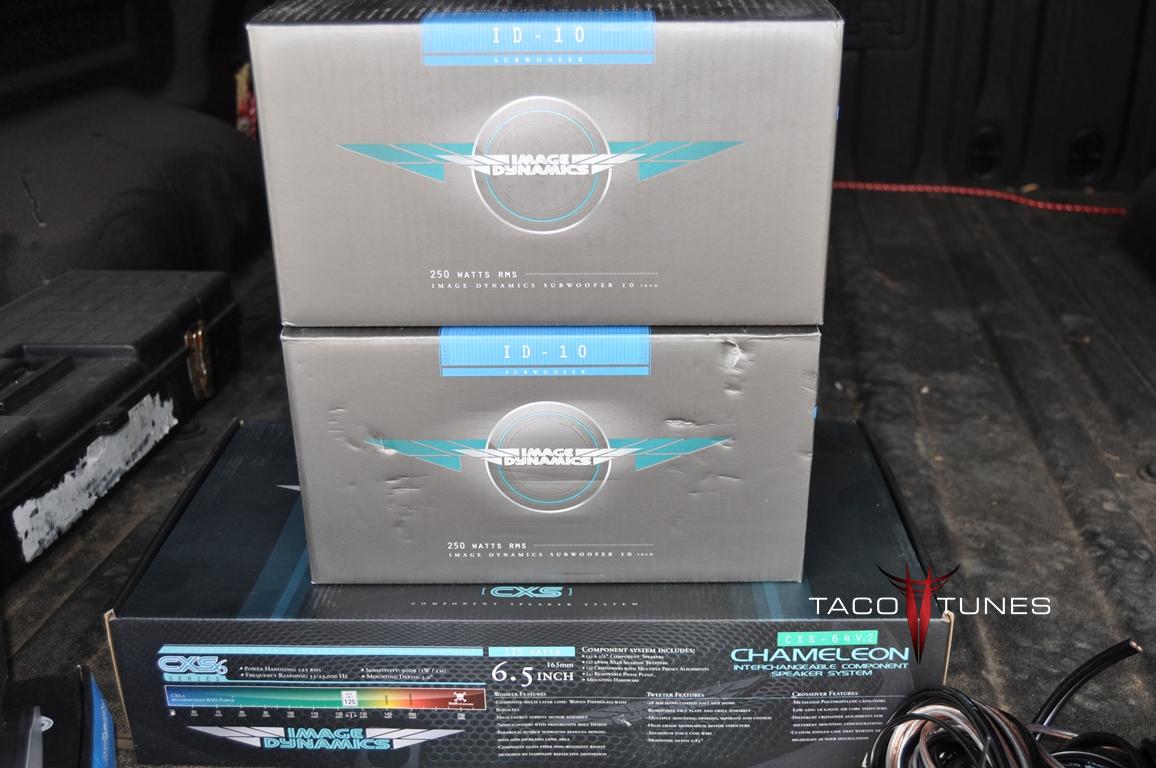

Image Dynamics CXS64

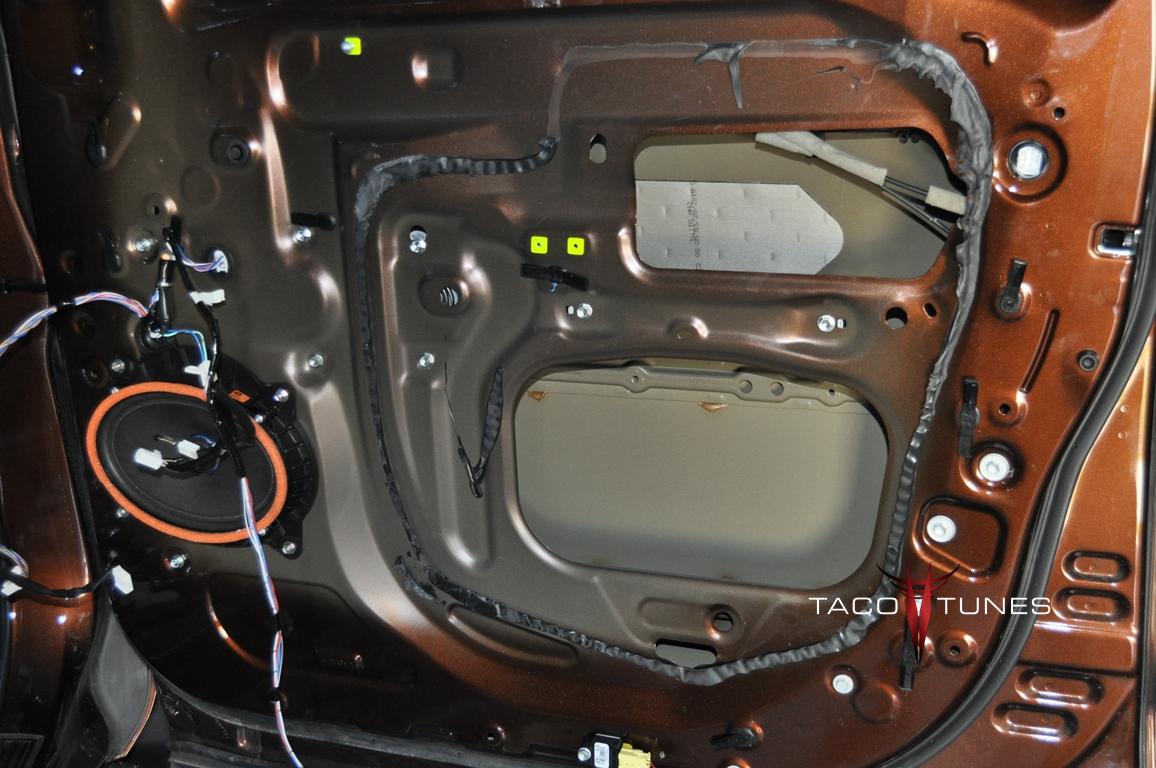

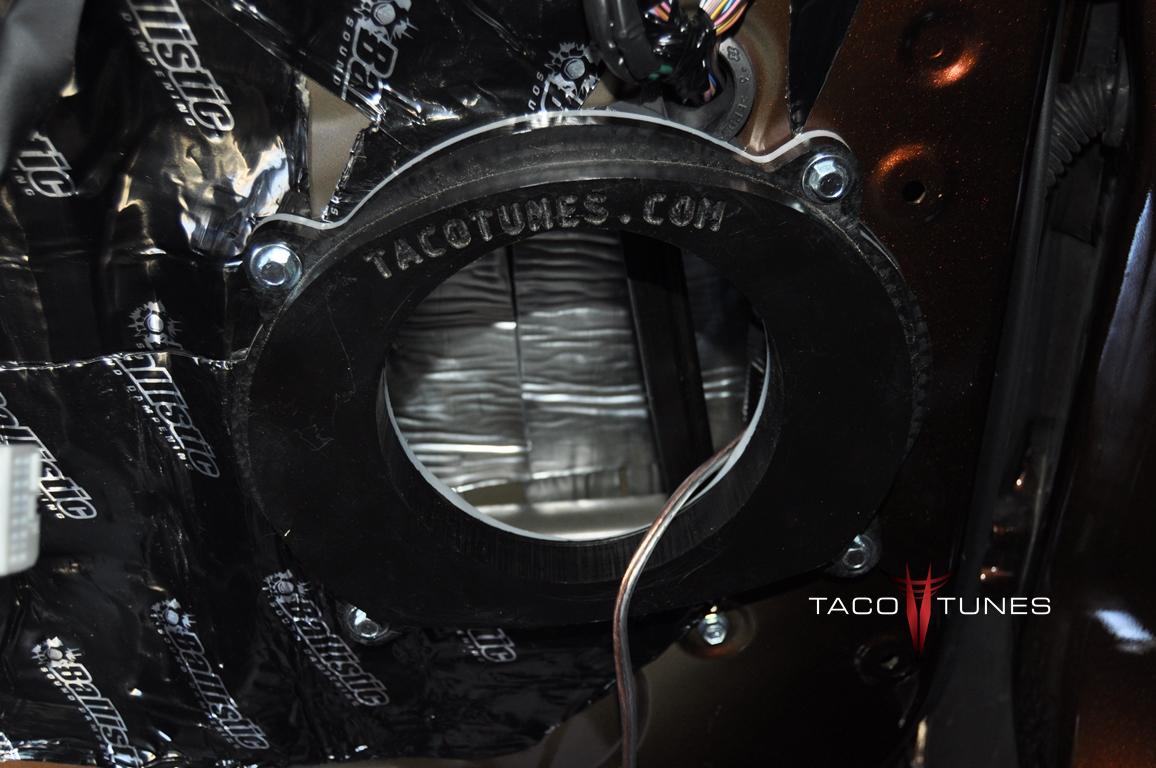

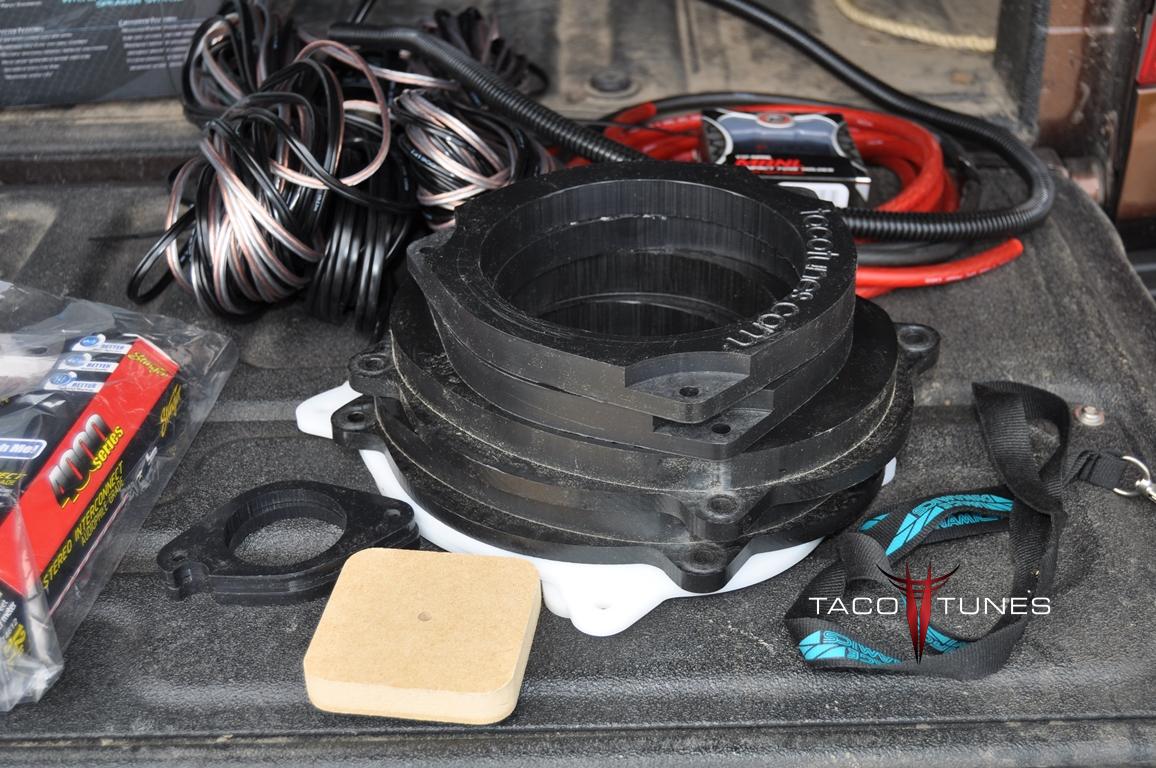

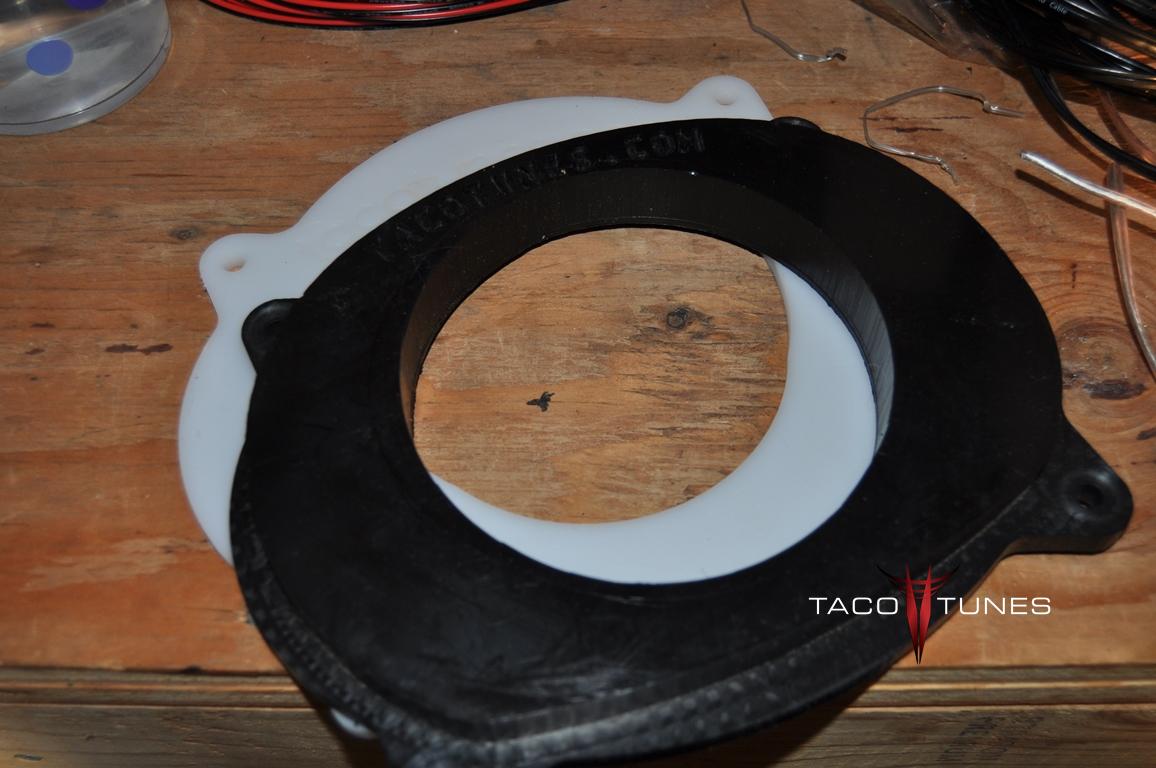

Tacotunes.com heavy duty speaker mounts cut to 5.6”

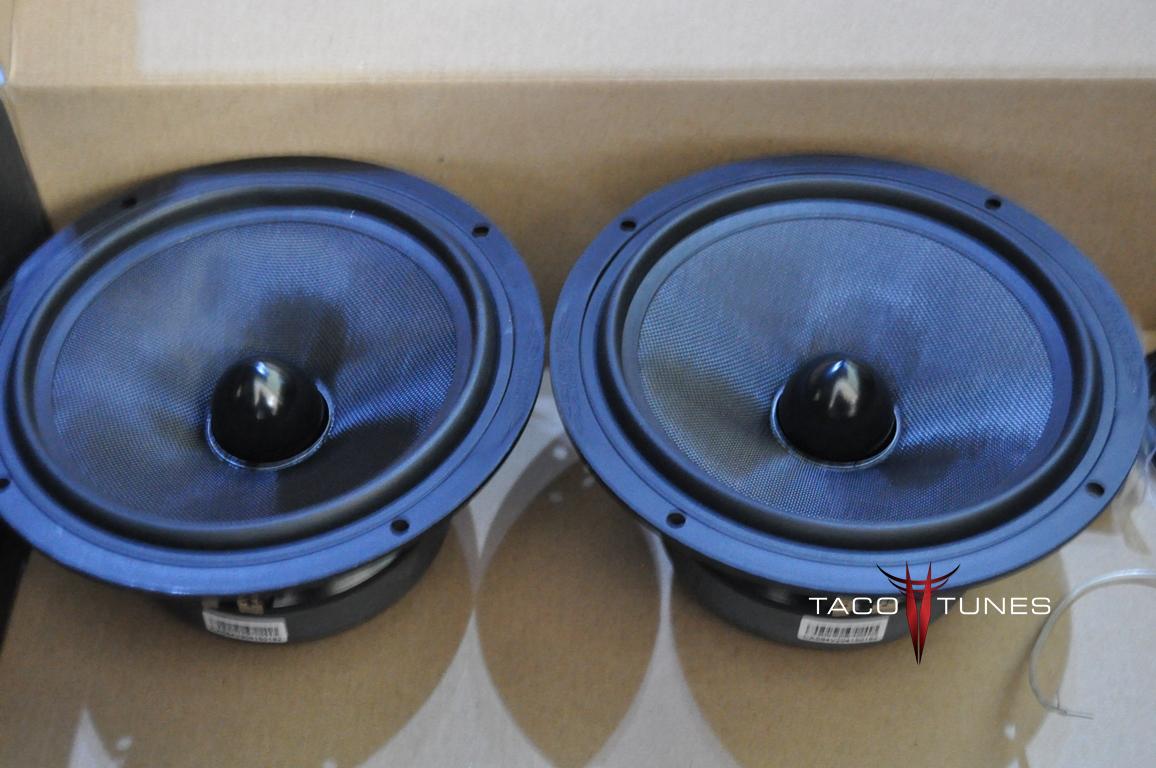

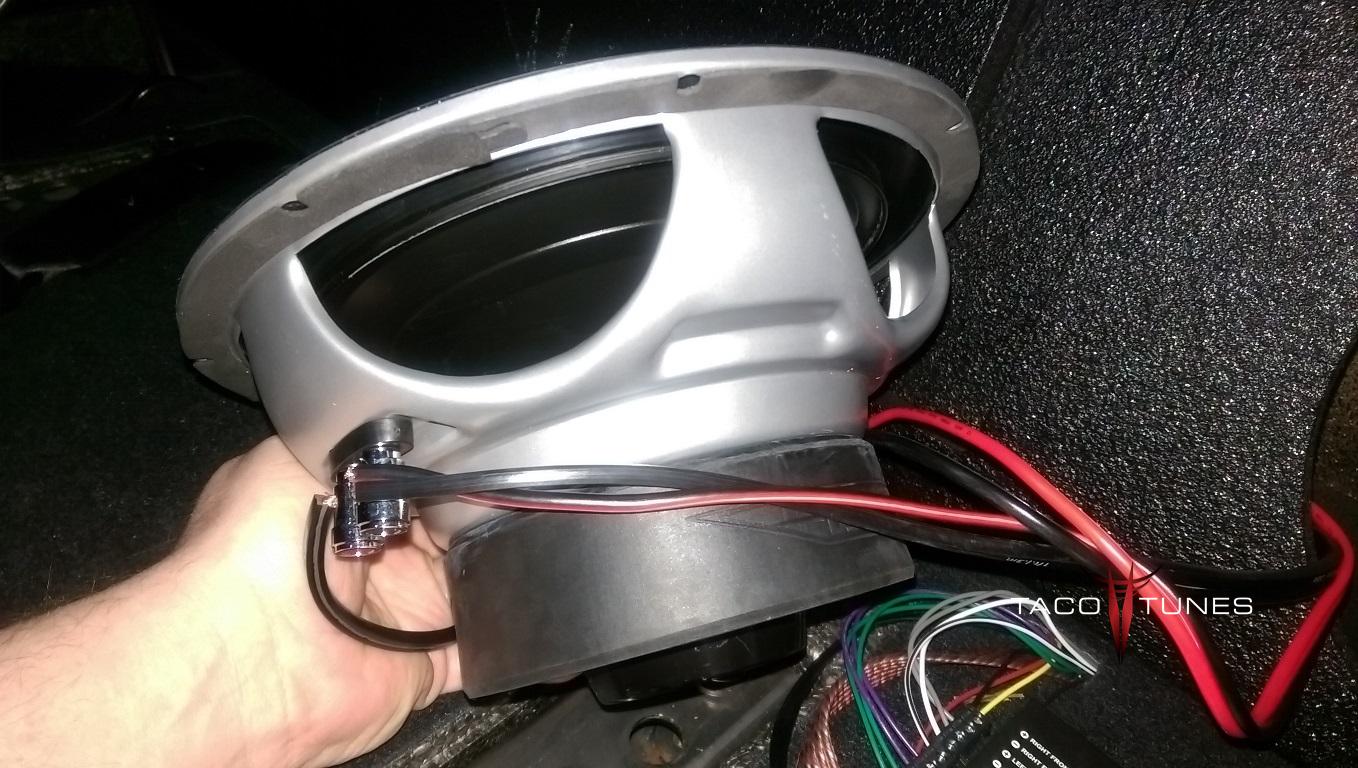

CXS Mid bass Drivers -125 Watts RMS

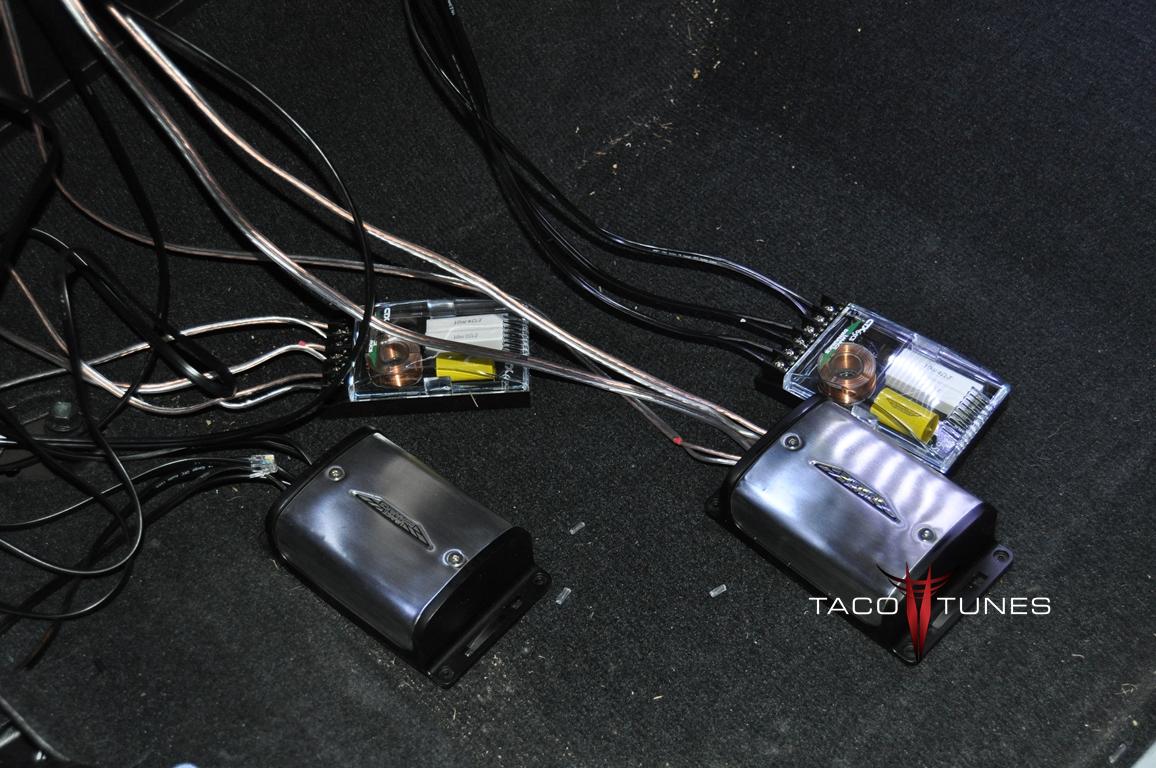

CXS Crossover

CXS 28M Silk Dome Tweeter

NOTE: JBL Yes / No ?

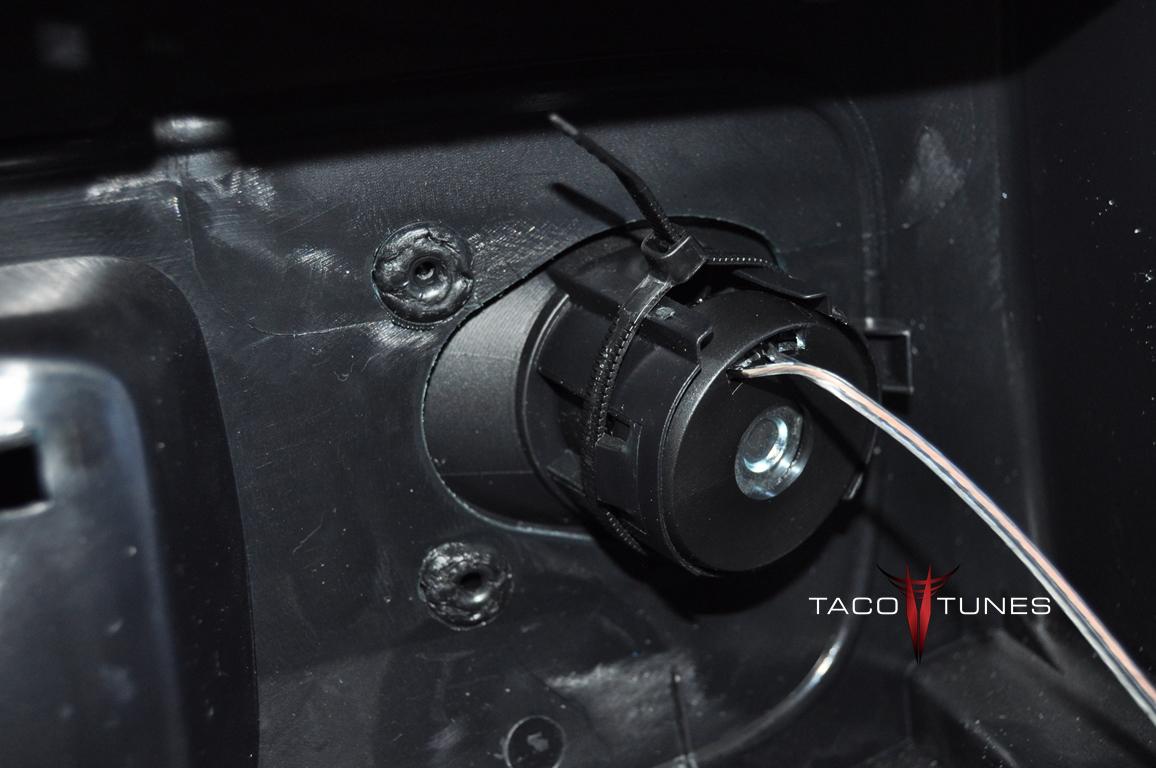

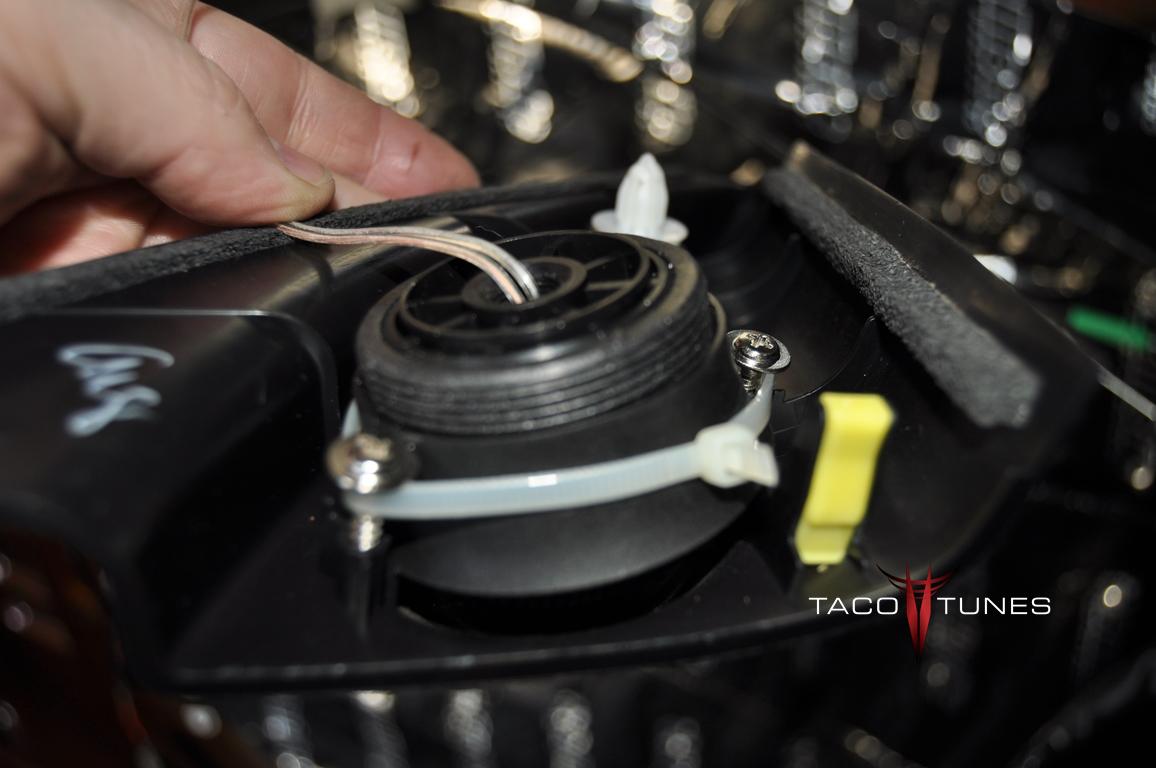

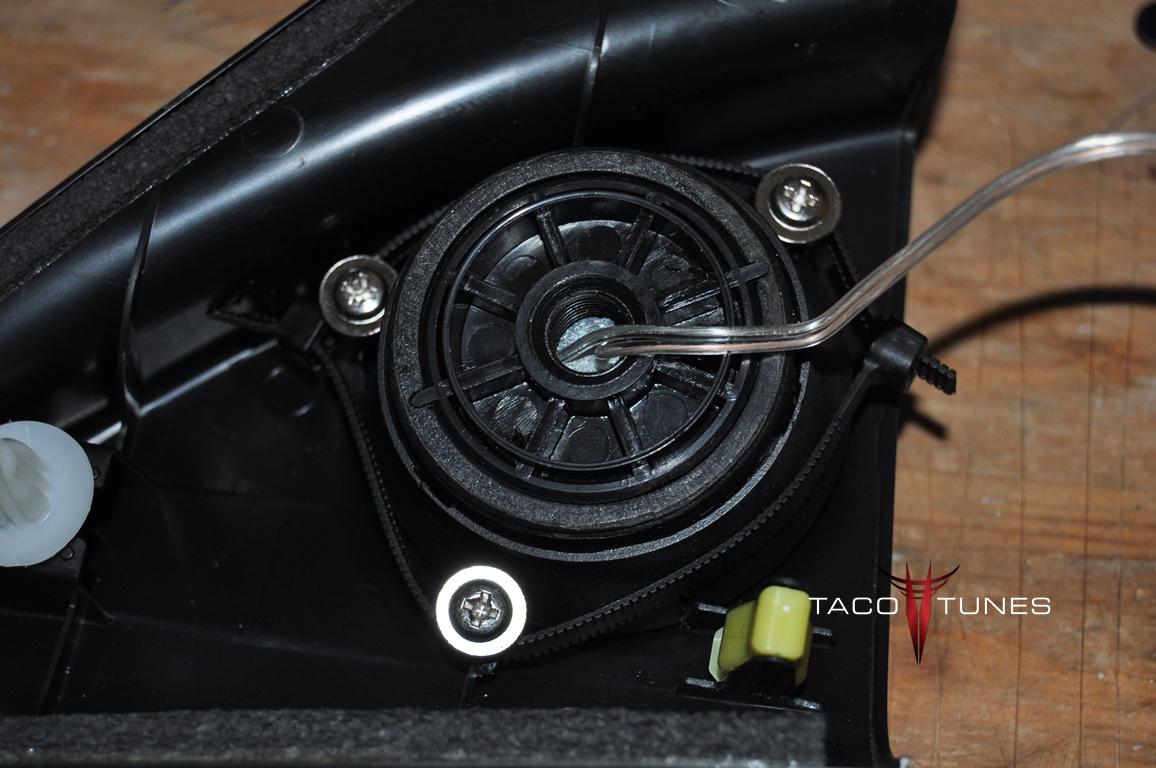

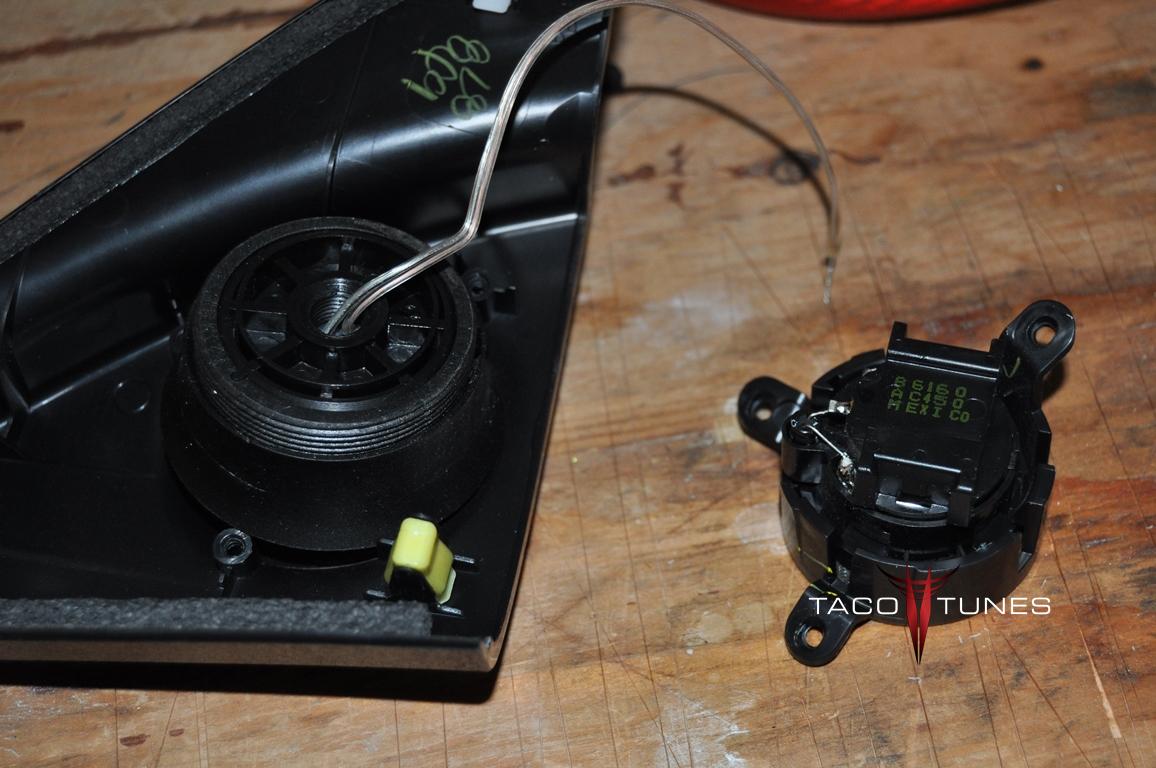

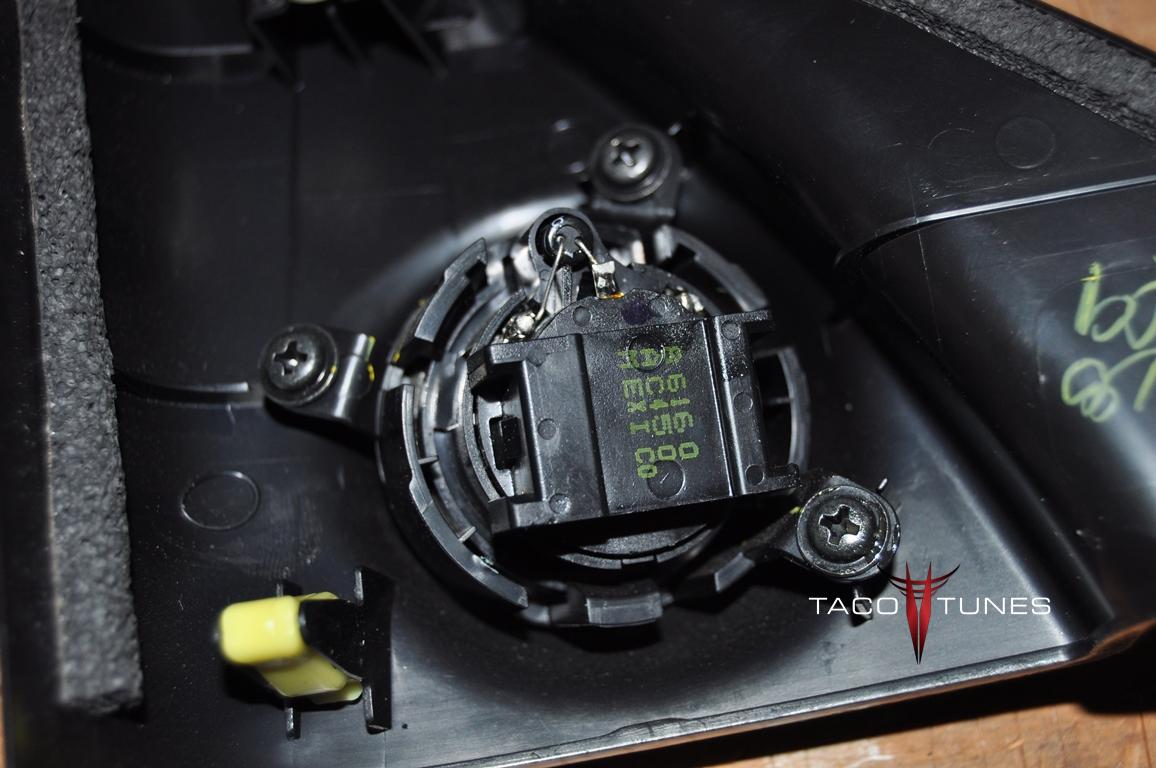

Use Stock Sail Panel for Tweeter mounts.

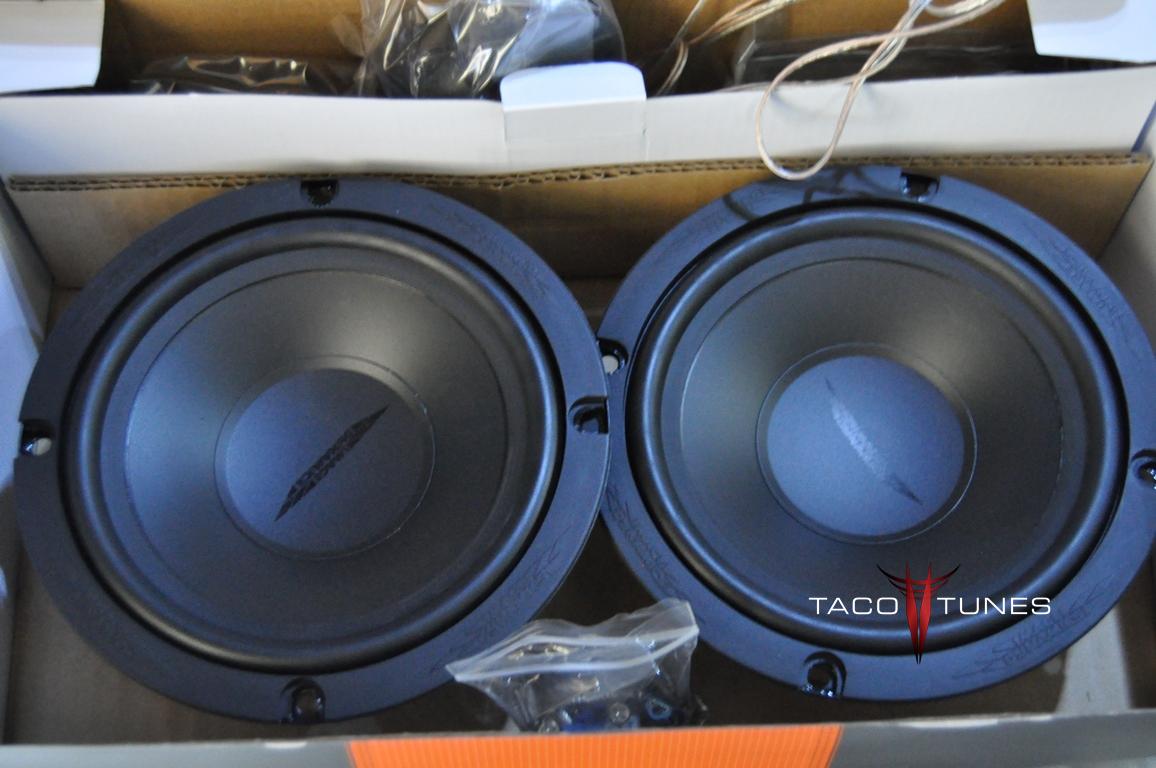

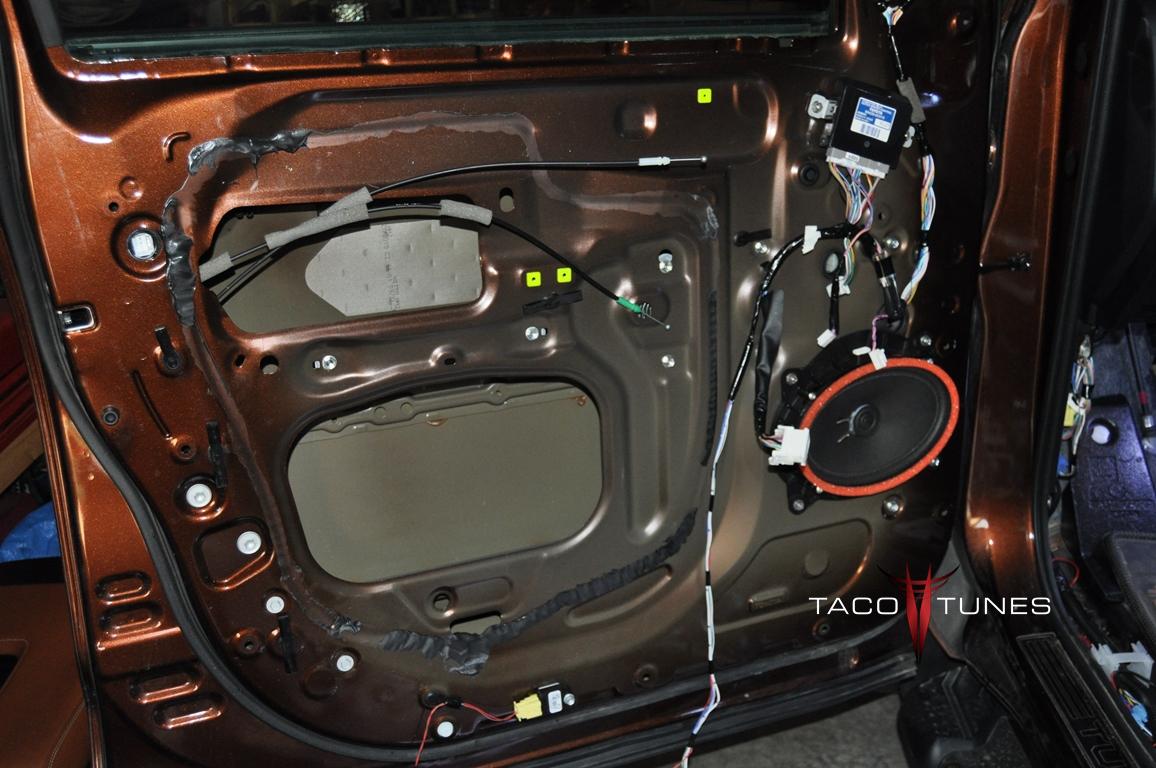

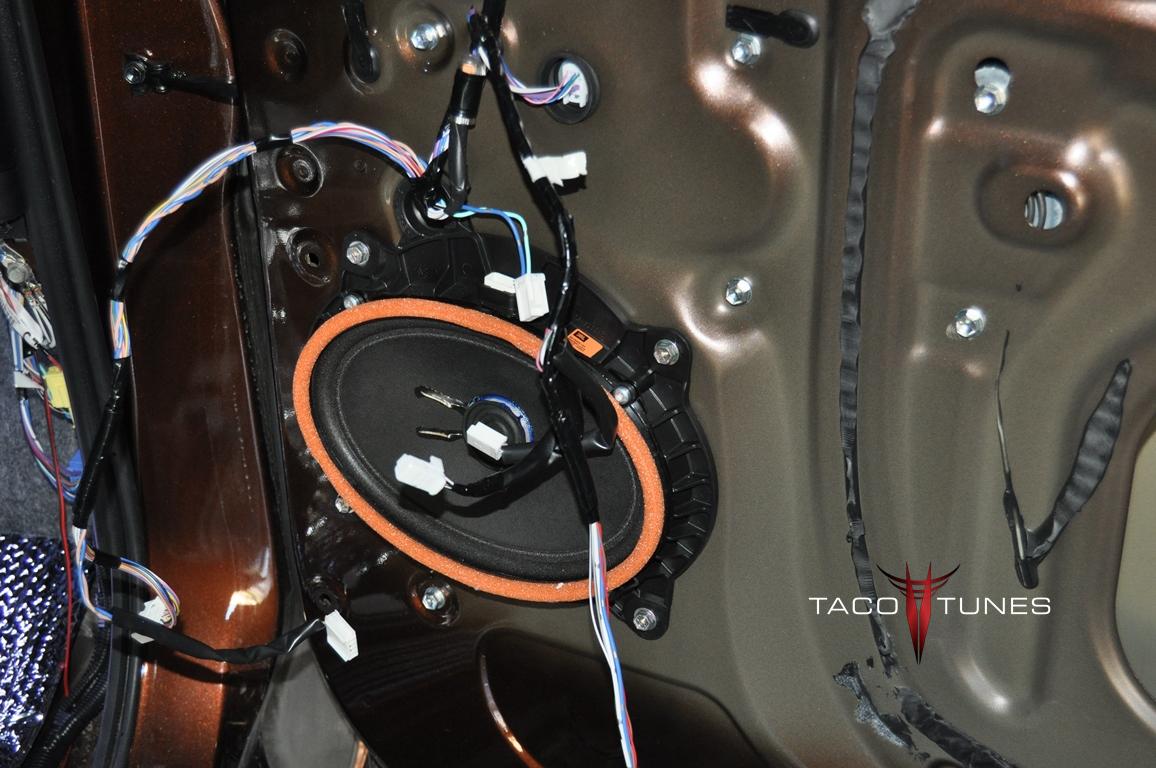

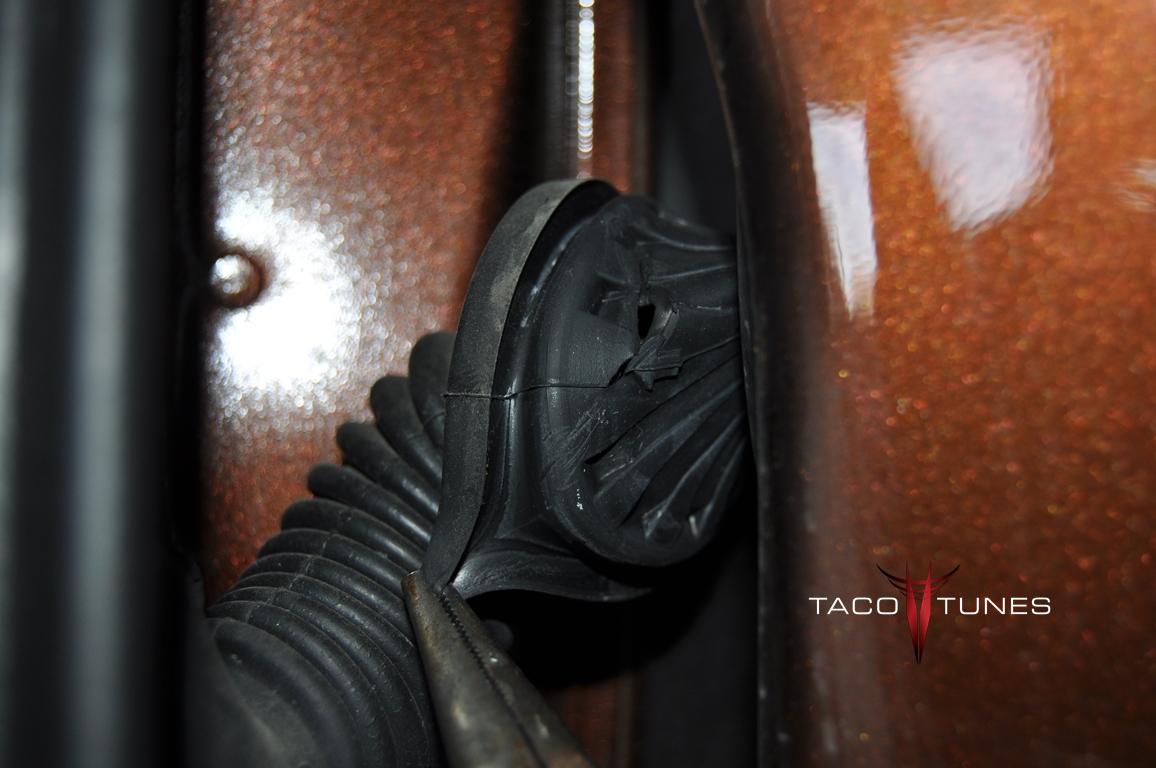

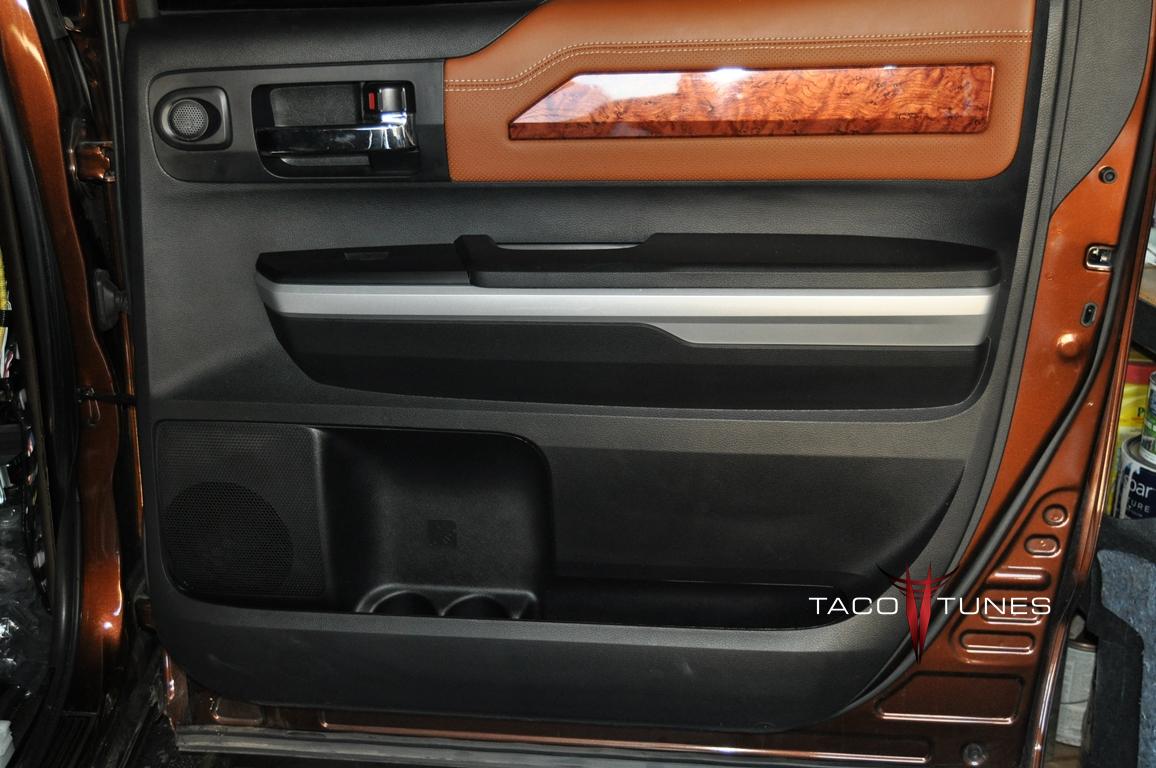

Rear Door Components:

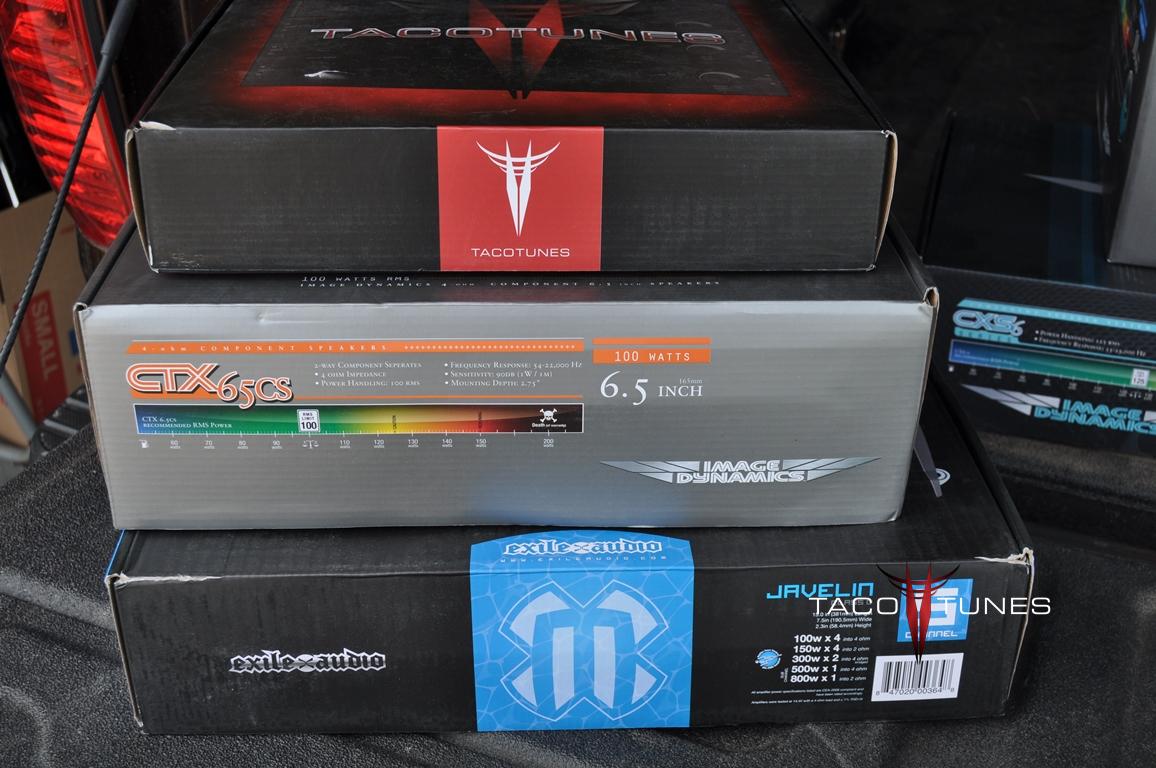

Image Dynamics CTX65CS

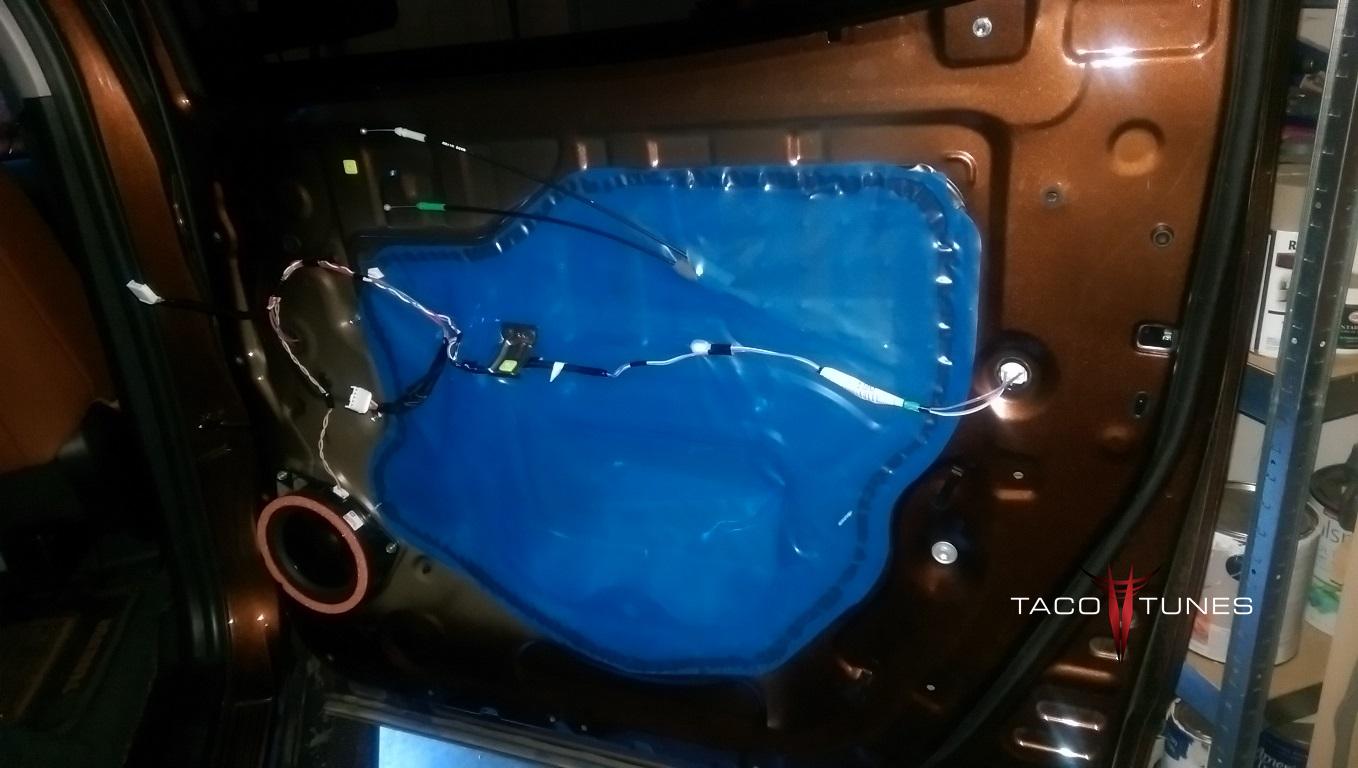

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

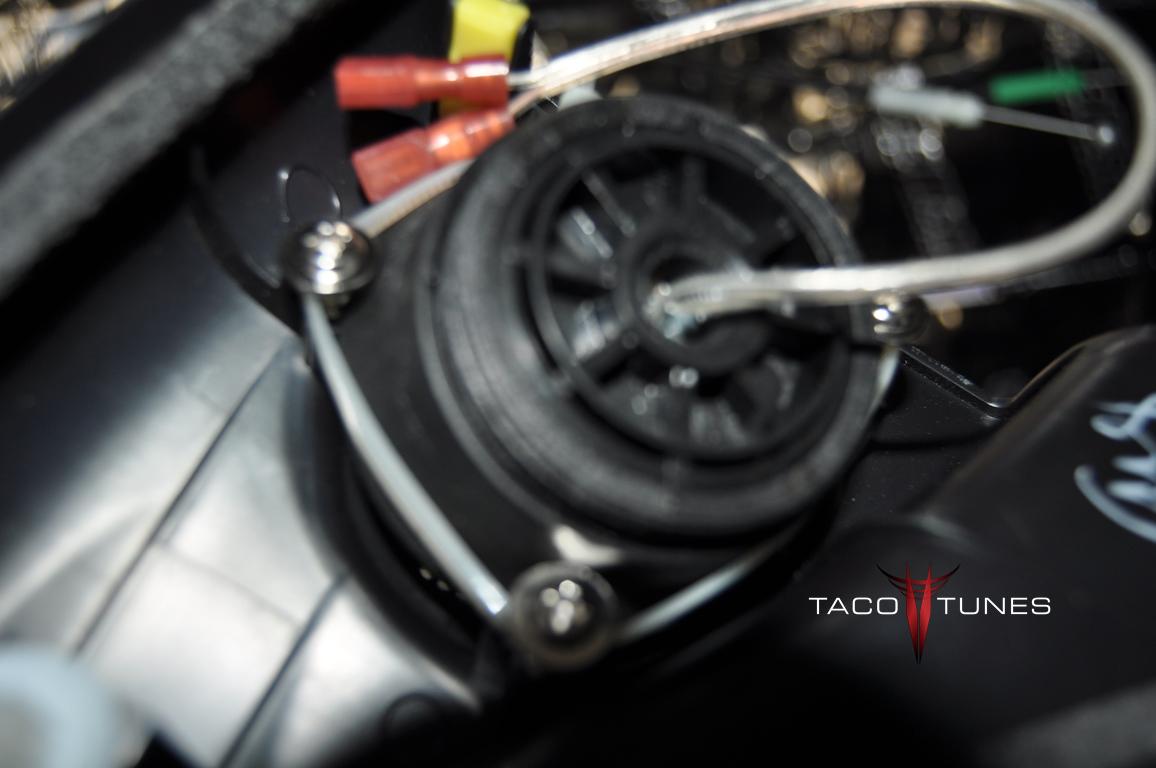

CTX Tweeters

Tweeters will fit in stock door location

Sound Processor:

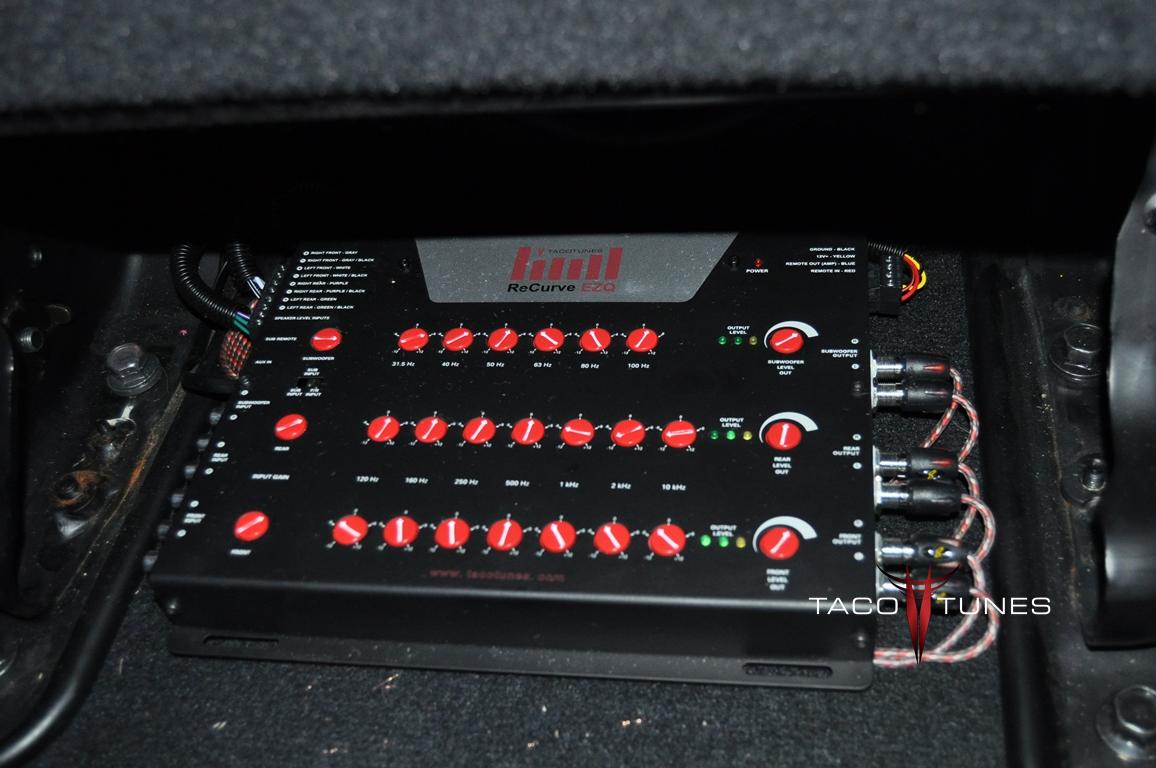

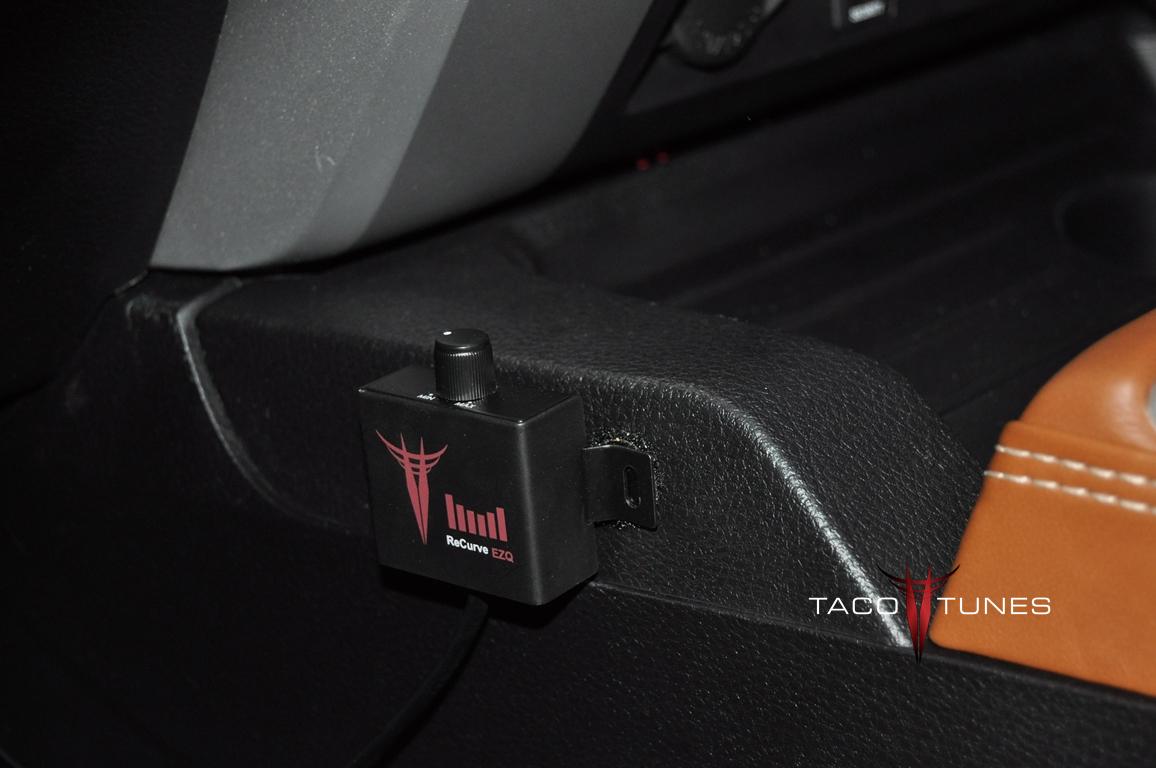

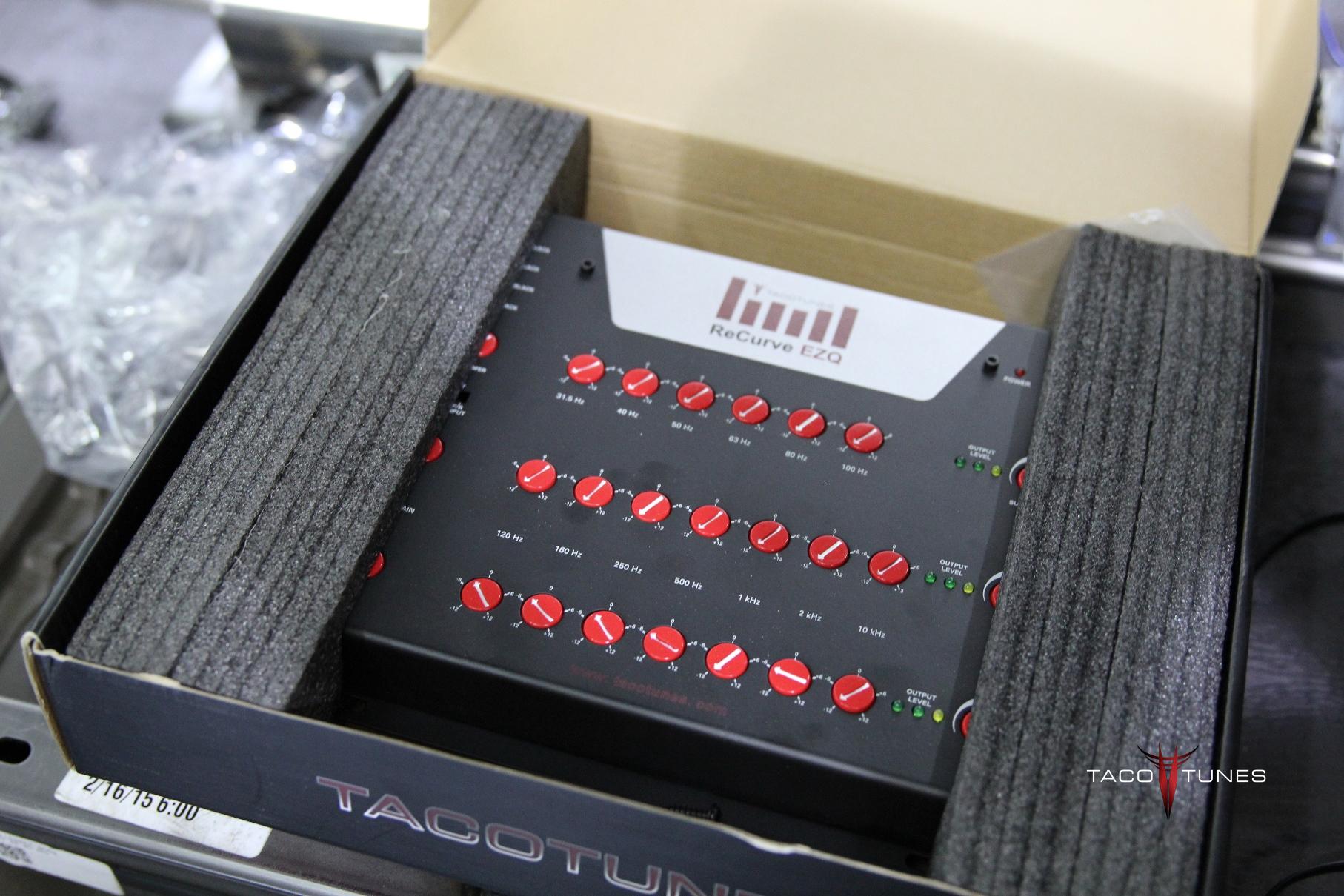

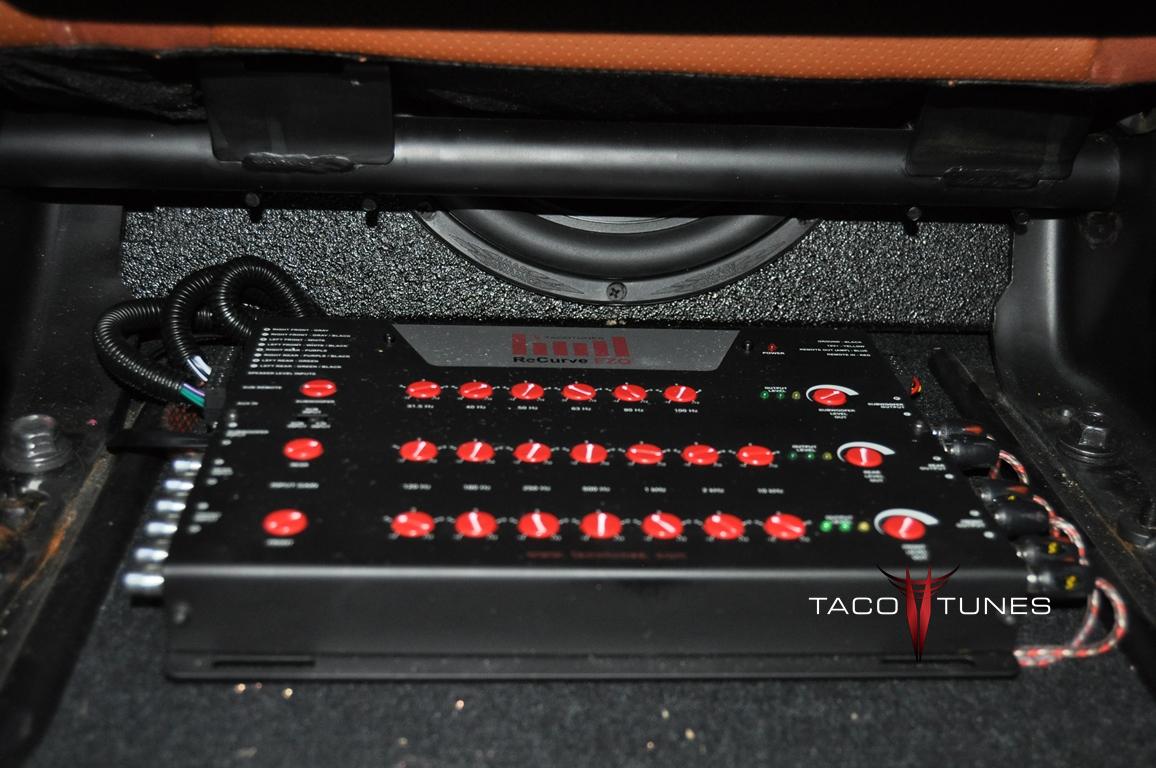

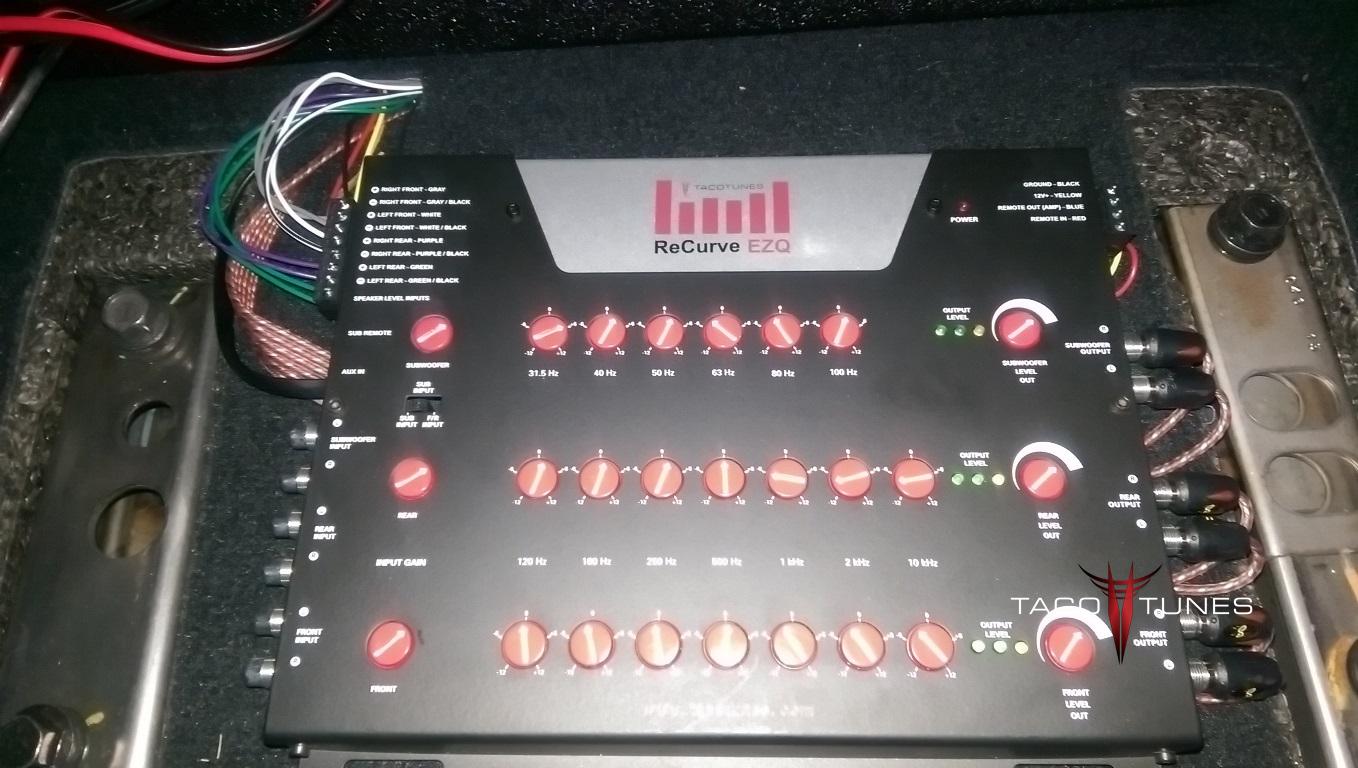

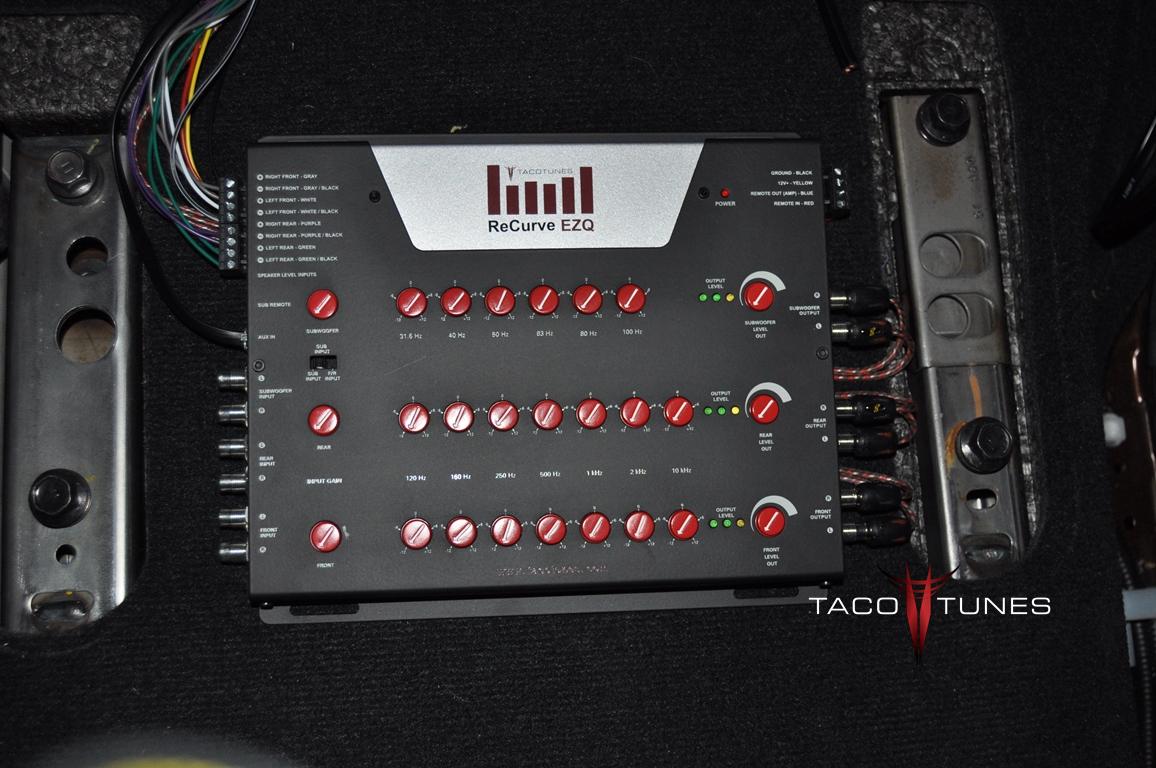

Tacotunes.com ReCurve EZQ

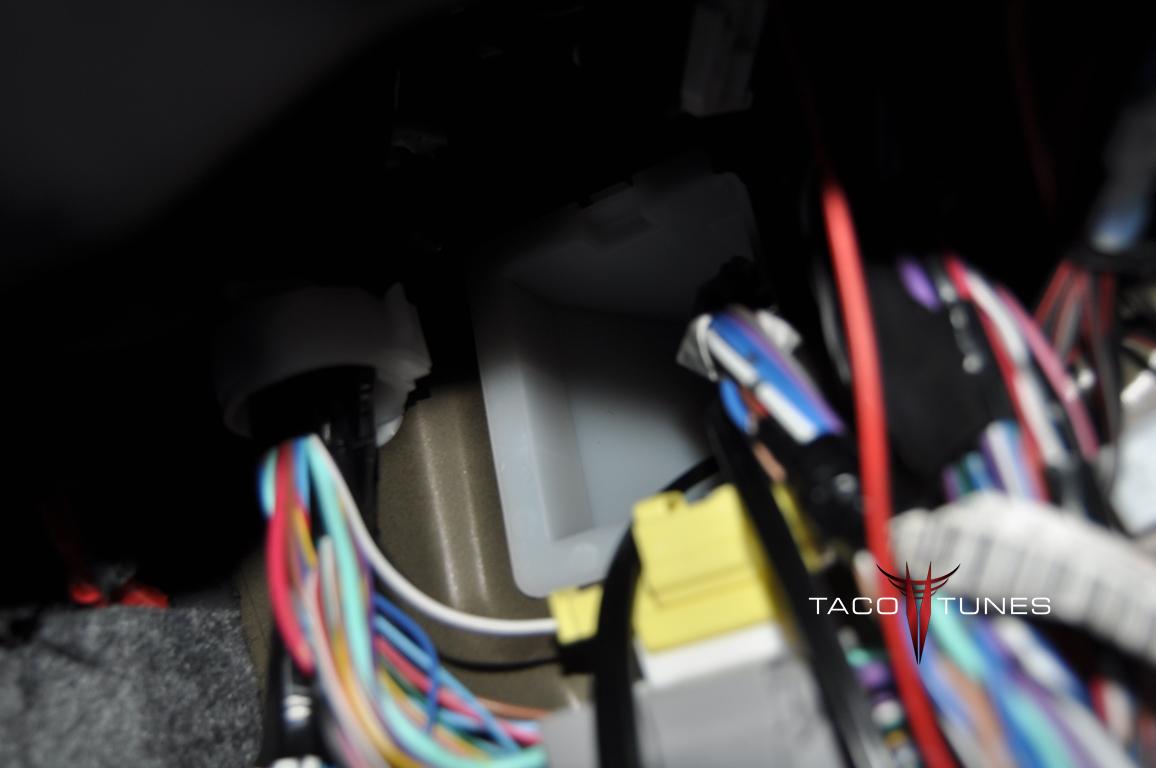

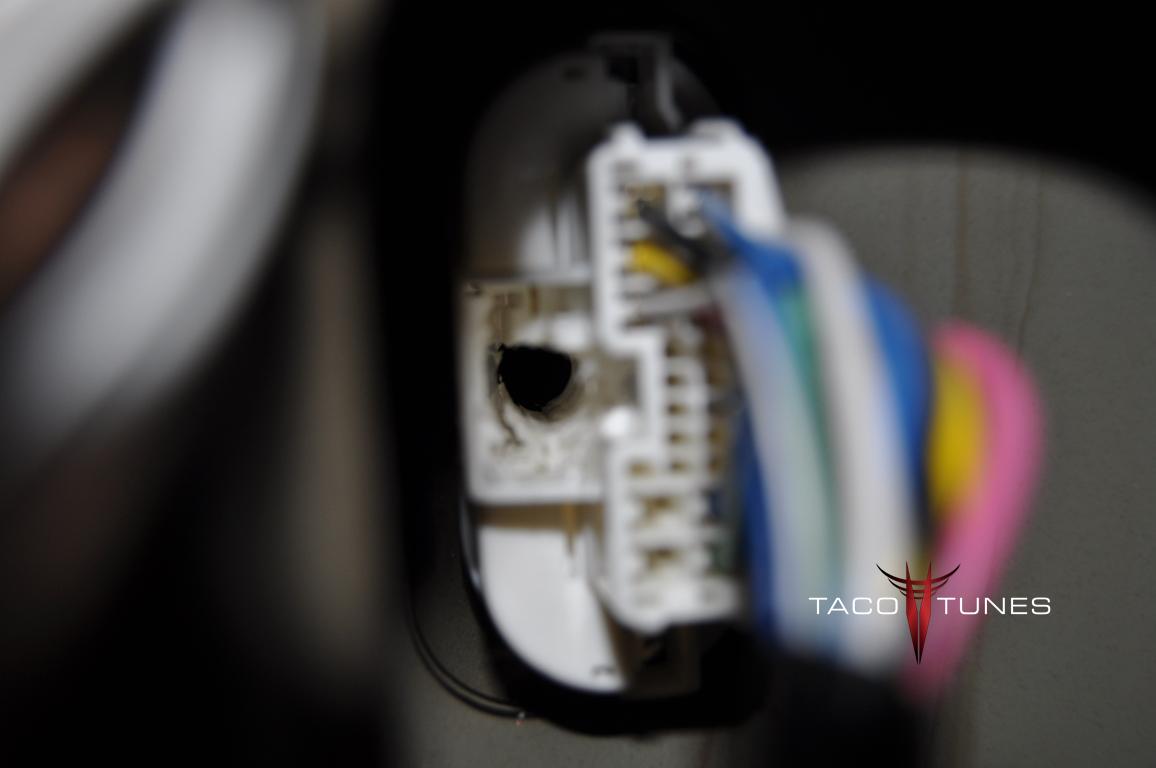

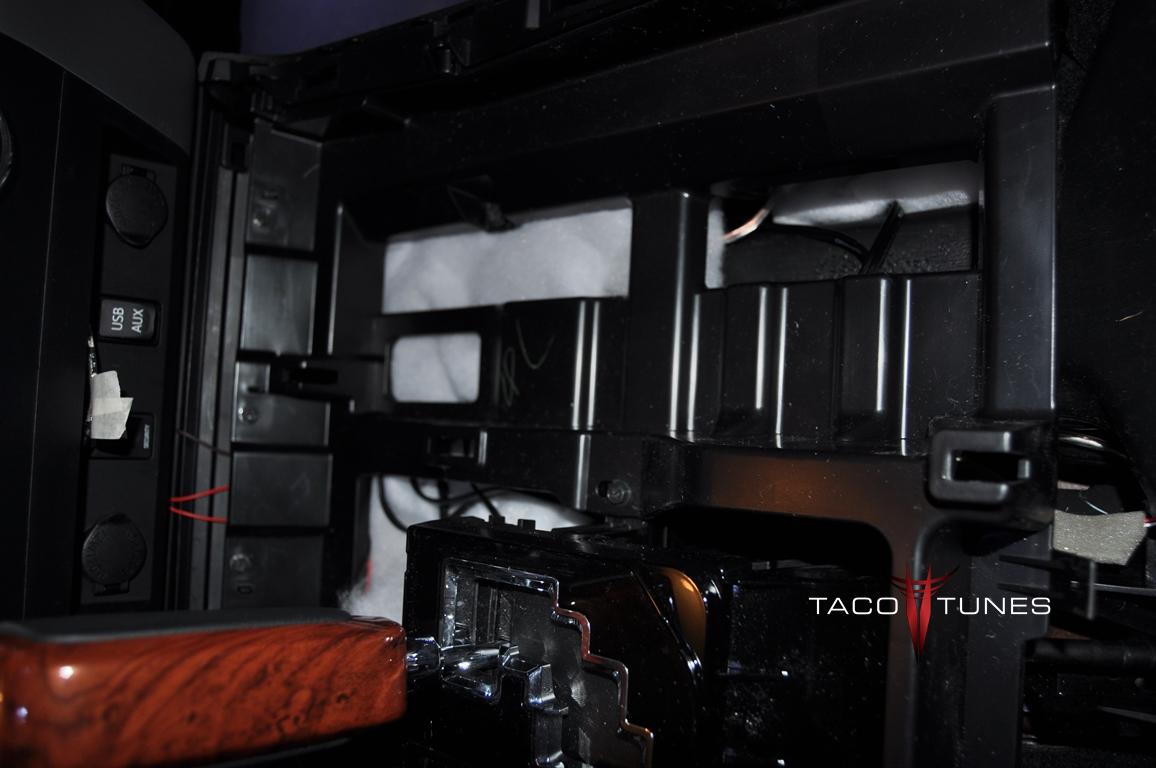

Tacotunes.com JBL Harness

Amp:

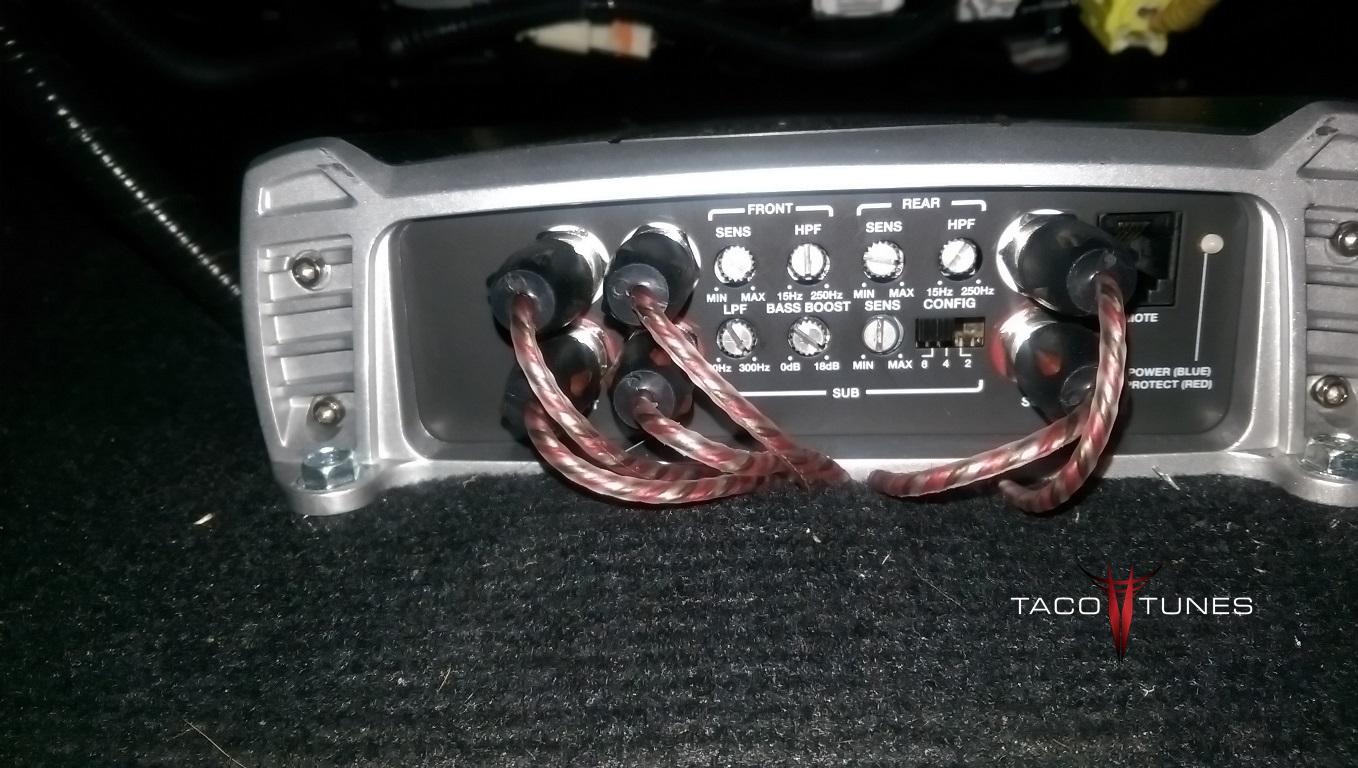

Exile Audio 5 channel amp

100 watts x 4 to each speaker and 800 x 1 (subwoofer)

Subwoofer(s):

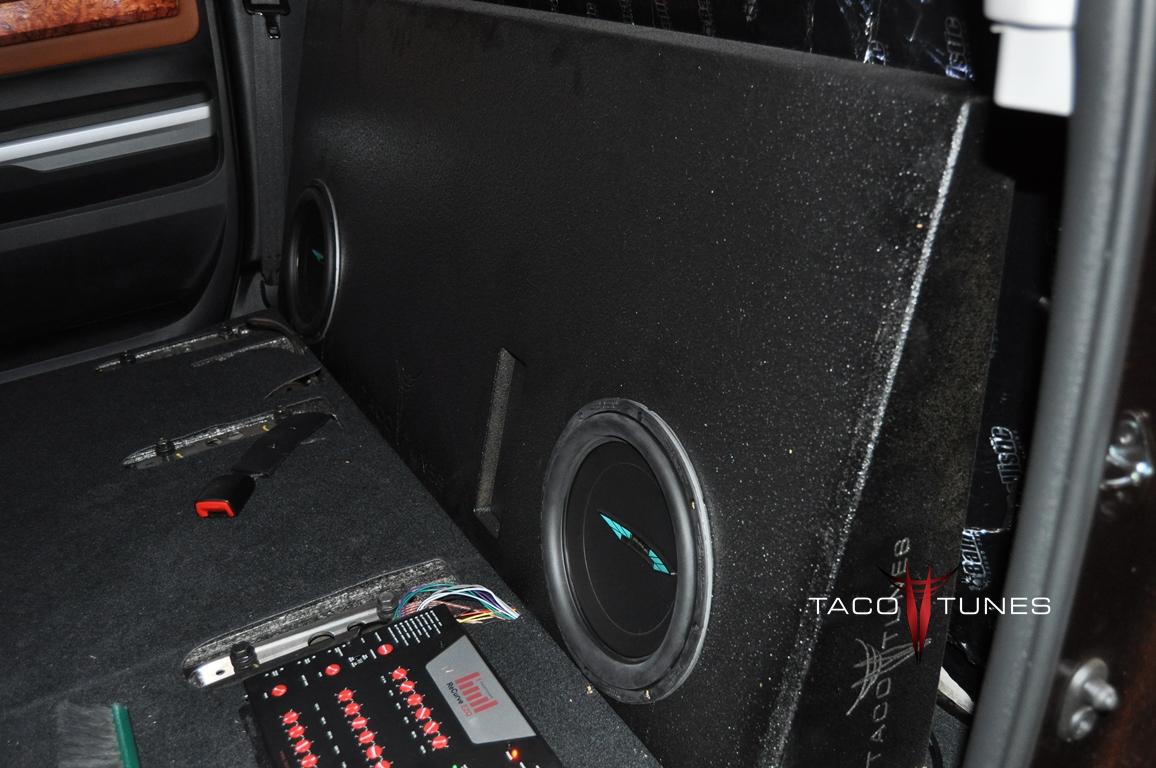

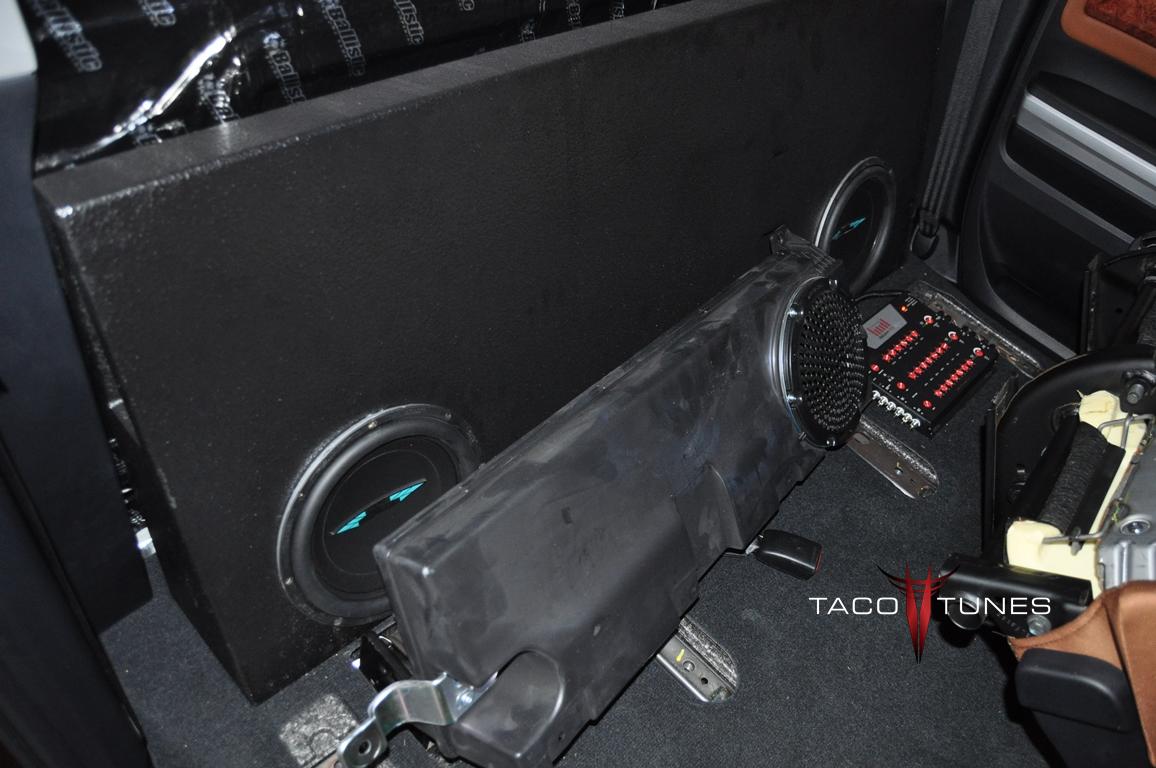

Subwoofer Box & Subwoofers

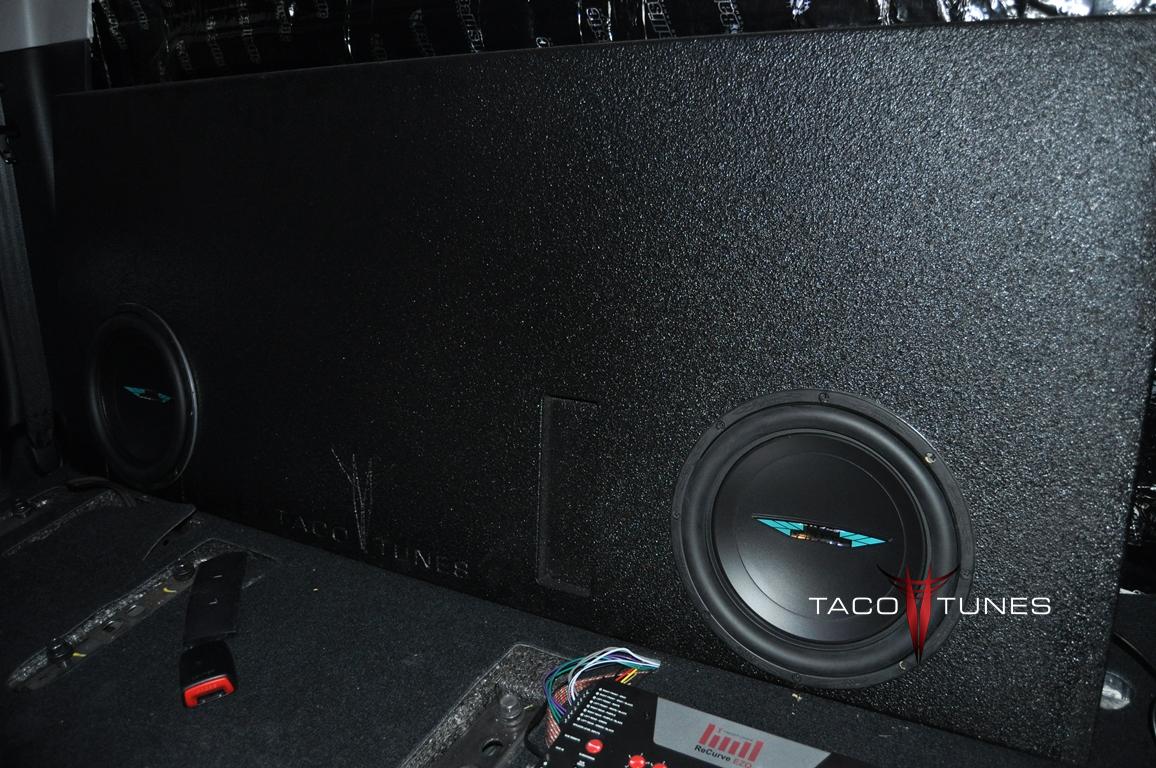

Tacotunes.com dual 10” subwoofer enclosure 2.0” cu feet

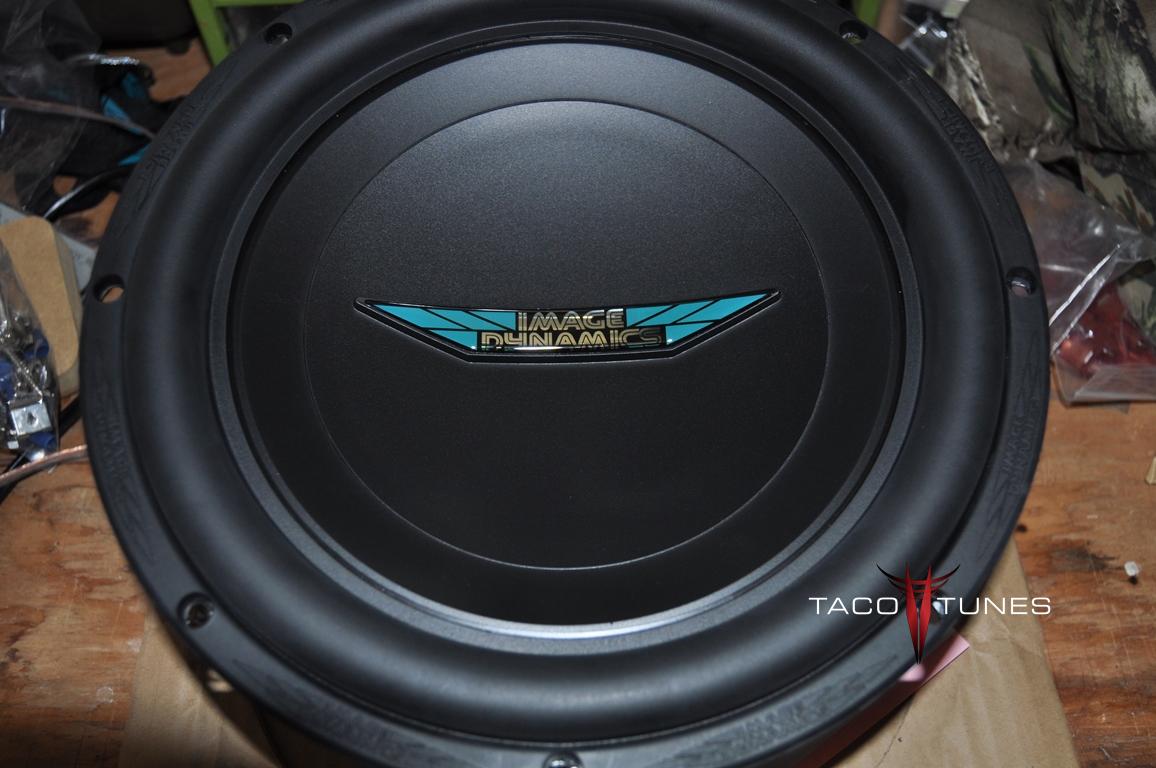

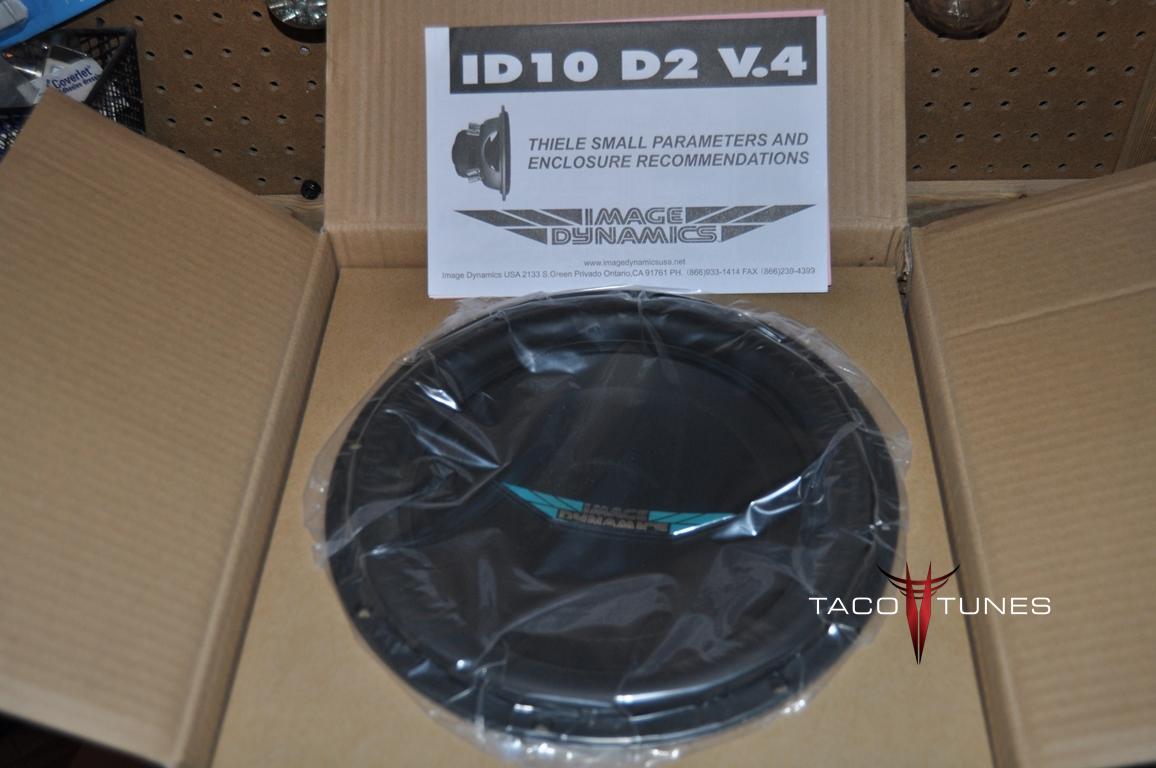

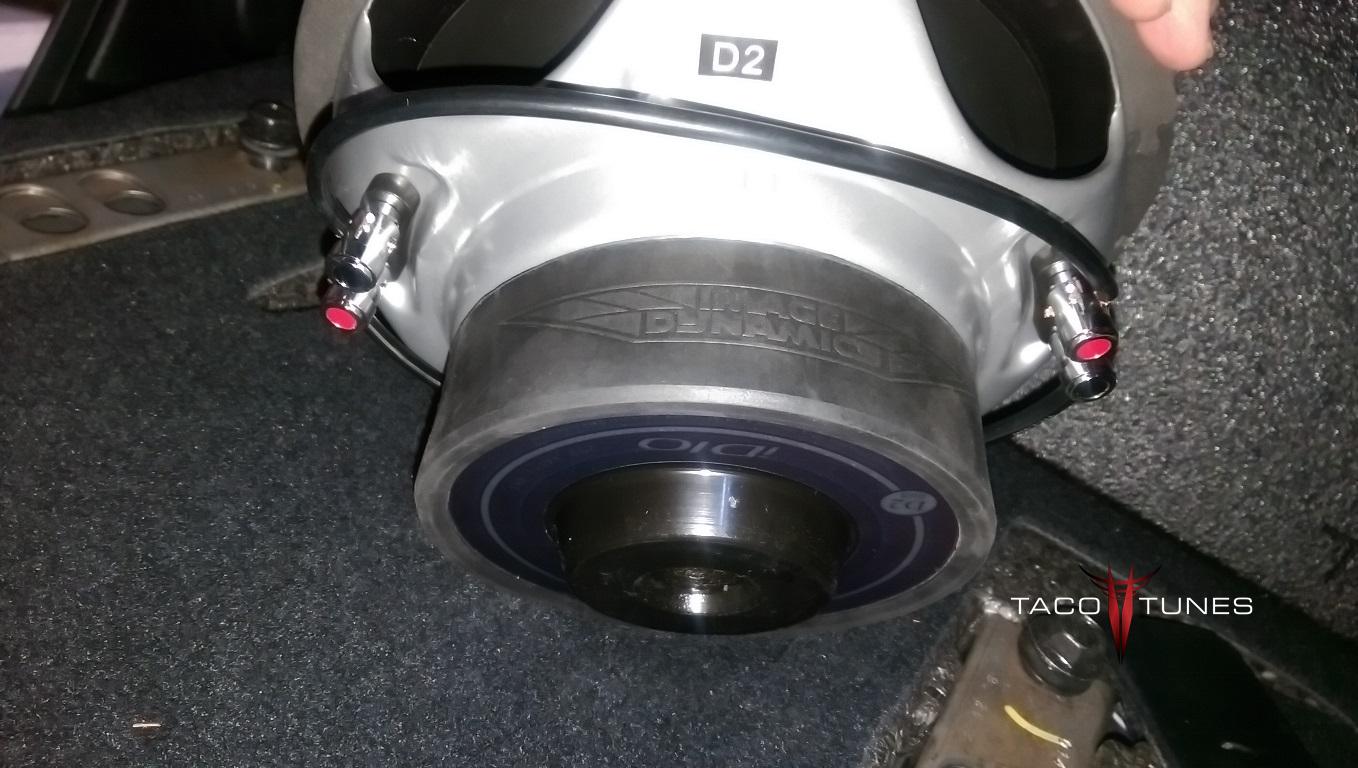

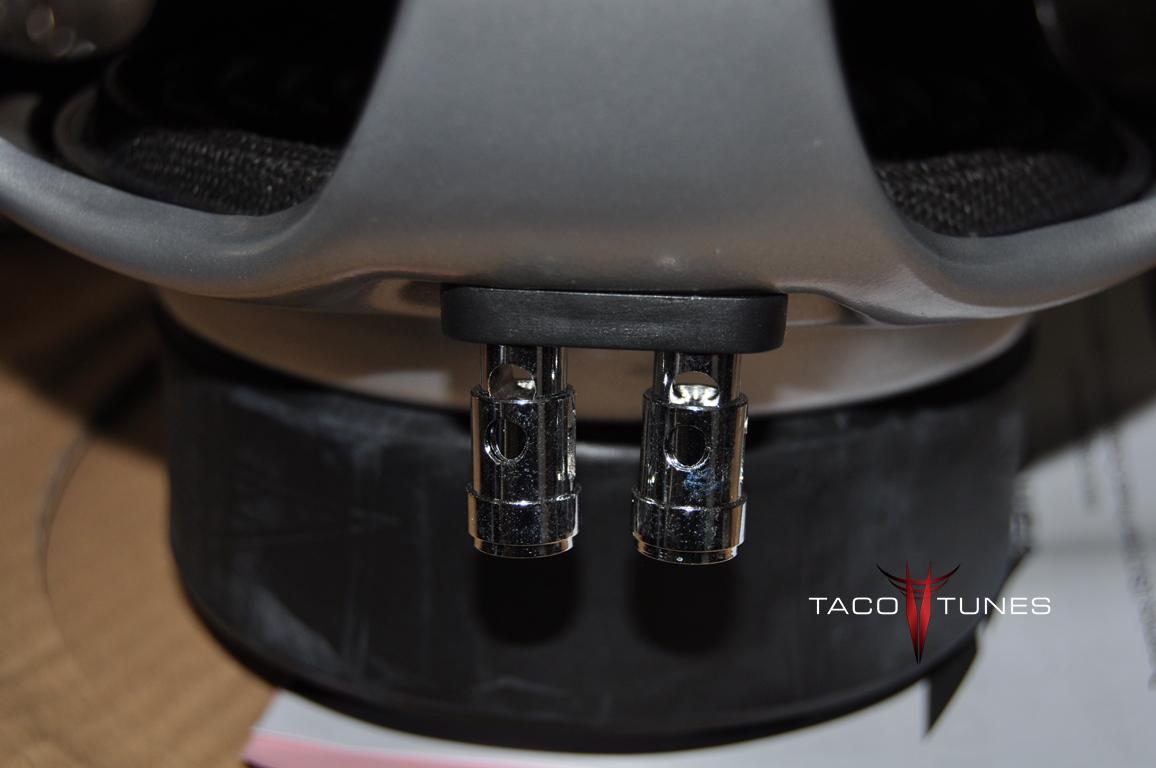

Image Dynamics ID10V4 (full size) 10” subwoofer 400 watts RMS x 2

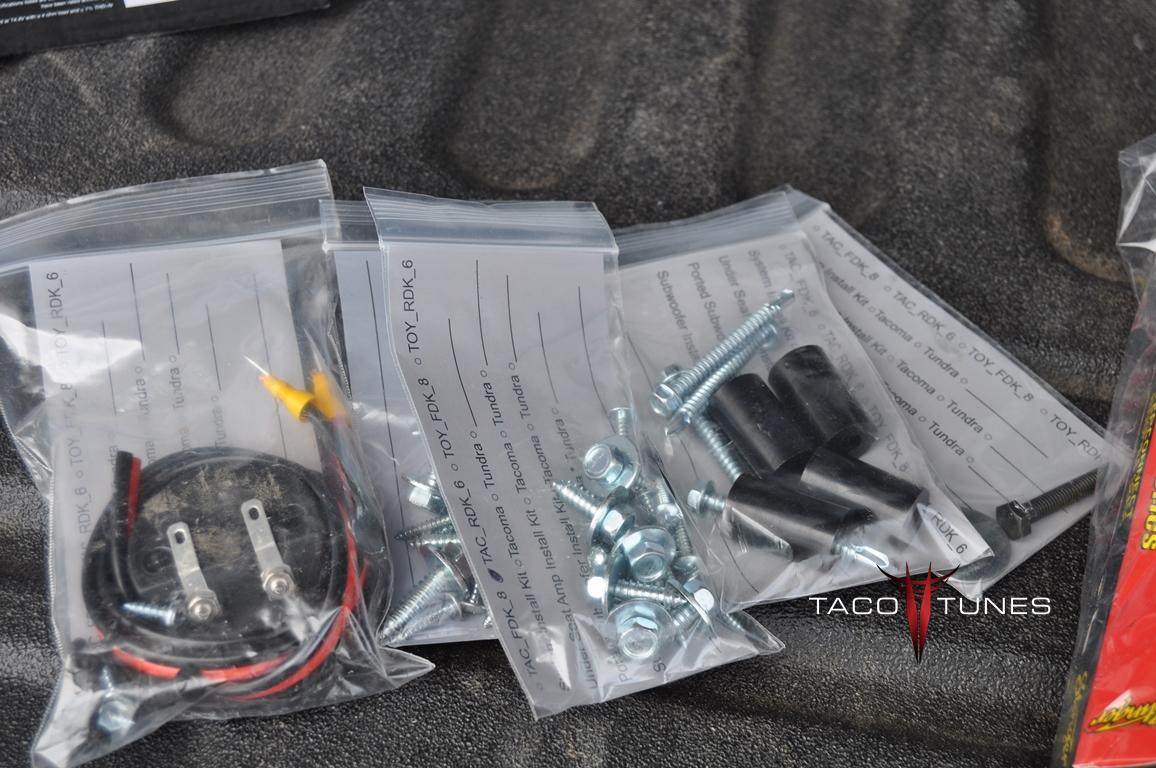

Tundra Install kit:

Stereo & Wiring Installation kit:

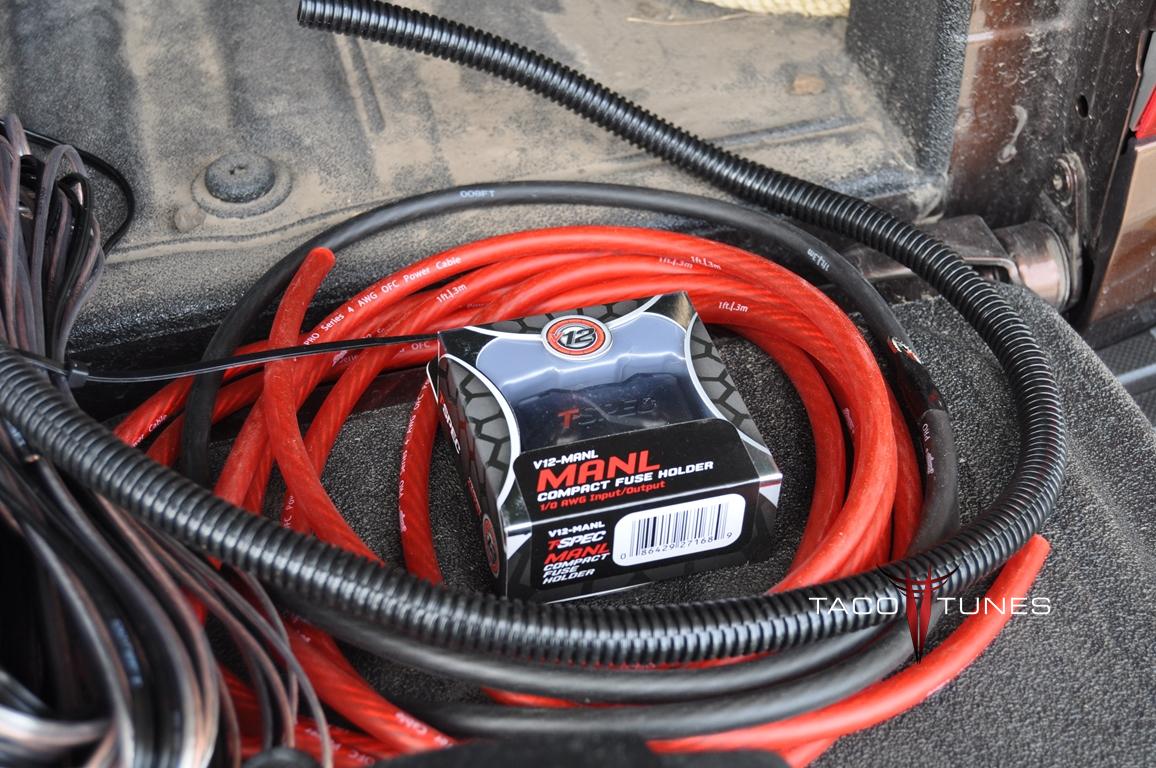

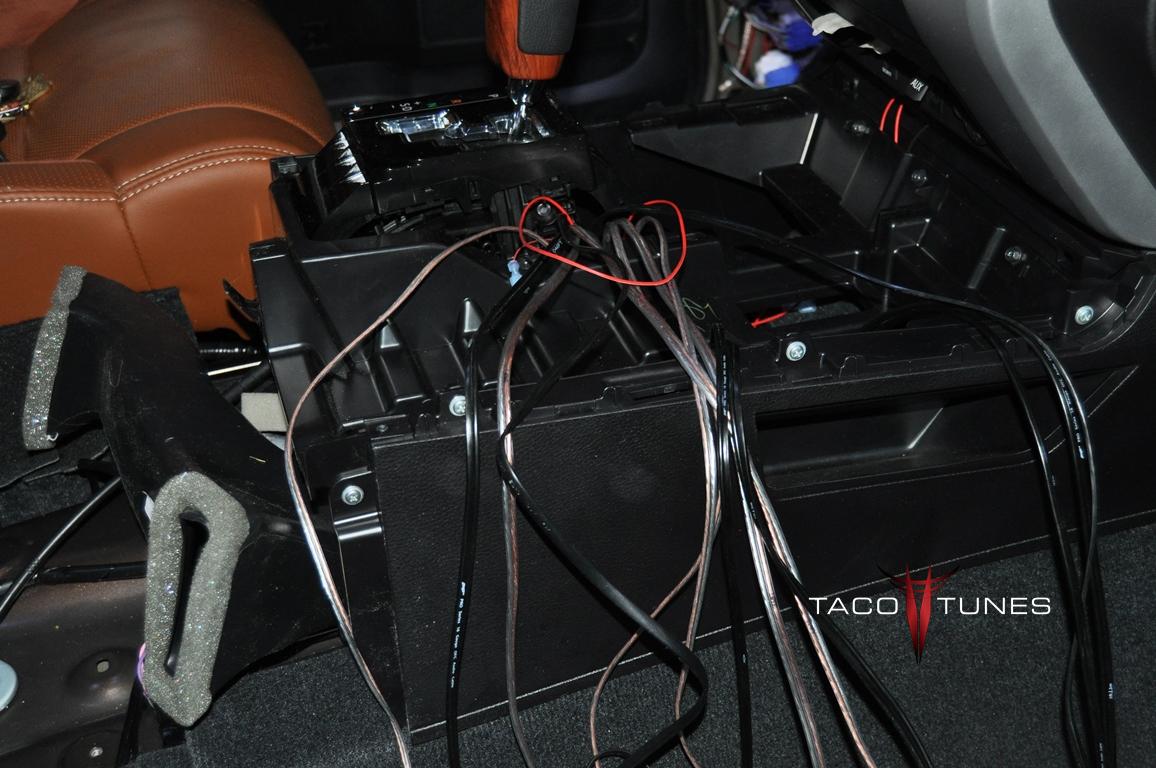

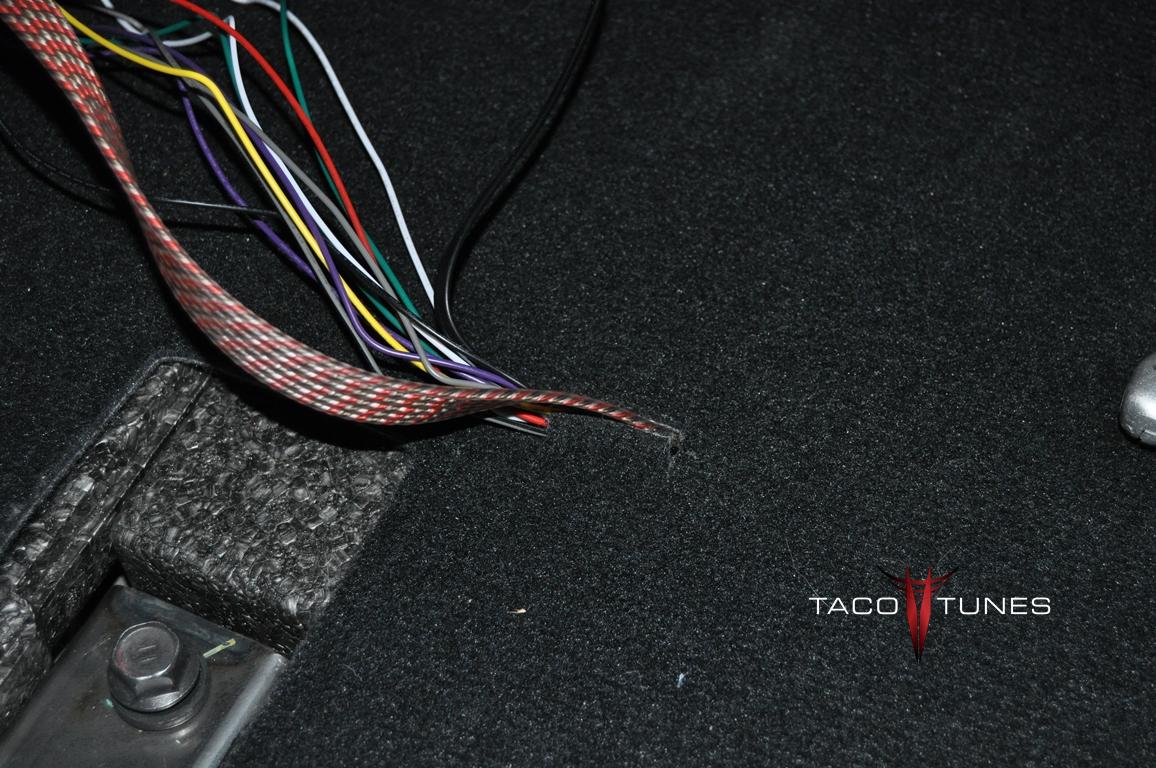

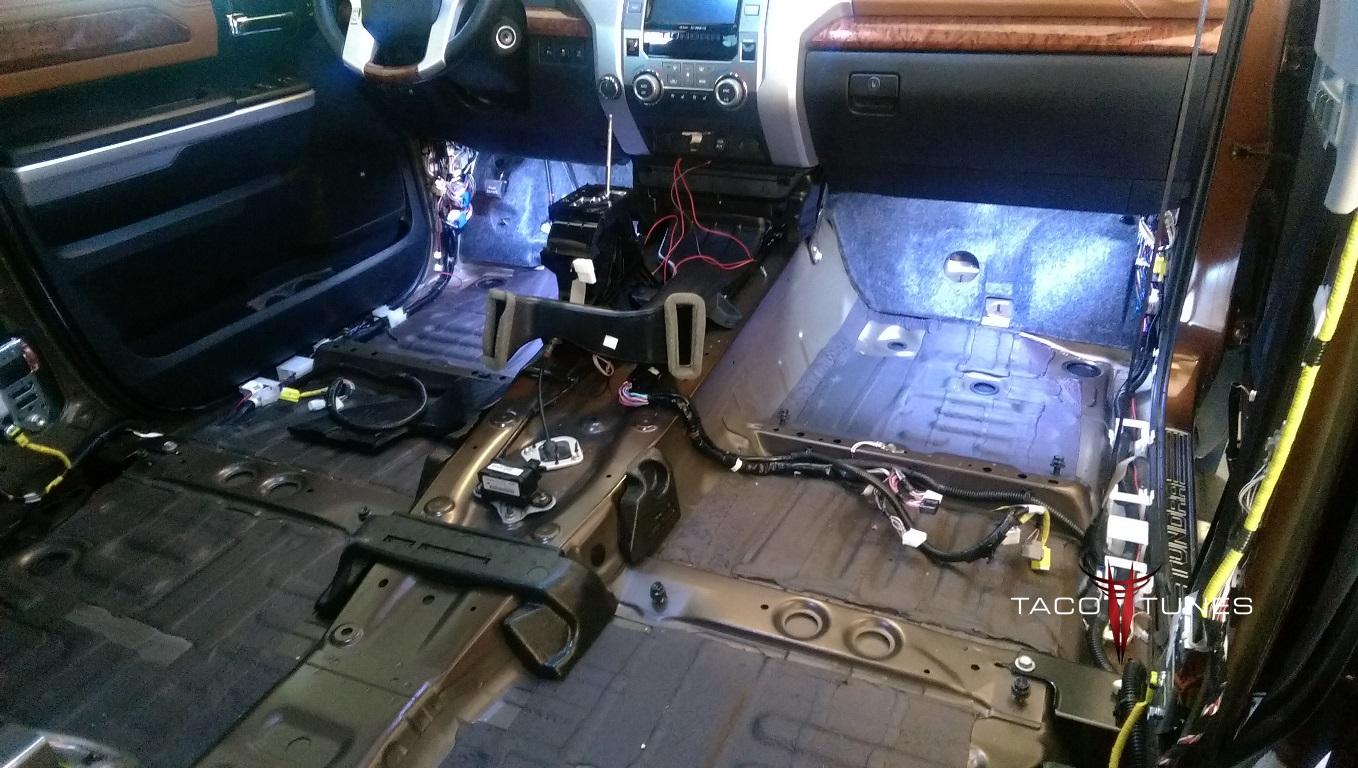

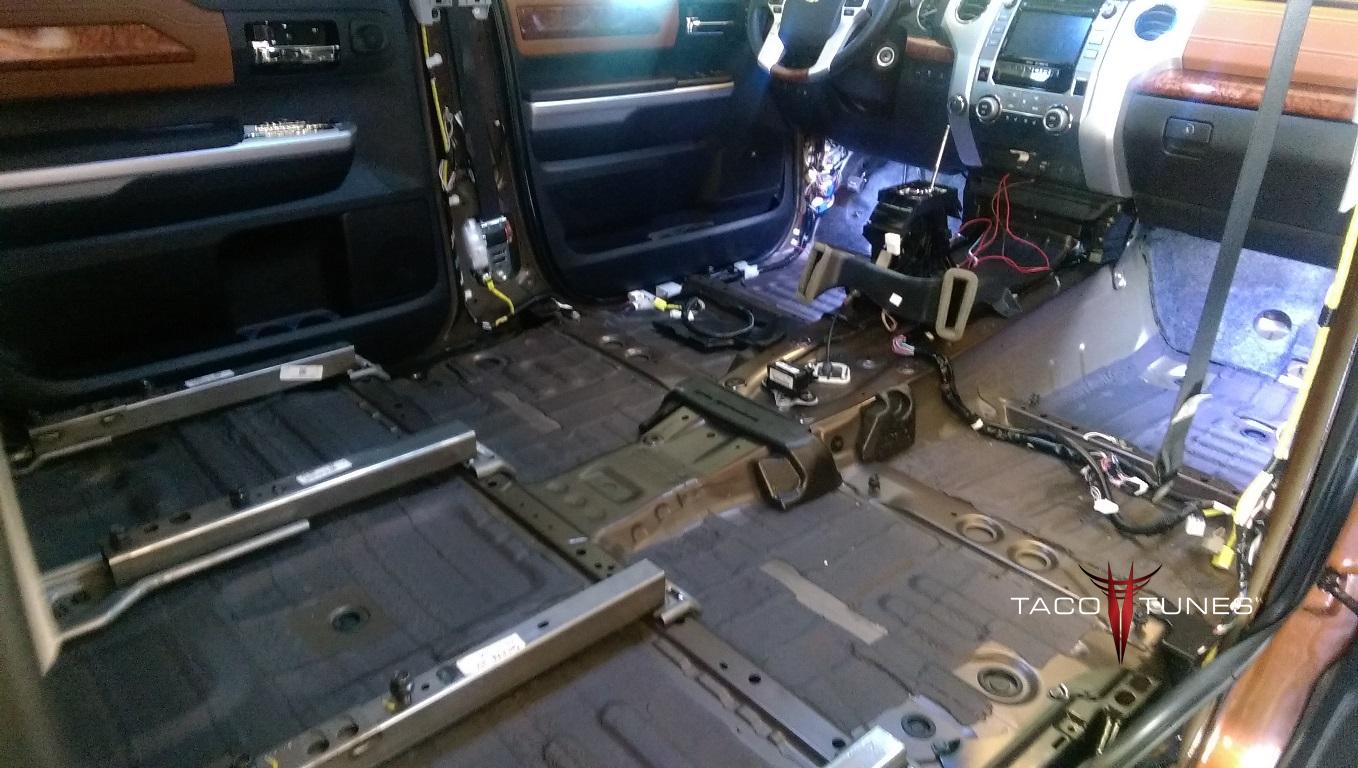

Stinger Power, Speaker and Signal Cables:

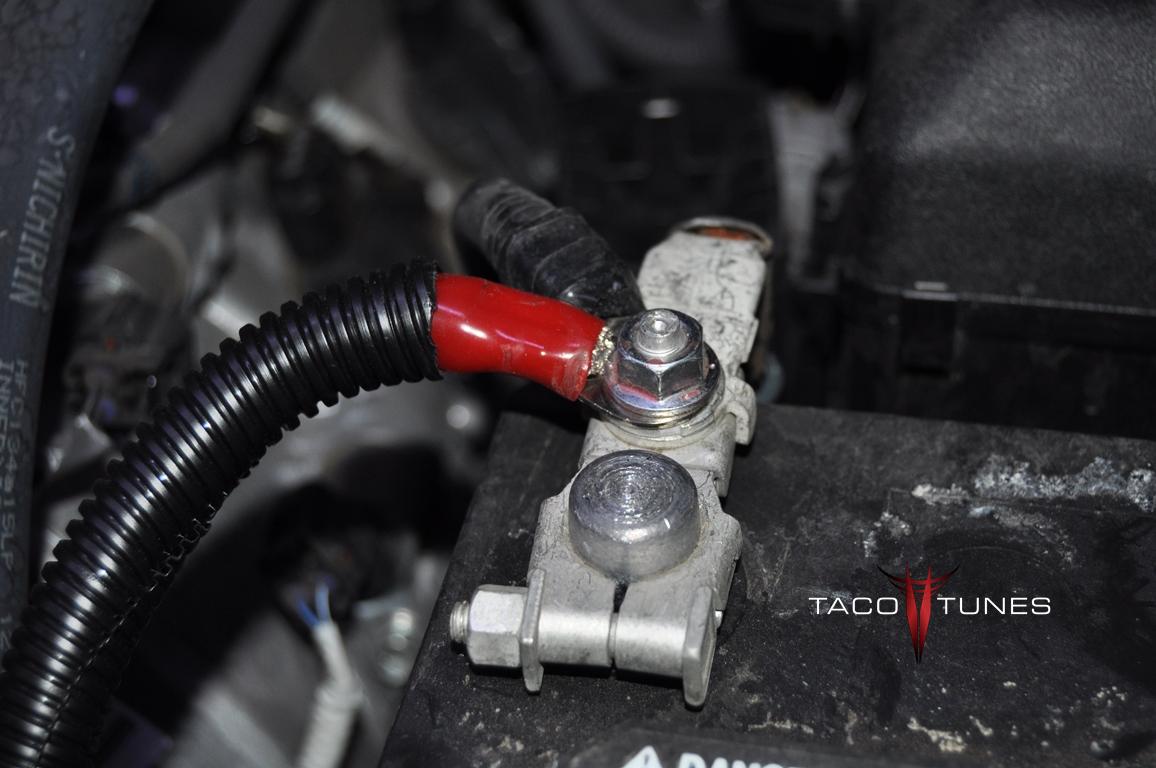

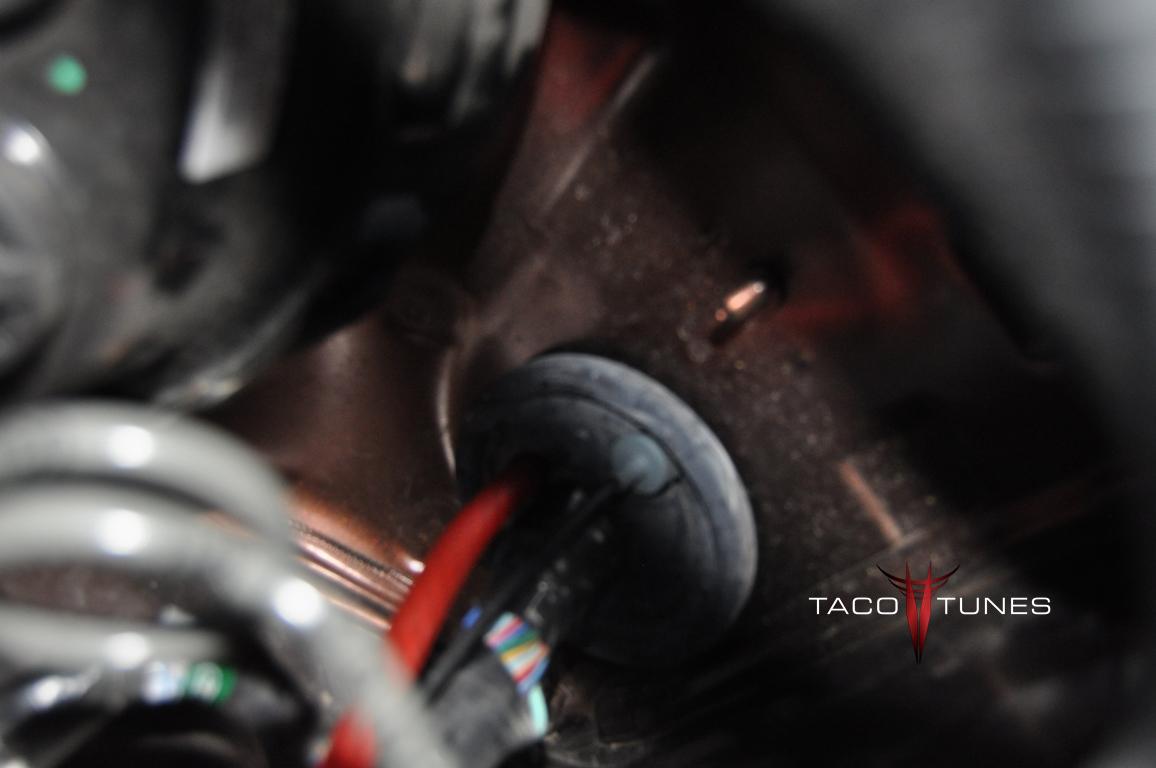

Positive:

Stinger 3′ POWER CABLE 4GA – Ring Terminal Attached

Stinger 13′ POWER CABLE 4GA

Negative:

Stinger 4′ POWER CABLE 4GA – Ring Terminal Attached

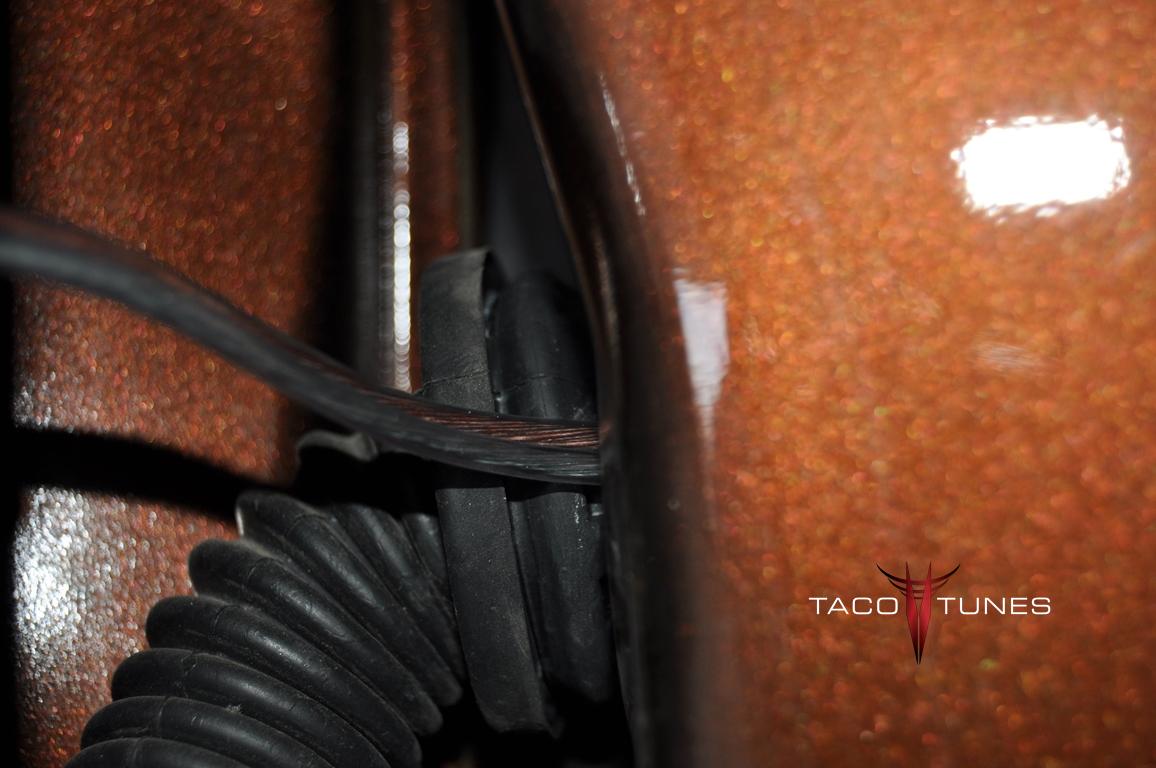

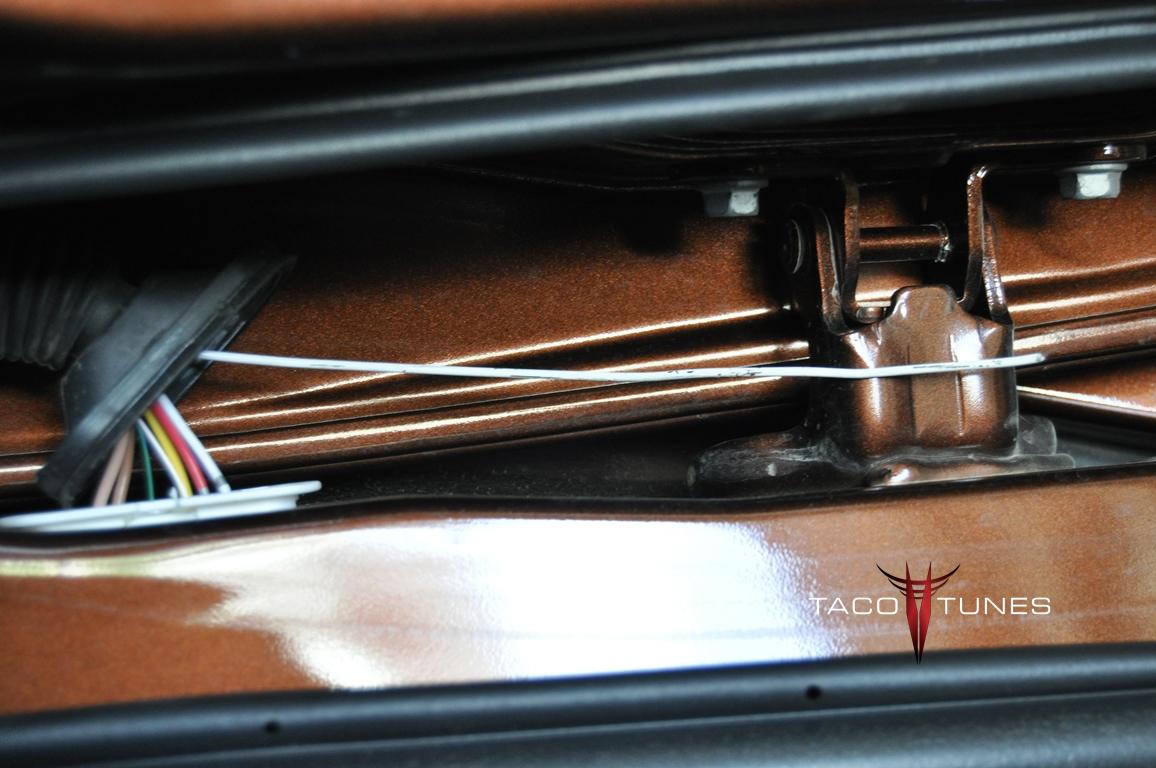

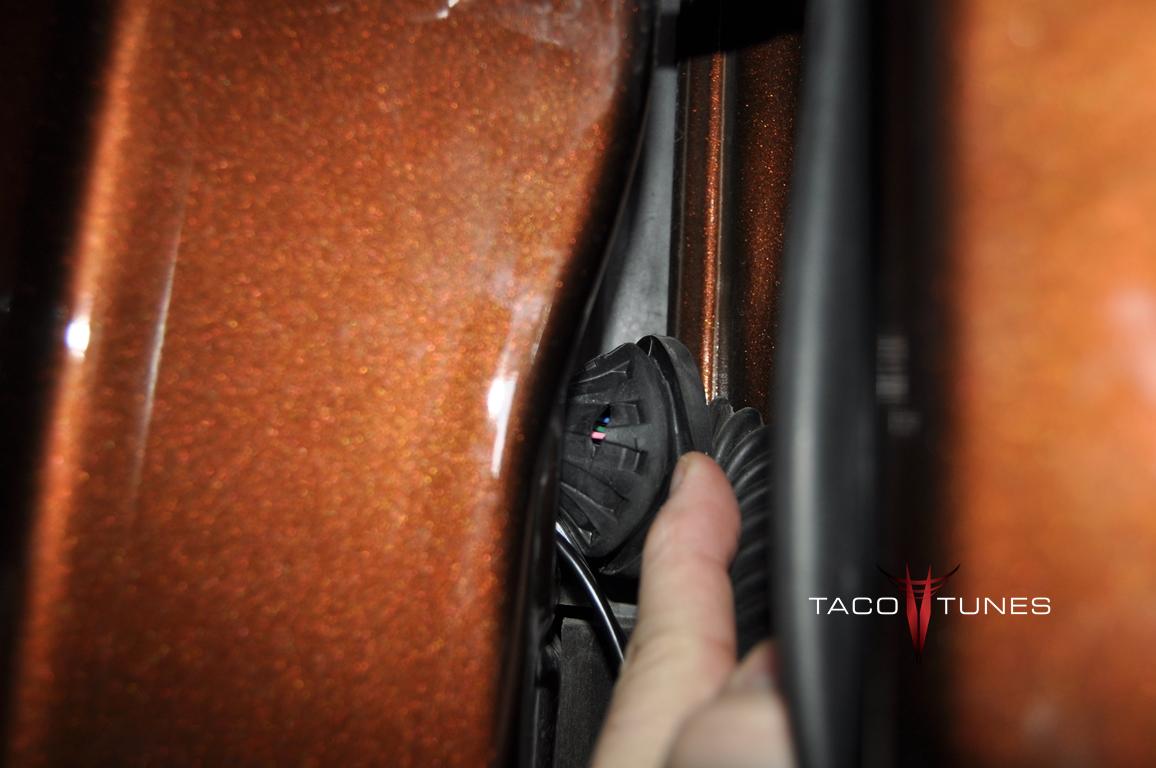

Color Coded Speaker Wire:

Stinger 50′ 16GA Black Speaker Wire (Driver Side Speakers)

Stinger 50′ 16GA Silver Speaker Wire (Passenger Side Speakers)

Stinger 25′ 18GA Black Speaker wire (Driver Side Tweeters)

Stinger 50′ 18GA Silver Speaker Wire (Passenger Side Tweeters)

Stinger 50’ 12Ga Black Subwoofer Wire

RCA Signal Cables:

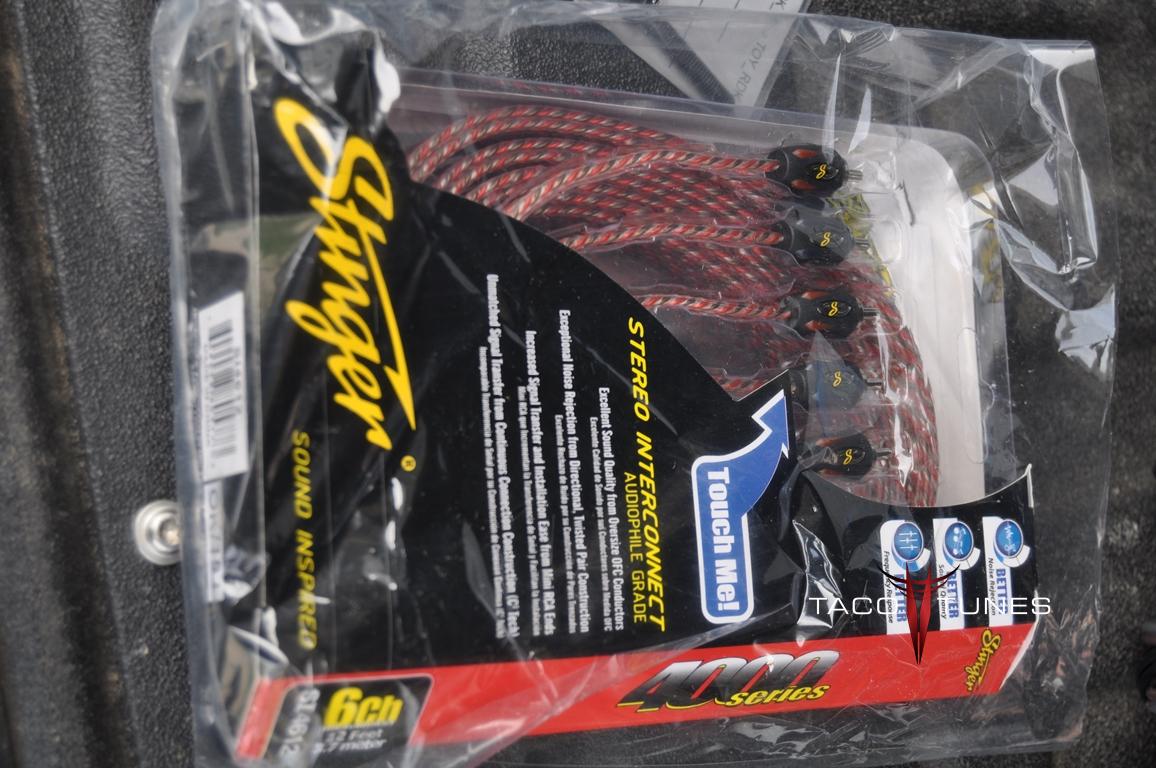

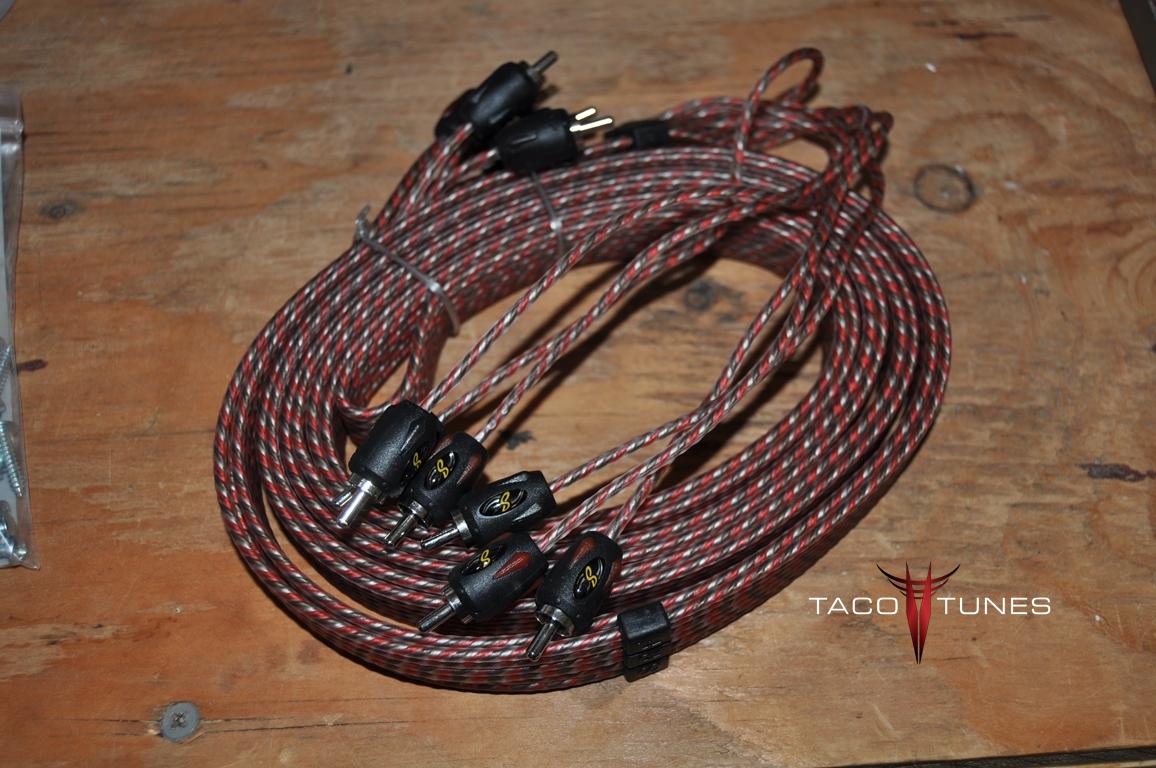

1 Stinger RCA CABLE 12 Ft Twisted Pair – 6 Channel (Front / Rear / Sub)

Misc Items:

35′ Primary Blue Remote Turn on wire

6′ 3/4 Split Loom

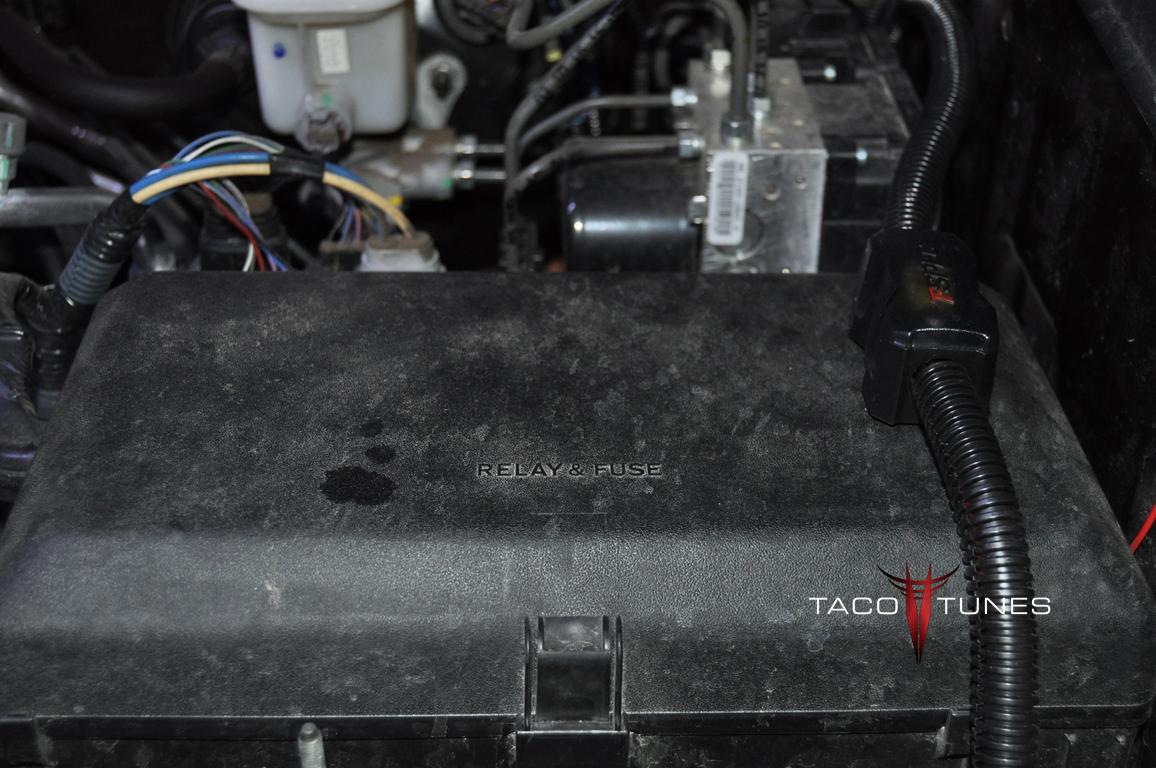

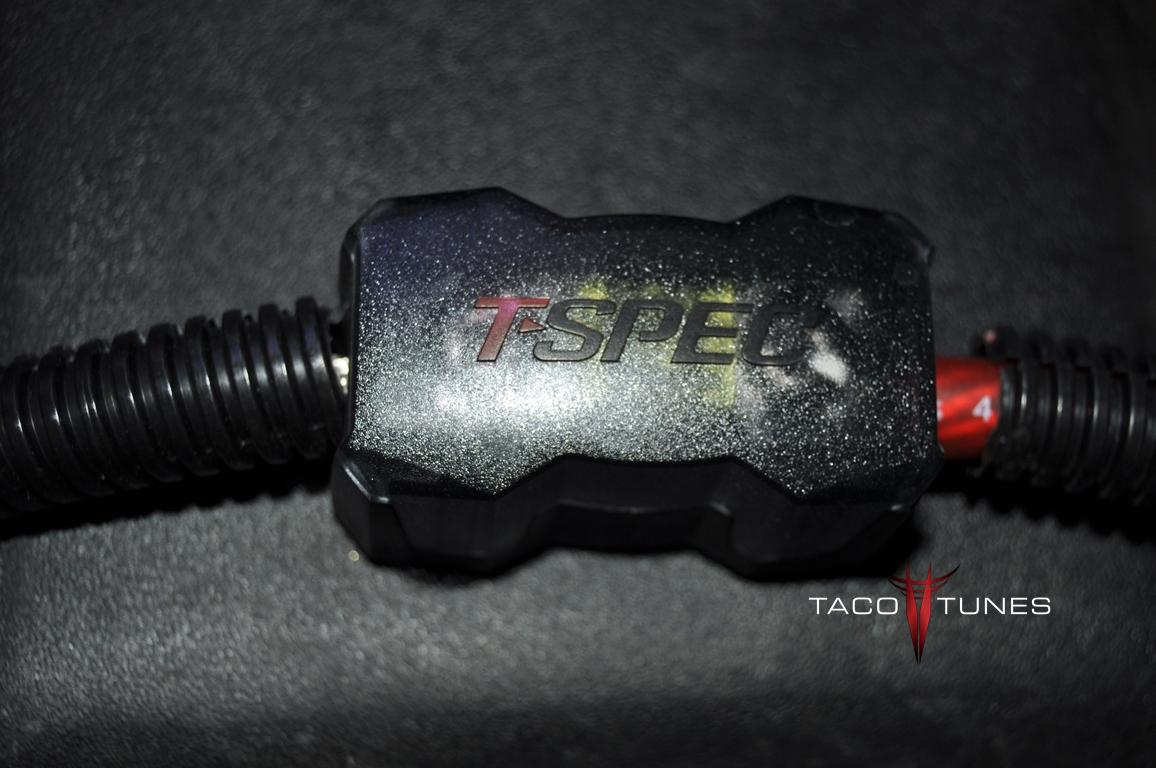

T-Spec ANL Fuse Holder

T-Spec 100 Amp ANL Fuse

10 Crimp Caps

8 Speaker Terminals .25 (Door speakers)

4 Speaker Terminals .187 (tweeters)

4 Speaker Terminal .25 (subwoofer)

15 Small Zip Ties

15 Large Zip Ties

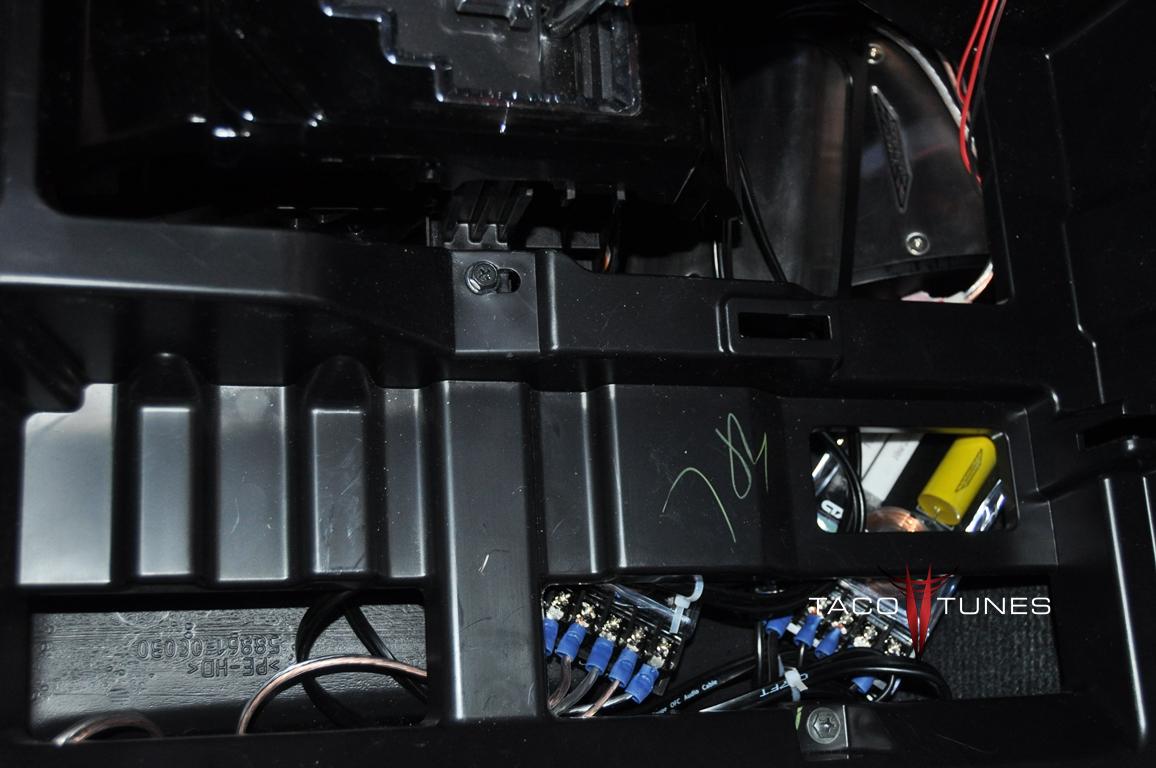

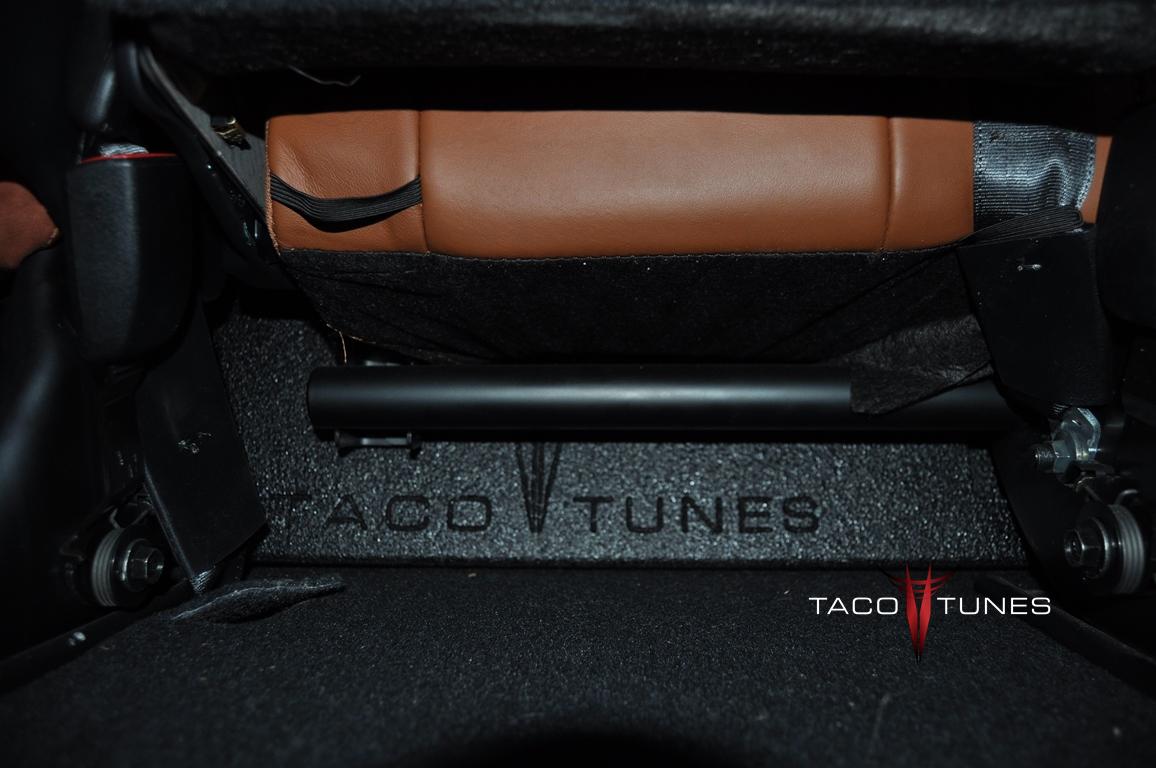

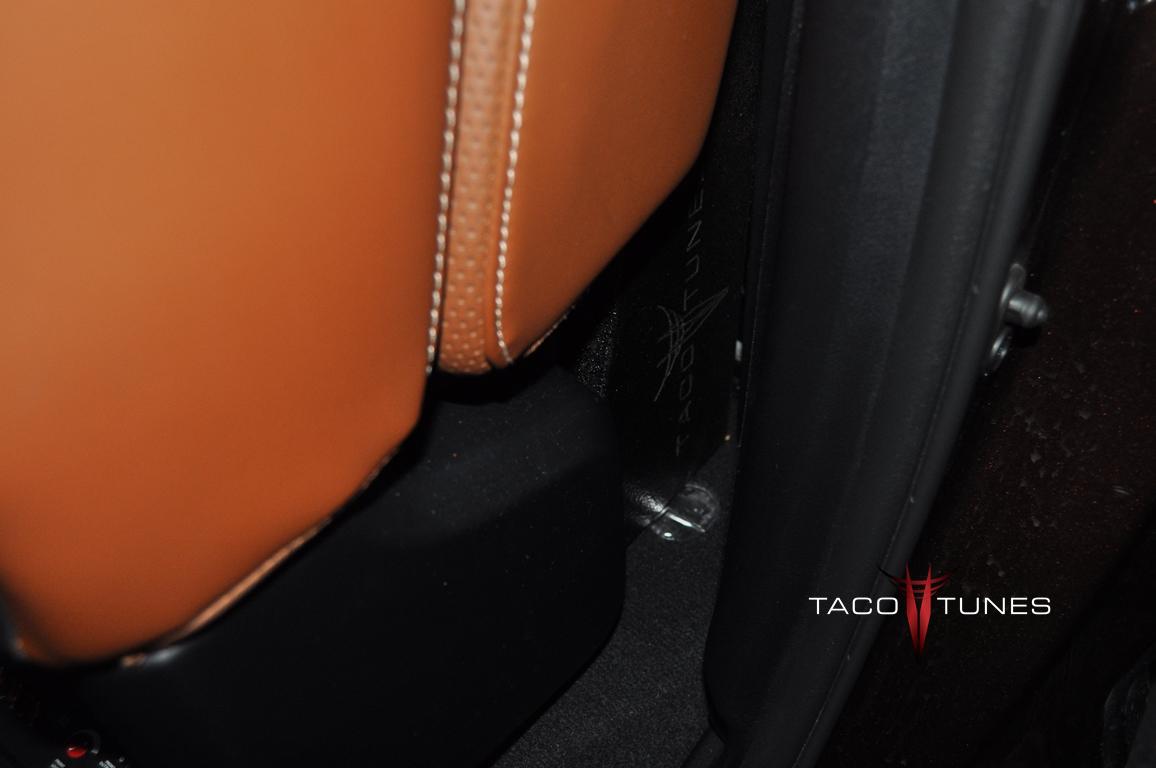

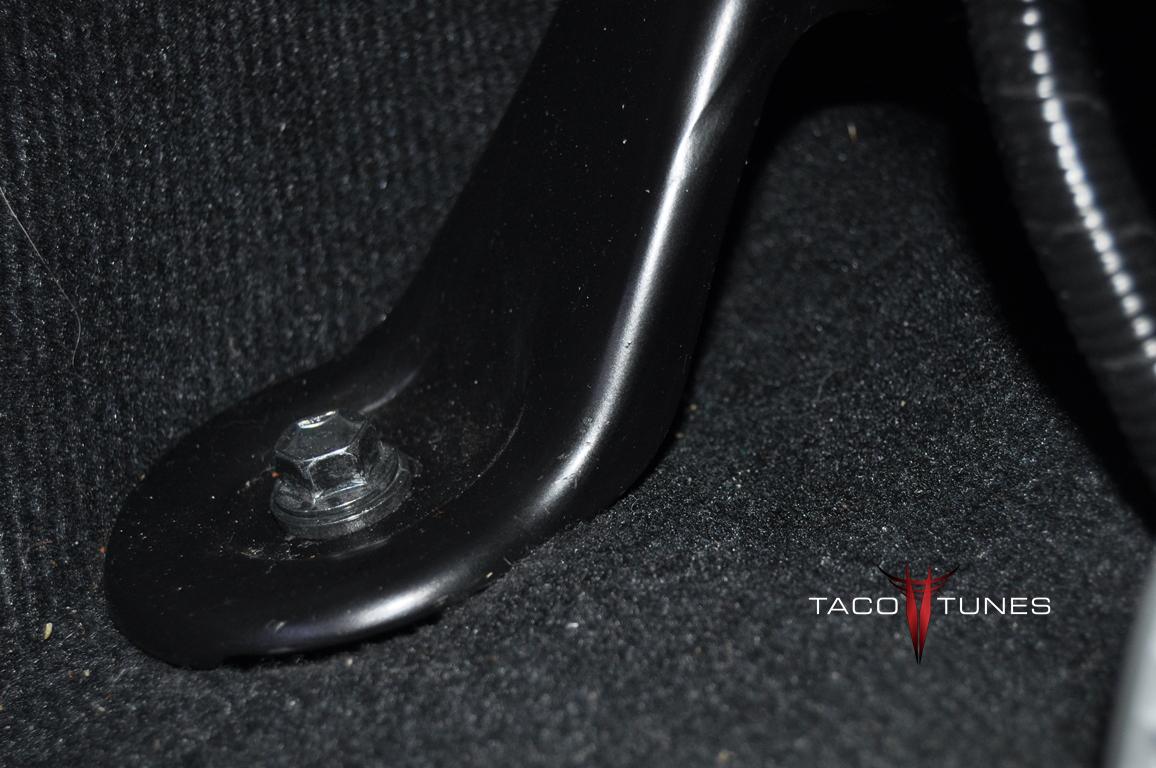

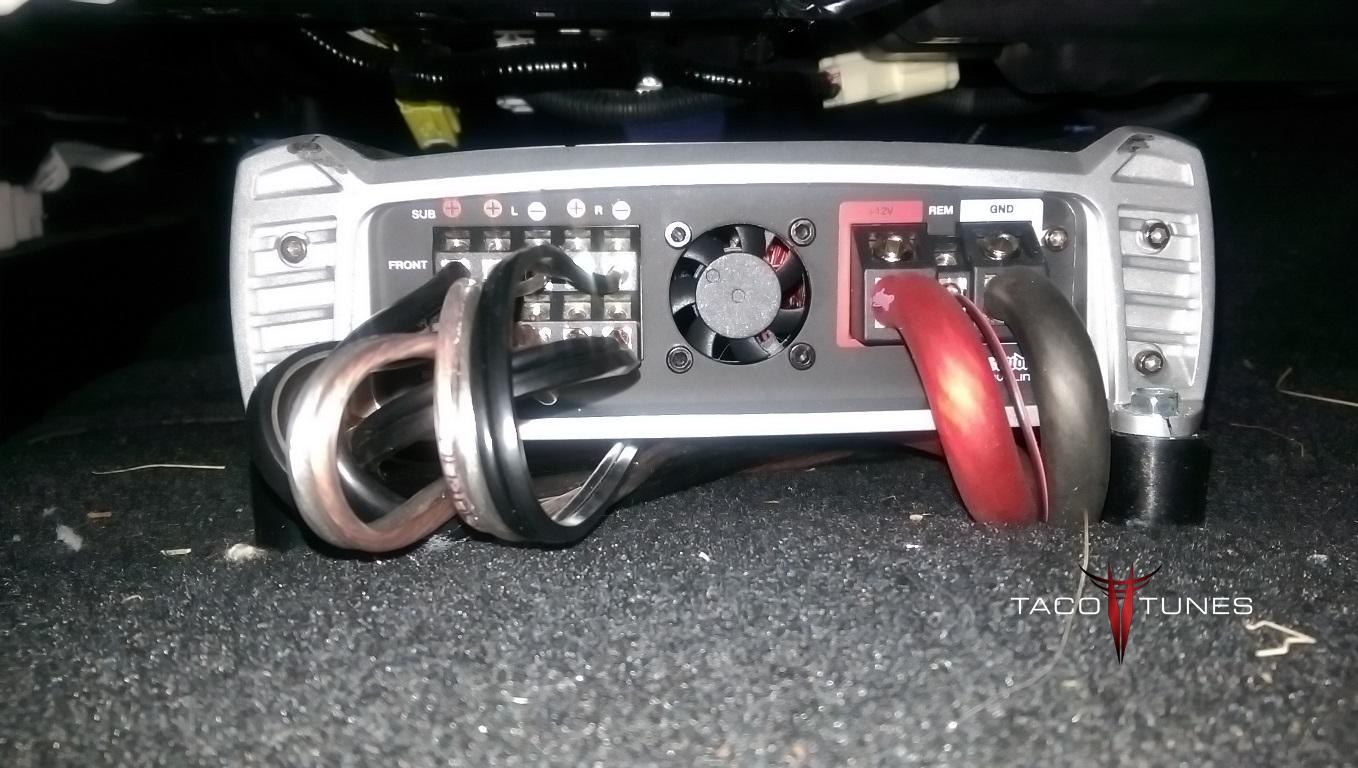

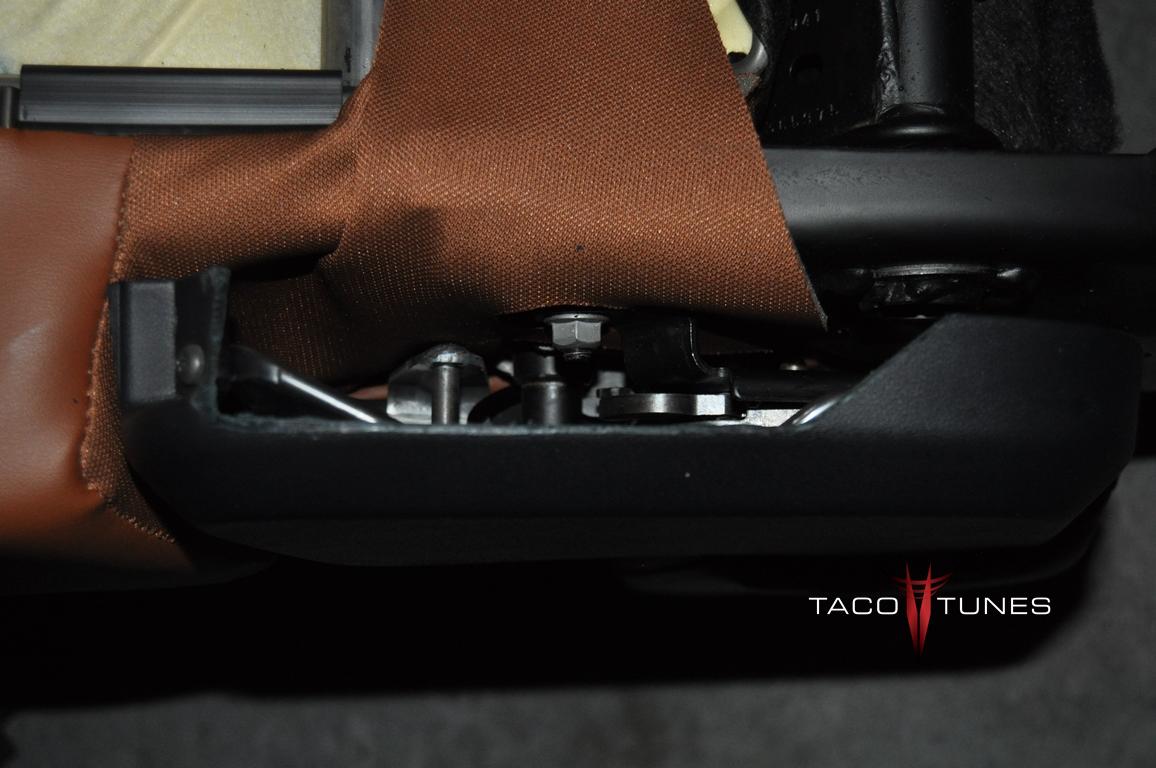

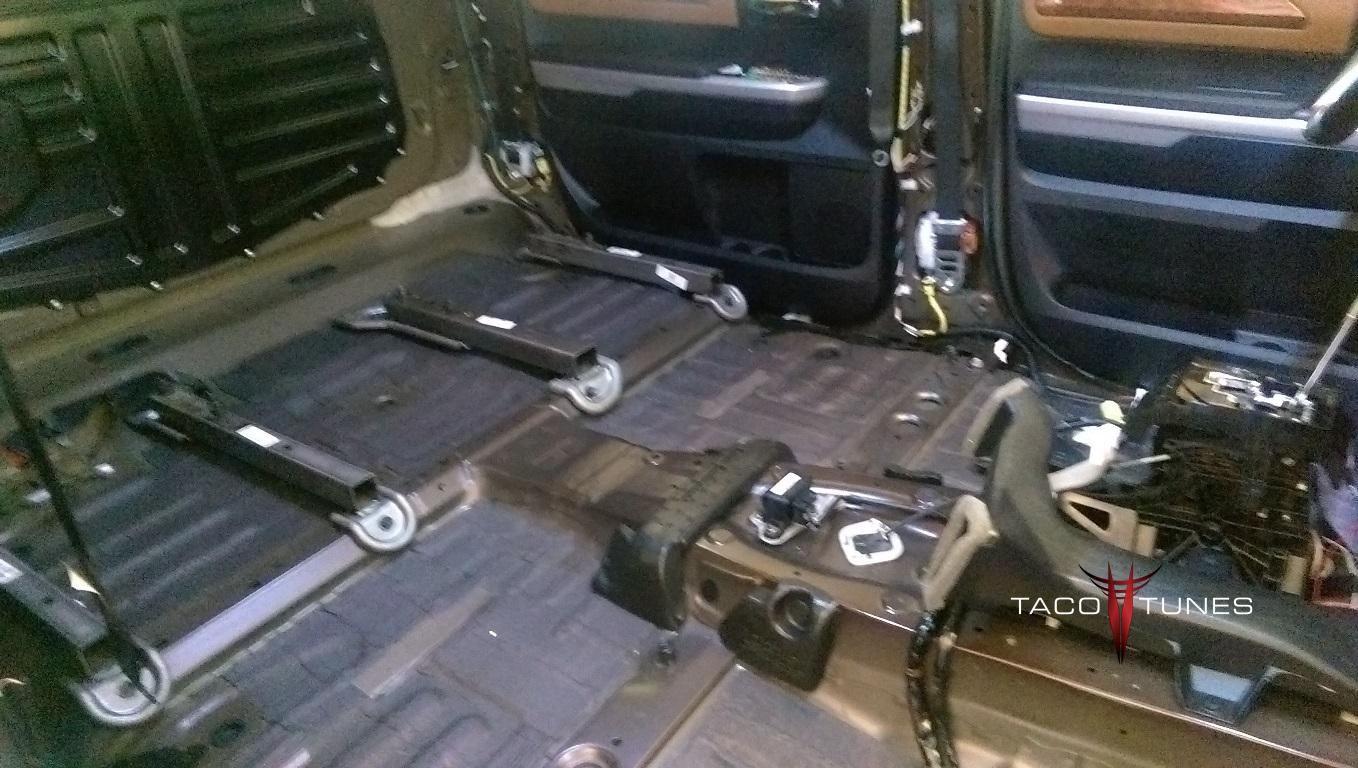

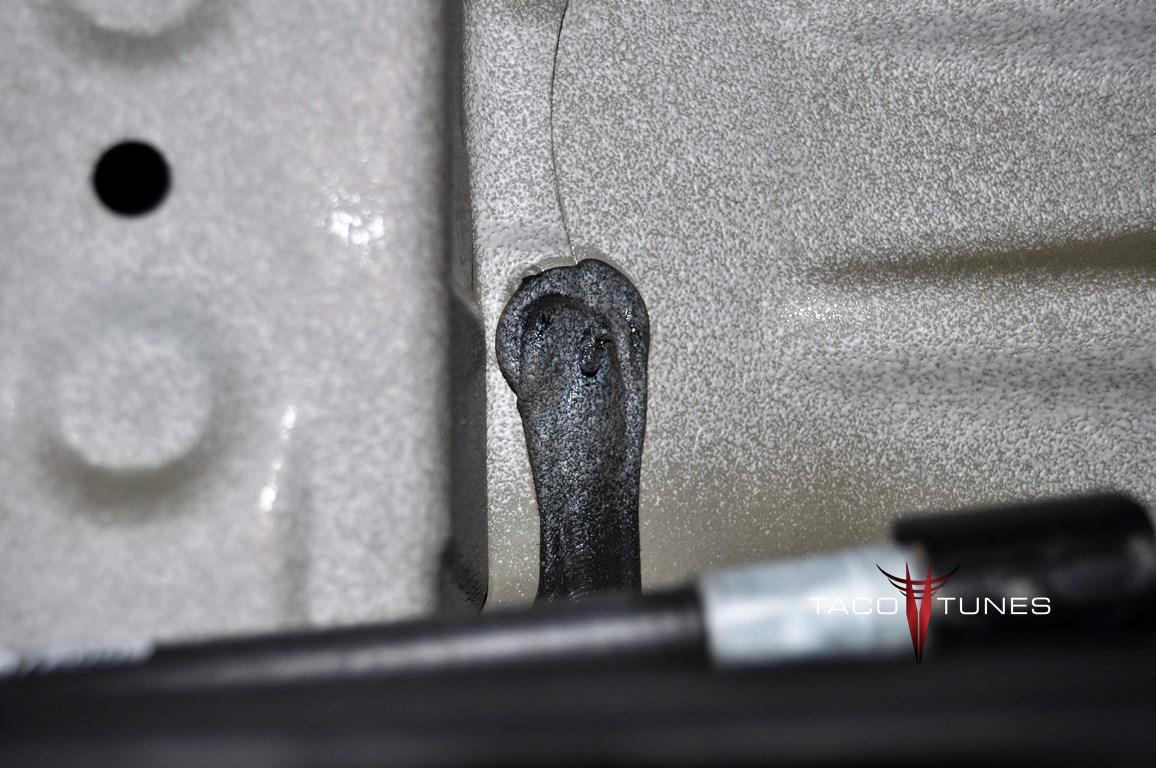

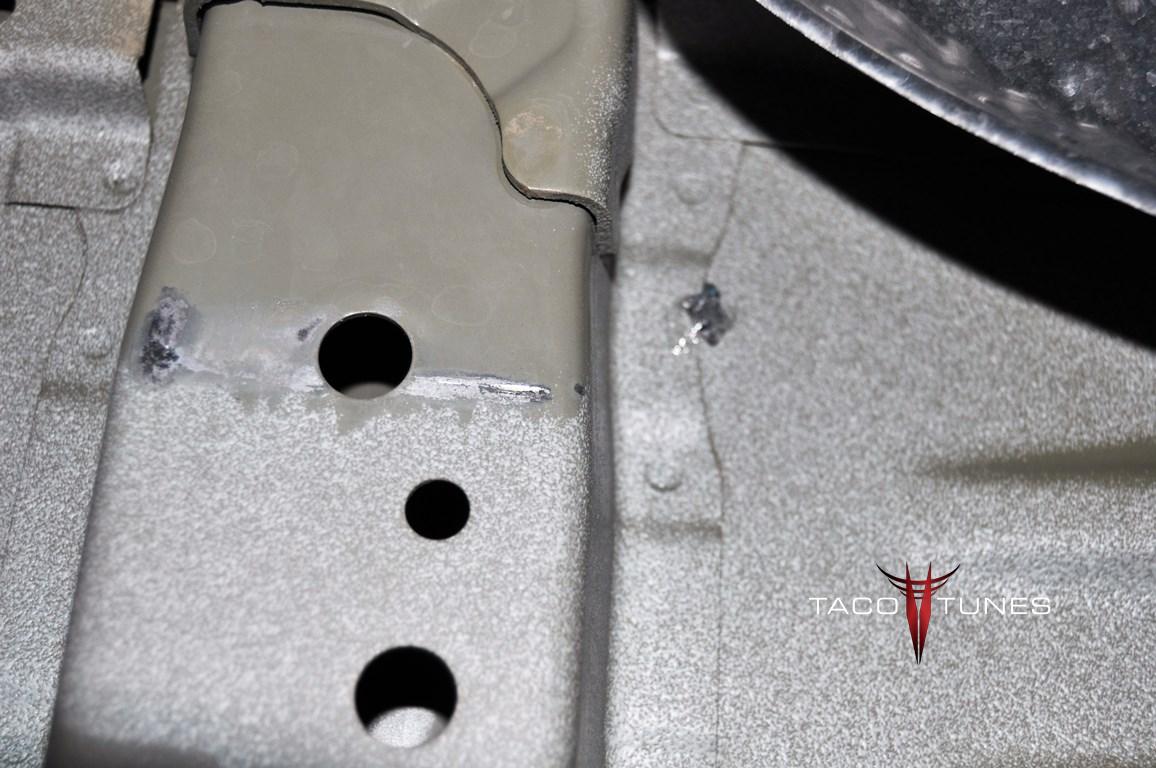

Under Seat – Amp Mounting Gear:

4 Nylons Spacers

4 Mounting Bolts

4 Mounting washers

4 Sealing Caulk

Optional Items:

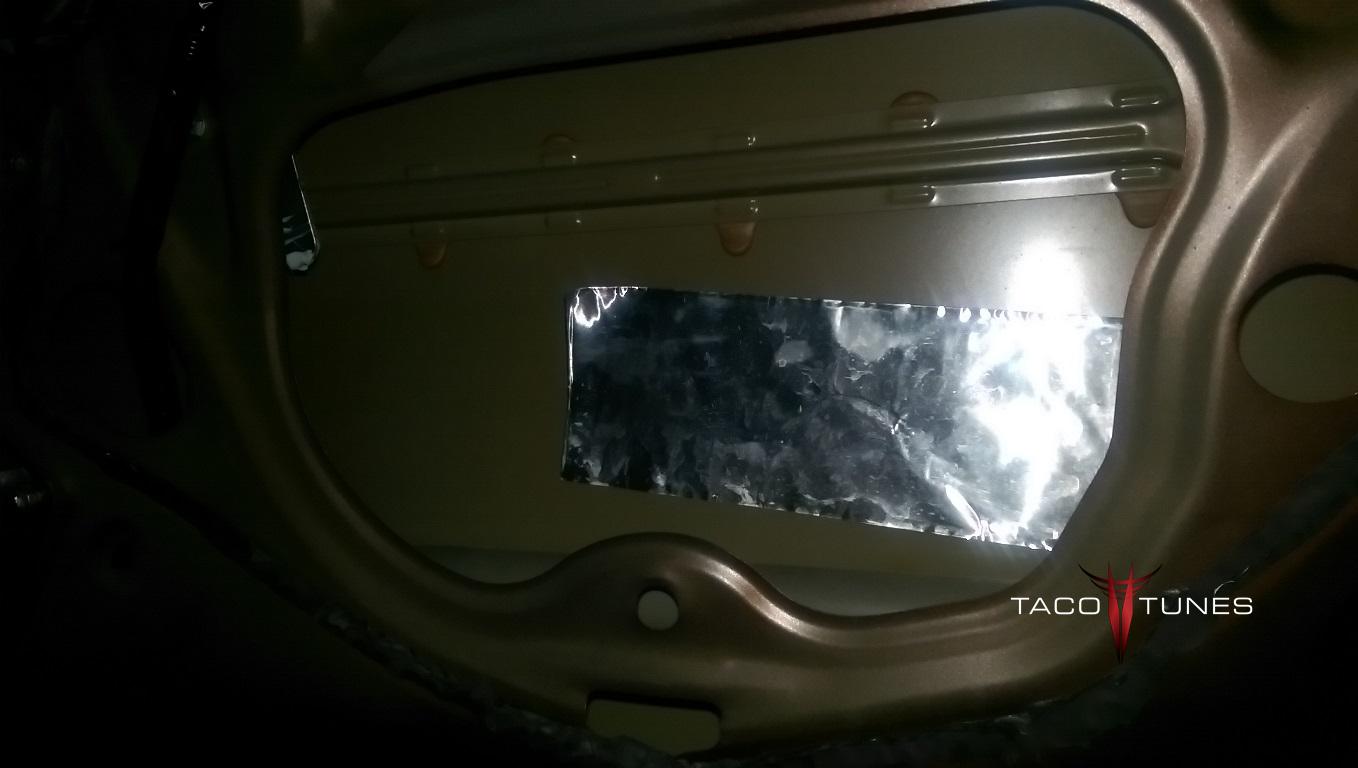

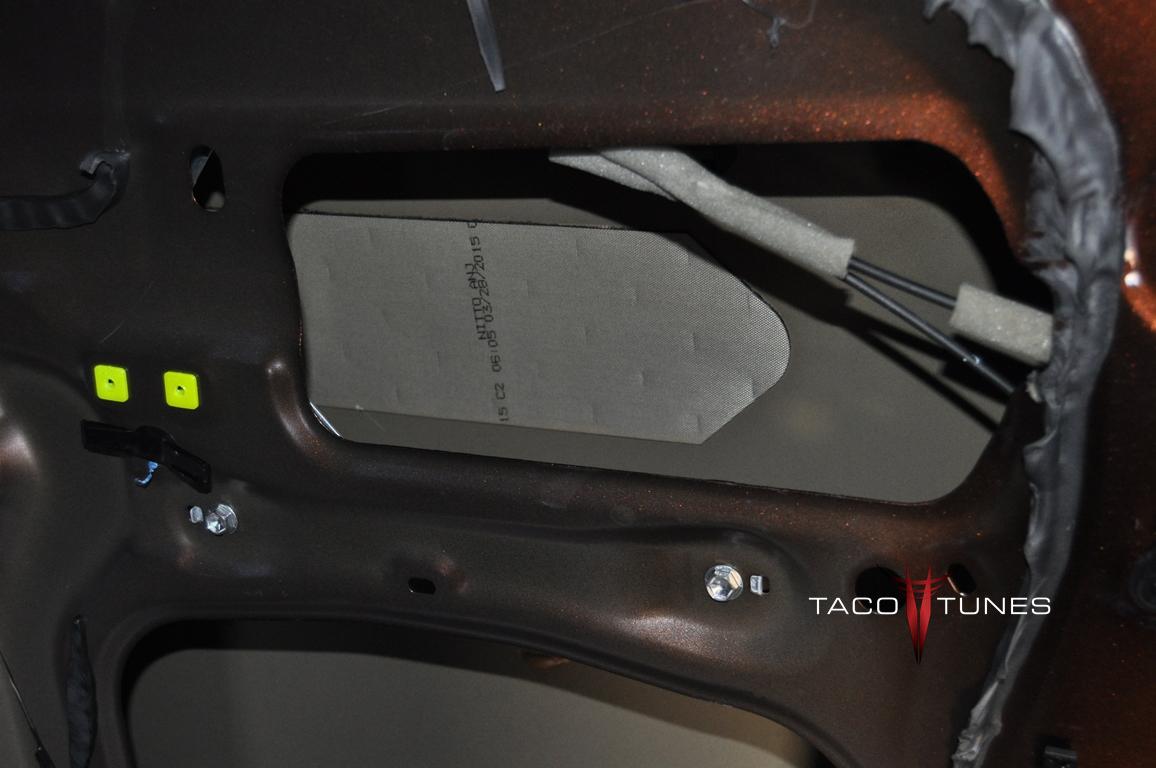

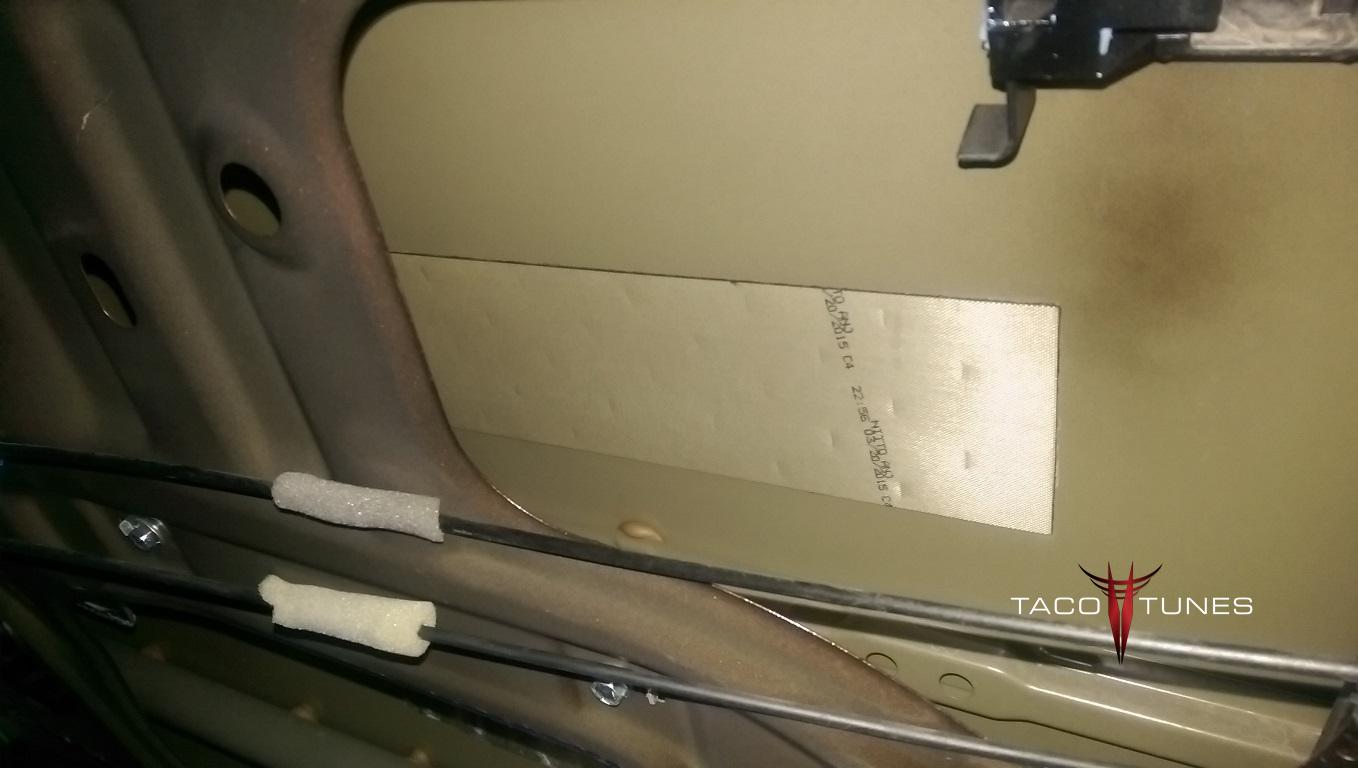

Matting:

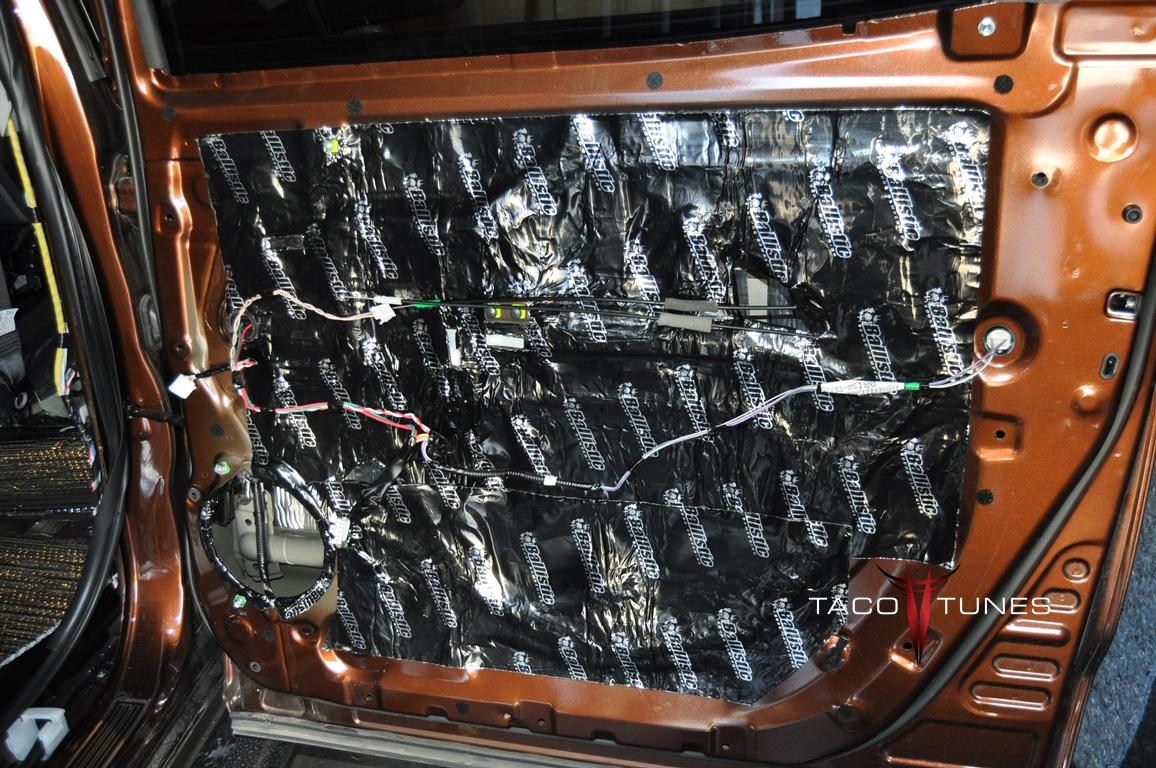

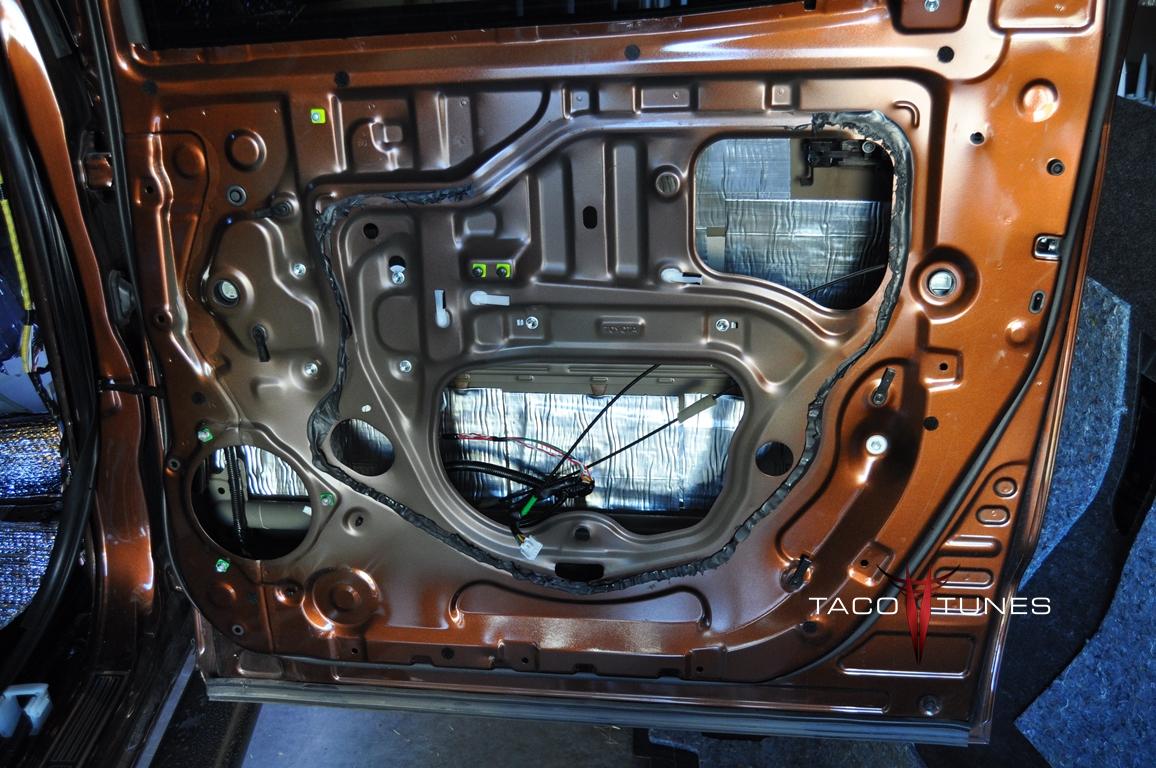

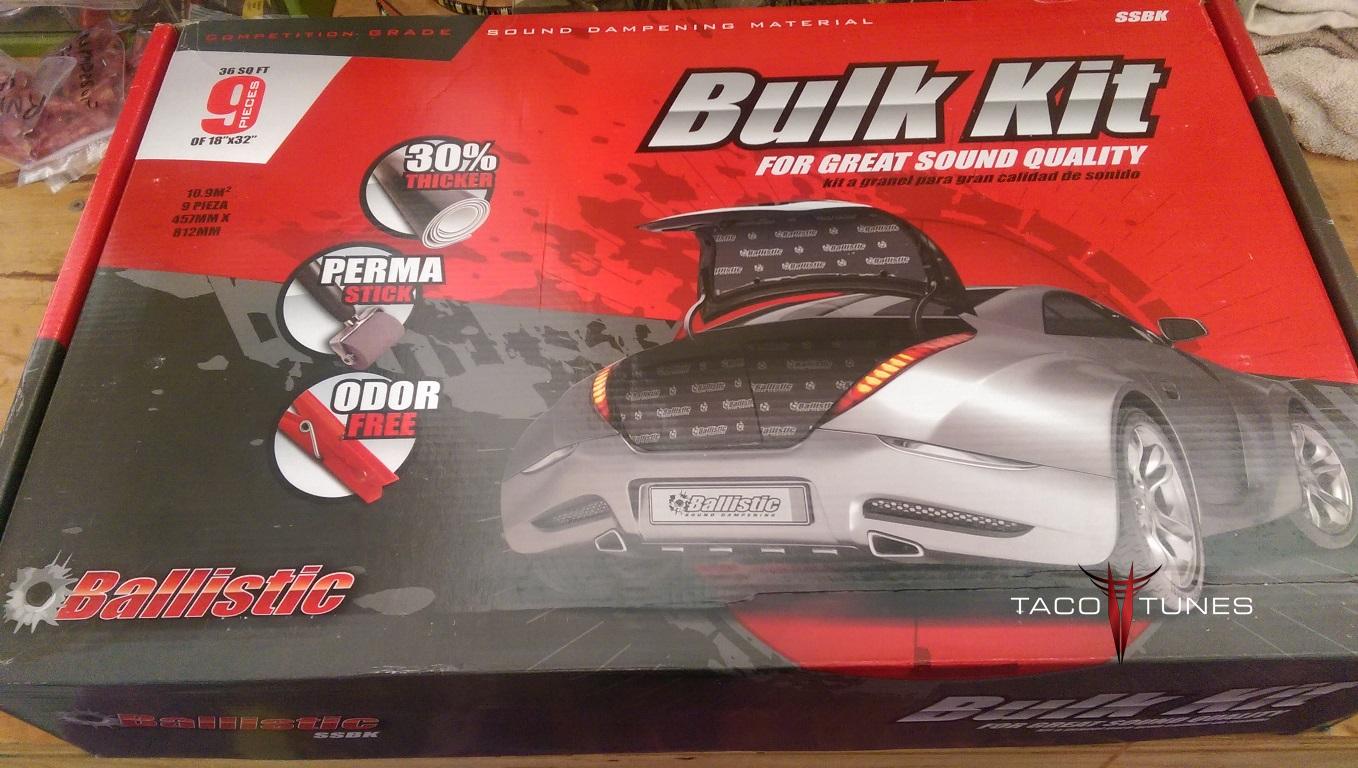

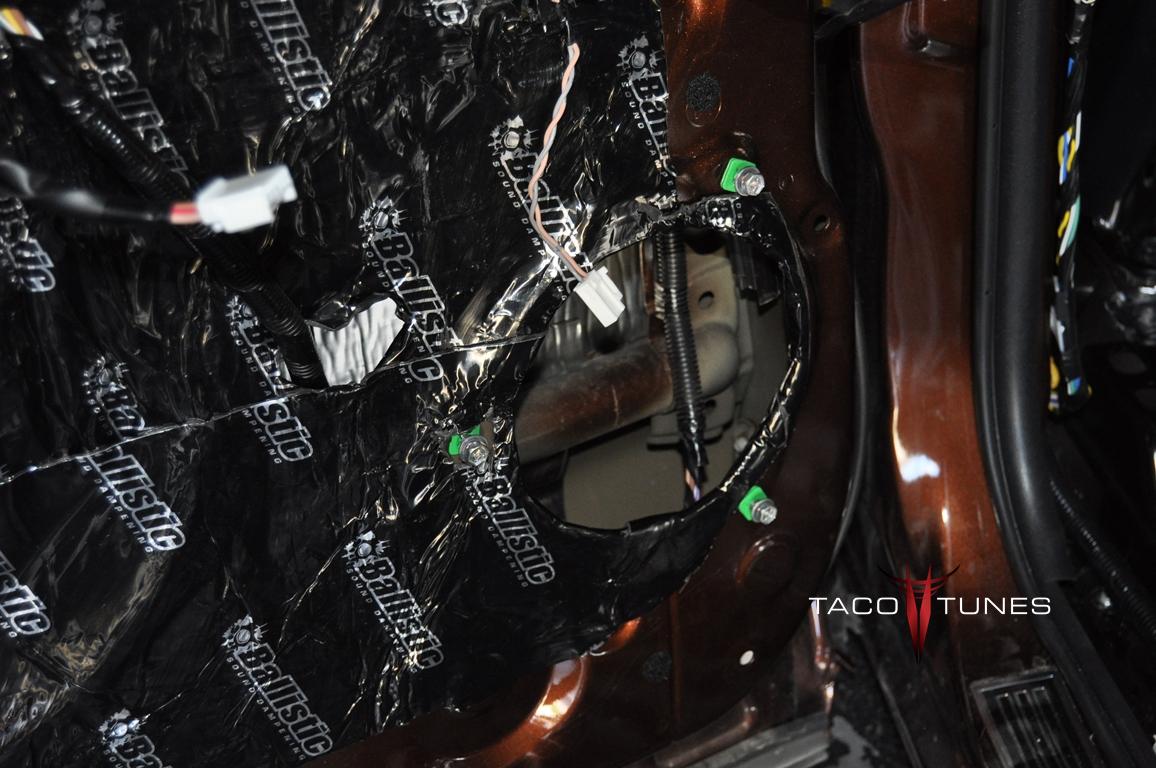

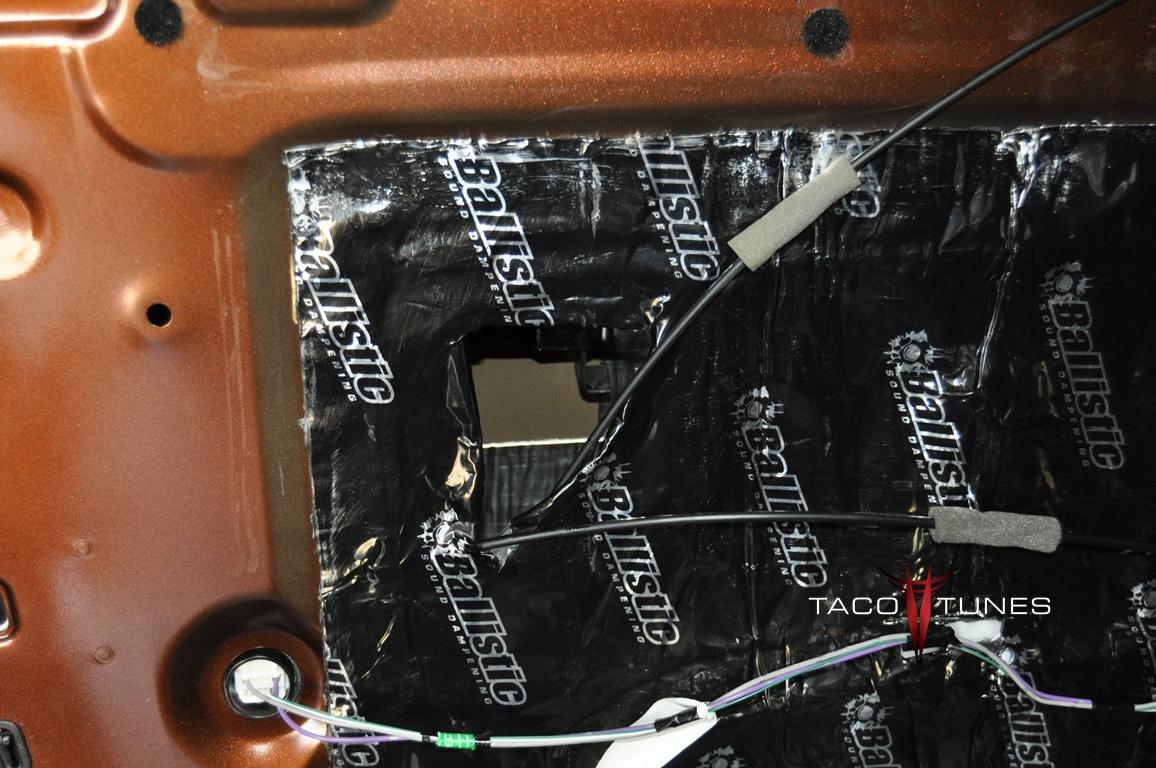

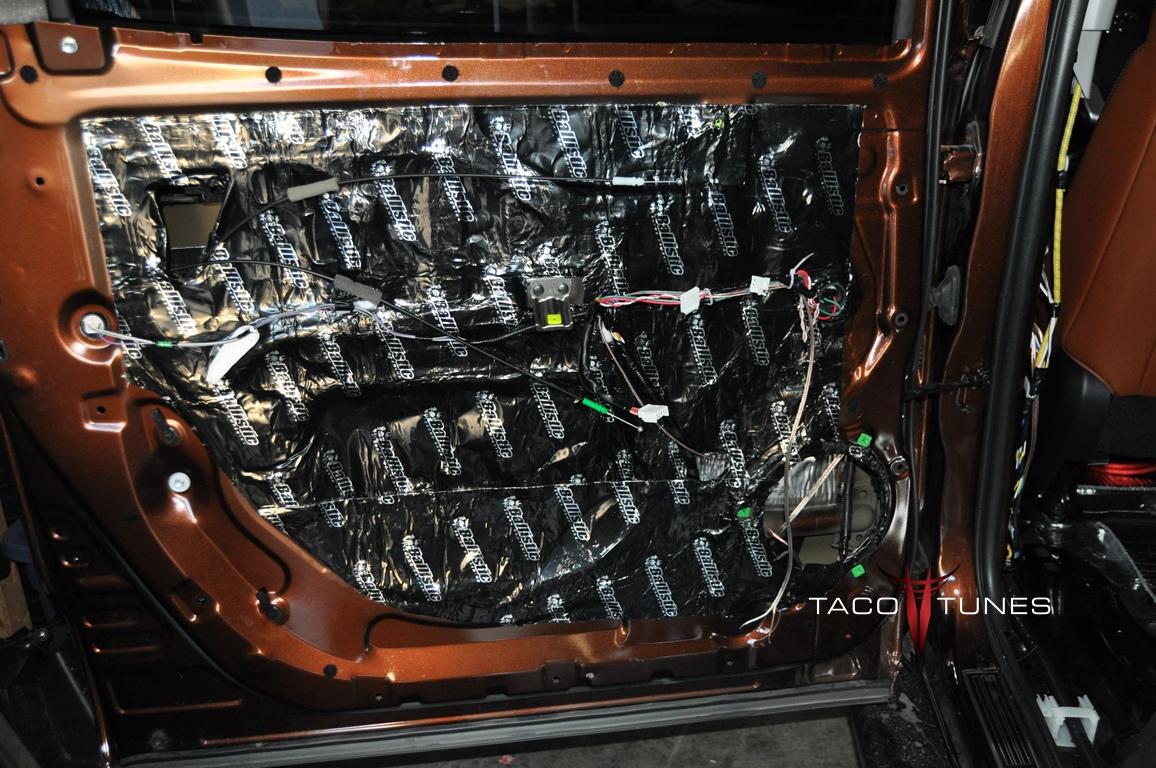

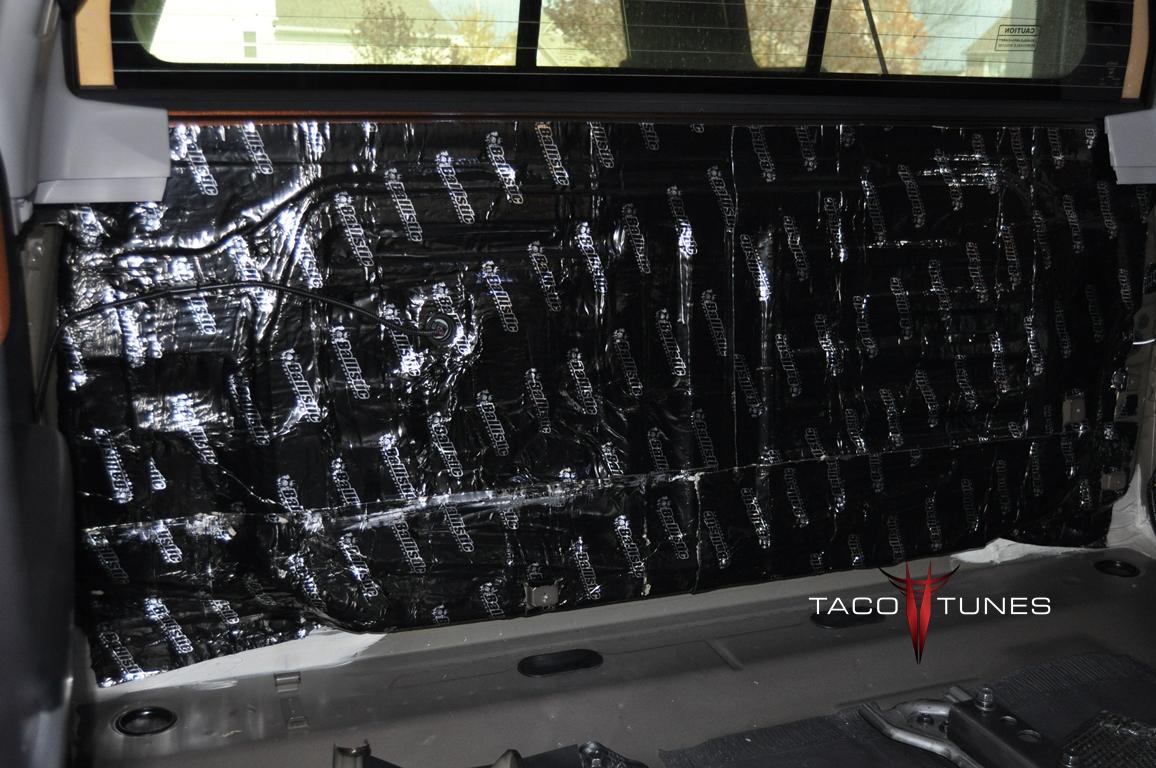

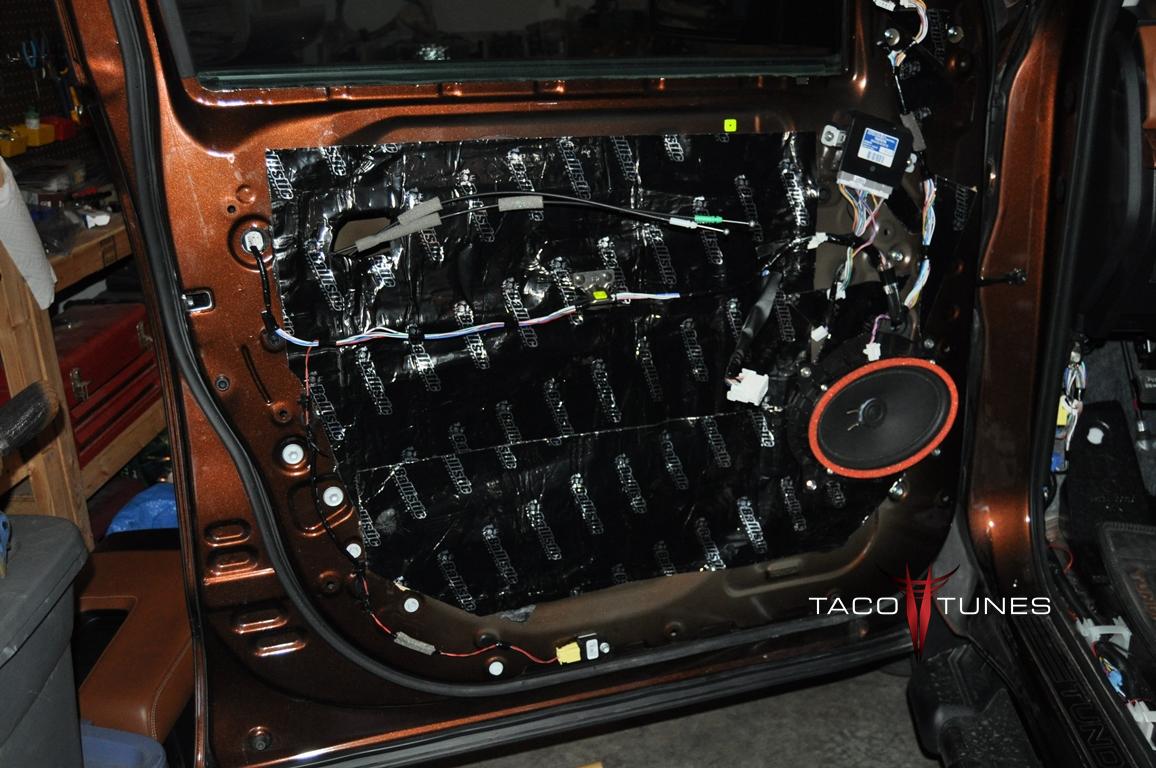

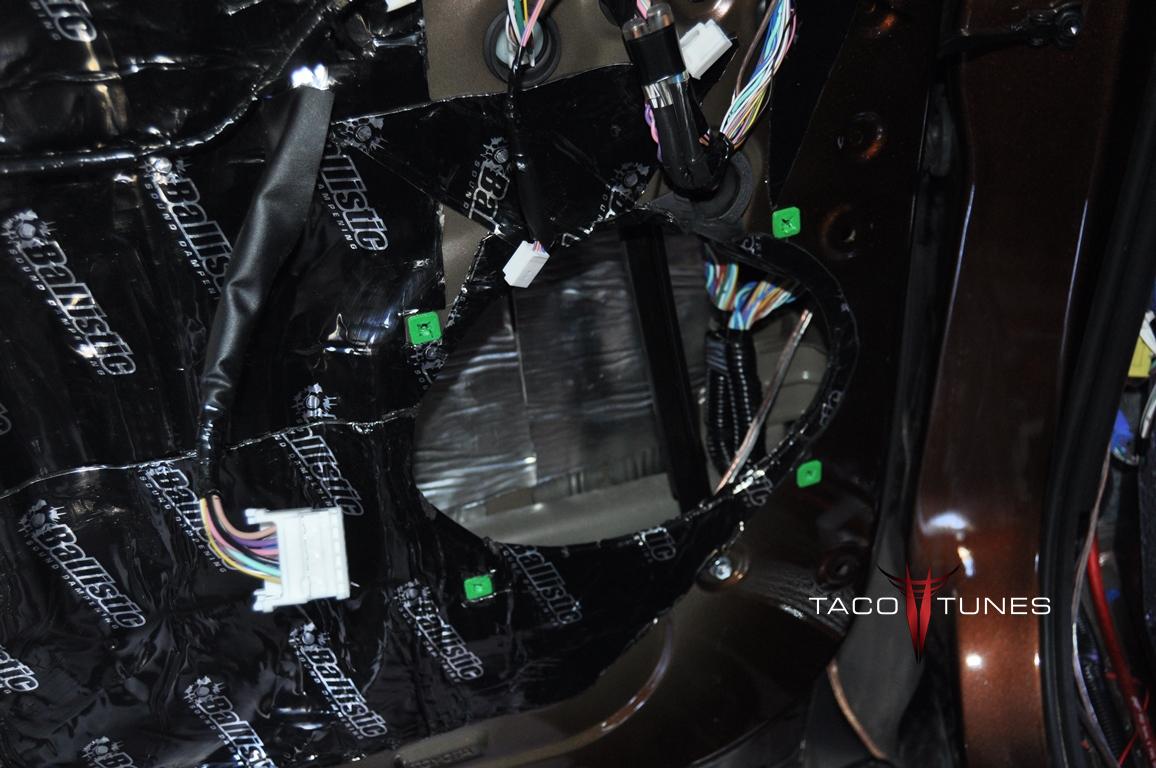

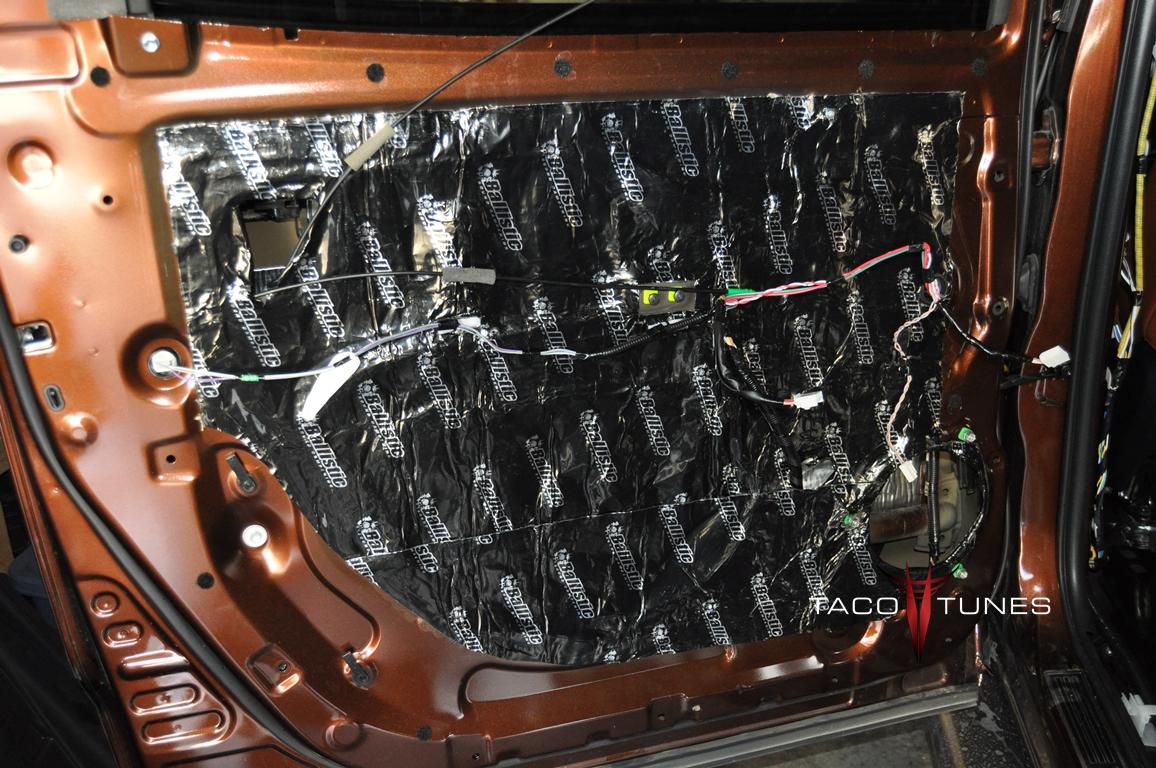

Ballistic Matting 4 x Doors & Rear Wall takes 9 sheets to complete Tundra – Standard bulk pack includes 9 sheets.
