2005-2023 10 Inch Toyota Tacoma Double Cab Subwoofer Box Enclosure

PLEASE SEE FITMENT NOTES BEFORE ORDERING.



SKU: 14-V2SW02-A1 Category:

Description

2005-2023 10 Inch Toyota Tacoma Double Cab Subwoofer Box Enclosure

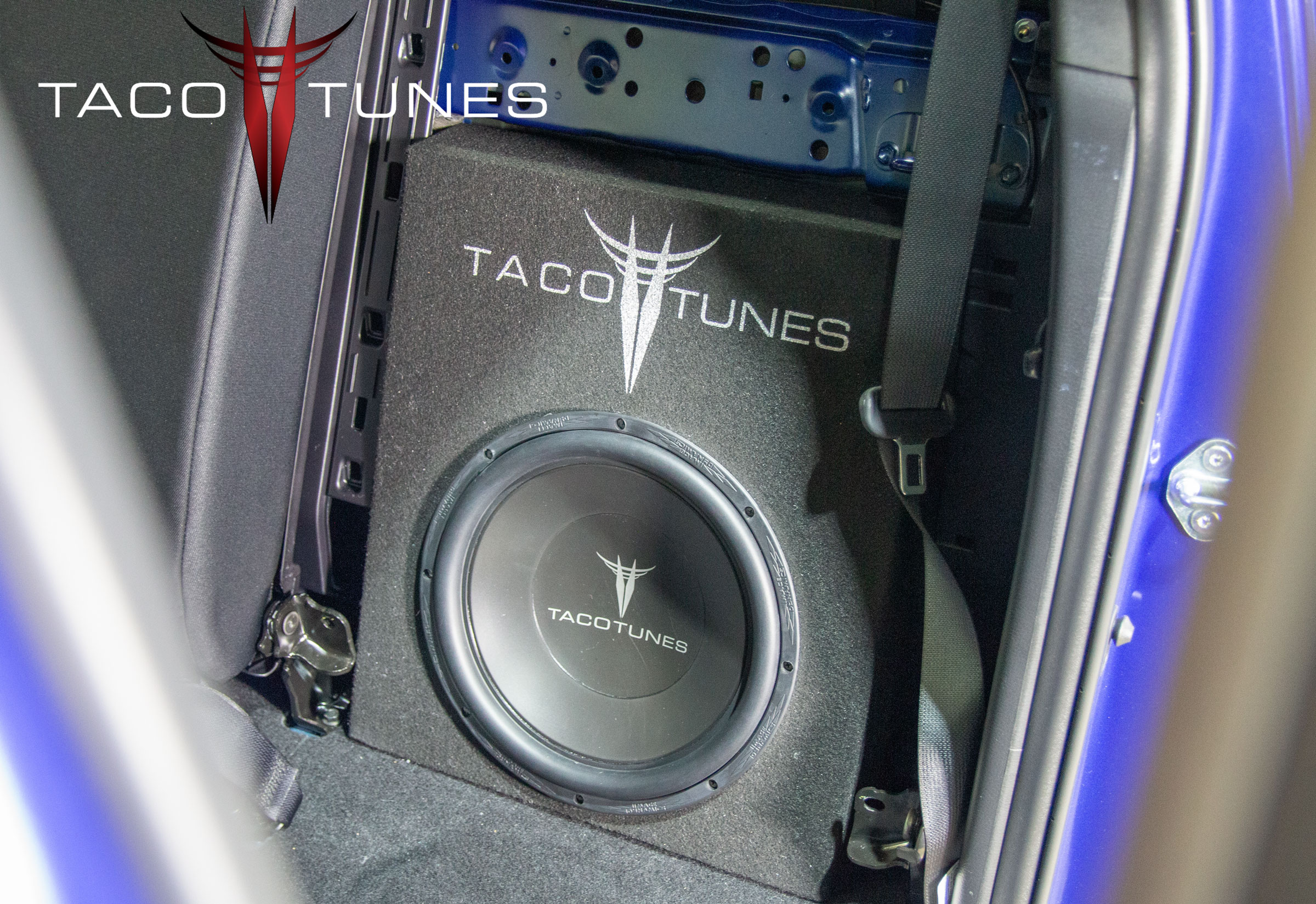

This Stealth Subwoofer Box is engineered to vanish behind your Double Cab Tacoma’s rear driver seat, delivering the bass you have been craving in your Tacoma, without sacrificing space. Crafted from rock-solid, .75″ thick ULTRA MDF, this isn’t just a box; it’s a sonic fortress.

Don’t let cheap knock-offs from online bazaars ruin your ride. Experience audio nirvana with a subwoofer box built for quality minded Tacoma owners.

HOW TO INSTALL:

1 – Terminal / Wiring Cup (Heavy Duty 12G)

1 – 24″ Red/Black 12 gauge wire

8 – Wood Screws (subwoofer hardware)

4 – Wood Screws (terminal cup hardware)

1 – 12 X 16″ sheet of PolyFill

2 – 10 MM Metric Mounting Bolts

2 – Large flat washers

Our premium bolt and washer kit ensures a secure, no-drill installation of your subwoofer box to your Toyota Tacoma’s existing mounting points. This kit provides both a sealed fit and vibration-free performance.

  1. Rear Seat Access: Due to the subwoofer’s placement and minimal space behind the seat the driver-side rear seat will be unable to fold down after installation.
  2. Interior Components: Removal of the driver-side storage compartment and rear seat plastic panels is necessary. These parts can be reinstalled for future use, so please retain all hardware and plastic panels.
  3. Camera Systems: Tacoma models equipped with multi-camera or panoramic features (2020+) will require relocation of the camera module. A visual guide is provided below.

NOTE: Some customers have made small modifications to the back of the box and reported no issues with leaving the camera control module in place.

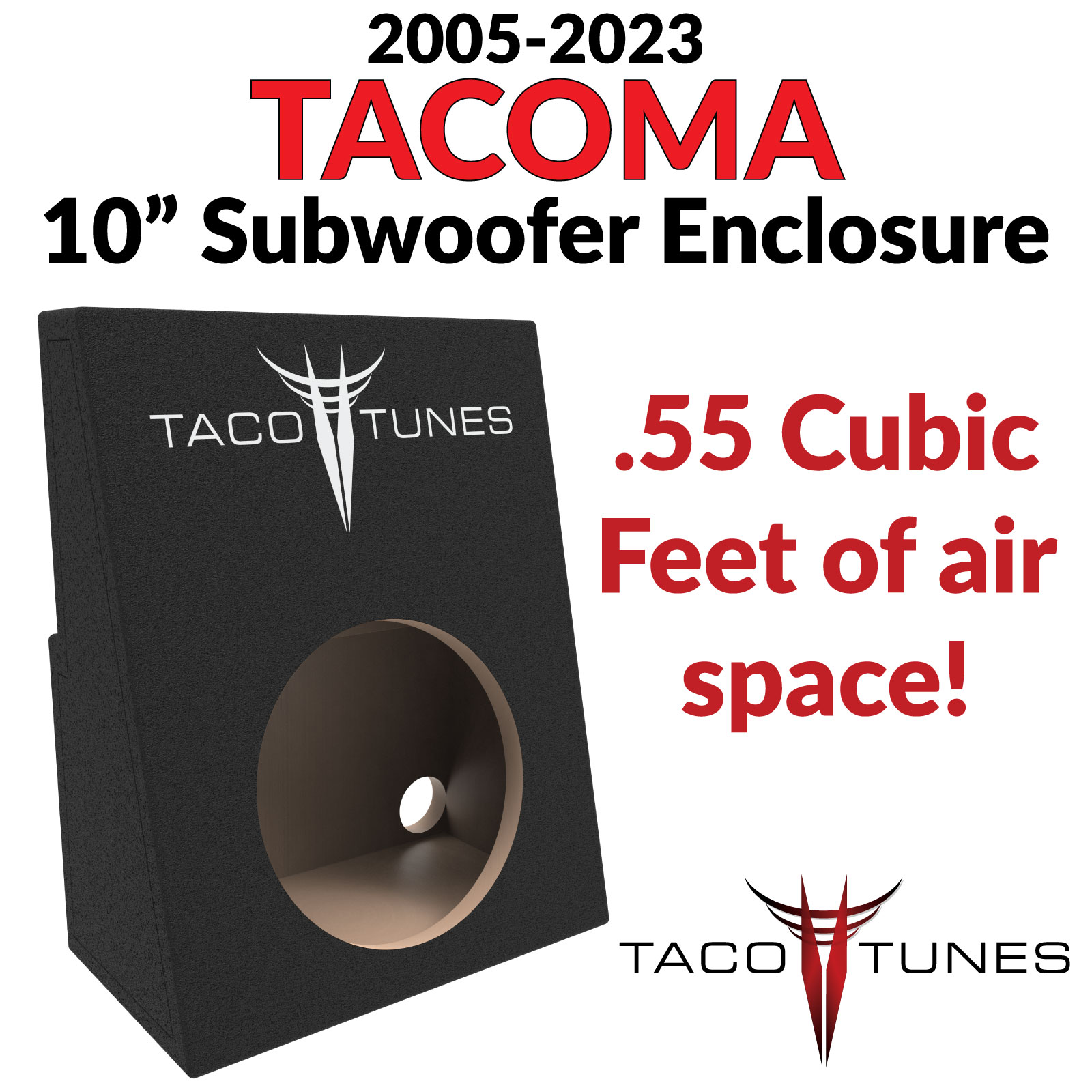

Subwoofer box is roughly .55 cu ft internal airspace

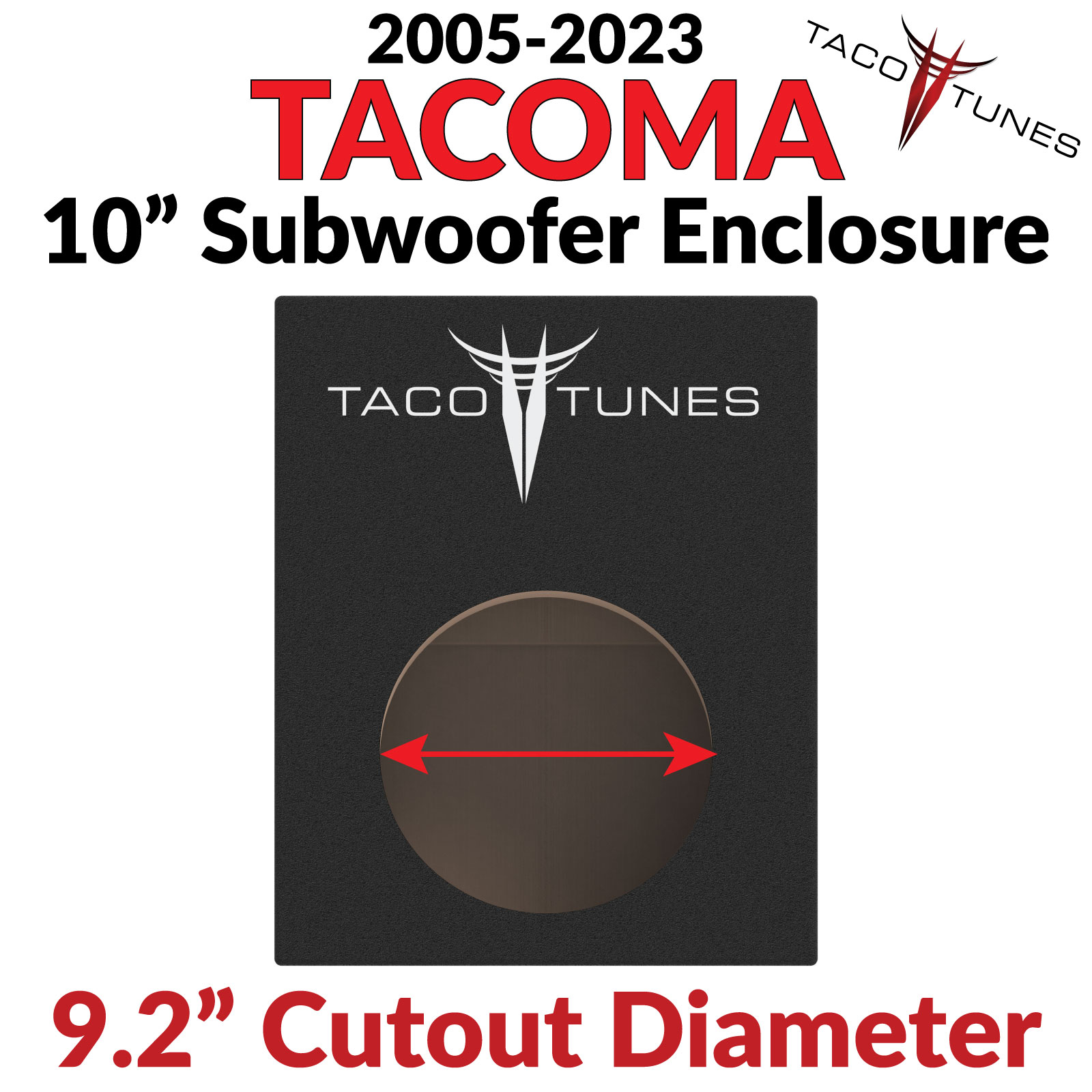

Mounting diameter is 9.2”

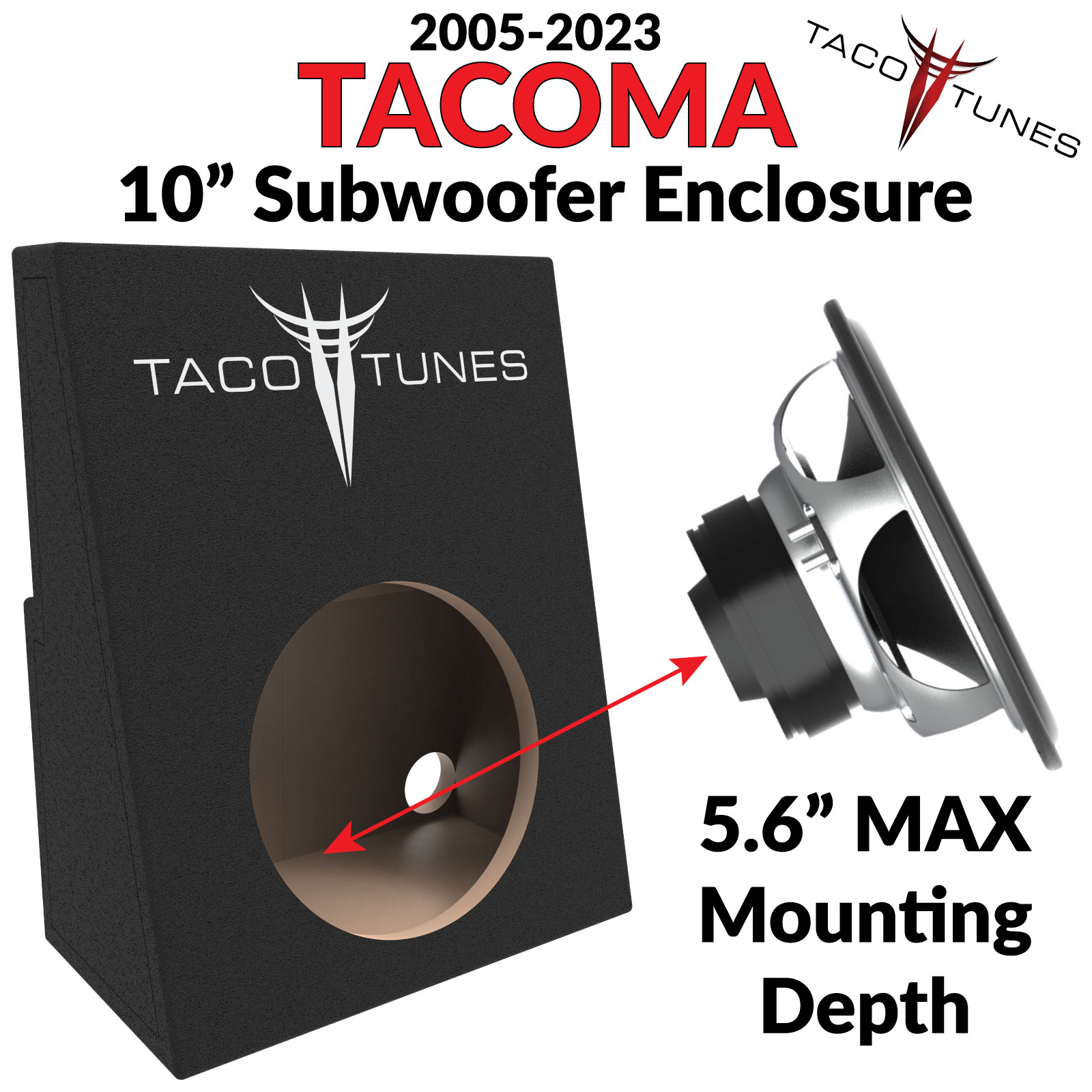

Top month depth is 5.65” or less. NOTE: The magnet diameter plays a role in the maximum top mounting depth. Due to the ANGLE of the box, WIDER subwoofer magnets will affect the top mount depth.

Tacotunes TT10 Subwoofer Specs:

Nominal Impedance: Dual 4Ω

BL: 10.79

Inputs: DVC

Height: 5.12″

Width: 10.125″

Depth: 5.12″

Material: Poly Cone

Magnet Size: 127 oz.

Dimensions (in Inches): 10.125″

Cutout Diameter: 9.125″

Nominal Impedance: Dual 4Ω

BL: 10.79

Inputs: DVC

Height: 5.12″

Width: 10.125″

Depth: 5.12″

Material: Poly Cone

Magnet Size: 127 oz.

Dimensions (in Inches): 10.125″

Cutout Diameter: 9.125″

Xmax: 14 mm

Spl: 85

No: 0.140%

Qts: 0.731

Qes: 0.841

Qms: 5.592

Mms: 128.20

Cms: 199

Vas: 37.31

SD: 363

Fs: 32

Test Impedance: 3.8 – Tested Individually

VC Impedance: 4

Size: 10″

Sensitivity: 86

Frequency Response: 30-500Hz.

Voice Coil Size: 2″

Power Handling (RMS/Peak): 350W / 500W

Ruber Surround

Poly/Mica Cone

Nomex Spider

Poly Carbonate Neck Joint

Extended Y-35 Motor Structure

Universal Enclosure Applications

*Free Shipping 48 States

NOTE: Contact us for accurate shipping cost outside the 48 States.

  • 2005-2023 Toyota Tacoma 10 inch Subwoofer Double Cab
  • 2005-2023 Toyota Tacoma 10 inch Subwoofer Double Cab w TT10
  • 2005-2023 Toyota Tacoma 10 inch Subwoofer Double Cab TRD
  • 2005-2023 Toyota Tacoma 10 inch Subwoofer Double Cab tacotunes
  • 2005-2023 Toyota Tacoma 10 inch Subwoofer Box Enclosure
  • 2005-2023 Toyota Tacoma 10 inch Subwoofer Box Enclosure rear view
  • 2005-2023 Toyota Tacoma 10 inch Subwoofer Box Enclosure w dimensions
  • 2005-2023 Toyota Tacoma 10 inch Subwoofer Box Enclosure

Additional information

Weight 20 lbs
Dimensions 19 × 11 × 22 in
