Gabriel’s Toyota Tundra CrewMax 1794 Edition Audio Installation San Antonio TX

Tundra CrewMax 1794 Stereo Installer San Antonio TX

Gabriel’s  Toyota Tundra CrewMax 1794 Edition Audio Installation San Antonio TX

Installation Summary / History:

Customer Name: Gabriel:

Customer Location: Dallas TX

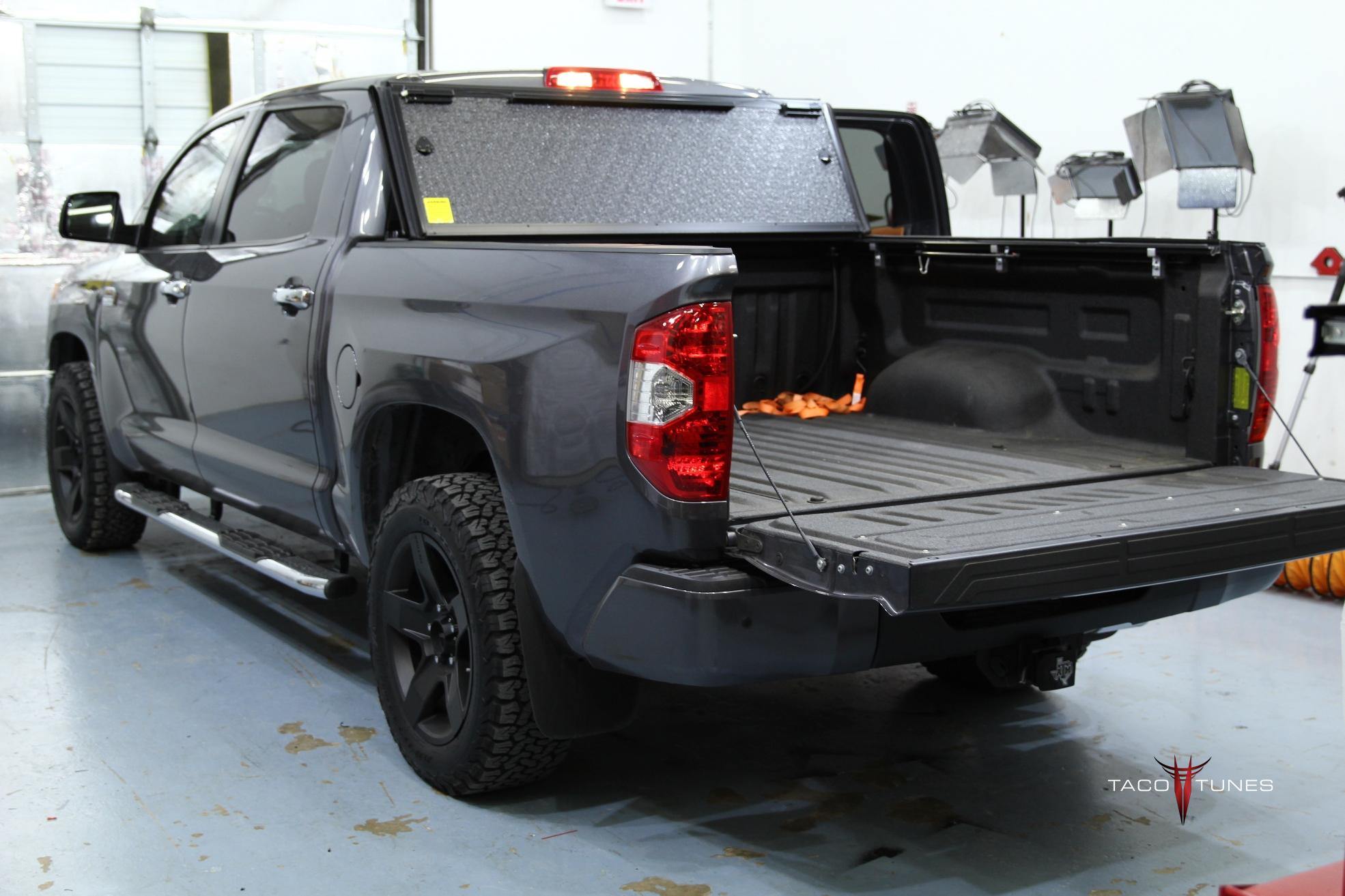

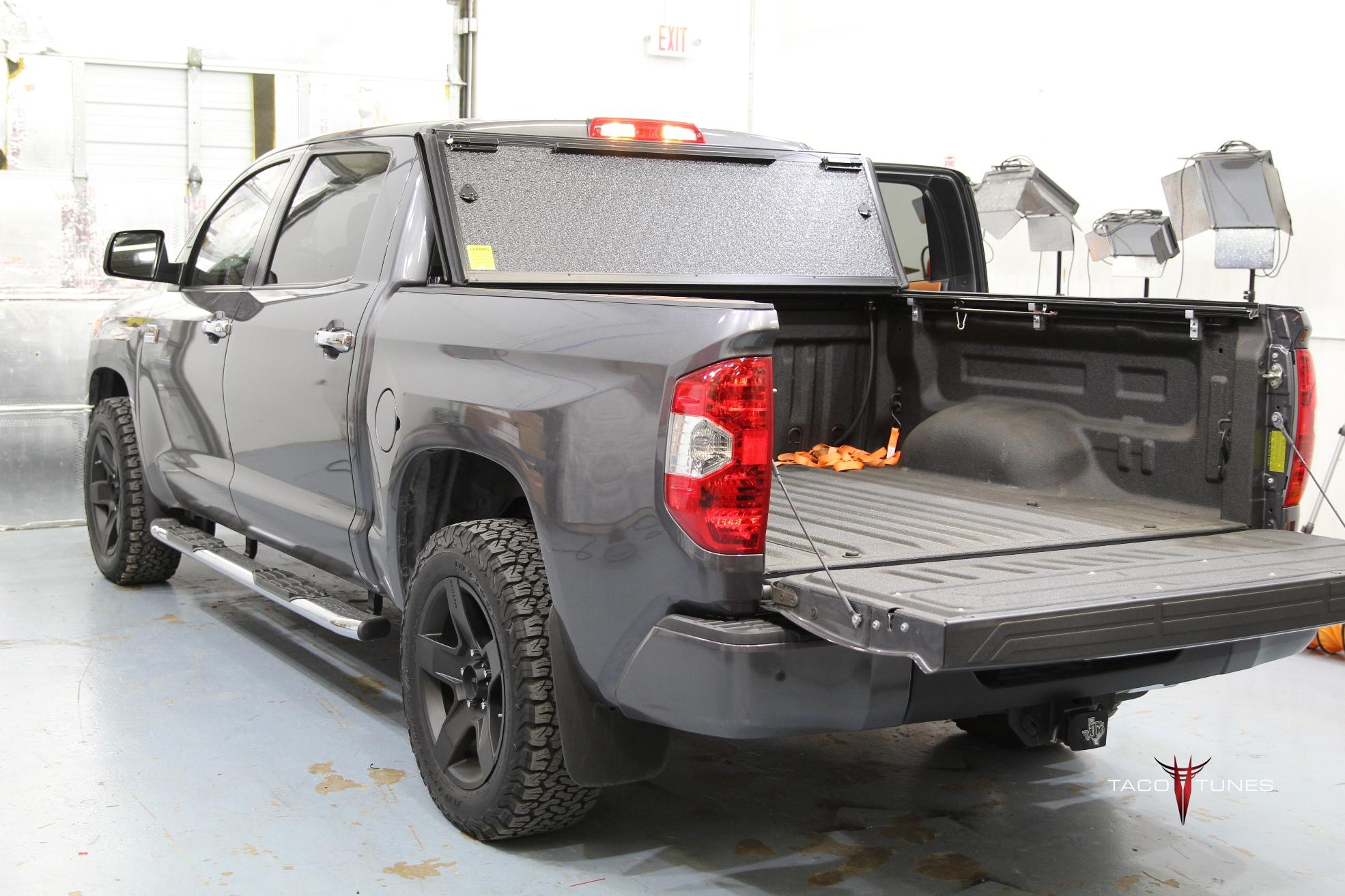

Toyota Year / Model: 2015 Toyota Tundra CrewMax 1794 Edition

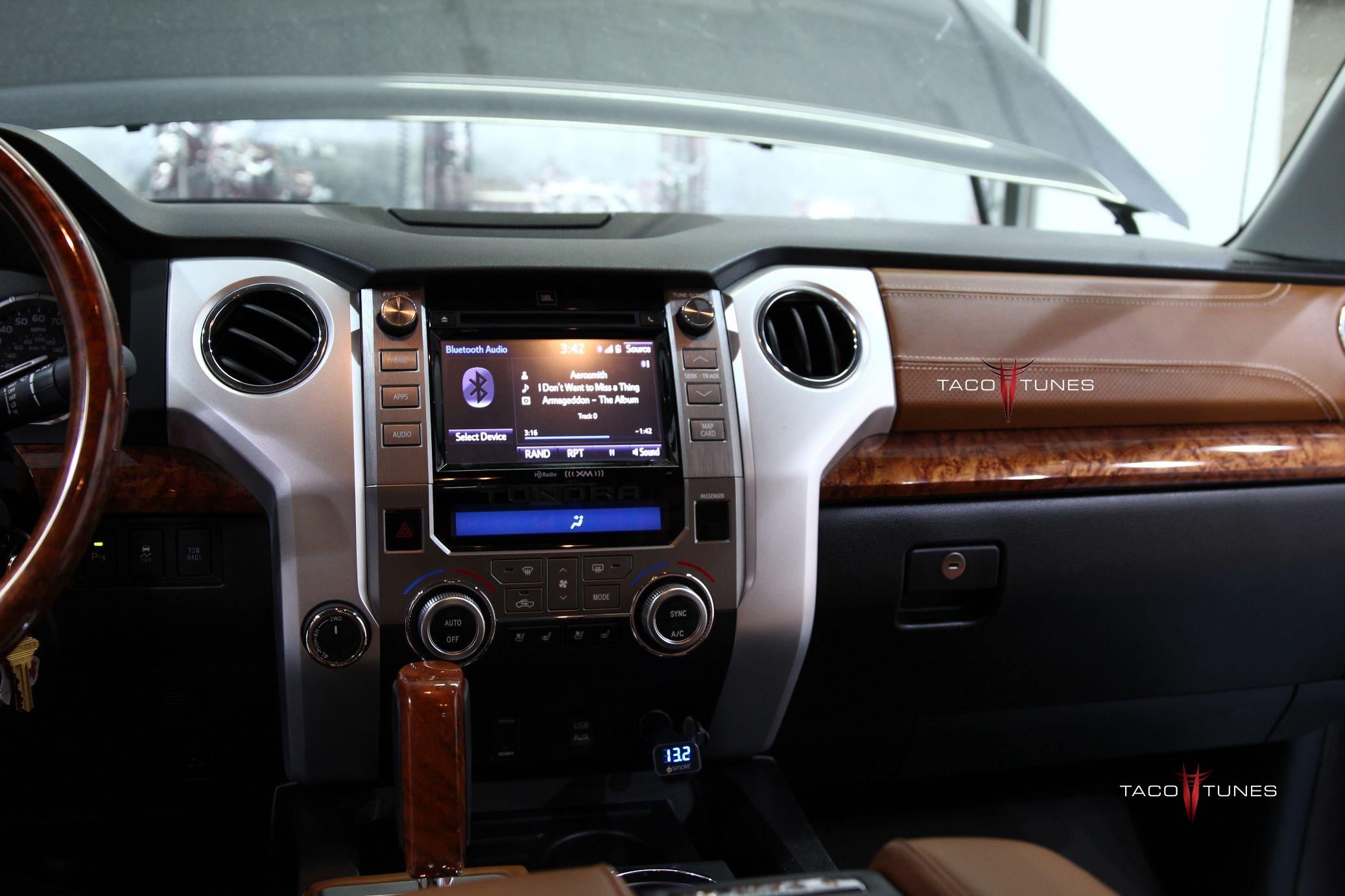

Head Unit: NON JBL

Color: Gray

Installed by: tacotunes.com

Gabriel has had audio systems in most of his vehicles. After hearing a couple of options he decided to go with our Image Dynamics SQ1 package. He already had some JL Audio 10″ W0 subs. So we installed them in one of our subwoofer boxes.

Below you will find a detailed listing of all the parts we used in the installation.

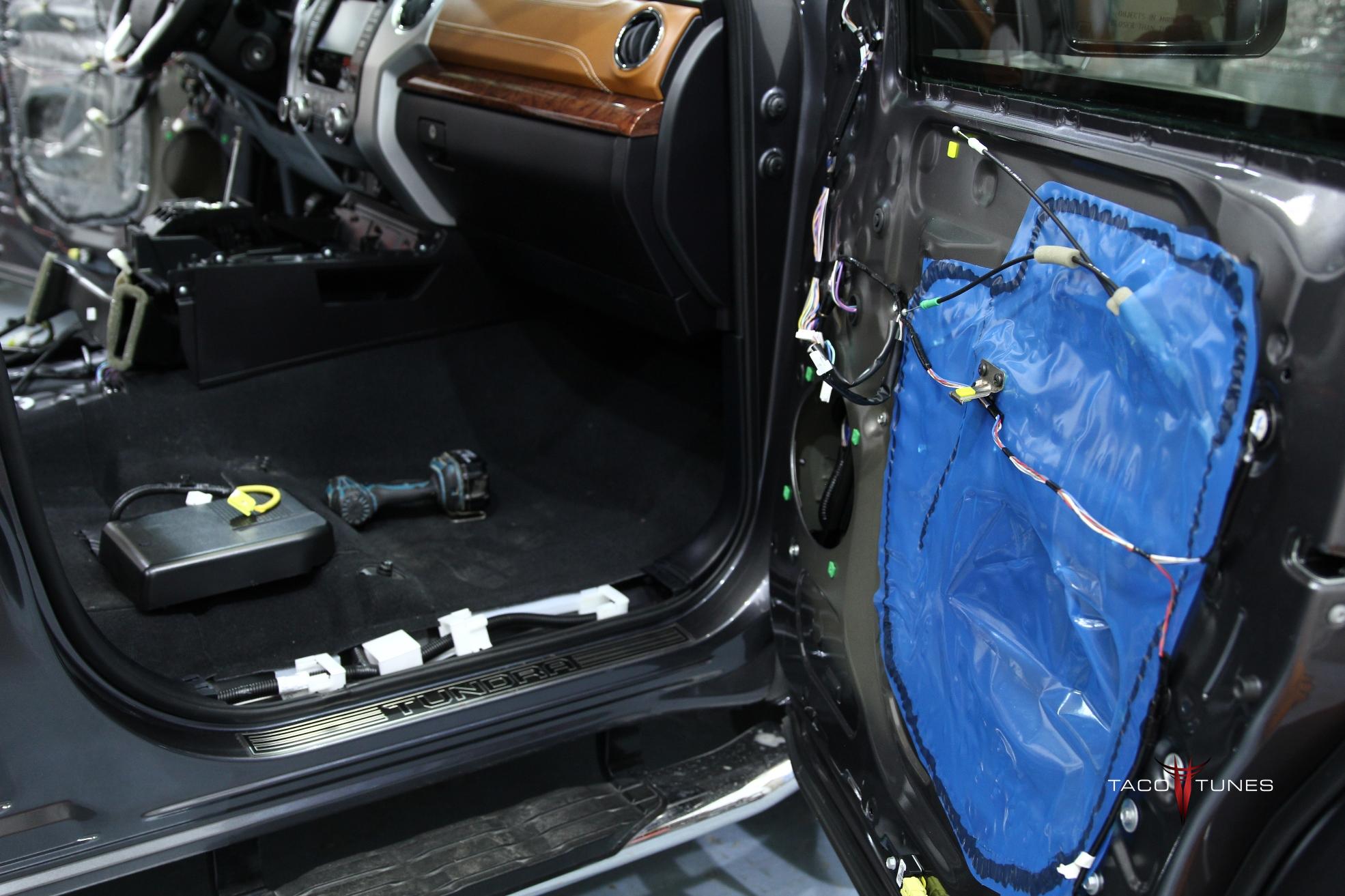

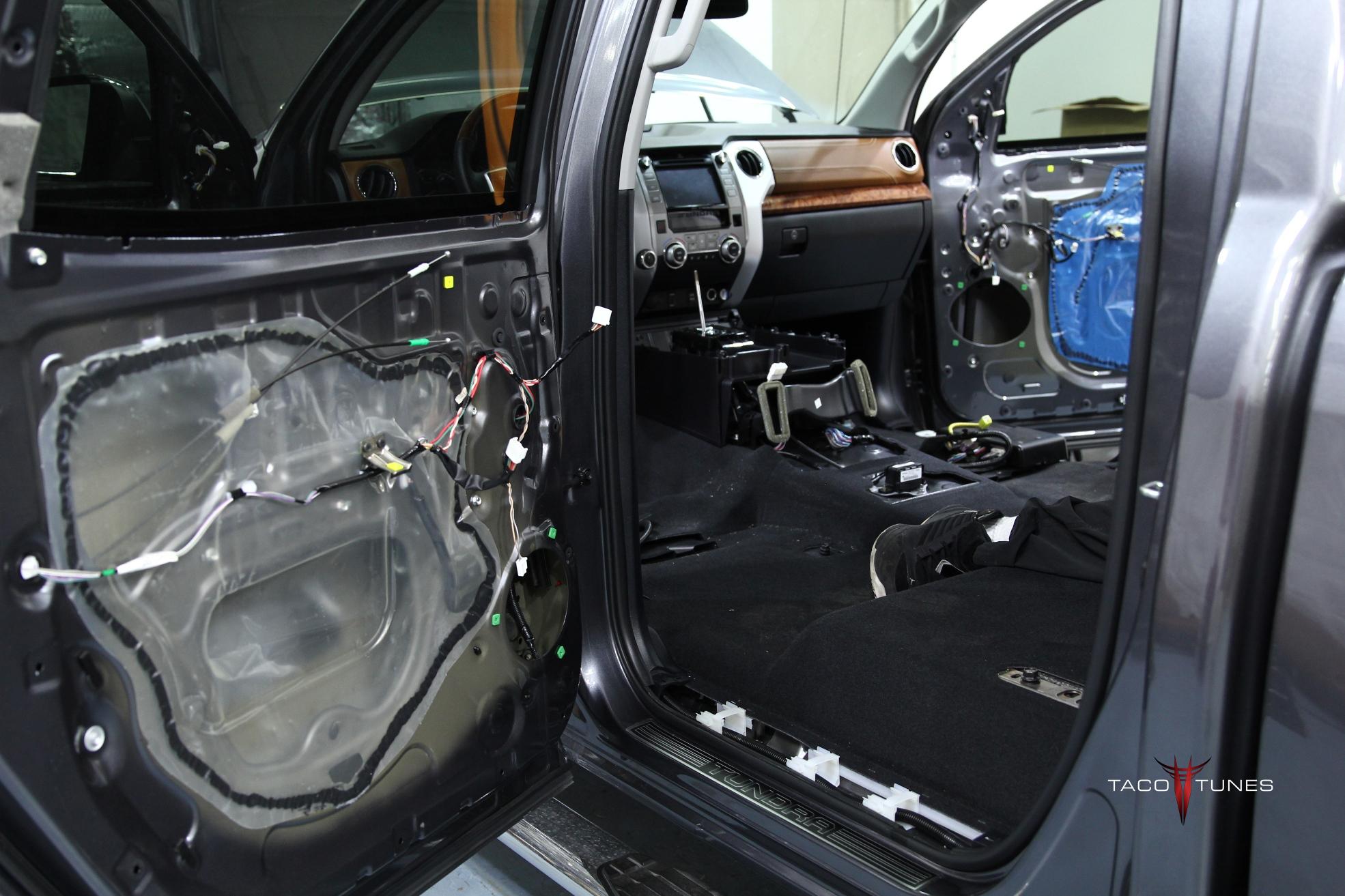

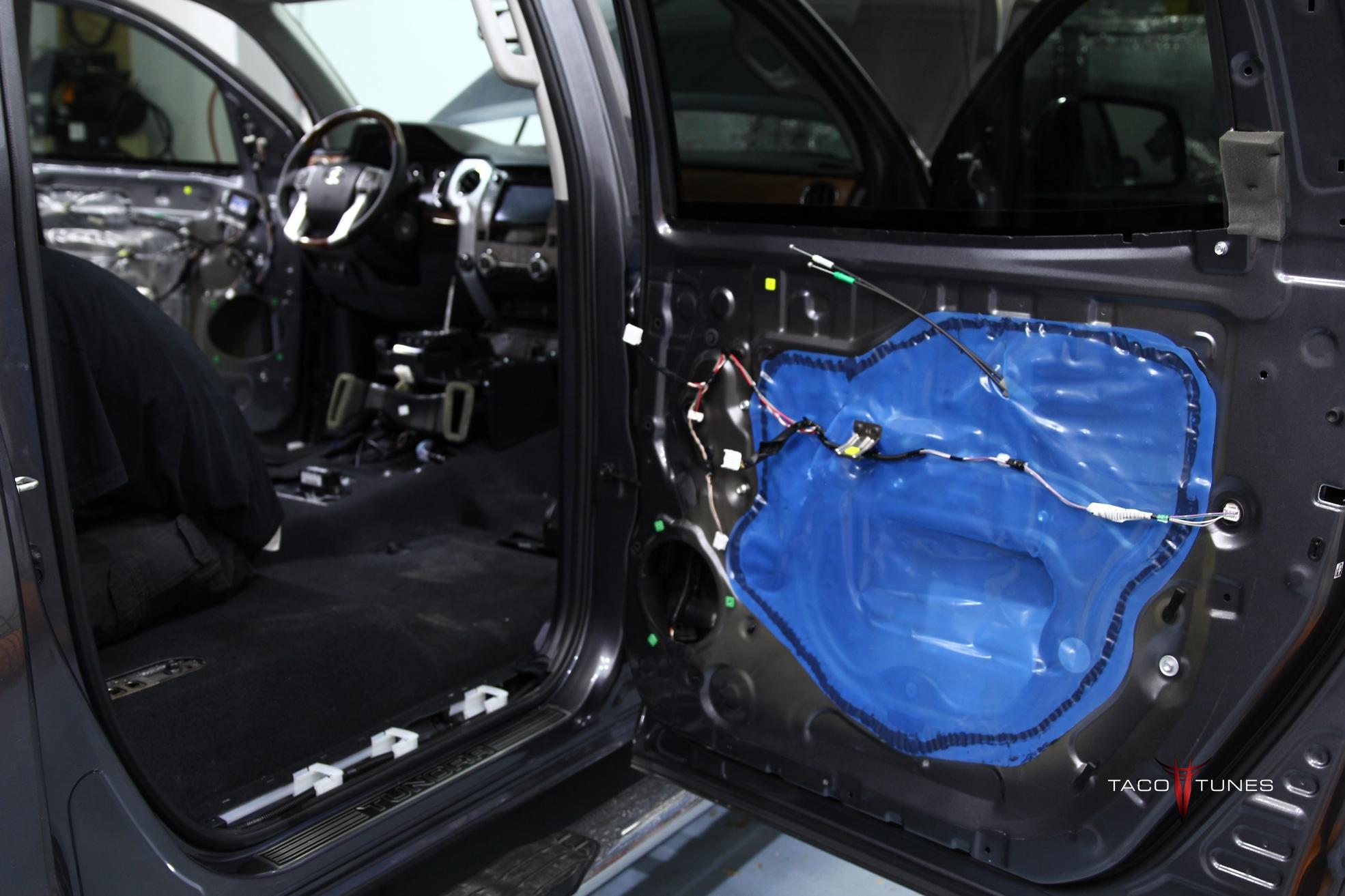

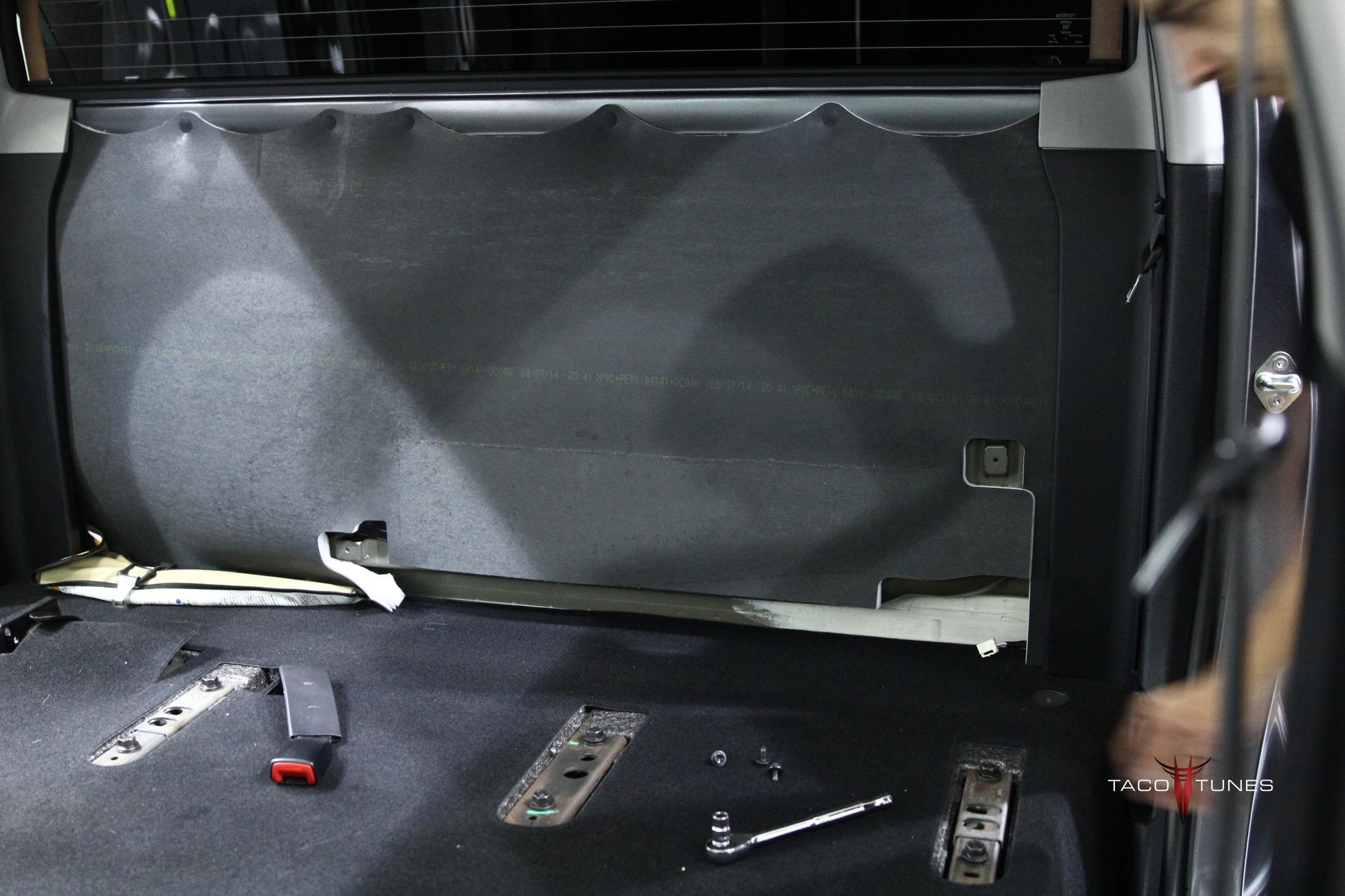

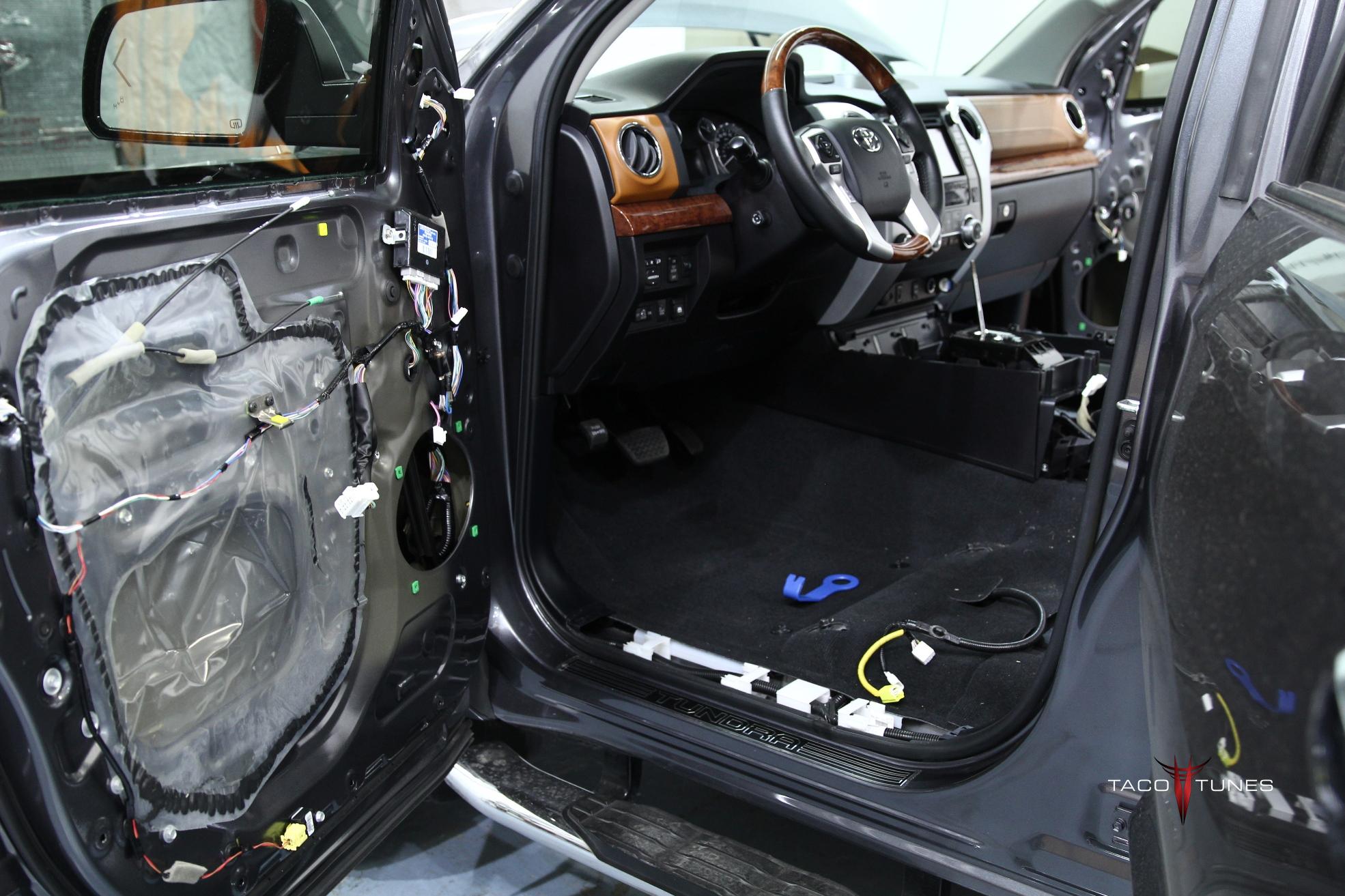

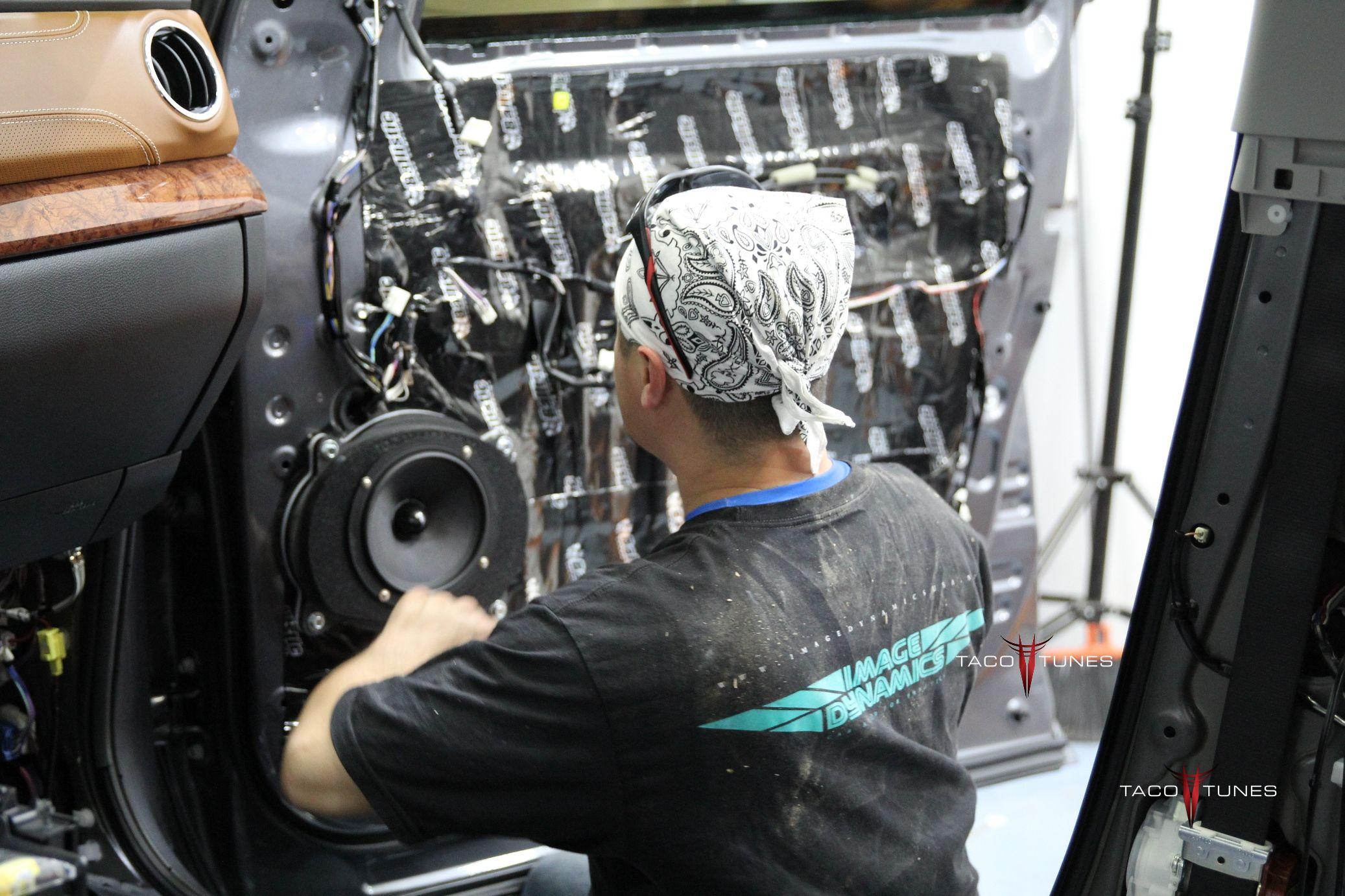

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Gabriels’ Tundra CrewMax

Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One audio installation and matting jobs are possible, but require at least 14 hours with the truck.



Specs on the audio installation:

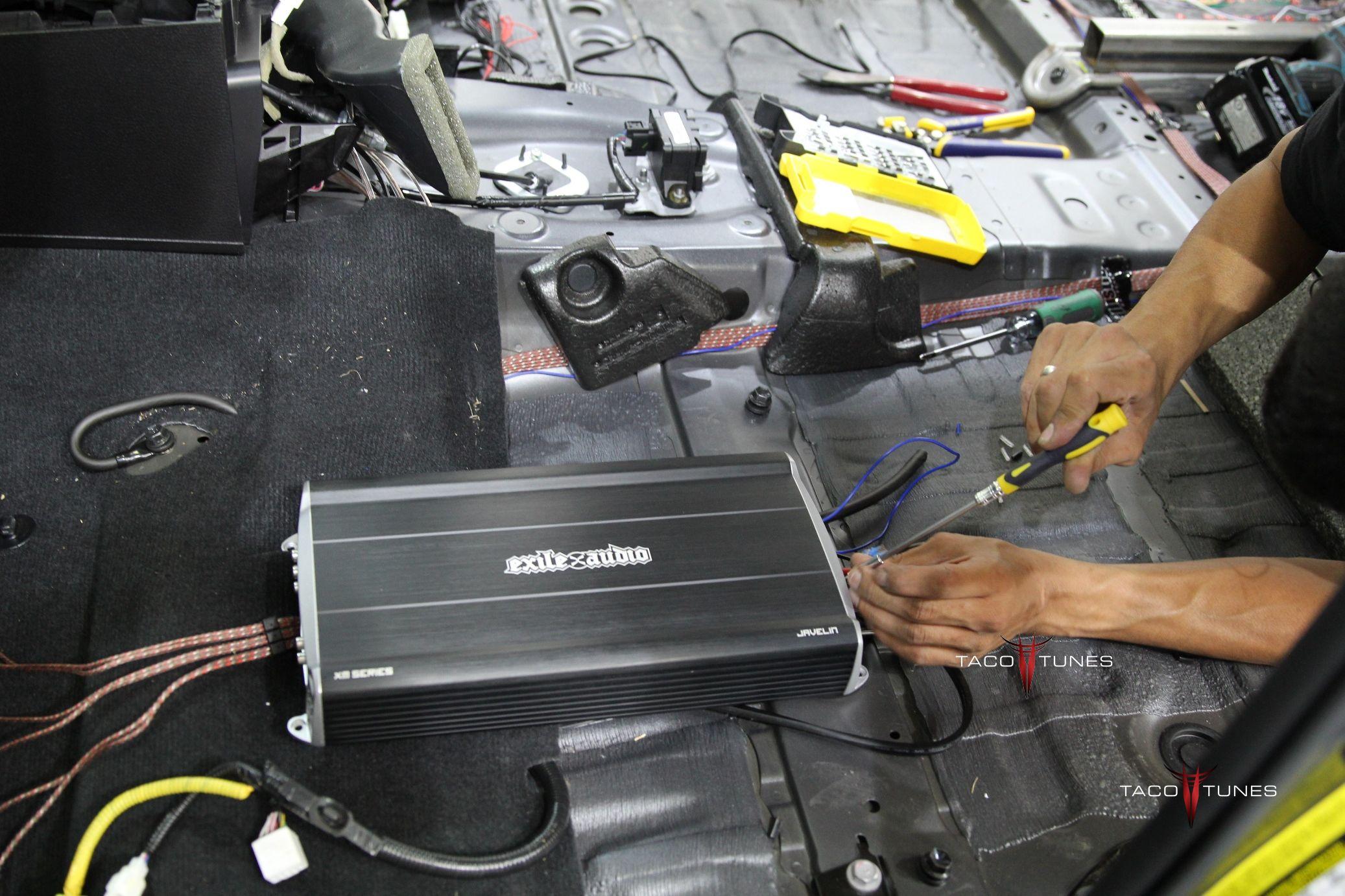

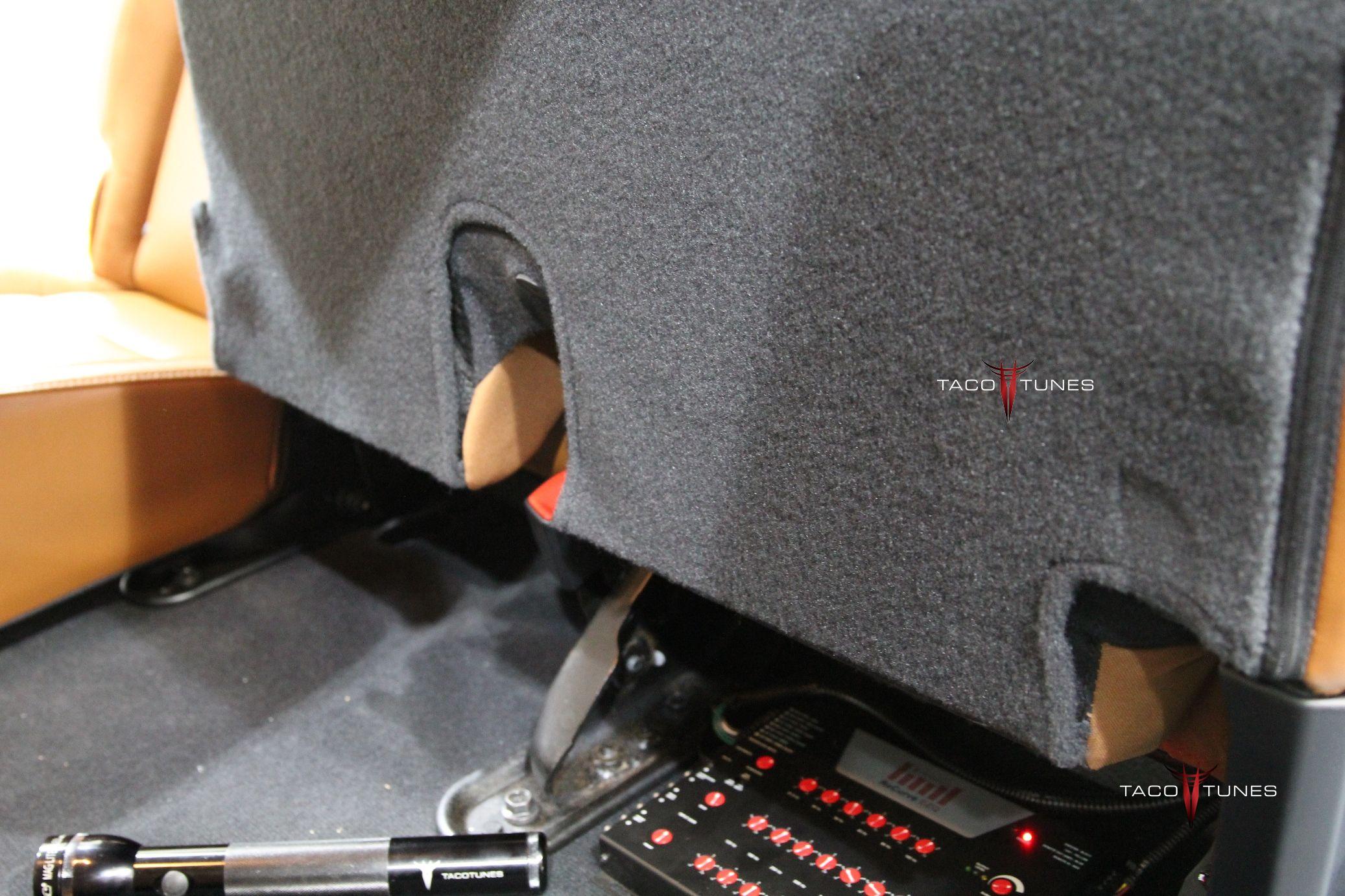

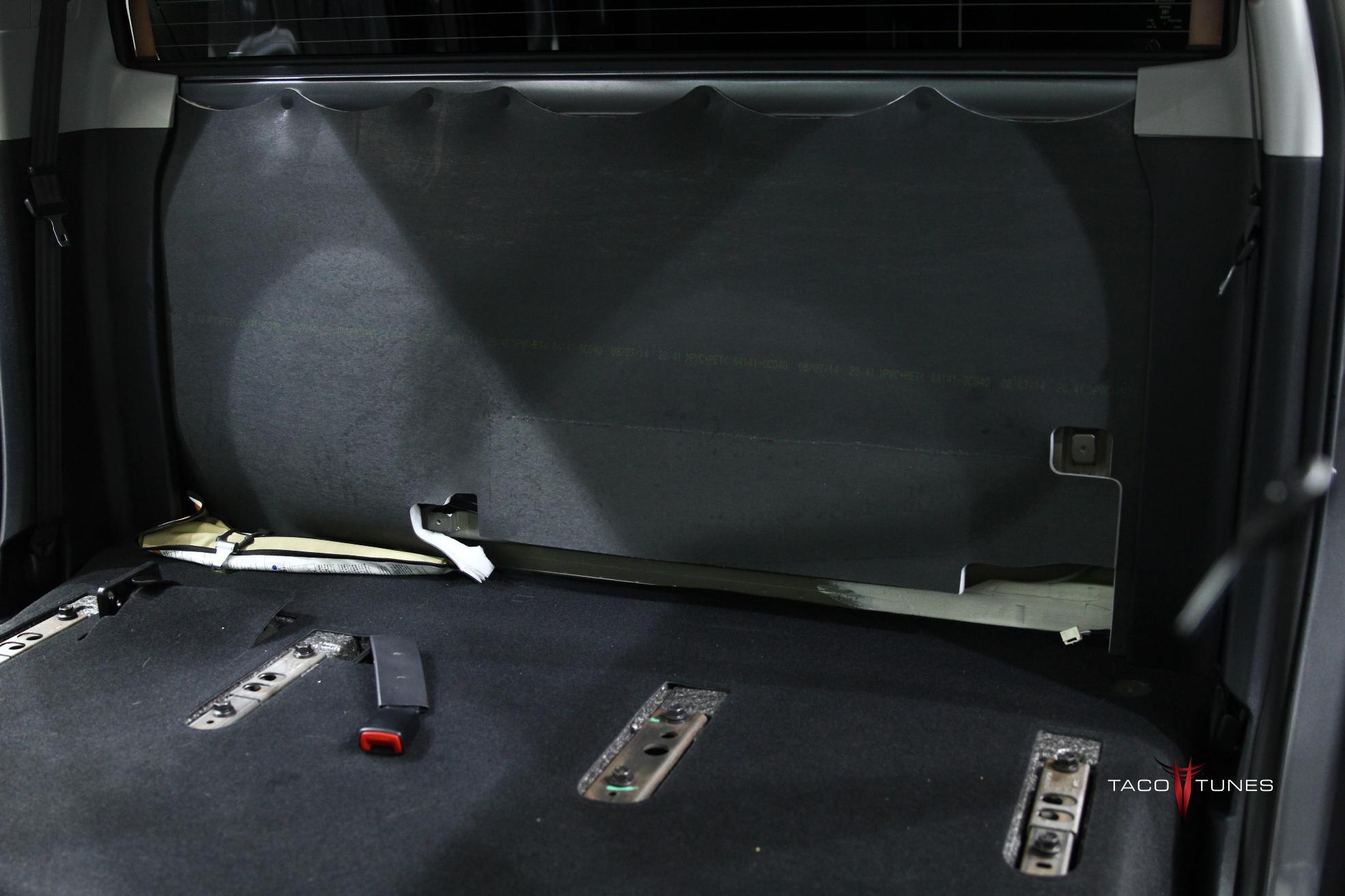

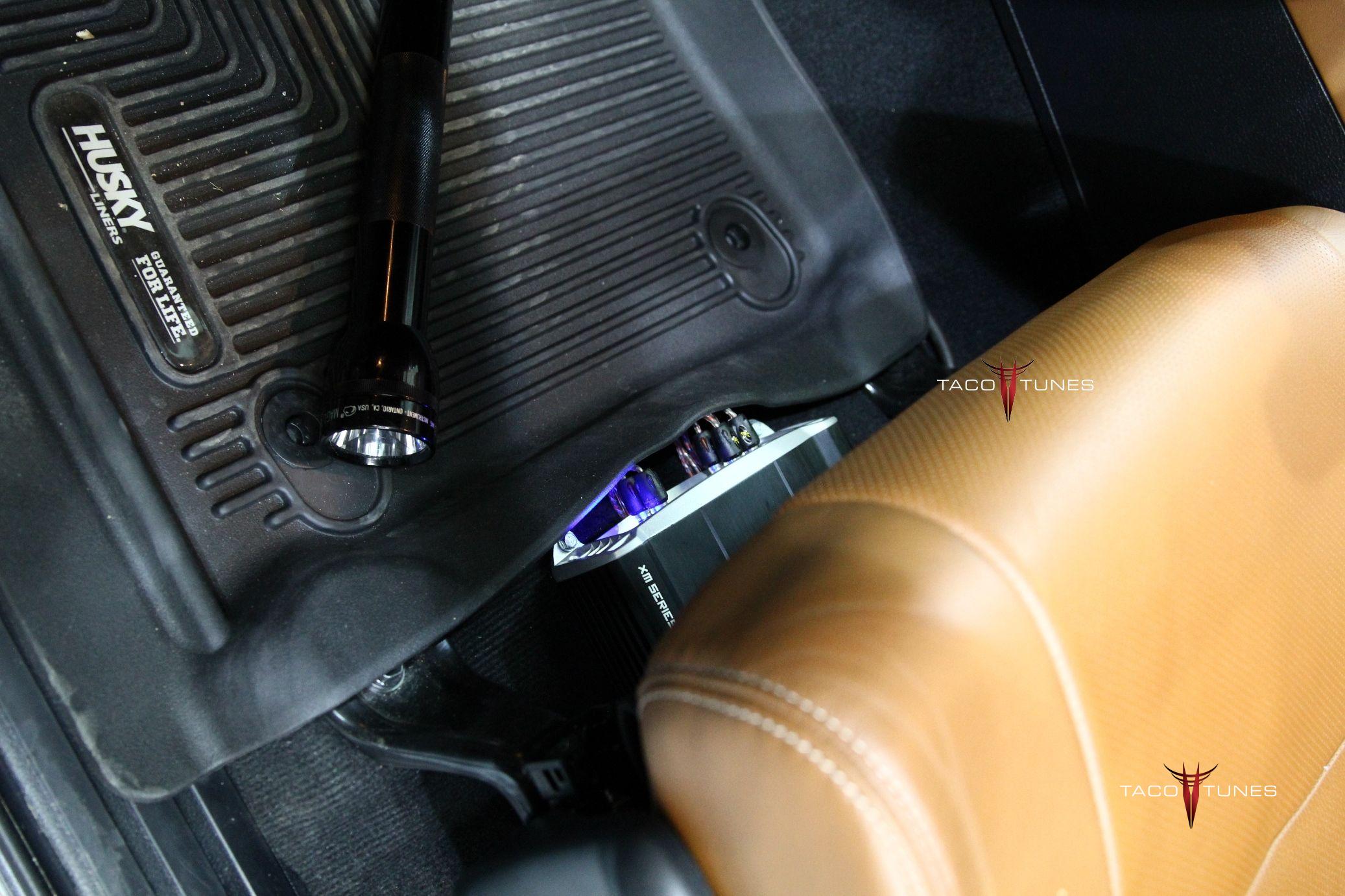

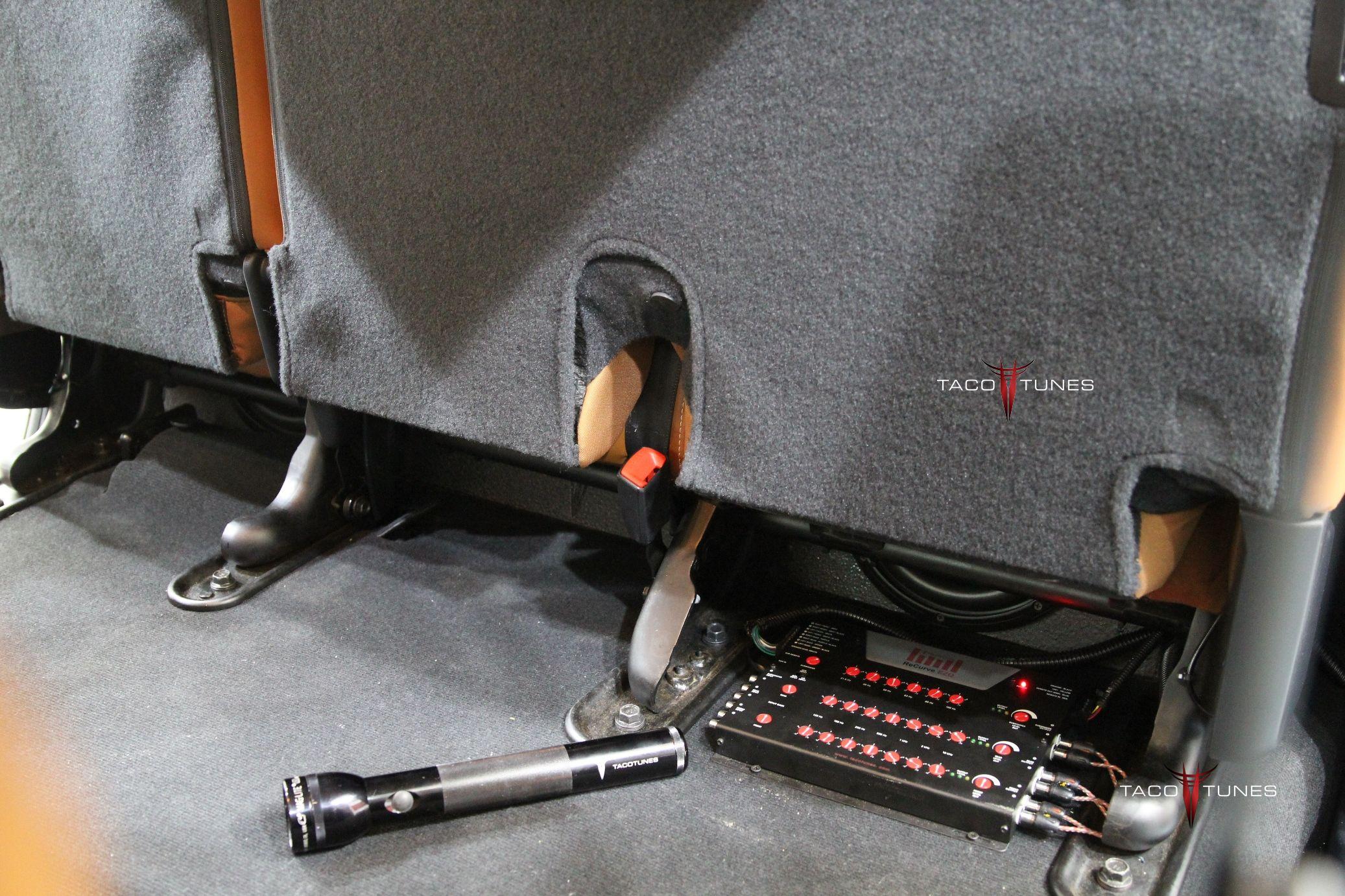

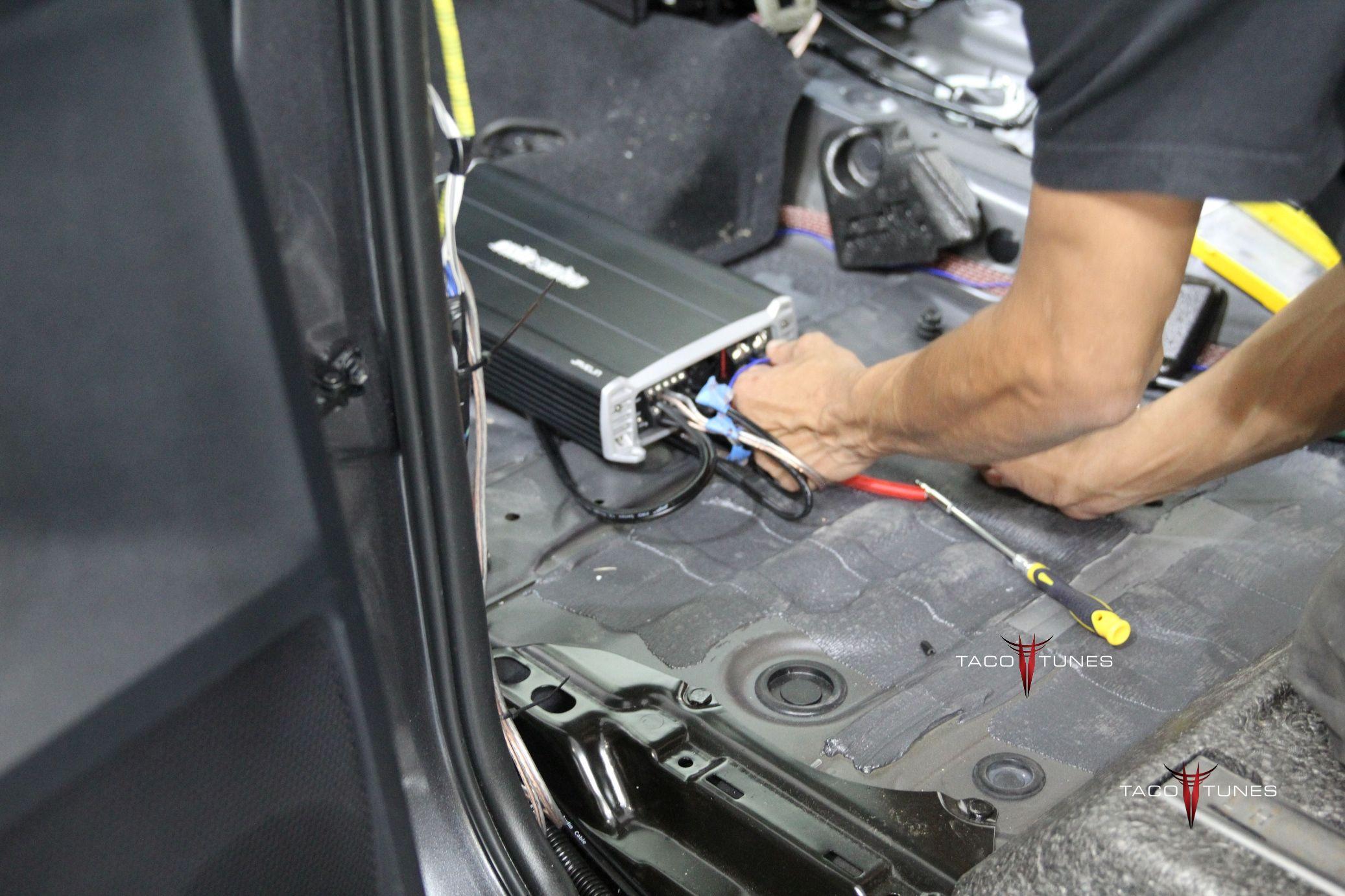

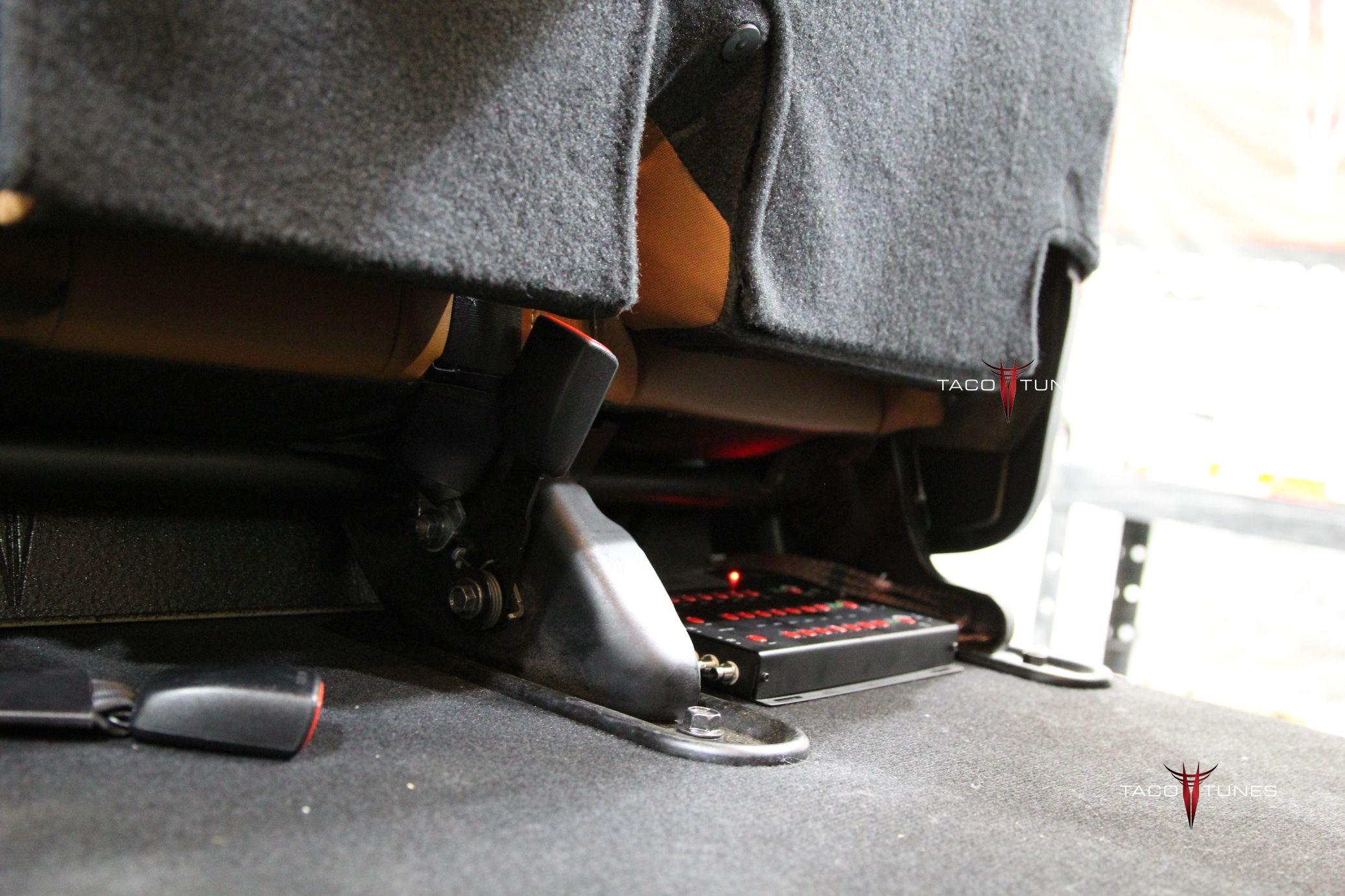

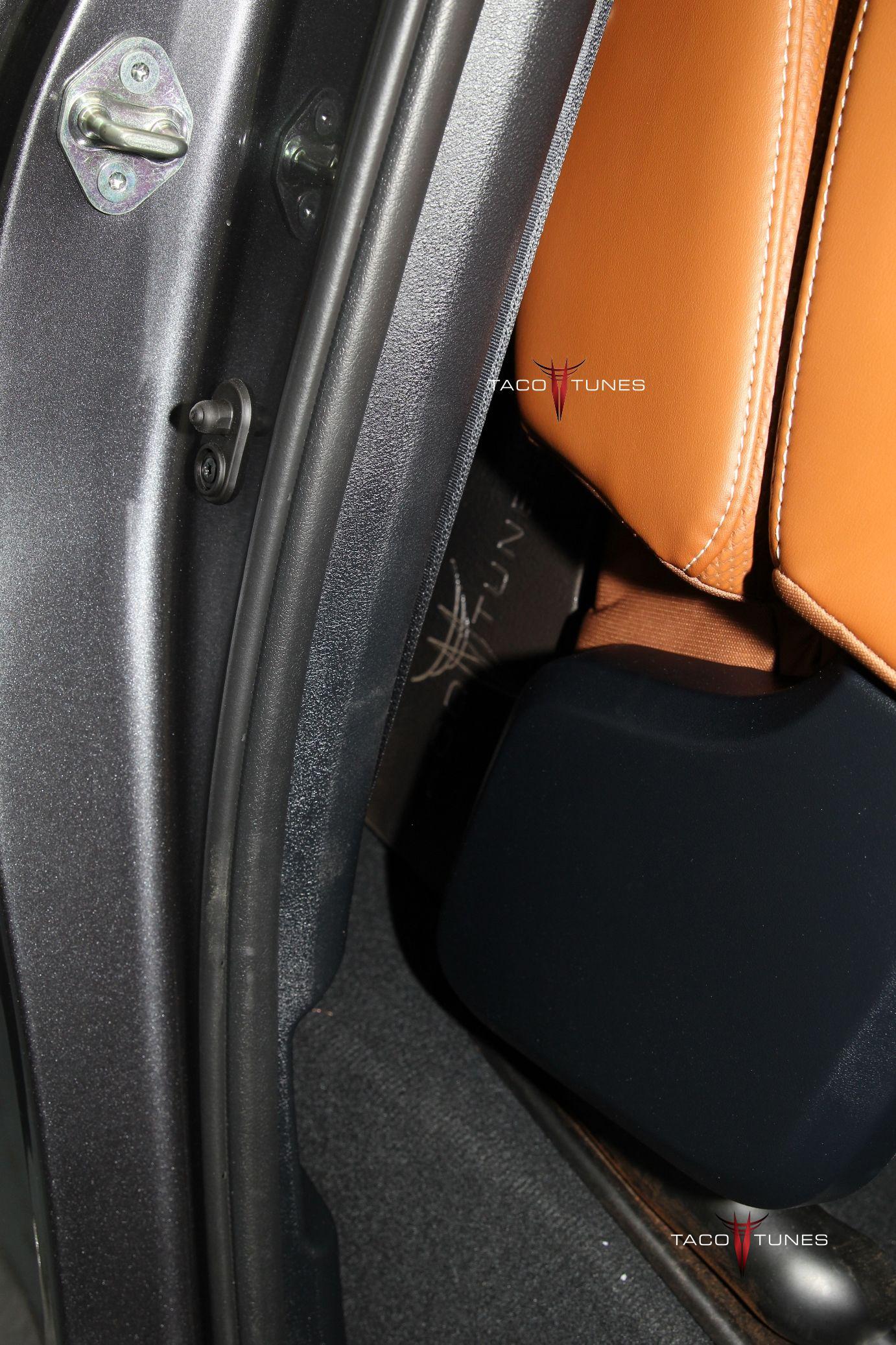

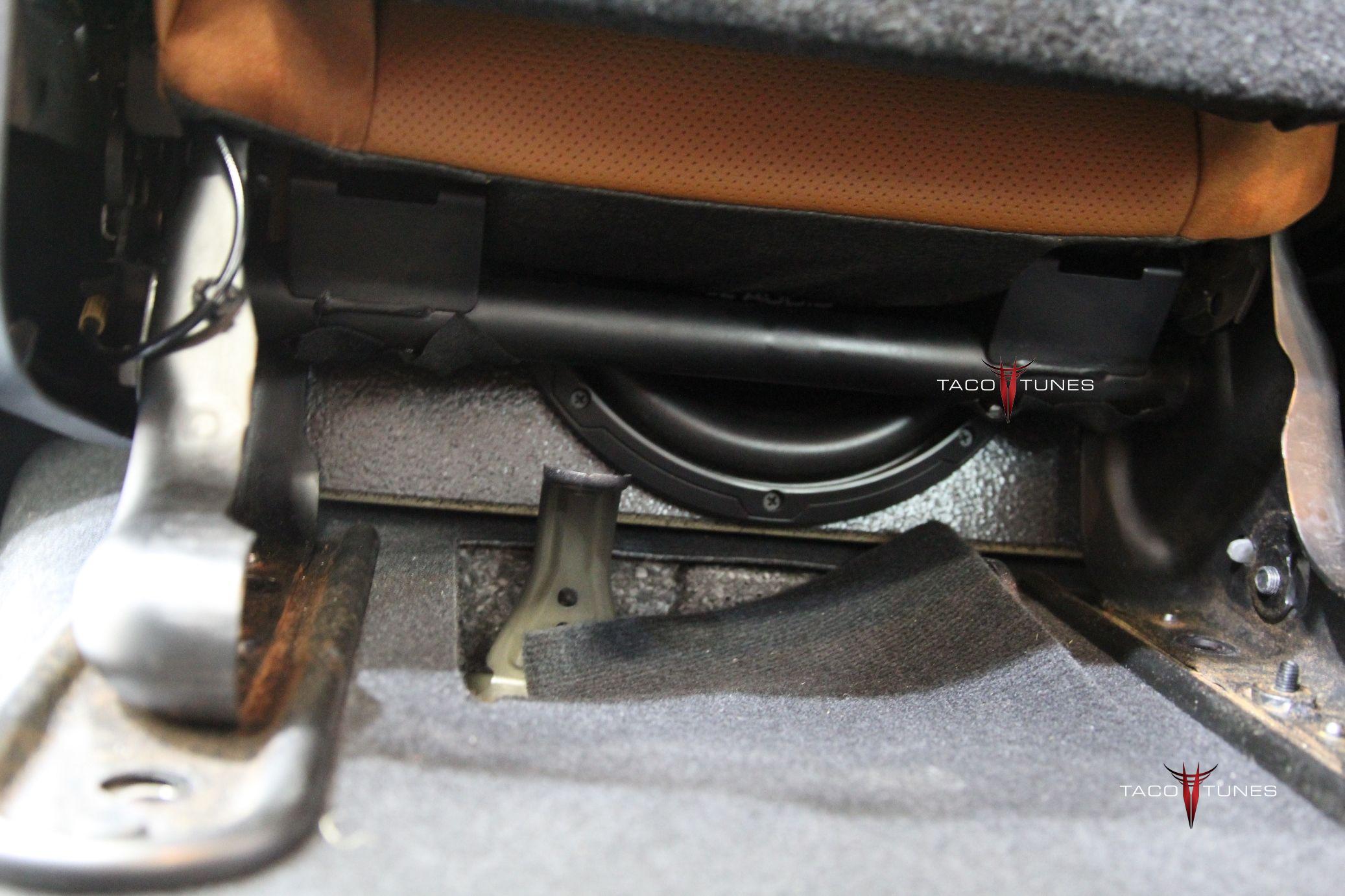

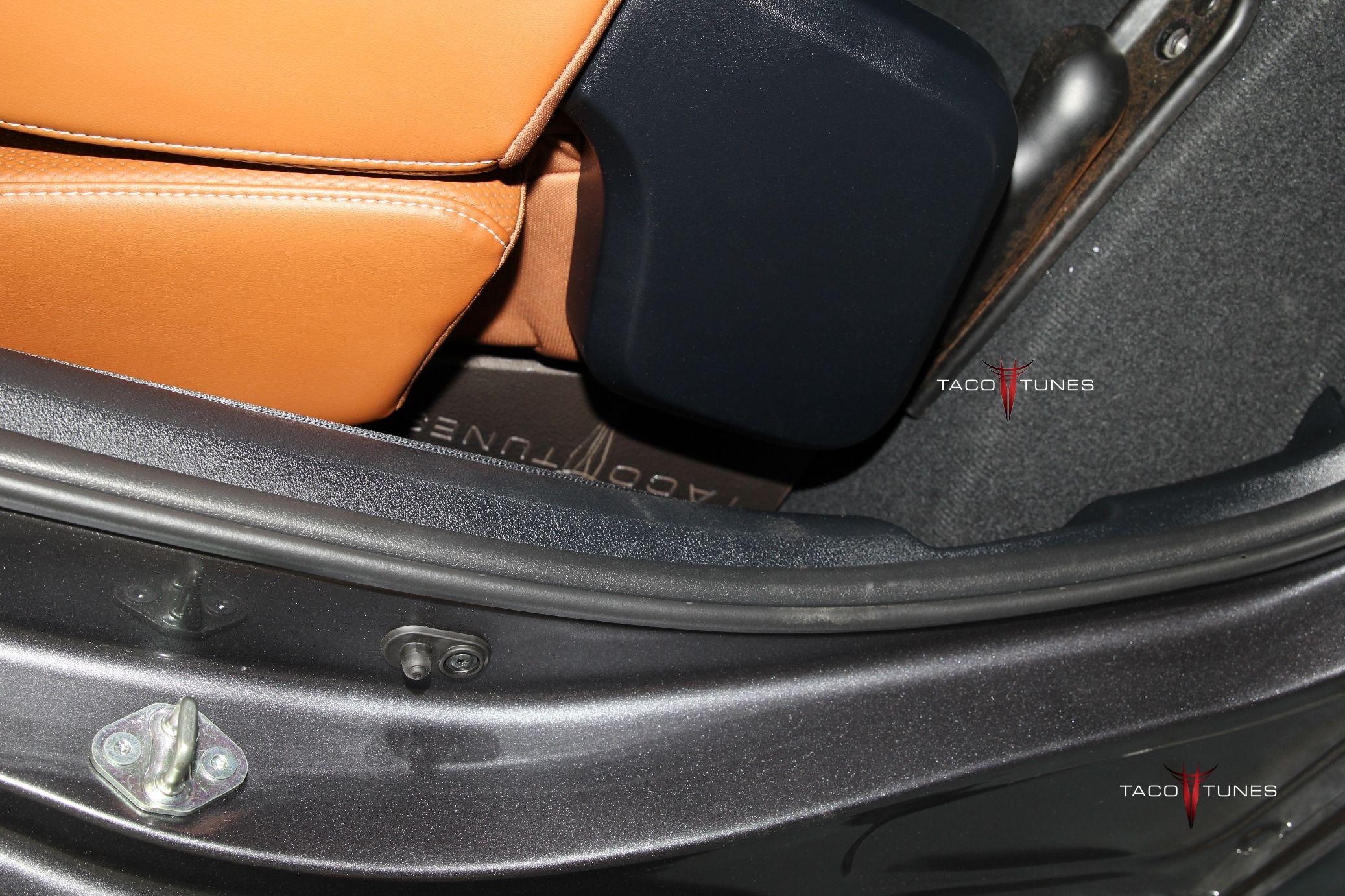

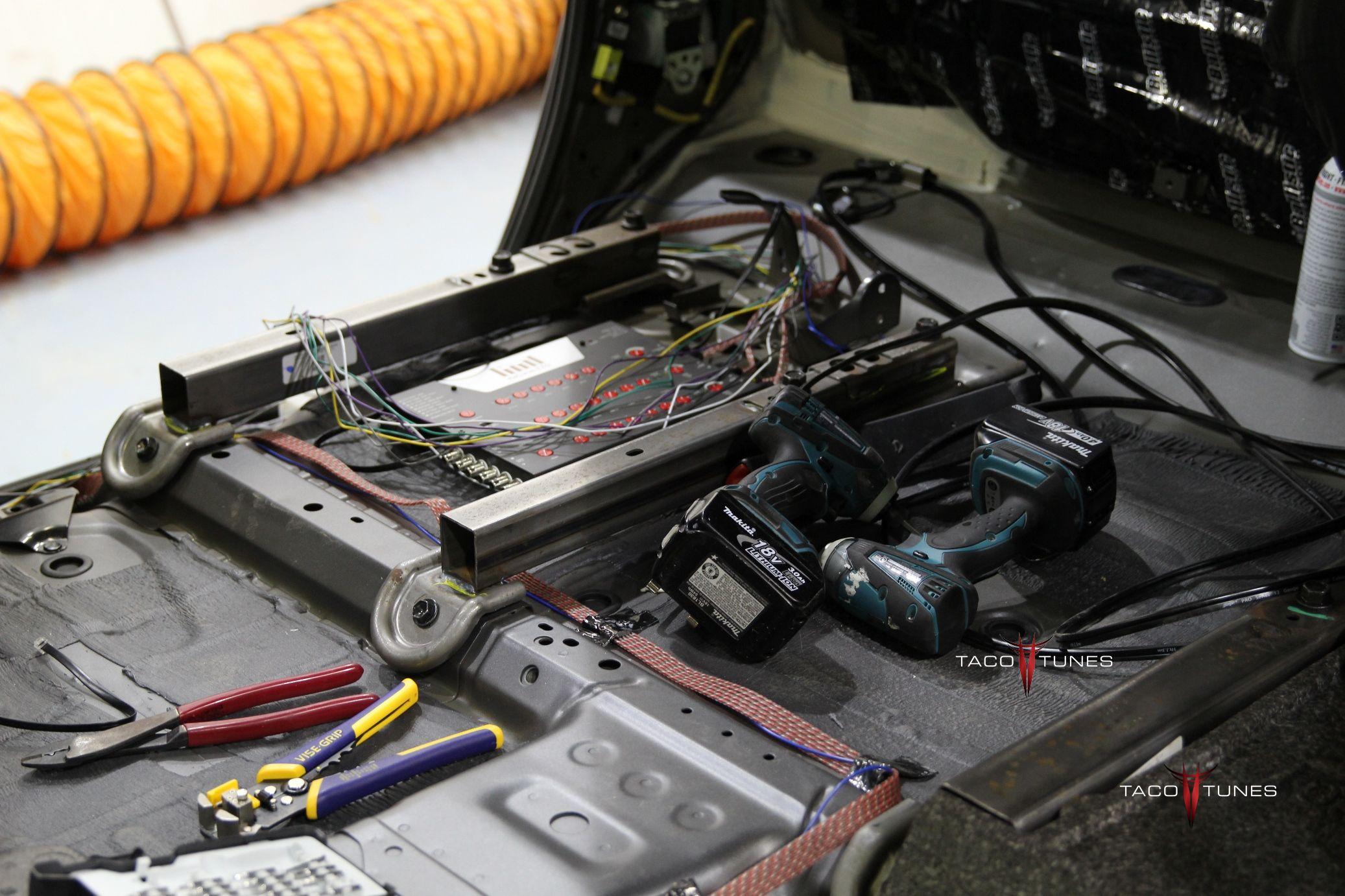

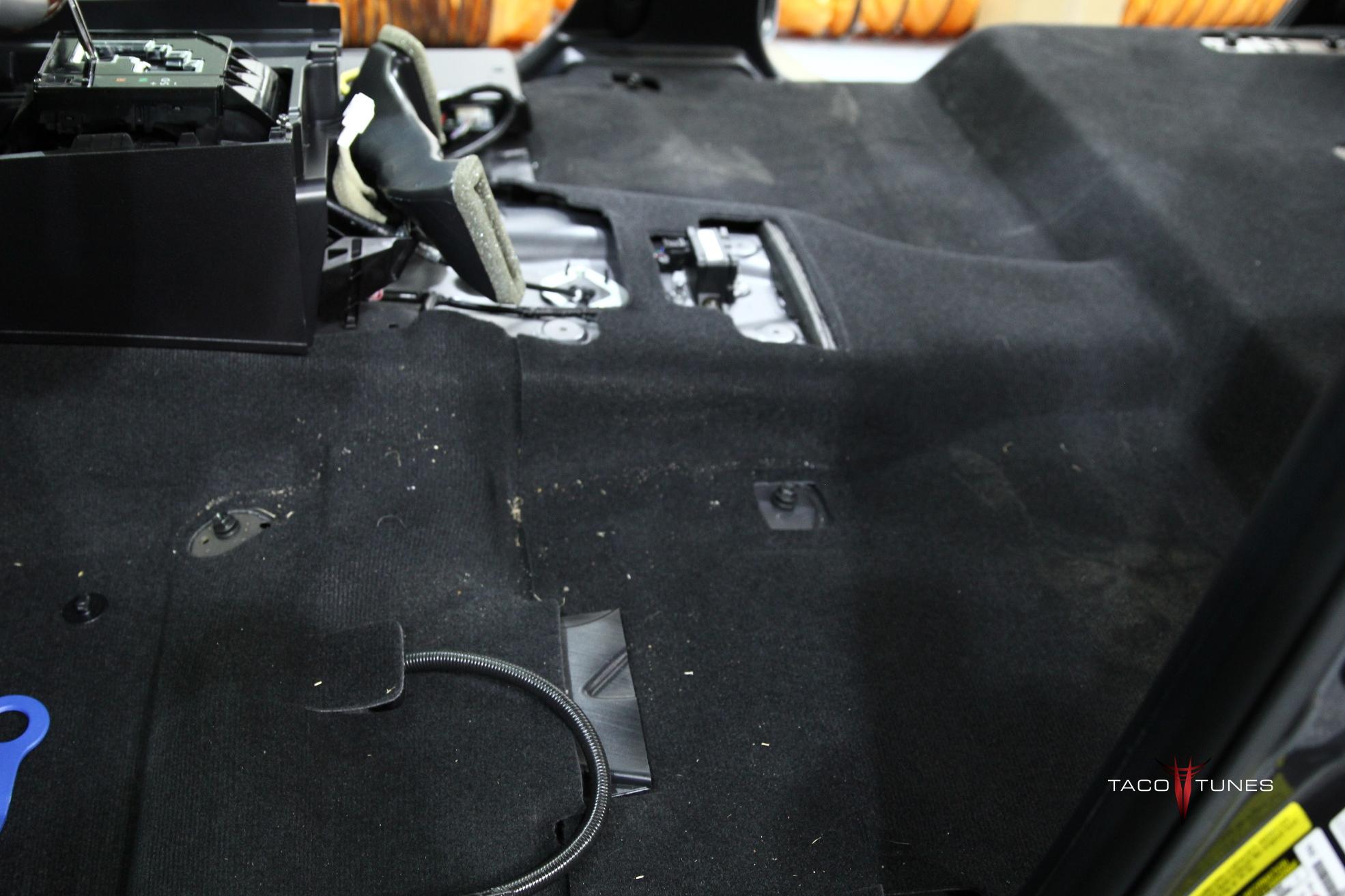

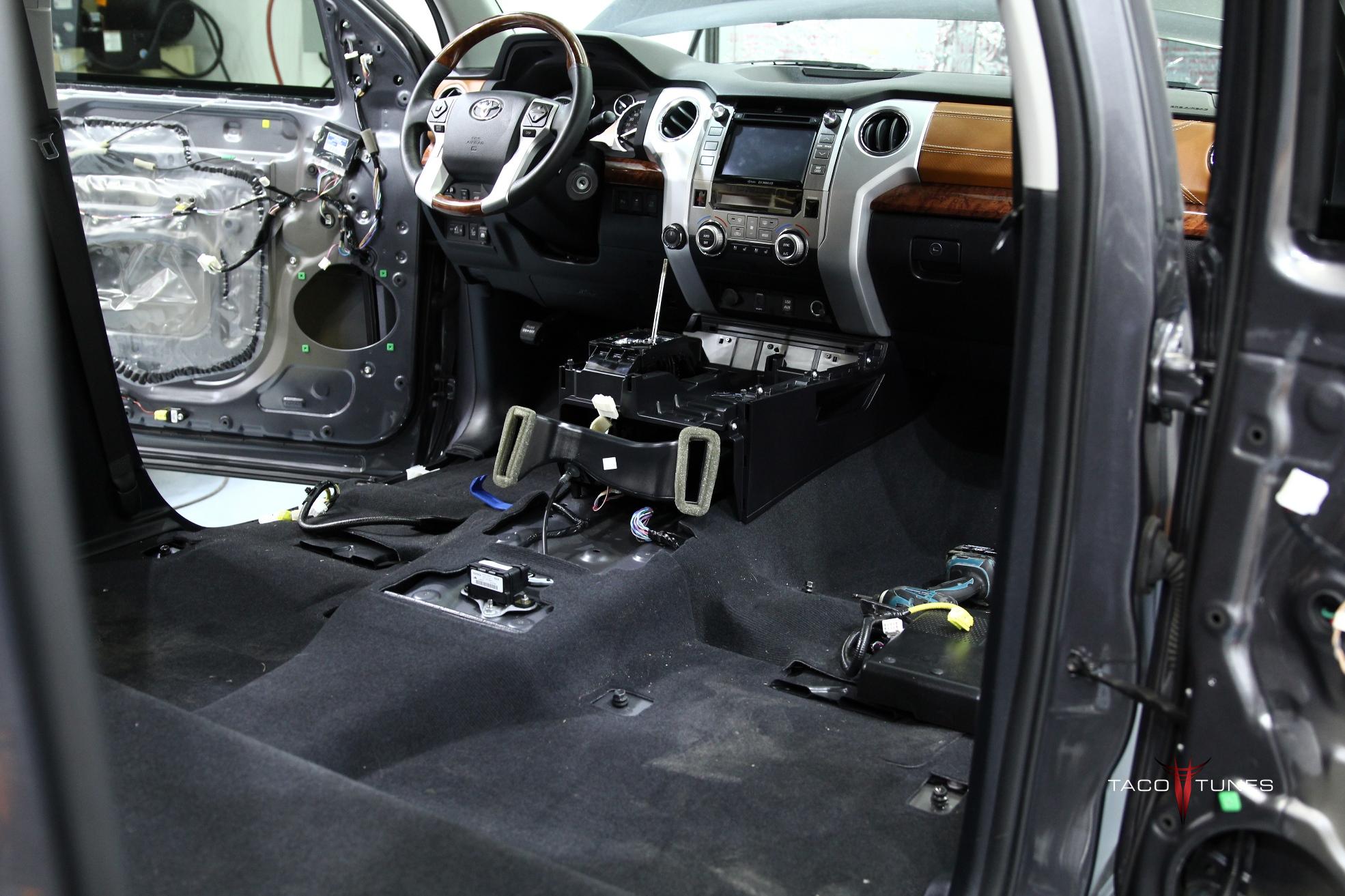

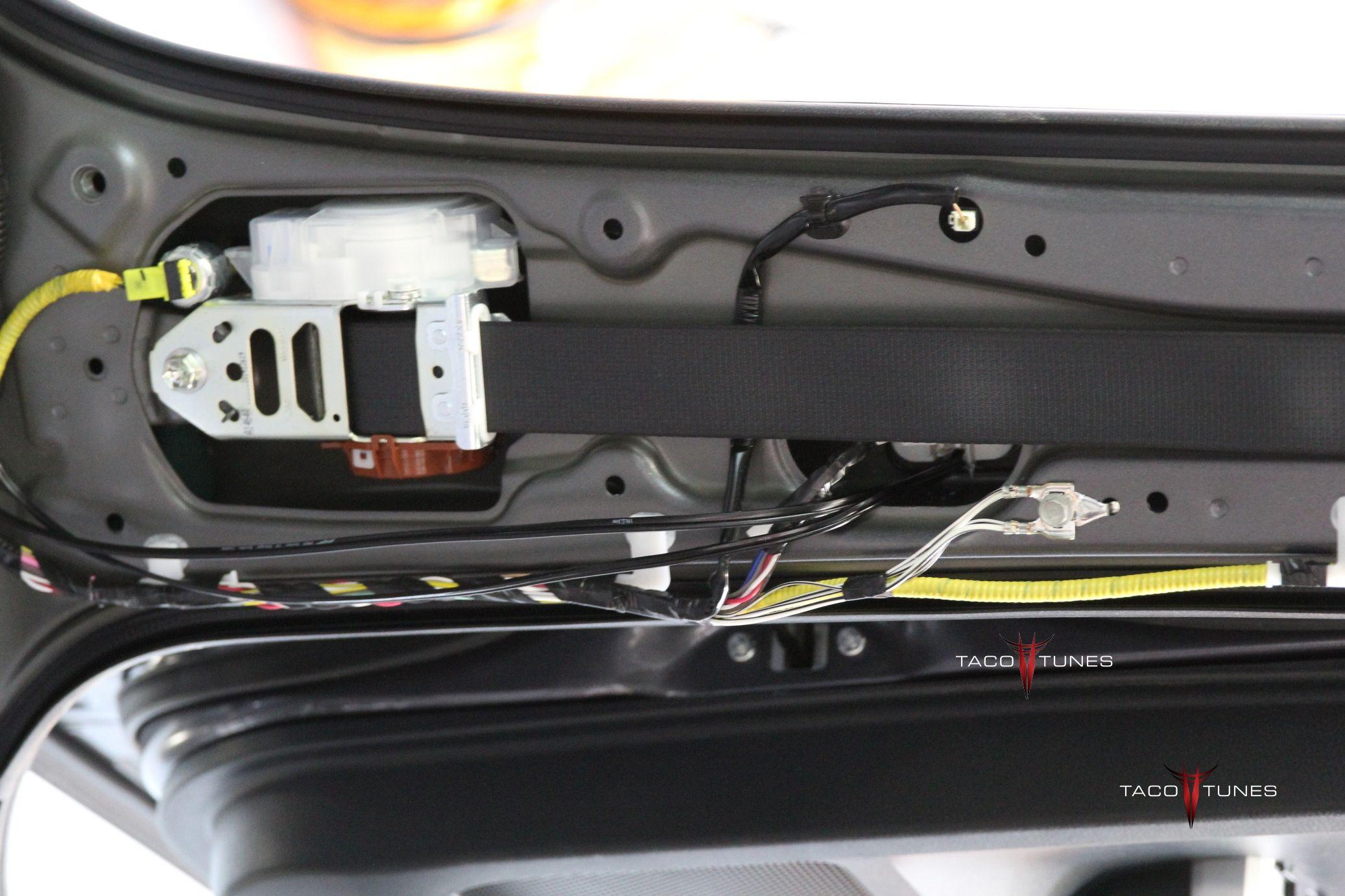

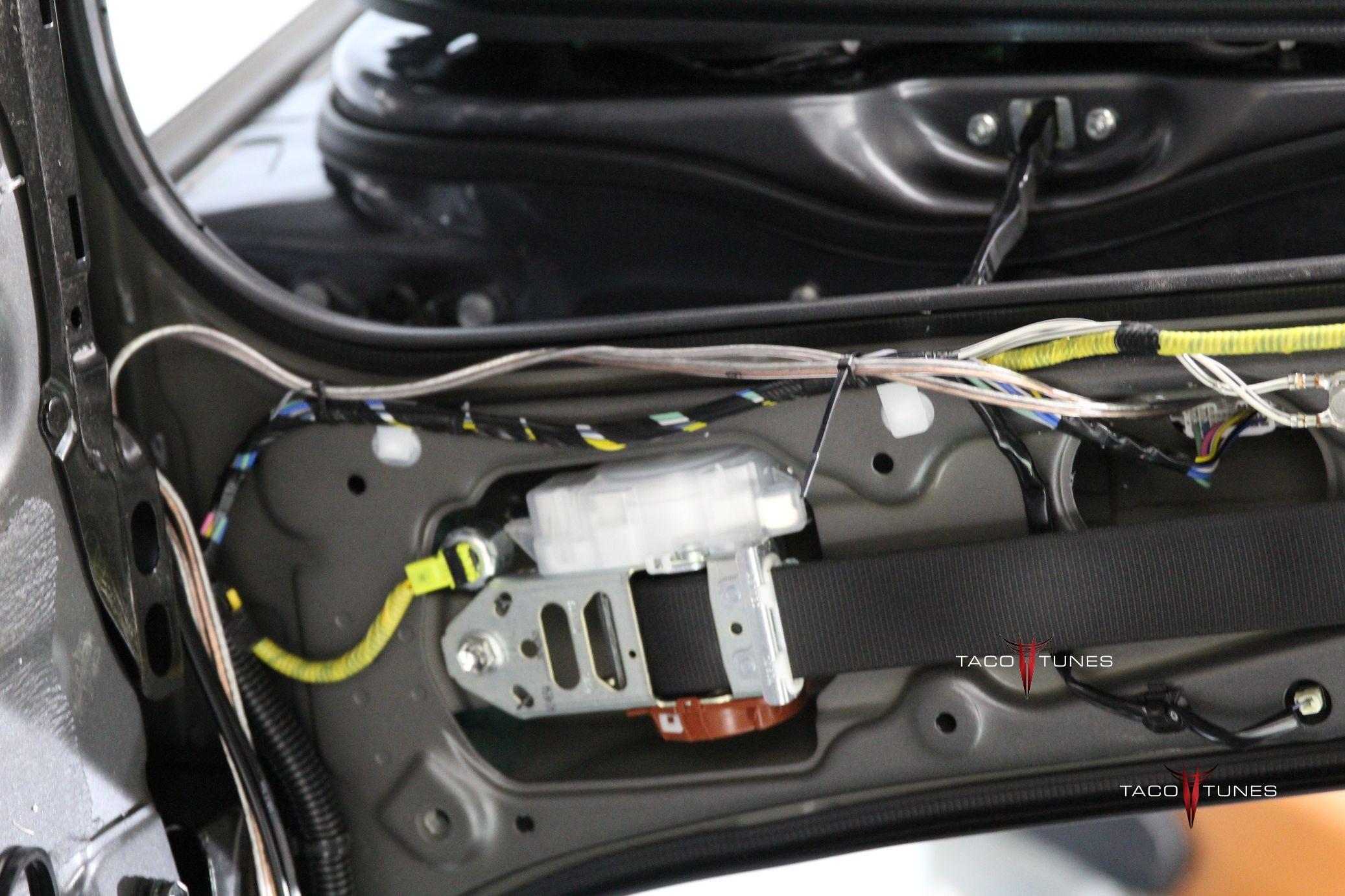

The 5 channel amp is hidden under the driver seat. Sound Processor (ReCurve EZQ) is hidden under rear seat. The full size Image Dynamics 10” subwoofers fit behind the rear seats. The entire truck appears to be stock and makes the truck appear to e stock and less likely for break ins. Additionally, the gear is setup for Toyota’s so chances of theft are greatly reduced.

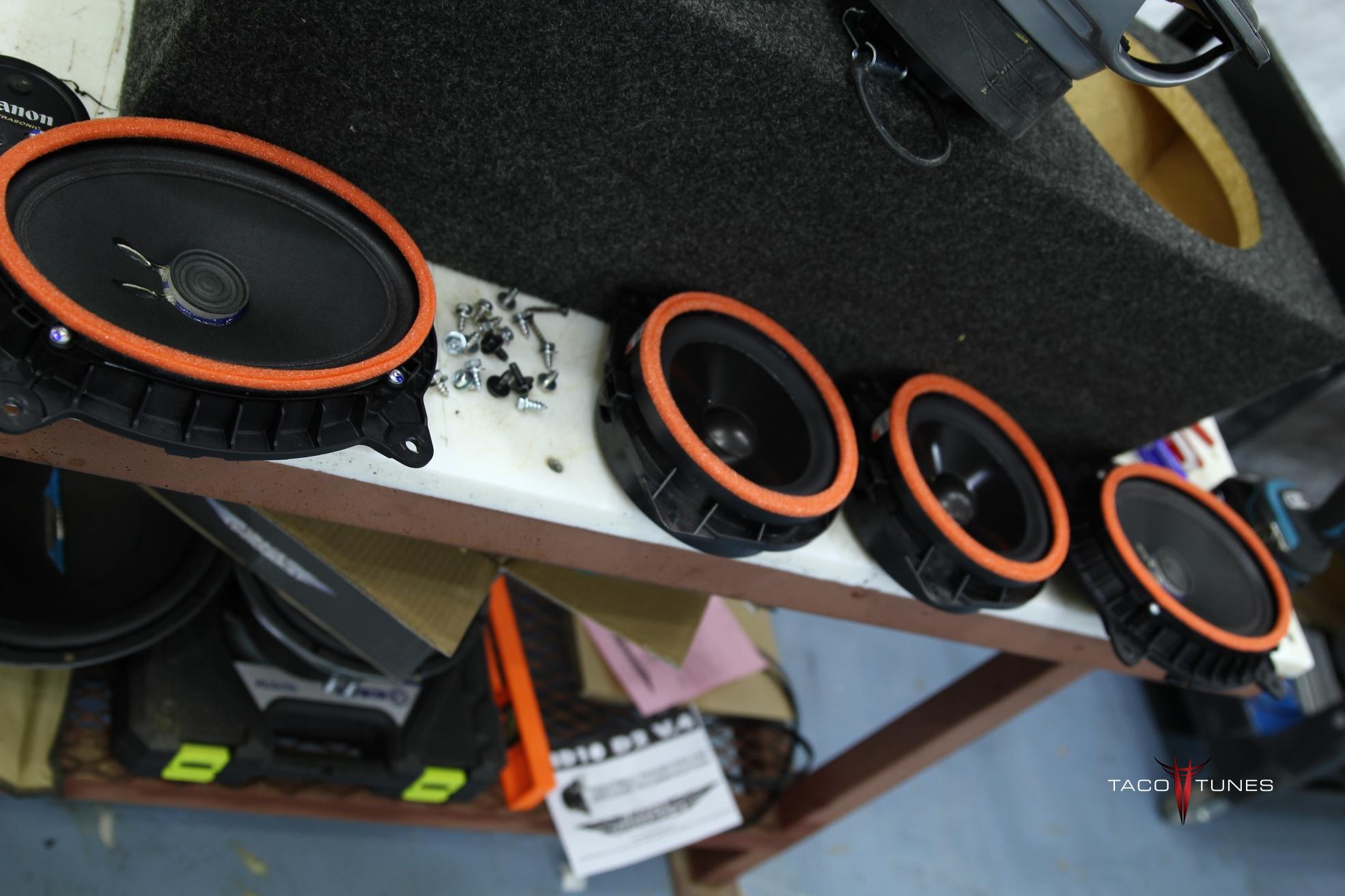

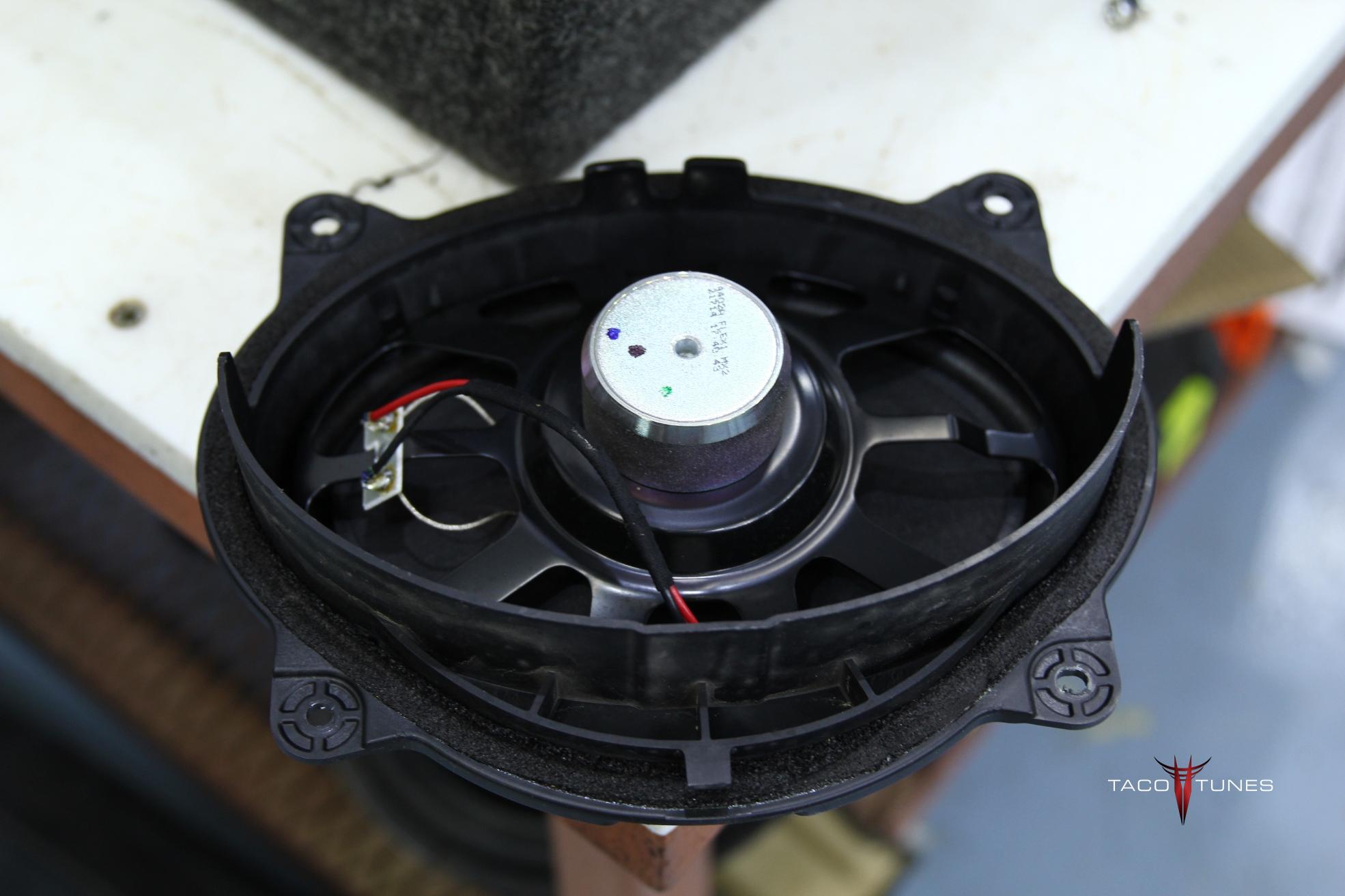

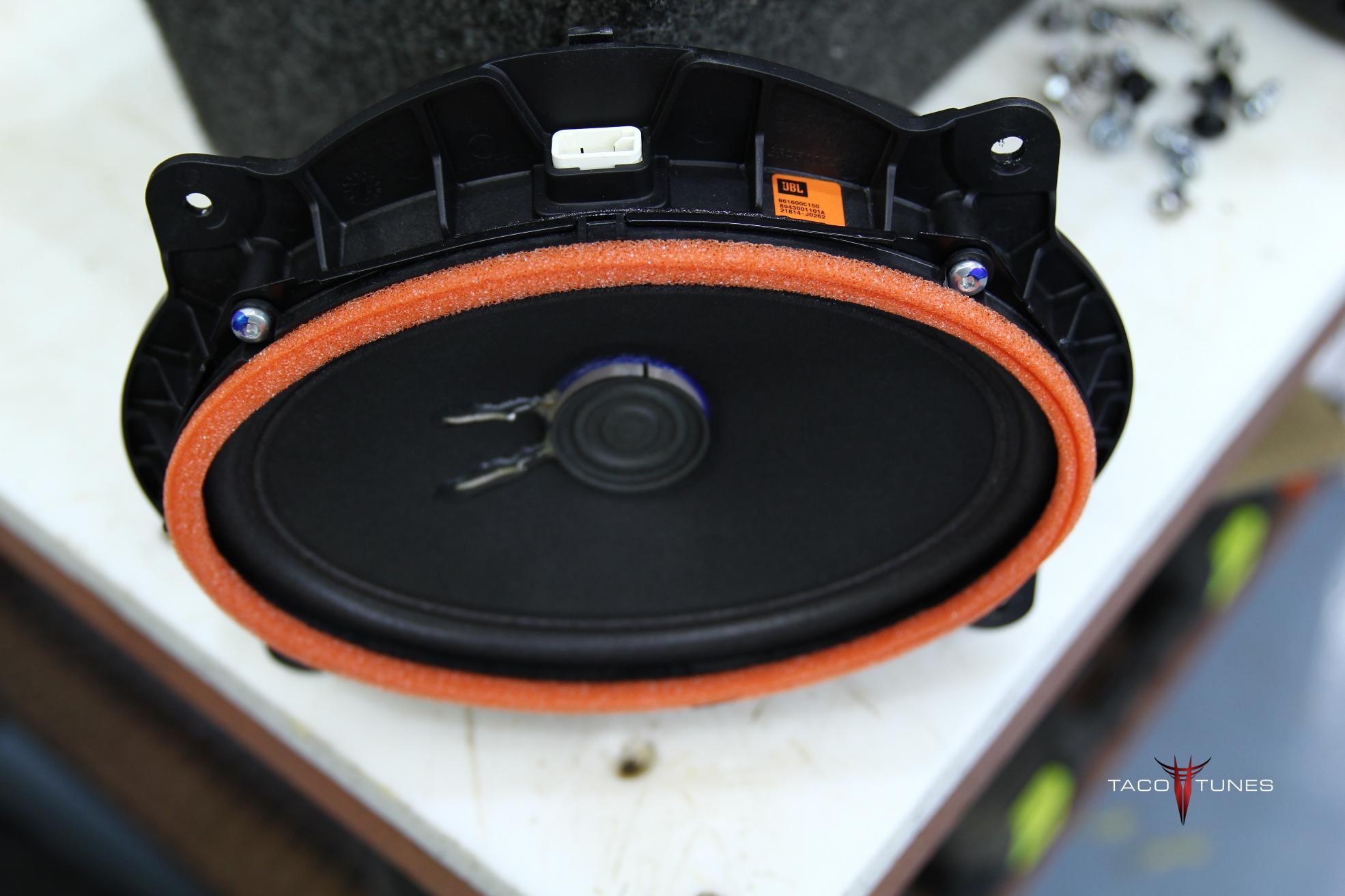

Front Door Component Speakers:

Image Dynamics CXS64

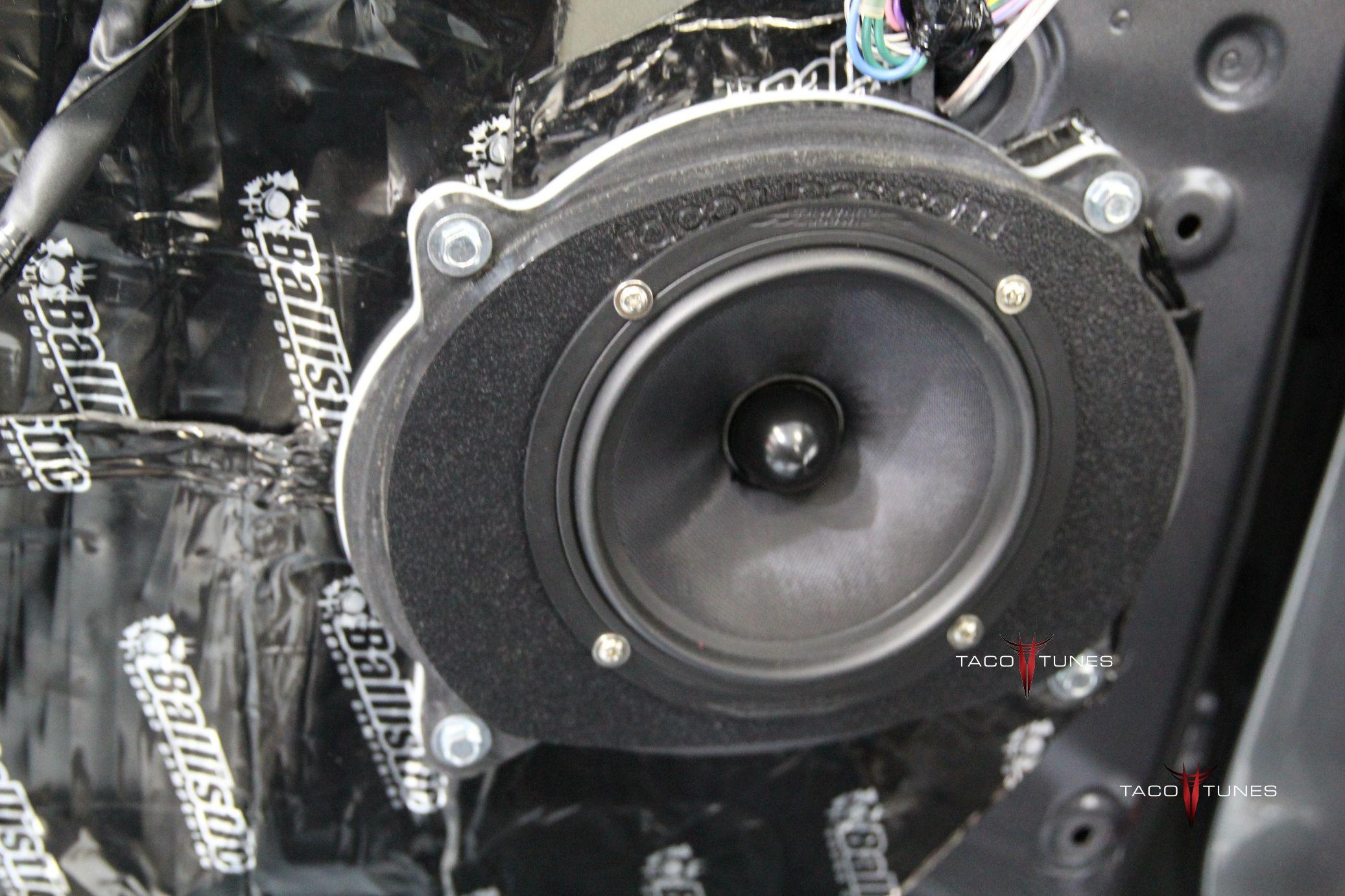

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CXS Mid bass Drivers -125 Watts RMS

CXS Crossover

CXS 28M Silk Dome Tweeter

NOTE: JBL Yes / No ?

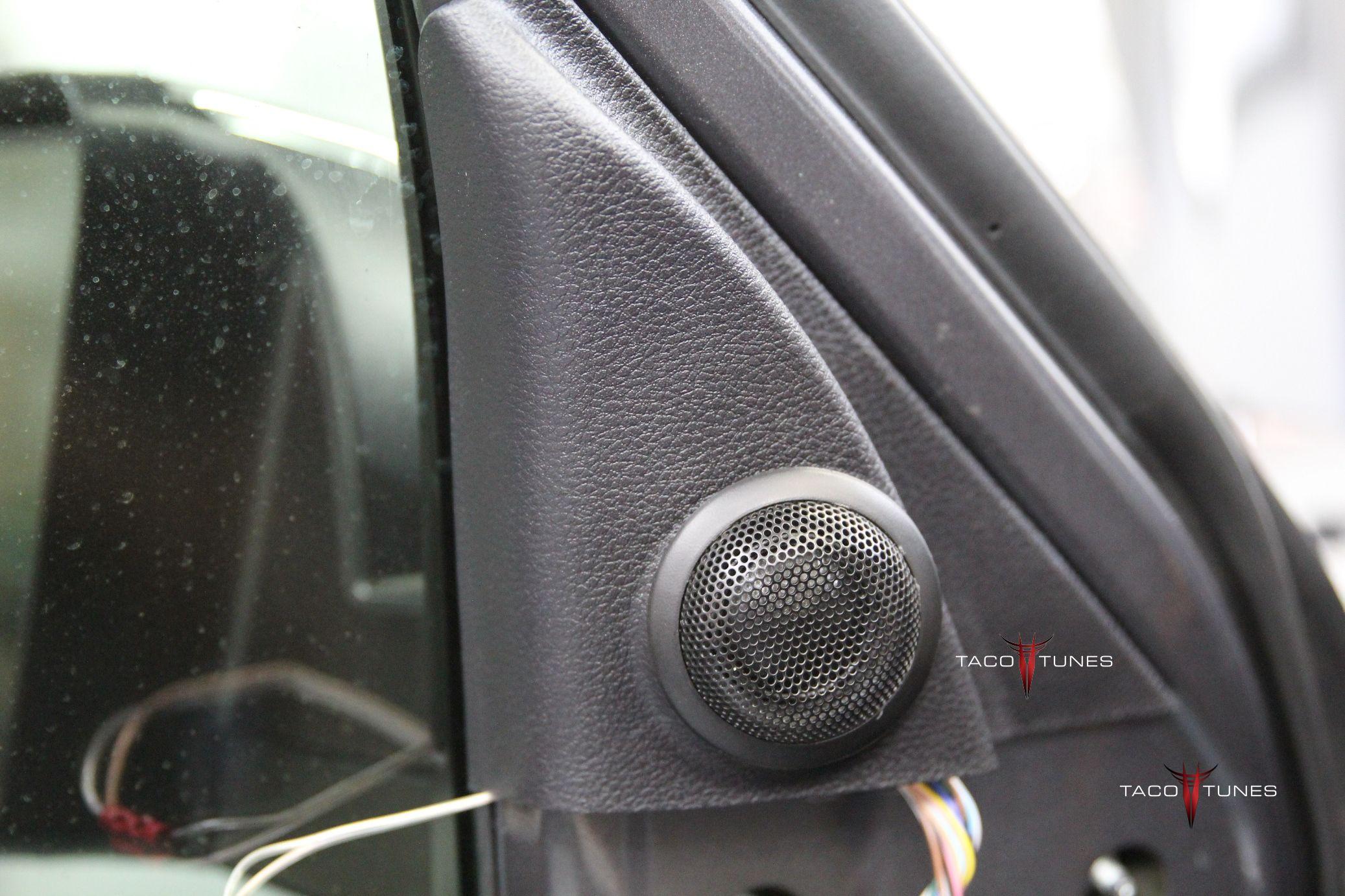

Use Stock Sail Panel for Tweeter mounts.

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

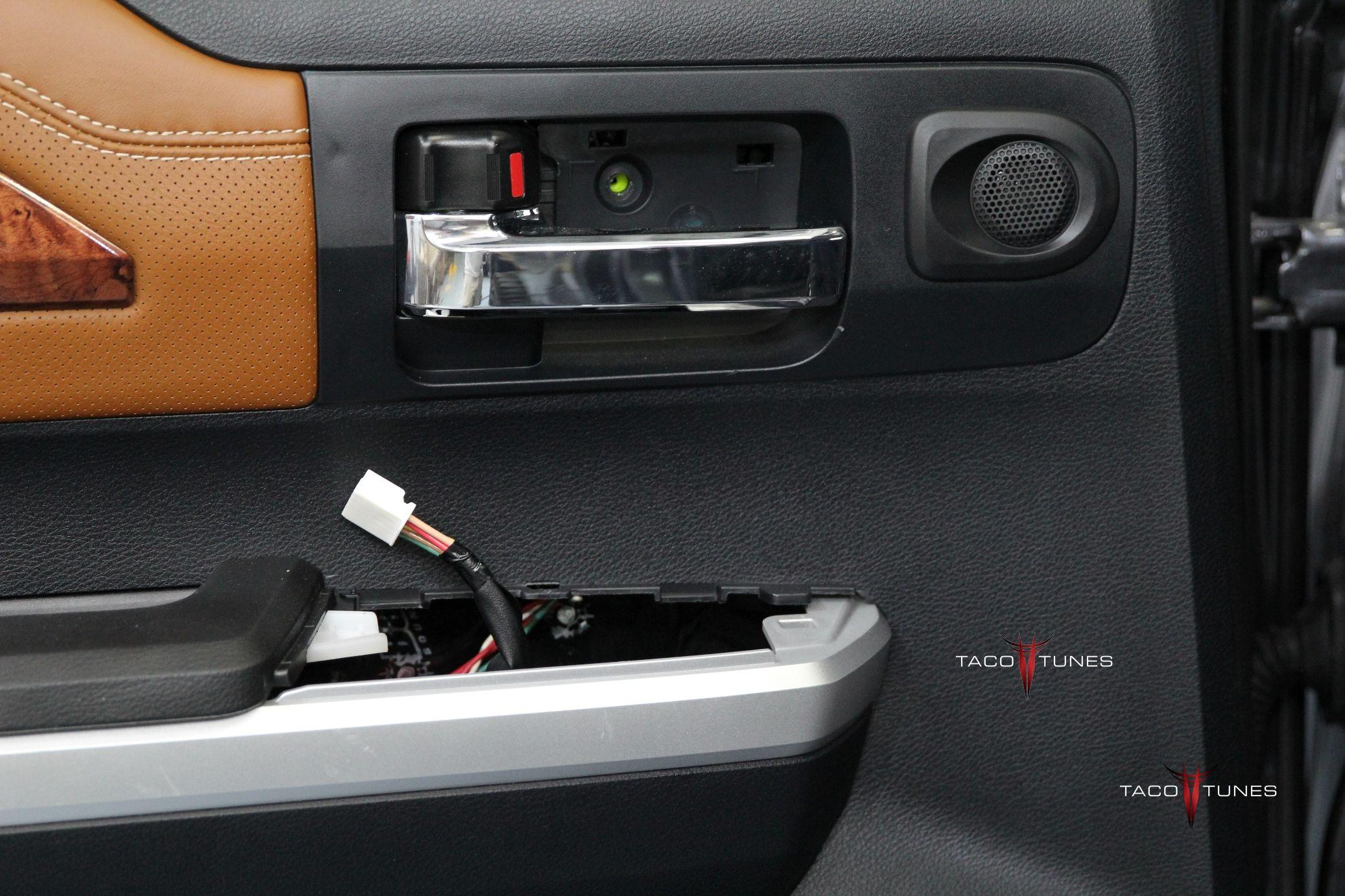

Tweeters will fit in stock door location

Sound Processor:

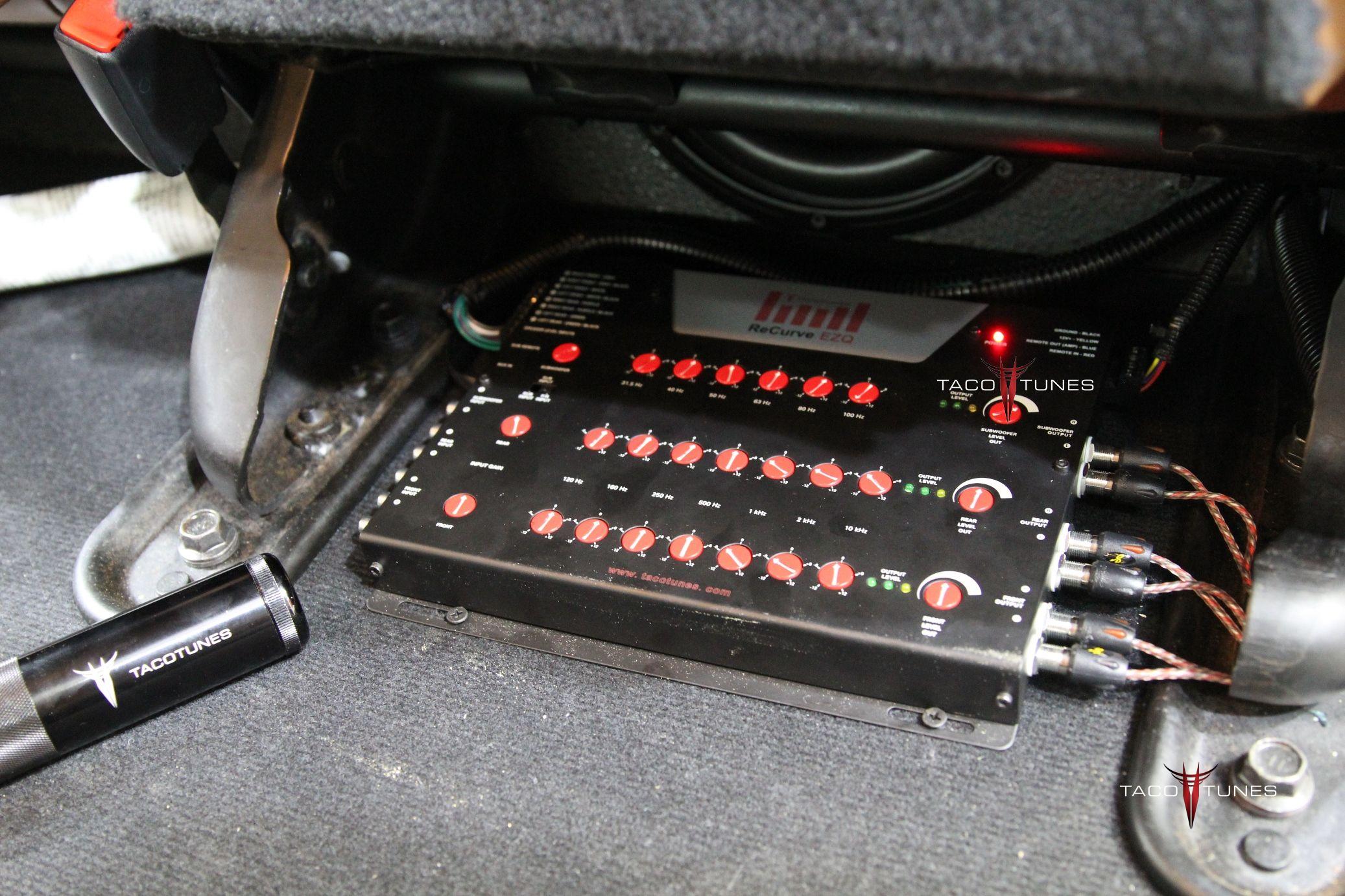

Tacotunes.com ReCurve EZQ

Tacotunes.com JBL Harness

Amp:

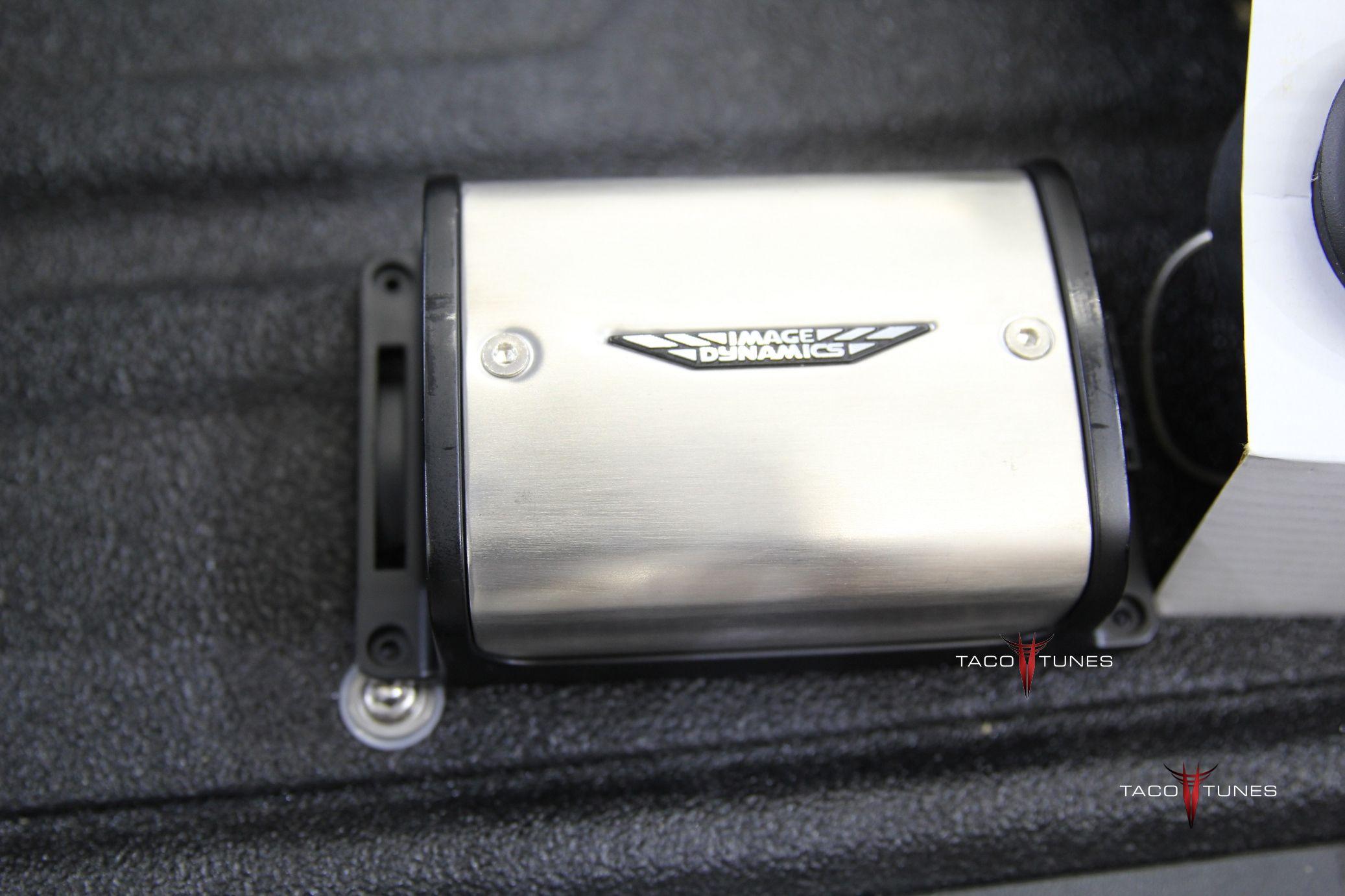

Exile Audio 5 channel amp

100 watts x 4 to each speaker and 800 x 1 (subwoofer)

Subwoofer(s):

Subwoofer Box & Subwoofers

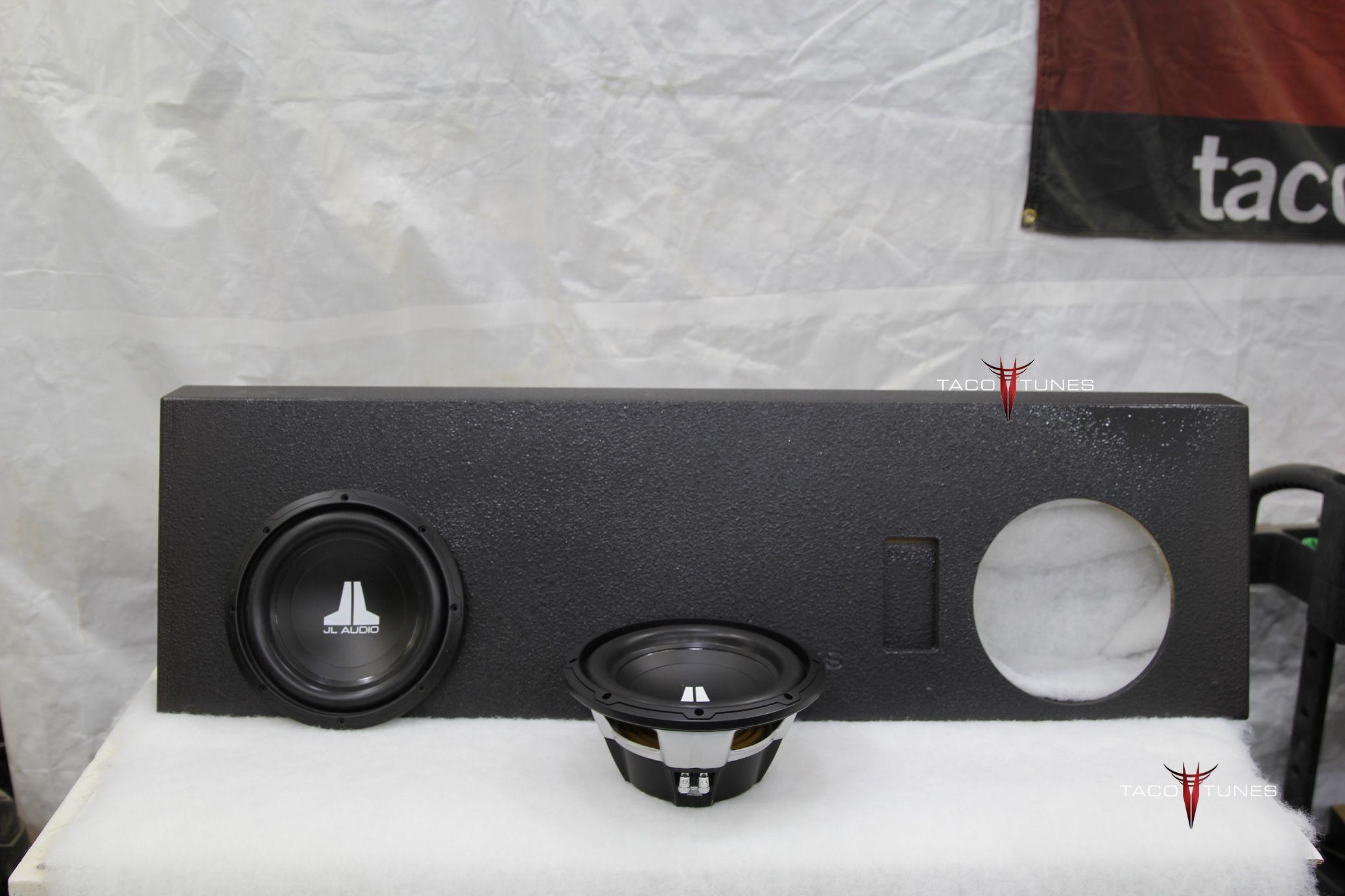

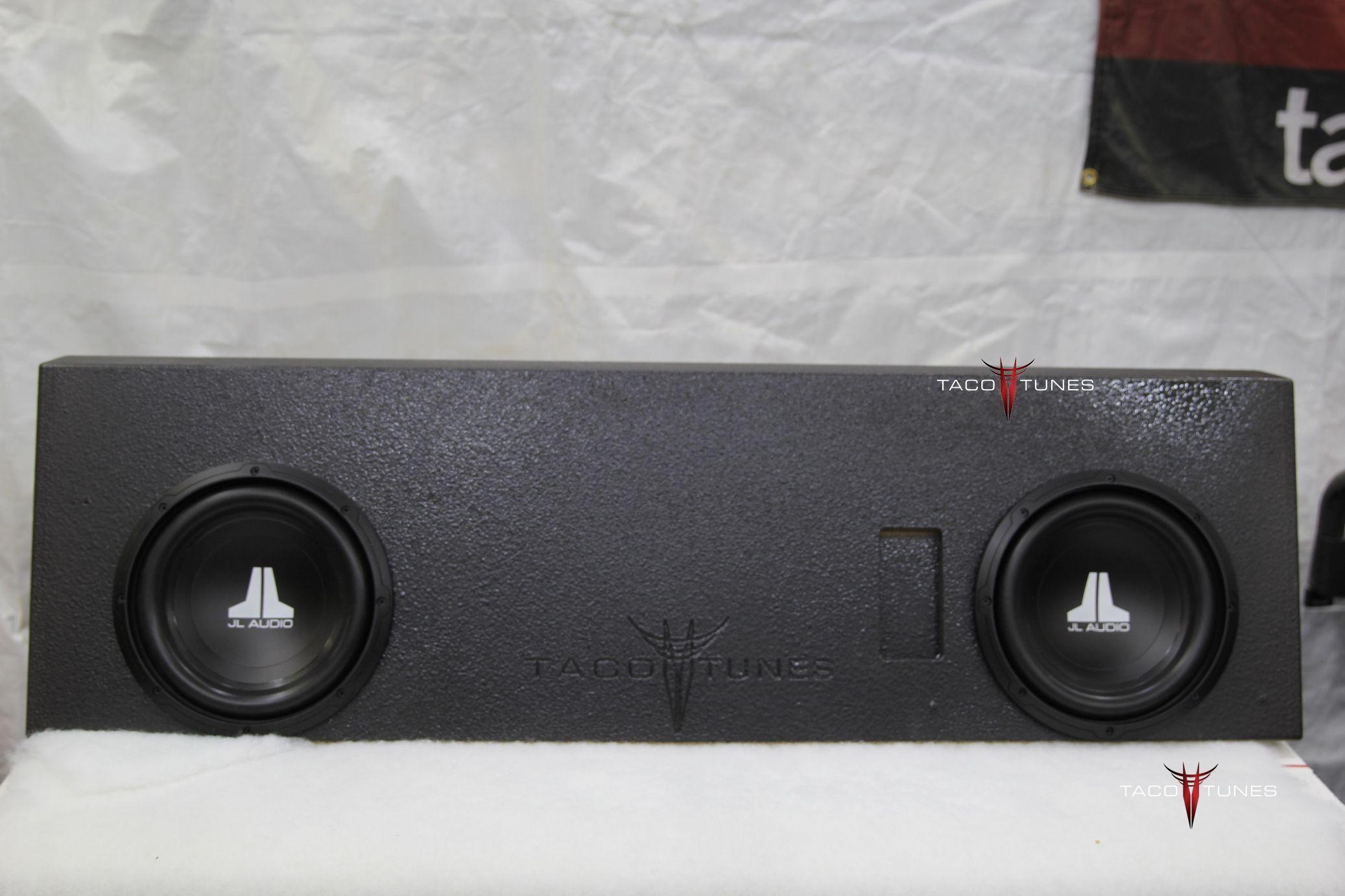

Tacotunes.com dual 10″ subwoofer box sealed

JL Audio W0 10″ subwoofers

Tundra Install kit:

Stereo & Wiring Installation kit:

Stinger Power, Speaker and Signal Cables:

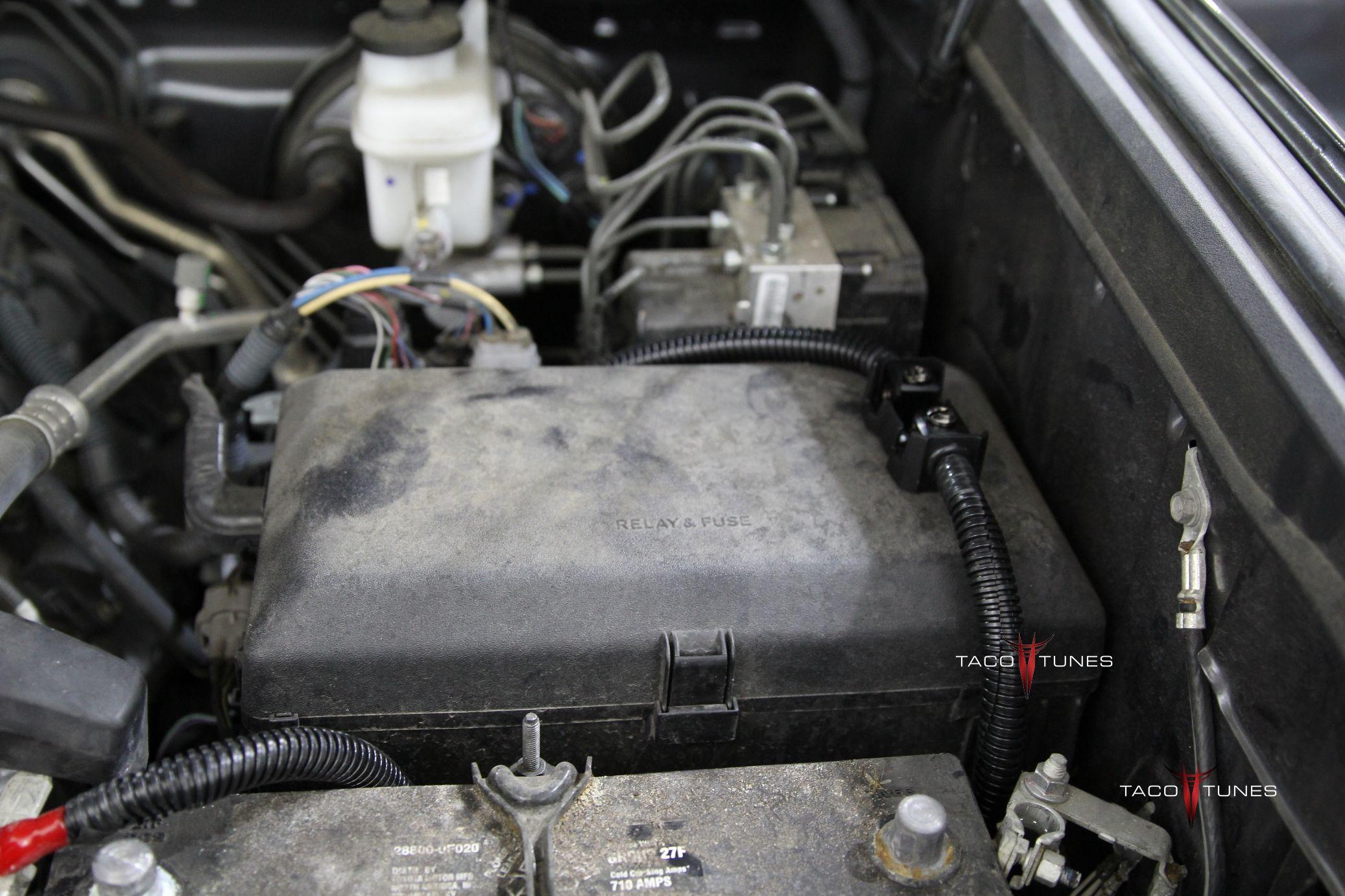

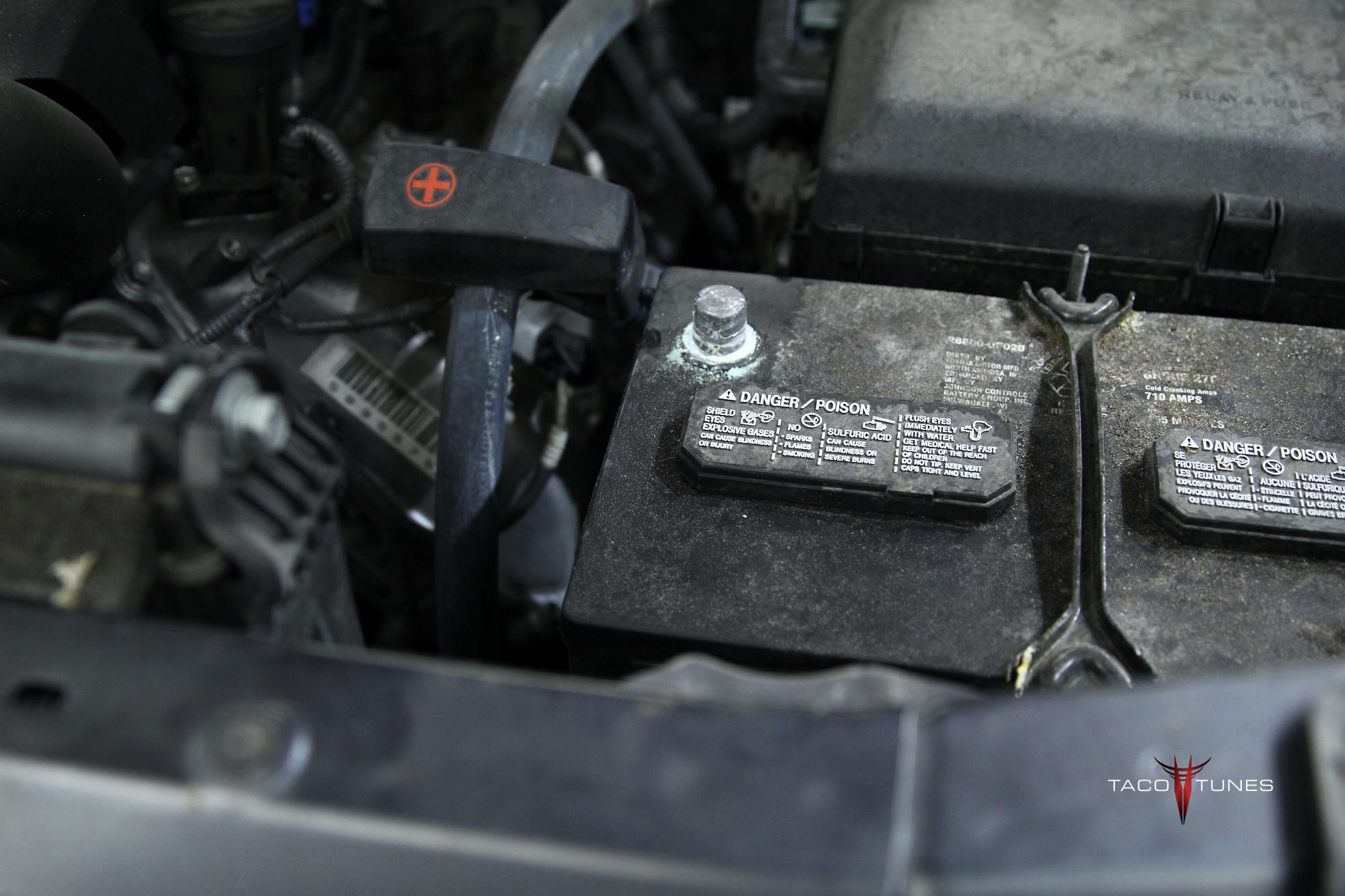

Positive:

Stinger 3′ POWER CABLE 4GA – Ring Terminal Attached

Stinger 13′ POWER CABLE 4GA

Negative:

Stinger 4′ POWER CABLE 4GA – Ring Terminal Attached

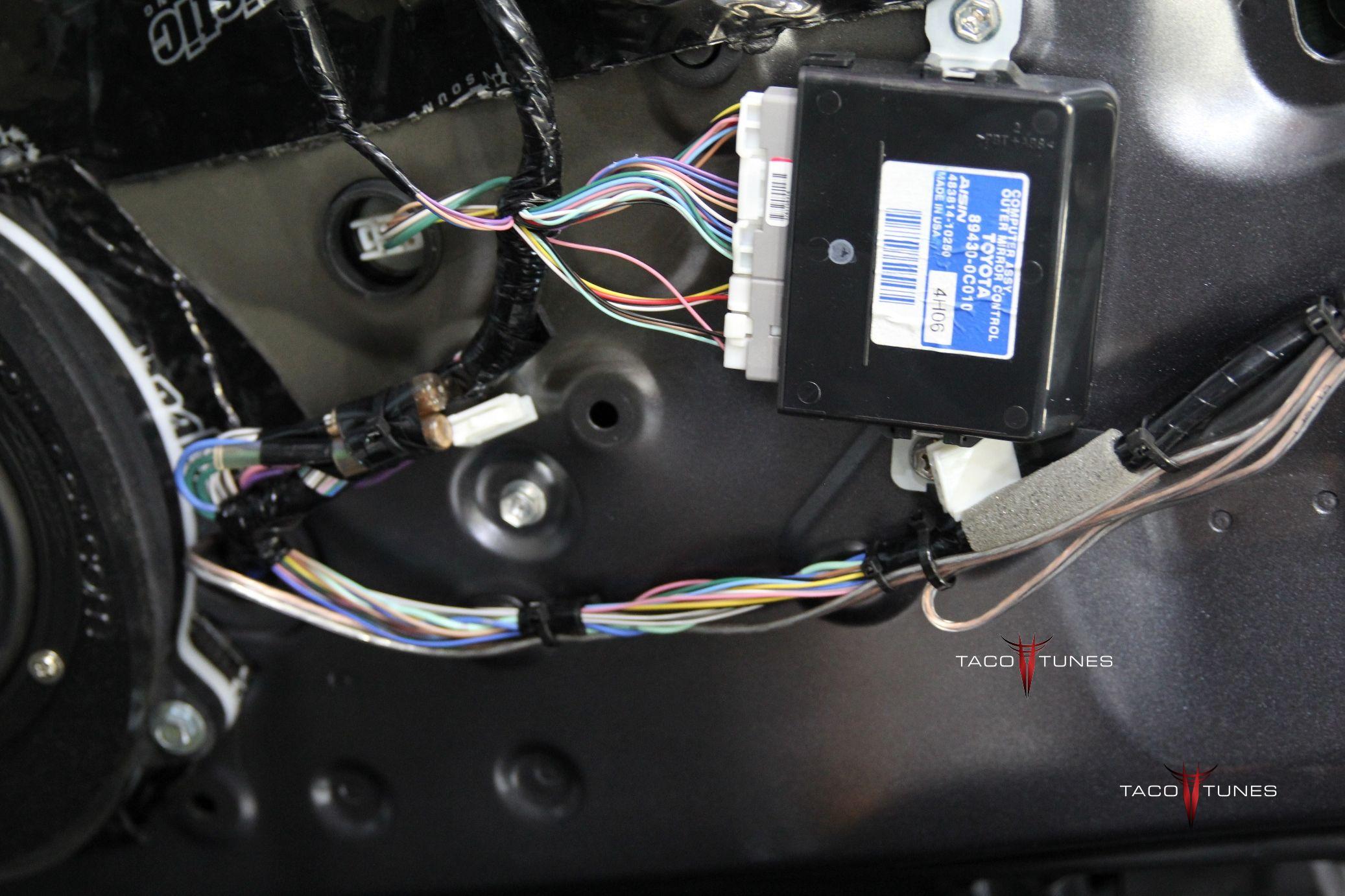

Color Coded Speaker Wire:

Stinger 50′ 16GA Black Speaker Wire (Driver Side Speakers)

Stinger 50′ 16GA Silver Speaker Wire (Passenger Side Speakers)

Stinger 25′ 18GA Black Speaker wire (Driver Side Tweeters)

Stinger 50′ 18GA Silver Speaker Wire (Passenger Side Tweeters)

Stinger 50’ 12Ga Black Subwoofer Wire

RCA Signal Cables:

1 Stinger RCA CABLE 12 Ft Twisted Pair – 6 Channel (Front / Rear / Sub)

Misc Items:

35′ Primary Blue Remote Turn on wire

6′ 3/4 Split Loom

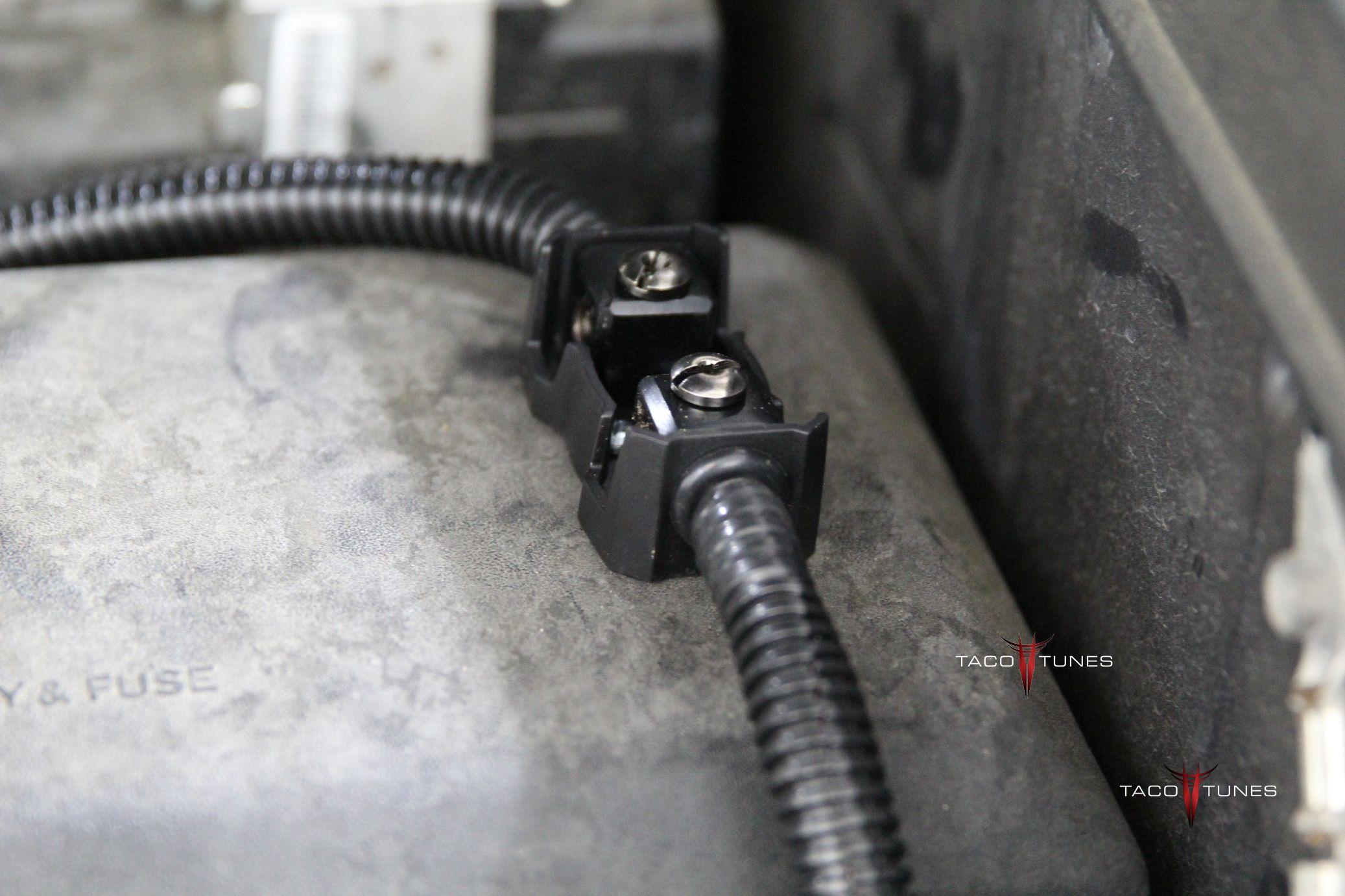

T-Spec ANL Fuse Holder

T-Spec 100 Amp ANL Fuse

10 Crimp Caps

8 Speaker Terminals .25 (Door speakers)

4 Speaker Terminals .187 (tweeters)

4 Speaker Terminal .25 (subwoofer)

15 Small Zip Ties

15 Large Zip Ties

Under Seat – Amp Mounting Gear:

4 Nylons Spacers

4 Mounting Bolts

4 Mounting washers

4 Sealing Caulk

Optional Items:



Matting:

Ballistic Matting 4 x Doors & Rear Wall takes 9 sheets to complete Tundra – Standard bulk pack includes 9 sheets.
