Description

System 1 Starter Audio System Designed for 2007-2021 Toyota Tundra Crewmax

Our entry level “starter” audio system designed for your Toyota Tundra contains all components necessary for a successful installation. This setup will work with stock or aftermarket head units.

Many of our customers start with subwoofer and then upgrade their speakers later. This system includes a 5-channel amplifier that will boost your stock speaker output AND add a full size 12″ subwoofer to your audio system. .  thus, dramatically enhancing your stock stereo’s performance. In addition, the amp has plenty of power when you decide to upgrade your door speakers. We will show you how to tune your amplifier to match your speaker’s capabilities. Many of our customers build their audio as their budget allows.

2014+ Toyota Tundra’s Stock Audio system produce 18 watts to the front door speakers and 20 watts to the rear door speakers. Our 5-channel amp will allow you to boost them to 30 watts front and 25 watts rear.  Then down the road, when are ready you can easily add new speakers and turn the amp up to 80 watts to each speaker!

2007-2013 Tundra’s stock speakers are limited to around 15 watts.  WE highly suggest upgrading the speakers along with your new subwoofer.

The following components are included in this audio system upgrade:

TXD10005 – 5 Channel Amplifier Install Kit (included in starter system)

Front & Rear Speaker Output:
85 watts x 4 (Front/Rear Door Speakers) RMS (4 Ohm)
125 watts x 4 (Front / Rear Door Speakers) RMS (2 Ohm) NOT recommended without sound processor.
Subwoofer Output:
450 watts x 1 Subwoofer Output (2 Ohm)
200 watts x 1 Subwoofer Output (4 Ohm)
This amp is NOT 1 Ohm stable. Please see our other amps for 1 ohm stable subwoofer amplifier.
The following items are included with the TXD1000.5 Install Kit:
1 – TXD 1000.5- Subwoofer Control Knob
1- Direct Connect Tundra Plug N Play Integration System
NOTE: This setup is designed to work with your stock stereo. However, it will work with aftermarket head units as well.
1 – TXD Tundra direct replacement amp rack – bolts directly to stock mounting location. No cutting or drilling.

Amp Power Installation Kit (included in starter system):

1 – 13’ 8GA Red OFC Power Cable (Amp Connection)
1 – 2.5’ 8GA Red OFC Power Cable w/ ring terminal (Battery Connection)
1 – 10” 8GA Red OFC Power Cable (fuse holder to amp)
1 – 2’ Black OFC Power Cable with ring terminal (Amp to Ground)
2 – MANL Fuse Holders (battery & amp)
1 – 80 AMP MANL Fuse (battery fuse holder)
1 – 60 AMP MANL Fuse (amp fuse holder)
20 – Cable Ties

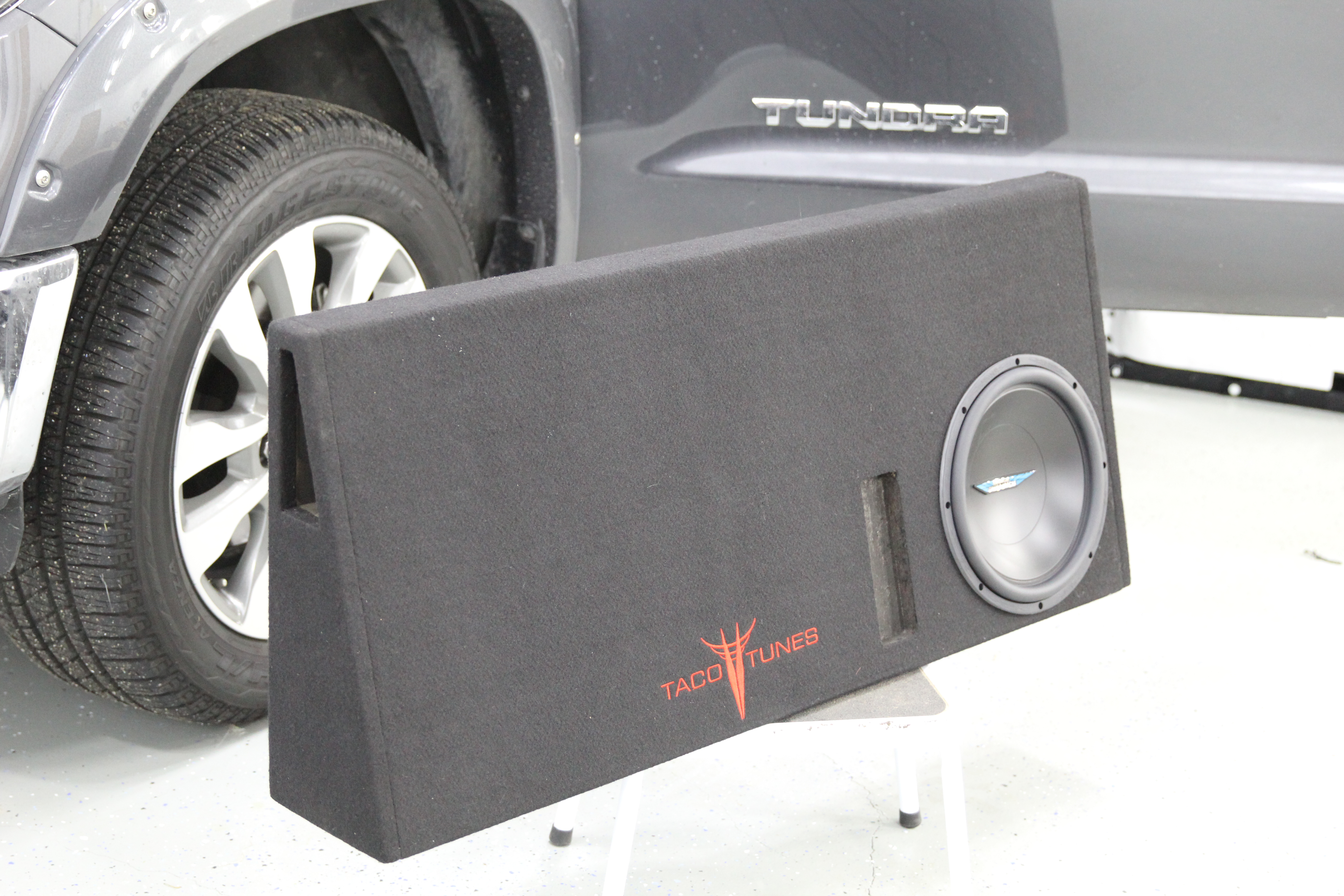

Tundra Full Size 12″ Ported Subwoofer Enclosure & Subwoofer (included in starter system):

1 – tacotunes.com ported subwoofer enclosure
1 – Image Dynamics ID12D4 dual voice coil 12″ subwoofer (2 Ohms presented to amp for max power)
1 – Terminal Cup & Internal Wiring
1 – 20 foot 12G subwoofer wire [/otw_shortcode_content_toggle]
NOTE: Color & Finish may vary on the subwoofer box.

Front Door Speakers: (*Optional)

*If you have JBL Audio Front & Rear Door Speaker kits are required.

2 -Image Dynamics ID65CS 6.75″ Component Speakers, Tweeters & Crossovers
2 – Front Door Speaker Mounts
2 – Crossover Mounting Adapters & mounting screws (2)
2 – tacotunes Sail Panels pre-sized for your new tweeters.
2 – 36″ Wire Harness Adapters (connects to stock wiring)
2 – 36″ 16G speaker wire – Red / Black (mid range)
2 – 36″ 18G tweeter wire – Red / Black (tweeter)
Rated at 100 watts (RMS)
NOTE: These are tacotunes.com branded speakers.

Rear Door Speakers: (*Optional)

*If you have JBL Audio Front & Rear Door Speaker kits are required.

Component Speakers or Coaxial:

2014+ Tundras are equipped with rear door factory tweeters.

2007-2013 NON JBL equipped Tundras do not have rear door tweeters.

2 – Image Dynamics ID65CS 6.75″  Component Speakers, Tweeters & Crossovers (2014+)
or
2 – Image Dynamics ID65 6.75″ Coaxial Speakers (2007-2013)
2 – Rear Door Speaker Mounts
2 – Crossover Mounting Adapters & mounting screws (2)
2 – 36″ Wire Harness Adapters (connects to stock wiring)
2 – 36″ 16G speaker wire – Red / Black (mid range)
2 – 36″ 18G tweeter wire – Red / Black (tweeter)
Rated at 100 watts (RMS)

CLICK HERE INSTALLATION INSTRUCTIONS:

Amp Tuning:

How to Tune TXD10005 – YouTube
