2017 Toyota Tundra TRD PRO Stereo Speaker Audio Complete Upgrade San Antonio TX

Branon’s 2017 Toyota Tundra TRD Pro CrewMax Cement

2017 Toyota Tundra TRD PRO Stereo Speaker Audio Complete Upgrade San Antonio TX

Brannon’s  2017 Toyota Tundra CrewMax TRD Pro Complete Stereo System Upgrade San Antonio TX

Installation Summary / History: Brannon is on the management team at RackSpace hosting here in San Antonio. He was referred to us by a local Toyota Dealer.

Customer Name: Brannon

Toyota Year / Model: 2017 Toyota Tundra CrewMax TRD Pro Cement

Head Unit: Non JBL

Color: Cement

Installed by: tacotunes.com

Brannon came to us with high expectations for his brand new 2017 Toyota Tundra TRD Pro. He was aware he would be upgrading the stock stereo.

Below you will find a detailed listing of all the parts we used in the installation. We also included some pictures of the 12″ subwoofer next to 10″ subwoofer and a shallow mount 12″ subwoofer.

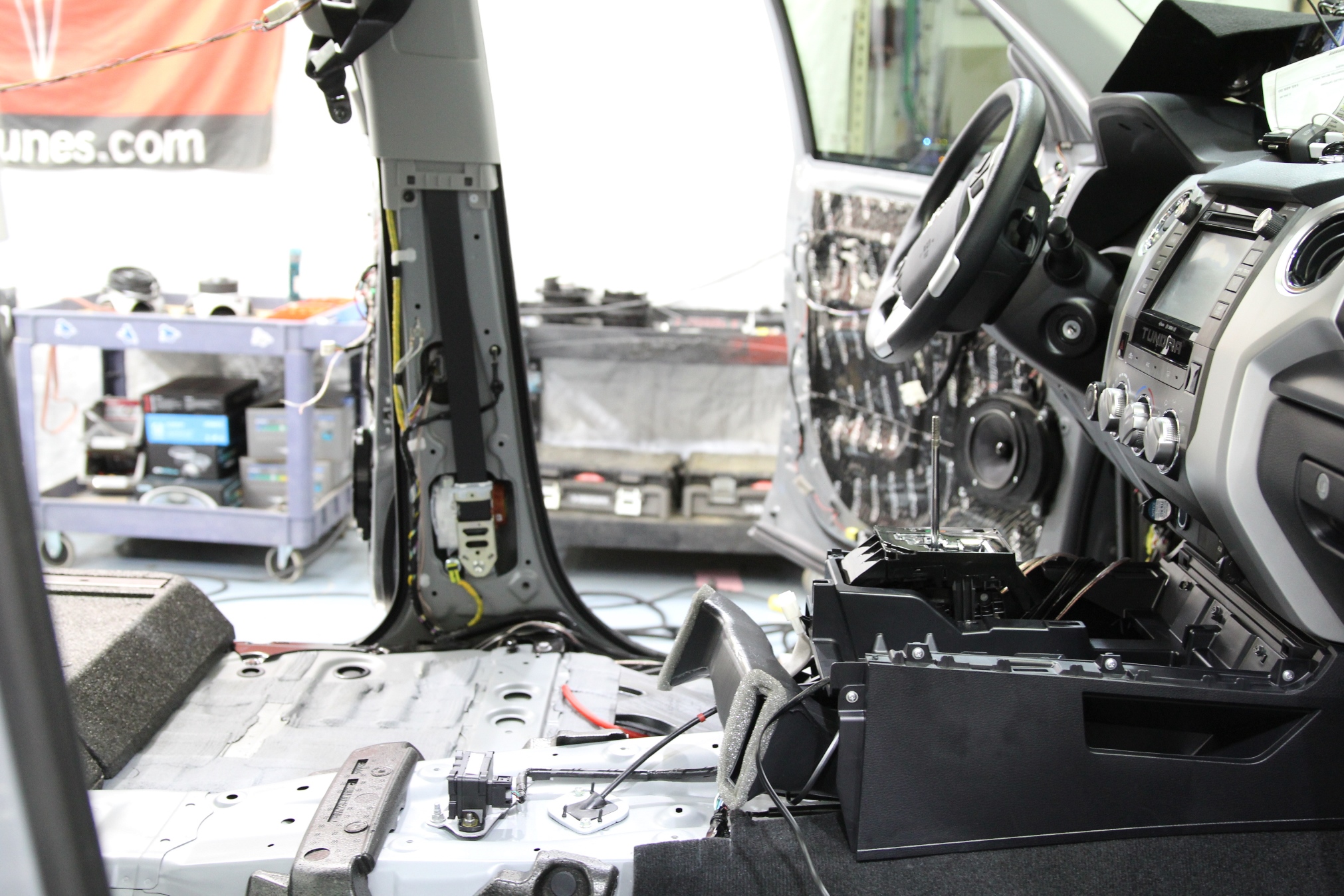

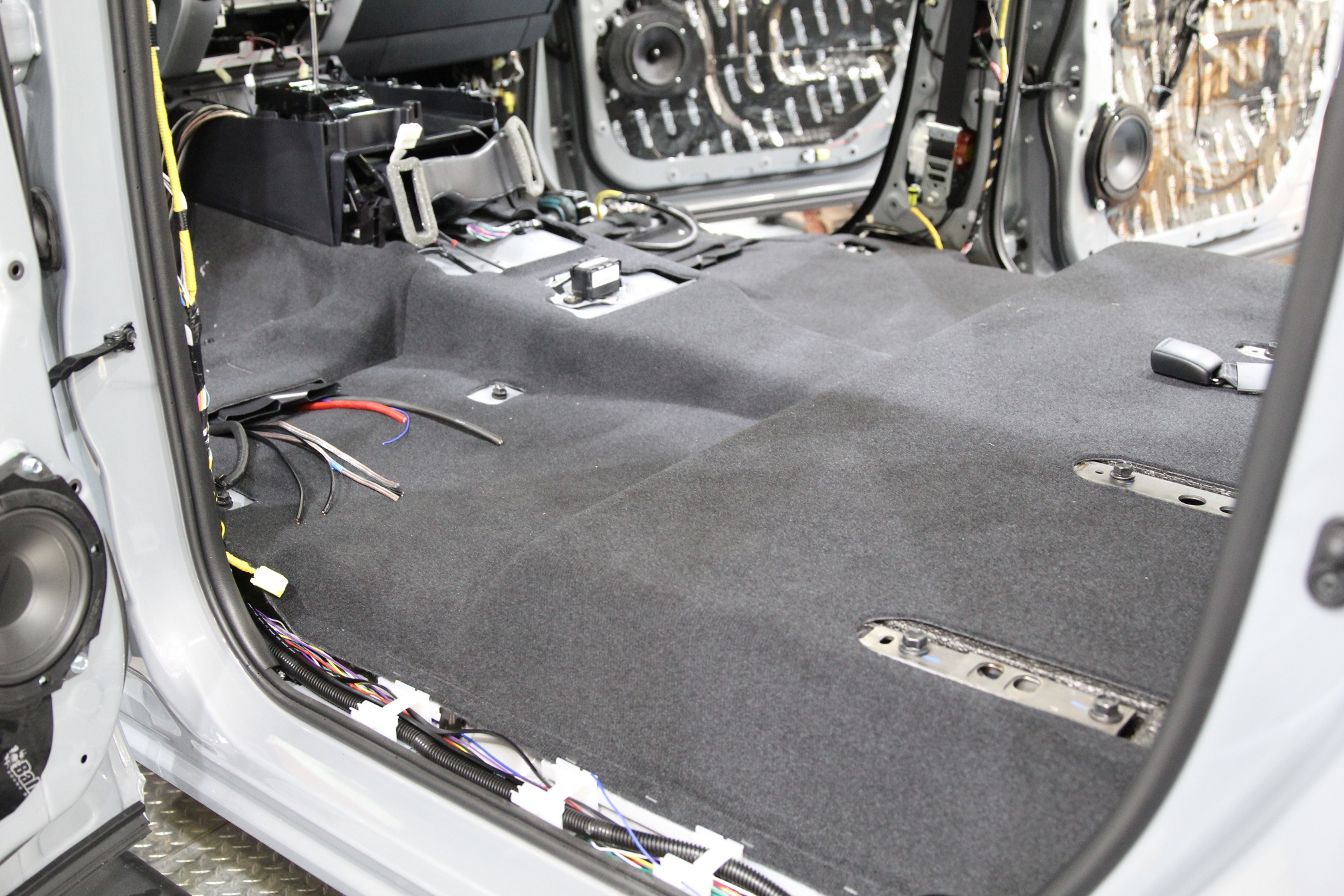

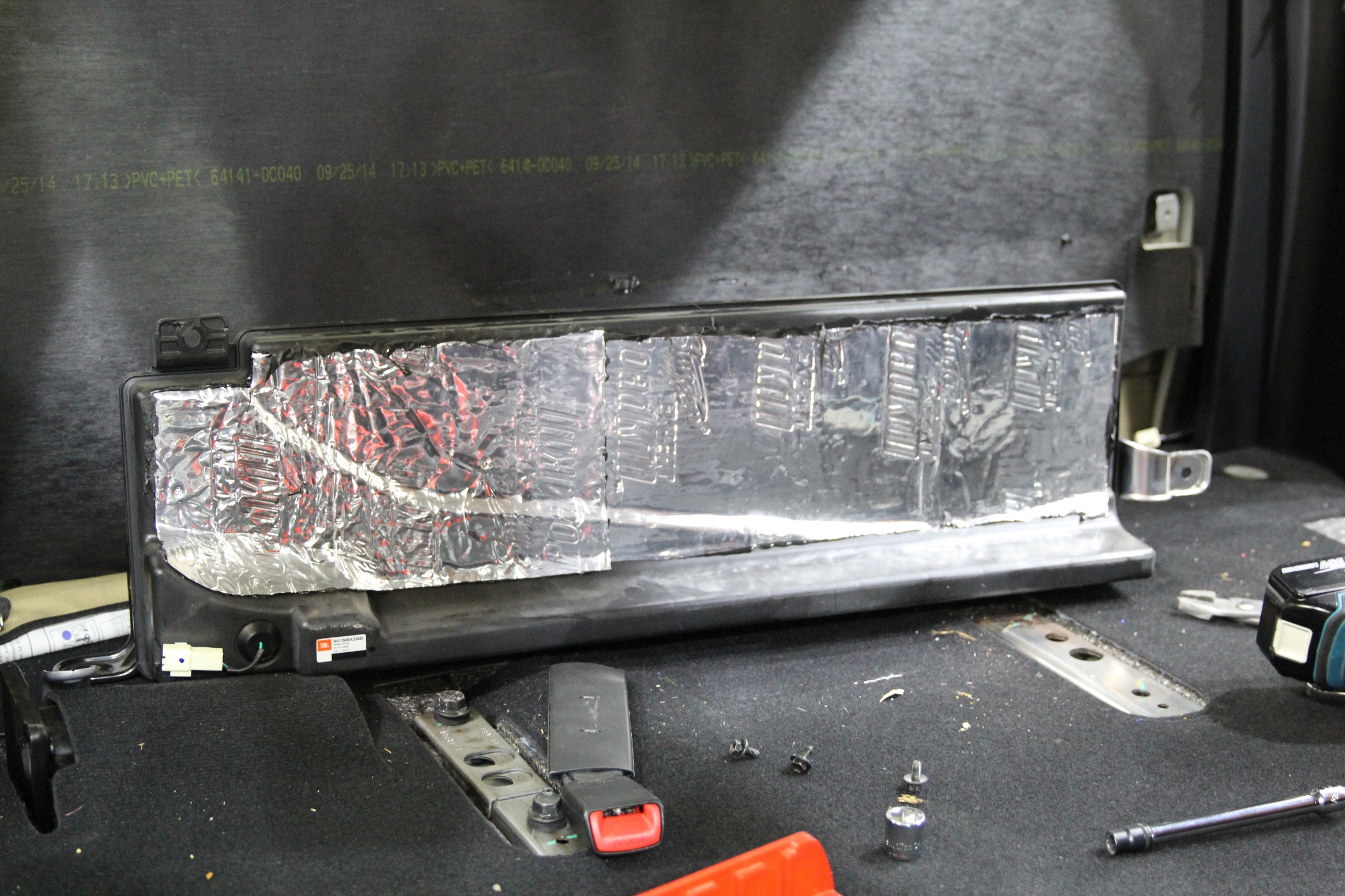

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Tobin’s Tundra CrewMax

Specs on the audio installation:

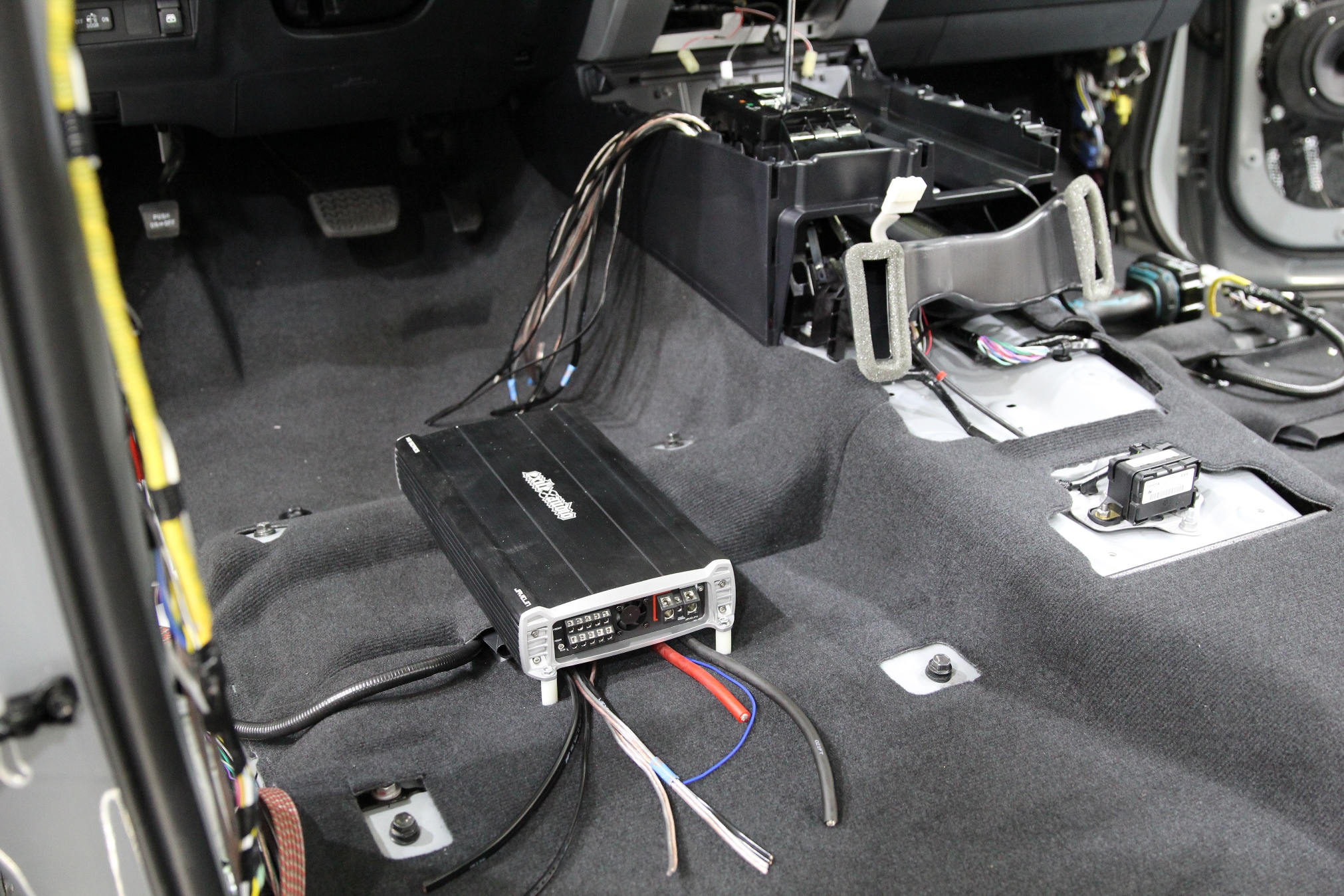

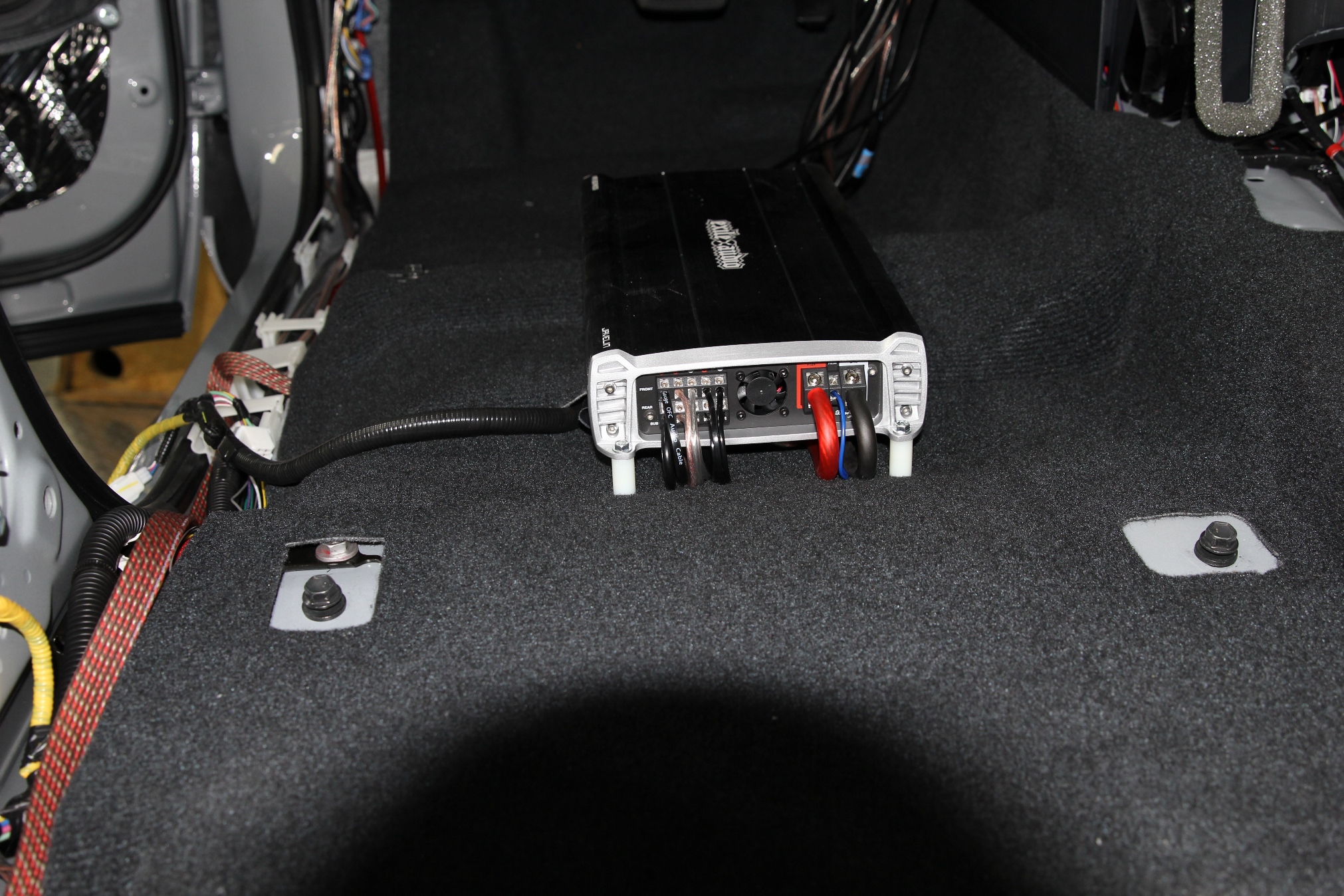

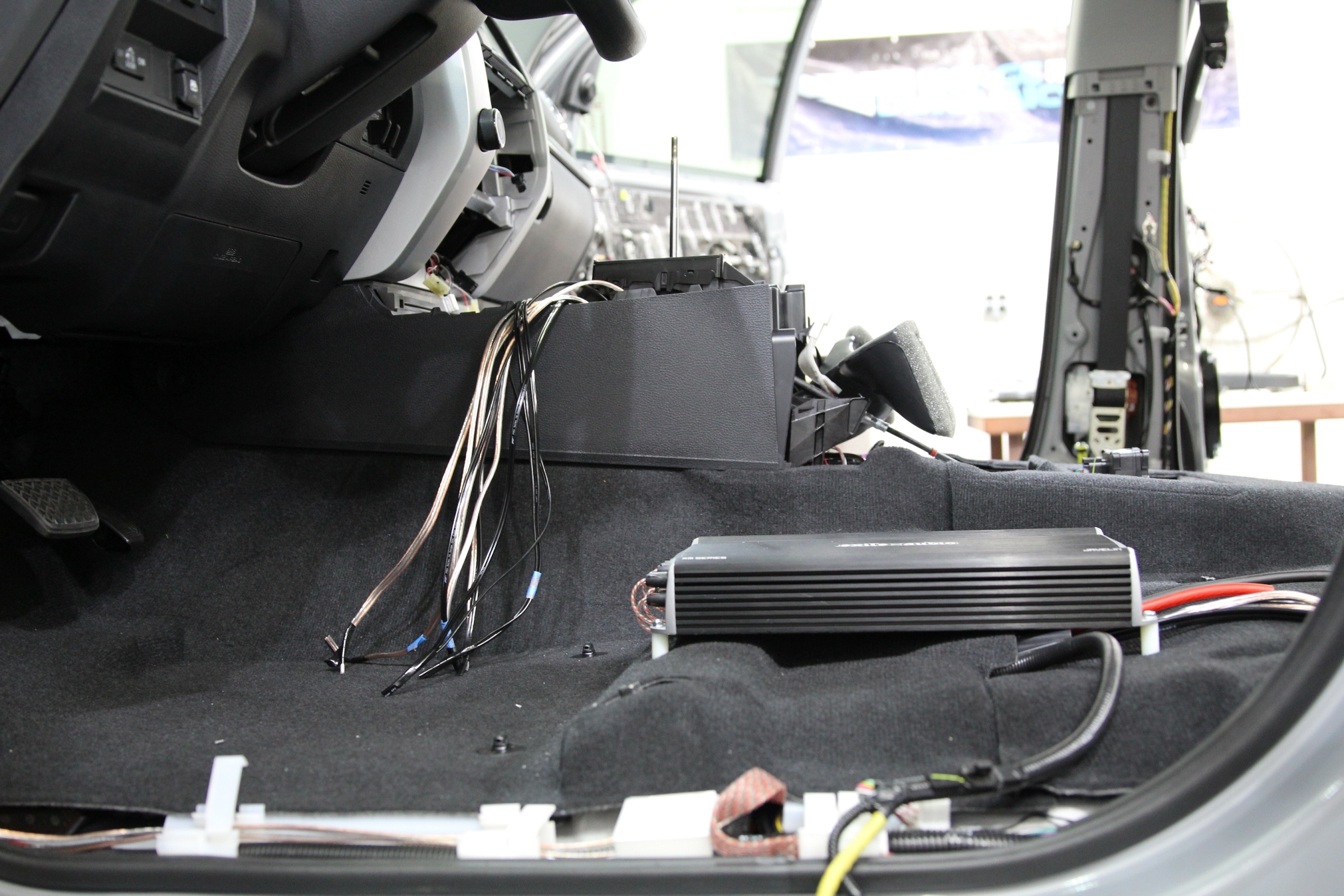

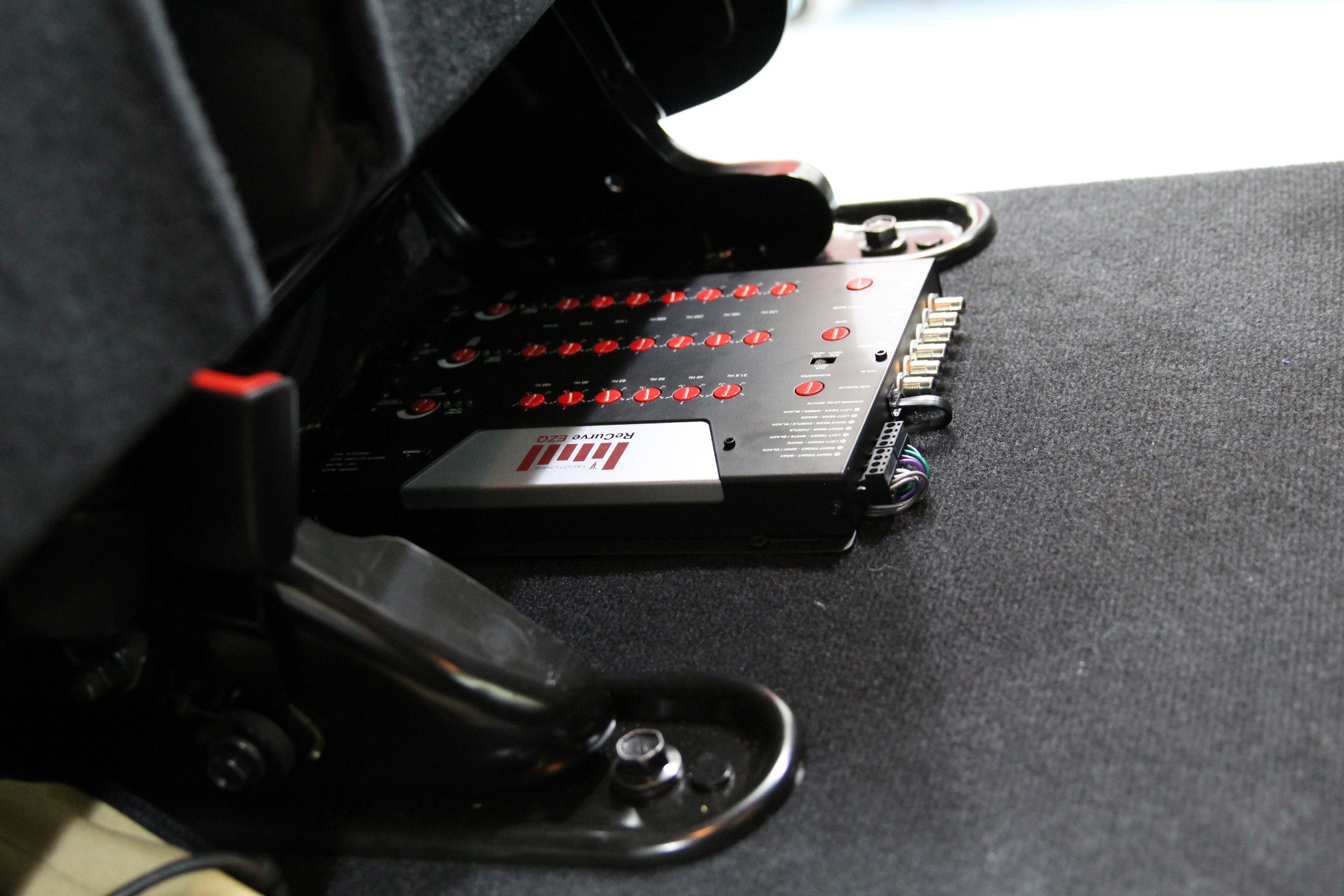

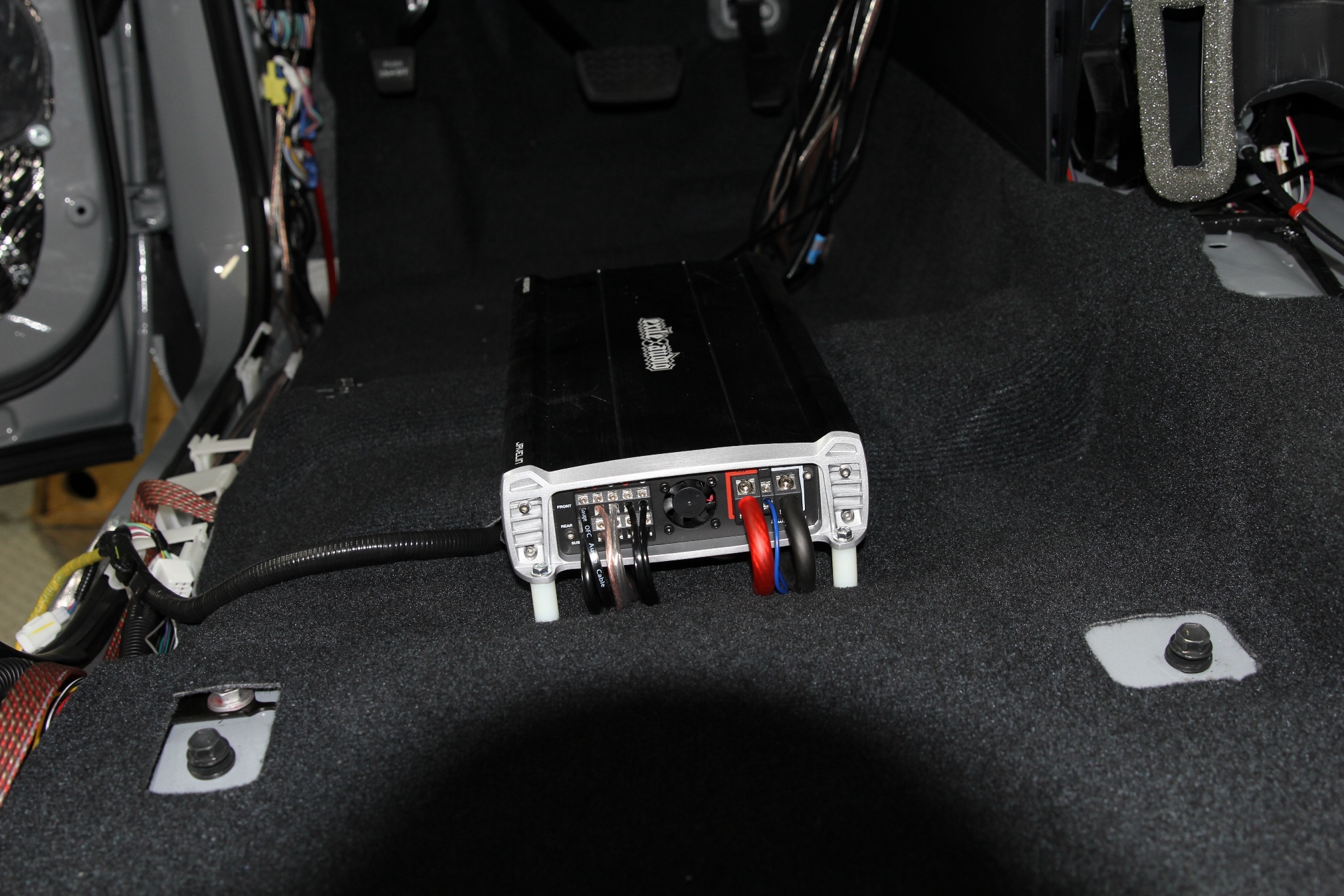

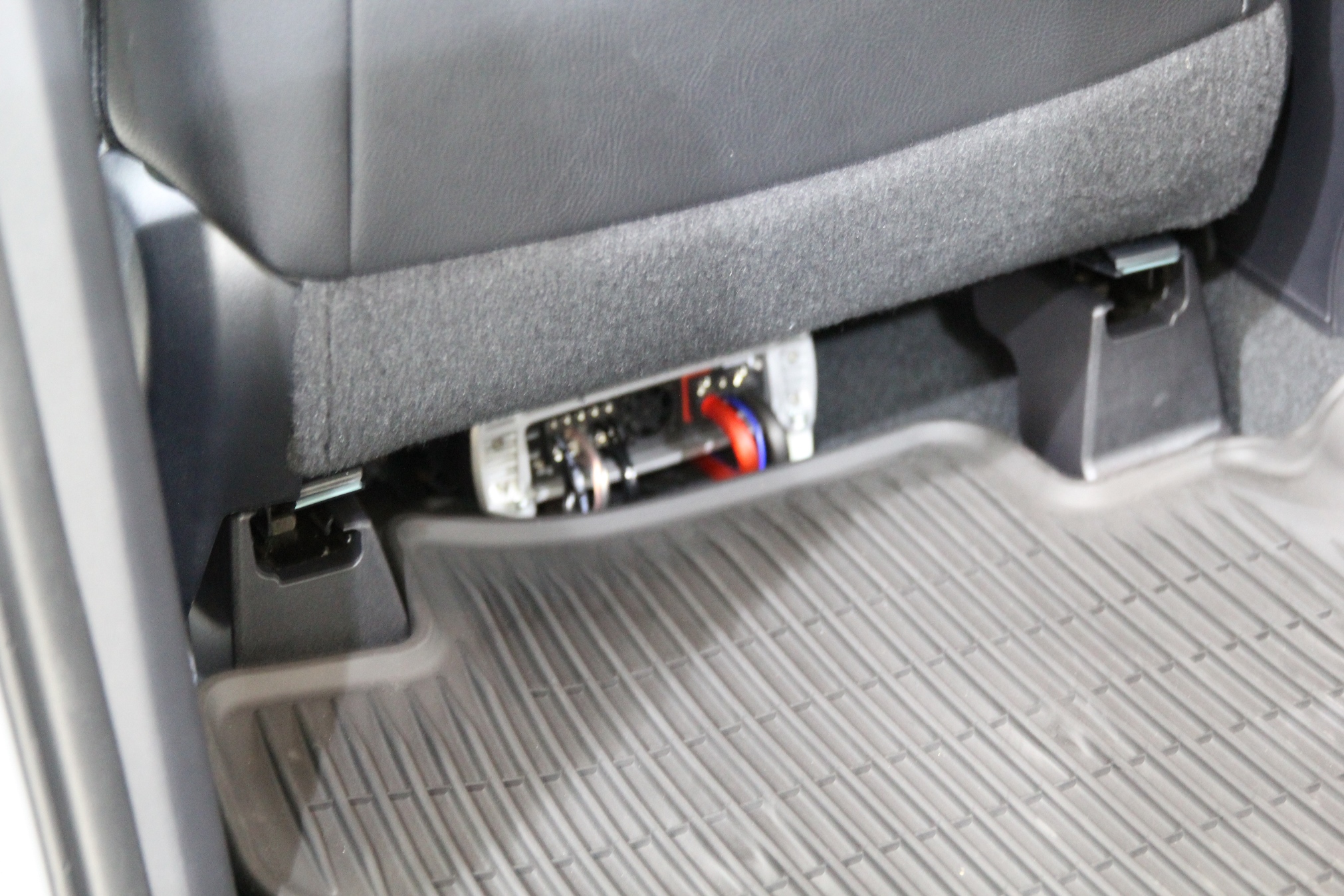

The AMP is hidden under the driver seat. Sound Processor (ReCurve EZQ) is hidden under rear set. The full size Image Dynamics 10” subwoofers fit behind the rear seats. The entire truck appears to be stock and makes the truck appear to e stock and less likely for break ins. Additionally, the gear is setup for Toyota’s so chances of theft are greatly reduced.

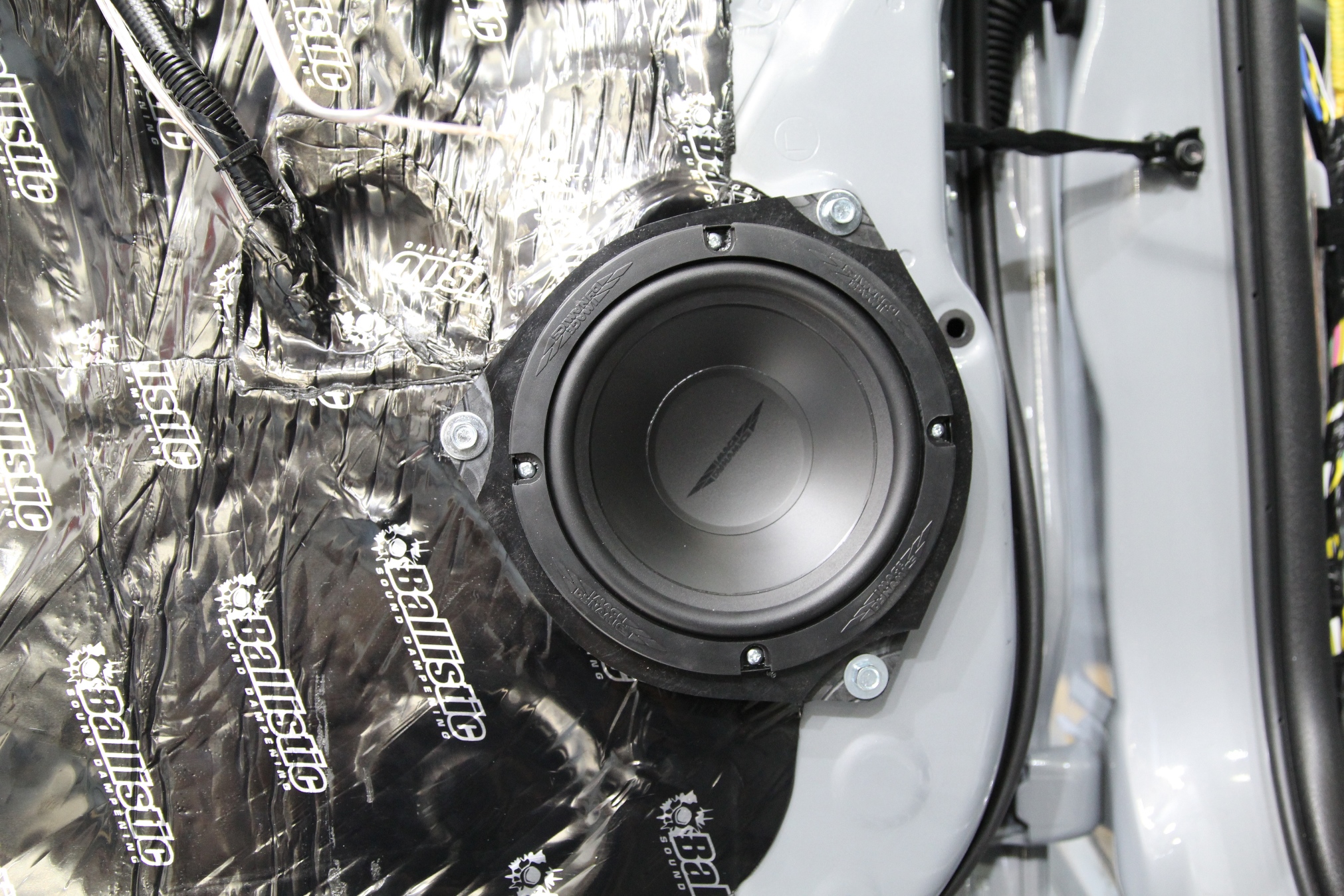

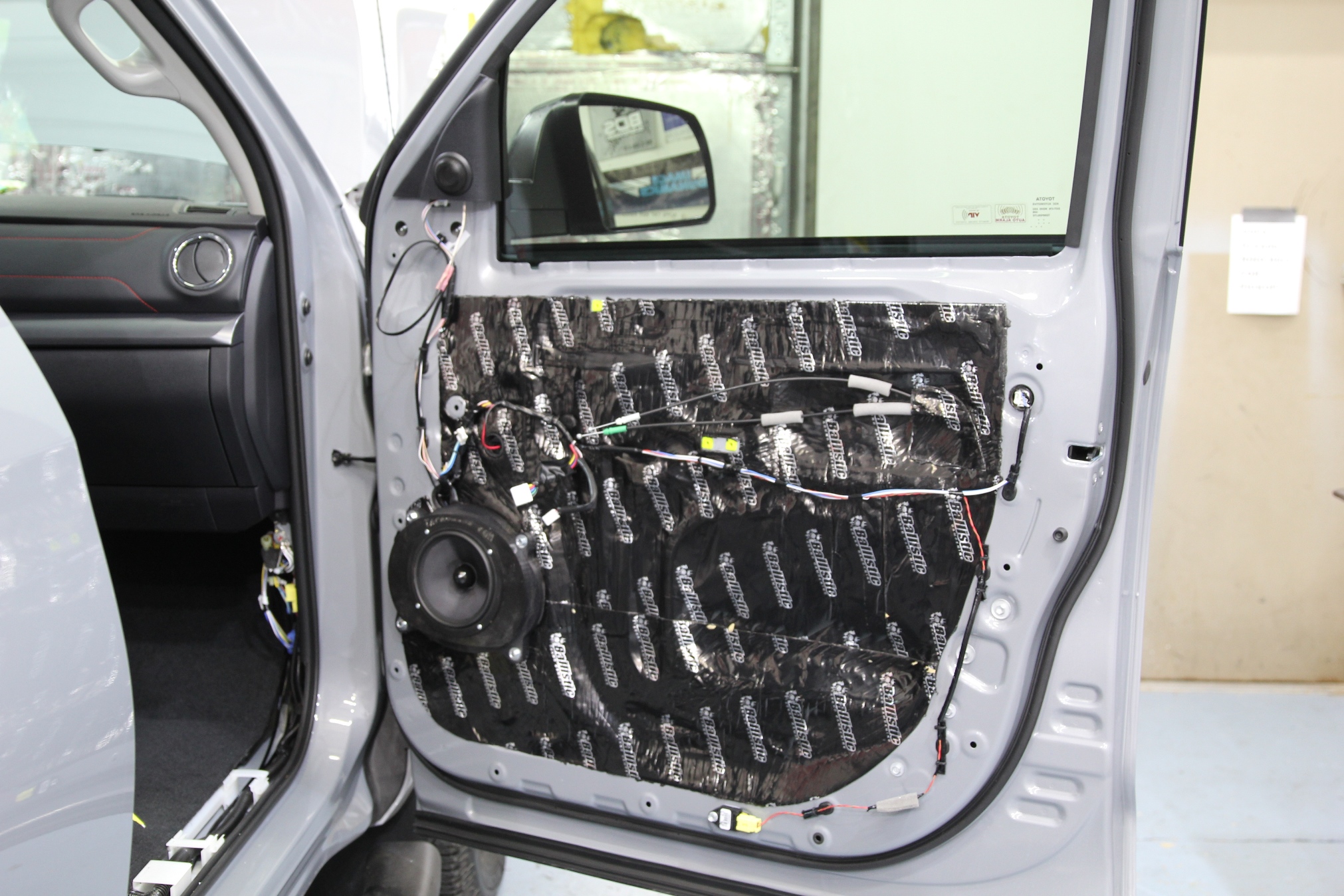

Front Door Component Speakers:

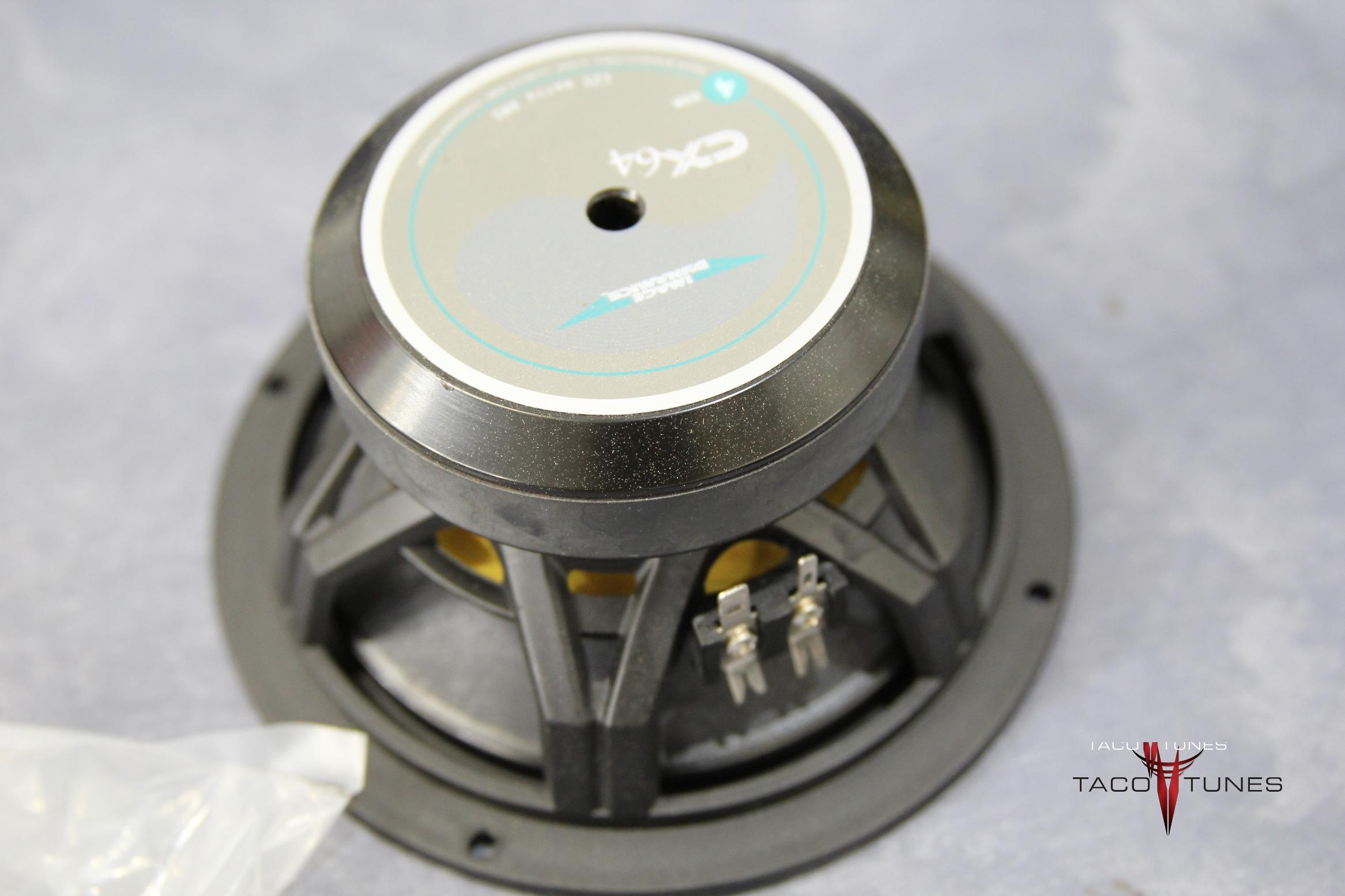

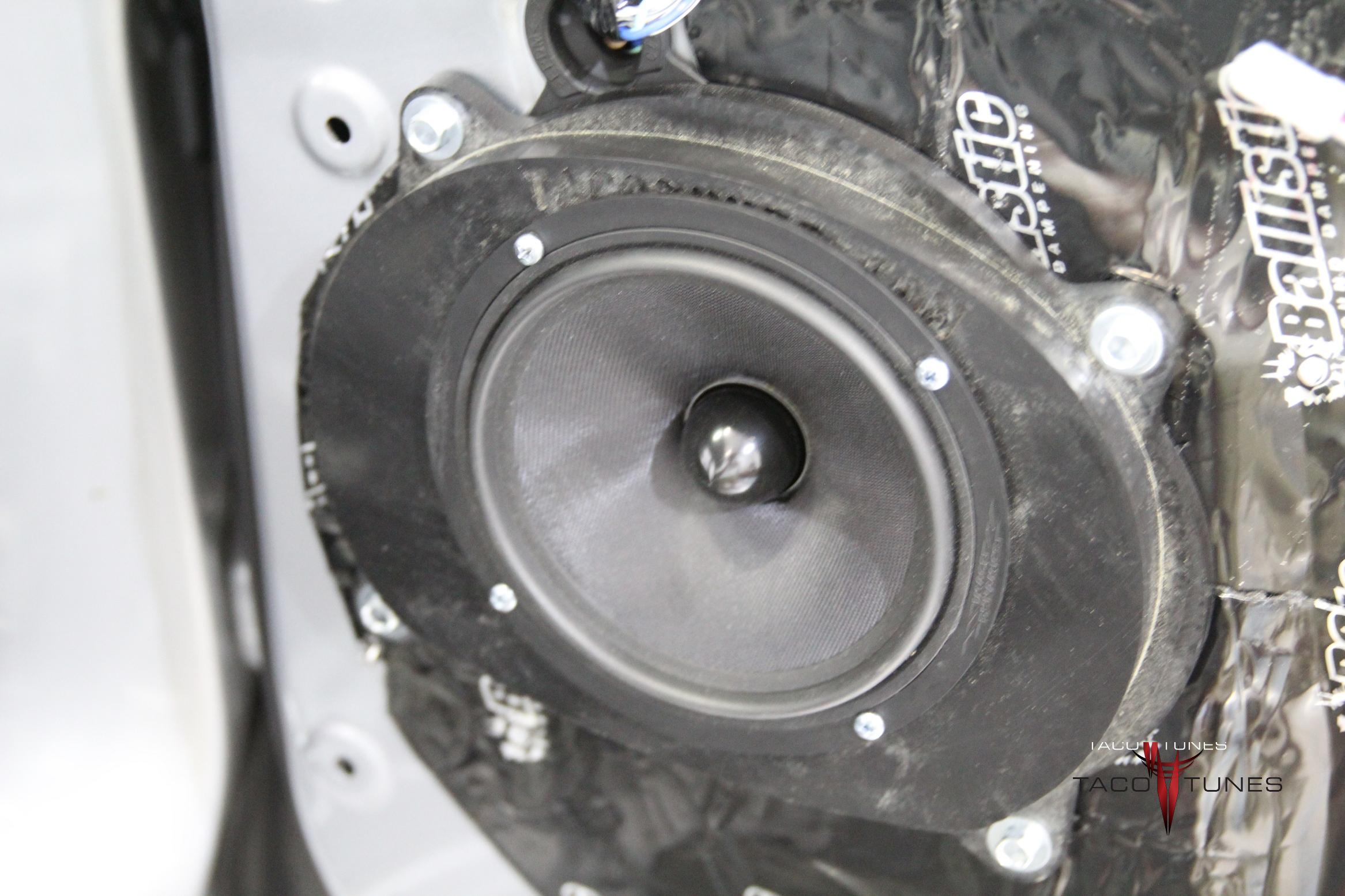

Image Dynamics CXS64

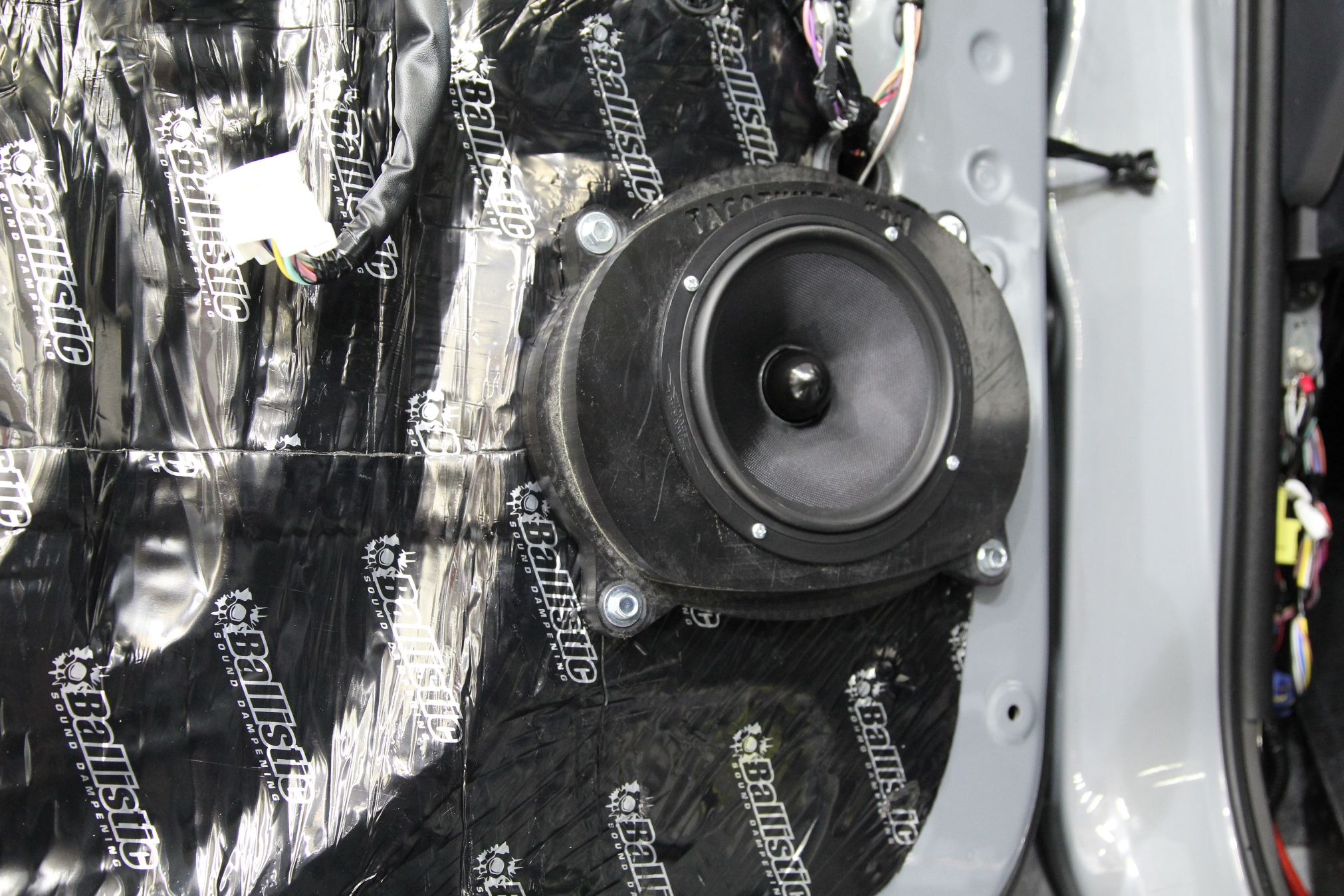

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CXS Mid bass Drivers -125 Watts RMS

CXS Crossover

CXS 28M Silk Dome Tweeter

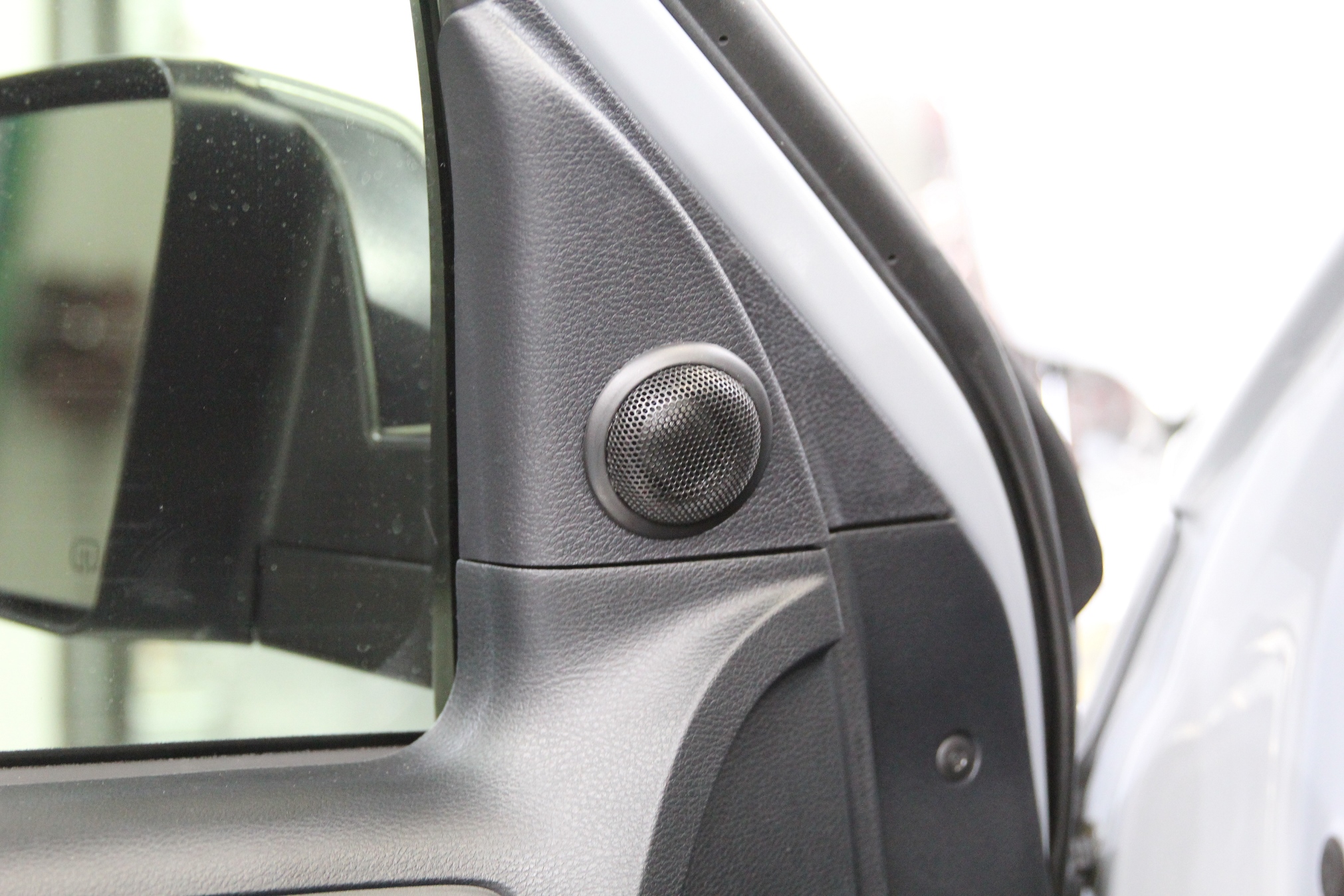

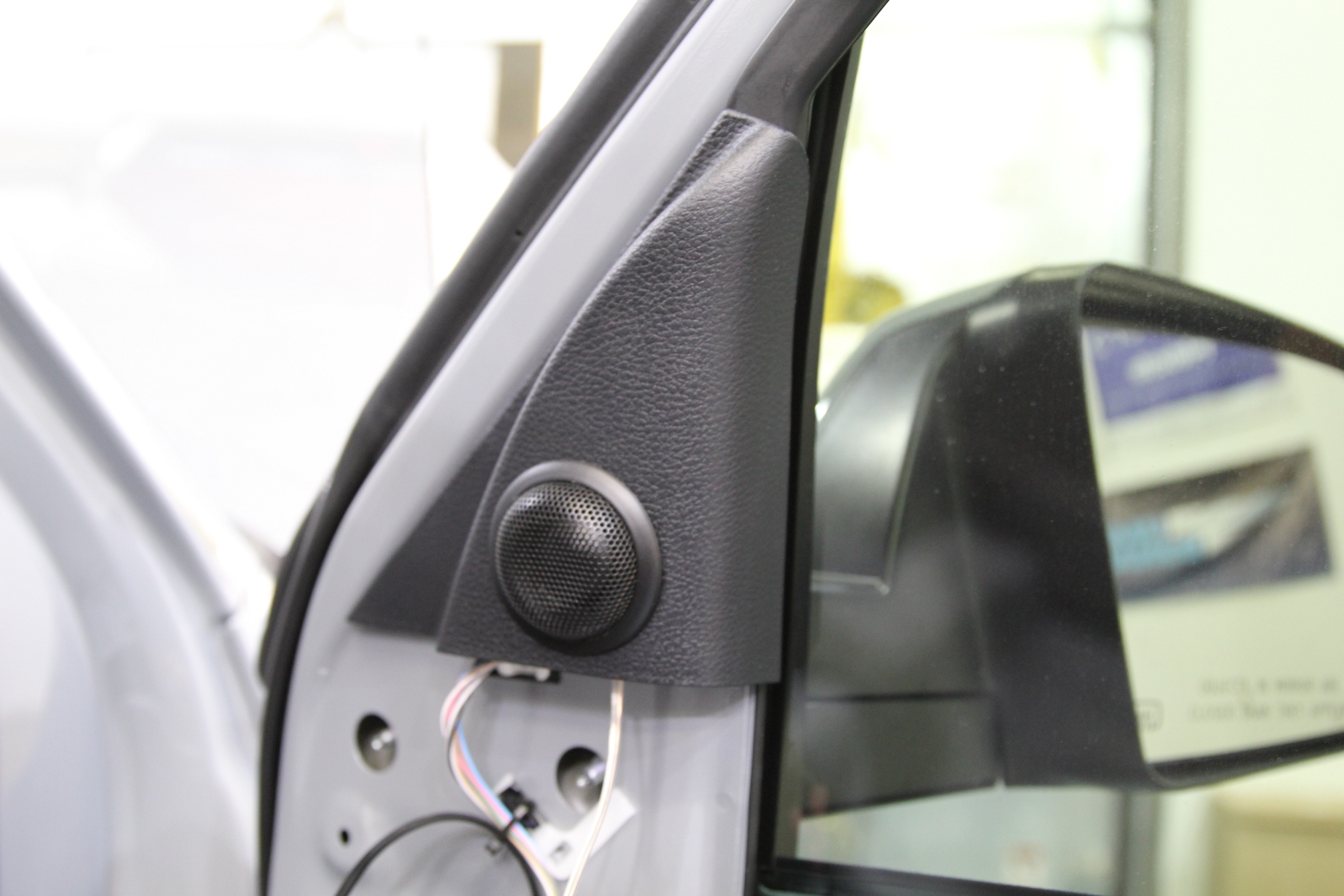

Use Stock Sail Panel for Tweeter mounts.

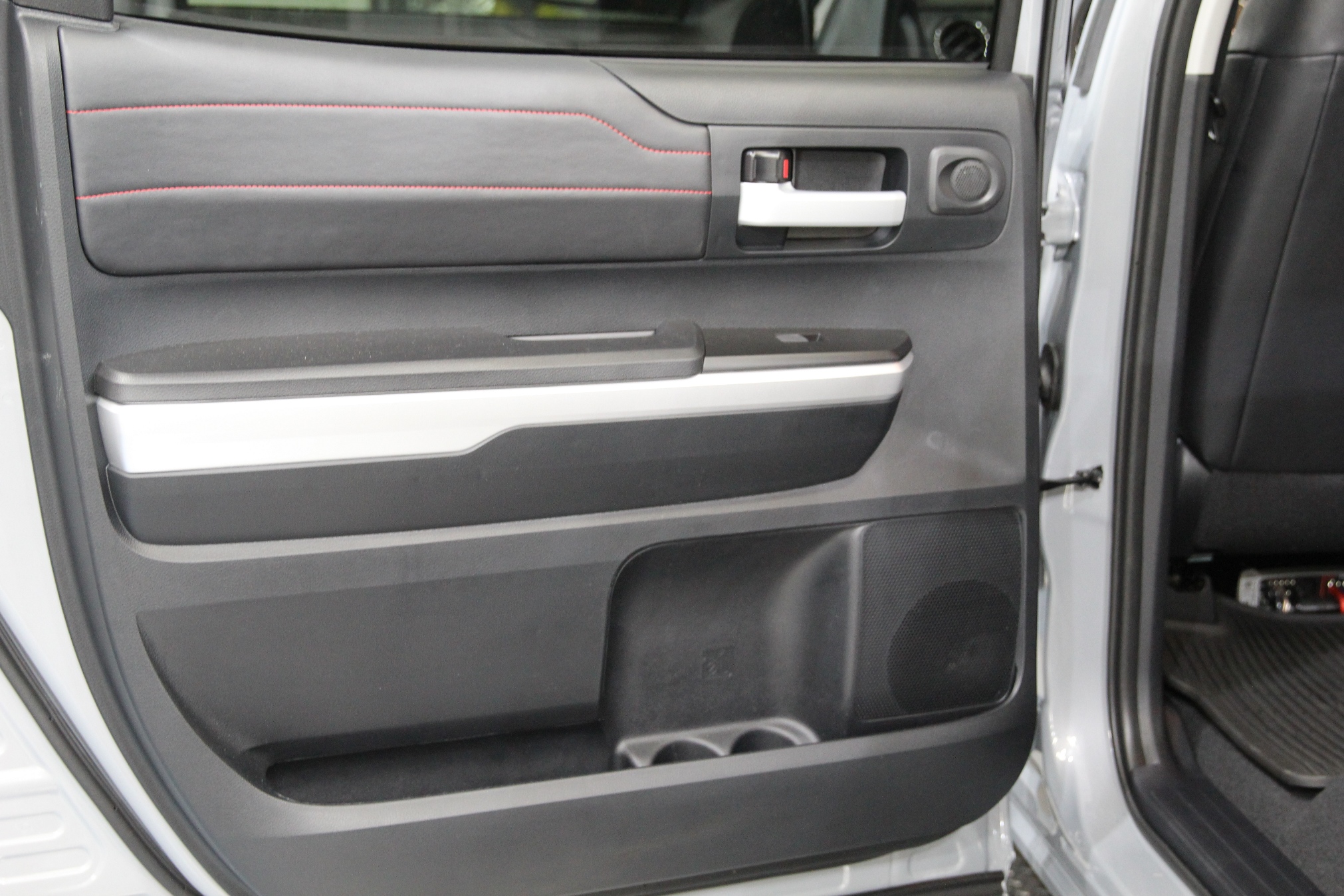

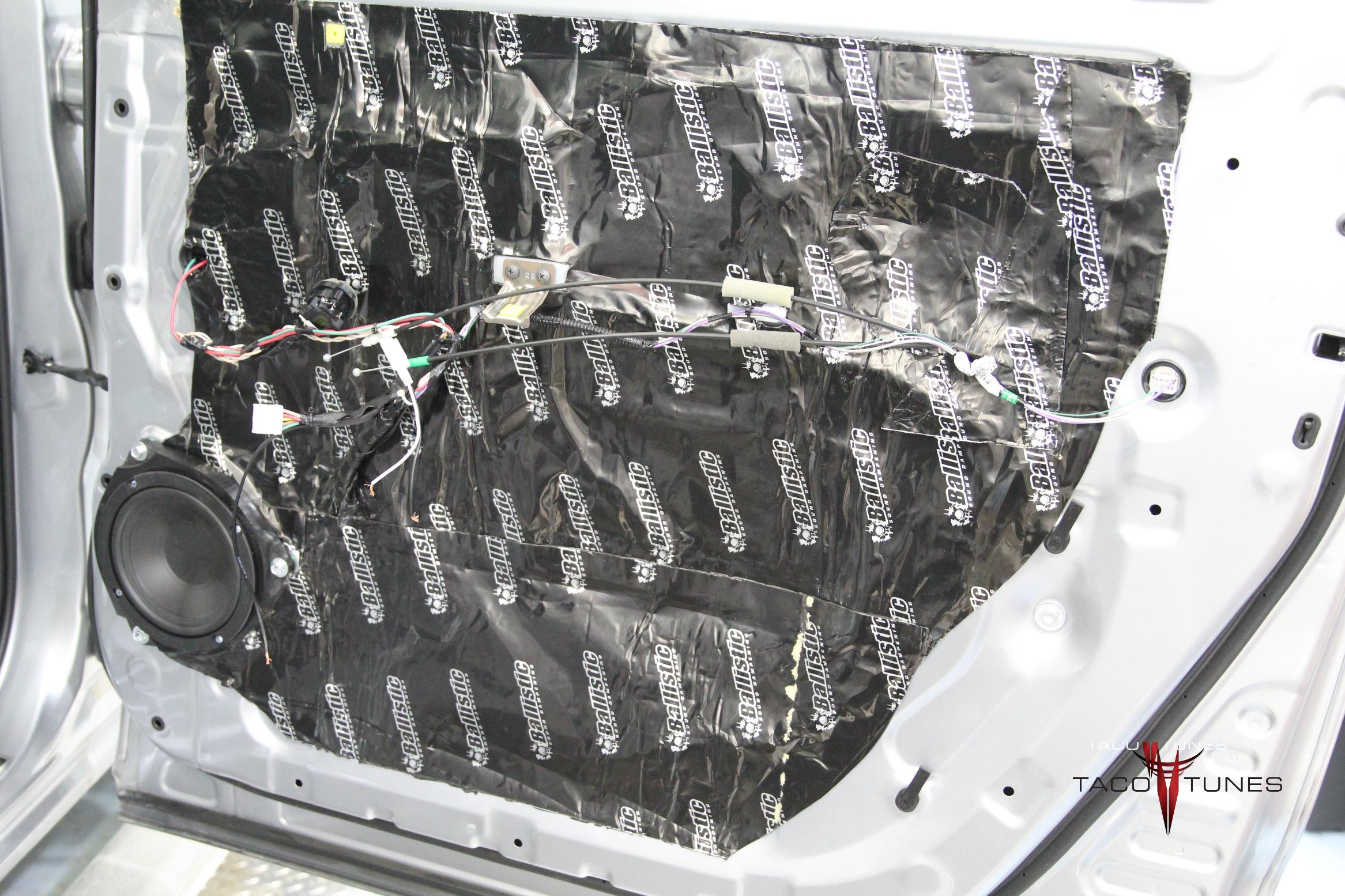

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

Sound Processor:

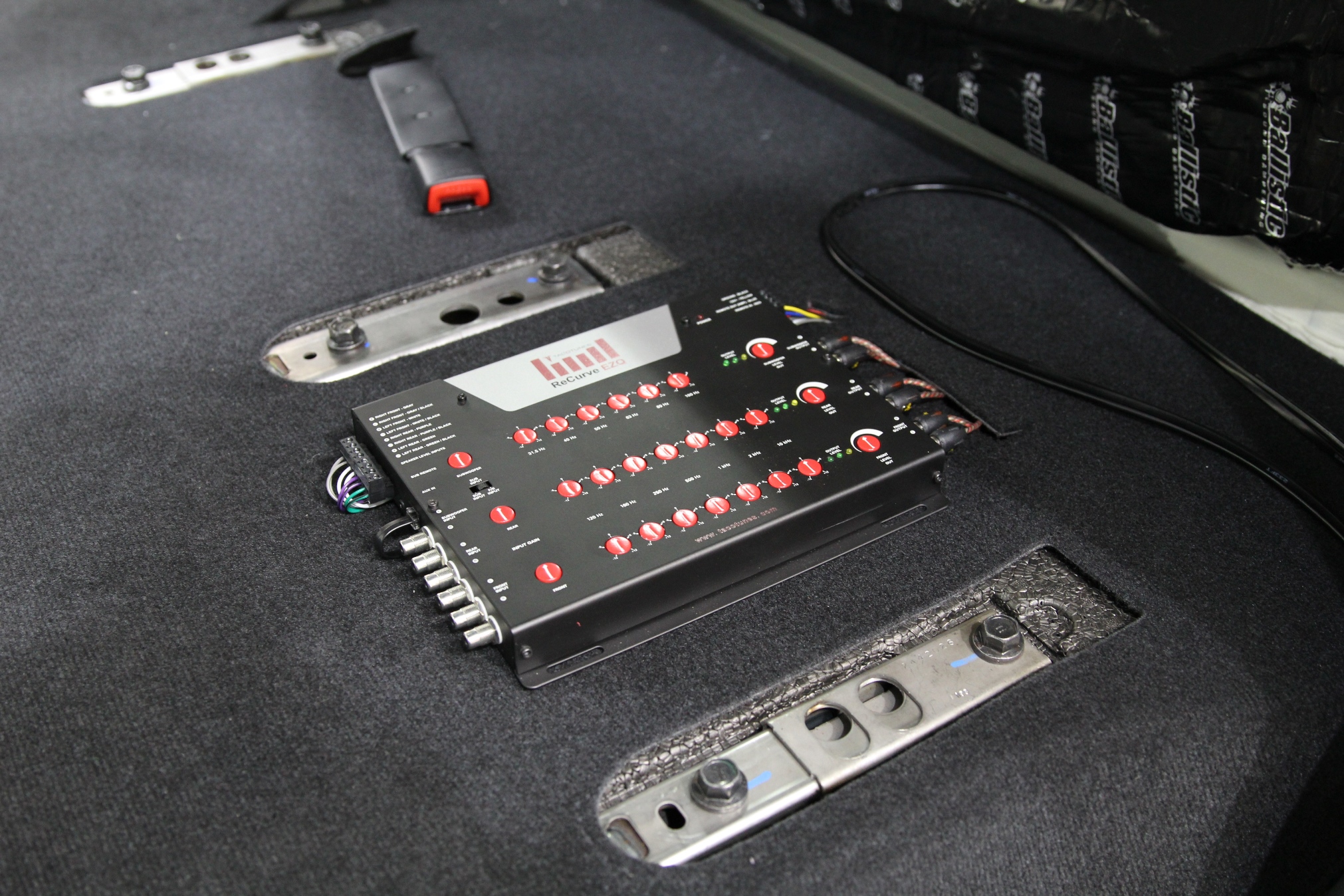

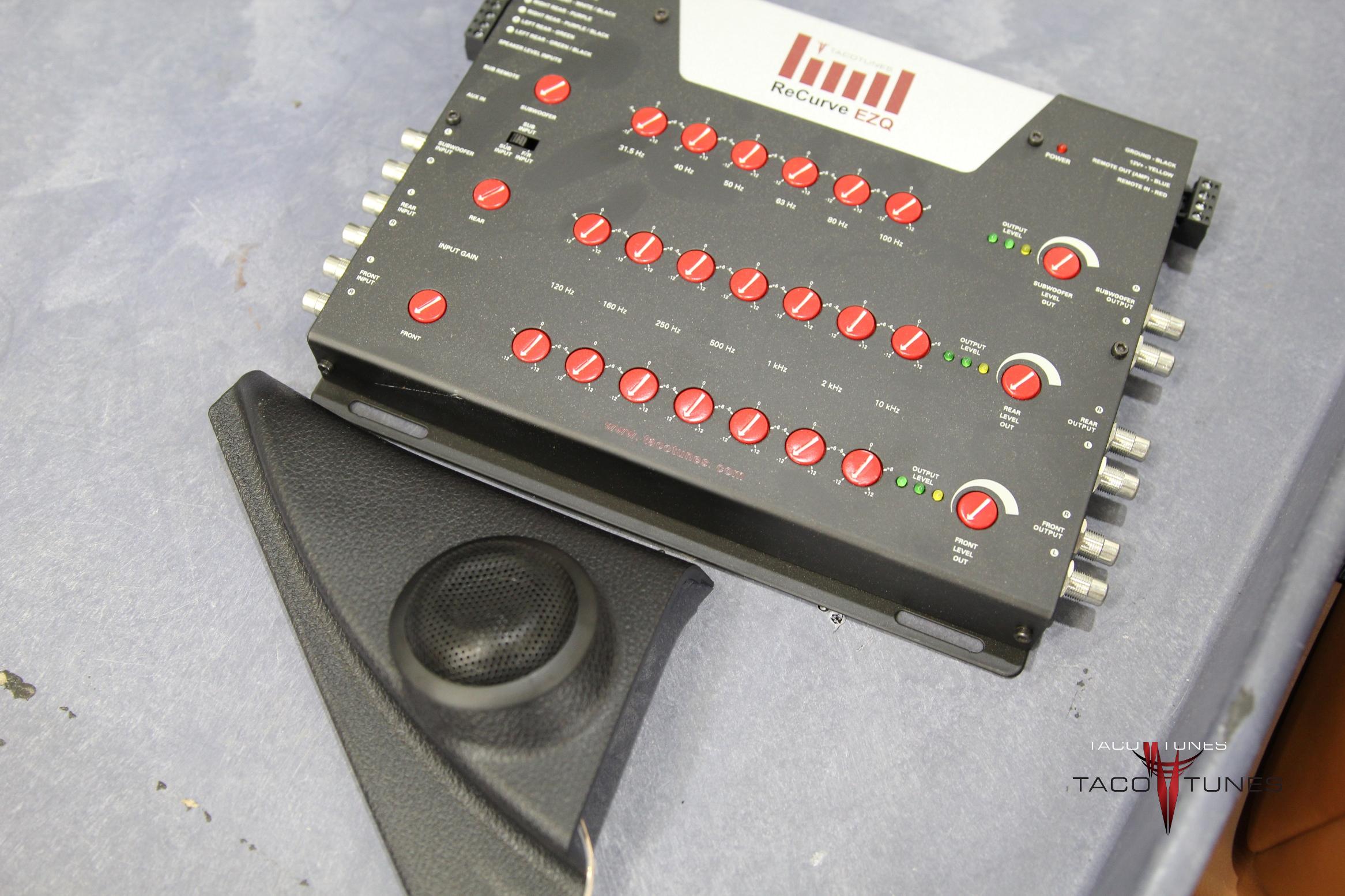

Tacotunes.com ReCurve EZQ

Tacotunes.com JBL Harness

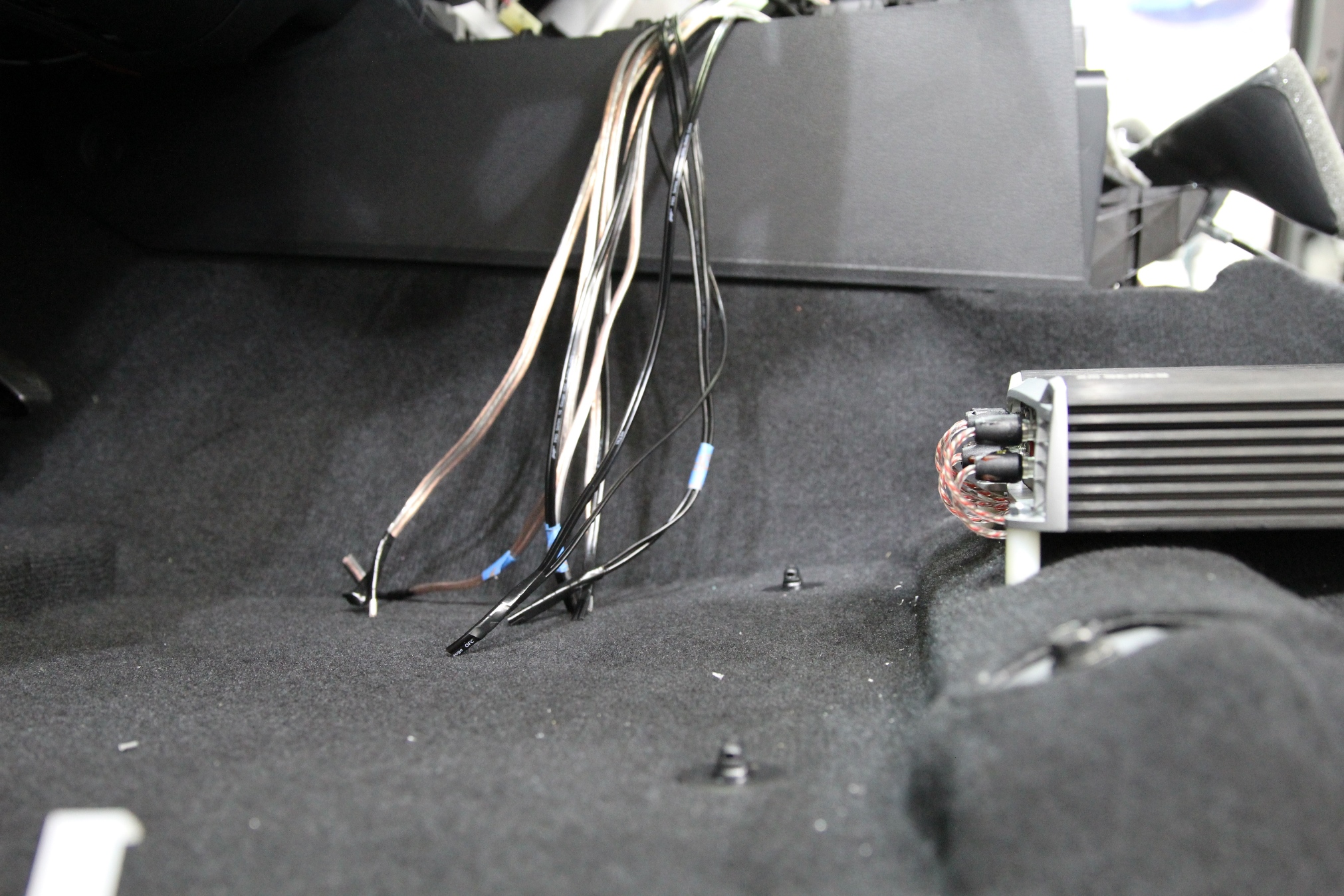

Amp:

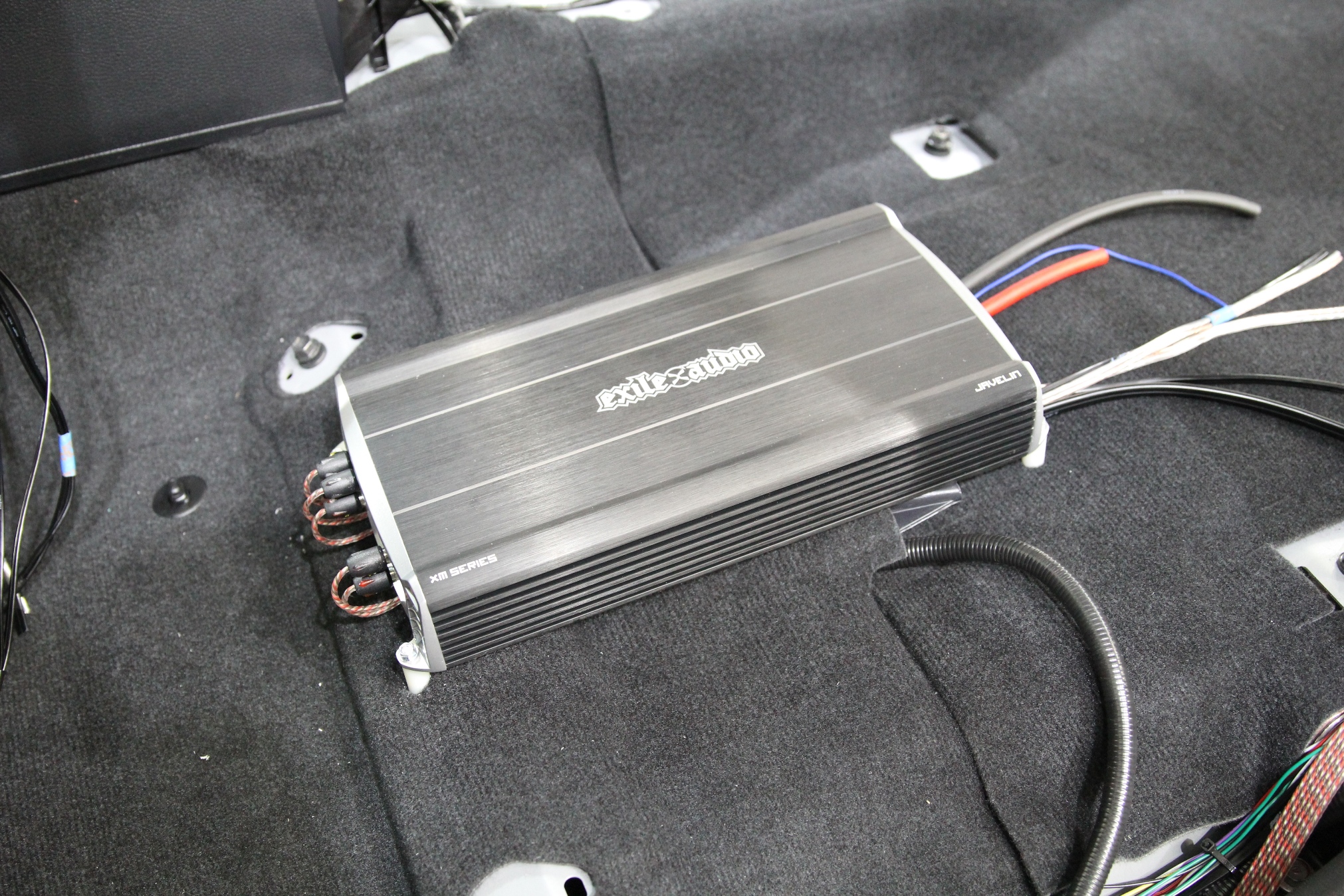

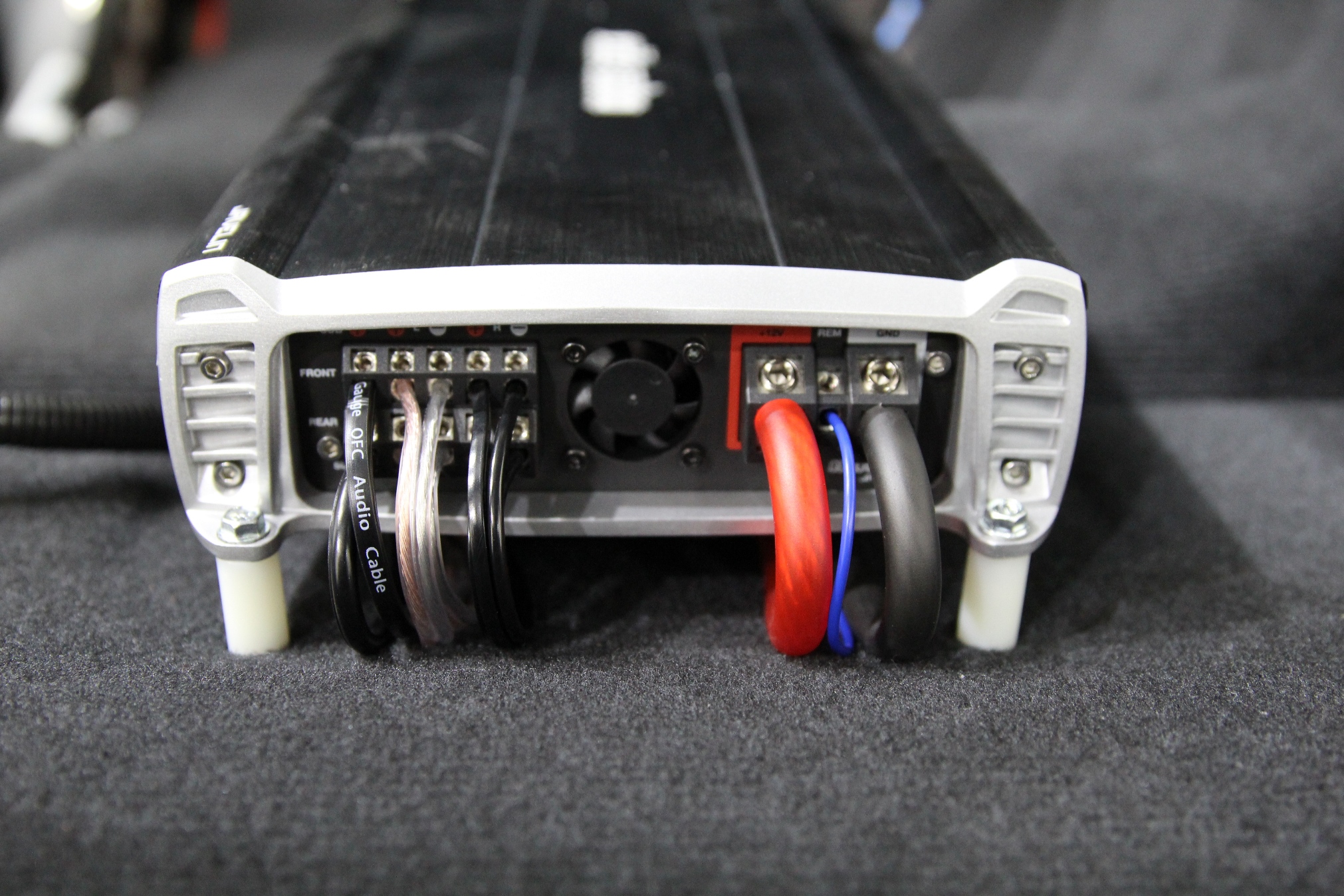

Exile Audio 5 channel amp

100 watts x 4 to each speaker and 800 x 1 (subwoofer)

Subwoofer(s):

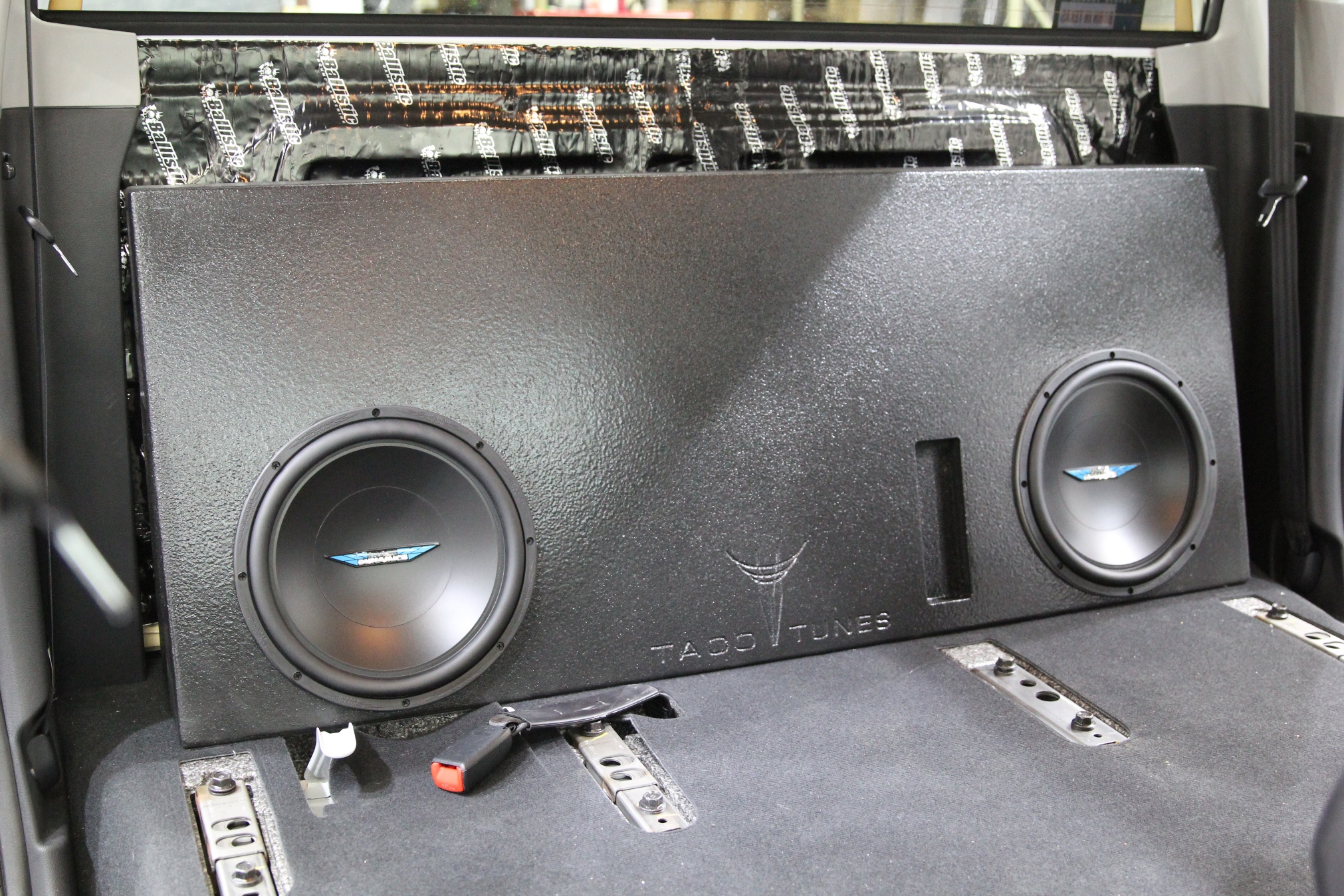

Subwoofer Box & Subwoofers

Tacotunes.com dual 12” subwoofer enclosure 2.0” cu feet

Image Dynamics ID12V4 (full size) 10” subwoofer 400 watts RMS x 2 (800 watts RMS)

Tundra Install kit:

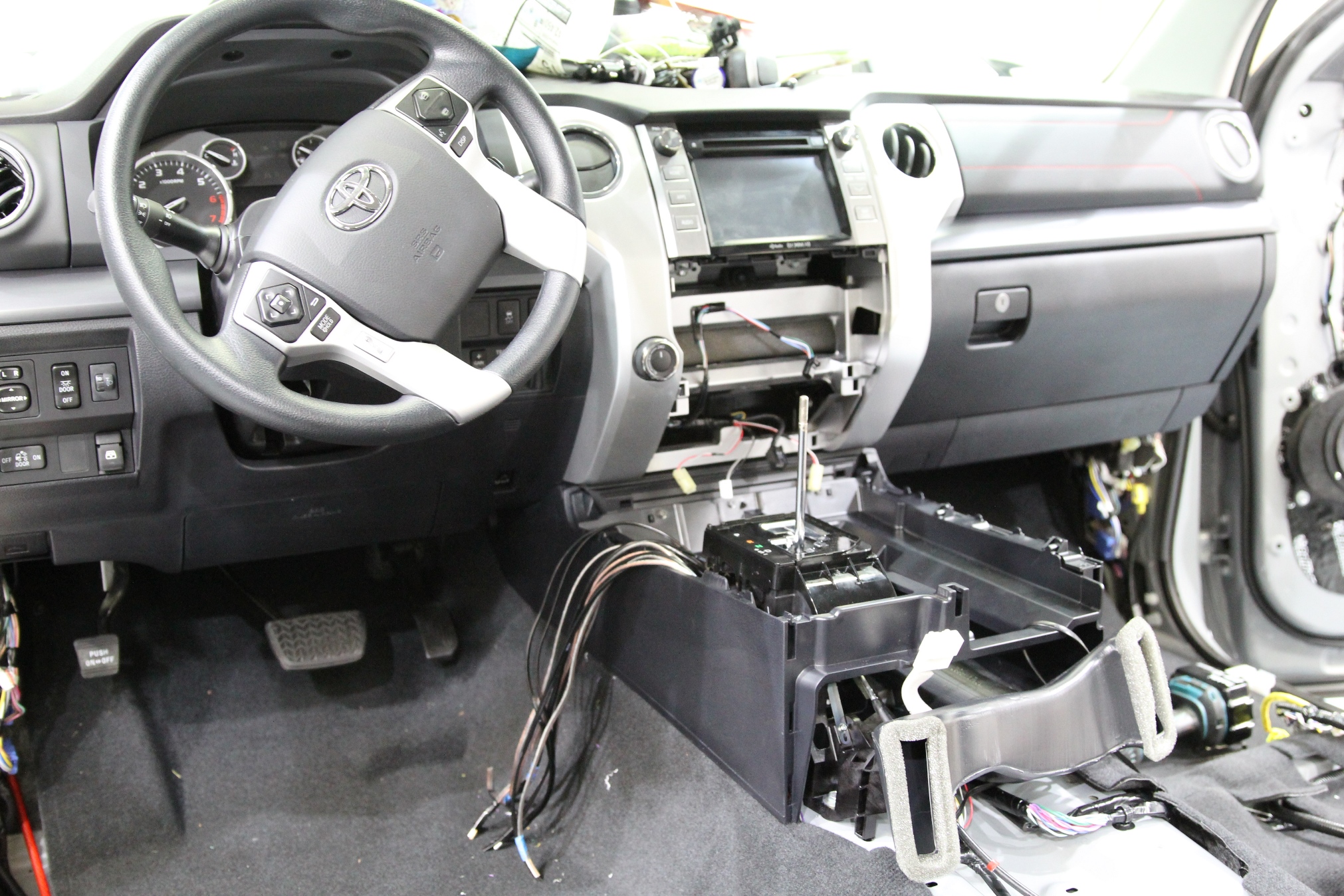

Stereo & Wiring Installation kit:

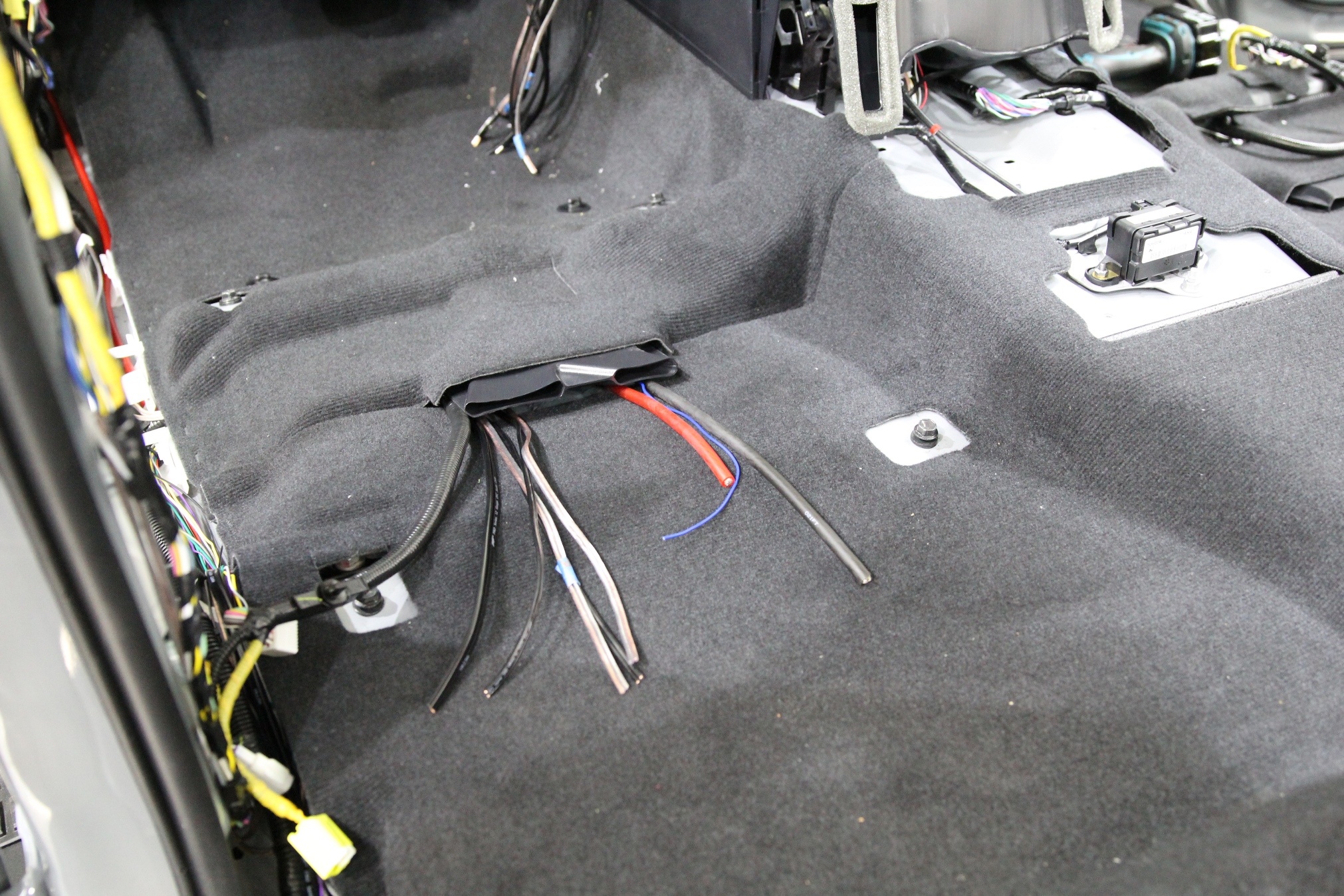

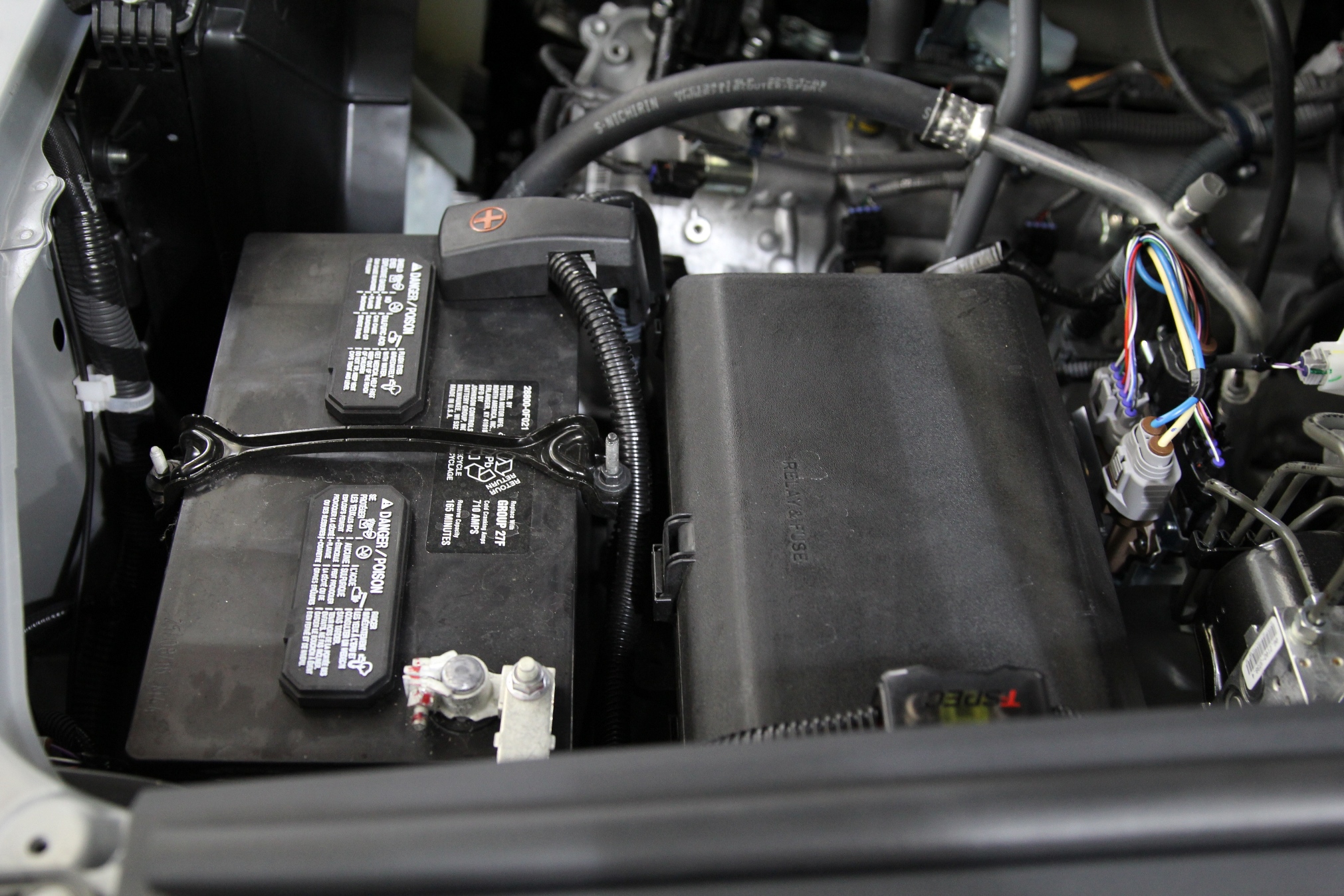

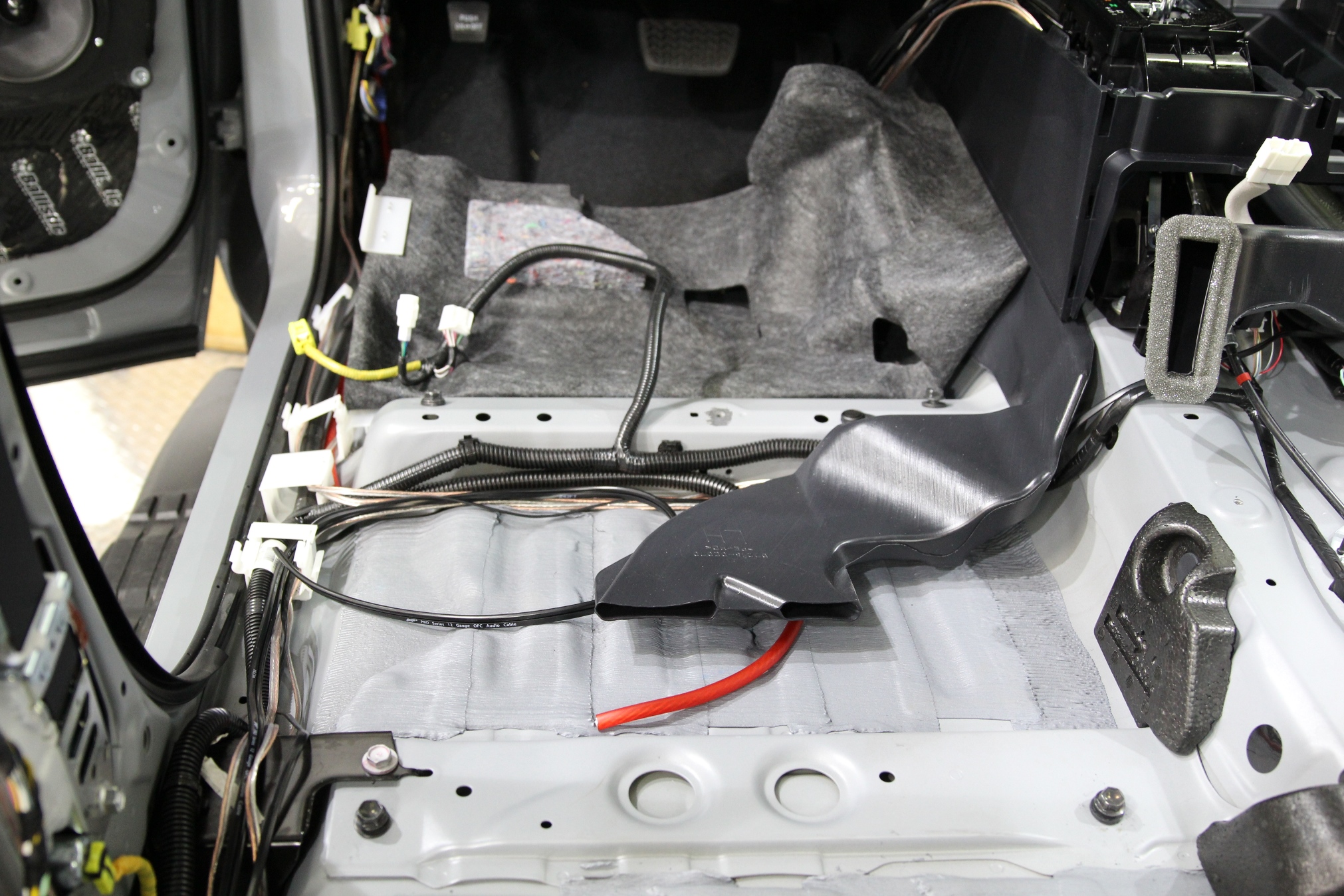

Stinger Power, Speaker and Signal Cables:

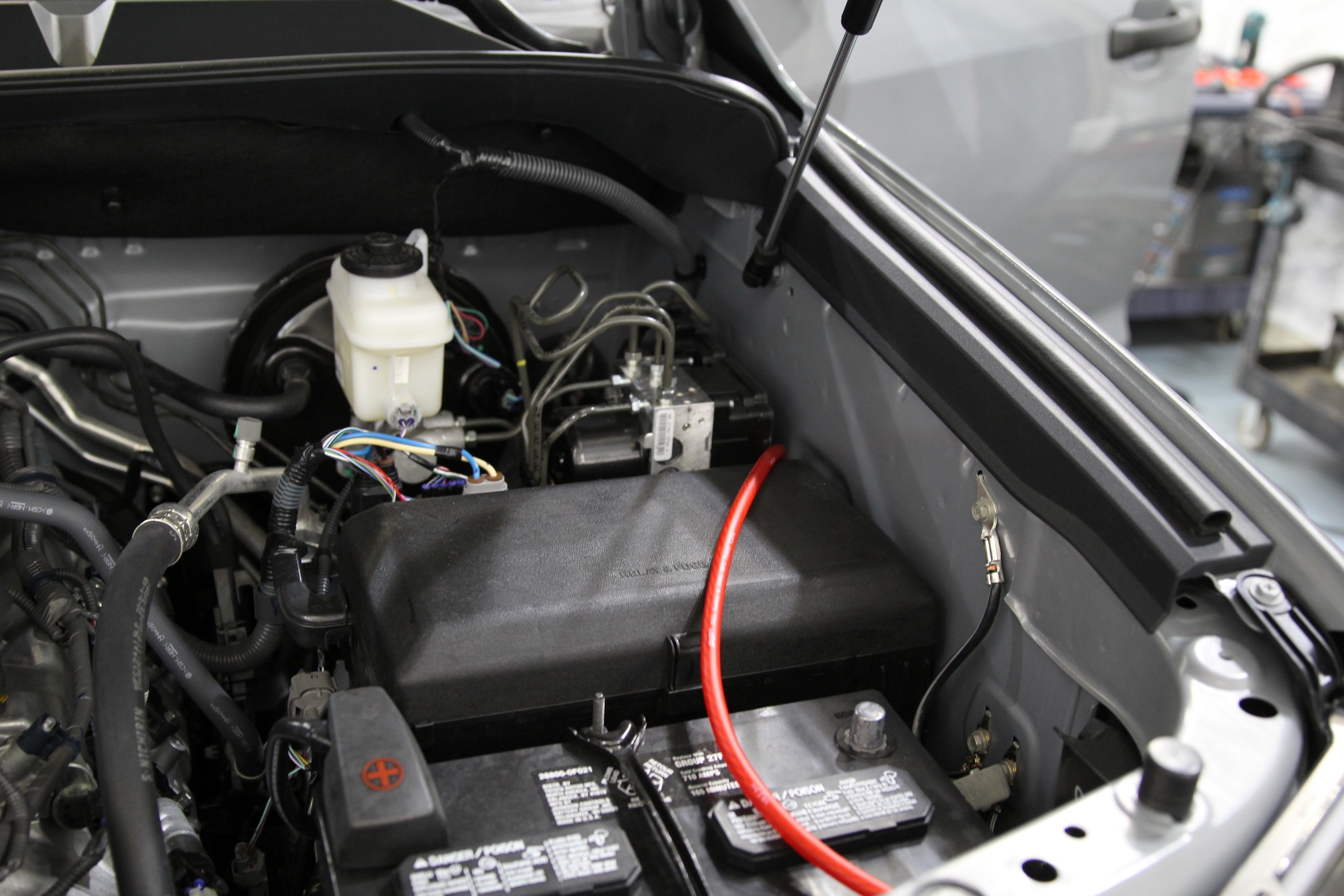

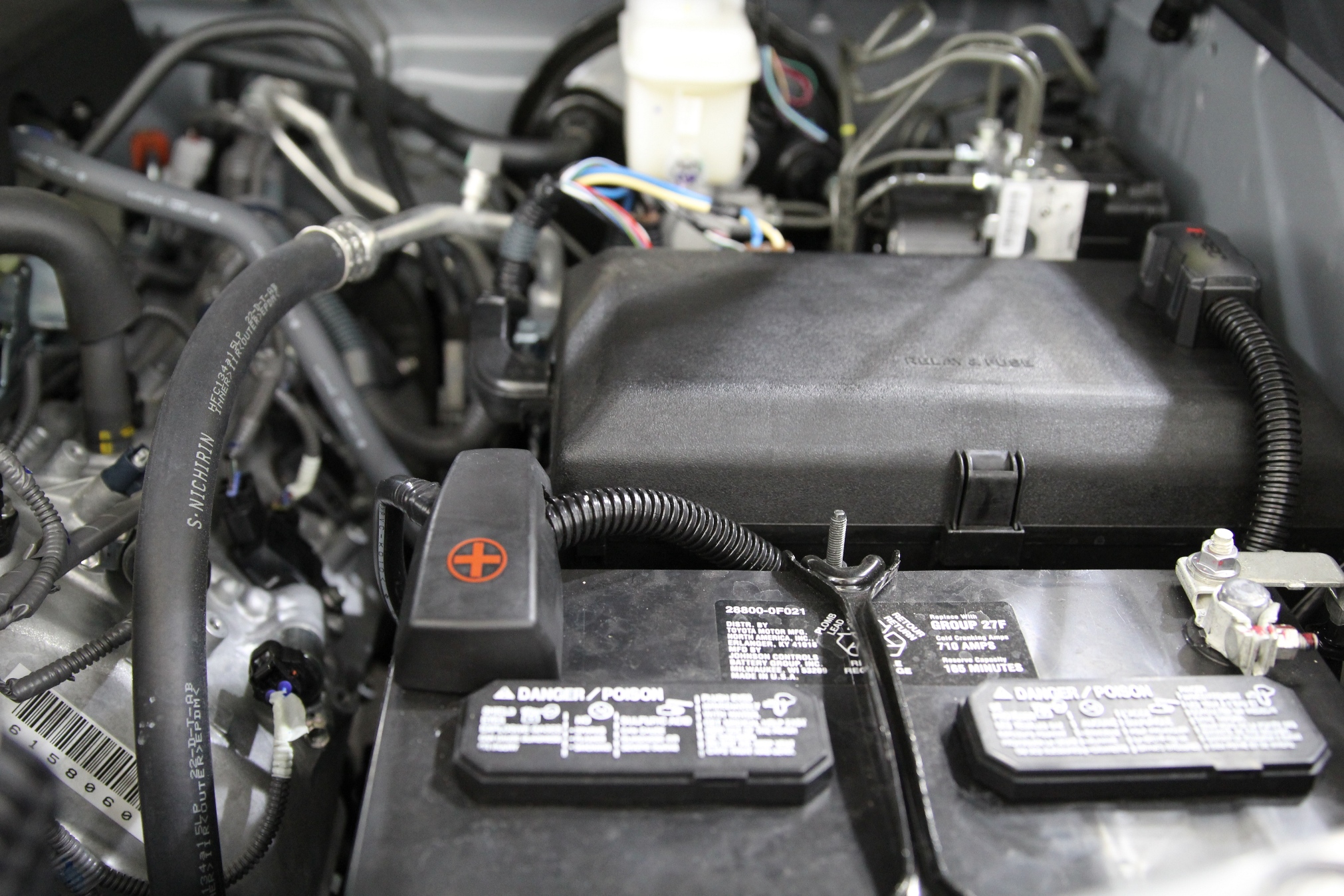

Positive:

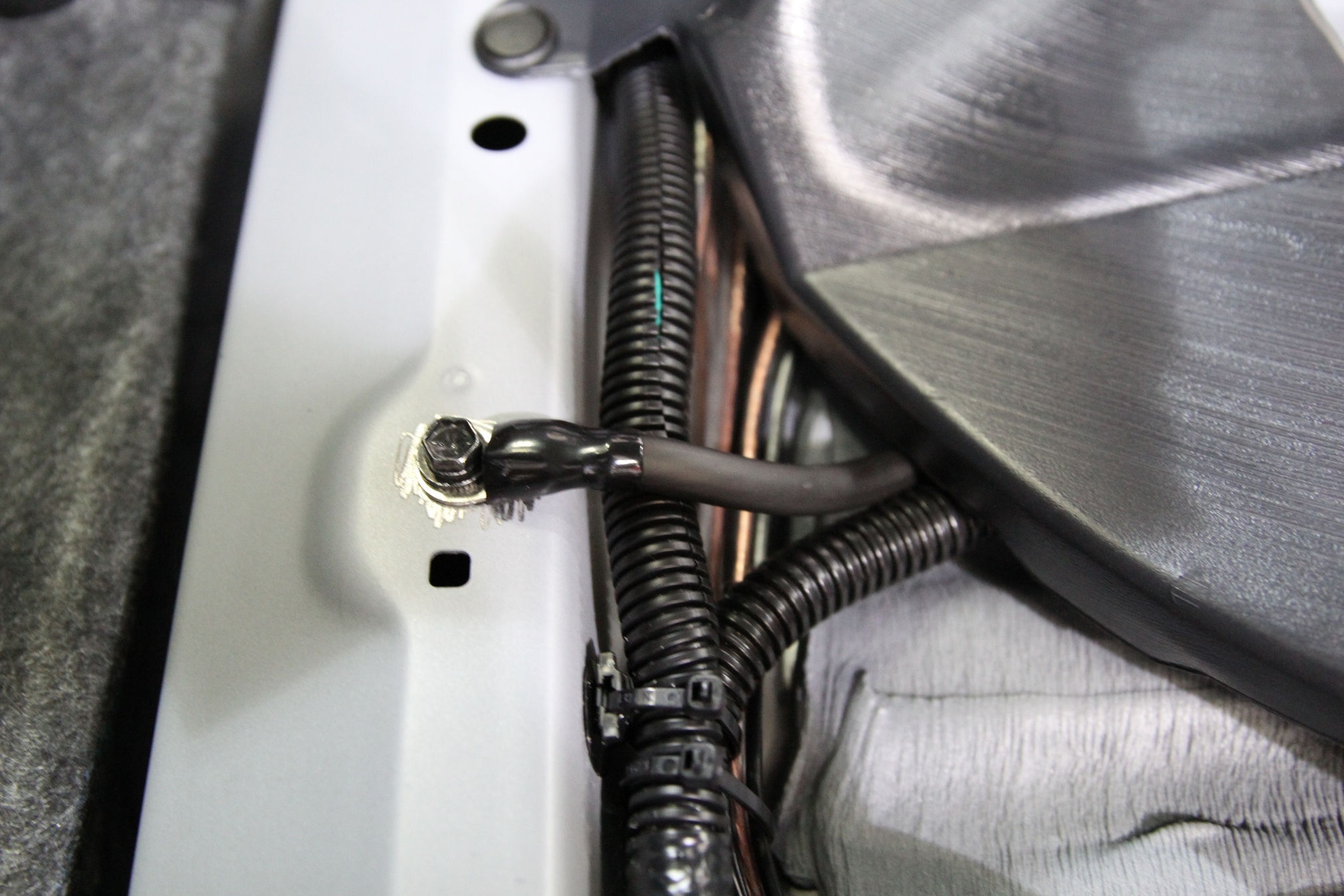

Stinger 3′ POWER CABLE 4GA – Ring Terminal Attached

Stinger 13′ POWER CABLE 4GA

Negative:

Stinger 4′ POWER CABLE 4GA – Ring Terminal Attached

Color Coded Speaker Wire:

Stinger 50′ 16GA Black Speaker Wire (Driver Side Speakers)

Stinger 50′ 16GA Silver Speaker Wire (Passenger Side Speakers)

Stinger 25′ 18GA Black Speaker wire (Driver Side Tweeters)

Stinger 50′ 18GA Silver Speaker Wire (Passenger Side Tweeters)

Stinger 50’ 12Ga Black Subwoofer Wire

RCA Signal Cables:

1 Stinger RCA CABLE 12 Ft Twisted Pair – 6 Channel (Front / Rear / Sub)

Misc Items:

35′ Primary Blue Remote Turn on wire

6′ 3/4 Split Loom

T-Spec ANL Fuse Holder

T-Spec 100 Amp ANL Fuse

10 Crimp Caps

8 Speaker Terminals .25 (Door speakers)

4 Speaker Terminals .187 (tweeters)

4 Speaker Terminal .25 (subwoofer)

15 Small Zip Ties

15 Large Zip Ties

Under Seat – Amp Mounting Gear:

4 Nylons Spacers

4 Mounting Bolts

4 Mounting washers

4 Sealing Caulk

Optional Items:

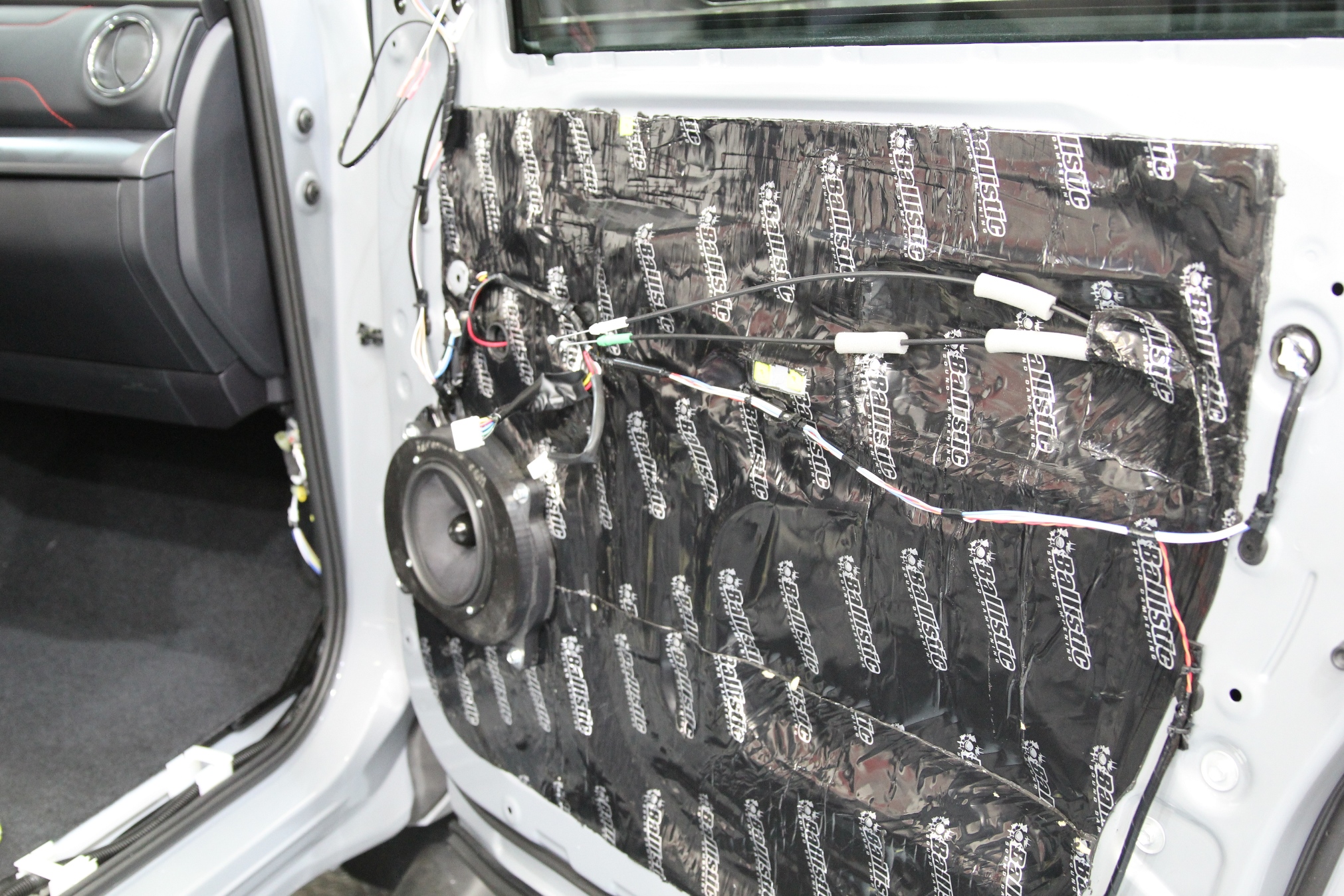

 Matting:

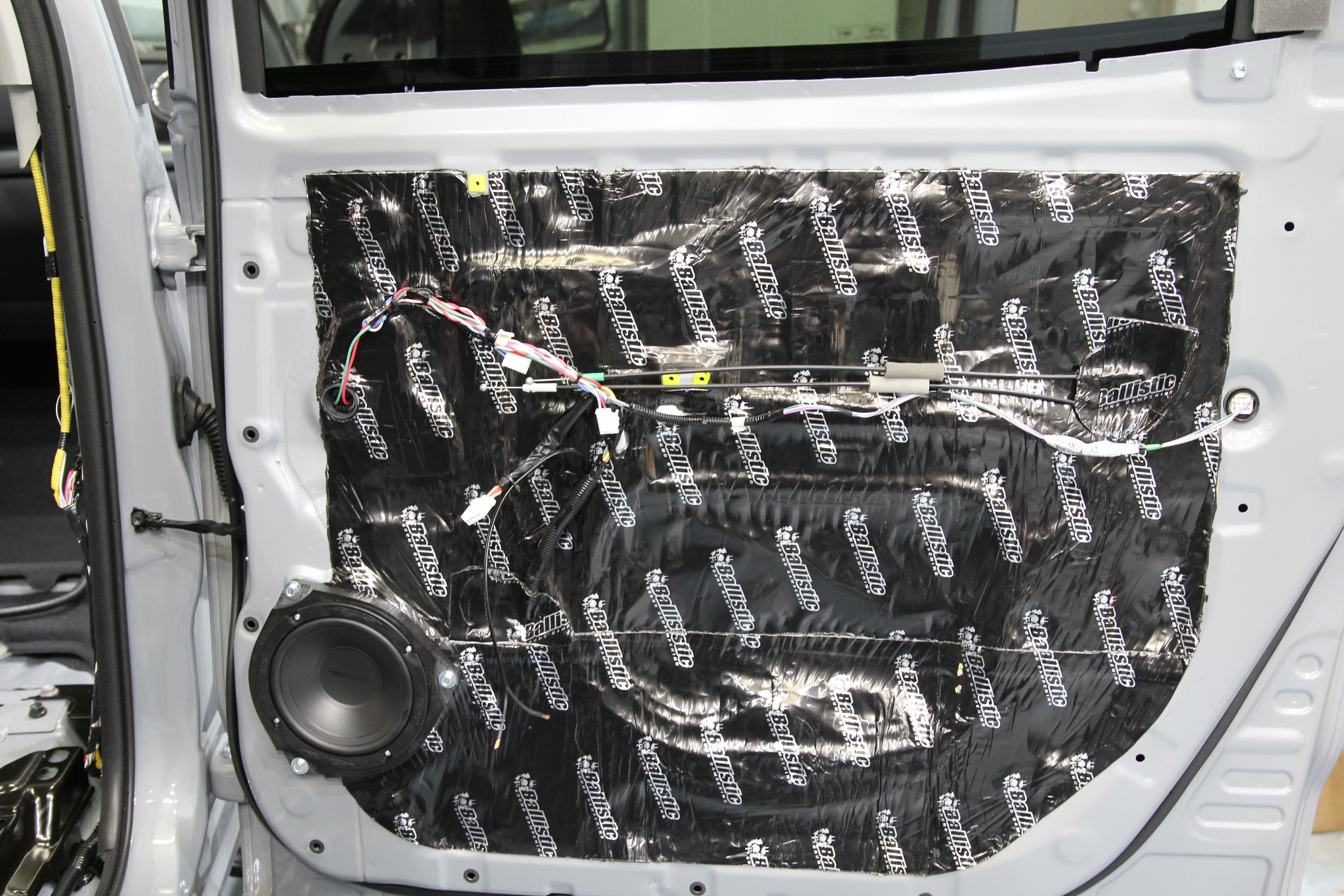

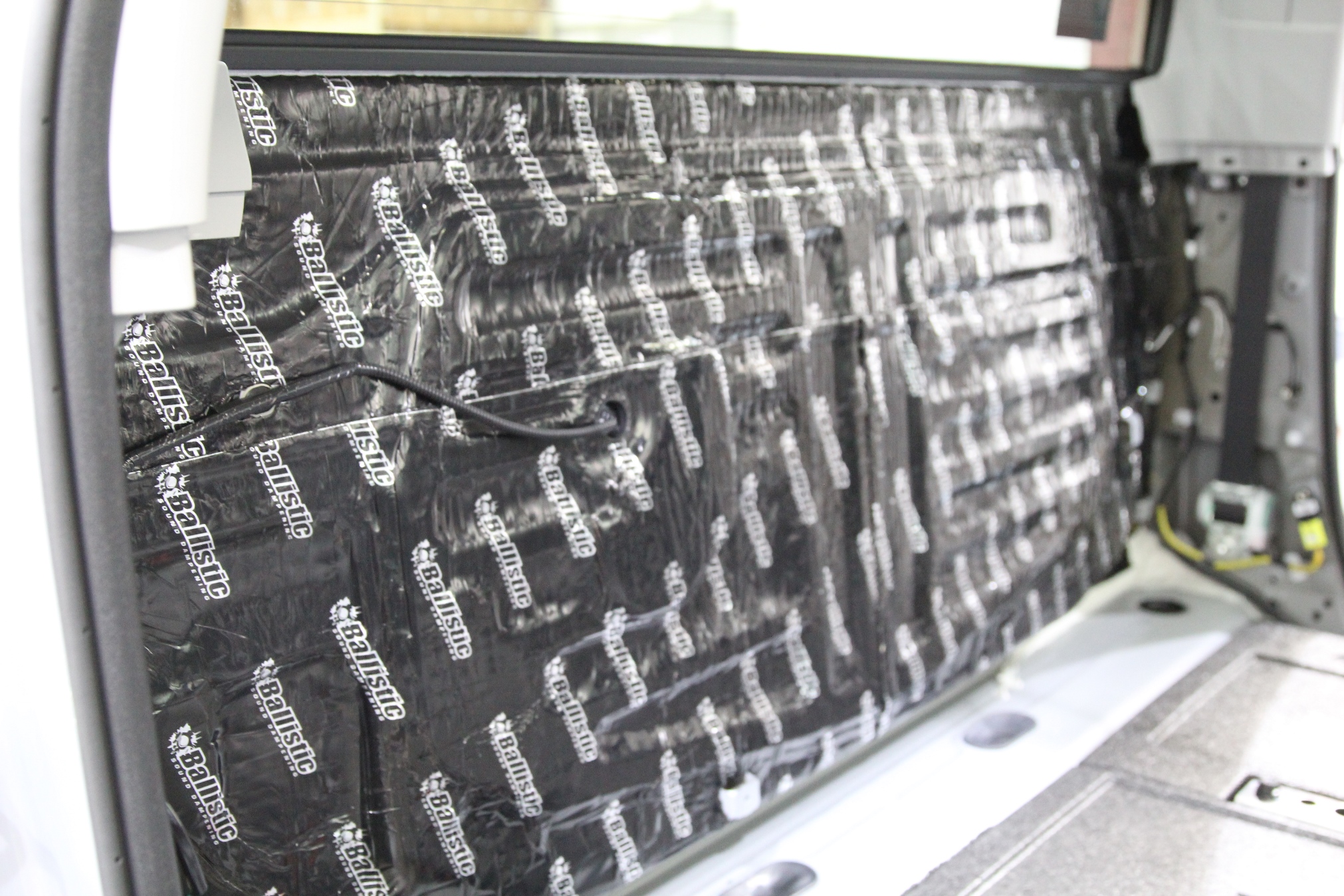

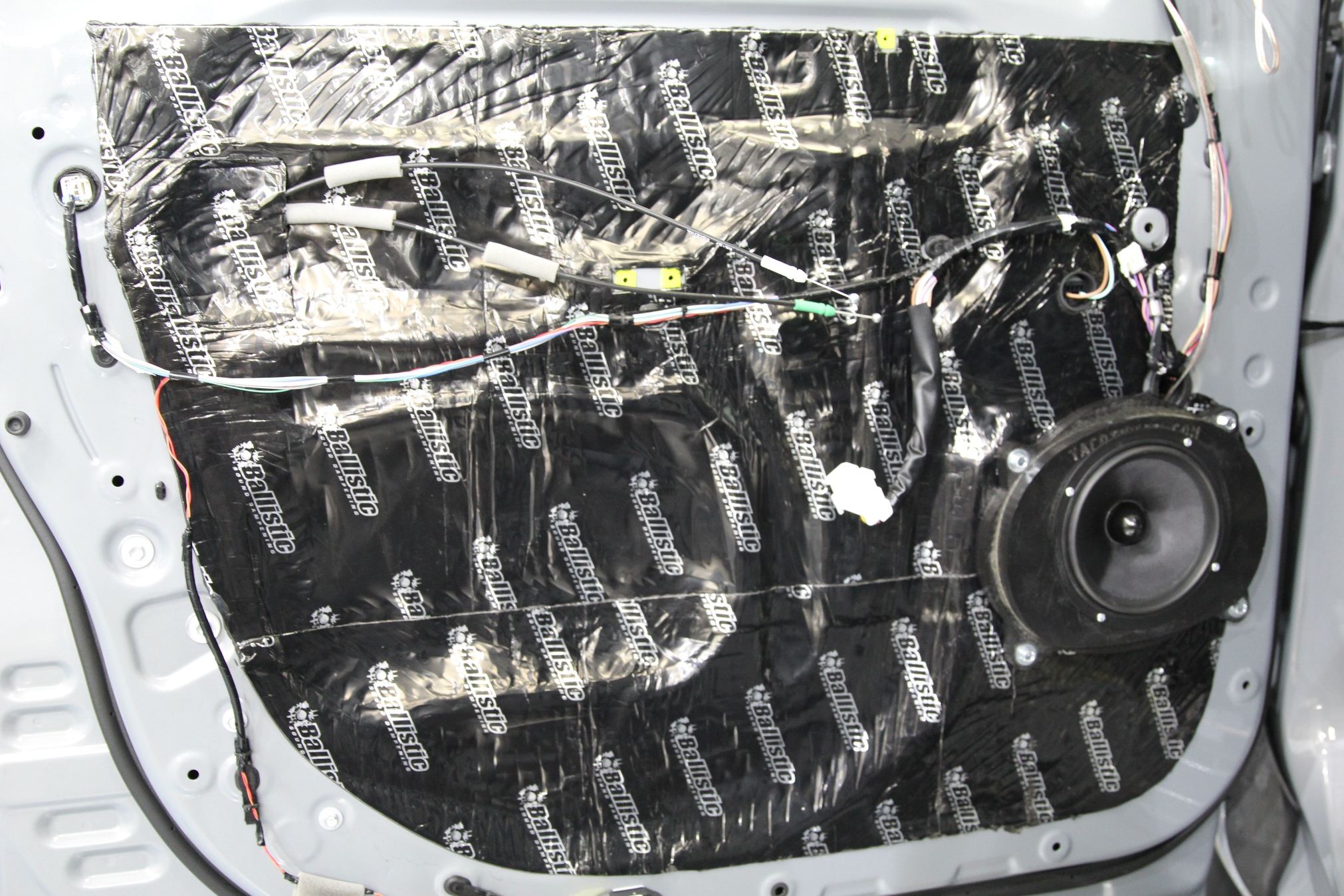

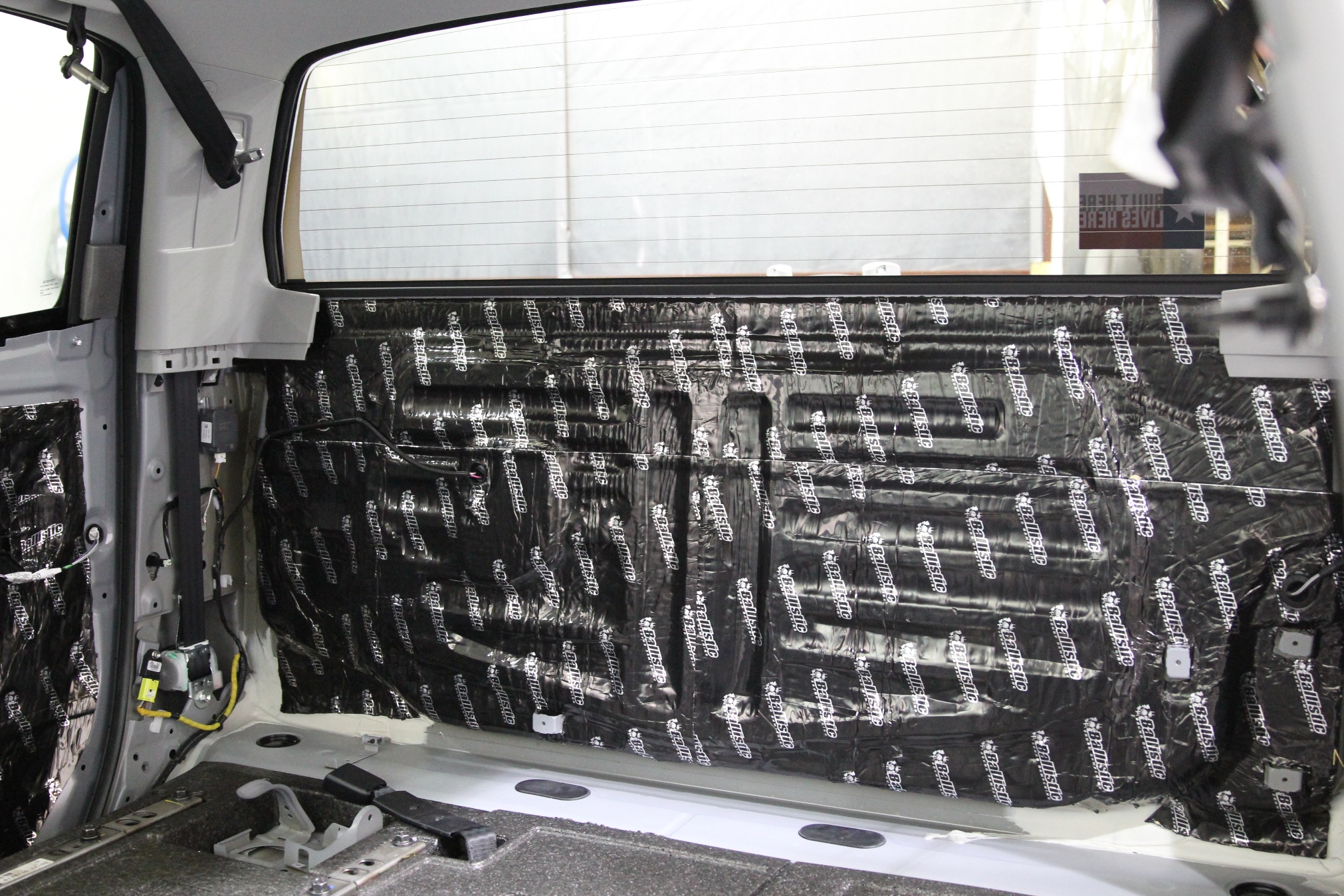

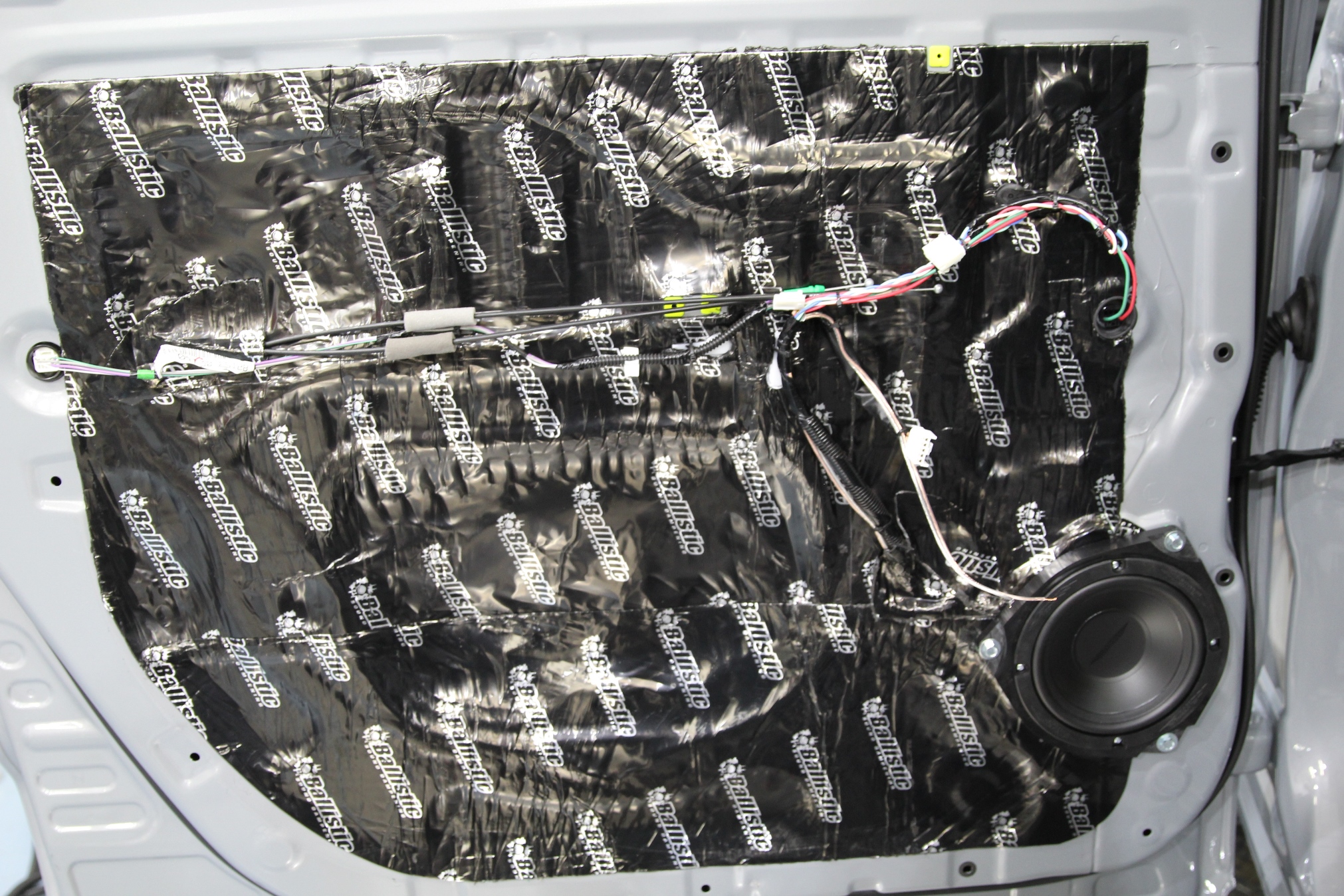

Ballistic Matting 4 x Doors & Rear Wall takes 9 sheets to complete Tundra – Standard bulk pack includes 9 sheets.







Posted on by

Guys’ Toyota Tundra JBL Wiring Repair and audio system re-makeover Image Dynamics SQ1 System

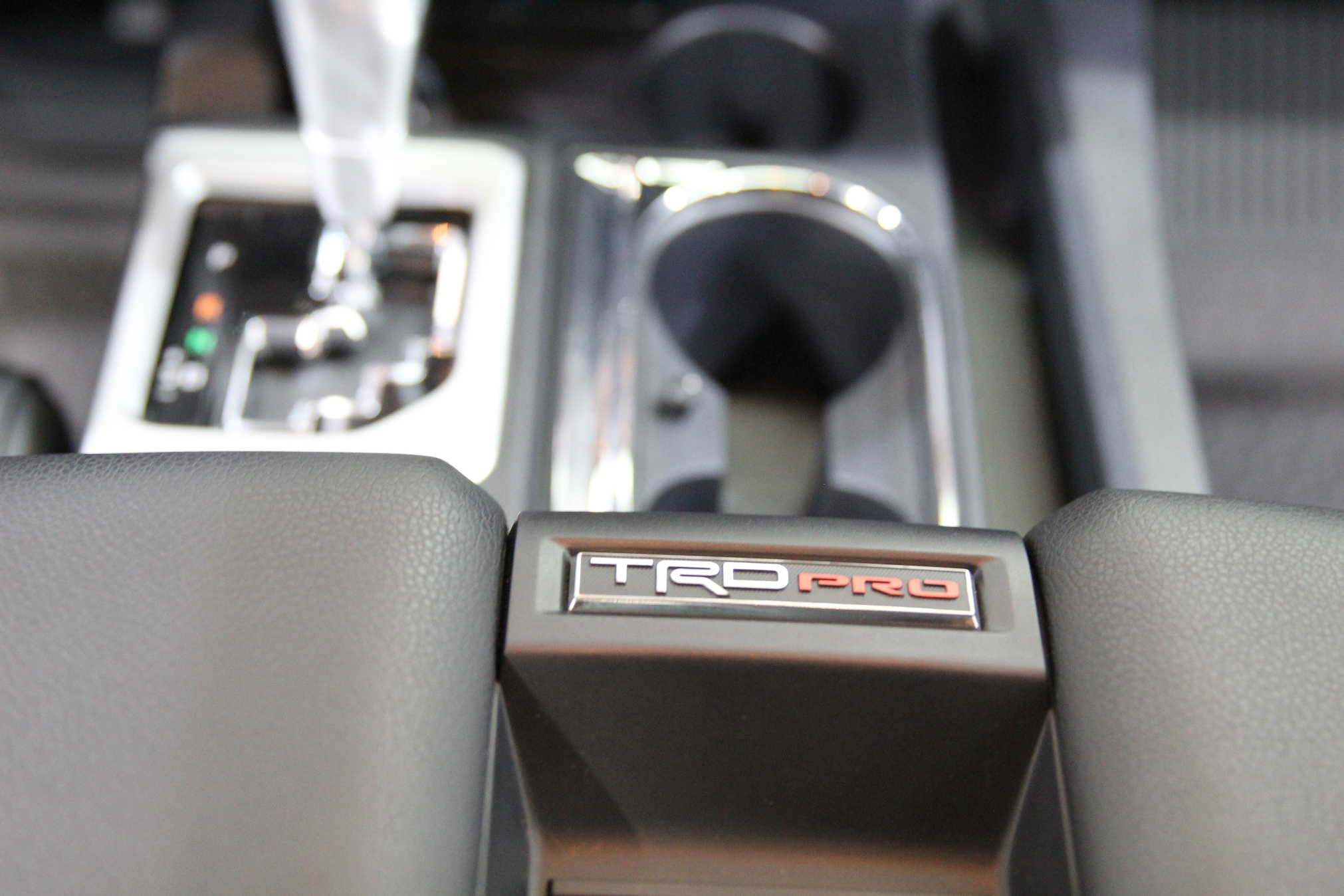

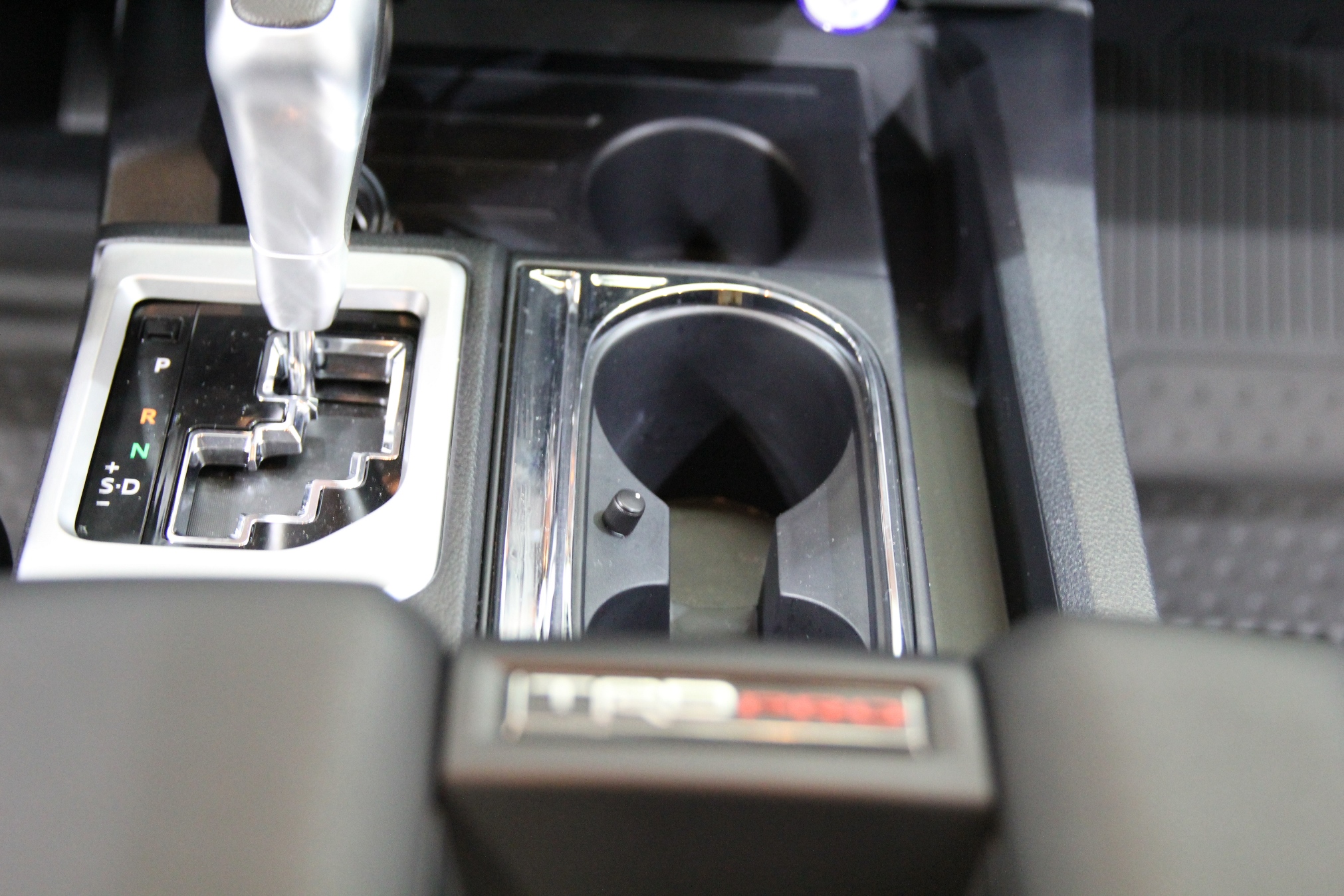

Bass-Knob

Guys’ Toyota Tundra JBL Wiring Repair and audio system re-makeover  Image Dynamics SQ1 System

Installation Summary / History: Guy lives in a town a bit north of San Antonio. He paid a local audio shop to upgrade the audio in his 2016 Toyota Tundra CrewMax 1794 Edition. After 3 visits to the same shop and another large shop here in San Antonio with no luck, he found our website. He came in for a system evaluation. Unfortunately, we see the scenario quite often . “Professional installation” shops doing a horrible job on the installation on JBL equipped Tundras. This is probably the 15th Tundra we have repaired or assisted in repairing here at our location in San Antonio.

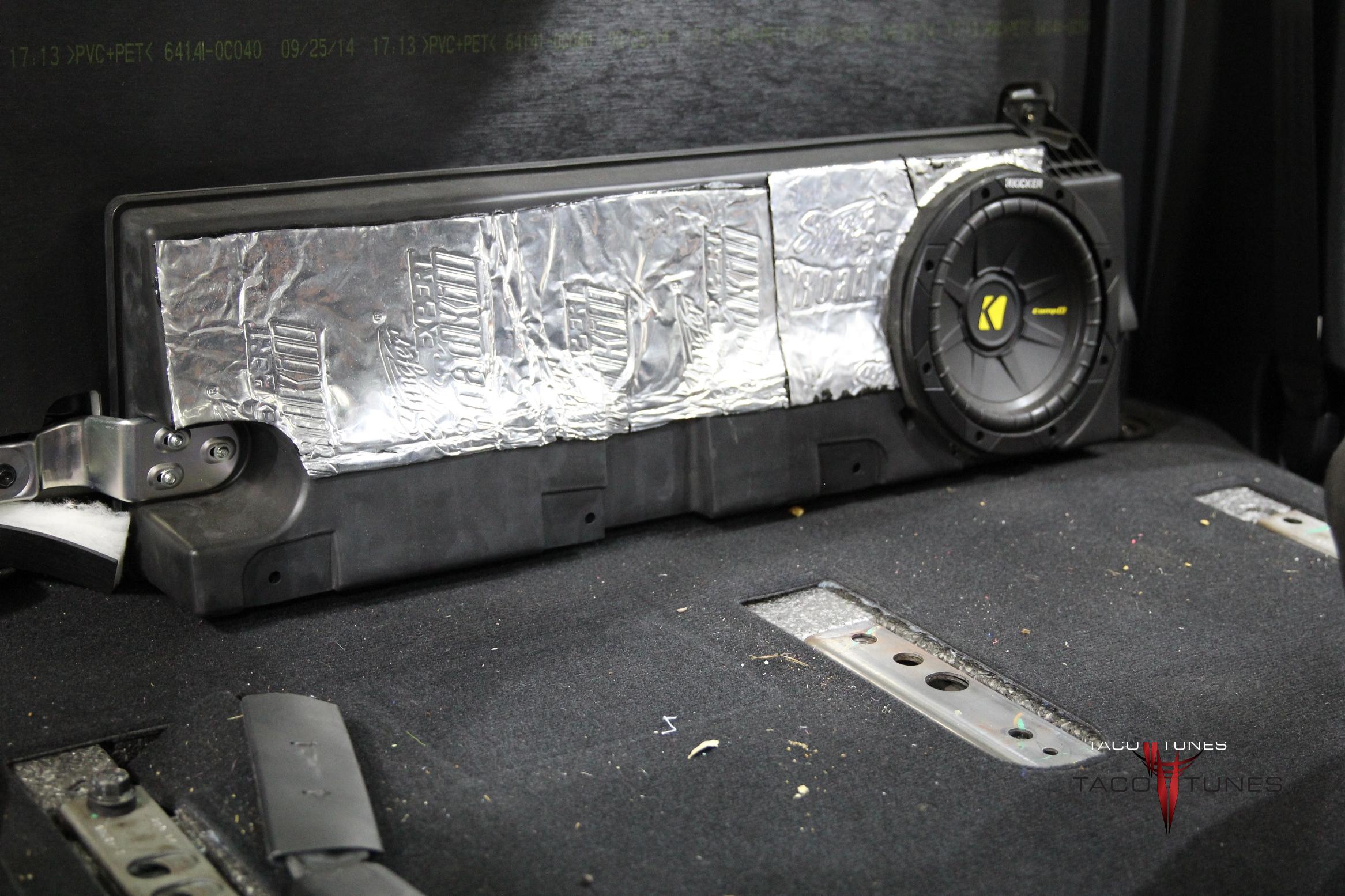

When Guy came in, 2 of his door speakers were not working and the system was popping and turning off / on.  The system sounded worse than the stock JBL setup. We gave him a quote and he said he would have to think about it. We recommended that harness system be repaired and replacing the speakers and sub(s). Pretty much a re-do. Guy called us back and said please get this fixed.

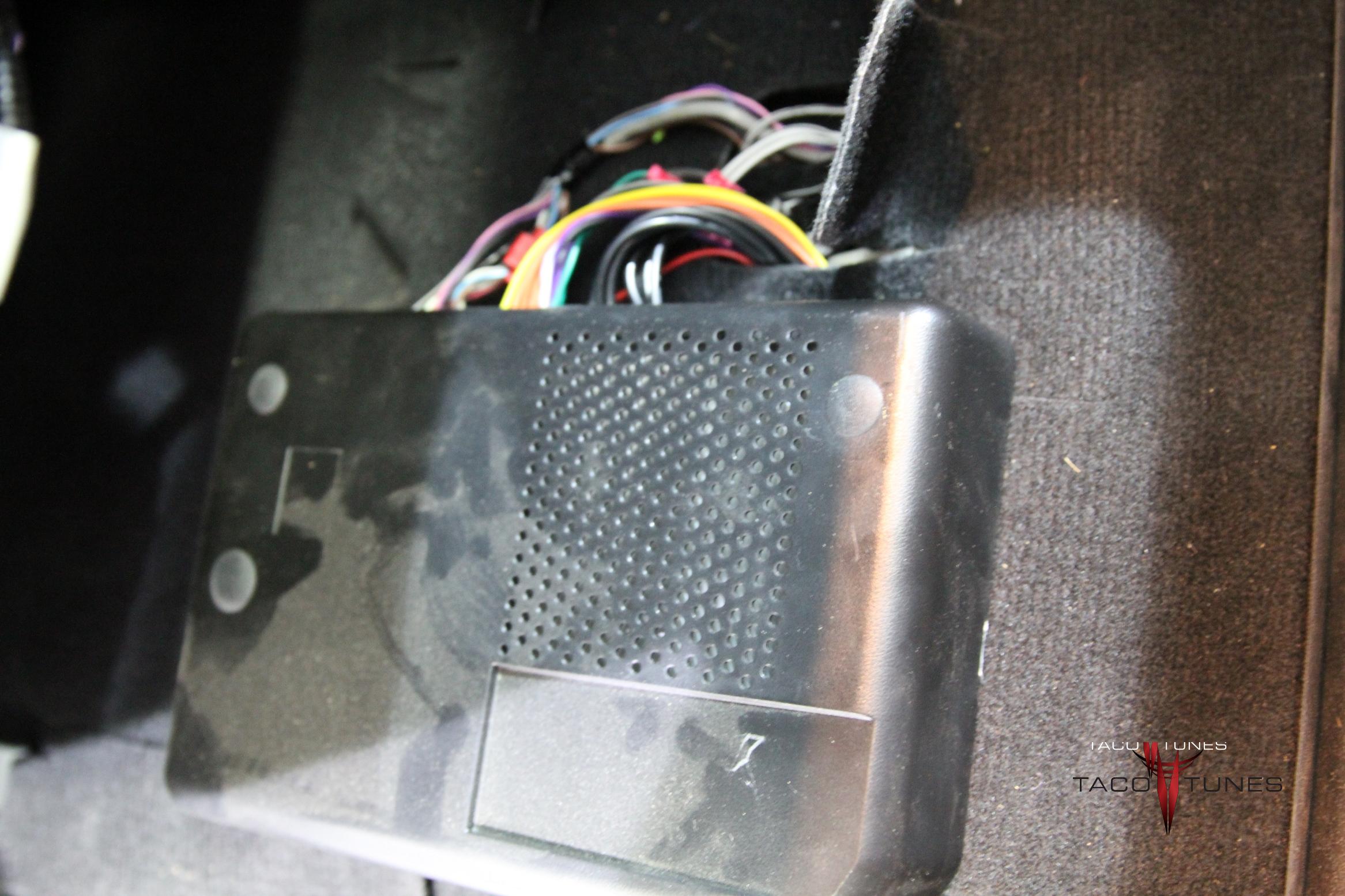

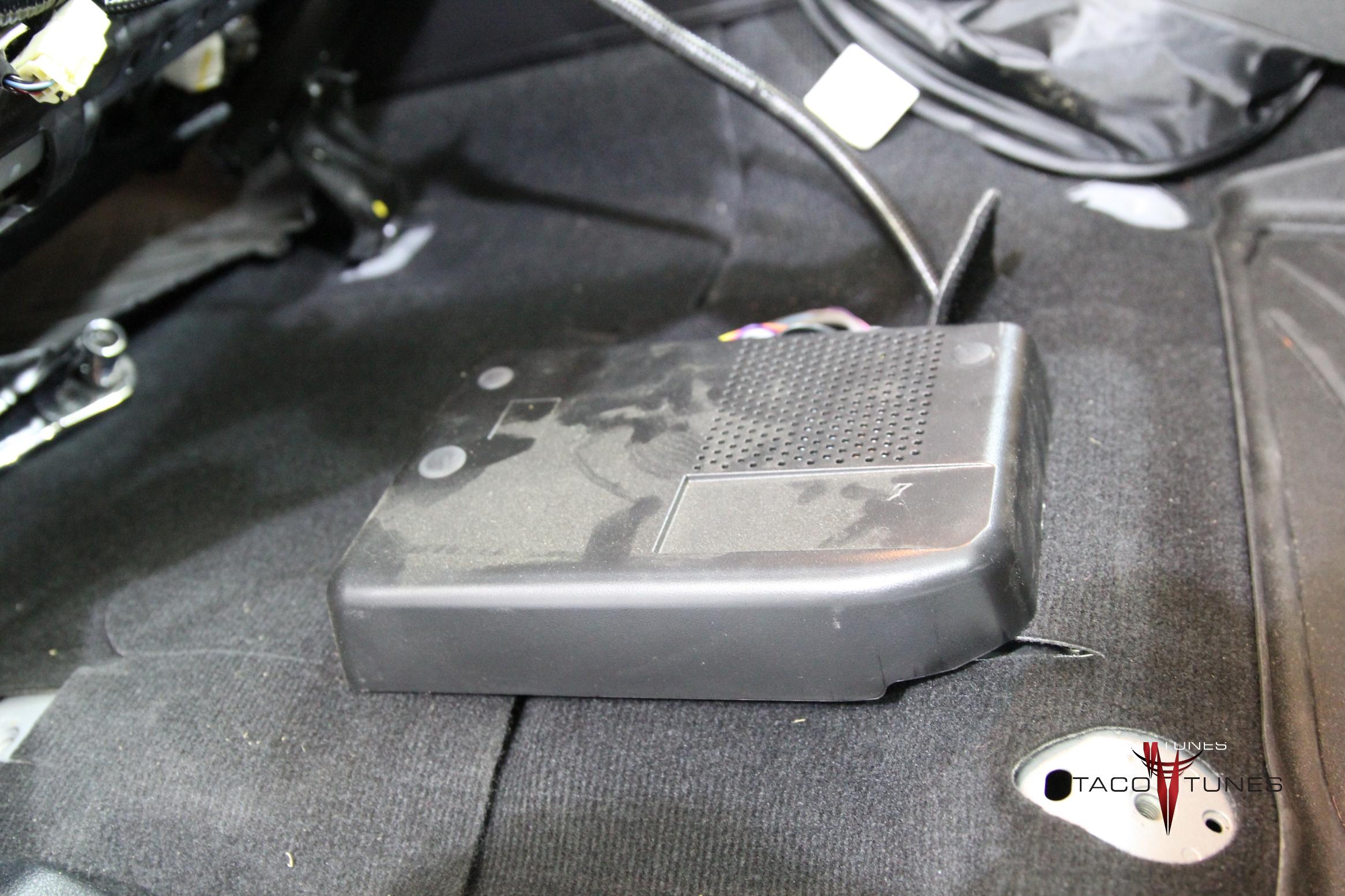

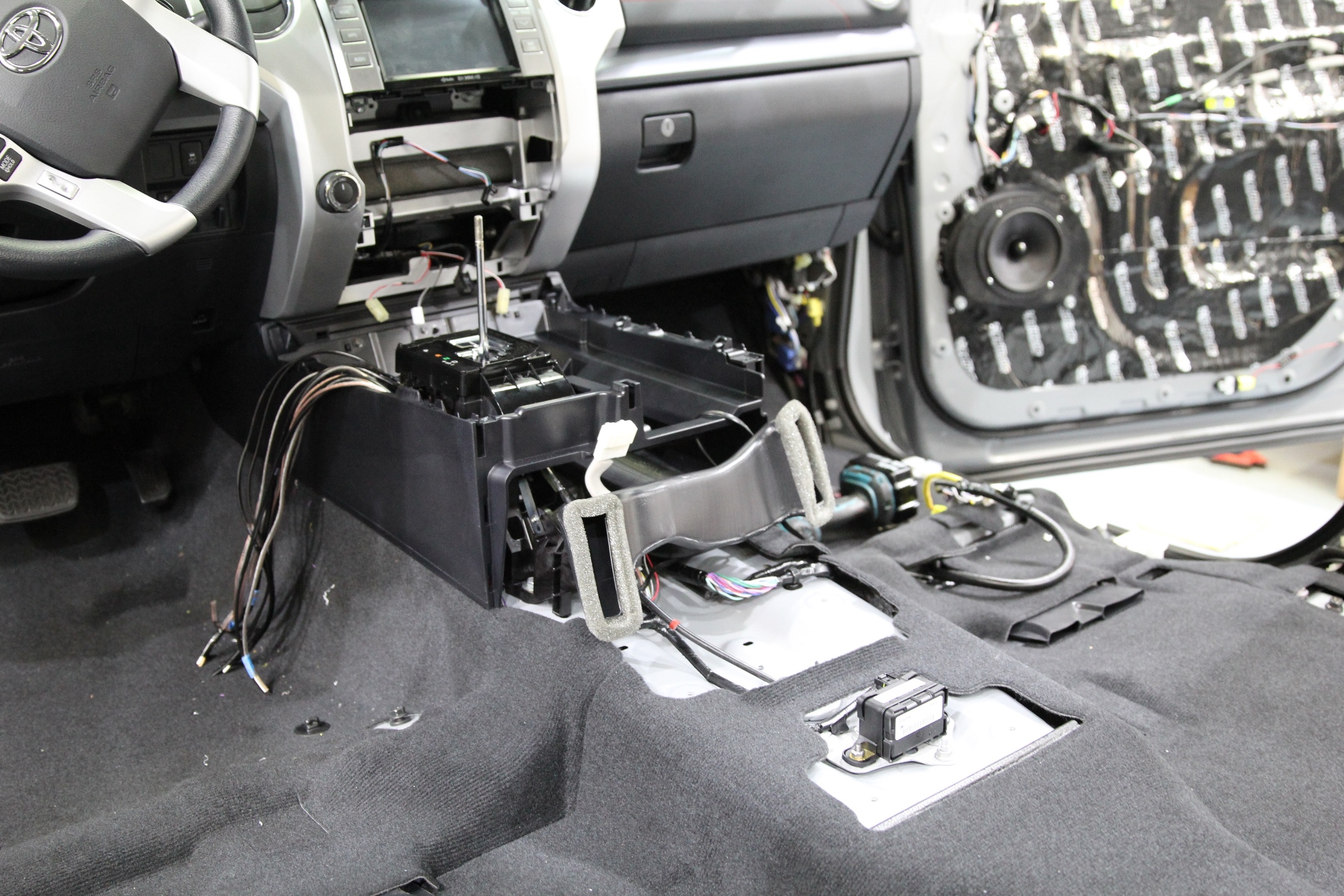

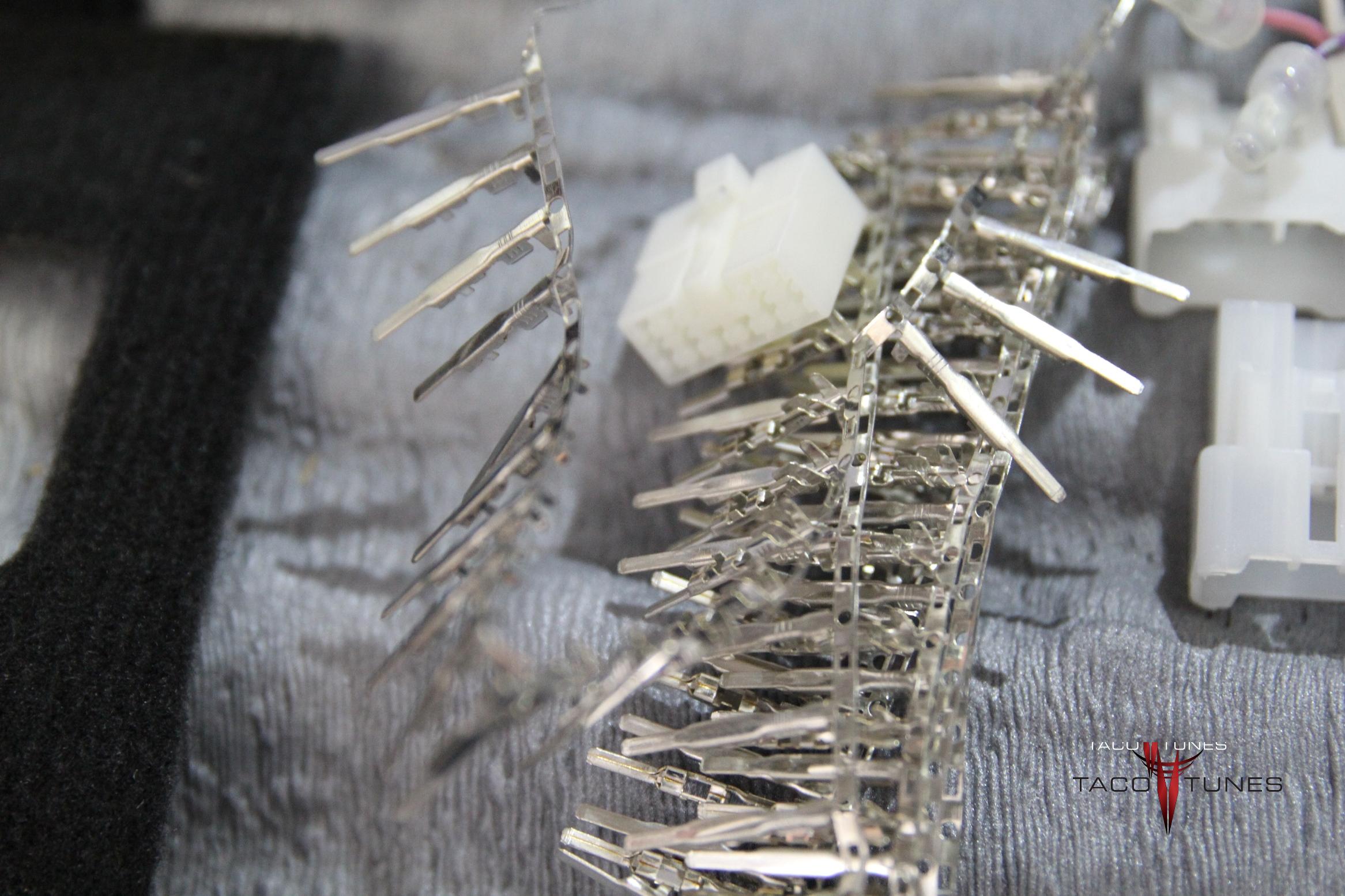

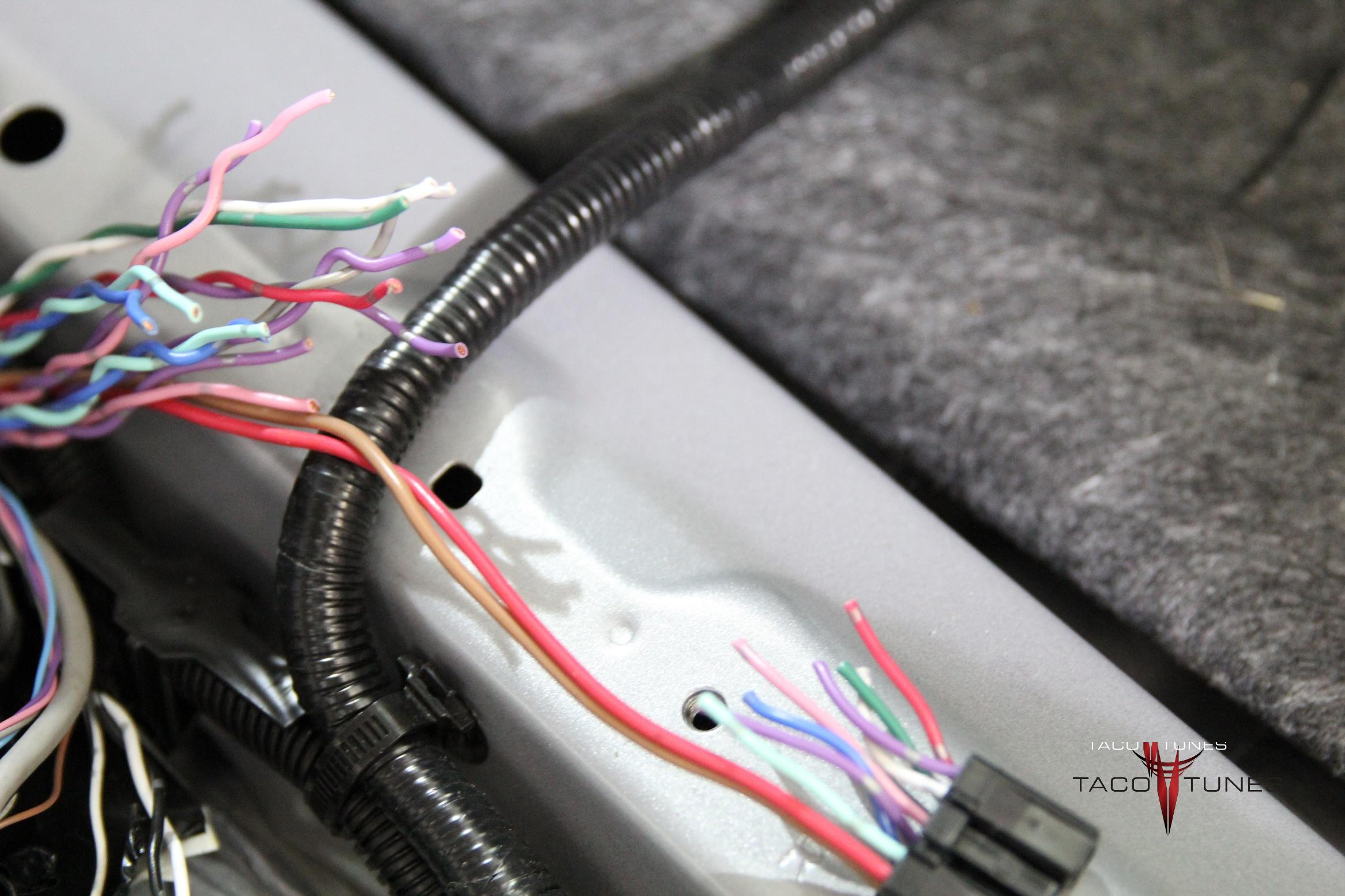

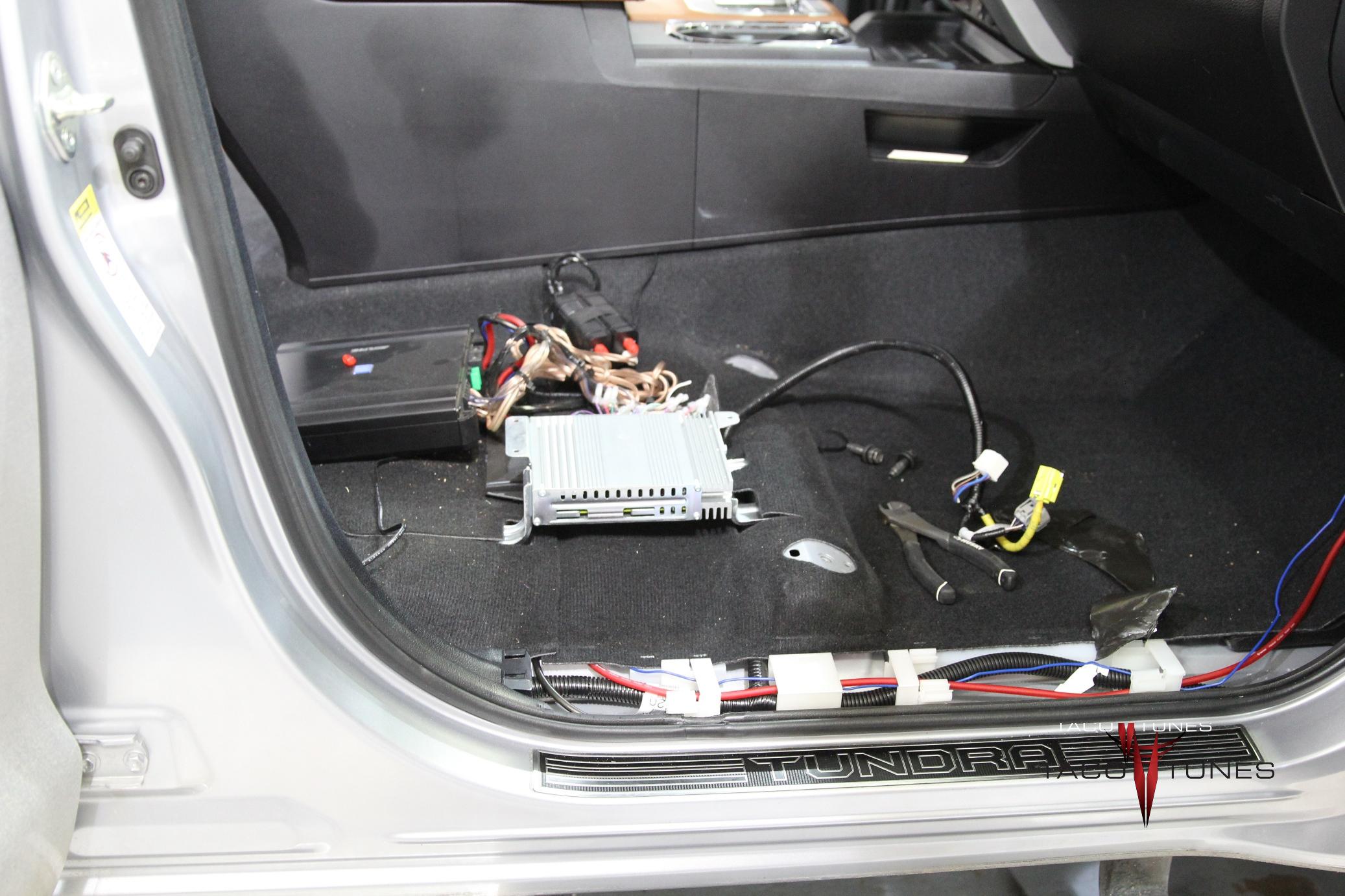

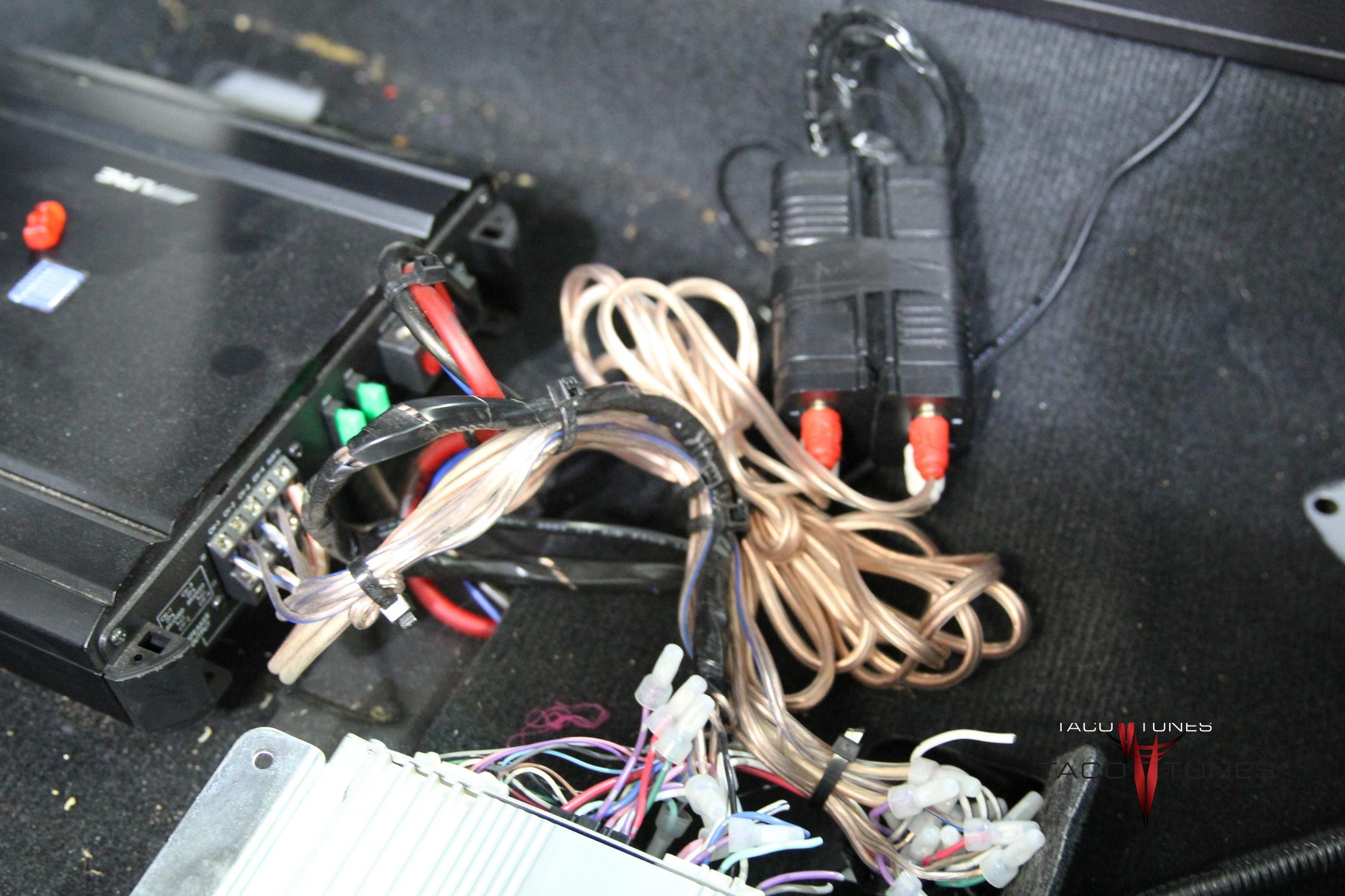

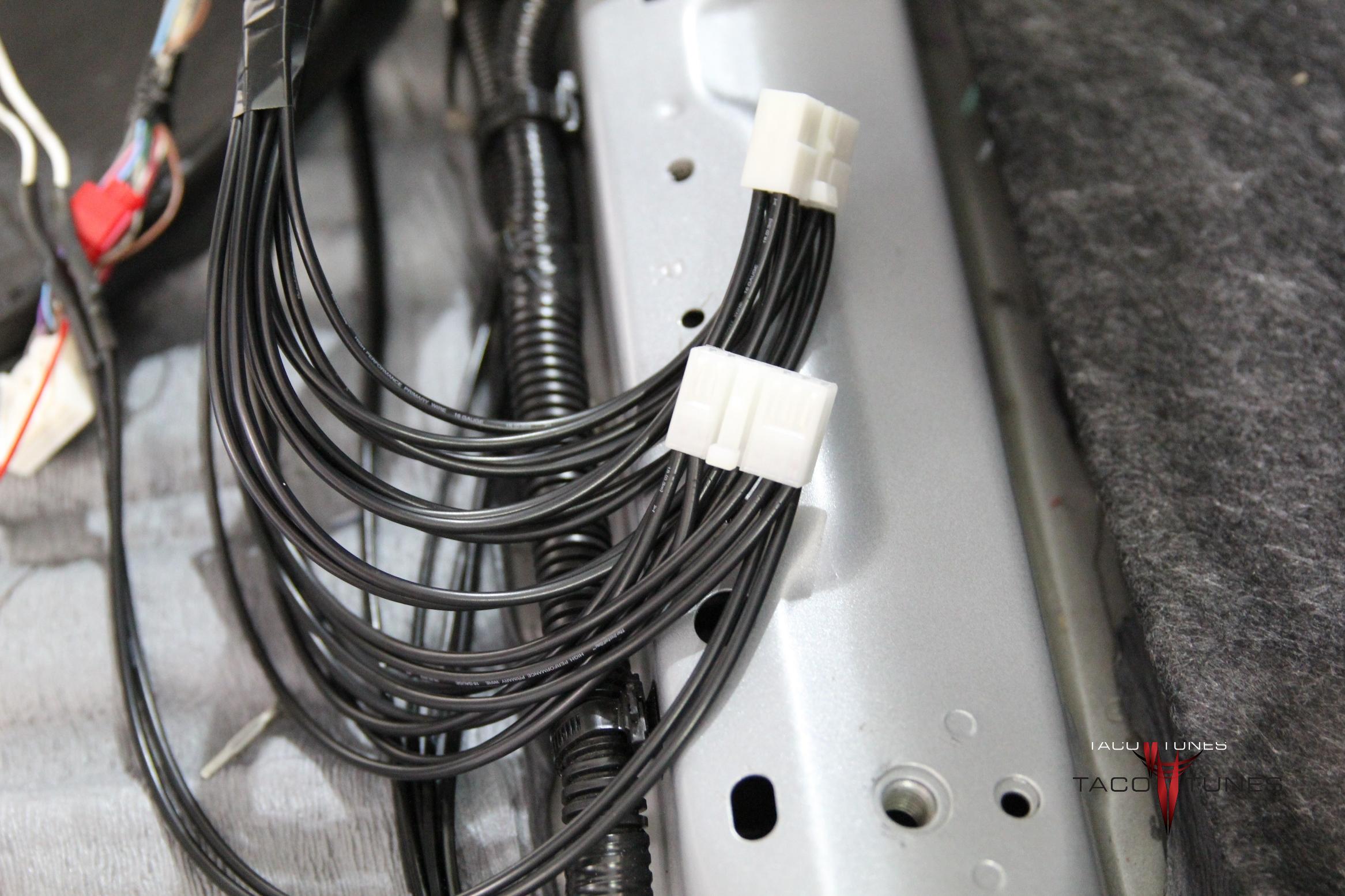

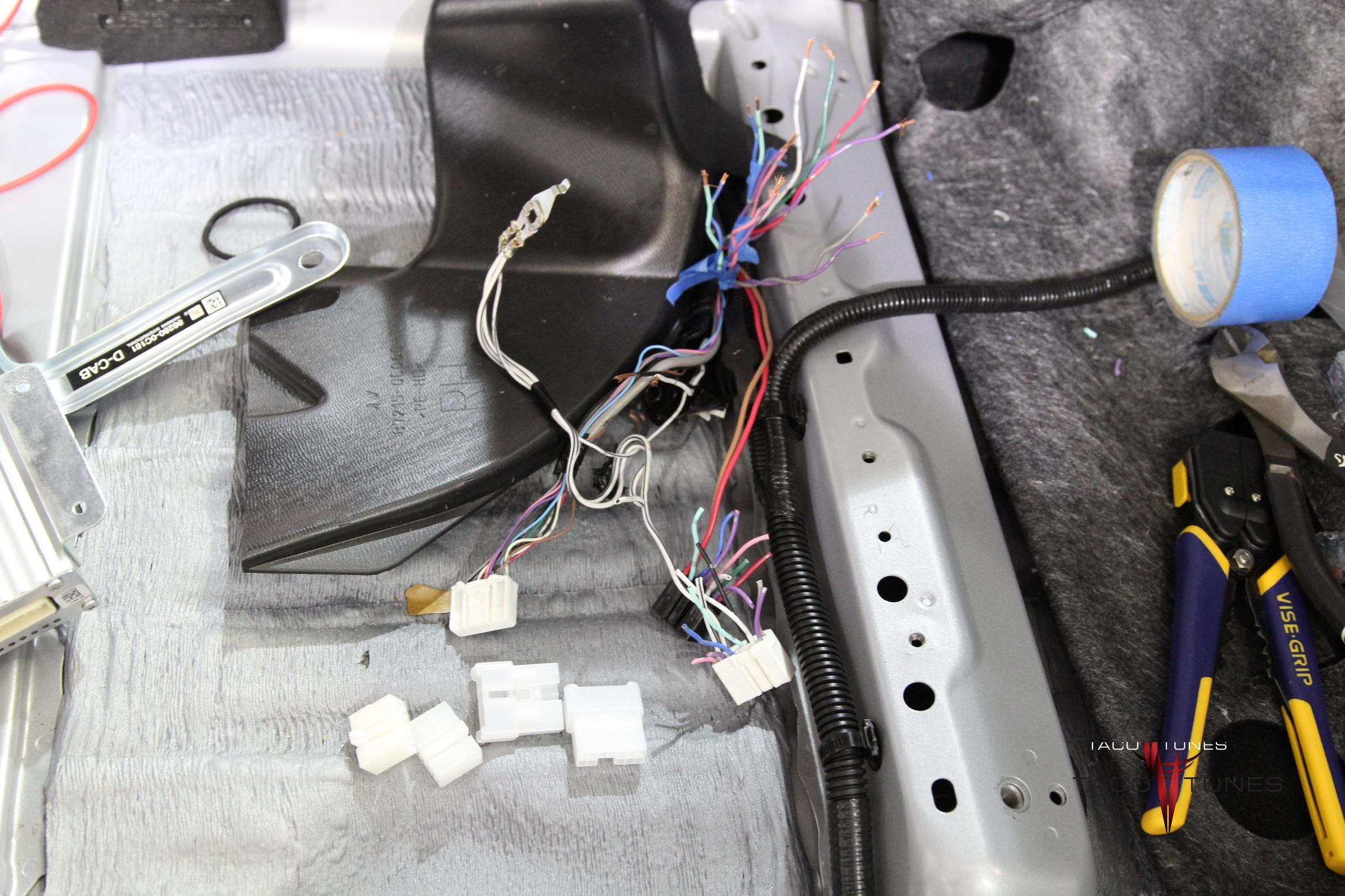

Before we could start installing a new system, we had to repair the damaged JBL wiring system. The previous shop did not leave enough of the stock wiring to work with. We had to create a new harness and solder back to original stock wiring. In the pictures below you will see the repair process.

Customer Name: Guy

Toyota Year / Model: 2016 Toyota Tundra CrewMax 4×4 1794 Edition

Head Unit: JBL Equipped

Color: Silver

Installed by: tacotunes.com

System Installed: tacotunes SQ1 packaged system

Matted the entire truck.

Guy loves audio in his truck. He had systems in his trucks since back in his high school days. He was pretty much dancing when he left the shop.





Toyota Tundra JBL Wiring Diagram



Posted on by

Rockford Fosgate Prime R165-S Component Speakers – Toyota Tundra

Rockford Fosgate Prime R165-S Component Speakers Toyota Tundra
Rockford Fosgate Prime R165-S Component Speakers Toyota Tundra

Rockford Fosgate Prime R165-S Component Speakers

Toyota Tundra Rockford Fosgate Prime R165-S Component Speakers

To install Rockford Fosgate Prime R165-S Component Speakers into your Toyota Tundra, you will want to use tacotunes.com speaker adapters designed to work in your Tundra. The Rockford Fosgate Prime R165-S Component Speakers require a 5.1″ cutout diameter for the mid range speakers. The Rockford Fosgate Prime R165-S Component Speakers tweeters will require a 1.83″ cutout diameter.

Click HERE to check out our audio products for your Toyota Tundra

The Rockford Fosgate Prime R165-S Component Speakers will fit you your Toyota Tundra without any cutting, drilling or modifications to your Tundra.

Summary:

Mid range Driver: 5.1″ cutout diameter

Tweeter: 1.83″ cutout diameter

Top Mount Depth: 2.1 ″

Rockford Fosgate Prime R165-S Component Speaker Manual Toyota Tundra


The P165-S is a 6.5″ 2-way component system with 1″ soft dome tweeters and is rated at 60 watts RMS. The system includes a pair of tweeters, two woofers with grilles, integrated crossovers, and mounting hardware.

  • FlexFit basket design
  • ICC (Integrated Concealed Crossover)
  • PEI dome tweeter
  • Recessed tweeter mount uses standard 1-3/4″ hole saw
  • Butyl rubber surround
  • Mineral-filled & polypropylene injection molded cone
  • 1 Year Standard Warranty
Configuration: Component System

Midrange Diameter (in): 6.5″

Midrange Depth (in): 1.93″ (49mm)

Tweeter Diameter (in): 1.0″ (25.4mm)

Tweeter Depth (in): 0.50″ (13mm)

Frequency Response: 60Hz – 22kHz

Nominal Impedance: 4-Ohm

Power Handling (RMS): 60 Watts RMS 120 Watts MAX

Crossover: Tweeter crossover built into midrange basket 12dB/octave

Sensitivity (dB @ 1 watt/1 meter): 87.2

Grilles Included: Yes

Mounting Hardware: Yes

Shipping Weight:





Posted on by

Polk Audio DB1001 Tweeters – Toyota Tundra

Polk Audio DB1001 Tweeters

Polk Audio DB1001 Tweeters Toyota Tundra
Polk Audio DB1001 Tweeters Toyota Tundra

Polk Audio DB1001 Tweeters

How to install Polk Audio DB1001 Tweeters in your Toyota Tundra

When you order these tweeter mounts from our site for your Polk Audio DB1001 Tweeters, you will want to specify a custom size cutout @ 2.0″ cutout. We custom size the tweeter mount to fit your tweeter. Please keep in mind tweeters come in MANY different sizes. Please be sure to include the cutout diameter in the order notes.



Click HERE to check out our audio products for your Toyota Tundra

Polk Audio DB1001 Tweeters Toyota Tundra


The perfect tweeter to optimize your vehicle’s stereo image

Need to tune up your system and add some highs? The Polk Audio DB1001 Tweeters is the perfect solution. With tacotunes.com tweeter mount, which allows the tweeter to be installed in the factory location.

Tweeter Specifications

  • 1″ liquid-cooled silk/polymer dome tweeter (pair)
  • Neodymium magnet
  • in-line 12 db/octave passive crossover
  • electronic tweeter protection circuit
  • flush- and surface-mount swivel cups
  • stainless steel mounting hardware
  • power range: 6-60 watts RMS (180 watts peak power)
  • frequency response: 4,000-23,000 Hz
  • sensitivity: 92 dB
  • top-mount depth: 1″
  • warranty: 1 year



Posted on by

Pioneer TS T110 tweeters – Toyota Tundra

Pioneer TS-T110 Tweeter Toyota Tacoma

Pioneer TS T110 tweeters

Pioneer TS-T110 Tweeter Toyota Tundra
Pioneer TS-T110 Tweeter Toyota Tundra





How to install Pioneer TS-T110 Tweeters in your Toyota Tundra

When you order these from our site, you will want to specify a custom size cutout @ 2.007″ cutout

The light and responsive TS-T110 hard dome tweeters will give you a dramatic improvement in high frequency response and imaging. They feature a high-pass in-line crossover and can be flush- or surface-mounted.

Click HERE to check out our audio products for your Toyota Tundra

Pioneer TS-T110 Tweeter Manual


Tweeter Composition: PPTA

Specifications

Sensitivity: 90 dB

Frequency Response: 2500 – 30k Hz

4 Ohm

RMS Power: 2- 40 watts RMS

Overall Diamter: 2 5/16″

Mounting Depth: 15/16″





Posted on by

Pioneer TS-D1720C Component Speakers – Toyota Tundra

Pioneer TS-D1720C Component Speakers Toyota Tundra
Pioneer TS-D1720C Component Speakers Toyota Tundra

Pioneer TS-D1720C Component Speakers

Toyota Tundra Pioneer TS-D1720C Component Speakers

To install Pioneer TS-D1720C Component Speakers into your Toyota Tundra, you will want to use tacotunes.com speaker adapters designed to work in your Tundra. The Pioneer TS-D1720C Component Speakers require a 5.7″ cutout diameter for the mid range speakers. The Pioneer TS-D1720C Component Speakers tweeters will require a 1.77″ cutout diameter.

Click HERE to check out our audio products for your Toyota Tundra

The Pioneer TS-D1720C Component Speakers will fit you your Toyota Tundra without any cutting, drilling or modifications to your Tundra.

Summary:

Mid range Driver: 5.7″ cutout diameter

Tweeter: 1.875″ cutout diameter

Top Mount Depth: 2.5 ″

Pioneer TS-D1720C Component Speakers Toyota Tundra




TS-D1720C
Size 6-3/4″, 1-1/8″ (tweeter)
Max. Music Power (Nominal) 260 W (60 W)
Cone Material Dual Layer IMX Aramid-Basalt
Frequency Response 30 Hz to 33 kHz
Sensitivity (1 W/1 m) 88 dB
Impedance 4 Ω
Crossover Frequency ≥ 2,800 Hz (with -12 dB)
Mounting Depth 2-1/2″, 1/2″ (tweeter)
Cut-Out Dimensions 5-5/8″



PIONEERING AN IDEAL Absolute fidelity to musical sources takes form from speakers that reproduce the ambience in which sounds originate. Stage size, musicians’ movement, aural reflection and other distinctive details all bring these sounds to life. Pioneer D-Series speakers are available in 2-way component packages or 2-way coaxial designs in multiple sizes that fit most vehicles.



WHAT IS “OPEN & SMOOTH?” The “Open & Smooth” sound concept of our industry-leading speakers delivers both sonic excellence and performance. The open-staging and smooth transition of driver response makes for an immersive experience that is truly the ultimate in-car sound.

  • Open: Open staging and sound characteristics enhance the widening effect that extends way beyond the space between speakers.
  • Smooth: With smooth transitions between mid-bass and tweeter, sound from these speakers is not marred by crossover frequency dips.



DUAL-LAYER IMX ARAMID/BASALT FIBER COMPOSITE CONE To create new D-Series speakers, Pioneer developed the industry’s first basalt fiber made from natural rock interwoven with aramid fiber. Used in the surface layer, this dual-layer IMX (injection molded matrix) aramid/basalt fiber composite material is highly rigid and better absorbent, enhancing stability and maintaining integrity throughout a wide temperature range.



REAR CHAMBER TWEETER ENCLOSURE D-Series speakers feature an exclusive rear chamber tweeter enclosure that we first used in our famed PRS speakers. It extends mid-range frequency for improved vocal imaging and staging.



HIGH-QUALITY CROSSOVER The built-in -12dB/Octave HPF and LPF crossover improves the transition from mid to high frequency, for a smoother mid-range to tweeter response. Audiophile-grade capacitors and inductors are used, and all components are encased in a clear acrylic cover for protection.



KEY FEATURES

  • Smooth Off-Axis Response
    • Optimal Choice of Tweeter Diaphragm Shapes
    • Wave Guides control sound dispersion to make sound stage wider in the car.
  • Lower Crossover Frequency
    • Large-Sized Tweeter Diaphragm (1-1/8″ diameter)
    • Rear Chamber
    • Light Weight Soft-Dome Diaphragm
    • High-Quality Passive Crossover Network (Woofer, LPF: -6 dB; Tweeter, HPF: -12 dB)
  • Low Distortion
    • Thick Woofer Basket
    • Large-Sized Woofer Magnet
    • Dual-Layer IMX (Injection Molded Matrix
Posted on by

Kicker RS652 Component Speakers – Toyota Tundra

Kicker RS652 Component Speakers Toyota Tundra
Kicker RS652 Component Speakers Toyota Tundra

Kicker RS652 Component Speakers

Toyota Tundra Kicker RS652 Component Speakers

To install Kicker RS652 Component Speakers into your Toyota Tundra, you will want to use tacotunes.com speaker adapters designed to work in your Tundra. The Kicker RS652 Component Speakers Speakers require a 5.5″ cutout diameter for the mid range speakers. The Kicker RS652 Component Speakers tweeters will require a 1.75″ cutout diameter.

Click HERE to check out our audio products for your Toyota Tundra

The Kicker RS652 Component Speakers will fit you your Toyota Tundra without any cutting, drilling or modifications to your Tundra.

Summary:

Mid range Driver: 5.5″ cutout diameter

Tweeter: 1.75″ cutout diameter

Top Mount Depth: 2.5 ″

Kicker RS652 Component Speakers Toyota Tundra







Ultimate reliability and tremendous audio clarity provide the makeup for RS-Series Matched Component Systems.

These outstanding midrange/tweeter/crossover combos use most all of the technologies of supreme QS-Series Systems, giving music lovers yet another source for a complete range of the smoothest, richest frequencies available. The RS-Series offers a more affordable option for those who seek genuine KICKER high-end performance from their mobile-audio system.

The RS65.2 (featuring a 6.5-inch midrange woofer) and RS60.2 (a true 6-inch midrange that also fits 5.25-inch location) let their primary sound flow through speakers that use a polyimide former and copper-clad aluminum wire to help decrease hot temperatures within the motor. Cast-aluminum baskets with nickel-plated, spring-loaded terminals provide additional protection and result in a more durable driver and higher power handling.

Each system’s one-inch, high-end tweeter pair with advanced DuPont® Tetoron® elliptical domes can be installed in a flush, angled, surface, or coaxial mount, the latter allowing the installer to remove aluminum phase plugs from the midrange speakers’ centers and screw in special adapters and tweeters. RS-Series tweeters exude a wider dispersion pattern for greatly increased detail in high frequencies.

Redesigned crossovers make RS Component Systems more flexible and reliable than ever, and they look great in a custom install. Configuration choice rests with the listener – the new 2-way bi-ampable passive crossovers have 18 dB/ octave highpass and 12 dB/ octave lowpass filters at 3.5kHz to optimize output. A tweeter output-level switch (0dB, +3dB, +6dB) determines tweeter volume, while the crossover itself provides incandescent tweeter protection

Model RS65.2
Woofer (in., cm) 6-1/2, 16.5
Tweeter (in., cm) 1, 2.5
Max Rec Amp Power (WATTS PEAK/RMS)* 200/100
Sensitivity (dB 1w/1m) 87
Frequency Response (Hz) 40-21k
Mounting Hole Diameter (in.,cm) 5-7/16, 13.8
Woofer Mounting Depth (in., cm) 2-7/16, 6.2
Crossover Point (Hz) 3.5k
Crossover Slope (dB octave) 18 hi/12 lo
Tweeter Attenuation (1.5dB steps) 0/+3/+6
Model RS60.2
Woofer (in., cm) 6, 16
Tweeter (in., cm) 1, 2.5
Max Rec Amp Power (WATTS PEAK/RMS)* 180/90
Sensitivity (dB 1w/1m) 87
Frequency Response (Hz) 50-21k
Mounting Hole Diameter (in.,cm) 5, 12.7
Woofer Mounting Depth (in., cm) 2-5/16, 5.8
Crossover Point (Hz) 3.5k
Crossover Slope (dB octave) 18 hi/12 lo
Tweeter Attenuation (1.5dB steps) 0/+3/+6

*Assumes typical music program with minimal clipping; varies with enclosure size. See your KICKER dealer for details.

Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it’s agents are not responsible for typographical errors.





Posted on by

Kicker KS650 KS65.2 Component Speakers – Toyota Tundra

Kicker KS Component Speakers Toyota Tundra
Kicker KS Component Speakers Toyota Tundra

Kicker KS650 KS65.2 Component Speakers

Toyota Tundra Kicker KS650 KS65.2 Component Speakers

To install Kicker KS650 KS65.2 Component Speakers into your Toyota Tundra, you will want to use tacotunes.com speaker adapters designed to work in your Tundra. The Boston Acoustics Pro60 SE Component Speakers require a 5.7 cutout diameter for the mid range speakers. The Kicker KS650 KS65.2 Component Speaker tweeters will require a 1 15/16″ cutout diameter.

Click HERE to check out our audio products for your Toyota Tundra

The Kicker KS650 KS65.2 Component Speaker will fit you your Toyota Tundra without any cutting, drilling or modifications to your Tundra.

Summary:

Mid range Driver: 5.7″ cutout diameter

Tweeter: 1 – 15/16″ cutout diameter

Top Mount Depth: 2 -1/8″

Kicker KS Component Speakers Manual Toyota Tundra


Components – Kicker KS650 KS65.2 Component Speakers
Concert-like quality and audio realism are obvious features music lovers desire from their car speakers, but unfortunately, factory sound doesn’t offer those smooth, clear middle- and high-frequency ranges. KICKER® has the solution to fix the problem with its KS-Series Component Systems, offering a substantial upgrade from stock drivers for installation in precise, audiophile-favoring locations.

Three sizes of KS Systems offer supreme flexibility by providing multiple installation options, including the opportunity to have a conventional component-system setup or a quick, drop-in coaxial upgrade for the doors. Simply remove the bullet-phase plugs in the woofers’ centers and screw in the tweeters for a speedy solution to coaxial sound and near-live audio reproduction.

The models available are the KS65.2 with a 6-1/2-inch midrange, KS6.2 with a 6-inch mid and KS5.2 with a 5-1/4-inch mid that can be outfitted with an included adapter plate for specific 6 x 8 factory applications.

The high-performance, factory-speaker component replacements utilize massive motor structures that provide high efficiency and ultimate power handling, benefits not often found in factory sound. With exclusive Extended Voice Coil (EVC™) technology and tapered polymer cones held in place by tough Santoprene® surrounds, the KS-Series midrange speakers create frequency ranges for the most precise musical simulation.

The one-inch, calibrated-dome tweeters with phase alignment reveal every high-frequency detail of each song. The woofers and tweeters are brought together by a symmetrical external crossover/protection network that features a three-position, tweeter-attenuation switch adjustable for high-frequency precision. The metallic finish, bolt-thru grilles and spade wire terminals that allow for easy installation add the finishing touches to KICKER’s outstanding KS-Series Systems.

Coaxials
Clear, crisp sound from car speakers doesn’t have to be a dream anymore because KICKER is making it simple to have some of the loudest and most remarkable coaxials ever hidden behind the door of a vehicle.

KS-Series Coaxial Speakers and 3-Way System are KICKER’s primary drop-in replacements, definitely giving mediocre factory sound a serious upgrade.

“You won’t lose the subtleties and will keep dynamic, exciting sound,” KICKER founder and President Steve Irby said.

The exceptional KS-Series of speakers utilizes massive motor structures that provide ultimate power handling and high efficiency for louder, clearer sound. KICKER’s exclusive Extended Voice Coil (EVC™) technology allows for high excursion and superior bass response, while the tapered polymer cones with tough Santoprene® surrounds deliver smooth midrange frequencies for the most accurate musical reproduction.

The calibrated Kaladex-dome tweeters (half- or three-quarter-inch) with stout neodymium magnets and phase alignment reveal every detail, adding to the live-performance realism provided by the KS-Series of mobile speakers.

With 10 flexible woofer sizes, the KS-Series ensures a perfect fit in any car, starting from the capable 3 ½-inch coaxials to the beefy 6x9s boasting 1-inch tweeters. The 6×9-inch KS693 3-Way Speaker System mixes in additional 1-inch midrange drivers with three-quarter-inch tweeters.

Tweeters – Kicker KS650 KS65.2 Component Speakers
KICKER promotes bass as an important addition to any audio system, but sometimes it simply isn’t enough to consider it “great-sounding.” A pair of high-performance KS-Series Tweeters sweetens the high end of the spectrum and completes the ultimate musical experience.

Three sizes of KICKER KS Tweeters utilize neodymium magnets and specially-developed voice coils to handle ample power and deliver outstanding definition. Known for their versatility, KS-Series Tweeters were designed to be mounted in one of three functional ways for optimal sound: flush, surface or angled. With flexible options, the notable tweeters deliver louder, cleaner sound that complements an existing system perfectly.

KS-Series Tweeters provide the high-range clarity that a system requires, adding live-performance realism in any vehicle. A dependable 12dB/octave, high-pass crossover works with the three-quarter-inch KS20 tweeters and half-inch KS13 tweeters, while an 18dB/octave crossover accompanies the louder, one-inch KS25 pair.

Certified Authorized KICKER Dealers nationwide expertly install KICKER gear into any vehicle for outstanding musical or video entertainment during a drive.

Kicker KS650 KS65.2 Component Speakers



Posted on by

Kicker 40CSS674 Component Speakers – Toyota Tundra

Kicker 40CSS674 Toyota Tundra
Kicker 40CSS674 Toyota Tundra

Kicker 40CSS674 Component Speakers

Toyota Tundra Kicker 40CSS674 Component Speakers

To install Kicker 40CSS674 Component Speakers into your Toyota Tundra, you will want to use tacotunes.com speaker adapters designed to work in your Tundra. The Kicker 40CSS674 Component Speakers Speakers require a 5.6″ cutout diameter for the mid range speakers. The Kicker 40CSS674 tweeters will require a 1.577″ cutout diameter.

Click HERE to check out our audio products for your Toyota Tundra

The Kicker RS652 Component Speakers will fit you your Toyota Tundra without any cutting, drilling or modifications to your Tundra.

Summary:

Mid range Driver: 5.6″ cutout diameter

Tweeter: 1.577″ cutout diameter

Top Mount Depth: 2.1 ″

Kicker RS652 Component Speakers Toyota Tundra


Ultimate reliability and tremendous audio clarity provide the makeup for RS-Series Matched Component Systems.

These outstanding midrange/tweeter/crossover combos use most all of the technologies of supreme QS-Series Systems, giving music lovers yet another source for a complete range of the smoothest, richest frequencies available. The RS-Series offers a more affordable option for those who seek genuine KICKER high-end performance from their mobile-audio system.

The RS65.2 (featuring a 6.5-inch midrange woofer) and RS60.2 (a true 6-inch midrange that also fits 5.25-inch location) let their primary sound flow through speakers that use a polyimide former and copper-clad aluminum wire to help decrease hot temperatures within the motor. Cast-aluminum baskets with nickel-plated, spring-loaded terminals provide additional protection and result in a more durable driver and higher power handling.

Each system’s one-inch, high-end tweeter pair with advanced DuPont® Tetoron® elliptical domes can be installed in a flush, angled, surface, or coaxial mount, the latter allowing the installer to remove aluminum phase plugs from the midrange speakers’ centers and screw in special adapters and tweeters. RS-Series tweeters exude a wider dispersion pattern for greatly increased detail in high frequencies.

Redesigned crossovers make RS Component Systems more flexible and reliable than ever, and they look great in a custom install. Configuration choice rests with the listener – the new 2-way bi-ampable passive crossovers have 18 dB/ octave highpass and 12 dB/ octave lowpass filters at 3.5kHz to optimize output. A tweeter output-level switch (0dB, +3dB, +6dB) determines tweeter volume, while the crossover itself provides incandescent tweeter protection

Model RS65.2
Woofer (in., cm) 6-1/2, 16.5
Tweeter (in., cm) 1, 2.5
Max Rec Amp Power (WATTS PEAK/RMS)* 200/100
Sensitivity (dB 1w/1m) 87
Frequency Response (Hz) 40-21k
Mounting Hole Diameter (in.,cm) 5-7/16, 13.8
Woofer Mounting Depth (in., cm) 2-7/16, 6.2
Crossover Point (Hz) 3.5k
Crossover Slope (dB octave) 18 hi/12 lo
Tweeter Attenuation (1.5dB steps) 0/+3/+6
Model RS60.2
Woofer (in., cm) 6, 16
Tweeter (in., cm) 1, 2.5
Max Rec Amp Power (WATTS PEAK/RMS)* 180/90
Sensitivity (dB 1w/1m) 87
Frequency Response (Hz) 50-21k
Mounting Hole Diameter (in.,cm) 5, 12.7
Woofer Mounting Depth (in., cm) 2-5/16, 5.8
Crossover Point (Hz) 3.5k
Crossover Slope (dB octave) 18 hi/12 lo
Tweeter Attenuation (1.5dB steps) 0/+3/+6

*Assumes typical music program with minimal clipping; varies with enclosure size. See your KICKER dealer for details.

Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it’s agents are not responsible for typographical errors.





Posted on by

Kenwood Excelon KFC-X1730P Component Speakers – Toyota Tundra

Kenwood KFC-X1730P Component Speakers Toyota Tundra
Kenwood KFC-X1730P Component Speakers Toyota Tacom

Kenwood Excelon KFC-X1730P Component Speakers

Toyota Tundra Kenwood Excelon KFC-X1730P Component Speakers

To install Kenwood Excelon KFC-X1730P Component Speakers into your Toyota Tundra, you will want to use tacotunes.com speaker adapters designed to work in your Tundra. The Kenwood Excelon KFC-X1730P Component Speakers require a 5.1″ cutout diameter for the mid range speakers. The Kenwood Excelon KFC-X1730P Component Speakers tweeters will require a 1.77″ cutout diameter.

Click HERE to check out our audio products for your Toyota Tundra

The Kenwood Excelon KFC-X1730P Component Speakers will fit you your Toyota Tundra without any cutting, drilling or modifications to your Tundra.

Summary:

Mid range Driver: 5.1″ cutout diameter

Tweeter: 1.77″ cutout diameter

Top Mount Depth: 2.3 ″

Kenwood KFC-X1730P Component Speakers Toyota Tundra


The KFC-X1730P features a new advanced speaker cone material and design that delivers the richest high, mid and low frequencies with minimal distortion.
A new hybrid fiber diaphragm material that combines glass fiber and heat resistant Nomex material is utililzed for the speaker cone to provide a purer, cleaner sound across mid and low frequencies.
A silk dome tweeter delivers a smooth, wide range of high frequencies.
The KFC-X1730P also features a newly designed magnetic circuit that uses less steel, resulting in less distortion compared to a conventional circuit.
Additional Features:
• 4 Ohm Drive
• 330 Watts Max Power
• 3 Point Tweeter Attentuation
• Zobel Network Circuit
Counter Drive Magnetic Circuit –
Image Enhancer 4 –
Diamond Array Pattern Diaphragm Yes
Woofer
– Woofer Size 6-1/2 in (oversized 160mm)
– Woofer Diaphragm Carbon Glass Fiber Nomex Hybrid Cone
– Surround Rubber
– Basket Steel (Black)
– Magnet Ferrite
Mid-Range
– Mid-Range Size –
– Mid-Range Diaphragm –
Tweeter
– Tweeter Size 1 in (25mm)
– Tweeter Diaphragm Soft Dome
Super Tweeter
– Size –
– Diaphragm –
Dimensions (without grill)
– Width 6-1/4 in (158mm)
– Height 6-1/4 in (158mm)
– Depth 2-13/16 in (70.8mm)
– Mounting Depth 2-5/16 in (58mm)
Warranty 2-Year
