2016 Toyota Tacoma Double Cab Subwoofer Box Enclosure

Toyota Tundra Subwoofer Box Enclosure Kelsie

2016 Toyota Tacoma Double Cab Subwoofer Box Enclosure

This subwoofer box is designed to hide behind the rear, driver side seat in your 2016 Toyota Double Cab Tacoma. This will work in the 2016 and Toyota Tacoma.  The box is made from ULTRA high quality MDF for best sound quality and hand built right here in the United States! Don’t settle for cheap particle board boxes that you find on online auctions and many other discount sites. You will not get the sound quality you are after. We offer this subwoofer box in a variety of configurations. Check out our shopping cart for a complete list of options and bundle packages we offer for your 2016 Toyota Tacoma Subwoofer and stereo upgrade needs.

2016 Toyota Tacoma Double Cab Subwoofer Box Enclosure

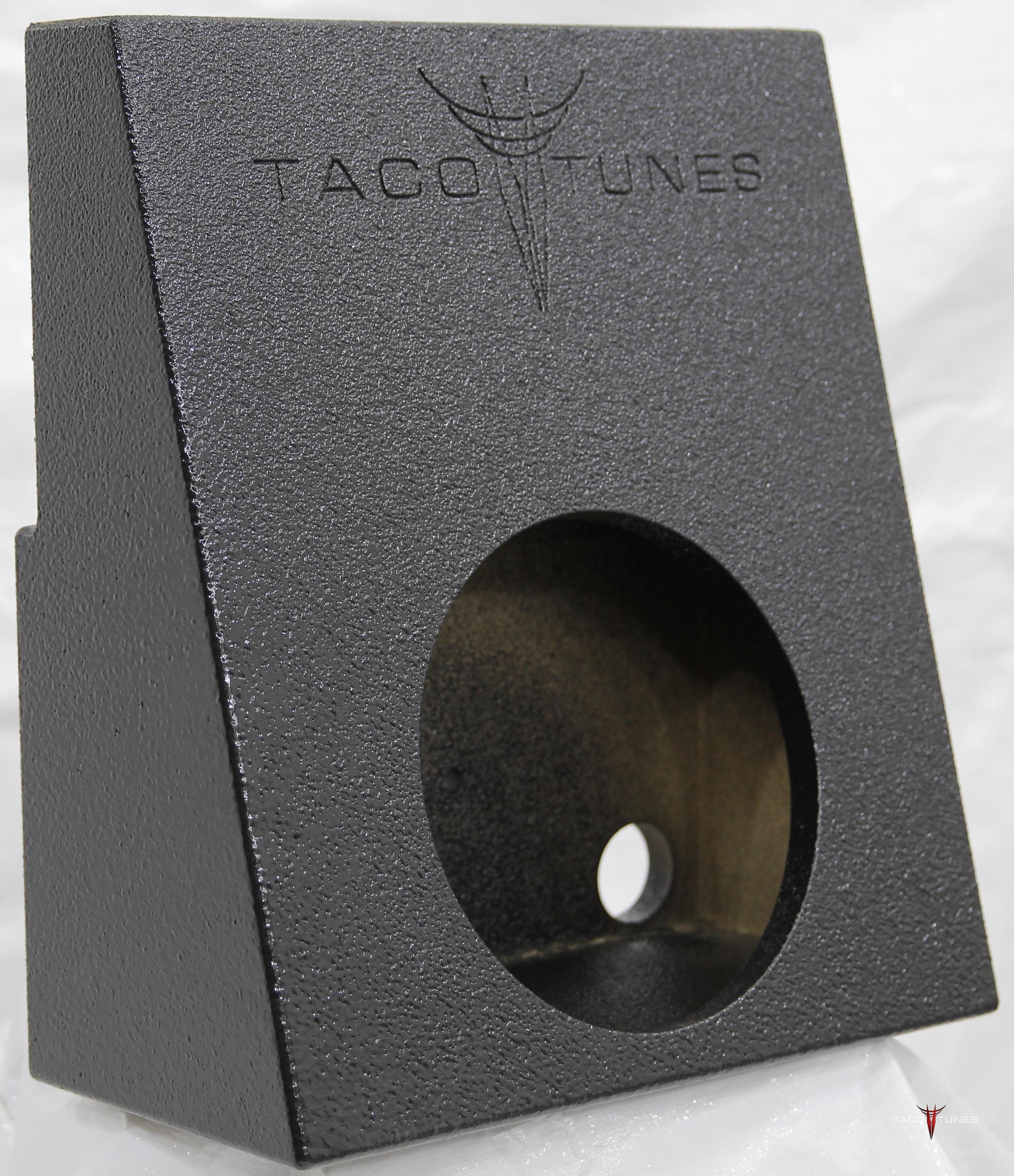

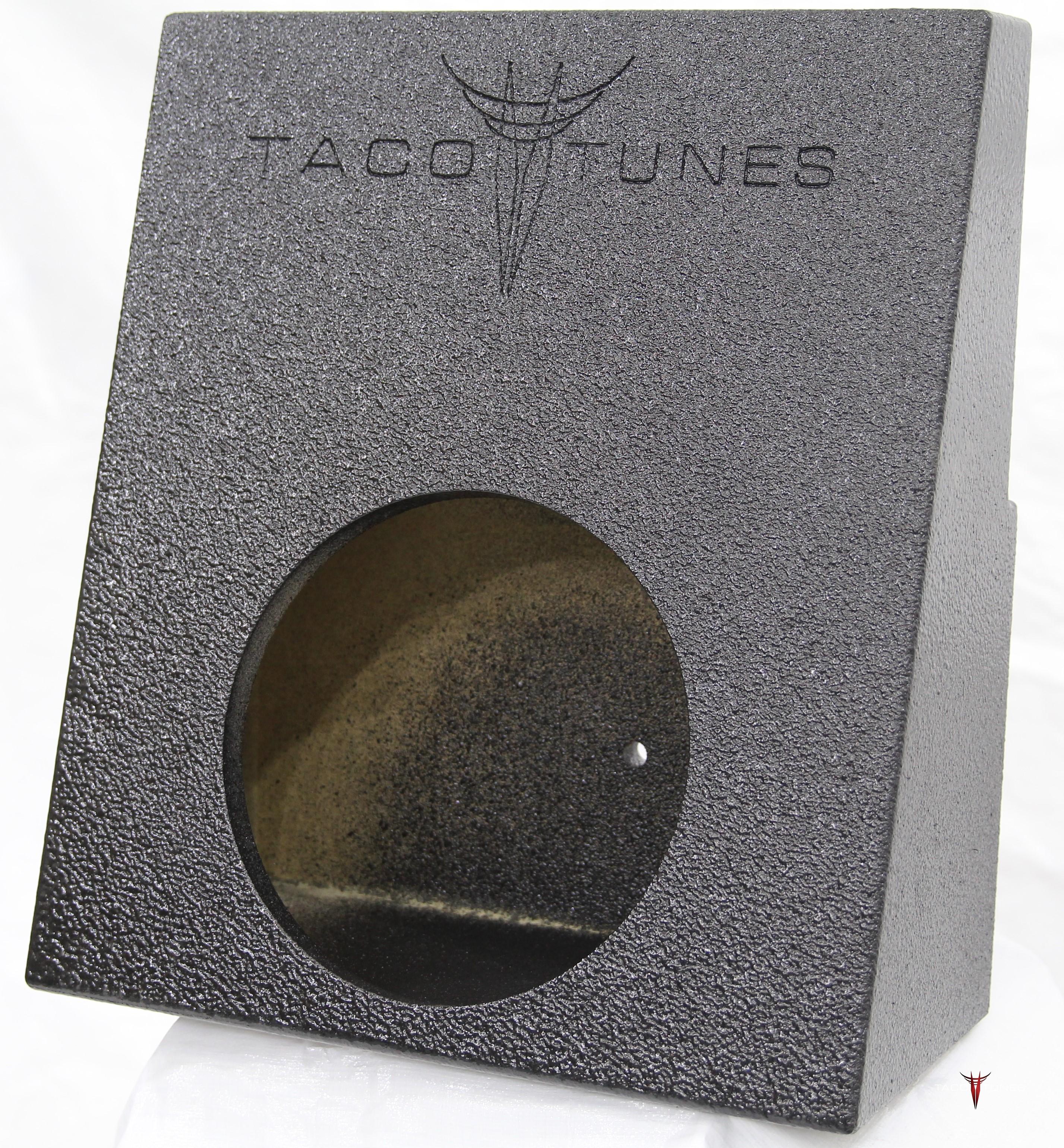

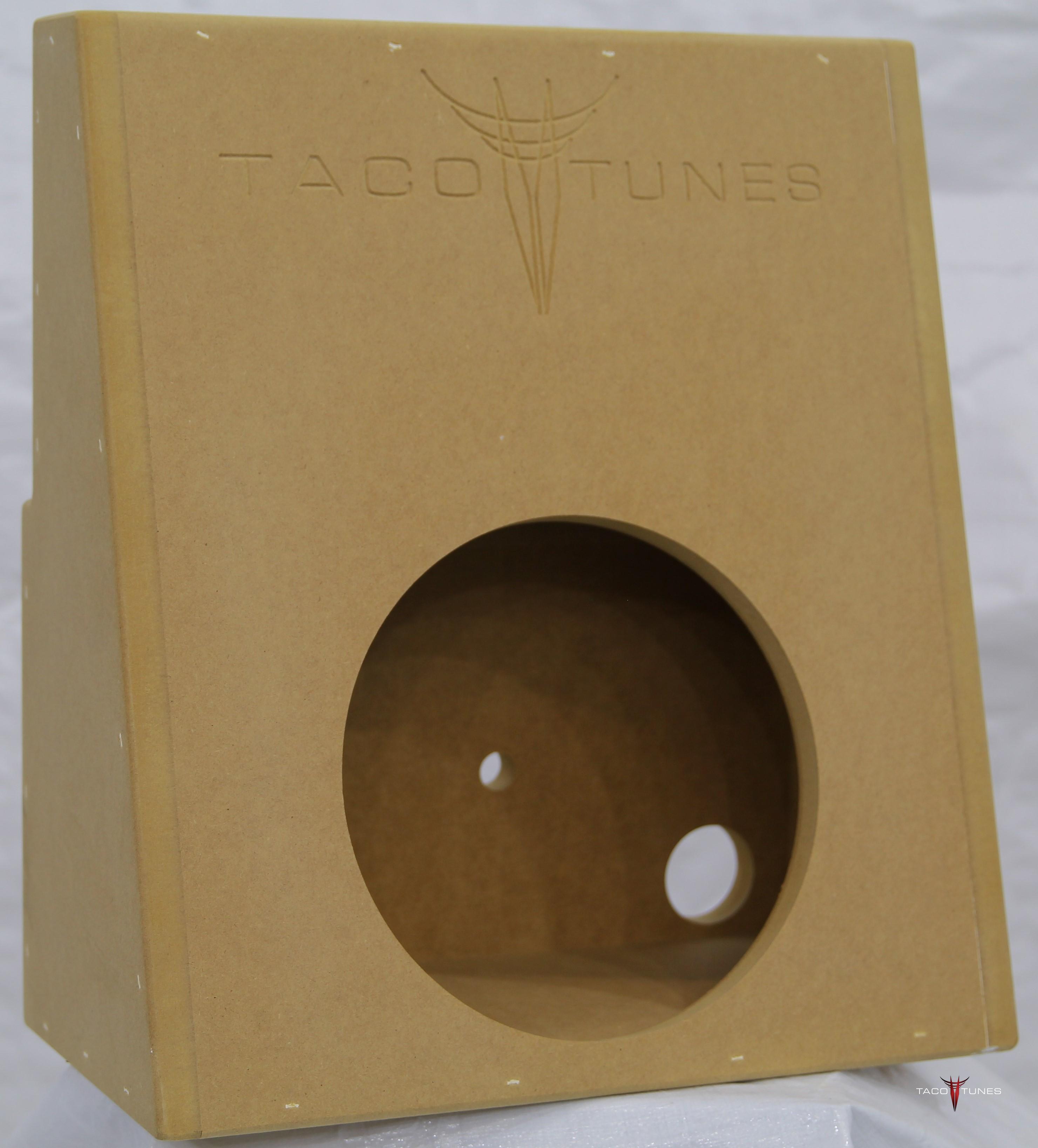

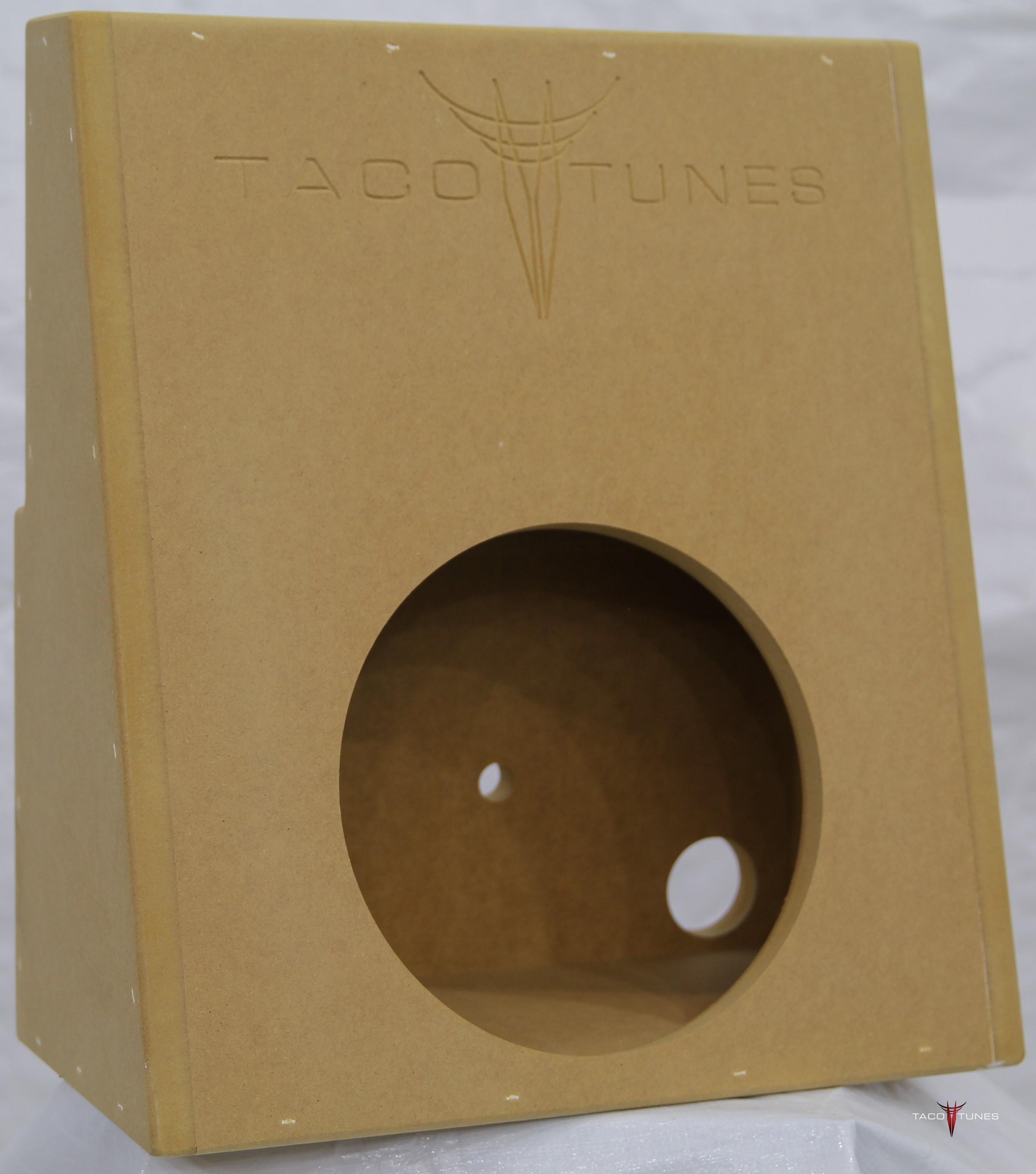

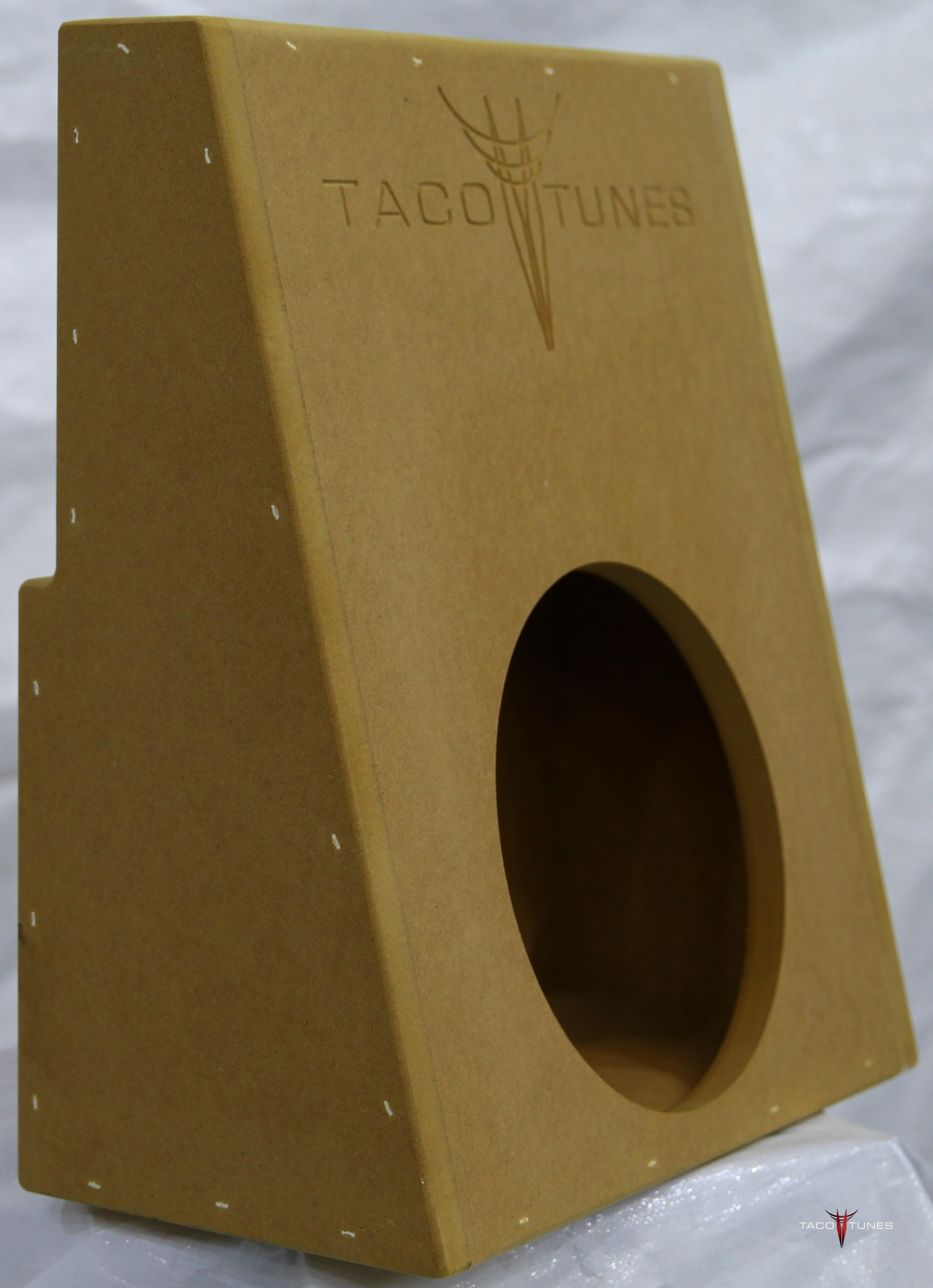

We offer the box plain as seen in the pictures OR covered in spray in bed liner material.

Once the box is hand built here in the United States, we spray the MDF with a high quality polyurethane bed liner. Keep in mind the Tacoma has very little room behind the seat. You will need to remove your seat for installation. However after the installation you can put the seat back in place. Due to lack of space behind the seat, you can NOT fold the seat down as it may damage the subwoofer.

To make the installation quicker and easier, we offer a number of optional installation items that are generally not included with sub woofer boxes.





Subwoofer Mounting Hardware  / Wiring & Terminal Cup Kit:

1 – Terminal / Wiring Cup

1 – 24″ Red 12 gauge wire

1 – 24″ Black 12 gauge wire

8 – Wood Screws (subwoofer hardware)

4 – Wood Screws (terminal cup hardware)

Subwoofer Box Mounting Hardware:

3 – 10 MM Metric Mounting Bolts

3 – Large Rubber Washers

3 – Large flat washers

Other:

1 – 20″ x 20″ sheet polyfil

Naked Box or Sprayed with heavy duty bedliner. (We are not authorized to use the name online. NOTE: WE are authorized to spray in Texas)

Installation Notes:

Please see the installation video for details on installing this subwoofer in your

Toyota Tacoma Double Cab.

Remove the upper rear seat section (driver side)

Remove plastic backing on rear of upper seat seat section.

Remove the storage compartment on rear wall (driver side only)

Connect subwoofer wiring to terminal cup and install the subwoofer box.

Bolt down the box. Be certain to use the rubber sealing washers.

Install your subwoofer.

Install your seat upper.

Save all your parts so you can return the truck back to stock in the even you sale or trade your double cab Tacoma.

2016 and up Double Cab Tacoma, you will need to roll up the matting on rear wall and tuck behind storage compartment.

You will NOT be able to fold the seat down after you install the subwoofer. The passenger side will still operate as designed.

We highly suggest the use of a matting material.
