Customer installs Complete Toyota Tacoma Stereo pictures complete audio system subwoofer amplifiers
Toyota Tacoma Stereo pictures complete audio system subwoofer amplifiers installed by one of our customers that took time to document his entire installation process.
Below is a detailed installation of a complete audio system installed in Toyota Tacoma. Customer installation pictures complete audio system subwoofer amplifiers
I bought my truck 3 months ago with 7 miles on it. It’s the 2009, Silver, 4×4, Double Cab, Long Bed, Hood Scoop, TRD, Tow Package… I couldn’t wait to rip out the sound system and put in something awesome. Well, my week long project is finally complete! Thanks to TacoTunes for some great ideas and great products supplied. The setup includes a long list of items… some I purchased on my own, such as headunit, bluetooth, XM, iPod connector, Amps, FatMat… and the rest I purchased from TacoTunes. I was pleasantly surprised to see such great quality and great looking items that I received.

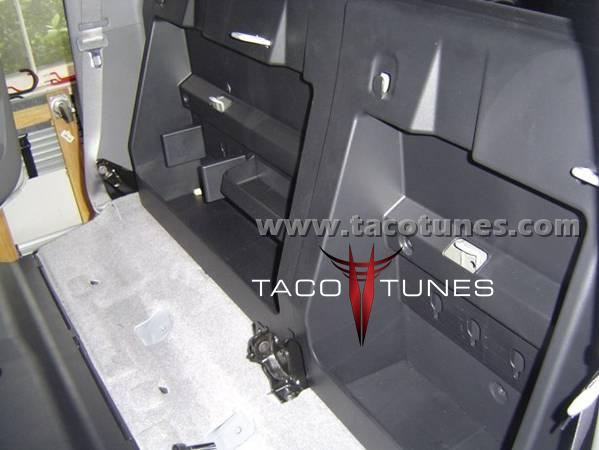

Stock storage bins… those came out with a quickness.

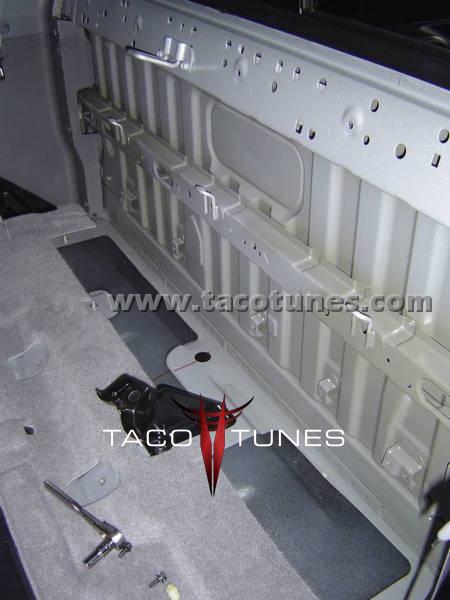

Bare back after everything was pulled.

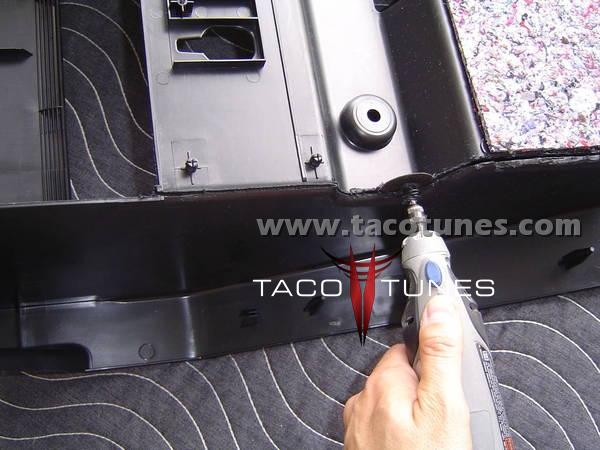

Took my Dremmel, cut the back out of the driver’s side compartment as so to make room for the sub box.

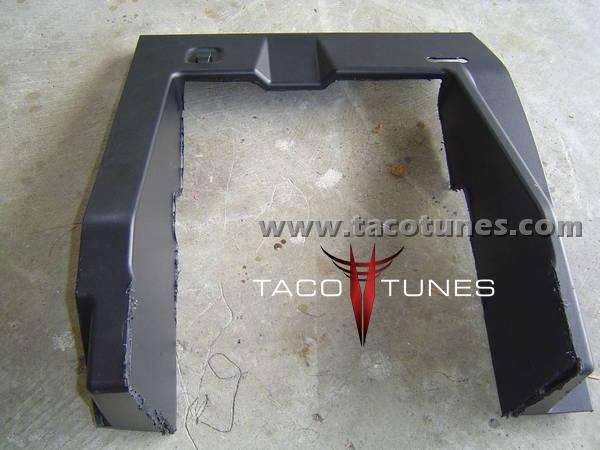

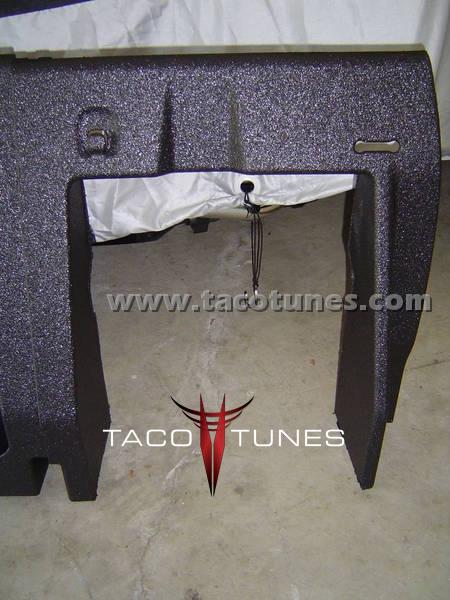

The front looks like this after the two side cuts… then had to cut the top off.
Looks like this…

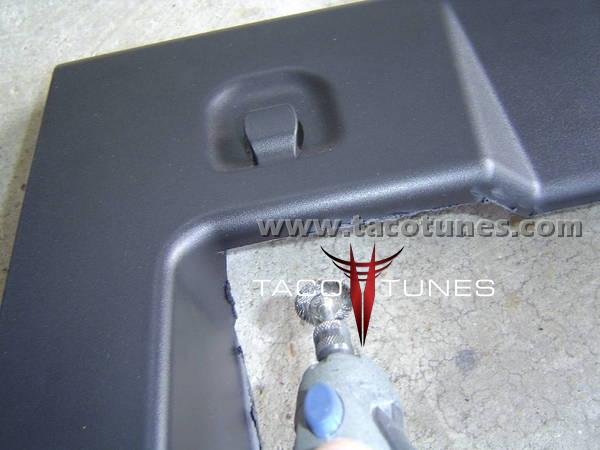

Took the wirebrush attachment and cleaned up the cut plastic for a smoother edge.

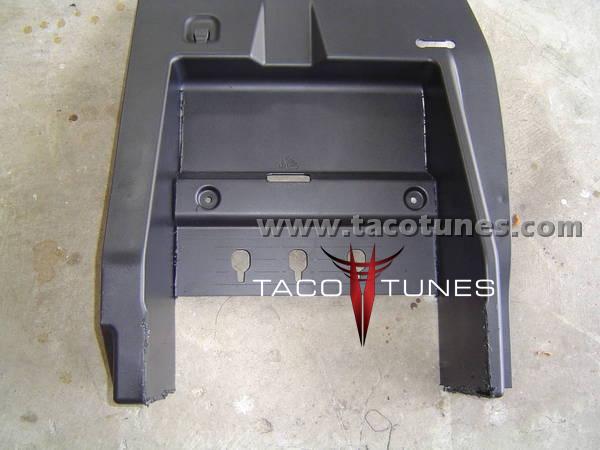

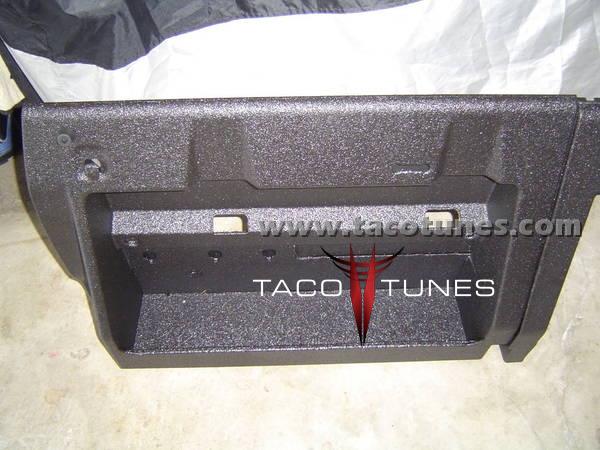

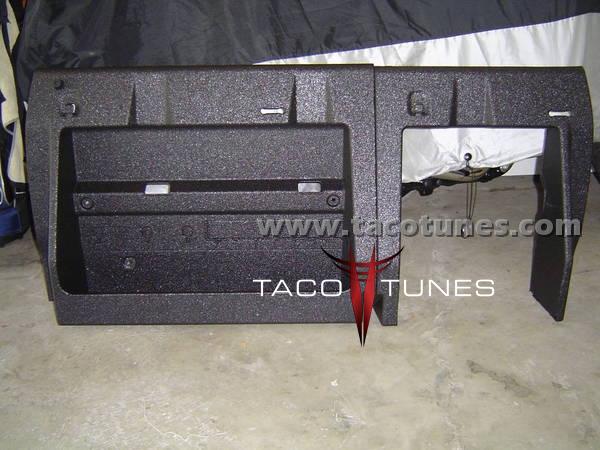

The other compartment… final look. Note, I had to cutout the little tray. There are instructions on how to do this on TacoTunes.com
Final product.
Final product.

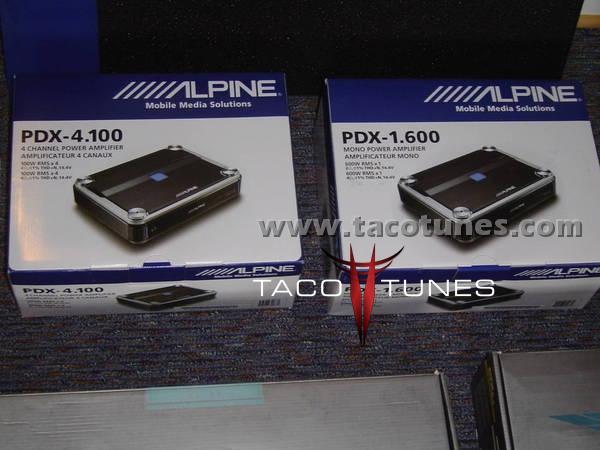

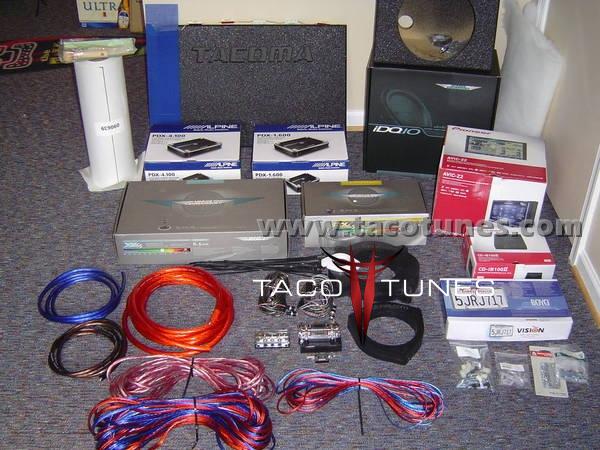

Here’s all the stuff going in.

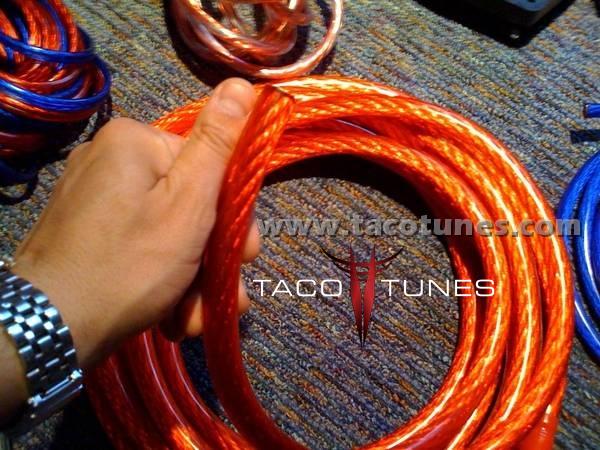

Massive power wire attached to battery!! 20 feet of it… felt like 20 lbs!

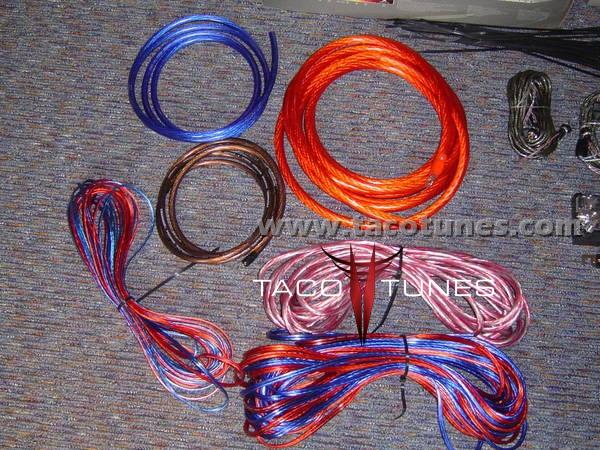

Main power wire is red, blue power wire 4 gauge from the distro block to amps, 4 gauge brown ground wire for amps, and many feet of tweeter wire, speaker wires, and sub wire

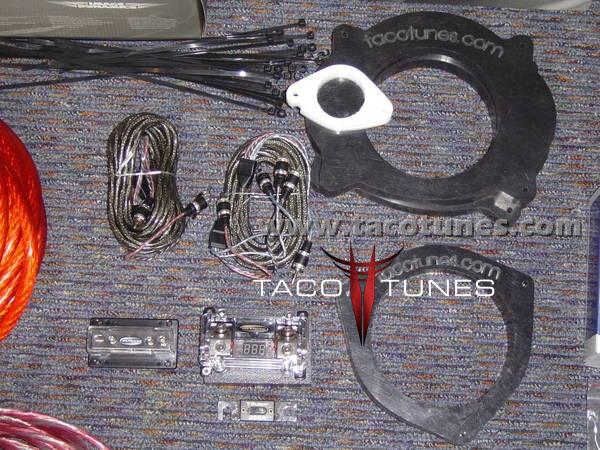

RCA’s from HU to amps, fuse block w/ custom engine compartment mount, distro power block, custom speaker mounts for the doors.

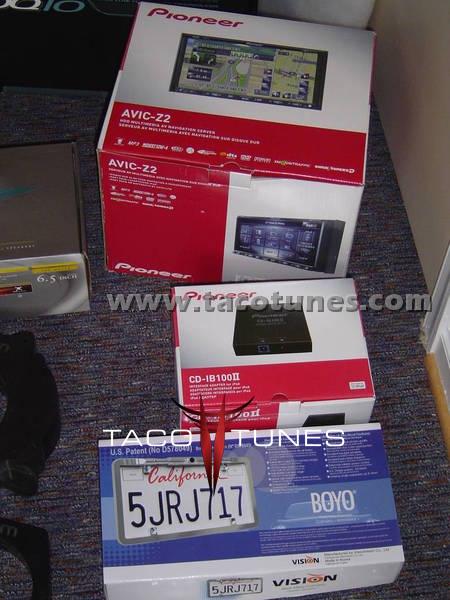

Pioneer AVIC-Z2 Hard Drive Navigation & Media Center, iPod Adapter, and Boyo Backup Cam. Didn’t have the boxes for my XM and Bluetooth.

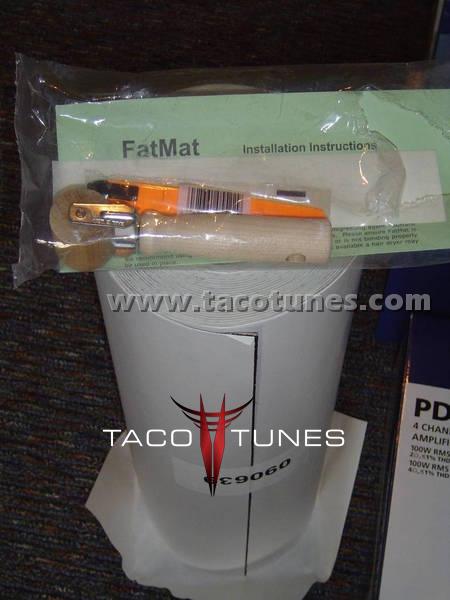

FatMat… great stuff. Got off Ebay… 50 sq ft for $80 shipped.

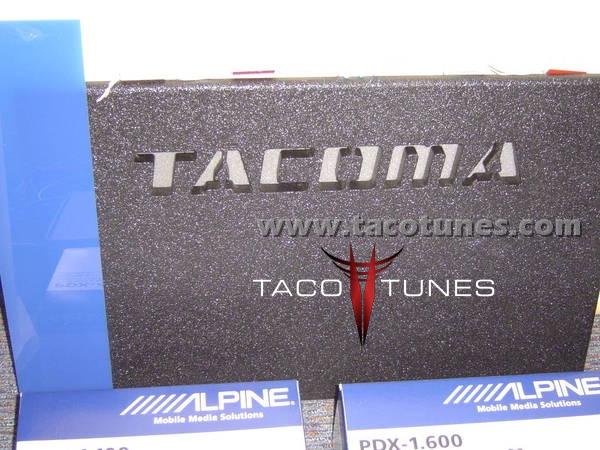

Amp Mounting board and blue plexiglass

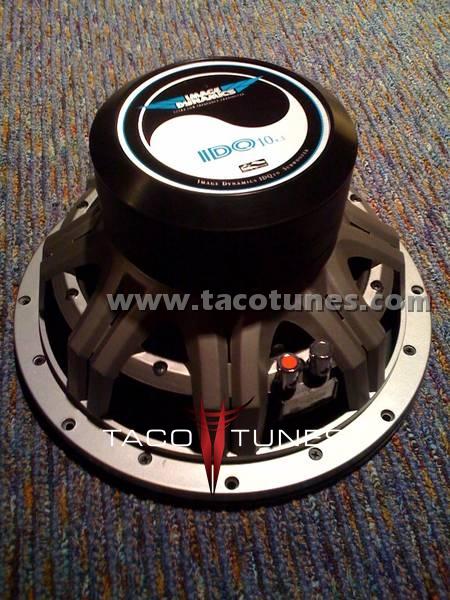

Image Dynamics IDQ10 D4v3

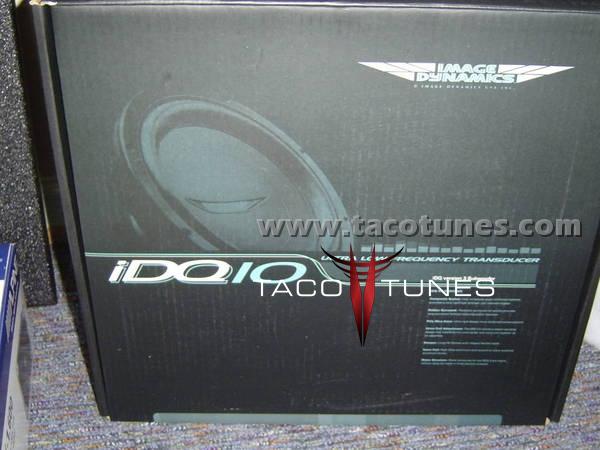

Image Dynamics IDQ10 D4v3

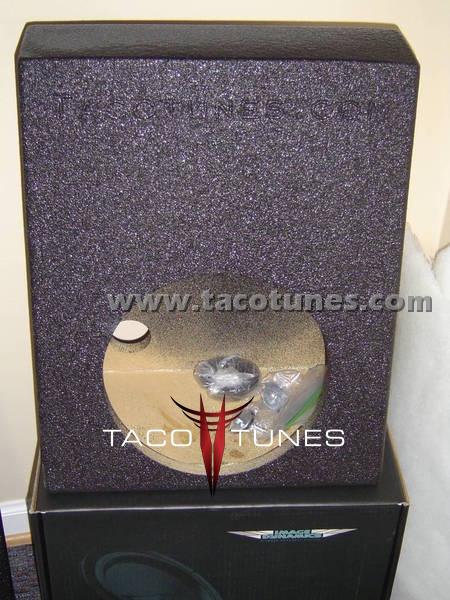

TacoTunes custom sub box.

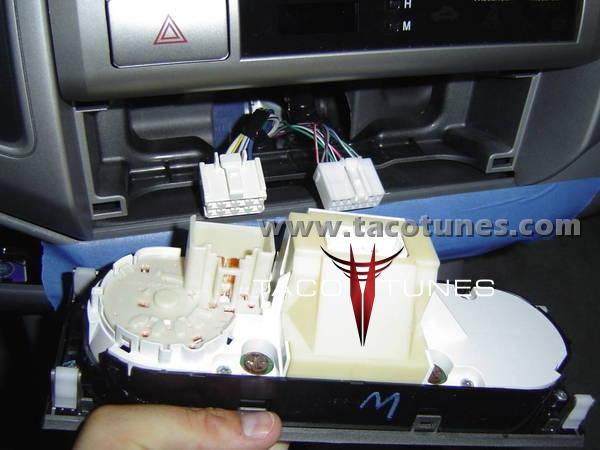

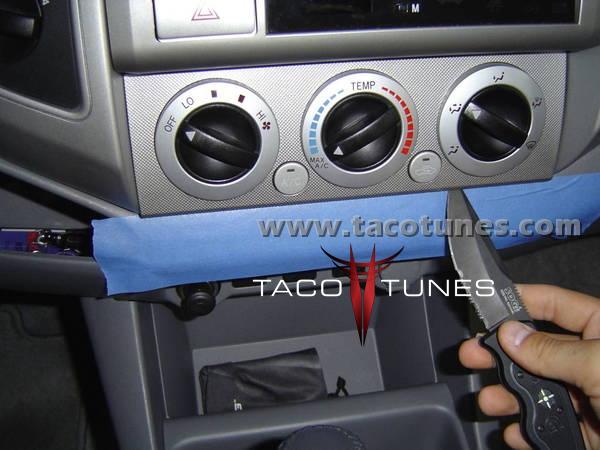

Install started with prying out the temp controls. Again, these instructions can be found on TacoTunes.com. I would recommend using a butter knife. My SOG knife was a bit sharp and can slice right through plastic.

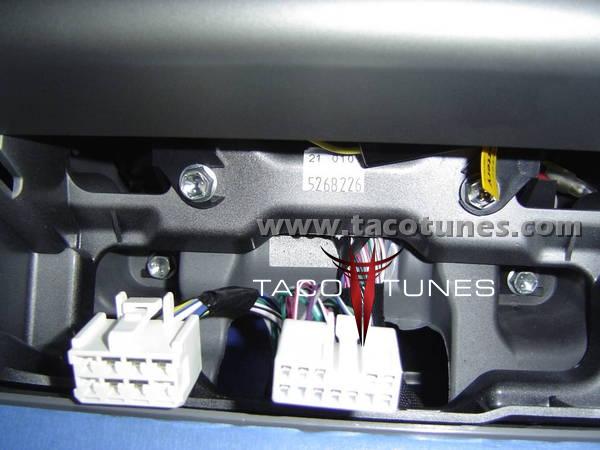

Disconnected the temp controls.

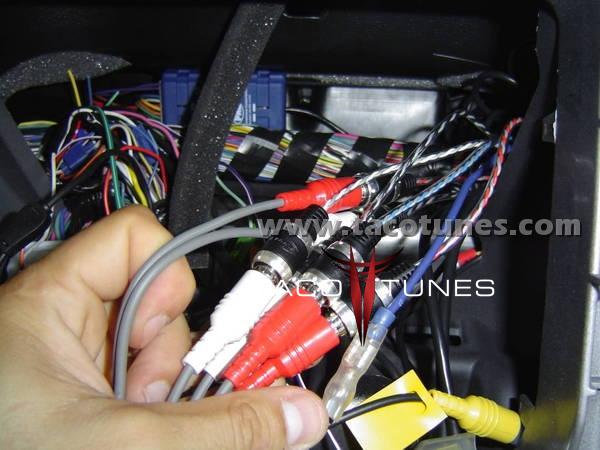

My RCA hookups and amp remote wire connections.

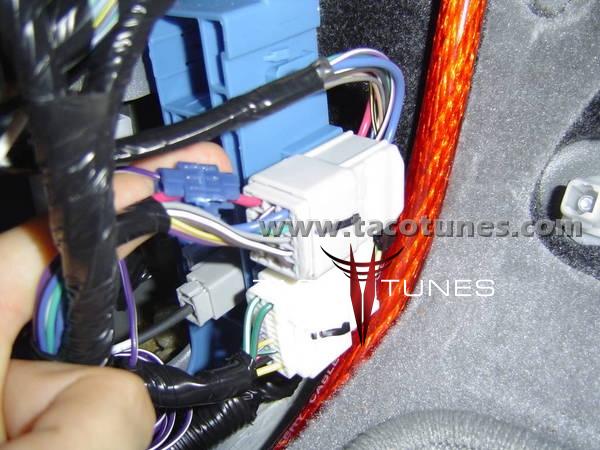

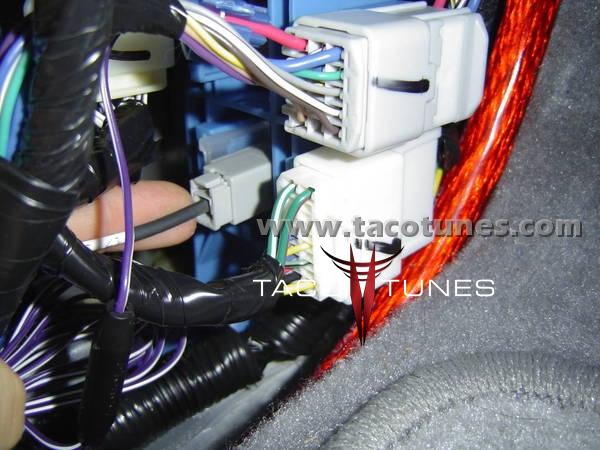

Here is where I tapped into for the Reverse Sensor Wire… It’s on this connector… the red wire. This is behind the driver side kick panel.

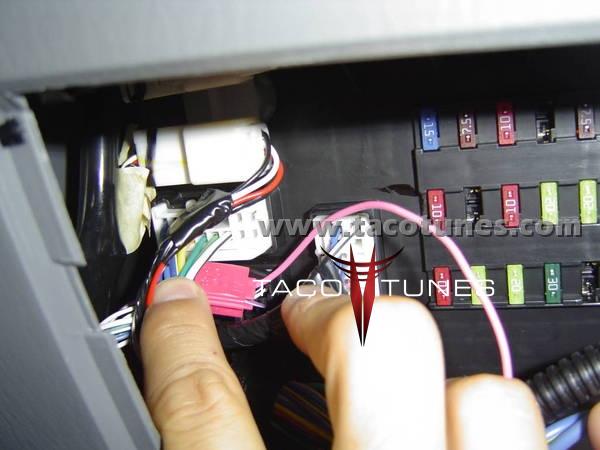

NaBehind the coin tray, left of the steering wheel… there’s your fuse box. I tapped into the black connector here for the Speed Sensor Wirevigation Stereo installation GPS Steering Wheel Control Toyota Tacoma

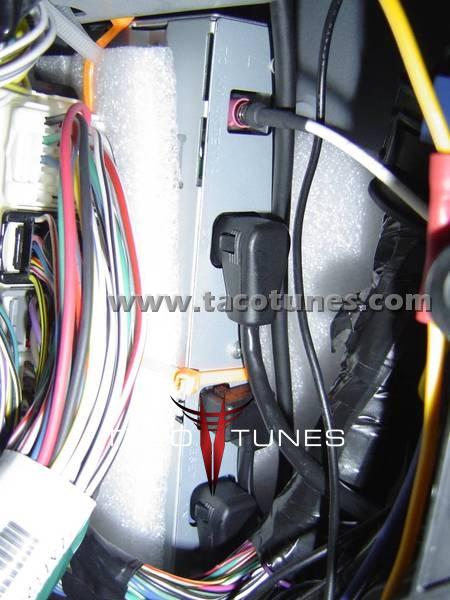

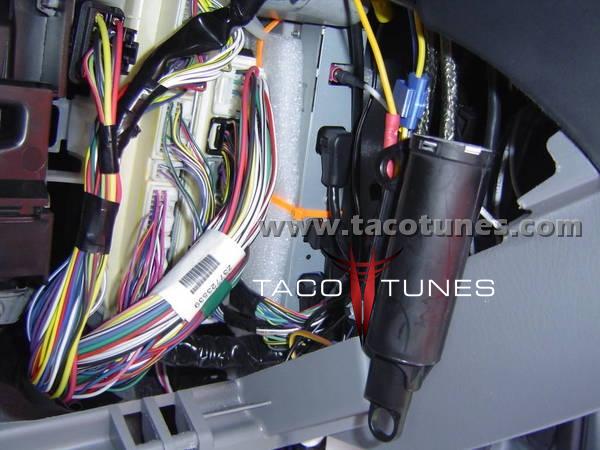

Navigation SterHere’s my XM unit. It’s mounted to the computer bracket behind the glove box and above the right side kick panel. I used tie wraps. Kindof ghetto, but it worked nicely! Also shown is the TSS-Radio XM antenna wire that connects to the factory antenna… found here: http://www.tss-radio.com/lexus-shark…er-p-5647.htmleo installation GPS Steering Wheel Control Toyota Tacoma
Further back view.
Here is the factory XM antenna connector… behind driver’s side kick panel.

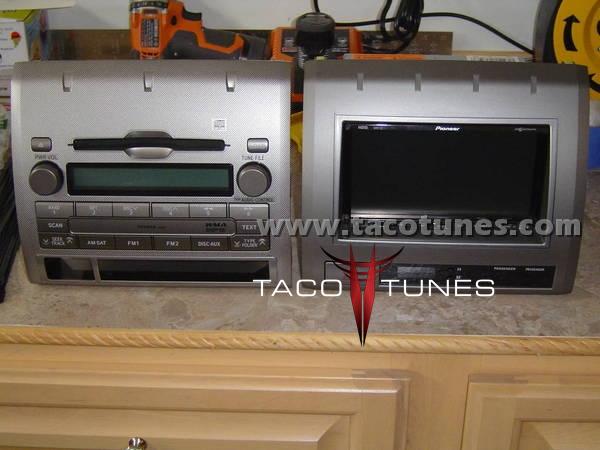

Radios… changing of the guard.

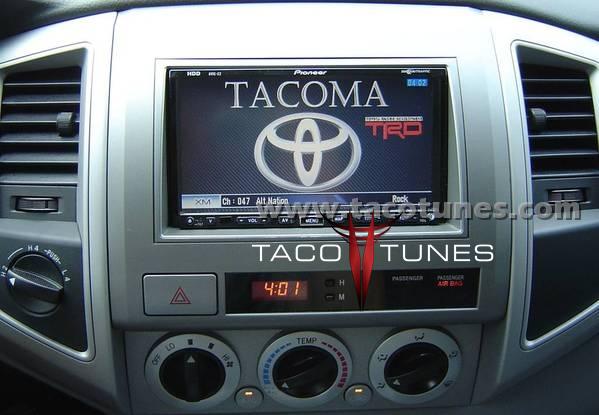

Here’s the HU installed… I created a custom background in photoshop.
Mounted my bluetooth mic here. No one ever sees it there.

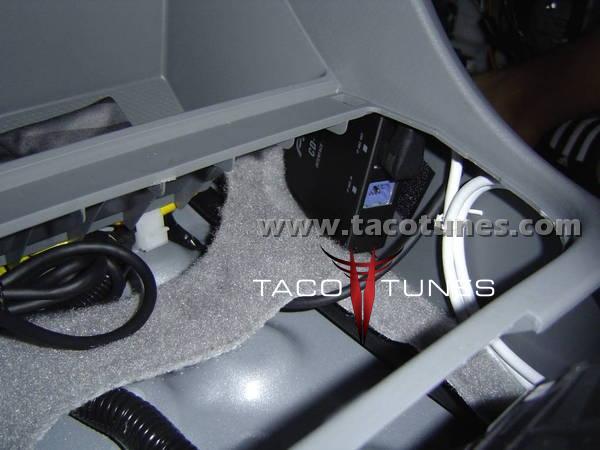

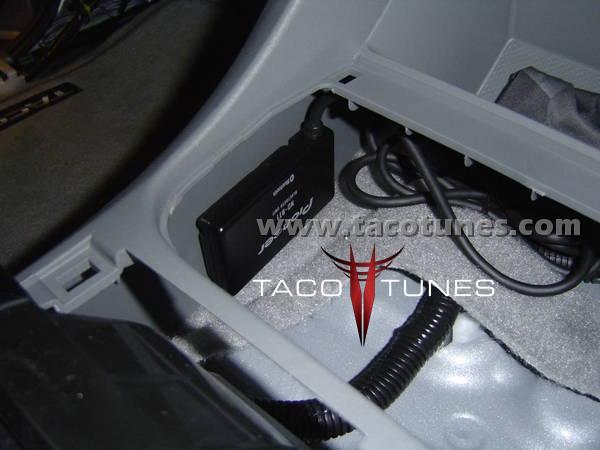

Mounted the bluetooth adapter here, under the cup holder in the center console.
iPod adapter went on the other side.

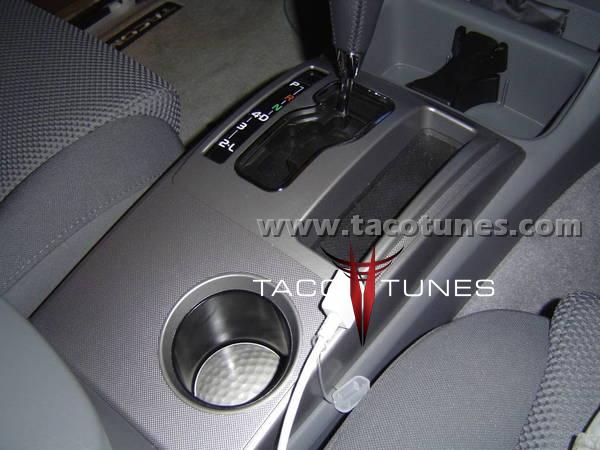

iPod cable routed here for now. I hook it to my iPhone since that’s where I normally keep it.

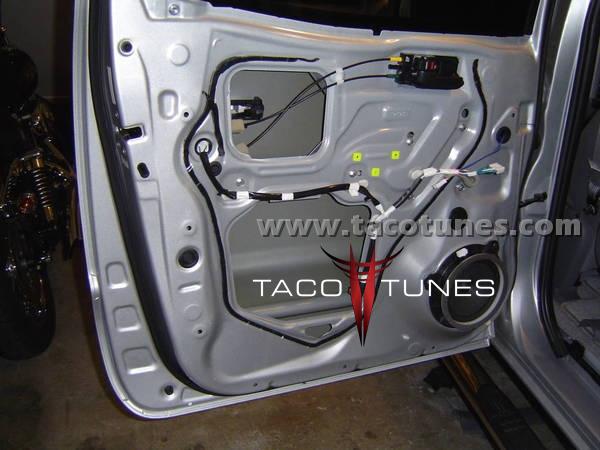

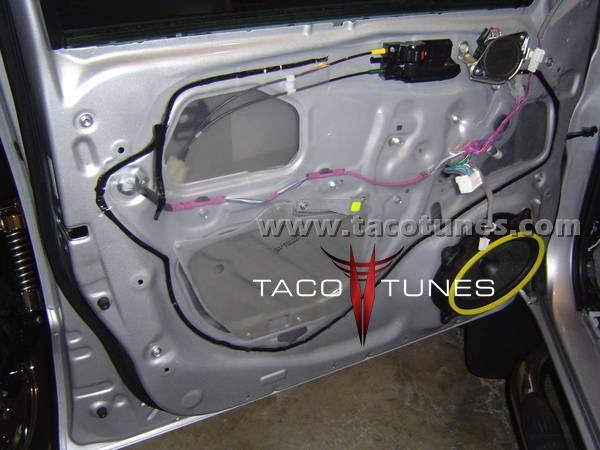

Door work time… disassembly instructions can be found on TacoTunes.com. Left Front Door.
Left Rear Door.

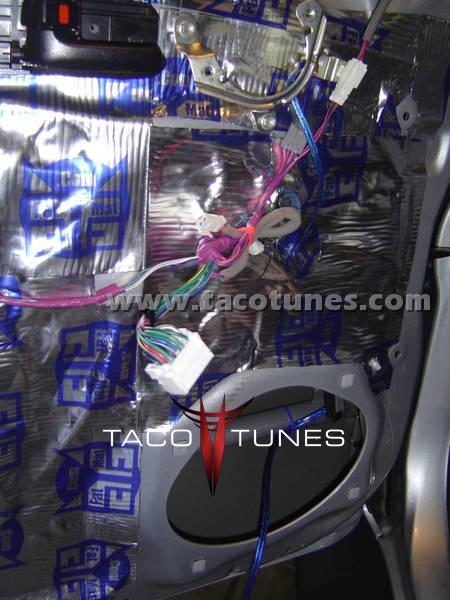

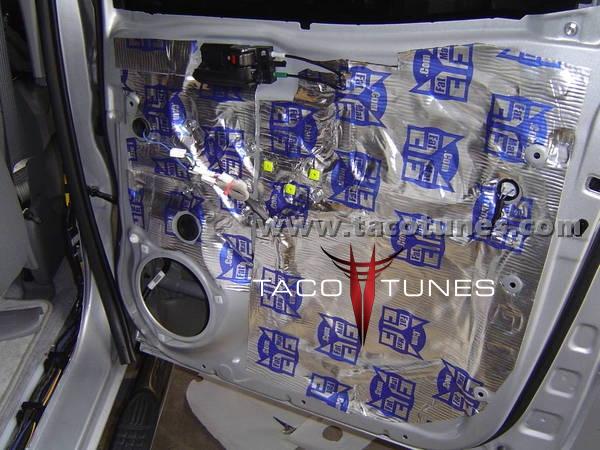

Rear Right Door w/ FatMat

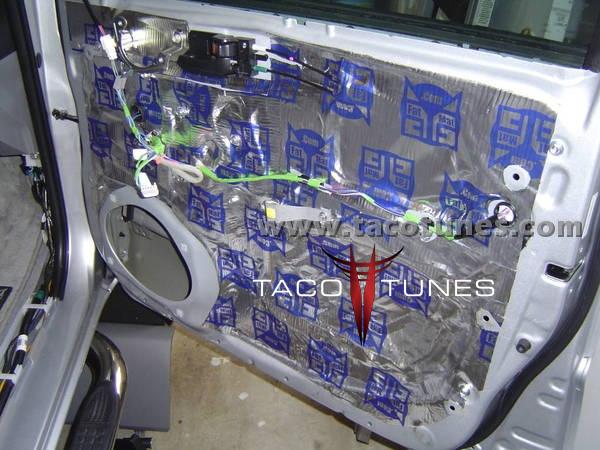

Front Right Door w/ FatMat
Left Front Door w/ tweeter and speaker wire run.

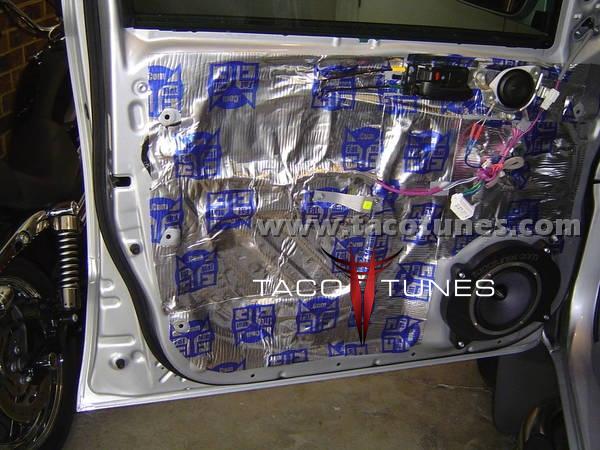

Left Front Door w/ speaker and tweeter mounted and connected.

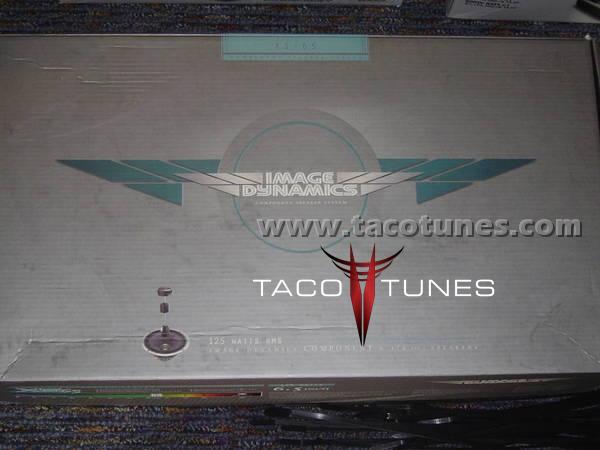

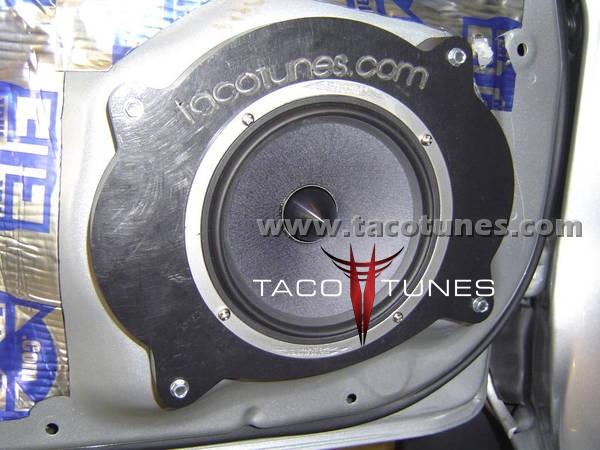

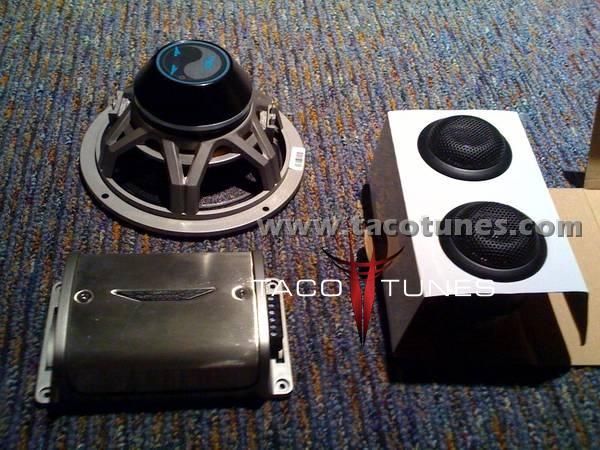

ID XS65 speaker and TacoTunes custom mount.

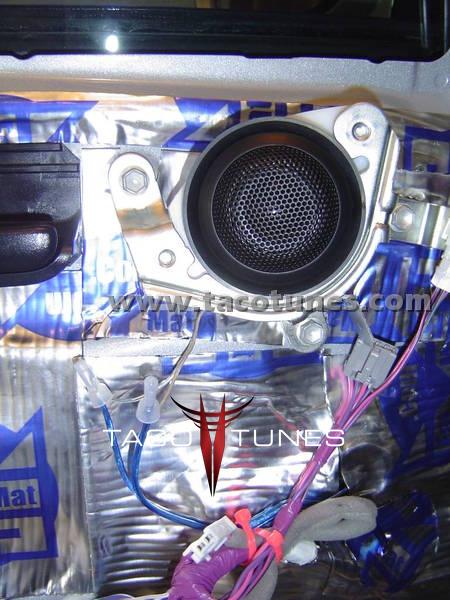

ID XS tweeter and TacoTunes custom mount.

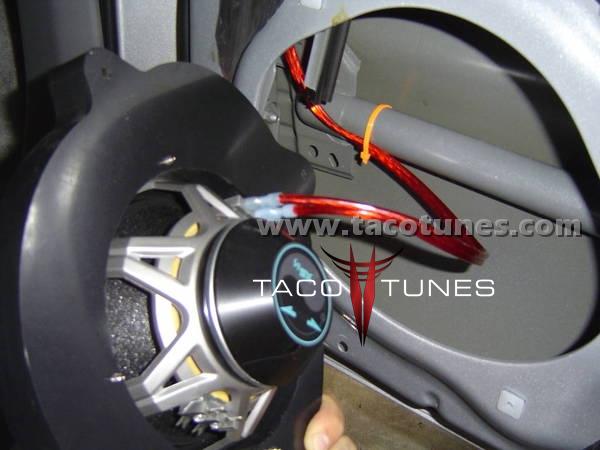

The Right Front speaker and its connections before mounting. Make sure to tie wrap wire down like this so it doesn’t interfere with the window when it’s down.

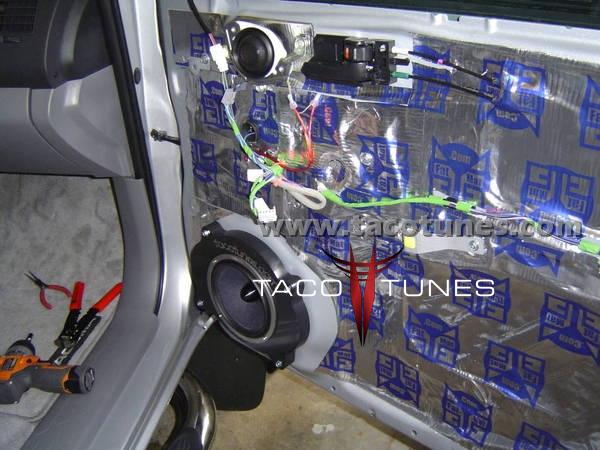

Front Right Door all mounted.

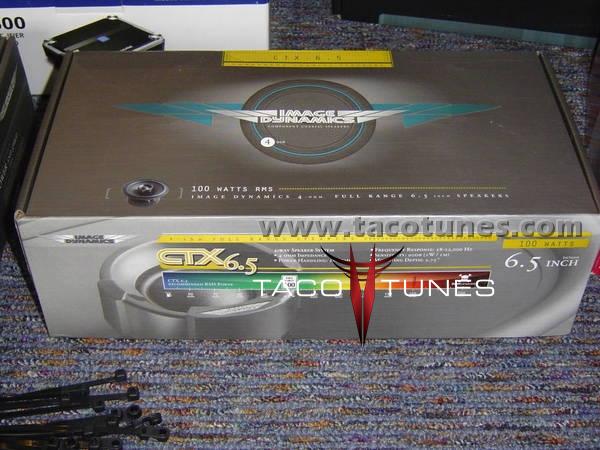

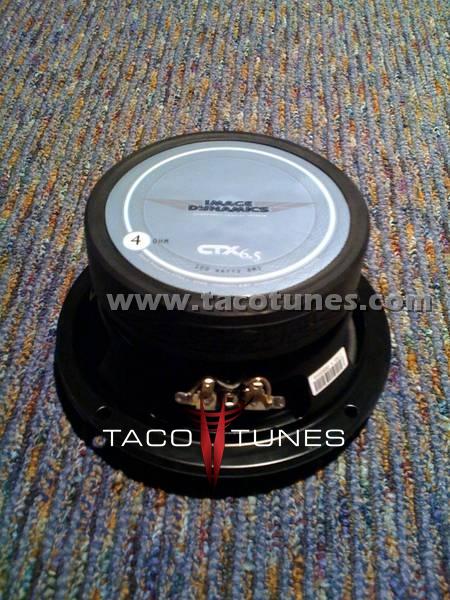

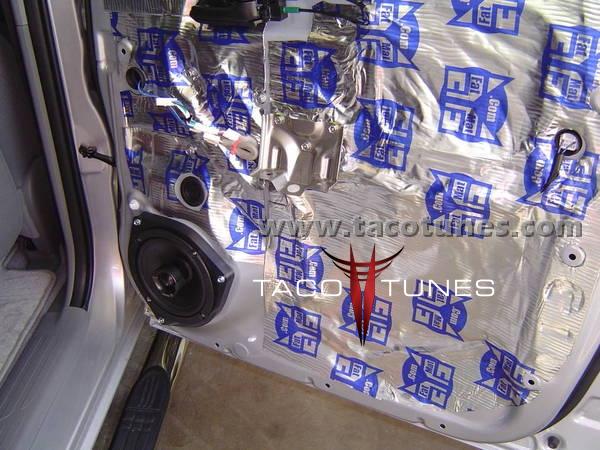

Right Rear Door and ID CTX65.

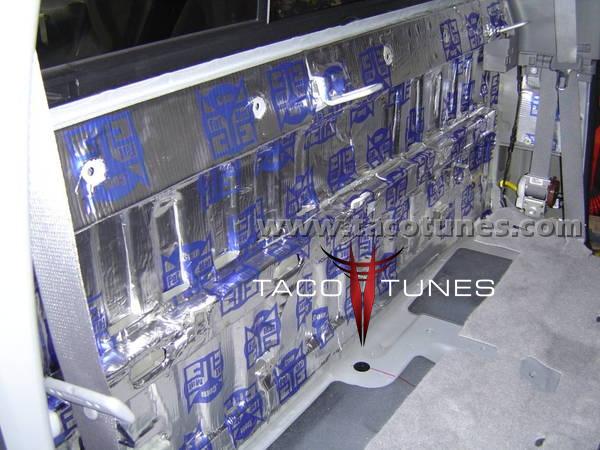

Rear wall… FatMatted.

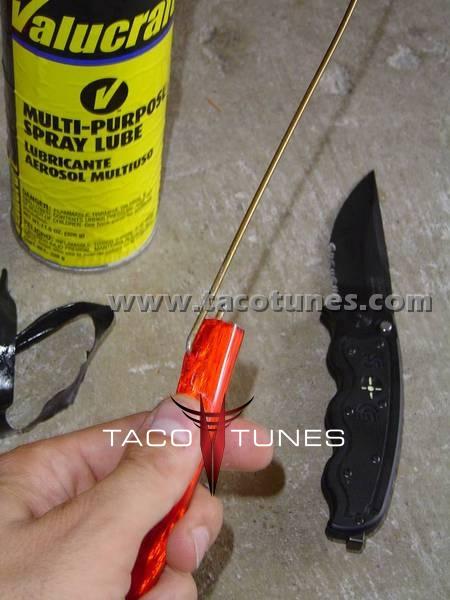

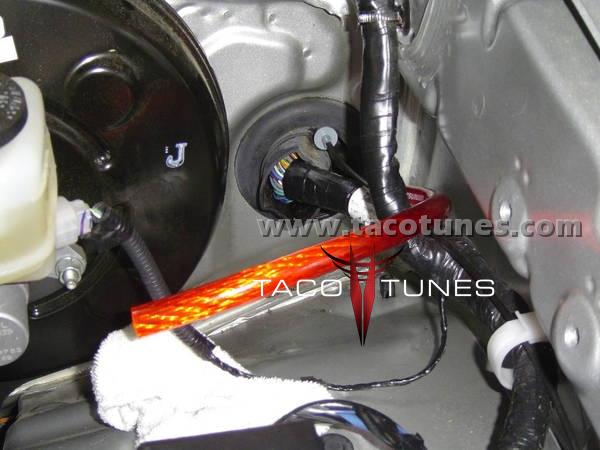

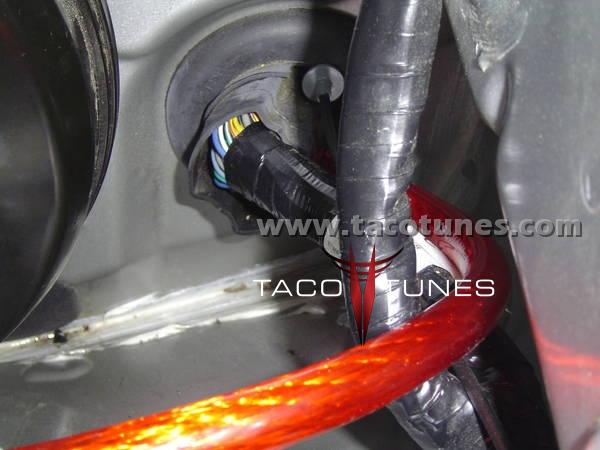

Preparing the massive Power wire for insertion. I hooked mine like a fish and taped it real tight… the sprayed it with lubricant. There was really only one opening to go through. I HIGHLY recommend using a lubricant spray of some sort! Also especially helpful when wiring speaker wire through the door tubes. After sprayed, the wires slip right in, through, and out… like a wet turd. =)
This process was not easy. Kindof like shoving a MK-48 Adcap Missile through a basketball hoop. It’s not going to happen without a little force. I’m not gonna lie… there was a little cursing, but I wised up, carefully cut a small slit, and use PLENTY of lube. Sounds so dirty, but just as satisfying in the end. It ended up out right in the end.

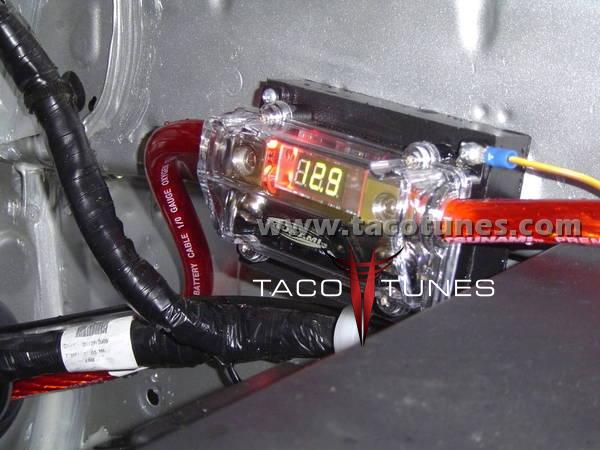

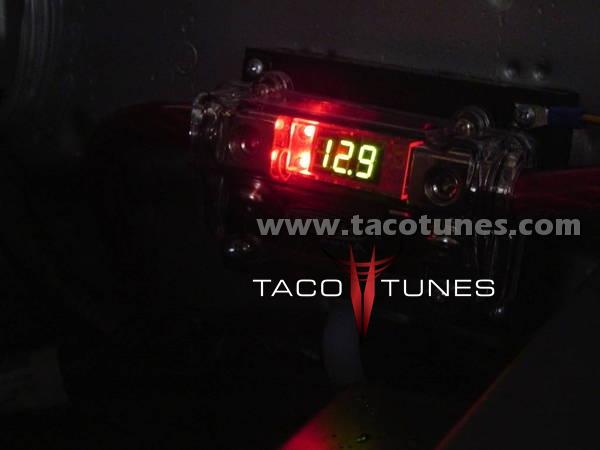

Here’s the Fuse Box connected and showing voltage.
Another pic…
Here’s the Fuse Box connected and showing voltage.

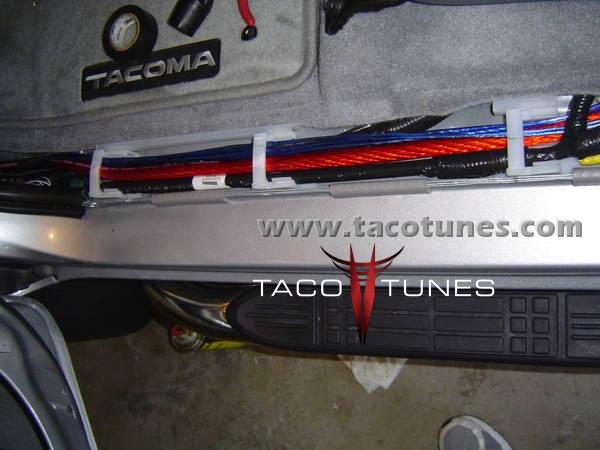

Run through here… BTW, NO… running it next to my speaker wires does not affect my sound in any way. Everything was grounded correctly and those wires are seriously insulated.

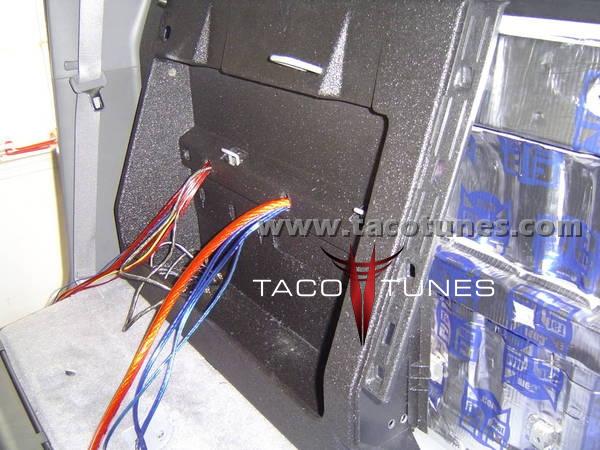

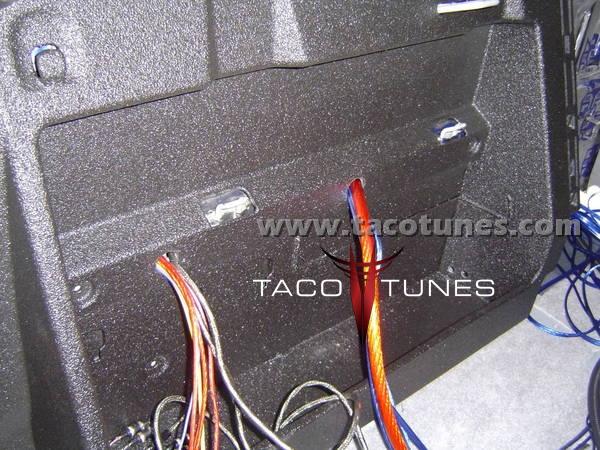

In the back now… drilled some holes and pulled all the wires through.
How to set gain on alpine pdx amp
Prepping the amp board for amp installation… pre-drilling holes.

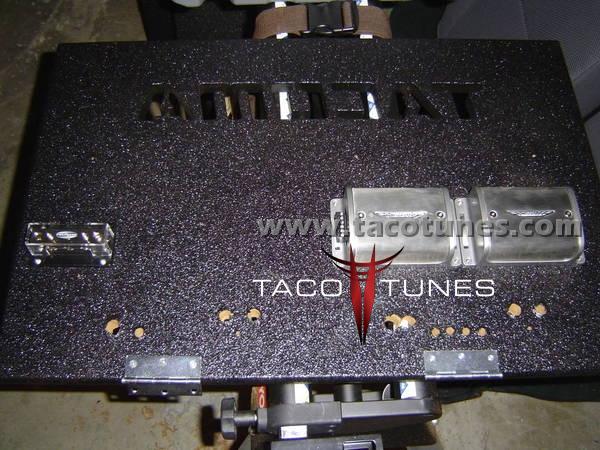

Turning the amp board over… mounted the crossovers from the XS package and power distro block on the back. Also pre-drilled holes for wire insertion to the other side.

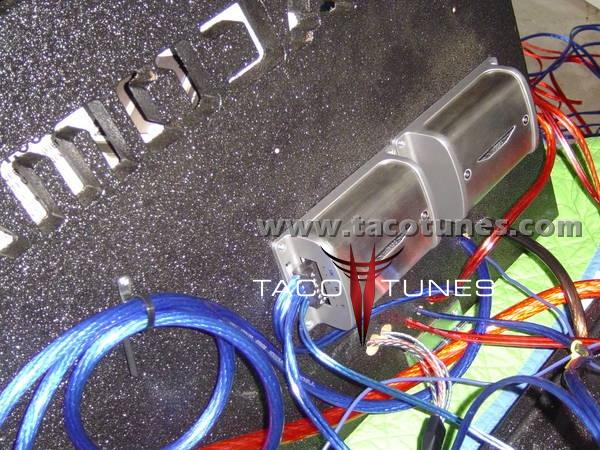

Close up of crossovers. Had to take the covers off to set the correct pins for the speaker setup.

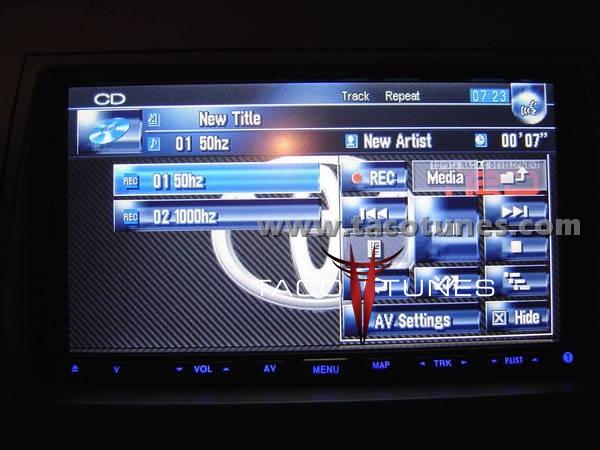

This was in the amp testing stage. I recorded a disk with 10 second clips, one of 1000 hz (for setting gain on 4 channel amp) and the other a 50 hz (for setting gain on single channel sub amp). I had the individual tracks play over and over so I could test the amps and tweek the gain for their respective tones… this is so I’m getting max use of my amps without blowing anything. You can also do this by ear by turning the gain up and listening for distortion and turning back down a little. I just wanted to be a little more precise. I have the formula for finding out these settings if anyone wants it.

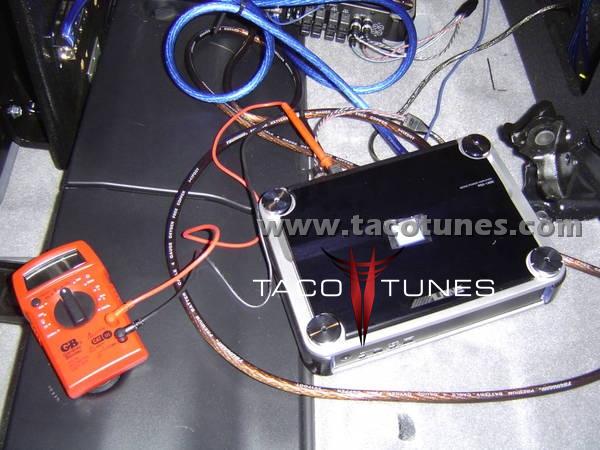

Here’s the multimeter hooked up while the tones play and give me a reading.

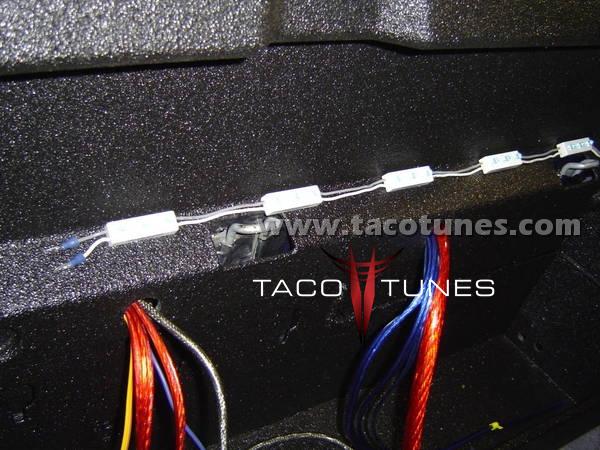

LED’s mounted in the amp box.
Everything hooked up, ready for amps to be installed and connected.

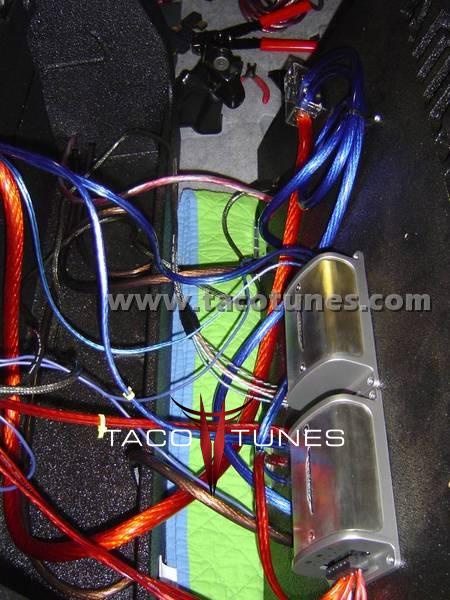

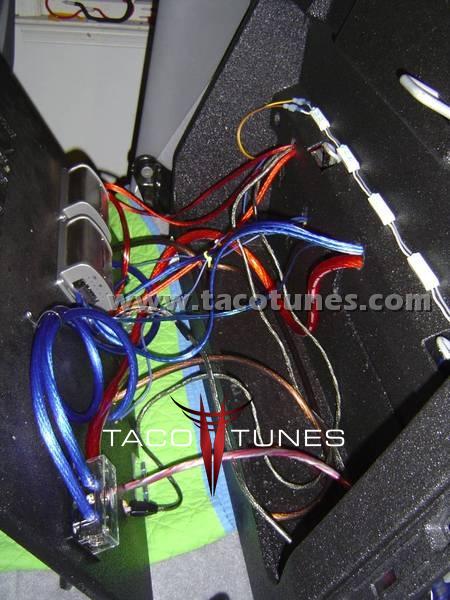

Close up picture of wiring and crossovers.
Another view. Note I have tie wraps cut real low on the rear speaker wires. This is so I didn’t get them confused with the front speaker wires on their respective sides.

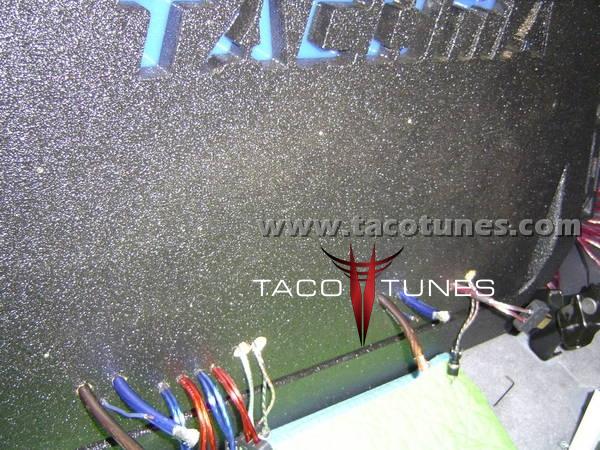

Pulled through, ready for amp install.

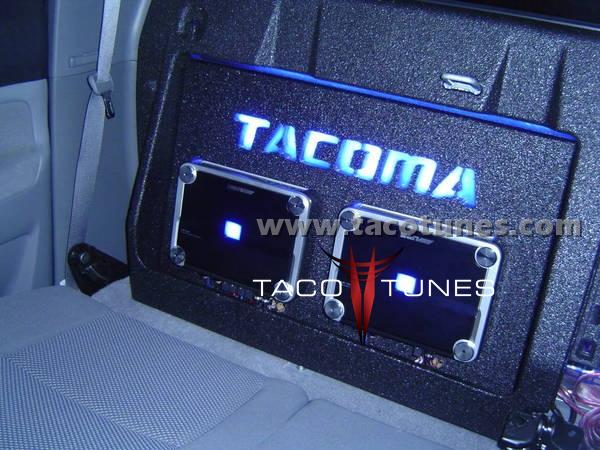

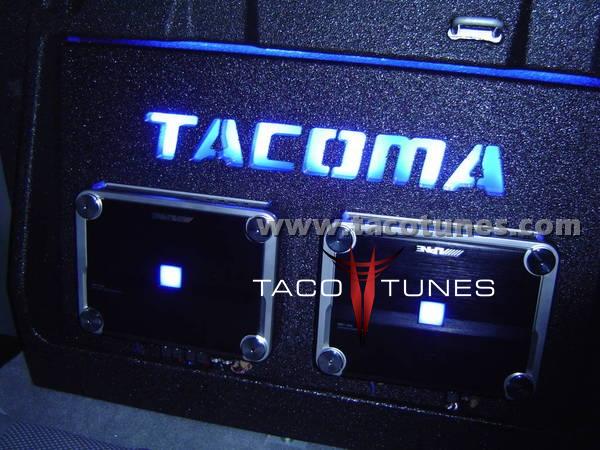

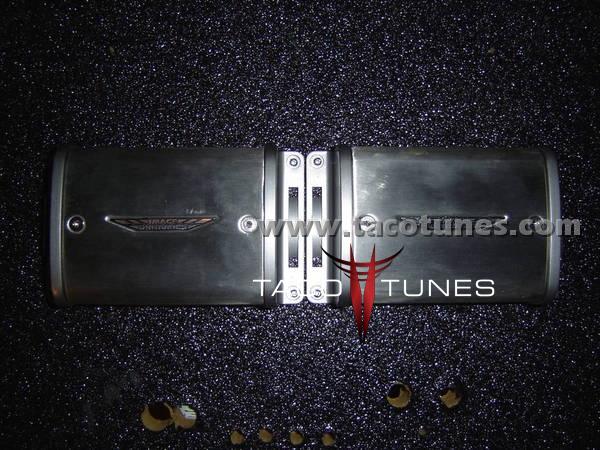

Hooked up… Lit up!
Toyota Tacoma Double Cab Stereo System Installation

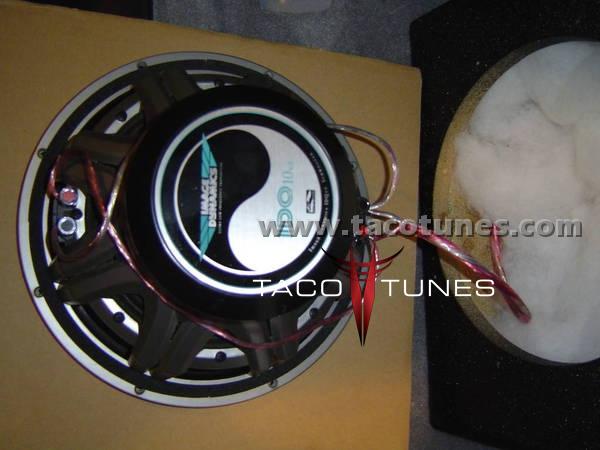

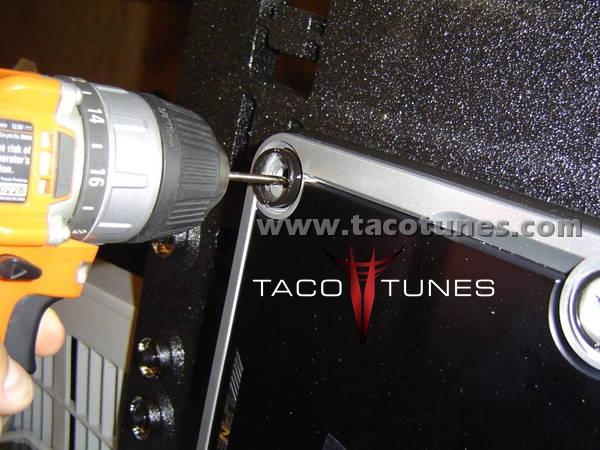

Last piece to the puzzle… installing the sub box to the rear wall and hooking up the sub.

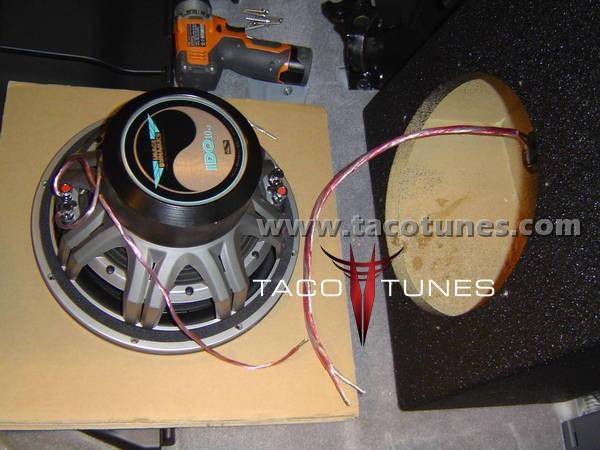

Wired as so…

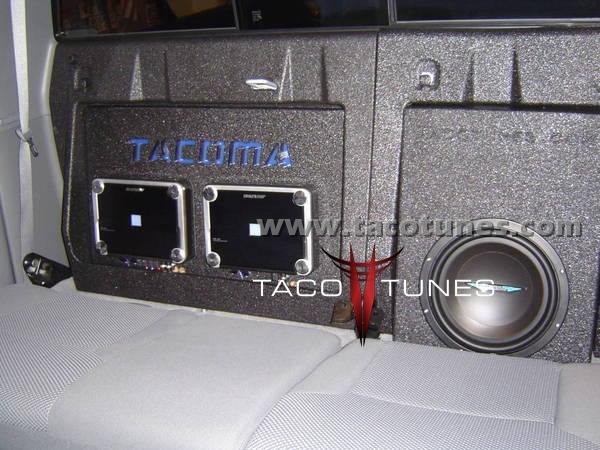

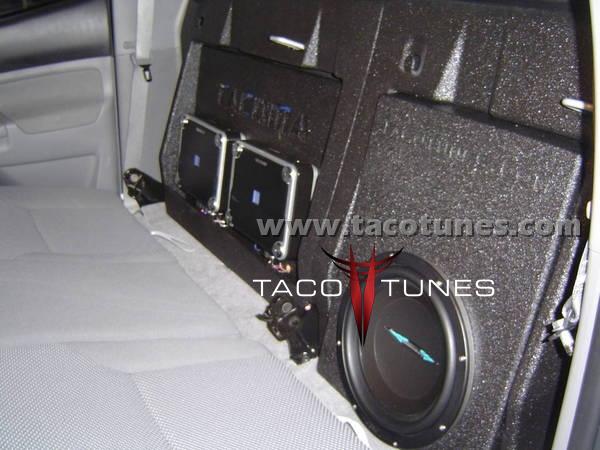

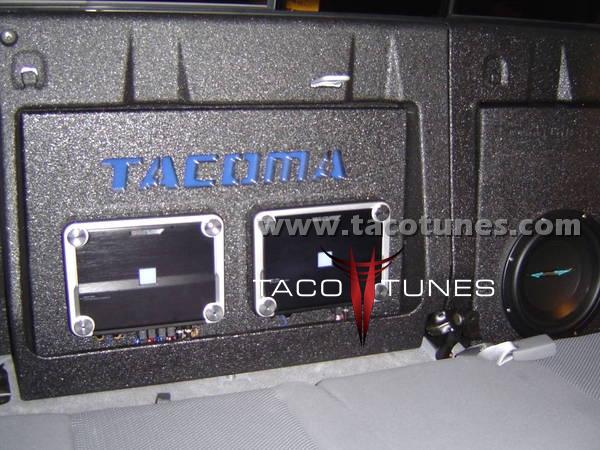

Final product!
Complete Audio System Installation Toyota Tacoma
Complete Audio System Installation Toyota Tacoma

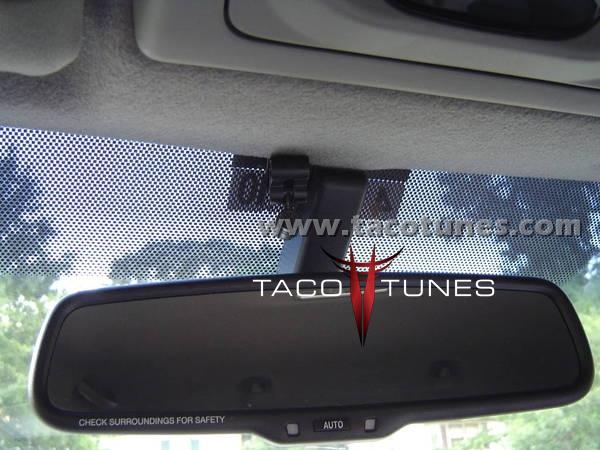

Here is the list of everything installed: Pioneer AVIC-Z2 HDD Navigation Media Center Pioneer GEX-P10XM Receiver w/ Nav Traffic Pioneer CD-IB100II iPod adapter Pioneer ND-BT1 Bluetooth adapter Boyo RearView License Plate Camera PAC SWI-PS steering wheel control unit Image Dynamics XS65 Components (front doors) Image Dynamics CTX65 Coaxials (rear doors) Image Dynamics IDQ D4v3 (sub) Alpine PDX-4.100 Alpine PDX-1.600 Sub Box with polyfill Amp Mounting Board (“Tacoma” cutout with blue plexiglass and LED lighting) Custom Amp Kit (includes power, speaker, RCA wires/fuse block/power distro block/screws, wire connectors, tie wraps) Custom Speaker mounts Fat Mat sound dampener
The pictures are pretty much in sequential order so you can see the process of the install. I’ve also included pics of all the pieces of installed equipment so you can see what I used. Here it goes:
Stock storage bins… those came out with a quickness.
