6×9 speakers that fit Toyota Tacoma These speakers have been test fit to work in the front doors Toyota Tacoma 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014

Below is a list of 6×9 speakers that fit Toyota Tacoma based on customer feedback and field tests. If the speakers you are considering purchasing 6×9 speakers that are not in the list below, please take time to review some important factors in choosing speakers that will work in your Toyota Tacoma. Proper fitment and and power selection are of extreme importance.

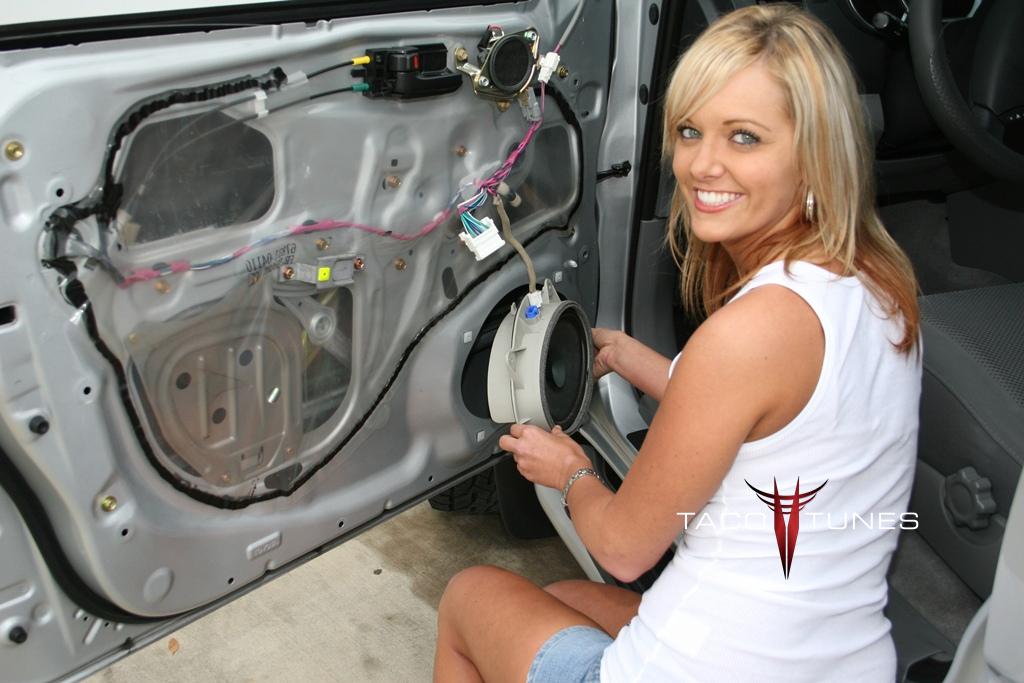

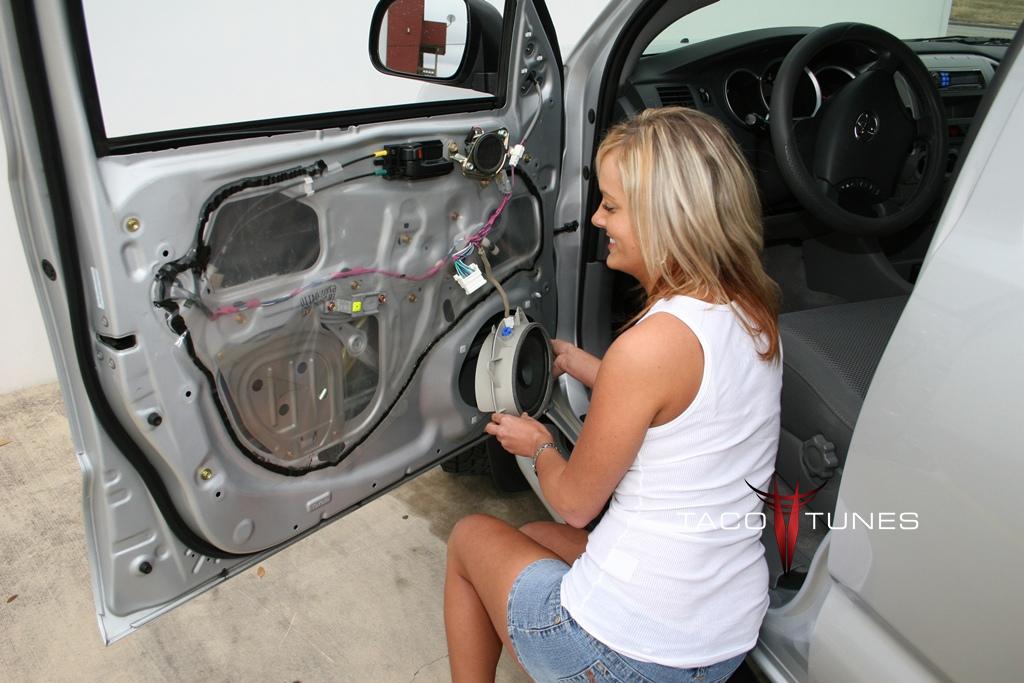

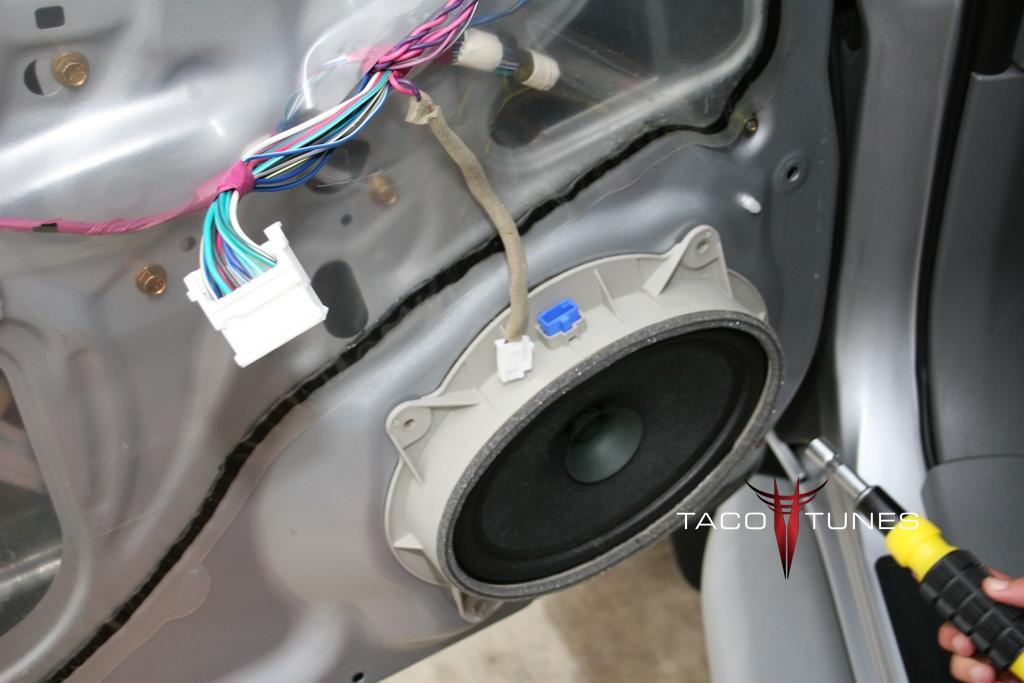

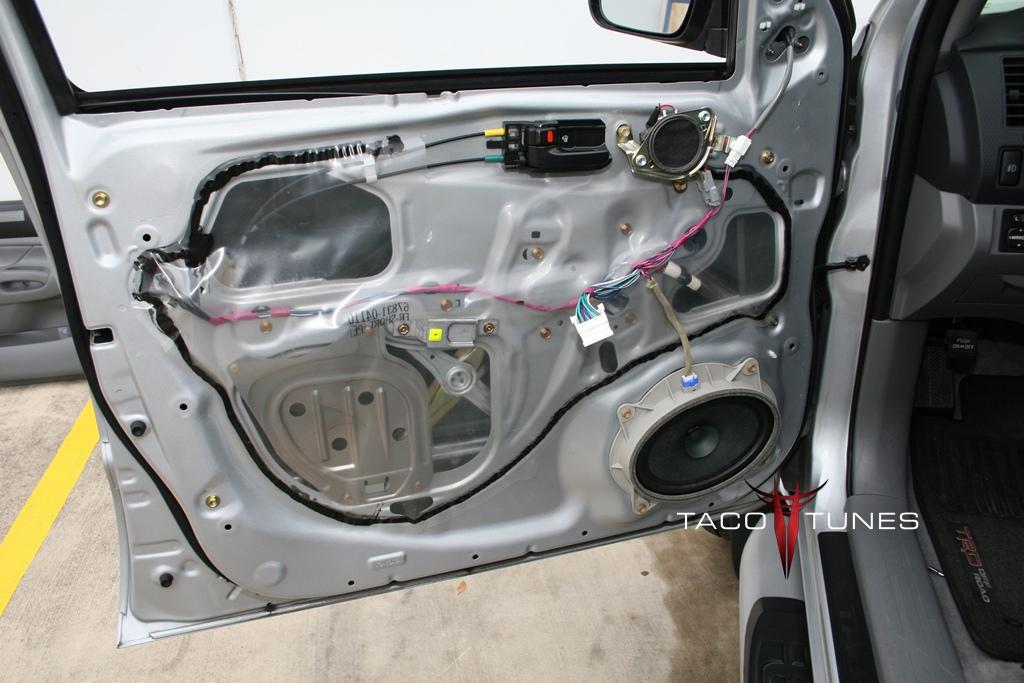

First and foremost in selecting speakers for your Toyota Tacoma is to ensue they will fit. The Double Cab, Access Cab & Xrunner, come stock with 6×9 speakers in the front doors. The regular cab is equipped with 6.5″ speakers. tacotunes.com provides custom designed speaker mounts that allow you to install after market speakers into your Toyota Tacoma. With our kits you can easily install 6×9, 6.5 or 6.75 coaxial and component speakers. The max mounting depth is approximately 3.25″ of top mount depth (TMD) in the Toyota Tacoma These speakers have been test fit to work in the front doors Toyota Tacoma 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014. TMD is the the speaker’s mounting depth when it’s installed as a top-mount. Your Toyota Tacoma will need 3.25″ clearance in order for the speaker to fit properly. As listed below, your speaker manufacture will provide the TMD required for each model speaker.

If I had a dollar for every time a potential customer contacted me to say “my head unit will output 50 watts, what speakers should I get?”, we would not need to sell any products 🙂 First off, most manufacturers will advertise MAX ratings. These MAX ratings have no bearing the real wattage the speakers can handle. You will want to pay attention to RMS or nominal ratings.

NOTE: Consider purchasing our pre-packaged bundles to make installing after market speakers quick and easy!

Image Dynamics 6×9 speakers that fit Toyota Tacoma

[table]Model:,Speaker Size,Design,Tweeter Design,Tweeter Composition,Woofer Composition,Woofer Surround,RMS Power Handling,Sensitivity,Frequency Response,Impedance (Per Voice Coil),Top-Mount Depth
Image Dynamics CTX-69,”6″” x 9″””,2-way,Dome,Silk,Poly-Mica,Butyl Rubber,100 watts,90 dB,”48 – 22,000 Hz”,4 ohms,”3″””
Image Dynamics XS-69,”6″” x 9″””,2-way Component System,Soft Dome,Silk,Ceramic Fiber,Rubber,150 watts,93 dB,”45 – 25,000 Hz”,4 ohms,”3-5/8″””
[/table]

Alpine 6×9 speakers that fit Toyota Tacoma

[table]Brand / Model,Top-Mount Depth,RMS Power Handling,Sensitivity,Tweeter Composition,Woofer Composition,Woofer Surround,,Frequency Response,Impedance
Alpine SPE-6090,”3″””,75 watts,91 dB,Silk,Polypropylene,Rubber,,”65 – 18,000 Hz”,4 ohms
Alpine SPR-69,”2-7/8″””,100 watts,90 dB,Silk,Hybrid Layered Pulp,Santoprene Rubber,,”60 – 28,000 Hz”,4 ohms
Alpine SPS-619,”3″””,85 watts,90 dB,Silk,Polymer/Mica Composite,Butyl Rubber,,”65 – 23,000 Hz”,4 ohms
Alpine SPR-69C,”3″””,100 watts,89 dB,Silk,Hybrid Layered Pulp,Rubber,,60 – 27000 Hz,4 ohms
[/table]

Pioneer 6×9 Speakers that fit Toyota Tacoma

[table]Brand / Model,Top-Mount Depth,RMS Power Handling,Sensitivity,Tweeter Composition,Woofer Composition,Woofer Surround,,Frequency Response,Impedance
Pioneer TS-A6964R,”2-7/8″””,40 watts,91 dB,N/A,Carbon Graphite IMPP Interlaced Aramid Fiber,Foamed Rubber,,”31 – 37,000 Hz”,4 ohms
Pioneer TS-A6965R,”2-7/8″””,60 watts,92 dB,N/A,Mica Reinforced Cellular Glass-Fiber,Elastic Polymer,,35 – 37000 Hz,4 ohms
Pioneer TS-A6974R,”3-1/4″””,80 watts,91 dB,PET,Carbon Graphite IMPP Interlaced Aramid Fiber,Elastic Polymer,,”27 – 27,000 Hz”,4 ohms
Pioneer TS-A6985R,”3-1/8″””,100 watts,91 dB,N/A,Mica Reinforced Cellular Glass-Fiber,Elastic Polymer,,27 – 38000 Hz,4 ohms
Pioneer TS-A6983R,”3-1/4″””,80 watts,92 dB,N/A,Carbon Graphite IMPP Interlaced Aramid Fiber,Polymer,,30 – 31000 Hz,4 ohms
[/table]

Infinity 6×9 speakers that fit Toyota Tacoma

[table]Brand / Model,Top-Mount Depth,RMS Power Handling,Sensitivity,Tweeter Composition,Woofer Composition,Woofer Surround,,Frequency Response,Impedance
Infinity Kappa 693.9I,”3-1/4″””,110 watts,96 dB,Metal Matrix Diaphragm,Woven Glass Fiber,Rubber,,35 – 30000 Hz,2 ohms
Infinity Reference 9632cf,”3-1/16″””,100 watts,94 dB,Textile,Injection Molded Polypropylene (IMPP),Rubber,,”46 – 21,000 Hz”,2 ohms
Infinity Reference 9633cf,”3-1/16″””,100 watts,94 dB,Textile,Injection Molded Polypropylene (IMPP),Rubber,,”46 – 30,000 Hz”,2 ohms
Infinity REF-9603ix,”3″””,100 watts,94 dB,Textile,Polypropylene,Rubber,,46 – 21000 Hz,3 ohms
Infinity REF-9602ix,”3″””,100 watts,94 dB,Textile,Polypropylene,Rubber,,46 – 21000 Hz,3 ohms
Infinity Kappa 693.9I + Sound Dampening,”3-1/4″””,110 watts,96 dB,Metal Matrix Diaphragm,Woven Glass Fiber,Rubber,,35 – 30000 Hz,2 ohms
Infinity Kappa 692.9I,”3-1/4″””,110 watts,96 dB,Metal Matrix Diaphragm,Woven Glass Fiber,Rubber,,35 – 25000 Hz,2 ohms [/table]

Rockford Fosgate 6×9 speakers that fit Toyota Tacoma

[table]Brand / Model,Top-Mount Depth,RMS Power Handling,Sensitivity,Tweeter Composition,Woofer Composition,Woofer Surround,,Frequency Response,Impedance
Rockford Fosgate P1694,”3″””,75 watts,90 dB,PEI (Polyetherimide),Mica Injected Polypropylene (MIPP),Butyl Rubber,,40 – 21000 Hz,4 ohms
Rockford Fosgate P1692,”3″””,75 watts,91 dB,PEI (Polyetherimide),Mineral-Filled Polypropylene,Butyl Rubber,,”60 – 22,000 Hz”,4 ohms
Rockford Fosgate PRIME R1693,”2-7/8″””,60 watts,90 dB,Mylar,Mica Injected Polypropylene (MIPP),Foam,,”48 – 22,000 Hz”,4 ohms
Rockford Fosgate R1694,”2-7/8″””,60 watts,90 dB,Mylar,Mica Injected Polypropylene (MIPP),Treated Foam,,48 – 22000 Hz,4 ohms
[/table]

Kenwood 6×9 speakers that fit Toyota Tacoma

[table]Brand / Model,Top-Mount Depth,RMS Power Handling,Sensitivity,Tweeter Composition,Woofer Composition,Woofer Surround,,Frequency Response,Impedance
Kenwood KFC-6994PS,”3-1/16″””,120 watts,89 dB,Paper,Polypropylene,Urethane,,63 – 18000 Hz,4 ohms
[/table]

Kicker 6×9 speakers that fit Toyota Tacoma

[table]Brand / Model,Top-Mount Depth,RMS Power Handling,Sensitivity,Tweeter Composition,Woofer Composition,Woofer Surround,,Frequency Response,Impedance
Kicker DS693,”3-1/4″””,70 watts,92 dB,PEN,Polypropylene,Ribbed Poly-Foam,,30 – 20000 Hz,4 ohms
Kicker KS693 (11KS693),”3-3/16″””,100 watts,92 dB,Titanium,Injection Molded Polypropylene (IMPP),Santoprene Rubber,,30 – 21000 Hz,4 ohms
Kicker KS6930,”3-3/16″””,100 watts,92 dB,Kaladex,Injection Molded Polypropylene (IMPP),Santoprene Rubber,,30 – 21000 Hz,4 ohms
Kicker KS69,”3-3/16″””,90 watts,92 dB,Titanium,Injection Molded Polypropylene (IMPP),Santoprene Rubber,,”30 – 21,000 Hz”,4 ohms
[/table]

Polk Audio 6×9 speakers that fit Toyota Tacoma

[table]Brand / Model,Top-Mount Depth,RMS Power Handling,Sensitivity,Tweeter Composition,Woofer Composition,Woofer Surround,,Frequency Response,Impedance
Polk Audio db691,”3-3/16″””,100 watts,93 dB,Silk-Polymer Composite,Polymer/Mica Composite,Butyl Rubber,,35 – 22000 Hz,4 ohms
Polk Audio MM691,”3-3/16″””,125 watts,94 dB,Silk,Woven Glass Fiber,Butyl Rubber,,30 – 25000 Hz,2.7
[/table]
