Alfredo’s Toyota Tundra CrewMax 1794 Edition Complete Audio Upgrade San Antonio TX

Alfredo drove 3 hours from S. Texas to have us install the Kicker SQ1 pacakge in his Toyota Tundra Crewmax

Installation Summary / History:

Toyota Year / Model: 2015 Toyota Tundra CrewMax 1794 Edition

Head Unit: NON JBL

Color: Black

Interior: 1794

System Installed: Kicker SQ1







Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Jon’s Tundra CrewMax

Front Door Component Speakers:

Kicker KSS67 Component Speakers

Tacotunes.com heavy duty speaker mounts cut to 5.6”

KSS Mid bass Drivers -100 Watts RMS

KSS Crossover

KSS Dome Tweeter

NOTE: JBL equipped

Use Stock Sail Panel for Tweeter mounts.

Rear Door Components:

Kicker KSS



Tweeters will fit in stock door location

Sound Processor:

Tacotunes.com ReCurve EZQ

Tacotunes.com JBL Harness

Amp:

Exile Audio 5 channel amp

100 watts x 4 to each speaker and 800 x 1 (subwoofer)

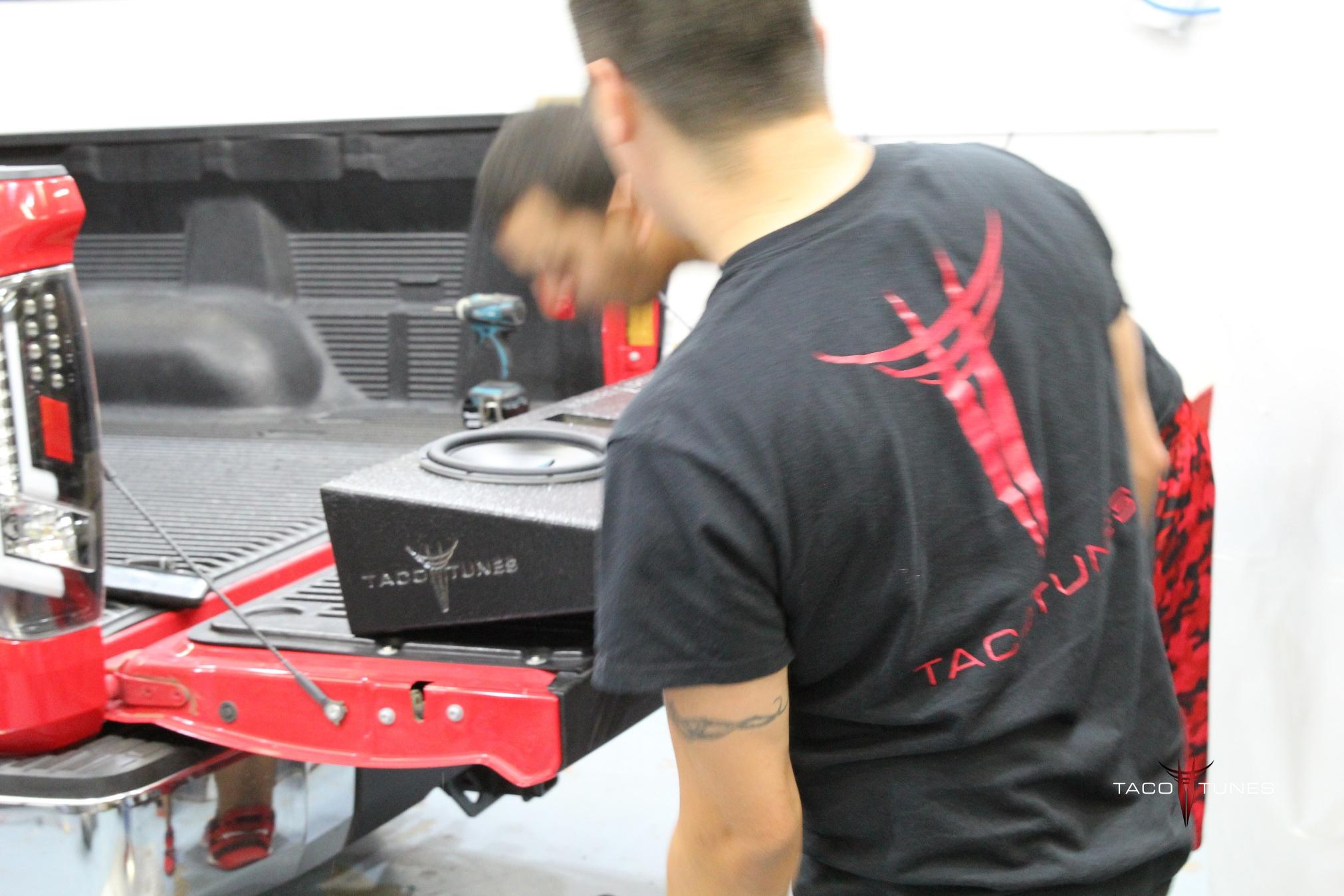

Subwoofer(s):

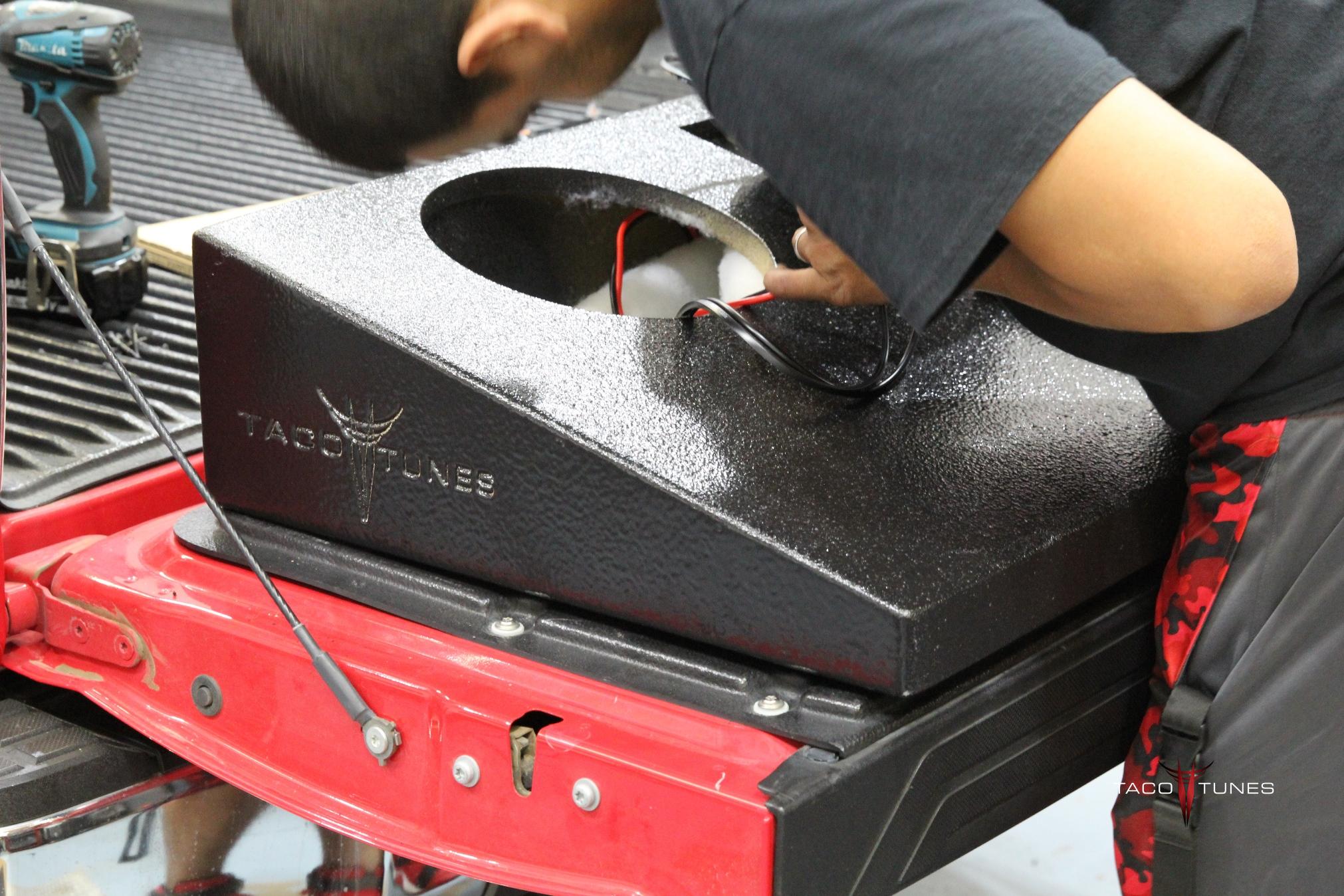

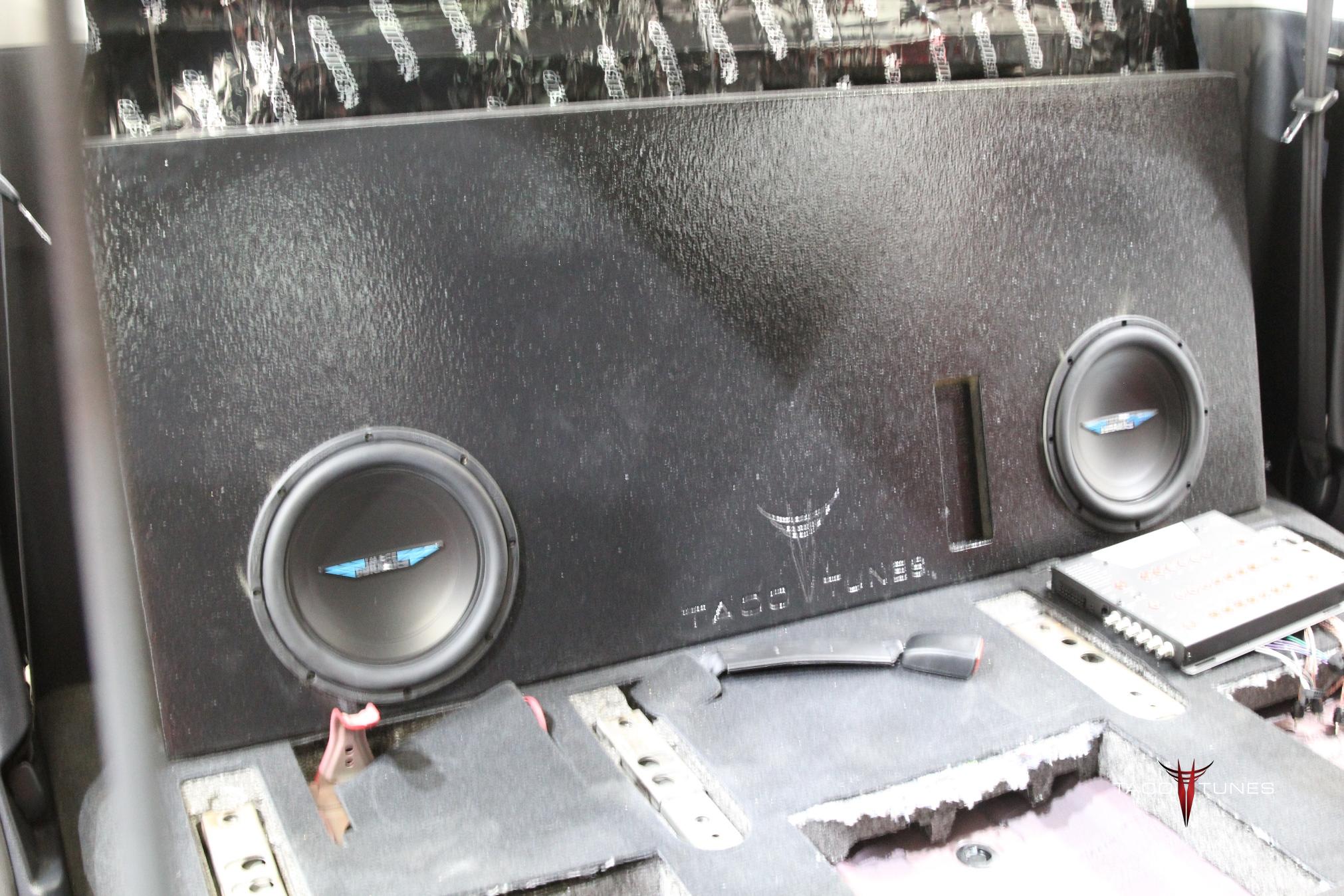

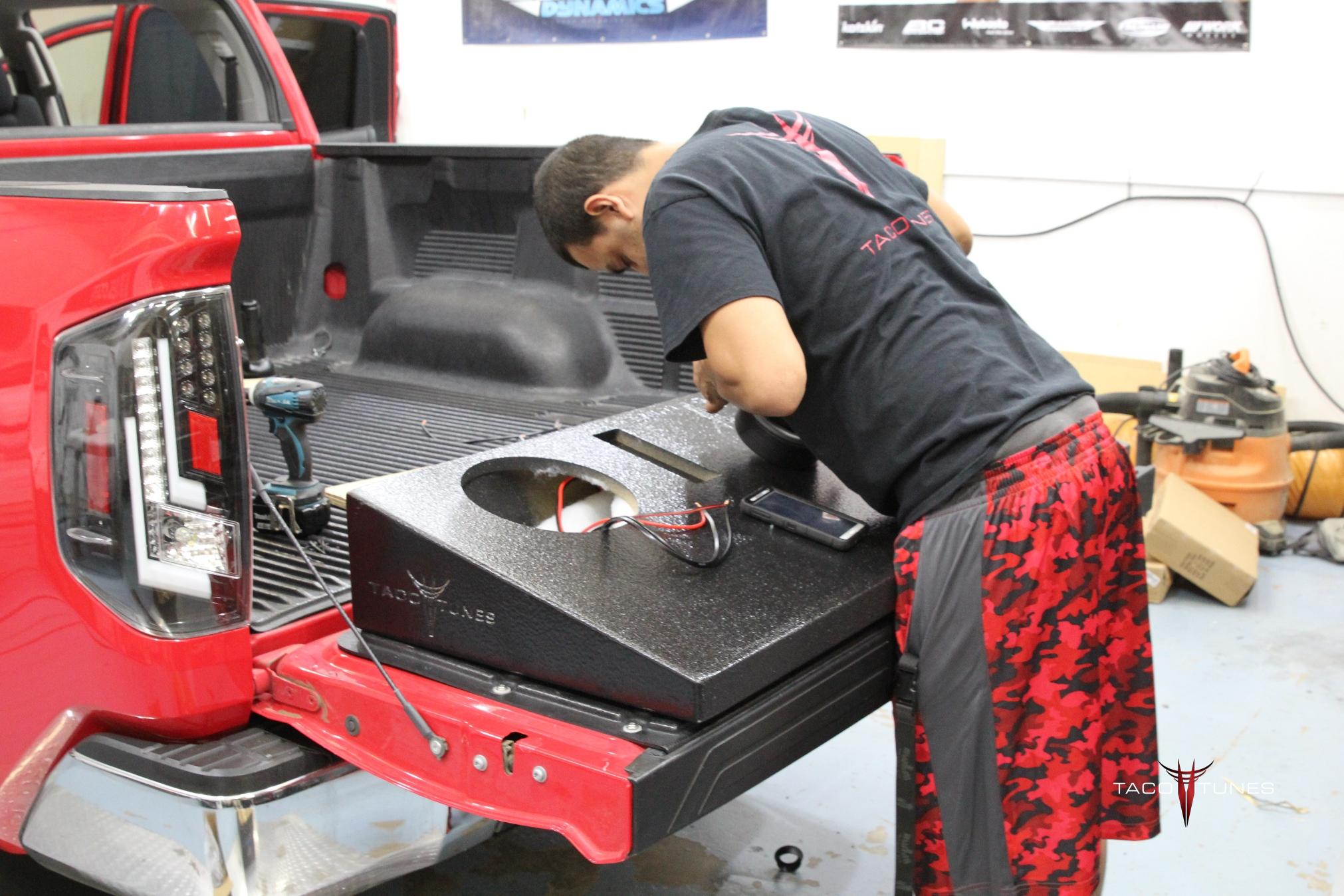

Subwoofer Box & Subwoofers

Kicker L7 8″ Square x 2 Subwoofers

Tundra Install kit:

Stereo & Wiring Installation kit:

Stinger Power, Speaker and Signal Cables:

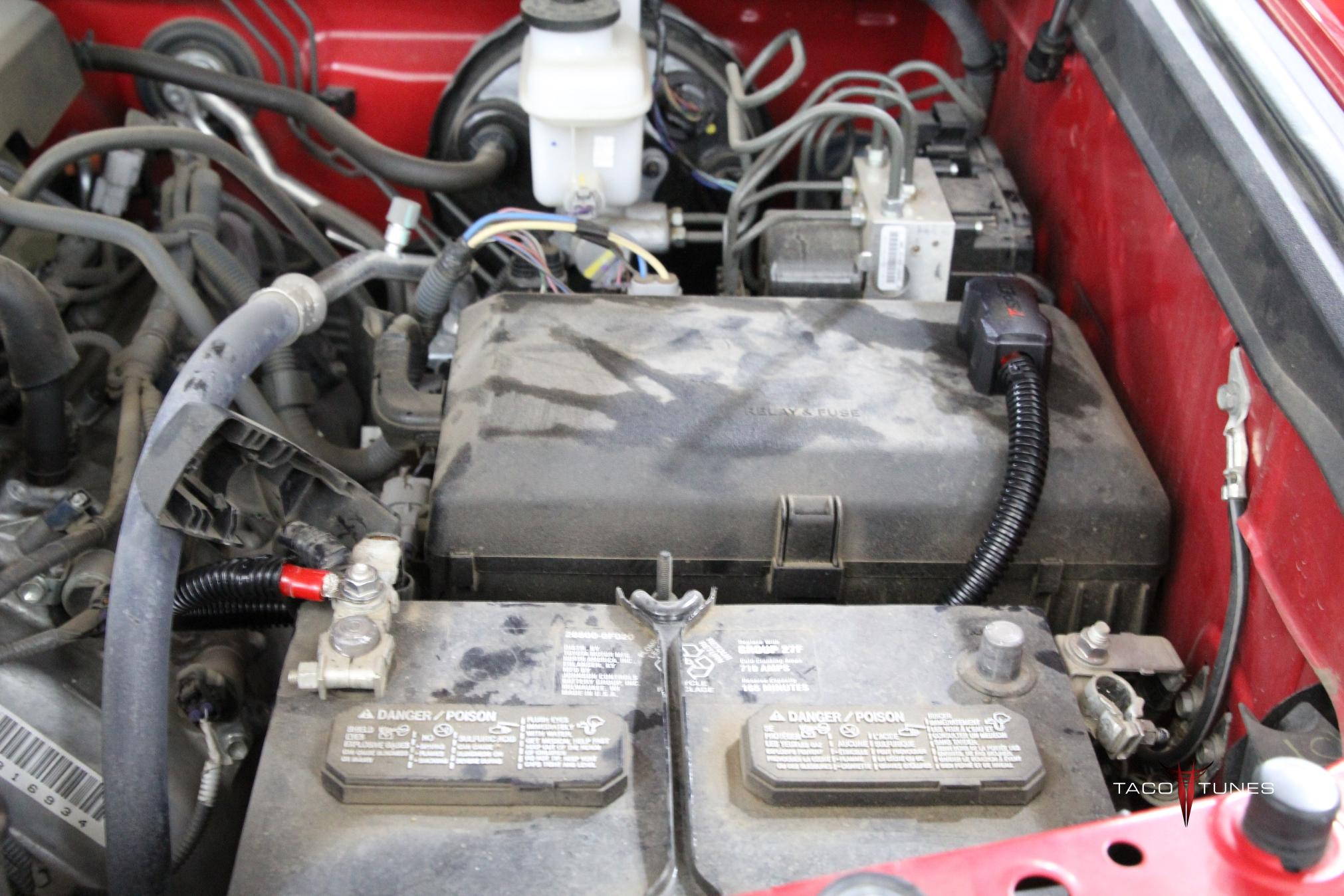

Positive:

Stinger 3′ POWER CABLE 4GA – Ring Terminal Attached

Stinger 13′ POWER CABLE 4GA

Negative:

Stinger 4′ POWER CABLE 4GA – Ring Terminal Attached

Color Coded Speaker Wire:

Stinger 50′ 16GA Black Speaker Wire (Driver Side Speakers)

Stinger 50′ 16GA Silver Speaker Wire (Passenger Side Speakers)

Stinger 25′ 18GA Black Speaker wire (Driver Side Tweeters)

Stinger 50′ 18GA Silver Speaker Wire (Passenger Side Tweeters)

Stinger 50’ 12Ga Black Subwoofer Wire

RCA Signal Cables:

1 Stinger RCA CABLE 12 Ft Twisted Pair – 6 Channel (Front / Rear / Sub)

Misc Items:

35′ Primary Blue Remote Turn on wire

6′ 3/4 Split Loom

T-Spec ANL Fuse Holder

T-Spec 100 Amp ANL Fuse

10 Crimp Caps

8 Speaker Terminals .25 (Door speakers)

4 Speaker Terminals .187 (tweeters)

4 Speaker Terminal .25 (subwoofer)

15 Small Zip Ties

15 Large Zip Ties

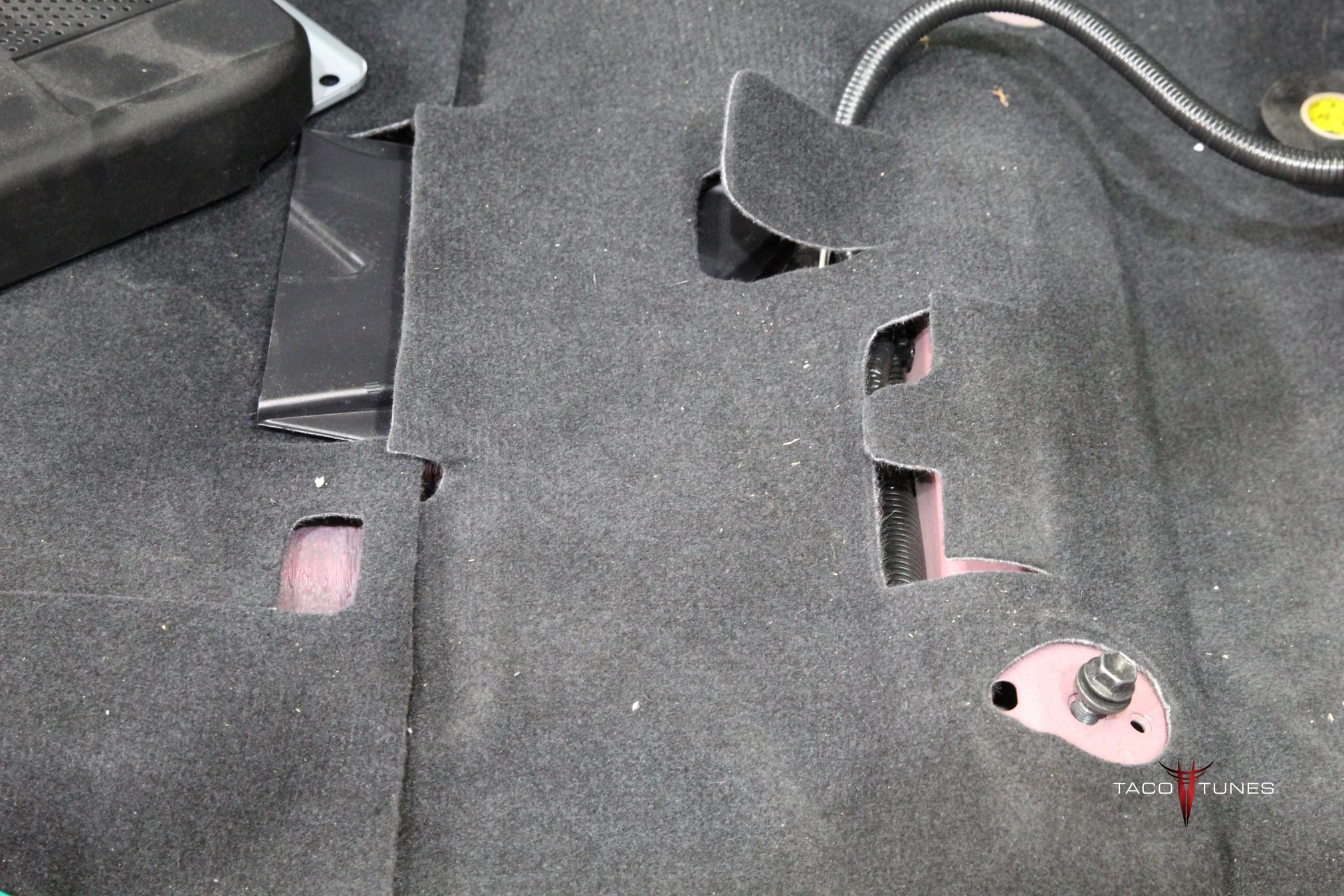

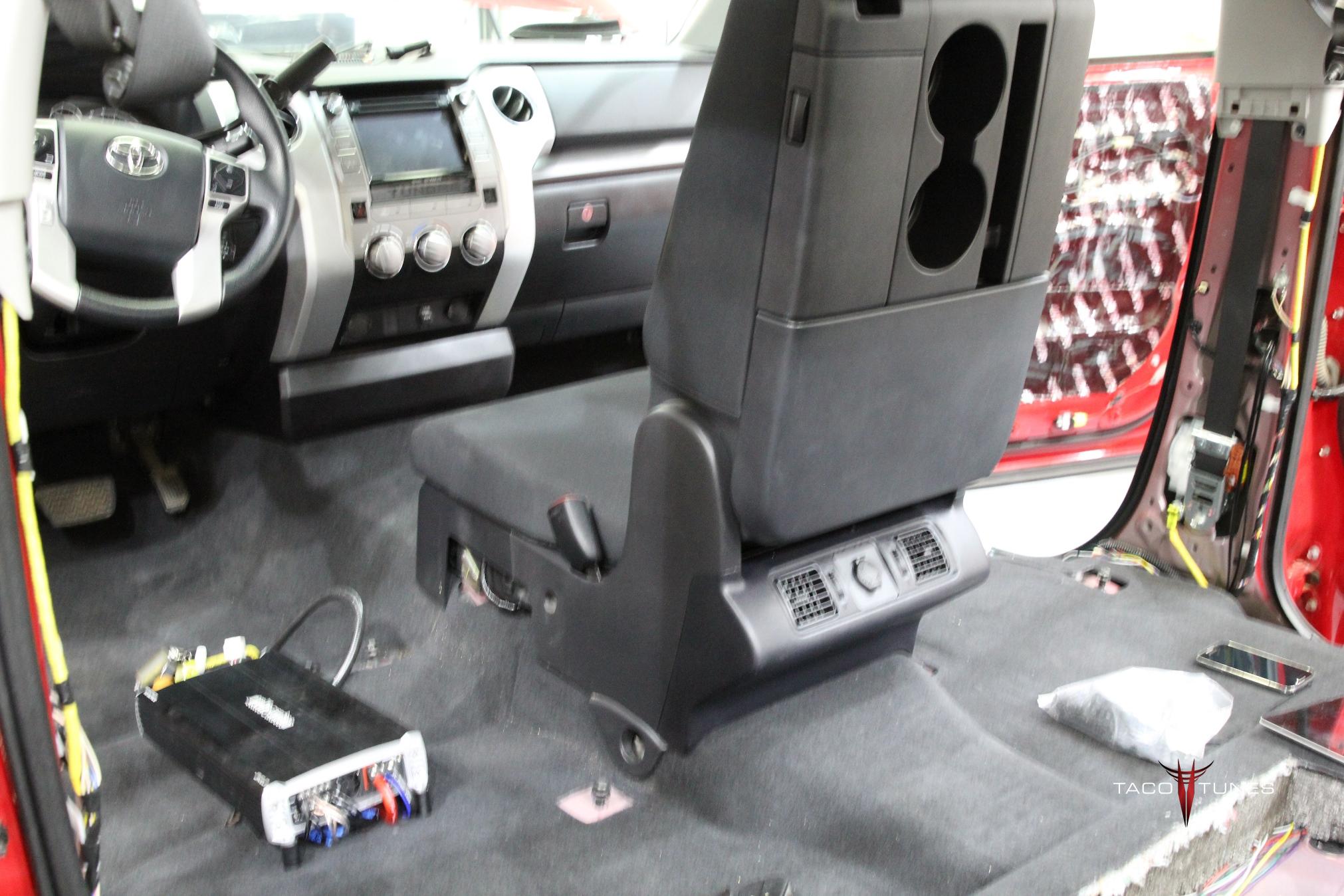

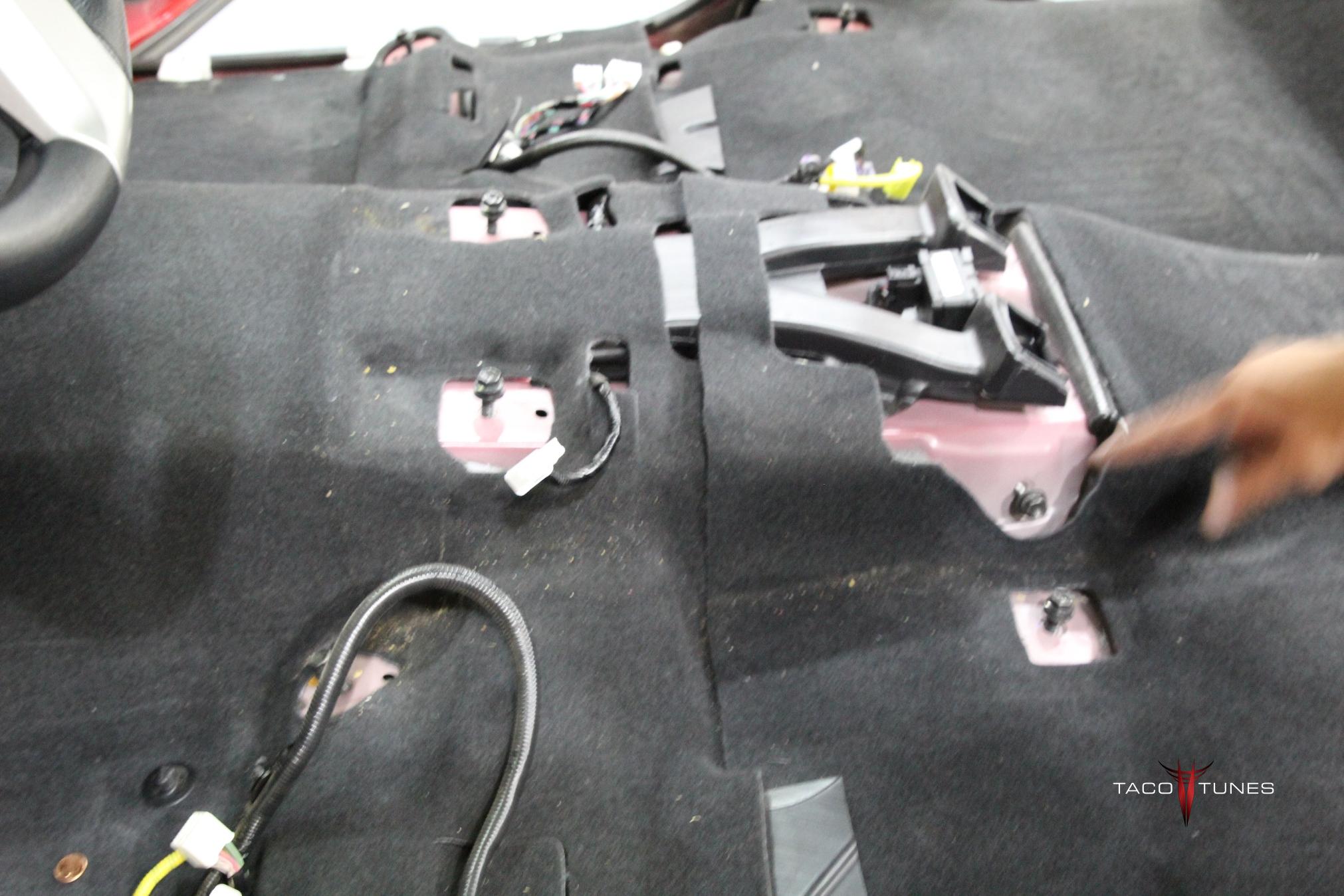

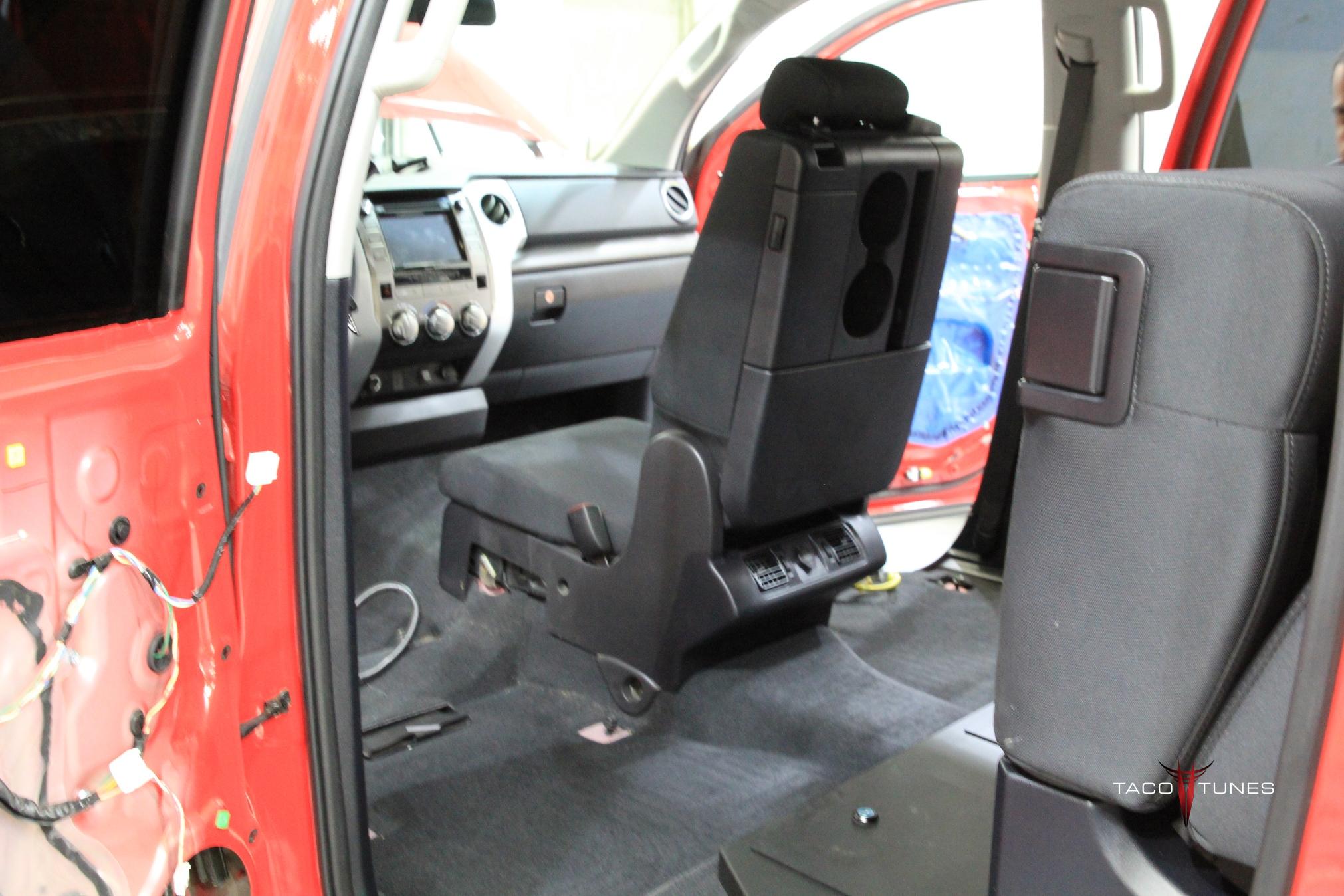

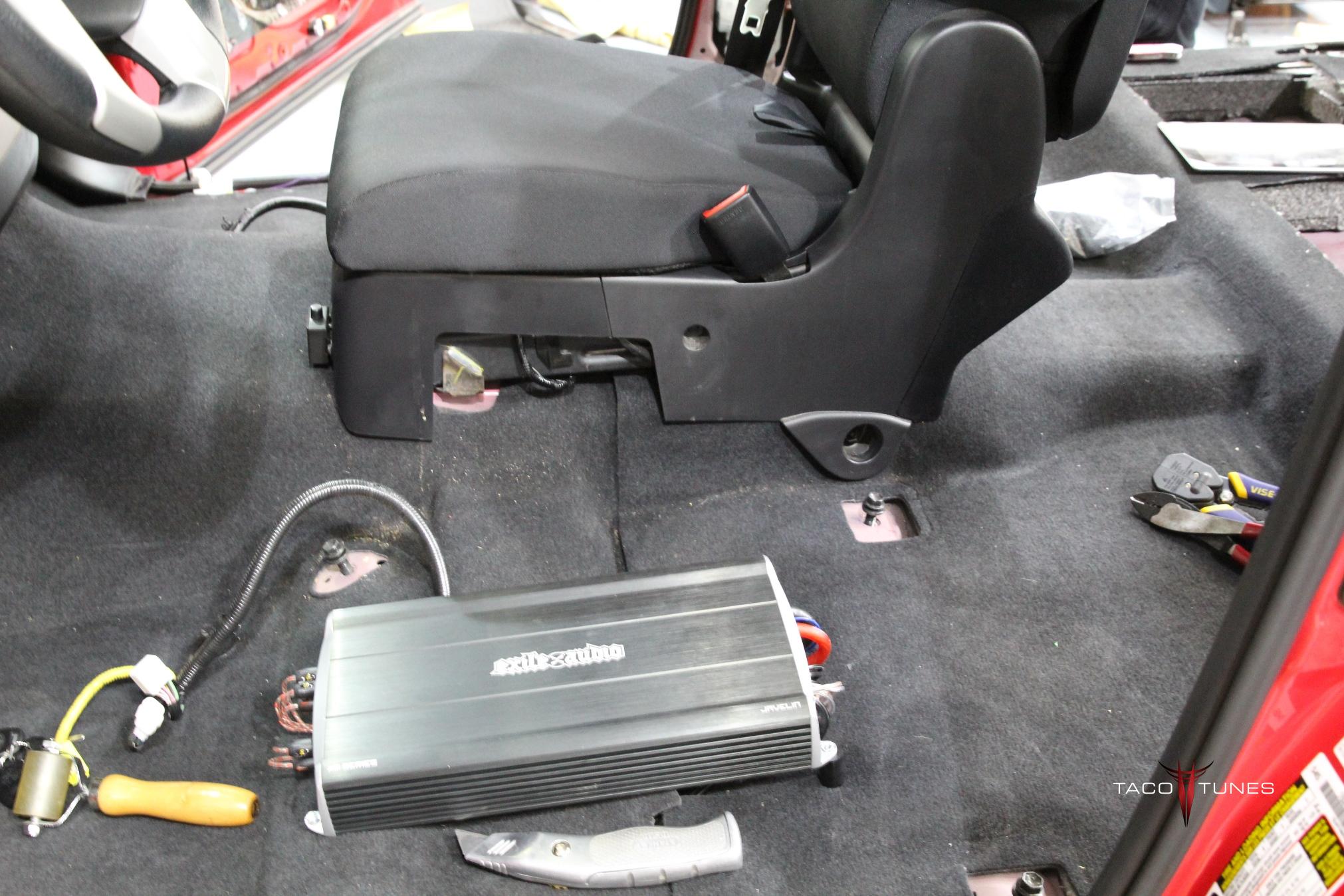

Under Seat – Amp Mounting Gear:

2 Nylons Spacers

2 Self Tapping Screws

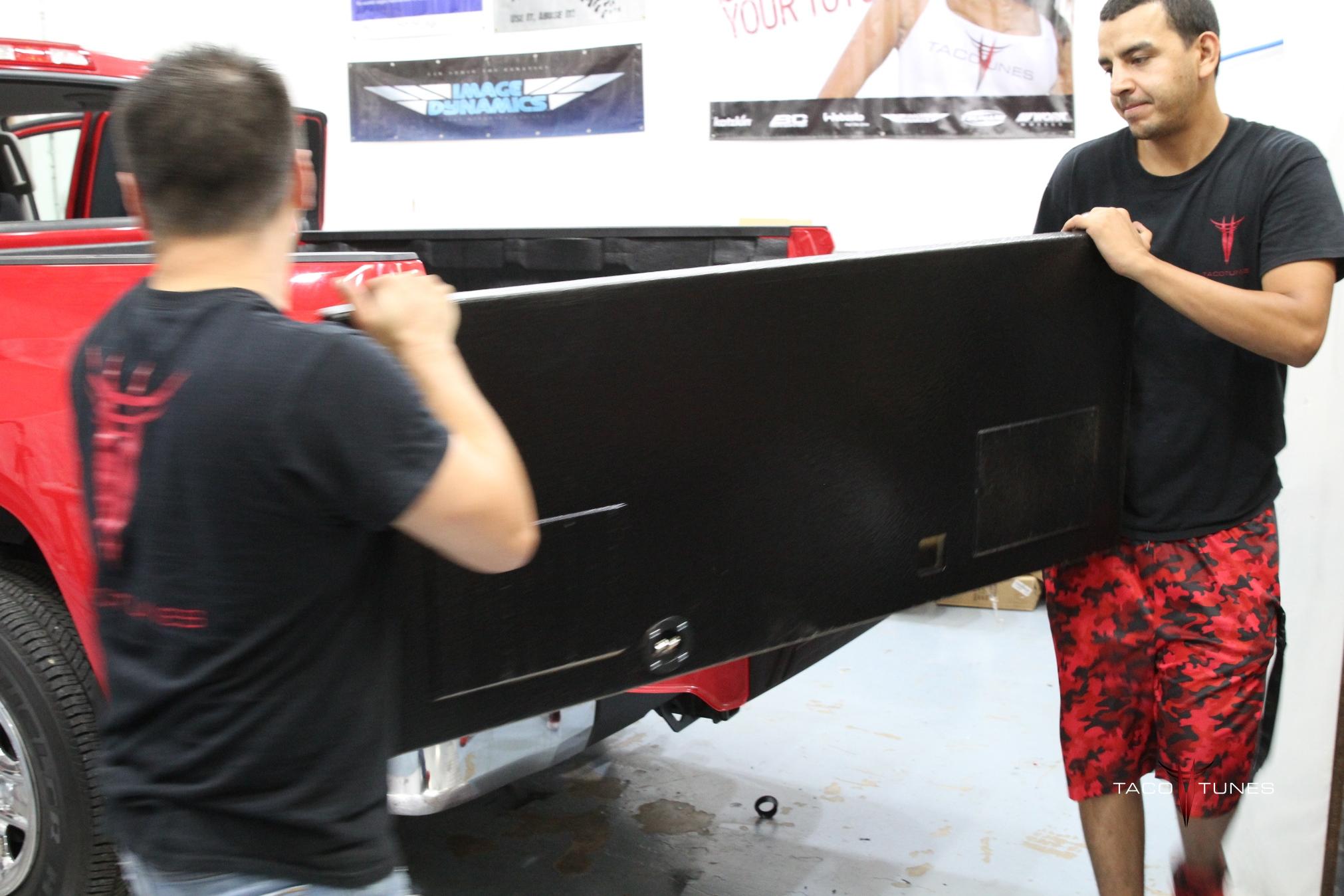

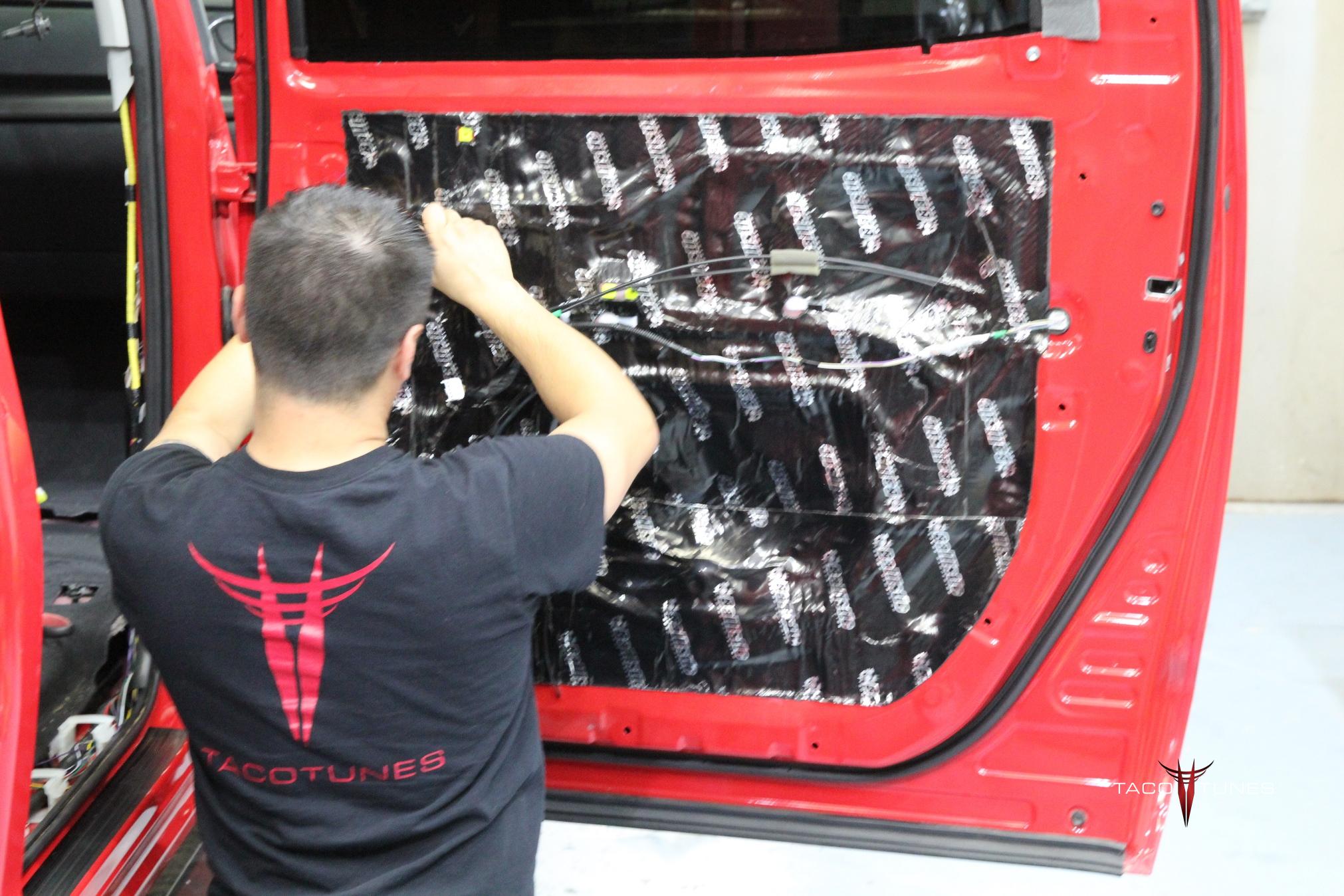

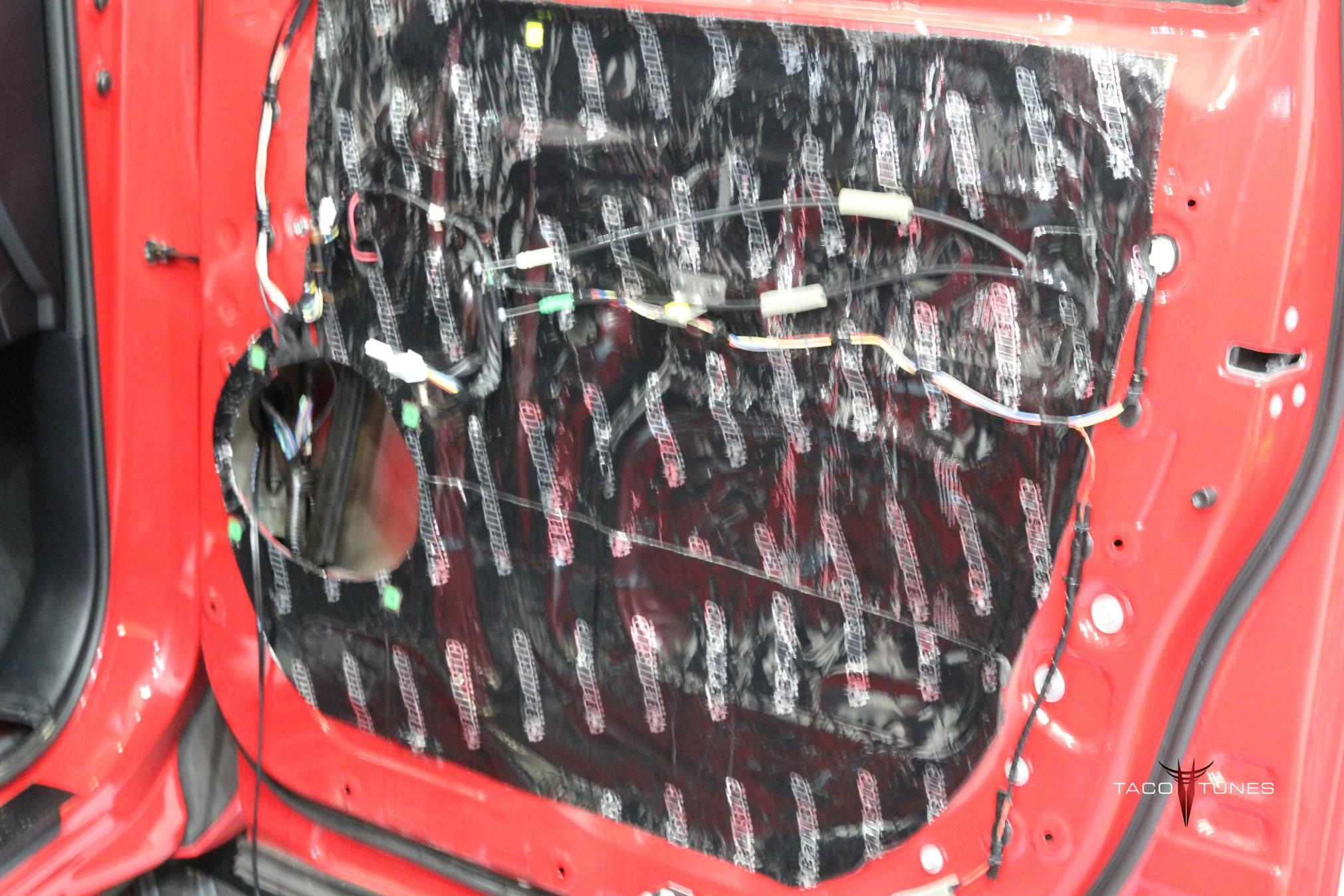

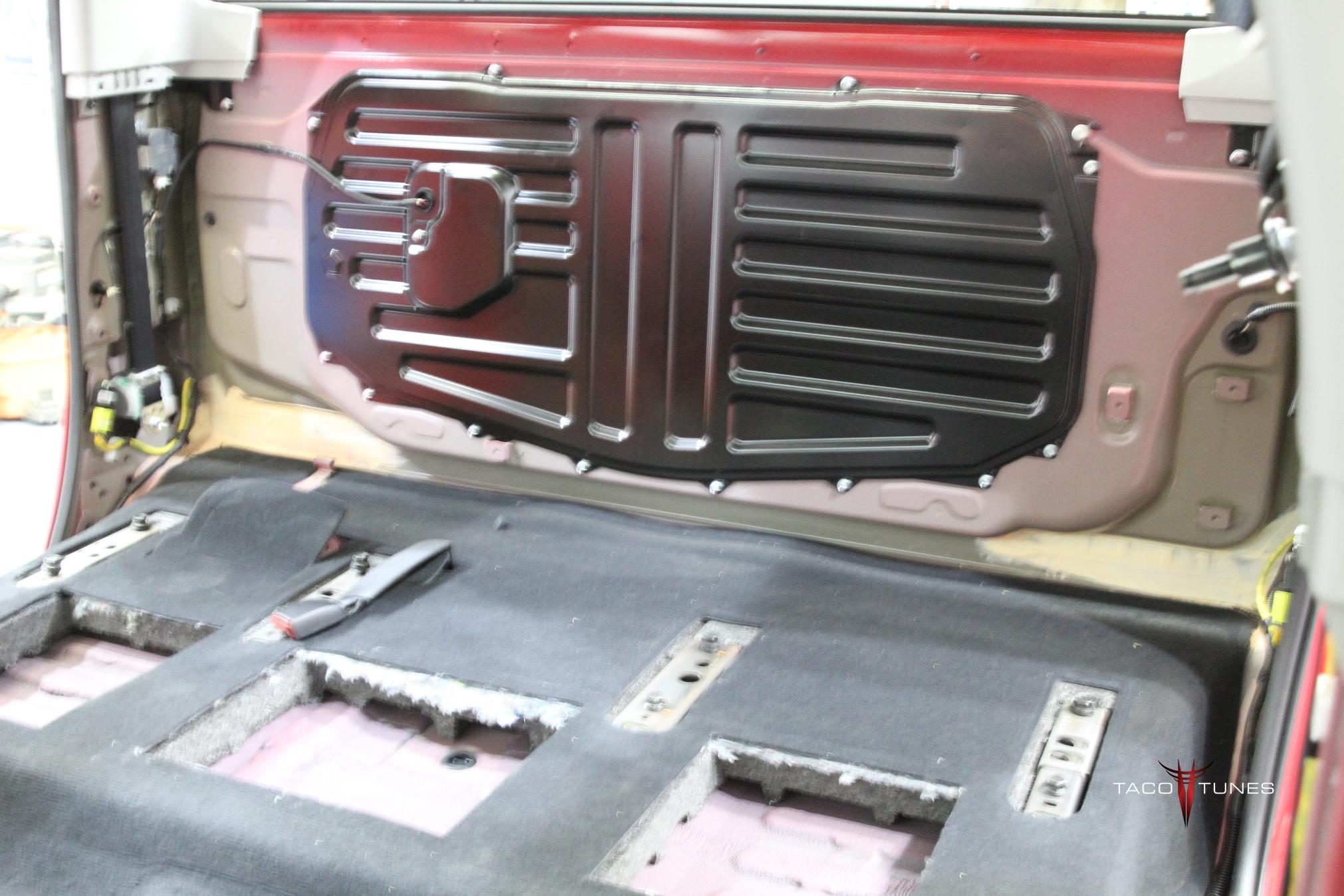

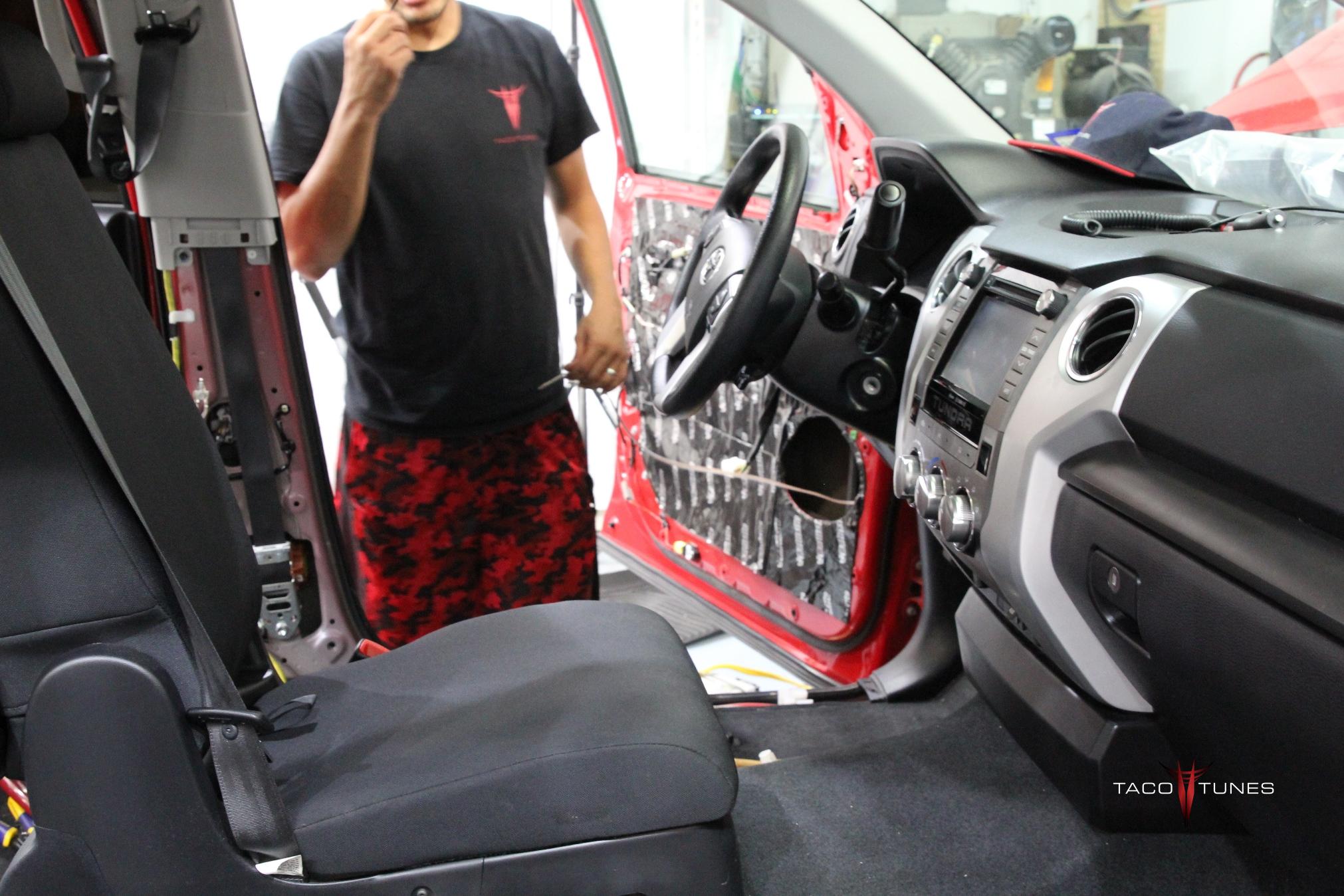

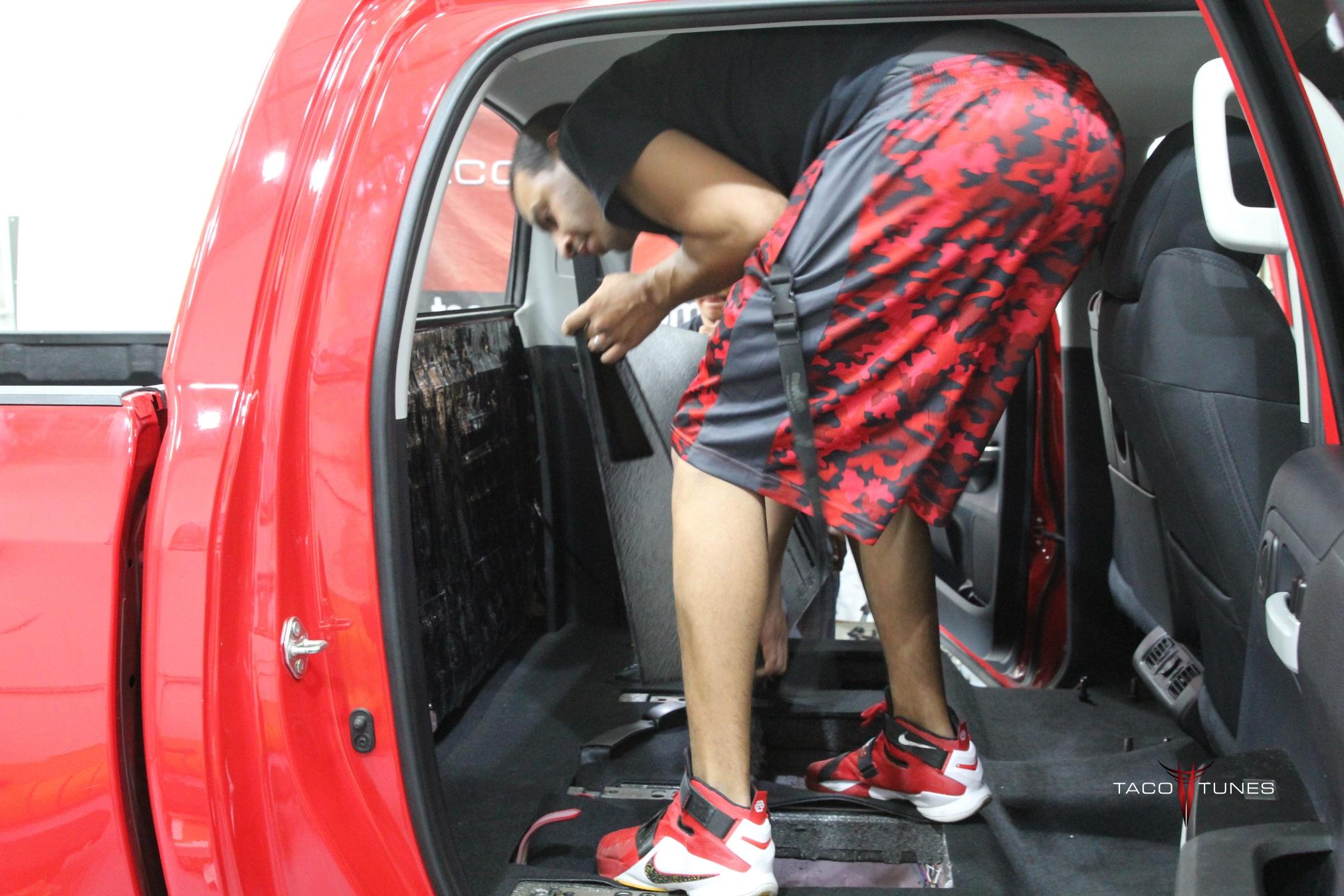

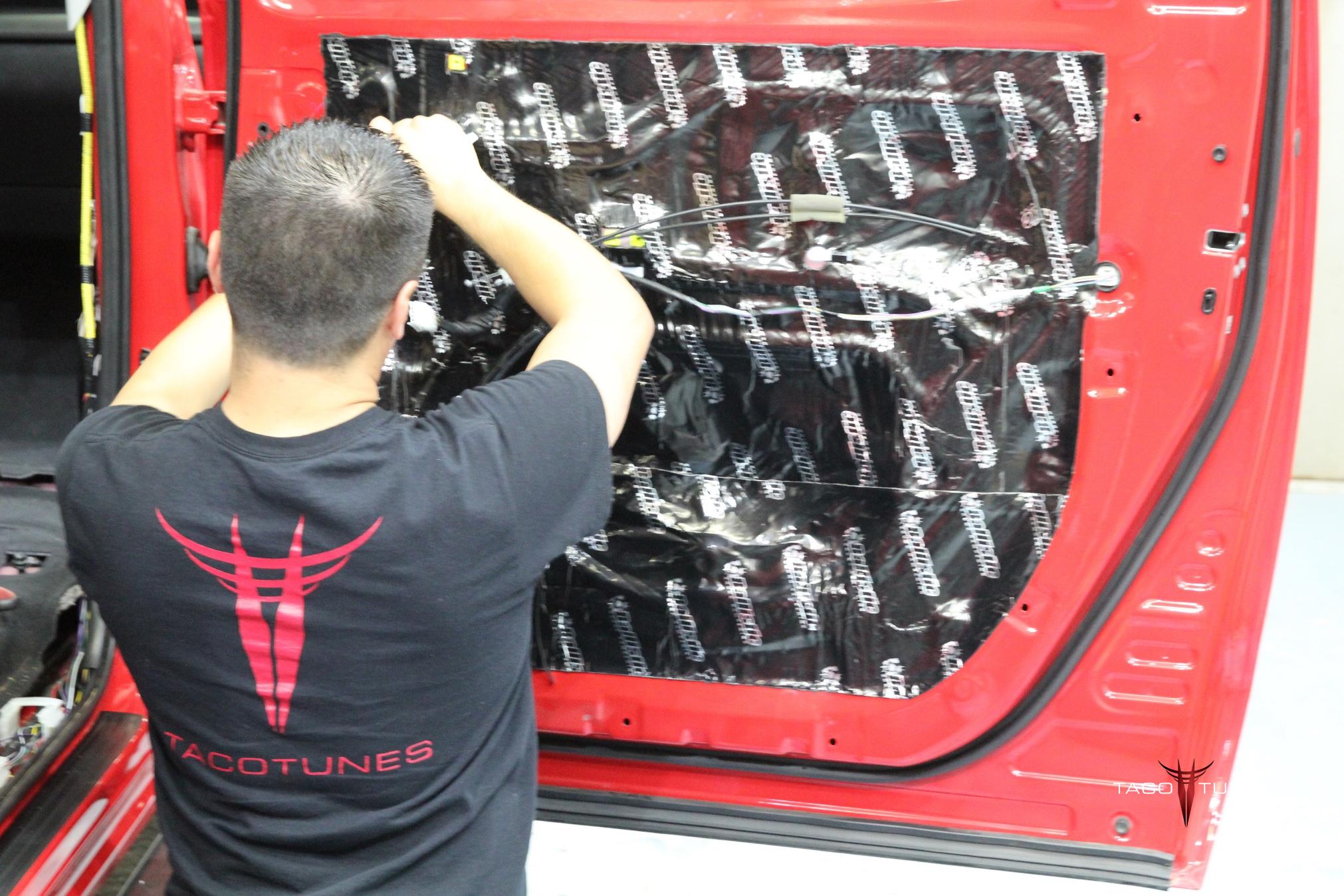

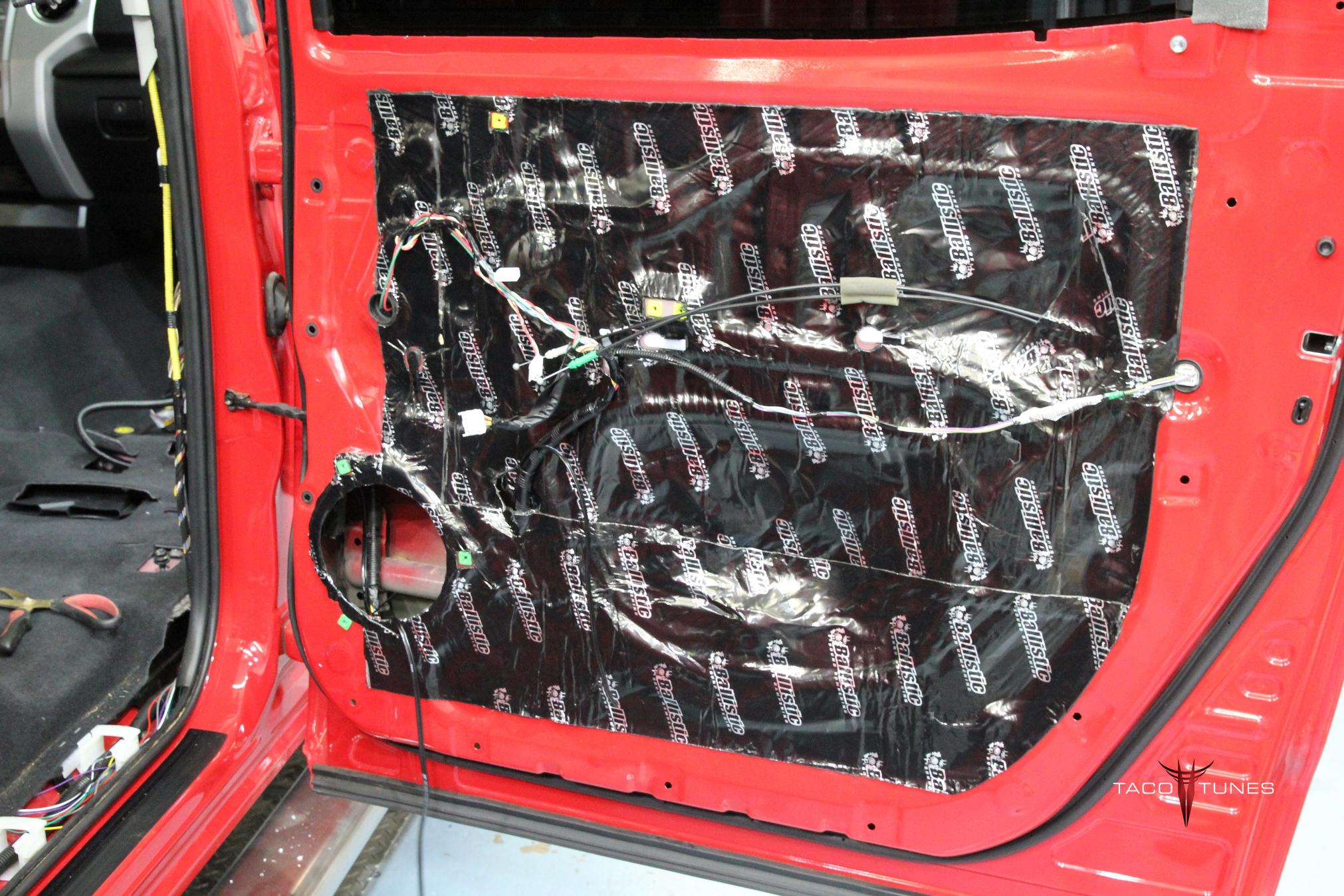

Matting:

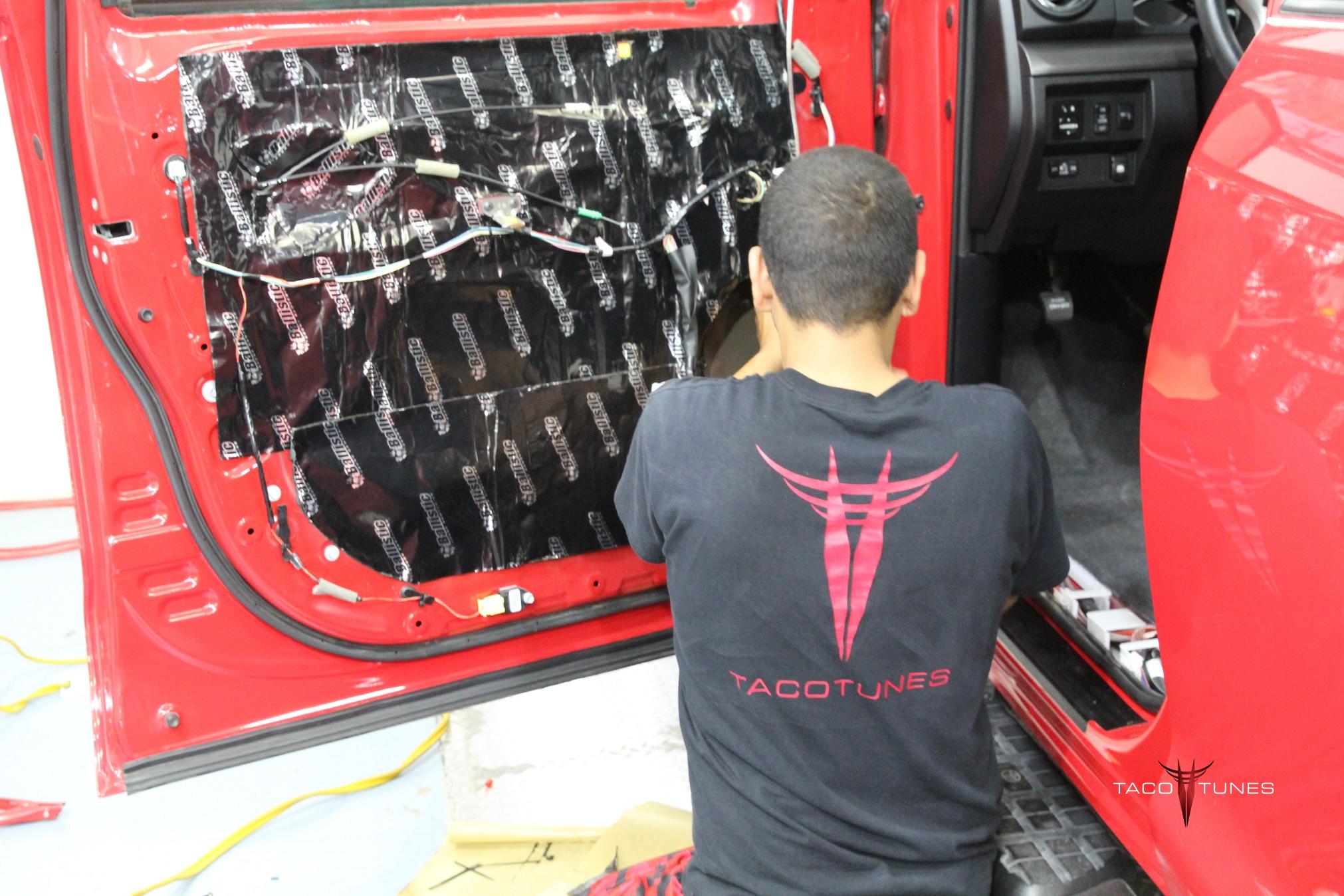

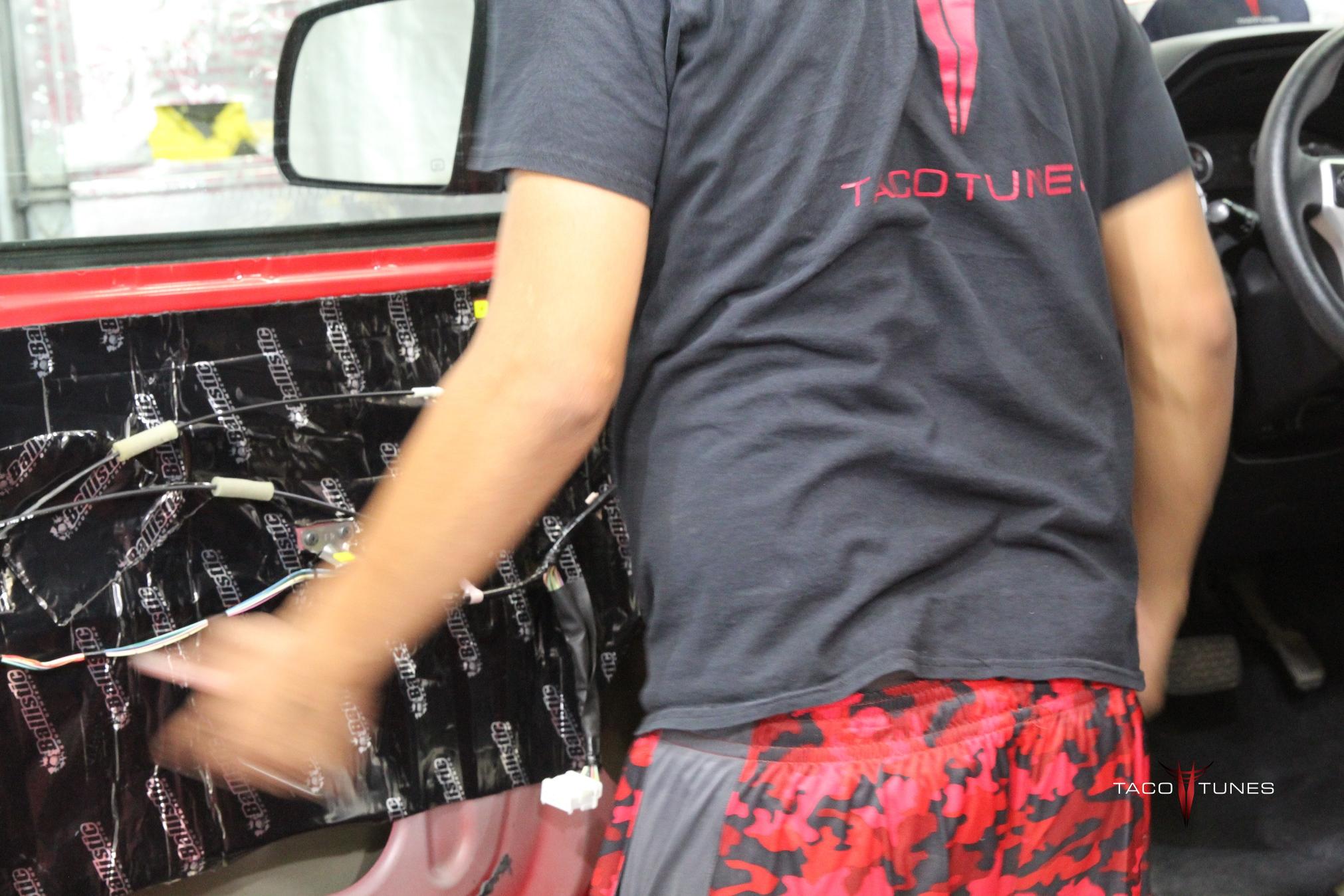

Ballistic Matting 4 x Doors & Rear Wall takes 9 sheets to complete Tundra – Standard bulk pack includes 9 sheets.







Ruben’s Toyota Tundra CrewMax Complete Audio System Upgrade El Paso TX

Ruben drove nearly 8 hours from El Paso Texas to have us install his SQ1 pacakge in his 2015 Toyota Tundra CrewMax. He wanted to get his system installed before he starts on the rest of his mods.

Installation Summary / History:

Toyota Year / Model: 2015 Toyota Tundra CrewMax SR5

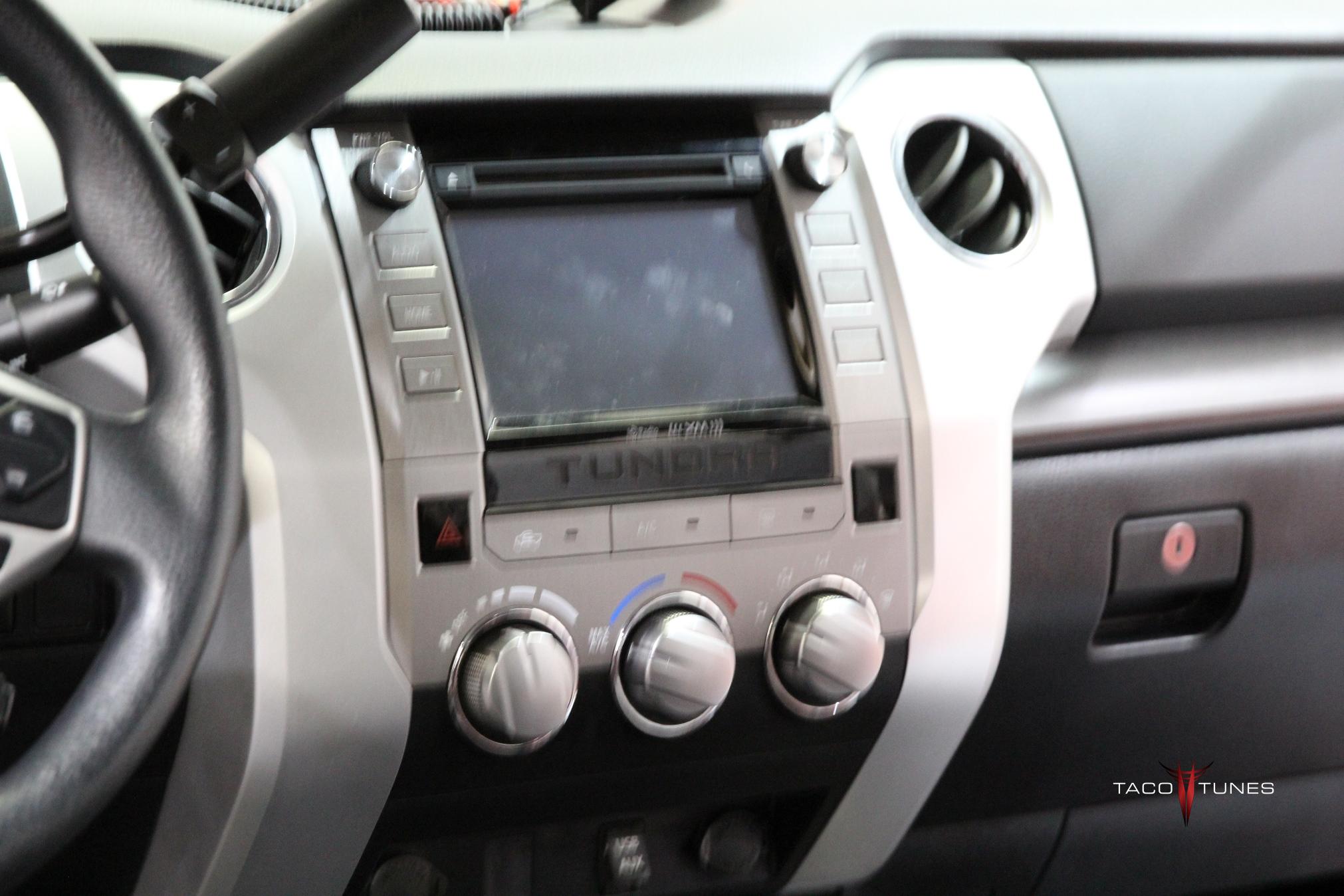

Head Unit: NON JBL

Color: Red



System Installed: tacotunes SQ1 packaged system















Below you will find a detailed listing of all the parts we used in the installation.

Typical Installation time is 1 day, however we matted the front, rear doors and the rear wall behind the subwoofer. If we are matting the truck we keep the truck for two days. One day audio installation and matting jobs are possible, but require at least 14 hours with the truck.

Below is a detailed listing of the audio products installed in Chris Tundra CrewMax

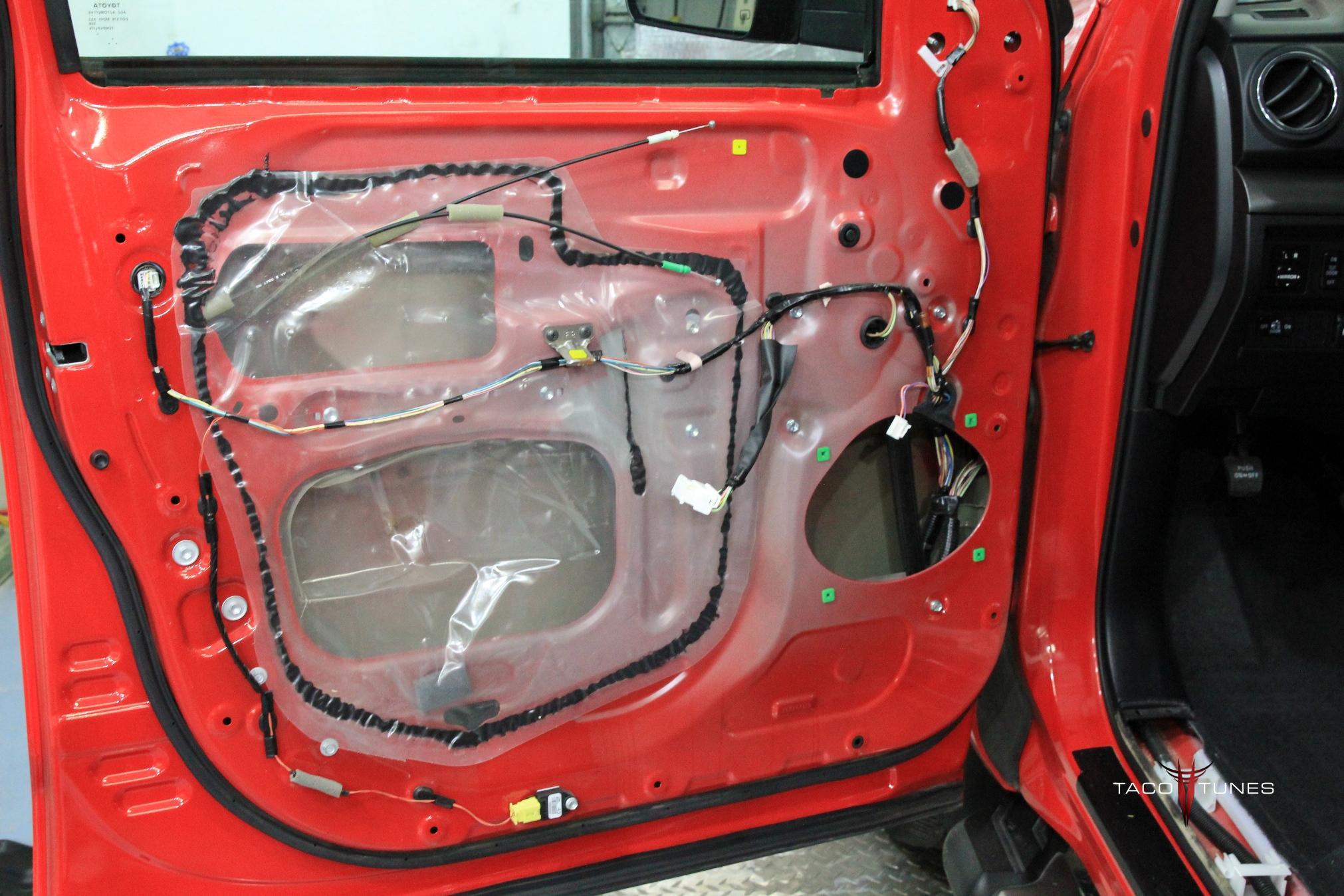

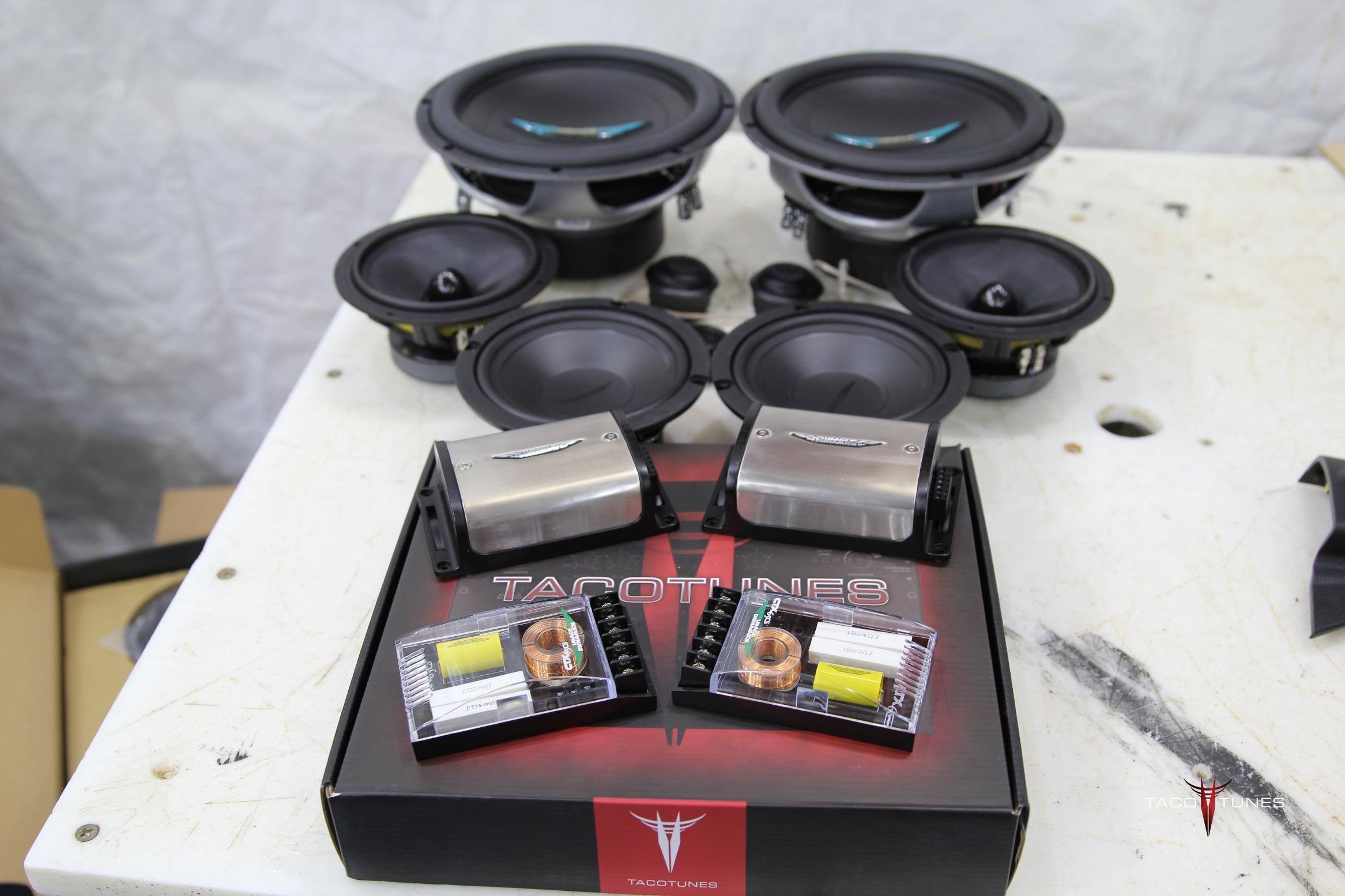

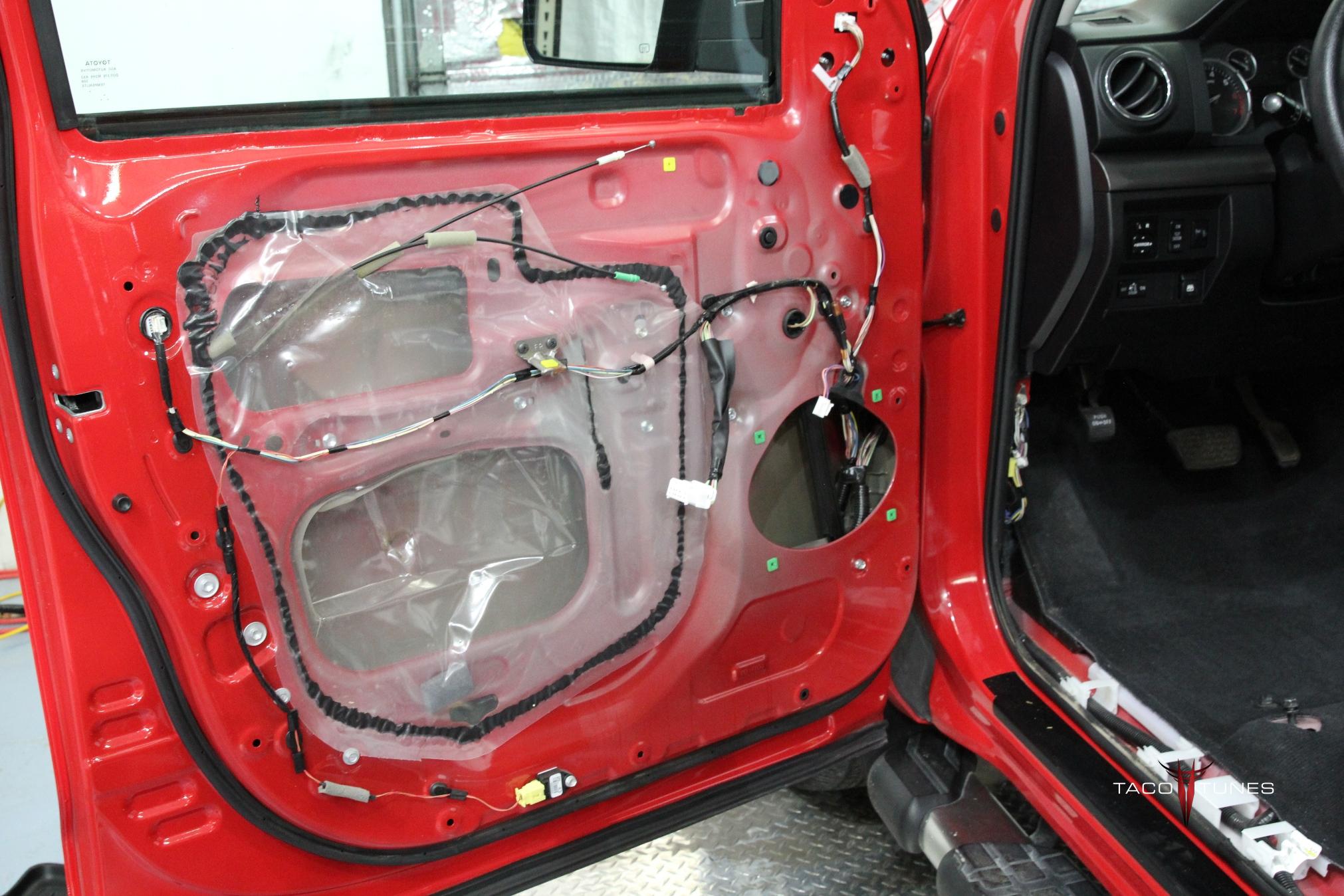

Front Door Component Speakers:

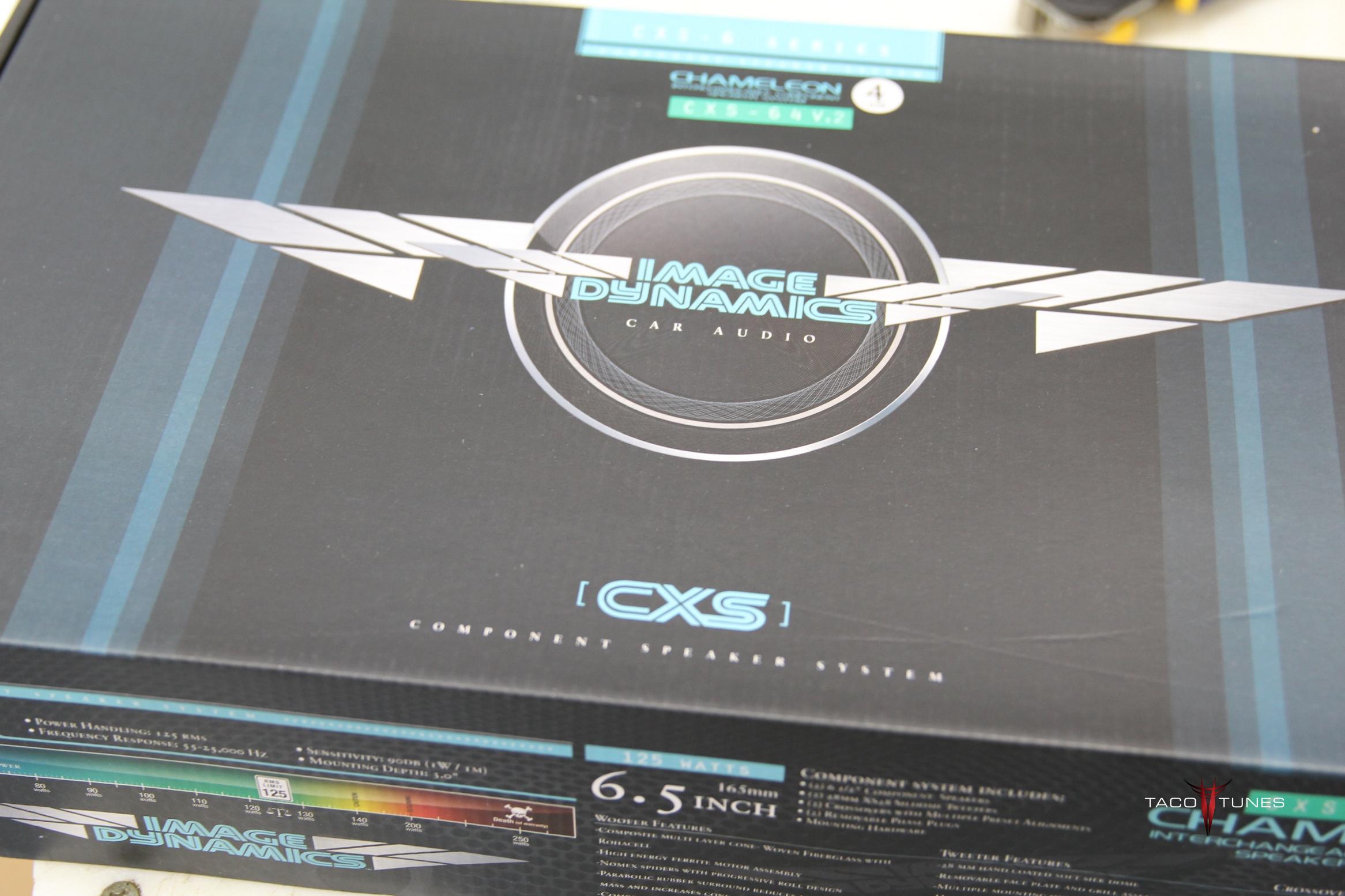

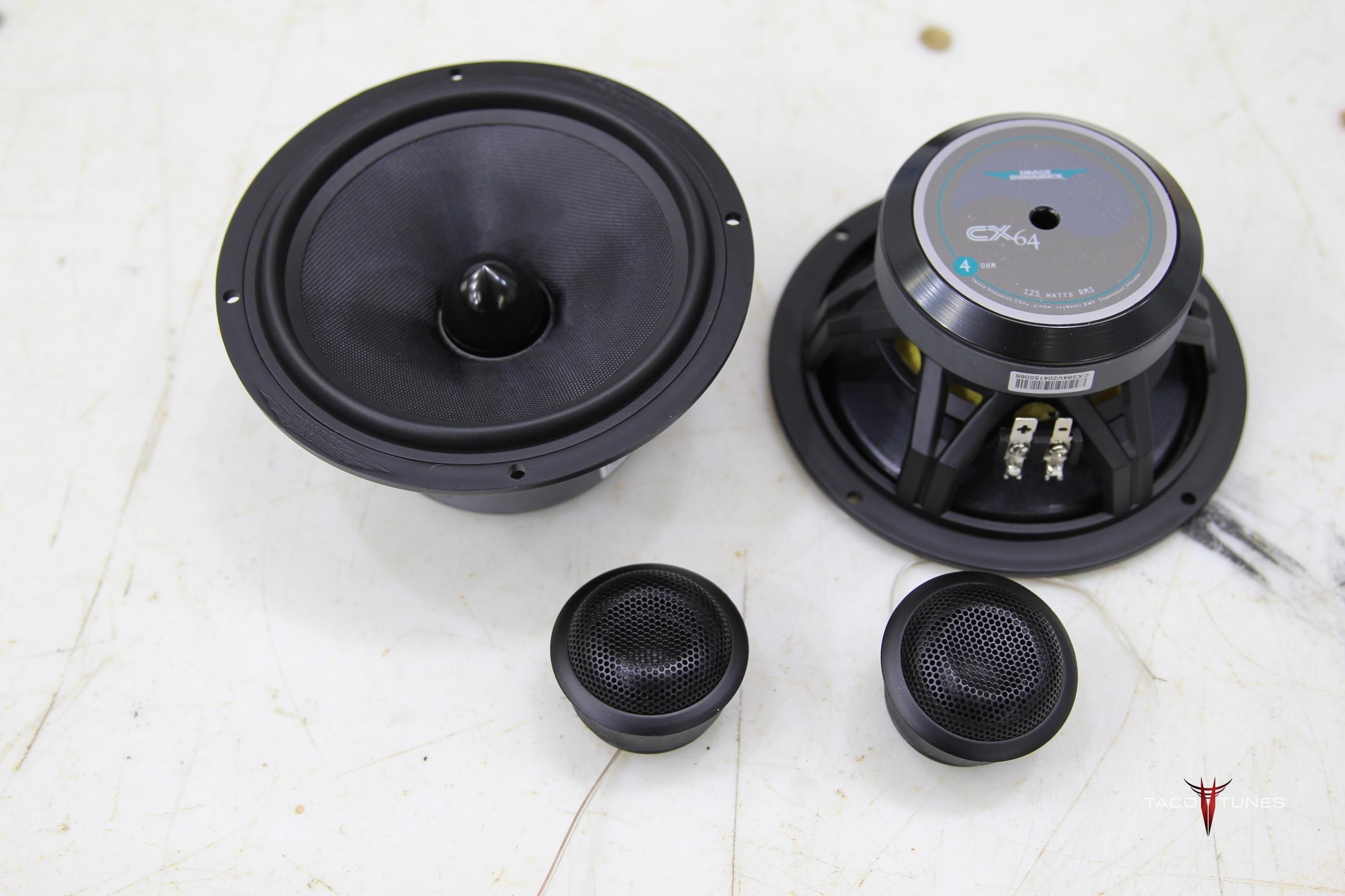

Image Dynamics CXS64

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CXS Mid bass Drivers -125 Watts RMS

CXS Crossover

CXS 28M Silk Dome Tweeter

NOTE: JBL equipped

Use Stock Sail Panel for Tweeter mounts.

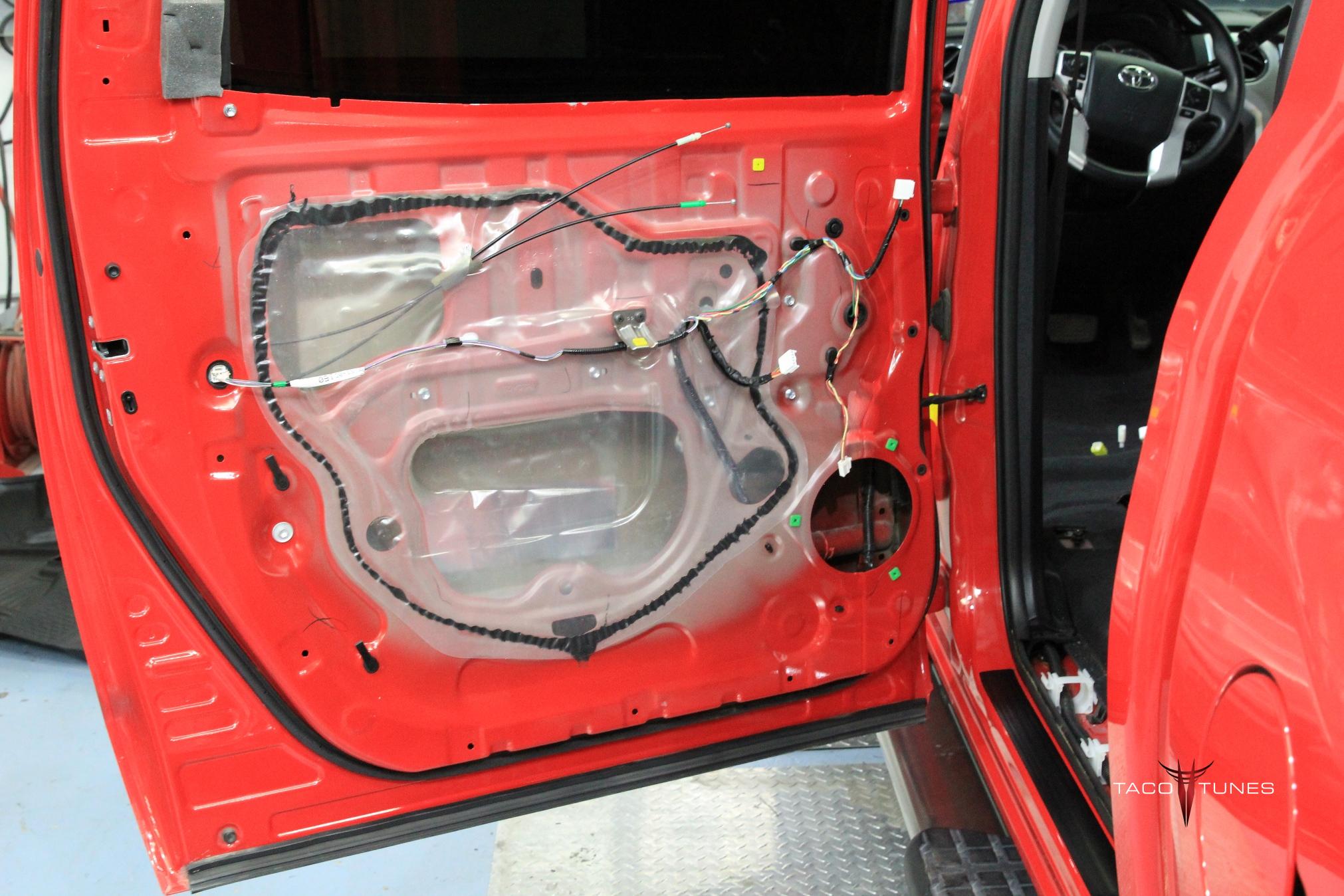

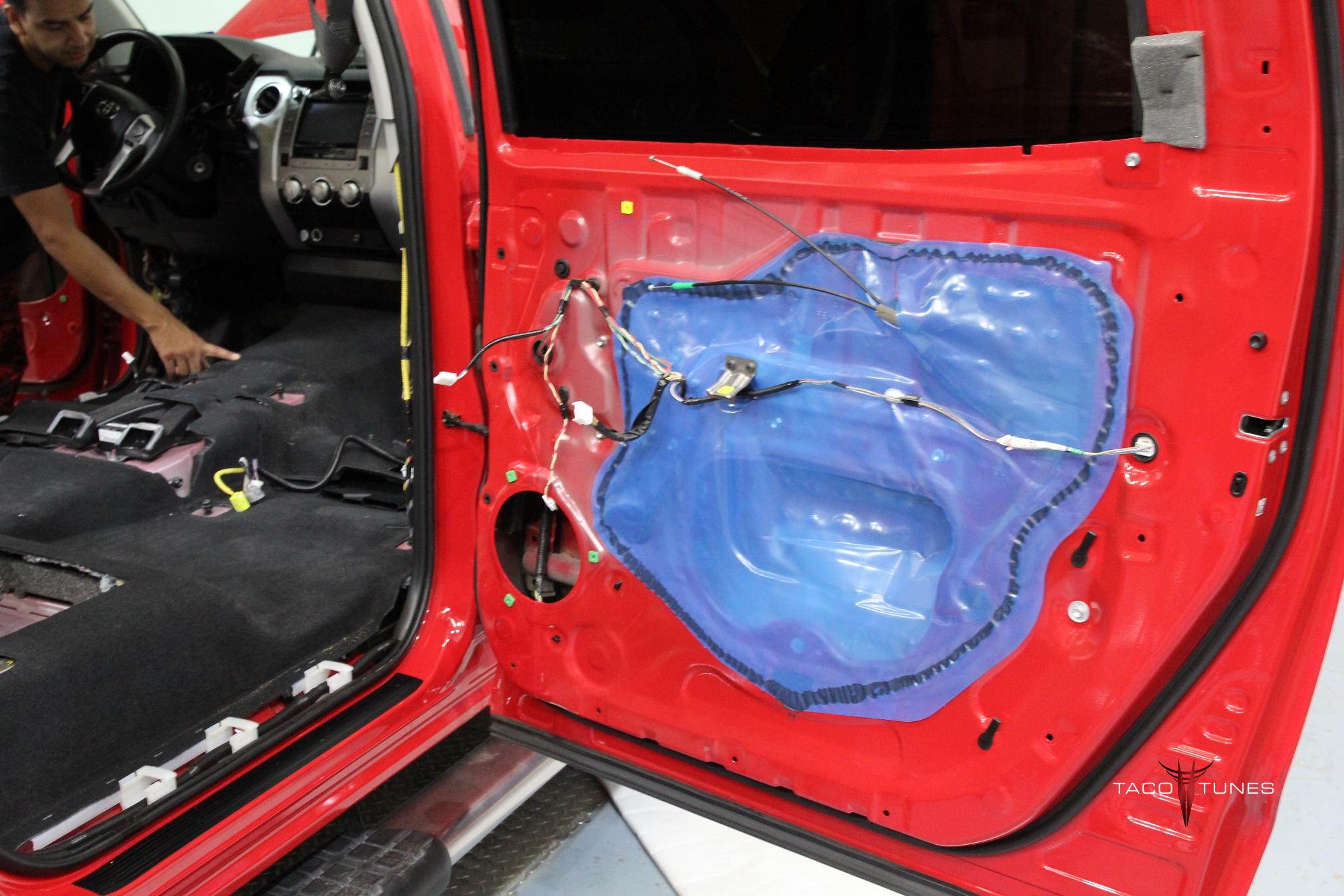

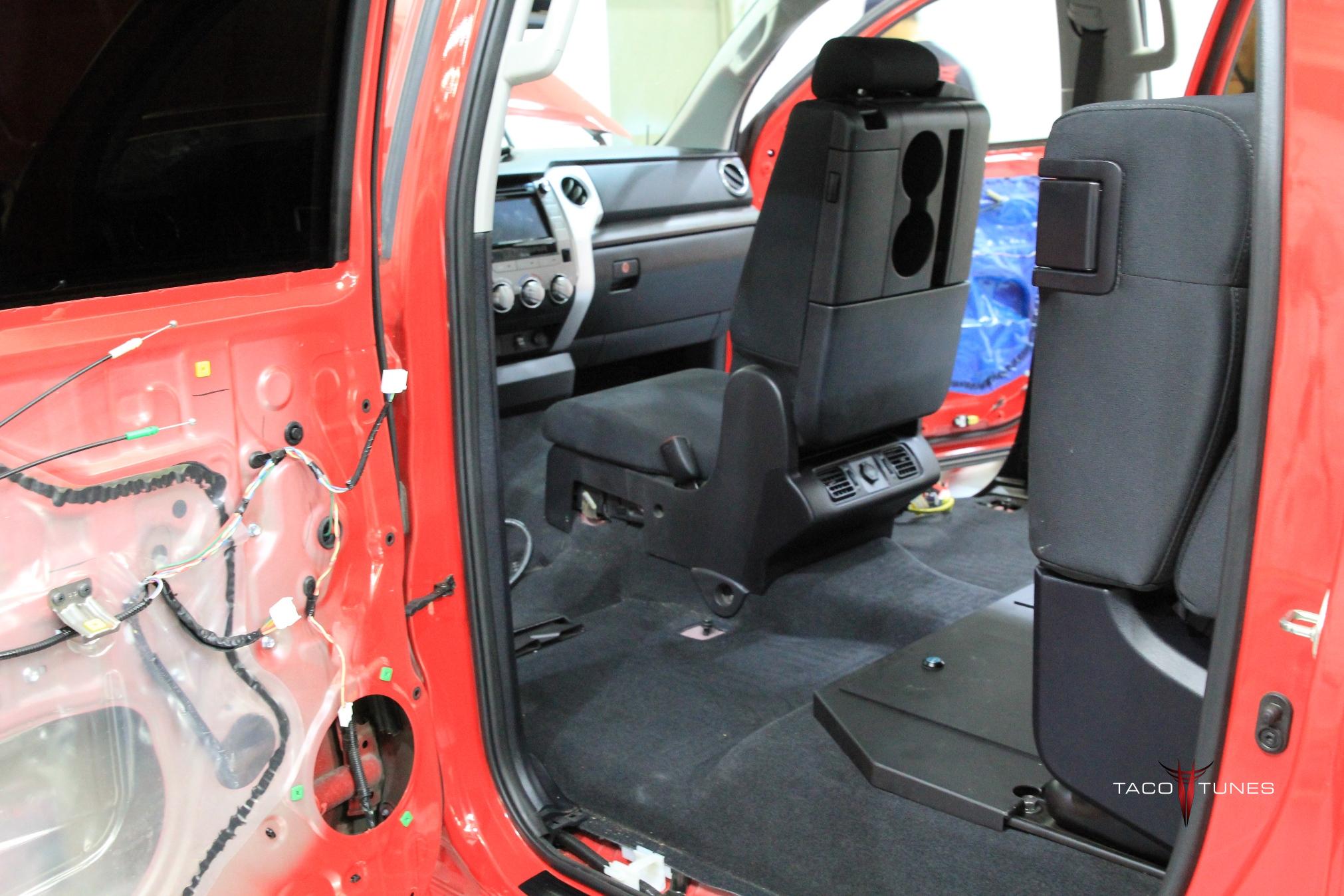

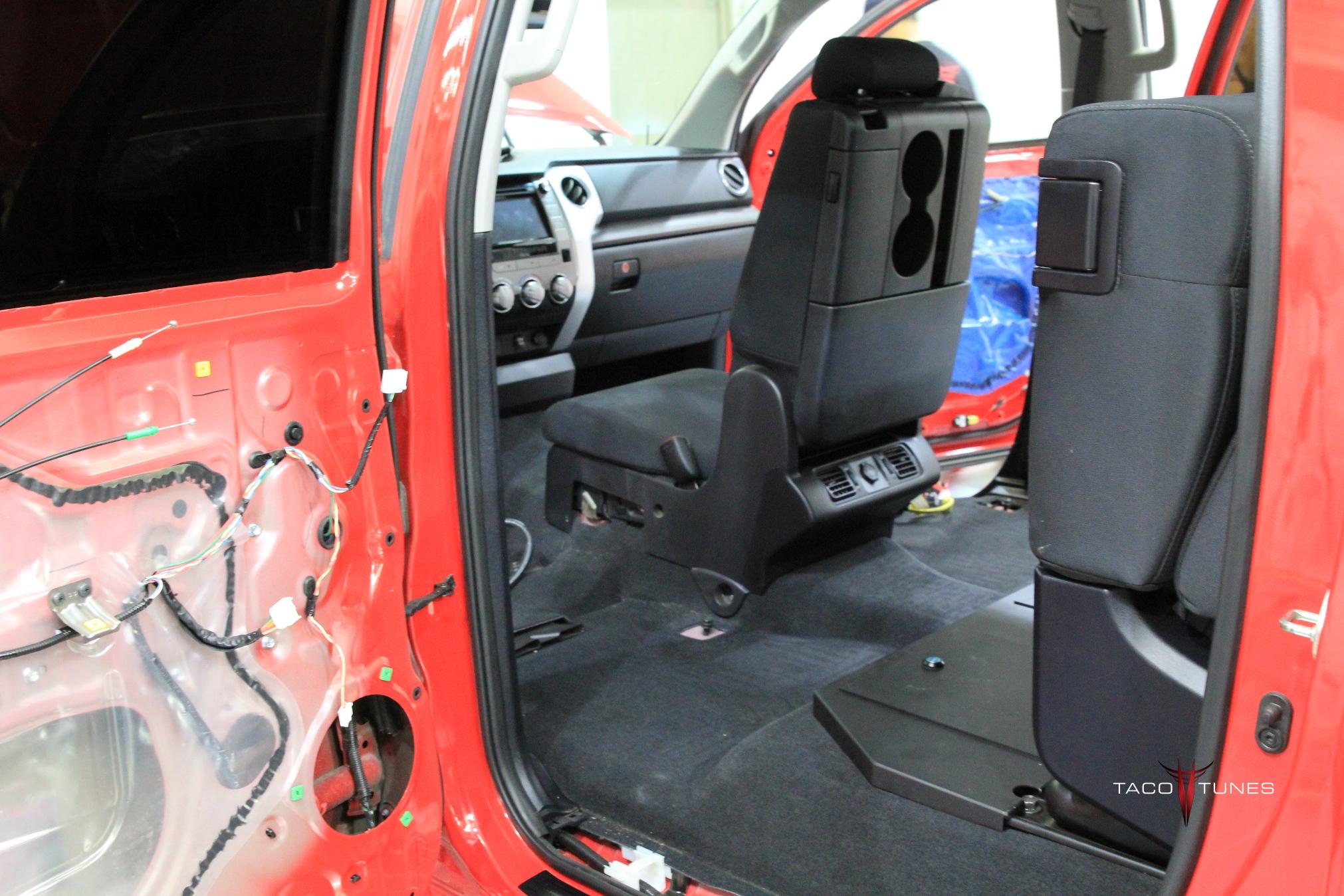

Rear Door Components:

Image Dynamics CTX65CS

Tacotunes.com heavy duty speaker mounts cut to 5.6”

CTX65CS Mid bass drivers Handles -100 watts RMS

CTX65CS Crossover

CTX Tweeters

Tweeters will fit in stock door location

Sound Processor:

Tacotunes.com ReCurve EZQ

Tacotunes.com JBL Harness

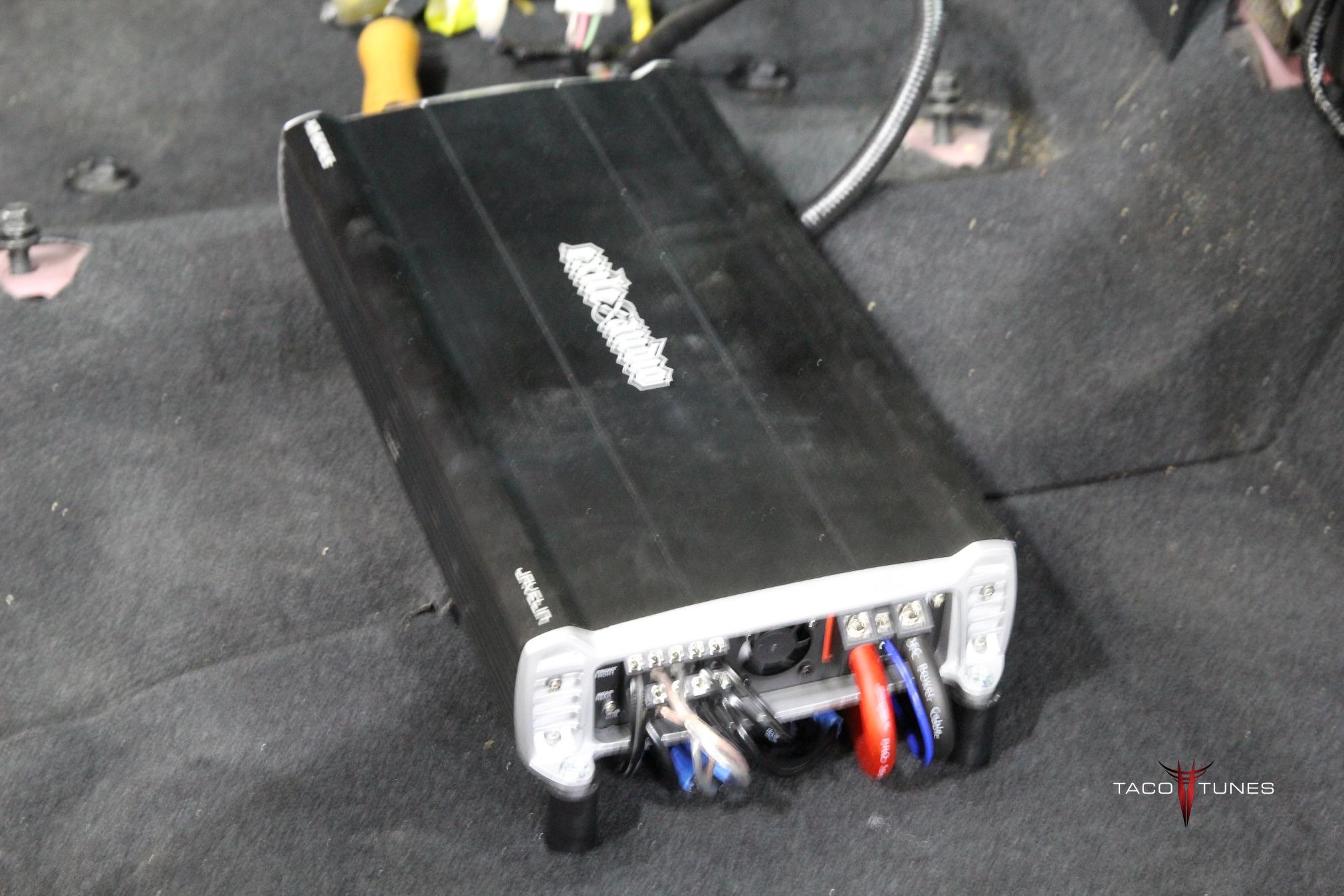

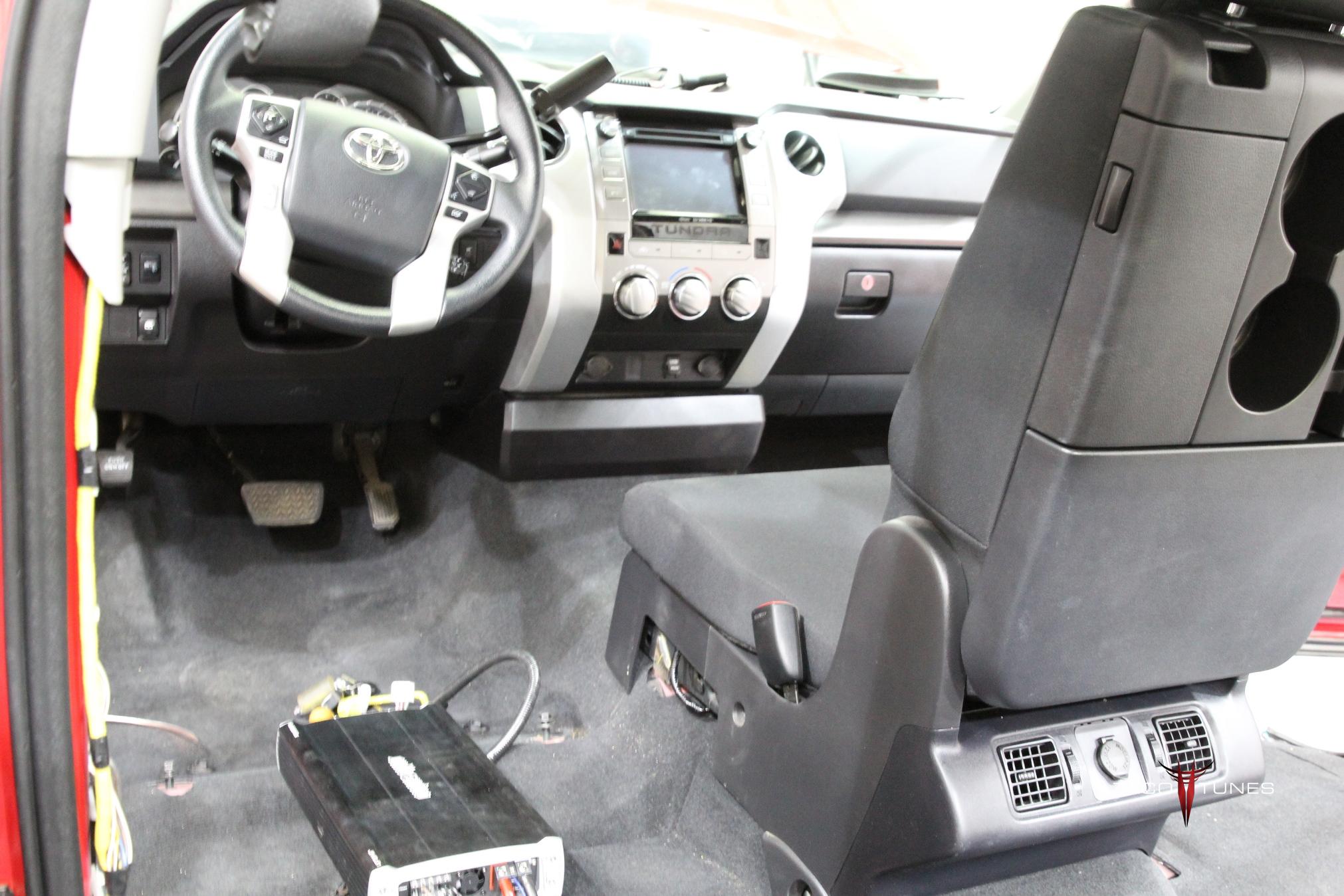

Amp:

Exile Audio 5 channel amp

100 watts x 4 to each speaker and 800 x 1 (subwoofer)

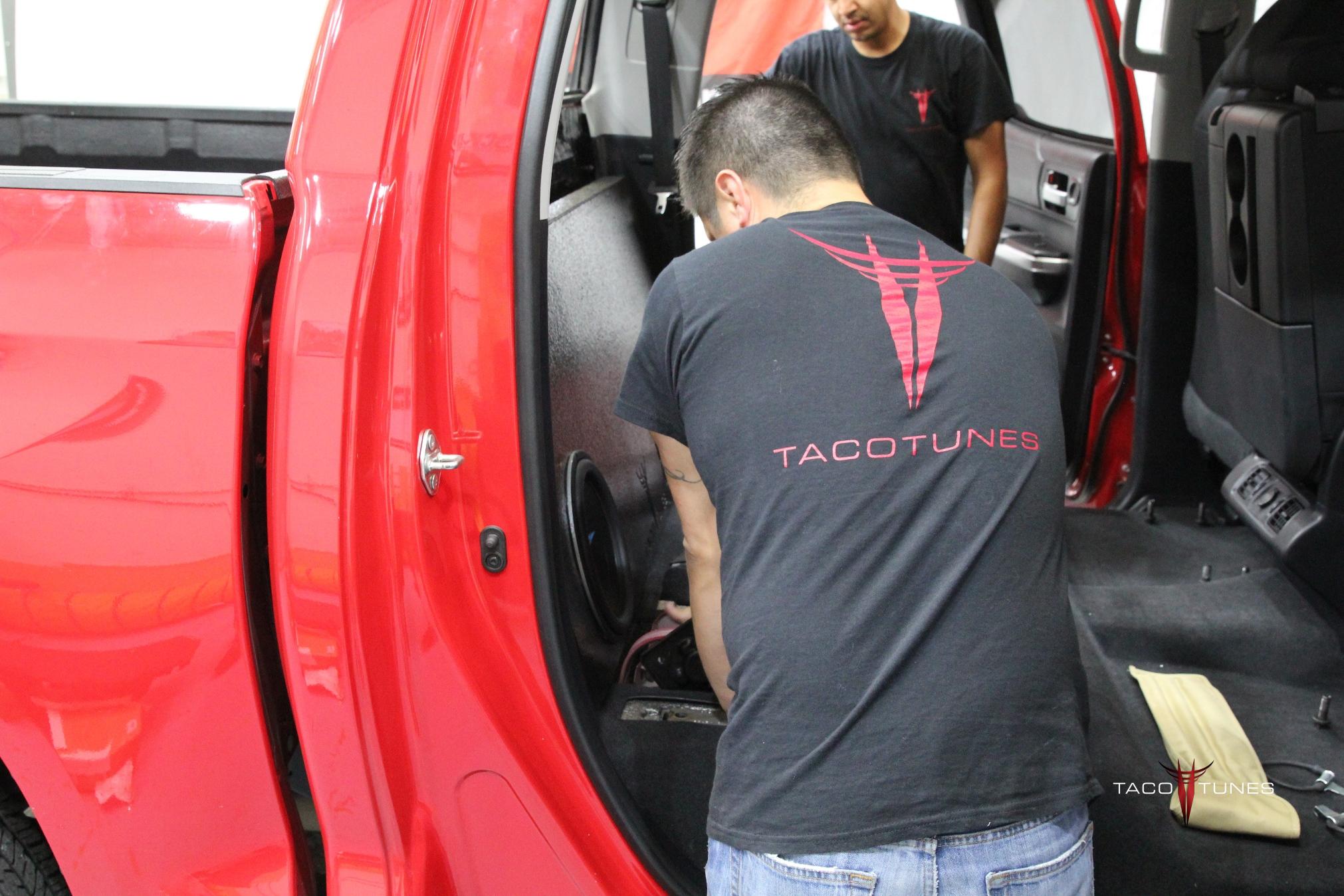

Subwoofer(s):

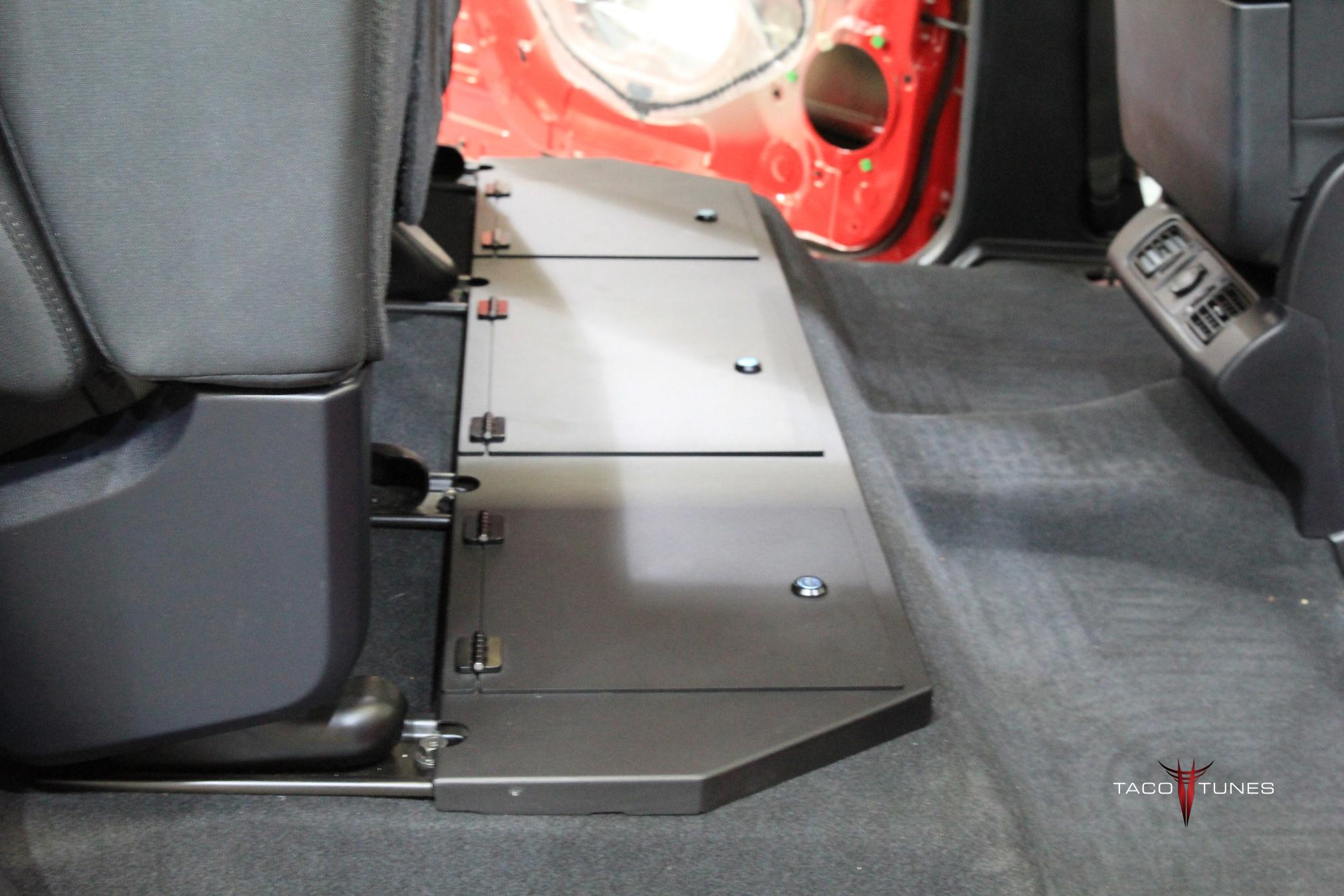

Subwoofer Box & Subwoofers

Tacotunes.com Dual 12″ subwoofers

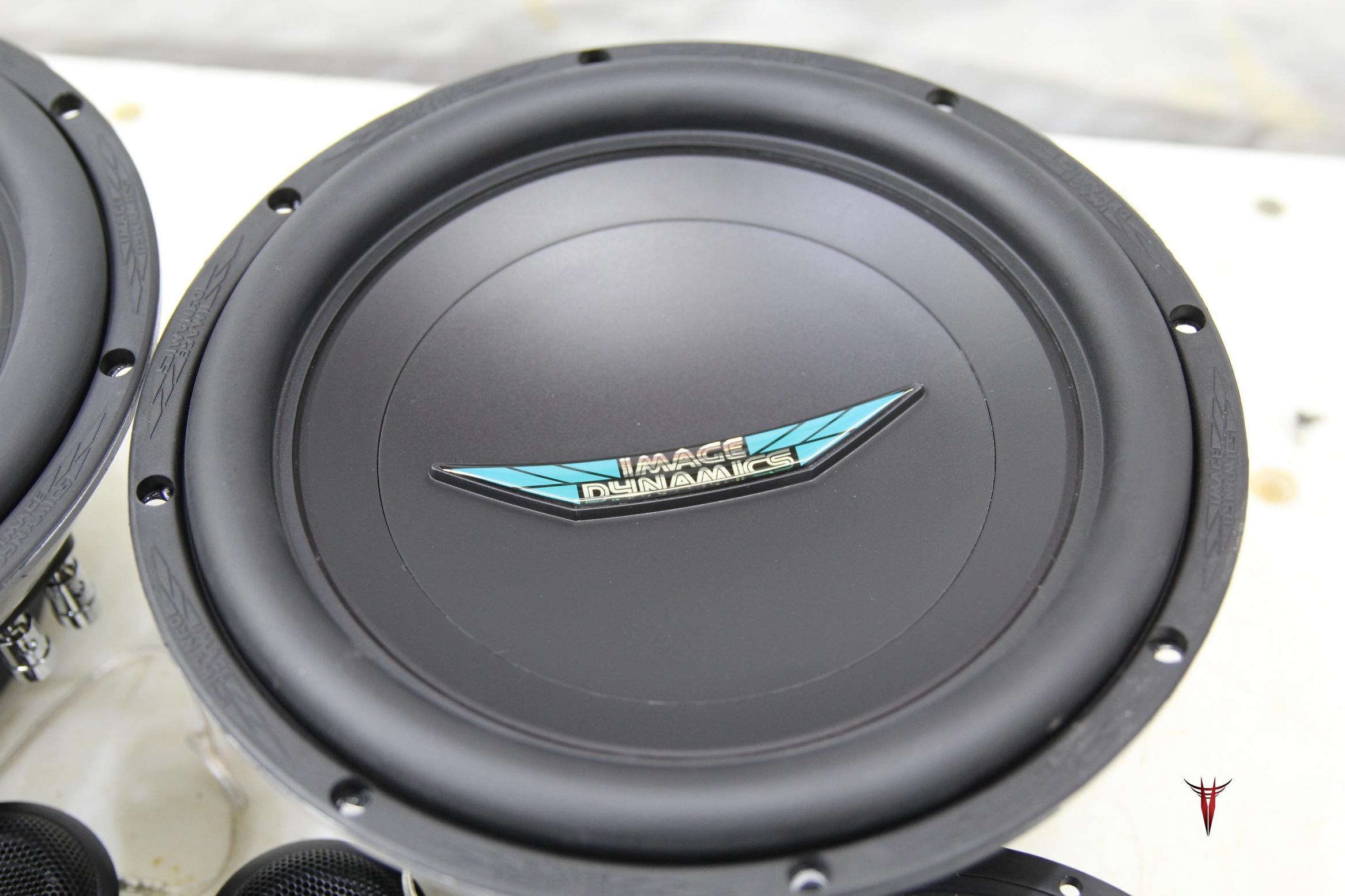

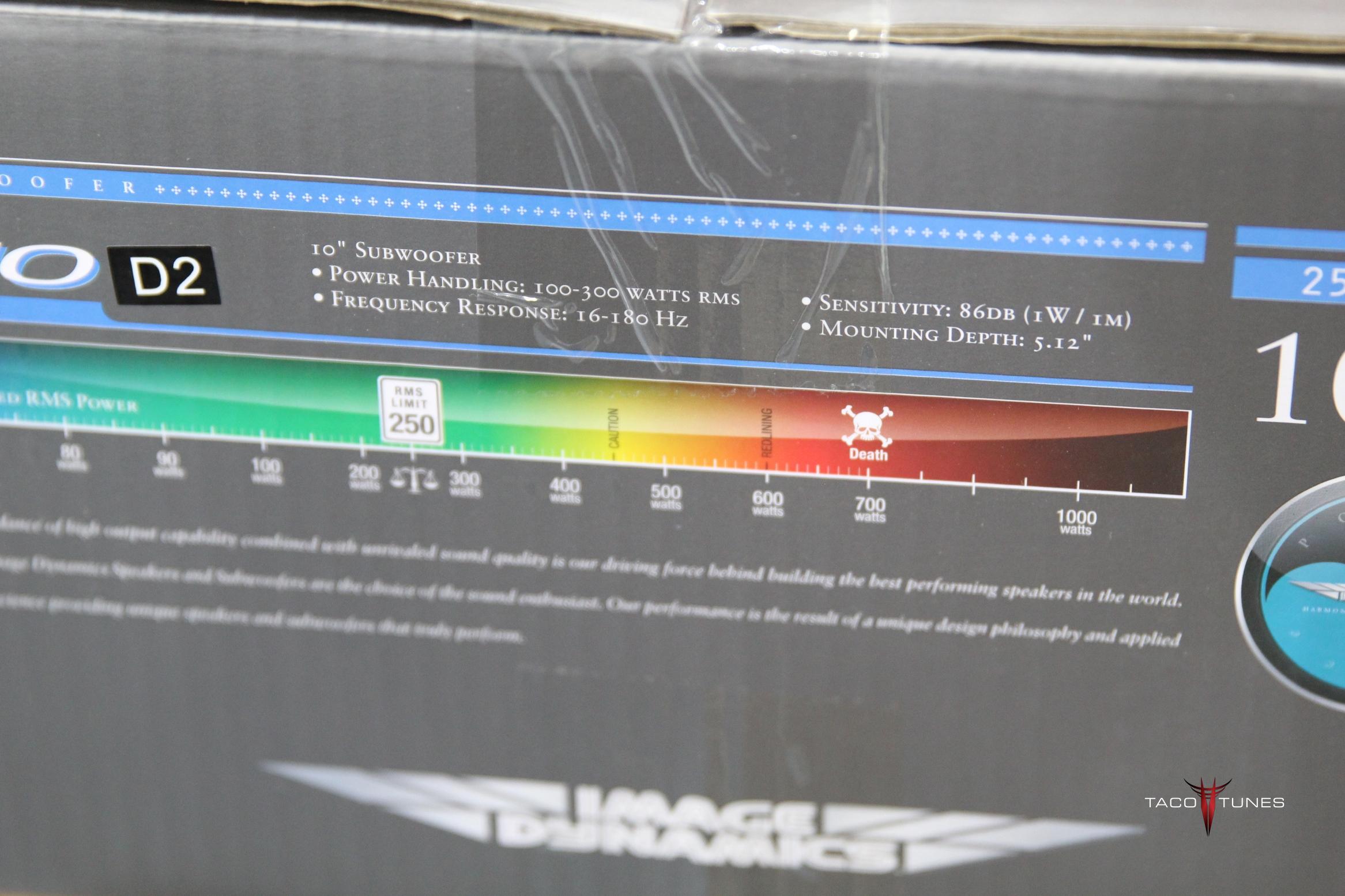

Image Dynamics ID12V4 (full size) 10” subwoofer 400 watts RMS x 2

Tundra Install kit:

Stereo & Wiring Installation kit:

Stinger Power, Speaker and Signal Cables:

Positive:

Stinger 3′ POWER CABLE 4GA – Ring Terminal Attached

Stinger 13′ POWER CABLE 4GA

Negative:

Stinger 4′ POWER CABLE 4GA – Ring Terminal Attached

Color Coded Speaker Wire:

Stinger 50′ 16GA Black Speaker Wire (Driver Side Speakers)

Stinger 50′ 16GA Silver Speaker Wire (Passenger Side Speakers)

Stinger 25′ 18GA Black Speaker wire (Driver Side Tweeters)

Stinger 50′ 18GA Silver Speaker Wire (Passenger Side Tweeters)

Stinger 50’ 12Ga Black Subwoofer Wire

RCA Signal Cables:

1 Stinger RCA CABLE 12 Ft Twisted Pair – 6 Channel (Front / Rear / Sub)

Misc Items:

35′ Primary Blue Remote Turn on wire

6′ 3/4 Split Loom

T-Spec ANL Fuse Holder

T-Spec 100 Amp ANL Fuse

10 Crimp Caps

8 Speaker Terminals .25 (Door speakers)

4 Speaker Terminals .187 (tweeters)

4 Speaker Terminal .25 (subwoofer)

15 Small Zip Ties

15 Large Zip Ties

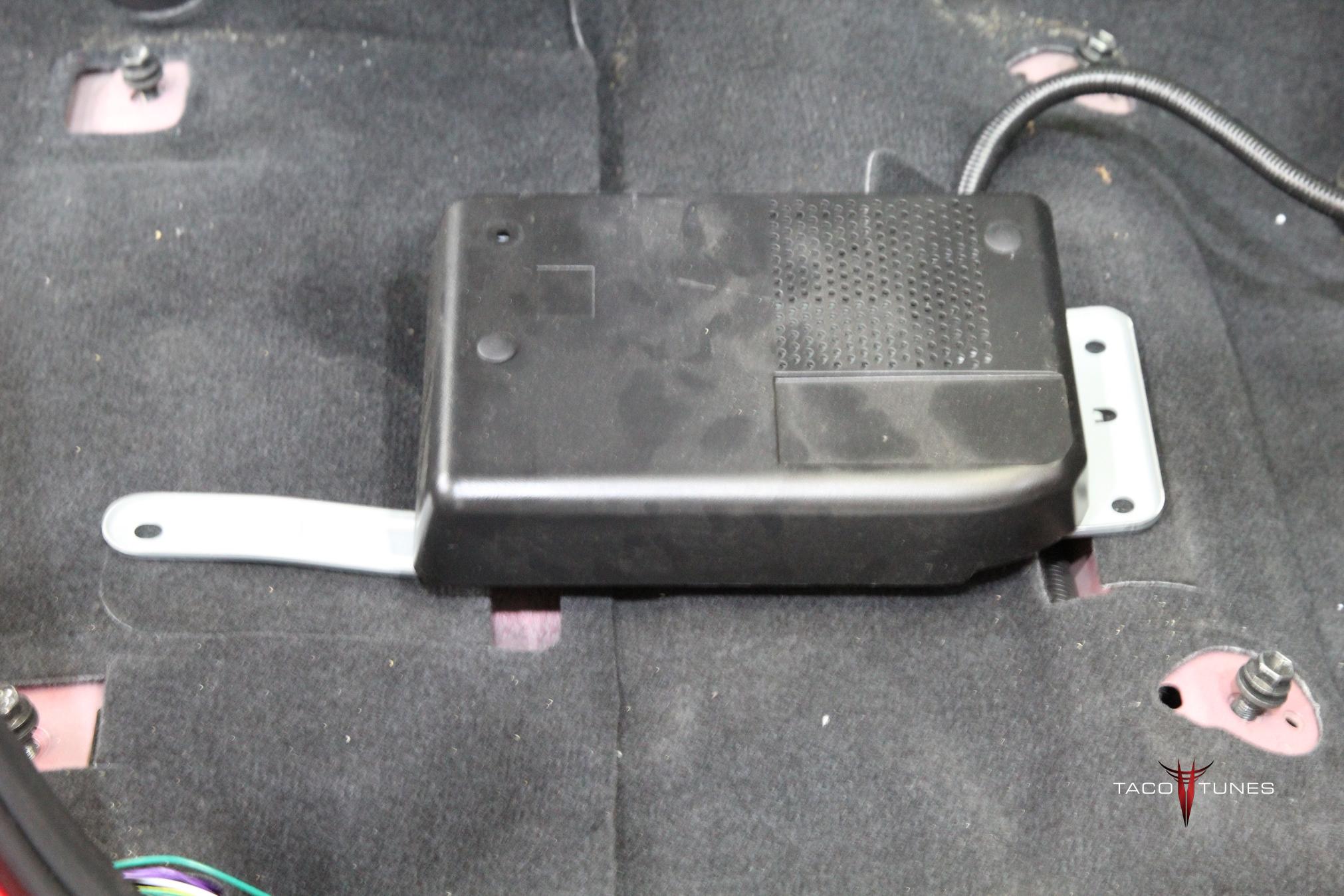

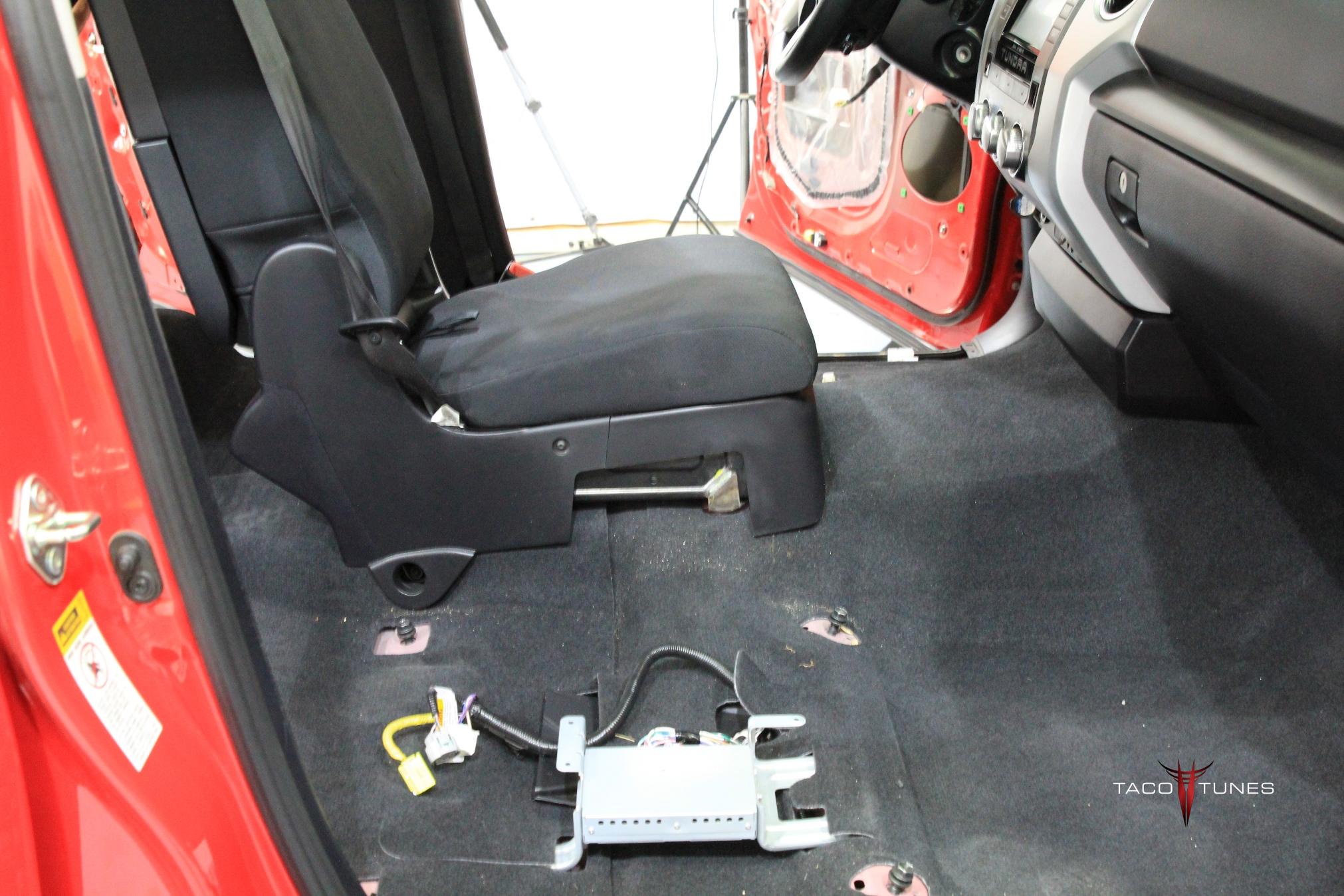

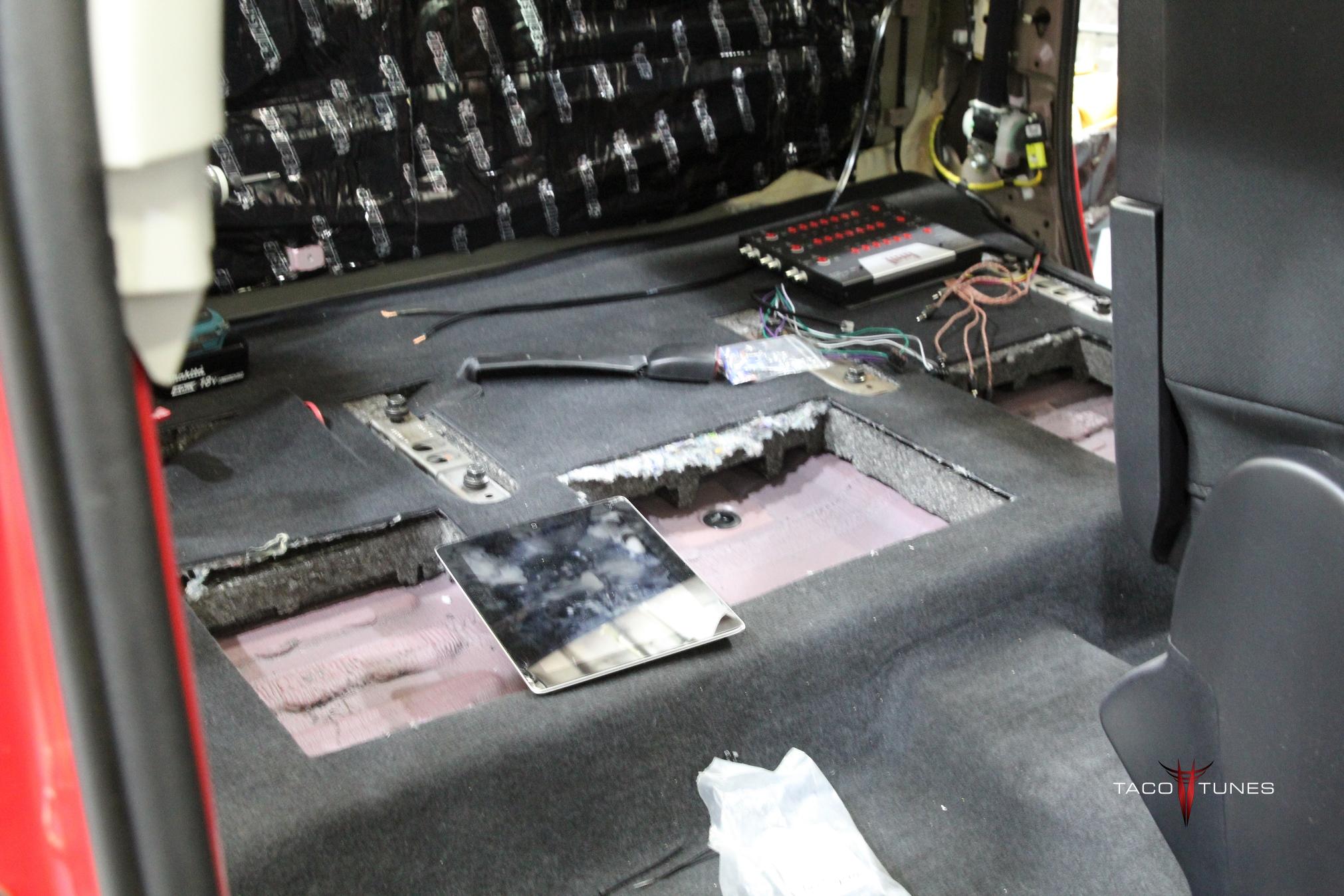

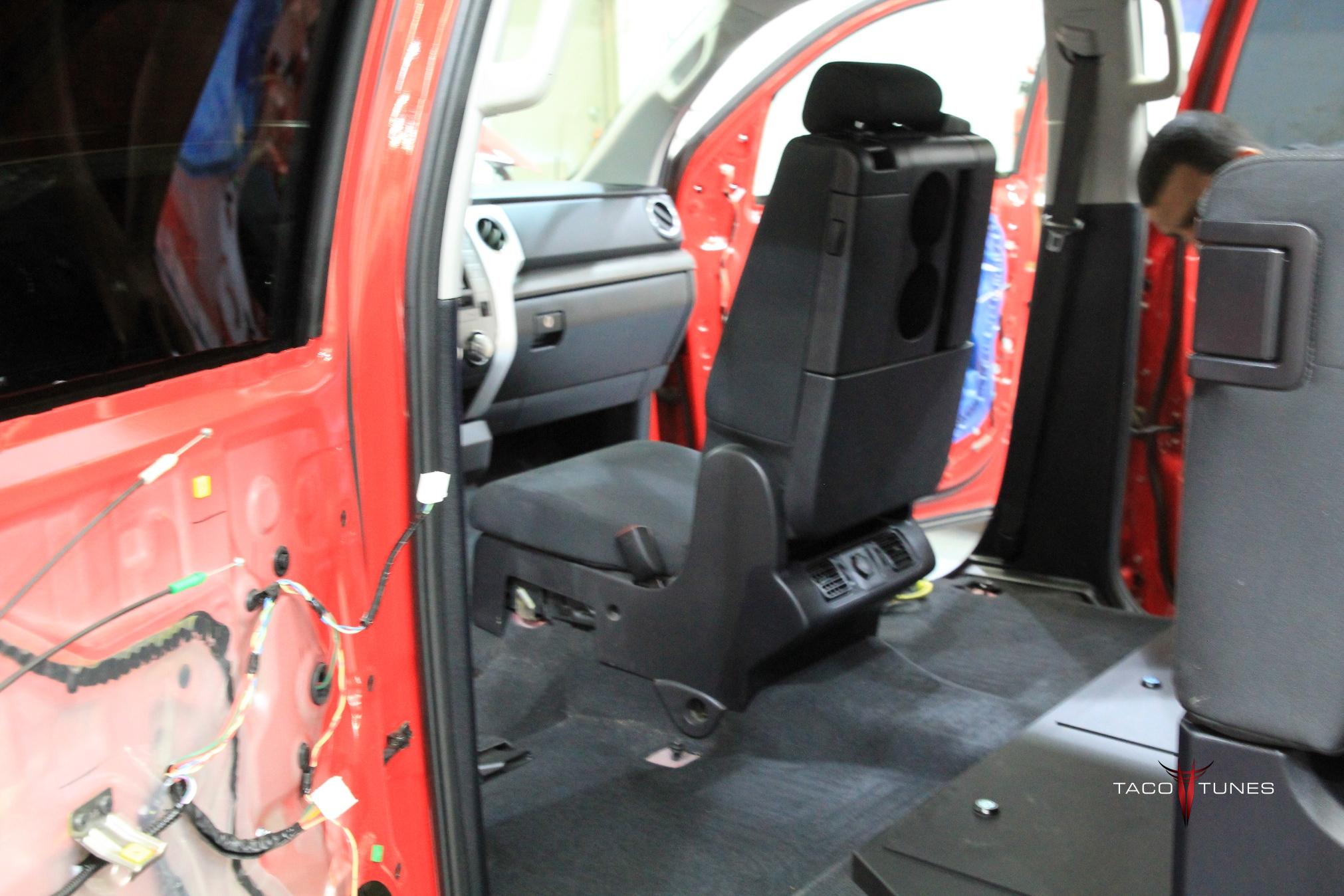

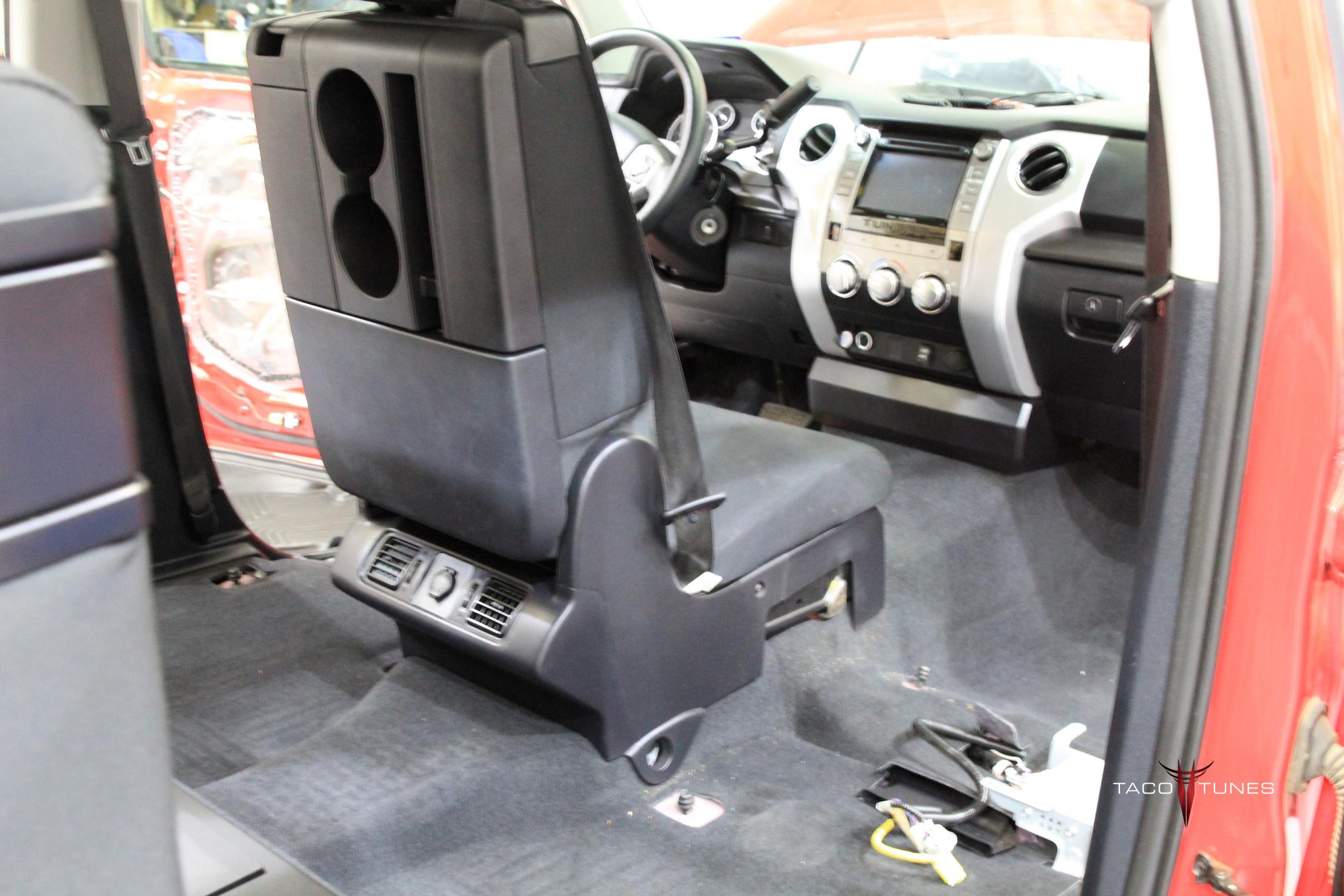

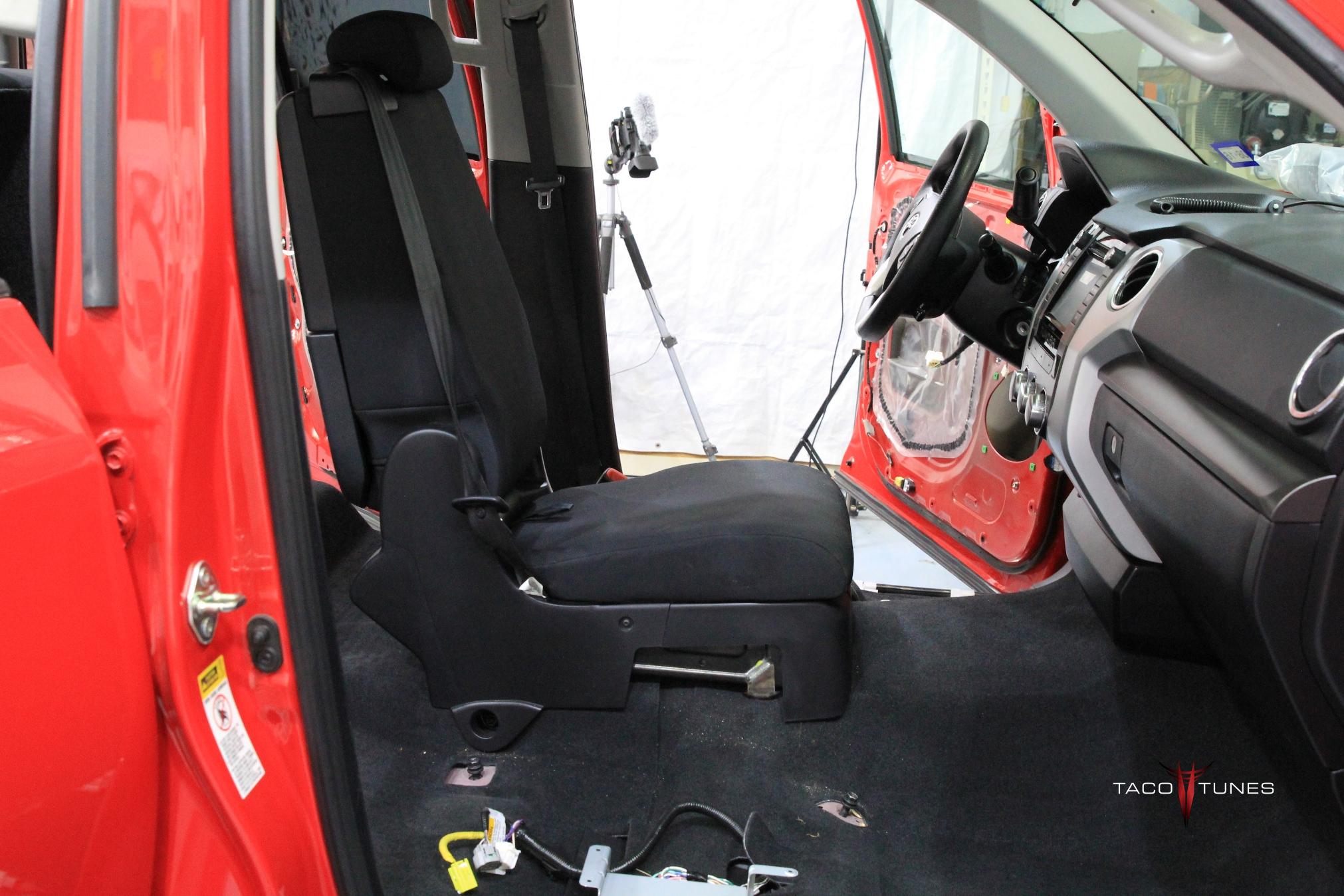

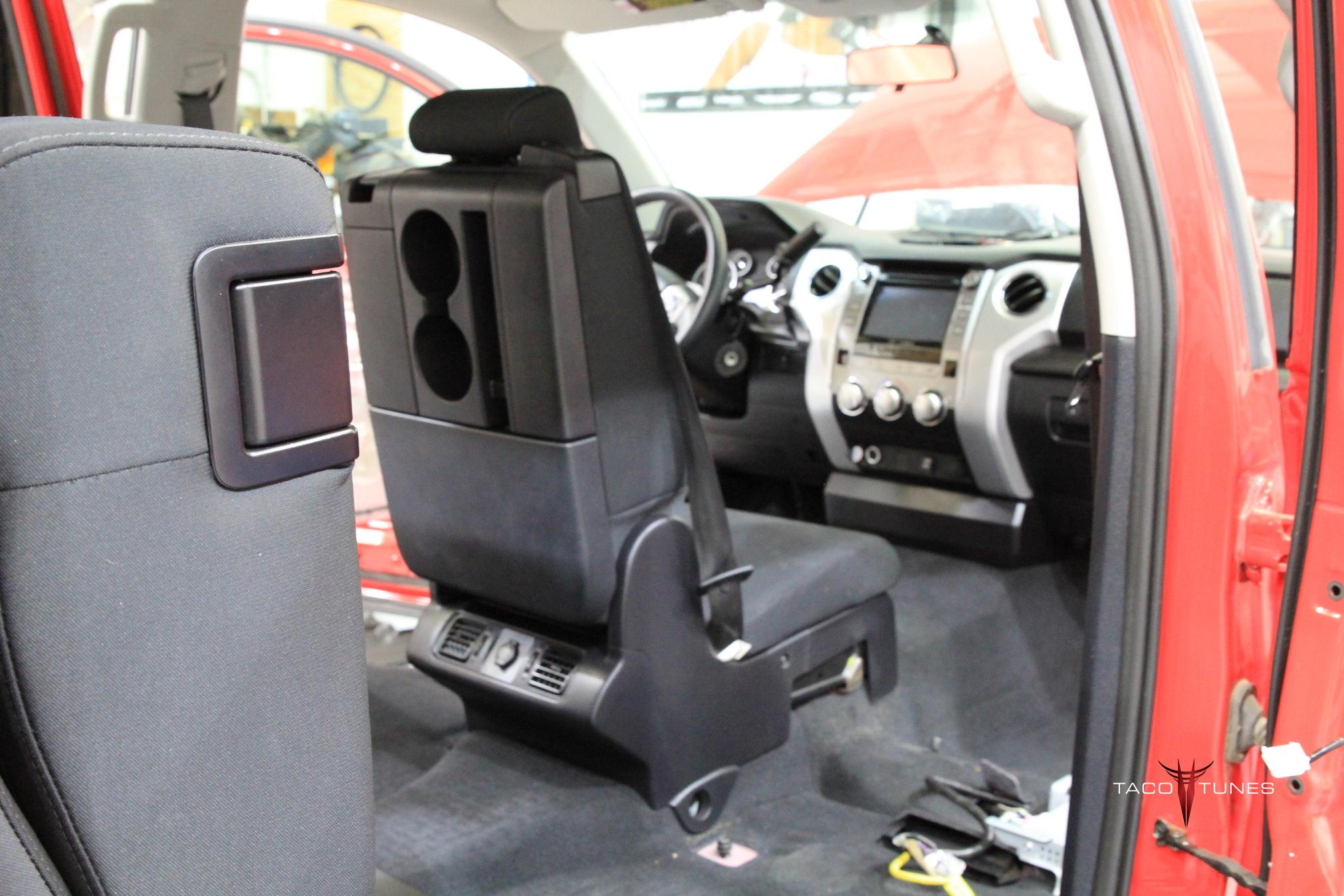

Under Seat – Amp Mounting Gear:

2 Nylons Spacers

2 Self Tapping Screws



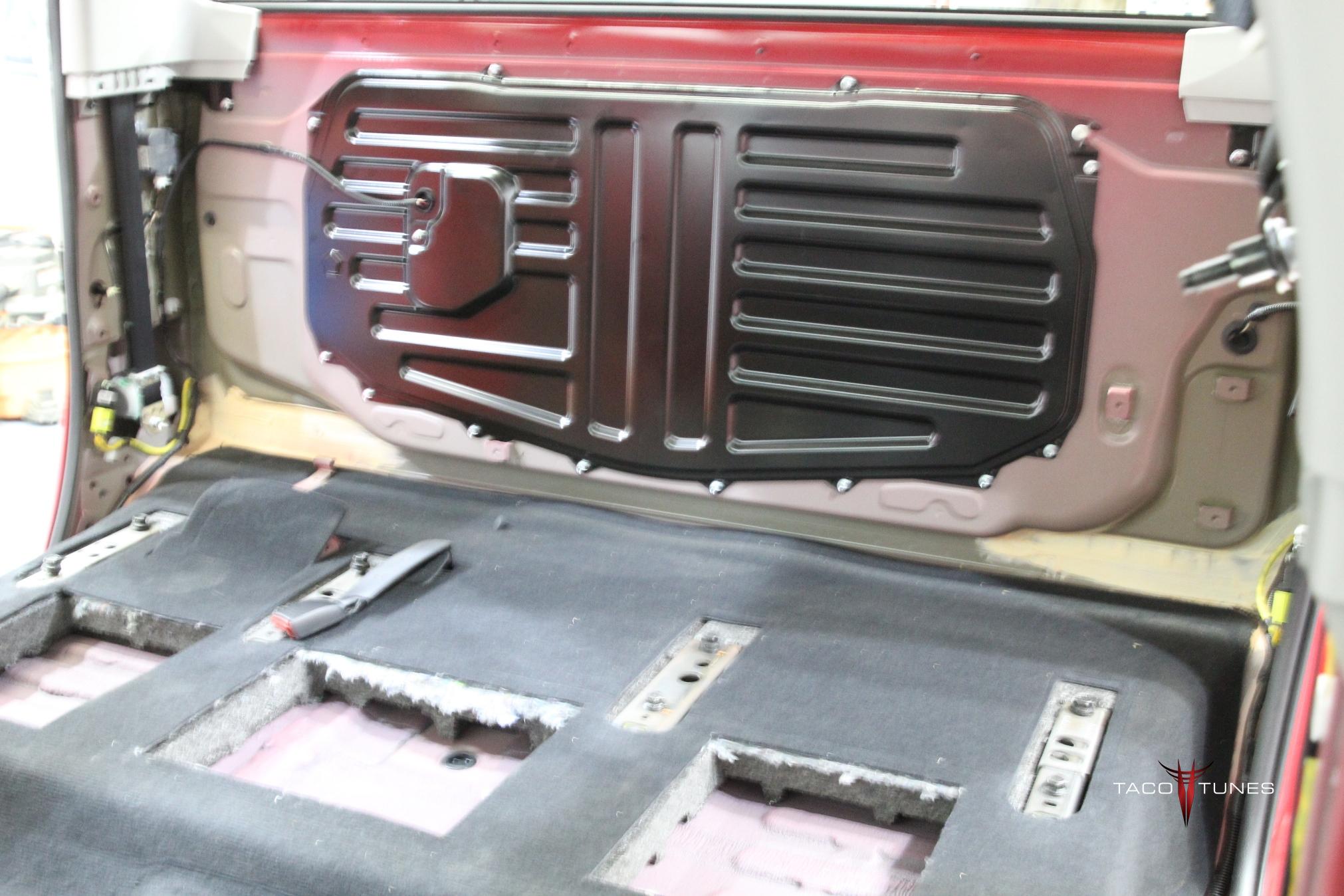

Matting:

Ballistic Matting 4 x Doors & Rear Wall takes 9 sheets to complete Tundra – Standard bulk pack includes 9 sheets.
