What is the difference between RMS peak and max power ratings in car audio
RMS vs MAX ratings speakers
Without getting into the electrical engineering side of this topic, for the most part you will want to ignore the max ratings. They have ALMOST no bearing on the actual power handling capability of your speakers. You need to focus on the RMS number. RMS or Root Means Square refers to the continuous power that you speakers can effectively handle.
I wish I had a dollar for every time I heard someone say my speakers are rated at 300 watts. At the time of this post, there are VERY few CAR speakers that can handle over 125 watts RMS. Keep in mind most quality speaker manufactures will use the RMS numbers to rate their speaker power handling capability. Most low end retail stores that offer speakers will be advertise using the MAX ratings. When you look at the fine print most will show you the RMS ratings somewhere in a difficult spot to locate.
Keep in mind power handling is important but there are many other factors in selecting quality speakers. If you are primary concern is price, you will probably not care about the quality of sound. I may be wrong, but I have been in car audio a long time. Most people that are only focused on price are generally not concerned about the quality of music.
A good quality speaker that is made with better materials will cost more money to make. We have provided some examples in our site of some lower end speakers and some examples of higher end speakers.

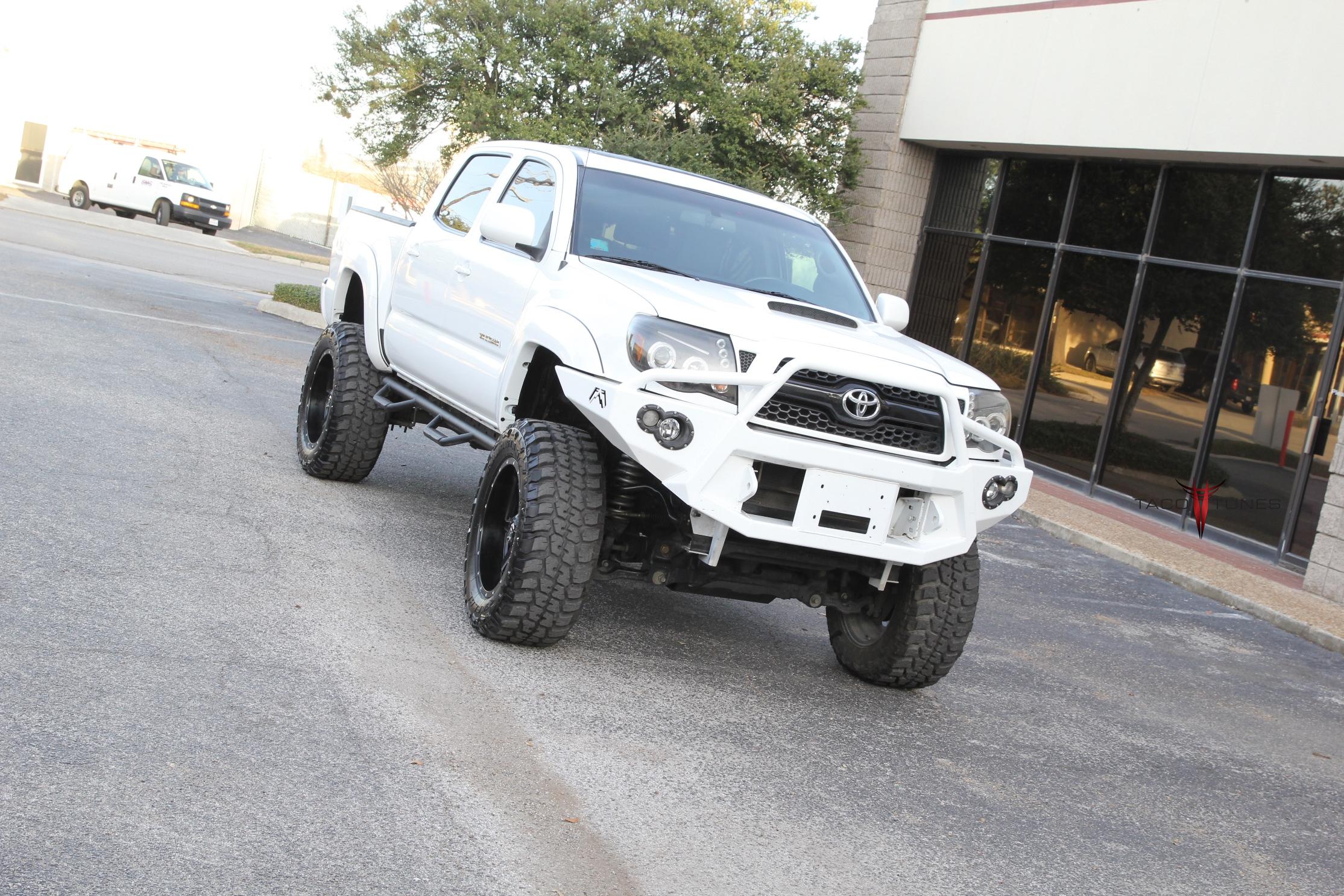

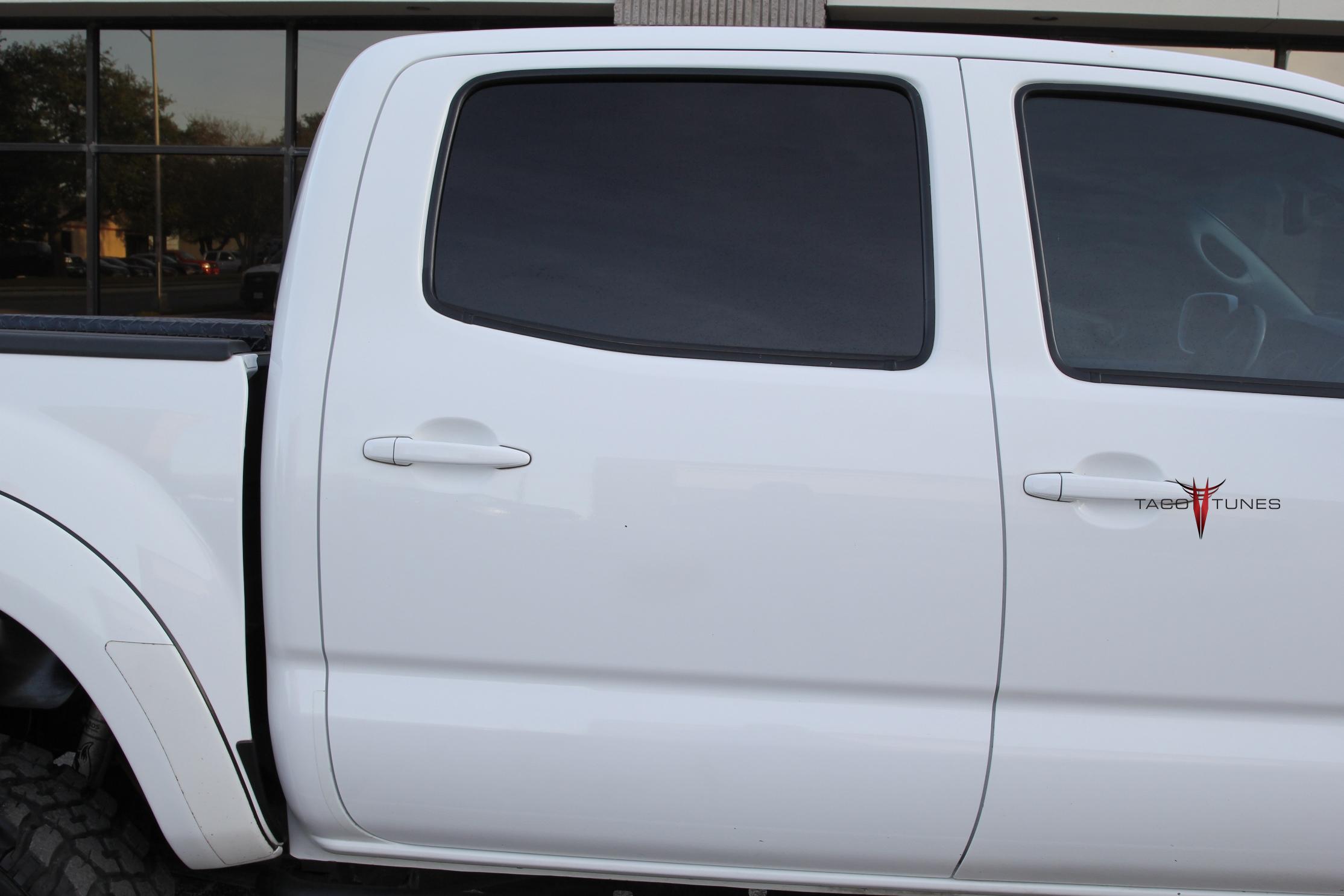

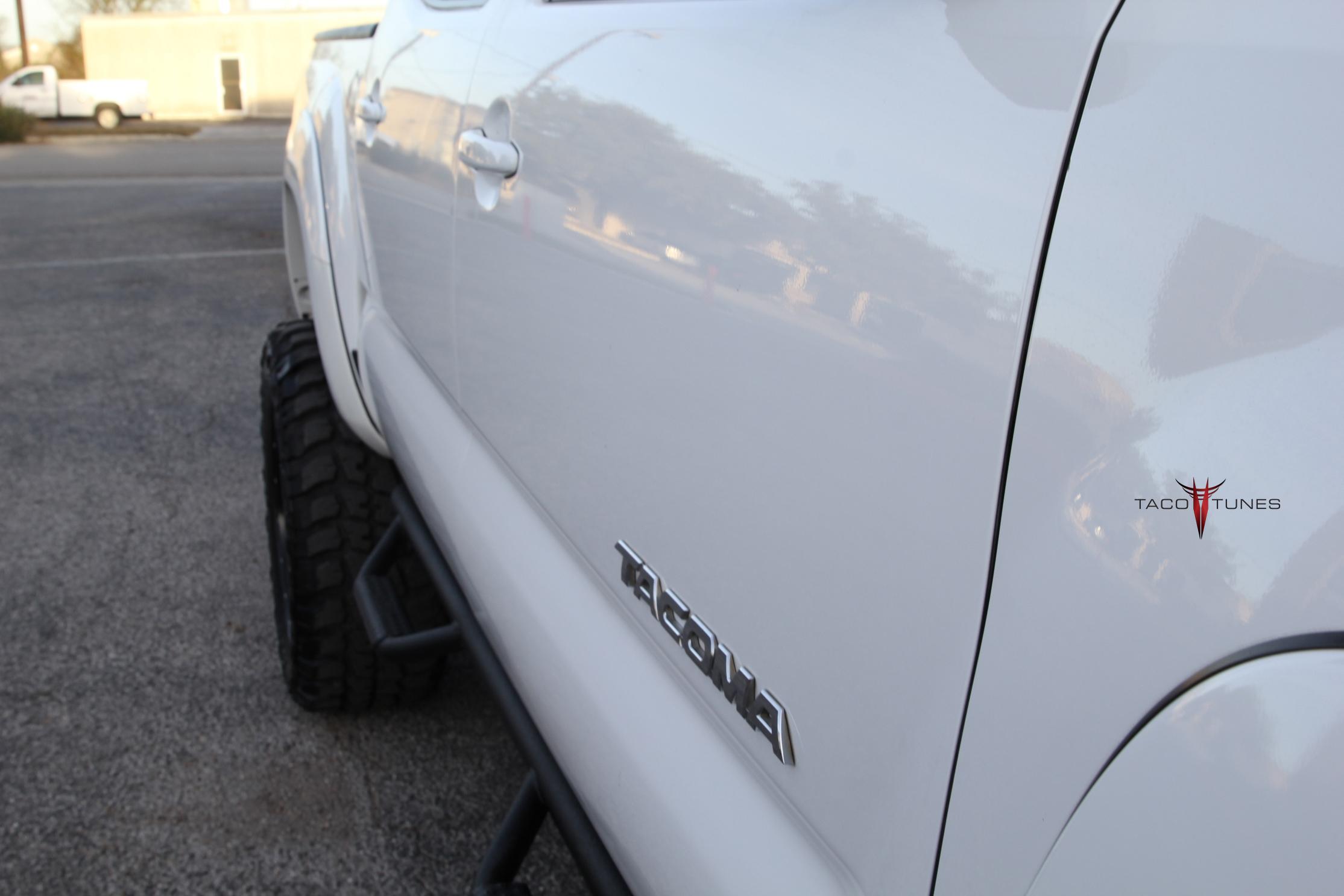

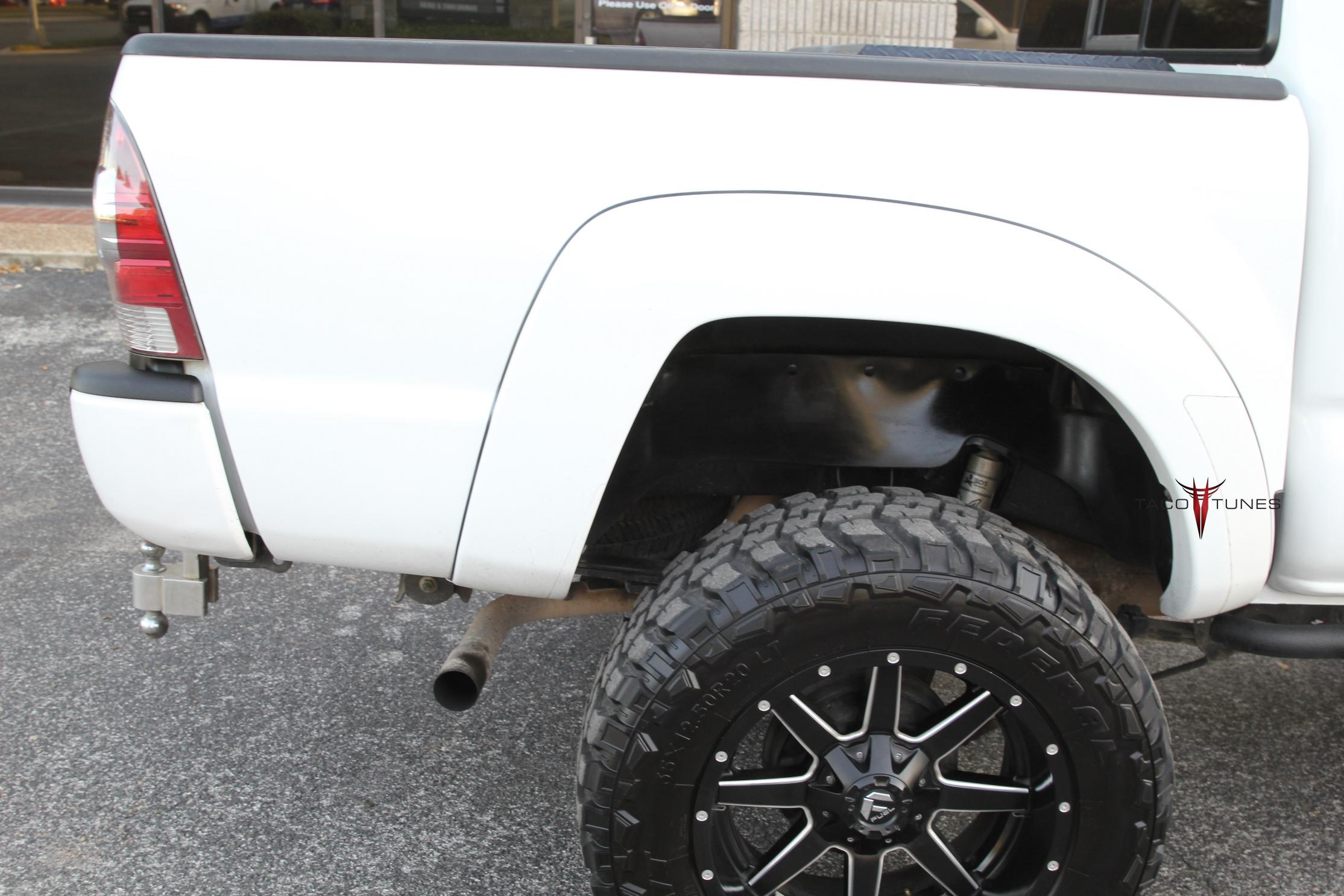

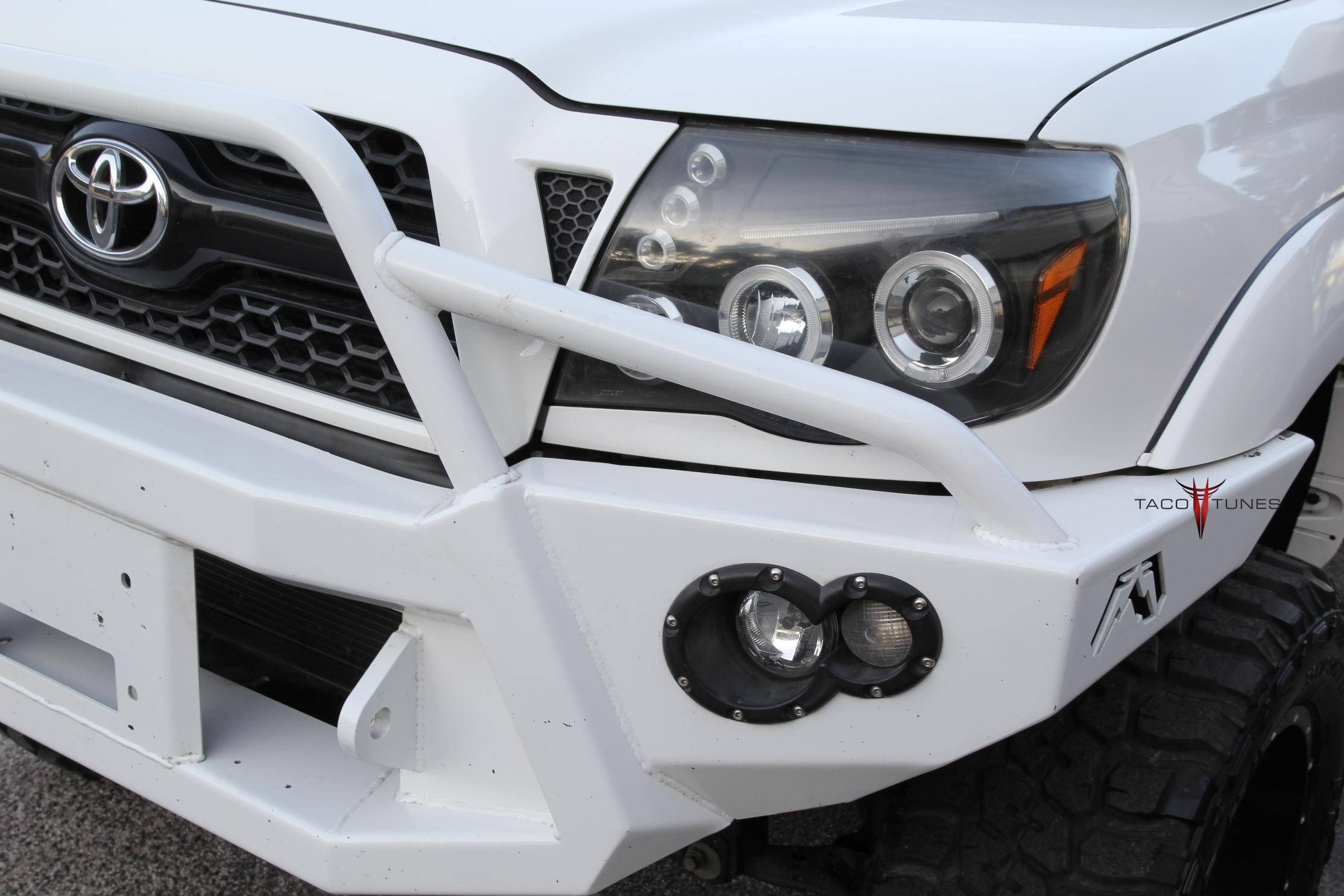

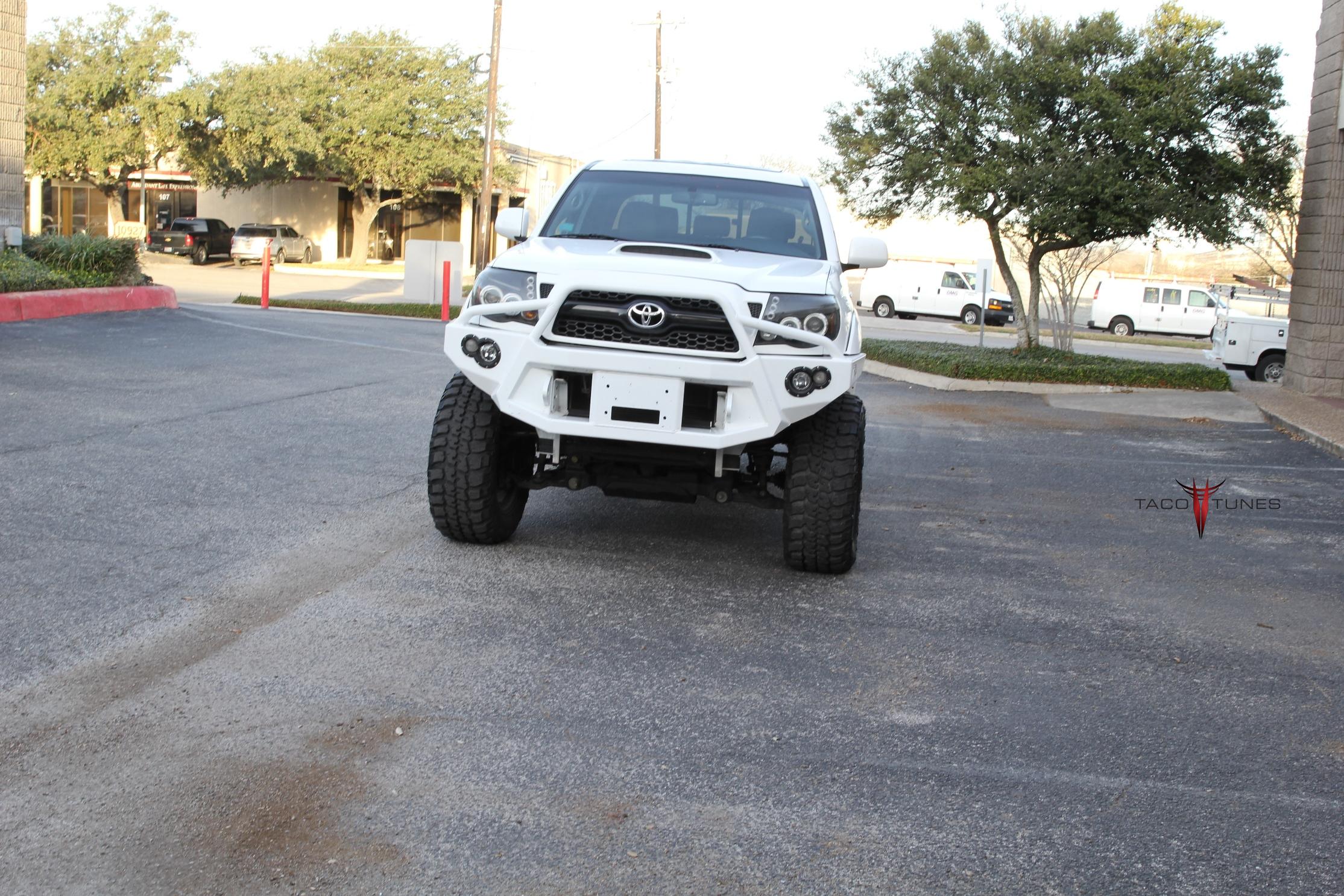

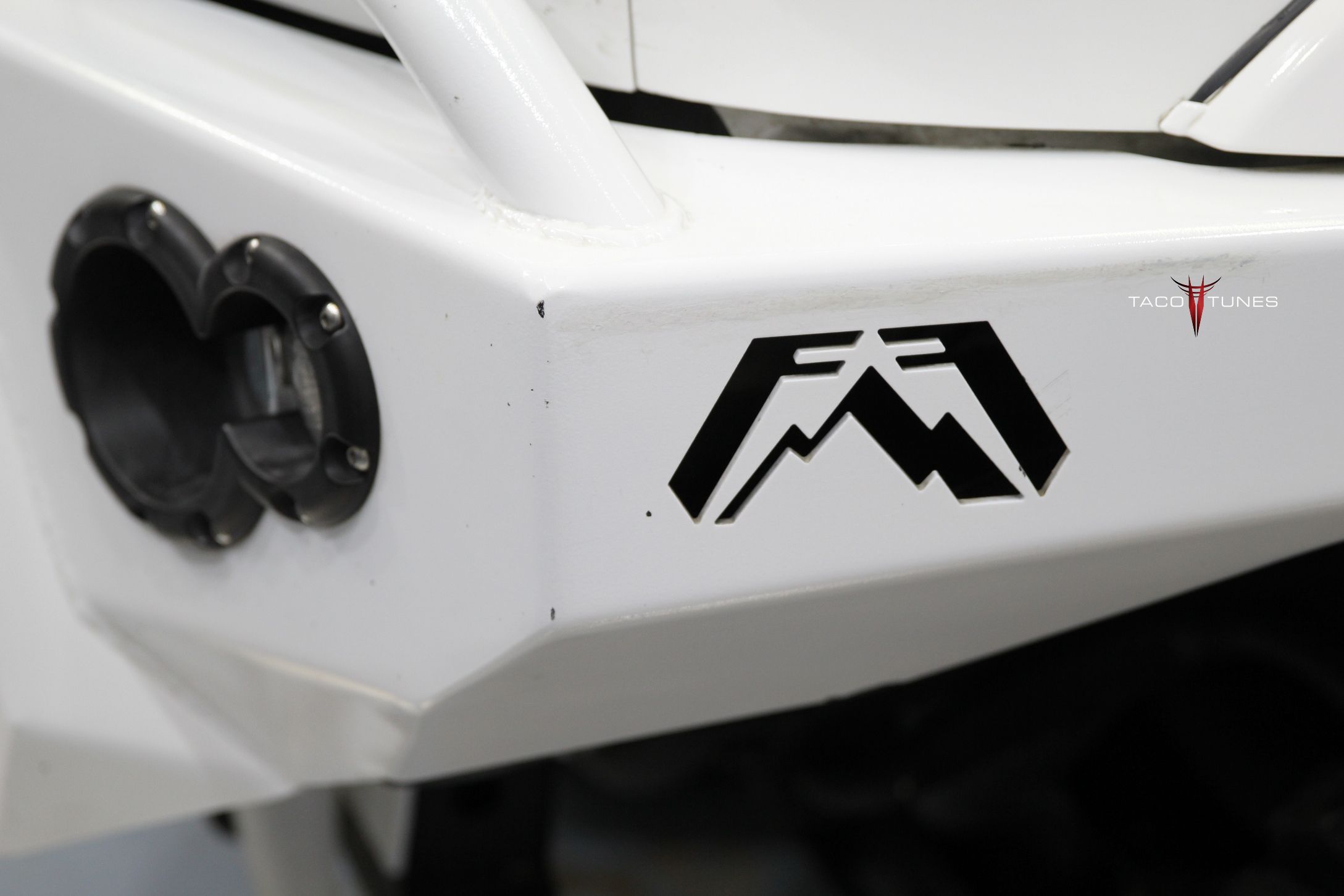

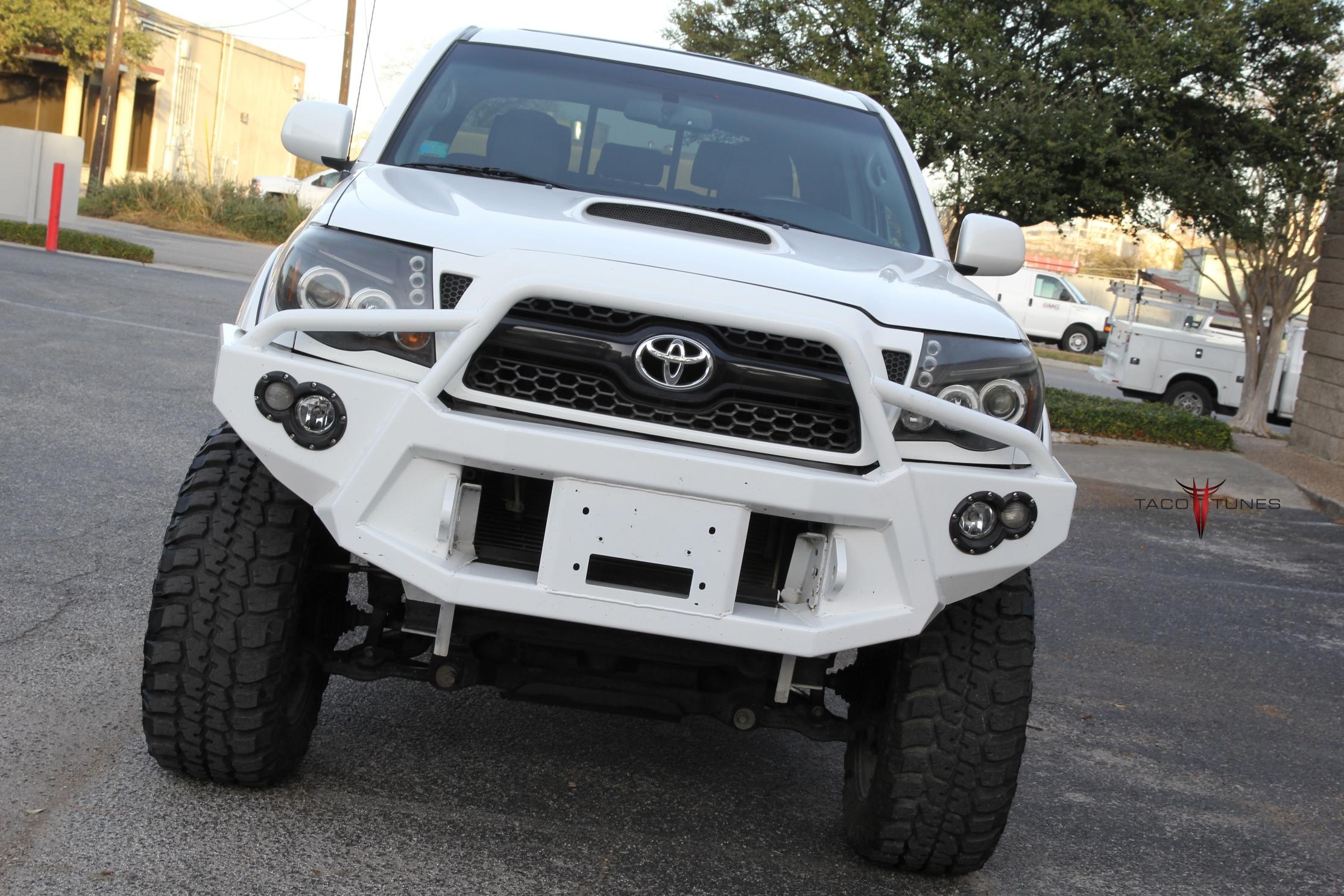

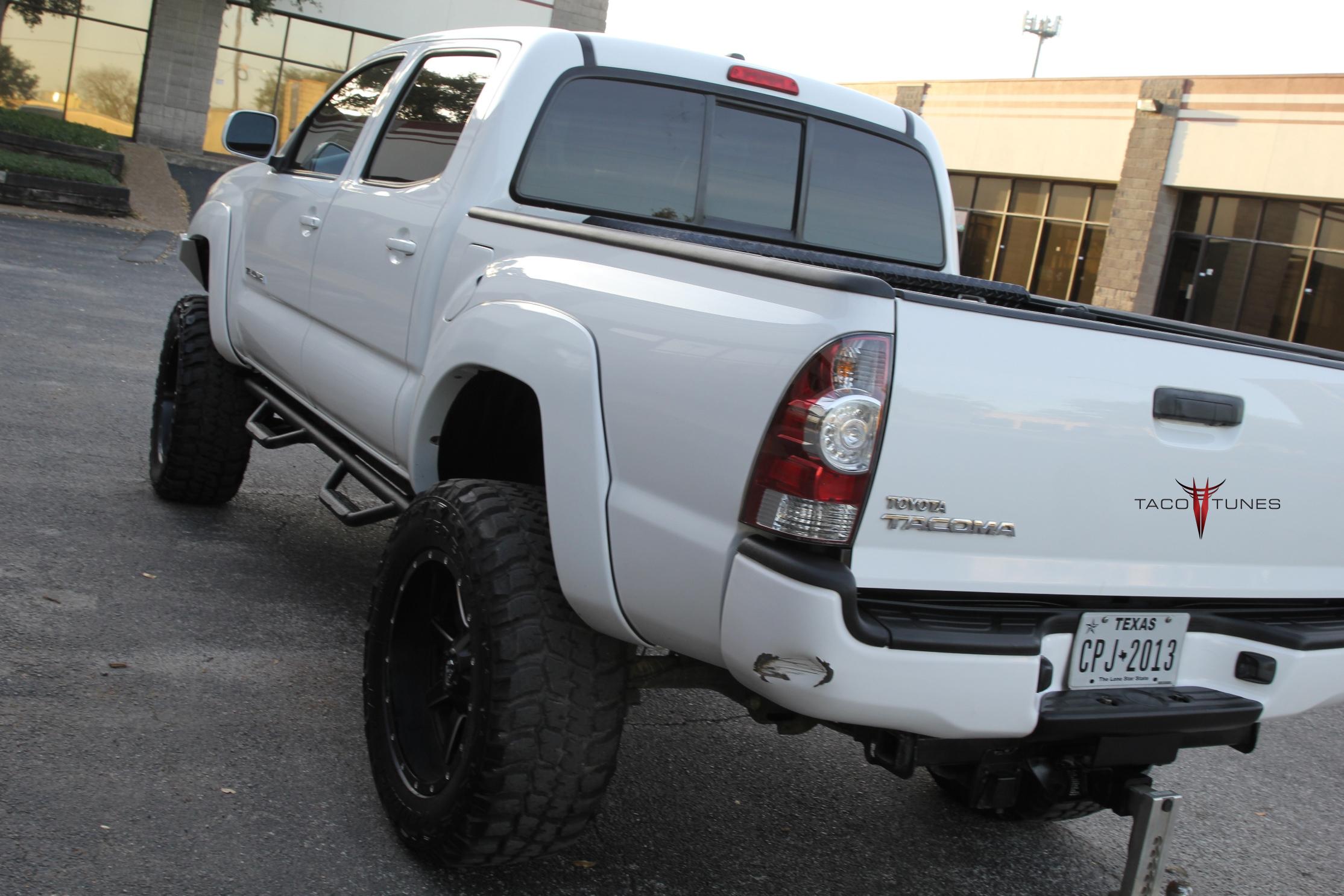

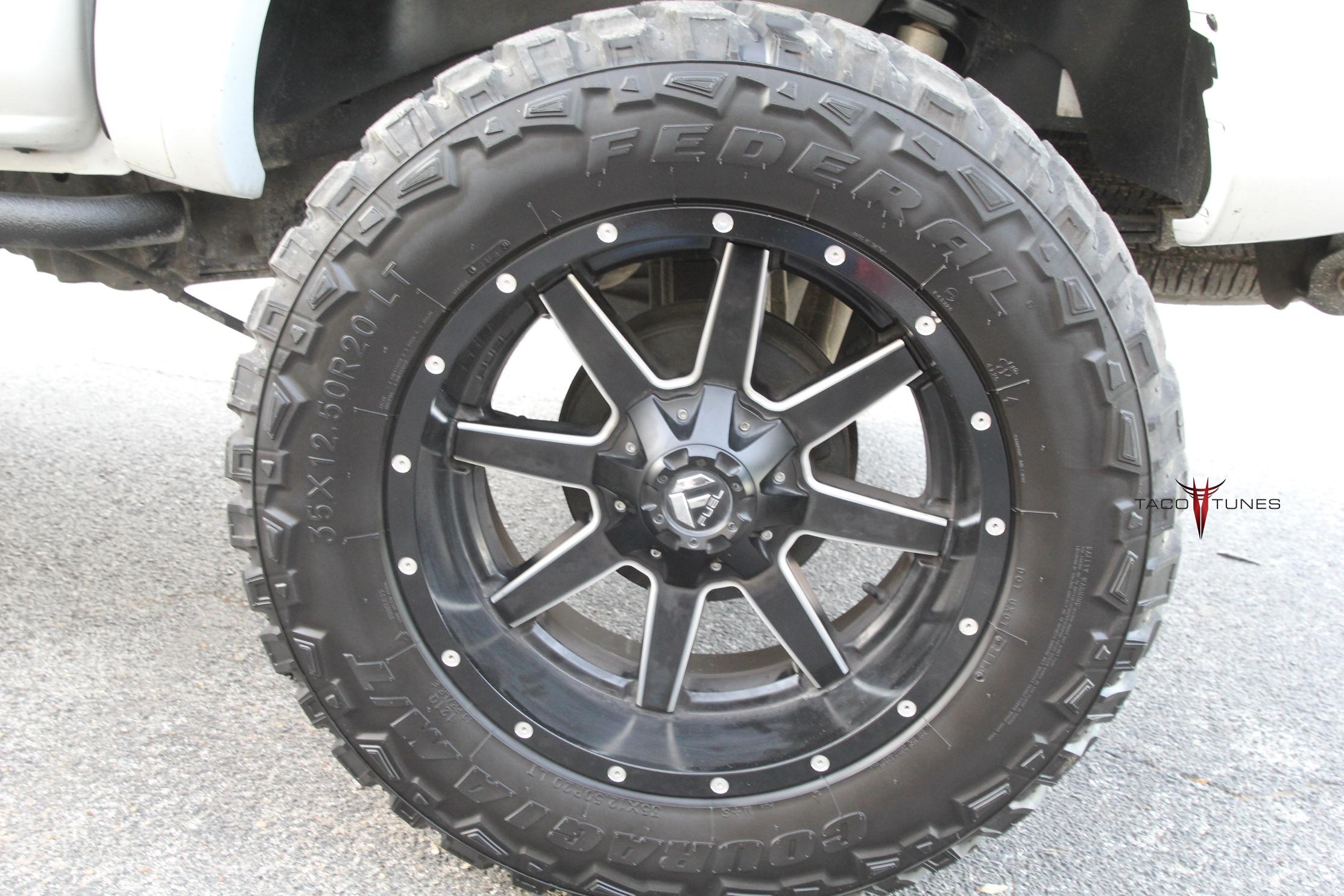

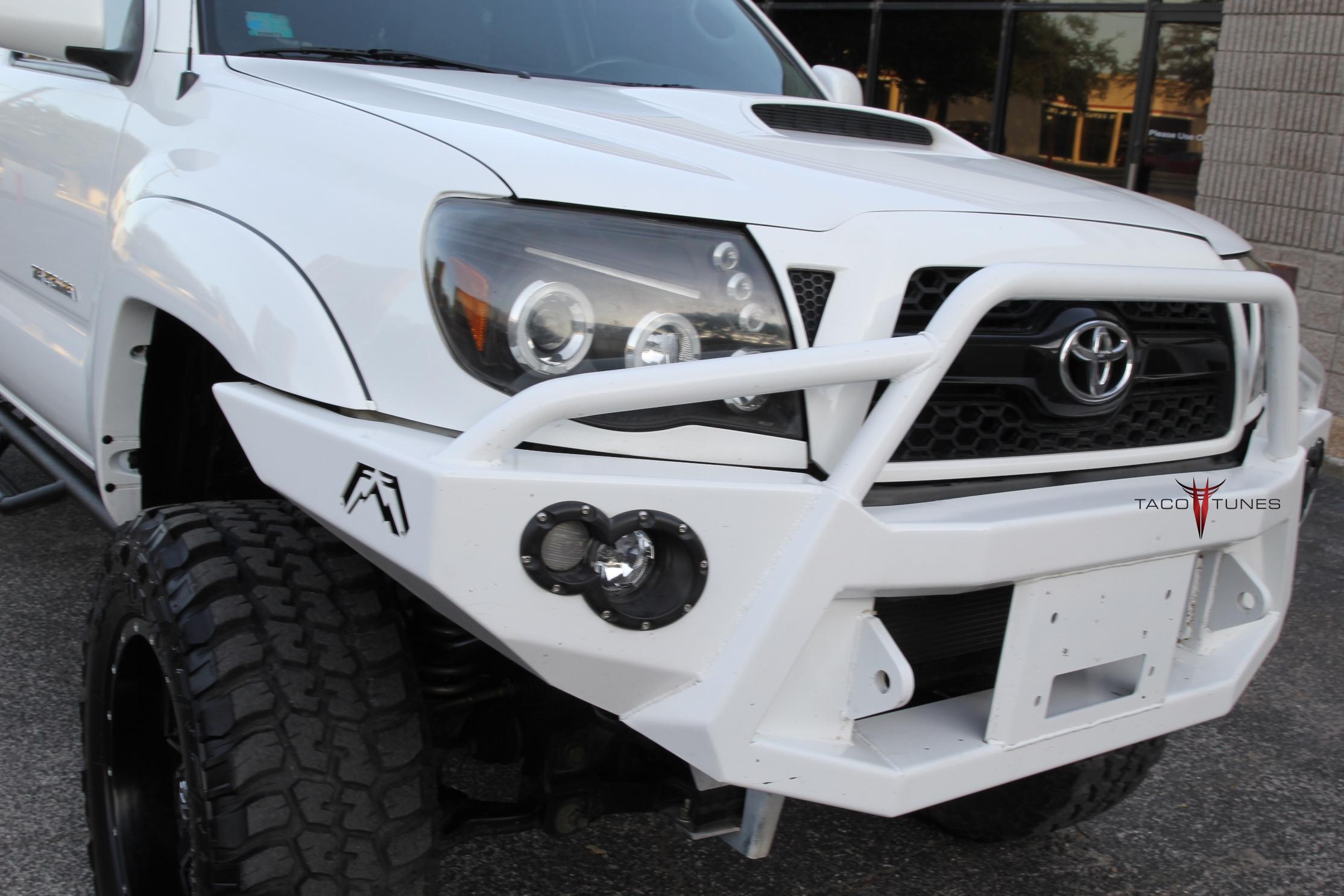

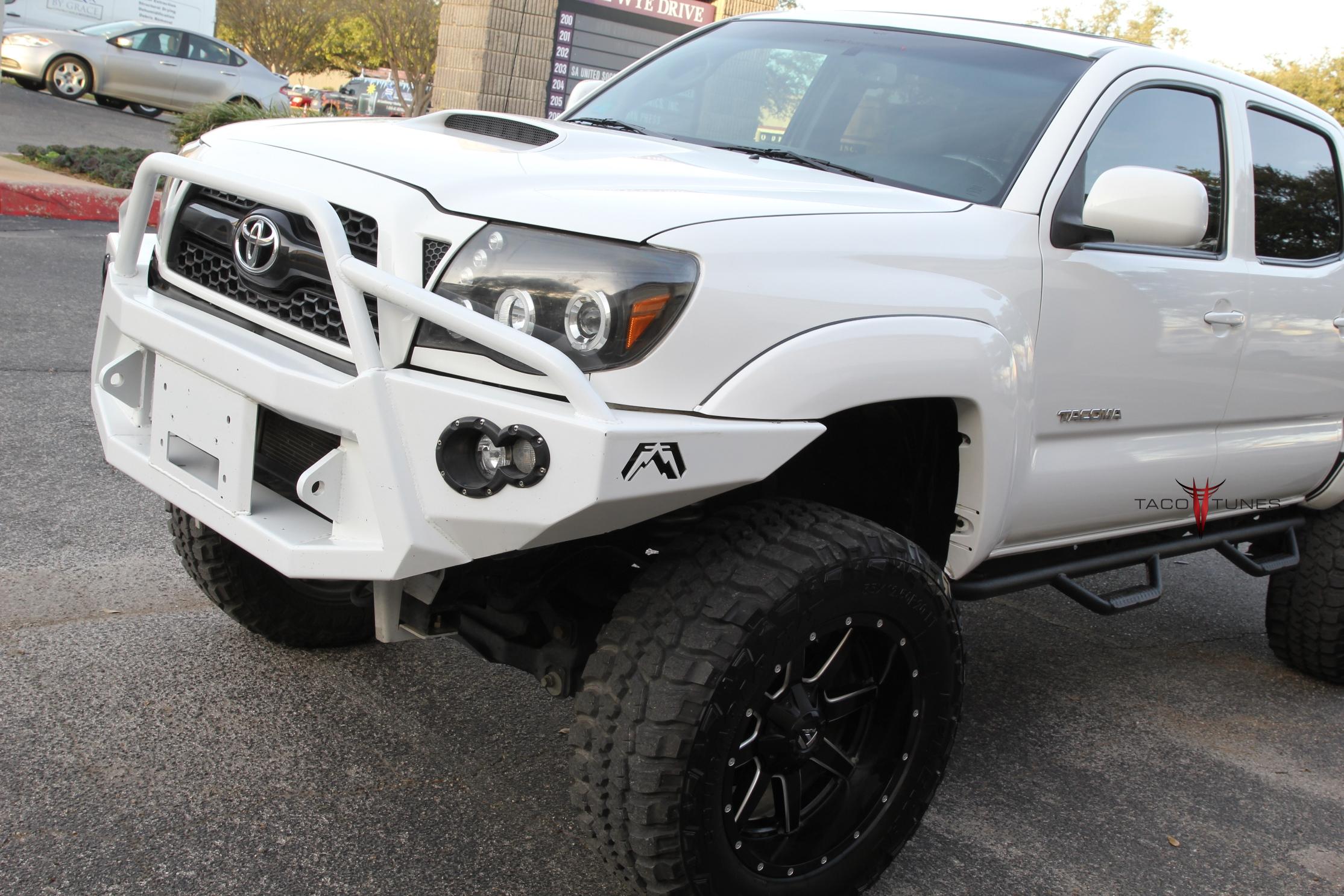

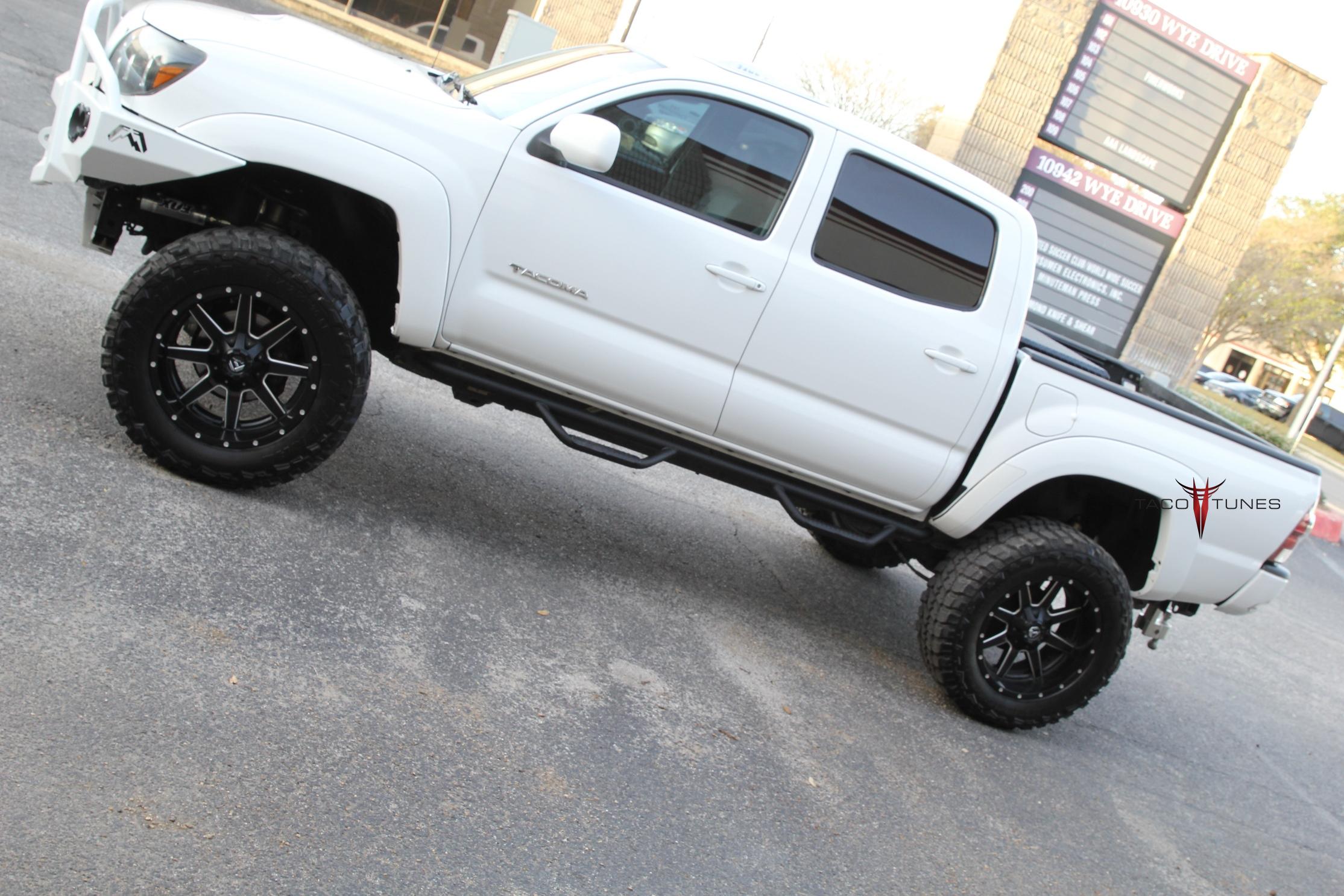

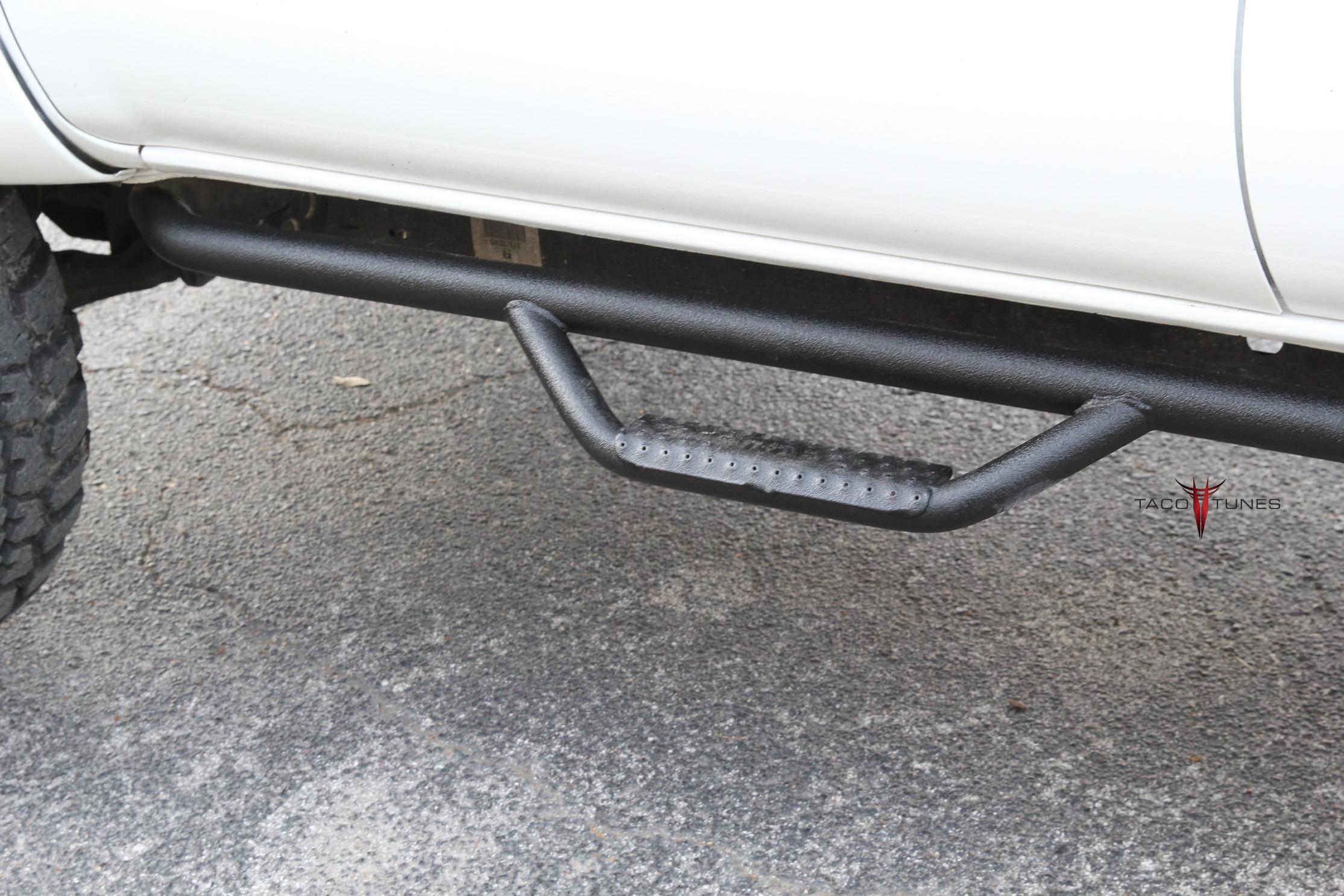

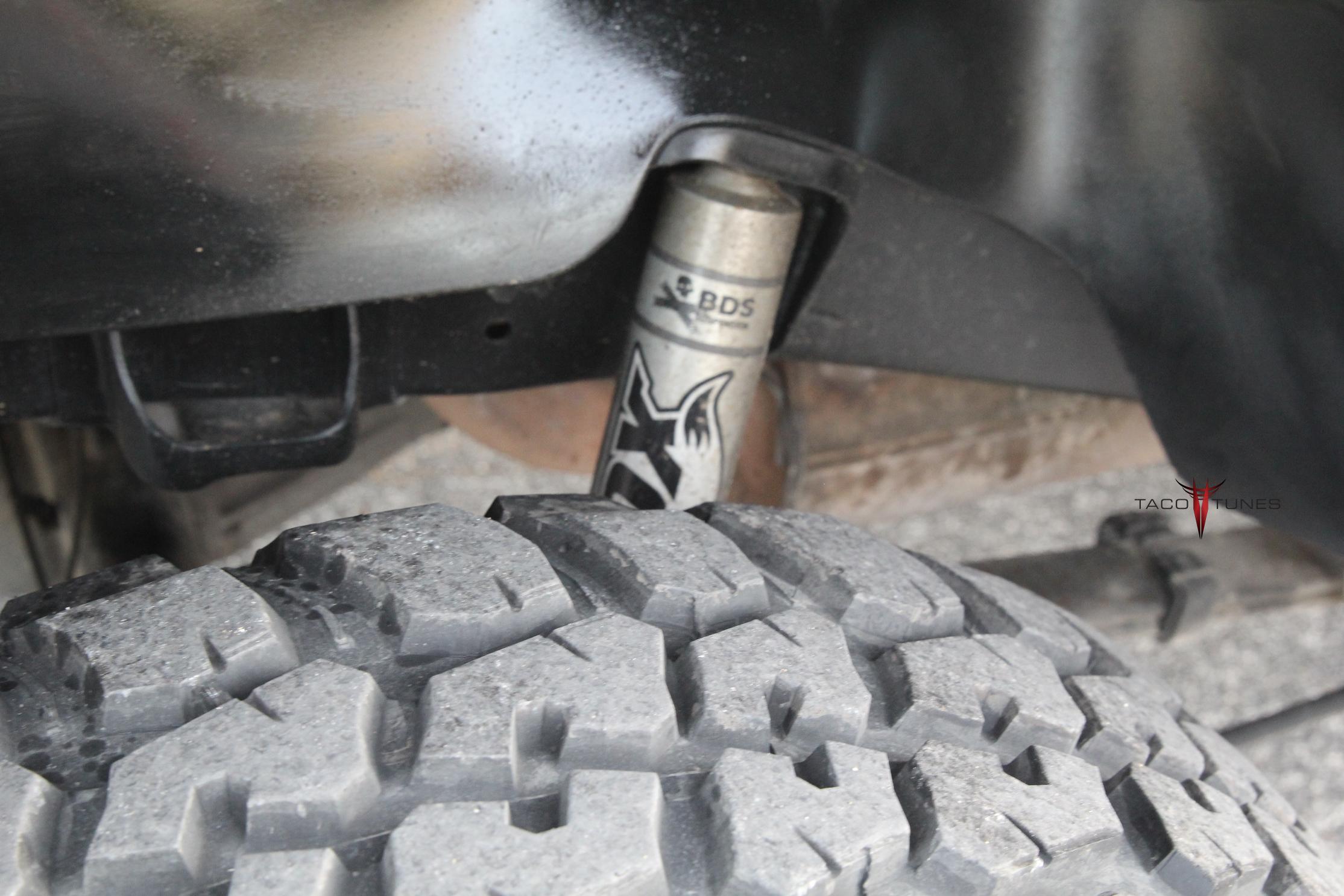

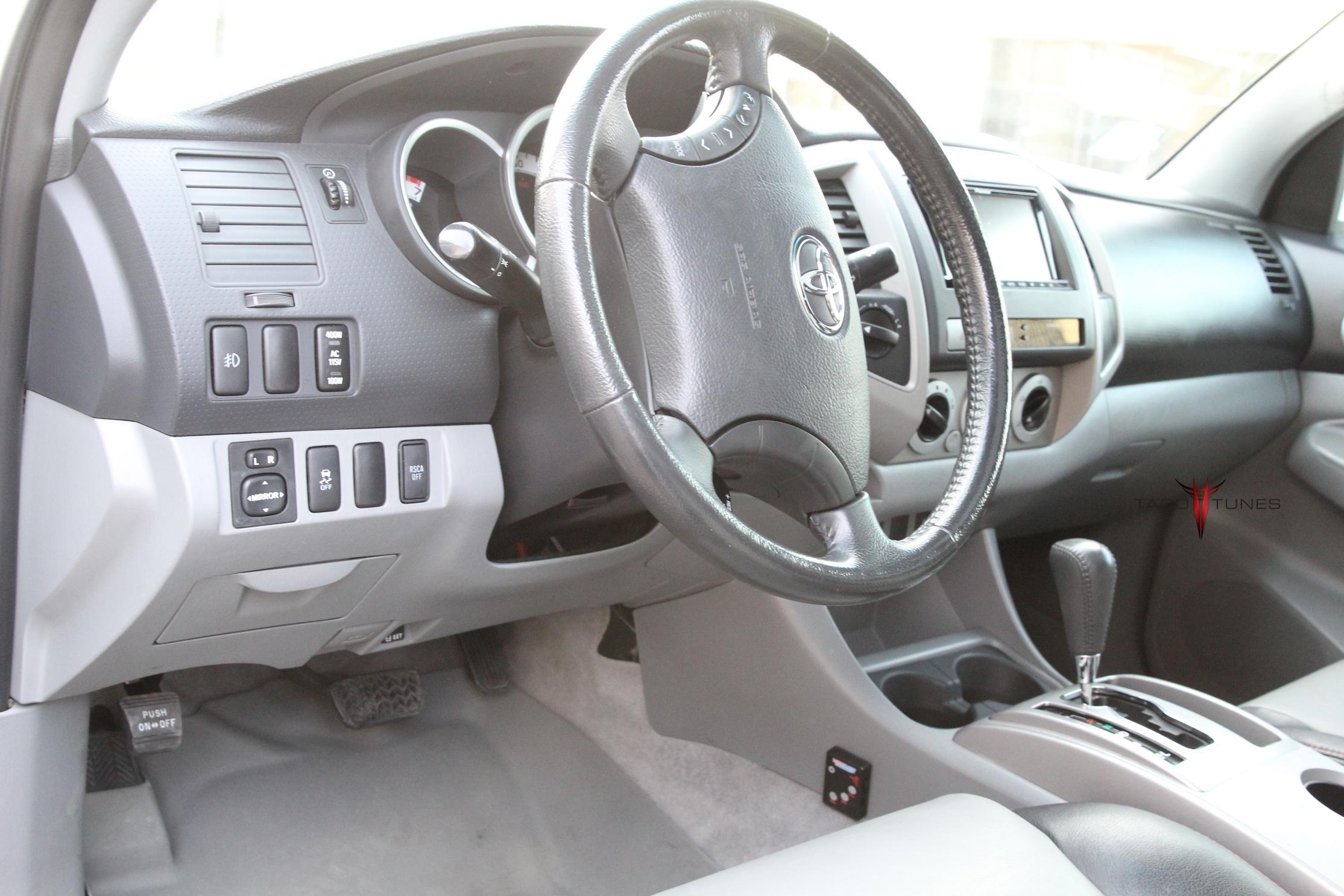

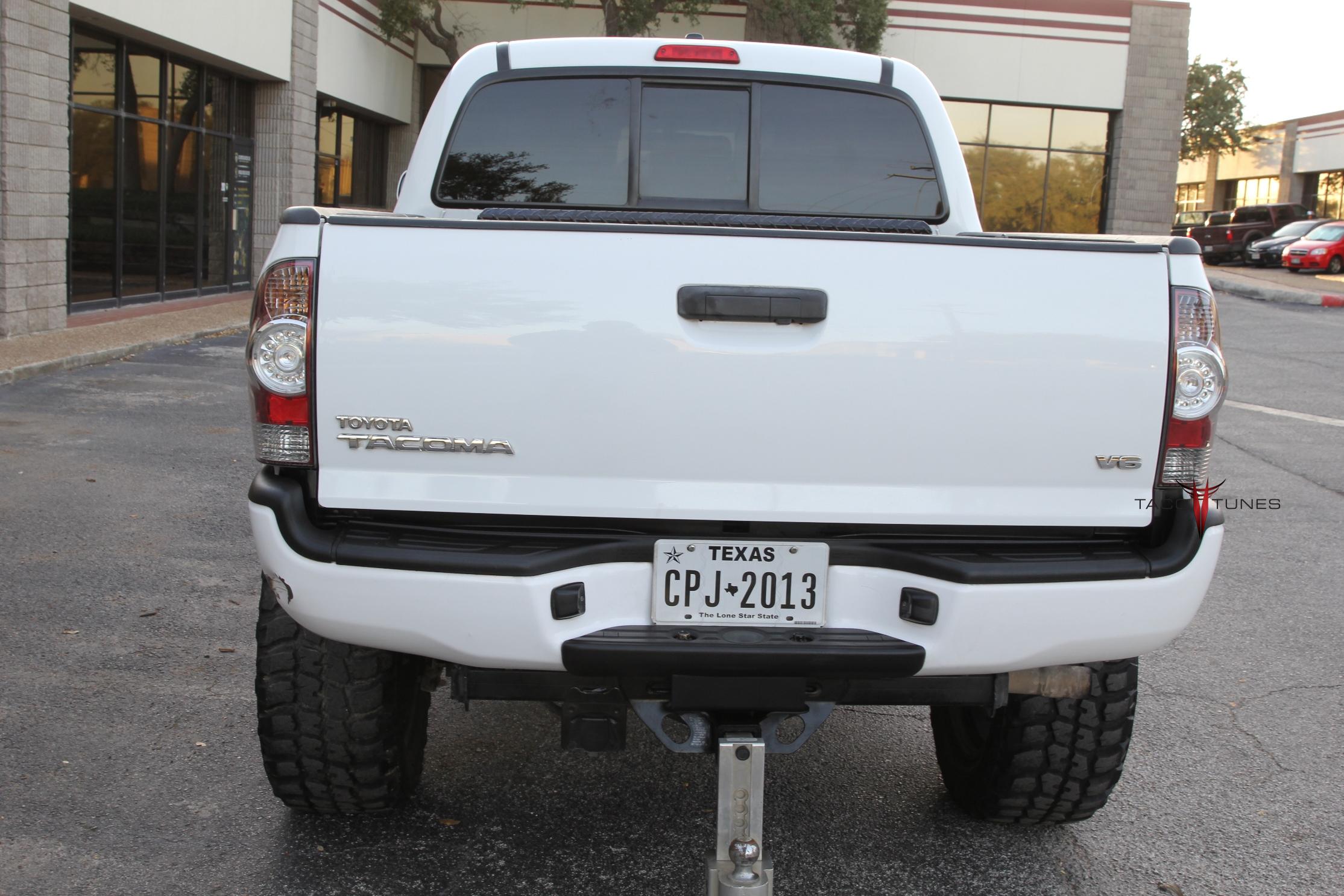

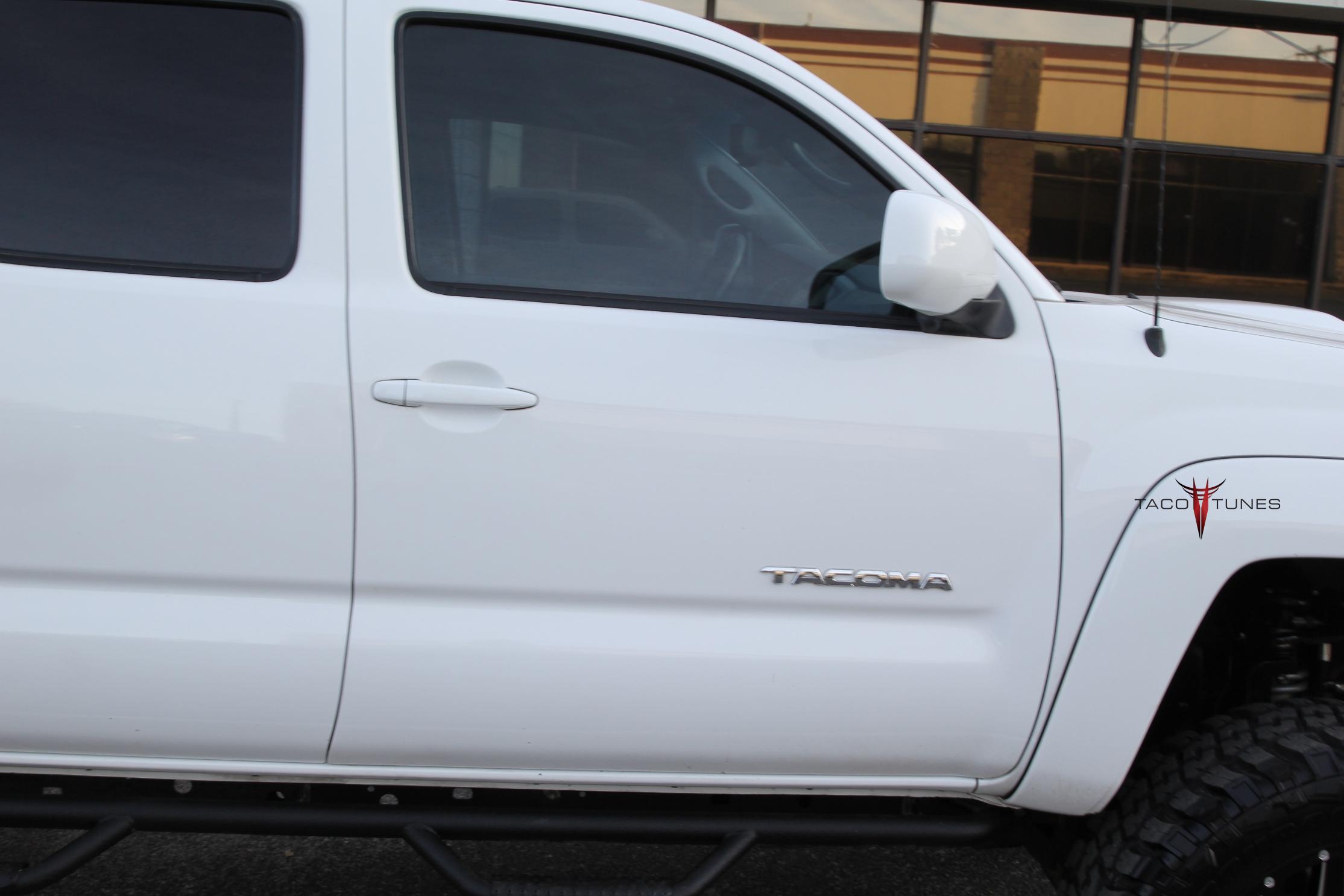

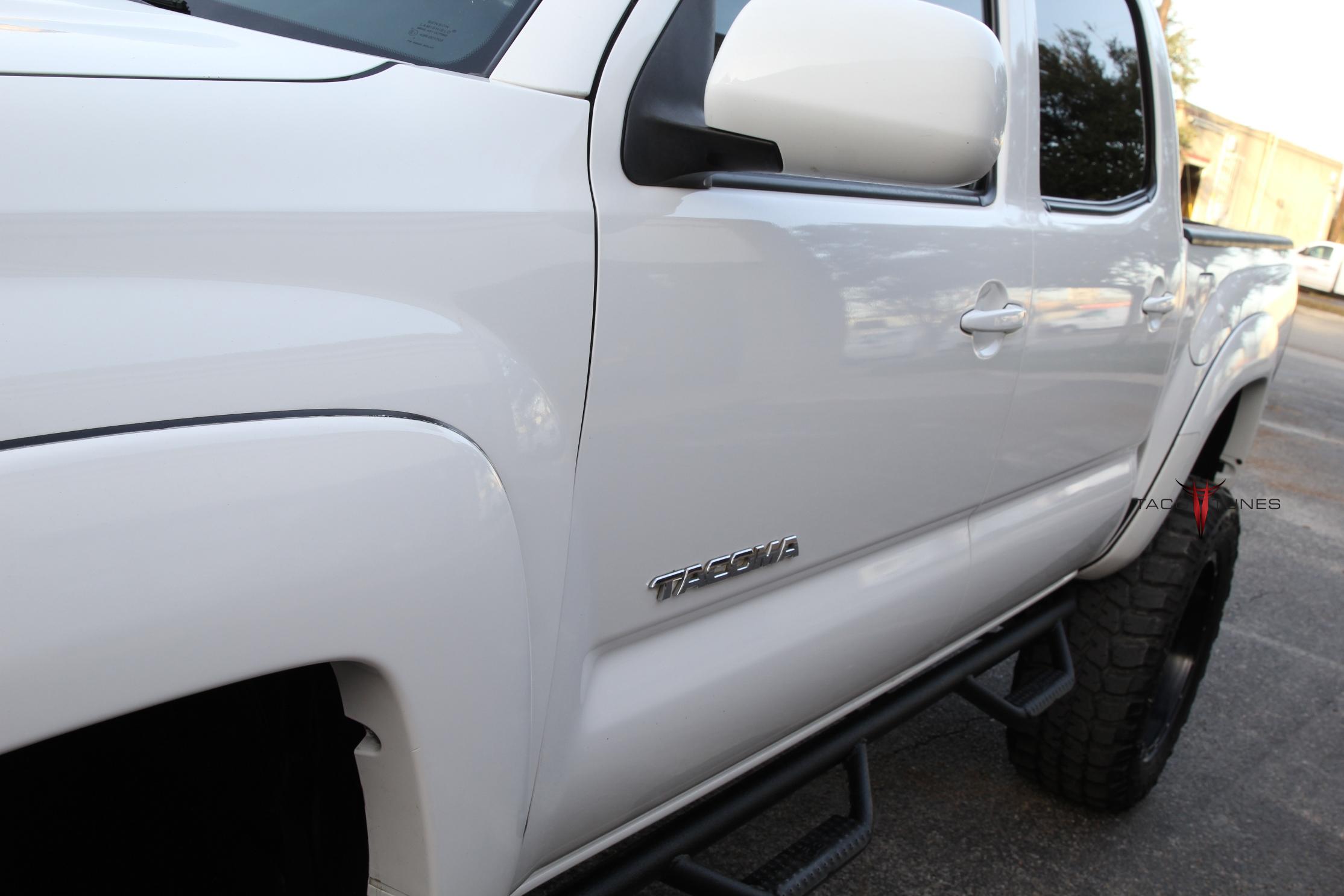

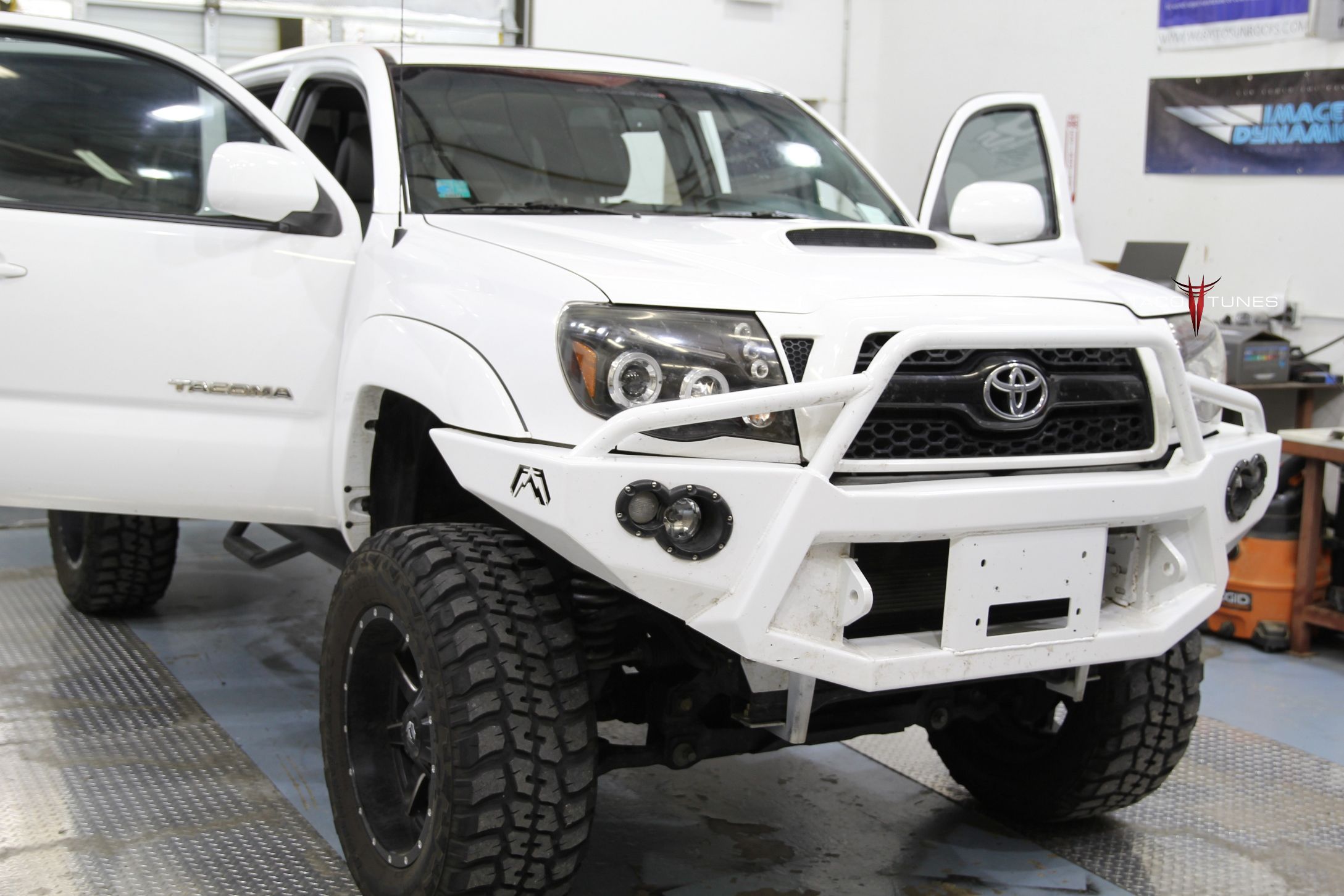

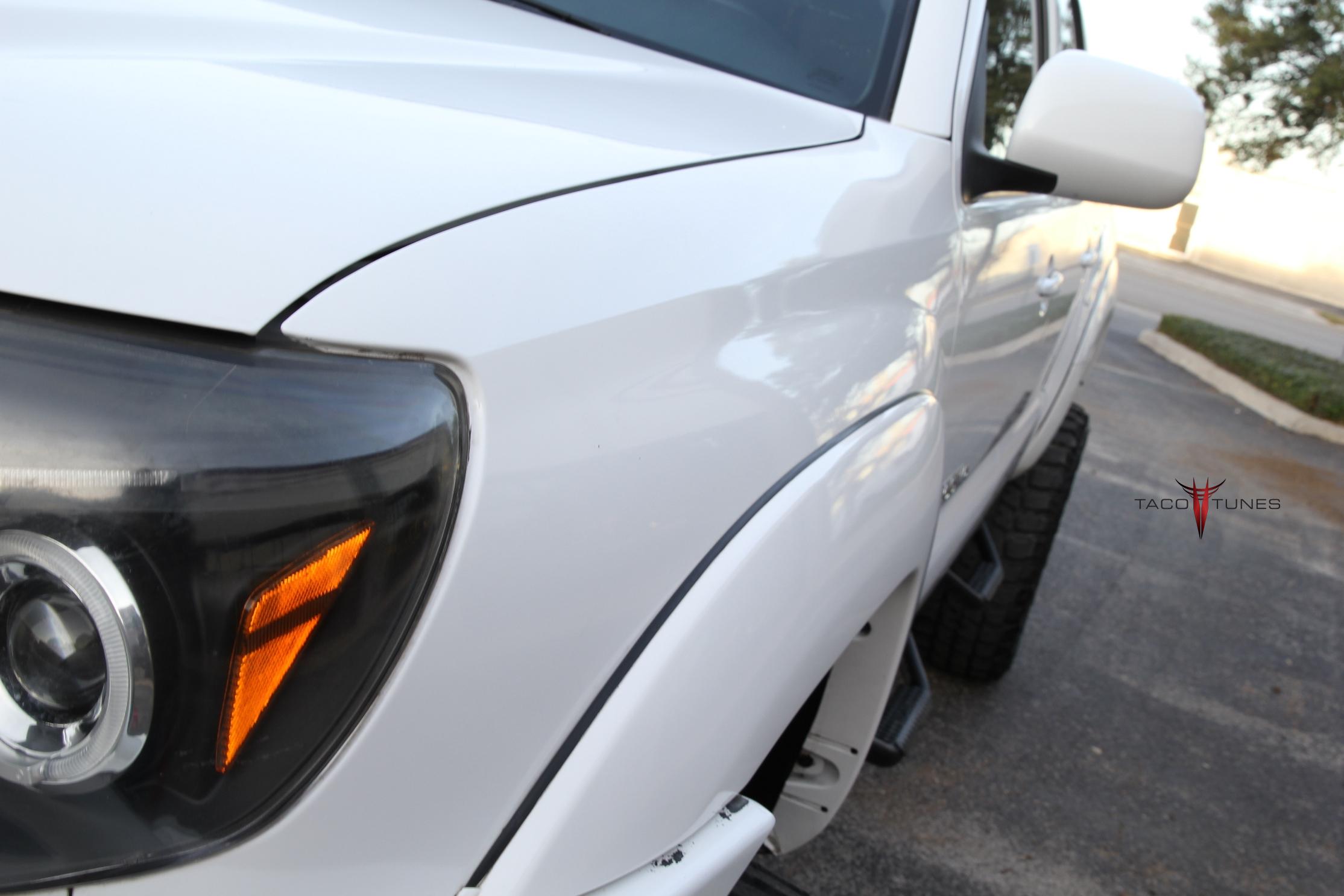

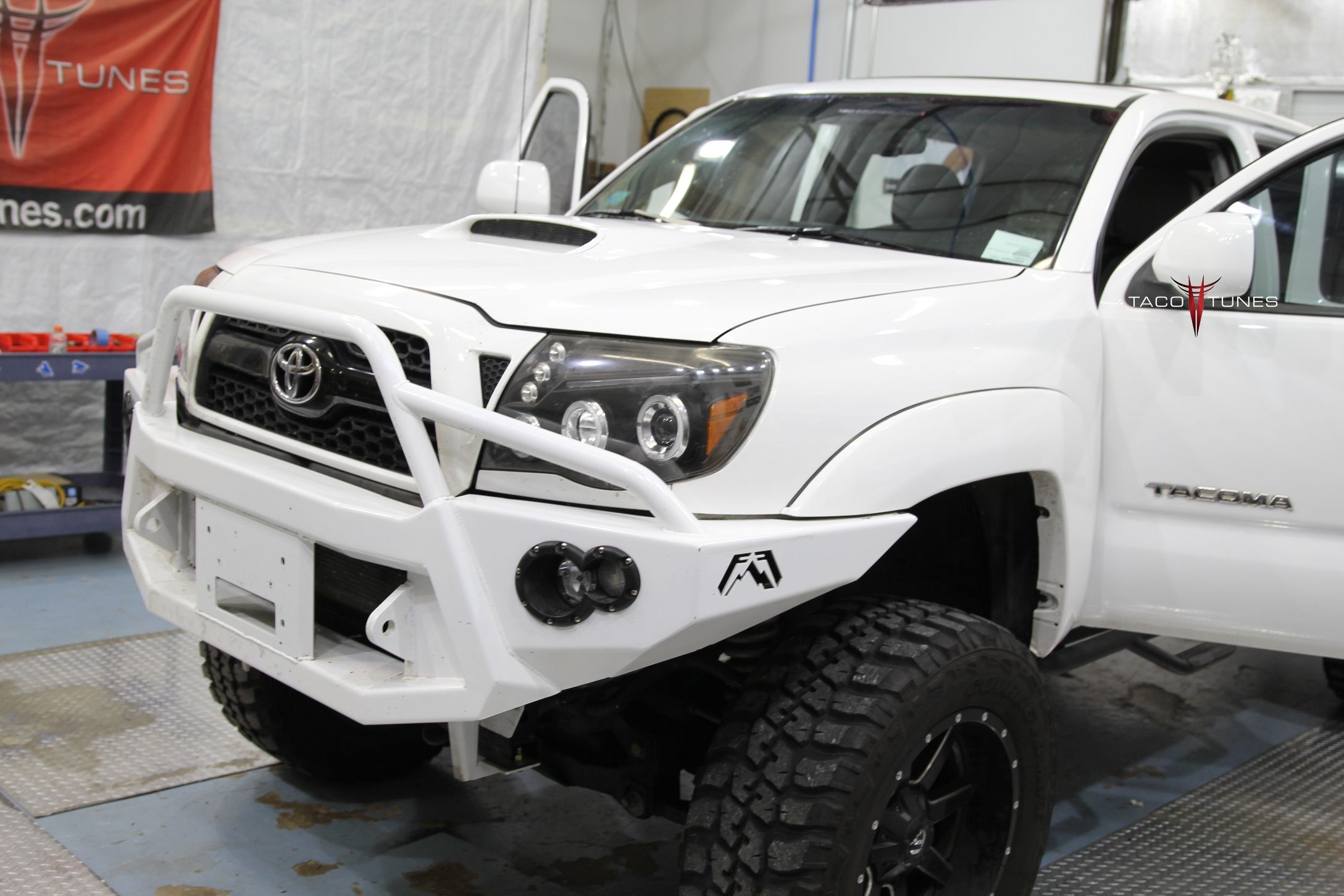

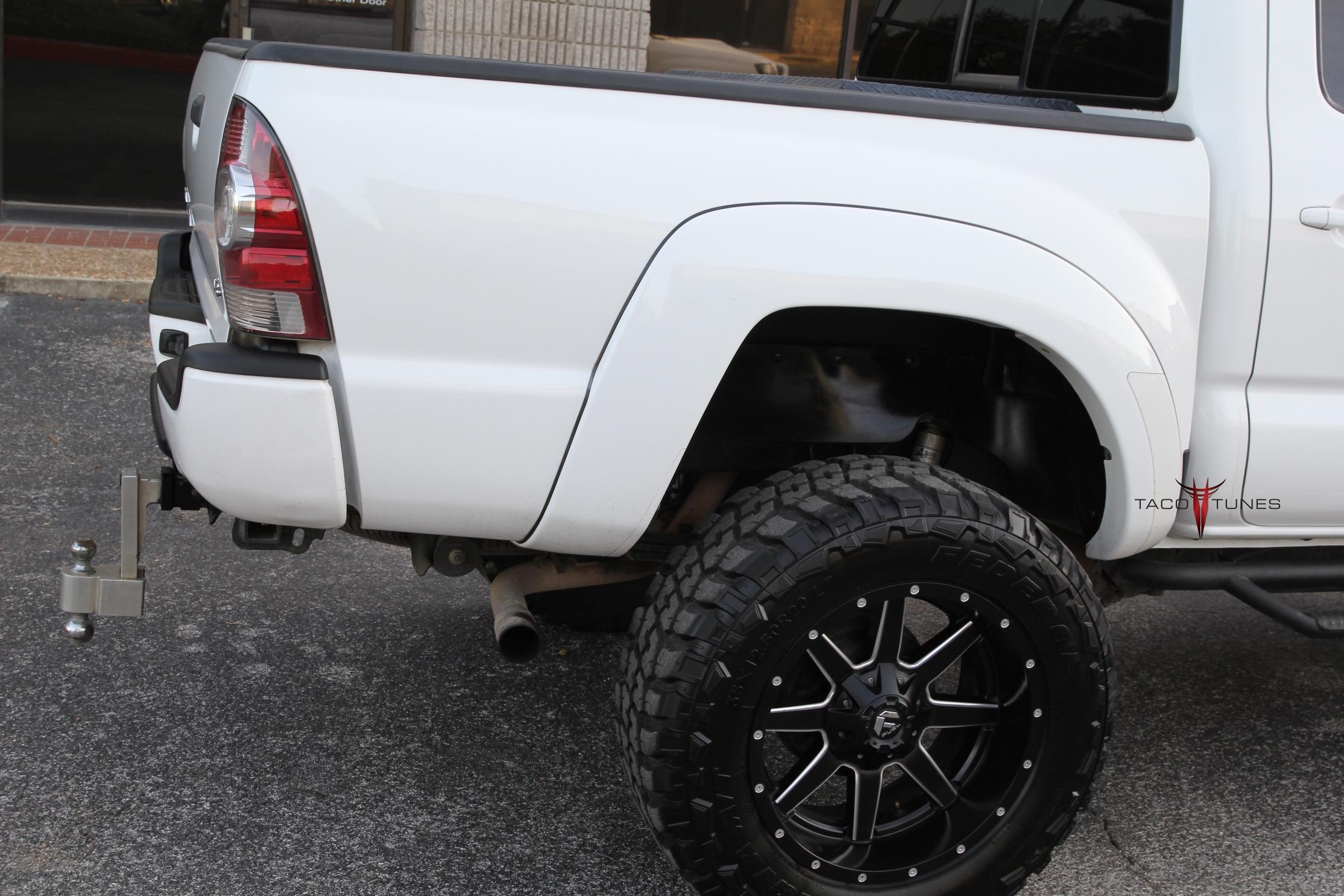

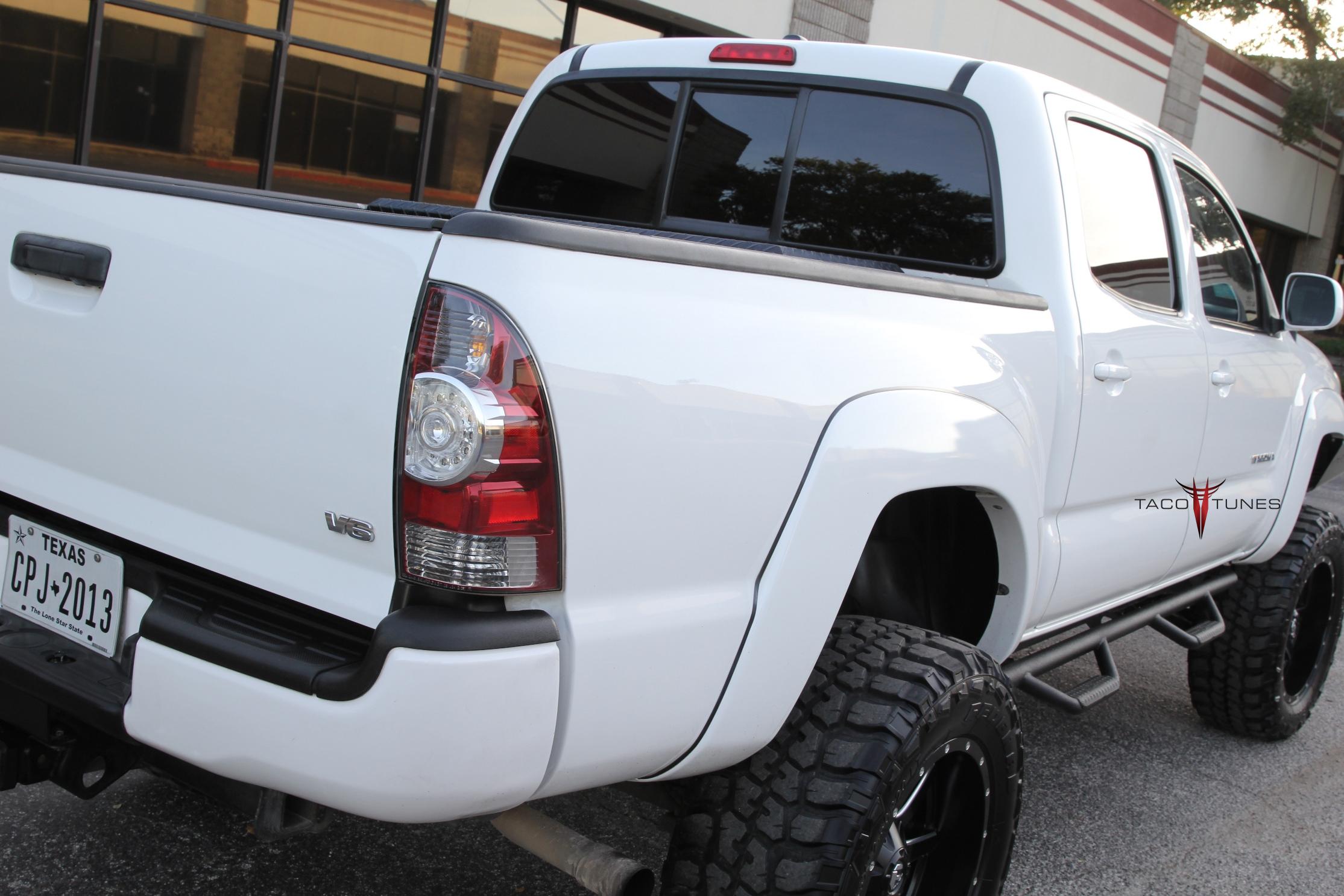

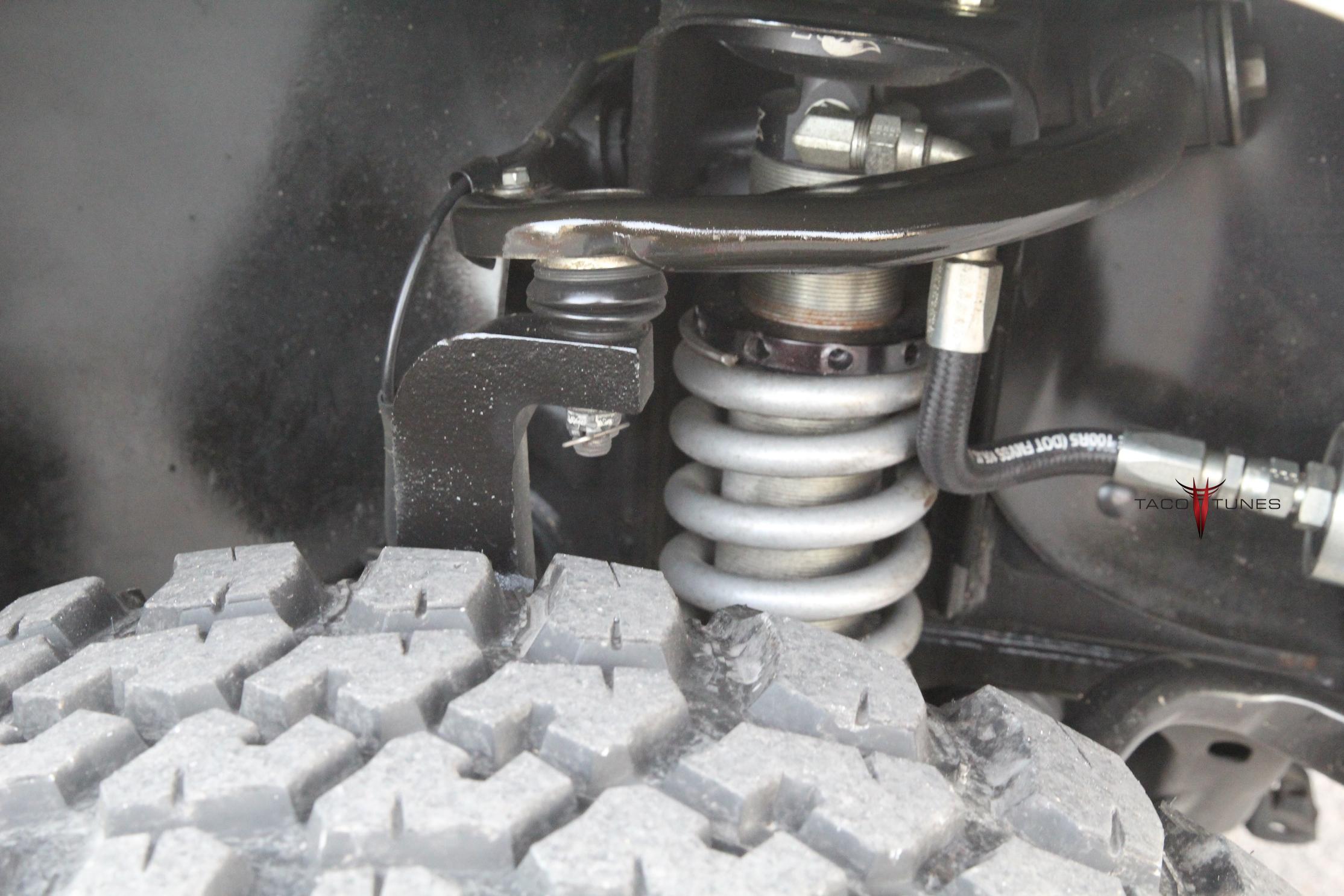

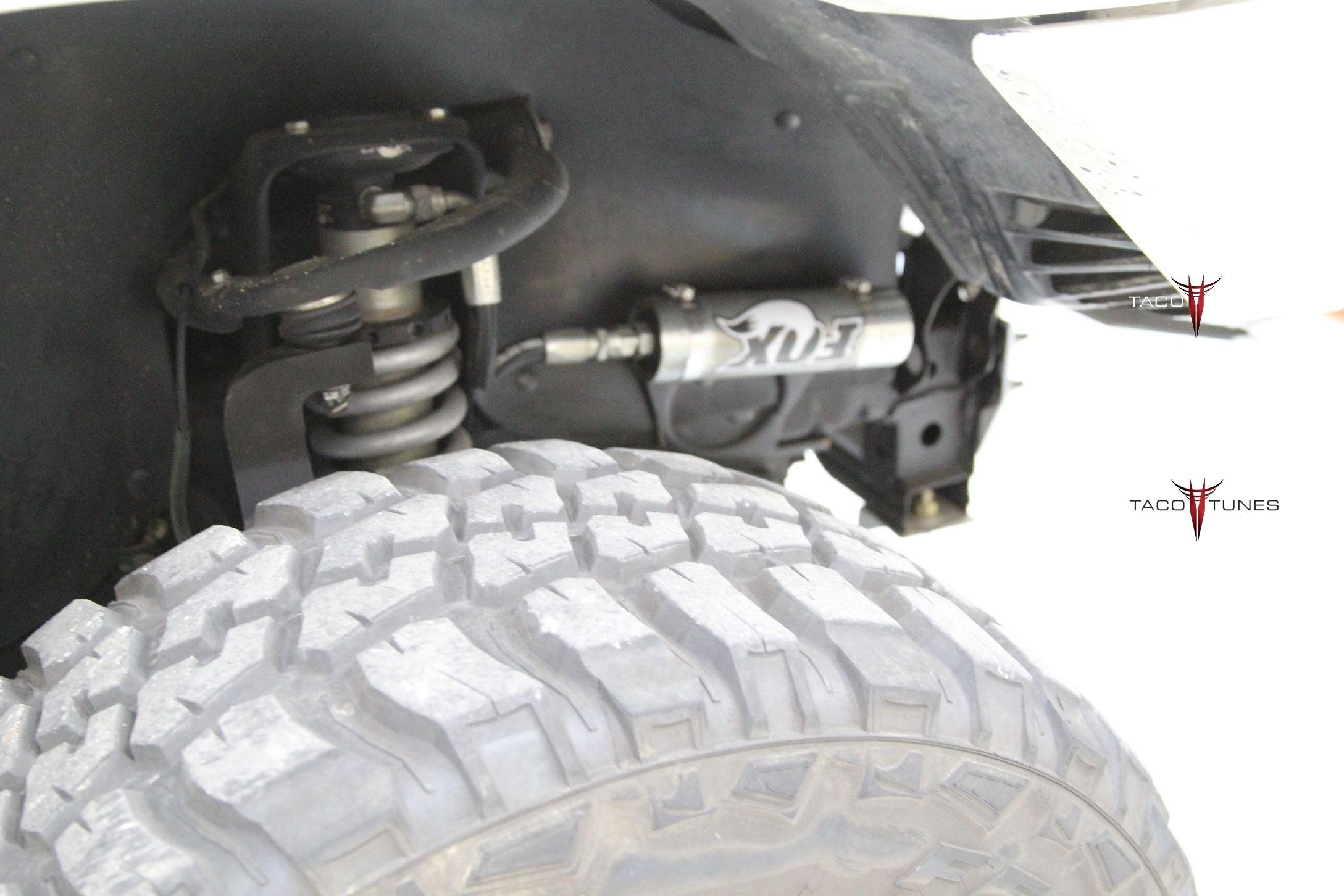

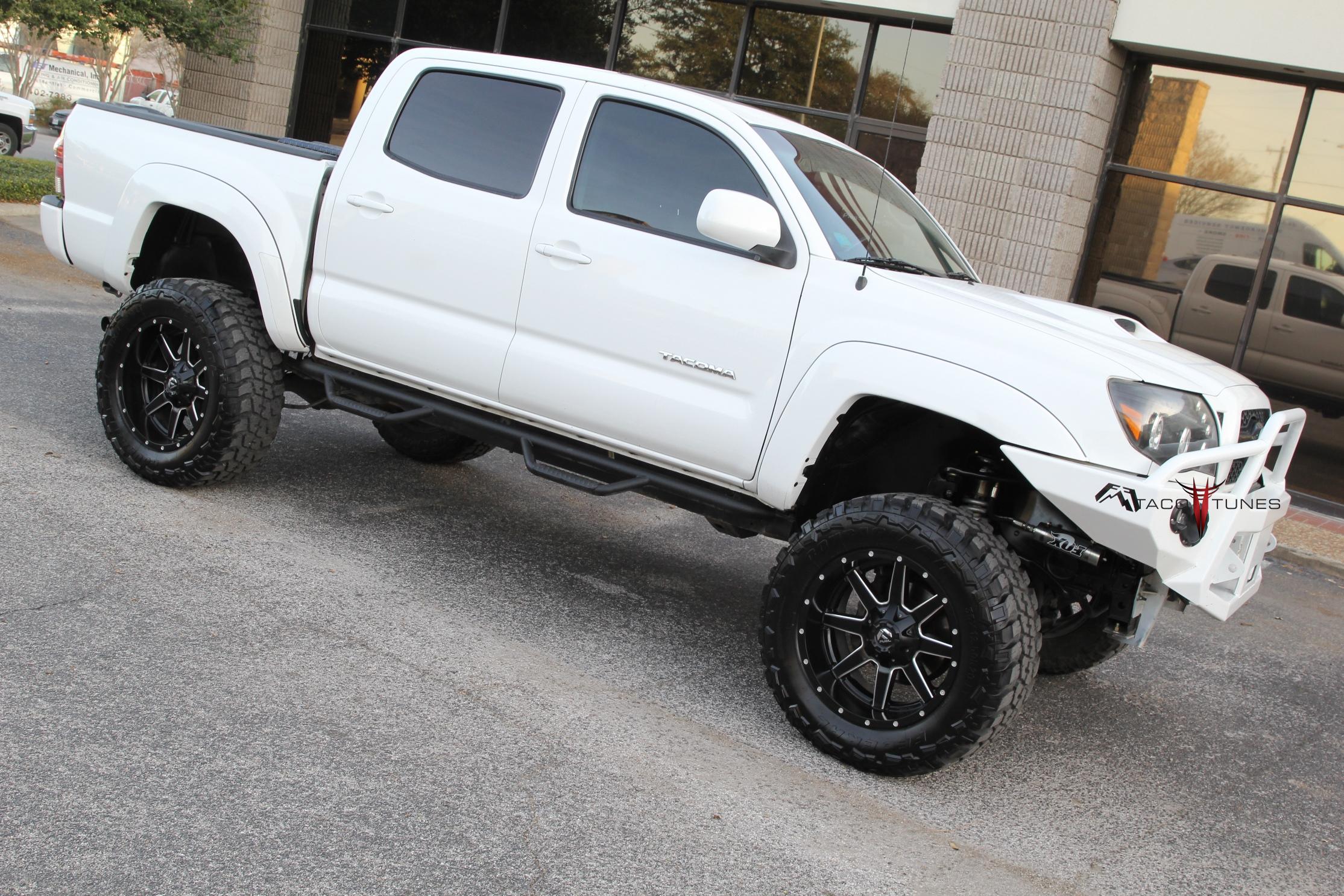

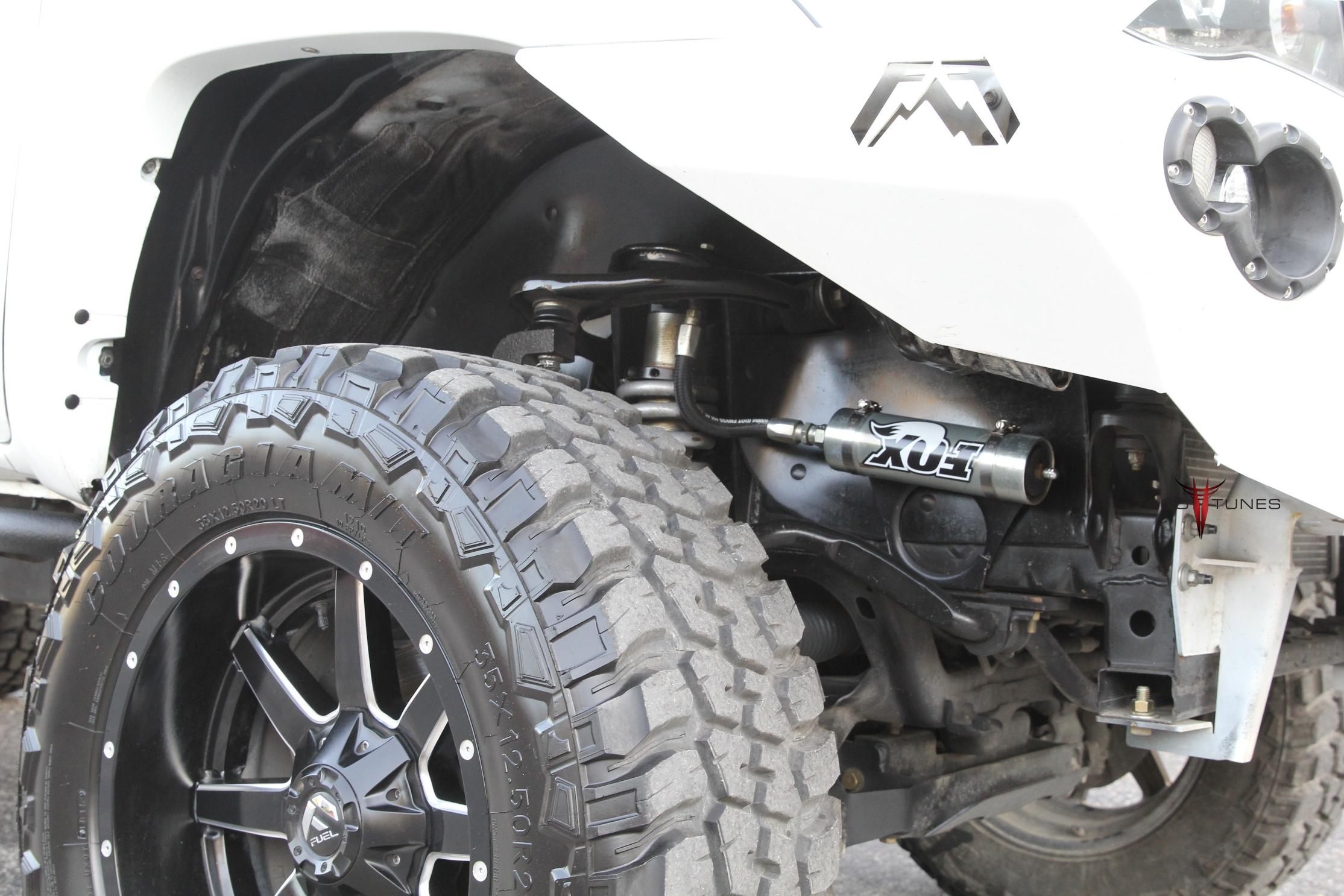

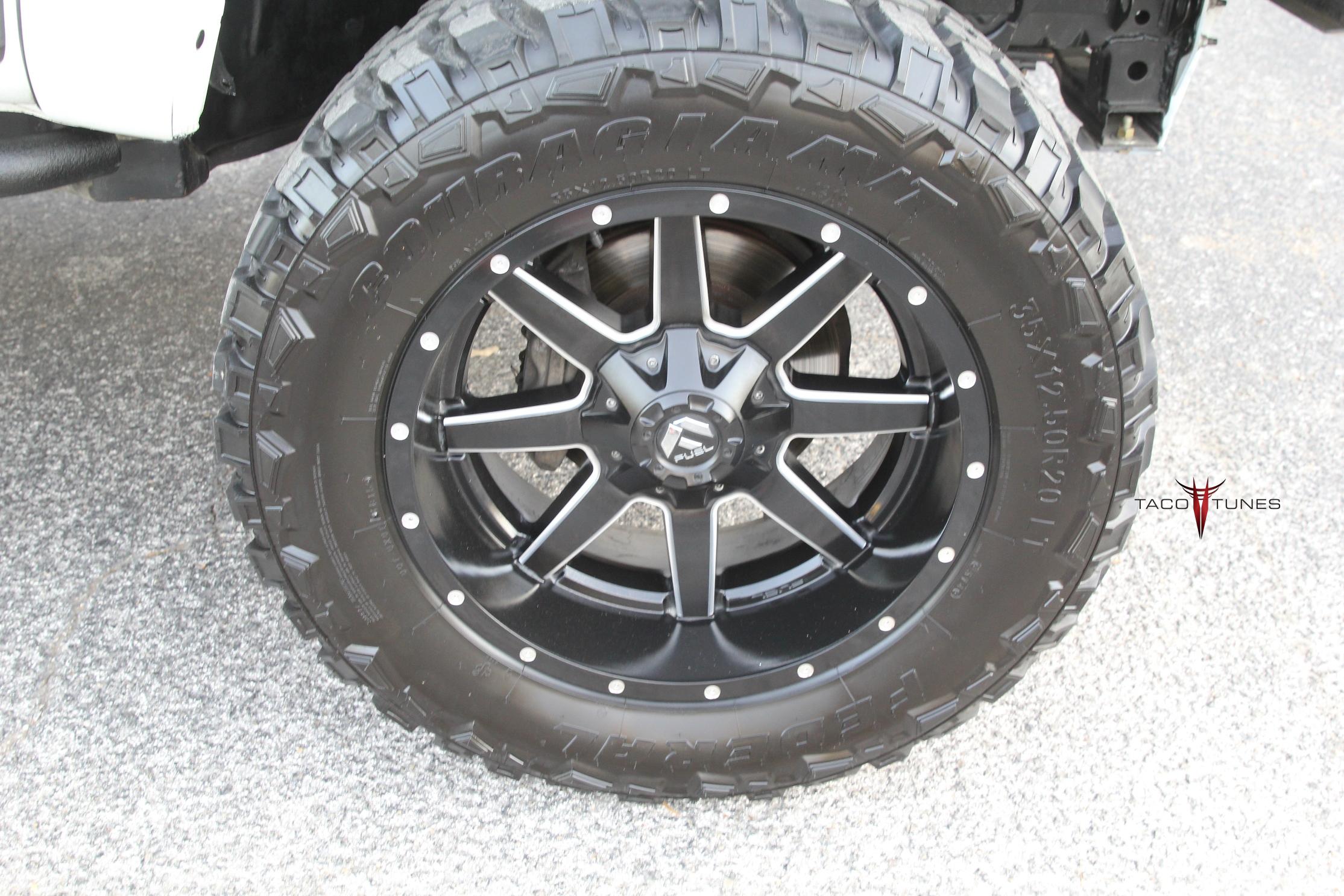

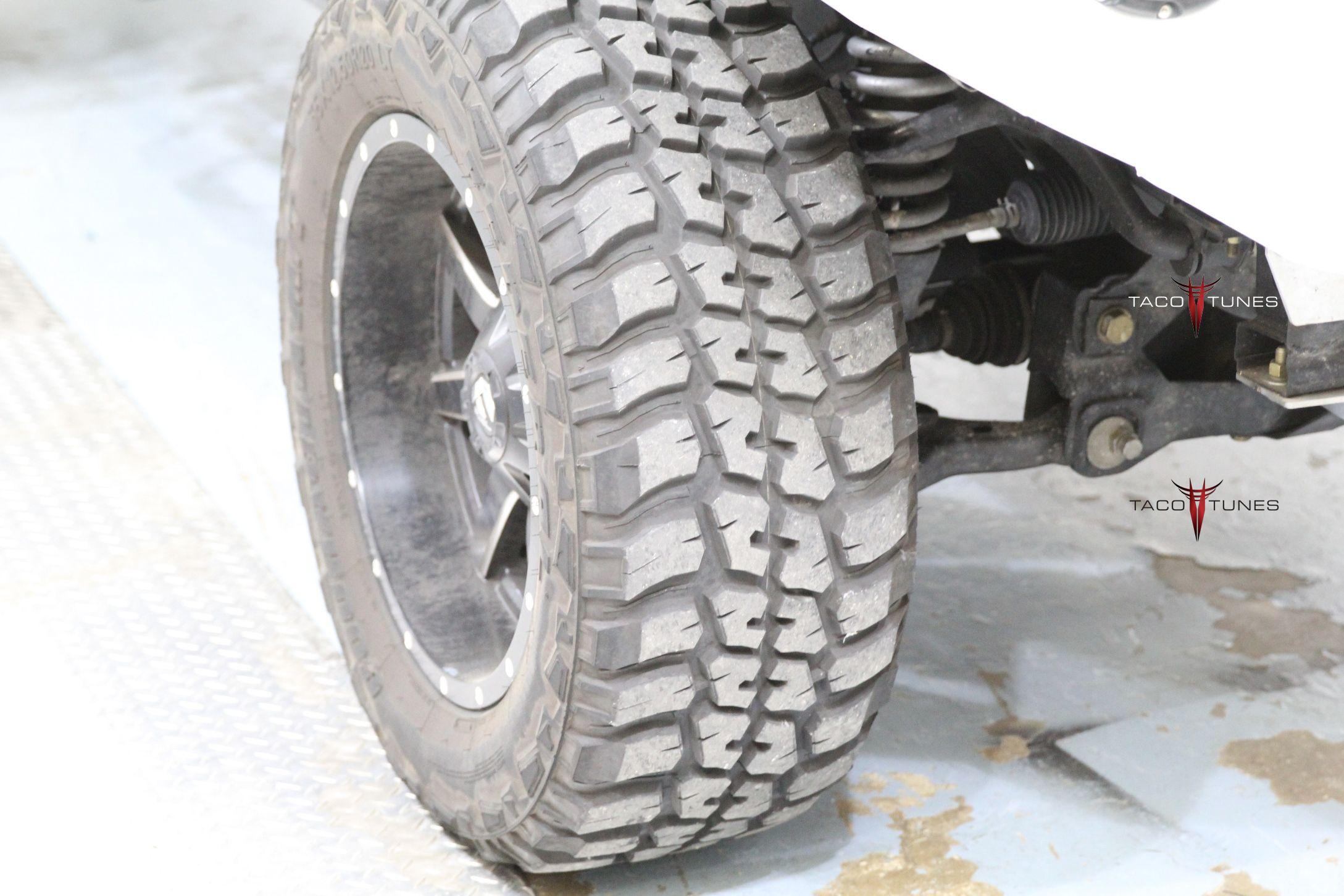

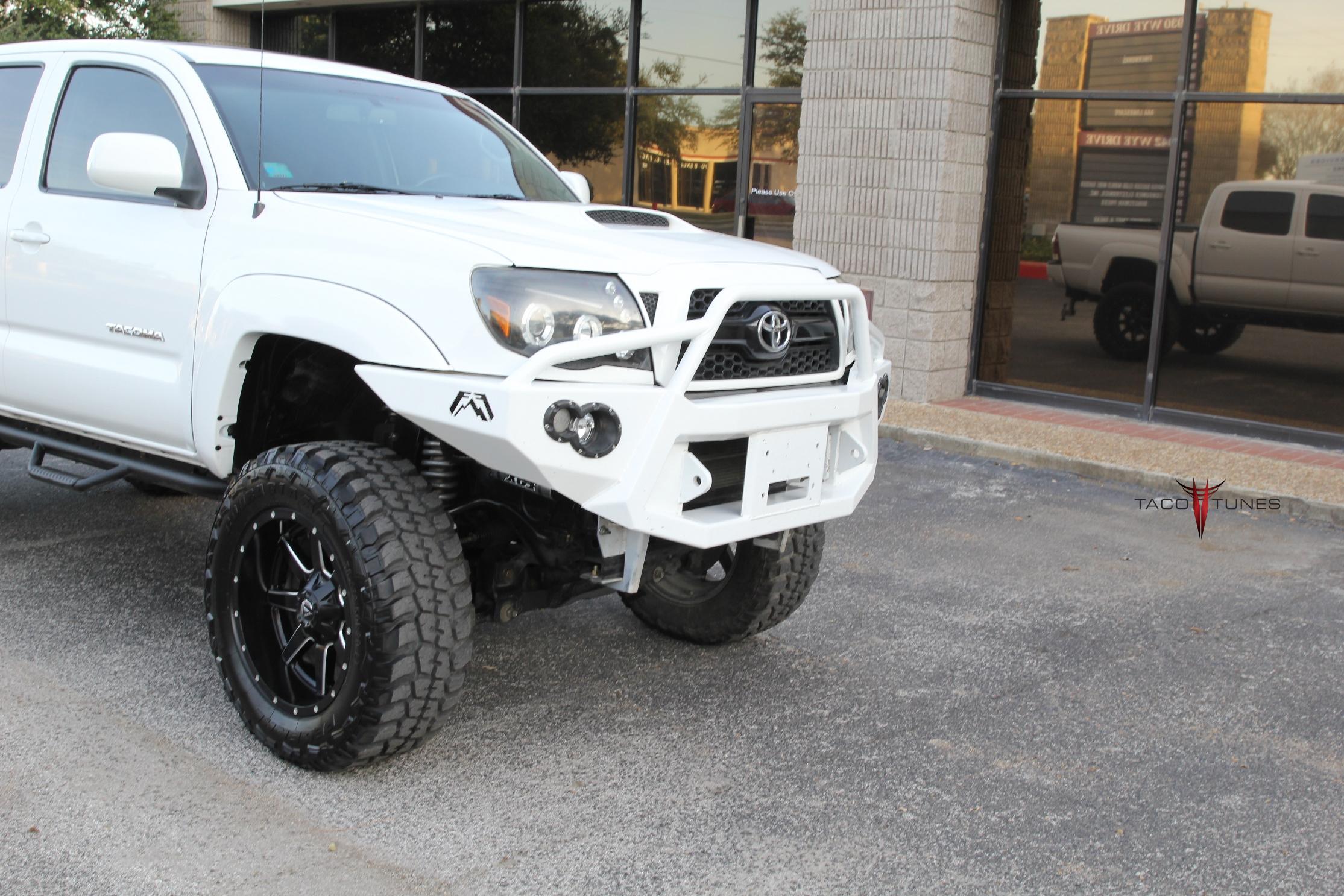

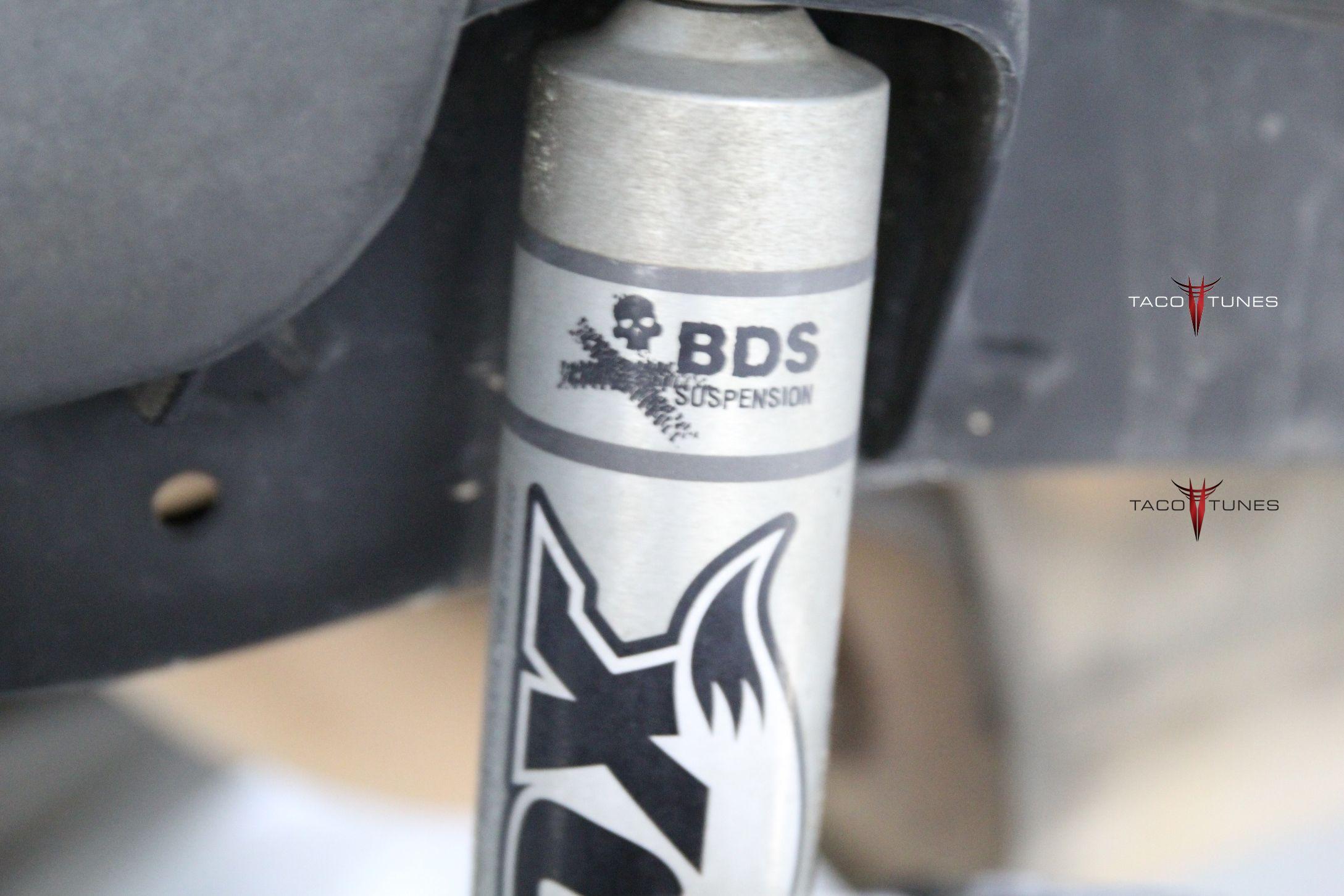

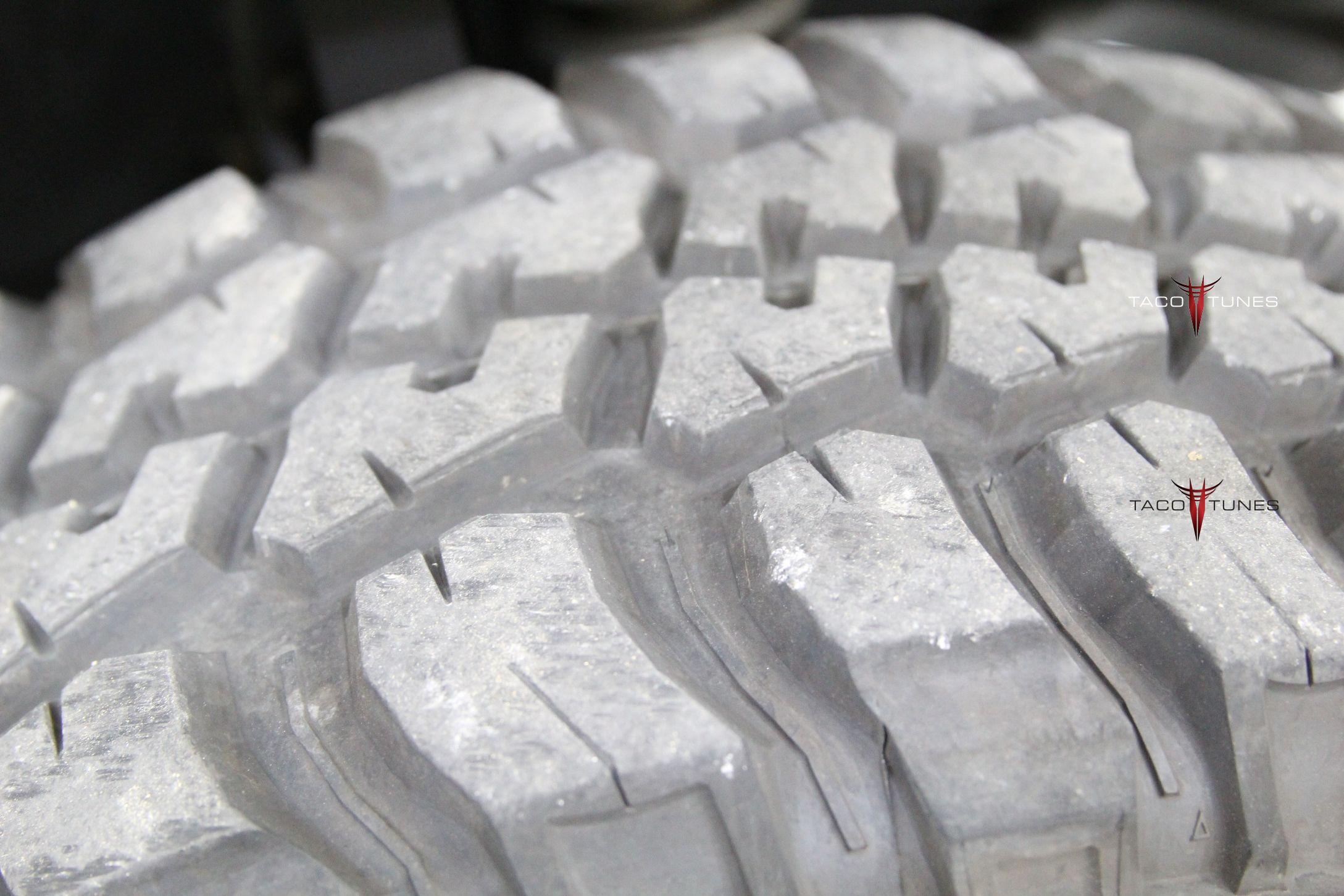

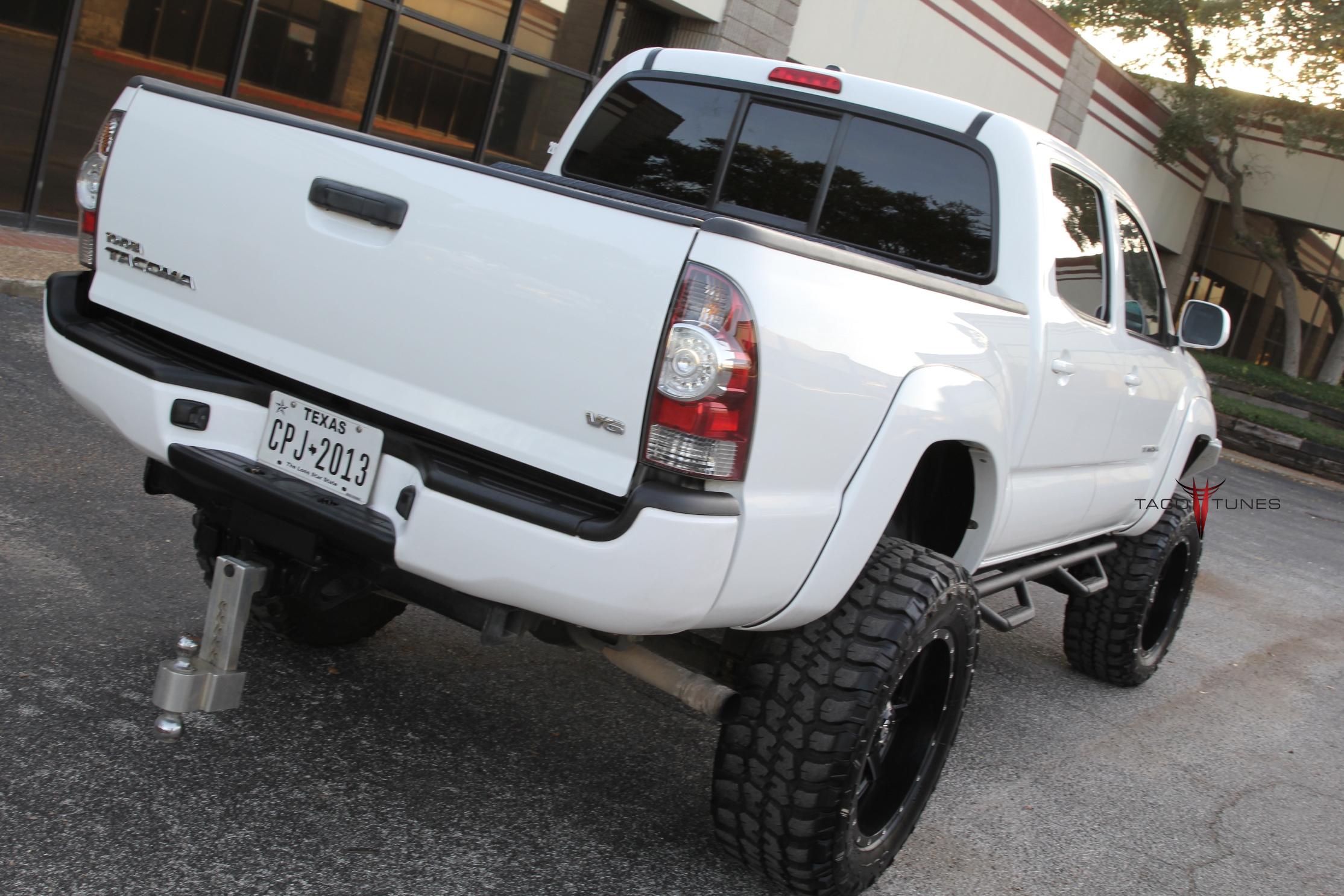

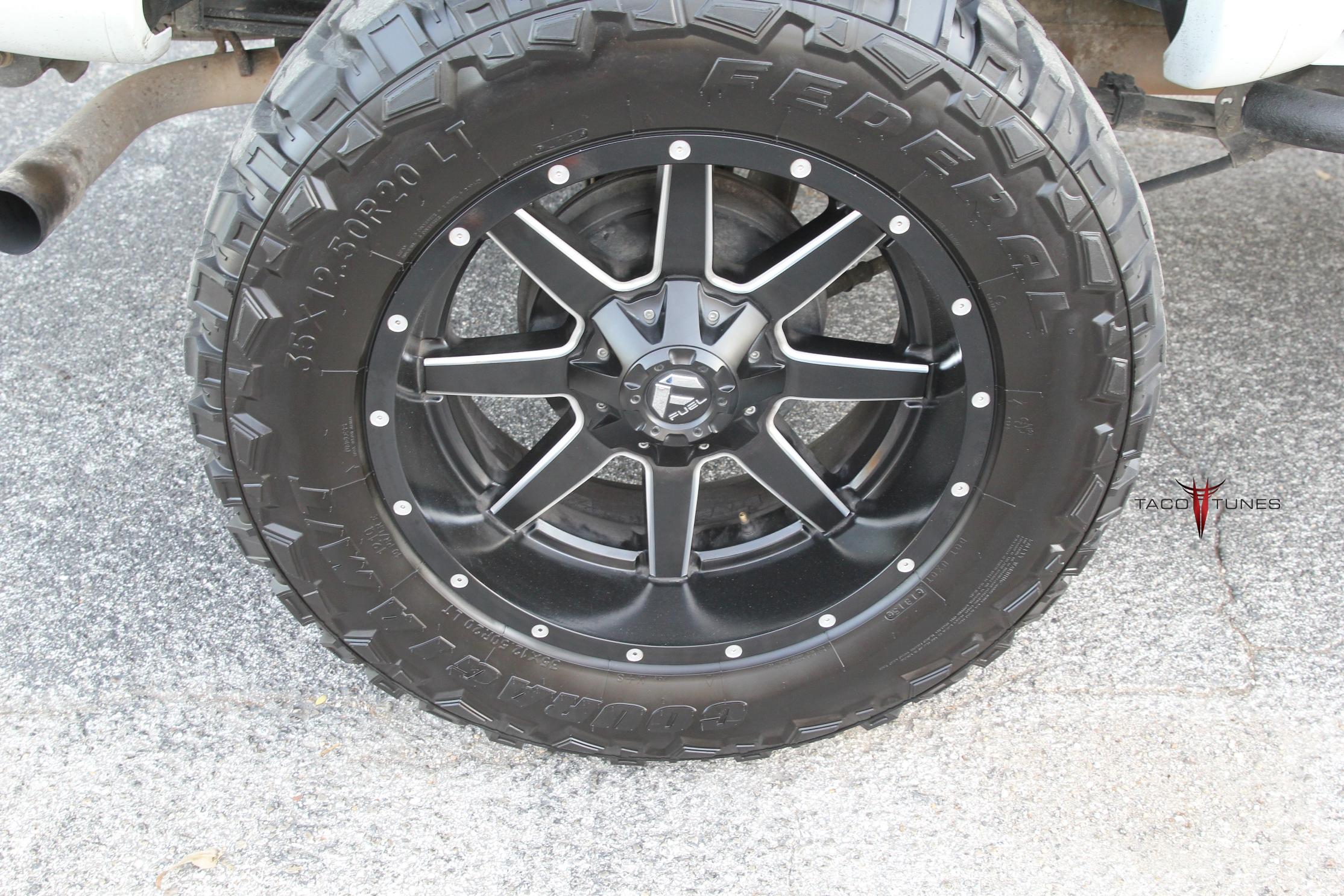

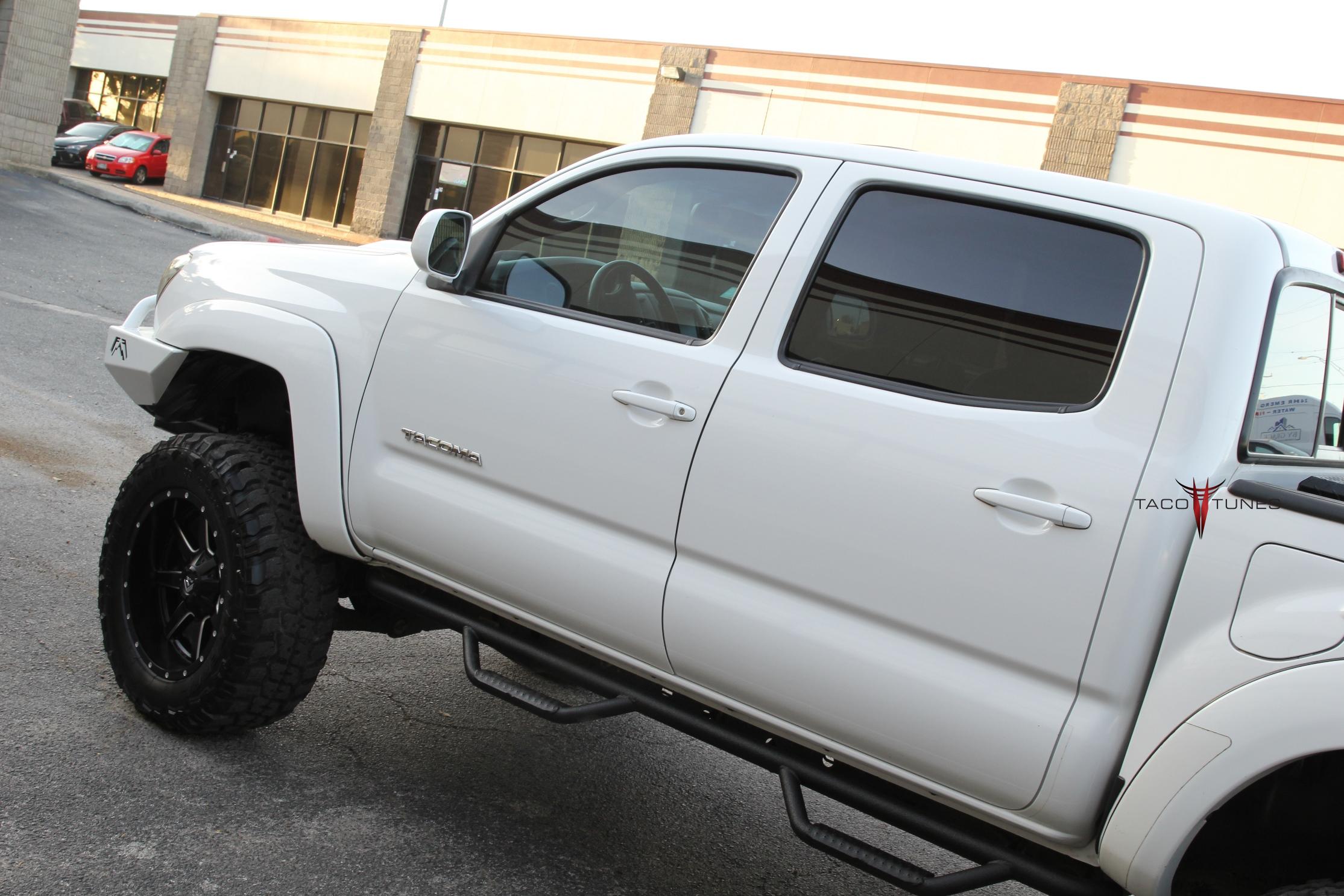

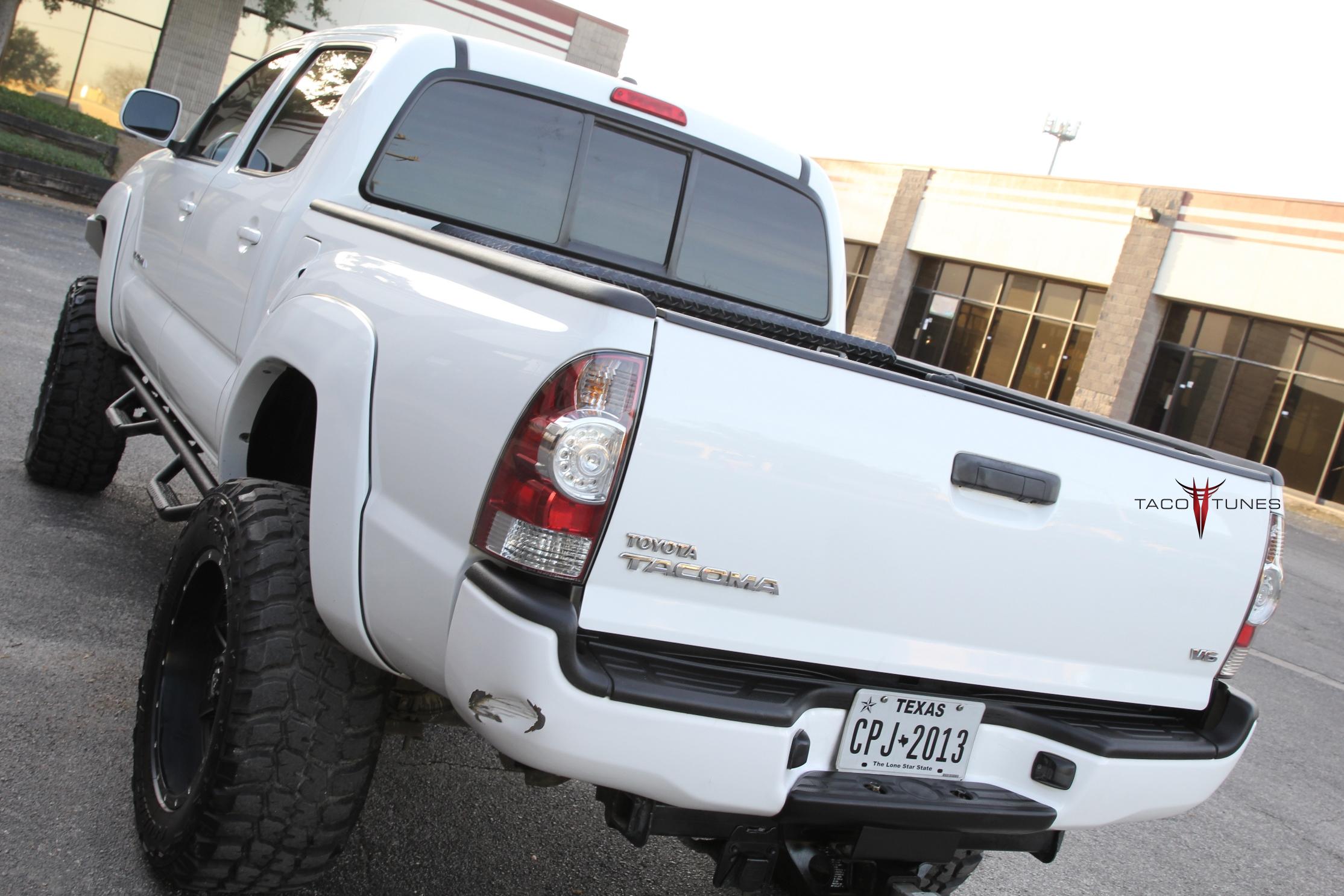

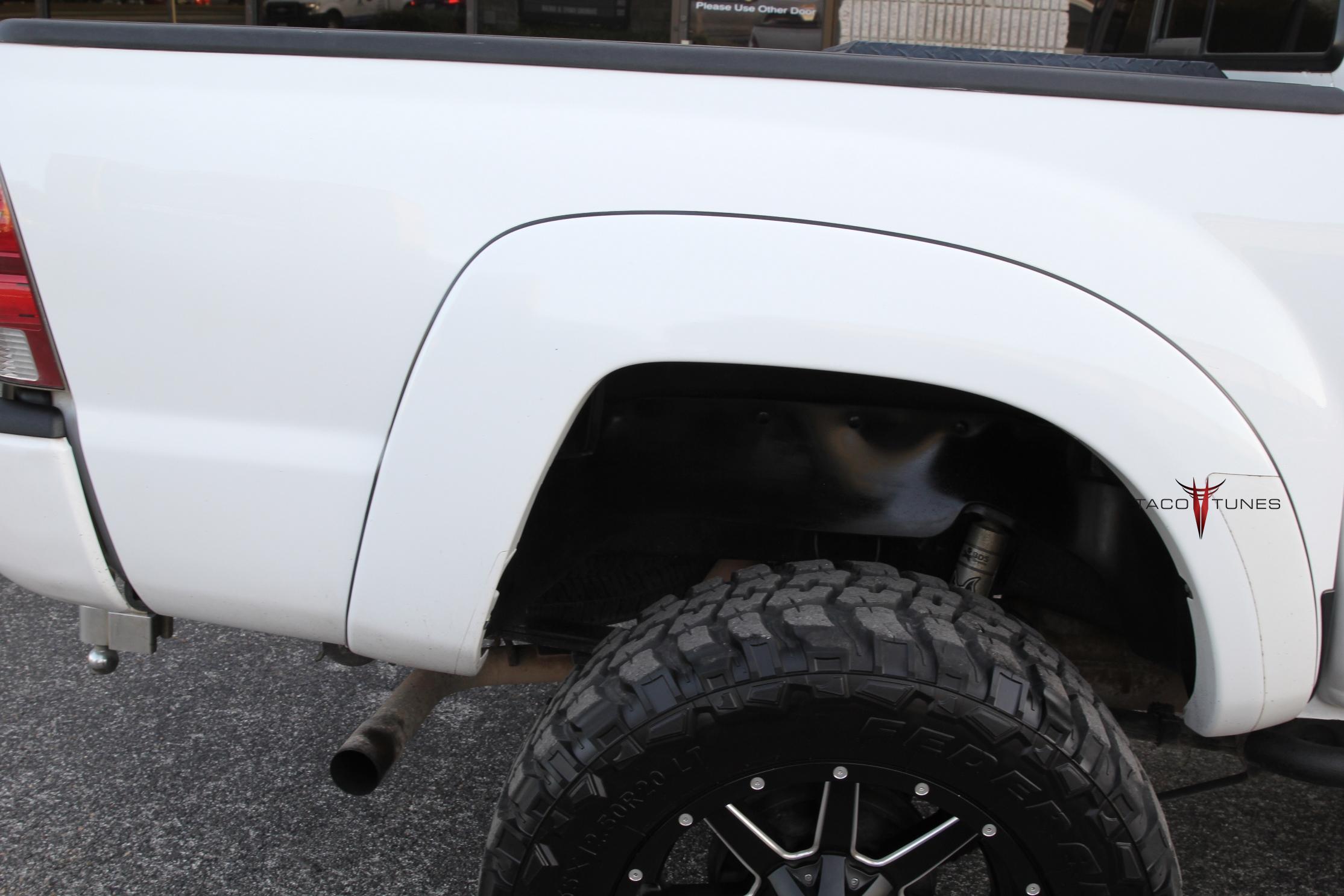

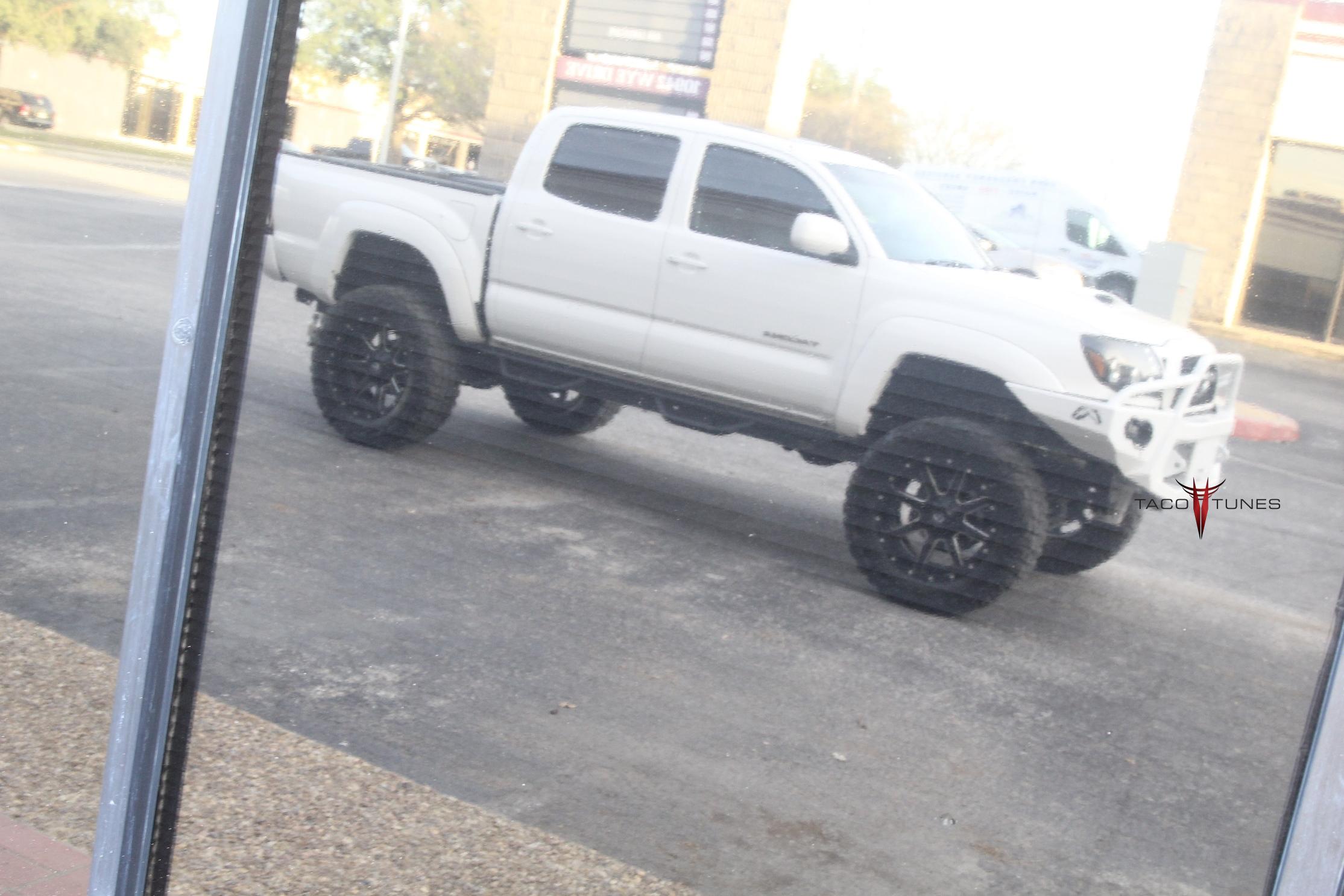

BDS Suspension Lift Kit Before and After Pictures tires wheels specs offset
BDS Suspension Lift Kit Before and After Pictures tires wheels specs offset . . . below are pictures of Toyota Tacoma Trucks that were lifted using BDS Suspension. We will provide the specs on each rig below. If you have friends that are using BDS suspension on their Toyota Tacoma Double Cab or Access cab, please have them send us pictures and specs so we can put on this page.
The head unit is like the “brain” of the entire audio system. These days head units have an amazing number of built-in and optional features; Bluetooth, Pandora, iHeart , Ipod, satellite, HD Radio, USB readers and many other interfaces and features Many also include backup camera display, navigation, DVD player along with many more features so where do you start? If you are looking to build a quality sound system and plan for future growth you need to be sure you head unit has the following options:
Must Haves:
High Pass Filter
Front Preamp Output RCA
Rear Preamp Output RCA
Subwoofer Preamp Output RCA
Nice Features:
Onboard EQ
Low Pass Filter
\
NOTE: If you have steering wheel controls for your audio, you will need to purchase a steering wheel interface. We have the easiest setup and instructions here **:
If you are going to stay with a basic, just select a decent name brand product and don’t worry about the features above.
Next decide do I want Navigation / DVD or just a good head unit?
Lately it seems like more and more people are steering way from Navigation units and just going with a head double DIN unit that will play DVDs or nice single DIN head unit
Next you will want to decide do I want single DIN or double DIN? Don’t get scared here, this is really easy! Head units generally come in either single DIN (180 x 50 mm panel) or double DIN (180 x 100 mm panel) size. The depth is not standardized. The US standard for a singe DIN head unit is 2″ x 7″ and the Double DIN sized head unit is a 4″ x 7″. Your new head unit will say single or double DIN.
Head Unit FAQ;
Why do I need an amp, my new stereo will output 50 watts per channel.
99% of all stock & aftermarket head units do not provide more than 20 watts RMS. Most manufacturers state the PEAK ratings in large print and the RMS rating in small print. Without getting all technical you want to look at RMS. Since most head units do not output much power, many will end up adding an amp.

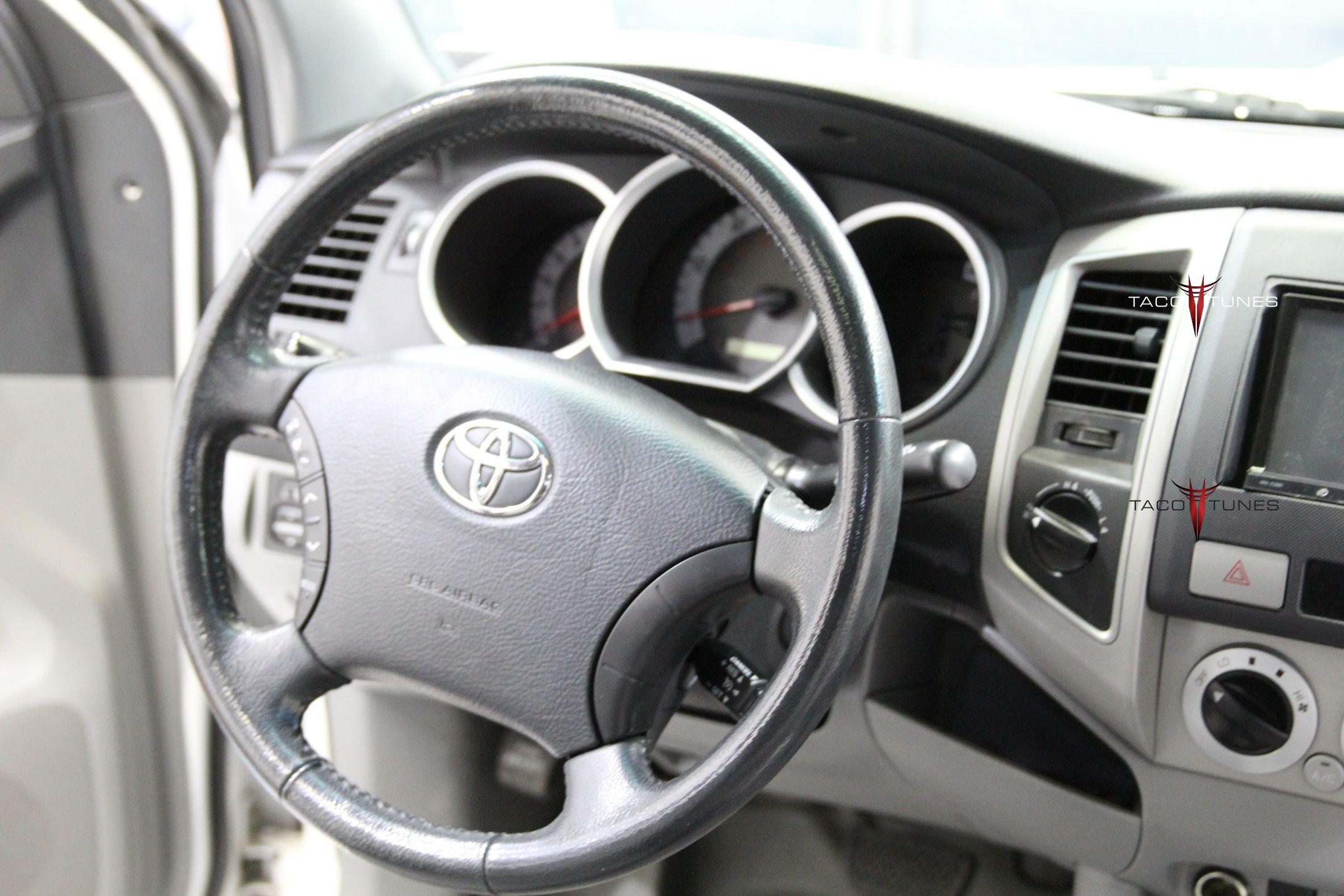

Will my steering wheel controls work with my new head unit?
Most new head units will require a steering wheel interface that integrates the new head unit to their existing steering wheel controls. We have custom kits just for your Toyota Tacoma Double Cab.
I have the JBL system, do I need anything special to install my new head unit / aftermarket stereo?
The JBL system includes a factory amplifier. If you want to add a new head unit, you will need to purchase a JBL interface kit. It will allow you to connect your new head unit to your factory JBL amp.
Will a 4, 5 or x inch screen fit in my Toyota Tacoma Double Cab?
Most head units will clearly state if they are single or double din units. The size of the screens can vary greatly. But the overall unit will usually be a single or double din.
Can I move my camera video feed from my mirror to my new after market stereo?
Yes, we can show you how to do that. We have a video and even offer the custom parts you will need to easily move your camera display from your rearview mirror to your new stereo with a screen. Keep in mind your head unit must have a camera input and support backup camera function.
Which brand and model aftermarket stereo / head unit do you recommend?
For a single DIN on the entry level side:
For a single DIN on the mid level side:
For a double DIN on the entry level side (No Nav):
What size speaker will fit in front door of my Toyota Tacoma Double Access Cab or Xrunner?
This information applies to [TACOFSYR] Toyota Tacoma Double Cabs

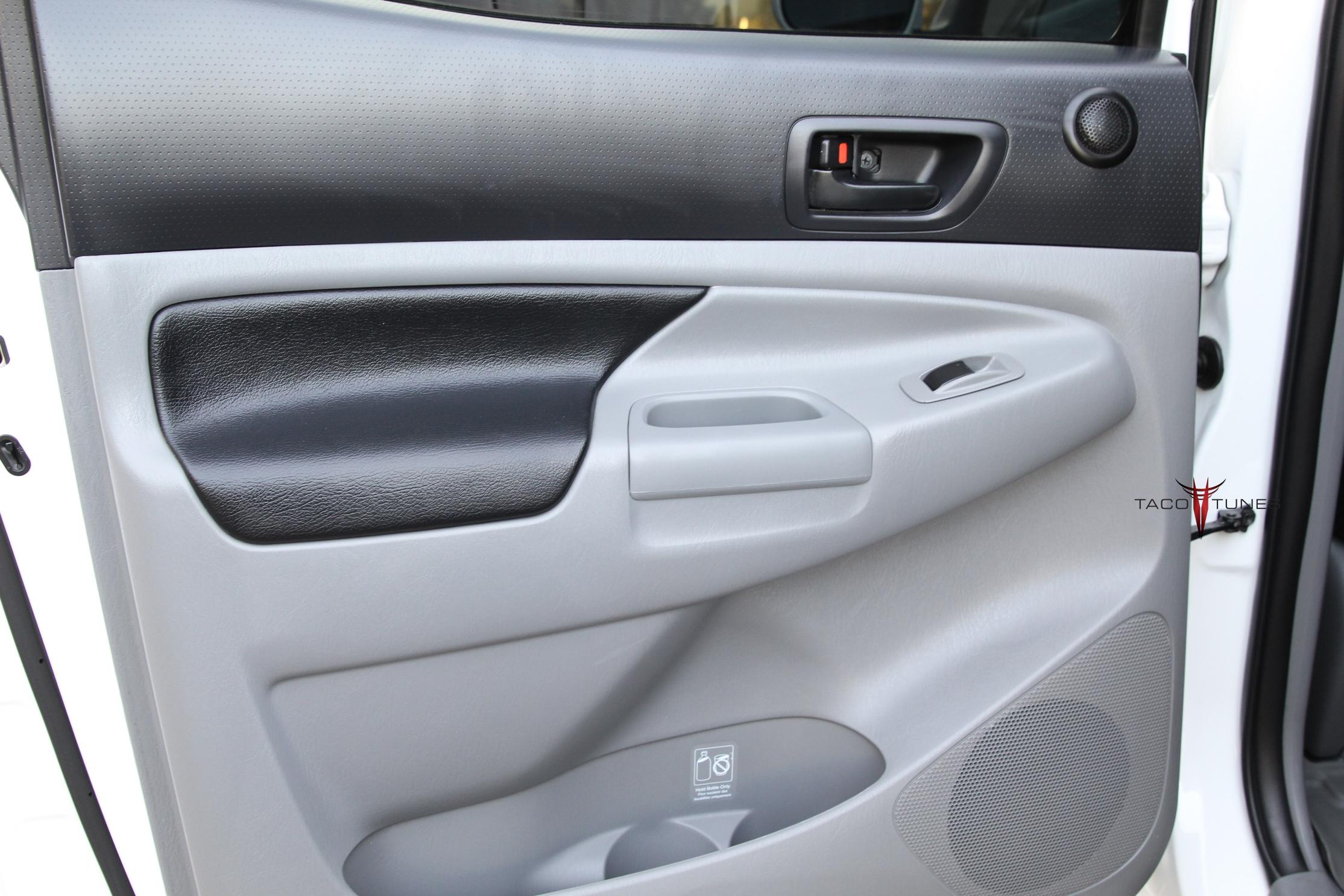

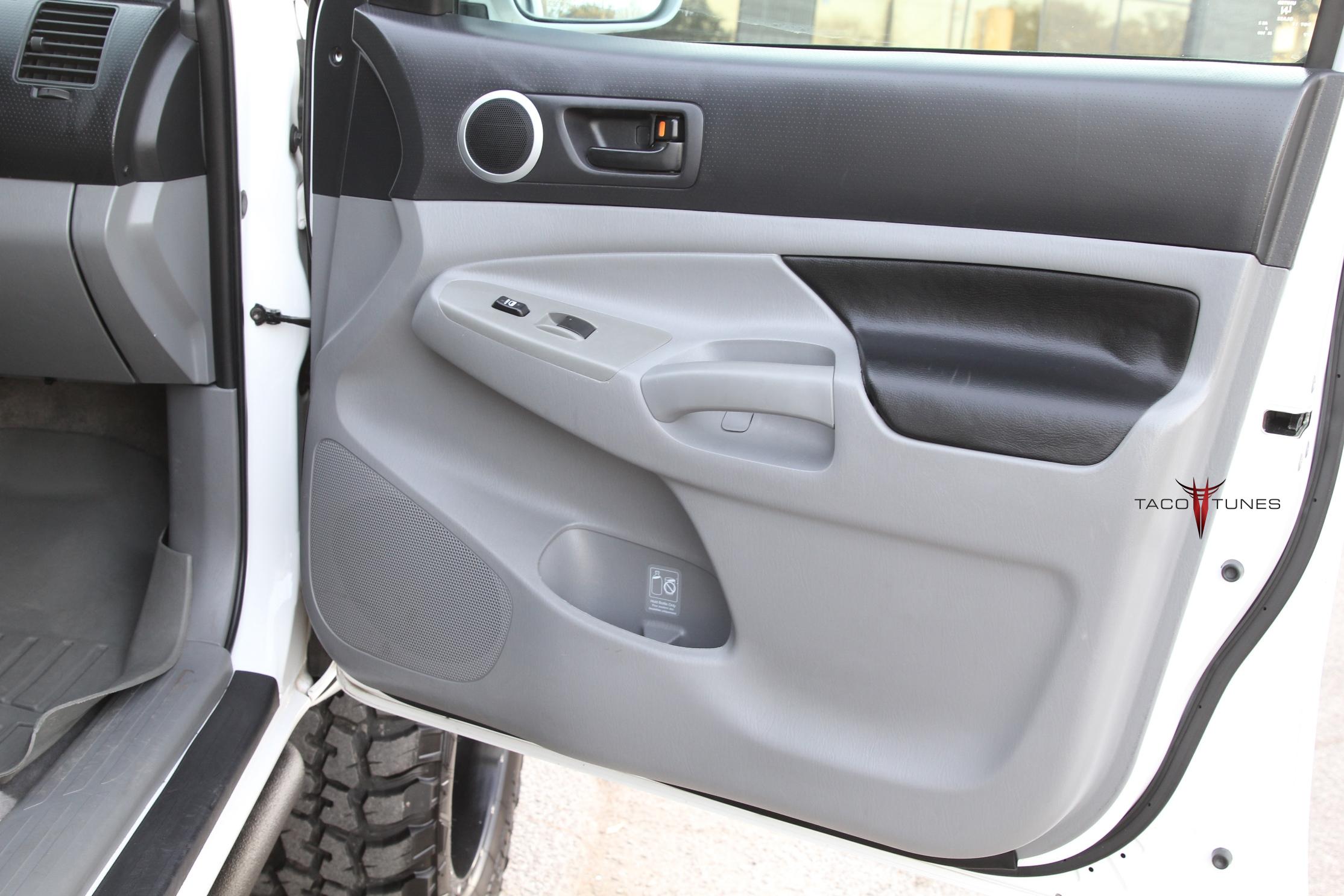

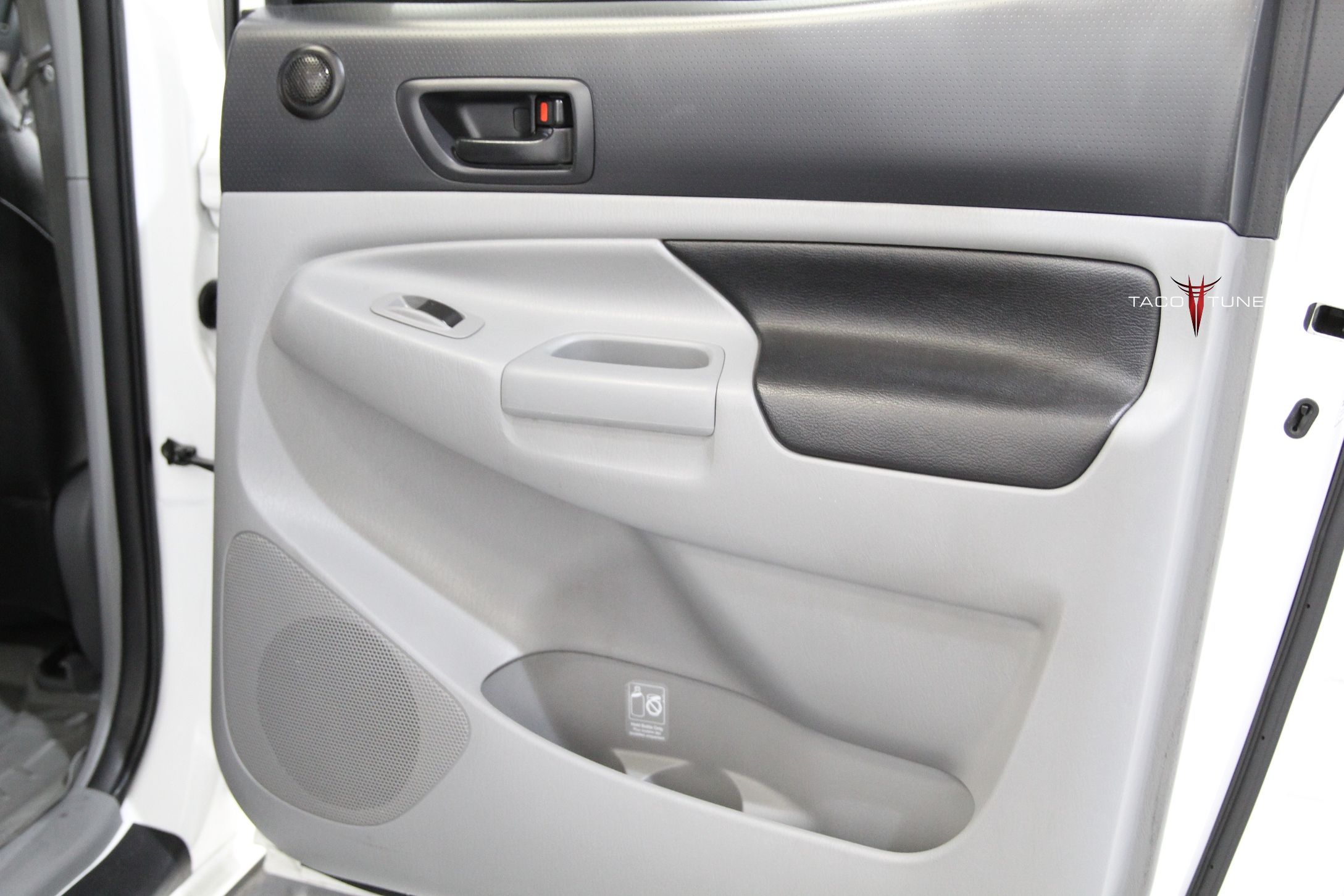

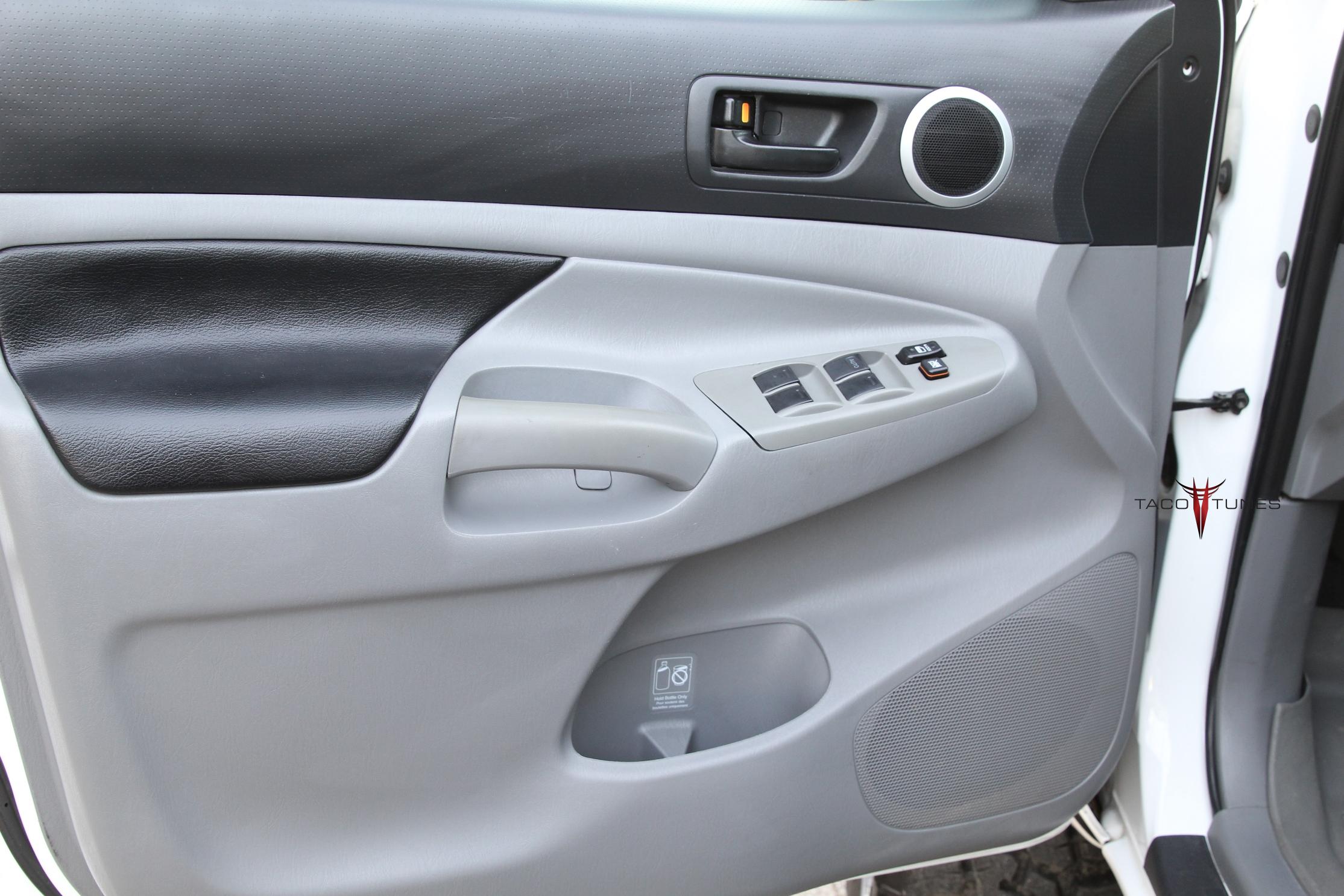

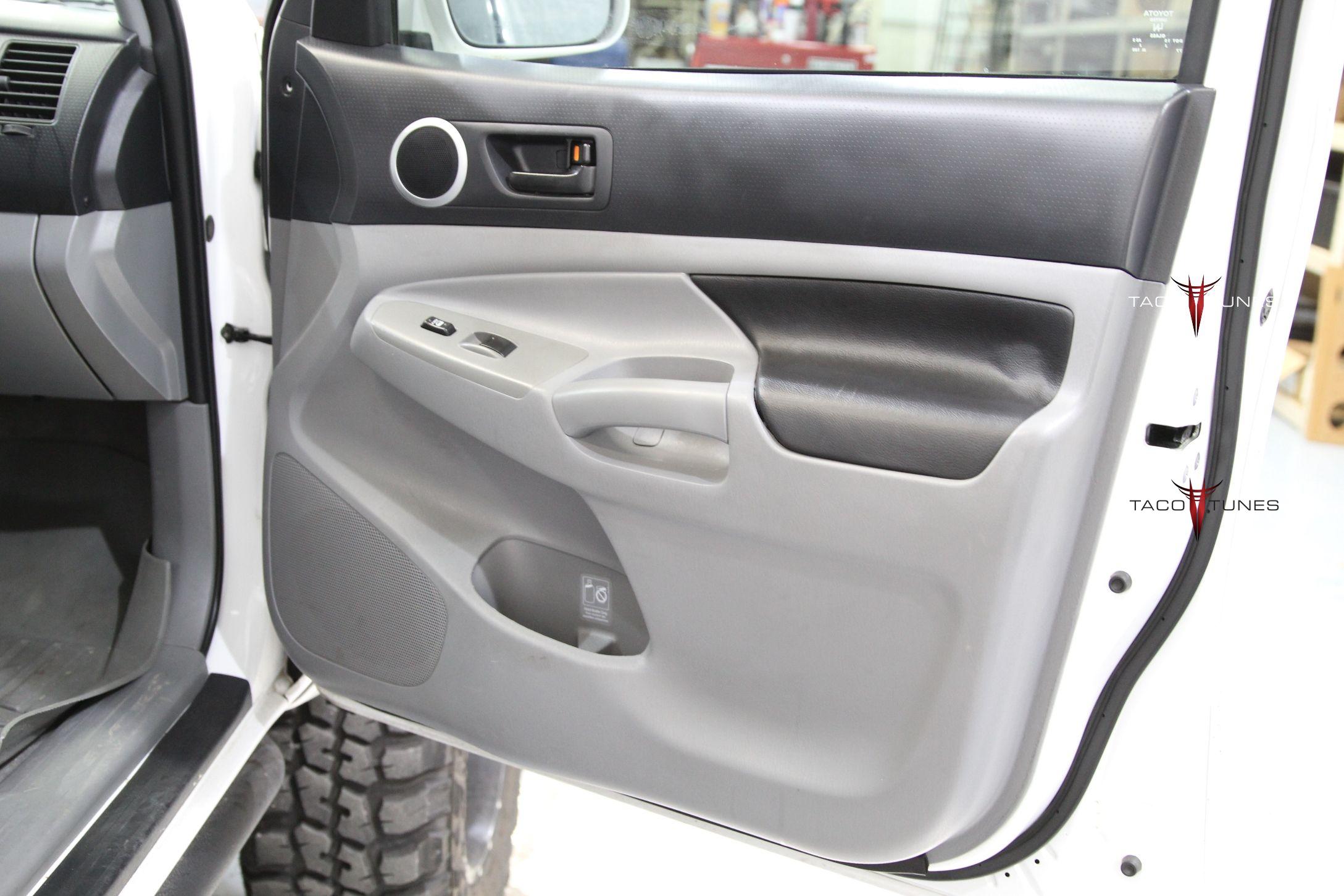

The front doors in your Toyota Tacoma Double Cab Access cab & Xrunner front doors can accommodate 6×9 inch speakers, 6.5 or 6.75 inch coaxial and component speakers using our tacotunes.com speaker adapters. We even offer tweeter mounting options for aftermarket tweeters in your Toyota Tacoma Toyota Tacoma Double Cab Access cab & Xrunner. The Access Cab, Double Cab and XRunner come with a 6×9 speaker from the factory. However after you remove the factor speakesr, you will end up with an odd shaped hole and that is where our speaker adapters help you install aftermarket speakers.
Our speaker mounting adapters for your Toyota Tacoma are 1″ thick and they provide a top mount depth of 3.25″. If you are installing 6×9 speakers this will work with just about every 6×9 speaker that has a top mount depth of 3.25 inches or less. If you are planning to install 6.5 inch coaxial speakers the standard mounting diameter of 5.1 inches will accommodate approximately 90% of all 6.5 inch speakers. Higher end 6.5″ & 6.75 speakers and /or component speakers will usually have a larger mounting diameter.
For more in depth explanation of speaker sizes please watch this video. It should answer most of your questions regarding speaker sizes and mounting depth:
Below is a video instructional video that will show you how to remove the door panel and installs speakers in a Toyota Tacoma Toyota Tacoma Double Cab Access cab & Xrunner.
Tina showing 6×9 speakers installed in Toyota Tacoma Double Cab Access Cab & XrunnerClick here for step by step instructions on removing the door panel and installing speakers.After you have “popped” out the bottom portion of the door panel you will “lift” the panel upwards to remove it from the door.
Is your Tacoma ready for an audio upgrade or maybe even a full makeover? tacotunes.com has the information and products you need to get it done. Whether you are looking for just a basic speaker upgrade or a full blown high quality turnkey audio package we have the parts and products that you need to get it done right; the first time.
Toyota Tacoma Stereo Subwoofer Amp installationToyota Tacoma Double Cab Stereo System Installation
Toyota Tacoma Stereo pictures complete audio system subwoofer amplifiers
Customer installs Complete Toyota Tacoma Stereo pictures complete audio system subwoofer amplifiers
Toyota Tacoma Stereo pictures complete audio system subwoofer amplifiers installed by one of our customers that took time to document his entire installation process.
Below is a detailed installation of a complete audio system installed in Toyota Tacoma. Customer installation pictures complete audio system subwoofer amplifiers
I bought my truck 3 months ago with 7 miles on it. It’s the 2009, Silver, 4×4, Double Cab, Long Bed, Hood Scoop, TRD, Tow Package… I couldn’t wait to rip out the sound system and put in something awesome. Well, my week long project is finally complete! Thanks to TacoTunes for some great ideas and great products supplied. The setup includes a long list of items… some I purchased on my own, such as headunit, bluetooth, XM, iPod connector, Amps, FatMat… and the rest I purchased from TacoTunes. I was pleasantly surprised to see such great quality and great looking items that I received.
Stock storage bins… those came out with a quickness.
Bare back after everything was pulled.
Took my Dremmel, cut the back out of the driver’s side compartment as so to make room for the sub box.
The front looks like this after the two side cuts… then had to cut the top off.
Looks like this…
Took the wirebrush attachment and cleaned up the cut plastic for a smoother edge.
The other compartment… final look. Note, I had to cutout the little tray. There are instructions on how to do this on TacoTunes.com
Final product.
Final product.
Here’s all the stuff going in.
Massive power wire attached to battery!! 20 feet of it… felt like 20 lbs!
Main power wire is red, blue power wire 4 gauge from the distro block to amps, 4 gauge brown ground wire for amps, and many feet of tweeter wire, speaker wires, and sub wire
RCA’s from HU to amps, fuse block w/ custom engine compartment mount, distro power block, custom speaker mounts for the doors.
Pioneer AVIC-Z2 Hard Drive Navigation & Media Center, iPod Adapter, and Boyo Backup Cam. Didn’t have the boxes for my XM and Bluetooth.
FatMat… great stuff. Got off Ebay… 50 sq ft for $80 shipped.
Amp Mounting board and blue plexiglass
Image Dynamics IDQ10 D4v3
Image Dynamics IDQ10 D4v3
TacoTunes custom sub box.
Install started with prying out the temp controls. Again, these instructions can be found on TacoTunes.com. I would recommend using a butter knife. My SOG knife was a bit sharp and can slice right through plastic.
Disconnected the temp controls.
My RCA hookups and amp remote wire connections.
Here is where I tapped into for the Reverse Sensor Wire… It’s on this connector… the red wire. This is behind the driver side kick panel.
NaBehind the coin tray, left of the steering wheel… there’s your fuse box. I tapped into the black connector here for the Speed Sensor Wirevigation Stereo installation GPS Steering Wheel Control Toyota Tacoma
Navigation SterHere’s my XM unit. It’s mounted to the computer bracket behind the glove box and above the right side kick panel. I used tie wraps. Kindof ghetto, but it worked nicely! Also shown is the TSS-Radio XM antenna wire that connects to the factory antenna… found here: http://www.tss-radio.com/lexus-shark…er-p-5647.htmleo installation GPS Steering Wheel Control Toyota Tacoma
Further back view.
Here is the factory XM antenna connector… behind driver’s side kick panel.
Radios… changing of the guard.

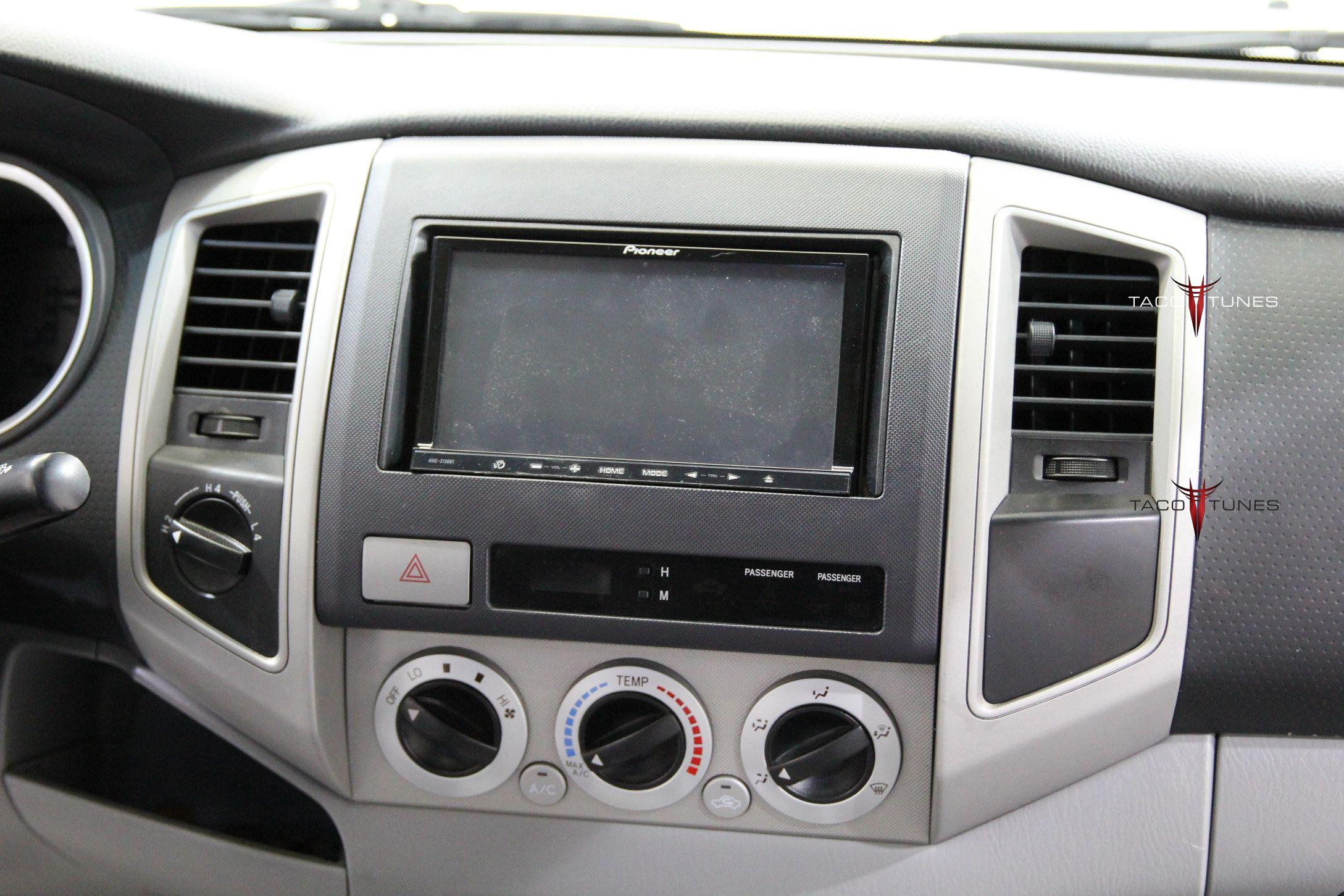

Here’s the HU installed… I created a custom background in photoshop.
Mounted my bluetooth mic here. No one ever sees it there.
Mounted the bluetooth adapter here, under the cup holder in the center console.
iPod adapter went on the other side.
iPod cable routed here for now. I hook it to my iPhone since that’s where I normally keep it.
Door work time… disassembly instructions can be found on TacoTunes.com. Left Front Door.
Left Rear Door.
Rear Right Door w/ FatMat
Front Right Door w/ FatMat
Left Front Door w/ tweeter and speaker wire run.
Left Front Door w/ speaker and tweeter mounted and connected.
ID XS65 speaker and TacoTunes custom mount.
ID XS tweeter and TacoTunes custom mount.
The Right Front speaker and its connections before mounting. Make sure to tie wrap wire down like this so it doesn’t interfere with the window when it’s down.
Front Right Door all mounted.
Right Rear Door and ID CTX65.
Rear wall… FatMatted.
Preparing the massive Power wire for insertion. I hooked mine like a fish and taped it real tight… the sprayed it with lubricant. There was really only one opening to go through. I HIGHLY recommend using a lubricant spray of some sort! Also especially helpful when wiring speaker wire through the door tubes. After sprayed, the wires slip right in, through, and out… like a wet turd. =)
This process was not easy. Kindof like shoving a MK-48 Adcap Missile through a basketball hoop. It’s not going to happen without a little force. I’m not gonna lie… there was a little cursing, but I wised up, carefully cut a small slit, and use PLENTY of lube. Sounds so dirty, but just as satisfying in the end. It ended up out right in the end.
Here’s the Fuse Box connected and showing voltage.
Another pic…
Here’s the Fuse Box connected and showing voltage.
Run through here… BTW, NO… running it next to my speaker wires does not affect my sound in any way. Everything was grounded correctly and those wires are seriously insulated.
In the back now… drilled some holes and pulled all the wires through.
How to set gain on alpine pdx amp
Prepping the amp board for amp installation… pre-drilling holes.
Turning the amp board over… mounted the crossovers from the XS package and power distro block on the back. Also pre-drilled holes for wire insertion to the other side.
Close up of crossovers. Had to take the covers off to set the correct pins for the speaker setup.
This was in the amp testing stage. I recorded a disk with 10 second clips, one of 1000 hz (for setting gain on 4 channel amp) and the other a 50 hz (for setting gain on single channel sub amp). I had the individual tracks play over and over so I could test the amps and tweek the gain for their respective tones… this is so I’m getting max use of my amps without blowing anything. You can also do this by ear by turning the gain up and listening for distortion and turning back down a little. I just wanted to be a little more precise. I have the formula for finding out these settings if anyone wants it.
Here’s the multimeter hooked up while the tones play and give me a reading.
LED’s mounted in the amp box.
Everything hooked up, ready for amps to be installed and connected.
Close up picture of wiring and crossovers.
Another view. Note I have tie wraps cut real low on the rear speaker wires. This is so I didn’t get them confused with the front speaker wires on their respective sides.
Pulled through, ready for amp install.
Hooked up… Lit up!
Toyota Tacoma Double Cab Stereo System Installation
Last piece to the puzzle… installing the sub box to the rear wall and hooking up the sub.
Wired as so…
Final product!
Complete Audio System Installation Toyota Tacoma
Complete Audio System Installation Toyota Tacoma
Here is the list of everything installed: Pioneer AVIC-Z2 HDD Navigation Media Center Pioneer GEX-P10XM Receiver w/ Nav Traffic Pioneer CD-IB100II iPod adapter Pioneer ND-BT1 Bluetooth adapter Boyo RearView License Plate Camera PAC SWI-PS steering wheel control unit Image Dynamics XS65 Components (front doors) Image Dynamics CTX65 Coaxials (rear doors) Image Dynamics IDQ D4v3 (sub) Alpine PDX-4.100 Alpine PDX-1.600 Sub Box with polyfill Amp Mounting Board (“Tacoma” cutout with blue plexiglass and LED lighting) Custom Amp Kit (includes power, speaker, RCA wires/fuse block/power distro block/screws, wire connectors, tie wraps) Custom Speaker mounts Fat Mat sound dampener
The pictures are pretty much in sequential order so you can see the process of the install. I’ve also included pics of all the pieces of installed equipment so you can see what I used. Here it goes:
Stock storage bins… those came out with a quickness.
www.tacotunes.com products used in this installation:
If you are wondering, How to install tweeters in to your Toyota Tacoma, you have come to the right place!
2016+ Toyota Tacoma
2005-2015 Toyota Tacoma
If you are considering installing aftermarket tweeters in your Toyota Tacoma, please take a few minutes and review the information below. I am fairly certain all your questions will be answered. This page was composed in an effort to answer the MANY questions and concerns we receive regarding tweeters installation in your Toyota Tacoma.
Tweeter Installation FAQ:
Q: How do I install tweeters in my Toyota Tacoma?
By using a component set and our speaker & tweeter adapters, you can quickly and easily install an aftermarket component set into your Toyota Tacoma. We offer custom sized tweeter mounts to help you get them installed quickly and easily. Be sure to check out the videos below for detailed installation tips. Don’t forget to check out our pre-packaged component sets and speaker / tweeter installation kits in our shopping cart.
Q: My tweeters say they are 1″, why do I need to order custom sized mounts?
In MOST cases aftermarket tweeters will be larger than 1″. In most cases 1″ refers to the surface area of the tweeter itself. The mounting diamter is usually larger. Most manufacters will provided the cutout or mounting diamter. This refers to the size of “hole” you need to mount the tweeters. We offer custom sizing as explained in your videos below.
Q: Do I need to use the passive crossover that was included with my component set? Can I just use the existing wiring in my Toyota Tacoma?
Y – E – S! You must use the crossovers included in your component speaker setup. In most cases, if you do not use the crossover you will damage the tweeters by introducing the lower frequency range they are not equipped to handle. The stock wiring coming from your Toyota Tacoma (at time of this post) is NOT equipped with a crossover. NOTE: If you are running an active crossover system, you probably don’t need to be reading this informationJ.
Q: Can I install aftermarket tweeters by using the factory speaker wire?
Yes, but see the detailed information below.
Q: I already installed a set of 6×9 or 6.5 inch speakers and want to add a tweeter; can I add these to my existing speakers?
Possibly, however, please see below for detailed answer.
Detailed answer to questions above:
In our opinion, the best case scenario to add tweeters to your Toyota Tacoma is to purchase a component set. Component sets generally include a midrange woofer, tweeter & passive crossover. This type of system will provide the best case scenario for a number of reasons. 1. The tweeter & midrange woofer will be properly “matched” to produce the best frequency range. Additionally, it will avoid duplicating signal and wasting power coming from the same speaker system. 2. You will be providing the correct resistance load (Ohms) to your head unit or amp. 3. Alleviates nuances and installation complications of adding mismatched drivers. NOTE: Stand alone tweeters are generally equipped with an inline crossover.
Check out our plug and play tweeter wire harness adapters:
If you already purchased speakers and would like to add tweeters this is possible. However, you need to consider the following. You MUST have a crossover in place to protect the tweeter from lower frequency range. Some aftermarket / stand – alone tweeters have these “inline”. An example is the:
You would run this in “parallel” with your existing speaker. However, this creates a “potential” problem. When you wire two drivers in parallel, you will change the resistance and final load (Ohm) delivered to your head unit or amp. In most cases you will end up with a 2 Ohm load. Most head units are not setup to handle the heat generated by a 2 ohm load. This will lead to premature head unit failure due to excessive heat. Many amplifiers can handle a 2 ohm load. Ok so now the power issue is explained now you have a staging issue to contend with. Your speakers and tweeters will now be producing the same frequency range. This is because your speakers have built in tweeters as well.
We are not stating this will not work, it is just not best practice. And, in many cases your general car audio enthusiast will be happy with the ‘extra” signal they are getting.
NOTE: Our mission is to provide the best sound system and quality. Therefore we do NOT suggest adding stand – alone tweeters to your sound system. Again, we are not stating it does not work, it is simply does not meet industry standards for best practice.
In an effort to provide the best and most cost effective way of adding aftermarket tweeters to your Toyota Tacoma. We are not implying it is the only method.
General Questions:
What is a tweeter and why do I need one:
Currently, (this was published 2013), technology does not provide a single “driver” that is able to reproduce the entire audio frequency range audible to a human being. Humans in general can process an audible frequency range between 20Hz & 20,000Hz.
NOTE: Many people refer to drivers as speakers, when in fact speakers are comprised of a set of drivers joined together to create a speaker system. A tweeter is not a speaker, it is actually a driver, just like a midrange woofer or subwoofer are actually drivers. If you want a sound system to reproduce sound accurately and with great clarity a good set of drivers is required.
Q: Is tweeter placement important?:
Tweeter placement is the MOST important of all drivers. The higher the frequency range the more directional it becomes. Check out the videos below on understanding the frequency range.
Q: What is crossover and why do I need it.
There are two types of crossovers that we use in car audio; active and passive. In this answer, we will cover a passive crossover. If you are familiar with active crossovers, you probably don’t need to be reading this information J. The basic task for a passive crossover is to send the high frequency signal to the tweeter and the lower frequency signal to the mid range driver/woofer.. A crossover is basically two frequency filters working in parallel. A high pass section and a low pass section. The high pass section passes high frequencies, the low pass passes low frequencies. The high pass is placed in series with the tweeter, and the low pass is in series with the woofer. Generally speaking a two way crossover will have six terminals. Two in (signal from head unit or amp) , and four out (signal out to tweeter and mid range). Usually the two sections (high-pass and low-pass) are in parallel and both sections ONLY work properly when the woofer and tweeter are both attached and operational.
How to remove stock stereo and install new aftermarket head unit
You want to install an Alpine, Clarion, JVC, Jensen, Kenwood, Pioneer, Sony, or other brand(s) . . .but you don’t want to lose the stock look of your truck? We will show you how to remove stock stereo and install new aftermarket head unit.
Installation kit designed to integrate an aftermarket head unit / receiver into your Tacoma vehicle dash.
Head units generally come in either single DIN (180 x 50 mm panel) or double DIN (180 x 100 mm panel) size. The depth is not standardized. The US standard for a DIN radio is 2″ x 7″ and the Double DIN sized radio is a 4″ x 7″. Your new head unit will say single or double DIN.
Tina will be showing you how to remove your old stereo and dashboard. From your Toyota 4Runner and Install a new after market head unit.
Before you start any audio project we recommend that you disconnect the battery to ensure a safe install.
Tina laughing at something!
Gently insert a putty or butter knife below the AC knobs as shown. We HIGHLY recommend applying blue painter’s tape around the areas you will be working. This will alleviate potential dash scratches.
As shown above, gently pry downward to remove the AC control panel.
AC Panel Removed.
You can leave it hanging or remove the connectors and remove out of the way.
If you will be performing a major stereo upgrade with amps, Ipod, Satellite etc, it would be a good idea to remove the AC controls by simply unplugging the harnesses.
Using 1 hand to hold the head unit, remove the plugs on the back of the stereo with the other.
They have a release tab that you need to push to release. No need to label as they are all different sizes. Be careful this is where most dash scratches seem to occur.
If you purchased the dash kit and tools from our website, use the 10mm socket included in the kit. Using the proper size socket, remove the 4 bolts under the stereo as shown.
As shown, pull the old head unit straight out and away from the dash.
Using 1 hand to hold the head unit, remove the plugs on the back of the stereo with the other.
They have a release tab that you need to push to release. No need to label as they are all different sizes. Be careful this is where most dash scratches seem to occur.
To remove the antennae just gently pull straight out.
Head unit removed.
Head unit removed.
Head unit and wiring steps.
Locate the wire harness included with your stereo and the wire harness we included in your dash kit. If you purchased the JBL adapter kit, you will receive another set of instructions in your JBL wiring kit.
Match the colors on the two wire harnesses and twist them together as shown.
Using crimp caps and crimp tool, insert the wire into the cap and crimp as shown. We include crimp caps with the Toyota specific wire harness.
Using crimp caps and crimp tool, insert the wire into the cap and crimp as shown. We include crimp caps with the Toyota specific wire harness.
Stereo harness connected to toyota wire harness.
Close up.
Plug stereo harness into the back of the head unit.
This will also be the time to plug in USB, IPOD or other devices to your new head unit.
Assemble dash kit per instructions included. Use a piece of cardboard to protect the finish on your new dash kit.
Assemble dash kit per instructions included. Use a piece of cardboard to protect the finish on your new dash kit.
Ensure proper fit and finish.
Remove the hazard button and clock from old head unit. There are four tabs holding the this module.
Ready for installation
Check all your cables.
Match the plugs from your truck to the wire harness and simply plug them in.
Don’t forget your antennae.
No cutting of your factory wires.
True plug and play installation.
Turn on the truck on and ensure your stereo and hazard lights work.
Install the head unit into truck.
Locate the four screws from the old head unit.
Tighten the 4 screws as shown.
Tighten the 4 screws as shown.
Re-connect the wires to your AC controls and ensure they are working.
Lift into place and push the controls back into the dash.

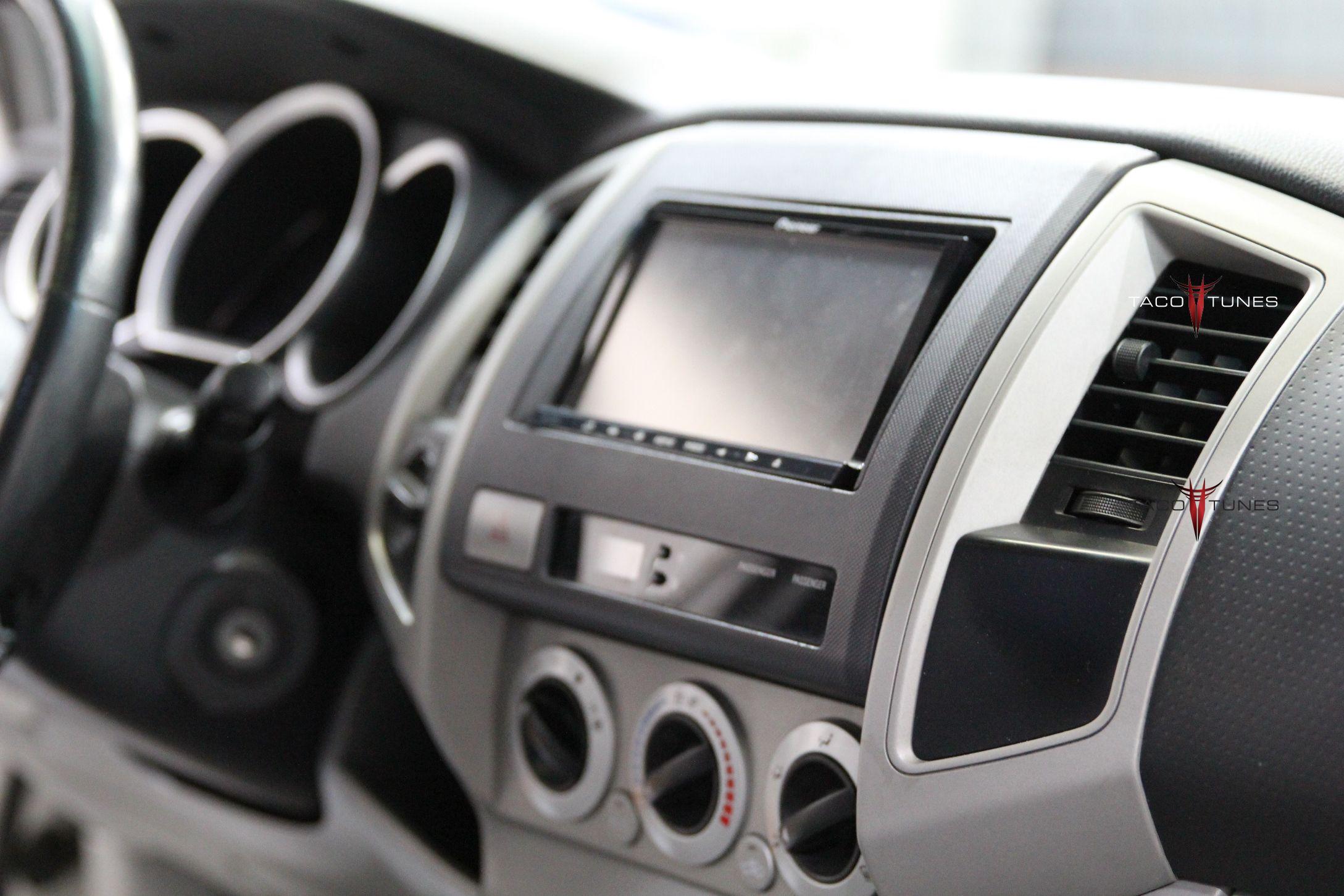

Congratulations, your new head unit is installed.
Toyota 4Runner Stereo Installation and dash removal instructions
Toyota 4Runner Stereo Installation and dash removal instructions
Toyota 4Runner Stereo Installation and dash removal instructions
How to install Ipod Zune MP3 in your Toyota Tacoma Double Cab [TacoYR1]
How to install in dash receiver in your Toyota Tacoma Double Cab [TacoYR1]
How to install radio in your Toyota Tacoma Double Cab [TacoYR1]
How to install HD radio Sirius and XM in your Toyota Tacoma Double Cab [TacoYR1]
How to remove the factory stereo in your Toyota Tacoma Double Cab [TacoYR1]
Dash removal Toyota Tacoma Double Cab [TacoYR1]
Wiring new stereo Toyota Tacoma Double Cab [TacoYR1]
Wire harness adapter Toyota Tacoma Double Cab [TacoYR1]
Double Din Single DIN Toyota Tacoma Double Cab [TacoYR1]
BTW, for a few dollars more (not much) we have bundled speaker kits iwth Image Dynamcis CTX65CS components speakers for the front doors and CTX65 Coax for the rear doors. They handle more power and will give a bit more mid bass. They are very popular speakers in the car audio world.
How are you planning to power the speakers? Any plans for a sub down the road?
E-mail Address: [email protected] First Name: Mike Last Name: Farhat Company: Phone Number: xxx9939747 Request:
I want to install Infinity Kappa 62.9i 6.5″ speakers all the way around my 2012 Tacoma Double Cab. Can you guys tell me the adapters and wiring harnesses I need?
